Băng tải - Gàu tải > SKF > Fafnir® Two-Bolt Flanged Units Eccentric Locking Collar

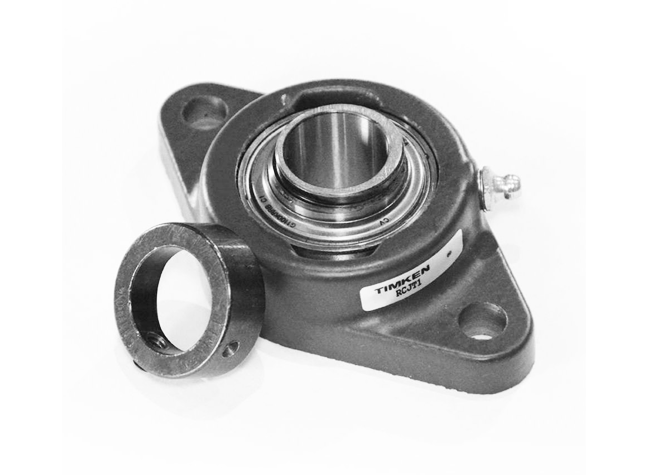

Fafnir® Two-Bolt Flanged Units Eccentric Locking Collar





 Timken Part Number  Shaft Size d  Housing Width A  Static Load Rating  Dynamic Load Rating  Inside Ring Outside Diameter  Series  Weight  Seal Type

Housing Construction


RCJT 17 Shaft Size d N/A 0.669 in17 mm Housing Width A N/A 23.6 mm0.929 in Static Load Rating N/A 1070 lbf4700 N Dynamic Load Rating N/A 2380 lbf10700 N Inside Ring Outside Diameter N/A 1.106 in28.1 mm Series N/A Industrial Weight N/A 1.301 lb0.590 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
VCJT 17 Shaft Size d N/A 0.669 in17 mm Housing Width A N/A 23.6 mm0.929 in Static Load Rating N/A 1070 lbf4700 N Dynamic Load Rating N/A 2380 lbf10700 N Inside Ring Outside Diameter N/A 1.106 in28.1 mm Series N/A Standard Weight N/A 1.301 lb0.590 Kg Seal Type N/A Molded Shroud Housing Construction N/A Two-Bolt Flange
RCJT 20 Shaft Size d N/A 0.787 in20 mm Housing Width A N/A 27.8 mm1.094 in Static Load Rating N/A 1460 lbf6500 N Dynamic Load Rating N/A 3190 lbf14200 N Inside Ring Outside Diameter N/A 1.291 in32.8 mm Series N/A Industrial Weight N/A 1.301 lb0.590 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
VCJT 20 Shaft Size d N/A 0.787 in20 mm Housing Width A N/A 27.8 mm1.094 in Static Load Rating N/A 1460 lbf6500 N Dynamic Load Rating N/A 3190 lbf14200 N Inside Ring Outside Diameter N/A 1.291 in32.8 mm Series N/A Standard Weight N/A 1.142 lb0.518 Kg Seal Type N/A Molded Shroud Housing Construction N/A Two-Bolt Flange
TCJT 25 Shaft Size d N/A 0.984 in25 mm Housing Width A N/A 27.9 mm1.098 in Static Load Rating N/A 1750 lbf7800 N Dynamic Load Rating N/A 3490 lbf15500 N Inside Ring Outside Diameter N/A 0.941 in23.9 mm Series N/A Industrial Weight N/A 1.731 lb0.785 Kg Seal Type N/A Tri-Ply Seal Housing Construction N/A Two-Bolt Flange
VCJT 25 Shaft Size d N/A 0.984 in25 mm Housing Width A N/A 27.9 mm1.098 in Static Load Rating N/A 1750 lbf7800 N Dynamic Load Rating N/A 3490 lbf15500 N Inside Ring Outside Diameter N/A 0.941 in23.9 mm Series N/A Standard Weight N/A 1.631 lb0.74 Kg Seal Type N/A Molded Shroud Housing Construction N/A Two-Bolt Flange
RCJT 1 Shaft Size d N/A 1 in25.4 mm Housing Width A N/A 27.9 mm1.098 in Static Load Rating N/A 1750 lbf7800 N Dynamic Load Rating N/A 3490 lbf15500 N Inside Ring Outside Diameter N/A 0.941 in23.9 mm Series N/A Industrial Weight N/A 1.731 lb0.785 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
TCJT 1 Shaft Size d N/A 1 in25.4 mm Housing Width A N/A 27.9 mm1.098 in Static Load Rating N/A 1750 lbf7800 N Dynamic Load Rating N/A 3490 lbf15500 N Inside Ring Outside Diameter N/A 0.941 in23.9 mm Series N/A Industrial Weight N/A 1.731 lb0.785 Kg Seal Type N/A Tri-Ply Seal Housing Construction N/A Two-Bolt Flange
LCJT 1 Shaft Size d N/A 1 in25.4 mm Housing Width A N/A 27.9 mm1.098 in Static Load Rating N/A 1750 lbf7800 N Dynamic Load Rating N/A 3490 lbf15500 N Inside Ring Outside Diameter N/A 0.941 in23.9 mm Series N/A Industrial Weight N/A 1.731 lb0.785 Kg Seal Type N/A Labyrinth Seal Housing Construction N/A Two-Bolt Flange
VCJT 1 Shaft Size d N/A 1 in25.4 mm Housing Width A N/A 27.9 mm1.098 in Static Load Rating N/A 1750 lbf7800 N Dynamic Load Rating N/A 3490 lbf15500 N Inside Ring Outside Diameter N/A 0.941 in23.9 mm Series N/A Standard Weight N/A 1.631 lb0.74 Kg Seal Type N/A Molded Shroud Housing Construction N/A Two-Bolt Flange
TCJT 1 1/16 Shaft Size d N/A 1 1/16 in27 mm Housing Width A N/A 29.9 mm1.177 in Static Load Rating N/A 2530 lbf11300 N Dynamic Load Rating N/A 4850 lbf21600 N Inside Ring Outside Diameter N/A 1.720 in43.7 mm Series N/A Industrial Weight N/A 2.403 lb1.09 Kg Seal Type N/A Tri-Ply Seal Housing Construction N/A Two-Bolt Flange
RCJT 1 1/2 Shaft Size d N/A 1 1/2 in38.1 mm Housing Width A N/A 38.10 mm1.500 in Static Load Rating N/A 4460 lbf19800 N Dynamic Load Rating N/A 8130 lbf36200 N Inside Ring Outside Diameter N/A 2.291 in58.2 mm Series N/A Industrial Weight N/A 4.835 lb2.193 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
TCJT 1 1/2 Shaft Size d N/A 1 1/2 in38.1 mm Housing Width A N/A 38.10 mm1.500 in Static Load Rating N/A 4460 lbf19800 N Dynamic Load Rating N/A 8130 lbf36200 N Inside Ring Outside Diameter N/A 2.291 in58.2 mm Series N/A Industrial Weight N/A 4.835 lb2.193 Kg Seal Type N/A Tri-Ply Seal Housing Construction N/A Two-Bolt Flange
LCJT 1 1/2 Shaft Size d N/A 1 1/2 in38.1 mm Housing Width A N/A 38.10 mm1.500 in Static Load Rating N/A 4460 lbf19800 N Dynamic Load Rating N/A 8130 lbf36200 N Inside Ring Outside Diameter N/A 2.291 in58.2 mm Series N/A Industrial Weight N/A 4.835 lb2.193 Kg Seal Type N/A Labyrinth Seal Housing Construction N/A Two-Bolt Flange
VCJT 1 1/2 Shaft Size d N/A 1 1/2 in38.1 mm Housing Width A N/A 38.10 mm1.500 in Static Load Rating N/A 4460 lbf19800 N Dynamic Load Rating N/A 8130 lbf36200 N Inside Ring Outside Diameter N/A 2.291 in58.2 mm Series N/A Standard Weight N/A 4.575 lb2.075 Kg Seal Type N/A Molded Shroud Housing Construction N/A Two-Bolt Flange
RCJT 1 1/4 S Shaft Size d N/A 1 1/4 in31.8 mm Housing Width A N/A 29.9 mm1.177 in Static Load Rating N/A 2530 lbf11300 N Dynamic Load Rating N/A 4850 lbf21600 N Inside Ring Outside Diameter N/A 1.720 in43.7 mm Series N/A Industrial Weight N/A 2.403 lb1.09 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
RCJT 1 1/4 Shaft Size d N/A 1 1/4 in31.8 mm Housing Width A N/A 31.8 mm1.252 in Static Load Rating N/A 3440 lbf15300 N Dynamic Load Rating N/A 6400 lbf28500 N Inside Ring Outside Diameter N/A 2.110 in53.6 mm Series N/A Industrial Weight N/A 3.183 lb1.444 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
TCJT 1 1/4 S Shaft Size d N/A 1 1/4 in31.8 mm Housing Width A N/A 29.9 mm1.177 in Static Load Rating N/A 2530 lbf11300 N Dynamic Load Rating N/A 4850 lbf21600 N Inside Ring Outside Diameter N/A 1.720 in43.7 mm Series N/A Industrial Weight N/A 2.403 lb1.09 Kg Seal Type N/A Tri-Ply Seal Housing Construction N/A Two-Bolt Flange
TCJT 1 1/4 Shaft Size d N/A 1 1/4 in31.8 mm Housing Width A N/A 31.8 mm1.252 in Static Load Rating N/A 3440 lbf15300 N Dynamic Load Rating N/A 6400 lbf28500 N Inside Ring Outside Diameter N/A 2.110 in53.6 mm Series N/A Industrial Weight N/A 3.183 lb1.444 Kg Seal Type N/A Tri-Ply Seal Housing Construction N/A Two-Bolt Flange
LCJT 1 1/4 S Shaft Size d N/A 1 1/4 in31.8 mm Housing Width A N/A 29.9 mm1.177 in Static Load Rating N/A 2530 lbf11300 N Dynamic Load Rating N/A 4850 lbf21600 N Inside Ring Outside Diameter N/A 1.720 in43.7 mm Series N/A Industrial Weight N/A 2.403 lb1.09 Kg Seal Type N/A Labyrinth Seal Housing Construction N/A Two-Bolt Flange
LCJT 1 1/4 Shaft Size d N/A 1 1/4 in31.8 mm Housing Width A N/A 31.8 mm1.252 in Static Load Rating N/A 3440 lbf15300 N Dynamic Load Rating N/A 6400 lbf28500 N Inside Ring Outside Diameter N/A 2.110 in53.6 mm Series N/A Industrial Weight N/A 3.183 lb1.444 Kg Seal Type N/A Labyrinth Seal Housing Construction N/A Two-Bolt Flange
VCJT 1 1/4 S Shaft Size d N/A 1 1/4 in31.8 mm Housing Width A N/A 29.9 mm1.177 in Static Load Rating N/A 2530 lbf11300 N Dynamic Load Rating N/A 4850 lbf21600 N Inside Ring Outside Diameter N/A 1.720 in43.7 mm Series N/A Standard Weight N/A 2.262 lb1.026 Kg Seal Type N/A Molded Shroud Housing Construction N/A Two-Bolt Flange
VCJT 1 1/4 Shaft Size d N/A 1 1/4 in31.8 mm Housing Width A N/A 31.8 mm1.252 in Static Load Rating N/A 3440 lbf15300 N Dynamic Load Rating N/A 6400 lbf28500 N Inside Ring Outside Diameter N/A 2.110 in53.6 mm Series N/A Standard Weight N/A 3.003 lb1.362 Kg Seal Type N/A Molded Shroud Housing Construction N/A Two-Bolt Flange
RCJT 1 1/8 Shaft Size d N/A 1 1/8 in28.6 mm Housing Width A N/A 29.9 mm1.177 in Static Load Rating N/A 2530 lbf11300 N Dynamic Load Rating N/A 4850 lbf21600 N Inside Ring Outside Diameter N/A 1.720 in43.7 mm Series N/A Industrial Weight N/A 2.403 lb1.09 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
TCJT 1 1/8 Shaft Size d N/A 1 1/8 in28.6 mm Housing Width A N/A 29.9 mm1.177 in Static Load Rating N/A 2530 lbf11300 N Dynamic Load Rating N/A 4850 lbf21600 N Inside Ring Outside Diameter N/A 1.720 in43.7 mm Series N/A Industrial Weight N/A 2.403 lb1.09 Kg Seal Type N/A Tri-Ply Seal Housing Construction N/A Two-Bolt Flange
LCJT 1 1/8 Shaft Size d N/A 1 1/8 in28.6 mm Housing Width A N/A 29.9 mm1.177 in Static Load Rating N/A 2530 lbf11300 N Dynamic Load Rating N/A 4850 lbf21600 N Inside Ring Outside Diameter N/A 1.720 in43.7 mm Series N/A Industrial Weight N/A 2.403 lb1.09 Kg Seal Type N/A Labyrinth Seal Housing Construction N/A Two-Bolt Flange
VCJT 1 1/8 Shaft Size d N/A 1 1/8 in28.6 mm Housing Width A N/A 29.9 mm1.177 in Static Load Rating N/A 2530 lbf11300 N Dynamic Load Rating N/A 4850 lbf21600 N Inside Ring Outside Diameter N/A 1.720 in43.7 mm Series N/A Standard Weight N/A 2.262 lb1.026 Kg Seal Type N/A Molded Shroud Housing Construction N/A Two-Bolt Flange
RCJT 1 11/16 Shaft Size d N/A 1 11/16 in42.9 mm Housing Width A N/A 38.9 mm1.531 in Static Load Rating N/A 4600 lbf20500 N Dynamic Load Rating N/A 8160 lbf36300 N Inside Ring Outside Diameter N/A 2.480 in63 mm Series N/A Industrial Weight N/A 5.245 lb2.379 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
TCJT 1 11/16 Shaft Size d N/A 1 11/16 in42.9 mm Housing Width A N/A 38.9 mm1.531 in Static Load Rating N/A 4600 lbf20500 N Dynamic Load Rating N/A 8160 lbf36300 N Inside Ring Outside Diameter N/A 2.480 in63 mm Series N/A Industrial Weight N/A 5.245 lb2.379 Kg Seal Type N/A Tri-Ply Seal Housing Construction N/A Two-Bolt Flange
LCJT 1 11/16 Shaft Size d N/A 1 11/16 in42.9 mm Housing Width A N/A 38.9 mm1.531 in Static Load Rating N/A 4600 lbf20500 N Dynamic Load Rating N/A 8160 lbf36300 N Inside Ring Outside Diameter N/A 2.480 in63 mm Series N/A Industrial Weight N/A 5.245 lb2.379 Kg Seal Type N/A Labyrinth Seal Housing Construction N/A Two-Bolt Flange
VCJT 1 11/16 Shaft Size d N/A 1 11/16 in42.9 mm Housing Width A N/A 38.9 mm1.531 in Static Load Rating N/A 4600 lbf20500 N Dynamic Load Rating N/A 8160 lbf36300 N Inside Ring Outside Diameter N/A 2.480 in63 mm Series N/A Standard Weight N/A 4.914 lb2.229 Kg Seal Type N/A Molded Shroud Housing Construction N/A Two-Bolt Flange
RCJT 1 15/16 Shaft Size d N/A 1 15/16 in49.2 mm Housing Width A N/A 42.9 mm1.689 in Static Load Rating N/A 5210 lbf23200 N Dynamic Load Rating N/A 8740 lbf38900 N Inside Ring Outside Diameter N/A 2.728 in69.3 mm Series N/A Industrial Weight N/A 6.005 lb2.724 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
TCJT 1 15/16 Shaft Size d N/A 1 15/16 in49.2 mm Housing Width A N/A 42.9 mm1.689 in Static Load Rating N/A 5210 lbf23200 N Dynamic Load Rating N/A 8740 lbf38900 N Inside Ring Outside Diameter N/A 2.728 in69.3 mm Series N/A Industrial Weight N/A 6.005 lb2.724 Kg Seal Type N/A Tri-Ply Seal Housing Construction N/A Two-Bolt Flange
LCJT 1 15/16 Shaft Size d N/A 1 15/16 in49.2 mm Housing Width A N/A 42.9 mm1.689 in Static Load Rating N/A 5210 lbf23200 N Dynamic Load Rating N/A 8740 lbf38900 N Inside Ring Outside Diameter N/A 2.728 in69.3 mm Series N/A Industrial Weight N/A 6.005 lb2.724 Kg Seal Type N/A Labyrinth Seal Housing Construction N/A Two-Bolt Flange
VCJT 1 15/16 Shaft Size d N/A 1 15/16 in49.2 mm Housing Width A N/A 42.9 mm1.689 in Static Load Rating N/A 5210 lbf23200 N Dynamic Load Rating N/A 8740 lbf38900 N Inside Ring Outside Diameter N/A 2.728 in69.3 mm Series N/A Standard Weight N/A 5.494 lb2.492 Kg Seal Type N/A Molded Shroud Housing Construction N/A Two-Bolt Flange
RCJT 1 3/16 Shaft Size d N/A 1 3/16 in30.2 mm Housing Width A N/A 29.9 mm1.177 in Static Load Rating N/A 2530 lbf11300 N Dynamic Load Rating N/A 4850 lbf21600 N Inside Ring Outside Diameter N/A 1.720 in43.7 mm Series N/A Industrial Weight N/A 2.403 lb1.09 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
TCJT 1 3/16 Shaft Size d N/A 1 3/16 in30.2 mm Housing Width A N/A 29.9 mm1.177 in Static Load Rating N/A 2530 lbf11300 N Dynamic Load Rating N/A 4850 lbf21600 N Inside Ring Outside Diameter N/A 1.720 in43.7 mm Series N/A Industrial Weight N/A 2.403 lb1.09 Kg Seal Type N/A Tri-Ply Seal Housing Construction N/A Two-Bolt Flange
LCJT 1 3/16 Shaft Size d N/A 1 3/16 in30.2 mm Housing Width A N/A 29.9 mm1.177 in Static Load Rating N/A 2530 lbf11300 N Dynamic Load Rating N/A 4850 lbf21600 N Inside Ring Outside Diameter N/A 1.720 in43.7 mm Series N/A Industrial Weight N/A 2.403 lb1.09 Kg Seal Type N/A Labyrinth Seal Housing Construction N/A Two-Bolt Flange
VCJT 1 3/16 Shaft Size d N/A 1 3/16 in30.2 mm Housing Width A N/A 29.9 mm1.177 in Static Load Rating N/A 2530 lbf11300 N Dynamic Load Rating N/A 4850 lbf21600 N Inside Ring Outside Diameter N/A 1.720 in43.7 mm Series N/A Standard Weight N/A 2.262 lb1.026 Kg Seal Type N/A Molded Shroud Housing Construction N/A Two-Bolt Flange
RCJT 1 3/4 Shaft Size d N/A 1 3/4 in44.5 mm Housing Width A N/A 38.9 mm1.531 in Static Load Rating N/A 4600 lbf20500 N Dynamic Load Rating N/A 8160 lbf36300 N Inside Ring Outside Diameter N/A 2.480 in63 mm Series N/A Industrial Weight N/A 5.245 lb2.379 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
TCJT 1 3/4 Shaft Size d N/A 1 3/4 in44.5 mm Housing Width A N/A 38.9 mm1.531 in Static Load Rating N/A 4600 lbf20500 N Dynamic Load Rating N/A 8160 lbf36300 N Inside Ring Outside Diameter N/A 2.480 in63 mm Series N/A Industrial Weight N/A 5.245 lb2.379 Kg Seal Type N/A Tri-Ply Seal Housing Construction N/A Two-Bolt Flange
LCJT 1 3/4 Shaft Size d N/A 1 3/4 in44.5 mm Housing Width A N/A 38.9 mm1.531 in Static Load Rating N/A 4600 lbf20500 N Dynamic Load Rating N/A 8160 lbf36300 N Inside Ring Outside Diameter N/A 2.480 in63 mm Series N/A Industrial Weight N/A 5.245 lb2.379 Kg Seal Type N/A Labyrinth Seal Housing Construction N/A Two-Bolt Flange
VCJT 1 3/4 Shaft Size d N/A 1 3/4 in44.5 mm Housing Width A N/A 38.9 mm1.531 in Static Load Rating N/A 4600 lbf20500 N Dynamic Load Rating N/A 8160 lbf36300 N Inside Ring Outside Diameter N/A 2.480 in63 mm Series N/A Standard Weight N/A 4.914 lb2.229 Kg Seal Type N/A Molded Shroud Housing Construction N/A Two-Bolt Flange
RCJT 1 3/8 Shaft Size d N/A 1 3/8 in34.9 mm Housing Width A N/A 31.8 mm1.252 in Static Load Rating N/A 3440 lbf15300 N Dynamic Load Rating N/A 6400 lbf28500 N Inside Ring Outside Diameter N/A 2.110 in53.6 mm Series N/A Industrial Weight N/A 3.183 lb1.444 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
TCJT 1 3/8 Shaft Size d N/A 1 3/8 in34.9 mm Housing Width A N/A 31.8 mm1.252 in Static Load Rating N/A 3440 lbf15300 N Dynamic Load Rating N/A 6400 lbf28500 N Inside Ring Outside Diameter N/A 2.110 in53.6 mm Series N/A Industrial Weight N/A 3.183 lb1.444 Kg Seal Type N/A Tri-Ply Seal Housing Construction N/A Two-Bolt Flange
LCJT 1 3/8 Shaft Size d N/A 1 3/8 in34.9 mm Housing Width A N/A 31.8 mm1.252 in Static Load Rating N/A 3440 lbf15300 N Dynamic Load Rating N/A 6400 lbf28500 N Inside Ring Outside Diameter N/A 2.110 in53.6 mm Series N/A Industrial Weight N/A 3.183 lb1.444 Kg Seal Type N/A Labyrinth Seal Housing Construction N/A Two-Bolt Flange
VCJT 1 3/8 Shaft Size d N/A 1 3/8 in34.9 mm Housing Width A N/A 31.8 mm1.252 in Static Load Rating N/A 3440 lbf15300 N Dynamic Load Rating N/A 6400 lbf28500 N Inside Ring Outside Diameter N/A 2.110 in53.6 mm Series N/A Standard Weight N/A 3.003 lb1.362 Kg Seal Type N/A Molded Shroud Housing Construction N/A Two-Bolt Flange
RCJT 1 5/16 Shaft Size d N/A 1 5/16 in33.3 mm Housing Width A N/A 31.8 mm1.252 in Static Load Rating N/A 3440 lbf15300 N Dynamic Load Rating N/A 6400 lbf28500 N Inside Ring Outside Diameter N/A 2.110 in53.6 mm Series N/A Industrial Weight N/A 3.183 lb1.444 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
TCJT 1 5/16 Shaft Size d N/A 1 5/16 in33.3 mm Housing Width A N/A 31.8 mm1.252 in Static Load Rating N/A 3440 lbf15300 N Dynamic Load Rating N/A 6400 lbf28500 N Inside Ring Outside Diameter N/A 2.110 in53.6 mm Series N/A Industrial Weight N/A 3.183 lb1.444 Kg Seal Type N/A Tri-Ply Seal Housing Construction N/A Two-Bolt Flange
LCJT 1 5/16 Shaft Size d N/A 1 5/16 in33.3 mm Housing Width A N/A 31.8 mm1.252 in Static Load Rating N/A 3440 lbf15300 N Dynamic Load Rating N/A 6400 lbf28500 N Inside Ring Outside Diameter N/A 2.110 in53.6 mm Series N/A Industrial Weight N/A 3.183 lb1.444 Kg Seal Type N/A Labyrinth Seal Housing Construction N/A Two-Bolt Flange
RCJT 1 5/8 Shaft Size d N/A 1 5/8 in41.3 mm Housing Width A N/A 38.9 mm1.531 in Static Load Rating N/A 4600 lbf20500 N Dynamic Load Rating N/A 8160 lbf36300 N Inside Ring Outside Diameter N/A 2.480 in63 mm Series N/A Industrial Weight N/A 5.245 lb2.379 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
TCJT 1 5/8 Shaft Size d N/A 1 5/8 in41.3 mm Housing Width A N/A 38.9 mm1.531 in Static Load Rating N/A 4600 lbf20500 N Dynamic Load Rating N/A 8160 lbf36300 N Inside Ring Outside Diameter N/A 2.480 in63 mm Series N/A Industrial Weight N/A 5.245 lb2.379 Kg Seal Type N/A Tri-Ply Seal Housing Construction N/A Two-Bolt Flange
LCJT 1 5/8 Shaft Size d N/A 1 5/8 in41.3 mm Housing Width A N/A 38.9 mm1.531 in Static Load Rating N/A 4600 lbf20500 N Dynamic Load Rating N/A 8160 lbf36300 N Inside Ring Outside Diameter N/A 2.480 in63 mm Series N/A Industrial Weight N/A 5.245 lb2.379 Kg Seal Type N/A Labyrinth Seal Housing Construction N/A Two-Bolt Flange
VCJT 1 5/8 Shaft Size d N/A 1 5/8 in41.3 mm Housing Width A N/A 38.9 mm1.531 in Static Load Rating N/A 4600 lbf20500 N Dynamic Load Rating N/A 8160 lbf36300 N Inside Ring Outside Diameter N/A 2.480 in63 mm Series N/A Standard Weight N/A 4.914 lb2.229 Kg Seal Type N/A Molded Shroud Housing Construction N/A Two-Bolt Flange
RCJT 1 7/16 Shaft Size d N/A 1 7/16 in36.5 mm Housing Width A N/A 31.8 mm1.252 in Static Load Rating N/A 3440 lbf15300 N Dynamic Load Rating N/A 6400 lbf28500 N Inside Ring Outside Diameter N/A 2.110 in53.6 mm Series N/A Industrial Weight N/A 3.183 lb1.444 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
TCJT 1 7/16 Shaft Size d N/A 1 7/16 in36.5 mm Housing Width A N/A 31.8 mm1.252 in Static Load Rating N/A 3440 lbf15300 N Dynamic Load Rating N/A 6400 lbf28500 N Inside Ring Outside Diameter N/A 2.110 in53.6 mm Series N/A Industrial Weight N/A 3.183 lb1.444 Kg Seal Type N/A Tri-Ply Seal Housing Construction N/A Two-Bolt Flange
LCJT 1 7/16 Shaft Size d N/A 1 7/16 in36.5 mm Housing Width A N/A 31.8 mm1.252 in Static Load Rating N/A 3440 lbf15300 N Dynamic Load Rating N/A 6400 lbf28500 N Inside Ring Outside Diameter N/A 2.110 in53.6 mm Series N/A Industrial Weight N/A 3.183 lb1.444 Kg Seal Type N/A Labyrinth Seal Housing Construction N/A Two-Bolt Flange
VCJT 1 7/16 Shaft Size d N/A 1 7/16 in36.5 mm Housing Width A N/A 31.8 mm1.252 in Static Load Rating N/A 3440 lbf15300 N Dynamic Load Rating N/A 6400 lbf28500 N Inside Ring Outside Diameter N/A 2.110 in53.6 mm Series N/A Standard Weight N/A 3.003 lb1.362 Kg Seal Type N/A Molded Shroud Housing Construction N/A Two-Bolt Flange
RCJT 1 7/8 Shaft Size d N/A 1 7/8 in47.6 mm Housing Width A N/A 42.9 mm1.689 in Static Load Rating N/A 5210 lbf23200 N Dynamic Load Rating N/A 8740 lbf38900 N Inside Ring Outside Diameter N/A 2.728 in69.3 mm Series N/A Industrial Weight N/A 6.005 lb2.724 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
TCJT 1 7/8 Shaft Size d N/A 1 7/8 in47.6 mm Housing Width A N/A 42.9 mm1.689 in Static Load Rating N/A 5210 lbf23200 N Dynamic Load Rating N/A 8740 lbf38900 N Inside Ring Outside Diameter N/A 2.728 in69.3 mm Series N/A Industrial Weight N/A 6.005 lb2.724 Kg Seal Type N/A Tri-Ply Seal Housing Construction N/A Two-Bolt Flange
LCJT 1 7/8 Shaft Size d N/A 1 7/8 in47.6 mm Housing Width A N/A 42.9 mm1.689 in Static Load Rating N/A 5210 lbf23200 N Dynamic Load Rating N/A 8740 lbf38900 N Inside Ring Outside Diameter N/A 2.728 in69.3 mm Series N/A Industrial Weight N/A 6.005 lb2.724 Kg Seal Type N/A Labyrinth Seal Housing Construction N/A Two-Bolt Flange
VCJT 1 7/8 Shaft Size d N/A 1 7/8 in47.6 mm Housing Width A N/A 42.9 mm1.689 in Static Load Rating N/A 5210 lbf23200 N Dynamic Load Rating N/A 8740 lbf38900 N Inside Ring Outside Diameter N/A 2.728 in69.3 mm Series N/A Standard Weight N/A 5.494 lb2.492 Kg Seal Type N/A Molded Shroud Housing Construction N/A Two-Bolt Flange
RCJT 1 9/16 Shaft Size d N/A 1 9/16 in39.7 mm Housing Width A N/A 38.10 mm1.500 in Static Load Rating N/A 4460 lbf19800 N Dynamic Load Rating N/A 8130 lbf36200 N Inside Ring Outside Diameter N/A 2.291 in58.2 mm Series N/A Industrial Weight N/A 4.835 lb2.193 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
TCJT 1 9/16 Shaft Size d N/A 1 9/16 in39.7 mm Housing Width A N/A 38.10 mm1.500 in Static Load Rating N/A 4460 lbf19800 N Dynamic Load Rating N/A 8130 lbf36200 N Inside Ring Outside Diameter N/A 2.291 in58.2 mm Series N/A Industrial Weight N/A 4.835 lb2.193 Kg Seal Type N/A Tri-Ply Seal Housing Construction N/A Two-Bolt Flange
LCJT 1 9/16 Shaft Size d N/A 1 9/16 in39.7 mm Housing Width A N/A 38.10 mm1.500 in Static Load Rating N/A 4460 lbf19800 N Dynamic Load Rating N/A 8130 lbf36200 N Inside Ring Outside Diameter N/A 2.291 in58.2 mm Series N/A Industrial Weight N/A 4.835 lb2.193 Kg Seal Type N/A Labyrinth Seal Housing Construction N/A Two-Bolt Flange
TCJT 30 Shaft Size d N/A 1.181 in30 mm Housing Width A N/A 29.9 mm1.177 in Static Load Rating N/A 2530 lbf11300 N Dynamic Load Rating N/A 4850 lbf21600 N Inside Ring Outside Diameter N/A 1.720 in43.7 mm Series N/A Industrial Weight N/A 2.403 lb1.09 Kg Seal Type N/A Tri-Ply Seal Housing Construction N/A Two-Bolt Flange
VCJT 30 Shaft Size d N/A 1.181 in30 mm Housing Width A N/A 29.9 mm1.177 in Static Load Rating N/A 2530 lbf11300 N Dynamic Load Rating N/A 4850 lbf21600 N Inside Ring Outside Diameter N/A 1.720 in43.7 mm Series N/A Standard Weight N/A 2.262 lb1.026 Kg Seal Type N/A Molded Shroud Housing Construction N/A Two-Bolt Flange
TCJT 35 Shaft Size d N/A 1.378 in35 mm Housing Width A N/A 31.8 mm1.252 in Static Load Rating N/A 3440 lbf15300 N Dynamic Load Rating N/A 6400 lbf28500 N Inside Ring Outside Diameter N/A 2.110 in53.6 mm Series N/A Industrial Weight N/A 3.183 lb1.444 Kg Seal Type N/A Tri-Ply Seal Housing Construction N/A Two-Bolt Flange
VCJT 35 Shaft Size d N/A 1.378 in35 mm Housing Width A N/A 31.8 mm1.252 in Static Load Rating N/A 3440 lbf15300 N Dynamic Load Rating N/A 6400 lbf28500 N Inside Ring Outside Diameter N/A 2.110 in53.6 mm Series N/A Standard Weight N/A 3.003 lb1.362 Kg Seal Type N/A Molded Shroud Housing Construction N/A Two-Bolt Flange
TCJT 40 Shaft Size d N/A 1.575 in40 mm Housing Width A N/A 38.10 mm1.500 in Static Load Rating N/A 4460 lbf19800 N Dynamic Load Rating N/A 8130 lbf36200 N Inside Ring Outside Diameter N/A 2.291 in58.2 mm Series N/A Industrial Weight N/A 4.835 lb2.193 Kg Seal Type N/A Tri-Ply Seal Housing Construction N/A Two-Bolt Flange
VCJT 40 Shaft Size d N/A 1.575 in40 mm Housing Width A N/A 38.10 mm1.500 in Static Load Rating N/A 4460 lbf19800 N Dynamic Load Rating N/A 8130 lbf36200 N Inside Ring Outside Diameter N/A 2.291 in58.2 mm Series N/A Standard Weight N/A 4.575 lb2.075 Kg Seal Type N/A Molded Shroud Housing Construction N/A Two-Bolt Flange
TCJT 45 Shaft Size d N/A 1.772 in45 mm Housing Width A N/A 38.9 mm1.531 in Static Load Rating N/A 4600 lbf20500 N Dynamic Load Rating N/A 8160 lbf36300 N Inside Ring Outside Diameter N/A 2.480 in63 mm Series N/A Industrial Weight N/A 5.245 lb2.379 Kg Seal Type N/A Tri-Ply Seal Housing Construction N/A Two-Bolt Flange
VCJT 45 Shaft Size d N/A 1.772 in45 mm Housing Width A N/A 38.9 mm1.531 in Static Load Rating N/A 4600 lbf20500 N Dynamic Load Rating N/A 8160 lbf36300 N Inside Ring Outside Diameter N/A 2.480 in63 mm Series N/A Standard Weight N/A 4.914 lb2.229 Kg Seal Type N/A Molded Shroud Housing Construction N/A Two-Bolt Flange
TCJT 50 Shaft Size d N/A 1.969 in50 mm Housing Width A N/A 42.9 mm1.689 in Static Load Rating N/A 5210 lbf23200 N Dynamic Load Rating N/A 8740 lbf38900 N Inside Ring Outside Diameter N/A 2.728 in69.3 mm Series N/A Industrial Weight N/A 6.005 lb2.724 Kg Seal Type N/A Tri-Ply Seal Housing Construction N/A Two-Bolt Flange
VCJT 50 Shaft Size d N/A 1.969 in50 mm Housing Width A N/A 42.9 mm1.689 in Static Load Rating N/A 5210 lbf23200 N Dynamic Load Rating N/A 8740 lbf38900 N Inside Ring Outside Diameter N/A 2.728 in69.3 mm Series N/A Standard Weight N/A 5.494 lb2.492 Kg Seal Type N/A Molded Shroud Housing Construction N/A Two-Bolt Flange
RCJT 1/2 Shaft Size d N/A 1/2 in12.7 mm Housing Width A N/A 23.6 mm0.929 in Static Load Rating N/A 1070 lbf4700 N Dynamic Load Rating N/A 2380 lbf10700 N Inside Ring Outside Diameter N/A 1.106 in28.1 mm Series N/A Industrial Weight N/A 1.301 lb0.590 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
VCJT 1/2 Shaft Size d N/A 1/2 in12.7 mm Housing Width A N/A 23.6 mm0.929 in Static Load Rating N/A 1070 lbf4700 N Dynamic Load Rating N/A 2380 lbf10700 N Inside Ring Outside Diameter N/A 1.106 in28.1 mm Series N/A Standard Weight N/A 1.301 lb0.590 Kg Seal Type N/A Molded Shroud Housing Construction N/A Two-Bolt Flange
RCJT 11/16 Shaft Size d N/A 11/16 in17.5 mm Housing Width A N/A 23.6 mm0.929 in Static Load Rating N/A 1070 lbf4700 N Dynamic Load Rating N/A 2380 lbf10700 N Inside Ring Outside Diameter N/A 1.106 in28.1 mm Series N/A Industrial Weight N/A 1.301 lb0.590 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
RCJT 13/16 Shaft Size d N/A 13/16 in20.6 mm Housing Width A N/A 27.9 mm1.098 in Static Load Rating N/A 1750 lbf7800 N Dynamic Load Rating N/A 3490 lbf15500 N Inside Ring Outside Diameter N/A 0.941 in23.9 mm Series N/A Industrial Weight N/A 1.731 lb0.785 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
TCJT 13/16 Shaft Size d N/A 13/16 in20.6 mm Housing Width A N/A 27.9 mm1.098 in Static Load Rating N/A 1750 lbf7800 N Dynamic Load Rating N/A 3490 lbf15500 N Inside Ring Outside Diameter N/A 0.941 in23.9 mm Series N/A Industrial Weight N/A 1.731 lb0.785 Kg Seal Type N/A Tri-Ply Seal Housing Construction N/A Two-Bolt Flange
LCJT 13/16 Shaft Size d N/A 13/16 in20.6 mm Housing Width A N/A 27.9 mm1.098 in Static Load Rating N/A 1750 lbf7800 N Dynamic Load Rating N/A 3490 lbf15500 N Inside Ring Outside Diameter N/A 0.941 in23.9 mm Series N/A Industrial Weight N/A 1.731 lb0.785 Kg Seal Type N/A Labyrinth Seal Housing Construction N/A Two-Bolt Flange
RCJT 15/16 Shaft Size d N/A 15/16 in23.8 mm Housing Width A N/A 27.9 mm1.098 in Static Load Rating N/A 1750 lbf7800 N Dynamic Load Rating N/A 3490 lbf15500 N Inside Ring Outside Diameter N/A 0.941 in23.9 mm Series N/A Industrial Weight N/A 1.731 lb0.785 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
TCJT 15/16 Shaft Size d N/A 15/16 in23.8 mm Housing Width A N/A 27.9 mm1.098 in Static Load Rating N/A 1750 lbf7800 N Dynamic Load Rating N/A 3490 lbf15500 N Inside Ring Outside Diameter N/A 0.941 in23.9 mm Series N/A Industrial Weight N/A 1.731 lb0.785 Kg Seal Type N/A Tri-Ply Seal Housing Construction N/A Two-Bolt Flange
LCJT 15/16 Shaft Size d N/A 15/16 in23.8 mm Housing Width A N/A 27.9 mm1.098 in Static Load Rating N/A 1750 lbf7800 N Dynamic Load Rating N/A 3490 lbf15500 N Inside Ring Outside Diameter N/A 0.941 in23.9 mm Series N/A Industrial Weight N/A 1.731 lb0.785 Kg Seal Type N/A Labyrinth Seal Housing Construction N/A Two-Bolt Flange
VCJT 15/16 Shaft Size d N/A 15/16 in23.8 mm Housing Width A N/A 27.9 mm1.098 in Static Load Rating N/A 1750 lbf7800 N Dynamic Load Rating N/A 3490 lbf15500 N Inside Ring Outside Diameter N/A 0.941 in23.9 mm Series N/A Standard Weight N/A 1.631 lb0.74 Kg Seal Type N/A Molded Shroud Housing Construction N/A Two-Bolt Flange
RCJT 2 Shaft Size d N/A 2 in50.8 mm Housing Width A N/A 46.8 mm1.843 in Static Load Rating N/A 6570 lbf29200 N Dynamic Load Rating N/A 10800 lbf48100 N Inside Ring Outside Diameter N/A 2.980 in75.7 mm Series N/A Industrial Weight N/A 8.087 lb3.668 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
TCJT 2 Shaft Size d N/A 2 in50.8 mm Housing Width A N/A 46.8 mm1.843 in Static Load Rating N/A 6570 lbf29200 N Dynamic Load Rating N/A 10800 lbf48100 N Inside Ring Outside Diameter N/A 2.980 in75.7 mm Series N/A Industrial Weight N/A 8.087 lb3.668 Kg Seal Type N/A Tri-Ply Seal Housing Construction N/A Two-Bolt Flange
LCJT 2 Shaft Size d N/A 2 in50.8 mm Housing Width A N/A 46.8 mm1.843 in Static Load Rating N/A 6570 lbf29200 N Dynamic Load Rating N/A 10800 lbf48100 N Inside Ring Outside Diameter N/A 2.980 in75.7 mm Series N/A Industrial Weight N/A 8.087 lb3.668 Kg Seal Type N/A Labyrinth Seal Housing Construction N/A Two-Bolt Flange
VCJT 2 S Shaft Size d N/A 2 in50.8 mm Housing Width A N/A 42.9 mm1.689 in Static Load Rating N/A 5210 lbf23200 N Dynamic Load Rating N/A 8740 lbf38900 N Inside Ring Outside Diameter N/A 2.728 in69.3 mm Series N/A Standard Weight N/A 5.494 lb2.492 Kg Seal Type N/A Molded Shroud Housing Construction N/A Two-Bolt Flange
VCJT 2 Shaft Size d N/A 2 in50.8 mm Housing Width A N/A 46.8 mm1.843 in Static Load Rating N/A 6570 lbf29200 N Dynamic Load Rating N/A 10800 lbf48100 N Inside Ring Outside Diameter N/A 2.980 in75.7 mm Series N/A Standard Weight N/A 6.817 lb3.092 Kg Seal Type N/A Molded Shroud Housing Construction N/A Two-Bolt Flange
RCJT 2 1/8 Shaft Size d N/A 2 1/8 in54 mm Housing Width A N/A 46.8 mm1.843 in Static Load Rating N/A 6570 lbf29200 N Dynamic Load Rating N/A 10800 lbf48100 N Inside Ring Outside Diameter N/A 2.980 in75.7 mm Series N/A Industrial Weight N/A 8.087 lb3.668 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
TCJT 2 1/8 Shaft Size d N/A 2 1/8 in54 mm Housing Width A N/A 46.8 mm1.843 in Static Load Rating N/A 6570 lbf29200 N Dynamic Load Rating N/A 10800 lbf48100 N Inside Ring Outside Diameter N/A 2.980 in75.7 mm Series N/A Industrial Weight N/A 8.087 lb3.668 Kg Seal Type N/A Tri-Ply Seal Housing Construction N/A Two-Bolt Flange
LCJT 2 1/8 Shaft Size d N/A 2 1/8 in54 mm Housing Width A N/A 46.8 mm1.843 in Static Load Rating N/A 6570 lbf29200 N Dynamic Load Rating N/A 10800 lbf48100 N Inside Ring Outside Diameter N/A 2.980 in75.7 mm Series N/A Industrial Weight N/A 8.087 lb3.668 Kg Seal Type N/A Labyrinth Seal Housing Construction N/A Two-Bolt Flange
RCJT 2 3/16 Shaft Size d N/A 2 3/16 in55.6 mm Housing Width A N/A 46.8 mm1.843 in Static Load Rating N/A 6570 lbf29200 N Dynamic Load Rating N/A 10800 lbf48100 N Inside Ring Outside Diameter N/A 2.980 in75.7 mm Series N/A Industrial Weight N/A 8.087 lb3.668 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
TCJT 2 3/16 Shaft Size d N/A 2 3/16 in55.6 mm Housing Width A N/A 46.8 mm1.843 in Static Load Rating N/A 6570 lbf29200 N Dynamic Load Rating N/A 10800 lbf48100 N Inside Ring Outside Diameter N/A 2.980 in75.7 mm Series N/A Industrial Weight N/A 8.087 lb3.668 Kg Seal Type N/A Tri-Ply Seal Housing Construction N/A Two-Bolt Flange
LCJT 2 3/16 Shaft Size d N/A 2 3/16 in55.6 mm Housing Width A N/A 46.8 mm1.843 in Static Load Rating N/A 6570 lbf29200 N Dynamic Load Rating N/A 10800 lbf48100 N Inside Ring Outside Diameter N/A 2.980 in75.7 mm Series N/A Industrial Weight N/A 8.087 lb3.668 Kg Seal Type N/A Labyrinth Seal Housing Construction N/A Two-Bolt Flange
VCJT 2 3/16 Shaft Size d N/A 2 3/16 in55.6 mm Housing Width A N/A 46.8 mm1.843 in Static Load Rating N/A 6570 lbf29200 N Dynamic Load Rating N/A 10800 lbf48100 N Inside Ring Outside Diameter N/A 2.980 in75.7 mm Series N/A Standard Weight N/A 6.817 lb3.092 Kg Seal Type N/A Molded Shroud Housing Construction N/A Two-Bolt Flange
TCJT 55 Shaft Size d N/A 2.165 in55 mm Housing Width A N/A 46.8 mm1.843 in Static Load Rating N/A 6570 lbf29200 N Dynamic Load Rating N/A 10800 lbf48100 N Inside Ring Outside Diameter N/A 2.980 in75.7 mm Series N/A Industrial Weight N/A 8.087 lb3.668 Kg Seal Type N/A Tri-Ply Seal Housing Construction N/A Two-Bolt Flange
VCJT 55 Shaft Size d N/A 2.165 in55 mm Housing Width A N/A 46.8 mm1.843 in Static Load Rating N/A 6570 lbf29200 N Dynamic Load Rating N/A 10800 lbf48100 N Inside Ring Outside Diameter N/A 2.980 in75.7 mm Series N/A Standard Weight N/A 6.817 lb3.092 Kg Seal Type N/A Molded Shroud Housing Construction N/A Two-Bolt Flange
RCJT 3/4 Shaft Size d N/A 3/4 in19.1 mm Housing Width A N/A 27.8 mm1.094 in Static Load Rating N/A 1460 lbf6500 N Dynamic Load Rating N/A 3190 lbf14200 N Inside Ring Outside Diameter N/A 1.291 in32.8 mm Series N/A Industrial Weight N/A 1.301 lb0.590 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
VCJT 3/4 Shaft Size d N/A 3/4 in19.1 mm Housing Width A N/A 27.8 mm1.094 in Static Load Rating N/A 1460 lbf6500 N Dynamic Load Rating N/A 3190 lbf14200 N Inside Ring Outside Diameter N/A 1.291 in32.8 mm Series N/A Standard Weight N/A 1.142 lb0.518 Kg Seal Type N/A Molded Shroud Housing Construction N/A Two-Bolt Flange
RCJT 5/8 Shaft Size d N/A 5/8 in15.9 mm Housing Width A N/A 23.6 mm0.929 in Static Load Rating N/A 1070 lbf4700 N Dynamic Load Rating N/A 2380 lbf10700 N Inside Ring Outside Diameter N/A 1.106 in28.1 mm Series N/A Industrial Weight N/A 1.301 lb0.590 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
VCJT 5/8 Shaft Size d N/A 5/8 in15.9 mm Housing Width A N/A 23.6 mm0.929 in Static Load Rating N/A 1070 lbf4700 N Dynamic Load Rating N/A 2380 lbf10700 N Inside Ring Outside Diameter N/A 1.106 in28.1 mm Series N/A Standard Weight N/A 1.301 lb0.590 Kg Seal Type N/A Molded Shroud Housing Construction N/A Two-Bolt Flange
RCJT 7/8 Shaft Size d N/A 7/8 in22.2 mm Housing Width A N/A 27.9 mm1.098 in Static Load Rating N/A 1750 lbf7800 N Dynamic Load Rating N/A 3490 lbf15500 N Inside Ring Outside Diameter N/A 0.941 in23.9 mm Series N/A Industrial Weight N/A 1.731 lb0.785 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
TCJT 7/8 Shaft Size d N/A 7/8 in22.2 mm Housing Width A N/A 27.9 mm1.098 in Static Load Rating N/A 1750 lbf7800 N Dynamic Load Rating N/A 3490 lbf15500 N Inside Ring Outside Diameter N/A 0.941 in23.9 mm Series N/A Industrial Weight N/A 1.731 lb0.785 Kg Seal Type N/A Tri-Ply Seal Housing Construction N/A Two-Bolt Flange
LCJT 7/8 Shaft Size d N/A 7/8 in22.2 mm Housing Width A N/A 27.9 mm1.098 in Static Load Rating N/A 1750 lbf7800 N Dynamic Load Rating N/A 3490 lbf15500 N Inside Ring Outside Diameter N/A 0.941 in23.9 mm Series N/A Industrial Weight N/A 1.731 lb0.785 Kg Seal Type N/A Labyrinth Seal Housing Construction N/A Two-Bolt Flange
VCJT 7/8 Shaft Size d N/A 7/8 in22.2 mm Housing Width A N/A 27.9 mm1.098 in Static Load Rating N/A 1750 lbf7800 N Dynamic Load Rating N/A 3490 lbf15500 N Inside Ring Outside Diameter N/A 0.941 in23.9 mm Series N/A Standard Weight N/A 1.631 lb0.74 Kg Seal Type N/A Molded Shroud Housing Construction N/A Two-Bolt Flange
