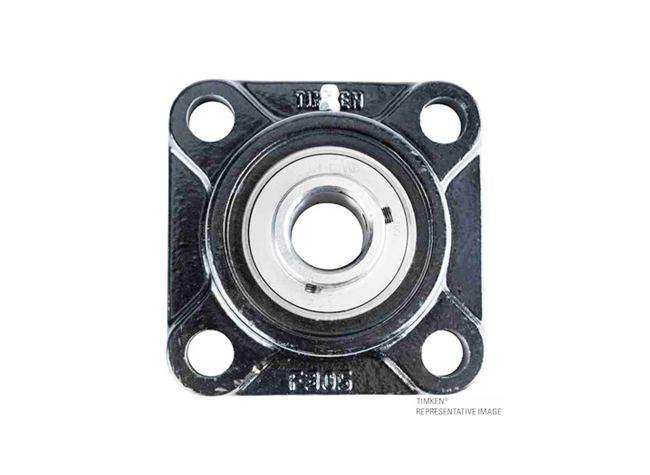

UCF 200 Four-Bolt Flanged Housed Units - Set Screw Locking



●   UCF four-bolt flanged units are suggested for industrial applications where normal loads are encountered.
●   Each unit comes assembled and ready for mounting, using bolts through the flange.
●   These units use wide inner ring ball bearings with self-aligning spherical outside diameters that compensate for shaft misalignment.
●   Timken UCF series housed units feature the Timken set screw locking (UC) bearing insert.
●   Bearing prelubricated and ready for immediate installation.
●   Grease fitting supplied for relubrication.
●   The bonded seal design is well-suited for applications involving wet or dirty environments.
●   Bolt-hole spacing dimensions and shaft center location are interchangeable with competitive units.
●   Housing designed for ease of bearing replacement.





 Timken Part Number  Bearing Number  Shaft Size d  Static Load Rating  Dynamic Load Rating  Weight
UCF201 Bearing Number N/A UC201 Shaft Size d N/A 12 mm Static Load Rating N/A 1495 lbf6650 N Dynamic Load Rating N/A 2878 lbf12800 N Weight N/A 1.4 lb0.6 Kg
UCF201-8 Bearing Number N/A UC201-8 Shaft Size d N/A 1/2 in Static Load Rating N/A 1495 lbf6650 N Dynamic Load Rating N/A 2878 lbf12800 N Weight N/A 1.4 lb0.6 Kg
UCF202 Bearing Number N/A UC202 Shaft Size d N/A 15 mm Static Load Rating N/A 1495 lbf6650 N Dynamic Load Rating N/A 2878 lbf12800 N Weight N/A 1.4 lb0.6 Kg
UCF202-10 Bearing Number N/A UC202-10 Shaft Size d N/A 5/8 in Static Load Rating N/A 1495 lbf6650 N Dynamic Load Rating N/A 2878 lbf12800 N Weight N/A 1.4 lb0.6 Kg
UCF203 Bearing Number N/A UC203 Shaft Size d N/A 17 mm Static Load Rating N/A 1495 lbf6650 N Dynamic Load Rating N/A 2878 lbf12800 N Weight N/A 1.4 lb0.6 Kg
UCF204-12 Bearing Number N/A UC204-12 Shaft Size d N/A 3/4 in Static Load Rating N/A 1495 lbf6650 N Dynamic Load Rating N/A 2878 lbf12800 N Weight N/A 1.4 lb0.6 Kg
UCF204 Bearing Number N/A UC204 Shaft Size d N/A 20 mm Static Load Rating N/A 1495 lbf6650 N Dynamic Load Rating N/A 2878 lbf12800 N Weight N/A 1.4 lb0.6 Kg
UCF205-14 Bearing Number N/A UC205-14 Shaft Size d N/A 7/8 in Static Load Rating N/A 1765 lbf7850 N Dynamic Load Rating N/A 3147 lbf14000 N Weight N/A 1.80 lb0.8 Kg
UCF205-15 Bearing Number N/A UC205-15 Shaft Size d N/A 15/16 in Static Load Rating N/A 1765 lbf7850 N Dynamic Load Rating N/A 3147 lbf14000 N Weight N/A 1.80 lb0.8 Kg
UCF205 Bearing Number N/A UC205 Shaft Size d N/A 25 mm Static Load Rating N/A 1765 lbf7850 N Dynamic Load Rating N/A 3147 lbf14000 N Weight N/A 1.80 lb0.8 Kg
UCF205-16 Bearing Number N/A UC205-16 Shaft Size d N/A 1 in Static Load Rating N/A 1765 lbf7850 N Dynamic Load Rating N/A 3147 lbf14000 N Weight N/A 1.80 lb0.8 Kg
UCF206-18 Bearing Number N/A UC206-18 Shaft Size d N/A 1 1/8 in Static Load Rating N/A 2540 lbf11300 N Dynamic Load Rating N/A 4384 lbf19500 N Weight N/A 2.6 lb1.20 Kg
UCF206 Bearing Number N/A UC206 Shaft Size d N/A 30 mm Static Load Rating N/A 2540 lbf11300 N Dynamic Load Rating N/A 4384 lbf19500 N Weight N/A 2.6 lb1.20 Kg
UCF206-19 Bearing Number N/A UC206-19 Shaft Size d N/A 1 3/16 in Static Load Rating N/A 2540 lbf11300 N Dynamic Load Rating N/A 4384 lbf19500 N Weight N/A 2.6 lb1.20 Kg
UCF207-20 Bearing Number N/A UC207-20 Shaft Size d N/A 1 1/4 in Static Load Rating N/A 3462 lbf15400 N Dynamic Load Rating N/A 5778 lbf25700 N Weight N/A 3.3 lb1.50 Kg
UCF206-20 Bearing Number N/A UC206-20 Shaft Size d N/A 1 1/4 in Static Load Rating N/A 2540 lbf11300 N Dynamic Load Rating N/A 4384 lbf19500 N Weight N/A 2.6 lb1.20 Kg
UCF207-22 Bearing Number N/A UC207-22 Shaft Size d N/A 1 3/8 in Static Load Rating N/A 3462 lbf15400 N Dynamic Load Rating N/A 5778 lbf25700 N Weight N/A 3.3 lb1.50 Kg
UCF207 Bearing Number N/A UC207 Shaft Size d N/A 35 mm Static Load Rating N/A 3462 lbf15400 N Dynamic Load Rating N/A 5778 lbf25700 N Weight N/A 3.3 lb1.50 Kg
UCF207-23 Bearing Number N/A UC207-23 Shaft Size d N/A 1 7/16 in Static Load Rating N/A 3462 lbf15400 N Dynamic Load Rating N/A 5778 lbf25700 N Weight N/A 3.3 lb1.50 Kg
UCF208-24 Bearing Number N/A UC208-24 Shaft Size d N/A 1 1/2 in Static Load Rating N/A 4002 lbf17800 N Dynamic Load Rating N/A 6542 lbf29100 N Weight N/A 4.2 lb1.9 Kg
UCF208-25 Bearing Number N/A UC208-25 Shaft Size d N/A 1 9/16 in Static Load Rating N/A 4002 lbf17800 N Dynamic Load Rating N/A 6542 lbf29100 N Weight N/A 4.2 lb1.9 Kg
UCF208 Bearing Number N/A UC208 Shaft Size d N/A 40 mm Static Load Rating N/A 4002 lbf17800 N Dynamic Load Rating N/A 6542 lbf29100 N Weight N/A 4.2 lb1.9 Kg
UCF209-26 Bearing Number N/A UC209-26 Shaft Size d N/A 1 5/8 in Static Load Rating N/A 4788 lbf21300 N Dynamic Load Rating N/A 7666 lbf34100 N Weight N/A 4.9 lb2.20 Kg
UCF209-27 Bearing Number N/A UC209-27 Shaft Size d N/A 1 11/16 in Static Load Rating N/A 4788 lbf21300 N Dynamic Load Rating N/A 7666 lbf34100 N Weight N/A 4.9 lb2.20 Kg
UCF209-28 Bearing Number N/A UC209-28 Shaft Size d N/A 1 3/4 in Static Load Rating N/A 4788 lbf21300 N Dynamic Load Rating N/A 7666 lbf34100 N Weight N/A 4.9 lb2.20 Kg
UCF209 Bearing Number N/A UC209 Shaft Size d N/A 45 mm Static Load Rating N/A 4788 lbf21300 N Dynamic Load Rating N/A 7666 lbf34100 N Weight N/A 4.9 lb2.20 Kg
UCF210-30 Bearing Number N/A UC210-30 Shaft Size d N/A 1 7/8 in Static Load Rating N/A 5238 lbf23300 N Dynamic Load Rating N/A 7891 lbf35100 N Weight N/A 5.5 lb2.5 Kg
UCF210-31 Bearing Number N/A UC210-31 Shaft Size d N/A 1 15/16 in Static Load Rating N/A 5238 lbf23300 N Dynamic Load Rating N/A 7891 lbf35100 N Weight N/A 5.5 lb2.5 Kg
UCF207-21 Bearing Number N/A UC207-21 Shaft Size d N/A 1 5/16 in Static Load Rating N/A 3462 lbf15400 N Dynamic Load Rating N/A 5778 lbf25700 N Weight N/A 3.3 lb1.50 Kg
UCF210 Bearing Number N/A UC210 Shaft Size d N/A 50 mm Static Load Rating N/A 5238 lbf23300 N Dynamic Load Rating N/A 7891 lbf35100 N Weight N/A 5.5 lb2.5 Kg
UCF211-32 Bearing Number N/A UC211-32 Shaft Size d N/A 2 in Static Load Rating N/A 6609 lbf29400 N Dynamic Load Rating N/A 9757 lbf43400 N Weight N/A 7.5 lb3.400 Kg
UCF210-32 Bearing Number N/A UC210-32 Shaft Size d N/A 2 in Static Load Rating N/A 5238 lbf23300 N Dynamic Load Rating N/A 7891 lbf35100 N Weight N/A 5.5 lb2.5 Kg
UCF211-34 Bearing Number N/A UC211-34 Shaft Size d N/A 2 1/8 in Static Load Rating N/A 6609 lbf29400 N Dynamic Load Rating N/A 9757 lbf43400 N Weight N/A 7.5 lb3.400 Kg
UCF211 Bearing Number N/A UC211 Shaft Size d N/A 55 mm Static Load Rating N/A 6609 lbf29400 N Dynamic Load Rating N/A 9757 lbf43400 N Weight N/A 7.5 lb3.400 Kg
UCF211-35 Bearing Number N/A UC211-35 Shaft Size d N/A 2 3/16 in Static Load Rating N/A 6609 lbf29400 N Dynamic Load Rating N/A 9757 lbf43400 N Weight N/A 7.5 lb3.400 Kg
UCF212-36 Bearing Number N/A UC212-36 Shaft Size d N/A 2 1/4 in Static Load Rating N/A 8138 lbf36200 N Dynamic Load Rating N/A 11780 lbf52400 N Weight N/A 9.300 lb4.200 Kg
UCF212 Bearing Number N/A UC212 Shaft Size d N/A 60 mm Static Load Rating N/A 8138 lbf36200 N Dynamic Load Rating N/A 11780 lbf52400 N Weight N/A 9.300 lb4.200 Kg
UCF212-38 Bearing Number N/A UC212-38 Shaft Size d N/A 2 3/8 in Static Load Rating N/A 8138 lbf36200 N Dynamic Load Rating N/A 11780 lbf52400 N Weight N/A 9.300 lb4.200 Kg
UCF212-39 Bearing Number N/A UC212-39 Shaft Size d N/A 2 7/16 in Static Load Rating N/A 8138 lbf36200 N Dynamic Load Rating N/A 11780 lbf52400 N Weight N/A 9.300 lb4.200 Kg
UCF213-40 Bearing Number N/A UC213-40 Shaft Size d N/A 2 1/2 in Static Load Rating N/A 9015 lbf40100 N Dynamic Load Rating N/A 12859 lbf57200 N Weight N/A 11.50 lb5.20 Kg
UCF213 Bearing Number N/A UC213 Shaft Size d N/A 65 mm Static Load Rating N/A 9015 lbf40100 N Dynamic Load Rating N/A 12859 lbf57200 N Weight N/A 11.50 lb5.20 Kg
UCF214-44 Bearing Number N/A UC214-44 Shaft Size d N/A 2 3/4 in Static Load Rating N/A 9914 lbf44100 N Dynamic Load Rating N/A 13983 lbf62200 N Weight N/A 13 lb5.9 Kg
UCF214 Bearing Number N/A UC214 Shaft Size d N/A 70 mm Static Load Rating N/A 9914 lbf44100 N Dynamic Load Rating N/A 13983 lbf62200 N Weight N/A 13 lb5.9 Kg
UCF215-47 Bearing Number N/A UC215-47 Shaft Size d N/A 2 15/16 in Static Load Rating N/A 10858 lbf48300 N Dynamic Load Rating N/A 15152 lbf67400 N Weight N/A 14.100 lb6.4 Kg
UCF215 Bearing Number N/A UC215 Shaft Size d N/A 75 mm Static Load Rating N/A 10858 lbf48300 N Dynamic Load Rating N/A 15152 lbf67400 N Weight N/A 14.100 lb6.4 Kg
UCF215-48 Bearing Number N/A UC215-48 Shaft Size d N/A 3 in Static Load Rating N/A 10858 lbf48300 N Dynamic Load Rating N/A 15152 lbf67400 N Weight N/A 14.100 lb6.4 Kg
UCF216-50 Bearing Number N/A UC216-50 Shaft Size d N/A 3 1/8 in Static Load Rating N/A 11915 lbf53000 N Dynamic Load Rating N/A 16344 lbf72700 N Weight N/A 16.100 lb7.30 Kg
UCF216 Bearing Number N/A UC216 Shaft Size d N/A 80 mm Static Load Rating N/A 11915 lbf53000 N Dynamic Load Rating N/A 16344 lbf72700 N Weight N/A 16.100 lb7.30 Kg
UCF217-52 Bearing Number N/A UC217-52 Shaft Size d N/A 3 1/4 in Static Load Rating N/A 13916 lbf61900 N Dynamic Load Rating N/A 18884 lbf84000 N Weight N/A 19.6 lb8.9 Kg
UCF217 Bearing Number N/A UC217 Shaft Size d N/A 85 mm Static Load Rating N/A 13916 lbf61900 N Dynamic Load Rating N/A 18884 lbf84000 N Weight N/A 19.6 lb8.9 Kg
UCF218-56 Bearing Number N/A UC218-56 Shaft Size d N/A 3 1/2 in Static Load Rating N/A 16074 lbf71500 N Dynamic Load Rating N/A 21604 lbf96100 N Weight N/A 25.1 lb11.4 Kg
UCF218 Bearing Number N/A UC218 Shaft Size d N/A 90 mm Static Load Rating N/A 16074 lbf71500 N Dynamic Load Rating N/A 21604 lbf96100 N Weight N/A 25.1 lb11.4 Kg
