(Not available for sale in US)

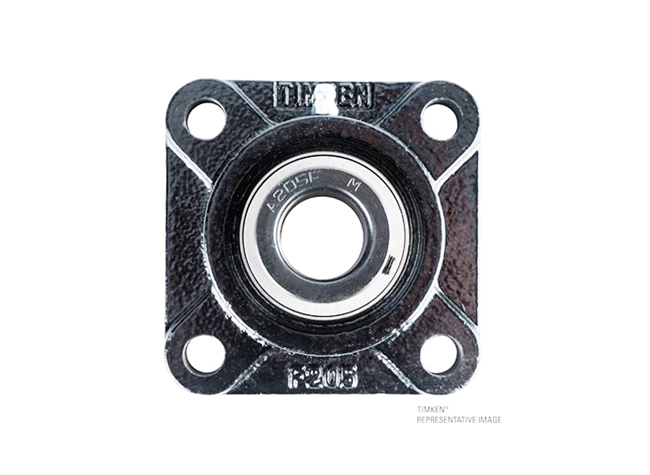

● UELF four-bolt flanged units are suggested for industrial applications where normal loads are encountered.
● Each unit comes assembled and ready for mounting, using bolts through the flange.
● These units use wide inner ring ball bearings with self-aligning spherical outside diameters that compensate for shaft misalignment.
● Timken UELF series housed units feature the Timken eccentric locking collar (UEL) bearing insert.
● Bearing prelubricated and ready for immediate installation.
● Grease fitting supplied for relubrication.
● The bonded seal design is well-suited for applications involving wet or dirty environments.
● Bolt-hole spacing dimensions and shaft center location are interchangeable with competitive units.
● Housing designed for ease of bearing replacement.
| Timken Part Number | Bearing Number | Shaft Size d | Static Load Rating | Dynamic Load Rating | Weight |
| UELF201 | Bearing Number UEL201 | Shaft Size d 12 mm | Static Load Rating 1495 lbf6650 N | Dynamic Load Rating 2878 lbf12800 N | Weight 1.6 lb0.72 Kg |
| UELF201-8 | Bearing Number UEL201-8 | Shaft Size d 0.5 in | Static Load Rating 1495 lbf6650 N | Dynamic Load Rating 2878 lbf12800 N | Weight 1.6 lb0.72 Kg |
| UELF202 | Bearing Number UEL202 | Shaft Size d 15 mm | Static Load Rating 1495 lbf6650 N | Dynamic Load Rating 2878 lbf12800 N | Weight 1.5 lb0.70 Kg |
| UELF202-10 | Bearing Number UEL202-10 | Shaft Size d 0.625 in | Static Load Rating 1495 lbf6650 N | Dynamic Load Rating 2878 lbf12800 N | Weight 1.5 lb0.70 Kg |
| UELF203 | Bearing Number UEL203 | Shaft Size d 17 mm | Static Load Rating 1495 lbf6650 N | Dynamic Load Rating 2878 lbf12800 N | Weight 1.5 lb0.68 Kg |
| UELF204-12 | Bearing Number UEL204-12 | Shaft Size d 0.75 in | Static Load Rating 1495 lbf6650 N | Dynamic Load Rating 2878 lbf12800 N | Weight 1.5 lb0.68 Kg |
| UELF204 | Bearing Number UEL204 | Shaft Size d 20 mm | Static Load Rating 1495 lbf6650 N | Dynamic Load Rating 2878 lbf12800 N | Weight 1.5 lb0.68 Kg |
| UELF205-14 | Bearing Number UEL205-14 | Shaft Size d 0.875 in | Static Load Rating 1765 lbf7850 N | Dynamic Load Rating 3147 lbf14000 N | Weight 1.9 lb0.88 Kg |
| UELF205-15 | Bearing Number UEL205-15 | Shaft Size d 0.9375 in | Static Load Rating 1765 lbf7850 N | Dynamic Load Rating 3147 lbf14000 N | Weight 1.9 lb0.88 Kg |
| UELF205 | Bearing Number UEL205 | Shaft Size d 25 mm | Static Load Rating 1765 lbf7850 N | Dynamic Load Rating 3147 lbf14000 N | Weight 1.9 lb0.88 Kg |
| UELF205-16 | Bearing Number UEL205-16 | Shaft Size d 1 in | Static Load Rating 1765 lbf7850 N | Dynamic Load Rating 3147 lbf14000 N | Weight 1.9 lb0.88 Kg |
| UELF206-18 | Bearing Number UEL206-18 | Shaft Size d 1.125 in | Static Load Rating 2540 lbf11300 N | Dynamic Load Rating 4384 lbf19500 N | Weight 2.6 lb1.19 Kg |
| UELF206 | Bearing Number UEL206 | Shaft Size d 30 mm | Static Load Rating 2540 lbf11300 N | Dynamic Load Rating 4384 lbf19500 N | Weight 2.6 lb1.19 Kg |
| UELF206-19 | Bearing Number UEL206-19 | Shaft Size d 1.1875 in | Static Load Rating 2540 lbf11300 N | Dynamic Load Rating 4384 lbf19500 N | Weight 2.6 lb1.19 Kg |
| UELF206-20 | Bearing Number UEL206-20 | Shaft Size d 1.25 in | Static Load Rating 2540 lbf11300 N | Dynamic Load Rating 4384 lbf19500 N | Weight 2.6 lb1.19 Kg |
| UELF207-20 | Bearing Number UEL207-20 | Shaft Size d 1.25 in | Static Load Rating 3462 lbf15400 N | Dynamic Load Rating 5778 lbf25700 N | Weight 3.6 lb1.63 Kg |
| UELF207-21 | Bearing Number UEL207-21 | Shaft Size d 1.3125 in | Static Load Rating 3462 lbf15400 N | Dynamic Load Rating 5778 lbf25700 N | Weight 3.6 lb1.63 Kg |
| UELF207-22 | Bearing Number UEL207-22 | Shaft Size d 1.375 in | Static Load Rating 3462 lbf15400 N | Dynamic Load Rating 5778 lbf25700 N | Weight 3.6 lb1.63 Kg |
| UELF207 | Bearing Number UEL207 | Shaft Size d 35 mm | Static Load Rating 3462 lbf15400 N | Dynamic Load Rating 5778 lbf25700 N | Weight 3.6 lb1.63 Kg |
| UELF207-23 | Bearing Number UEL207-23 | Shaft Size d 1.4375 in | Static Load Rating 3462 lbf15400 N | Dynamic Load Rating 5778 lbf25700 N | Weight 3.6 lb1.63 Kg |
| UELF208-24 | Bearing Number UEL208-24 | Shaft Size d 1.5 in | Static Load Rating 4002 lbf17800 N | Dynamic Load Rating 6542 lbf29100 N | Weight 4.5 lb2.04 Kg |
| UELF208-25 | Bearing Number UEL208-25 | Shaft Size d 1.5625 in | Static Load Rating 4002 lbf17800 N | Dynamic Load Rating 6542 lbf29100 N | Weight 4.5 lb2.04 Kg |
| UELF208 | Bearing Number UEL208 | Shaft Size d 40 mm | Static Load Rating 4002 lbf17800 N | Dynamic Load Rating 6542 lbf29100 N | Weight 4.5 lb2.04 Kg |
| UELF209-26 | Bearing Number UEL209-26 | Shaft Size d 1.625 in | Static Load Rating 4788 lbf21300 N | Dynamic Load Rating 7666 lbf34100 N | Weight 5.2 lb2.37 Kg |
| UELF209-27 | Bearing Number UEL209-27 | Shaft Size d 1.6875 in | Static Load Rating 4788 lbf21300 N | Dynamic Load Rating 7666 lbf34100 N | Weight 5.2 lb2.37 Kg |
| UELF209-28 | Bearing Number UEL209-28 | Shaft Size d 1.75 in | Static Load Rating 4788 lbf21300 N | Dynamic Load Rating 7666 lbf34100 N | Weight 5.2 lb2.37 Kg |
| UELF209 | Bearing Number UEL209 | Shaft Size d 45 mm | Static Load Rating 4788 lbf21300 N | Dynamic Load Rating 7666 lbf34100 N | Weight 5.2 lb2.37 Kg |
| UELF210-30 | Bearing Number UEL210-30 | Shaft Size d 1.875 in | Static Load Rating 5238 lbf23300 N | Dynamic Load Rating 7891 lbf35100 N | Weight 6.0 lb2.71 Kg |
| UELF210-31 | Bearing Number UEL210-31 | Shaft Size d 1.9375 in | Static Load Rating 5238 lbf23300 N | Dynamic Load Rating 7891 lbf35100 N | Weight 6.0 lb2.71 Kg |
| UELF210 | Bearing Number UEL210 | Shaft Size d 50 mm | Static Load Rating 5238 lbf23300 N | Dynamic Load Rating 7891 lbf35100 N | Weight 6.0 lb2.71 Kg |
| UELF210-32 | Bearing Number UEL210-32 | Shaft Size d 2 in | Static Load Rating 5238 lbf23300 N | Dynamic Load Rating 7891 lbf35100 N | Weight 6.0 lb2.71 Kg |
| UELF211-32 | Bearing Number UEL211-32 | Shaft Size d 2 in | Static Load Rating 6609 lbf29400 N | Dynamic Load Rating 9757 lbf43400 N | Weight 8.1 lb3.68 Kg |
| UELF211-34 | Bearing Number UEL211-34 | Shaft Size d 2.125 in | Static Load Rating 6609 lbf29400 N | Dynamic Load Rating 9757 lbf43400 N | Weight 8.1 lb3.68 Kg |
| UELF211 | Bearing Number UEL211 | Shaft Size d 55 mm | Static Load Rating 6609 lbf29400 N | Dynamic Load Rating 9757 lbf43400 N | Weight 8.1 lb3.68 Kg |
| UELF211-35 | Bearing Number UEL211-35 | Shaft Size d 2.1875 in | Static Load Rating 6609 lbf29400 N | Dynamic Load Rating 9757 lbf43400 N | Weight 8.1 lb3.68 Kg |
| UELF212-36 | Bearing Number UEL212-36 | Shaft Size d 2.25 in | Static Load Rating 8138 lbf36200 N | Dynamic Load Rating 11780 lbf52400 N | Weight 10 lb4.53 Kg |
| UELF212 | Bearing Number UEL212 | Shaft Size d 60 mm | Static Load Rating 8138 lbf36200 N | Dynamic Load Rating 11780 lbf52400 N | Weight 10 lb4.53 Kg |
| UELF212-39 | Bearing Number UEL212-39 | Shaft Size d 2.4375 in | Static Load Rating 8138 lbf36200 N | Dynamic Load Rating 11780 lbf52400 N | Weight 10 lb4.53 Kg |
| UELF213-40 | Bearing Number UEL213-40 | Shaft Size d 2.5 in | Static Load Rating 9015 lbf40100 N | Dynamic Load Rating 12859 lbf57200 N | Weight 12.8 lb5.79 Kg |
| UELF213 | Bearing Number UEL213 | Shaft Size d 65 mm | Static Load Rating 9015 lbf40100 N | Dynamic Load Rating 12859 lbf57200 N | Weight 12.8 lb5.79 Kg |
| UELF214-44 | Bearing Number UEL214-44 | Shaft Size d 2.75 in | Static Load Rating 9914 lbf44100 N | Dynamic Load Rating 13983 lbf62200 N | Weight 14.9 lb6.77 Kg |
| UELF214 | Bearing Number UEL214 | Shaft Size d 70 mm | Static Load Rating 9914 lbf44100 N | Dynamic Load Rating 13983 lbf62200 N | Weight 14.9 lb6.77 Kg |
| UELF215-47 | Bearing Number UEL215-47 | Shaft Size d 2.938 in | Static Load Rating 10858 lbf48300 N | Dynamic Load Rating 15152 lbf67400 N | Weight 15.30 lb6.93 Kg |
| UELF215 | Bearing Number UEL215 | Shaft Size d 75 mm | Static Load Rating 10858 lbf48300 N | Dynamic Load Rating 15152 lbf67400 N | Weight 15.30 lb6.93 Kg |
| UELF215-48 | Bearing Number UEL215-48 | Shaft Size d 3 in | Static Load Rating 10858 lbf48300 N | Dynamic Load Rating 15152 lbf67400 N | Weight 15.30 lb6.93 Kg |
