(Not available for sale in US)

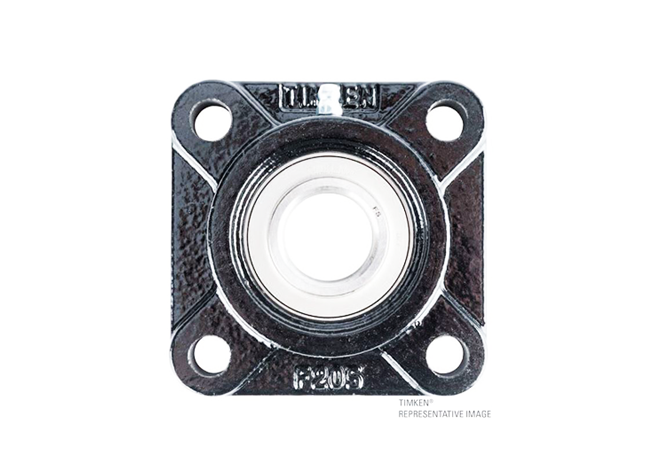

● UKF four-bolt flanged units are suggested for industrial applications where normal loads are encountered.
● Each unit comes assembled and ready for mounting, using bolts through the flange.
● These units use wide inner ring ball bearings with self-aligning spherical outside diameters that compensate for shaft misalignment.
● Timken UKF series housed units feature the Timken adapter sleeve locking (UK) bearing insert.
● Bearing prelubricated and ready for immediate installation.
● Grease fitting supplied for relubrication.
● The bonded seal design is well-suited for applications involving wet or dirty environments.
● Bolt-hole spacing dimensions and shaft center location are interchangeable with competitive units.
● Housing designed for ease of bearing replacement.
* - Purchase the Adapter Sleeve separately
| Bearing Unit - Adapter Sleeve * | Bearing Unit - Adapter Sleeve | Shaft Size d | Static Load Rating | Dynamic Load Rating | Weight |
| UKF205 - HE2305 | Bearing Unit - Adapter Sleeve UK205 - HE2305 | Shaft Size d 0.75 in | Static Load Rating 1765 lbf7850 N | Dynamic Load Rating 3147 lbf14000 N | Weight 1.9 lb0.9 Kg |
| UKF205 - H2305 | Bearing Unit - Adapter Sleeve UK205 - H2305 | Shaft Size d 20 mm | Static Load Rating 1765 lbf7850 N | Dynamic Load Rating 3147 lbf14000 N | Weight 1.9 lb0.9 Kg |
| UKF206 - H2306 | Bearing Unit - Adapter Sleeve UK206 - H2306 | Shaft Size d 25 mm | Static Load Rating 2540 lbf11300 N | Dynamic Load Rating 4384 lbf19500 N | Weight 2.9 lb1.30 Kg |
| UKF206 - HE2306 | Bearing Unit - Adapter Sleeve UK206 - HE2306 | Shaft Size d 1 in | Static Load Rating 2540 lbf11300 N | Dynamic Load Rating 4384 lbf19500 N | Weight 2.9 lb1.30 Kg |
| UKF207 - HS2307 | Bearing Unit - Adapter Sleeve UK207 - HS2307 | Shaft Size d 1.125 in | Static Load Rating 3462 lbf15400 N | Dynamic Load Rating 5778 lbf25700 N | Weight 3.5 lb1.60 Kg |
| UKF207 - H2307 | Bearing Unit - Adapter Sleeve UK207 - H2307 | Shaft Size d 30 mm | Static Load Rating 3462 lbf15400 N | Dynamic Load Rating 5778 lbf25700 N | Weight 3.5 lb1.60 Kg |
| UKF208 - HE2308 | Bearing Unit - Adapter Sleeve UK208 - HE2308 | Shaft Size d 1.25 in | Static Load Rating 4002 lbf17800 N | Dynamic Load Rating 6542 lbf29100 N | Weight 4.2 lb1.9 Kg |
| UKF208 - H2308 | Bearing Unit - Adapter Sleeve UK208 - H2308 | Shaft Size d 35 mm | Static Load Rating 4002 lbf17800 N | Dynamic Load Rating 6542 lbf29100 N | Weight 4.2 lb1.9 Kg |
| UKF209 - HE2309 | Bearing Unit - Adapter Sleeve UK209 - HE2309 | Shaft Size d 1.5 in | Static Load Rating 4788 lbf21300 N | Dynamic Load Rating 7666 lbf34100 N | Weight 5.1 lb2.30 Kg |
| UKF209 - H2309 | Bearing Unit - Adapter Sleeve UK209 - H2309 | Shaft Size d 40 mm | Static Load Rating 4788 lbf21300 N | Dynamic Load Rating 7666 lbf34100 N | Weight 5.1 lb2.30 Kg |
| UKF210 - HE2310 | Bearing Unit - Adapter Sleeve UK210 - HE2310 | Shaft Size d 1.75 in | Static Load Rating 5238 lbf23300 N | Dynamic Load Rating 7891 lbf35100 N | Weight 5.7 lb2.6 Kg |
| UKF210 - H2310 | Bearing Unit - Adapter Sleeve UK210 - H2310 | Shaft Size d 45 mm | Static Load Rating 5238 lbf23300 N | Dynamic Load Rating 7891 lbf35100 N | Weight 5.7 lb2.6 Kg |
| UKF211 - H2311 | Bearing Unit - Adapter Sleeve UK211 - H2311 | Shaft Size d 50 mm | Static Load Rating 6609 lbf29400 N | Dynamic Load Rating 9757 lbf43400 N | Weight 7.7 lb3.5 Kg |
| UKF211 - HE2311 | Bearing Unit - Adapter Sleeve UK211 - HE2311 | Shaft Size d 2 in | Static Load Rating 6609 lbf29400 N | Dynamic Load Rating 9757 lbf43400 N | Weight 7.7 lb3.5 Kg |
| UKF212 - HS2312 | Bearing Unit - Adapter Sleeve UK212 - HS2312 | Shaft Size d 2.125 in | Static Load Rating 8138 lbf36200 N | Dynamic Load Rating 11780 lbf52400 N | Weight 9.0 lb4.10 Kg |
| UKF212 - H2312 | Bearing Unit - Adapter Sleeve UK212 - H2312 | Shaft Size d 55 mm | Static Load Rating 8138 lbf36200 N | Dynamic Load Rating 11780 lbf52400 N | Weight 9.0 lb4.10 Kg |
| UKF213 - HE2313 | Bearing Unit - Adapter Sleeve UK213 - HE2313 | Shaft Size d 2.25 in | Static Load Rating 9015 lbf40100 N | Dynamic Load Rating 12859 lbf57200 N | Weight 11.2 lb5.1 Kg |
| UKF213 - H2313 | Bearing Unit - Adapter Sleeve UK213 - H2313 | Shaft Size d 60 mm | Static Load Rating 9015 lbf40100 N | Dynamic Load Rating 12859 lbf57200 N | Weight 11.2 lb5.1 Kg |
| UKF215 - HE2315 | Bearing Unit - Adapter Sleeve UK215 - HE2315 | Shaft Size d 2.5 in | Static Load Rating 10858 lbf48300 N | Dynamic Load Rating 15152 lbf67400 N | Weight 14.3 lb6.50 Kg |
| UKF215 - H2315 | Bearing Unit - Adapter Sleeve UK215 - H2315 | Shaft Size d 65 mm | Static Load Rating 10858 lbf48300 N | Dynamic Load Rating 15152 lbf67400 N | Weight 14.3 lb6.50 Kg |
| UKF216 - HE2316 | Bearing Unit - Adapter Sleeve UK216 - HE2316 | Shaft Size d 2.75 in | Static Load Rating 11915 lbf53000 N | Dynamic Load Rating 16344 lbf72700 N | Weight 16.8 lb7.6 Kg |
| UKF216 - H2316 | Bearing Unit - Adapter Sleeve UK216 - H2316 | Shaft Size d 70 mm | Static Load Rating 11915 lbf53000 N | Dynamic Load Rating 16344 lbf72700 N | Weight 16.8 lb7.6 Kg |
| UKF217 - H2317 | Bearing Unit - Adapter Sleeve UK217 - H2317 | Shaft Size d 75 mm | Static Load Rating 13916 lbf61900 N | Dynamic Load Rating 18884 lbf84000 N | Weight 19.8 lb9.00 Kg |
| UKF217 - HE2317 | Bearing Unit - Adapter Sleeve UK217 - HE2317 | Shaft Size d 3 in | Static Load Rating 13916 lbf61900 N | Dynamic Load Rating 18884 lbf84000 N | Weight 19.8 lb9.00 Kg |
| UKF218 - H2318 | Bearing Unit - Adapter Sleeve UK218 - H2318 | Shaft Size d 80 mm | Static Load Rating 16074 lbf71500 N | Dynamic Load Rating 21604 lbf96100 N | Weight 25.1 lb11.4 Kg |
| UKF218 - HE2318 | Bearing Unit - Adapter Sleeve UK218 - HE2318 | Shaft Size d 80 mm | Static Load Rating 16074 lbf71500 N | Dynamic Load Rating 21604 lbf96100 N | Weight 25.1 lb11.4 Kg |
