Băng tải - Gàu tải > SKF > Fafnir® Two-Bolt Flanged Units Setscrew Locking

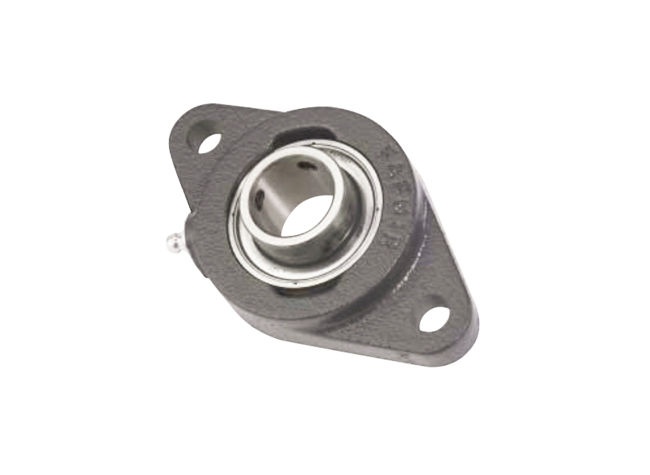

Fafnir® Two-Bolt Flanged Units Setscrew Locking





 Timken Part Number  Shaft Size d  Housing Width A  Static Load Rating  Dynamic Load Rating  Inside Ring Outside Diameter  Series  Weight  Seal Type

Housing Construction


YCJT 17 Shaft Size d N/A 0.669 in17 mm Housing Width A N/A 0.929 in23.6 mm Static Load Rating N/A 1070 lbf4700 N Dynamic Load Rating N/A 2380 lbf10700 N Inside Ring Outside Diameter N/A 0.941 in23.9 mm Series N/A Industrial Weight N/A 0.75 lb0.34 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
SCJT 17 Shaft Size d N/A 0.669 in17 mm Housing Width A N/A 0.705 in17.9 mm Static Load Rating N/A 1070 lbf4700 N Dynamic Load Rating N/A 2380 lbf10700 N Inside Ring Outside Diameter N/A 0.969 in24.6 mm Series N/A Standard Weight N/A 0.75 lb0.34 Kg Seal Type N/A Narrow Shroud Housing Construction N/A Two-Bolt Flange
YCJT 20 SGT Shaft Size d N/A 0.787 in20 mm Housing Width A N/A 1.094 in27.8 mm Static Load Rating N/A 1460 lbf6500 N Dynamic Load Rating N/A 3190 lbf14200 N Inside Ring Outside Diameter N/A 1.087 in27.6 mm Series N/A Industrial Weight N/A 1.022 lb0.46 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
SCJT 20 Shaft Size d N/A 0.787 in20 mm Housing Width A N/A 0.748 in19 mm Static Load Rating N/A 1460 lbf6500 N Dynamic Load Rating N/A 3190 lbf14200 N Inside Ring Outside Diameter N/A 1.142 in29 mm Series N/A Standard Weight N/A 0.948 lb0.43 Kg Seal Type N/A Narrow Shroud Housing Construction N/A Two-Bolt Flange
YCJT 25 SGT Shaft Size d N/A 0.984 in25 mm Housing Width A N/A 1.098 in27.9 mm Static Load Rating N/A 1750 lbf7800 N Dynamic Load Rating N/A 3490 lbf15500 N Inside Ring Outside Diameter N/A 1.331 in33.8 mm Series N/A Industrial Weight N/A 1.366 lb0.620 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
SCJT 25 Shaft Size d N/A 0.984 in25 mm Housing Width A N/A 0.780 in19.8 mm Static Load Rating N/A 1750 lbf7800 N Dynamic Load Rating N/A 3490 lbf15500 N Inside Ring Outside Diameter N/A 1.327 in33.7 mm Series N/A Standard Weight N/A 1.058 lb0.48 Kg Seal Type N/A Narrow Shroud Housing Construction N/A Two-Bolt Flange
YCJTM 1 Shaft Size d N/A 1 in25.4 mm Housing Width A N/A 1.177 in29.9 mm Static Load Rating N/A 2530 lbf11300 N Dynamic Load Rating N/A 4850 lbf21600 N Inside Ring Outside Diameter N/A 1.587 in40.31 mm Series N/A Medium-Duty Weight N/A 1.730 lb0.78 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
YCJT 1 SGT Shaft Size d N/A 1 in25.4 mm Housing Width A N/A 1.098 in27.9 mm Static Load Rating N/A 1750 lbf7800 N Dynamic Load Rating N/A 3490 lbf15500 N Inside Ring Outside Diameter N/A 1.331 in33.8 mm Series N/A Industrial Weight N/A 1.350 lb0.61 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
SCJT 1 Shaft Size d N/A 1 in25.4 mm Housing Width A N/A 0.780 in19.8 mm Static Load Rating N/A 1750 lbf7800 N Dynamic Load Rating N/A 3490 lbf15500 N Inside Ring Outside Diameter N/A 1.327 in33.7 mm Series N/A Standard Weight N/A 1.058 lb0.48 Kg Seal Type N/A Narrow Shroud Housing Construction N/A Two-Bolt Flange
YCJTM 1 1/2 Shaft Size d N/A 1 1/2 in38.1 mm Housing Width A N/A 1.531 in38.9 mm Static Load Rating N/A 4600 lbf20500 N Dynamic Load Rating N/A 8160 lbf36300 N Inside Ring Outside Diameter N/A 2.280 in57.92 mm Series N/A Medium-Duty Weight N/A 5.320 lb2.41 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
YCJT 1 1/2 SGT Shaft Size d N/A 1 1/2 in38.1 mm Housing Width A N/A 1.500 in38.10 mm Static Load Rating N/A 4460 lbf19800 N Dynamic Load Rating N/A 8130 lbf36200 N Inside Ring Outside Diameter N/A 2.055 in52.2 mm Series N/A Industrial Weight N/A 4.83 lb2.19 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
SCJT 1 1/2 Shaft Size d N/A 1 1/2 in38.1 mm Housing Width A N/A 1.031 in26.2 mm Static Load Rating N/A 4460 lbf19800 N Dynamic Load Rating N/A 8130 lbf36200 N Inside Ring Outside Diameter N/A 2.063 in52.4 mm Series N/A Standard Weight N/A 4.343 lb1.97 Kg Seal Type N/A Narrow Shroud Housing Construction N/A Two-Bolt Flange
YCJT 1 1/4 S Shaft Size d N/A 1 1/4 in31.8 mm Housing Width A N/A 1.177 in29.9 mm Static Load Rating N/A 2530 lbf11300 N Dynamic Load Rating N/A 4850 lbf21600 N Inside Ring Outside Diameter N/A 1.587 in40.3 mm Series N/A Industrial Weight N/A 2.4 lb1.09 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
YCJT 1 1/4 SGT Shaft Size d N/A 1 1/4 in31.8 mm Housing Width A N/A 1.252 in31.8 mm Static Load Rating N/A 2530 lbf11300 N Dynamic Load Rating N/A 4850 lbf21600 N Inside Ring Outside Diameter N/A 1.843 in46.8 mm Series N/A Industrial Weight N/A 3.18 lb1.44 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
SCJT 1 1/4 S Shaft Size d N/A 1 1/4 in31.8 mm Housing Width A N/A 0.843 in21.4 mm Static Load Rating N/A 2530 lbf11300 N Dynamic Load Rating N/A 4850 lbf21600 N Inside Ring Outside Diameter N/A 1.579 in40.1 mm Series N/A Standard Weight N/A 1.587 lb0.72 Kg Seal Type N/A Narrow Shroud Housing Construction N/A Two-Bolt Flange
SCJT 1 1/4 Shaft Size d N/A 1 1/4 in31.8 mm Housing Width A N/A 0.969 in24.6 mm Static Load Rating N/A 3440 lbf15300 N Dynamic Load Rating N/A 6400 lbf28500 N Inside Ring Outside Diameter N/A 1.843 in46.8 mm Series N/A Standard Weight N/A 2.381 lb1.08 Kg Seal Type N/A Narrow Shroud Housing Construction N/A Two-Bolt Flange
YCJT 1 1/8 SGT Shaft Size d N/A 1 1/8 in28.6 mm Housing Width A N/A 1.177 in29.9 mm Static Load Rating N/A 2530 lbf11300 N Dynamic Load Rating N/A 4850 lbf21600 N Inside Ring Outside Diameter N/A 1.587 in40.3 mm Series N/A Industrial Weight N/A 2.4 lb1.09 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
SCJT 1 1/8 Shaft Size d N/A 1 1/8 in28.6 mm Housing Width A N/A 0.843 in21.4 mm Static Load Rating N/A 2530 lbf11300 N Dynamic Load Rating N/A 4850 lbf21600 N Inside Ring Outside Diameter N/A 1.579 in40.1 mm Series N/A Standard Weight N/A 1.587 lb0.72 Kg Seal Type N/A Narrow Shroud Housing Construction N/A Two-Bolt Flange
YCJTM 1 11/16 Shaft Size d N/A 1 11/16 in42.9 mm Housing Width A N/A 1.689 in42.9 mm Static Load Rating N/A 5210 lbf23200 N Dynamic Load Rating N/A 8740 lbf38900 N Inside Ring Outside Diameter N/A 2.473 in62.81 mm Series N/A Medium-Duty Weight N/A 6.62 lb3.0 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
YCJT 1 11/16 SGT Shaft Size d N/A 1 11/16 in42.9 mm Housing Width A N/A 1.531 in38.9 mm Static Load Rating N/A 4600 lbf20500 N Dynamic Load Rating N/A 8160 lbf36300 N Inside Ring Outside Diameter N/A 2.280 in57.9 mm Series N/A Industrial Weight N/A 5.24 lb2.38 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
SCJT 1 11/16 Shaft Size d N/A 1 11/16 in42.9 mm Housing Width A N/A 1.126 in28.6 mm Static Load Rating N/A 4600 lbf20500 N Dynamic Load Rating N/A 8160 lbf36300 N Inside Ring Outside Diameter N/A 2.280 in57.9 mm Series N/A Standard Weight N/A 4.475 lb2.03 Kg Seal Type N/A Narrow Shroud Housing Construction N/A Two-Bolt Flange
YCJTM 1 15/16 Shaft Size d N/A 1 15/16 in49.2 mm Housing Width A N/A 1.843 in46.8 mm Static Load Rating N/A 6570 lbf29200 N Dynamic Load Rating N/A 10800 lbf48100 N Inside Ring Outside Diameter N/A 2.747 in69.77 mm Series N/A Medium-Duty Weight N/A 8.8 lb3.99 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
YCJT 1 15/16 SGT Shaft Size d N/A 1 15/16 in49.2 mm Housing Width A N/A 1.689 in42.9 mm Static Load Rating N/A 5210 lbf23200 N Dynamic Load Rating N/A 8740 lbf38900 N Inside Ring Outside Diameter N/A 2.472 in62.8 mm Series N/A Industrial Weight N/A 6.0 lb2.72 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
SCJT 1 15/16 Shaft Size d N/A 1 15/16 in49.2 mm Housing Width A N/A 1.126 in28.6 mm Static Load Rating N/A 5210 lbf23200 N Dynamic Load Rating N/A 8740 lbf38900 N Inside Ring Outside Diameter N/A 2.469 in62.7 mm Series N/A Standard Weight N/A 4.982 lb2.26 Kg Seal Type N/A Narrow Shroud Housing Construction N/A Two-Bolt Flange
YCJTM 1 3/16 Shaft Size d N/A 1 3/16 in30.2 mm Housing Width A N/A 1.252 in31.8 mm Static Load Rating N/A 3440 lbf15300 N Dynamic Load Rating N/A 6400 lbf28500 N Inside Ring Outside Diameter N/A 1.842 in46.79 mm Series N/A Medium-Duty Weight N/A 2.4 lb1.09 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
YCJT 1 3/16 SGT Shaft Size d N/A 1 3/16 in30.2 mm Housing Width A N/A 1.177 in29.9 mm Static Load Rating N/A 2530 lbf11300 N Dynamic Load Rating N/A 4850 lbf21600 N Inside Ring Outside Diameter N/A 1.587 in40.3 mm Series N/A Industrial Weight N/A 2.4 lb1.09 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
SCJT 1 3/16 Shaft Size d N/A 1 3/16 in30.2 mm Housing Width A N/A 0.843 in21.4 mm Static Load Rating N/A 2530 lbf11300 N Dynamic Load Rating N/A 4850 lbf21600 N Inside Ring Outside Diameter N/A 1.579 in40.1 mm Series N/A Standard Weight N/A 1.587 lb0.72 Kg Seal Type N/A Narrow Shroud Housing Construction N/A Two-Bolt Flange
YCJTM 1 3/4 Shaft Size d N/A 1 3/4 in44.5 mm Housing Width A N/A 1.689 in42.9 mm Static Load Rating N/A 5210 lbf23200 N Dynamic Load Rating N/A 8740 lbf38900 N Inside Ring Outside Diameter N/A 2.473 in62.81 mm Series N/A Medium-Duty Weight N/A 6.470 lb2.93 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
YCJT 1 3/4 SGT Shaft Size d N/A 1 3/4 in44.5 mm Housing Width A N/A 1.531 in38.9 mm Static Load Rating N/A 4600 lbf20500 N Dynamic Load Rating N/A 8160 lbf36300 N Inside Ring Outside Diameter N/A 2.280 in57.9 mm Series N/A Industrial Weight N/A 5.24 lb2.38 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
SCJT 1 3/4 Shaft Size d N/A 1 3/4 in44.5 mm Housing Width A N/A 1.126 in28.6 mm Static Load Rating N/A 4600 lbf20500 N Dynamic Load Rating N/A 8160 lbf36300 N Inside Ring Outside Diameter N/A 2.280 in57.9 mm Series N/A Standard Weight N/A 4.475 lb2.03 Kg Seal Type N/A Narrow Shroud Housing Construction N/A Two-Bolt Flange
YCJT 1 3/8 SGT Shaft Size d N/A 1 3/8 in34.9 mm Housing Width A N/A 1.252 in31.8 mm Static Load Rating N/A 3440 lbf15300 N Dynamic Load Rating N/A 6400 lbf28500 N Inside Ring Outside Diameter N/A 1.843 in46.8 mm Series N/A Industrial Weight N/A 3.18 lb1.44 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
SCJT 1 3/8 Shaft Size d N/A 1 3/8 in34.9 mm Housing Width A N/A 0.969 in24.6 mm Static Load Rating N/A 3440 lbf15300 N Dynamic Load Rating N/A 6400 lbf28500 N Inside Ring Outside Diameter N/A 1.843 in46.8 mm Series N/A Standard Weight N/A 2.381 lb1.08 Kg Seal Type N/A Narrow Shroud Housing Construction N/A Two-Bolt Flange
YCJT 1 5/8 SGT Shaft Size d N/A 1 5/8 in41.3 mm Housing Width A N/A 1.531 in38.9 mm Static Load Rating N/A 4600 lbf20500 N Dynamic Load Rating N/A 8160 lbf36300 N Inside Ring Outside Diameter N/A 2.280 in57.9 mm Series N/A Industrial Weight N/A 5.24 lb2.38 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
SCJT 1 5/8 Shaft Size d N/A 1 5/8 in41.3 mm Housing Width A N/A 1.126 in28.6 mm Static Load Rating N/A 4600 lbf20500 N Dynamic Load Rating N/A 8160 lbf36300 N Inside Ring Outside Diameter N/A 2.280 in57.9 mm Series N/A Standard Weight N/A 4.475 lb2.03 Kg Seal Type N/A Narrow Shroud Housing Construction N/A Two-Bolt Flange
YCJTM 1 7/16 Shaft Size d N/A 1 7/16 in36.5 mm Housing Width A N/A 1.500 in38.10 mm Static Load Rating N/A 4460 lbf19800 N Dynamic Load Rating N/A 8130 lbf36200 N Inside Ring Outside Diameter N/A 2.058 in52.27 mm Series N/A Medium-Duty Weight N/A 4.890 lb2.22 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
YCJT 1 7/16 SGT Shaft Size d N/A 1 7/16 in36.5 mm Housing Width A N/A 1.252 in31.8 mm Static Load Rating N/A 3440 lbf15300 N Dynamic Load Rating N/A 6400 lbf28500 N Inside Ring Outside Diameter N/A 1.843 in46.8 mm Series N/A Industrial Weight N/A 3.18 lb1.44 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
SCJT 1 7/16 Shaft Size d N/A 1 7/16 in36.5 mm Housing Width A N/A 0.969 in24.6 mm Static Load Rating N/A 3440 lbf15300 N Dynamic Load Rating N/A 6400 lbf28500 N Inside Ring Outside Diameter N/A 1.843 in46.8 mm Series N/A Standard Weight N/A 2.381 lb1.08 Kg Seal Type N/A Narrow Shroud Housing Construction N/A Two-Bolt Flange
YCJT 30 SGT Shaft Size d N/A 1.181 in30 mm Housing Width A N/A 1.177 in29.9 mm Static Load Rating N/A 2530 lbf11300 N Dynamic Load Rating N/A 4850 lbf21600 N Inside Ring Outside Diameter N/A 1.587 in40.3 mm Series N/A Industrial Weight N/A 2.4 lb1.09 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
SCJT 30 Shaft Size d N/A 1.181 in30 mm Housing Width A N/A 0.843 in21.4 mm Static Load Rating N/A 2530 lbf11300 N Dynamic Load Rating N/A 4850 lbf21600 N Inside Ring Outside Diameter N/A 1.579 in40.1 mm Series N/A Standard Weight N/A 1.587 lb0.72 Kg Seal Type N/A Narrow Shroud Housing Construction N/A Two-Bolt Flange
YCJT 35 SGT Shaft Size d N/A 1.378 in35 mm Housing Width A N/A 1.252 in31.8 mm Static Load Rating N/A 3440 lbf15300 N Dynamic Load Rating N/A 6400 lbf28500 N Inside Ring Outside Diameter N/A 1.843 in46.8 mm Series N/A Industrial Weight N/A 3.18 lb1.44 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
SCJT 35 Shaft Size d N/A 1.378 in35 mm Housing Width A N/A 0.969 in24.6 mm Static Load Rating N/A 3440 lbf15300 N Dynamic Load Rating N/A 6400 lbf28500 N Inside Ring Outside Diameter N/A 1.843 in46.8 mm Series N/A Standard Weight N/A 2.381 lb1.08 Kg Seal Type N/A Narrow Shroud Housing Construction N/A Two-Bolt Flange
YCJT 40 SGT Shaft Size d N/A 1.575 in40 mm Housing Width A N/A 1.500 in38.10 mm Static Load Rating N/A 4460 lbf19800 N Dynamic Load Rating N/A 8130 lbf36200 N Inside Ring Outside Diameter N/A 2.055 in52.2 mm Series N/A Industrial Weight N/A 4.83 lb2.19 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
SCJT 40 Shaft Size d N/A 1.575 in40 mm Housing Width A N/A 1.031 in26.2 mm Static Load Rating N/A 4460 lbf19800 N Dynamic Load Rating N/A 8130 lbf36200 N Inside Ring Outside Diameter N/A 2.063 in52.4 mm Series N/A Standard Weight N/A 4.343 lb1.97 Kg Seal Type N/A Narrow Shroud Housing Construction N/A Two-Bolt Flange
YCJT 45 SGT Shaft Size d N/A 1.772 in45 mm Housing Width A N/A 1.531 in38.9 mm Static Load Rating N/A 4600 lbf20500 N Dynamic Load Rating N/A 8160 lbf36300 N Inside Ring Outside Diameter N/A 2.280 in57.9 mm Series N/A Industrial Weight N/A 5.24 lb2.38 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
SCJT 45 Shaft Size d N/A 1.772 in45 mm Housing Width A N/A 1.126 in28.6 mm Static Load Rating N/A 4600 lbf20500 N Dynamic Load Rating N/A 8160 lbf36300 N Inside Ring Outside Diameter N/A 2.280 in57.9 mm Series N/A Standard Weight N/A 4.475 lb2.03 Kg Seal Type N/A Narrow Shroud Housing Construction N/A Two-Bolt Flange
YCJT 50 SGT Shaft Size d N/A 1.969 in50 mm Housing Width A N/A 1.689 in42.9 mm Static Load Rating N/A 5210 lbf23200 N Dynamic Load Rating N/A 8740 lbf38900 N Inside Ring Outside Diameter N/A 2.472 in62.8 mm Series N/A Industrial Weight N/A 6.0 lb2.72 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
SCJT 50 Shaft Size d N/A 1.969 in50 mm Housing Width A N/A 1.126 in28.6 mm Static Load Rating N/A 5210 lbf23200 N Dynamic Load Rating N/A 8740 lbf38900 N Inside Ring Outside Diameter N/A 2.469 in62.7 mm Series N/A Standard Weight N/A 4.982 lb2.26 Kg Seal Type N/A Narrow Shroud Housing Construction N/A Two-Bolt Flange
YCJT 1/2 Shaft Size d N/A 1/2 in12.7 mm Housing Width A N/A 0.929 in23.6 mm Static Load Rating N/A 1070 lbf4700 N Dynamic Load Rating N/A 2380 lbf10700 N Inside Ring Outside Diameter N/A 0.941 in23.9 mm Series N/A Industrial Weight N/A 0.75 lb0.34 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
SCJT 1/2 Shaft Size d N/A 1/2 in12.7 mm Housing Width A N/A 0.705 in17.9 mm Static Load Rating N/A 1070 lbf4700 N Dynamic Load Rating N/A 2380 lbf10700 N Inside Ring Outside Diameter N/A 0.969 in24.6 mm Series N/A Standard Weight N/A 0.75 lb0.34 Kg Seal Type N/A Narrow Shroud Housing Construction N/A Two-Bolt Flange
YCJT 15/16 SGT Shaft Size d N/A 15/16 in23.8 mm Housing Width A N/A 1.098 in27.9 mm Static Load Rating N/A 1750 lbf7800 N Dynamic Load Rating N/A 3490 lbf15500 N Inside Ring Outside Diameter N/A 1.331 in33.8 mm Series N/A Industrial Weight N/A 1.350 lb0.61 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
SCJT 15/16 Shaft Size d N/A 15/16 in23.8 mm Housing Width A N/A 0.780 in19.8 mm Static Load Rating N/A 1750 lbf7800 N Dynamic Load Rating N/A 3490 lbf15500 N Inside Ring Outside Diameter N/A 1.327 in33.7 mm Series N/A Standard Weight N/A 1.058 lb0.48 Kg Seal Type N/A Narrow Shroud Housing Construction N/A Two-Bolt Flange
YCJTM 2 Shaft Size d N/A 2 in50.8 mm Housing Width A N/A 1.843 in46.8 mm Static Load Rating N/A 6570 lbf29200 N Dynamic Load Rating N/A 10800 lbf48100 N Inside Ring Outside Diameter N/A 2.747 in69.77 mm Series N/A Medium-Duty Weight N/A 5.490 lb2.49 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
YCJT 2 SGT Shaft Size d N/A 2 in50.8 mm Housing Width A N/A 1.843 in46.8 mm Static Load Rating N/A 6570 lbf29200 N Dynamic Load Rating N/A 10800 lbf48100 N Inside Ring Outside Diameter N/A 2.744 in69.7 mm Series N/A Industrial Weight N/A 8.08 lb3.67 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
SCJT 2 S Shaft Size d N/A 2 in50.8 mm Housing Width A N/A 1.126 in28.6 mm Static Load Rating N/A 5210 lbf23200 N Dynamic Load Rating N/A 8740 lbf38900 N Inside Ring Outside Diameter N/A 2.469 in62.7 mm Series N/A Standard Weight N/A 4.982 lb2.26 Kg Seal Type N/A Narrow Shroud Housing Construction N/A Two-Bolt Flange
SCJT 2 Shaft Size d N/A 2 in50.8 mm Housing Width A N/A 1.217 in30.9 mm Static Load Rating N/A 6570 lbf29200 N Dynamic Load Rating N/A 10800 lbf48100 N Inside Ring Outside Diameter N/A 2.748 in69.8 mm Series N/A Standard Weight N/A 6.151 lb2.79 Kg Seal Type N/A Narrow Shroud Housing Construction N/A Two-Bolt Flange
YCJT 2 3/16 SGT Shaft Size d N/A 2 3/16 in55.6 mm Housing Width A N/A 1.843 in46.8 mm Static Load Rating N/A 6570 lbf29200 N Dynamic Load Rating N/A 10800 lbf48100 N Inside Ring Outside Diameter N/A 2.744 in69.7 mm Series N/A Industrial Weight N/A 8.08 lb3.67 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
SCJT 2 3/16 Shaft Size d N/A 2 3/16 in55.6 mm Housing Width A N/A 1.217 in30.9 mm Static Load Rating N/A 6570 lbf29200 N Dynamic Load Rating N/A 10800 lbf48100 N Inside Ring Outside Diameter N/A 2.748 in69.8 mm Series N/A Standard Weight N/A 6.151 lb2.79 Kg Seal Type N/A Narrow Shroud Housing Construction N/A Two-Bolt Flange
YCJT 55 SGT Shaft Size d N/A 2.165 in55 mm Housing Width A N/A 1.843 in46.8 mm Static Load Rating N/A 6570 lbf29200 N Dynamic Load Rating N/A 10800 lbf48100 N Inside Ring Outside Diameter N/A 2.744 in69.7 mm Series N/A Industrial Weight N/A 8.08 lb3.67 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
SCJT 55 Shaft Size d N/A 2.165 in55 mm Housing Width A N/A 1.217 in30.9 mm Static Load Rating N/A 6570 lbf29200 N Dynamic Load Rating N/A 10800 lbf48100 N Inside Ring Outside Diameter N/A 2.748 in69.8 mm Series N/A Standard Weight N/A 6.151 lb2.79 Kg Seal Type N/A Narrow Shroud Housing Construction N/A Two-Bolt Flange
YCJT 3/4 SGT Shaft Size d N/A 3/4 in19.1 mm Housing Width A N/A 1.094 in27.8 mm Static Load Rating N/A 1460 lbf6500 N Dynamic Load Rating N/A 3190 lbf14200 N Inside Ring Outside Diameter N/A 1.087 in27.6 mm Series N/A Industrial Weight N/A 1.022 lb0.46 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
SCJT 3/4 Shaft Size d N/A 3/4 in19.1 mm Housing Width A N/A 0.748 in19 mm Static Load Rating N/A 1460 lbf6500 N Dynamic Load Rating N/A 3190 lbf14200 N Inside Ring Outside Diameter N/A 1.142 in29 mm Series N/A Standard Weight N/A 0.948 lb0.43 Kg Seal Type N/A Narrow Shroud Housing Construction N/A Two-Bolt Flange
YCJT 5/8 Shaft Size d N/A 5/8 in15.9 mm Housing Width A N/A 0.929 in23.6 mm Static Load Rating N/A 1070 lbf4700 N Dynamic Load Rating N/A 2380 lbf10700 N Inside Ring Outside Diameter N/A 0.941 in23.9 mm Series N/A Industrial Weight N/A 0.75 lb0.34 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
SCJT 5/8 Shaft Size d N/A 5/8 in15.9 mm Housing Width A N/A 0.705 in17.9 mm Static Load Rating N/A 1070 lbf4700 N Dynamic Load Rating N/A 2380 lbf10700 N Inside Ring Outside Diameter N/A 0.969 in24.6 mm Series N/A Standard Weight N/A 0.75 lb0.34 Kg Seal Type N/A Narrow Shroud Housing Construction N/A Two-Bolt Flange
YCJT 7/8 SGT Shaft Size d N/A 7/8 in22.2 mm Housing Width A N/A 1.098 in27.9 mm Static Load Rating N/A 1750 lbf7800 N Dynamic Load Rating N/A 3490 lbf15500 N Inside Ring Outside Diameter N/A 1.331 in33.8 mm Series N/A Industrial Weight N/A 1.350 lb0.61 Kg Seal Type N/A Shroud Seal Housing Construction N/A Two-Bolt Flange
SCJT 7/8 Shaft Size d N/A 7/8 in22.2 mm Housing Width A N/A 0.780 in19.8 mm Static Load Rating N/A 1750 lbf7800 N Dynamic Load Rating N/A 3490 lbf15500 N Inside Ring Outside Diameter N/A 1.327 in33.7 mm Series N/A Standard Weight N/A 1.058 lb0.48 Kg Seal Type N/A Narrow Shroud Housing Construction N/A Two-Bolt Flange
