Băng tải - Gàu tải > SKF > Metric HE/HS Adapter Sleeve for Inch Shaft

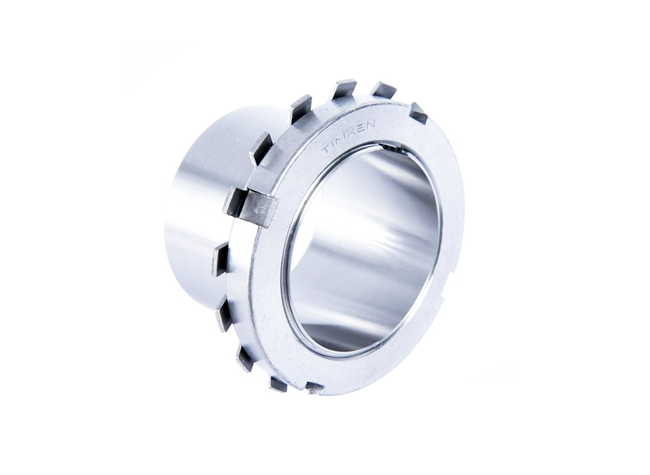

Metric HE/HS Adapter Sleeve for Inch Shaft



  • Safe and effective tapered bore bearing assembly.
  • Includes mounting sleeve, locknut and lockwasher or lockplate.
  • Other dimensions may be available, consult your Timken sales representative.





Timken Part Number

  d1  L  D3  Locknut  Lockwasher and Lockplates

Appropriate Hydraulic Nut
HE305 d1 N/A 3/4 in19.05 mm L N/A 29.00 mm D3 N/A 38 mm Locknut N/A KM5 Lockwasher and Lockplates N/A MB5 Appropriate Hydraulic Nut N/A
HE2305 d1 N/A 3/4 in19.05 mm L N/A 35.00 mm D3 N/A 38 mm Locknut N/A KM5 Lockwasher and Lockplates N/A MB5 Appropriate Hydraulic Nut N/A
HE306 d1 N/A 1 in25.40 mm L N/A 31.00 mm D3 N/A 45 mm Locknut N/A KM6 Lockwasher and Lockplates N/A MB6 Appropriate Hydraulic Nut N/A
HE2306 d1 N/A 1 in25.40 mm L N/A 38.00 mm D3 N/A 45 mm Locknut N/A KM6 Lockwasher and Lockplates N/A MB6 Appropriate Hydraulic Nut N/A
HS2307 d1 N/A 1 1/8 in28.58 mm L N/A 43.00 mm D3 N/A 52 mm Locknut N/A KM7 Lockwasher and Lockplates N/A MB7 Appropriate Hydraulic Nut N/A
HE308 d1 N/A 1 1/4 in31.75 mm L N/A 36.00 mm D3 N/A 58 mm Locknut N/A KM8 Lockwasher and Lockplates N/A MB8 Appropriate Hydraulic Nut N/A
HE2308 d1 N/A 1 1/4 in31.75 mm L N/A 46.00 mm D3 N/A 58 mm Locknut N/A KM8 Lockwasher and Lockplates N/A MB8 Appropriate Hydraulic Nut N/A
HE309 d1 N/A 1 1/2 in38.10 mm L N/A 39.00 mm D3 N/A 65 mm Locknut N/A KM9 Lockwasher and Lockplates N/A MB9 Appropriate Hydraulic Nut N/A
HE2309 d1 N/A 1 1/2 in38.10 mm L N/A 50.00 mm D3 N/A 65 mm Locknut N/A KM9 Lockwasher and Lockplates N/A MB9 Appropriate Hydraulic Nut N/A
HE310 d1 N/A 1 3/4 in44.45 mm L N/A 42.00 mm D3 N/A 70 mm Locknut N/A KM10 Lockwasher and Lockplates N/A MB10 Appropriate Hydraulic Nut N/A HMV10
HE2310 d1 N/A 1 3/4 in44.45 mm L N/A 55.00 mm D3 N/A 70 mm Locknut N/A KM10 Lockwasher and Lockplates N/A MB10 Appropriate Hydraulic Nut N/A HMV10
HE311 d1 N/A 2 in50.80 mm L N/A 45.00 mm D3 N/A 75 mm Locknut N/A KM11 Lockwasher and Lockplates N/A MB11 Appropriate Hydraulic Nut N/A HMV11
HE2311 d1 N/A 2 in50.80 mm L N/A 59.00 mm D3 N/A 75 mm Locknut N/A KM11 Lockwasher and Lockplates N/A MB11 Appropriate Hydraulic Nut N/A HMV11
HS2312 d1 N/A 2 1/8 in53.98 mm L N/A 62.00 mm D3 N/A 80 mm Locknut N/A KM12 Lockwasher and Lockplates N/A MB12 Appropriate Hydraulic Nut N/A HMV12
HE313 d1 N/A 2 1/4 in57.15 mm L N/A 50.00 mm D3 N/A 85 mm Locknut N/A KM13 Lockwasher and Lockplates N/A MB13 Appropriate Hydraulic Nut N/A HMV13
HE2313 d1 N/A 2 1/4 in57.15 mm L N/A 65.00 mm D3 N/A 85 mm Locknut N/A KM13 Lockwasher and Lockplates N/A MB13 Appropriate Hydraulic Nut N/A HMV13
HE315 d1 N/A 2 1/2 in63.50 mm L N/A 55.00 mm D3 N/A 98 mm Locknut N/A KM15 Lockwasher and Lockplates N/A MB15 Appropriate Hydraulic Nut N/A HMV15
HE2315 d1 N/A 2 1/2 in63.50 mm L N/A 73.00 mm D3 N/A 98 mm Locknut N/A KM15 Lockwasher and Lockplates N/A MB15 Appropriate Hydraulic Nut N/A HMV15
HE316 d1 N/A 2 3/4 in69.85 mm L N/A 59.00 mm D3 N/A 105 mm Locknut N/A KM16 Lockwasher and Lockplates N/A MB16 Appropriate Hydraulic Nut N/A HMV16
HE2316 d1 N/A 2 3/4 in69.85 mm L N/A 78.00 mm D3 N/A 105 mm Locknut N/A KM16 Lockwasher and Lockplates N/A MB16 Appropriate Hydraulic Nut N/A HMV16
HE317 d1 N/A 3.000 in76.20 mm L N/A 63.00 mm D3 N/A 110 mm Locknut N/A KM17 Lockwasher and Lockplates N/A MB17 Appropriate Hydraulic Nut N/A HMV17
HE2317 d1 N/A 3.000 in76.20 mm L N/A 82.00 mm D3 N/A 110 mm Locknut N/A KM17 Lockwasher and Lockplates N/A MB17 Appropriate Hydraulic Nut N/A HMV17
HE318 d1 N/A 3 1/4 in82.55 mm L N/A 65.00 mm D3 N/A 120 mm Locknut N/A KM18 Lockwasher and Lockplates N/A MB18 Appropriate Hydraulic Nut N/A HMV18
HE319 d1 N/A 3 1/4 in82.55 mm L N/A 68.00 mm D3 N/A 125 mm Locknut N/A KM19 Lockwasher and Lockplates N/A MB19 Appropriate Hydraulic Nut N/A HMV19
HE2318 d1 N/A 3 1/4 in82.55 mm L N/A 86.00 mm D3 N/A 120 mm Locknut N/A KM18 Lockwasher and Lockplates N/A MB18 Appropriate Hydraulic Nut N/A HMV18
HE2319 d1 N/A 3 1/4 in82.55 mm L N/A 90.00 mm D3 N/A 125 mm Locknut N/A KM19 Lockwasher and Lockplates N/A MB19 Appropriate Hydraulic Nut N/A HMV19
HE320 d1 N/A 3.5000 in88.900 mm L N/A 71.00 mm D3 N/A 130 mm Locknut N/A KM20 Lockwasher and Lockplates N/A MB20 Appropriate Hydraulic Nut N/A HMV20
HE3120 d1 N/A 3.5000 in88.900 mm L N/A 76.00 mm D3 N/A 130 mm Locknut N/A KM20 Lockwasher and Lockplates N/A MB20 Appropriate Hydraulic Nut N/A HMV20
HE2320 d1 N/A 3.5000 in88.900 mm L N/A 97.00 mm D3 N/A 130 mm Locknut N/A KM20 Lockwasher and Lockplates N/A MB20 Appropriate Hydraulic Nut N/A HMV20
HE322 d1 N/A 4.000 in101.60 mm L N/A 77.00 mm D3 N/A 145 mm Locknut N/A KM22 Lockwasher and Lockplates N/A MB22 Appropriate Hydraulic Nut N/A HMV22
HE3122 d1 N/A 4.000 in101.60 mm L N/A 81.00 mm D3 N/A 145 mm Locknut N/A KM22 Lockwasher and Lockplates N/A MB22 Appropriate Hydraulic Nut N/A HMV22
HE2322 d1 N/A 4.000 in101.60 mm L N/A 105.00 mm D3 N/A 145 mm Locknut N/A KM22 Lockwasher and Lockplates N/A MB22 Appropriate Hydraulic Nut N/A HMV22
HE3024 d1 N/A 4 1/4 in107.95 mm L N/A 72.00 mm D3 N/A 145 mm Locknut N/A KML24 Lockwasher and Lockplates N/A MBL24 Appropriate Hydraulic Nut N/A HMV24
HE3124 d1 N/A 4 1/4 in107.95 mm L N/A 88.00 mm D3 N/A 155 mm Locknut N/A KM24 Lockwasher and Lockplates N/A MB24 Appropriate Hydraulic Nut N/A HMV24
HE2324 d1 N/A 4 1/4 in107.95 mm L N/A 112.00 mm D3 N/A 155 mm Locknut N/A KM24 Lockwasher and Lockplates N/A MB24 Appropriate Hydraulic Nut N/A HMV24
HE3026 d1 N/A 4 1/2 in114.30 mm L N/A 80.00 mm D3 N/A 155 mm Locknut N/A KML26 Lockwasher and Lockplates N/A MBL26 Appropriate Hydraulic Nut N/A HMV26
HE3126 d1 N/A 4 1/2 in114.30 mm L N/A 92.00 mm D3 N/A 165 mm Locknut N/A KM26 Lockwasher and Lockplates N/A MB26 Appropriate Hydraulic Nut N/A HMV26
HE2326 d1 N/A 4 1/2 in114.30 mm L N/A 121.00 mm D3 N/A 165 mm Locknut N/A KM26 Lockwasher and Lockplates N/A MB26 Appropriate Hydraulic Nut N/A HMV26
HE3028 d1 N/A 5 in127.00 mm L N/A 82.00 mm D3 N/A 165 mm Locknut N/A KML28 Lockwasher and Lockplates N/A MBL28 Appropriate Hydraulic Nut N/A HMV28
HE3128 d1 N/A 5 in127.00 mm L N/A 97.00 mm D3 N/A 180 mm Locknut N/A KM28 Lockwasher and Lockplates N/A MB28 Appropriate Hydraulic Nut N/A HMV28
HE2328 d1 N/A 5 in127.00 mm L N/A 131.00 mm D3 N/A 180 mm Locknut N/A KM28 Lockwasher and Lockplates N/A MB28 Appropriate Hydraulic Nut N/A HMV28
HE3030 d1 N/A 5.250 in133.35 mm L N/A 87.00 mm D3 N/A 180 mm Locknut N/A KML30 Lockwasher and Lockplates N/A MBL30 Appropriate Hydraulic Nut N/A HMV30
HE3130 d1 N/A 5.250 in133.35 mm L N/A 111.00 mm D3 N/A 195 mm Locknut N/A KM30 Lockwasher and Lockplates N/A MB30 Appropriate Hydraulic Nut N/A HMV30
HE2330 d1 N/A 5.250 in133.35 mm L N/A 139.00 mm D3 N/A 195 mm Locknut N/A KM30 Lockwasher and Lockplates N/A MB30 Appropriate Hydraulic Nut N/A HMV30
HE3032 d1 N/A 5 1/2 in139.70 mm L N/A 93.00 mm D3 N/A 190 mm Locknut N/A KML32 Lockwasher and Lockplates N/A MBL32 Appropriate Hydraulic Nut N/A HMV32
HE3132 d1 N/A 5 1/2 in139.70 mm L N/A 119.00 mm D3 N/A 210 mm Locknut N/A KM32 Lockwasher and Lockplates N/A MB32 Appropriate Hydraulic Nut N/A HMV32
HE2332 d1 N/A 5 1/2 in139.70 mm L N/A 147.00 mm D3 N/A 210 mm Locknut N/A KM32 Lockwasher and Lockplates N/A MB32 Appropriate Hydraulic Nut N/A HMV32
HE3034 d1 N/A 6 in152.400 mm L N/A 101.00 mm D3 N/A 200 mm Locknut N/A KML34 Lockwasher and Lockplates N/A MBL34 Appropriate Hydraulic Nut N/A HMV34
HE3134 d1 N/A 6 in152.400 mm L N/A 122.00 mm D3 N/A 220 mm Locknut N/A KM34 Lockwasher and Lockplates N/A MB34 Appropriate Hydraulic Nut N/A HMV34
HE2334 d1 N/A 6 in152.400 mm L N/A 154.00 mm D3 N/A 220 mm Locknut N/A KM34 Lockwasher and Lockplates N/A MB34 Appropriate Hydraulic Nut N/A HMV34
HE3036 d1 N/A 6 1/2 in165.10 mm L N/A 109.00 mm D3 N/A 210 mm Locknut N/A KML36 Lockwasher and Lockplates N/A MBL36 Appropriate Hydraulic Nut N/A HMV36
HE3136 d1 N/A 6 1/2 in165.10 mm L N/A 131.00 mm D3 N/A 230 mm Locknut N/A KM36 Lockwasher and Lockplates N/A MB36 Appropriate Hydraulic Nut N/A HMV36
HE2336 d1 N/A 6 1/2 in165.10 mm L N/A 161.00 mm D3 N/A 230 mm Locknut N/A KM36 Lockwasher and Lockplates N/A MB36 Appropriate Hydraulic Nut N/A HMV36
HE3038 d1 N/A 6.750 in171.45 mm L N/A 112.00 mm D3 N/A 220 mm Locknut N/A KML38 Lockwasher and Lockplates N/A MBL38 Appropriate Hydraulic Nut N/A HMV38
HE3138 d1 N/A 6.750 in171.45 mm L N/A 141.00 mm D3 N/A 240 mm Locknut N/A KM38 Lockwasher and Lockplates N/A MB38 Appropriate Hydraulic Nut N/A HMV38
HE2338 d1 N/A 6.750 in171.45 mm L N/A 169.00 mm D3 N/A 240 mm Locknut N/A KM38 Lockwasher and Lockplates N/A MB38 Appropriate Hydraulic Nut N/A HMV38
HE3040 d1 N/A 7 in177.80 mm L N/A 120.00 mm D3 N/A 240 mm Locknut N/A KML40 Lockwasher and Lockplates N/A MBL40 Appropriate Hydraulic Nut N/A HMV40
HE3140 d1 N/A 7 in177.80 mm L N/A 150.00 mm D3 N/A 250 mm Locknut N/A KM40 Lockwasher and Lockplates N/A MB40 Appropriate Hydraulic Nut N/A HMV40
HE2340 d1 N/A 7 in177.80 mm L N/A 176.00 mm D3 N/A 250 mm Locknut N/A KM40 Lockwasher and Lockplates N/A MB40 Appropriate Hydraulic Nut N/A HMV40
HE3044 d1 N/A 8.0000 in203.20 mm L N/A 126.00 mm D3 N/A 260 mm Locknut N/A HM 3044 Lockwasher and Lockplates N/A MS 3044 Appropriate Hydraulic Nut N/A HMV44
HE3144 d1 N/A 8.0000 in203.20 mm L N/A 161.00 mm D3 N/A 280 mm Locknut N/A HM44T Lockwasher and Lockplates N/A MB 44 Appropriate Hydraulic Nut N/A HMV44
HE2344 d1 N/A 8.0000 in203.20 mm L N/A 186.00 mm D3 N/A 280 mm Locknut N/A HM44T Lockwasher and Lockplates N/A MB 44 Appropriate Hydraulic Nut N/A HMV44
