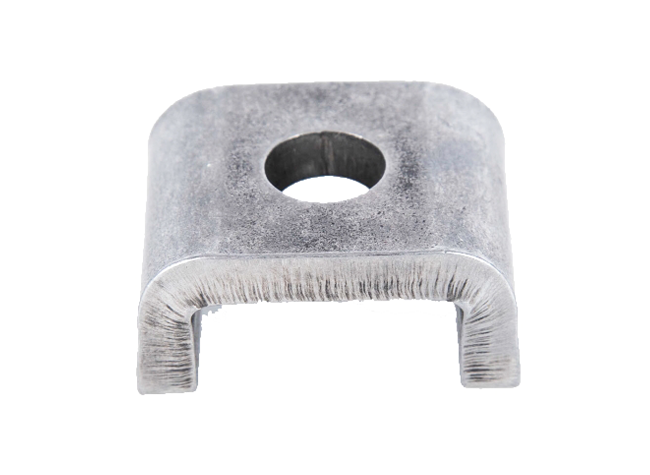

Metric Lockplate





Timken Part Number

  t1  S  S1  i  L3

Appropriate Locknut No.
MS3144 t1 N/A 4 mm S N/A 20 mm S1 N/A 9 mm i N/A 22.5 mm L3 N/A 30.5 mm Appropriate Locknut No. N/A HM3144
MS3148 t1 N/A 4 mm S N/A 20 mm S1 N/A 9 mm i N/A 22.5 mm L3 N/A 30.5 mm Appropriate Locknut No. N/A HM3148
MS3152 t1 N/A 4 mm S N/A 24 mm S1 N/A 12 mm i N/A 25.5 mm L3 N/A 33.5 mm Appropriate Locknut No. N/A HM3152
MS3156 t1 N/A 4 mm S N/A 24 mm S1 N/A 12 mm i N/A 25.5 mm L3 N/A 33.5 mm Appropriate Locknut No. N/A HM3156
MS3160 t1 N/A 4 mm S N/A 24 mm S1 N/A 12 mm i N/A 30.5 mm L3 N/A 38.5 mm Appropriate Locknut No. N/A HM3160
MS3044 t1 N/A 4 mm S N/A 20 mm S1 N/A 7 mm i N/A 13.5 mm L3 N/A 21.5 mm Appropriate Locknut No. N/A HM3044
MS3048 t1 N/A 4 mm S N/A 20 mm S1 N/A 9 mm i N/A 17.5 mm L3 N/A 25.5 mm Appropriate Locknut No. N/A HM3048
MS3052 t1 N/A 4 mm S N/A 20 mm S1 N/A 9 mm i N/A 17.5 mm L3 N/A 25.5 mm Appropriate Locknut No. N/A HM3052
MS3056 t1 N/A 4 mm S N/A 24 mm S1 N/A 9 mm i N/A 17.5 mm L3 N/A 25.5 mm Appropriate Locknut No. N/A HM3056
MS3060 t1 N/A 4 mm S N/A 24 mm S1 N/A 9 mm i N/A 20.5 mm L3 N/A 28.5 mm Appropriate Locknut No. N/A HM3060
MS3164 t1 N/A 5 mm S N/A 24 mm S1 N/A 12 mm i N/A 31.0 mm L3 N/A 41.0 mm Appropriate Locknut No. N/A HM3164
MS3168 t1 N/A 5 mm S N/A 28.0 mm S1 N/A 14 mm i N/A 38.0 mm L3 N/A 48.0 mm Appropriate Locknut No. N/A HM3168
MS3172 t1 N/A 5 mm S N/A 28.0 mm S1 N/A 14 mm i N/A 38.0 mm L3 N/A 48.0 mm Appropriate Locknut No. N/A HM3172
MS3176 t1 N/A 5 mm S N/A 32.0 mm S1 N/A 14 mm i N/A 40 mm L3 N/A 50.0 mm Appropriate Locknut No. N/A HM3176
MS3180 t1 N/A 5 mm S N/A 32.0 mm S1 N/A 18 mm i N/A 45 mm L3 N/A 55.0 mm Appropriate Locknut No. N/A HM3180
MS3184 t1 N/A 5 mm S N/A 32.0 mm S1 N/A 18 mm i N/A 45 mm L3 N/A 55.0 mm Appropriate Locknut No. N/A HM3184
MS3188 t1 N/A 5 mm S N/A 36.0 mm S1 N/A 18 mm i N/A 43.0 mm L3 N/A 53.0 mm Appropriate Locknut No. N/A HM3188
MS3192 t1 N/A 5 mm S N/A 36.0 mm S1 N/A 18 mm i N/A 43.0 mm L3 N/A 53.0 mm Appropriate Locknut No. N/A HM3192
MS3196 t1 N/A 5 mm S N/A 36.0 mm S1 N/A 18 mm i N/A 53.0 mm L3 N/A 63.0 mm Appropriate Locknut No. N/A HM3196
MS31/500 t1 N/A 5 mm S N/A 40.0 mm S1 N/A 18 mm i N/A 45 mm L3 N/A 55.0 mm Appropriate Locknut No. N/A HM31/500
MS3064 t1 N/A 5 mm S N/A 24 mm S1 N/A 9 mm i N/A 21 mm L3 N/A 31.0 mm Appropriate Locknut No. N/A HM3064
MS3068 t1 N/A 5 mm S N/A 24 mm S1 N/A 9 mm i N/A 21 mm L3 N/A 31.0 mm Appropriate Locknut No. N/A HM3068
MS3072 t1 N/A 5 mm S N/A 28.0 mm S1 N/A 9 mm i N/A 20.0 mm L3 N/A 30.0 mm Appropriate Locknut No. N/A HM3072
MS3076 t1 N/A 5 mm S N/A 28.0 mm S1 N/A 12 mm i N/A 24.0 mm L3 N/A 34.0 mm Appropriate Locknut No. N/A HM3076
MS3080 t1 N/A 5 mm S N/A 28.0 mm S1 N/A 12 mm i N/A 24.0 mm L3 N/A 34.0 mm Appropriate Locknut No. N/A HM3080
MS3084 t1 N/A 5 mm S N/A 32.0 mm S1 N/A 12 mm i N/A 24.0 mm L3 N/A 34.0 mm Appropriate Locknut No. N/A HM3084
MS3088 t1 N/A 5 mm S N/A 32.0 mm S1 N/A 14 mm i N/A 28.0 mm L3 N/A 38.0 mm Appropriate Locknut No. N/A HM3088
MS3092 t1 N/A 5 mm S N/A 32.0 mm S1 N/A 14 mm i N/A 28.0 mm L3 N/A 38.0 mm Appropriate Locknut No. N/A HM3092
MS3096 t1 N/A 5 mm S N/A 36.0 mm S1 N/A 14 mm i N/A 28.0 mm L3 N/A 38.0 mm Appropriate Locknut No. N/A HM3096
MS30/500 t1 N/A 5 mm S N/A 36.0 mm S1 N/A 14 mm i N/A 28.0 mm L3 N/A 38.0 mm Appropriate Locknut No. N/A HM30/500
MS30/530 t1 N/A 7 mm S N/A 40.0 mm S1 N/A 18 mm i N/A 34.0 mm L3 N/A 48.0 mm Appropriate Locknut No. N/A HM 30/530
MS31/530 t1 N/A 7 mm S N/A 40.0 mm S1 N/A 22 mm i N/A 51.0 mm L3 N/A 65.0 mm Appropriate Locknut No. N/A HM 31/530
MS30/560 t1 N/A 7 mm S N/A 40.0 mm S1 N/A 18 mm i N/A 29.0 mm L3 N/A 43.0 mm Appropriate Locknut No. N/A HM 30/560
MS31/560 t1 N/A 7 mm S N/A 45.0 mm S1 N/A 22 mm i N/A 54.0 mm L3 N/A 68.0 mm Appropriate Locknut No. N/A HM 31/560
MS30/600 t1 N/A 7 mm S N/A 40.0 mm S1 N/A 18 mm i N/A 34.0 mm L3 N/A 48.0 mm Appropriate Locknut No. N/A HM 30/600
MS31/600 t1 N/A 7 mm S N/A 45.0 mm S1 N/A 22 mm i N/A 54.0 mm L3 N/A 68.0 mm Appropriate Locknut No. N/A HM 31/600
MS30/630 t1 N/A 7 mm S N/A 45.0 mm S1 N/A 18 mm i N/A 34.0 mm L3 N/A 48.0 mm Appropriate Locknut No. N/A HM 30/630
MS31/630 t1 N/A 7 mm S N/A 50.0 mm S1 N/A 22 mm i N/A 61.0 mm L3 N/A 75.0 mm Appropriate Locknut No. N/A HM 31/630
MS30/670 t1 N/A 7 mm S N/A 45.0 mm S1 N/A 18 mm i N/A 39.0 mm L3 N/A 53.0 mm Appropriate Locknut No. N/A HM 30/670
MS31/670 t1 N/A 7 mm S N/A 50.0 mm S1 N/A 22 mm i N/A 66.0 mm L3 N/A 80.0 mm Appropriate Locknut No. N/A HM 31/670
MS30/710 t1 N/A 7 mm S N/A 50.0 mm S1 N/A 18 mm i N/A 39.0 mm L3 N/A 53.0 mm Appropriate Locknut No. N/A HM 30/710
MS31/710 t1 N/A 7 mm S N/A 55.0 mm S1 N/A 26 mm i N/A 69.0 mm L3 N/A 83.0 mm Appropriate Locknut No. N/A HM 31/710
MS30/750 t1 N/A 7 mm S N/A 55.0 mm S1 N/A 18 mm i N/A 39.0 mm L3 N/A 53.0 mm Appropriate Locknut No. N/A HM 30/750
MS31/750 t1 N/A 7 mm S N/A 60.0 mm S1 N/A 26 mm i N/A 70.0 mm L3 N/A 84.0 mm Appropriate Locknut No. N/A HM 31/750
MS30/800 t1 N/A 7 mm S N/A 55.0 mm S1 N/A 18 mm i N/A 39.0 mm L3 N/A 53.0 mm Appropriate Locknut No. N/A HM 30/800
MS31/800 t1 N/A 7 mm S N/A 60.0 mm S1 N/A 26 mm i N/A 70.0 mm L3 N/A 84.0 mm Appropriate Locknut No. N/A HM 31/800
MS30/850 t1 N/A 7 mm S N/A 60.0 mm S1 N/A 22 mm i N/A 44.0 mm L3 N/A 58.0 mm Appropriate Locknut No. N/A HM 30/850
MS31/850 t1 N/A 7 mm S N/A 70.0 mm S1 N/A 26 mm i N/A 71.0 mm L3 N/A 85.0 mm Appropriate Locknut No. N/A HM 31/850
MS30/900 t1 N/A 7 mm S N/A 60.0 mm S1 N/A 22 mm i N/A 44.0 mm L3 N/A 58.0 mm Appropriate Locknut No. N/A HM 30/900
MS31/900 t1 N/A 7 mm S N/A 70.0 mm S1 N/A 26 mm i N/A 76.0 mm L3 N/A 90.0 mm Appropriate Locknut No. N/A HM 31/900
MS30/950 t1 N/A 7 mm S N/A 60.0 mm S1 N/A 22 mm i N/A 46.0 mm L3 N/A 60.0 mm Appropriate Locknut No. N/A HM 30/950
MS31/950 t1 N/A 7 mm S N/A 70.0 mm S1 N/A 26 mm i N/A 78.0 mm L3 N/A 92.0 mm Appropriate Locknut No. N/A HM 31/950
MS30/1000 t1 N/A 7 mm S N/A 60.0 mm S1 N/A 22 mm i N/A 51.0 mm L3 N/A 65.0 mm Appropriate Locknut No. N/A HM 30/1000
MS31/1000 t1 N/A 7 mm S N/A 70.0 mm S1 N/A 26 mm i N/A 88.0 mm L3 N/A 102.0 mm Appropriate Locknut No. N/A HM 31/1000
