Băng tải - Gàu tải > SKF > Metric Lockwasher

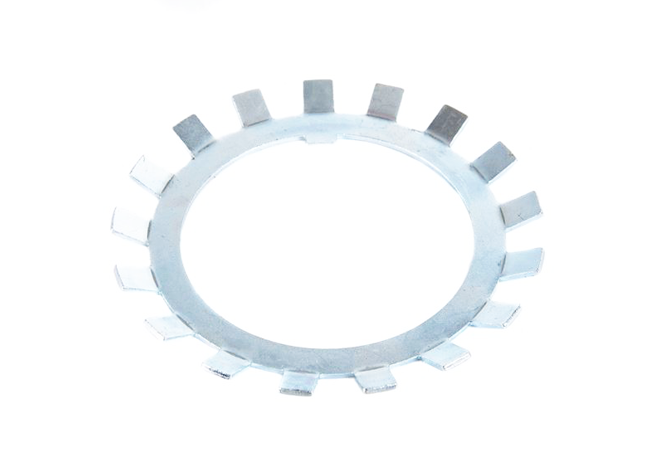

Metric Lockwasher





Timken Part Number

  D1  k  D4  D5  No. of Tangs  Locknut
MB 00 D1 N/A 10 mm k N/A 8.5 mm D4 N/A 13 mm D5 N/A 21 mm No. of Tangs N/A 9 Locknut N/A KM 00
MB 01 D1 N/A 12 mm k N/A 10.5 mm D4 N/A 17 mm D5 N/A 25 mm No. of Tangs N/A 9 Locknut N/A KM 01
MB 02 D1 N/A 15 mm k N/A 13.5 mm D4 N/A 21 mm D5 N/A 28 mm No. of Tangs N/A 13 Locknut N/A KM 02
MB 03 D1 N/A 17 mm k N/A 15.5 mm D4 N/A 24 mm D5 N/A 32 mm No. of Tangs N/A 13 Locknut N/A KM 03
MB 04 D1 N/A 20 mm k N/A 18.5 mm D4 N/A 26 mm D5 N/A 36 mm No. of Tangs N/A 13 Locknut N/A KM 04
MB 05 D1 N/A 25 mm k N/A 23.0 mm D4 N/A 32 mm D5 N/A 42 mm No. of Tangs N/A 13 Locknut N/A KM 05
MB 06 D1 N/A 30 mm k N/A 27.5 mm D4 N/A 38 mm D5 N/A 49 mm No. of Tangs N/A 13 Locknut N/A KM 06
MB 07 D1 N/A 35 mm k N/A 32.5 mm D4 N/A 44 mm D5 N/A 57 mm No. of Tangs N/A 15 Locknut N/A KM 07
MB 08 D1 N/A 40 mm k N/A 37.5 mm D4 N/A 50 mm D5 N/A 62 mm No. of Tangs N/A 15 Locknut N/A KM 08
MB 09 D1 N/A 45 mm k N/A 42.5 mm D4 N/A 56 mm D5 N/A 69 mm No. of Tangs N/A 17 Locknut N/A KM 09
MB 10 D1 N/A 50 mm k N/A 47.5 mm D4 N/A 61 mm D5 N/A 74 mm No. of Tangs N/A 17 Locknut N/A KM 10
MB 11 D1 N/A 55 mm k N/A 52.5 mm D4 N/A 67 mm D5 N/A 81 mm No. of Tangs N/A 17 Locknut N/A KM 11
MB 12 D1 N/A 60 mm k N/A 57.5 mm D4 N/A 73 mm D5 N/A 86 mm No. of Tangs N/A 17 Locknut N/A KM 12
MB 13 D1 N/A 65 mm k N/A 62.5 mm D4 N/A 79 mm D5 N/A 92 mm No. of Tangs N/A 19 Locknut N/A KM 13
MB 14 D1 N/A 70 mm k N/A 66.5 mm D4 N/A 85 mm D5 N/A 98 mm No. of Tangs N/A 19 Locknut N/A KM 14
MB 15 D1 N/A 75 mm k N/A 71.5 mm D4 N/A 90 mm D5 N/A 104 mm No. of Tangs N/A 19 Locknut N/A KM 15
MB 16 D1 N/A 80 mm k N/A 76.5 mm D4 N/A 95 mm D5 N/A 112 mm No. of Tangs N/A 19 Locknut N/A KM 16
MB 17 D1 N/A 85 mm k N/A 81.5 mm D4 N/A 102 mm D5 N/A 119 mm No. of Tangs N/A 19 Locknut N/A KM 17
MB 18 D1 N/A 90 mm k N/A 86.5 mm D4 N/A 108 mm D5 N/A 126 mm No. of Tangs N/A 19 Locknut N/A KM 18
MB 19 D1 N/A 95 mm k N/A 91.5 mm D4 N/A 113 mm D5 N/A 133 mm No. of Tangs N/A 19 Locknut N/A KM 19
MB 20 D1 N/A 100 mm k N/A 96.5 mm D4 N/A 120 mm D5 N/A 142 mm No. of Tangs N/A 19 Locknut N/A KM 20
MB 21 D1 N/A 105 mm k N/A 100.5 mm D4 N/A 126 mm D5 N/A 145 mm No. of Tangs N/A 19 Locknut N/A KM 21
MB 22 D1 N/A 110 mm k N/A 105.5 mm D4 N/A 133 mm D5 N/A 154 mm No. of Tangs N/A 19 Locknut N/A KM 22
MB 23 D1 N/A 115 mm k N/A 110.5 mm D4 N/A 137 mm D5 N/A 159 mm No. of Tangs N/A 19 Locknut N/A KM 23
MB 24 D1 N/A 120 mm k N/A 115.0 mm D4 N/A 138 mm D5 N/A 164 mm No. of Tangs N/A 19 Locknut N/A KM 24
MBL 24 D1 N/A 120 mm k N/A 115.0 mm D4 N/A 135 mm D5 N/A 151 mm No. of Tangs N/A 19 Locknut N/A KML24
MB 25 D1 N/A 125 mm k N/A 120.0 mm D4 N/A 148 mm D5 N/A 170 mm No. of Tangs N/A 19 Locknut N/A KM 25
MB 26 D1 N/A 130 mm k N/A 125.0 mm D4 N/A 149 mm D5 N/A 175 mm No. of Tangs N/A 19 Locknut N/A KM 26
MBL 26 D1 N/A 130 mm k N/A 125.0 mm D4 N/A 145 mm D5 N/A 161 mm No. of Tangs N/A 19 Locknut N/A KML26
MB 27 D1 N/A 135 mm k N/A 130.0 mm D4 N/A 160 mm D5 N/A 185 mm No. of Tangs N/A 19 Locknut N/A KM 27
MB 28 D1 N/A 140 mm k N/A 135.0 mm D4 N/A 160 mm D5 N/A 192 mm No. of Tangs N/A 19 Locknut N/A KM 28
MBL 28 D1 N/A 140 mm k N/A 135.0 mm D4 N/A 155 mm D5 N/A 171 mm No. of Tangs N/A 19 Locknut N/A KML28
MB 29 D1 N/A 145 mm k N/A 140.0 mm D4 N/A 172 mm D5 N/A 202 mm No. of Tangs N/A 19 Locknut N/A KM 29
MB 30 D1 N/A 150 mm k N/A 145.0 mm D4 N/A 171 mm D5 N/A 205 mm No. of Tangs N/A 19 Locknut N/A KM 30
MBL 30 D1 N/A 150 mm k N/A 145.0 mm D4 N/A 170 mm D5 N/A 188 mm No. of Tangs N/A 19 Locknut N/A KML30
MB 31 D1 N/A 155 mm k N/A 147.5 mm D4 N/A 182 mm D5 N/A 212 mm No. of Tangs N/A 19 Locknut N/A KM 31
MB 32 D1 N/A 160 mm k N/A 154.0 mm D4 N/A 182 mm D5 N/A 217 mm No. of Tangs N/A 19 Locknut N/A KM 32
MBL 32 D1 N/A 160 mm k N/A 154.0 mm D4 N/A 180 mm D5 N/A 199 mm No. of Tangs N/A 19 Locknut N/A KML32
MB 33 D1 N/A 165 mm k N/A 157.5 mm D4 N/A 193 mm D5 N/A 222 mm No. of Tangs N/A 19 Locknut N/A KM 33
MB 34 D1 N/A 170 mm k N/A 164.0 mm D4 N/A 193 mm D5 N/A 232 mm No. of Tangs N/A 19 Locknut N/A KM 34
MBL 34 D1 N/A 170 mm k N/A 164.0 mm D4 N/A 190 mm D5 N/A 211 mm No. of Tangs N/A 19 Locknut N/A KML34
MB 36 D1 N/A 180 mm k N/A 174.0 mm D4 N/A 203 mm D5 N/A 242 mm No. of Tangs N/A 19 Locknut N/A KM 36
MBL 36 D1 N/A 180 mm k N/A 174.0 mm D4 N/A 200 mm D5 N/A 221 mm No. of Tangs N/A 19 Locknut N/A KML36
MB 38 D1 N/A 190 mm k N/A 184.0 mm D4 N/A 214 mm D5 N/A 252 mm No. of Tangs N/A 19 Locknut N/A KM 38
MBL 38 D1 N/A 190 mm k N/A 184.0 mm D4 N/A 210 mm D5 N/A 231 mm No. of Tangs N/A 19 Locknut N/A KML38
MB 40 D1 N/A 200 mm k N/A 194.0 mm D4 N/A 226 mm D5 N/A 262 mm No. of Tangs N/A 19 Locknut N/A KM 40
MBL 40 D1 N/A 200 mm k N/A 194.0 mm D4 N/A 222 mm D5 N/A 248 mm No. of Tangs N/A 19 Locknut N/A KML40
MB 44 D1 N/A 220 mm k N/A 213.0 mm D4 N/A 250 mm D5 N/A 292 mm No. of Tangs N/A 19 Locknut N/A HM44T
MB 48 D1 N/A 240 mm k N/A 233.0 mm D4 N/A 270 mm D5 N/A 312 mm No. of Tangs N/A 19 Locknut N/A HM48T
MB 52 D1 N/A 260 mm k N/A 253.0 mm D4 N/A 300 mm D5 N/A 342 mm No. of Tangs N/A 23 Locknut N/A HM52T
MB 56 D1 N/A 280 mm k N/A 273.0 mm D4 N/A 320 mm D5 N/A 362 mm No. of Tangs N/A 23 Locknut N/A HM56T
