Băng tải - Gàu tải > SKF > Metric OH Hydraulic Adapter Sleeve

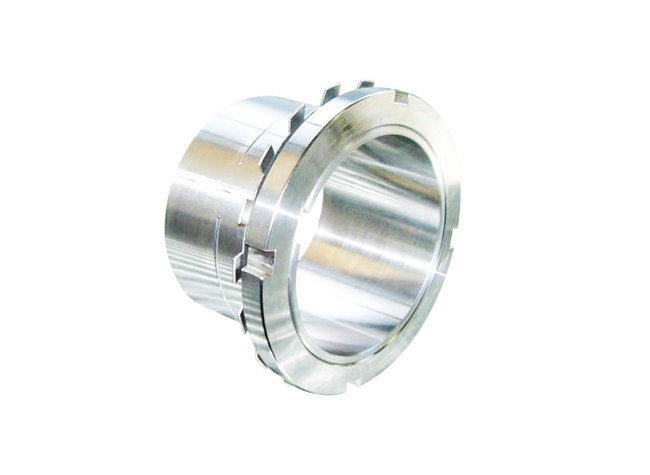

Metric OH Hydraulic Adapter Sleeve



  • Includes sleeve, hydraulic nut and lockwasher or lockplate.
  • Hydraulic assistance facilitates mounting of large bearing. Oil pump required to inject pressurized oil.
  • Other dimensions may be available, consult your Timken sales representative.





Timken Part Number

  d1  L  D3  Locknut  Lockwasher and Lockplates

Appropriate Hydraulic Nut
OH3032H d1 N/A 140.00 mm L N/A 93.00 mm D3 N/A 190 mm Locknut N/A KML 32 Lockwasher and Lockplates N/A MBL32 Appropriate Hydraulic Nut N/A HMV32
OH3132H d1 N/A 140.00 mm L N/A 119.00 mm D3 N/A 210 mm Locknut N/A KM 32 Lockwasher and Lockplates N/A MB32 Appropriate Hydraulic Nut N/A HMV32
OH3034H d1 N/A 150.00 mm L N/A 101.00 mm D3 N/A 200 mm Locknut N/A KML 34 Lockwasher and Lockplates N/A MBL34 Appropriate Hydraulic Nut N/A HMV34
OH3134H d1 N/A 150.00 mm L N/A 122.00 mm D3 N/A 220 mm Locknut N/A KM 34 Lockwasher and Lockplates N/A MB34 Appropriate Hydraulic Nut N/A HMV34
OH3936H d1 N/A 160.00 mm L N/A 87.00 mm D3 N/A 210 mm Locknut N/A KML 36 Lockwasher and Lockplates N/A MBL36 Appropriate Hydraulic Nut N/A HMV36
OH3036H d1 N/A 160.00 mm L N/A 109.00 mm D3 N/A 210 mm Locknut N/A KML 36 Lockwasher and Lockplates N/A MBL36 Appropriate Hydraulic Nut N/A HMV36
OH3136H d1 N/A 160.00 mm L N/A 131.00 mm D3 N/A 230 mm Locknut N/A KM 36 Lockwasher and Lockplates N/A MB36 Appropriate Hydraulic Nut N/A HMV36
OH3938H d1 N/A 170.00 mm L N/A 89.00 mm D3 N/A 220 mm Locknut N/A KML 38 Lockwasher and Lockplates N/A MBL38 Appropriate Hydraulic Nut N/A HMV38
OH3038H d1 N/A 170.00 mm L N/A 112.00 mm D3 N/A 220 mm Locknut N/A KML 38 Lockwasher and Lockplates N/A MBL38 Appropriate Hydraulic Nut N/A HMV38
OH3138H d1 N/A 170.00 mm L N/A 141.00 mm D3 N/A 240 mm Locknut N/A KM 38 Lockwasher and Lockplates N/A MB38 Appropriate Hydraulic Nut N/A HMV38
OH2338H d1 N/A 170.00 mm L N/A 169.00 mm D3 N/A 240 mm Locknut N/A KM 38 Lockwasher and Lockplates N/A MB38 Appropriate Hydraulic Nut N/A HMV38
OH3940H d1 N/A 180.00 mm L N/A 98.00 mm D3 N/A 240 mm Locknut N/A KML 40 Lockwasher and Lockplates N/A MBL40 Appropriate Hydraulic Nut N/A HMV40
OH3040H d1 N/A 180.00 mm L N/A 120.00 mm D3 N/A 240 mm Locknut N/A KML 40 Lockwasher and Lockplates N/A MBL40 Appropriate Hydraulic Nut N/A HMV40
OH3140H d1 N/A 180.00 mm L N/A 150.00 mm D3 N/A 250 mm Locknut N/A KM 40 Lockwasher and Lockplates N/A MB40 Appropriate Hydraulic Nut N/A HMV40
OH2340H d1 N/A 180.00 mm L N/A 176.00 mm D3 N/A 250 mm Locknut N/A KM 40 Lockwasher and Lockplates N/A MB40 Appropriate Hydraulic Nut N/A HMV40
OH3944H d1 N/A 200.00 mm L N/A 96.00 mm D3 N/A 260 mm Locknut N/A HM3044 Lockwasher and Lockplates N/A MS3044 Appropriate Hydraulic Nut N/A HMV44
OH3044H d1 N/A 200.00 mm L N/A 126.00 mm D3 N/A 260 mm Locknut N/A HM3044 Lockwasher and Lockplates N/A MS3044 Appropriate Hydraulic Nut N/A HMV44
OH3144H d1 N/A 200.00 mm L N/A 161.00 mm D3 N/A 280 mm Locknut N/A HM44T Lockwasher and Lockplates N/A MB44 Appropriate Hydraulic Nut N/A HMV44
OH2344H d1 N/A 200.00 mm L N/A 186.00 mm D3 N/A 280 mm Locknut N/A HM44T Lockwasher and Lockplates N/A MB44 Appropriate Hydraulic Nut N/A HMV44
OH3948H d1 N/A 220.00 mm L N/A 101.00 mm D3 N/A 290 mm Locknut N/A HM3048 Lockwasher and Lockplates N/A MS3048 Appropriate Hydraulic Nut N/A HMV48
OH3048H d1 N/A 220.00 mm L N/A 133.00 mm D3 N/A 290 mm Locknut N/A HM3048 Lockwasher and Lockplates N/A MS3048 Appropriate Hydraulic Nut N/A HMV48
OH3148H d1 N/A 220.00 mm L N/A 172.00 mm D3 N/A 300 mm Locknut N/A HM48T Lockwasher and Lockplates N/A MB48 Appropriate Hydraulic Nut N/A HMV48
OH2348H d1 N/A 220.00 mm L N/A 199.00 mm D3 N/A 300 mm Locknut N/A HM48T Lockwasher and Lockplates N/A MB48 Appropriate Hydraulic Nut N/A HMV48
OH3952H d1 N/A 240.00 mm L N/A 116.00 mm D3 N/A 310 mm Locknut N/A HM3052 Lockwasher and Lockplates N/A MS3052 Appropriate Hydraulic Nut N/A HMV52
OH3052H d1 N/A 240.00 mm L N/A 145.00 mm D3 N/A 310 mm Locknut N/A HM3052 Lockwasher and Lockplates N/A MS3052 Appropriate Hydraulic Nut N/A HMV52
OH3152H d1 N/A 240.00 mm L N/A 190.00 mm D3 N/A 330 mm Locknut N/A HM52T Lockwasher and Lockplates N/A MB52 Appropriate Hydraulic Nut N/A HMV52
OH2352H d1 N/A 240.00 mm L N/A 211.00 mm D3 N/A 330 mm Locknut N/A HM52T Lockwasher and Lockplates N/A MB52 Appropriate Hydraulic Nut N/A HMV52
OH3956H d1 N/A 260.00 mm L N/A 121.00 mm D3 N/A 330 mm Locknut N/A HM3056 Lockwasher and Lockplates N/A MS3056 Appropriate Hydraulic Nut N/A HMV56
OH3056H d1 N/A 260.00 mm L N/A 152.00 mm D3 N/A 330 mm Locknut N/A HM3056 Lockwasher and Lockplates N/A MS3056 Appropriate Hydraulic Nut N/A HMV56
OH3156H d1 N/A 260.00 mm L N/A 195.00 mm D3 N/A 350 mm Locknut N/A HM56T Lockwasher and Lockplates N/A MB56 Appropriate Hydraulic Nut N/A HMV56
OH2356H d1 N/A 260.00 mm L N/A 224.00 mm D3 N/A 350 mm Locknut N/A HM56T Lockwasher and Lockplates N/A MB56 Appropriate Hydraulic Nut N/A HMV56
OH3960H d1 N/A 280.00 mm L N/A 140.00 mm D3 N/A 360 mm Locknut N/A HM3060 Lockwasher and Lockplates N/A MS3060 Appropriate Hydraulic Nut N/A HMV60
OH3060H d1 N/A 280.00 mm L N/A 168.00 mm D3 N/A 360 mm Locknut N/A HM3060 Lockwasher and Lockplates N/A MS3060 Appropriate Hydraulic Nut N/A HMV60
OH3160H d1 N/A 280.00 mm L N/A 208.00 mm D3 N/A 380 mm Locknut N/A HM3160 Lockwasher and Lockplates N/A MS3160 Appropriate Hydraulic Nut N/A HMV60
OH3260H d1 N/A 280.00 mm L N/A 240.00 mm D3 N/A 380 mm Locknut N/A HM3160 Lockwasher and Lockplates N/A MS3160 Appropriate Hydraulic Nut N/A HMV60
OH3964H d1 N/A 300.00 mm L N/A 140.00 mm D3 N/A 380 mm Locknut N/A HM3064 Lockwasher and Lockplates N/A MS3064 Appropriate Hydraulic Nut N/A HMV64
OH3064H d1 N/A 300.00 mm L N/A 171.00 mm D3 N/A 380 mm Locknut N/A HM3064 Lockwasher and Lockplates N/A MS3064 Appropriate Hydraulic Nut N/A HMV64
OH3164H d1 N/A 300.00 mm L N/A 226.00 mm D3 N/A 400 mm Locknut N/A HM3164 Lockwasher and Lockplates N/A MS3164 Appropriate Hydraulic Nut N/A HMV64
OH3264H d1 N/A 300.00 mm L N/A 258.00 mm D3 N/A 400 mm Locknut N/A HM3164 Lockwasher and Lockplates N/A MS3164 Appropriate Hydraulic Nut N/A HMV64
OH3968H d1 N/A 320.00 mm L N/A 144.00 mm D3 N/A 400 mm Locknut N/A HM3068 Lockwasher and Lockplates N/A MS3068 Appropriate Hydraulic Nut N/A HMV68
OH3068H d1 N/A 320.00 mm L N/A 187.00 mm D3 N/A 400 mm Locknut N/A HM3068 Lockwasher and Lockplates N/A MS3068 Appropriate Hydraulic Nut N/A HMV68
OH3168H d1 N/A 320.00 mm L N/A 254.00 mm D3 N/A 440 mm Locknut N/A HM3168 Lockwasher and Lockplates N/A MS3168 Appropriate Hydraulic Nut N/A HMV68
OH3268H d1 N/A 320.00 mm L N/A 288.00 mm D3 N/A 440 mm Locknut N/A HM3168 Lockwasher and Lockplates N/A MS3168 Appropriate Hydraulic Nut N/A HMV68
OH3972H d1 N/A 340.00 mm L N/A 144.00 mm D3 N/A 420 mm Locknut N/A HM3072 Lockwasher and Lockplates N/A MS3072 Appropriate Hydraulic Nut N/A HMV72
OH3072H d1 N/A 340.00 mm L N/A 188.00 mm D3 N/A 420 mm Locknut N/A HM3072 Lockwasher and Lockplates N/A MS3072 Appropriate Hydraulic Nut N/A HMV72
OH3172H d1 N/A 340.00 mm L N/A 259.00 mm D3 N/A 460 mm Locknut N/A HM3172 Lockwasher and Lockplates N/A MS3172 Appropriate Hydraulic Nut N/A HMV72
OH3272H d1 N/A 340.00 mm L N/A 299.00 mm D3 N/A 460 mm Locknut N/A HM3172 Lockwasher and Lockplates N/A MS3172 Appropriate Hydraulic Nut N/A HMV72
OH3976H d1 N/A 360.00 mm L N/A 164.00 mm D3 N/A 450 mm Locknut N/A HM3076 Lockwasher and Lockplates N/A MS3076 Appropriate Hydraulic Nut N/A HMV76
OH3076H d1 N/A 360.00 mm L N/A 193.00 mm D3 N/A 450 mm Locknut N/A HM3076 Lockwasher and Lockplates N/A MS3076 Appropriate Hydraulic Nut N/A HMV76
OH3176H d1 N/A 360.00 mm L N/A 264.00 mm D3 N/A 490 mm Locknut N/A HM3176 Lockwasher and Lockplates N/A MS3176 Appropriate Hydraulic Nut N/A HMV76
OH3276H d1 N/A 360.00 mm L N/A 310.00 mm D3 N/A 490 mm Locknut N/A HM3176 Lockwasher and Lockplates N/A MS3176 Appropriate Hydraulic Nut N/A HMV76
OH3980H d1 N/A 380.00 mm L N/A 168.00 mm D3 N/A 470 mm Locknut N/A HM3080 Lockwasher and Lockplates N/A MS3080 Appropriate Hydraulic Nut N/A HMV80
OH3080H d1 N/A 380.00 mm L N/A 210.00 mm D3 N/A 470 mm Locknut N/A HM3080 Lockwasher and Lockplates N/A MS3080 Appropriate Hydraulic Nut N/A HMV80
OH3180H d1 N/A 380.00 mm L N/A 272.00 mm D3 N/A 520 mm Locknut N/A HM3180 Lockwasher and Lockplates N/A MS3180 Appropriate Hydraulic Nut N/A HMV80
OH3280H d1 N/A 380.00 mm L N/A 328.00 mm D3 N/A 520 mm Locknut N/A HM3180 Lockwasher and Lockplates N/A MS3180 Appropriate Hydraulic Nut N/A HMV80
OH3984H d1 N/A 400.00 mm L N/A 168.00 mm D3 N/A 490 mm Locknut N/A HM3084 Lockwasher and Lockplates N/A MS3084 Appropriate Hydraulic Nut N/A HMV84
OH3084H d1 N/A 400.00 mm L N/A 212.00 mm D3 N/A 490 mm Locknut N/A HM3084 Lockwasher and Lockplates N/A MS3084 Appropriate Hydraulic Nut N/A HMV84
OH3184H d1 N/A 400.00 mm L N/A 304.00 mm D3 N/A 540 mm Locknut N/A HM3184 Lockwasher and Lockplates N/A MS3184 Appropriate Hydraulic Nut N/A HMV84
OH3284H d1 N/A 400.00 mm L N/A 352.00 mm D3 N/A 540 mm Locknut N/A HM3184 Lockwasher and Lockplates N/A MS3184 Appropriate Hydraulic Nut N/A HMV84
OH3988H d1 N/A 410.00 mm L N/A 189.00 mm D3 N/A 520 mm Locknut N/A HM3088 Lockwasher and Lockplates N/A MS3088 Appropriate Hydraulic Nut N/A HMV88
OH3088H d1 N/A 410.00 mm L N/A 228.00 mm D3 N/A 520 mm Locknut N/A HM3088 Lockwasher and Lockplates N/A MS3088 Appropriate Hydraulic Nut N/A HMV88
OH3188H d1 N/A 410.00 mm L N/A 307.00 mm D3 N/A 560 mm Locknut N/A HM3188 Lockwasher and Lockplates N/A MS3188 Appropriate Hydraulic Nut N/A HMV88
OH3288H d1 N/A 410.00 mm L N/A 361.00 mm D3 N/A 560 mm Locknut N/A HM3188 Lockwasher and Lockplates N/A MS3188 Appropriate Hydraulic Nut N/A HMV88
OH3992H d1 N/A 430.00 mm L N/A 189.00 mm D3 N/A 540 mm Locknut N/A HM3092 Lockwasher and Lockplates N/A MS3092 Appropriate Hydraulic Nut N/A HMV92
OH3092H d1 N/A 430.00 mm L N/A 234.00 mm D3 N/A 540 mm Locknut N/A HM3092 Lockwasher and Lockplates N/A MS3092 Appropriate Hydraulic Nut N/A HMV92
OH3192H d1 N/A 430.00 mm L N/A 326.00 mm D3 N/A 580 mm Locknut N/A HM3192 Lockwasher and Lockplates N/A MS3192 Appropriate Hydraulic Nut N/A HMV92
OH3292H d1 N/A 430.00 mm L N/A 382.00 mm D3 N/A 580 mm Locknut N/A HM3192 Lockwasher and Lockplates N/A MS3192 Appropriate Hydraulic Nut N/A HMV92
OH3996H d1 N/A 450.00 mm L N/A 200.00 mm D3 N/A 560 mm Locknut N/A HM3096 Lockwasher and Lockplates N/A MS3096 Appropriate Hydraulic Nut N/A HMV96
OH3096H d1 N/A 450.00 mm L N/A 237.00 mm D3 N/A 560 mm Locknut N/A HM3096 Lockwasher and Lockplates N/A MS3096 Appropriate Hydraulic Nut N/A HMV96
OH3196H d1 N/A 450.00 mm L N/A 335.00 mm D3 N/A 620 mm Locknut N/A HM3196 Lockwasher and Lockplates N/A MS3196 Appropriate Hydraulic Nut N/A HMV96
OH3296H d1 N/A 450.00 mm L N/A 397.00 mm D3 N/A 620 mm Locknut N/A HM3196 Lockwasher and Lockplates N/A MS3196 Appropriate Hydraulic Nut N/A HMV96
OH39/500H d1 N/A 470.00 mm L N/A 208.00 mm D3 N/A 580 mm Locknut N/A HM30/500 Lockwasher and Lockplates N/A MS30/500 Appropriate Hydraulic Nut N/A HMV100
OH31/500H d1 N/A 470.00 mm L N/A 356.00 mm D3 N/A 630 mm Locknut N/A HM31/500 Lockwasher and Lockplates N/A MS31/500 Appropriate Hydraulic Nut N/A HMV100
OH32/500H d1 N/A 470.00 mm L N/A 428.00 mm D3 N/A 630 mm Locknut N/A HM31/500 Lockwasher and Lockplates N/A MS31/500 Appropriate Hydraulic Nut N/A HMV100
OH39/530H d1 N/A 500.00 mm L N/A 216.00 mm D3 N/A 630 mm Locknut N/A HM30/530 Lockwasher and Lockplates N/A MS30/530 Appropriate Hydraulic Nut N/A HMV106
OH31/530H d1 N/A 500.00 mm L N/A 364.00 mm D3 N/A 670 mm Locknut N/A HM31/530 Lockwasher and Lockplates N/A MS31/530 Appropriate Hydraulic Nut N/A HMV106
OH32/530H d1 N/A 500.00 mm L N/A 447.00 mm D3 N/A 670 mm Locknut N/A HM31/530 Lockwasher and Lockplates N/A MS31/530 Appropriate Hydraulic Nut N/A HMV106
OH39/560H d1 N/A 530.00 mm L N/A 227.00 mm D3 N/A 650 mm Locknut N/A HM30/560 Lockwasher and Lockplates N/A MS30/560 Appropriate Hydraulic Nut N/A HMV112
OH31/560H d1 N/A 530.00 mm L N/A 377.00 mm D3 N/A 710 mm Locknut N/A HM31/560 Lockwasher and Lockplates N/A MS31/560 Appropriate Hydraulic Nut N/A HMV112
OH32/560H d1 N/A 530.00 mm L N/A 462.00 mm D3 N/A 710 mm Locknut N/A HM31/560 Lockwasher and Lockplates N/A MS31/560 Appropriate Hydraulic Nut N/A HMV112
OH39/600H d1 N/A 560.00 mm L N/A 239.00 mm D3 N/A 700 mm Locknut N/A HM30/600 Lockwasher and Lockplates N/A MS30/600 Appropriate Hydraulic Nut N/A HMV120
OH30/600H d1 N/A 560.00 mm L N/A 289.00 mm D3 N/A 700 mm Locknut N/A HM30/600 Lockwasher and Lockplates N/A MS30/600 Appropriate Hydraulic Nut N/A HMV120
OH31/600H d1 N/A 560.00 mm L N/A 399.00 mm D3 N/A 750 mm Locknut N/A HM31/600 Lockwasher and Lockplates N/A MS31/600 Appropriate Hydraulic Nut N/A HMV120
OH32/600H d1 N/A 560.00 mm L N/A 487.00 mm D3 N/A 750 mm Locknut N/A HM31/600 Lockwasher and Lockplates N/A MS31/600 Appropriate Hydraulic Nut N/A HMV120
OH39/630H d1 N/A 600.00 mm L N/A 254.00 mm D3 N/A 730 mm Locknut N/A HM30/630 Lockwasher and Lockplates N/A MS30/630 Appropriate Hydraulic Nut N/A HMV126
OH30/630H d1 N/A 600.00 mm L N/A 301.00 mm D3 N/A 730 mm Locknut N/A HM30/630 Lockwasher and Lockplates N/A MS30/630 Appropriate Hydraulic Nut N/A HMV126
OH31/630H d1 N/A 600.00 mm L N/A 424.00 mm D3 N/A 800 mm Locknut N/A HM31/630 Lockwasher and Lockplates N/A MS31/630 Appropriate Hydraulic Nut N/A HMV126
OH32/630H d1 N/A 600.00 mm L N/A 521.00 mm D3 N/A 800 mm Locknut N/A HM31/630 Lockwasher and Lockplates N/A MS31/630 Appropriate Hydraulic Nut N/A HMV126
OH39/670H d1 N/A 630.00 mm L N/A 264.00 mm D3 N/A 780 mm Locknut N/A HM30/670 Lockwasher and Lockplates N/A MS30/670 Appropriate Hydraulic Nut N/A HMV134
OH30/670H d1 N/A 630.00 mm L N/A 324.00 mm D3 N/A 780 mm Locknut N/A HM30/670 Lockwasher and Lockplates N/A MS30/670 Appropriate Hydraulic Nut N/A HMV134
OH31/670H d1 N/A 630.00 mm L N/A 456.00 mm D3 N/A 850 mm Locknut N/A HM31/670 Lockwasher and Lockplates N/A MS31/670 Appropriate Hydraulic Nut N/A HMV134
OH32/670H d1 N/A 630.00 mm L N/A 558.00 mm D3 N/A 850 mm Locknut N/A HM31/670 Lockwasher and Lockplates N/A MS31/670 Appropriate Hydraulic Nut N/A HMV134
OH39/710H d1 N/A 670.00 mm L N/A 286.00 mm D3 N/A 830 mm Locknut N/A HM30/710 Lockwasher and Lockplates N/A MS30/710 Appropriate Hydraulic Nut N/A HMV142
OH30/710H d1 N/A 670.00 mm L N/A 342.00 mm D3 N/A 830 mm Locknut N/A HM30/710 Lockwasher and Lockplates N/A MS30/710 Appropriate Hydraulic Nut N/A HMV142
OH31/710H d1 N/A 670.00 mm L N/A 467.00 mm D3 N/A 900 mm Locknut N/A HM31/710 Lockwasher and Lockplates N/A MS31/710 Appropriate Hydraulic Nut N/A HMV142
OH32/710H d1 N/A 670.00 mm L N/A 572.00 mm D3 N/A 900 mm Locknut N/A HM31/710 Lockwasher and Lockplates N/A MS31/710 Appropriate Hydraulic Nut N/A HMV142
OH39/750H d1 N/A 710.00 mm L N/A 291.00 mm D3 N/A 870 mm Locknut N/A HM30/750 Lockwasher and Lockplates N/A MS30/750 Appropriate Hydraulic Nut N/A HMV150
OH30/750H d1 N/A 710.00 mm L N/A 356.00 mm D3 N/A 870 mm Locknut N/A HM30/750 Lockwasher and Lockplates N/A MS30/750 Appropriate Hydraulic Nut N/A HMV150
OH31/750H d1 N/A 710.00 mm L N/A 493.00 mm D3 N/A 950 mm Locknut N/A HM31/750 Lockwasher and Lockplates N/A MS31/750 Appropriate Hydraulic Nut N/A HMV150
OH32/750H d1 N/A 710.00 mm L N/A 603.00 mm D3 N/A 950 mm Locknut N/A HM31/750 Lockwasher and Lockplates N/A MS31/750 Appropriate Hydraulic Nut N/A HMV150
OH39/800H d1 N/A 750.00 mm L N/A 303.00 mm D3 N/A 920 mm Locknut N/A HM30/800 Lockwasher and Lockplates N/A MS30/800 Appropriate Hydraulic Nut N/A HMV160
OH31/800H d1 N/A 750.00 mm L N/A 505.00 mm D3 N/A 1000 mm Locknut N/A HM31/800 Lockwasher and Lockplates N/A MS31/800 Appropriate Hydraulic Nut N/A HMV160
OH32/800H d1 N/A 750.00 mm L N/A 618.00 mm D3 N/A 1000 mm Locknut N/A HM31/800 Lockwasher and Lockplates N/A MS31/800 Appropriate Hydraulic Nut N/A HMV160
OH39/850H d1 N/A 800.00 mm L N/A 308.00 mm D3 N/A 980 mm Locknut N/A HM30/850 Lockwasher and Lockplates N/A MS30/850 Appropriate Hydraulic Nut N/A HMV170
OH31/850H d1 N/A 800.00 mm L N/A 536.00 mm D3 N/A 1060 mm Locknut N/A HM31/850 Lockwasher and Lockplates N/A MS31/850 Appropriate Hydraulic Nut N/A HMV170
OH32/850H d1 N/A 800.00 mm L N/A 651.00 mm D3 N/A 1060 mm Locknut N/A HM31/850 Lockwasher and Lockplates N/A MS31/850 Appropriate Hydraulic Nut N/A HMV170
OH39/900H d1 N/A 850.00 mm L N/A 326.00 mm D3 N/A 1030 mm Locknut N/A HM30/900 Lockwasher and Lockplates N/A MS30/900 Appropriate Hydraulic Nut N/A HMV180
OH31/900H d1 N/A 850.00 mm L N/A 557.00 mm D3 N/A 1120 mm Locknut N/A HM31/900 Lockwasher and Lockplates N/A MS31/900 Appropriate Hydraulic Nut N/A HMV180
OH32/900H d1 N/A 850.00 mm L N/A 660.00 mm D3 N/A 1120 mm Locknut N/A HM31/900 Lockwasher and Lockplates N/A MS31/900 Appropriate Hydraulic Nut N/A HMV180
OH39/950H d1 N/A 900.00 mm L N/A 344.00 mm D3 N/A 1080 mm Locknut N/A HM30/950 Lockwasher and Lockplates N/A MS30/950 Appropriate Hydraulic Nut N/A HMV190
OH31/950H d1 N/A 900.00 mm L N/A 583.00 mm D3 N/A 1170 mm Locknut N/A HM31/950 Lockwasher and Lockplates N/A MS31/950 Appropriate Hydraulic Nut N/A HMV190
OH32/950H d1 N/A 900.00 mm L N/A 675.00 mm D3 N/A 1170 mm Locknut N/A HM31/950 Lockwasher and Lockplates N/A MS31/950 Appropriate Hydraulic Nut N/A HMV190
OH39/1000H d1 N/A 950.00 mm L N/A 358.00 mm D3 N/A 1140 mm Locknut N/A HM30/1000 Lockwasher and Lockplates N/A MS30/1000 Appropriate Hydraulic Nut N/A HMV200
OH31/1000H d1 N/A 950.00 mm L N/A 609.00 mm D3 N/A 1240 mm Locknut N/A HM31/1000 Lockwasher and Lockplates N/A MS31/1000 Appropriate Hydraulic Nut N/A HMV200
OH32/1000H d1 N/A 950.00 mm L N/A 707.00 mm D3 N/A 1240 mm Locknut N/A HM31/1000 Lockwasher and Lockplates N/A MS31/1000 Appropriate Hydraulic Nut N/A HMV200
OH39/1060H d1 N/A 1000.00 mm L N/A 372.00 mm D3 N/A 1200 mm Locknut N/A HM30/1060 Lockwasher and Lockplates N/A MS30/1000 Appropriate Hydraulic Nut N/A HMV212
OH30/1060H d1 N/A 1000.00 mm L N/A 447.00 mm D3 N/A 1200 mm Locknut N/A HM30/1060 Lockwasher and Lockplates N/A MS30/1000 Appropriate Hydraulic Nut N/A HMV212
OH31/1060H d1 N/A 1000.00 mm L N/A 622.00 mm D3 N/A 1300 mm Locknut N/A HM31/1060 Lockwasher and Lockplates N/A MS31/1000 Appropriate Hydraulic Nut N/A HMV212
