Push-Type Removable Sleeve, Locknut and Lockwasher

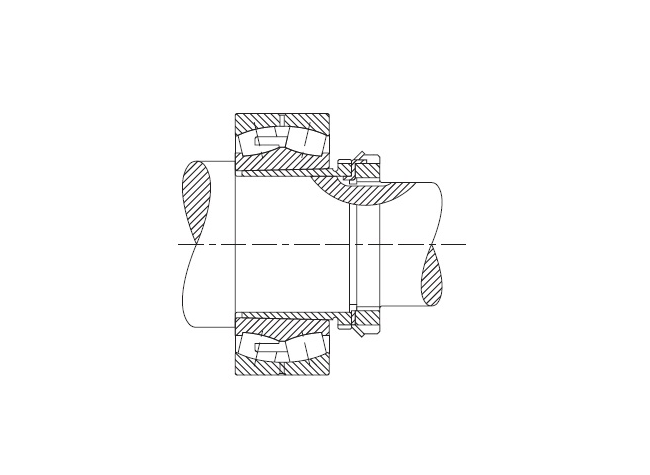

The chart below shows dimensions for adapter assemblies and components used in the tapered bore bearings on shafts.
Components are ordered seperately.





Timken Part Number

  Diameter d  Removal Nut O.D. C  Removal Nut  Bearing Number  Sleeve  Locknut

Lockwasher and Lockplates
N-09/SK-4023/N-07/W-07 Diameter d N/A 35 mm1.3780 in Removal Nut O.D. C N/A 64.41 mm2.536 in Removal Nut N/A N-09 Bearing Number N/A 22308K Sleeve N/A SK-4023 Locknut N/A N-07 Lockwasher and Lockplates N/A W-07
N-10/SK-4523/N-08/W-08 Diameter d N/A 40 mm1.5748 in Removal Nut O.D. C N/A 68.40 mm2.693 in Removal Nut N/A N-10 Bearing Number N/A 22309K Sleeve N/A SK-4523 Locknut N/A N-08 Lockwasher and Lockplates N/A W-08
RN-10/SK-5023/N-09/W-09 Diameter d N/A 45 mm1.7717 in Removal Nut O.D. C N/A 77.77 mm3.062 in Removal Nut N/A RN-10 Bearing Number N/A 22310K Sleeve N/A SK-5023 Locknut N/A N-09 Lockwasher and Lockplates N/A W-09
RN-11/SK-5523/N-10/W-10 Diameter d N/A 50 mm1.9685 in Removal Nut O.D. C N/A 83.34 mm3.281 in Removal Nut N/A RN-11 Bearing Number N/A 22311K Sleeve N/A SK-5523 Locknut N/A N-10 Lockwasher and Lockplates N/A W-10
RN-12/SK-6023/N-11/W-11 Diameter d N/A 55 mm2.1654 in Removal Nut O.D. C N/A 88.90 mm3.500 in Removal Nut N/A RN-12 Bearing Number N/A 22312K Sleeve N/A SK-6023 Locknut N/A N-11 Lockwasher and Lockplates N/A W-11
AN-15/SK-6523/N-12/W-12 Diameter d N/A 60 mm2.3622 in Removal Nut O.D. C N/A 98.55 mm3.880 in Removal Nut N/A AN-15 Bearing Number N/A 22313K Sleeve N/A SK-6523 Locknut N/A N-12 Lockwasher and Lockplates N/A W-12
AN-16/SK-7023/N-12/W-12 Diameter d N/A 60 mm2.3622 in Removal Nut O.D. C N/A 105.69 mm4.161 in Removal Nut N/A AN-16 Bearing Number N/A 22314K Sleeve N/A SK-7023 Locknut N/A N-12 Lockwasher and Lockplates N/A W-12
AN-17/SK-7523/N-13/W-13 Diameter d N/A 65 mm2.5591 in Removal Nut O.D. C N/A 112.04 mm4.411 in Removal Nut N/A AN-17 Bearing Number N/A 22315K Sleeve N/A SK-7523 Locknut N/A N-13 Lockwasher and Lockplates N/A W-13
AN-18/SK-8022/N-14/W-14 Diameter d N/A 70 mm2.7559 in Removal Nut O.D. C N/A 118.39 mm4.661 in Removal Nut N/A AN-18 Bearing Number N/A 22216K Sleeve N/A SK-8022 Locknut N/A N-14 Lockwasher and Lockplates N/A W-14
AN-18/SK-8023/N-14/W-14 Diameter d N/A 70 mm2.7559 in Removal Nut O.D. C N/A 118.39 mm4.661 in Removal Nut N/A AN-18 Bearing Number N/A 22316K Sleeve N/A SK-8023 Locknut N/A N-14 Lockwasher and Lockplates N/A W-14
AN-19/SK-8522/AN-15/W-15 Diameter d N/A 75 mm2.9528 in Removal Nut O.D. C N/A 125.55 mm4.943 in Removal Nut N/A AN-19 Bearing Number N/A 22217K Sleeve N/A SK-8522 Locknut N/A AN-15 Lockwasher and Lockplates N/A W-15
AN-19/SK-8523/AN-15/W-15 Diameter d N/A 75 mm2.9528 in Removal Nut O.D. C N/A 125.55 mm4.943 in Removal Nut N/A AN-19 Bearing Number N/A 22317K Sleeve N/A SK-8523 Locknut N/A AN-15 Lockwasher and Lockplates N/A W-15
AN-20/SK-9022/AN-16/W-16 Diameter d N/A 80 mm3.1496 in Removal Nut O.D. C N/A 131.90 mm5.193 in Removal Nut N/A AN-20 Bearing Number N/A 22218K Sleeve N/A SK-9022 Locknut N/A AN-16 Lockwasher and Lockplates N/A W-16
AN-20/SK-9023/AN-16/W-16 Diameter d N/A 80 mm3.1496 in Removal Nut O.D. C N/A 131.90 mm5.193 in Removal Nut N/A AN-20 Bearing Number N/A 22318K Sleeve N/A SK-9023 Locknut N/A AN-16 Lockwasher and Lockplates N/A W-16
AN-21/SK-9522/AN-17/W-17 Diameter d N/A 85 mm3.3465 in Removal Nut O.D. C N/A 138.25 mm5.443 in Removal Nut N/A AN-21 Bearing Number N/A 22219K Sleeve N/A SK-9522 Locknut N/A AN-17 Lockwasher and Lockplates N/A W-17
AN-21/SK-9523/AN-17/W-17 Diameter d N/A 85 mm3.3465 in Removal Nut O.D. C N/A 138.25 mm5.443 in Removal Nut N/A AN-21 Bearing Number N/A 22319K Sleeve N/A SK-9523 Locknut N/A AN-17 Lockwasher and Lockplates N/A W-17
AN-22/SK-10022/AN-18/W-18 Diameter d N/A 90 mm3.5433 in Removal Nut O.D. C N/A 145.39 mm5.724 in Removal Nut N/A AN-22 Bearing Number N/A 22220K Sleeve N/A SK-10022 Locknut N/A AN-18 Lockwasher and Lockplates N/A W-18
AN-22/SK-10023/AN-18/W-18 Diameter d N/A 90 mm3.5433 in Removal Nut O.D. C N/A 145.39 mm5.724 in Removal Nut N/A AN-22 Bearing Number N/A 22320K Sleeve N/A SK-10023 Locknut N/A AN-18 Lockwasher and Lockplates N/A W-18
ARN-22/SK-11022/AN-20/W-20 Diameter d N/A 100 mm3.9370 in Removal Nut O.D. C N/A 160.32 mm6.312 in Removal Nut N/A ARN-22 Bearing Number N/A 22222K Sleeve N/A SK-11022 Locknut N/A AN-20 Lockwasher and Lockplates N/A W-20
ARN-22/SK-11023/AN-20/W-20 Diameter d N/A 100 mm3.9370 in Removal Nut O.D. C N/A 160.32 mm6.312 in Removal Nut N/A ARN-22 Bearing Number N/A 22322K Sleeve N/A SK-11023 Locknut N/A AN-20 Lockwasher and Lockplates N/A W-20
ARN-24/SK-12022/AN-22/W-22 Diameter d N/A 110 mm4.3307 in Removal Nut O.D. C N/A 176.23 mm6.938 in Removal Nut N/A ARN-24 Bearing Number N/A 22224K Sleeve N/A SK-12022 Locknut N/A AN-22 Lockwasher and Lockplates N/A W-22
ARN-24/SK-12023/AN-22/W-22 Diameter d N/A 110 mm4.3307 in Removal Nut O.D. C N/A 176.23 mm6.938 in Removal Nut N/A ARN-24 Bearing Number N/A 22324K Sleeve N/A SK-12023 Locknut N/A AN-22 Lockwasher and Lockplates N/A W-22
ARN-26/SK-13022/AN-22/W-22 Diameter d N/A 115 mm4.5276 in Removal Nut O.D. C N/A 185.72 mm7.312 in Removal Nut N/A ARN-26 Bearing Number N/A 22226K Sleeve N/A SK-13022 Locknut N/A AN-22 Lockwasher and Lockplates N/A W-22
ARN-26/SK-13023/AN-22/W-22 Diameter d N/A 115 mm4.5276 in Removal Nut O.D. C N/A 185.72 mm7.312 in Removal Nut N/A ARN-26 Bearing Number N/A 22326K Sleeve N/A SK-13023 Locknut N/A AN-22 Lockwasher and Lockplates N/A W-22
RN-28/SK-14022/AN-24/W-24 Diameter d N/A 125 mm4.9213 in Removal Nut O.D. C N/A 201.63 mm7.938 in Removal Nut N/A RN-28 Bearing Number N/A 22228K Sleeve N/A SK-14022 Locknut N/A AN-24 Lockwasher and Lockplates N/A W-24
RN-28/SK-14023/AN-24/W-24 Diameter d N/A 125 mm4.9213 in Removal Nut O.D. C N/A 201.63 mm7.938 in Removal Nut N/A RN-28 Bearing Number N/A 22328K Sleeve N/A SK-14023 Locknut N/A AN-24 Lockwasher and Lockplates N/A W-24
RN-30/SK-15022/AN-26/W-26 Diameter d N/A 135 mm5.3150 in Removal Nut O.D. C N/A 211.12 mm8.312 in Removal Nut N/A RN-30 Bearing Number N/A 22230K Sleeve N/A SK-15022 Locknut N/A AN-26 Lockwasher and Lockplates N/A W-26
RN-30/SK-15023/AN-26/W-26 Diameter d N/A 135 mm5.3150 in Removal Nut O.D. C N/A 211.12 mm8.312 in Removal Nut N/A RN-30 Bearing Number N/A 22330K Sleeve N/A SK-15023 Locknut N/A AN-26 Lockwasher and Lockplates N/A W-26
RN-32/SK-16022/AN-28/W-28 Diameter d N/A 140 mm5.5118 in Removal Nut O.D. C N/A 227.03 mm8.938 in Removal Nut N/A RN-32 Bearing Number N/A 22232K Sleeve N/A SK-16022 Locknut N/A AN-28 Lockwasher and Lockplates N/A W-28
RN-32/SK-16023/AN-28/W-28 Diameter d N/A 140 mm5.5118 in Removal Nut O.D. C N/A 227.03 mm8.938 in Removal Nut N/A RN-32 Bearing Number N/A 22332K Sleeve N/A SK-16023 Locknut N/A AN-28 Lockwasher and Lockplates N/A W-28
RN-34/SK-17022/AN-30/W-30 Diameter d N/A 150 mm5.9055 in Removal Nut O.D. C N/A 236.52 mm9.312 in Removal Nut N/A RN-34 Bearing Number N/A 22234K Sleeve N/A SK-17022 Locknut N/A AN-30 Lockwasher and Lockplates N/A W-30
RN-34/SK-17023/AN-30/W-30 Diameter d N/A 150 mm5.9055 in Removal Nut O.D. C N/A 236.52 mm9.312 in Removal Nut N/A RN-34 Bearing Number N/A 22334K Sleeve N/A SK-17023 Locknut N/A AN-30 Lockwasher and Lockplates N/A W-30
RN-36/SK-18022/AN-32/W-32 Diameter d N/A 160 mm6.2992 in Removal Nut O.D. C N/A 250.83 mm9.875 in Removal Nut N/A RN-36 Bearing Number N/A 22236K Sleeve N/A SK-18022 Locknut N/A AN-32 Lockwasher and Lockplates N/A W-32
RN-36/SK-18023/AN-32/W-32 Diameter d N/A 160 mm6.2992 in Removal Nut O.D. C N/A 250.83 mm9.875 in Removal Nut N/A RN-36 Bearing Number N/A 22336K Sleeve N/A SK-18023 Locknut N/A AN-32 Lockwasher and Lockplates N/A W-32
RN-38/SK-19022/AN-34/W-34 Diameter d N/A 170 mm6.6929 in Removal Nut O.D. C N/A 271.48 mm10.688 in Removal Nut N/A RN-38 Bearing Number N/A 22238K Sleeve N/A SK-19022 Locknut N/A AN-34 Lockwasher and Lockplates N/A W-34
RN-38/SK-19023/AN-34/W-34 Diameter d N/A 170 mm6.6929 in Removal Nut O.D. C N/A 271.48 mm10.688 in Removal Nut N/A RN-38 Bearing Number N/A 22338K Sleeve N/A SK-19023 Locknut N/A AN-34 Lockwasher and Lockplates N/A W-34
N-044/SK-20022/AN-36/W-36 Diameter d N/A 180 mm7.0866 in Removal Nut O.D. C N/A 279.53 mm11.005 in Removal Nut N/A N-44 Bearing Number N/A 22240K Sleeve N/A SK-20022 Locknut N/A AN-36 Lockwasher and Lockplates N/A W-36
N-044/SK-20023/AN-36/W-36 Diameter d N/A 180 mm7.0866 in Removal Nut O.D. C N/A 279.53 mm11.005 in Removal Nut N/A N-44 Bearing Number N/A 22340K Sleeve N/A SK-20023 Locknut N/A AN-36 Lockwasher and Lockplates N/A W-36
N-048/SK-22022/AN-40/W-40 Diameter d N/A 200 mm7.8740 in Removal Nut O.D. C N/A 290.65 mm11.443 in Removal Nut N/A N-048 Bearing Number N/A 22244K Sleeve N/A SK-22022 Locknut N/A AN-40 Lockwasher and Lockplates N/A W-40
N-048/SK-22023/AN-40/W-40 Diameter d N/A 200 mm7.8740 in Removal Nut O.D. C N/A 290.65 mm11.443 in Removal Nut N/A N-048 Bearing Number N/A 22344K Sleeve N/A SK-22023 Locknut N/A AN-40 Lockwasher and Lockplates N/A W-40
N-052/SK-24022/N-44/W-44 Diameter d N/A 220 mm8.6614 in Removal Nut O.D. C N/A 309.70 mm12.193 in Removal Nut N/A N-052 Bearing Number N/A 22248K Sleeve N/A SK-24022 Locknut N/A N-44 Lockwasher and Lockplates N/A W-44
N-052/SK-24023/N-44/W-44 Diameter d N/A 220 mm8.6614 in Removal Nut O.D. C N/A 309.70 mm12.193 in Removal Nut N/A N-052 Bearing Number N/A 22348K Sleeve N/A SK-24023 Locknut N/A N-44 Lockwasher and Lockplates N/A W-44
N-056/SK-26022/N-048/P-48 Diameter d N/A 240 mm9.4488 in Removal Nut O.D. C N/A 330.33 mm13.005 in Removal Nut N/A N-056 Bearing Number N/A 22252K Sleeve N/A SK-26022 Locknut N/A N-048 Lockwasher and Lockplates N/A P-48
N-056/SK-26023/N-048/P-48 Diameter d N/A 240 mm9.4488 in Removal Nut O.D. C N/A 330.33 mm13.005 in Removal Nut N/A N-056 Bearing Number N/A 22352K Sleeve N/A SK-26023 Locknut N/A N-048 Lockwasher and Lockplates N/A P-48
RN-56/SK-28022/N-052/P-52 Diameter d N/A 260 mm10.2362 in Removal Nut O.D. C N/A 385.78 mm15.188 in Removal Nut N/A RN-56 Bearing Number N/A 22256K Sleeve N/A SK-28022 Locknut N/A N-052 Lockwasher and Lockplates N/A P-52
RN-56/SK-28023/N-052/P-52 Diameter d N/A 260 mm10.2362 in Removal Nut O.D. C N/A 385.78 mm15.188 in Removal Nut N/A RN-56 Bearing Number N/A 22356K Sleeve N/A SK-28023 Locknut N/A N-052 Lockwasher and Lockplates N/A P-52
RN-60/SK-30022/N-056/P-56 Diameter d N/A 280 mm11.0236 in Removal Nut O.D. C N/A 416.48 mm16.397 in Removal Nut N/A RN-60 Bearing Number N/A 22260K Sleeve N/A SK-30022 Locknut N/A N-056 Lockwasher and Lockplates N/A P-56
RN-64/SK-32022/N-060/P-60 Diameter d N/A 300 mm11.8110 in Removal Nut O.D. C N/A 432.18 mm17.015 in Removal Nut N/A RN-64 Bearing Number N/A 22264K Sleeve N/A SK-32022 Locknut N/A N-060 Lockwasher and Lockplates N/A P-60
