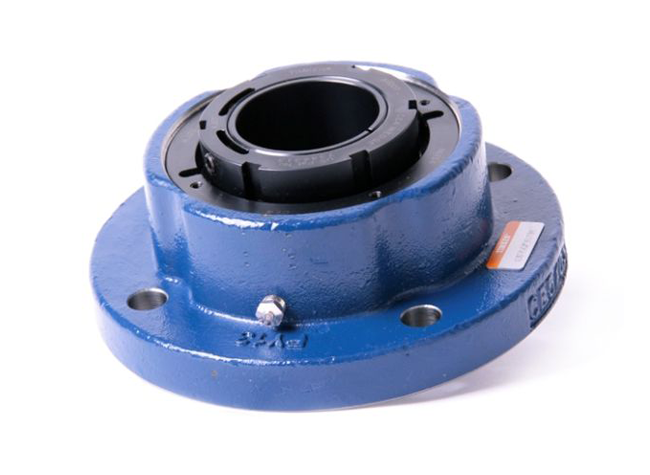

Spherical Roller Bearing Solid-Block Housed Units feature rugged cast-steel housings and double-row spherical roller bearings. Designed to offer protection from contaminants, these housed units accommodate shaft sizes from 1-7/16” to 7” (40 mm to 180 mm) and most metric sizes. This product line was formerly known as “QM Blue Brute Bearings.”
| Timken Part Number | Bearing Number | Shaft Size | Outside Diameter | Total Width | C0 - Static Load | C - Dynamic Load (Basic) | Locking Style | Weight |
| QVFY11V050S | 22211 | 50 mm | 2.990 in75.90 mm | 2.300 in58.40 mm | 31900 lb142 kN | 31400 lb140 kN | Single V-Lock | 12 lb5.4 Kg |
| QVFY11V115S | 22211 | 1-15/16 in | 2.990 in75.90 mm | 2.300 in58.40 mm | 31900 lb142 kN | 31400 lb140 kN | Single V-Lock | 12 lb5.4 Kg |
| QVFY11V200S | 22211 | 2 in | 2.990 in75.90 mm | 2.300 in58.40 mm | 31900 lb142 kN | 31400 lb140 kN | Single V-Lock | 12 lb5.4 Kg |
| QVFY12V055S | 22212 | 55 mm | 3.160 in80.30 mm | 2.440 in62.00 mm | 39000 lb174 kN | 38100 lb169 kN | Single V-Lock | 15.0 lb6.8 Kg |
| QVFY12V203S | 22212 | 2-3/16 in | 3.160 in80.30 mm | 2.440 in62.00 mm | 39000 lb174 kN | 38100 lb169 kN | Single V-Lock | 15.0 lb6.8 Kg |
| QVFY12V204S | 22212 | 2-1/4 in | 3.160 in80.30 mm | 2.440 in62.00 mm | 39000 lb174 kN | 38100 lb169 kN | Single V-Lock | 15.0 lb6.8 Kg |
| QVFY14V060S | 22214 | 60 mm | 3.700 in94.00 mm | 2.850 in72.40 mm | 52000 lb231 kN | 47800 lb213 kN | Single V-Lock | 19 lb8.6 Kg |
| QVFY14V065S | 22214 | 65 mm | 3.700 in94.00 mm | 2.850 in72.40 mm | 52000 lb231 kN | 47800 lb213 kN | Single V-Lock | 19 lb8.6 Kg |
| QVFY14V207S | 22214 | 2-7/16 in | 3.700 in94.00 mm | 2.850 in72.40 mm | 52000 lb231 kN | 47800 lb213 kN | Single V-Lock | 19 lb8.6 Kg |
| QVFY14V208S | 22214 | 2-1/2 in | 3.700 in94.00 mm | 2.850 in72.40 mm | 52000 lb231 kN | 47800 lb213 kN | Single V-Lock | 19 lb8.6 Kg |
| QVFY16V070S | 22216 | 70 mm | 4.190 in106.40 mm | 3.0000 in76.200 mm | 62500 lb278 kN | 57200 lb254 kN | Single V-Lock | 28 lb12.7 Kg |
| QVFY16V075S | 22216 | 75 mm | 4.190 in106.40 mm | 3.0000 in76.200 mm | 62500 lb278 kN | 57200 lb254 kN | Single V-Lock | 28 lb12.7 Kg |
| QVFY16V211S | 22216 | 2-11/16 in | 4.190 in106.40 mm | 3.0000 in76.200 mm | 62500 lb278 kN | 57200 lb254 kN | Single V-Lock | 28 lb12.7 Kg |
| QVFY16V212S | 22216 | 2-3/4 in | 4.190 in106.40 mm | 3.0000 in76.200 mm | 62500 lb278 kN | 57200 lb254 kN | Single V-Lock | 28 lb12.7 Kg |
| QVFY16V215S | 22216 | 2-15/16 in | 4.190 in106.40 mm | 3.0000 in76.200 mm | 62500 lb278 kN | 57200 lb254 kN | Single V-Lock | 28 lb12.7 Kg |
| QVFY16V300S | 22216 | 3 in | 4.190 in106.40 mm | 3.0000 in76.200 mm | 62500 lb278 kN | 57200 lb254 kN | Single V-Lock | 28 lb12.7 Kg |
| QVFY19V080S | 22219 | 80 mm | 4.900 in124.50 mm | 3.360 in85.30 mm | 99000 lb441 kN | 86600 lb385 kN | Single V-Lock | 42 lb19.1 Kg |
| QVFY19V085S | 22219 | 85 mm | 4.900 in124.50 mm | 3.360 in85.30 mm | 99000 lb441 kN | 86600 lb385 kN | Single V-Lock | 42 lb19.1 Kg |
| QVFY19V090S | 22219 | 90 mm | 4.900 in124.50 mm | 3.360 in85.30 mm | 99000 lb441 kN | 86600 lb385 kN | Single V-Lock | 42 lb19.1 Kg |
| QVFY19V303S | 22219 | 3-3/16 in | 4.900 in124.50 mm | 3.360 in85.30 mm | 99000 lb441 kN | 86600 lb385 kN | Single V-Lock | 42 lb19.1 Kg |
| QVFY19V304S | 22219 | 3-1/4 in | 4.900 in124.50 mm | 3.360 in85.30 mm | 99000 lb441 kN | 86600 lb385 kN | Single V-Lock | 42 lb19.1 Kg |
| QVFY19V307S | 22219 | 3-7/16 in | 4.900 in124.50 mm | 3.360 in85.30 mm | 99000 lb441 kN | 86600 lb385 kN | Single V-Lock | 42 lb19.1 Kg |
| QVFY19V308S | 22219 | 3-1/2 in | 4.900 in124.50 mm | 3.360 in85.30 mm | 99000 lb441 kN | 86600 lb385 kN | Single V-Lock | 42 lb19.1 Kg |
| QVFY22V100S | 22222 | 100 mm | 5.5000 in139.70 mm | 4.060 in103.10 mm | 147000 lb653 kN | 125000 lb555 kN | Single V-Lock | 66 lb29.90 Kg |
| QVFY22V311S | 22222 | 3-11/16 in | 5.5000 in139.70 mm | 4.060 in103.10 mm | 147000 lb653 kN | 125000 lb555 kN | Single V-Lock | 66 lb29.90 Kg |
| QVFY22V312S | 22222 | 3-3/4 in | 5.5000 in139.70 mm | 4.060 in103.10 mm | 147000 lb653 kN | 125000 lb555 kN | Single V-Lock | 66 lb29.90 Kg |
| QVFY22V315S | 22222 | 3-15/16 in | 5.5000 in139.70 mm | 4.060 in103.10 mm | 147000 lb653 kN | 125000 lb555 kN | Single V-Lock | 66 lb29.90 Kg |
| QVFY22V400S | 22222 | 4 in | 5.5000 in139.70 mm | 4.060 in103.10 mm | 147000 lb653 kN | 125000 lb555 kN | Single V-Lock | 66 lb29.90 Kg |
| QVFY26V110S | 22226 | 110 mm | 6.880 in174.80 mm | 4.210 in106.90 mm | 212000 lb945 kN | 170000 lb757 kN | Single V-Lock | 108.0 lb49.0 Kg |
| QVFY26V115S | 22226 | 115 mm | 6.880 in174.80 mm | 4.210 in106.90 mm | 212000 lb945 kN | 170000 lb757 kN | Single V-Lock | 108.0 lb49.0 Kg |
| QVFY26V407S | 22226 | 4-7/16 in | 6.880 in174.80 mm | 4.210 in106.90 mm | 212000 lb945 kN | 170000 lb757 kN | Single V-Lock | 108.0 lb49.0 Kg |
| QVFY26V408S | 22226 | 4-1/2 in | 6.880 in174.80 mm | 4.210 in106.90 mm | 212000 lb945 kN | 170000 lb757 kN | Single V-Lock | 108.0 lb49.0 Kg |
| QVFY28V125S | 22228 | 125 mm | 7.480 in190.000 mm | 5.450 in138.40 mm | 237000 lb1060 kN | 194000 lb863 kN | Single V-Lock | 115 lb52.2 Kg |
| QVFY28V130S | 22228 | 130 mm | 7.480 in190.000 mm | 5.450 in138.40 mm | 237000 lb1060 kN | 194000 lb863 kN | Single V-Lock | 115 lb52.2 Kg |
| QVFY28V415S | 22228 | 4-15/16 in | 7.480 in190.000 mm | 5.450 in138.40 mm | 237000 lb1060 kN | 194000 lb863 kN | Single V-Lock | 115 lb52.2 Kg |
| QVFY28V500S | 22228 | 5 in | 7.480 in190.000 mm | 5.450 in138.40 mm | 237000 lb1060 kN | 194000 lb863 kN | Single V-Lock | 115 lb52.2 Kg |
| QVFYP16V300S | 22228 | 5 in | 7.480 in190.000 mm | 5.450 in138.40 mm | 237000 lb1060 kN | 194000 lb863 kN | Single V-Lock | 115 lb52.2 Kg |
| QVFYP16V215S | 22228 | 5 in | 7.480 in190.000 mm | 5.450 in138.40 mm | 237000 lb1060 kN | 194000 lb863 kN | Single V-Lock | 115 lb52.2 Kg |
| QVFYP16V212S | 22228 | 5 in | 7.480 in190.000 mm | 5.450 in138.40 mm | 237000 lb1060 kN | 194000 lb863 kN | Single V-Lock | 115 lb52.2 Kg |
| QVFYP16V211S | 22228 | 5 in | 7.480 in190.000 mm | 5.450 in138.40 mm | 237000 lb1060 kN | 194000 lb863 kN | Single V-Lock | 115 lb52.2 Kg |
| QVFYP16V075S | 22228 | 5 in | 7.480 in190.000 mm | 5.450 in138.40 mm | 237000 lb1060 kN | 194000 lb863 kN | Single V-Lock | 115 lb52.2 Kg |
| QVFYP16V070S | 22228 | 5 in | 7.480 in190.000 mm | 5.450 in138.40 mm | 237000 lb1060 kN | 194000 lb863 kN | Single V-Lock | 115 lb52.2 Kg |
| QVFYP14V208S | 22228 | 5 in | 7.480 in190.000 mm | 5.450 in138.40 mm | 237000 lb1060 kN | 194000 lb863 kN | Single V-Lock | 115 lb52.2 Kg |
| QVFYP14V207S | 22228 | 5 in | 7.480 in190.000 mm | 5.450 in138.40 mm | 237000 lb1060 kN | 194000 lb863 kN | Single V-Lock | 115 lb52.2 Kg |
| QVFYP14V065S | 22228 | 5 in | 7.480 in190.000 mm | 5.450 in138.40 mm | 237000 lb1060 kN | 194000 lb863 kN | Single V-Lock | 115 lb52.2 Kg |
| QVFYP14V060S | 22228 | 5 in | 7.480 in190.000 mm | 5.450 in138.40 mm | 237000 lb1060 kN | 194000 lb863 kN | Single V-Lock | 115 lb52.2 Kg |
| QVFYP12V204S | 22228 | 5 in | 7.480 in190.000 mm | 5.450 in138.40 mm | 237000 lb1060 kN | 194000 lb863 kN | Single V-Lock | 115 lb52.2 Kg |
| QVFYP12V203S | 22228 | 5 in | 7.480 in190.000 mm | 5.450 in138.40 mm | 237000 lb1060 kN | 194000 lb863 kN | Single V-Lock | 115 lb52.2 Kg |
| QVFYP12V055S | 22228 | 5 in | 7.480 in190.000 mm | 5.450 in138.40 mm | 237000 lb1060 kN | 194000 lb863 kN | Single V-Lock | 115 lb52.2 Kg |
| QVFYP11V200S | 22228 | 5 in | 7.480 in190.000 mm | 5.450 in138.40 mm | 237000 lb1060 kN | 194000 lb863 kN | Single V-Lock | 115 lb52.2 Kg |
| QVFYP11V115S | 22228 | 5 in | 7.480 in190.000 mm | 5.450 in138.40 mm | 237000 lb1060 kN | 194000 lb863 kN | Single V-Lock | 115 lb52.2 Kg |
| QVFYP11V050S | 22228 | 5 in | 7.480 in190.000 mm | 5.450 in138.40 mm | 237000 lb1060 kN | 194000 lb863 kN | Single V-Lock | 115 lb52.2 Kg |
