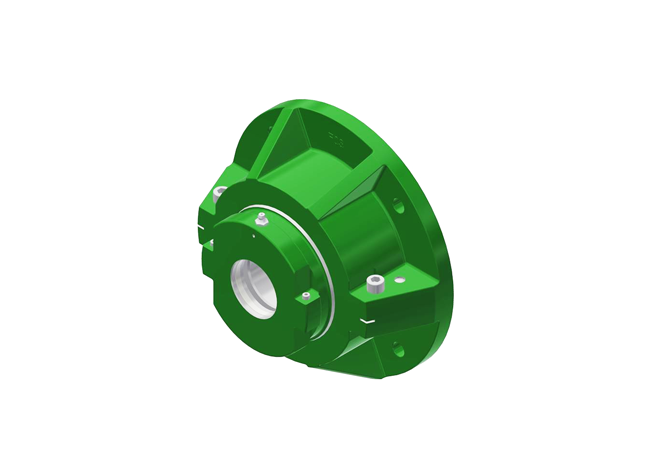

When faced with flat horizontal or vertical faces, flange units offer a simple mounting solution. As with pillow block supports, flange units are produced with spherical location to accommodate standard bearing housings and provide easy initial alignment of shaft and equipment.
To facilitate positive location of the flange to the surface, the rear face is recessed (dimensions N & V). This allows for a spigot (Tolerance f8) to be located into the flange.
Bearing inspection is simply a matter of removing the top half of the flange and housing. Bearing replacement may also be achieved in the same manner if required.
When integrating flange units into new applications, it should be noted that a maximum radial load equivalent to 0.26Cor is permissible. A maximum axial load of 0.25Ca must also be taken into account for applications with thrust loading. Units for vertically oriented shafts may also need special consideration given to sealing arrangements.
As always, Timken will be happy to advise on any application issues. This product line was formerly known as “Revolvo.”
| Timken Part Number | Shaft Size | Seal Type | Bearing Type | Cr - Dynamic Load Rating | Cor - Static Load Rating | Ca - Axial Load Rating | Maximum Speed |
| HSM125BXHF | Shaft Size 125 mm | Seal Type Felt Seal | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 169281 lbf753 kN | Cor - Static Load Rating 218964 lbf974 kN | Ca - Axial Load Rating N/A | Maximum Speed 1500 rpm |
| HSM125BRHF | Shaft Size 125 mm | Seal Type Felt Seal | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 169281 lbf753 kN | Cor - Static Load Rating 218964 lbf974 kN | Ca - Axial Load Rating 11016 lbf49.00 kN | Maximum Speed 1500 rpm |
| HSM125BXHFKPS | Shaft Size 125 mm | Seal Type Kevlar Packing Seal | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 169281 lbf753 kN | Cor - Static Load Rating 218964 lbf974 kN | Ca - Axial Load Rating N/A | Maximum Speed 1500 rpm |
| HSM125BRHFKPS | Shaft Size 125 mm | Seal Type Kevlar Packing Seal | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 169281 lbf753 kN | Cor - Static Load Rating 218964 lbf974 kN | Ca - Axial Load Rating 11016 lbf49.00 kN | Maximum Speed 1500 rpm |
| HSM125BXHFRSS | Shaft Size 125 mm | Seal Type Viton Single Lip | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 169281 lbf753 kN | Cor - Static Load Rating 218964 lbf974 kN | Ca - Axial Load Rating N/A | Maximum Speed 1500 rpm |
| HSM125BRHFRSS | Shaft Size 125 mm | Seal Type Viton Single Lip | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 169281 lbf753 kN | Cor - Static Load Rating 218964 lbf974 kN | Ca - Axial Load Rating 11016 lbf49.00 kN | Maximum Speed 1500 rpm |
| HSM125BXHFHTPS | Shaft Size 125 mm | Seal Type High Temperature Packing | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 169281 lbf753 kN | Cor - Static Load Rating 218964 lbf974 kN | Ca - Axial Load Rating N/A | Maximum Speed 1500 rpm |
| HSM125BRHFHTPS | Shaft Size 125 mm | Seal Type High Temperature Packing | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 169281 lbf753 kN | Cor - Static Load Rating 218964 lbf974 kN | Ca - Axial Load Rating 11016 lbf49.00 kN | Maximum Speed 1500 rpm |
| HSM125BXHFATL | Shaft Size 125 mm | Seal Type Aluminium Triple Labyrinth | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 169281 lbf753 kN | Cor - Static Load Rating 218964 lbf974 kN | Ca - Axial Load Rating N/A | Maximum Speed 1500 rpm |
| HSM125BRHFATL | Shaft Size 125 mm | Seal Type Aluminium Triple Labyrinth | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 169281 lbf753 kN | Cor - Static Load Rating 218964 lbf974 kN | Ca - Axial Load Rating 11016 lbf49.00 kN | Maximum Speed 1500 rpm |
| HSE415BXHF | Shaft Size 4-15/16 in | Seal Type Felt Seal | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 169281 lbf753 kN | Cor - Static Load Rating 218964 lbf974 kN | Ca - Axial Load Rating N/A | Maximum Speed 1500 rpm |
| HSE415BRHF | Shaft Size 4-15/16 in | Seal Type Felt Seal | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 169281 lbf753 kN | Cor - Static Load Rating 218964 lbf974 kN | Ca - Axial Load Rating 11016 lbf49.00 kN | Maximum Speed 1500 rpm |
| HSE415BXHFKPS | Shaft Size 4-15/16 in | Seal Type Kevlar Packing Seal | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 169281 lbf753 kN | Cor - Static Load Rating 218964 lbf974 kN | Ca - Axial Load Rating N/A | Maximum Speed 1500 rpm |
| HSE415BRHFKPS | Shaft Size 4-15/16 in | Seal Type Kevlar Packing Seal | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 169281 lbf753 kN | Cor - Static Load Rating 218964 lbf974 kN | Ca - Axial Load Rating 11016 lbf49.00 kN | Maximum Speed 1500 rpm |
| HSE415BXHFRSS | Shaft Size 4-15/16 in | Seal Type Viton Single Lip | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 169281 lbf753 kN | Cor - Static Load Rating 218964 lbf974 kN | Ca - Axial Load Rating N/A | Maximum Speed 1500 rpm |
| HSE415BRHFRSS | Shaft Size 4-15/16 in | Seal Type Viton Single Lip | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 169281 lbf753 kN | Cor - Static Load Rating 218964 lbf974 kN | Ca - Axial Load Rating 11016 lbf49.00 kN | Maximum Speed 1500 rpm |
| HSE415BXHFHTPS | Shaft Size 4-15/16 in | Seal Type High Temperature Packing | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 169281 lbf753 kN | Cor - Static Load Rating 218964 lbf974 kN | Ca - Axial Load Rating N/A | Maximum Speed 1500 rpm |
| HSE415BRHFHTPS | Shaft Size 4-15/16 in | Seal Type High Temperature Packing | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 169281 lbf753 kN | Cor - Static Load Rating 218964 lbf974 kN | Ca - Axial Load Rating 11016 lbf49.00 kN | Maximum Speed 1500 rpm |
| HSE415BXHFATL | Shaft Size 4-15/16 in | Seal Type Aluminium Triple Labyrinth | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 169281 lbf753 kN | Cor - Static Load Rating 218964 lbf974 kN | Ca - Axial Load Rating N/A | Maximum Speed 1500 rpm |
| HSE415BRHFATL | Shaft Size 4-15/16 in | Seal Type Aluminium Triple Labyrinth | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 169281 lbf753 kN | Cor - Static Load Rating 218964 lbf974 kN | Ca - Axial Load Rating 11016 lbf49.00 kN | Maximum Speed 1500 rpm |
| HSE500BXHF | Shaft Size 5 in | Seal Type Felt Seal | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 169281 lbf753 kN | Cor - Static Load Rating 218964 lbf974 kN | Ca - Axial Load Rating N/A | Maximum Speed 1500 rpm |
| HSE500BRHF | Shaft Size 5 in | Seal Type Felt Seal | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 169281 lbf753 kN | Cor - Static Load Rating 218964 lbf974 kN | Ca - Axial Load Rating 11016 lbf49.00 kN | Maximum Speed 1500 rpm |
| HSE500BXHFKPS | Shaft Size 5 in | Seal Type Kevlar Packing Seal | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 169281 lbf753 kN | Cor - Static Load Rating 218964 lbf974 kN | Ca - Axial Load Rating N/A | Maximum Speed 1500 rpm |
| HSE500BRHFKPS | Shaft Size 5 in | Seal Type Kevlar Packing Seal | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 169281 lbf753 kN | Cor - Static Load Rating 218964 lbf974 kN | Ca - Axial Load Rating 11016 lbf49.00 kN | Maximum Speed 1500 rpm |
| HSE500BXHFRSS | Shaft Size 5 in | Seal Type Viton Single Lip | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 169281 lbf753 kN | Cor - Static Load Rating 218964 lbf974 kN | Ca - Axial Load Rating N/A | Maximum Speed 1500 rpm |
| HSE500BRHFRSS | Shaft Size 5 in | Seal Type Viton Single Lip | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 169281 lbf753 kN | Cor - Static Load Rating 218964 lbf974 kN | Ca - Axial Load Rating 11016 lbf49.00 kN | Maximum Speed 1500 rpm |
| HSE500BXHFHTPS | Shaft Size 5 in | Seal Type High Temperature Packing | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 169281 lbf753 kN | Cor - Static Load Rating 218964 lbf974 kN | Ca - Axial Load Rating N/A | Maximum Speed 1500 rpm |
| HSE500BRHFHTPS | Shaft Size 5 in | Seal Type High Temperature Packing | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 169281 lbf753 kN | Cor - Static Load Rating 218964 lbf974 kN | Ca - Axial Load Rating 11016 lbf49.00 kN | Maximum Speed 1500 rpm |
| HSE500BXHFATL | Shaft Size 5 in | Seal Type Aluminium Triple Labyrinth | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 169281 lbf753 kN | Cor - Static Load Rating 218964 lbf974 kN | Ca - Axial Load Rating N/A | Maximum Speed 1500 rpm |
| HSE500BRHFATL | Shaft Size 5 in | Seal Type Aluminium Triple Labyrinth | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 169281 lbf753 kN | Cor - Static Load Rating 218964 lbf974 kN | Ca - Axial Load Rating 11016 lbf49.00 kN | Maximum Speed 1500 rpm |
| HSM130BXHF | Shaft Size 130 mm | Seal Type Felt Seal | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 169281 lbf753 kN | Cor - Static Load Rating 218964 lbf974 kN | Ca - Axial Load Rating N/A | Maximum Speed 1500 rpm |
| HSM130BRHF | Shaft Size 130 mm | Seal Type Felt Seal | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 169281 lbf753 kN | Cor - Static Load Rating 218964 lbf974 kN | Ca - Axial Load Rating 11016 lbf49.00 kN | Maximum Speed 1500 rpm |
| HSM130BXHFKPS | Shaft Size 130 mm | Seal Type Kevlar Packing Seal | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 169281 lbf753 kN | Cor - Static Load Rating 218964 lbf974 kN | Ca - Axial Load Rating N/A | Maximum Speed 1500 rpm |
| HSM130BRHFKPS | Shaft Size 130 mm | Seal Type Kevlar Packing Seal | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 169281 lbf753 kN | Cor - Static Load Rating 218964 lbf974 kN | Ca - Axial Load Rating 11016 lbf49.00 kN | Maximum Speed 1500 rpm |
| HSM130BXHFRSS | Shaft Size 130 mm | Seal Type Viton Single Lip | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 169281 lbf753 kN | Cor - Static Load Rating 218964 lbf974 kN | Ca - Axial Load Rating N/A | Maximum Speed 1500 rpm |
| HSM130BRHFRSS | Shaft Size 130 mm | Seal Type Viton Single Lip | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 169281 lbf753 kN | Cor - Static Load Rating 218964 lbf974 kN | Ca - Axial Load Rating 11016 lbf49.00 kN | Maximum Speed 1500 rpm |
| HSM130BXHFHTPS | Shaft Size 130 mm | Seal Type High Temperature Packing | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 169281 lbf753 kN | Cor - Static Load Rating 218964 lbf974 kN | Ca - Axial Load Rating N/A | Maximum Speed 1500 rpm |
| HSM130BRHFHTPS | Shaft Size 130 mm | Seal Type High Temperature Packing | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 169281 lbf753 kN | Cor - Static Load Rating 218964 lbf974 kN | Ca - Axial Load Rating 11016 lbf49.00 kN | Maximum Speed 1500 rpm |
| HSM130BXHFATL | Shaft Size 130 mm | Seal Type Aluminium Triple Labyrinth | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 169281 lbf753 kN | Cor - Static Load Rating 218964 lbf974 kN | Ca - Axial Load Rating N/A | Maximum Speed 1500 rpm |
| HSM130BRHFATL | Shaft Size 130 mm | Seal Type Aluminium Triple Labyrinth | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 169281 lbf753 kN | Cor - Static Load Rating 218964 lbf974 kN | Ca - Axial Load Rating 11016 lbf49.00 kN | Maximum Speed 1500 rpm |
| HSE511BXHF | Shaft Size 5-11/16 in | Seal Type Felt Seal | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating N/A | Maximum Speed 1220 rpm |
| HSE511BRHF | Shaft Size 5-11/16 in | Seal Type Felt Seal | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating 15602 lbf69.40 kN | Maximum Speed 1220 rpm |
| HSE511BXHFKPS | Shaft Size 5-11/16 in | Seal Type Kevlar Packing Seal | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating N/A | Maximum Speed 1220 rpm |
| HSE511BRHFKPS | Shaft Size 5-11/16 in | Seal Type Kevlar Packing Seal | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating 15602 lbf69.40 kN | Maximum Speed 1220 rpm |
| HSE511BXHFRSS | Shaft Size 5-11/16 in | Seal Type Viton Single Lip | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating N/A | Maximum Speed 1220 rpm |
| HSE511BRHFRSS | Shaft Size 5-11/16 in | Seal Type Viton Single Lip | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating 15602 lbf69.40 kN | Maximum Speed 1220 rpm |
| HSE511BXHFHTPS | Shaft Size 5-11/16 in | Seal Type High Temperature Packing | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating N/A | Maximum Speed 1220 rpm |
| HSE511BRHFHTPS | Shaft Size 5-11/16 in | Seal Type High Temperature Packing | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating 15602 lbf69.40 kN | Maximum Speed 1220 rpm |
| HSE511BXHFATL | Shaft Size 5-11/16 in | Seal Type Aluminium Triple Labyrinth | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating N/A | Maximum Speed 1220 rpm |
| HSE511BRHFATL | Shaft Size 5-11/16 in | Seal Type Aluminium Triple Labyrinth | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating 15602 lbf69.40 kN | Maximum Speed 1220 rpm |
| HSE512BXHF | Shaft Size 5.75 in | Seal Type Felt Seal | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating N/A | Maximum Speed 1220 rpm |
| HSE512BRHF | Shaft Size 5.75 in | Seal Type Felt Seal | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating 15602 lbf69.40 kN | Maximum Speed 1220 rpm |
| HSE512BXHFKPS | Shaft Size 5.75 in | Seal Type Kevlar Packing Seal | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating N/A | Maximum Speed 1220 rpm |
| HSE512BRHFKPS | Shaft Size 5.75 in | Seal Type Kevlar Packing Seal | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating 15602 lbf69.40 kN | Maximum Speed 1220 rpm |
| HSE512BXHFRSS | Shaft Size 5.75 in | Seal Type Viton Single Lip | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating N/A | Maximum Speed 1220 rpm |
| HSE512BRHFRSS | Shaft Size 5.75 in | Seal Type Viton Single Lip | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating 15602 lbf69.40 kN | Maximum Speed 1220 rpm |
| HSE512BXHFHTPS | Shaft Size 5.75 in | Seal Type High Temperature Packing | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating N/A | Maximum Speed 1220 rpm |
| HSE512BRHFHTPS | Shaft Size 5.75 in | Seal Type High Temperature Packing | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating 15602 lbf69.40 kN | Maximum Speed 1220 rpm |
| HSE512BXHFATL | Shaft Size 5.75 in | Seal Type Aluminium Triple Labyrinth | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating N/A | Maximum Speed 1220 rpm |
| HSE512BRHFATL | Shaft Size 5.75 in | Seal Type Aluminium Triple Labyrinth | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating 15602 lbf69.40 kN | Maximum Speed 1220 rpm |
| HSM150BXHF | Shaft Size 150 mm | Seal Type Felt Seal | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating N/A | Maximum Speed 1220 rpm |
| HSM150BRHF | Shaft Size 150 mm | Seal Type Felt Seal | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating 15602 lbf69.40 kN | Maximum Speed 1220 rpm |
| HSM150BXHFKPS | Shaft Size 150 mm | Seal Type Kevlar Packing Seal | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating N/A | Maximum Speed 1220 rpm |
| HSM150BRHFKPS | Shaft Size 150 mm | Seal Type Kevlar Packing Seal | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating 15602 lbf69.40 kN | Maximum Speed 1220 rpm |
| HSM150BXHFRSS | Shaft Size 150 mm | Seal Type Viton Single Lip | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating N/A | Maximum Speed 1220 rpm |
| HSM150BRHFRSS | Shaft Size 150 mm | Seal Type Viton Single Lip | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating 15602 lbf69.40 kN | Maximum Speed 1220 rpm |
| HSM150BXHFHTPS | Shaft Size 150 mm | Seal Type High Temperature Packing | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating N/A | Maximum Speed 1220 rpm |
| HSM150BRHFHTPS | Shaft Size 150 mm | Seal Type High Temperature Packing | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating 15602 lbf69.40 kN | Maximum Speed 1220 rpm |
| HSM150BXHFATL | Shaft Size 150 mm | Seal Type Aluminium Triple Labyrinth | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating N/A | Maximum Speed 1220 rpm |
| HSM150BRHFATL | Shaft Size 150 mm | Seal Type Aluminium Triple Labyrinth | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating 15602 lbf69.40 kN | Maximum Speed 1220 rpm |
| HSE515BXHF | Shaft Size 5-15/16 in | Seal Type Felt Seal | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating N/A | Maximum Speed 1220 rpm |
| HSE515BRHF | Shaft Size 5-15/16 in | Seal Type Felt Seal | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating 15602 lbf69.40 kN | Maximum Speed 1220 rpm |
| HSE515BXHFKPS | Shaft Size 5-15/16 in | Seal Type Kevlar Packing Seal | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating N/A | Maximum Speed 1220 rpm |
| HSE515BRHFKPS | Shaft Size 5-15/16 in | Seal Type Kevlar Packing Seal | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating 15602 lbf69.40 kN | Maximum Speed 1220 rpm |
| HSE515BXHFRSS | Shaft Size 5-15/16 in | Seal Type Viton Single Lip | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating N/A | Maximum Speed 1220 rpm |
| HSE515BRHFRSS | Shaft Size 5-15/16 in | Seal Type Viton Single Lip | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating 15602 lbf69.40 kN | Maximum Speed 1220 rpm |
| HSE515BXHFHTPS | Shaft Size 5-15/16 in | Seal Type High Temperature Packing | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating N/A | Maximum Speed 1220 rpm |
| HSE515BRHFHTPS | Shaft Size 5-15/16 in | Seal Type High Temperature Packing | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating 15602 lbf69.40 kN | Maximum Speed 1220 rpm |
| HSE515BXHFATL | Shaft Size 5-15/16 in | Seal Type Aluminium Triple Labyrinth | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating N/A | Maximum Speed 1220 rpm |
| HSE515BRHFATL | Shaft Size 5-15/16 in | Seal Type Aluminium Triple Labyrinth | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating 15602 lbf69.40 kN | Maximum Speed 1220 rpm |
| HSE600BXHF | Shaft Size 6 in | Seal Type Felt Seal | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating N/A | Maximum Speed 1220 rpm |
| HSE600BRHF | Shaft Size 6 in | Seal Type Felt Seal | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating 15602 lbf69.40 kN | Maximum Speed 1220 rpm |
| HSE600BXHFKPS | Shaft Size 6 in | Seal Type Kevlar Packing Seal | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating N/A | Maximum Speed 1220 rpm |
| HSE600BRHFKPS | Shaft Size 6 in | Seal Type Kevlar Packing Seal | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating 15602 lbf69.40 kN | Maximum Speed 1220 rpm |
| HSE600BXHFRSS | Shaft Size 6 in | Seal Type Viton Single Lip | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating N/A | Maximum Speed 1220 rpm |
| HSE600BRHFRSS | Shaft Size 6 in | Seal Type Viton Single Lip | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating 15602 lbf69.40 kN | Maximum Speed 1220 rpm |
| HSE600BXHFHTPS | Shaft Size 6 in | Seal Type High Temperature Packing | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating N/A | Maximum Speed 1220 rpm |
| HSE600BRHFHTPS | Shaft Size 6 in | Seal Type High Temperature Packing | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating 15602 lbf69.40 kN | Maximum Speed 1220 rpm |
| HSE600BXHFATL | Shaft Size 6 in | Seal Type Aluminium Triple Labyrinth | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating N/A | Maximum Speed 1220 rpm |
| HSE600BRHFATL | Shaft Size 6 in | Seal Type Aluminium Triple Labyrinth | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating 15602 lbf69.40 kN | Maximum Speed 1220 rpm |
| HSM155BXHF | Shaft Size 155 mm | Seal Type Felt Seal | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating N/A | Maximum Speed 1220 rpm |
| HSM155BRHF | Shaft Size 155 mm | Seal Type Felt Seal | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating 15602 lbf69.40 kN | Maximum Speed 1220 rpm |
| HSM155BXHFKPS | Shaft Size 155 mm | Seal Type Kevlar Packing Seal | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating N/A | Maximum Speed 1220 rpm |
| HSM155BRHFKPS | Shaft Size 155 mm | Seal Type Kevlar Packing Seal | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating 15602 lbf69.40 kN | Maximum Speed 1220 rpm |
| HSM155BXHFRSS | Shaft Size 155 mm | Seal Type Viton Single Lip | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating N/A | Maximum Speed 1220 rpm |
| HSM155BRHFRSS | Shaft Size 155 mm | Seal Type Viton Single Lip | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating 15602 lbf69.40 kN | Maximum Speed 1220 rpm |
| HSM155BXHFHTPS | Shaft Size 155 mm | Seal Type High Temperature Packing | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating N/A | Maximum Speed 1220 rpm |
| HSM155BRHFHTPS | Shaft Size 155 mm | Seal Type High Temperature Packing | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating 15602 lbf69.40 kN | Maximum Speed 1220 rpm |
| HSM155BXHFATL | Shaft Size 155 mm | Seal Type Aluminium Triple Labyrinth | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating N/A | Maximum Speed 1220 rpm |
| HSM155BRHFATL | Shaft Size 155 mm | Seal Type Aluminium Triple Labyrinth | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 233127 lbf1037 kN | Cor - Static Load Rating 297872 lbf1325 kN | Ca - Axial Load Rating 15602 lbf69.40 kN | Maximum Speed 1220 rpm |
| HSE612BXHF | Shaft Size 6.75 in | Seal Type Felt Seal | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 298996 lbf1330 kN | Cor - Static Load Rating 419718 lbf1867 kN | Ca - Axial Load Rating N/A | Maximum Speed 1030 rpm |
| HSE612BRHF | Shaft Size 6.75 in | Seal Type Felt Seal | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 298996 lbf1330 kN | Cor - Static Load Rating 419718 lbf1867 kN | Ca - Axial Load Rating 20008 lbf89.00 kN | Maximum Speed 1030 rpm |
| HSE612BXHFKPS | Shaft Size 6.75 in | Seal Type Kevlar Packing Seal | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 298996 lbf1330 kN | Cor - Static Load Rating 419718 lbf1867 kN | Ca - Axial Load Rating N/A | Maximum Speed 1030 rpm |
| HSE612BRHFKPS | Shaft Size 6.75 in | Seal Type Kevlar Packing Seal | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 298996 lbf1330 kN | Cor - Static Load Rating 419718 lbf1867 kN | Ca - Axial Load Rating 20008 lbf89.00 kN | Maximum Speed 1030 rpm |
| HSE612BXHFRSS | Shaft Size 6.75 in | Seal Type Viton Single Lip | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 298996 lbf1330 kN | Cor - Static Load Rating 419718 lbf1867 kN | Ca - Axial Load Rating N/A | Maximum Speed 1030 rpm |
| HSE612BRHFRSS | Shaft Size 6.75 in | Seal Type Viton Single Lip | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 298996 lbf1330 kN | Cor - Static Load Rating 419718 lbf1867 kN | Ca - Axial Load Rating 20008 lbf89.00 kN | Maximum Speed 1030 rpm |
| HSE612BXHFHTPS | Shaft Size 6.75 in | Seal Type High Temperature Packing | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 298996 lbf1330 kN | Cor - Static Load Rating 419718 lbf1867 kN | Ca - Axial Load Rating N/A | Maximum Speed 1030 rpm |
| HSE612BRHFHTPS | Shaft Size 6.75 in | Seal Type High Temperature Packing | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 298996 lbf1330 kN | Cor - Static Load Rating 419718 lbf1867 kN | Ca - Axial Load Rating 20008 lbf89.00 kN | Maximum Speed 1030 rpm |
| HSE612BXHFATL | Shaft Size 6.75 in | Seal Type Aluminium Triple Labyrinth | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 298996 lbf1330 kN | Cor - Static Load Rating 419718 lbf1867 kN | Ca - Axial Load Rating N/A | Maximum Speed 1030 rpm |
| HSE612BRHFATL | Shaft Size 6.75 in | Seal Type Aluminium Triple Labyrinth | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 298996 lbf1330 kN | Cor - Static Load Rating 419718 lbf1867 kN | Ca - Axial Load Rating 20008 lbf89.00 kN | Maximum Speed 1030 rpm |
| HSM175BXHF | Shaft Size 175 mm | Seal Type Felt Seal | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 298996 lbf1330 kN | Cor - Static Load Rating 419718 lbf1867 kN | Ca - Axial Load Rating N/A | Maximum Speed 1030 rpm |
| HSM175BRHF | Shaft Size 175 mm | Seal Type Felt Seal | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 298996 lbf1330 kN | Cor - Static Load Rating 419718 lbf1867 kN | Ca - Axial Load Rating 20008 lbf89.00 kN | Maximum Speed 1030 rpm |
| HSM175BXHFKPS | Shaft Size 175 mm | Seal Type Kevlar Packing Seal | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 298996 lbf1330 kN | Cor - Static Load Rating 419718 lbf1867 kN | Ca - Axial Load Rating N/A | Maximum Speed 1030 rpm |
| HSM175BRHFKPS | Shaft Size 175 mm | Seal Type Kevlar Packing Seal | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 298996 lbf1330 kN | Cor - Static Load Rating 419718 lbf1867 kN | Ca - Axial Load Rating 20008 lbf89.00 kN | Maximum Speed 1030 rpm |
| HSM175BXHFRSS | Shaft Size 175 mm | Seal Type Viton Single Lip | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 298996 lbf1330 kN | Cor - Static Load Rating 419718 lbf1867 kN | Ca - Axial Load Rating N/A | Maximum Speed 1030 rpm |
| HSM175BRHFRSS | Shaft Size 175 mm | Seal Type Viton Single Lip | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 298996 lbf1330 kN | Cor - Static Load Rating 419718 lbf1867 kN | Ca - Axial Load Rating 20008 lbf89.00 kN | Maximum Speed 1030 rpm |
| HSM175BXHFHTPS | Shaft Size 175 mm | Seal Type High Temperature Packing | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 298996 lbf1330 kN | Cor - Static Load Rating 419718 lbf1867 kN | Ca - Axial Load Rating N/A | Maximum Speed 1030 rpm |
| HSM175BRHFHTPS | Shaft Size 175 mm | Seal Type High Temperature Packing | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 298996 lbf1330 kN | Cor - Static Load Rating 419718 lbf1867 kN | Ca - Axial Load Rating 20008 lbf89.00 kN | Maximum Speed 1030 rpm |
| HSM175BXHFATL | Shaft Size 175 mm | Seal Type Aluminium Triple Labyrinth | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 298996 lbf1330 kN | Cor - Static Load Rating 419718 lbf1867 kN | Ca - Axial Load Rating N/A | Maximum Speed 1030 rpm |
| HSM175BRHFATL | Shaft Size 175 mm | Seal Type Aluminium Triple Labyrinth | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 298996 lbf1330 kN | Cor - Static Load Rating 419718 lbf1867 kN | Ca - Axial Load Rating 20008 lbf89.00 kN | Maximum Speed 1030 rpm |
| HSE615BXHF | Shaft Size 6-15/16 in | Seal Type Felt Seal | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 298996 lbf1330 kN | Cor - Static Load Rating 419718 lbf1867 kN | Ca - Axial Load Rating N/A | Maximum Speed 1030 rpm |
| HSE615BRHF | Shaft Size 6-15/16 in | Seal Type Felt Seal | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 298996 lbf1330 kN | Cor - Static Load Rating 419718 lbf1867 kN | Ca - Axial Load Rating 20008 lbf89.00 kN | Maximum Speed 1030 rpm |
| HSE615BXHFKPS | Shaft Size 6-15/16 in | Seal Type Kevlar Packing Seal | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 298996 lbf1330 kN | Cor - Static Load Rating 419718 lbf1867 kN | Ca - Axial Load Rating N/A | Maximum Speed 1030 rpm |
| HSE615BRHFKPS | Shaft Size 6-15/16 in | Seal Type Kevlar Packing Seal | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 298996 lbf1330 kN | Cor - Static Load Rating 419718 lbf1867 kN | Ca - Axial Load Rating 20008 lbf89.00 kN | Maximum Speed 1030 rpm |
| HSE615BXHFRSS | Shaft Size 6-15/16 in | Seal Type Viton Single Lip | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 298996 lbf1330 kN | Cor - Static Load Rating 419718 lbf1867 kN | Ca - Axial Load Rating N/A | Maximum Speed 1030 rpm |
| HSE615BRHFRSS | Shaft Size 6-15/16 in | Seal Type Viton Single Lip | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 298996 lbf1330 kN | Cor - Static Load Rating 419718 lbf1867 kN | Ca - Axial Load Rating 20008 lbf89.00 kN | Maximum Speed 1030 rpm |
| HSE615BXHFHTPS | Shaft Size 6-15/16 in | Seal Type High Temperature Packing | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 298996 lbf1330 kN | Cor - Static Load Rating 419718 lbf1867 kN | Ca - Axial Load Rating N/A | Maximum Speed 1030 rpm |
| HSE615BRHFHTPS | Shaft Size 6-15/16 in | Seal Type High Temperature Packing | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 298996 lbf1330 kN | Cor - Static Load Rating 419718 lbf1867 kN | Ca - Axial Load Rating 20008 lbf89.00 kN | Maximum Speed 1030 rpm |
| HSE615BXHFATL | Shaft Size 6-15/16 in | Seal Type Aluminium Triple Labyrinth | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 298996 lbf1330 kN | Cor - Static Load Rating 419718 lbf1867 kN | Ca - Axial Load Rating N/A | Maximum Speed 1030 rpm |
| HSE615BRHFATL | Shaft Size 6-15/16 in | Seal Type Aluminium Triple Labyrinth | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 298996 lbf1330 kN | Cor - Static Load Rating 419718 lbf1867 kN | Ca - Axial Load Rating 20008 lbf89.00 kN | Maximum Speed 1030 rpm |
| HSE700BXHF | Shaft Size 7 in | Seal Type Felt Seal | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 298996 lbf1330 kN | Cor - Static Load Rating 419718 lbf1867 kN | Ca - Axial Load Rating N/A | Maximum Speed 1030 rpm |
| HSE700BRHF | Shaft Size 7 in | Seal Type Felt Seal | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 298996 lbf1330 kN | Cor - Static Load Rating 419718 lbf1867 kN | Ca - Axial Load Rating 20008 lbf89.00 kN | Maximum Speed 1030 rpm |
| HSE700BXHFKPS | Shaft Size 7 in | Seal Type Kevlar Packing Seal | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 298996 lbf1330 kN | Cor - Static Load Rating 419718 lbf1867 kN | Ca - Axial Load Rating N/A | Maximum Speed 1030 rpm |
| HSE700BRHFKPS | Shaft Size 7 in | Seal Type Kevlar Packing Seal | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 298996 lbf1330 kN | Cor - Static Load Rating 419718 lbf1867 kN | Ca - Axial Load Rating 20008 lbf89.00 kN | Maximum Speed 1030 rpm |
| HSE700BXHFRSS | Shaft Size 7 in | Seal Type Viton Single Lip | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 298996 lbf1330 kN | Cor - Static Load Rating 419718 lbf1867 kN | Ca - Axial Load Rating N/A | Maximum Speed 1030 rpm |
| HSE700BRHFRSS | Shaft Size 7 in | Seal Type Viton Single Lip | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 298996 lbf1330 kN | Cor - Static Load Rating 419718 lbf1867 kN | Ca - Axial Load Rating 20008 lbf89.00 kN | Maximum Speed 1030 rpm |
| HSE700BXHFHTPS | Shaft Size 7 in | Seal Type High Temperature Packing | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 298996 lbf1330 kN | Cor - Static Load Rating 419718 lbf1867 kN | Ca - Axial Load Rating N/A | Maximum Speed 1030 rpm |
| HSE700BRHFHTPS | Shaft Size 7 in | Seal Type High Temperature Packing | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 298996 lbf1330 kN | Cor - Static Load Rating 419718 lbf1867 kN | Ca - Axial Load Rating 20008 lbf89.00 kN | Maximum Speed 1030 rpm |
| HSE700BXHFATL | Shaft Size 7 in | Seal Type Aluminium Triple Labyrinth | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 298996 lbf1330 kN | Cor - Static Load Rating 419718 lbf1867 kN | Ca - Axial Load Rating N/A | Maximum Speed 1030 rpm |
| HSE700BRHFATL | Shaft Size 7 in | Seal Type Aluminium Triple Labyrinth | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 298996 lbf1330 kN | Cor - Static Load Rating 419718 lbf1867 kN | Ca - Axial Load Rating 20008 lbf89.00 kN | Maximum Speed 1030 rpm |
| HSM180BXHF | Shaft Size 180 mm | Seal Type Felt Seal | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 298996 lbf1330 kN | Cor - Static Load Rating 419718 lbf1867 kN | Ca - Axial Load Rating N/A | Maximum Speed 1030 rpm |
| HSM180BRHF | Shaft Size 180 mm | Seal Type Felt Seal | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 298996 lbf1330 kN | Cor - Static Load Rating 419718 lbf1867 kN | Ca - Axial Load Rating 20008 lbf89.00 kN | Maximum Speed 1030 rpm |
| HSM180BXHFKPS | Shaft Size 180 mm | Seal Type Kevlar Packing Seal | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 298996 lbf1330 kN | Cor - Static Load Rating 419718 lbf1867 kN | Ca - Axial Load Rating N/A | Maximum Speed 1030 rpm |
| HSM180BRHFKPS | Shaft Size 180 mm | Seal Type Kevlar Packing Seal | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 298996 lbf1330 kN | Cor - Static Load Rating 419718 lbf1867 kN | Ca - Axial Load Rating 20008 lbf89.00 kN | Maximum Speed 1030 rpm |
| HSM180BXHFRSS | Shaft Size 180 mm | Seal Type Viton Single Lip | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 298996 lbf1330 kN | Cor - Static Load Rating 419718 lbf1867 kN | Ca - Axial Load Rating N/A | Maximum Speed 1030 rpm |
| HSM180BRHFRSS | Shaft Size 180 mm | Seal Type Viton Single Lip | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 298996 lbf1330 kN | Cor - Static Load Rating 419718 lbf1867 kN | Ca - Axial Load Rating 20008 lbf89.00 kN | Maximum Speed 1030 rpm |
| HSM180BXHFHTPS | Shaft Size 180 mm | Seal Type High Temperature Packing | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 298996 lbf1330 kN | Cor - Static Load Rating 419718 lbf1867 kN | Ca - Axial Load Rating N/A | Maximum Speed 1030 rpm |
| HSM180BRHFHTPS | Shaft Size 180 mm | Seal Type High Temperature Packing | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 298996 lbf1330 kN | Cor - Static Load Rating 419718 lbf1867 kN | Ca - Axial Load Rating 20008 lbf89.00 kN | Maximum Speed 1030 rpm |
| HSM180BXHFATL | Shaft Size 180 mm | Seal Type Aluminium Triple Labyrinth | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 298996 lbf1330 kN | Cor - Static Load Rating 419718 lbf1867 kN | Ca - Axial Load Rating N/A | Maximum Speed 1030 rpm |
| HSM180BRHFATL | Shaft Size 180 mm | Seal Type Aluminium Triple Labyrinth | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 298996 lbf1330 kN | Cor - Static Load Rating 419718 lbf1867 kN | Ca - Axial Load Rating 20008 lbf89.00 kN | Maximum Speed 1030 rpm |
| HSM240BXHF | Shaft Size 240 mm | Seal Type Felt Seal | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating N/A | Maximum Speed 700 rpm |
| HSM240BRHF | Shaft Size 240 mm | Seal Type Felt Seal | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating 29405 lbf130.80 kN | Maximum Speed 700 rpm |
| HSM240BXHFKPS | Shaft Size 240 mm | Seal Type Kevlar Packing Seal | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating N/A | Maximum Speed 700 rpm |
| HSM240BRHFKPS | Shaft Size 240 mm | Seal Type Kevlar Packing Seal | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating 29405 lbf130.80 kN | Maximum Speed 700 rpm |
| HSM240BXHFRSS | Shaft Size 240 mm | Seal Type Viton Single Lip | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating N/A | Maximum Speed 700 rpm |
| HSM240BRHFRSS | Shaft Size 240 mm | Seal Type Viton Single Lip | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating 29405 lbf130.80 kN | Maximum Speed 700 rpm |
| HSM240BXHFHTPS | Shaft Size 240 mm | Seal Type High Temperature Packing | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating N/A | Maximum Speed 700 rpm |
| HSM240BRHFHTPS | Shaft Size 240 mm | Seal Type High Temperature Packing | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating 29405 lbf130.80 kN | Maximum Speed 700 rpm |
| HSM240BXHFATL | Shaft Size 240 mm | Seal Type Aluminium Triple Labyrinth | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating N/A | Maximum Speed 700 rpm |
| HSM240BRHFATL | Shaft Size 240 mm | Seal Type Aluminium Triple Labyrinth | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating 29405 lbf130.80 kN | Maximum Speed 700 rpm |
| HSE908BXHF | Shaft Size 9.5 in | Seal Type Felt Seal | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating N/A | Maximum Speed 700 rpm |
| HSE908BRHF | Shaft Size 9.5 in | Seal Type Felt Seal | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating 29405 lbf130.80 kN | Maximum Speed 700 rpm |
| HSE908BXHFKPS | Shaft Size 9.5 in | Seal Type Kevlar Packing Seal | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating N/A | Maximum Speed 700 rpm |
| HSE908BRHFKPS | Shaft Size 9.5 in | Seal Type Kevlar Packing Seal | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating 29405 lbf130.80 kN | Maximum Speed 700 rpm |
| HSE908BXHFRSS | Shaft Size 9.5 in | Seal Type Viton Single Lip | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating N/A | Maximum Speed 700 rpm |
| HSE908BRHFRSS | Shaft Size 9.5 in | Seal Type Viton Single Lip | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating 29405 lbf130.80 kN | Maximum Speed 700 rpm |
| HSE908BXHFHTPS | Shaft Size 9.5 in | Seal Type High Temperature Packing | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating N/A | Maximum Speed 700 rpm |
| HSE908BRHFHTPS | Shaft Size 9.5 in | Seal Type High Temperature Packing | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating 29405 lbf130.80 kN | Maximum Speed 700 rpm |
| HSE908BXHFATL | Shaft Size 9.5 in | Seal Type Aluminium Triple Labyrinth | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating N/A | Maximum Speed 700 rpm |
| HSE908BRHFATL | Shaft Size 9.5 in | Seal Type Aluminium Triple Labyrinth | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating 29405 lbf130.80 kN | Maximum Speed 700 rpm |
| HSE912BXHF | Shaft Size 9.75 in | Seal Type Felt Seal | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating N/A | Maximum Speed 700 rpm |
| HSE912BRHF | Shaft Size 9.75 in | Seal Type Felt Seal | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating 29405 lbf130.80 kN | Maximum Speed 700 rpm |
| HSE912BXHFKPS | Shaft Size 9.75 in | Seal Type Kevlar Packing Seal | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating N/A | Maximum Speed 700 rpm |
| HSE912BRHFKPS | Shaft Size 9.75 in | Seal Type Kevlar Packing Seal | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating 29405 lbf130.80 kN | Maximum Speed 700 rpm |
| HSE912BXHFRSS | Shaft Size 9.75 in | Seal Type Viton Single Lip | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating N/A | Maximum Speed 700 rpm |
| HSE912BRHFRSS | Shaft Size 9.75 in | Seal Type Viton Single Lip | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating 29405 lbf130.80 kN | Maximum Speed 700 rpm |
| HSE912BXHFHTPS | Shaft Size 9.75 in | Seal Type High Temperature Packing | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating N/A | Maximum Speed 700 rpm |
| HSE912BRHFHTPS | Shaft Size 9.75 in | Seal Type High Temperature Packing | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating 29405 lbf130.80 kN | Maximum Speed 700 rpm |
| HSE912BXHFATL | Shaft Size 9.75 in | Seal Type Aluminium Triple Labyrinth | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating N/A | Maximum Speed 700 rpm |
| HSE912BRHFATL | Shaft Size 9.75 in | Seal Type Aluminium Triple Labyrinth | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating 29405 lbf130.80 kN | Maximum Speed 700 rpm |
| HSM250BXHF | Shaft Size 250 mm | Seal Type Felt Seal | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating N/A | Maximum Speed 700 rpm |
| HSM250BRHF | Shaft Size 250 mm | Seal Type Felt Seal | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating 29405 lbf130.80 kN | Maximum Speed 700 rpm |
| HSM250BXHFKPS | Shaft Size 250 mm | Seal Type Kevlar Packing Seal | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating N/A | Maximum Speed 700 rpm |
| HSM250BRHFKPS | Shaft Size 250 mm | Seal Type Kevlar Packing Seal | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating 29405 lbf130.80 kN | Maximum Speed 700 rpm |
| HSM250BXHFRSS | Shaft Size 250 mm | Seal Type Viton Single Lip | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating N/A | Maximum Speed 700 rpm |
| HSM250BRHFRSS | Shaft Size 250 mm | Seal Type Viton Single Lip | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating 29405 lbf130.80 kN | Maximum Speed 700 rpm |
| HSM250BXHFHTPS | Shaft Size 250 mm | Seal Type High Temperature Packing | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating N/A | Maximum Speed 700 rpm |
| HSM250BRHFHTPS | Shaft Size 250 mm | Seal Type High Temperature Packing | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating 29405 lbf130.80 kN | Maximum Speed 700 rpm |
| HSM250BXHFATL | Shaft Size 250 mm | Seal Type Aluminium Triple Labyrinth | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating N/A | Maximum Speed 700 rpm |
| HSM250BRHFATL | Shaft Size 250 mm | Seal Type Aluminium Triple Labyrinth | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating 29405 lbf130.80 kN | Maximum Speed 700 rpm |
| HSE1000BXHF | Shaft Size 10 in | Seal Type Felt Seal | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating N/A | Maximum Speed 700 rpm |
| HSE1000BRHF | Shaft Size 10 in | Seal Type Felt Seal | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating 29405 lbf130.80 kN | Maximum Speed 700 rpm |
| HSE1000BXHFKPS | Shaft Size 10 in | Seal Type Kevlar Packing Seal | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating N/A | Maximum Speed 700 rpm |
| HSE1000BRHFKPS | Shaft Size 10 in | Seal Type Kevlar Packing Seal | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating 29405 lbf130.80 kN | Maximum Speed 700 rpm |
| HSE1000BXHFRSS | Shaft Size 10 in | Seal Type Viton Single Lip | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating N/A | Maximum Speed 700 rpm |
| HSE1000BRHFRSS | Shaft Size 10 in | Seal Type Viton Single Lip | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating 29405 lbf130.80 kN | Maximum Speed 700 rpm |
| HSE1000BXHFHTPS | Shaft Size 10 in | Seal Type High Temperature Packing | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating N/A | Maximum Speed 700 rpm |
| HSE1000BRHFHTPS | Shaft Size 10 in | Seal Type High Temperature Packing | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating 29405 lbf130.80 kN | Maximum Speed 700 rpm |
| HSE1000BXHFATL | Shaft Size 10 in | Seal Type Aluminium Triple Labyrinth | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating N/A | Maximum Speed 700 rpm |
| HSE1000BRHFATL | Shaft Size 10 in | Seal Type Aluminium Triple Labyrinth | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating 29405 lbf130.80 kN | Maximum Speed 700 rpm |
| HSM260BXHF | Shaft Size 260 mm | Seal Type Felt Seal | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating N/A | Maximum Speed 700 rpm |
| HSM260BRHF | Shaft Size 260 mm | Seal Type Felt Seal | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating 29405 lbf130.80 kN | Maximum Speed 700 rpm |
| HSM260BXHFKPS | Shaft Size 260 mm | Seal Type Kevlar Packing Seal | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating N/A | Maximum Speed 700 rpm |
| HSM260BRHFKPS | Shaft Size 260 mm | Seal Type Kevlar Packing Seal | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating 29405 lbf130.80 kN | Maximum Speed 700 rpm |
| HSM260BXHFRSS | Shaft Size 260 mm | Seal Type Viton Single Lip | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating N/A | Maximum Speed 700 rpm |
| HSM260BRHFRSS | Shaft Size 260 mm | Seal Type Viton Single Lip | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating 29405 lbf130.80 kN | Maximum Speed 700 rpm |
| HSM260BXHFHTPS | Shaft Size 260 mm | Seal Type High Temperature Packing | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating N/A | Maximum Speed 700 rpm |
| HSM260BRHFHTPS | Shaft Size 260 mm | Seal Type High Temperature Packing | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating 29405 lbf130.80 kN | Maximum Speed 700 rpm |
| HSM260BXHFATL | Shaft Size 260 mm | Seal Type Aluminium Triple Labyrinth | Bearing Type Split Cylindrical Expansion Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating N/A | Maximum Speed 700 rpm |
| HSM260BRHFATL | Shaft Size 260 mm | Seal Type Aluminium Triple Labyrinth | Bearing Type Split Cylindrical Retained Type | Cr - Dynamic Load Rating 426238 lbf1896 kN | Cor - Static Load Rating 626992 lbf2789 kN | Ca - Axial Load Rating 29405 lbf130.80 kN | Maximum Speed 700 rpm |
