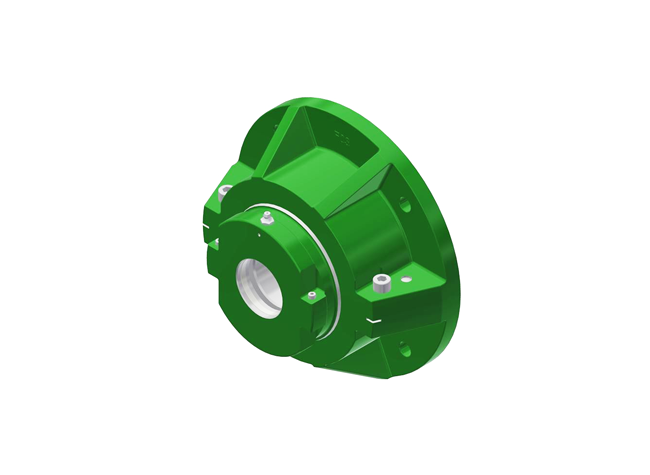

Split Cylindrical Roller Bearing Light Series Flange Unit



When faced with flat horizontal or vertical faces, flange units offer a simple mounting solution. As with pillow block supports, flange units are produced with spherical location to accommodate standard bearing housings and provide easy initial alignment of shaft and equipment.

To facilitate positive location of the flange to the surface, the rear face is recessed (dimensions N & V). This allows for a spigot (Tolerance f8) to be located into the flange.

Bearing inspection is simply a matter of removing the top half of the flange and housing. Bearing replacement may also be achieved in the same manner if required.

When integrating flange units into new applications, it should be noted that a maximum radial load equivalent to 0.26Cor is permissible. A maximum axial load of 0.25Ca must also be taken into account for applications with thrust loading. Units for vertically oriented shafts may also need special consideration given to sealing arrangements.

As always, Timken will be happy to advise on any application issues. This product line was formerly known as “Revolvo.”





Timken Part Number

  Shaft Size  Seal Type  Bearing Type  Cr - Dynamic Load Rating  Cor - Static Load Rating  Ca - Axial Load Rating Maximum Speed
LSE103BXHF Shaft Size N/A 1-3/16 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A Maximum Speed N/A 5400 rpm
LSE103BRHF Shaft Size N/A 1-3/16 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A 719.38 lbf3.20 kN Maximum Speed N/A 5400 rpm
LSE103BXHFKPS Shaft Size N/A 1-3/16 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A Maximum Speed N/A 5400 rpm
LSE103BRHFKPS Shaft Size N/A 1-3/16 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A 719.38 lbf3.20 kN Maximum Speed N/A 5400 rpm
LSE103BXHFRSS Shaft Size N/A 1-3/16 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A Maximum Speed N/A 5400 rpm
LSE103BRHFRSS Shaft Size N/A 1-3/16 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A 719.38 lbf3.20 kN Maximum Speed N/A 5400 rpm
LSE103BXHFHTPS Shaft Size N/A 1-3/16 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A Maximum Speed N/A 5400 rpm
LSE103BRHFHTPS Shaft Size N/A 1-3/16 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A 719.38 lbf3.20 kN Maximum Speed N/A 5400 rpm
LSE103BXHFATL Shaft Size N/A 1-3/16 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A Maximum Speed N/A 5400 rpm
LSE103BRHFATL Shaft Size N/A 1-3/16 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A 719.38 lbf3.20 kN Maximum Speed N/A 5400 rpm
LSE104BXHF Shaft Size N/A 1.25 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A Maximum Speed N/A 5400 rpm
LSE104BRHF Shaft Size N/A 1.25 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A 719.38 lbf3.20 kN Maximum Speed N/A 5400 rpm
LSE104BXHFKPS Shaft Size N/A 1.25 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A Maximum Speed N/A 5400 rpm
LSE104BRHFKPS Shaft Size N/A 1.25 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A 719.38 lbf3.20 kN Maximum Speed N/A 5400 rpm
LSE104BXHFRSS Shaft Size N/A 1.25 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A Maximum Speed N/A 5400 rpm
LSE104BRHFRSS Shaft Size N/A 1.25 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A 719.38 lbf3.20 kN Maximum Speed N/A 5400 rpm
LSE104BXHFHTPS Shaft Size N/A 1.25 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A Maximum Speed N/A 5400 rpm
LSE104BRHFHTPS Shaft Size N/A 1.25 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A 719.38 lbf3.20 kN Maximum Speed N/A 5400 rpm
LSE104BXHFATL Shaft Size N/A 1.25 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A Maximum Speed N/A 5400 rpm
LSE104BRHFATL Shaft Size N/A 1.25 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A 719.38 lbf3.20 kN Maximum Speed N/A 5400 rpm
LSM35BXHF Shaft Size N/A 35 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A Maximum Speed N/A 5400 rpm
LSM35BRHF Shaft Size N/A 35 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A 719.38 lbf3.20 kN Maximum Speed N/A 5400 rpm
LSM35BXHFKPS Shaft Size N/A 35 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A Maximum Speed N/A 5400 rpm
LSM35BRHFKPS Shaft Size N/A 35 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A 719.38 lbf3.20 kN Maximum Speed N/A 5400 rpm
LSM35BXHFRSS Shaft Size N/A 35 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A Maximum Speed N/A 5400 rpm
LSM35BRHFRSS Shaft Size N/A 35 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A 719.38 lbf3.20 kN Maximum Speed N/A 5400 rpm
LSM35BXHFHTPS Shaft Size N/A 35 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A Maximum Speed N/A 5400 rpm
LSM35BRHFHTPS Shaft Size N/A 35 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A 719.38 lbf3.20 kN Maximum Speed N/A 5400 rpm
LSM35BXHFATL Shaft Size N/A 35 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A Maximum Speed N/A 5400 rpm
LSM35BRHFATL Shaft Size N/A 35 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A 719.38 lbf3.20 kN Maximum Speed N/A 5400 rpm
LSE107BXHF Shaft Size N/A 1-7/16 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A Maximum Speed N/A 5400 rpm
LSE107BRHF Shaft Size N/A 1-7/16 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A 719.38 lbf3.20 kN Maximum Speed N/A 5400 rpm
LSE107BXHFKPS Shaft Size N/A 1-7/16 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A Maximum Speed N/A 5400 rpm
LSE107BRHFKPS Shaft Size N/A 1-7/16 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A 719.38 lbf3.20 kN Maximum Speed N/A 5400 rpm
LSE107BXHFRSS Shaft Size N/A 1-7/16 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A Maximum Speed N/A 5400 rpm
LSE107BRHFRSS Shaft Size N/A 1-7/16 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A 719.38 lbf3.20 kN Maximum Speed N/A 5400 rpm
LSE107BXHFHTPS Shaft Size N/A 1-7/16 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A Maximum Speed N/A 5400 rpm
LSE107BRHFHTPS Shaft Size N/A 1-7/16 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A 719.38 lbf3.20 kN Maximum Speed N/A 5400 rpm
LSE107BXHFATL Shaft Size N/A 1-7/16 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A Maximum Speed N/A 5400 rpm
LSE107BRHFATL Shaft Size N/A 1-7/16 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A 719.38 lbf3.20 kN Maximum Speed N/A 5400 rpm
LSE108BXHF Shaft Size N/A 1.5 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A Maximum Speed N/A 5400 rpm
LSE108BRHF Shaft Size N/A 1.5 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A 719.38 lbf3.20 kN Maximum Speed N/A 5400 rpm
LSE108BXHFKPS Shaft Size N/A 1.5 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A Maximum Speed N/A 5400 rpm
LSE108BRHFKPS Shaft Size N/A 1.5 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A 719.38 lbf3.20 kN Maximum Speed N/A 5400 rpm
LSE108BXHFRSS Shaft Size N/A 1.5 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A Maximum Speed N/A 5400 rpm
LSE108BRHFRSS Shaft Size N/A 1.5 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A 719.38 lbf3.20 kN Maximum Speed N/A 5400 rpm
LSE108BXHFHTPS Shaft Size N/A 1.5 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A Maximum Speed N/A 5400 rpm
LSE108BRHFHTPS Shaft Size N/A 1.5 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A 719.38 lbf3.20 kN Maximum Speed N/A 5400 rpm
LSE108BXHFATL Shaft Size N/A 1.5 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A Maximum Speed N/A 5400 rpm
LSE108BRHFATL Shaft Size N/A 1.5 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A 719.38 lbf3.20 kN Maximum Speed N/A 5400 rpm
LSM40BRHF Shaft Size N/A 40 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A 719.38 lbf3.20 kN Maximum Speed N/A 5400 rpm
LSM40BXHFKPS Shaft Size N/A 40 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A Maximum Speed N/A 5400 rpm
LSM40BRHFKPS Shaft Size N/A 40 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A 719.38 lbf3.20 kN Maximum Speed N/A 5400 rpm
LSM40BXHFRSS Shaft Size N/A 40 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A Maximum Speed N/A 5400 rpm
LSM40BRHFRSS Shaft Size N/A 40 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A 719.38 lbf3.20 kN Maximum Speed N/A 5400 rpm
LSM40BXHFHTPS Shaft Size N/A 40 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A Maximum Speed N/A 5400 rpm
LSM40BRHFHTPS Shaft Size N/A 40 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A 719.38 lbf3.20 kN Maximum Speed N/A 5400 rpm
LSM40BXHFATL Shaft Size N/A 40 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A Maximum Speed N/A 5400 rpm
LSM40BRHFATL Shaft Size N/A 40 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 14613 lbf65 kN Cor - Static Load Rating N/A 15287 lbf68 kN Ca - Axial Load Rating N/A 719.38 lbf3.20 kN Maximum Speed N/A 5400 rpm
LSE111BXHF Shaft Size N/A 1-11/16 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A Maximum Speed N/A 4630 rpm
LSE111BRHF Shaft Size N/A 1-11/16 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A 809.30 lbf3.60 kN Maximum Speed N/A 4630 rpm
LSE111BXHFKPS Shaft Size N/A 1-11/16 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A Maximum Speed N/A 4630 rpm
LSE111BRHFKPS Shaft Size N/A 1-11/16 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A 809.30 lbf3.60 kN Maximum Speed N/A 4630 rpm
LSE111BXHFRSS Shaft Size N/A 1-11/16 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A Maximum Speed N/A 4630 rpm
LSE111BRHFRSS Shaft Size N/A 1-11/16 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A 809.30 lbf3.60 kN Maximum Speed N/A 4630 rpm
LSE111BXHFHTPS Shaft Size N/A 1-11/16 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A Maximum Speed N/A 4630 rpm
LSE111BRHFHTPS Shaft Size N/A 1-11/16 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A 809.30 lbf3.60 kN Maximum Speed N/A 4630 rpm
LSE111BXHFATL Shaft Size N/A 1-11/16 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A Maximum Speed N/A 4630 rpm
LSE111BRHFATL Shaft Size N/A 1-11/16 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A 809.30 lbf3.60 kN Maximum Speed N/A 4630 rpm
LSE112BXHF Shaft Size N/A 1.75 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A Maximum Speed N/A 4630 rpm
LSE112BRHF Shaft Size N/A 1.75 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A 809.30 lbf3.60 kN Maximum Speed N/A 4630 rpm
LSE112BXHFKPS Shaft Size N/A 1.75 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A Maximum Speed N/A 4630 rpm
LSE112BRHFKPS Shaft Size N/A 1.75 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A 809.30 lbf3.60 kN Maximum Speed N/A 4630 rpm
LSE112BXHFRSS Shaft Size N/A 1.75 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A Maximum Speed N/A 4630 rpm
LSE112BRHFRSS Shaft Size N/A 1.75 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A 809.30 lbf3.60 kN Maximum Speed N/A 4630 rpm
LSE112BXHFHTPS Shaft Size N/A 1.75 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A Maximum Speed N/A 4630 rpm
LSE112BRHFHTPS Shaft Size N/A 1.75 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A 809.30 lbf3.60 kN Maximum Speed N/A 4630 rpm
LSE112BXHFATL Shaft Size N/A 1.75 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A Maximum Speed N/A 4630 rpm
LSE112BRHFATL Shaft Size N/A 1.75 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A 809.30 lbf3.60 kN Maximum Speed N/A 4630 rpm
LSM45BXHF Shaft Size N/A 45 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A Maximum Speed N/A 4630 rpm
LSM45BRHF Shaft Size N/A 45 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A 809.30 lbf3.60 kN Maximum Speed N/A 4630 rpm
LSM45BXHFKPS Shaft Size N/A 45 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A Maximum Speed N/A 4630 rpm
LSM45BRHFKPS Shaft Size N/A 45 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A 809.30 lbf3.60 kN Maximum Speed N/A 4630 rpm
LSM45BXHFRSS Shaft Size N/A 45 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A Maximum Speed N/A 4630 rpm
LSM45BRHFRSS Shaft Size N/A 45 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A 809.30 lbf3.60 kN Maximum Speed N/A 4630 rpm
LSM45BXHFHTPS Shaft Size N/A 45 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A Maximum Speed N/A 4630 rpm
LSM45BRHFHTPS Shaft Size N/A 45 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A 809.30 lbf3.60 kN Maximum Speed N/A 4630 rpm
LSM45BXHFATL Shaft Size N/A 45 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A Maximum Speed N/A 4630 rpm
LSM45BRHFATL Shaft Size N/A 45 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A 809.30 lbf3.60 kN Maximum Speed N/A 4630 rpm
LSE115BXHF Shaft Size N/A 1-15/16 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A Maximum Speed N/A 4630 rpm
LSE115BRHF Shaft Size N/A 1-15/16 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A 809.30 lbf3.60 kN Maximum Speed N/A 4630 rpm
LSE115BXHFKPS Shaft Size N/A 1-15/16 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A Maximum Speed N/A 4630 rpm
LSE115BRHFKPS Shaft Size N/A 1-15/16 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A 809.30 lbf3.60 kN Maximum Speed N/A 4630 rpm
LSE115BXHFRSS Shaft Size N/A 1-15/16 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A Maximum Speed N/A 4630 rpm
LSE115BRHFRSS Shaft Size N/A 1-15/16 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A 809.30 lbf3.60 kN Maximum Speed N/A 4630 rpm
LSE115BXHFHTPS Shaft Size N/A 1-15/16 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A Maximum Speed N/A 4630 rpm
LSE115BRHFHTPS Shaft Size N/A 1-15/16 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A 809.30 lbf3.60 kN Maximum Speed N/A 4630 rpm
LSE115BXHFATL Shaft Size N/A 1-15/16 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A Maximum Speed N/A 4630 rpm
LSE115BRHFATL Shaft Size N/A 1-15/16 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A 809.30 lbf3.60 kN Maximum Speed N/A 4630 rpm
LSM50BXHF Shaft Size N/A 50 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A Maximum Speed N/A 4630 rpm
LSM50BRHF Shaft Size N/A 50 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A 809.30 lbf3.60 kN Maximum Speed N/A 4630 rpm
LSM50BXHFKPS Shaft Size N/A 50 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A Maximum Speed N/A 4630 rpm
LSM50BRHFKPS Shaft Size N/A 50 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A 809.30 lbf3.60 kN Maximum Speed N/A 4630 rpm
LSM50BXHFRSS Shaft Size N/A 50 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A Maximum Speed N/A 4630 rpm
LSM50BRHFRSS Shaft Size N/A 50 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A 809.30 lbf3.60 kN Maximum Speed N/A 4630 rpm
LSM50BXHFHTPS Shaft Size N/A 50 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A Maximum Speed N/A 4630 rpm
LSM50BRHFHTPS Shaft Size N/A 50 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A 809.30 lbf3.60 kN Maximum Speed N/A 4630 rpm
LSM50BXHFATL Shaft Size N/A 50 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A Maximum Speed N/A 4630 rpm
LSM50BRHFATL Shaft Size N/A 50 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A 809.30 lbf3.60 kN Maximum Speed N/A 4630 rpm
LSE200BXHF Shaft Size N/A 2 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A Maximum Speed N/A 4630 rpm
LSE200BRHF Shaft Size N/A 2 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A 809.30 lbf3.60 kN Maximum Speed N/A 4630 rpm
LSE200BXHFKPS Shaft Size N/A 2 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A Maximum Speed N/A 4630 rpm
LSE200BRHFKPS Shaft Size N/A 2 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A 809.30 lbf3.60 kN Maximum Speed N/A 4630 rpm
LSE200BXHFRSS Shaft Size N/A 2 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A Maximum Speed N/A 4630 rpm
LSE200BRHFRSS Shaft Size N/A 2 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A 809.30 lbf3.60 kN Maximum Speed N/A 4630 rpm
LSE200BXHFHTPS Shaft Size N/A 2 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A Maximum Speed N/A 4630 rpm
LSE200BRHFHTPS Shaft Size N/A 2 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A 809.30 lbf3.60 kN Maximum Speed N/A 4630 rpm
LSE200BXHFATL Shaft Size N/A 2 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A Maximum Speed N/A 4630 rpm
LSE200BRHFATL Shaft Size N/A 2 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 18659 lbf83 kN Cor - Static Load Rating N/A 19558 lbf87 kN Ca - Axial Load Rating N/A 809.30 lbf3.60 kN Maximum Speed N/A 4630 rpm
LSM55BXHF Shaft Size N/A 55 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3940 rpm
LSM55BRHF Shaft Size N/A 55 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A 1213.95 lbf5.40 kN Maximum Speed N/A 3940 rpm
LSM55BXHFKPS Shaft Size N/A 55 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3940 rpm
LSM55BRHFKPS Shaft Size N/A 55 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A 1213.95 lbf5.40 kN Maximum Speed N/A 3940 rpm
LSM55BXHFRSS Shaft Size N/A 55 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3940 rpm
LSM55BRHFRSS Shaft Size N/A 55 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A 1213.95 lbf5.40 kN Maximum Speed N/A 3940 rpm
LSM55BXHFHTPS Shaft Size N/A 55 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3940 rpm
LSM55BRHFHTPS Shaft Size N/A 55 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A 1213.95 lbf5.40 kN Maximum Speed N/A 3940 rpm
LSM55BXHFATL Shaft Size N/A 55 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3940 rpm
LSM55BRHFATL Shaft Size N/A 55 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A 1213.95 lbf5.40 kN Maximum Speed N/A 3940 rpm
LSE203BXHF Shaft Size N/A 2-3/16 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3940 rpm
LSE203BRHF Shaft Size N/A 2-3/16 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A 1213.95 lbf5.40 kN Maximum Speed N/A 3940 rpm
LSE203BXHFKPS Shaft Size N/A 2-3/16 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3940 rpm
LSE203BRHFKPS Shaft Size N/A 2-3/16 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A 1213.95 lbf5.40 kN Maximum Speed N/A 3940 rpm
LSE203BXHFRSS Shaft Size N/A 2-3/16 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3940 rpm
LSE203BRHFRSS Shaft Size N/A 2-3/16 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A 1213.95 lbf5.40 kN Maximum Speed N/A 3940 rpm
LSE203BXHFHTPS Shaft Size N/A 2-3/16 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3940 rpm
LSE203BRHFHTPS Shaft Size N/A 2-3/16 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A 1213.95 lbf5.40 kN Maximum Speed N/A 3940 rpm
LSE203BXHFATL Shaft Size N/A 2-3/16 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3940 rpm
LSE203BRHFATL Shaft Size N/A 2-3/16 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A 1213.95 lbf5.40 kN Maximum Speed N/A 3940 rpm
LSE204BXHF Shaft Size N/A 2.25 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3940 rpm
LSE204BRHF Shaft Size N/A 2.25 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A 1213.95 lbf5.40 kN Maximum Speed N/A 3940 rpm
LSE204BXHFKPS Shaft Size N/A 2.25 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3940 rpm
LSE204BRHFKPS Shaft Size N/A 2.25 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A 1213.95 lbf5.40 kN Maximum Speed N/A 3940 rpm
LSE204BXHFRSS Shaft Size N/A 2.25 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3940 rpm
LSE204BRHFRSS Shaft Size N/A 2.25 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A 1213.95 lbf5.40 kN Maximum Speed N/A 3940 rpm
LSE204BXHFHTPS Shaft Size N/A 2.25 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3940 rpm
LSE204BRHFHTPS Shaft Size N/A 2.25 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A 1213.95 lbf5.40 kN Maximum Speed N/A 3940 rpm
LSE204BXHFATL Shaft Size N/A 2.25 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3940 rpm
LSE204BRHFATL Shaft Size N/A 2.25 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A 1213.95 lbf5.40 kN Maximum Speed N/A 3940 rpm
LSM60BXHF Shaft Size N/A 60 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3940 rpm
LSM60BRHF Shaft Size N/A 60 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A 1213.95 lbf5.40 kN Maximum Speed N/A 3940 rpm
LSM60BXHFKPS Shaft Size N/A 60 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3940 rpm
LSM60BRHFKPS Shaft Size N/A 60 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A 1213.95 lbf5.40 kN Maximum Speed N/A 3940 rpm
LSM60BXHFRSS Shaft Size N/A 60 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3940 rpm
LSM60BRHFRSS Shaft Size N/A 60 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A 1213.95 lbf5.40 kN Maximum Speed N/A 3940 rpm
LSM60BXHFHTPS Shaft Size N/A 60 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3940 rpm
LSM60BRHFHTPS Shaft Size N/A 60 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A 1213.95 lbf5.40 kN Maximum Speed N/A 3940 rpm
LSM60BXHFATL Shaft Size N/A 60 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3940 rpm
LSM60BRHFATL Shaft Size N/A 60 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A 1213.95 lbf5.40 kN Maximum Speed N/A 3940 rpm
LSE207BXHF Shaft Size N/A 2-7/16 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3940 rpm
LSE207BRHF Shaft Size N/A 2-7/16 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A 1213.95 lbf5.40 kN Maximum Speed N/A 3940 rpm
LSE207BXHFKPS Shaft Size N/A 2-7/16 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3940 rpm
LSE207BRHFKPS Shaft Size N/A 2-7/16 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A 1213.95 lbf5.40 kN Maximum Speed N/A 3940 rpm
LSE207BXHFRSS Shaft Size N/A 2-7/16 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3940 rpm
LSE207BRHFRSS Shaft Size N/A 2-7/16 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A 1213.95 lbf5.40 kN Maximum Speed N/A 3940 rpm
LSE207BXHFHTPS Shaft Size N/A 2-7/16 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3940 rpm
LSE207BRHFHTPS Shaft Size N/A 2-7/16 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A 1213.95 lbf5.40 kN Maximum Speed N/A 3940 rpm
LSE207BXHFATL Shaft Size N/A 2-7/16 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3940 rpm
LSE207BRHFATL Shaft Size N/A 2-7/16 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A 1213.95 lbf5.40 kN Maximum Speed N/A 3940 rpm
LSE208BXHF Shaft Size N/A 2.5 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3940 rpm
LSE208BRHF Shaft Size N/A 2.5 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A 1213.95 lbf5.40 kN Maximum Speed N/A 3940 rpm
LSE208BXHFKPS Shaft Size N/A 2.5 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3940 rpm
LSE208BRHFKPS Shaft Size N/A 2.5 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A 1213.95 lbf5.40 kN Maximum Speed N/A 3940 rpm
LSE208BXHFRSS Shaft Size N/A 2.5 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3940 rpm
LSE208BRHFRSS Shaft Size N/A 2.5 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A 1213.95 lbf5.40 kN Maximum Speed N/A 3940 rpm
LSE208BXHFHTPS Shaft Size N/A 2.5 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3940 rpm
LSE208BRHFHTPS Shaft Size N/A 2.5 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A 1213.95 lbf5.40 kN Maximum Speed N/A 3940 rpm
LSE208BXHFATL Shaft Size N/A 2.5 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3940 rpm
LSE208BRHFATL Shaft Size N/A 2.5 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A 1213.95 lbf5.40 kN Maximum Speed N/A 3940 rpm
LSM65BXHF Shaft Size N/A 65 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3940 rpm
LSM65BRHF Shaft Size N/A 65 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A 1213.95 lbf5.40 kN Maximum Speed N/A 3940 rpm
LSM65BXHFKPS Shaft Size N/A 65 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3940 rpm
LSM65BRHFKPS Shaft Size N/A 65 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A 1213.95 lbf5.40 kN Maximum Speed N/A 3940 rpm
LSM65BXHFRSS Shaft Size N/A 65 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3940 rpm
LSM65BRHFRSS Shaft Size N/A 65 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A 1213.95 lbf5.40 kN Maximum Speed N/A 3940 rpm
LSM65BXHFHTPS Shaft Size N/A 65 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3940 rpm
LSM65BRHFHTPS Shaft Size N/A 65 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A 1213.95 lbf5.40 kN Maximum Speed N/A 3940 rpm
LSM65BXHFATL Shaft Size N/A 65 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3940 rpm
LSM65BRHFATL Shaft Size N/A 65 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 23155 lbf103 kN Cor - Static Load Rating N/A 25853 lbf115 kN Ca - Axial Load Rating N/A 1213.95 lbf5.40 kN Maximum Speed N/A 3940 rpm
LSE211BXHF Shaft Size N/A 2-11/16 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3310 rpm
LSE211BRHF Shaft Size N/A 2-11/16 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A 1708.53 lbf7.60 kN Maximum Speed N/A 3310 rpm
LSE211BXHFKPS Shaft Size N/A 2-11/16 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3310 rpm
LSE211BRHFKPS Shaft Size N/A 2-11/16 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A 1708.53 lbf7.60 kN Maximum Speed N/A 3310 rpm
LSE211BXHFRSS Shaft Size N/A 2-11/16 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3310 rpm
LSE211BRHFRSS Shaft Size N/A 2-11/16 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A 1708.53 lbf7.60 kN Maximum Speed N/A 3310 rpm
LSE211BXHFHTPS Shaft Size N/A 2-11/16 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3310 rpm
LSE211BRHFHTPS Shaft Size N/A 2-11/16 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A 1708.53 lbf7.60 kN Maximum Speed N/A 3310 rpm
LSE211BXHFATL Shaft Size N/A 2-11/16 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3310 rpm
LSE211BRHFATL Shaft Size N/A 2-11/16 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A 1708.53 lbf7.60 kN Maximum Speed N/A 3310 rpm
LSE212BXHF Shaft Size N/A 2.75 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3310 rpm
LSE212BRHF Shaft Size N/A 2.75 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A 1708.53 lbf7.60 kN Maximum Speed N/A 3310 rpm
LSE212BXHFKPS Shaft Size N/A 2.75 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3310 rpm
LSE212BRHFKPS Shaft Size N/A 2.75 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A 1708.53 lbf7.60 kN Maximum Speed N/A 3310 rpm
LSE212BXHFRSS Shaft Size N/A 2.75 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3310 rpm
LSE212BRHFRSS Shaft Size N/A 2.75 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A 1708.53 lbf7.60 kN Maximum Speed N/A 3310 rpm
LSE212BXHFHTPS Shaft Size N/A 2.75 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3310 rpm
LSE212BRHFHTPS Shaft Size N/A 2.75 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A 1708.53 lbf7.60 kN Maximum Speed N/A 3310 rpm
LSE212BXHFATL Shaft Size N/A 2.75 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3310 rpm
LSE212BRHFATL Shaft Size N/A 2.75 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A 1708.53 lbf7.60 kN Maximum Speed N/A 3310 rpm
LSM70BXHF Shaft Size N/A 70 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3310 rpm
LSM70BRHF Shaft Size N/A 70 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A 1708.53 lbf7.60 kN Maximum Speed N/A 3310 rpm
LSM70BXHFKPS Shaft Size N/A 70 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3310 rpm
LSM70BRHFKPS Shaft Size N/A 70 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A 1708.53 lbf7.60 kN Maximum Speed N/A 3310 rpm
LSM70BXHFRSS Shaft Size N/A 70 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3310 rpm
LSM70BRHFRSS Shaft Size N/A 70 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A 1708.53 lbf7.60 kN Maximum Speed N/A 3310 rpm
LSM70BXHFHTPS Shaft Size N/A 70 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3310 rpm
LSM70BRHFHTPS Shaft Size N/A 70 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A 1708.53 lbf7.60 kN Maximum Speed N/A 3310 rpm
LSM70BXHFATL Shaft Size N/A 70 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3310 rpm
LSM70BRHFATL Shaft Size N/A 70 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A 1708.53 lbf7.60 kN Maximum Speed N/A 3310 rpm
LSE215BXHF Shaft Size N/A 2-15/16 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3310 rpm
LSE215BRHF Shaft Size N/A 2-15/16 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A 1708.53 lbf7.60 kN Maximum Speed N/A 3310 rpm
LSE215BXHFKPS Shaft Size N/A 2-15/16 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3310 rpm
LSE215BRHFKPS Shaft Size N/A 2-15/16 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A 1708.53 lbf7.60 kN Maximum Speed N/A 3310 rpm
LSE215BXHFRSS Shaft Size N/A 2-15/16 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3310 rpm
LSE215BRHFRSS Shaft Size N/A 2-15/16 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A 1708.53 lbf7.60 kN Maximum Speed N/A 3310 rpm
LSE215BXHFHTPS Shaft Size N/A 2-15/16 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3310 rpm
LSE215BRHFHTPS Shaft Size N/A 2-15/16 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A 1708.53 lbf7.60 kN Maximum Speed N/A 3310 rpm
LSE215BXHFATL Shaft Size N/A 2-15/16 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3310 rpm
LSE215BRHFATL Shaft Size N/A 2-15/16 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A 1708.53 lbf7.60 kN Maximum Speed N/A 3310 rpm
LSM75BXHF Shaft Size N/A 75 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3310 rpm
LSM75BRHF Shaft Size N/A 75 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A 1708.53 lbf7.60 kN Maximum Speed N/A 3310 rpm
LSM75BXHFKPS Shaft Size N/A 75 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3310 rpm
LSM75BRHFKPS Shaft Size N/A 75 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A 1708.53 lbf7.60 kN Maximum Speed N/A 3310 rpm
LSM75BXHFRSS Shaft Size N/A 75 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3310 rpm
LSM75BRHFRSS Shaft Size N/A 75 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A 1708.53 lbf7.60 kN Maximum Speed N/A 3310 rpm
LSM75BXHFHTPS Shaft Size N/A 75 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3310 rpm
LSM75BRHFHTPS Shaft Size N/A 75 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A 1708.53 lbf7.60 kN Maximum Speed N/A 3310 rpm
LSM75BXHFATL Shaft Size N/A 75 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3310 rpm
LSM75BRHFATL Shaft Size N/A 75 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A 1708.53 lbf7.60 kN Maximum Speed N/A 3310 rpm
LSE300BXHF Shaft Size N/A 3 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3310 rpm
LSE300BRHF Shaft Size N/A 3 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A 1708.53 lbf7.60 kN Maximum Speed N/A 3310 rpm
LSE300BXHFKPS Shaft Size N/A 3 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3310 rpm
LSE300BRHFKPS Shaft Size N/A 3 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A 1708.53 lbf7.60 kN Maximum Speed N/A 3310 rpm
LSE300BXHFRSS Shaft Size N/A 3 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3310 rpm
LSE300BRHFRSS Shaft Size N/A 3 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A 1708.53 lbf7.60 kN Maximum Speed N/A 3310 rpm
LSE300BXHFHTPS Shaft Size N/A 3 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3310 rpm
LSE300BRHFHTPS Shaft Size N/A 3 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A 1708.53 lbf7.60 kN Maximum Speed N/A 3310 rpm
LSE300BXHFATL Shaft Size N/A 3 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A Maximum Speed N/A 3310 rpm
LSE300BRHFATL Shaft Size N/A 3 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 31024 lbf138 kN Cor - Static Load Rating N/A 36194 lbf161 kN Ca - Axial Load Rating N/A 1708.53 lbf7.60 kN Maximum Speed N/A 3310 rpm
LSM80BXHF Shaft Size N/A 80 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2790 rpm
LSM80BRHF Shaft Size N/A 80 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A 2787.59 lbf12.40 kN Maximum Speed N/A 2790 rpm
LSM80BXHFKPS Shaft Size N/A 80 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2790 rpm
LSM80BRHFKPS Shaft Size N/A 80 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A 2787.59 lbf12.40 kN Maximum Speed N/A 2790 rpm
LSM80BXHFRSS Shaft Size N/A 80 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2790 rpm
LSM80BRHFRSS Shaft Size N/A 80 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A 2787.59 lbf12.40 kN Maximum Speed N/A 2790 rpm
LSM80BXHFHTPS Shaft Size N/A 80 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2790 rpm
LSM80BRHFHTPS Shaft Size N/A 80 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A 2787.59 lbf12.40 kN Maximum Speed N/A 2790 rpm
LSM80BXHFATL Shaft Size N/A 80 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2790 rpm
LSM80BRHFATL Shaft Size N/A 80 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A 2787.59 lbf12.40 kN Maximum Speed N/A 2790 rpm
LSE303BXHF Shaft Size N/A 3-3/16 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2790 rpm
LSE303BRHF Shaft Size N/A 3-3/16 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A 2787.59 lbf12.40 kN Maximum Speed N/A 2790 rpm
LSE303BXHFKPS Shaft Size N/A 3-3/16 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2790 rpm
LSE303BRHFKPS Shaft Size N/A 3-3/16 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A 2787.59 lbf12.40 kN Maximum Speed N/A 2790 rpm
LSE303BXHFRSS Shaft Size N/A 3-3/16 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2790 rpm
LSE303BRHFRSS Shaft Size N/A 3-3/16 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A 2787.59 lbf12.40 kN Maximum Speed N/A 2790 rpm
LSE303BXHFHTPS Shaft Size N/A 3-3/16 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2790 rpm
LSE303BRHFHTPS Shaft Size N/A 3-3/16 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A 2787.59 lbf12.40 kN Maximum Speed N/A 2790 rpm
LSE303BXHFATL Shaft Size N/A 3-3/16 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2790 rpm
LSE303BRHFATL Shaft Size N/A 3-3/16 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A 2787.59 lbf12.40 kN Maximum Speed N/A 2790 rpm
LSE304BXHF Shaft Size N/A 3.25 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2790 rpm
LSE304BRHF Shaft Size N/A 3.25 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A 2787.59 lbf12.40 kN Maximum Speed N/A 2790 rpm
LSE304BXHFKPS Shaft Size N/A 3.25 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2790 rpm
LSE304BRHFKPS Shaft Size N/A 3.25 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A 2787.59 lbf12.40 kN Maximum Speed N/A 2790 rpm
LSE304BXHFRSS Shaft Size N/A 3.25 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2790 rpm
LSE304BRHFRSS Shaft Size N/A 3.25 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A 2787.59 lbf12.40 kN Maximum Speed N/A 2790 rpm
LSE304BXHFHTPS Shaft Size N/A 3.25 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2790 rpm
LSE304BRHFHTPS Shaft Size N/A 3.25 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A 2787.59 lbf12.40 kN Maximum Speed N/A 2790 rpm
LSE304BXHFATL Shaft Size N/A 3.25 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2790 rpm
LSE304BRHFATL Shaft Size N/A 3.25 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A 2787.59 lbf12.40 kN Maximum Speed N/A 2790 rpm
LSM85BXHF Shaft Size N/A 85 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2790 rpm
LSM85BRHF Shaft Size N/A 85 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A 2787.59 lbf12.40 kN Maximum Speed N/A 2790 rpm
LSM85BXHFKPS Shaft Size N/A 85 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2790 rpm
LSM85BRHFKPS Shaft Size N/A 85 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A 2787.59 lbf12.40 kN Maximum Speed N/A 2790 rpm
LSM85BXHFRSS Shaft Size N/A 85 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2790 rpm
LSM85BRHFRSS Shaft Size N/A 85 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A 2787.59 lbf12.40 kN Maximum Speed N/A 2790 rpm
LSM85BXHFHTPS Shaft Size N/A 85 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2790 rpm
LSM85BRHFHTPS Shaft Size N/A 85 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A 2787.59 lbf12.40 kN Maximum Speed N/A 2790 rpm
LSM85BXHFATL Shaft Size N/A 85 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2790 rpm
LSM85BRHFATL Shaft Size N/A 85 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A 2787.59 lbf12.40 kN Maximum Speed N/A 2790 rpm
LSE307BXHF Shaft Size N/A 3-7/16 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2790 rpm
LSE307BRHF Shaft Size N/A 3-7/16 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A 2787.59 lbf12.40 kN Maximum Speed N/A 2790 rpm
LSE307BXHFKPS Shaft Size N/A 3-7/16 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2790 rpm
LSE307BRHFKPS Shaft Size N/A 3-7/16 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A 2787.59 lbf12.40 kN Maximum Speed N/A 2790 rpm
LSE307BXHFRSS Shaft Size N/A 3-7/16 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2790 rpm
LSE307BRHFRSS Shaft Size N/A 3-7/16 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A 2787.59 lbf12.40 kN Maximum Speed N/A 2790 rpm
LSE307BXHFHTPS Shaft Size N/A 3-7/16 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2790 rpm
LSE307BRHFHTPS Shaft Size N/A 3-7/16 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A 2787.59 lbf12.40 kN Maximum Speed N/A 2790 rpm
LSE307BXHFATL Shaft Size N/A 3-7/16 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2790 rpm
LSE307BRHFATL Shaft Size N/A 3-7/16 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A 2787.59 lbf12.40 kN Maximum Speed N/A 2790 rpm
LSE308BXHF Shaft Size N/A 3.5 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2790 rpm
LSE308BRHF Shaft Size N/A 3.5 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A 2787.59 lbf12.40 kN Maximum Speed N/A 2790 rpm
LSE308BXHFKPS Shaft Size N/A 3.5 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2790 rpm
LSE308BRHFKPS Shaft Size N/A 3.5 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A 2787.59 lbf12.40 kN Maximum Speed N/A 2790 rpm
LSE308BXHFRSS Shaft Size N/A 3.5 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2790 rpm
LSE308BRHFRSS Shaft Size N/A 3.5 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A 2787.59 lbf12.40 kN Maximum Speed N/A 2790 rpm
LSE308BXHFHTPS Shaft Size N/A 3.5 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2790 rpm
LSE308BRHFHTPS Shaft Size N/A 3.5 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A 2787.59 lbf12.40 kN Maximum Speed N/A 2790 rpm
LSE308BXHFATL Shaft Size N/A 3.5 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2790 rpm
LSE308BRHFATL Shaft Size N/A 3.5 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A 2787.59 lbf12.40 kN Maximum Speed N/A 2790 rpm
LSM90BXHF Shaft Size N/A 90 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2790 rpm
LSM90BRHF Shaft Size N/A 90 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A 2787.59 lbf12.40 kN Maximum Speed N/A 2790 rpm
LSM90BXHFKPS Shaft Size N/A 90 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2790 rpm
LSM90BRHFKPS Shaft Size N/A 90 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A 2787.59 lbf12.40 kN Maximum Speed N/A 2790 rpm
LSM90BXHFRSS Shaft Size N/A 90 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2790 rpm
LSM90BRHFRSS Shaft Size N/A 90 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A 2787.59 lbf12.40 kN Maximum Speed N/A 2790 rpm
LSM90BXHFHTPS Shaft Size N/A 90 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2790 rpm
LSM90BRHFHTPS Shaft Size N/A 90 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A 2787.59 lbf12.40 kN Maximum Speed N/A 2790 rpm
LSM90BXHFATL Shaft Size N/A 90 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2790 rpm
LSM90BRHFATL Shaft Size N/A 90 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 42039 lbf187 kN Cor - Static Load Rating N/A 51931 lbf231 kN Ca - Axial Load Rating N/A 2787.59 lbf12.40 kN Maximum Speed N/A 2790 rpm
LSE311BXHF Shaft Size N/A 3-11/16 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2340 rpm
LSE311BRHF Shaft Size N/A 3-11/16 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A 3596.90 lbf16.00 kN Maximum Speed N/A 2340 rpm
LSE311BXHFKPS Shaft Size N/A 3-11/16 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2340 rpm
LSE311BRHFKPS Shaft Size N/A 3-11/16 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A 3596.90 lbf16.00 kN Maximum Speed N/A 2340 rpm
LSE311BXHFRSS Shaft Size N/A 3-11/16 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2340 rpm
LSE311BRHFRSS Shaft Size N/A 3-11/16 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A 3596.90 lbf16.00 kN Maximum Speed N/A 2340 rpm
LSE311BXHFHTPS Shaft Size N/A 3-11/16 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2340 rpm
LSE311BRHFHTPS Shaft Size N/A 3-11/16 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A 3596.90 lbf16.00 kN Maximum Speed N/A 2340 rpm
LSE311BXHFATL Shaft Size N/A 3-11/16 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2340 rpm
LSE311BRHFATL Shaft Size N/A 3-11/16 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A 3596.90 lbf16.00 kN Maximum Speed N/A 2340 rpm
LSE312BXHF Shaft Size N/A 3.75 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2340 rpm
LSE312BRHF Shaft Size N/A 3.75 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A 3596.90 lbf16.00 kN Maximum Speed N/A 2340 rpm
LSE312BXHFKPS Shaft Size N/A 3.75 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2340 rpm
LSE312BRHFKPS Shaft Size N/A 3.75 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A 3596.90 lbf16.00 kN Maximum Speed N/A 2340 rpm
LSE312BXHFRSS Shaft Size N/A 3.75 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2340 rpm
LSE312BRHFRSS Shaft Size N/A 3.75 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A 3596.90 lbf16.00 kN Maximum Speed N/A 2340 rpm
LSE312BXHFHTPS Shaft Size N/A 3.75 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2340 rpm
LSE312BRHFHTPS Shaft Size N/A 3.75 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A 3596.90 lbf16.00 kN Maximum Speed N/A 2340 rpm
LSE312BXHFATL Shaft Size N/A 3.75 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2340 rpm
LSE312BRHFATL Shaft Size N/A 3.75 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A 3596.90 lbf16.00 kN Maximum Speed N/A 2340 rpm
LSM100BXHF Shaft Size N/A 100 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2340 rpm
LSM100BRHF Shaft Size N/A 100 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A 3596.90 lbf16.00 kN Maximum Speed N/A 2340 rpm
LSM100BXHFKPS Shaft Size N/A 100 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2340 rpm
LSM100BRHFKPS Shaft Size N/A 100 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A 3596.90 lbf16.00 kN Maximum Speed N/A 2340 rpm
LSM100BXHFRSS Shaft Size N/A 100 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2340 rpm
LSM100BRHFRSS Shaft Size N/A 100 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A 3596.90 lbf16.00 kN Maximum Speed N/A 2340 rpm
LSM100BXHFHTPS Shaft Size N/A 100 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2340 rpm
LSM100BRHFHTPS Shaft Size N/A 100 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A 3596.90 lbf16.00 kN Maximum Speed N/A 2340 rpm
LSM100BXHFATL Shaft Size N/A 100 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2340 rpm
LSM100BRHFATL Shaft Size N/A 100 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A 3596.90 lbf16.00 kN Maximum Speed N/A 2340 rpm
LSE315BXHF Shaft Size N/A 3-15/16 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2340 rpm
LSE315BRHF Shaft Size N/A 3-15/16 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A 3596.90 lbf16.00 kN Maximum Speed N/A 2340 rpm
LSE315BXHFKPS Shaft Size N/A 3-15/16 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2340 rpm
LSE315BRHFKPS Shaft Size N/A 3-15/16 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A 3596.90 lbf16.00 kN Maximum Speed N/A 2340 rpm
LSE315BXHFRSS Shaft Size N/A 3-15/16 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2340 rpm
LSE315BRHFRSS Shaft Size N/A 3-15/16 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A 3596.90 lbf16.00 kN Maximum Speed N/A 2340 rpm
LSE315BXHFHTPS Shaft Size N/A 3-15/16 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2340 rpm
LSE315BRHFHTPS Shaft Size N/A 3-15/16 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A 3596.90 lbf16.00 kN Maximum Speed N/A 2340 rpm
LSE315BXHFATL Shaft Size N/A 3-15/16 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2340 rpm
LSE315BRHFATL Shaft Size N/A 3-15/16 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A 3596.90 lbf16.00 kN Maximum Speed N/A 2340 rpm
LSE400BXHF Shaft Size N/A 4 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2340 rpm
LSE400BRHF Shaft Size N/A 4 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A 3596.90 lbf16.00 kN Maximum Speed N/A 2340 rpm
LSE400BXHFKPS Shaft Size N/A 4 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2340 rpm
LSE400BRHFKPS Shaft Size N/A 4 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A 3596.90 lbf16.00 kN Maximum Speed N/A 2340 rpm
LSE400BXHFRSS Shaft Size N/A 4 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2340 rpm
LSE400BRHFRSS Shaft Size N/A 4 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A 3596.90 lbf16.00 kN Maximum Speed N/A 2340 rpm
LSE400BXHFHTPS Shaft Size N/A 4 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2340 rpm
LSE400BRHFHTPS Shaft Size N/A 4 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A 3596.90 lbf16.00 kN Maximum Speed N/A 2340 rpm
LSE400BXHFATL Shaft Size N/A 4 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2340 rpm
LSE400BRHFATL Shaft Size N/A 4 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A 3596.90 lbf16.00 kN Maximum Speed N/A 2340 rpm
LSM105BXHF Shaft Size N/A 105 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2340 rpm
LSM105BRHF Shaft Size N/A 105 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A 3596.90 lbf16.00 kN Maximum Speed N/A 2340 rpm
LSM105BXHFKPS Shaft Size N/A 105 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2340 rpm
LSM105BRHFKPS Shaft Size N/A 105 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A 3596.90 lbf16.00 kN Maximum Speed N/A 2340 rpm
LSM105BXHFRSS Shaft Size N/A 105 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2340 rpm
LSM105BRHFRSS Shaft Size N/A 105 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A 3596.90 lbf16.00 kN Maximum Speed N/A 2340 rpm
LSM105BXHFHTPS Shaft Size N/A 105 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2340 rpm
LSM105BRHFHTPS Shaft Size N/A 105 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A 3596.90 lbf16.00 kN Maximum Speed N/A 2340 rpm
LSM105BXHFATL Shaft Size N/A 105 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A Maximum Speed N/A 2340 rpm
LSM105BRHFATL Shaft Size N/A 105 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 64745 lbf288 kN Cor - Static Load Rating N/A 82280 lbf366 kN Ca - Axial Load Rating N/A 3596.90 lbf16.00 kN Maximum Speed N/A 2340 rpm
LSE403BXHF Shaft Size N/A 4-3/16 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1970 rpm
LSE403BRHF Shaft Size N/A 4-3/16 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A 4181.39 lbf18.60 kN Maximum Speed N/A 1970 rpm
LSE403BXHFKPS Shaft Size N/A 4-3/16 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1970 rpm
LSE403BRHFKPS Shaft Size N/A 4-3/16 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A 4181.39 lbf18.60 kN Maximum Speed N/A 1970 rpm
LSE403BXHFRSS Shaft Size N/A 4-3/16 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1970 rpm
LSE403BRHFRSS Shaft Size N/A 4-3/16 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A 4181.39 lbf18.60 kN Maximum Speed N/A 1970 rpm
LSE403BXHFHTPS Shaft Size N/A 4-3/16 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1970 rpm
LSE403BRHFHTPS Shaft Size N/A 4-3/16 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A 4181.39 lbf18.60 kN Maximum Speed N/A 1970 rpm
LSE403BXHFATL Shaft Size N/A 4-3/16 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1970 rpm
LSE403BRHFATL Shaft Size N/A 4-3/16 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A 4181.39 lbf18.60 kN Maximum Speed N/A 1970 rpm
LSE404BXHF Shaft Size N/A 4.25 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1970 rpm
LSE404BRHF Shaft Size N/A 4.25 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A 4181.39 lbf18.60 kN Maximum Speed N/A 1970 rpm
LSE404BXHFKPS Shaft Size N/A 4.25 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1970 rpm
LSE404BRHFKPS Shaft Size N/A 4.25 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A 4181.39 lbf18.60 kN Maximum Speed N/A 1970 rpm
LSE404BXHFRSS Shaft Size N/A 4.25 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1970 rpm
LSE404BRHFRSS Shaft Size N/A 4.25 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A 4181.39 lbf18.60 kN Maximum Speed N/A 1970 rpm
LSE404BXHFHTPS Shaft Size N/A 4.25 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1970 rpm
LSE404BRHFHTPS Shaft Size N/A 4.25 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A 4181.39 lbf18.60 kN Maximum Speed N/A 1970 rpm
LSE404BXHFATL Shaft Size N/A 4.25 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1970 rpm
LSE404BRHFATL Shaft Size N/A 4.25 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A 4181.39 lbf18.60 kN Maximum Speed N/A 1970 rpm
LSM110BXHF Shaft Size N/A 110 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1970 rpm
LSM110BRHF Shaft Size N/A 110 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A 4181.39 lbf18.60 kN Maximum Speed N/A 1970 rpm
LSM110BXHFKPS Shaft Size N/A 110 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1970 rpm
LSM110BRHFKPS Shaft Size N/A 110 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A 4181.39 lbf18.60 kN Maximum Speed N/A 1970 rpm
LSM110BXHFRSS Shaft Size N/A 110 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1970 rpm
LSM110BRHFRSS Shaft Size N/A 110 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A 4181.39 lbf18.60 kN Maximum Speed N/A 1970 rpm
LSM110BXHFHTPS Shaft Size N/A 110 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1970 rpm
LSM110BRHFHTPS Shaft Size N/A 110 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A 4181.39 lbf18.60 kN Maximum Speed N/A 1970 rpm
LSM110BXHFATL Shaft Size N/A 110 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1970 rpm
LSM110BRHFATL Shaft Size N/A 110 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A 4181.39 lbf18.60 kN Maximum Speed N/A 1970 rpm
LSE407BXHF Shaft Size N/A 4-7/16 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1970 rpm
LSE407BRHF Shaft Size N/A 4-7/16 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A 4181.39 lbf18.60 kN Maximum Speed N/A 1970 rpm
LSE407BXHFKPS Shaft Size N/A 4-7/16 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1970 rpm
LSE407BRHFKPS Shaft Size N/A 4-7/16 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A 4181.39 lbf18.60 kN Maximum Speed N/A 1970 rpm
LSE407BXHFRSS Shaft Size N/A 4-7/16 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1970 rpm
LSE407BRHFRSS Shaft Size N/A 4-7/16 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A 4181.39 lbf18.60 kN Maximum Speed N/A 1970 rpm
LSE407BXHFHTPS Shaft Size N/A 4-7/16 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1970 rpm
LSE407BRHFHTPS Shaft Size N/A 4-7/16 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A 4181.39 lbf18.60 kN Maximum Speed N/A 1970 rpm
LSE407BXHFATL Shaft Size N/A 4-7/16 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1970 rpm
LSE407BRHFATL Shaft Size N/A 4-7/16 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A 4181.39 lbf18.60 kN Maximum Speed N/A 1970 rpm
LSE408BXHF Shaft Size N/A 4.5 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1970 rpm
LSE408BRHF Shaft Size N/A 4.5 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A 4181.39 lbf18.60 kN Maximum Speed N/A 1970 rpm
LSE408BXHFKPS Shaft Size N/A 4.5 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1970 rpm
LSE408BRHFKPS Shaft Size N/A 4.5 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A 4181.39 lbf18.60 kN Maximum Speed N/A 1970 rpm
LSE408BXHFRSS Shaft Size N/A 4.5 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1970 rpm
LSE408BRHFRSS Shaft Size N/A 4.5 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A 4181.39 lbf18.60 kN Maximum Speed N/A 1970 rpm
LSE408BXHFHTPS Shaft Size N/A 4.5 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1970 rpm
LSE408BRHFHTPS Shaft Size N/A 4.5 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A 4181.39 lbf18.60 kN Maximum Speed N/A 1970 rpm
LSE408BXHFATL Shaft Size N/A 4.5 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1970 rpm
LSE408BRHFATL Shaft Size N/A 4.5 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A 4181.39 lbf18.60 kN Maximum Speed N/A 1970 rpm
LSM115BXHF Shaft Size N/A 115 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1970 rpm
LSM115BRHF Shaft Size N/A 115 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A 4181.39 lbf18.60 kN Maximum Speed N/A 1970 rpm
LSM115BXHFKPS Shaft Size N/A 115 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1970 rpm
LSM115BRHFKPS Shaft Size N/A 115 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A 4181.39 lbf18.60 kN Maximum Speed N/A 1970 rpm
LSM115BXHFRSS Shaft Size N/A 115 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1970 rpm
LSM115BRHFRSS Shaft Size N/A 115 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A 4181.39 lbf18.60 kN Maximum Speed N/A 1970 rpm
LSM115BXHFHTPS Shaft Size N/A 115 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1970 rpm
LSM115BRHFHTPS Shaft Size N/A 115 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A 4181.39 lbf18.60 kN Maximum Speed N/A 1970 rpm
LSM115BXHFATL Shaft Size N/A 115 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1970 rpm
LSM115BRHFATL Shaft Size N/A 115 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 71040 lbf316 kN Cor - Static Load Rating N/A 95993 lbf427 kN Ca - Axial Load Rating N/A 4181.39 lbf18.60 kN Maximum Speed N/A 1970 rpm
LSE411BXHF Shaft Size N/A 4-11/16 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1740 rpm
LSE411BRHF Shaft Size N/A 4-11/16 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A 4990.69 lbf22.20 kN Maximum Speed N/A 1740 rpm
LSE411BXHFKPS Shaft Size N/A 4-11/16 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1740 rpm
LSE411BRHFKPS Shaft Size N/A 4-11/16 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A 4990.69 lbf22.20 kN Maximum Speed N/A 1740 rpm
LSE411BXHFRSS Shaft Size N/A 4-11/16 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1740 rpm
LSE411BRHFRSS Shaft Size N/A 4-11/16 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A 4990.69 lbf22.20 kN Maximum Speed N/A 1740 rpm
LSE411BXHFHTPS Shaft Size N/A 4-11/16 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1740 rpm
LSE411BRHFHTPS Shaft Size N/A 4-11/16 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A 4990.69 lbf22.20 kN Maximum Speed N/A 1740 rpm
LSE411BXHFATL Shaft Size N/A 4-11/16 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1740 rpm
LSE411BRHFATL Shaft Size N/A 4-11/16 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A 4990.69 lbf22.20 kN Maximum Speed N/A 1740 rpm
LSM120BXHF Shaft Size N/A 120 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1740 rpm
LSM120BRHF Shaft Size N/A 120 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A 4990.69 lbf22.20 kN Maximum Speed N/A 1740 rpm
LSM120BXHFKPS Shaft Size N/A 120 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1740 rpm
LSM120BRHFKPS Shaft Size N/A 120 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A 4990.69 lbf22.20 kN Maximum Speed N/A 1740 rpm
LSM120BXHFRSS Shaft Size N/A 120 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1740 rpm
LSM120BRHFRSS Shaft Size N/A 120 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A 4990.69 lbf22.20 kN Maximum Speed N/A 1740 rpm
LSM120BXHFHTPS Shaft Size N/A 120 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1740 rpm
LSM120BRHFHTPS Shaft Size N/A 120 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A 4990.69 lbf22.20 kN Maximum Speed N/A 1740 rpm
LSM120BXHFATL Shaft Size N/A 120 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1740 rpm
LSM120BRHFATL Shaft Size N/A 120 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A 4990.69 lbf22.20 kN Maximum Speed N/A 1740 rpm
LSE412BXHF Shaft Size N/A 4.75 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1740 rpm
LSE412BRHF Shaft Size N/A 4.75 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A 4990.69 lbf22.20 kN Maximum Speed N/A 1740 rpm
LSE412BXHFKPS Shaft Size N/A 4.75 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1740 rpm
LSE412BRHFKPS Shaft Size N/A 4.75 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A 4990.69 lbf22.20 kN Maximum Speed N/A 1740 rpm
LSE412BXHFRSS Shaft Size N/A 4.75 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1740 rpm
LSE412BRHFRSS Shaft Size N/A 4.75 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A 4990.69 lbf22.20 kN Maximum Speed N/A 1740 rpm
LSE412BXHFHTPS Shaft Size N/A 4.75 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1740 rpm
LSE412BRHFHTPS Shaft Size N/A 4.75 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A 4990.69 lbf22.20 kN Maximum Speed N/A 1740 rpm
LSE412BXHFATL Shaft Size N/A 4.75 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1740 rpm
LSE412BRHFATL Shaft Size N/A 4.75 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A 4990.69 lbf22.20 kN Maximum Speed N/A 1740 rpm
LSM125BXHF Shaft Size N/A 125 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1740 rpm
LSM125BRHF Shaft Size N/A 125 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A 4990.69 lbf22.20 kN Maximum Speed N/A 1740 rpm
LSM125BXHFKPS Shaft Size N/A 125 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1740 rpm
LSM125BRHFKPS Shaft Size N/A 125 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A 4990.69 lbf22.20 kN Maximum Speed N/A 1740 rpm
LSM125BXHFRSS Shaft Size N/A 125 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1740 rpm
LSM125BRHFRSS Shaft Size N/A 125 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A 4990.69 lbf22.20 kN Maximum Speed N/A 1740 rpm
LSM125BXHFHTPS Shaft Size N/A 125 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1740 rpm
LSM125BRHFHTPS Shaft Size N/A 125 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A 4990.69 lbf22.20 kN Maximum Speed N/A 1740 rpm
LSM125BXHFATL Shaft Size N/A 125 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1740 rpm
LSM125BRHFATL Shaft Size N/A 125 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A 4990.69 lbf22.20 kN Maximum Speed N/A 1740 rpm
LSE415BXHF Shaft Size N/A 4-15/16 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1740 rpm
LSE415BRHF Shaft Size N/A 4-15/16 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A 4990.69 lbf22.20 kN Maximum Speed N/A 1740 rpm
LSE415BXHFKPS Shaft Size N/A 4-15/16 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1740 rpm
LSE415BRHFKPS Shaft Size N/A 4-15/16 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A 4990.69 lbf22.20 kN Maximum Speed N/A 1740 rpm
LSE415BXHFRSS Shaft Size N/A 4-15/16 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1740 rpm
LSE415BRHFRSS Shaft Size N/A 4-15/16 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A 4990.69 lbf22.20 kN Maximum Speed N/A 1740 rpm
LSE415BXHFHTPS Shaft Size N/A 4-15/16 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1740 rpm
LSE415BRHFHTPS Shaft Size N/A 4-15/16 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A 4990.69 lbf22.20 kN Maximum Speed N/A 1740 rpm
LSE415BXHFATL Shaft Size N/A 4-15/16 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1740 rpm
LSE415BRHFATL Shaft Size N/A 4-15/16 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A 4990.69 lbf22.20 kN Maximum Speed N/A 1740 rpm
LSE500BXHF Shaft Size N/A 5 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1740 rpm
LSE500BRHF Shaft Size N/A 5 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A 4990.69 lbf22.20 kN Maximum Speed N/A 1740 rpm
LSE500BXHFKPS Shaft Size N/A 5 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1740 rpm
LSE500BRHFKPS Shaft Size N/A 5 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A 4990.69 lbf22.20 kN Maximum Speed N/A 1740 rpm
LSE500BXHFRSS Shaft Size N/A 5 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1740 rpm
LSE500BRHFRSS Shaft Size N/A 5 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A 4990.69 lbf22.20 kN Maximum Speed N/A 1740 rpm
LSE500BXHFHTPS Shaft Size N/A 5 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1740 rpm
LSE500BRHFHTPS Shaft Size N/A 5 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A 4990.69 lbf22.20 kN Maximum Speed N/A 1740 rpm
LSE500BXHFATL Shaft Size N/A 5 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1740 rpm
LSE500BRHFATL Shaft Size N/A 5 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A 4990.69 lbf22.20 kN Maximum Speed N/A 1740 rpm
LSM130BXHF Shaft Size N/A 130 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1740 rpm
LSM130BRHF Shaft Size N/A 130 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A 4990.69 lbf22.20 kN Maximum Speed N/A 1740 rpm
LSM130BXHFKPS Shaft Size N/A 130 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1740 rpm
LSM130BRHFKPS Shaft Size N/A 130 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A 4990.69 lbf22.20 kN Maximum Speed N/A 1740 rpm
LSM130BXHFRSS Shaft Size N/A 130 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1740 rpm
LSM130BRHFRSS Shaft Size N/A 130 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A 4990.69 lbf22.20 kN Maximum Speed N/A 1740 rpm
LSM130BXHFHTPS Shaft Size N/A 130 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1740 rpm
LSM130BRHFHTPS Shaft Size N/A 130 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A 4990.69 lbf22.20 kN Maximum Speed N/A 1740 rpm
LSM130BXHFATL Shaft Size N/A 130 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1740 rpm
LSM130BRHFATL Shaft Size N/A 130 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 81606 lbf363 kN Cor - Static Load Rating N/A 111505 lbf496 kN Ca - Axial Load Rating N/A 4990.69 lbf22.20 kN Maximum Speed N/A 1740 rpm
LSE503BXHF Shaft Size N/A 5-3/16 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1570 rpm
LSE503BRHF Shaft Size N/A 5-3/16 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A 5799.99 lbf25.80 kN Maximum Speed N/A 1570 rpm
LSE503BXHFKPS Shaft Size N/A 5-3/16 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1570 rpm
LSE503BRHFKPS Shaft Size N/A 5-3/16 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A 5799.99 lbf25.80 kN Maximum Speed N/A 1570 rpm
LSE503BXHFRSS Shaft Size N/A 5-3/16 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1570 rpm
LSE503BRHFRSS Shaft Size N/A 5-3/16 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A 5799.99 lbf25.80 kN Maximum Speed N/A 1570 rpm
LSE503BXHFHTPS Shaft Size N/A 5-3/16 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1570 rpm
LSE503BRHFHTPS Shaft Size N/A 5-3/16 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A 5799.99 lbf25.80 kN Maximum Speed N/A 1570 rpm
LSE503BXHFATL Shaft Size N/A 5-3/16 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1570 rpm
LSE503BRHFATL Shaft Size N/A 5-3/16 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A 5799.99 lbf25.80 kN Maximum Speed N/A 1570 rpm
LSE504BXHF Shaft Size N/A 5.25 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1570 rpm
LSE504BRHF Shaft Size N/A 5.25 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A 5799.99 lbf25.80 kN Maximum Speed N/A 1570 rpm
LSE504BXHFKPS Shaft Size N/A 5.25 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1570 rpm
LSE504BRHFKPS Shaft Size N/A 5.25 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A 5799.99 lbf25.80 kN Maximum Speed N/A 1570 rpm
LSE504BXHFRSS Shaft Size N/A 5.25 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1570 rpm
LSE504BRHFRSS Shaft Size N/A 5.25 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A 5799.99 lbf25.80 kN Maximum Speed N/A 1570 rpm
LSE504BXHFHTPS Shaft Size N/A 5.25 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1570 rpm
LSE504BRHFHTPS Shaft Size N/A 5.25 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A 5799.99 lbf25.80 kN Maximum Speed N/A 1570 rpm
LSE504BXHFATL Shaft Size N/A 5.25 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1570 rpm
LSE504BRHFATL Shaft Size N/A 5.25 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A 5799.99 lbf25.80 kN Maximum Speed N/A 1570 rpm
LSM135BXHF Shaft Size N/A 135 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1570 rpm
LSM135BRHF Shaft Size N/A 135 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A 5799.99 lbf25.80 kN Maximum Speed N/A 1570 rpm
LSM135BXHFKPS Shaft Size N/A 135 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1570 rpm
LSM135BRHFKPS Shaft Size N/A 135 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A 5799.99 lbf25.80 kN Maximum Speed N/A 1570 rpm
LSM135BXHFRSS Shaft Size N/A 135 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1570 rpm
LSM135BRHFRSS Shaft Size N/A 135 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A 5799.99 lbf25.80 kN Maximum Speed N/A 1570 rpm
LSM135BXHFHTPS Shaft Size N/A 135 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1570 rpm
LSM135BRHFHTPS Shaft Size N/A 135 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A 5799.99 lbf25.80 kN Maximum Speed N/A 1570 rpm
LSM135BXHFATL Shaft Size N/A 135 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1570 rpm
LSM135BRHFATL Shaft Size N/A 135 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A 5799.99 lbf25.80 kN Maximum Speed N/A 1570 rpm
LSE507BXHF Shaft Size N/A 5-7/16 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1570 rpm
LSE507BRHF Shaft Size N/A 5-7/16 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A 5799.99 lbf25.80 kN Maximum Speed N/A 1570 rpm
LSE507BXHFKPS Shaft Size N/A 5-7/16 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1570 rpm
LSE507BRHFKPS Shaft Size N/A 5-7/16 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A 5799.99 lbf25.80 kN Maximum Speed N/A 1570 rpm
LSE507BXHFRSS Shaft Size N/A 5-7/16 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1570 rpm
LSE507BRHFRSS Shaft Size N/A 5-7/16 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A 5799.99 lbf25.80 kN Maximum Speed N/A 1570 rpm
LSE507BXHFHTPS Shaft Size N/A 5-7/16 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1570 rpm
LSE507BRHFHTPS Shaft Size N/A 5-7/16 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A 5799.99 lbf25.80 kN Maximum Speed N/A 1570 rpm
LSE507BXHFATL Shaft Size N/A 5-7/16 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1570 rpm
LSE507BRHFATL Shaft Size N/A 5-7/16 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A 5799.99 lbf25.80 kN Maximum Speed N/A 1570 rpm
LSE508BXHF Shaft Size N/A 5.5 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1570 rpm
LSE508BRHF Shaft Size N/A 5.5 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A 5799.99 lbf25.80 kN Maximum Speed N/A 1570 rpm
LSE508BXHFKPS Shaft Size N/A 5.5 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1570 rpm
LSE508BRHFKPS Shaft Size N/A 5.5 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A 5799.99 lbf25.80 kN Maximum Speed N/A 1570 rpm
LSE508BXHFRSS Shaft Size N/A 5.5 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1570 rpm
LSE508BRHFRSS Shaft Size N/A 5.5 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A 5799.99 lbf25.80 kN Maximum Speed N/A 1570 rpm
LSE508BXHFHTPS Shaft Size N/A 5.5 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1570 rpm
LSE508BRHFHTPS Shaft Size N/A 5.5 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A 5799.99 lbf25.80 kN Maximum Speed N/A 1570 rpm
LSE508BXHFATL Shaft Size N/A 5.5 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1570 rpm
LSE508BRHFATL Shaft Size N/A 5.5 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A 5799.99 lbf25.80 kN Maximum Speed N/A 1570 rpm
LSM140BXHF Shaft Size N/A 140 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1570 rpm
LSM140BRHF Shaft Size N/A 140 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A 5799.99 lbf25.80 kN Maximum Speed N/A 1570 rpm
LSM140BXHFKPS Shaft Size N/A 140 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1570 rpm
LSM140BRHFKPS Shaft Size N/A 140 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A 5799.99 lbf25.80 kN Maximum Speed N/A 1570 rpm
LSM140BXHFRSS Shaft Size N/A 140 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1570 rpm
LSM140BRHFRSS Shaft Size N/A 140 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A 5799.99 lbf25.80 kN Maximum Speed N/A 1570 rpm
LSM140BXHFHTPS Shaft Size N/A 140 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1570 rpm
LSM140BRHFHTPS Shaft Size N/A 140 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A 5799.99 lbf25.80 kN Maximum Speed N/A 1570 rpm
LSM140BXHFATL Shaft Size N/A 140 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1570 rpm
LSM140BRHFATL Shaft Size N/A 140 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 94869 lbf422 kN Cor - Static Load Rating N/A 131513 lbf585 kN Ca - Axial Load Rating N/A 5799.99 lbf25.80 kN Maximum Speed N/A 1570 rpm
LSE511BXHF Shaft Size N/A 5-11/16 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1450 rpm
LSE511BRHF Shaft Size N/A 5-11/16 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A 6609.30 lbf29.40 kN Maximum Speed N/A 1450 rpm
LSE511BXHFKPS Shaft Size N/A 5-11/16 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1450 rpm
LSE511BRHFKPS Shaft Size N/A 5-11/16 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A 6609.30 lbf29.40 kN Maximum Speed N/A 1450 rpm
LSE511BXHFRSS Shaft Size N/A 5-11/16 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1450 rpm
LSE511BRHFRSS Shaft Size N/A 5-11/16 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A 6609.30 lbf29.40 kN Maximum Speed N/A 1450 rpm
LSE511BXHFHTPS Shaft Size N/A 5-11/16 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1450 rpm
LSE511BRHFHTPS Shaft Size N/A 5-11/16 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A 6609.30 lbf29.40 kN Maximum Speed N/A 1450 rpm
LSE511BXHFATL Shaft Size N/A 5-11/16 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1450 rpm
LSE511BRHFATL Shaft Size N/A 5-11/16 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A 6609.30 lbf29.40 kN Maximum Speed N/A 1450 rpm
LSE512BXHF Shaft Size N/A 5.75 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1450 rpm
LSE512BRHF Shaft Size N/A 5.75 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A 6609.30 lbf29.40 kN Maximum Speed N/A 1450 rpm
LSE512BXHFKPS Shaft Size N/A 5.75 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1450 rpm
LSE512BRHFKPS Shaft Size N/A 5.75 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A 6609.30 lbf29.40 kN Maximum Speed N/A 1450 rpm
LSE512BXHFRSS Shaft Size N/A 5.75 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1450 rpm
LSE512BRHFRSS Shaft Size N/A 5.75 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A 6609.30 lbf29.40 kN Maximum Speed N/A 1450 rpm
LSE512BXHFHTPS Shaft Size N/A 5.75 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1450 rpm
LSE512BRHFHTPS Shaft Size N/A 5.75 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A 6609.30 lbf29.40 kN Maximum Speed N/A 1450 rpm
LSE512BXHFATL Shaft Size N/A 5.75 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1450 rpm
LSE512BRHFATL Shaft Size N/A 5.75 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A 6609.30 lbf29.40 kN Maximum Speed N/A 1450 rpm
LSM150BXHF Shaft Size N/A 150 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1450 rpm
LSM150BRHF Shaft Size N/A 150 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A 6609.30 lbf29.40 kN Maximum Speed N/A 1450 rpm
LSM150BXHFKPS Shaft Size N/A 150 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1450 rpm
LSM150BRHFKPS Shaft Size N/A 150 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A 6609.30 lbf29.40 kN Maximum Speed N/A 1450 rpm
LSM150BXHFRSS Shaft Size N/A 150 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1450 rpm
LSM150BRHFRSS Shaft Size N/A 150 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A 6609.30 lbf29.40 kN Maximum Speed N/A 1450 rpm
LSM150BXHFHTPS Shaft Size N/A 150 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1450 rpm
LSM150BRHFHTPS Shaft Size N/A 150 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A 6609.30 lbf29.40 kN Maximum Speed N/A 1450 rpm
LSM150BXHFATL Shaft Size N/A 150 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1450 rpm
LSM150BRHFATL Shaft Size N/A 150 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A 6609.30 lbf29.40 kN Maximum Speed N/A 1450 rpm
LSE515BXHF Shaft Size N/A 5-15/16 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1450 rpm
LSE515BRHF Shaft Size N/A 5-15/16 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A 6609.30 lbf29.40 kN Maximum Speed N/A 1450 rpm
LSE515BXHFKPS Shaft Size N/A 5-15/16 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1450 rpm
LSE515BRHFKPS Shaft Size N/A 5-15/16 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A 6609.30 lbf29.40 kN Maximum Speed N/A 1450 rpm
LSE515BXHFRSS Shaft Size N/A 5-15/16 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1450 rpm
LSE515BRHFRSS Shaft Size N/A 5-15/16 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A 6609.30 lbf29.40 kN Maximum Speed N/A 1450 rpm
LSE515BXHFHTPS Shaft Size N/A 5-15/16 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1450 rpm
LSE515BRHFHTPS Shaft Size N/A 5-15/16 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A 6609.30 lbf29.40 kN Maximum Speed N/A 1450 rpm
LSE515BXHFATL Shaft Size N/A 5-15/16 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1450 rpm
LSE515BRHFATL Shaft Size N/A 5-15/16 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A 6609.30 lbf29.40 kN Maximum Speed N/A 1450 rpm
LSE600BXHF Shaft Size N/A 6 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1450 rpm
LSE600BRHF Shaft Size N/A 6 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A 6609.30 lbf29.40 kN Maximum Speed N/A 1450 rpm
LSE600BXHFKPS Shaft Size N/A 6 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1450 rpm
LSE600BRHFKPS Shaft Size N/A 6 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A 6609.30 lbf29.40 kN Maximum Speed N/A 1450 rpm
LSE600BXHFRSS Shaft Size N/A 6 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1450 rpm
LSE600BRHFRSS Shaft Size N/A 6 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A 6609.30 lbf29.40 kN Maximum Speed N/A 1450 rpm
LSE600BXHFHTPS Shaft Size N/A 6 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1450 rpm
LSE600BRHFHTPS Shaft Size N/A 6 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A 6609.30 lbf29.40 kN Maximum Speed N/A 1450 rpm
LSE600BXHFATL Shaft Size N/A 6 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1450 rpm
LSE600BRHFATL Shaft Size N/A 6 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A 6609.30 lbf29.40 kN Maximum Speed N/A 1450 rpm
LSM155BXHF Shaft Size N/A 155 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1450 rpm
LSM155BRHF Shaft Size N/A 155 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A 6609.30 lbf29.40 kN Maximum Speed N/A 1450 rpm
LSM155BXHFKPS Shaft Size N/A 155 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1450 rpm
LSM155BRHFKPS Shaft Size N/A 155 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A 6609.30 lbf29.40 kN Maximum Speed N/A 1450 rpm
LSM155BXHFRSS Shaft Size N/A 155 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1450 rpm
LSM155BRHFRSS Shaft Size N/A 155 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A 6609.30 lbf29.40 kN Maximum Speed N/A 1450 rpm
LSM155BXHFHTPS Shaft Size N/A 155 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1450 rpm
LSM155BRHFHTPS Shaft Size N/A 155 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A 6609.30 lbf29.40 kN Maximum Speed N/A 1450 rpm
LSM155BXHFATL Shaft Size N/A 155 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1450 rpm
LSM155BRHFATL Shaft Size N/A 155 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A 6609.30 lbf29.40 kN Maximum Speed N/A 1450 rpm
LSM160ABXHF Shaft Size N/A 160 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1450 rpm
LSM160BXHF Shaft Size N/A 160 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 131064 lbf583 kN Cor - Static Load Rating N/A 178049 lbf792 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1320 rpm
LSM160ABRHF Shaft Size N/A 160 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A 6609.30 lbf29.40 kN Maximum Speed N/A 1450 rpm
LSM160BRHF Shaft Size N/A 160 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 131064 lbf583 kN Cor - Static Load Rating N/A 178049 lbf792 kN Ca - Axial Load Rating N/A 7419 lbf33.00 kN Maximum Speed N/A 1320 rpm
LSM160ABXHFKPS Shaft Size N/A 160 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1450 rpm
LSM160BXHFKPS Shaft Size N/A 160 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 131064 lbf583 kN Cor - Static Load Rating N/A 178049 lbf792 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1320 rpm
LSM160ABRHFKPS Shaft Size N/A 160 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A 6609.30 lbf29.40 kN Maximum Speed N/A 1450 rpm
LSM160BRHFKPS Shaft Size N/A 160 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 131064 lbf583 kN Cor - Static Load Rating N/A 178049 lbf792 kN Ca - Axial Load Rating N/A 7419 lbf33.00 kN Maximum Speed N/A 1320 rpm
LSM160ABXHFRSS Shaft Size N/A 160 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1450 rpm
LSM160BXHFRSS Shaft Size N/A 160 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 131064 lbf583 kN Cor - Static Load Rating N/A 178049 lbf792 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1320 rpm
LSM160ABRHFRSS Shaft Size N/A 160 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A 6609.30 lbf29.40 kN Maximum Speed N/A 1450 rpm
LSM160BRHFRSS Shaft Size N/A 160 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 131064 lbf583 kN Cor - Static Load Rating N/A 178049 lbf792 kN Ca - Axial Load Rating N/A 7419 lbf33.00 kN Maximum Speed N/A 1320 rpm
LSM160ABXHFHTPS Shaft Size N/A 160 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1450 rpm
LSM160BXHFHTPS Shaft Size N/A 160 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 131064 lbf583 kN Cor - Static Load Rating N/A 178049 lbf792 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1320 rpm
LSM160ABRHFHTPS Shaft Size N/A 160 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A 6609.30 lbf29.40 kN Maximum Speed N/A 1450 rpm
LSM160BRHFHTPS Shaft Size N/A 160 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 131064 lbf583 kN Cor - Static Load Rating N/A 178049 lbf792 kN Ca - Axial Load Rating N/A 7419 lbf33.00 kN Maximum Speed N/A 1320 rpm
LSM160ABXHFATL Shaft Size N/A 160 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1450 rpm
LSM160BXHFATL Shaft Size N/A 160 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 131064 lbf583 kN Cor - Static Load Rating N/A 178049 lbf792 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1320 rpm
LSM160ABRHFATL Shaft Size N/A 160 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 103187 lbf459 kN Cor - Static Load Rating N/A 149273 lbf664 kN Ca - Axial Load Rating N/A 6609.30 lbf29.40 kN Maximum Speed N/A 1450 rpm
LSM160BRHFATL Shaft Size N/A 160 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 131064 lbf583 kN Cor - Static Load Rating N/A 178049 lbf792 kN Ca - Axial Load Rating N/A 7419 lbf33.00 kN Maximum Speed N/A 1320 rpm
LSE607BXHF Shaft Size N/A 6-7/16 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 131064 lbf583 kN Cor - Static Load Rating N/A 178049 lbf792 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1320 rpm
LSE607BRHF Shaft Size N/A 6-7/16 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 131064 lbf583 kN Cor - Static Load Rating N/A 178049 lbf792 kN Ca - Axial Load Rating N/A 7419 lbf33.00 kN Maximum Speed N/A 1320 rpm
LSE607BXHFKPS Shaft Size N/A 6-7/16 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 131064 lbf583 kN Cor - Static Load Rating N/A 178049 lbf792 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1320 rpm
LSE607BRHFKPS Shaft Size N/A 6-7/16 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 131064 lbf583 kN Cor - Static Load Rating N/A 178049 lbf792 kN Ca - Axial Load Rating N/A 7419 lbf33.00 kN Maximum Speed N/A 1320 rpm
LSE607BXHFRSS Shaft Size N/A 6-7/16 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 131064 lbf583 kN Cor - Static Load Rating N/A 178049 lbf792 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1320 rpm
LSE607BRHFRSS Shaft Size N/A 6-7/16 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 131064 lbf583 kN Cor - Static Load Rating N/A 178049 lbf792 kN Ca - Axial Load Rating N/A 7419 lbf33.00 kN Maximum Speed N/A 1320 rpm
LSE607BXHFHTPS Shaft Size N/A 6-7/16 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 131064 lbf583 kN Cor - Static Load Rating N/A 178049 lbf792 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1320 rpm
LSE607BRHFHTPS Shaft Size N/A 6-7/16 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 131064 lbf583 kN Cor - Static Load Rating N/A 178049 lbf792 kN Ca - Axial Load Rating N/A 7419 lbf33.00 kN Maximum Speed N/A 1320 rpm
LSE607BXHFATL Shaft Size N/A 6-7/16 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 131064 lbf583 kN Cor - Static Load Rating N/A 178049 lbf792 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1320 rpm
LSE607BRHFATL Shaft Size N/A 6-7/16 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 131064 lbf583 kN Cor - Static Load Rating N/A 178049 lbf792 kN Ca - Axial Load Rating N/A 7419 lbf33.00 kN Maximum Speed N/A 1320 rpm
LSE608BXHF Shaft Size N/A 6.5 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 131064 lbf583 kN Cor - Static Load Rating N/A 178049 lbf792 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1320 rpm
LSE608BRHF Shaft Size N/A 6.5 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 131064 lbf583 kN Cor - Static Load Rating N/A 178049 lbf792 kN Ca - Axial Load Rating N/A 7419 lbf33.00 kN Maximum Speed N/A 1320 rpm
LSE608BXHFKPS Shaft Size N/A 6.5 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 131064 lbf583 kN Cor - Static Load Rating N/A 178049 lbf792 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1320 rpm
LSE608BRHFKPS Shaft Size N/A 6.5 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 131064 lbf583 kN Cor - Static Load Rating N/A 178049 lbf792 kN Ca - Axial Load Rating N/A 7419 lbf33.00 kN Maximum Speed N/A 1320 rpm
LSE608BXHFRSS Shaft Size N/A 6.5 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 131064 lbf583 kN Cor - Static Load Rating N/A 178049 lbf792 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1320 rpm
LSE608BRHFRSS Shaft Size N/A 6.5 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 131064 lbf583 kN Cor - Static Load Rating N/A 178049 lbf792 kN Ca - Axial Load Rating N/A 7419 lbf33.00 kN Maximum Speed N/A 1320 rpm
LSE608BXHFHTPS Shaft Size N/A 6.5 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 131064 lbf583 kN Cor - Static Load Rating N/A 178049 lbf792 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1320 rpm
LSE608BRHFHTPS Shaft Size N/A 6.5 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 131064 lbf583 kN Cor - Static Load Rating N/A 178049 lbf792 kN Ca - Axial Load Rating N/A 7419 lbf33.00 kN Maximum Speed N/A 1320 rpm
LSE608BXHFATL Shaft Size N/A 6.5 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 131064 lbf583 kN Cor - Static Load Rating N/A 178049 lbf792 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1320 rpm
LSE608BRHFATL Shaft Size N/A 6.5 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 131064 lbf583 kN Cor - Static Load Rating N/A 178049 lbf792 kN Ca - Axial Load Rating N/A 7419 lbf33.00 kN Maximum Speed N/A 1320 rpm
LSE611BXHF Shaft Size N/A 6-11/16 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1220 rpm
LSE611BRHF Shaft Size N/A 6-11/16 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A 8183 lbf36.40 kN Maximum Speed N/A 1220 rpm
LSE611BXHFKPS Shaft Size N/A 6-11/16 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1220 rpm
LSE611BRHFKPS Shaft Size N/A 6-11/16 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A 8183 lbf36.40 kN Maximum Speed N/A 1220 rpm
LSE611BXHFRSS Shaft Size N/A 6-11/16 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1220 rpm
LSE611BRHFRSS Shaft Size N/A 6-11/16 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A 8183 lbf36.40 kN Maximum Speed N/A 1220 rpm
LSE611BXHFHTPS Shaft Size N/A 6-11/16 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1220 rpm
LSE611BRHFHTPS Shaft Size N/A 6-11/16 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A 8183 lbf36.40 kN Maximum Speed N/A 1220 rpm
LSE611BXHFATL Shaft Size N/A 6-11/16 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1220 rpm
LSE611BRHFATL Shaft Size N/A 6-11/16 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A 8183 lbf36.40 kN Maximum Speed N/A 1220 rpm
LSM170ABXHF Shaft Size N/A 170 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 131064 lbf583 kN Cor - Static Load Rating N/A 178049 lbf792 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1320 rpm
LSM170BXHF Shaft Size N/A 170 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1220 rpm
LSM170ABRHF Shaft Size N/A 170 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 131064 lbf583 kN Cor - Static Load Rating N/A 178049 lbf792 kN Ca - Axial Load Rating N/A 7419 lbf33.00 kN Maximum Speed N/A 1320 rpm
LSM170BRHF Shaft Size N/A 170 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A 8183 lbf36.40 kN Maximum Speed N/A 1220 rpm
LSM170ABXHFKPS Shaft Size N/A 170 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 131064 lbf583 kN Cor - Static Load Rating N/A 178049 lbf792 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1320 rpm
LSM170BXHFKPS Shaft Size N/A 170 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1220 rpm
LSM170ABRHFKPS Shaft Size N/A 170 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 131064 lbf583 kN Cor - Static Load Rating N/A 178049 lbf792 kN Ca - Axial Load Rating N/A 7419 lbf33.00 kN Maximum Speed N/A 1320 rpm
LSM170BRHFKPS Shaft Size N/A 170 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A 8183 lbf36.40 kN Maximum Speed N/A 1220 rpm
LSM170ABXHFRSS Shaft Size N/A 170 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 131064 lbf583 kN Cor - Static Load Rating N/A 178049 lbf792 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1320 rpm
LSM170BXHFRSS Shaft Size N/A 170 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1220 rpm
LSM170ABRHFRSS Shaft Size N/A 170 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 131064 lbf583 kN Cor - Static Load Rating N/A 178049 lbf792 kN Ca - Axial Load Rating N/A 7419 lbf33.00 kN Maximum Speed N/A 1320 rpm
LSM170BRHFRSS Shaft Size N/A 170 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A 8183 lbf36.40 kN Maximum Speed N/A 1220 rpm
LSM170ABXHFHTPS Shaft Size N/A 170 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 131064 lbf583 kN Cor - Static Load Rating N/A 178049 lbf792 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1320 rpm
LSM170BXHFHTPS Shaft Size N/A 170 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1220 rpm
LSM170ABRHFHTPS Shaft Size N/A 170 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 131064 lbf583 kN Cor - Static Load Rating N/A 178049 lbf792 kN Ca - Axial Load Rating N/A 7419 lbf33.00 kN Maximum Speed N/A 1320 rpm
LSM170BRHFHTPS Shaft Size N/A 170 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A 8183 lbf36.40 kN Maximum Speed N/A 1220 rpm
LSM170ABXHFATL Shaft Size N/A 170 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 131064 lbf583 kN Cor - Static Load Rating N/A 178049 lbf792 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1320 rpm
LSM170BXHFATL Shaft Size N/A 170 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1220 rpm
LSM170ABRHFATL Shaft Size N/A 170 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 131064 lbf583 kN Cor - Static Load Rating N/A 178049 lbf792 kN Ca - Axial Load Rating N/A 7419 lbf33.00 kN Maximum Speed N/A 1320 rpm
LSM170BRHFATL Shaft Size N/A 170 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A 8183 lbf36.40 kN Maximum Speed N/A 1220 rpm
LSE612BXHF Shaft Size N/A 6.75 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1220 rpm
LSE612BRHF Shaft Size N/A 6.75 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A 8183 lbf36.40 kN Maximum Speed N/A 1220 rpm
LSE612BXHFKPS Shaft Size N/A 6.75 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1220 rpm
LSE612BRHFKPS Shaft Size N/A 6.75 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A 8183 lbf36.40 kN Maximum Speed N/A 1220 rpm
LSE612BXHFRSS Shaft Size N/A 6.75 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1220 rpm
LSE612BRHFRSS Shaft Size N/A 6.75 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A 8183 lbf36.40 kN Maximum Speed N/A 1220 rpm
LSE612BXHFHTPS Shaft Size N/A 6.75 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1220 rpm
LSE612BRHFHTPS Shaft Size N/A 6.75 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A 8183 lbf36.40 kN Maximum Speed N/A 1220 rpm
LSE612BXHFATL Shaft Size N/A 6.75 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1220 rpm
LSE612BRHFATL Shaft Size N/A 6.75 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A 8183 lbf36.40 kN Maximum Speed N/A 1220 rpm
LSM175BXHF Shaft Size N/A 175 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1220 rpm
LSM175BRHF Shaft Size N/A 175 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A 8183 lbf36.40 kN Maximum Speed N/A 1220 rpm
LSM175BXHFKPS Shaft Size N/A 175 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1220 rpm
LSM175BRHFKPS Shaft Size N/A 175 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A 8183 lbf36.40 kN Maximum Speed N/A 1220 rpm
LSM175BXHFRSS Shaft Size N/A 175 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1220 rpm
LSM175BRHFRSS Shaft Size N/A 175 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A 8183 lbf36.40 kN Maximum Speed N/A 1220 rpm
LSM175BXHFHTPS Shaft Size N/A 175 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1220 rpm
LSM175BRHFHTPS Shaft Size N/A 175 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A 8183 lbf36.40 kN Maximum Speed N/A 1220 rpm
LSM175BXHFATL Shaft Size N/A 175 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1220 rpm
LSM175BRHFATL Shaft Size N/A 175 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A 8183 lbf36.40 kN Maximum Speed N/A 1220 rpm
LSE615BXHF Shaft Size N/A 6-15/16 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1220 rpm
LSE615BRHF Shaft Size N/A 6-15/16 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A 8183 lbf36.40 kN Maximum Speed N/A 1220 rpm
LSE615BXHFKPS Shaft Size N/A 6-15/16 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1220 rpm
LSE615BRHFKPS Shaft Size N/A 6-15/16 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A 8183 lbf36.40 kN Maximum Speed N/A 1220 rpm
LSE615BXHFRSS Shaft Size N/A 6-15/16 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1220 rpm
LSE615BRHFRSS Shaft Size N/A 6-15/16 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A 8183 lbf36.40 kN Maximum Speed N/A 1220 rpm
LSE615BXHFHTPS Shaft Size N/A 6-15/16 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1220 rpm
LSE615BRHFHTPS Shaft Size N/A 6-15/16 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A 8183 lbf36.40 kN Maximum Speed N/A 1220 rpm
LSE615BXHFATL Shaft Size N/A 6-15/16 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1220 rpm
LSE615BRHFATL Shaft Size N/A 6-15/16 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A 8183 lbf36.40 kN Maximum Speed N/A 1220 rpm
LSE700BXHF Shaft Size N/A 7 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1220 rpm
LSE700BRHF Shaft Size N/A 7 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A 8183 lbf36.40 kN Maximum Speed N/A 1220 rpm
LSE700BXHFKPS Shaft Size N/A 7 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1220 rpm
LSE700BRHFKPS Shaft Size N/A 7 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A 8183 lbf36.40 kN Maximum Speed N/A 1220 rpm
LSE700BXHFRSS Shaft Size N/A 7 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1220 rpm
LSE700BRHFRSS Shaft Size N/A 7 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A 8183 lbf36.40 kN Maximum Speed N/A 1220 rpm
LSE700BXHFHTPS Shaft Size N/A 7 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1220 rpm
LSE700BRHFHTPS Shaft Size N/A 7 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A 8183 lbf36.40 kN Maximum Speed N/A 1220 rpm
LSE700BXHFATL Shaft Size N/A 7 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1220 rpm
LSE700BRHFATL Shaft Size N/A 7 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A 8183 lbf36.40 kN Maximum Speed N/A 1220 rpm
LSM180BXHF Shaft Size N/A 180 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1220 rpm
LSM180BRHF Shaft Size N/A 180 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A 8183 lbf36.40 kN Maximum Speed N/A 1220 rpm
LSM180BXHFKPS Shaft Size N/A 180 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1220 rpm
LSM180BRHFKPS Shaft Size N/A 180 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A 8183 lbf36.40 kN Maximum Speed N/A 1220 rpm
LSM180BXHFRSS Shaft Size N/A 180 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1220 rpm
LSM180BRHFRSS Shaft Size N/A 180 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A 8183 lbf36.40 kN Maximum Speed N/A 1220 rpm
LSM180BXHFHTPS Shaft Size N/A 180 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1220 rpm
LSM180BRHFHTPS Shaft Size N/A 180 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A 8183 lbf36.40 kN Maximum Speed N/A 1220 rpm
LSM180BXHFATL Shaft Size N/A 180 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1220 rpm
LSM180BRHFATL Shaft Size N/A 180 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 117800 lbf524 kN Cor - Static Load Rating N/A 186142 lbf828 kN Ca - Axial Load Rating N/A 8183 lbf36.40 kN Maximum Speed N/A 1220 rpm
LSE704BXHF Shaft Size N/A 7.25 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1070 rpm
LSE704BRHF Shaft Size N/A 7.25 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A 9217 lbf41.00 kN Maximum Speed N/A 1070 rpm
LSE704BXHFKPS Shaft Size N/A 7.25 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1070 rpm
LSE704BRHFKPS Shaft Size N/A 7.25 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A 9217 lbf41.00 kN Maximum Speed N/A 1070 rpm
LSE704BXHFRSS Shaft Size N/A 7.25 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1070 rpm
LSE704BRHFRSS Shaft Size N/A 7.25 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A 9217 lbf41.00 kN Maximum Speed N/A 1070 rpm
LSE704BXHFHTPS Shaft Size N/A 7.25 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1070 rpm
LSE704BRHFHTPS Shaft Size N/A 7.25 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A 9217 lbf41.00 kN Maximum Speed N/A 1070 rpm
LSE704BXHFATL Shaft Size N/A 7.25 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1070 rpm
LSE704BRHFATL Shaft Size N/A 7.25 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A 9217 lbf41.00 kN Maximum Speed N/A 1070 rpm
LSM190BXHF Shaft Size N/A 190 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1070 rpm
LSM190BRHF Shaft Size N/A 190 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A 9217 lbf41.00 kN Maximum Speed N/A 1070 rpm
LSM190BXHFKPS Shaft Size N/A 190 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1070 rpm
LSM190BRHFKPS Shaft Size N/A 190 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A 9217 lbf41.00 kN Maximum Speed N/A 1070 rpm
LSM190BXHFRSS Shaft Size N/A 190 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1070 rpm
LSM190BRHFRSS Shaft Size N/A 190 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A 9217 lbf41.00 kN Maximum Speed N/A 1070 rpm
LSM190BXHFHTPS Shaft Size N/A 190 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1070 rpm
LSM190BRHFHTPS Shaft Size N/A 190 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A 9217 lbf41.00 kN Maximum Speed N/A 1070 rpm
LSM190BXHFATL Shaft Size N/A 190 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1070 rpm
LSM190BRHFATL Shaft Size N/A 190 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A 9217 lbf41.00 kN Maximum Speed N/A 1070 rpm
LSE708BXHF Shaft Size N/A 7.5 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1070 rpm
LSE708BRHF Shaft Size N/A 7.5 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A 9217 lbf41.00 kN Maximum Speed N/A 1070 rpm
LSE708BXHFKPS Shaft Size N/A 7.5 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1070 rpm
LSE708BRHFKPS Shaft Size N/A 7.5 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A 9217 lbf41.00 kN Maximum Speed N/A 1070 rpm
LSE708BXHFRSS Shaft Size N/A 7.5 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1070 rpm
LSE708BRHFRSS Shaft Size N/A 7.5 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A 9217 lbf41.00 kN Maximum Speed N/A 1070 rpm
LSE708BXHFHTPS Shaft Size N/A 7.5 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1070 rpm
LSE708BRHFHTPS Shaft Size N/A 7.5 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A 9217 lbf41.00 kN Maximum Speed N/A 1070 rpm
LSE708BXHFATL Shaft Size N/A 7.5 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1070 rpm
LSE708BRHFATL Shaft Size N/A 7.5 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A 9217 lbf41.00 kN Maximum Speed N/A 1070 rpm
LSM200BXHF Shaft Size N/A 200 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1070 rpm
LSM200BRHF Shaft Size N/A 200 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A 9217 lbf41.00 kN Maximum Speed N/A 1070 rpm
LSM200BXHFKPS Shaft Size N/A 200 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1070 rpm
LSM200BRHFKPS Shaft Size N/A 200 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A 9217 lbf41.00 kN Maximum Speed N/A 1070 rpm
LSM200BXHFRSS Shaft Size N/A 200 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1070 rpm
LSM200BRHFRSS Shaft Size N/A 200 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A 9217 lbf41.00 kN Maximum Speed N/A 1070 rpm
LSM200BXHFHTPS Shaft Size N/A 200 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1070 rpm
LSM200BRHFHTPS Shaft Size N/A 200 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A 9217 lbf41.00 kN Maximum Speed N/A 1070 rpm
LSM200BXHFATL Shaft Size N/A 200 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1070 rpm
LSM200BRHFATL Shaft Size N/A 200 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A 9217 lbf41.00 kN Maximum Speed N/A 1070 rpm
LSE715BXHF Shaft Size N/A 7-15/16 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1070 rpm
LSE715BRHF Shaft Size N/A 7-15/16 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A 9217 lbf41.00 kN Maximum Speed N/A 1070 rpm
LSE715BXHFKPS Shaft Size N/A 7-15/16 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1070 rpm
LSE715BRHFKPS Shaft Size N/A 7-15/16 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A 9217 lbf41.00 kN Maximum Speed N/A 1070 rpm
LSE715BXHFRSS Shaft Size N/A 7-15/16 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1070 rpm
LSE715BRHFRSS Shaft Size N/A 7-15/16 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A 9217 lbf41.00 kN Maximum Speed N/A 1070 rpm
LSE715BXHFHTPS Shaft Size N/A 7-15/16 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1070 rpm
LSE715BRHFHTPS Shaft Size N/A 7-15/16 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A 9217 lbf41.00 kN Maximum Speed N/A 1070 rpm
LSE715BXHFATL Shaft Size N/A 7-15/16 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1070 rpm
LSE715BRHFATL Shaft Size N/A 7-15/16 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A 9217 lbf41.00 kN Maximum Speed N/A 1070 rpm
LSE800BXHF Shaft Size N/A 8 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1070 rpm
LSE800BRHF Shaft Size N/A 8 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A 9217 lbf41.00 kN Maximum Speed N/A 1070 rpm
LSE800BXHFKPS Shaft Size N/A 8 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1070 rpm
LSE800BRHFKPS Shaft Size N/A 8 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A 9217 lbf41.00 kN Maximum Speed N/A 1070 rpm
LSE800BXHFRSS Shaft Size N/A 8 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1070 rpm
LSE800BRHFRSS Shaft Size N/A 8 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A 9217 lbf41.00 kN Maximum Speed N/A 1070 rpm
LSE800BXHFHTPS Shaft Size N/A 8 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1070 rpm
LSE800BRHFHTPS Shaft Size N/A 8 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A 9217 lbf41.00 kN Maximum Speed N/A 1070 rpm
LSE800BXHFATL Shaft Size N/A 8 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A Maximum Speed N/A 1070 rpm
LSE800BRHFATL Shaft Size N/A 8 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 138033 lbf614 kN Cor - Static Load Rating N/A 222561 lbf990 kN Ca - Axial Load Rating N/A 9217 lbf41.00 kN Maximum Speed N/A 1070 rpm
LSE808BXHF Shaft Size N/A 8.5 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 159165 lbf708 kN Cor - Static Load Rating N/A 262577 lbf1168 kN Ca - Axial Load Rating N/A Maximum Speed N/A 930 rpm
LSE808BRHF Shaft Size N/A 8.5 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 159165 lbf708 kN Cor - Static Load Rating N/A 262577 lbf1168 kN Ca - Axial Load Rating N/A 11016 lbf49.00 kN Maximum Speed N/A 930 rpm
LSE808BXHFKPS Shaft Size N/A 8.5 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 159165 lbf708 kN Cor - Static Load Rating N/A 262577 lbf1168 kN Ca - Axial Load Rating N/A Maximum Speed N/A 930 rpm
LSE808BRHFKPS Shaft Size N/A 8.5 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 159165 lbf708 kN Cor - Static Load Rating N/A 262577 lbf1168 kN Ca - Axial Load Rating N/A 11016 lbf49.00 kN Maximum Speed N/A 930 rpm
LSE808BXHFRSS Shaft Size N/A 8.5 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 159165 lbf708 kN Cor - Static Load Rating N/A 262577 lbf1168 kN Ca - Axial Load Rating N/A Maximum Speed N/A 930 rpm
LSE808BRHFRSS Shaft Size N/A 8.5 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 159165 lbf708 kN Cor - Static Load Rating N/A 262577 lbf1168 kN Ca - Axial Load Rating N/A 11016 lbf49.00 kN Maximum Speed N/A 930 rpm
LSE808BXHFHTPS Shaft Size N/A 8.5 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 159165 lbf708 kN Cor - Static Load Rating N/A 262577 lbf1168 kN Ca - Axial Load Rating N/A Maximum Speed N/A 930 rpm
LSE808BRHFHTPS Shaft Size N/A 8.5 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 159165 lbf708 kN Cor - Static Load Rating N/A 262577 lbf1168 kN Ca - Axial Load Rating N/A 11016 lbf49.00 kN Maximum Speed N/A 930 rpm
LSE808BXHFATL Shaft Size N/A 8.5 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 159165 lbf708 kN Cor - Static Load Rating N/A 262577 lbf1168 kN Ca - Axial Load Rating N/A Maximum Speed N/A 930 rpm
LSE808BRHFATL Shaft Size N/A 8.5 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 159165 lbf708 kN Cor - Static Load Rating N/A 262577 lbf1168 kN Ca - Axial Load Rating N/A 11016 lbf49.00 kN Maximum Speed N/A 930 rpm
LSM220BXHF Shaft Size N/A 220 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 159165 lbf708 kN Cor - Static Load Rating N/A 262577 lbf1168 kN Ca - Axial Load Rating N/A Maximum Speed N/A 930 rpm
LSM220BRHF Shaft Size N/A 220 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 159165 lbf708 kN Cor - Static Load Rating N/A 262577 lbf1168 kN Ca - Axial Load Rating N/A 11016 lbf49.00 kN Maximum Speed N/A 930 rpm
LSM220BXHFKPS Shaft Size N/A 220 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 159165 lbf708 kN Cor - Static Load Rating N/A 262577 lbf1168 kN Ca - Axial Load Rating N/A Maximum Speed N/A 930 rpm
LSM220BRHFKPS Shaft Size N/A 220 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 159165 lbf708 kN Cor - Static Load Rating N/A 262577 lbf1168 kN Ca - Axial Load Rating N/A 11016 lbf49.00 kN Maximum Speed N/A 930 rpm
LSM220BXHFRSS Shaft Size N/A 220 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 159165 lbf708 kN Cor - Static Load Rating N/A 262577 lbf1168 kN Ca - Axial Load Rating N/A Maximum Speed N/A 930 rpm
LSM220BRHFRSS Shaft Size N/A 220 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 159165 lbf708 kN Cor - Static Load Rating N/A 262577 lbf1168 kN Ca - Axial Load Rating N/A 11016 lbf49.00 kN Maximum Speed N/A 930 rpm
LSM220BXHFHTPS Shaft Size N/A 220 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 159165 lbf708 kN Cor - Static Load Rating N/A 262577 lbf1168 kN Ca - Axial Load Rating N/A Maximum Speed N/A 930 rpm
LSM220BRHFHTPS Shaft Size N/A 220 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 159165 lbf708 kN Cor - Static Load Rating N/A 262577 lbf1168 kN Ca - Axial Load Rating N/A 11016 lbf49.00 kN Maximum Speed N/A 930 rpm
LSM220BXHFATL Shaft Size N/A 220 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 159165 lbf708 kN Cor - Static Load Rating N/A 262577 lbf1168 kN Ca - Axial Load Rating N/A Maximum Speed N/A 930 rpm
LSM220BRHFATL Shaft Size N/A 220 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 159165 lbf708 kN Cor - Static Load Rating N/A 262577 lbf1168 kN Ca - Axial Load Rating N/A 11016 lbf49.00 kN Maximum Speed N/A 930 rpm
LSE814BXHF Shaft Size N/A 8.875 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 159165 lbf708 kN Cor - Static Load Rating N/A 262577 lbf1168 kN Ca - Axial Load Rating N/A Maximum Speed N/A 930 rpm
LSE814BRHF Shaft Size N/A 8.875 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 159165 lbf708 kN Cor - Static Load Rating N/A 262577 lbf1168 kN Ca - Axial Load Rating N/A 11016 lbf49.00 kN Maximum Speed N/A 930 rpm
LSE814BXHFKPS Shaft Size N/A 8.875 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 159165 lbf708 kN Cor - Static Load Rating N/A 262577 lbf1168 kN Ca - Axial Load Rating N/A Maximum Speed N/A 930 rpm
LSE814BRHFKPS Shaft Size N/A 8.875 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 159165 lbf708 kN Cor - Static Load Rating N/A 262577 lbf1168 kN Ca - Axial Load Rating N/A 11016 lbf49.00 kN Maximum Speed N/A 930 rpm
LSE814BXHFRSS Shaft Size N/A 8.875 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 159165 lbf708 kN Cor - Static Load Rating N/A 262577 lbf1168 kN Ca - Axial Load Rating N/A Maximum Speed N/A 930 rpm
LSE814BRHFRSS Shaft Size N/A 8.875 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 159165 lbf708 kN Cor - Static Load Rating N/A 262577 lbf1168 kN Ca - Axial Load Rating N/A 11016 lbf49.00 kN Maximum Speed N/A 930 rpm
LSE814BXHFHTPS Shaft Size N/A 8.875 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 159165 lbf708 kN Cor - Static Load Rating N/A 262577 lbf1168 kN Ca - Axial Load Rating N/A Maximum Speed N/A 930 rpm
LSE814BRHFHTPS Shaft Size N/A 8.875 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 159165 lbf708 kN Cor - Static Load Rating N/A 262577 lbf1168 kN Ca - Axial Load Rating N/A 11016 lbf49.00 kN Maximum Speed N/A 930 rpm
LSE814BXHFATL Shaft Size N/A 8.875 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 159165 lbf708 kN Cor - Static Load Rating N/A 262577 lbf1168 kN Ca - Axial Load Rating N/A Maximum Speed N/A 930 rpm
LSE814BRHFATL Shaft Size N/A 8.875 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 159165 lbf708 kN Cor - Static Load Rating N/A 262577 lbf1168 kN Ca - Axial Load Rating N/A 11016 lbf49.00 kN Maximum Speed N/A 930 rpm
LSE900BXHF Shaft Size N/A 9 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 159165 lbf708 kN Cor - Static Load Rating N/A 262577 lbf1168 kN Ca - Axial Load Rating N/A Maximum Speed N/A 930 rpm
LSE900BRHF Shaft Size N/A 9 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 159165 lbf708 kN Cor - Static Load Rating N/A 262577 lbf1168 kN Ca - Axial Load Rating N/A 11016 lbf49.00 kN Maximum Speed N/A 930 rpm
LSE900BXHFKPS Shaft Size N/A 9 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 159165 lbf708 kN Cor - Static Load Rating N/A 262577 lbf1168 kN Ca - Axial Load Rating N/A Maximum Speed N/A 930 rpm
LSE900BRHFKPS Shaft Size N/A 9 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 159165 lbf708 kN Cor - Static Load Rating N/A 262577 lbf1168 kN Ca - Axial Load Rating N/A 11016 lbf49.00 kN Maximum Speed N/A 930 rpm
LSE900BXHFRSS Shaft Size N/A 9 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 159165 lbf708 kN Cor - Static Load Rating N/A 262577 lbf1168 kN Ca - Axial Load Rating N/A Maximum Speed N/A 930 rpm
LSE900BRHFRSS Shaft Size N/A 9 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 159165 lbf708 kN Cor - Static Load Rating N/A 262577 lbf1168 kN Ca - Axial Load Rating N/A 11016 lbf49.00 kN Maximum Speed N/A 930 rpm
LSE900BXHFHTPS Shaft Size N/A 9 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 159165 lbf708 kN Cor - Static Load Rating N/A 262577 lbf1168 kN Ca - Axial Load Rating N/A Maximum Speed N/A 930 rpm
LSE900BRHFHTPS Shaft Size N/A 9 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 159165 lbf708 kN Cor - Static Load Rating N/A 262577 lbf1168 kN Ca - Axial Load Rating N/A 11016 lbf49.00 kN Maximum Speed N/A 930 rpm
LSE900BXHFATL Shaft Size N/A 9 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 159165 lbf708 kN Cor - Static Load Rating N/A 262577 lbf1168 kN Ca - Axial Load Rating N/A Maximum Speed N/A 930 rpm
LSE900BRHFATL Shaft Size N/A 9 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 159165 lbf708 kN Cor - Static Load Rating N/A 262577 lbf1168 kN Ca - Axial Load Rating N/A 11016 lbf49.00 kN Maximum Speed N/A 930 rpm
LSM230BXHF Shaft Size N/A 230 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 159165 lbf708 kN Cor - Static Load Rating N/A 262577 lbf1168 kN Ca - Axial Load Rating N/A Maximum Speed N/A 930 rpm
LSM230BRHF Shaft Size N/A 230 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 159165 lbf708 kN Cor - Static Load Rating N/A 262577 lbf1168 kN Ca - Axial Load Rating N/A 11016 lbf49.00 kN Maximum Speed N/A 930 rpm
LSM230BXHFKPS Shaft Size N/A 230 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 159165 lbf708 kN Cor - Static Load Rating N/A 262577 lbf1168 kN Ca - Axial Load Rating N/A Maximum Speed N/A 930 rpm
LSM230BRHFKPS Shaft Size N/A 230 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 159165 lbf708 kN Cor - Static Load Rating N/A 262577 lbf1168 kN Ca - Axial Load Rating N/A 11016 lbf49.00 kN Maximum Speed N/A 930 rpm
LSM230BXHFRSS Shaft Size N/A 230 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 159165 lbf708 kN Cor - Static Load Rating N/A 262577 lbf1168 kN Ca - Axial Load Rating N/A Maximum Speed N/A 930 rpm
LSM230BRHFRSS Shaft Size N/A 230 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 159165 lbf708 kN Cor - Static Load Rating N/A 262577 lbf1168 kN Ca - Axial Load Rating N/A 11016 lbf49.00 kN Maximum Speed N/A 930 rpm
LSM230BXHFHTPS Shaft Size N/A 230 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 159165 lbf708 kN Cor - Static Load Rating N/A 262577 lbf1168 kN Ca - Axial Load Rating N/A Maximum Speed N/A 930 rpm
LSM230BRHFHTPS Shaft Size N/A 230 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 159165 lbf708 kN Cor - Static Load Rating N/A 262577 lbf1168 kN Ca - Axial Load Rating N/A 11016 lbf49.00 kN Maximum Speed N/A 930 rpm
LSM230BXHFATL Shaft Size N/A 230 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 159165 lbf708 kN Cor - Static Load Rating N/A 262577 lbf1168 kN Ca - Axial Load Rating N/A Maximum Speed N/A 930 rpm
LSM230BRHFATL Shaft Size N/A 230 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 159165 lbf708 kN Cor - Static Load Rating N/A 262577 lbf1168 kN Ca - Axial Load Rating N/A 11016 lbf49.00 kN Maximum Speed N/A 930 rpm
LSM240BXHF Shaft Size N/A 240 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 167258 lbf744 kN Cor - Static Load Rating N/A 289779 lbf1289 kN Ca - Axial Load Rating N/A Maximum Speed N/A 820 rpm
LSM240BRHF Shaft Size N/A 240 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 167258 lbf744 kN Cor - Static Load Rating N/A 289779 lbf1289 kN Ca - Axial Load Rating N/A 12994 lbf57.80 kN Maximum Speed N/A 820 rpm
LSM240BXHFKPS Shaft Size N/A 240 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 167258 lbf744 kN Cor - Static Load Rating N/A 289779 lbf1289 kN Ca - Axial Load Rating N/A Maximum Speed N/A 820 rpm
LSM240BRHFKPS Shaft Size N/A 240 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 167258 lbf744 kN Cor - Static Load Rating N/A 289779 lbf1289 kN Ca - Axial Load Rating N/A 12994 lbf57.80 kN Maximum Speed N/A 820 rpm
LSM240BXHFRSS Shaft Size N/A 240 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 167258 lbf744 kN Cor - Static Load Rating N/A 289779 lbf1289 kN Ca - Axial Load Rating N/A Maximum Speed N/A 820 rpm
LSM240BRHFRSS Shaft Size N/A 240 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 167258 lbf744 kN Cor - Static Load Rating N/A 289779 lbf1289 kN Ca - Axial Load Rating N/A 12994 lbf57.80 kN Maximum Speed N/A 820 rpm
LSM240BXHFHTPS Shaft Size N/A 240 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 167258 lbf744 kN Cor - Static Load Rating N/A 289779 lbf1289 kN Ca - Axial Load Rating N/A Maximum Speed N/A 820 rpm
LSM240BRHFHTPS Shaft Size N/A 240 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 167258 lbf744 kN Cor - Static Load Rating N/A 289779 lbf1289 kN Ca - Axial Load Rating N/A 12994 lbf57.80 kN Maximum Speed N/A 820 rpm
LSM240BXHFATL Shaft Size N/A 240 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 167258 lbf744 kN Cor - Static Load Rating N/A 289779 lbf1289 kN Ca - Axial Load Rating N/A Maximum Speed N/A 820 rpm
LSM240BRHFATL Shaft Size N/A 240 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 167258 lbf744 kN Cor - Static Load Rating N/A 289779 lbf1289 kN Ca - Axial Load Rating N/A 12994 lbf57.80 kN Maximum Speed N/A 820 rpm
LSE908BXHF Shaft Size N/A 9.5 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 167258 lbf744 kN Cor - Static Load Rating N/A 289779 lbf1289 kN Ca - Axial Load Rating N/A Maximum Speed N/A 820 rpm
LSE908BRHF Shaft Size N/A 9.5 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 167258 lbf744 kN Cor - Static Load Rating N/A 289779 lbf1289 kN Ca - Axial Load Rating N/A 12994 lbf57.80 kN Maximum Speed N/A 820 rpm
LSE908BXHFKPS Shaft Size N/A 9.5 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 167258 lbf744 kN Cor - Static Load Rating N/A 289779 lbf1289 kN Ca - Axial Load Rating N/A Maximum Speed N/A 820 rpm
LSE908BRHFKPS Shaft Size N/A 9.5 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 167258 lbf744 kN Cor - Static Load Rating N/A 289779 lbf1289 kN Ca - Axial Load Rating N/A 12994 lbf57.80 kN Maximum Speed N/A 820 rpm
LSE908BXHFRSS Shaft Size N/A 9.5 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 167258 lbf744 kN Cor - Static Load Rating N/A 289779 lbf1289 kN Ca - Axial Load Rating N/A Maximum Speed N/A 820 rpm
LSE908BRHFRSS Shaft Size N/A 9.5 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 167258 lbf744 kN Cor - Static Load Rating N/A 289779 lbf1289 kN Ca - Axial Load Rating N/A 12994 lbf57.80 kN Maximum Speed N/A 820 rpm
LSE908BXHFHTPS Shaft Size N/A 9.5 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 167258 lbf744 kN Cor - Static Load Rating N/A 289779 lbf1289 kN Ca - Axial Load Rating N/A Maximum Speed N/A 820 rpm
LSE908BRHFHTPS Shaft Size N/A 9.5 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 167258 lbf744 kN Cor - Static Load Rating N/A 289779 lbf1289 kN Ca - Axial Load Rating N/A 12994 lbf57.80 kN Maximum Speed N/A 820 rpm
LSE908BXHFATL Shaft Size N/A 9.5 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 167258 lbf744 kN Cor - Static Load Rating N/A 289779 lbf1289 kN Ca - Axial Load Rating N/A Maximum Speed N/A 820 rpm
LSE908BRHFATL Shaft Size N/A 9.5 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 167258 lbf744 kN Cor - Static Load Rating N/A 289779 lbf1289 kN Ca - Axial Load Rating N/A 12994 lbf57.80 kN Maximum Speed N/A 820 rpm
LSE912BXHF Shaft Size N/A 9.75 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 167258 lbf744 kN Cor - Static Load Rating N/A 289779 lbf1289 kN Ca - Axial Load Rating N/A Maximum Speed N/A 820 rpm
LSE912BRHF Shaft Size N/A 9.75 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 167258 lbf744 kN Cor - Static Load Rating N/A 289779 lbf1289 kN Ca - Axial Load Rating N/A 12994 lbf57.80 kN Maximum Speed N/A 820 rpm
LSE912BXHFKPS Shaft Size N/A 9.75 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 167258 lbf744 kN Cor - Static Load Rating N/A 289779 lbf1289 kN Ca - Axial Load Rating N/A Maximum Speed N/A 820 rpm
LSE912BRHFKPS Shaft Size N/A 9.75 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 167258 lbf744 kN Cor - Static Load Rating N/A 289779 lbf1289 kN Ca - Axial Load Rating N/A 12994 lbf57.80 kN Maximum Speed N/A 820 rpm
LSE912BXHFRSS Shaft Size N/A 9.75 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 167258 lbf744 kN Cor - Static Load Rating N/A 289779 lbf1289 kN Ca - Axial Load Rating N/A Maximum Speed N/A 820 rpm
LSE912BRHFRSS Shaft Size N/A 9.75 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 167258 lbf744 kN Cor - Static Load Rating N/A 289779 lbf1289 kN Ca - Axial Load Rating N/A 12994 lbf57.80 kN Maximum Speed N/A 820 rpm
LSE912BXHFHTPS Shaft Size N/A 9.75 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 167258 lbf744 kN Cor - Static Load Rating N/A 289779 lbf1289 kN Ca - Axial Load Rating N/A Maximum Speed N/A 820 rpm
LSE912BRHFHTPS Shaft Size N/A 9.75 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 167258 lbf744 kN Cor - Static Load Rating N/A 289779 lbf1289 kN Ca - Axial Load Rating N/A 12994 lbf57.80 kN Maximum Speed N/A 820 rpm
LSE912BXHFATL Shaft Size N/A 9.75 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 167258 lbf744 kN Cor - Static Load Rating N/A 289779 lbf1289 kN Ca - Axial Load Rating N/A Maximum Speed N/A 820 rpm
LSE912BRHFATL Shaft Size N/A 9.75 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 167258 lbf744 kN Cor - Static Load Rating N/A 289779 lbf1289 kN Ca - Axial Load Rating N/A 12994 lbf57.80 kN Maximum Speed N/A 820 rpm
LSM250BXHF Shaft Size N/A 250 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 167258 lbf744 kN Cor - Static Load Rating N/A 289779 lbf1289 kN Ca - Axial Load Rating N/A Maximum Speed N/A 820 rpm
LSM250BRHF Shaft Size N/A 250 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 167258 lbf744 kN Cor - Static Load Rating N/A 289779 lbf1289 kN Ca - Axial Load Rating N/A 12994 lbf57.80 kN Maximum Speed N/A 820 rpm
LSM250BXHFKPS Shaft Size N/A 250 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 167258 lbf744 kN Cor - Static Load Rating N/A 289779 lbf1289 kN Ca - Axial Load Rating N/A Maximum Speed N/A 820 rpm
LSM250BRHFKPS Shaft Size N/A 250 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 167258 lbf744 kN Cor - Static Load Rating N/A 289779 lbf1289 kN Ca - Axial Load Rating N/A 12994 lbf57.80 kN Maximum Speed N/A 820 rpm
LSM250BXHFRSS Shaft Size N/A 250 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 167258 lbf744 kN Cor - Static Load Rating N/A 289779 lbf1289 kN Ca - Axial Load Rating N/A Maximum Speed N/A 820 rpm
LSM250BRHFRSS Shaft Size N/A 250 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 167258 lbf744 kN Cor - Static Load Rating N/A 289779 lbf1289 kN Ca - Axial Load Rating N/A 12994 lbf57.80 kN Maximum Speed N/A 820 rpm
LSM250BXHFHTPS Shaft Size N/A 250 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 167258 lbf744 kN Cor - Static Load Rating N/A 289779 lbf1289 kN Ca - Axial Load Rating N/A Maximum Speed N/A 820 rpm
LSM250BRHFHTPS Shaft Size N/A 250 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 167258 lbf744 kN Cor - Static Load Rating N/A 289779 lbf1289 kN Ca - Axial Load Rating N/A 12994 lbf57.80 kN Maximum Speed N/A 820 rpm
LSM250BXHFATL Shaft Size N/A 250 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 167258 lbf744 kN Cor - Static Load Rating N/A 289779 lbf1289 kN Ca - Axial Load Rating N/A Maximum Speed N/A 820 rpm
LSM250BRHFATL Shaft Size N/A 250 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 167258 lbf744 kN Cor - Static Load Rating N/A 289779 lbf1289 kN Ca - Axial Load Rating N/A 12994 lbf57.80 kN Maximum Speed N/A 820 rpm
LSE1000BXHF Shaft Size N/A 10 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 167258 lbf744 kN Cor - Static Load Rating N/A 289779 lbf1289 kN Ca - Axial Load Rating N/A Maximum Speed N/A 820 rpm
LSE1000BRHF Shaft Size N/A 10 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 167258 lbf744 kN Cor - Static Load Rating N/A 289779 lbf1289 kN Ca - Axial Load Rating N/A 12994 lbf57.80 kN Maximum Speed N/A 820 rpm
LSE1000BXHFKPS Shaft Size N/A 10 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 167258 lbf744 kN Cor - Static Load Rating N/A 289779 lbf1289 kN Ca - Axial Load Rating N/A Maximum Speed N/A 820 rpm
LSE1000BRHFKPS Shaft Size N/A 10 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 167258 lbf744 kN Cor - Static Load Rating N/A 289779 lbf1289 kN Ca - Axial Load Rating N/A 12994 lbf57.80 kN Maximum Speed N/A 820 rpm
LSE1000BXHFRSS Shaft Size N/A 10 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 167258 lbf744 kN Cor - Static Load Rating N/A 289779 lbf1289 kN Ca - Axial Load Rating N/A Maximum Speed N/A 820 rpm
LSE1000BRHFRSS Shaft Size N/A 10 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 167258 lbf744 kN Cor - Static Load Rating N/A 289779 lbf1289 kN Ca - Axial Load Rating N/A 12994 lbf57.80 kN Maximum Speed N/A 820 rpm
LSE1000BXHFHTPS Shaft Size N/A 10 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 167258 lbf744 kN Cor - Static Load Rating N/A 289779 lbf1289 kN Ca - Axial Load Rating N/A Maximum Speed N/A 820 rpm
LSE1000BRHFHTPS Shaft Size N/A 10 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 167258 lbf744 kN Cor - Static Load Rating N/A 289779 lbf1289 kN Ca - Axial Load Rating N/A 12994 lbf57.80 kN Maximum Speed N/A 820 rpm
LSE1000BXHFATL Shaft Size N/A 10 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 167258 lbf744 kN Cor - Static Load Rating N/A 289779 lbf1289 kN Ca - Axial Load Rating N/A Maximum Speed N/A 820 rpm
LSE1000BRHFATL Shaft Size N/A 10 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 167258 lbf744 kN Cor - Static Load Rating N/A 289779 lbf1289 kN Ca - Axial Load Rating N/A 12994 lbf57.80 kN Maximum Speed N/A 820 rpm
LSM260BXHF Shaft Size N/A 260 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A Maximum Speed N/A 730 rpm
LSM260BRHF Shaft Size N/A 260 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A 15017 lbf66.80 kN Maximum Speed N/A 730 rpm
LSM260BXHFKPS Shaft Size N/A 260 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A Maximum Speed N/A 730 rpm
LSM260BRHFKPS Shaft Size N/A 260 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A 15017 lbf66.80 kN Maximum Speed N/A 730 rpm
LSM260BXHFRSS Shaft Size N/A 260 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A Maximum Speed N/A 730 rpm
LSM260BRHFRSS Shaft Size N/A 260 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A 15017 lbf66.80 kN Maximum Speed N/A 730 rpm
LSM260BXHFHTPS Shaft Size N/A 260 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A Maximum Speed N/A 730 rpm
LSM260BRHFHTPS Shaft Size N/A 260 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A 15017 lbf66.80 kN Maximum Speed N/A 730 rpm
LSM260BXHFATL Shaft Size N/A 260 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A Maximum Speed N/A 730 rpm
LSM260BRHFATL Shaft Size N/A 260 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A 15017 lbf66.80 kN Maximum Speed N/A 730 rpm
LSE1008BXHF Shaft Size N/A 10.5 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A Maximum Speed N/A 730 rpm
LSE1008BRHF Shaft Size N/A 10.5 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A 15017 lbf66.80 kN Maximum Speed N/A 730 rpm
LSE1008BXHFKPS Shaft Size N/A 10.5 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A Maximum Speed N/A 730 rpm
LSE1008BRHFKPS Shaft Size N/A 10.5 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A 15017 lbf66.80 kN Maximum Speed N/A 730 rpm
LSE1008BXHFRSS Shaft Size N/A 10.5 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A Maximum Speed N/A 730 rpm
LSE1008BRHFRSS Shaft Size N/A 10.5 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A 15017 lbf66.80 kN Maximum Speed N/A 730 rpm
LSE1008BXHFHTPS Shaft Size N/A 10.5 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A Maximum Speed N/A 730 rpm
LSE1008BRHFHTPS Shaft Size N/A 10.5 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A 15017 lbf66.80 kN Maximum Speed N/A 730 rpm
LSE1008BXHFATL Shaft Size N/A 10.5 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A Maximum Speed N/A 730 rpm
LSE1008BRHFATL Shaft Size N/A 10.5 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A 15017 lbf66.80 kN Maximum Speed N/A 730 rpm
LSM270BXHF Shaft Size N/A 270 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A Maximum Speed N/A 730 rpm
LSM270BRHF Shaft Size N/A 270 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A 15017 lbf66.80 kN Maximum Speed N/A 730 rpm
LSM270BXHFKPS Shaft Size N/A 270 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A Maximum Speed N/A 730 rpm
LSM270BRHFKPS Shaft Size N/A 270 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A 15017 lbf66.80 kN Maximum Speed N/A 730 rpm
LSM270BXHFRSS Shaft Size N/A 270 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A Maximum Speed N/A 730 rpm
LSM270BRHFRSS Shaft Size N/A 270 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A 15017 lbf66.80 kN Maximum Speed N/A 730 rpm
LSM270BXHFHTPS Shaft Size N/A 270 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A Maximum Speed N/A 730 rpm
LSM270BRHFHTPS Shaft Size N/A 270 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A 15017 lbf66.80 kN Maximum Speed N/A 730 rpm
LSM270BXHFATL Shaft Size N/A 270 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A Maximum Speed N/A 730 rpm
LSM270BRHFATL Shaft Size N/A 270 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A 15017 lbf66.80 kN Maximum Speed N/A 730 rpm
LSE1012BXHF Shaft Size N/A 10.75 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A Maximum Speed N/A 730 rpm
LSE1012BRHF Shaft Size N/A 10.75 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A 15017 lbf66.80 kN Maximum Speed N/A 730 rpm
LSE1012BXHFKPS Shaft Size N/A 10.75 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A Maximum Speed N/A 730 rpm
LSE1012BRHFKPS Shaft Size N/A 10.75 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A 15017 lbf66.80 kN Maximum Speed N/A 730 rpm
LSE1012BXHFRSS Shaft Size N/A 10.75 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A Maximum Speed N/A 730 rpm
LSE1012BRHFRSS Shaft Size N/A 10.75 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A 15017 lbf66.80 kN Maximum Speed N/A 730 rpm
LSE1012BXHFHTPS Shaft Size N/A 10.75 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A Maximum Speed N/A 730 rpm
LSE1012BRHFHTPS Shaft Size N/A 10.75 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A 15017 lbf66.80 kN Maximum Speed N/A 730 rpm
LSE1012BXHFATL Shaft Size N/A 10.75 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A Maximum Speed N/A 730 rpm
LSE1012BRHFATL Shaft Size N/A 10.75 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A 15017 lbf66.80 kN Maximum Speed N/A 730 rpm
LSE1100BXHF Shaft Size N/A 11 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A Maximum Speed N/A 730 rpm
LSE1100BRHF Shaft Size N/A 11 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A 15017 lbf66.80 kN Maximum Speed N/A 730 rpm
LSE1100BXHFKPS Shaft Size N/A 11 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A Maximum Speed N/A 730 rpm
LSE1100BRHFKPS Shaft Size N/A 11 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A 15017 lbf66.80 kN Maximum Speed N/A 730 rpm
LSE1100BXHFRSS Shaft Size N/A 11 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A Maximum Speed N/A 730 rpm
LSE1100BRHFRSS Shaft Size N/A 11 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A 15017 lbf66.80 kN Maximum Speed N/A 730 rpm
LSE1100BXHFHTPS Shaft Size N/A 11 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A Maximum Speed N/A 730 rpm
LSE1100BRHFHTPS Shaft Size N/A 11 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A 15017 lbf66.80 kN Maximum Speed N/A 730 rpm
LSE1100BXHFATL Shaft Size N/A 11 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A Maximum Speed N/A 730 rpm
LSE1100BRHFATL Shaft Size N/A 11 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A 15017 lbf66.80 kN Maximum Speed N/A 730 rpm
LSM280BXHF Shaft Size N/A 280 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A Maximum Speed N/A 730 rpm
LSM280BRHF Shaft Size N/A 280 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A 15017 lbf66.80 kN Maximum Speed N/A 730 rpm
LSM280BXHFKPS Shaft Size N/A 280 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A Maximum Speed N/A 730 rpm
LSM280BRHFKPS Shaft Size N/A 280 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A 15017 lbf66.80 kN Maximum Speed N/A 730 rpm
LSM280BXHFRSS Shaft Size N/A 280 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A Maximum Speed N/A 730 rpm
LSM280BRHFRSS Shaft Size N/A 280 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A 15017 lbf66.80 kN Maximum Speed N/A 730 rpm
LSM280BXHFHTPS Shaft Size N/A 280 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A Maximum Speed N/A 730 rpm
LSM280BRHFHTPS Shaft Size N/A 280 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A 15017 lbf66.80 kN Maximum Speed N/A 730 rpm
LSM280BXHFATL Shaft Size N/A 280 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A Maximum Speed N/A 730 rpm
LSM280BRHFATL Shaft Size N/A 280 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 190638 lbf848 kN Cor - Static Load Rating N/A 337663 lbf1502 kN Ca - Axial Load Rating N/A 15017 lbf66.80 kN Maximum Speed N/A 730 rpm
LSE1108BXHF Shaft Size N/A 11.5 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 208848 lbf929 kN Cor - Static Load Rating N/A 374307 lbf1665 kN Ca - Axial Load Rating N/A Maximum Speed N/A 650 rpm
LSE1108BRHF Shaft Size N/A 11.5 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 208848 lbf929 kN Cor - Static Load Rating N/A 374307 lbf1665 kN Ca - Axial Load Rating N/A 17580 lbf78.20 kN Maximum Speed N/A 650 rpm
LSE1108BXHFKPS Shaft Size N/A 11.5 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 208848 lbf929 kN Cor - Static Load Rating N/A 374307 lbf1665 kN Ca - Axial Load Rating N/A Maximum Speed N/A 650 rpm
LSE1108BRHFKPS Shaft Size N/A 11.5 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 208848 lbf929 kN Cor - Static Load Rating N/A 374307 lbf1665 kN Ca - Axial Load Rating N/A 17580 lbf78.20 kN Maximum Speed N/A 650 rpm
LSE1108BXHFRSS Shaft Size N/A 11.5 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 208848 lbf929 kN Cor - Static Load Rating N/A 374307 lbf1665 kN Ca - Axial Load Rating N/A Maximum Speed N/A 650 rpm
LSE1108BRHFRSS Shaft Size N/A 11.5 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 208848 lbf929 kN Cor - Static Load Rating N/A 374307 lbf1665 kN Ca - Axial Load Rating N/A 17580 lbf78.20 kN Maximum Speed N/A 650 rpm
LSE1108BXHFHTPS Shaft Size N/A 11.5 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 208848 lbf929 kN Cor - Static Load Rating N/A 374307 lbf1665 kN Ca - Axial Load Rating N/A Maximum Speed N/A 650 rpm
LSE1108BRHFHTPS Shaft Size N/A 11.5 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 208848 lbf929 kN Cor - Static Load Rating N/A 374307 lbf1665 kN Ca - Axial Load Rating N/A 17580 lbf78.20 kN Maximum Speed N/A 650 rpm
LSE1108BXHFATL Shaft Size N/A 11.5 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 208848 lbf929 kN Cor - Static Load Rating N/A 374307 lbf1665 kN Ca - Axial Load Rating N/A Maximum Speed N/A 650 rpm
LSE1108BRHFATL Shaft Size N/A 11.5 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 208848 lbf929 kN Cor - Static Load Rating N/A 374307 lbf1665 kN Ca - Axial Load Rating N/A 17580 lbf78.20 kN Maximum Speed N/A 650 rpm
LSM300BXHF Shaft Size N/A 300 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 208848 lbf929 kN Cor - Static Load Rating N/A 374307 lbf1665 kN Ca - Axial Load Rating N/A Maximum Speed N/A 650 rpm
LSM300BRHF Shaft Size N/A 300 mm Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 208848 lbf929 kN Cor - Static Load Rating N/A 374307 lbf1665 kN Ca - Axial Load Rating N/A 17580 lbf78.20 kN Maximum Speed N/A 650 rpm
LSM300BXHFKPS Shaft Size N/A 300 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 208848 lbf929 kN Cor - Static Load Rating N/A 374307 lbf1665 kN Ca - Axial Load Rating N/A Maximum Speed N/A 650 rpm
LSM300BRHFKPS Shaft Size N/A 300 mm Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 208848 lbf929 kN Cor - Static Load Rating N/A 374307 lbf1665 kN Ca - Axial Load Rating N/A 17580 lbf78.20 kN Maximum Speed N/A 650 rpm
LSM300BXHFRSS Shaft Size N/A 300 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 208848 lbf929 kN Cor - Static Load Rating N/A 374307 lbf1665 kN Ca - Axial Load Rating N/A Maximum Speed N/A 650 rpm
LSM300BRHFRSS Shaft Size N/A 300 mm Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 208848 lbf929 kN Cor - Static Load Rating N/A 374307 lbf1665 kN Ca - Axial Load Rating N/A 17580 lbf78.20 kN Maximum Speed N/A 650 rpm
LSM300BXHFHTPS Shaft Size N/A 300 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 208848 lbf929 kN Cor - Static Load Rating N/A 374307 lbf1665 kN Ca - Axial Load Rating N/A Maximum Speed N/A 650 rpm
LSM300BRHFHTPS Shaft Size N/A 300 mm Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 208848 lbf929 kN Cor - Static Load Rating N/A 374307 lbf1665 kN Ca - Axial Load Rating N/A 17580 lbf78.20 kN Maximum Speed N/A 650 rpm
LSM300BXHFATL Shaft Size N/A 300 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 208848 lbf929 kN Cor - Static Load Rating N/A 374307 lbf1665 kN Ca - Axial Load Rating N/A Maximum Speed N/A 650 rpm
LSM300BRHFATL Shaft Size N/A 300 mm Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 208848 lbf929 kN Cor - Static Load Rating N/A 374307 lbf1665 kN Ca - Axial Load Rating N/A 17580 lbf78.20 kN Maximum Speed N/A 650 rpm
LSE1200BXHF Shaft Size N/A 12 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 208848 lbf929 kN Cor - Static Load Rating N/A 374307 lbf1665 kN Ca - Axial Load Rating N/A Maximum Speed N/A 650 rpm
LSE1200BRHF Shaft Size N/A 12 in Seal Type N/A Felt Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 208848 lbf929 kN Cor - Static Load Rating N/A 374307 lbf1665 kN Ca - Axial Load Rating N/A 17580 lbf78.20 kN Maximum Speed N/A 650 rpm
LSE1200BXHFKPS Shaft Size N/A 12 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 208848 lbf929 kN Cor - Static Load Rating N/A 374307 lbf1665 kN Ca - Axial Load Rating N/A Maximum Speed N/A 650 rpm
LSE1200BRHFKPS Shaft Size N/A 12 in Seal Type N/A Kevlar Packing Seal Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 208848 lbf929 kN Cor - Static Load Rating N/A 374307 lbf1665 kN Ca - Axial Load Rating N/A 17580 lbf78.20 kN Maximum Speed N/A 650 rpm
LSE1200BXHFRSS Shaft Size N/A 12 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 208848 lbf929 kN Cor - Static Load Rating N/A 374307 lbf1665 kN Ca - Axial Load Rating N/A Maximum Speed N/A 650 rpm
LSE1200BRHFRSS Shaft Size N/A 12 in Seal Type N/A Viton Single Lip Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 208848 lbf929 kN Cor - Static Load Rating N/A 374307 lbf1665 kN Ca - Axial Load Rating N/A 17580 lbf78.20 kN Maximum Speed N/A 650 rpm
LSE1200BXHFHTPS Shaft Size N/A 12 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 208848 lbf929 kN Cor - Static Load Rating N/A 374307 lbf1665 kN Ca - Axial Load Rating N/A Maximum Speed N/A 650 rpm
LSE1200BRHFHTPS Shaft Size N/A 12 in Seal Type N/A High Temperature Packing Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 208848 lbf929 kN Cor - Static Load Rating N/A 374307 lbf1665 kN Ca - Axial Load Rating N/A 17580 lbf78.20 kN Maximum Speed N/A 650 rpm
LSE1200BXHFATL Shaft Size N/A 12 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Expansion Type Cr - Dynamic Load Rating N/A 208848 lbf929 kN Cor - Static Load Rating N/A 374307 lbf1665 kN Ca - Axial Load Rating N/A Maximum Speed N/A 650 rpm
LSE1200BRHFATL Shaft Size N/A 12 in Seal Type N/A Aluminium Triple Labyrinth Bearing Type N/A Split Cylindrical Retained Type Cr - Dynamic Load Rating N/A 208848 lbf929 kN Cor - Static Load Rating N/A 374307 lbf1665 kN Ca - Axial Load Rating N/A 17580 lbf78.20 kN Maximum Speed N/A 650 rpm
Sản phẩm liên quan
UCF 200 Four-Bolt Flanged Housed Units - Set Screw Locking
UCF 200 Four-Bolt Flanged Housed Units - Set Screw Locking
UELF 200 Four-Bolt Flanged Housed Units - Eccentric Locking Collar
UELF 200 Four-Bolt Flanged Housed Units - Eccentric Locking Collar
UKF 200 Four-Bolt Flanged Housed Units - Adapter Sleeve Locking
UKF 200 Four-Bolt Flanged Housed Units - Adapter Sleeve Locking
Single V-Lock Two-Bolt Pillow Block
Single V-Lock Two-Bolt Pillow Block
UCFL 200 Two-Bolt Flanged Housed Units - Set Screw Locking
UCFL 200 Two-Bolt Flanged Housed Units - Set Screw Locking
Single V-Lock Four-Bolt Pillow Block
Single V-Lock Four-Bolt Pillow Block
x
Liên hệ
Kinh doanh 1: 0909 566 551
Kinh doanh 1: 0933 155 707
Kỹ thuật: 0911 991 666
Tel Zalo Messenger
