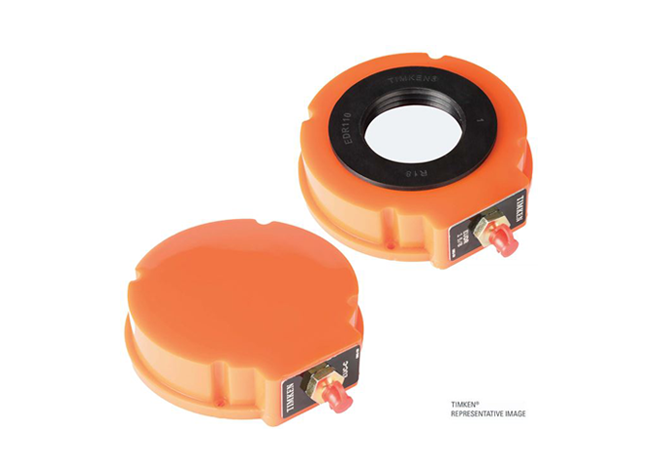

Type E Tapered Roller Bearing Urethane End Covers to be used with Type E Tapered Roller Bearing Housed Units to create a secondary sealing system. Please download and view the Type E Secondary Sealing System End Cover Dimensions document to review end cover nomenclature, dimensions, and to match with the correct shaft size.
|
Timken Part Number |
Type | Cover Diameter A | B | Cover Length C1 | Cover Length C1 |
Number of Bolts |
| EUDR-1 3/16 | Type Open | Cover Diameter A 2.85 in | B N/A | Cover Length C1 0.995 in | Cover Length C1 1.095 in | Number of Bolts 4 |
| EUC-A | Type Closed | Cover Diameter A 2.85 in | B N/A | Cover Length C1 0.995 in | Cover Length C1 1.095 in | Number of Bolts 4 |
| EUDR-1 1/4 | Type Open | Cover Diameter A 2.85 in | B N/A | Cover Length C1 0.995 in | Cover Length C1 1.095 in | Number of Bolts 4 |
| EUDR-1 3/8 | Type Open | Cover Diameter A 3.345 in | B N/A | Cover Length C1 0.995 in | Cover Length C1 1.095 in | Number of Bolts 4 |
| EUC-B | Type Closed | Cover Diameter A 3.345 in | B N/A | Cover Length C1 0.995 in | Cover Length C1 1.095 in | Number of Bolts 4 |
| EUDR-1 7/16 | Type Open | Cover Diameter A 3.345 in | B N/A | Cover Length C1 0.995 in | Cover Length C1 1.095 in | Number of Bolts 4 |
| EUDR-35MM | Type Open | Cover Diameter A 3.345 in | B N/A | Cover Length C1 0.995 in | Cover Length C1 1.095 in | Number of Bolts 4 |
| EUDR-1 1/2 | Type Open | Cover Diameter A 3.95 in | B 3.691 in | Cover Length C1 0.982 in | Cover Length C1 1.082 in | Number of Bolts 4 |
| EUC-C | Type Closed | Cover Diameter A 3.95 in | B 3.691 in | Cover Length C1 0.982 in | Cover Length C1 1.082 in | Number of Bolts 4 |
| EUDR-1 5/8 | Type Open | Cover Diameter A 3.95 in | B 3.691 in | Cover Length C1 0.982 in | Cover Length C1 1.082 in | Number of Bolts 4 |
| EUDR-1 11/16 | Type Open | Cover Diameter A 3.95 in | B 3.691 in | Cover Length C1 0.982 in | Cover Length C1 1.082 in | Number of Bolts 4 |
| EUDR-40MM | Type Open | Cover Diameter A 3.95 in | B 3.691 in | Cover Length C1 0.982 in | Cover Length C1 1.082 in | Number of Bolts 4 |
| EUDR-1 3/4 | Type Open | Cover Diameter A 4.196 in | B 3.941 in | Cover Length C1 0.982 in | Cover Length C1 1.082 in | Number of Bolts 4 |
| EUC-D | Type Closed | Cover Diameter A 4.196 in | B 3.941 in | Cover Length C1 0.982 in | Cover Length C1 1.082 in | Number of Bolts 4 |
| EUDR-1 7/8 | Type Open | Cover Diameter A 4.196 in | B 3.941 in | Cover Length C1 0.982 in | Cover Length C1 1.082 in | Number of Bolts 4 |
| EUDR-1 15/16 | Type Open | Cover Diameter A 4.196 in | B 3.941 in | Cover Length C1 0.982 in | Cover Length C1 1.082 in | Number of Bolts 4 |
| EUDR-2 | Type Open | Cover Diameter A 4.196 in | B 3.941 in | Cover Length C1 0.982 in | Cover Length C1 1.082 in | Number of Bolts 4 |
| EUDR-45MM | Type Open | Cover Diameter A 4.196 in | B 3.941 in | Cover Length C1 0.982 in | Cover Length C1 1.082 in | Number of Bolts 4 |
| EUDR-50MM | Type Open | Cover Diameter A 4.196 in | B 3.941 in | Cover Length C1 0.982 in | Cover Length C1 1.082 in | Number of Bolts 4 |
| EUDR-2 3/16 | Type Open | Cover Diameter A 4.7 in | B 4.352 in | Cover Length C1 1.075 in | Cover Length C1 1.175 in | Number of Bolts 4 |
| EUC-E | Type Closed | Cover Diameter A 4.7 in | B 4.352 in | Cover Length C1 1.075 in | Cover Length C1 1.175 in | Number of Bolts 4 |
| EUDR-55MM | Type Open | Cover Diameter A 4.7 in | B 4.352 in | Cover Length C1 1.075 in | Cover Length C1 1.175 in | Number of Bolts 4 |
| EUDR-2 1/4 | Type Open | Cover Diameter A 4.945 in | B 4.57 in | Cover Length C1 1.075 in | Cover Length C1 1.175 in | Number of Bolts 4 |
| EUC-F | Type Closed | Cover Diameter A 4.945 in | B 4.57 in | Cover Length C1 1.075 in | Cover Length C1 1.175 in | Number of Bolts 4 |
| EUDR-2 1/2 | Type Open | Cover Diameter A 4.945 in | B 4.57 in | Cover Length C1 1.075 in | Cover Length C1 1.175 in | Number of Bolts 4 |
| EUDR-2 7/16 | Type Open | Cover Diameter A 4.945 in | B 4.57 in | Cover Length C1 1.075 in | Cover Length C1 1.175 in | Number of Bolts 4 |
| EUDR-60MM | Type Open | Cover Diameter A 4.945 in | B 4.57 in | Cover Length C1 1.075 in | Cover Length C1 1.175 in | Number of Bolts 4 |
| EUDR-65MM | Type Open | Cover Diameter A 4.945 in | B 4.57 in | Cover Length C1 1.075 in | Cover Length C1 1.175 in | Number of Bolts 4 |
| EUDR-2 11/16 | Type Open | Cover Diameter A 5.65 in | B 5.224 in | Cover Length C1 1.2 in | Cover Length C1 1.3 in | Number of Bolts 4 |
| EUC-G | Type Closed | Cover Diameter A 5.65 in | B 5.224 in | Cover Length C1 1.2 in | Cover Length C1 1.3 in | Number of Bolts 4 |
| EUDR-2 3/4 | Type Open | Cover Diameter A 5.65 in | B 5.224 in | Cover Length C1 1.2 in | Cover Length C1 1.3 in | Number of Bolts 4 |
| EUDR-2 15/16 | Type Open | Cover Diameter A 5.65 in | B 5.224 in | Cover Length C1 1.2 in | Cover Length C1 1.3 in | Number of Bolts 4 |
| EUDR-3 | Type Open | Cover Diameter A 5.65 in | B 5.224 in | Cover Length C1 1.2 in | Cover Length C1 1.3 in | Number of Bolts 4 |
| EUDR-70MM | Type Open | Cover Diameter A 5.65 in | B 5.224 in | Cover Length C1 1.2 in | Cover Length C1 1.3 in | Number of Bolts 4 |
| EUDR-75MM | Type Open | Cover Diameter A 5.65 in | B 5.224 in | Cover Length C1 1.2 in | Cover Length C1 1.3 in | Number of Bolts 4 |
| EUDR-3 3/16 | Type Open | Cover Diameter A 6.7 in | B 6.187 in | Cover Length C1 1.2 in | Cover Length C1 1.3 in | Number of Bolts 4 |
| EUC-H | Type Closed | Cover Diameter A 6.7 in | B 6.187 in | Cover Length C1 1.2 in | Cover Length C1 1.3 in | Number of Bolts 4 |
| EUDR-3 1/4 | Type Open | Cover Diameter A 6.7 in | B 6.187 in | Cover Length C1 1.2 in | Cover Length C1 1.3 in | Number of Bolts 4 |
| EUDR-3 7/16 | Type Open | Cover Diameter A 6.7 in | B 6.187 in | Cover Length C1 1.2 in | Cover Length C1 1.3 in | Number of Bolts 4 |
| EUDR-3 1/2 | Type Open | Cover Diameter A 6.7 in | B 6.187 in | Cover Length C1 1.2 in | Cover Length C1 1.3 in | Number of Bolts 4 |
| EUDR-80MM | Type Open | Cover Diameter A 6.7 in | B 6.187 in | Cover Length C1 1.2 in | Cover Length C1 1.3 in | Number of Bolts 4 |
| EUDR-85MM | Type Open | Cover Diameter A 6.7 in | B 6.187 in | Cover Length C1 1.2 in | Cover Length C1 1.3 in | Number of Bolts 4 |
| EUDR-90MM | Type Open | Cover Diameter A 6.7 in | B 6.187 in | Cover Length C1 1.2 in | Cover Length C1 1.3 in | Number of Bolts 4 |
| EUDR-3 15/16 | Type Open | Cover Diameter A 7.43 in | B 6.892 in | Cover Length C1 1.325 in | Cover Length C1 1.425 in | Number of Bolts 4 |
| EUC-I | Type Closed | Cover Diameter A 7.43 in | B 6.892 in | Cover Length C1 1.325 in | Cover Length C1 1.425 in | Number of Bolts 4 |
| EUDR-4 | Type Open | Cover Diameter A 7.43 in | B 6.892 in | Cover Length C1 1.325 in | Cover Length C1 1.425 in | Number of Bolts 4 |
| EUDR-100MM | Type Open | Cover Diameter A 7.43 in | B 6.892 in | Cover Length C1 1.325 in | Cover Length C1 1.425 in | Number of Bolts 4 |
| EUDR-4 7/16 | Type Open | Cover Diameter A 8.25 in | B 7.7 in | Cover Length C1 1.638 in | Cover Length C1 1.738 in | Number of Bolts 6 |
| EUC-J | Type Closed | Cover Diameter A 8.25 in | B 7.7 in | Cover Length C1 1.638 in | Cover Length C1 1.738 in | Number of Bolts 6 |
| EUDR-4 1/2 | Type Open | Cover Diameter A 8.25 in | B 7.7 in | Cover Length C1 1.638 in | Cover Length C1 1.738 in | Number of Bolts 6 |
| EUDR-110MM | Type Open | Cover Diameter A 8.25 in | B 7.7 in | Cover Length C1 1.638 in | Cover Length C1 1.738 in | Number of Bolts 6 |
| EUDR-115MM | Type Open | Cover Diameter A 8.25 in | B 7.7 in | Cover Length C1 1.638 in | Cover Length C1 1.738 in | Number of Bolts 6 |
| EUDR-4 15/16 | Type Open | Cover Diameter A 10.35 in | B 9.7 in | Cover Length C1 1.544 in | Cover Length C1 1.644 in | Number of Bolts 6 |
| EUC-K | Type Closed | Cover Diameter A 10.35 in | B 9.7 in | Cover Length C1 1.544 in | Cover Length C1 1.644 in | Number of Bolts 6 |
| EUDR-5 | Type Open | Cover Diameter A 10.35 in | B 9.7 in | Cover Length C1 1.544 in | Cover Length C1 1.644 in | Number of Bolts 6 |
| EUDR-125MM | Type Open | Cover Diameter A 10.35 in | B 9.7 in | Cover Length C1 1.544 in | Cover Length C1 1.644 in | Number of Bolts 6 |
