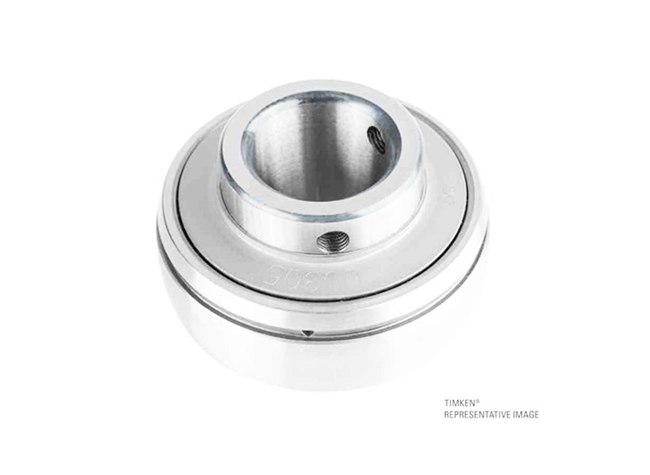

UC 200 Wide Inner Ring Ball Bearings - Set Screw Locking

Chi tiết sản phẩm

● The UC wide inner ring ball bearing uses a popular set screw locking mechanism and is suggested for industrial applications where normal loads are encountered.
● The set screw mounting feature is ideal for reversing load applications.
● Bearing prelubricated and ready for immediate installation.
● The wide inner ring provides effective shaft support for a broad range of industrial applications.
● The positive contact of the land-riding bonded nitrile seal helps protect against harmful contaminants and retains lubricant under severe operating conditions.
● An external steel flinger provides additional protection from contamination.
● The UC series features superfinished raceways, grade-10 balls for smooth running and low noise operation.
● UC series wide inner ring ball bearings have spherical outside diameters for use in housings with corresponding spherical inside surfaces to compensate for shaft misalignment.

Timken Part Number	Item #	Shaft Size d	Outside Diameter	Total Width	Static Load Rating	Dynamic Load Rating	Weight
UC201	Item # N/A UC201	Shaft Size d N/A 12 mm	Outside Diameter N/A 47.000 mm1.850 in	Total Width N/A 1.220 in31.00 mm	Static Load Rating N/A 1495 lbf6650 N	Dynamic Load Rating N/A 2878 lbf12800 N	Weight N/A 0.50 lb0.2 Kg
UC201-8	Item # N/A UC201-8	Shaft Size d N/A 1/2 in	Outside Diameter N/A 47.000 mm1.850 in	Total Width N/A 1.220 in31.00 mm	Static Load Rating N/A 1495 lbf6650 N	Dynamic Load Rating N/A 2878 lbf12800 N	Weight N/A 0.50 lb0.2 Kg
UC202	Item # N/A UC202	Shaft Size d N/A 15 mm	Outside Diameter N/A 47.000 mm1.850 in	Total Width N/A 1.220 in31.00 mm	Static Load Rating N/A 1495 lbf6650 N	Dynamic Load Rating N/A 2878 lbf12800 N	Weight N/A 0.50 lb0.2 Kg
UC202-10	Item # N/A UC202-10	Shaft Size d N/A 5/8 in	Outside Diameter N/A 47.000 mm1.850 in	Total Width N/A 1.220 in31.00 mm	Static Load Rating N/A 1495 lbf6650 N	Dynamic Load Rating N/A 2878 lbf12800 N	Weight N/A 0.50 lb0.2 Kg
UC203	Item # N/A UC203	Shaft Size d N/A 17 mm	Outside Diameter N/A 47.000 mm1.850 in	Total Width N/A 1.220 in31.00 mm	Static Load Rating N/A 1495 lbf6650 N	Dynamic Load Rating N/A 2878 lbf12800 N	Weight N/A 0.50 lb0.2 Kg
UC204-12	Item # N/A UC204-12	Shaft Size d N/A 3/4 in	Outside Diameter N/A 47.000 mm1.850 in	Total Width N/A 1.220 in31.00 mm	Static Load Rating N/A 1495 lbf6650 N	Dynamic Load Rating N/A 2878 lbf12800 N	Weight N/A 0.50 lb0.2 Kg
UC204	Item # N/A UC204	Shaft Size d N/A 20 mm	Outside Diameter N/A 47.000 mm1.850 in	Total Width N/A 1.220 in31.00 mm	Static Load Rating N/A 1495 lbf6650 N	Dynamic Load Rating N/A 2878 lbf12800 N	Weight N/A 0.50 lb0.2 Kg
UC205-14	Item # N/A UC205-14	Shaft Size d N/A 7/8 in	Outside Diameter N/A 52.000 mm2.047 in	Total Width N/A 1.343 in34.10 mm	Static Load Rating N/A 1765 lbf7850 N	Dynamic Load Rating N/A 3147 lbf14000 N	Weight N/A 0.50 lb0.2 Kg
UC205-15	Item # N/A UC205-15	Shaft Size d N/A 15/16 in	Outside Diameter N/A 52.000 mm2.047 in	Total Width N/A 1.343 in34.10 mm	Static Load Rating N/A 1765 lbf7850 N	Dynamic Load Rating N/A 3147 lbf14000 N	Weight N/A 0.50 lb0.2 Kg
UC205	Item # N/A UC205	Shaft Size d N/A 25 mm	Outside Diameter N/A 52.000 mm2.047 in	Total Width N/A 1.343 in34.10 mm	Static Load Rating N/A 1765 lbf7850 N	Dynamic Load Rating N/A 3147 lbf14000 N	Weight N/A 0.50 lb0.2 Kg
UC205-16	Item # N/A UC205-16	Shaft Size d N/A 1 in	Outside Diameter N/A 52.000 mm2.047 in	Total Width N/A 1.343 in34.10 mm	Static Load Rating N/A 1765 lbf7850 N	Dynamic Load Rating N/A 3147 lbf14000 N	Weight N/A 0.50 lb0.2 Kg
UC206-18	Item # N/A UC206-18	Shaft Size d N/A 1 1/8 in	Outside Diameter N/A 62.000 mm2.441 in	Total Width N/A 1.500 in38.10 mm	Static Load Rating N/A 2540 lbf11300 N	Dynamic Load Rating N/A 4385 lbf19500 N	Weight N/A 0.7 lb0.3 Kg
UC206	Item # N/A UC206	Shaft Size d N/A 30 mm	Outside Diameter N/A 62.000 mm2.441 in	Total Width N/A 1.500 in38.10 mm	Static Load Rating N/A 2540 lbf11300 N	Dynamic Load Rating N/A 4385 lbf19500 N	Weight N/A 0.7 lb0.3 Kg
UC206-19	Item # N/A UC206-19	Shaft Size d N/A 1 3/16 in	Outside Diameter N/A 62.000 mm2.441 in	Total Width N/A 1.500 in38.10 mm	Static Load Rating N/A 2540 lbf11300 N	Dynamic Load Rating N/A 4385 lbf19500 N	Weight N/A 0.7 lb0.3 Kg
UC206-20	Item # N/A UC206-20	Shaft Size d N/A 1 1/4 in	Outside Diameter N/A 62.000 mm2.441 in	Total Width N/A 1.500 in38.10 mm	Static Load Rating N/A 2540 lbf11300 N	Dynamic Load Rating N/A 4385 lbf19500 N	Weight N/A 0.7 lb0.3 Kg
UC207-20	Item # N/A UC207-20	Shaft Size d N/A 1 1/4 in	Outside Diameter N/A 72.000 mm2.835 in	Total Width N/A 1.689 in42.90 mm	Static Load Rating N/A 3462 lbf15400 N	Dynamic Load Rating N/A 5778 lbf25700 N	Weight N/A 1.12 lb0.5 Kg
UC207-22	Item # N/A UC207-22	Shaft Size d N/A 1 3/8 in	Outside Diameter N/A 72.000 mm2.835 in	Total Width N/A 1.689 in42.90 mm	Static Load Rating N/A 3462 lbf15400 N	Dynamic Load Rating N/A 5778 lbf25700 N	Weight N/A 1.12 lb0.5 Kg
UC207	Item # N/A UC207	Shaft Size d N/A 35 mm	Outside Diameter N/A 72.000 mm2.835 in	Total Width N/A 1.689 in42.90 mm	Static Load Rating N/A 3462 lbf15400 N	Dynamic Load Rating N/A 5778 lbf25700 N	Weight N/A 1.12 lb0.5 Kg
UC207-23	Item # N/A UC207-23	Shaft Size d N/A 1 7/16 in	Outside Diameter N/A 72.000 mm2.835 in	Total Width N/A 1.689 in42.90 mm	Static Load Rating N/A 3462 lbf15400 N	Dynamic Load Rating N/A 5778 lbf25700 N	Weight N/A 1.12 lb0.5 Kg
UC208-24	Item # N/A UC208-24	Shaft Size d N/A 1 1/2 in	Outside Diameter N/A 80.000 mm3.1500 in	Total Width N/A 1.937 in49.20 mm	Static Load Rating N/A 4002 lbf17800 N	Dynamic Load Rating N/A 6542 lbf29100 N	Weight N/A 1.5 lb0.70 Kg
UC208-25	Item # N/A UC208-25	Shaft Size d N/A 1 9/16 in	Outside Diameter N/A 80.000 mm3.1500 in	Total Width N/A 1.937 in49.20 mm	Static Load Rating N/A 4002 lbf17800 N	Dynamic Load Rating N/A 6542 lbf29100 N	Weight N/A 1.5 lb0.70 Kg
UC208	Item # N/A UC208	Shaft Size d N/A 40 mm	Outside Diameter N/A 80.000 mm3.1500 in	Total Width N/A 1.937 in49.20 mm	Static Load Rating N/A 4002 lbf17800 N	Dynamic Load Rating N/A 6542 lbf29100 N	Weight N/A 1.5 lb0.70 Kg
UC209-26	Item # N/A UC209-26	Shaft Size d N/A 1 5/8 in	Outside Diameter N/A 85.000 mm3.346 in	Total Width N/A 1.937 in49.20 mm	Static Load Rating N/A 4788 lbf21300 N	Dynamic Load Rating N/A 7666 lbf34100 N	Weight N/A 1.80 lb0.8 Kg
UC209-27	Item # N/A UC209-27	Shaft Size d N/A 1 11/16 in	Outside Diameter N/A 85.000 mm3.346 in	Total Width N/A 1.937 in49.20 mm	Static Load Rating N/A 4788 lbf21300 N	Dynamic Load Rating N/A 7666 lbf34100 N	Weight N/A 1.80 lb0.8 Kg
UC209-28	Item # N/A UC209-28	Shaft Size d N/A 1 3/4 in	Outside Diameter N/A 85.000 mm3.346 in	Total Width N/A 1.937 in49.20 mm	Static Load Rating N/A 4788 lbf21300 N	Dynamic Load Rating N/A 7666 lbf34100 N	Weight N/A 1.80 lb0.8 Kg

UC218-56	Item # N/A UC218-56	Shaft Size d N/A 3 1/2 in	Outside Diameter N/A 160.000 mm6.299 in	Total Width N/A 3.780 in96.00 mm	Static Load Rating N/A 16074 lbf71500 N	Dynamic Load Rating N/A 21604 lbf96100 N	Weight N/A 9.800 lb4.5 Kg
UC218	Item # N/A UC218	Shaft Size d N/A 90 mm	Outside Diameter N/A 160.000 mm6.299 in	Total Width N/A 3.780 in96.00 mm	Static Load Rating N/A 16074 lbf71500 N	Dynamic Load Rating N/A 21604 lbf96100 N	Weight N/A 9.600 lb4.40 Kg

UC209	Item # N/A UC209	Shaft Size d N/A 45 mm	Outside Diameter N/A 85.000 mm3.346 in	Total Width N/A 1.937 in49.20 mm	Static Load Rating N/A 4788 lbf21300 N	Dynamic Load Rating N/A 7666 lbf34100 N	Weight N/A 1.80 lb0.8 Kg
UC210-30	Item # N/A UC210-30	Shaft Size d N/A 1 7/8 in	Outside Diameter N/A 90.000 mm3.543 in	Total Width N/A 2.031 in51.60 mm	Static Load Rating N/A 5238 lbf23300 N	Dynamic Load Rating N/A 7891 lbf35100 N	Weight N/A 2.00 lb0.9 Kg
UC207-21	Item # N/A UC207-21	Shaft Size d N/A 1 15/16 in	Outside Diameter N/A 72.000 mm2.835 in	Total Width N/A 1.689 in42.90 mm	Static Load Rating N/A 3462 lbf15400 N	Dynamic Load Rating N/A 5778 lbf25700 N	Weight N/A 1.12 lb0.5 Kg
UC210-31	Item # N/A UC210-31	Shaft Size d N/A 1 15/16 in	Outside Diameter N/A 90.000 mm3.543 in	Total Width N/A 2.031 in51.60 mm	Static Load Rating N/A 5238 lbf23300 N	Dynamic Load Rating N/A 7891 lbf35100 N	Weight N/A 2.00 lb0.9 Kg
UC210	Item # N/A UC210	Shaft Size d N/A 50 mm	Outside Diameter N/A 90.000 mm3.543 in	Total Width N/A 2.031 in51.60 mm	Static Load Rating N/A 5238 lbf23300 N	Dynamic Load Rating N/A 7891 lbf35100 N	Weight N/A 2.00 lb0.9 Kg
UC210-32	Item # N/A UC210-32	Shaft Size d N/A 2 in	Outside Diameter N/A 90.000 mm3.543 in	Total Width N/A 2.031 in51.60 mm	Static Load Rating N/A 5238 lbf23300 N	Dynamic Load Rating N/A 7891 lbf35100 N	Weight N/A 2.00 lb0.9 Kg
UC211-32	Item # N/A UC211-32	Shaft Size d N/A 2 in	Outside Diameter N/A 100.000 mm3.937 in	Total Width N/A 2.189 in55.60 mm	Static Load Rating N/A 6609 lbf29400 N	Dynamic Load Rating N/A 9757 lbf43400 N	Weight N/A 2.8 lb1.30 Kg
UC211-34	Item # N/A UC211-34	Shaft Size d N/A 2 1/8 in	Outside Diameter N/A 100.000 mm3.937 in	Total Width N/A 2.189 in55.60 mm	Static Load Rating N/A 6609 lbf29400 N	Dynamic Load Rating N/A 9757 lbf43400 N	Weight N/A 2.6 lb1.20 Kg
UC211	Item # N/A UC211	Shaft Size d N/A 55 mm	Outside Diameter N/A 100.000 mm3.937 in	Total Width N/A 2.189 in55.60 mm	Static Load Rating N/A 6609 lbf29400 N	Dynamic Load Rating N/A 9757 lbf43400 N	Weight N/A 2.4 lb1.1 Kg
UC211-35	Item # N/A UC211-35	Shaft Size d N/A 2 3/16 in	Outside Diameter N/A 100.000 mm3.937 in	Total Width N/A 2.189 in55.60 mm	Static Load Rating N/A 6609 lbf29400 N	Dynamic Load Rating N/A 9757 lbf43400 N	Weight N/A 2.4 lb1.1 Kg
UC212-36	Item # N/A UC212-36	Shaft Size d N/A 2 1/4 in	Outside Diameter N/A 110.000 mm4.331 in	Total Width N/A 2.563 in65.10 mm	Static Load Rating N/A 8138 lbf36200 N	Dynamic Load Rating N/A 11780 lbf52400 N	Weight N/A 3.7 lb1.70 Kg
UC212	Item # N/A UC212	Shaft Size d N/A 60 mm	Outside Diameter N/A 110.000 mm4.331 in	Total Width N/A 2.563 in65.10 mm	Static Load Rating N/A 8138 lbf36200 N	Dynamic Load Rating N/A 11780 lbf52400 N	Weight N/A 3.40 lb1.50 Kg
UC212-38	Item # N/A UC212-38	Shaft Size d N/A 2 3/8 in	Outside Diameter N/A 110.000 mm4.331 in	Total Width N/A 2.563 in65.10 mm	Static Load Rating N/A 8138 lbf36200 N	Dynamic Load Rating N/A 11780 lbf52400 N	Weight N/A 3.40 lb1.50 Kg
UC212-39	Item # N/A UC212-39	Shaft Size d N/A 2 7/16 in	Outside Diameter N/A 110.000 mm4.331 in	Total Width N/A 2.563 in65.10 mm	Static Load Rating N/A 8138 lbf36200 N	Dynamic Load Rating N/A 11780 lbf52400 N	Weight N/A 3.40 lb1.50 Kg
UC213-40	Item # N/A UC213-40	Shaft Size d N/A 2 1/2 in	Outside Diameter N/A 120.000 mm4.724 in	Total Width N/A 2.563 in65.10 mm	Static Load Rating N/A 9015 lbf40100 N	Dynamic Load Rating N/A 12859 lbf57200 N	Weight N/A 4.3 lb1.9 Kg
UC213	Item # N/A UC213	Shaft Size d N/A 65 mm	Outside Diameter N/A 120.000 mm4.724 in	Total Width N/A 2.563 in65.10 mm	Static Load Rating N/A 9015 lbf40100 N	Dynamic Load Rating N/A 12859 lbf57200 N	Weight N/A 4.3 lb1.9 Kg
UC214-44	Item # N/A UC214-44	Shaft Size d N/A 2 3/4 in	Outside Diameter N/A 125.000 mm4.921 in	Total Width N/A 2.937 in74.60 mm	Static Load Rating N/A 9914 lbf44100 N	Dynamic Load Rating N/A 13983 lbf62200 N	Weight N/A 4.5 lb2.10 Kg
UC214	Item # N/A UC214	Shaft Size d N/A 70 mm	Outside Diameter N/A 125.000 mm4.921 in	Total Width N/A 2.937 in74.60 mm	Static Load Rating N/A 9914 lbf44100 N	Dynamic Load Rating N/A 13983 lbf62200 N	Weight N/A 4.5 lb2.10 Kg
UC215-47	Item # N/A UC215-47	Shaft Size d N/A 2 15/16 in	Outside Diameter N/A 130.000 mm5.118 in	Total Width N/A 3.063 in77.80 mm	Static Load Rating N/A 10858 lbf48300 N	Dynamic Load Rating N/A 15152 lbf67400 N	Weight N/A 4.9 lb2.20 Kg
UC215	Item # N/A UC215	Shaft Size d N/A 75 mm	Outside Diameter N/A 130.000 mm5.118 in	Total Width N/A 3.063 in77.80 mm	Static Load Rating N/A 10858 lbf48300 N	Dynamic Load Rating N/A 15152 lbf67400 N	Weight N/A 4.9 lb2.20 Kg
UC215-48	Item # N/A UC215-48	Shaft Size d N/A 3 in	Outside Diameter N/A 130.000 mm5.118 in	Total Width N/A 3.063 in77.80 mm	Static Load Rating N/A 10858 lbf48300 N	Dynamic Load Rating N/A 15152 lbf67400 N	Weight N/A 4.9 lb2.20 Kg
UC216-50	Item # N/A UC216-50	Shaft Size d N/A 3 1/8 in	Outside Diameter N/A 140.000 mm5.512 in	Total Width N/A 3.252 in82.60 mm	Static Load Rating N/A 11915 lbf53000 N	Dynamic Load Rating N/A 16344 lbf72700 N	Weight N/A 6.300 lb2.80 Kg
UC216	Item # N/A UC216	Shaft Size d N/A 80 mm	Outside Diameter N/A 140.000 mm5.512 in	Total Width N/A 3.252 in82.60 mm	Static Load Rating N/A 11915 lbf53000 N	Dynamic Load Rating N/A 16344 lbf72700 N	Weight N/A 6.300 lb2.80 Kg
UC217-52	Item # N/A UC217-52	Shaft Size d N/A 3 1/4 in	Outside Diameter N/A 150.000 mm5.906 in	Total Width N/A 3.374 in85.70 mm	Static Load Rating N/A 13916 lbf61900 N	Dynamic Load Rating N/A 18884 lbf84000 N	Weight N/A 8.1 lb3.7 Kg
UC217	Item # N/A UC217	Shaft Size d N/A 85 mm	Outside Diameter N/A 150.000 mm5.906 in	Total Width N/A 3.374 in85.70 mm	Static Load Rating N/A 13916 lbf61900 N	Dynamic Load Rating N/A 18884 lbf84000 N	Weight N/A 7.6 lb3.5 Kg
