(Not available for sale in US)

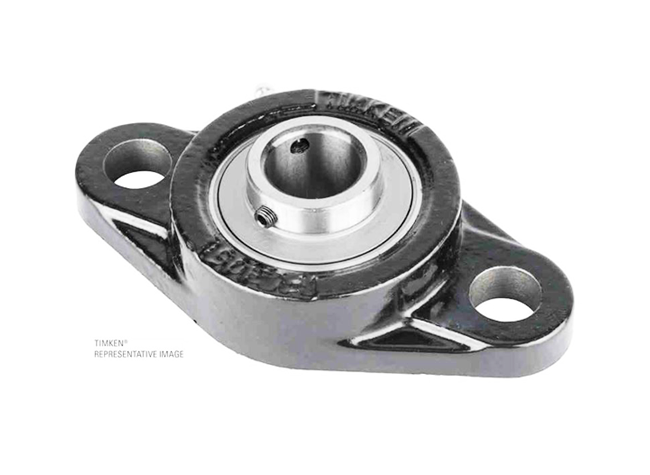

● UCFL two-bolt flanged units are suggested for industrial applications where heavy loads are encountered.
● This series is primarily designed for applications where the mounting area is restricted.
● Each unit comes assembled and ready for mounting, using bolts through the flange.
● These units use wide inner ring ball bearings with self-aligning spherical outside diameters that compensate for shaft misalignment.
● Timken UCFL series housed units feature the Timken set screw locking (UC) bearing insert.
● Bearing prelubricated and ready for immediate installation.
● Grease fitting supplied for relubrication.
● The bonded seal design is well-suited for applications involving wet or dirty environments.
● Bolt-hole spacing dimensions and shaft center location are interchangeable with competitive units.
● Housing designed for ease of bearing replacement.
| Timken Part Number | Bearing Number | Shaft Size d | Static Load Rating | Dynamic Load Rating | Weight |
| UCFL305 | Bearing Number UC305 | Shaft Size d 25 mm | Static Load Rating 2450 lbf10900 N | Dynamic Load Rating 4766 lbf21200 N | Weight 2.4 lb1.1 Kg |
| UCFL305-16 | Bearing Number UC305-16 | Shaft Size d 1 in | Static Load Rating 2450 lbf10900 N | Dynamic Load Rating 4766 lbf21200 N | Weight 2.4 lb1.1 Kg |
| UCFL306 | Bearing Number UC306 | Shaft Size d 30 mm | Static Load Rating 3372 lbf15000 N | Dynamic Load Rating 6002 lbf26700 N | Weight 3.3 lb1.50 Kg |
| UCFL307 | Bearing Number UC307 | Shaft Size d 35 mm | Static Load Rating 4339 lbf19300 N | Dynamic Load Rating 7509 lbf33400 N | Weight 4.0 lb1.80 Kg |
| UCFL308-24 | Bearing Number UC308-24 | Shaft Size d 1 1/2 in | Static Load Rating 5395 lbf24000 N | Dynamic Load Rating 9150 lbf40700 N | Weight 5.5 lb2.5 Kg |
| UCFL308 | Bearing Number UC308 | Shaft Size d 40 mm | Static Load Rating 5395 lbf24000 N | Dynamic Load Rating 9150 lbf40700 N | Weight 5.5 lb2.5 Kg |
| UCFL309-28 | Bearing Number UC309-28 | Shaft Size d 1 3/4 in | Static Load Rating 6632 lbf29500 N | Dynamic Load Rating 10993 lbf48899 N | Weight 7.7 lb3.5 Kg |
| UCFL309 | Bearing Number UC309 | Shaft Size d 45 mm | Static Load Rating 6632 lbf29500 N | Dynamic Load Rating 10993 lbf48900 N | Weight 7.7 lb3.5 Kg |
| UCFL310 | Bearing Number UC310 | Shaft Size d 50 mm | Static Load Rating 8610 lbf38300 N | Dynamic Load Rating 13938 lbf62000 N | Weight 9.7 lb4.40 Kg |
| UCFL311-32 | Bearing Number UC311-32 | Shaft Size d 2 in | Static Load Rating 10116 lbf45000 N | Dynamic Load Rating 16096 lbf71599 N | Weight 11.7 lb5.30 Kg |
| UCFL311 | Bearing Number UC311 | Shaft Size d 55 mm | Static Load Rating 10116 lbf45000 N | Dynamic Load Rating 16096 lbf71600 N | Weight 11.7 lb5.30 Kg |
| UCFL311-35 | Bearing Number UC311-35 | Shaft Size d 2 3/16 in | Static Load Rating 10116 lbf45000 N | Dynamic Load Rating 16096 lbf71599 N | Weight 11.7 lb5.30 Kg |
| UCFL312 | Bearing Number UC312 | Shaft Size d 60 mm | Static Load Rating 11735 lbf52200 N | Dynamic Load Rating 18412 lbf81900 N | Weight 14.3 lb6.50 Kg |
| UCFL312-39 | Bearing Number UC312-39 | Shaft Size d 2 7/16 in | Static Load Rating 11735 lbf52200 N | Dynamic Load Rating 18412 lbf81901 N | Weight 14.3 lb6.50 Kg |
| UCFL313-40 | Bearing Number UC313-40 | Shaft Size d 2 1/2 in | Static Load Rating 13466 lbf59900 N | Dynamic Load Rating 20840 lbf92701 N | Weight 18.7 lb8.50 Kg |
| UCFL313 | Bearing Number UC313 | Shaft Size d 65 mm | Static Load Rating 13466 lbf59900 N | Dynamic Load Rating 20840 lbf92700 N | Weight 18.7 lb8.50 Kg |
| UCFL314-44 | Bearing Number UC314-44 | Shaft Size d 2 3/4 in | Static Load Rating 15332 lbf68200 N | Dynamic Load Rating 23380 lbf103999 N | Weight 21.4 lb9.70 Kg |
| UCFL314 | Bearing Number UC314 | Shaft Size d 70 mm | Static Load Rating 15332 lbf68200 N | Dynamic Load Rating 23380 lbf104000 N | Weight 21.4 lb9.70 Kg |
| UCFL315-47 | Bearing Number UC315-47 | Shaft Size d 2 15/16 in | Static Load Rating 17355 lbf77200 N | Dynamic Load Rating 25403 lbf112998 N | Weight 24.9 lb11.3 Kg |
| UCFL315 | Bearing Number UC315 | Shaft Size d 75 mm | Static Load Rating 17355 lbf77200 N | Dynamic Load Rating 25403 lbf113000 N | Weight 24.9 lb11.3 Kg |
| UCFL315-48 | Bearing Number UC315-48 | Shaft Size d 3 in | Static Load Rating 17355 lbf77200 N | Dynamic Load Rating 25403 lbf112998 N | Weight 24.9 lb11.3 Kg |
| UCFL316 | Bearing Number UC316 | Shaft Size d 80 mm | Static Load Rating 19491 lbf86700 N | Dynamic Load Rating 27651 lbf123000 N | Weight 31.7 lb14.40 Kg |
| UCFL317 | Bearing Number UC317 | Shaft Size d 85 mm | Static Load Rating 21762 lbf96800 N | Dynamic Load Rating 29900 lbf133000 N | Weight 35.3 lb16.00 Kg |
| UCFL318-56 | Bearing Number UC318-56 | Shaft Size d 3 1/2 in | Static Load Rating 24055 lbf107000 N | Dynamic Load Rating 32148 lbf143001 N | Weight 41.9 lb19.00 Kg |
| UCFL318 | Bearing Number UC318 | Shaft Size d 90 mm | Static Load Rating 24055 lbf107000 N | Dynamic Load Rating 32148 lbf143000 N | Weight 41.9 lb19.00 Kg |
| UCFL319 | Bearing Number UC319 | Shaft Size d 95 mm | Static Load Rating 26752 lbf119000 N | Dynamic Load Rating 34396 lbf153000 N | Weight 54.2 lb24.60 Kg |
| UCFL320 | Bearing Number UC320 | Shaft Size d 100 mm | Static Load Rating 31698 lbf141000 N | Dynamic Load Rating 38892 lbf173000 N | Weight 64.8 lb29.40 Kg |
| UCFL320-63 | Bearing Number UC320-63 | Shaft Size d 3 15/16 in | Static Load Rating 31698 lbf141000 N | Dynamic Load Rating 38892 lbf173000 N | Weight 64.8 lb29.40 Kg |
| UCFL320-64 | Bearing Number UC320-64 | Shaft Size d 4 in | Static Load Rating 31698 lbf141000 N | Dynamic Load Rating 38892 lbf173000 N | Weight 64.8 lb29.40 Kg |
| UCFL322 | Bearing Number UC322 | Shaft Size d 110 mm | Static Load Rating 40466 lbf180000 N | Dynamic Load Rating 46086 lbf205000 N | Weight 79.8 lb36.20 Kg |
| UCFL324 | Bearing Number UC324 | Shaft Size d 120 mm | Static Load Rating 41590 lbf185000 N | Dynamic Load Rating 46535 lbf207000 N | Weight 113.8 lb51.60 Kg |
| UCFL326 | Bearing Number UC326 | Shaft Size d 130 mm | Static Load Rating 48109 lbf214000 N | Dynamic Load Rating 51481 lbf229000 N | Weight 135.8 lb61.60 Kg |
