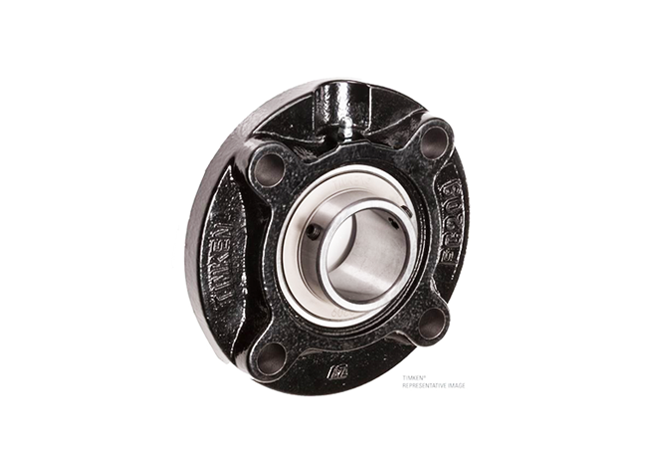

● UCFC piloted flanged units are suggested for industrial applications where normal loads are encountered.
● UCFC piloted round flanged units ensure accurate mounting fits and provide better support for heavy loads.
● Each unit comes assembled and ready for mounting, using bolts through the flange.
● These units use wide inner ring ball bearings with self-aligning spherical outside diameters that compensate for shaft misalignment.
● Timken UCFC series housed units feature the Timken set screw locking (UC) bearing insert.
● Bearing prelubricated and ready for immediate installation.
● Grease fitting supplied for relubrication.
● The bonded seal design is well-suited for industrial applications involving wet or dirty environments.
● Bolt-hole spacing dimensions and shaft center location are interchangeable with competitive units.
| Timken Part Number | Bearing Number | Shaft Size d | Static Load Rating | Dynamic Load Rating | Weight |
| UCFC201 | Bearing Number UC201 | Shaft Size d 12 mm | Static Load Rating 1495 lbf6650 N | Dynamic Load Rating 2878 lbf12800 N | Weight 1.5 lb0.70 Kg |
| UCFC201-8 | Bearing Number UC201-8 | Shaft Size d 1/2 in | Static Load Rating 1495 lbf6650 N | Dynamic Load Rating 2878 lbf12800 N | Weight 1.5 lb0.70 Kg |
| UCFC202 | Bearing Number UC202 | Shaft Size d 15 mm | Static Load Rating 1495 lbf6650 N | Dynamic Load Rating 2878 lbf12800 N | Weight 1.5 lb0.70 Kg |
| UCFC202-10 | Bearing Number UC202-10 | Shaft Size d 5/8 in | Static Load Rating 1495 lbf6650 N | Dynamic Load Rating 2878 lbf12800 N | Weight 1.5 lb0.70 Kg |
| UCFC203 | Bearing Number UC203 | Shaft Size d 17 mm | Static Load Rating 1495 lbf6650 N | Dynamic Load Rating 2878 lbf12800 N | Weight 1.5 lb0.70 Kg |
| UCFC204-12 | Bearing Number UC204-12 | Shaft Size d 3/4 in | Static Load Rating 1495 lbf6650 N | Dynamic Load Rating 2878 lbf12800 N | Weight 1.5 lb0.70 Kg |
| UCFC204 | Bearing Number UC204 | Shaft Size d 20 mm | Static Load Rating 1495 lbf6650 N | Dynamic Load Rating 2878 lbf12800 N | Weight 1.5 lb0.70 Kg |
| UCFC205-14 | Bearing Number UC205-14 | Shaft Size d 7/8 in | Static Load Rating 1765 lbf7850 N | Dynamic Load Rating 3147 lbf14000 N | Weight 2.2 lb1.0 Kg |
| UCFC205-15 | Bearing Number UC205-15 | Shaft Size d 15/16 in | Static Load Rating 1765 lbf7850 N | Dynamic Load Rating 3147 lbf14000 N | Weight 2.2 lb1.0 Kg |
| UCFC205 | Bearing Number UC205 | Shaft Size d 25 mm | Static Load Rating 1765 lbf7850 N | Dynamic Load Rating 3147 lbf14000 N | Weight 2.2 lb1.0 Kg |
| UCFC205-16 | Bearing Number UC205-16 | Shaft Size d 1 in | Static Load Rating 1765 lbf7850 N | Dynamic Load Rating 3147 lbf14000 N | Weight 2.2 lb1.0 Kg |
| UCFC206-18 | Bearing Number UC206-18 | Shaft Size d 1 1/8 in | Static Load Rating 2540 lbf11300 N | Dynamic Load Rating 4384 lbf19500 N | Weight 2.9 lb1.30 Kg |
| UCFC206 | Bearing Number UC206 | Shaft Size d 30 mm | Static Load Rating 2540 lbf11300 N | Dynamic Load Rating 4384 lbf19500 N | Weight 2.9 lb1.30 Kg |
| UCFC206-19 | Bearing Number UC206-19 | Shaft Size d 1 3/16 in | Static Load Rating 2540 lbf11300 N | Dynamic Load Rating 4384 lbf19500 N | Weight 2.9 lb1.30 Kg |
| UCFC206-20 | Bearing Number UC206-20 | Shaft Size d 1 1/4 in | Static Load Rating 2540 lbf11300 N | Dynamic Load Rating 4384 lbf19500 N | Weight 2.9 lb1.30 Kg |
| UCFC207-20 | Bearing Number UC207-20 | Shaft Size d 1 1/4 in | Static Load Rating 3462 lbf15400 N | Dynamic Load Rating 5778 lbf25700 N | Weight 3.7 lb1.70 Kg |
| UCFC207-22 | Bearing Number UC207-22 | Shaft Size d 1 3/8 in | Static Load Rating 3462 lbf15400 N | Dynamic Load Rating 5778 lbf25700 N | Weight 3.7 lb1.70 Kg |
| UCFC207 | Bearing Number UC207 | Shaft Size d 35 mm | Static Load Rating 3462 lbf15400 N | Dynamic Load Rating 5778 lbf25700 N | Weight 3.7 lb1.70 Kg |
| UCFC207-23 | Bearing Number UC207-23 | Shaft Size d 1 7/16 in | Static Load Rating 3462 lbf15400 N | Dynamic Load Rating 5778 lbf25700 N | Weight 3.7 lb1.70 Kg |
| UCFC208-24 | Bearing Number UC208-24 | Shaft Size d 1 1/2 in | Static Load Rating 4002 lbf17800 N | Dynamic Load Rating 6542 lbf29100 N | Weight 4.4 lb2.0 Kg |
| UCFC208-25 | Bearing Number UC208-25 | Shaft Size d 1 9/16 in | Static Load Rating 4002 lbf17800 N | Dynamic Load Rating 6542 lbf29100 N | Weight 4.4 lb2.0 Kg |
| UCFC208 | Bearing Number UC208 | Shaft Size d 40 mm | Static Load Rating 4002 lbf17800 N | Dynamic Load Rating 6542 lbf29100 N | Weight 4.4 lb2.0 Kg |
| UCFC209-26 | Bearing Number UC209-26 | Shaft Size d 1 5/8 in | Static Load Rating 4788 lbf21300 N | Dynamic Load Rating 7666 lbf34100 N | Weight 5.7 lb2.6 Kg |
| UCFC209-27 | Bearing Number UC209-27 | Shaft Size d 1 11/16 in | Static Load Rating 4788 lbf21300 N | Dynamic Load Rating 7666 lbf34100 N | Weight 5.7 lb2.6 Kg |
| UCFC209-28 | Bearing Number UC209-28 | Shaft Size d 1 3/4 in | Static Load Rating 4788 lbf21300 N | Dynamic Load Rating 7666 lbf34100 N | Weight 5.7 lb2.6 Kg |
| UCFC209 | Bearing Number UC209 | Shaft Size d 45 mm | Static Load Rating 4788 lbf21300 N | Dynamic Load Rating 7666 lbf34100 N | Weight 5.7 lb2.6 Kg |
| UCFC210-30 | Bearing Number UC210-30 | Shaft Size d 1 7/8 in | Static Load Rating 5238 lbf23300 N | Dynamic Load Rating 7891 lbf35100 N | Weight 6.4 lb2.90 Kg |
| UCFC207-21 | Bearing Number UC207-21 | Shaft Size d 1 5/16 in | Static Load Rating 3462 lbf15400 N | Dynamic Load Rating 5778 lbf25700 N | Weight 3.7 lb1.70 Kg |
| UCFC210-31 | Bearing Number UC210-31 | Shaft Size d 1 15/16 in | Static Load Rating 5238 lbf23300 N | Dynamic Load Rating 7891 lbf35100 N | Weight 6.4 lb2.90 Kg |
| UCFC210 | Bearing Number UC210 | Shaft Size d 50 mm | Static Load Rating 5238 lbf23300 N | Dynamic Load Rating 7891 lbf35100 N | Weight 6.4 lb2.90 Kg |
| UCFC210-32 | Bearing Number UC210-32 | Shaft Size d 2 in | Static Load Rating 5238 lbf23300 N | Dynamic Load Rating 7891 lbf35100 N | Weight 6.4 lb2.90 Kg |
| UCFC211-32 | Bearing Number UC211-32 | Shaft Size d 2 in | Static Load Rating 6609 lbf29400 N | Dynamic Load Rating 9757 lbf43400 N | Weight 9.300 lb4.200 Kg |
| UCFC211-34 | Bearing Number UC211-34 | Shaft Size d 2 1/8 in | Static Load Rating 6609 lbf29400 N | Dynamic Load Rating 9757 lbf43400 N | Weight 9.300 lb4.200 Kg |
| UCFC211 | Bearing Number UC211 | Shaft Size d 55 mm | Static Load Rating 6609 lbf29400 N | Dynamic Load Rating 9757 lbf43400 N | Weight 9.300 lb4.200 Kg |
| UCFC211-35 | Bearing Number UC211-35 | Shaft Size d 2 3/16 in | Static Load Rating 6609 lbf29400 N | Dynamic Load Rating 9757 lbf43400 N | Weight 9.300 lb4.200 Kg |
| UCFC212-36 | Bearing Number UC212-36 | Shaft Size d 2 1/4 in | Static Load Rating 8138 lbf36200 N | Dynamic Load Rating 11780 lbf52400 N | Weight 11.0 lb5.0 Kg |
| UCFC212 | Bearing Number UC212 | Shaft Size d 60 mm | Static Load Rating 8138 lbf36200 N | Dynamic Load Rating 11780 lbf52400 N | Weight 11.0 lb5.0 Kg |
| UCFC212-38 | Bearing Number UC212-38 | Shaft Size d 2 3/8 in | Static Load Rating 8138 lbf36200 N | Dynamic Load Rating 11780 lbf52400 N | Weight 11.0 lb5.0 Kg |
| UCFC212-39 | Bearing Number UC212-39 | Shaft Size d 2 7/16 in | Static Load Rating 8138 lbf36200 N | Dynamic Load Rating 11780 lbf52400 N | Weight 11.0 lb5.0 Kg |
| UCFC213-40 | Bearing Number UC213-40 | Shaft Size d 2 1/2 in | Static Load Rating 9015 lbf40100 N | Dynamic Load Rating 12859 lbf57200 N | Weight 12.3 lb5.60 Kg |
| UCFC213 | Bearing Number UC213 | Shaft Size d 65 mm | Static Load Rating 9015 lbf40100 N | Dynamic Load Rating 12859 lbf57200 N | Weight 12.3 lb5.60 Kg |
| UCFC214-44 | Bearing Number UC214-44 | Shaft Size d 2 3/4 in | Static Load Rating 9914 lbf44100 N | Dynamic Load Rating 13983 lbf62200 N | Weight 15.0 lb6.8 Kg |
| UCFC214 | Bearing Number UC214 | Shaft Size d 70 mm | Static Load Rating 9914 lbf44100 N | Dynamic Load Rating 13983 lbf62200 N | Weight 15.0 lb6.8 Kg |
| UCFC215-47 | Bearing Number UC215-47 | Shaft Size d 2 15/16 in | Static Load Rating 10858 lbf48300 N | Dynamic Load Rating 15152 lbf67400 N | Weight 15.900 lb7.20 Kg |
| UCFC215 | Bearing Number UC215 | Shaft Size d 75 mm | Static Load Rating 10858 lbf48300 N | Dynamic Load Rating 15152 lbf67400 N | Weight 15.900 lb7.20 Kg |
| UCFC215-48 | Bearing Number UC215-48 | Shaft Size d 3 in | Static Load Rating 10858 lbf48300 N | Dynamic Load Rating 15152 lbf67400 N | Weight 15.900 lb7.20 Kg |
| UCFC216-50 | Bearing Number UC216-50 | Shaft Size d 3 1/8 in | Static Load Rating 11915 lbf53000 N | Dynamic Load Rating 16344 lbf72700 N | Weight 19.200 lb8.700 Kg |
| UCFC216 | Bearing Number UC216 | Shaft Size d 80 mm | Static Load Rating 11915 lbf53000 N | Dynamic Load Rating 16344 lbf72700 N | Weight 19.200 lb8.700 Kg |
| UCFC217-52 | Bearing Number UC217-52 | Shaft Size d 3 1/4 in | Static Load Rating 13916 lbf61900 N | Dynamic Load Rating 18884 lbf84000 N | Weight 25.800 lb11.70 Kg |
| UCFC217 | Bearing Number UC217 | Shaft Size d 85 mm | Static Load Rating 13916 lbf61900 N | Dynamic Load Rating 18884 lbf84000 N | Weight 25.800 lb11.70 Kg |
| UCFC218-56 | Bearing Number UC218-56 | Shaft Size d 3 1/2 in | Static Load Rating 16074 lbf71500 N | Dynamic Load Rating 21604 lbf96100 N | CAD  |
| UCFC218 | Bearing Number UC218 | Shaft Size d 90 mm | Static Load Rating 16074 lbf71500 N | Dynamic Load Rating 21604 lbf96100 N | CAD |
