(Not available for sale in US)

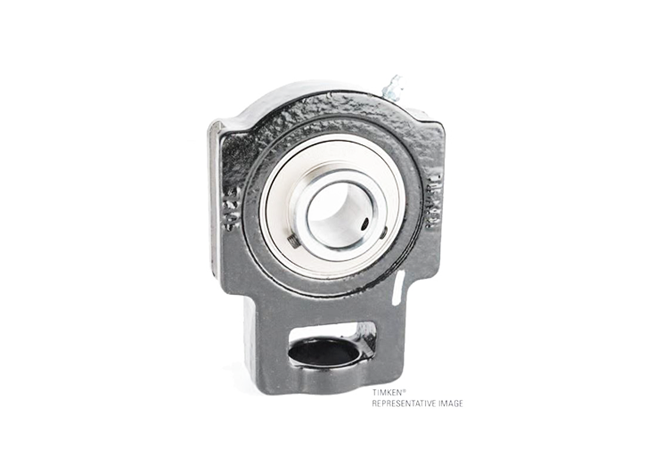

● UCT take-up units are suggested for industrial applications where heavy loads are encountered.
● UCT take-up units are used where shaft adjustment and belt-tightening devices are required, such as in conveyor applications.
● These units provide compact, efficient supports for adjustable shafts and conveyer take-up pulleys.
● Each unit comes assembled and ready for mounting.
● These units use wide inner ring ball bearings with self-aligning spherical outside diameters that compensate for shaft misalignment.
● Timken UCT series housed units feature the Timken set screw locking (UC) bearing insert.
● Bearing prelubricated and ready for immediate installation.
● Grease fitting supplied for relubrication.
● The bonded seal design is well-suited for industrial applications involving wet or dirty environments.
● Slot spacing and width are interchangeable with competitive units.
● Housing designed for ease of bearing replacement.
| Timken Part Number | Bearing Number | Shaft Size d | Static Load Rating | Dynamic Load Rating | Weight |
| UCT305 | Bearing Number UC305 | Shaft Size d 25 mm | Static Load Rating 2450 lbf10900 N | Dynamic Load Rating 4766 lbf21200 N | Weight 3.1 lb1.4 Kg |
| UCT305-16 | Bearing Number UC305-16 | Shaft Size d 1 in | Static Load Rating 2450 lbf10898 N | Dynamic Load Rating 4766 lbf21200 N | Weight 3.0 lb1.36 Kg |
| UCT306 | Bearing Number UC306 | Shaft Size d 30 mm | Static Load Rating 3372 lbf15000 N | Dynamic Load Rating 6002 lbf26700 N | Weight 4.0 lb1.80 Kg |
| UCT307 | Bearing Number UC307 | Shaft Size d 35 mm | Static Load Rating 4339 lbf19300 N | Dynamic Load Rating 7509 lbf33400 N | Weight 5.1 lb2.30 Kg |
| UCT308-24 | Bearing Number UC308-24 | Shaft Size d 1 1/2 in | Static Load Rating 5395 lbf23998 N | Dynamic Load Rating 9150 lbf40701 N | Weight 6.6 lb2.99 Kg |
| UCT308 | Bearing Number UC308 | Shaft Size d 40 mm | Static Load Rating 5395 lbf24000 N | Dynamic Load Rating 9150 lbf40700 N | Weight 6.6 lb3.0 Kg |
| UCT309-28 | Bearing Number UC309-28 | Shaft Size d 1 3/4 in | Static Load Rating 6632 lbf29501 N | Dynamic Load Rating 10993 lbf48899 N | Weight 9.0 lb4.08 Kg |
| UCT309 | Bearing Number UC309 | Shaft Size d 45 mm | Static Load Rating 6632 lbf29500 N | Dynamic Load Rating 10993 lbf48900 N | Weight 9.0 lb4.10 Kg |
| UCT310 | Bearing Number UC310 | Shaft Size d 50 mm | Static Load Rating 8610 lbf38300 N | Dynamic Load Rating 13938 lbf62000 N | Weight 10.8 lb4.90 Kg |
| UCT311-32 | Bearing Number UC311-32 | Shaft Size d 2 in | Static Load Rating 10116 lbf44998 N | Dynamic Load Rating 16096 lbf71599 N | Weight 13.4 lb6.08 Kg |
| UCT311 | Bearing Number UC311 | Shaft Size d 55 mm | Static Load Rating 10116 lbf45000 N | Dynamic Load Rating 16096 lbf71600 N | Weight 13.4 lb6.10 Kg |
| UCT311-35 | Bearing Number UC311-35 | Shaft Size d 2 3/16 in | Static Load Rating 10116 lbf44998 N | Dynamic Load Rating 16096 lbf71599 N | Weight 13.4 lb6.08 Kg |
| UCT312 | Bearing Number UC312 | Shaft Size d 60 mm | Static Load Rating 11735 lbf52200 N | Dynamic Load Rating 18412 lbf81900 N | Weight 16.8 lb7.6 Kg |
| UCT312-39 | Bearing Number UC312-39 | Shaft Size d 2 7/16 in | Static Load Rating 11735 lbf52200 N | Dynamic Load Rating 18412 lbf81901 N | Weight 16.7 lb7.57 Kg |
| UCT313-40 | Bearing Number UC313-40 | Shaft Size d 2 1/2 in | Static Load Rating 13466 lbf59900 N | Dynamic Load Rating 20840 lbf92701 N | Weight 20.50 lb9.30 Kg |
| UCT313 | Bearing Number UC313 | Shaft Size d 65 mm | Static Load Rating 13466 lbf59900 N | Dynamic Load Rating 20840 lbf92700 N | Weight 20.50 lb9.30 Kg |
| UCT314-44 | Bearing Number UC314-44 | Shaft Size d 2 3/4 in | Static Load Rating 15332 lbf68200 N | Dynamic Load Rating 23380 lbf103999 N | Weight 24.4 lb11.07 Kg |
| UCT314 | Bearing Number UC314 | Shaft Size d 70 mm | Static Load Rating 15332 lbf68200 N | Dynamic Load Rating 23380 lbf104000 N | Weight 24.50 lb11.10 Kg |
| UCT315-47 | Bearing Number UC315-47 | Shaft Size d 2 15/16 in | Static Load Rating 17355 lbf77199 N | Dynamic Load Rating 25403 lbf112998 N | Weight 28.6 lb12.97 Kg |
| UCT315 | Bearing Number UC315 | Shaft Size d 75 mm | Static Load Rating 17355 lbf77200 N | Dynamic Load Rating 25403 lbf113000 N | Weight 28.7 lb13.00 Kg |
| UCT315-48 | Bearing Number UC315-48 | Shaft Size d 3 in | Static Load Rating 17355 lbf77199 N | Dynamic Load Rating 32148 lbf143001 N | Weight 28.6 lb12.97 Kg |
| UCT316 | Bearing Number UC316 | Shaft Size d 80 mm | Static Load Rating 19491 lbf86700 N | Dynamic Load Rating 27651 lbf123000 N | Weight 35.7 lb16.20 Kg |
| UCT317 | Bearing Number UC317 | Shaft Size d 85 mm | Static Load Rating 21762 lbf96800 N | Dynamic Load Rating 29900 lbf133000 N | Weight 41.9 lb19.00 Kg |
| UCT318-56 | Bearing Number UC318-56 | Shaft Size d 3 1/2 in | Static Load Rating 24055 lbf107002 N | Dynamic Load Rating 34396 lbf153001 N | Weight 47.6 lb21.59 Kg |
| UCT318 | Bearing Number UC318 | Shaft Size d 90 mm | Static Load Rating 24055 lbf107000 N | Dynamic Load Rating 32148 lbf143000 N | Weight 47.6 lb21.60 Kg |
| UCT319 | Bearing Number UC319 | Shaft Size d 95 mm | Static Load Rating 26752 lbf119000 N | Dynamic Load Rating 34396 lbf153000 N | Weight 54.9 lb24.90 Kg |
| UCT320 | Bearing Number UC320 | Shaft Size d 100 mm | Static Load Rating 31698 lbf141000 N | Dynamic Load Rating 38892 lbf173000 N | Weight 67.7 lb30.70 Kg |
| UCT320-63 | Bearing Number UC320-63 | Shaft Size d 3 15/16 in | Static Load Rating 31698 lbf141000 N | Dynamic Load Rating 38892 lbf173000 N | Weight 67.6 lb30.66 Kg |
| UCT320-64 | Bearing Number UC320-64 | Shaft Size d 4 in | Static Load Rating 31698 lbf141000 N | Dynamic Load Rating 38892 lbf173000 N | Weight 67.6 lb30.66 Kg |
| UCT321 | Bearing Number UC321 | Shaft Size d 105 mm | Static Load Rating 34396 lbf153000 N | Dynamic Load Rating 41365 lbf184000 N | Weight 80.9 lb36.70 Kg |
| UCT322 | Bearing Number UC322 | Shaft Size d 110 mm | Static Load Rating 40466 lbf180000 N | Dynamic Load Rating 46086 lbf205000 N | Weight 87.5 lb39.70 Kg |
| UCT324 | Bearing Number UC324 | Shaft Size d 120 mm | Static Load Rating 41590 lbf185000 N | Dynamic Load Rating 46535 lbf207000 N | Weight 119.9 lb54.40 Kg |
| UCT326 | Bearing Number UC326 | Shaft Size d 130 mm | Static Load Rating 48109 lbf214000 N | Dynamic Load Rating 51481 lbf229000 N | Weight 152.8 lb69.3 Kg |
| UCT328 | Bearing Number UC328 | Shaft Size d 140 mm | Static Load Rating 55303 lbf246000 N | Dynamic Load Rating 56877 lbf253000 N | Weight 187.6 lb85.10 Kg |
