(Not available for sale in US)

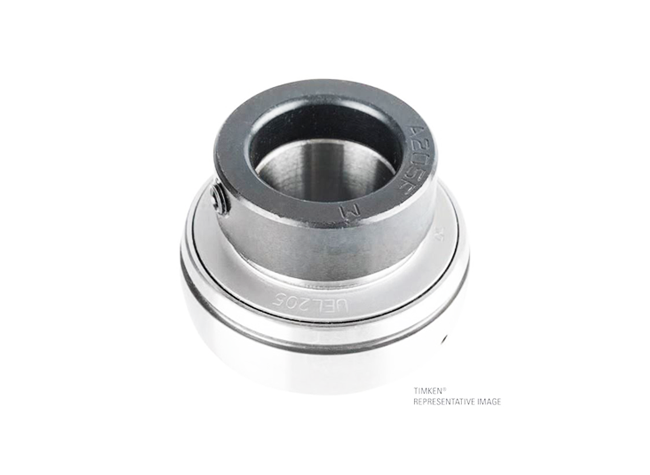

● The UEL wide inner ring ball bearing uses an eccentric locking collar mechanism and is suggested for industrial applications where normal loads are encountered.
● The eccentric locking feature is ideal for non-reversing load applications.
● Bearing prelubricated and ready for immediate installation.
● The wide inner ring provides effective shaft support for a broad range of industrial applications.
● The positive contact of the land-riding bonded nitrile seal helps protect against harmful contaminants and retains lubricant under severe operating conditions.
● An external steel flinger provides additional protection from contamination.
● The UEL series features superfinished raceways, grade-10 balls for smooth running and low noise operation.
● UEL series wide inner ring ball bearings have spherical outside diameters for use in housings with corresponding spherical
| Timken Part Number | Item # | Shaft Size d | Outside Diameter | Total Width | Static Load Rating | Dynamic Load Rating | Weight |
| UEL201 | Item # UEL201 | Shaft Size d 12 mm | Outside Diameter 47.000 mm1.850 in | Total Width 1.720 in43.70 mm | Static Load Rating 1495 lbf6650 N | Dynamic Load Rating 2878 lbf12800 N | Weight 0.6 lb0.3 Kg |
| UEL201-8 | Item # UEL201-8 | Shaft Size d 1/2 in | Outside Diameter 47.000 mm1.850 in | Total Width 1.720 in43.70 mm | Static Load Rating 1495 lbf6650 N | Dynamic Load Rating 2878 lbf12800 N | Weight 0.6 lb0.3 Kg |
| UEL202 | Item # UEL202 | Shaft Size d 15 mm | Outside Diameter 47.000 mm1.850 in | Total Width 1.720 in43.70 mm | Static Load Rating 1495 lbf6650 N | Dynamic Load Rating 2878 lbf12800 N | Weight 0.6 lb0.3 Kg |
| UEL202-10 | Item # UEL202-10 | Shaft Size d 5/8 in | Outside Diameter 47.000 mm1.850 in | Total Width 1.720 in43.70 mm | Static Load Rating 1495 lbf6650 N | Dynamic Load Rating 2878 lbf12800 N | Weight 0.6 lb0.3 Kg |
| UEL203 | Item # UEL203 | Shaft Size d 17 mm | Outside Diameter 47.000 mm1.850 in | Total Width 1.720 in43.70 mm | Static Load Rating 1495 lbf6650 N | Dynamic Load Rating 2878 lbf12800 N | Weight 0.6 lb0.3 Kg |
| UEL204-12 | Item # UEL204-12 | Shaft Size d 3/4 in | Outside Diameter 47.000 mm1.850 in | Total Width 1.720 in43.70 mm | Static Load Rating 1495 lbf6650 N | Dynamic Load Rating 2878 lbf12800 N | Weight 0.50 lb0.2 Kg |
| UEL204 | Item # UEL204 | Shaft Size d 20 mm | Outside Diameter 47.000 mm1.850 in | Total Width 1.720 in43.70 mm | Static Load Rating 1495 lbf6650 N | Dynamic Load Rating 2878 lbf12800 N | Weight 0.50 lb0.2 Kg |
| UEL205-14 | Item # UEL205-14 | Shaft Size d 7/8 in | Outside Diameter 52.000 mm2.047 in | Total Width 1.748 in44.40 mm | Static Load Rating 1765 lbf7850 N | Dynamic Load Rating 3147 lbf14000 N | Weight 0.6 lb0.3 Kg |
| UEL205-15 | Item # UEL205-15 | Shaft Size d 15/16 in | Outside Diameter 52.000 mm2.047 in | Total Width 1.748 in44.40 mm | Static Load Rating 1765 lbf7850 N | Dynamic Load Rating 3147 lbf14000 N | Weight 0.6 lb0.3 Kg |
| UEL205 | Item # UEL205 | Shaft Size d 25 mm | Outside Diameter 52.000 mm2.047 in | Total Width 1.748 in44.40 mm | Static Load Rating 1765 lbf7850 N | Dynamic Load Rating 3147 lbf14000 N | Weight 0.6 lb0.3 Kg |
| UEL205-16 | Item # UEL205-16 | Shaft Size d 1 in | Outside Diameter 52.000 mm2.047 in | Total Width 1.748 in44.40 mm | Static Load Rating 1765 lbf7850 N | Dynamic Load Rating 3147 lbf14000 N | Weight 0.6 lb0.3 Kg |
| UEL206-18 | Item # UEL206-18 | Shaft Size d 1 1/8 in | Outside Diameter 62.000 mm2.441 in | Total Width 1.906 in48.40 mm | Static Load Rating 2540 lbf11300 N | Dynamic Load Rating 4384 lbf19500 N | Weight 0.9 lb0.4 Kg |
| UEL206 | Item # UEL206 | Shaft Size d 30 mm | Outside Diameter 62.000 mm2.441 in | Total Width 1.906 in48.40 mm | Static Load Rating 2540 lbf11300 N | Dynamic Load Rating 4384 lbf19500 N | Weight 0.9 lb0.4 Kg |
| UEL206-19 | Item # UEL206-19 | Shaft Size d 1 3/16 in | Outside Diameter 62.000 mm2.441 in | Total Width 1.906 in48.40 mm | Static Load Rating 2540 lbf11300 N | Dynamic Load Rating 4384 lbf19500 N | Weight 0.9 lb0.4 Kg |
| UEL206-20 | Item # UEL206-20 | Shaft Size d 1 1/4 in | Outside Diameter 62.000 mm2.441 in | Total Width 1.906 in48.40 mm | Static Load Rating 2540 lbf11300 N | Dynamic Load Rating 4384 lbf19500 N | Weight 0.8 lb0.4 Kg |
| UEL207-20 | Item # UEL207-20 | Shaft Size d 1 1/4 in | Outside Diameter 72.000 mm2.835 in | Total Width 2.012 in51.10 mm | Static Load Rating 3462 lbf15400 N | Dynamic Load Rating 5778 lbf25700 N | Weight 1.5 lb0.70 Kg |
| UEL207-21 | Item # UEL207-21 | Shaft Size d 1 5/16 in | Outside Diameter 72.000 mm2.835 in | Total Width 2.012 in51.10 mm | Static Load Rating 3462 lbf15400 N | Dynamic Load Rating 5778 lbf25700 N | Weight 1.4 lb0.70 Kg |
| UEL207-22 | Item # UEL207-22 | Shaft Size d 1 3/8 in | Outside Diameter 72.000 mm2.835 in | Total Width 2.012 in51.10 mm | Static Load Rating 3462 lbf15400 N | Dynamic Load Rating 5778 lbf25700 N | Weight 1.30 lb0.6 Kg |
| UEL207 | Item # UEL207 | Shaft Size d 35 mm | Outside Diameter 72.000 mm2.835 in | Total Width 2.012 in51.10 mm | Static Load Rating 3462 lbf15400 N | Dynamic Load Rating 5778 lbf25700 N | Weight 1.30 lb0.6 Kg |
| UEL207-23 | Item # UEL207-23 | Shaft Size d 1 7/16 in | Outside Diameter 72.000 mm2.835 in | Total Width 2.012 in51.10 mm | Static Load Rating 3462 lbf15400 N | Dynamic Load Rating 5778 lbf25700 N | Weight 1.30 lb0.6 Kg |
| UEL208-24 | Item # UEL208-24 | Shaft Size d 1 1/2 in | Outside Diameter 80.000 mm3.1500 in | Total Width 2.217 in56.30 mm | Static Load Rating 4002 lbf17800 N | Dynamic Load Rating 6542 lbf29100 N | Weight 1.80 lb0.8 Kg |
| UEL208-25 | Item # UEL208-25 | Shaft Size d 1 9/16 in | Outside Diameter 80.000 mm3.1500 in | Total Width 2.217 in56.30 mm | Static Load Rating 4002 lbf17800 N | Dynamic Load Rating 6542 lbf29100 N | Weight 1.7 lb0.8 Kg |
| UEL208 | Item # UEL208 | Shaft Size d 40 mm | Outside Diameter 80.000 mm3.1500 in | Total Width 2.217 in56.30 mm | Static Load Rating 4002 lbf17800 N | Dynamic Load Rating 6542 lbf29100 N | Weight 1.7 lb0.8 Kg |
| UEL209-26 | Item # UEL209-26 | Shaft Size d 1 5/8 in | Outside Diameter 85.000 mm3.346 in | Total Width 2.217 in56.30 mm | Static Load Rating 4788 lbf21300 N | Dynamic Load Rating 7666 lbf34100 N | Weight 2.1 lb1.0 Kg |
| UEL209-27 | Item # UEL209-27 | Shaft Size d 1 11/16 in | Outside Diameter 85.000 mm3.346 in | Total Width 2.217 in56.30 mm | Static Load Rating 4788 lbf21300 N | Dynamic Load Rating 7666 lbf34100 N | Weight 2.00 lb0.9 Kg |
| UEL209-28 | Item # UEL209-28 | Shaft Size d 1 3/4 in | Outside Diameter 85.000 mm3.346 in | Total Width 2.217 in56.30 mm | Static Load Rating 4788 lbf21300 N | Dynamic Load Rating 7666 lbf34100 N | Weight 1.9 lb0.9 Kg |
| UEL209 | Item # UEL209 | Shaft Size d 45 mm | Outside Diameter 85.000 mm3.346 in | Total Width 2.217 in56.30 mm | Static Load Rating 4788 lbf21300 N | Dynamic Load Rating 7666 lbf34100 N | Weight 1.9 lb0.9 Kg |
| UEL210-30 | Item # UEL210-30 | Shaft Size d 1 7/8 in | Outside Diameter 90.000 mm3.543 in | Total Width 2.469 in62.70 mm | Static Load Rating 5238 lbf23300 N | Dynamic Load Rating 7891 lbf35100 N | Weight 2.4 lb1.1 Kg |
| UEL210-31 | Item # UEL210-31 | Shaft Size d 1 15/16 in | Outside Diameter 90.000 mm3.543 in | Total Width 2.469 in62.70 mm | Static Load Rating 5238 lbf23300 N | Dynamic Load Rating 7891 lbf35100 N | Weight 2.3 lb1.0 Kg |
| UEL210 | Item # UEL210 | Shaft Size d 50 mm | Outside Diameter 90.000 mm3.543 in | Total Width 2.469 in62.70 mm | Static Load Rating 5238 lbf23300 N | Dynamic Load Rating 7891 lbf35100 N | Weight 2.2 lb1.0 Kg |
| UEL210-32 | Item # UEL210-32 | Shaft Size d 2 in | Outside Diameter 90.000 mm3.543 in | Total Width 2.469 in62.70 mm | Static Load Rating 5238 lbf23300 N | Dynamic Load Rating 7891 lbf35100 N | Weight 2.2 lb1.0 Kg |
| UEL211-32 | Item # UEL211-32 | Shaft Size d 2 in | Outside Diameter 100.000 mm3.937 in | Total Width 2.811 in71.40 mm | Static Load Rating 6609 lbf29400 N | Dynamic Load Rating 9757 lbf43400 N | Weight 3.5 lb1.60 Kg |
| UEL211-34 | Item # UEL211-34 | Shaft Size d 2 1/8 in | Outside Diameter 100.000 mm3.937 in | Total Width 2.811 in71.40 mm | Static Load Rating 6609 lbf29400 N | Dynamic Load Rating 9757 lbf43400 N | Weight 3.3 lb1.50 Kg |
| UEL211 | Item # UEL211 | Shaft Size d 55 mm | Outside Diameter 100.000 mm3.937 in | Total Width 2.811 in71.40 mm | Static Load Rating 6609 lbf29400 N | Dynamic Load Rating 9757 lbf43400 N | Weight 3.1 lb1.4 Kg |
| UEL211-35 | Item # UEL211-35 | Shaft Size d 2 3/16 in | Outside Diameter 100.000 mm3.937 in | Total Width 2.811 in71.40 mm | Static Load Rating 6609 lbf29400 N | Dynamic Load Rating 9757 lbf43400 N | Weight 3.0 lb1.4 Kg |
| UEL212-36 | Item # UEL212-36 | Shaft Size d 2 1/4 in | Outside Diameter 110.000 mm4.331 in | Total Width 3.063 in77.80 mm | Static Load Rating 8138 lbf36200 N | Dynamic Load Rating 11780 lbf52400 N | Weight 4.5 lb2.0 Kg |
| UEL212 | Item # UEL212 | Shaft Size d 60 mm | Outside Diameter 110.000 mm4.331 in | Total Width 3.063 in77.80 mm | Static Load Rating 8138 lbf36200 N | Dynamic Load Rating 11780 lbf52400 N | Weight 4.1 lb1.9 Kg |
| UEL212-39 | Item # UEL212-39 | Shaft Size d 2 7/16 in | Outside Diameter 110.000 mm4.331 in | Total Width 3.063 in77.80 mm | Static Load Rating 8138 lbf36200 N | Dynamic Load Rating 11780 lbf52400 N | Weight 4.1 lb1.9 Kg |
| UEL213-40 | Item # UEL213-40 | Shaft Size d 2 1/2 in | Outside Diameter 120.000 mm4.724 in | Total Width 3.374 in85.70 mm | Static Load Rating 9015 lbf40100 N | Dynamic Load Rating 12859 lbf57200 N | Weight 5.5 lb2.5 Kg |
| UEL213 | Item # UEL213 | Shaft Size d 65 mm | Outside Diameter 120.000 mm4.724 in | Total Width 3.374 in85.70 mm | Static Load Rating 9015 lbf40100 N | Dynamic Load Rating 12859 lbf57200 N | Weight 5.4 lb2.5 Kg |
| UEL214-44 | Item # UEL214-44 | Shaft Size d 2 3/4 in | Outside Diameter 125.000 mm4.921 in | Total Width 3.374 in85.70 mm | Static Load Rating 9914 lbf44100 N | Dynamic Load Rating 13983 lbf62200 N | Weight 6.5 lb2.90 Kg |
| UEL214 | Item # UEL214 | Shaft Size d 70 mm | Outside Diameter 125.000 mm4.921 in | Total Width 3.374 in85.70 mm | Static Load Rating 9914 lbf44100 N | Dynamic Load Rating 13983 lbf62200 N | Weight 6.4 lb2.90 Kg |
| UEL215-47 | Item # UEL215-47 | Shaft Size d 2.938 in | Outside Diameter 130.000 mm5.118 in | Total Width 3.626 in92.10 mm | Static Load Rating 10858 lbf48300 N | Dynamic Load Rating 15152 lbf67400 N | Weight 6.0 lb2.70 Kg |
| UEL215 | Item # UEL215 | Shaft Size d 75 mm | Outside Diameter 130.000 mm5.118 in | Total Width 3.626 in92.10 mm | Static Load Rating 10858 lbf48300 N | Dynamic Load Rating 15152 lbf67400 N | Weight 6.0 lb2.70 Kg |
| UEL215-48 | Item # UEL215-48 | Shaft Size d 3 in | Outside Diameter 130.000 mm5.118 in | Total Width 3.626 in92.10 mm | Static Load Rating 10858 lbf48300 N | Dynamic Load Rating 15152 lbf67400 N | Weight 6.0 lb2.70 Kg |
