Băng tải - Gàu tải > SKF > UELFC 200 Piloted Round Flanged Housed Units - Eccentric Locking Collar

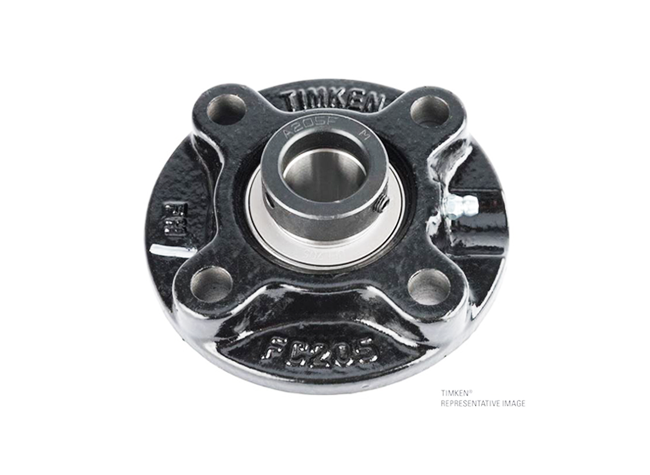

UELFC 200 Piloted Round Flanged Housed Units - Eccentric Locking Collar



(Not available for sale in US)
●   UELFC piloted round flanged units are suggested for industrial applications where normal loads are encountered.
●   UELFC piloted round flanged units ensure accurate mounting fits and provide better support for heavy loads.
●   Each unit comes assembled and ready for mounting, using bolts through the flange.
●   These units use wide inner ring ball bearings with self-aligning spherical outside diameters that compensate for shaft misalignment.
●   Timken UELFC series housed units feature the Timken eccentric locking collar (UEL) bearing insert.
●   Bearing prelubricated and ready for immediate installation.
●   Grease fitting supplied for relubrication.
●   The bonded seal design is well-suited for industrial applications involving wet or dirty environments.
●   Bolt-hole spacing dimensions and shaft center location are interchangeable with competitive units.
●   Housing designed for ease of bearing replacement.





Timken Part Number Bearing Number Shaft Size d Static Load Rating Dynamic Load Rating Weight
UELFC201 Bearing Number N/A UEL201 Shaft Size d N/A 12 mm Static Load Rating N/A 1495 lbf6650 N Dynamic Load Rating N/A 2878 lbf12800 N Weight N/A 1.9 lb0.86 Kg
UELFC201-8 Bearing Number N/A UEL201-8 Shaft Size d N/A 0.5 in Static Load Rating N/A 1495 lbf6650 N Dynamic Load Rating N/A 2878 lbf12800 N Weight N/A 1.9 lb0.86 Kg
UELFC202 Bearing Number N/A UEL202 Shaft Size d N/A 15 mm Static Load Rating N/A 1495 lbf6650 N Dynamic Load Rating N/A 2878 lbf12800 N Weight N/A 1.9 lb0.84 Kg
UELFC202-10 Bearing Number N/A UEL202-10 Shaft Size d N/A 0.625 in Static Load Rating N/A 1495 lbf6650 N Dynamic Load Rating N/A 2878 lbf12800 N Weight N/A 1.9 lb0.84 Kg
UELFC203 Bearing Number N/A UEL203 Shaft Size d N/A 17 mm Static Load Rating N/A 1495 lbf6650 N Dynamic Load Rating N/A 2878 lbf12800 N Weight N/A 1.80 lb0.82 Kg
UELFC204-12 Bearing Number N/A UEL204-12 Shaft Size d N/A 0.75 in Static Load Rating N/A 1495 lbf6650 N Dynamic Load Rating N/A 2878 lbf12800 N Weight N/A 1.7 lb0.79 Kg
UELFC204 Bearing Number N/A UEL204 Shaft Size d N/A 20 mm Static Load Rating N/A 1495 lbf6650 N Dynamic Load Rating N/A 2878 lbf12800 N Weight N/A 1.7 lb0.79 Kg
UELFC205-14 Bearing Number N/A UEL205-14 Shaft Size d N/A 0.875 in Static Load Rating N/A 1765 lbf7850 N Dynamic Load Rating N/A 3147 lbf14000 N Weight N/A 2.2 lb1.0 Kg
UELFC205-15 Bearing Number N/A UEL205-15 Shaft Size d N/A 0.9375 in Static Load Rating N/A 1765 lbf7850 N Dynamic Load Rating N/A 3147 lbf14000 N Weight N/A 2.2 lb1.0 Kg
UELFC205 Bearing Number N/A UEL205 Shaft Size d N/A 25 mm Static Load Rating N/A 1765 lbf7850 N Dynamic Load Rating N/A 3147 lbf14000 N Weight N/A 2.2 lb1.0 Kg
UELFC205-16 Bearing Number N/A UEL205-16 Shaft Size d N/A 1 in Static Load Rating N/A 1765 lbf7850 N Dynamic Load Rating N/A 3147 lbf14000 N Weight N/A 2.2 lb1.0 Kg
UELFC206-18 Bearing Number N/A UEL206-18 Shaft Size d N/A 1.125 in Static Load Rating N/A 2540 lbf11300 N Dynamic Load Rating N/A 4384 lbf19500 N Weight N/A 3.1 lb1.39 Kg
UELFC206 Bearing Number N/A UEL206 Shaft Size d N/A 30 mm Static Load Rating N/A 2540 lbf11300 N Dynamic Load Rating N/A 4384 lbf19500 N Weight N/A 3.1 lb1.39 Kg
UELFC206-19 Bearing Number N/A UEL206-19 Shaft Size d N/A 1.1875 in Static Load Rating N/A 2540 lbf11300 N Dynamic Load Rating N/A 4384 lbf19500 N Weight N/A 3.1 lb1.39 Kg
UELFC206-20 Bearing Number N/A UEL206-20 Shaft Size d N/A 1.25 in Static Load Rating N/A 2540 lbf11300 N Dynamic Load Rating N/A 4384 lbf19500 N Weight N/A 3.1 lb1.39 Kg
UELFC207-20 Bearing Number N/A UEL207-20 Shaft Size d N/A 1.25 in Static Load Rating N/A 3462 lbf15400 N Dynamic Load Rating N/A 5778 lbf25700 N Weight N/A 4.5 lb2.03 Kg
UELFC207-21 Bearing Number N/A UEL207-21 Shaft Size d N/A 1.3125 in Static Load Rating N/A 3462 lbf15400 N Dynamic Load Rating N/A 5778 lbf25700 N Weight N/A 4.5 lb2.03 Kg
UELFC207-22 Bearing Number N/A UEL207-22 Shaft Size d N/A 1.375 in Static Load Rating N/A 3462 lbf15400 N Dynamic Load Rating N/A 5778 lbf25700 N Weight N/A 4.5 lb2.03 Kg
UELFC207 Bearing Number N/A UEL207 Shaft Size d N/A 35 mm Static Load Rating N/A 3462 lbf15400 N Dynamic Load Rating N/A 5778 lbf25700 N Weight N/A 4.5 lb2.03 Kg
UELFC207-23 Bearing Number N/A UEL207-23 Shaft Size d N/A 1.4375 in Static Load Rating N/A 3462 lbf15400 N Dynamic Load Rating N/A 5778 lbf25700 N Weight N/A 4.5 lb2.03 Kg
UELFC208-24 Bearing Number N/A UEL208-24 Shaft Size d N/A 1.5 in Static Load Rating N/A 4002 lbf17800 N Dynamic Load Rating N/A 6542 lbf29100 N Weight N/A 4.7 lb2.14 Kg
UELFC208-25 Bearing Number N/A UEL208-25 Shaft Size d N/A 1.5625 in Static Load Rating N/A 4002 lbf17800 N Dynamic Load Rating N/A 6542 lbf29100 N Weight N/A 4.7 lb2.14 Kg
UELFC208 Bearing Number N/A UEL208 Shaft Size d N/A 40 mm Static Load Rating N/A 4002 lbf17800 N Dynamic Load Rating N/A 6542 lbf29100 N Weight N/A 4.7 lb2.14 Kg
UELFC209-26 Bearing Number N/A UEL209-26 Shaft Size d N/A 1.625 in Static Load Rating N/A 4788 lbf21300 N Dynamic Load Rating N/A 7666 lbf34100 N Weight N/A 6.1 lb2.77 Kg
UELFC209-27 Bearing Number N/A UEL209-27 Shaft Size d N/A 1.6875 in Static Load Rating N/A 4788 lbf21300 N Dynamic Load Rating N/A 7666 lbf34100 N Weight N/A 6.1 lb2.77 Kg
UELFC209-28 Bearing Number N/A UEL209-28 Shaft Size d N/A 1.75 in Static Load Rating N/A 4788 lbf21300 N Dynamic Load Rating N/A 7666 lbf34100 N Weight N/A 6.1 lb2.77 Kg
UELFC209 Bearing Number N/A UEL209 Shaft Size d N/A 45 mm Static Load Rating N/A 4788 lbf21300 N Dynamic Load Rating N/A 7666 lbf34100 N Weight N/A 6.1 lb2.77 Kg
UELFC210-30 Bearing Number N/A UEL210-30 Shaft Size d N/A 1.875 in Static Load Rating N/A 5238 lbf23300 N Dynamic Load Rating N/A 7891 lbf35100 N Weight N/A 6.9 lb3.11 Kg
UELFC210-31 Bearing Number N/A UEL210-31 Shaft Size d N/A 1.9375 in Static Load Rating N/A 5238 lbf23300 N Dynamic Load Rating N/A 7891 lbf35100 N Weight N/A 6.9 lb3.11 Kg
UELFC210 Bearing Number N/A UEL210 Shaft Size d N/A 50 mm Static Load Rating N/A 5238 lbf23300 N Dynamic Load Rating N/A 7891 lbf35100 N Weight N/A 6.9 lb3.11 Kg
UELFC210-32 Bearing Number N/A UEL210-32 Shaft Size d N/A 2 in Static Load Rating N/A 5238 lbf23300 N Dynamic Load Rating N/A 7891 lbf35100 N Weight N/A 6.9 lb3.11 Kg
UELFC211-32 Bearing Number N/A UEL211-32 Shaft Size d N/A 2 in Static Load Rating N/A 6609 lbf29400 N Dynamic Load Rating N/A 9757 lbf43400 N Weight N/A 9.9 lb4.48 Kg
UELFC211-34 Bearing Number N/A UEL211-34 Shaft Size d N/A 2.125 in Static Load Rating N/A 6609 lbf29400 N Dynamic Load Rating N/A 9757 lbf43400 N Weight N/A 9.9 lb4.48 Kg
UELFC211 Bearing Number N/A UEL211 Shaft Size d N/A 55 mm Static Load Rating N/A 6609 lbf29400 N Dynamic Load Rating N/A 9757 lbf43400 N Weight N/A 9.9 lb4.48 Kg
UELFC211-35 Bearing Number N/A UEL211-35 Shaft Size d N/A 2.1875 in Static Load Rating N/A 6609 lbf29400 N Dynamic Load Rating N/A 9757 lbf43400 N Weight N/A 9.9 lb4.48 Kg
UELFC212-36 Bearing Number N/A UEL212-36 Shaft Size d N/A 2.25 in Static Load Rating N/A 8138 lbf36200 N Dynamic Load Rating N/A 11780 lbf52400 N Weight N/A 11.8 lb5.33 Kg
UELFC212 Bearing Number N/A UEL212 Shaft Size d N/A 60 mm Static Load Rating N/A 8138 lbf36200 N Dynamic Load Rating N/A 11780 lbf52400 N Weight N/A 11.8 lb5.33 Kg
UELFC212-39 Bearing Number N/A UEL212-39 Shaft Size d N/A 2.4375 in Static Load Rating N/A 8138 lbf36200 N Dynamic Load Rating N/A 11780 lbf52400 N Weight N/A 11.8 lb5.33 Kg
UELFC213-40 Bearing Number N/A UEL213-40 Shaft Size d N/A 2.5 in Static Load Rating N/A 9015 lbf40100 N Dynamic Load Rating N/A 12859 lbf57200 N Weight N/A 13.6 lb6.19 Kg
UELFC213 Bearing Number N/A UEL213 Shaft Size d N/A 65 mm Static Load Rating N/A 9015 lbf40100 N Dynamic Load Rating N/A 12859 lbf57200 N Weight N/A 13.6 lb6.19 Kg
UELFC214-44 Bearing Number N/A UEL214-44 Shaft Size d N/A 2.75 in Static Load Rating N/A 9914 lbf44100 N Dynamic Load Rating N/A 13983 lbf62200 N Weight N/A 16.9 lb7.67 Kg
UELFC214 Bearing Number N/A UEL214 Shaft Size d N/A 70 mm Static Load Rating N/A 9914 lbf44100 N Dynamic Load Rating N/A 13983 lbf62200 N Weight N/A 16.9 lb7.67 Kg
UELFC215-47 Bearing Number N/A UEL215-47 Shaft Size d N/A 2.938 in Static Load Rating N/A 10858 lbf48300 N Dynamic Load Rating N/A 15152 lbf67400 N Weight N/A 17.0 lb7.73 Kg
UELFC215 Bearing Number N/A UEL215 Shaft Size d N/A 75 mm Static Load Rating N/A 10858 lbf48300 N Dynamic Load Rating N/A 15152 lbf67400 N Weight N/A 17.0 lb7.73 Kg
UELFC215-48 Bearing Number N/A UEL215-48 Shaft Size d N/A 3 in Static Load Rating N/A 10858 lbf48300 N Dynamic Load Rating N/A 15152 lbf67400 N Weight N/A 17.0 lb7.73 Kg
