Cylindrical Roller Radial Bearings - 5200, A5200 Metric Series

Chi tiết sản phẩm

The radial internal clearance (RIC) for the bearing assembly must be included when ordering either a) the complete assembly or b) with the inner-ring set.

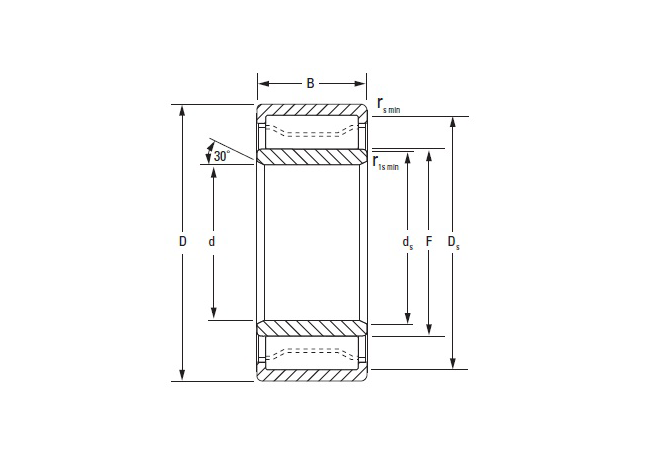

Timken Part Number	Bore d	O.D. D	Width B	DUR/DOR F/E	Static Load Rating C_o	Dynamic Load Rating C₁	Thermal Speed Ratings - Oil	Thermal Speed Ratings - Grease	Type
A-5220-WS	Bore d N/A 100 mm3.937 in	O.D. D N/A 180.000 mm7.0866 in	Width B N/A 60.325 mm2.3750 in	DUR/DOR F/E N/A 121.133 mm4.7690 in	Static Load Rating C_o N/A 594 kN134000 lbf	Dynamic Load Rating C₁ N/A 474 kN107000 lbf	Thermal Speed Ratings - Oil N/A 2800 rpm	Thermal Speed Ratings - Grease N/A 2500 rpm	Type N/A WS
A-5222-WS	Bore d N/A 110 mm4.3307 in	O.D. D N/A 200.000 mm7.8740 in	Width B N/A 69.850 mm2.7500 in	DUR/DOR F/E N/A 133.078 mm5.2393 in	Static Load Rating C_o N/A 790 kN178000 lbf	Dynamic Load Rating C₁ N/A 612 kN138000 lbf	Thermal Speed Ratings - Oil N/A 2400 rpm	Thermal Speed Ratings - Grease N/A 2100 rpm	Type N/A WS
A-5224-WS	Bore d N/A 120 mm4.7244 in	O.D. D N/A 215.000 mm8.4646 in	Width B N/A 76.200 mm3.0000 in	DUR/DOR F/E N/A 145.265 mm5.7191 in	Static Load Rating C_o N/A 952 kN214000 lbf	Dynamic Load Rating C₁ N/A 707 kN159000 lbf	Thermal Speed Ratings - Oil N/A 2200 rpm	Thermal Speed Ratings - Grease N/A 1900 rpm	Type N/A WS
A-5226-WS	Bore d N/A 130 mm5.1181 in	O.D. D N/A 230.000 mm9.0551 in	Width B N/A 79.375 mm3.1250 in	DUR/DOR F/E N/A 155.115 mm6.1069 in	Static Load Rating C_o N/A 1070 kN240000 lbf	Dynamic Load Rating C₁ N/A 795 kN179000 lbf	Thermal Speed Ratings - Oil N/A 2000 rpm	Thermal Speed Ratings - Grease N/A 1700 rpm	Type N/A WS
A-5228-WS	Bore d N/A 140 mm5.5118 in	O.D. D N/A 250.000 mm9.8425 in	Width B N/A 82.550 mm3.2500 in	DUR/DOR F/E N/A 168.603 mm6.6379 in	Static Load Rating C_o N/A 1210 kN272000 lbf	Dynamic Load Rating C₁ N/A 899 kN202000 lbf	Thermal Speed Ratings - Oil N/A 1700 rpm	Thermal Speed Ratings - Grease N/A 1600 rpm	Type N/A WS
A-5230-WS	Bore d N/A 150 mm5.9055 in	O.D. D N/A 270.000 mm10.6299 in	Width B N/A 88.900 mm3.5000 in	DUR/DOR F/E N/A 181.696 mm7.1534 in	Static Load Rating C_o N/A 1470 kN330000 lbf	Dynamic Load Rating C₁ N/A 1080 kN243000 lbf	Thermal Speed Ratings - Oil N/A 1500 rpm	Thermal Speed Ratings - Grease N/A 1400 rpm	Type N/A WS
A-5232-WS	Bore d N/A 160 mm6.2992 in	O.D. D N/A 290.000 mm11.4173 in	Width B N/A 98.425 mm3.8750 in	DUR/DOR F/E N/A 193.787 mm7.6294 in	Static Load Rating C_o N/A 1750 kN394000 lbf	Dynamic Load Rating C₁ N/A 1270 kN285000 lbf	Thermal Speed Ratings - Oil N/A 1400 rpm	Thermal Speed Ratings - Grease N/A 1200 rpm	Type N/A WS
A-5234-WS	Bore d N/A 170 mm6.6929 in	O.D. D N/A 310.000 mm12.2047 in	Width B N/A 104.775 mm4.1250 in	DUR/DOR F/E N/A 205.636 mm8.0959 in	Static Load Rating C_o N/A 2040 kN459000 lbf	Dynamic Load Rating C₁ N/A 1450 kN326000 lbf	Thermal Speed Ratings - Oil N/A 1200 rpm	Thermal Speed Ratings - Grease N/A 1100 rpm	Type N/A WS
A-5236-WS	Bore d N/A 180 mm7.0866 in	O.D. D N/A 320.000 mm12.5984 in	Width B N/A 107.950 mm4.2500 in	DUR/DOR F/E N/A 216.441 mm8.5213 in	Static Load Rating C_o N/A 2130 kN479000 lbf	Dynamic Load Rating C₁ N/A 1510 kN341000 lbf	Thermal Speed Ratings - Oil N/A 1200 rpm	Thermal Speed Ratings - Grease N/A 1100 rpm	Type N/A WS
A-5238-WS	Bore d N/A 190 mm7.4803 in	O.D. D N/A 340.000 mm13.3858 in	Width B N/A 114.300 mm4.5000 in	DUR/DOR F/E N/A 229.105 mm9.0199 in	Static Load Rating C_o N/A 2340 kN526000 lbf	Dynamic Load Rating C₁ N/A 1670 kN376000 lbf	Thermal Speed Ratings - Oil N/A 1100 rpm	Thermal Speed Ratings - Grease N/A 1010 rpm	Type N/A WS
A-5240-WM	Bore d N/A 200 mm7.874 in	O.D. D N/A 360.000 mm14.1732 in	Width B N/A 120.650 mm4.7500 in	DUR/DOR F/E N/A 242.369 mm9.5421 in	Static Load Rating C_o N/A 2370 kN534000 lbf	Dynamic Load Rating C₁ N/A 1600 kN360000 lbf	Thermal Speed Ratings - Oil N/A 1100 rpm	Thermal Speed Ratings - Grease N/A 990 rpm	Type N/A WM
A-5244-WM	Bore d N/A 220 mm8.6614 in	O.D. D N/A 400.000 mm15.7480 in	Width B N/A 133.350 mm5.2500 in	DUR/DOR F/E N/A 266.078 mm10.4755 in	Static Load Rating C_o N/A 3340 kN750000 lbf	Dynamic Load Rating C₁ N/A 2300 kN517000 lbf	Thermal Speed Ratings - Oil N/A 860 rpm	Thermal Speed Ratings - Grease N/A 790 rpm	Type N/A WM
A-5248-WM	Bore d N/A 240 mm9.4488 in	O.D. D N/A 440.000 mm17.3228 in	Width B N/A 146.050 mm5.7500 in	DUR/DOR F/E N/A 291.368 mm11.4712 in	Static Load Rating C_o N/A 4010 kN902000 lbf	Dynamic Load Rating C₁ N/A 2750 kN619000 lbf	Thermal Speed Ratings - Oil N/A 750 rpm	Thermal Speed Ratings - Grease N/A 690 rpm	Type N/A WM
