Băng tải - Gàu tải > Cylindrical Roller Radial Bearings - Four-Row

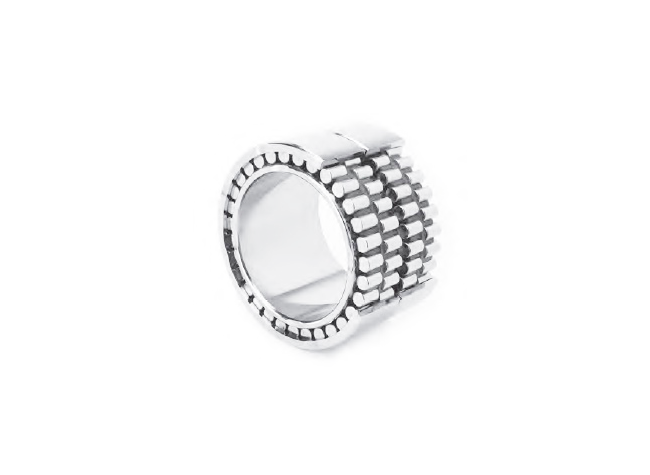

Cylindrical Roller Radial Bearings - Four-Row



Timken’s four-row cylindrical roller bearings are designed for the rigors of daily use in applications where moderate and high speeds, high radial loads, elevated temperatures and debris are constant challenges. Designed with well-balanced cross sections, these bearings provide high-radial-load capacity within the bearing envelope.

The radial internal clearance (RIC) for the bearing assembly must be included when ordering either a) the complete assembly or b) with the inner-ring set. It is advisable to order the inner-ring set independent of the outer ring set when the final grind of the inner-ring O.D. is accomplished after mounting on the roll neck.





Timken Part Number

  Bore d  O.D. D  Width B  Width C  DUR/DOR F/E  Static Load Rating Co  Dynamic Load Rating C1  Type
145RYL1452 Bore d N/A 145 mm5.7087 in O.D. D N/A 225.000 mm8.8583 in Width B N/A 156.000 mm6.1417 in Width C N/A 156.000 mm6.1417 in DUR/DOR F/E N/A 169.000 mm6.6535 in Static Load Rating Co N/A 1100 kN248000 lbf Dynamic Load Rating C1 N/A 1832 kN412000 lbf Type N/A RY-6
160RYL1468 Bore d N/A 160 mm6.2992 in O.D. D N/A 230.000 mm9.0551 in Width B N/A 130.000 mm5.1181 in Width C N/A 130.000 mm5.1181 in DUR/DOR F/E N/A 180.000 mm7.0866 in Static Load Rating Co N/A 856 kN192400 lbf Dynamic Load Rating C1 N/A 1352 kN30440 lbf Type N/A RY-6
160RYL1467 Bore d N/A 160 mm6.2992 in O.D. D N/A 230.000 mm9.0551 in Width B N/A 168.000 mm6.6142 in Width C N/A 168.000 mm6.6142 in DUR/DOR F/E N/A 179.000 mm7.0472 in Static Load Rating Co N/A 1188 kN268000 lbf Dynamic Load Rating C1 N/A 2224 kN500000 lbf Type N/A RY-6
165RYL1451 Bore d N/A 165.1 mm6.5 in O.D. D N/A 225.425 mm8.8750 in Width B N/A 168.275 mm6.6250 in Width C N/A 168.275 mm6.6250 in DUR/DOR F/E N/A 181.000 mm7.1260 in Static Load Rating Co N/A 1158 kN260000 lbf Dynamic Load Rating C1 N/A 2264 kN508000 lbf Type N/A RY-3
180RYL1527 Bore d N/A 180 mm7.0866 in O.D. D N/A 260.000 mm10.2362 in Width B N/A 168.000 mm6.6142 in Width C N/A 168.000 mm6.6142 in DUR/DOR F/E N/A 202.000 mm7.9528 in Static Load Rating Co N/A 1452 kN326000 lbf Dynamic Load Rating C1 N/A 2568 kN576000 lbf Type N/A RY-6
190RY1528 Bore d N/A 190 mm7.4803 in O.D. D N/A 260.000 mm10.2362 in Width B N/A 168.000 mm6.6142 in Width C N/A 168.000 mm6.6142 in DUR/DOR F/E N/A 212.000 mm8.3465 in Static Load Rating Co N/A 1288 kN290000 lbf Dynamic Load Rating C1 N/A 2604 kN584000 lbf Type N/A RY-1
190RY1543 Bore d N/A 190 mm7.4803 in O.D. D N/A 270.000 mm10.6299 in Width B N/A 200.000 mm7.8740 in Width C N/A 200.000 mm7.8740 in DUR/DOR F/E N/A 212.000 mm8.3465 in Static Load Rating Co N/A 1702 kN382000 lbf Dynamic Load Rating C1 N/A 3304 kN744000 lbf Type N/A RY-1
200RYL1544 Bore d N/A 200 mm7.874 in O.D. D N/A 270.000 mm10.6299 in Width B N/A 170.000 mm6.6929 in Width C N/A 170.000 mm6.6929 in DUR/DOR F/E N/A 222.000 mm8.7402 in Static Load Rating Co N/A 1334 kN300000 lbf Dynamic Load Rating C1 N/A 2788 kN628000 lbf Type N/A RY-6
200RYL1566 Bore d N/A 200 mm7.874 in O.D. D N/A 280.000 mm11.0236 in Width B N/A 170.000 mm6.6929 in Width C N/A 170.000 mm6.6929 in DUR/DOR F/E N/A 222.000 mm8.7402 in Static Load Rating Co N/A 1542 kN346000 lbf Dynamic Load Rating C1 N/A 2868 kN644000 lbf Type N/A RY-6
200RYL1567 Bore d N/A 200 mm7.874 in O.D. D N/A 280.000 mm11.0236 in Width B N/A 200.000 mm7.8740 in Width C N/A 200.000 mm7.8740 in DUR/DOR F/E N/A 222.000 mm8.7402 in Static Load Rating Co N/A 1730 kN388000 lbf Dynamic Load Rating C1 N/A 3424 kN768000 lbf Type N/A RY-6
200RYL1585 Bore d N/A 200 mm7.874 in O.D. D N/A 290.000 mm11.4173 in Width B N/A 192.000 mm7.5591 in Width C N/A 192.000 mm7.5591 in DUR/DOR F/E N/A 226.000 mm8.8976 in Static Load Rating Co N/A 1774 kN398000 lbf Dynamic Load Rating C1 N/A 3208 kN720000 lbf Type N/A RY-6
220RYL1621 Bore d N/A 220 mm8.6614 in O.D. D N/A 310.000 mm12.2047 in Width B N/A 192.000 mm7.5591 in Width C N/A 192.000 mm7.5591 in DUR/DOR F/E N/A 246.000 mm9.6850 in Static Load Rating Co N/A 1840 kN414000 lbf Dynamic Load Rating C1 N/A 3432 kN772000 lbf Type N/A RY-6
220RY1683 Bore d N/A 220 mm8.6614 in O.D. D N/A 340.000 mm13.3858 in Width B N/A 218.000 mm8.5827 in Width C N/A 218.000 mm8.5827 in DUR/DOR F/E N/A 257.180 mm10.1252 in Static Load Rating Co N/A 2320 kN522000 lbf Dynamic Load Rating C1 N/A 4160 kN932000 lbf Type N/A RY-1
230RYL1667 Bore d N/A 230 mm9.0551 in O.D. D N/A 330.000 mm12.9921 in Width B N/A 206.000 mm8.1102 in Width C N/A 206.000 mm8.1102 in DUR/DOR F/E N/A 260.000 mm10.2362 in Static Load Rating Co N/A 2120 kN478000 lbf Dynamic Load Rating C1 N/A 3988 kN896000 lbf Type N/A RY-6
240RY1668 Bore d N/A 240 mm9.4488 in O.D. D N/A 330.000 mm12.9921 in Width B N/A 220.000 mm8.6614 in Width C N/A 220.000 mm8.6614 in DUR/DOR F/E N/A 270.000 mm10.6299 in Static Load Rating Co N/A 1924 kN432000 lbf Dynamic Load Rating C1 N/A 4320 kN972000 lbf Type N/A RY-1
250RY1681 Bore d N/A 250 mm9.8425 in O.D. D N/A 340.000 mm13.3858 in Width B N/A 230.000 mm9.0551 in Width C N/A 230.000 mm9.0551 in DUR/DOR F/E N/A 276.000 mm10.8661 in Static Load Rating Co N/A 1952 kN438800 lbf Dynamic Load Rating C1 N/A 4521 kN1016000 lbf Type N/A RY-1
260RYL1744 Bore d N/A 260 mm10.2362 in O.D. D N/A 370.000 mm14.5669 in Width B N/A 220.000 mm8.6614 in Width C N/A 220.000 mm8.6614 in DUR/DOR F/E N/A 292.000 mm11.4961 in Static Load Rating Co N/A 2580 kN582000 lbf Dynamic Load Rating C1 N/A 5040 kN1132000 lbf Type N/A RY-6
260RY1763 Bore d N/A 260 mm10.2362 in O.D. D N/A 380.000 mm14.9606 in Width B N/A 280.000 mm11.0236 in Width C N/A 280.000 mm11.0236 in DUR/DOR F/E N/A 294.000 mm11.5748 in Static Load Rating Co N/A 3240 kN728000 lbf Dynamic Load Rating C1 N/A 6280 kN1412000 lbf Type N/A RY-2
280RYL1783 Bore d N/A 280 mm11.0236 in O.D. D N/A 390.000 mm15.3543 in Width B N/A 220.000 mm8.6614 in Width C N/A 220.000 mm8.6614 in DUR/DOR F/E N/A 312.000 mm12.2835 in Static Load Rating Co N/A 2620 kN590000 lbf Dynamic Load Rating C1 N/A 5200 kN1176000 lbf Type N/A RY-6
280RYL1782 Bore d N/A 280 mm11.0236 in O.D. D N/A 390.000 mm15.3543 in Width B N/A 275.000 mm10.8268 in Width C N/A 275.000 mm10.8268 in DUR/DOR F/E N/A 308.000 mm12.1260 in Static Load Rating Co N/A 3049 kN685500 lbf Dynamic Load Rating C1 N/A 7020 kN1578000 lbf Type N/A RY-3
300RX1846 Bore d N/A 300 mm11.811 in O.D. D N/A 420.000 mm16.5354 in Width B N/A 300.000 mm11.8110 in Width C N/A 300.000 mm11.8110 in DUR/DOR F/E N/A 332.000 mm13.0709 in Static Load Rating Co N/A 4140 kN932000 lbf Dynamic Load Rating C1 N/A 8720 kN1960000 lbf Type N/A RX-1
300RXL1845 Bore d N/A 300 mm11.811 in O.D. D N/A 420.000 mm16.5354 in Width B N/A 300.000 mm11.8110 in Width C N/A 300.000 mm11.8110 in DUR/DOR F/E N/A 332.000 mm13.0709 in Static Load Rating Co N/A 4080 kN918000 lbf Dynamic Load Rating C1 N/A 8360 kN1880000 lbf Type N/A RX-2
300RY2002 Bore d N/A 300 mm11.811 in O.D. D N/A 500.000 mm19.6850 in Width B N/A 360.000 mm14.1732 in Width C N/A 360.000 mm14.1732 in DUR/DOR F/E N/A 354.250 mm13.9469 in Static Load Rating Co N/A 6200 kN1392000 lbf Dynamic Load Rating C1 N/A 10160 kN2288000 lbf Type N/A RY-2
330RX1922 Bore d N/A 330.000 mm12.9921 in O.D. D N/A 460.000 mm18.1102 in Width B N/A 340.000 mm13.3858 in Width C N/A 340.000 mm13.3858 in DUR/DOR F/E N/A 365.000 mm14.3701 in Static Load Rating Co N/A 4980 kN1120000 lbf Dynamic Load Rating C1 N/A 10840 kN2440000 lbf Type N/A RX-1
340RX1965A Bore d N/A 340.000 mm13.3858 in O.D. D N/A 480.000 mm18.8976 in Width B N/A 310.000 mm12.2047 in Width C N/A 310.000 mm12.2047 in DUR/DOR F/E N/A 378.000 mm14.8819 in Static Load Rating Co N/A 4660 kN1048000 lbf Dynamic Load Rating C1 N/A 9640 kN2164000 lbf Type N/A RX-5
340RYL1963 Bore d N/A 340.000 mm13.3858 in O.D. D N/A 480.000 mm18.8976 in Width B N/A 350.000 mm13.7795 in Width C N/A 350.000 mm13.7795 in DUR/DOR F/E N/A 378.000 mm14.8819 in Static Load Rating Co N/A 5180 kN1162000 lbf Dynamic Load Rating C1 N/A 10880 kN2444000 lbf Type N/A RY-3
370RX2045 Bore d N/A 370.000 mm14.5669 in O.D. D N/A 520.000 mm20.4724 in Width B N/A 380.000 mm14.9606 in Width C N/A 380.000 mm14.9606 in DUR/DOR F/E N/A 409.000 mm16.1024 in Static Load Rating Co N/A 6500 kN1460000 lbf Dynamic Load Rating C1 N/A 14040 kN3156000 lbf Type N/A RX-1
380RX2089 Bore d N/A 380.000 mm14.9606 in O.D. D N/A 540.000 mm21.2598 in Width B N/A 300.000 mm11.8110 in Width C N/A 300.000 mm11.8110 in DUR/DOR F/E N/A 421.000 mm16.5748 in Static Load Rating Co N/A 5420 kN1218000 lbf Dynamic Load Rating C1 N/A 10560 kN2368000 lbf Type N/A RX-1
380RX2086A Bore d N/A 380.000 mm14.9606 in O.D. D N/A 540.000 mm21.2598 in Width B N/A 400.000 mm15.7480 in Width C N/A 380.000 mm14.9606 in DUR/DOR F/E N/A 422.000 mm16.6142 in Static Load Rating Co N/A 6840 kN1536000 lbf Dynamic Load Rating C1 N/A 14360 kN3228000 lbf Type N/A RX-6
380RX2087 Bore d N/A 380.000 mm14.9606 in O.D. D N/A 540.000 mm21.2598 in Width B N/A 400.000 mm15.7480 in Width C N/A 400.000 mm15.7480 in DUR/DOR F/E N/A 422.000 mm16.6142 in Static Load Rating Co N/A 6900 kN1552000 lbf Dynamic Load Rating C1 N/A 14760 kN3316000 lbf Type N/A RX-1
390RX2088 Bore d N/A 390.000 mm15.3543 in O.D. D N/A 540.000 mm21.2598 in Width B N/A 320.000 mm12.5984 in Width C N/A 320.000 mm12.5984 in DUR/DOR F/E N/A 431.000 mm16.9685 in Static Load Rating Co N/A 5540 kN1248000 lbf Dynamic Load Rating C1 N/A 11440 kN2576000 lbf Type N/A RX-1
390RY2103 Bore d N/A 390.000 mm15.3543 in O.D. D N/A 550.000 mm21.6535 in Width B N/A 400.000 mm15.7480 in Width C N/A 400.000 mm15.7480 in DUR/DOR F/E N/A 432.204 mm17.0159 in Static Load Rating Co N/A 6680 kN1500000 lbf Dynamic Load Rating C1 N/A 13960 kN3136000 lbf Type N/A RY-2
400RX2123 Bore d N/A 400.000 mm15.7480 in O.D. D N/A 560.000 mm22.0472 in Width B N/A 410.000 mm16.1417 in Width C N/A 410.000 mm16.1417 in DUR/DOR F/E N/A 445.000 mm17.5197 in Static Load Rating Co N/A 7460 kN1676000 lbf Dynamic Load Rating C1 N/A 16440 kN3700000 lbf Type N/A RX-1
431RX2141 Bore d N/A 431.500 mm16.9882 in O.D. D N/A 571.500 mm22.5000 in Width B N/A 300.000 mm11.8110 in Width C N/A 300.000 mm11.8110 in DUR/DOR F/E N/A 465.000 mm18.3071 in Static Load Rating Co N/A 5200 kN1170000 lbf Dynamic Load Rating C1 N/A 10600 kN2388000 lbf Type N/A RX-1
440RX2245 Bore d N/A 440.000 mm17.3228 in O.D. D N/A 620.000 mm24.4094 in Width B N/A 450.000 mm17.7165 in Width C N/A 450.000 mm17.7165 in DUR/DOR F/E N/A 487.000 mm19.1732 in Static Load Rating Co N/A 9100 kN2040000 lbf Dynamic Load Rating C1 N/A 20200 kN4560000 lbf Type N/A RX-1
460RX2371 Bore d N/A 460.000 mm18.1102 in O.D. D N/A 685.000 mm26.9685 in Width B N/A 400.000 mm15.7480 in Width C N/A 400.000 mm15.7480 in DUR/DOR F/E N/A 518.000 mm20.3937 in Static Load Rating Co N/A 8780 kN1972000 lbf Dynamic Load Rating C1 N/A 15880 kN3576000 lbf Type N/A RX-1
480RX2303B Bore d N/A 480.000 mm18.8976 in O.D. D N/A 650.000 mm25.5906 in Width B N/A 450.000 mm17.7165 in Width C N/A 450.000 mm17.7165 in DUR/DOR F/E N/A 525.000 mm20.6693 in Static Load Rating Co N/A 9540 kN2140000 lbf Dynamic Load Rating C1 N/A 21960 kN4920000 lbf Type N/A RX-1
500RX2345A Bore d N/A 500.000 mm19.6850 in O.D. D N/A 670.000 mm26.3780 in Width B N/A 485.000 mm19.0945 in Width C N/A 450.000 mm17.7165 in DUR/DOR F/E N/A 540.000 mm21.2598 in Static Load Rating Co N/A 9520 kN2140000 lbf Dynamic Load Rating C1 N/A 22200 kN5000000 lbf Type N/A RX-4
500RX2422 Bore d N/A 500.000 mm19.6850 in O.D. D N/A 710.000 mm27.9528 in Width B N/A 480.000 mm18.8976 in Width C N/A 480.000 mm18.8976 in DUR/DOR F/E N/A 558.000 mm21.9685 in Static Load Rating Co N/A 10780 kN2420000 lbf Dynamic Load Rating C1 N/A 23800 kN5360000 lbf Type N/A RX-1
500RX2443 Bore d N/A 500.000 mm19.6850 in O.D. D N/A 720.000 mm28.3465 in Width B N/A 530.000 mm20.8661 in Width C N/A 530.000 mm20.8661 in DUR/DOR F/E N/A 568.000 mm22.3622 in Static Load Rating Co N/A 12440 kN2800000 lbf Dynamic Load Rating C1 N/A 28680 kN6440000 lbf Type N/A RX-1
510RX2364 Bore d N/A 510.000 mm20.0787 in O.D. D N/A 680.000 mm26.7717 in Width B N/A 500.000 mm19.6850 in Width C N/A 500.000 mm19.6850 in DUR/DOR F/E N/A 560.000 mm22.0472 in Static Load Rating Co N/A 10280 kN2320000 lbf Dynamic Load Rating C1 N/A 26040 kN5840000 lbf Type N/A RX-1
510RX2461 Bore d N/A 510.000 mm20.0787 in O.D. D N/A 730.000 mm28.7402 in Width B N/A 520.000 mm20.4724 in Width C N/A 520.000 mm20.4724 in DUR/DOR F/E N/A 569.000 mm22.4016 in Static Load Rating Co N/A 12680 kN2860000 lbf Dynamic Load Rating C1 N/A 27280 kN6120000 lbf Type N/A RX-1
530RX2522 Bore d N/A 530.000 mm20.8661 in O.D. D N/A 760.000 mm29.9213 in Width B N/A 520.000 mm20.4724 in Width C N/A 520.000 mm20.4724 in DUR/DOR F/E N/A 587.000 mm23.1102 in Static Load Rating Co N/A 13080 kN2940000 lbf Dynamic Load Rating C1 N/A 27680 kN6240000 lbf Type N/A RX-1
550RX2484 Bore d N/A 550.000 mm21.6535 in O.D. D N/A 740.000 mm29.1339 in Width B N/A 510.000 mm20.0787 in Width C N/A 510.000 mm20.0787 in DUR/DOR F/E N/A 600.000 mm23.6220 in Static Load Rating Co N/A 11780 kN2640000 lbf Dynamic Load Rating C1 N/A 28400 kN6400000 lbf Type N/A RX-1
560RX2644 Bore d N/A 560.000 mm22.0472 in O.D. D N/A 820.000 mm32.2835 in Width B N/A 600.000 mm23.6220 in Width C N/A 600.000 mm23.6220 in DUR/DOR F/E N/A 625.000 mm24.6063 in Static Load Rating Co N/A 16180 kN3640000 lbf Dynamic Load Rating C1 N/A 34240 kN7720000 lbf Type N/A RX-1
571RX2622 Bore d N/A 571.100 mm22.4843 in O.D. D N/A 812.970 mm32.0067 in Width B N/A 594.000 mm23.3858 in Width C N/A 594.000 mm23.3858 in DUR/DOR F/E N/A 636.000 mm25.0394 in Static Load Rating Co N/A 15440 kN3480000 lbf Dynamic Load Rating C1 N/A 35000 kN7880000 lbf Type N/A RX-1
600RX2643A Bore d N/A 600.000 mm23.6220 in O.D. D N/A 820.000 mm32.2835 in Width B N/A 575.000 mm22.6378 in Width C N/A 575.000 mm22.6378 in DUR/DOR F/E N/A 660.000 mm25.9843 in Static Load Rating Co N/A 14780 kN3320000 lbf Dynamic Load Rating C1 N/A 36120 kN8120000 lbf Type N/A RX-1
600RX2643B Bore d N/A 600.000 mm23.6220 in O.D. D N/A 820.000 mm32.2835 in Width B N/A 575.000 mm22.6378 in Width C N/A 575.000 mm22.6378 in DUR/DOR F/E N/A 660.000 mm25.9843 in Static Load Rating Co N/A 14780 kN3320000 lbf Dynamic Load Rating C1 N/A 36120 kN8120000 lbf Type N/A RX-9
600RX2744 Bore d N/A 600.000 mm23.6220 in O.D. D N/A 870.000 mm34.2520 in Width B N/A 640.000 mm25.1969 in Width C N/A 640.000 mm25.1969 in DUR/DOR F/E N/A 672.000 mm26.4567 in Static Load Rating Co N/A 18040 kN4060000 lbf Dynamic Load Rating C1 N/A 40000 kN9000000 lbf Type N/A RX-1
650RX2803A Bore d N/A 650.000 mm25.5906 in O.D. D N/A 900.000 mm35.4331 in Width B N/A 650.000 mm25.5906 in Width C N/A 650.000 mm25.5906 in DUR/DOR F/E N/A 704.000 mm27.7165 in Static Load Rating Co N/A 18980 kN4260000 lbf Dynamic Load Rating C1 N/A 41200 kN9280000 lbf Type N/A RX-1
650RX2841C Bore d N/A 650.000 mm25.5906 in O.D. D N/A 920.000 mm36.2205 in Width B N/A 670.000 mm26.3780 in Width C N/A 670.000 mm26.3780 in DUR/DOR F/E N/A 723.000 mm28.4646 in Static Load Rating Co N/A 19520 kN4380000 lbf Dynamic Load Rating C1 N/A 45600 kN10240000 lbf Type N/A RX-1
690RX2965 Bore d N/A 690.000 mm27.1654 in O.D. D N/A 980.000 mm38.5827 in Width B N/A 715.000 mm28.1496 in Width C N/A 715.000 mm28.1496 in DUR/DOR F/E N/A 767.500 mm30.2165 in Static Load Rating Co N/A 22400 kN5040000 lbf Dynamic Load Rating C1 N/A 53200 kN11960000 lbf Type N/A RX-1
690RX2966 Bore d N/A 690.000 mm27.1654 in O.D. D N/A 980.000 mm38.5827 in Width B N/A 750.000 mm29.5276 in Width C N/A 750.000 mm29.5276 in DUR/DOR F/E N/A 766.000 mm30.1575 in Static Load Rating Co N/A 23000 kN5160000 lbf Dynamic Load Rating C1 N/A 54800 kN12320000 lbf Type N/A RX-9
700RX2862 Bore d N/A 700.000 mm27.5591 in O.D. D N/A 930.000 mm36.6142 in Width B N/A 620.000 mm24.4094 in Width C N/A 620.000 mm24.4094 in DUR/DOR F/E N/A 763.000 mm30.0394 in Static Load Rating Co N/A 16920 kN380000 lbf Dynamic Load Rating C1 N/A 44400 kN10000000 lbf Type N/A RX-1
700RX2964A Bore d N/A 700.000 mm27.5591 in O.D. D N/A 980.000 mm38.5827 in Width B N/A 700.000 mm27.5591 in Width C N/A 700.000 mm27.5591 in DUR/DOR F/E N/A 774.000 mm30.4724 in Static Load Rating Co N/A 21000 kN4720000 lbf Dynamic Load Rating C1 N/A 51200 kN11520000 lbf Type N/A RX-1
705RX3131B Bore d N/A 705.000 mm27.7559 in O.D. D N/A 1066.905 mm42.0041 in Width B N/A 635.000 mm25.0000 in Width C N/A 635.000 mm25.0000 in DUR/DOR F/E N/A 796.000 mm31.3386 in Static Load Rating Co N/A 22600 kN5100000 lbf Dynamic Load Rating C1 N/A 45200 kN10120000 lbf Type N/A RX-1
710RX3006 Bore d N/A 710.000 mm27.9528 in O.D. D N/A 1000.000 mm39.3701 in Width B N/A 715.000 mm28.1496 in Width C N/A 715.000 mm28.1496 in DUR/DOR F/E N/A 787.500 mm31.0039 in Static Load Rating Co N/A 22800 kN5120000 lbf Dynamic Load Rating C1 N/A 54400 kN12240000 lbf Type N/A RX-1
730RX2922 Bore d N/A 730.000 mm28.7402 in O.D. D N/A 960.000 mm37.7953 in Width B N/A 620.000 mm24.4094 in Width C N/A 620.000 mm24.4094 in DUR/DOR F/E N/A 790.000 mm31.1024 in Static Load Rating Co N/A 17500 kN3940000 lbf Dynamic Load Rating C1 N/A 45200 kN10120000 lbf Type N/A RX-1
730RX3064 Bore d N/A 730.000 mm28.7402 in O.D. D N/A 1030.000 mm40.5512 in Width B N/A 750.000 mm29.5276 in Width C N/A 750.000 mm29.5276 in DUR/DOR F/E N/A 809.000 mm31.8504 in Static Load Rating Co N/A 24600 kN5520000 lbf Dynamic Load Rating C1 N/A 59200 kN13280000 lbf Type N/A RX-1
730RX3064A Bore d N/A 730.000 mm28.7402 in O.D. D N/A 1030.000 mm40.5512 in Width B N/A 750.000 mm29.5276 in Width C N/A 750.000 mm29.5276 in DUR/DOR F/E N/A 809.000 mm31.8504 in Static Load Rating Co N/A 24600 kN5520000 lbf Dynamic Load Rating C1 N/A 59200 kN13280000 lbf Type N/A RX-11
750RX3005 Bore d N/A 750.000 mm29.5276 in O.D. D N/A 1000.000 mm39.3701 in Width B N/A 670.000 mm26.3780 in Width C N/A 670.000 mm26.3780 in DUR/DOR F/E N/A 813.000 mm32.0079 in Static Load Rating Co N/A 20400 kN4580000 lbf Dynamic Load Rating C1 N/A 52000 kN11680000 lbf Type N/A RX-1
760RX3166 Bore d N/A 760.000 mm29.9213 in O.D. D N/A 1080.000 mm42.5197 in Width B N/A 790.000 mm31.1024 in Width C N/A 790.000 mm31.1024 in DUR/DOR F/E N/A 846.000 mm33.3071 in Static Load Rating Co N/A 26800 kN6040000 lbf Dynamic Load Rating C1 N/A 63600 kN14320000 lbf Type N/A RX-1
761RX3166B Bore d N/A 760.925 mm29.9577 in O.D. D N/A 1079.600 mm42.5039 in Width B N/A 787.400 mm31.0000 in Width C N/A 787.400 mm31.0000 in DUR/DOR F/E N/A 846.000 mm33.3071 in Static Load Rating Co N/A 26800 kN6040000 lbf Dynamic Load Rating C1 N/A 64000 kN14440000 lbf Type N/A RX-1
761RX3166 Bore d N/A 761.425 mm29.9774 in O.D. D N/A 1079.600 mm42.5039 in Width B N/A 787.400 mm31.0000 in Width C N/A 787.400 mm31.0000 in DUR/DOR F/E N/A 846.000 mm33.3071 in Static Load Rating Co N/A 26800 kN6040000 lbf Dynamic Load Rating C1 N/A 64000 kN14440000 lbf Type N/A RX-1
770RX3151 Bore d N/A 770.000 mm30.3150 in O.D. D N/A 1075.000 mm42.3228 in Width B N/A 770.000 mm30.3150 in Width C N/A 770.000 mm30.3150 in DUR/DOR F/E N/A 847.000 mm33.3465 in Static Load Rating Co N/A 26000 kN5860000 lbf Dynamic Load Rating C1 N/A 62800 kN14160000 lbf Type N/A RX-1
780RX3141 Bore d N/A 780.000 mm30.7087 in O.D. D N/A 1070.000 mm42.1260 in Width B N/A 780.000 mm30.7087 in Width C N/A 780.000 mm30.7087 in DUR/DOR F/E N/A 853.000 mm33.5827 in Static Load Rating Co N/A 25400 kN5720000 lbf Dynamic Load Rating C1 N/A 62400 kN14040000 lbf Type N/A RX-1
800RX3165 Bore d N/A 800.000 mm31.4961 in O.D. D N/A 1080.000 mm42.5197 in Width B N/A 700.000 mm27.5591 in Width C N/A 700.000 mm27.5591 in DUR/DOR F/E N/A 878.000 mm34.5669 in Static Load Rating Co N/A 22600 kN5100000 lbf Dynamic Load Rating C1 N/A 59200 kN13280000 lbf Type N/A RX-1
800RX3164 Bore d N/A 800.000 mm31.4961 in O.D. D N/A 1080.000 mm42.5197 in Width B N/A 750.000 mm29.5276 in Width C N/A 750.000 mm29.5276 in DUR/DOR F/E N/A 880.000 mm34.6457 in Static Load Rating Co N/A 22600 kN5080000 lbf Dynamic Load Rating C1 N/A 58800 kN13240000 lbf Type N/A RX-1
820RX3201A Bore d N/A 820.000 mm32.2835 in O.D. D N/A 1100.000 mm43.3071 in Width B N/A 745.000 mm29.3307 in Width C N/A 720.000 mm28.3465 in DUR/DOR F/E N/A 892.000 mm35.1181 in Static Load Rating Co N/A 23000 kN5180000 lbf Dynamic Load Rating C1 N/A 57600 kN12960000 lbf Type N/A RX-10
820RX3263 Bore d N/A 820.000 mm32.2835 in O.D. D N/A 1130.000 mm44.4882 in Width B N/A 650.000 mm25.5906 in Width C N/A 650.000 mm25.5906 in DUR/DOR F/E N/A 891.000 mm35.0787 in Static Load Rating Co N/A 23200 kN5220000 lbf Dynamic Load Rating C1 N/A 52400 kN11800000 lbf Type N/A RX-1
820RX3264 Bore d N/A 820.000 mm32.2835 in O.D. D N/A 1130.000 mm44.4882 in Width B N/A 800.000 mm31.4961 in Width C N/A 800.000 mm31.4961 in DUR/DOR F/E N/A 903.000 mm35.5512 in Static Load Rating Co N/A 27400 kN6160000 lbf Dynamic Load Rating C1 N/A 68400 kN15360000 lbf Type N/A RX-1
820RX3264A Bore d N/A 820.000 mm32.2835 in O.D. D N/A 1130.000 mm44.4882 in Width B N/A 800.000 mm31.4961 in Width C N/A 800.000 mm31.4961 in DUR/DOR F/E N/A 903.000 mm35.5512 in Static Load Rating Co N/A 27400 kN6160000 lbf Dynamic Load Rating C1 N/A 68400 kN15360000 lbf Type N/A RX-9
820RX3264C Bore d N/A 820.000 mm32.2835 in O.D. D N/A 1130.000 mm44.4882 in Width B N/A 825.000 mm32.4803 in Width C N/A 800.000 mm31.4961 in DUR/DOR F/E N/A 903.000 mm35.5512 in Static Load Rating Co N/A 27400 kN6160000 lbf Dynamic Load Rating C1 N/A 68400 kN15360000 lbf Type N/A RX-8
820RX3264D Bore d N/A 820.000 mm32.2835 in O.D. D N/A 1130.000 mm44.4882 in Width B N/A 825.000 mm32.4803 in Width C N/A 800.000 mm31.4961 in DUR/DOR F/E N/A 903.000 mm35.5512 in Static Load Rating Co N/A 27400 kN6160000 lbf Dynamic Load Rating C1 N/A 68400 kN15360000 lbf Type N/A RX-10
850RX3304 Bore d N/A 850.000 mm33.4646 in O.D. D N/A 1150.000 mm45.2756 in Width B N/A 840.000 mm33.0709 in Width C N/A 840.000 mm33.0709 in DUR/DOR F/E N/A 928.000 mm36.5354 in Static Load Rating Co N/A 28800 kN6480000 lbf Dynamic Load Rating C1 N/A 74800 kN16800000 lbf Type N/A RX-1
850RX3365 Bore d N/A 850.000 mm33.4646 in O.D. D N/A 1180.000 mm46.4567 in Width B N/A 850.000 mm33.4646 in Width C N/A 850.000 mm33.4646 in DUR/DOR F/E N/A 940.000 mm37.0079 in Static Load Rating Co N/A 29600 kN6660000 lbf Dynamic Load Rating C1 N/A 72800 kN16400000 lbf Type N/A RX-1
863RX3445A Bore d N/A 862.980 mm33.9756 in O.D. D N/A 1219.302 mm48.0040 in Width B N/A 876.300 mm34.5000 in Width C N/A 889.000 mm35.0000 in DUR/DOR F/E N/A 956.000 mm37.6378 in Static Load Rating Co N/A 34600 kN7780000 lbf Dynamic Load Rating C1 N/A 84000 kN18840000 lbf Type N/A RX-1
880RXK3364A Bore d N/A 880.000 mm34.6457 in O.D. D N/A 1180.000 mm46.4567 in Width B N/A 750.000 mm29.5276 in Width C N/A 750.000 mm29.5276 in DUR/DOR F/E N/A 945.000 mm37.2047 in Static Load Rating Co N/A 27400 kN6140000 lbf Dynamic Load Rating C1 N/A 68000 kN15240000 lbf Type N/A RXK-1
880RXK3366 Bore d N/A 880.000 mm34.6457 in O.D. D N/A 1180.000 mm46.4567 in Width B N/A 750.000 mm29.5276 in Width C N/A 750.000 mm29.5276 in DUR/DOR F/E N/A 945.300 mm37.2165 in Static Load Rating Co N/A 26600 kN6000000 lbf Dynamic Load Rating C1 N/A 66400 kN14920000 lbf Type N/A RXK-2
900RX3444 Bore d N/A 900.000 mm35.4331 in O.D. D N/A 1220.000 mm48.0315 in Width B N/A 840.000 mm33.0709 in Width C N/A 840.000 mm33.0709 in DUR/DOR F/E N/A 989.000 mm38.9370 in Static Load Rating Co N/A 30200 kN6780000 lbf Dynamic Load Rating C1 N/A 78800 kN17680000 lbf Type N/A RX-1
950RX3723 Bore d N/A 950.000 mm37.4016 in O.D. D N/A 1360.000 mm53.5433 in Width B N/A 1000.000 mm39.3701 in Width C N/A 1000.000 mm39.3701 in DUR/DOR F/E N/A 1075.000 mm42.3228 in Static Load Rating Co N/A 43200 kN9700000 lbf Dynamic Load Rating C1 N/A 108800 kN24480000 lbf Type N/A RX-1
1040RX3882 Bore d N/A 1040.000 mm40.9449 in O.D. D N/A 1439.890 mm56.6886 in Width B N/A 1000.000 mm39.3701 in Width C N/A 1000.000 mm39.3701 in DUR/DOR F/E N/A 1133.000 mm44.6063 in Static Load Rating Co N/A 42600 kN9580000 lbf Dynamic Load Rating C1 N/A 101200 kN22760000 lbf Type N/A RX-7
