Băng tải - Gàu tải > Cylindrical Roller Radial Bearings - Single Row Standard

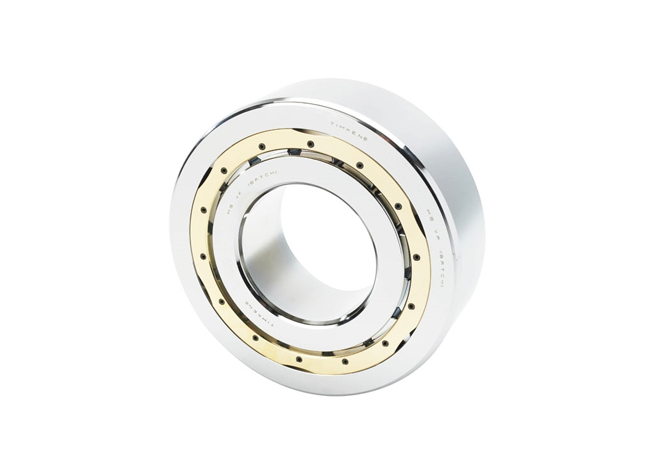

Cylindrical Roller Radial Bearings - Single Row Standard





Timken Part Number

  d - Bore  D - Outer Diameter  C - Inner Ring Width  B - Outer Ring Width  C0 - Static Radial Rating  C - Dynamic Radial Rating  Reference Thermal Speed Rating (Grease)  Reference Thermal Speed Rating (Oil)

R - Inner Ring "To Clear" Radius
105RU32R3 d - Bore N/A 105 mm4.1339 in D - Outer Diameter N/A 190 mm7.4803 in C - Inner Ring Width N/A 65.088 mm2.5625 in B - Outer Ring Width N/A 65.088 mm2.5625 in C0 - Static Radial Rating N/A 640000 N144000 lbf C - Dynamic Radial Rating N/A 471000 N106000 lbf Reference Thermal Speed Rating (Grease) N/A 2400 Reference Thermal Speed Rating (Oil) N/A 2700 R - Inner Ring "To Clear" Radius N/A 2.0 mm0.100 in
140RU51R3 d - Bore N/A 140 mm5.5118 in D - Outer Diameter N/A 220.000 mm8.6614 in C - Inner Ring Width N/A 36 mm1.4173 in B - Outer Ring Width N/A 36 mm1.4173 in C0 - Static Radial Rating N/A 301000 N67700 lbf C - Dynamic Radial Rating N/A 242000 N54400 lbf Reference Thermal Speed Rating (Grease) N/A 1700 Reference Thermal Speed Rating (Oil) N/A 2000 R - Inner Ring "To Clear" Radius N/A 2.0 mm0.100 in
140RU93R3 d - Bore N/A 140 mm5.5118 in D - Outer Diameter N/A 300 mm11.811 in C - Inner Ring Width N/A 114.300 mm4.5000 in B - Outer Ring Width N/A 114.300 mm4.5000 in C0 - Static Radial Rating N/A 841000 N189000 lbf C - Dynamic Radial Rating N/A 732000 N165000 lbf Reference Thermal Speed Rating (Grease) N/A 1900 Reference Thermal Speed Rating (Oil) N/A 2200 R - Inner Ring "To Clear" Radius N/A 4.000 mm0.200 in
140RU93R6 d - Bore N/A 140 mm5.5118 in D - Outer Diameter N/A 300 mm11.811 in C - Inner Ring Width N/A 114.300 mm4.5000 in B - Outer Ring Width N/A 114.300 mm4.5000 in C0 - Static Radial Rating N/A 841000 N189000 lbf C - Dynamic Radial Rating N/A 732000 N165000 lbf Reference Thermal Speed Rating (Grease) N/A 1900 Reference Thermal Speed Rating (Oil) N/A 2200 R - Inner Ring "To Clear" Radius N/A 4.000 mm0.200 in
150RU51OO771R3 d - Bore N/A 150 mm5.9055 in D - Outer Diameter N/A 235.000 mm9.2520 in C - Inner Ring Width N/A 38 mm1.4961 in B - Outer Ring Width N/A 38 mm1.4961 in C0 - Static Radial Rating N/A 397000 N89200 lbf C - Dynamic Radial Rating N/A 306000 N68800 lbf Reference Thermal Speed Rating (Grease) N/A 1600 Reference Thermal Speed Rating (Oil) N/A 1900 R - Inner Ring "To Clear" Radius N/A 2.0 mm0.100 in
150RU91OO771R3 d - Bore N/A 150 mm5.9055 in D - Outer Diameter N/A 235.000 mm9.2520 in C - Inner Ring Width N/A 66.700 mm2.6260 in B - Outer Ring Width N/A 66.700 mm2.6260 in C0 - Static Radial Rating N/A 900000 N202000 lbf C - Dynamic Radial Rating N/A 577000 N130000 lbf Reference Thermal Speed Rating (Grease) N/A 1600 Reference Thermal Speed Rating (Oil) N/A 1800 R - Inner Ring "To Clear" Radius N/A 2.0 mm0.100 in
150RU03AA781R3 d - Bore N/A 150 mm5.9055 in D - Outer Diameter N/A 320.000 mm12.5984 in C - Inner Ring Width N/A 65.000 mm2.5591 in B - Outer Ring Width N/A 65.000 mm2.5591 in C0 - Static Radial Rating N/A 804000 N181000 lbf C - Dynamic Radial Rating N/A 711000 N160000 lbf Reference Thermal Speed Rating (Grease) N/A 1300 Reference Thermal Speed Rating (Oil) N/A 1600 R - Inner Ring "To Clear" Radius N/A 3.0 mm0.100 in
160RU91R3 d - Bore N/A 160 mm6.2992 in D - Outer Diameter N/A 250 mm9.8425 in C - Inner Ring Width N/A 73.025 mm2.8750 in B - Outer Ring Width N/A 73.025 mm2.8750 in C0 - Static Radial Rating N/A 1060000 N238000 lbf C - Dynamic Radial Rating N/A 666000 N150000 lbf Reference Thermal Speed Rating (Grease) N/A 1500 Reference Thermal Speed Rating (Oil) N/A 1700 R - Inner Ring "To Clear" Radius N/A 2.0 mm0.100 in
160RU91R4 d - Bore N/A 160 mm6.2992 in D - Outer Diameter N/A 250 mm9.8425 in C - Inner Ring Width N/A 73.025 mm2.8750 in B - Outer Ring Width N/A 73.025 mm2.8750 in C0 - Static Radial Rating N/A 1060000 N238000 lbf C - Dynamic Radial Rating N/A 666000 N150000 lbf Reference Thermal Speed Rating (Grease) N/A 1500 Reference Thermal Speed Rating (Oil) N/A 1700 R - Inner Ring "To Clear" Radius N/A 2.0 mm0.100 in
170RU30OO771R3 d - Bore N/A 170 mm6.6929 in D - Outer Diameter N/A 260 mm10.2362 in C - Inner Ring Width N/A 67 mm2.6378 in B - Outer Ring Width N/A 67 mm2.6378 in C0 - Static Radial Rating N/A 1020000 N229000 lbf C - Dynamic Radial Rating N/A 640000 N144000 lbf Reference Thermal Speed Rating (Grease) N/A 1400 Reference Thermal Speed Rating (Oil) N/A 1600 R - Inner Ring "To Clear" Radius N/A 2.800 mm0.100 in
170RU51 d - Bore N/A 170 mm6.6929 in D - Outer Diameter N/A 265.000 mm10.4331 in C - Inner Ring Width N/A 42.000 mm1.6535 in B - Outer Ring Width N/A 42.000 mm1.6535 in C0 - Static Radial Rating N/A 521000 N117000 lbf C - Dynamic Radial Rating N/A 438000 N98500 lbf Reference Thermal Speed Rating (Grease) N/A 1300 Reference Thermal Speed Rating (Oil) N/A 1600 R - Inner Ring "To Clear" Radius N/A 2.500 mm0.100 in
170RU51R3 d - Bore N/A 170 mm6.6929 in D - Outer Diameter N/A 265.000 mm10.4331 in C - Inner Ring Width N/A 42.000 mm1.6535 in B - Outer Ring Width N/A 42.000 mm1.6535 in C0 - Static Radial Rating N/A 482000 N108000 lbf C - Dynamic Radial Rating N/A 368000 N82700 lbf Reference Thermal Speed Rating (Grease) N/A 1400 Reference Thermal Speed Rating (Oil) N/A 1600 R - Inner Ring "To Clear" Radius N/A 2.500 mm0.100 in
170RU91R3 d - Bore N/A 170 mm6.6929 in D - Outer Diameter N/A 265.000 mm10.4331 in C - Inner Ring Width N/A 76.200 mm3.0000 in B - Outer Ring Width N/A 76.200 mm3.0000 in C0 - Static Radial Rating N/A 1180000 N265000 lbf C - Dynamic Radial Rating N/A 739000 N166000 lbf Reference Thermal Speed Rating (Grease) N/A 1400 Reference Thermal Speed Rating (Oil) N/A 1500 R - Inner Ring "To Clear" Radius N/A 2.500 mm0.100 in
170RU93R3 d - Bore N/A 170 mm6.6929 in D - Outer Diameter N/A 360.000 mm14.1732 in C - Inner Ring Width N/A 139.700 mm5.5000 in B - Outer Ring Width N/A 139.700 mm5.5000 in C0 - Static Radial Rating N/A 2580000 N580000 lbf C - Dynamic Radial Rating N/A 1830000 N411000 lbf Reference Thermal Speed Rating (Grease) N/A 1100 Reference Thermal Speed Rating (Oil) N/A 1200 R - Inner Ring "To Clear" Radius N/A 4.000 mm0.200 in
180RJ51R3 d - Bore N/A 180 mm7.0866 in D - Outer Diameter N/A 280 mm11.0236 in C - Inner Ring Width N/A 44.000 mm1.7323 in B - Outer Ring Width N/A 44.000 mm1.7323 in C0 - Static Radial Rating N/A 586000 N132000 lbf C - Dynamic Radial Rating N/A 434000 N97600 lbf Reference Thermal Speed Rating (Grease) N/A 1300 Reference Thermal Speed Rating (Oil) N/A 1500 R - Inner Ring "To Clear" Radius N/A 2.500 mm0.100 in
180RU51R3 d - Bore N/A 180 mm7.0866 in D - Outer Diameter N/A 280 mm11.0236 in C - Inner Ring Width N/A 44.000 mm1.7323 in B - Outer Ring Width N/A 44.000 mm1.7323 in C0 - Static Radial Rating N/A 586000 N132000 lbf C - Dynamic Radial Rating N/A 434000 N97600 lbf Reference Thermal Speed Rating (Grease) N/A 1300 Reference Thermal Speed Rating (Oil) N/A 1500 R - Inner Ring "To Clear" Radius N/A 2.500 mm0.100 in
180RU91AO774R3 d - Bore N/A 180 mm7.0866 in D - Outer Diameter N/A 280 mm11.0236 in C - Inner Ring Width N/A 82.550 mm3.2500 in B - Outer Ring Width N/A 82.550 mm3.2500 in C0 - Static Radial Rating N/A 1420000 N319000 lbf C - Dynamic Radial Rating N/A 863000 N194000 lbf Reference Thermal Speed Rating (Grease) N/A 1200 Reference Thermal Speed Rating (Oil) N/A 1400 R - Inner Ring "To Clear" Radius N/A 2.500 mm0.100 in
180RU91R3 d - Bore N/A 180 mm7.0866 in D - Outer Diameter N/A 280 mm11.0236 in C - Inner Ring Width N/A 82.550 mm3.2500 in B - Outer Ring Width N/A 82.550 mm3.2500 in C0 - Static Radial Rating N/A 1420000 N319000 lbf C - Dynamic Radial Rating N/A 863000 N194000 lbf Reference Thermal Speed Rating (Grease) N/A 1200 Reference Thermal Speed Rating (Oil) N/A 1400 R - Inner Ring "To Clear" Radius N/A 3.200 mm0.100 in
190RU30OA107R3 d - Bore N/A 190.000 mm7.4803 in D - Outer Diameter N/A 290.000 mm11.4173 in C - Inner Ring Width N/A 75 mm2.9528 in B - Outer Ring Width N/A 75 mm2.9528 in C0 - Static Radial Rating N/A 1320000 N297000 lbf C - Dynamic Radial Rating N/A 807000 N181000 lbf Reference Thermal Speed Rating (Grease) N/A 1200 Reference Thermal Speed Rating (Oil) N/A 1300 R - Inner Ring "To Clear" Radius N/A 2.0 mm0.100 in
190RU30OA107R4 d - Bore N/A 190.000 mm7.4803 in D - Outer Diameter N/A 290.000 mm11.4173 in C - Inner Ring Width N/A 75 mm2.9528 in B - Outer Ring Width N/A 75 mm2.9528 in C0 - Static Radial Rating N/A 1320000 N297000 lbf C - Dynamic Radial Rating N/A 807000 N181000 lbf Reference Thermal Speed Rating (Grease) N/A 1200 Reference Thermal Speed Rating (Oil) N/A 1300 R - Inner Ring "To Clear" Radius N/A 2.0 mm0.100 in
190RU91AA774R2 d - Bore N/A 190.000 mm7.4803 in D - Outer Diameter N/A 300 mm11.811 in C - Inner Ring Width N/A 85.725 mm3.3750 in B - Outer Ring Width N/A 85.725 mm3.3750 in C0 - Static Radial Rating N/A 1600000 N360000 lbf C - Dynamic Radial Rating N/A 973000 N219000 lbf Reference Thermal Speed Rating (Grease) N/A 1100 Reference Thermal Speed Rating (Oil) N/A 1300 R - Inner Ring "To Clear" Radius N/A 2.500 mm0.100 in
190RU91AA774R3 d - Bore N/A 190.000 mm7.4803 in D - Outer Diameter N/A 300 mm11.811 in C - Inner Ring Width N/A 85.725 mm3.3750 in B - Outer Ring Width N/A 85.725 mm3.3750 in C0 - Static Radial Rating N/A 1600000 N360000 lbf C - Dynamic Radial Rating N/A 973000 N219000 lbf Reference Thermal Speed Rating (Grease) N/A 1100 Reference Thermal Speed Rating (Oil) N/A 1300 R - Inner Ring "To Clear" Radius N/A 2.500 mm0.100 in
190RU91OC107R3 d - Bore N/A 190.000 mm7.4803 in D - Outer Diameter N/A 300 mm11.811 in C - Inner Ring Width N/A 85.725 mm3.3750 in B - Outer Ring Width N/A 85.725 mm3.3750 in C0 - Static Radial Rating N/A 1600000 N360000 lbf C - Dynamic Radial Rating N/A 973000 N219000 lbf Reference Thermal Speed Rating (Grease) N/A 1100 Reference Thermal Speed Rating (Oil) N/A 1300 R - Inner Ring "To Clear" Radius N/A 3.200 mm0.100 in
190RU91R3 d - Bore N/A 190.000 mm7.4803 in D - Outer Diameter N/A 300 mm11.811 in C - Inner Ring Width N/A 85.700 mm3.3740 in B - Outer Ring Width N/A 85.700 mm3.3740 in C0 - Static Radial Rating N/A 1600000 N360000 lbf C - Dynamic Radial Rating N/A 973000 N219000 lbf Reference Thermal Speed Rating (Grease) N/A 1100 Reference Thermal Speed Rating (Oil) N/A 1300 R - Inner Ring "To Clear" Radius N/A 2.500 mm0.100 in
190RU91R4 d - Bore N/A 190.000 mm7.4803 in D - Outer Diameter N/A 300 mm11.811 in C - Inner Ring Width N/A 85.700 mm3.3740 in B - Outer Ring Width N/A 85.700 mm3.3740 in C0 - Static Radial Rating N/A 1600000 N360000 lbf C - Dynamic Radial Rating N/A 973000 N219000 lbf Reference Thermal Speed Rating (Grease) N/A 1100 Reference Thermal Speed Rating (Oil) N/A 1300 R - Inner Ring "To Clear" Radius N/A 2.500 mm0.100 in
190RJ92R4 d - Bore N/A 190.000 mm7.4803 in D - Outer Diameter N/A 340.000 mm13.3858 in C - Inner Ring Width N/A 114.300 mm4.5000 in B - Outer Ring Width N/A 114.300 mm4.5000 in C0 - Static Radial Rating N/A 2210000 N497000 lbf C - Dynamic Radial Rating N/A 1450000 N326000 lbf Reference Thermal Speed Rating (Grease) N/A 1000 Reference Thermal Speed Rating (Oil) N/A 1200 R - Inner Ring "To Clear" Radius N/A 3.0 mm0.100 in
190RU92 d - Bore N/A 190.000 mm7.4803 in D - Outer Diameter N/A 340.000 mm13.3858 in C - Inner Ring Width N/A 114.300 mm4.5000 in B - Outer Ring Width N/A 114.300 mm4.5000 in C0 - Static Radial Rating N/A 2210000 N497000 lbf C - Dynamic Radial Rating N/A 1450000 N326000 lbf Reference Thermal Speed Rating (Grease) N/A 1000 Reference Thermal Speed Rating (Oil) N/A 1200 R - Inner Ring "To Clear" Radius N/A
200RU30R3 d - Bore N/A 200 mm7.874 in D - Outer Diameter N/A 310 mm12.2047 in C - Inner Ring Width N/A 82 mm3.2283 in B - Outer Ring Width N/A 82 mm3.2283 in C0 - Static Radial Rating N/A 1540000 N346000 lbf C - Dynamic Radial Rating N/A 924000 N208000 lbf Reference Thermal Speed Rating (Grease) N/A 1100 Reference Thermal Speed Rating (Oil) N/A 1200 R - Inner Ring "To Clear" Radius N/A 2.0 mm0.100 in
200RJ91R3 d - Bore N/A 200 mm7.874 in D - Outer Diameter N/A 320.000 mm12.5984 in C - Inner Ring Width N/A 88.900 mm3.5000 in B - Outer Ring Width N/A 88.900 mm3.5000 in C0 - Static Radial Rating N/A 1740000 N391000 lbf C - Dynamic Radial Rating N/A 1060000 N238000 lbf Reference Thermal Speed Rating (Grease) N/A 1000 Reference Thermal Speed Rating (Oil) N/A 1200 R - Inner Ring "To Clear" Radius N/A 3.0 mm0.100 in
200RU91BO858R3 d - Bore N/A 200 mm7.874 in D - Outer Diameter N/A 320.000 mm12.5984 in C - Inner Ring Width N/A 88.900 mm3.5000 in B - Outer Ring Width N/A 88.900 mm3.5000 in C0 - Static Radial Rating N/A 1740000 N391000 lbf C - Dynamic Radial Rating N/A 1060000 N238000 lbf Reference Thermal Speed Rating (Grease) N/A 1000 Reference Thermal Speed Rating (Oil) N/A 1200 R - Inner Ring "To Clear" Radius N/A 3.0 mm0.100 in
200RU91CO109R3 d - Bore N/A 200 mm7.874 in D - Outer Diameter N/A 320.000 mm12.5984 in C - Inner Ring Width N/A 88.900 mm3.5000 in B - Outer Ring Width N/A 88.900 mm3.5000 in C0 - Static Radial Rating N/A 1740000 N391000 lbf C - Dynamic Radial Rating N/A 1060000 N238000 lbf Reference Thermal Speed Rating (Grease) N/A 1000 Reference Thermal Speed Rating (Oil) N/A 1200 R - Inner Ring "To Clear" Radius N/A 3.800 mm0.100 in
200RU91OB127R3 d - Bore N/A 200 mm7.874 in D - Outer Diameter N/A 320.000 mm12.5984 in C - Inner Ring Width N/A 88.900 mm3.5000 in B - Outer Ring Width N/A 88.900 mm3.5000 in C0 - Static Radial Rating N/A 1740000 N391000 lbf C - Dynamic Radial Rating N/A 1060000 N238000 lbf Reference Thermal Speed Rating (Grease) N/A 1000 Reference Thermal Speed Rating (Oil) N/A 1200 R - Inner Ring "To Clear" Radius N/A 3.0 mm0.100 in
200RU91R3 d - Bore N/A 200 mm7.874 in D - Outer Diameter N/A 320.000 mm12.5984 in C - Inner Ring Width N/A 88.900 mm3.5000 in B - Outer Ring Width N/A 88.900 mm3.5000 in C0 - Static Radial Rating N/A 1740000 N391000 lbf C - Dynamic Radial Rating N/A 1060000 N238000 lbf Reference Thermal Speed Rating (Grease) N/A 1000 Reference Thermal Speed Rating (Oil) N/A 1200 R - Inner Ring "To Clear" Radius N/A 3.0 mm0.100 in
200RU91R4 d - Bore N/A 200 mm7.874 in D - Outer Diameter N/A 320.000 mm12.5984 in C - Inner Ring Width N/A 88.900 mm3.5000 in B - Outer Ring Width N/A 88.900 mm3.5000 in C0 - Static Radial Rating N/A 1740000 N391000 lbf C - Dynamic Radial Rating N/A 1060000 N238000 lbf Reference Thermal Speed Rating (Grease) N/A 1000 Reference Thermal Speed Rating (Oil) N/A 1200 R - Inner Ring "To Clear" Radius N/A 3.0 mm0.100 in
200RU92R3 d - Bore N/A 200 mm7.874 in D - Outer Diameter N/A 360.000 mm14.1732 in C - Inner Ring Width N/A 120.700 mm4.7520 in B - Outer Ring Width N/A 120.700 mm4.7520 in C0 - Static Radial Rating N/A 2580000 N580000 lbf C - Dynamic Radial Rating N/A 1630000 N366000 lbf Reference Thermal Speed Rating (Grease) N/A 940 Reference Thermal Speed Rating (Oil) N/A 1000 R - Inner Ring "To Clear" Radius N/A 4.000 mm0.200 in
200RU30AO130R3 d - Bore N/A 203.230 mm8.0012 in D - Outer Diameter N/A 310 mm12.2047 in C - Inner Ring Width N/A 82 mm3.2283 in B - Outer Ring Width N/A 82 mm3.2283 in C0 - Static Radial Rating N/A 1540000 N346000 lbf C - Dynamic Radial Rating N/A 924000 N208000 lbf Reference Thermal Speed Rating (Grease) N/A 1100 Reference Thermal Speed Rating (Oil) N/A 1200 R - Inner Ring "To Clear" Radius N/A 2.0 mm0.100 in
210RU92R3 d - Bore N/A 210.000 mm8.2677 in D - Outer Diameter N/A 380.000 mm14.9606 in C - Inner Ring Width N/A 127.000 mm5.0000 in B - Outer Ring Width N/A 127.000 mm5.0000 in C0 - Static Radial Rating N/A 2640000 N593000 lbf C - Dynamic Radial Rating N/A 1740000 N391000 lbf Reference Thermal Speed Rating (Grease) N/A 920 Reference Thermal Speed Rating (Oil) N/A 1000 R - Inner Ring "To Clear" Radius N/A 4.000 mm0.200 in
220RU30R3 d - Bore N/A 220 mm8.6614 in D - Outer Diameter N/A 340.000 mm13.3858 in C - Inner Ring Width N/A 90 mm3.5433 in B - Outer Ring Width N/A 90 mm3.5433 in C0 - Static Radial Rating N/A 1950000 N438000 lbf C - Dynamic Radial Rating N/A 1150000 N259000 lbf Reference Thermal Speed Rating (Grease) N/A 930 Reference Thermal Speed Rating (Oil) N/A 1000 R - Inner Ring "To Clear" Radius N/A 2.500 mm0.100 in
220RU51AB909R3 d - Bore N/A 220 mm8.6614 in D - Outer Diameter N/A 350.000 mm13.7795 in C - Inner Ring Width N/A 51.000 mm2.0079 in B - Outer Ring Width N/A 51.000 mm2.0079 in C0 - Static Radial Rating N/A 840000 N189000 lbf C - Dynamic Radial Rating N/A 618000 N139000 lbf Reference Thermal Speed Rating (Grease) N/A 960 Reference Thermal Speed Rating (Oil) N/A 1100 R - Inner Ring "To Clear" Radius N/A 2.0 mm0.100 in
220RU51BO132R3 d - Bore N/A 220 mm8.6614 in D - Outer Diameter N/A 350.000 mm13.7795 in C - Inner Ring Width N/A 51.000 mm2.0079 in B - Outer Ring Width N/A 51.000 mm2.0079 in C0 - Static Radial Rating N/A 840000 N189000 lbf C - Dynamic Radial Rating N/A 618000 N139000 lbf Reference Thermal Speed Rating (Grease) N/A 960 Reference Thermal Speed Rating (Oil) N/A 1100 R - Inner Ring "To Clear" Radius N/A 2.500 mm0.100 in
220RU91BC1738R3 d - Bore N/A 220 mm8.6614 in D - Outer Diameter N/A 350.000 mm13.7795 in C - Inner Ring Width N/A 98.400 mm3.8740 in B - Outer Ring Width N/A 98.400 mm3.8740 in C0 - Static Radial Rating N/A 2090000 N470000 lbf C - Dynamic Radial Rating N/A 1290000 N290000 lbf Reference Thermal Speed Rating (Grease) N/A 930 Reference Thermal Speed Rating (Oil) N/A 1000 R - Inner Ring "To Clear" Radius N/A 3.300 mm0.100 in
220RU91OO127R3 d - Bore N/A 220 mm8.6614 in D - Outer Diameter N/A 350.000 mm13.7795 in C - Inner Ring Width N/A 98.400 mm3.8740 in B - Outer Ring Width N/A 98.400 mm3.8740 in C0 - Static Radial Rating N/A 2090000 N470000 lbf C - Dynamic Radial Rating N/A 1290000 N290000 lbf Reference Thermal Speed Rating (Grease) N/A 930 Reference Thermal Speed Rating (Oil) N/A 1000 R - Inner Ring "To Clear" Radius N/A 2.500 mm0.100 in
220RU91R3 d - Bore N/A 220 mm8.6614 in D - Outer Diameter N/A 350.000 mm13.7795 in C - Inner Ring Width N/A 98.400 mm3.8740 in B - Outer Ring Width N/A 98.400 mm3.8740 in C0 - Static Radial Rating N/A 2090000 N470000 lbf C - Dynamic Radial Rating N/A 1290000 N290000 lbf Reference Thermal Speed Rating (Grease) N/A 930 Reference Thermal Speed Rating (Oil) N/A 1000 R - Inner Ring "To Clear" Radius N/A 3.200 mm0.100 in
220RU91R4 d - Bore N/A 220 mm8.6614 in D - Outer Diameter N/A 350.000 mm13.7795 in C - Inner Ring Width N/A 98.400 mm3.8740 in B - Outer Ring Width N/A 98.400 mm3.8740 in C0 - Static Radial Rating N/A 2090000 N470000 lbf C - Dynamic Radial Rating N/A 1290000 N290000 lbf Reference Thermal Speed Rating (Grease) N/A 930 Reference Thermal Speed Rating (Oil) N/A 1000 R - Inner Ring "To Clear" Radius N/A 3.300 mm0.100 in
220RJ51 d - Bore N/A 220 mm8.6614 in D - Outer Diameter N/A 350.002 mm13.7796 in C - Inner Ring Width N/A 51.000 mm2.0079 in B - Outer Ring Width N/A 51.000 mm2.0079 in C0 - Static Radial Rating N/A 841000 N189000 lbf C - Dynamic Radial Rating N/A 618000 N139000 lbf Reference Thermal Speed Rating (Grease) N/A 960 Reference Thermal Speed Rating (Oil) N/A 1100 R - Inner Ring "To Clear" Radius N/A
220RU51R3 d - Bore N/A 220 mm8.6614 in D - Outer Diameter N/A 350.002 mm13.7796 in C - Inner Ring Width N/A 51.000 mm2.0079 in B - Outer Ring Width N/A 51.000 mm2.0079 in C0 - Static Radial Rating N/A 840000 N189000 lbf C - Dynamic Radial Rating N/A 618000 N139000 lbf Reference Thermal Speed Rating (Grease) N/A 960 Reference Thermal Speed Rating (Oil) N/A 1100 R - Inner Ring "To Clear" Radius N/A 2.500 mm0.100 in
220RU92BA774R3 d - Bore N/A 220 mm8.6614 in D - Outer Diameter N/A 400.000 mm15.7480 in C - Inner Ring Width N/A 133.400 mm5.2520 in B - Outer Ring Width N/A 133.400 mm5.2520 in C0 - Static Radial Rating N/A 3230000 N726000 lbf C - Dynamic Radial Rating N/A 2010000 N452000 lbf Reference Thermal Speed Rating (Grease) N/A 810 Reference Thermal Speed Rating (Oil) N/A 880 R - Inner Ring "To Clear" Radius N/A 3.0 mm0.100 in
220RU92BB1112R3 d - Bore N/A 220 mm8.6614 in D - Outer Diameter N/A 400.000 mm15.7480 in C - Inner Ring Width N/A 133.350 mm5.2500 in B - Outer Ring Width N/A 133.350 mm5.2500 in C0 - Static Radial Rating N/A 3230000 N726000 lbf C - Dynamic Radial Rating N/A 2010000 N452000 lbf Reference Thermal Speed Rating (Grease) N/A 810 Reference Thermal Speed Rating (Oil) N/A 880 R - Inner Ring "To Clear" Radius N/A 4.000 mm0.200 in
220RU92R2 d - Bore N/A 220 mm8.6614 in D - Outer Diameter N/A 400.000 mm15.7480 in C - Inner Ring Width N/A 133.400 mm5.2520 in B - Outer Ring Width N/A 133.400 mm5.2520 in C0 - Static Radial Rating N/A 3230000 N726000 lbf C - Dynamic Radial Rating N/A 2010000 N452000 lbf Reference Thermal Speed Rating (Grease) N/A 810 Reference Thermal Speed Rating (Oil) N/A 880 R - Inner Ring "To Clear" Radius N/A 3.0 mm0.100 in
220RU92R3 d - Bore N/A 220 mm8.6614 in D - Outer Diameter N/A 400.000 mm15.7480 in C - Inner Ring Width N/A 133.400 mm5.2520 in B - Outer Ring Width N/A 133.400 mm5.2520 in C0 - Static Radial Rating N/A 3230000 N726000 lbf C - Dynamic Radial Rating N/A 2010000 N452000 lbf Reference Thermal Speed Rating (Grease) N/A 810 Reference Thermal Speed Rating (Oil) N/A 880 R - Inner Ring "To Clear" Radius N/A 3.0 mm0.100 in
240RU30R3 d - Bore N/A 240.000 mm9.4488 in D - Outer Diameter N/A 360.000 mm14.1732 in C - Inner Ring Width N/A 92.000 mm3.6220 in B - Outer Ring Width N/A 92.000 mm3.6220 in C0 - Static Radial Rating N/A 2170000 N488000 lbf C - Dynamic Radial Rating N/A 1220000 N274000 lbf Reference Thermal Speed Rating (Grease) N/A 840 Reference Thermal Speed Rating (Oil) N/A 940 R - Inner Ring "To Clear" Radius N/A 2.500 mm0.100 in
240RU91AO132R3 d - Bore N/A 240.000 mm9.4488 in D - Outer Diameter N/A 390.000 mm15.3543 in C - Inner Ring Width N/A 108.000 mm4.2520 in B - Outer Ring Width N/A 108.000 mm4.2520 in C0 - Static Radial Rating N/A 2650000 N596000 lbf C - Dynamic Radial Rating N/A 1570000 N353000 lbf Reference Thermal Speed Rating (Grease) N/A 790 Reference Thermal Speed Rating (Oil) N/A 880 R - Inner Ring "To Clear" Radius N/A 3.0 mm0.100 in
240RU91OA107R3 d - Bore N/A 240.000 mm9.4488 in D - Outer Diameter N/A 390.000 mm15.3543 in C - Inner Ring Width N/A 107.950 mm4.2500 in B - Outer Ring Width N/A 107.950 mm4.2500 in C0 - Static Radial Rating N/A 2650000 N596000 lbf C - Dynamic Radial Rating N/A 1570000 N353000 lbf Reference Thermal Speed Rating (Grease) N/A 790 Reference Thermal Speed Rating (Oil) N/A 880 R - Inner Ring "To Clear" Radius N/A 4.000 mm0.200 in
240RU91OC103R3 d - Bore N/A 240.000 mm9.4488 in D - Outer Diameter N/A 390.000 mm15.3543 in C - Inner Ring Width N/A 108.000 mm4.2520 in B - Outer Ring Width N/A 108.000 mm4.2520 in C0 - Static Radial Rating N/A 2650000 N596000 lbf C - Dynamic Radial Rating N/A 1570000 N353000 lbf Reference Thermal Speed Rating (Grease) N/A 790 Reference Thermal Speed Rating (Oil) N/A 880 R - Inner Ring "To Clear" Radius N/A 3.0 mm0.100 in
240RU91R3 d - Bore N/A 240.000 mm9.4488 in D - Outer Diameter N/A 390.000 mm15.3543 in C - Inner Ring Width N/A 107.950 mm4.2500 in B - Outer Ring Width N/A 107.950 mm4.2500 in C0 - Static Radial Rating N/A 2650000 N596000 lbf C - Dynamic Radial Rating N/A 1570000 N353000 lbf Reference Thermal Speed Rating (Grease) N/A 790 Reference Thermal Speed Rating (Oil) N/A 870 R - Inner Ring "To Clear" Radius N/A 4.000 mm0.200 in
240RU91R6 d - Bore N/A 240.000 mm9.4488 in D - Outer Diameter N/A 390.000 mm15.3543 in C - Inner Ring Width N/A 108.000 mm4.2520 in B - Outer Ring Width N/A 108.000 mm4.2520 in C0 - Static Radial Rating N/A 2650000 N596000 lbf C - Dynamic Radial Rating N/A 1570000 N353000 lbf Reference Thermal Speed Rating (Grease) N/A 790 Reference Thermal Speed Rating (Oil) N/A 880 R - Inner Ring "To Clear" Radius N/A 3.0 mm0.100 in
240RU91OE1284R3 d - Bore N/A 240.000 mm9.4488 in D - Outer Diameter N/A 400.000 mm15.7480 in C - Inner Ring Width N/A 107.950 mm4.2500 in B - Outer Ring Width N/A 107.950 mm4.2500 in C0 - Static Radial Rating N/A 2650000 N596000 lbf C - Dynamic Radial Rating N/A 1570000 N353000 lbf Reference Thermal Speed Rating (Grease) N/A 780 Reference Thermal Speed Rating (Oil) N/A 870 R - Inner Ring "To Clear" Radius N/A 4.000 mm0.200 in
250RU91R3 d - Bore N/A 250.000 mm9.8425 in D - Outer Diameter N/A 410.000 mm16.1417 in C - Inner Ring Width N/A 111.125 mm4.3750 in B - Outer Ring Width N/A 111.125 mm4.3750 in C0 - Static Radial Rating N/A 2720000 N611000 lbf C - Dynamic Radial Rating N/A 1680000 N378000 lbf Reference Thermal Speed Rating (Grease) N/A 770 Reference Thermal Speed Rating (Oil) N/A 850 R - Inner Ring "To Clear" Radius N/A 3.0 mm0.100 in
250RU93AA774R3 d - Bore N/A 250.000 mm9.8425 in D - Outer Diameter N/A 520.000 mm20.4724 in C - Inner Ring Width N/A 196.850 mm7.7500 in B - Outer Ring Width N/A 196.850 mm7.7500 in C0 - Static Radial Rating N/A 5470000 N1230000 lbf C - Dynamic Radial Rating N/A 3520000 N791000 lbf Reference Thermal Speed Rating (Grease) N/A 610 Reference Thermal Speed Rating (Oil) N/A 660 R - Inner Ring "To Clear" Radius N/A 5.100 mm0.200 in
260RU30OC1268R3 d - Bore N/A 260 mm10.2362 in D - Outer Diameter N/A 400.000 mm15.7480 in C - Inner Ring Width N/A 104.000 mm4.0945 in B - Outer Ring Width N/A 104.000 mm4.0945 in C0 - Static Radial Rating N/A 2630000 N591000 lbf C - Dynamic Radial Rating N/A 1530000 N344000 lbf Reference Thermal Speed Rating (Grease) N/A 750 Reference Thermal Speed Rating (Oil) N/A 830 R - Inner Ring "To Clear" Radius N/A 4.000 mm0.200 in
260RU92OA1175R3 d - Bore N/A 260 mm10.2362 in D - Outer Diameter N/A 480.000 mm18.8976 in C - Inner Ring Width N/A 158.750 mm6.2500 in B - Outer Ring Width N/A 158.750 mm6.2500 in C0 - Static Radial Rating N/A 4410000 N991000 lbf C - Dynamic Radial Rating N/A 2770000 N623000 lbf Reference Thermal Speed Rating (Grease) N/A 640 Reference Thermal Speed Rating (Oil) N/A 700 R - Inner Ring "To Clear" Radius N/A 5.000 mm0.200 in
280RU30R3 d - Bore N/A 280.000 mm11.0236 in D - Outer Diameter N/A 420 mm16.5354 in C - Inner Ring Width N/A 106.000 mm4.1732 in B - Outer Ring Width N/A 106.000 mm4.1732 in C0 - Static Radial Rating N/A 3040000 N683000 lbf C - Dynamic Radial Rating N/A 1690000 N380000 lbf Reference Thermal Speed Rating (Grease) N/A 670 Reference Thermal Speed Rating (Oil) N/A 740 R - Inner Ring "To Clear" Radius N/A 3.0 mm0.100 in
280RU30R4 d - Bore N/A 280.000 mm11.0236 in D - Outer Diameter N/A 420 mm16.5354 in C - Inner Ring Width N/A 106.000 mm4.1732 in B - Outer Ring Width N/A 106.000 mm4.1732 in C0 - Static Radial Rating N/A 3040000 N683000 lbf C - Dynamic Radial Rating N/A 1690000 N380000 lbf Reference Thermal Speed Rating (Grease) N/A 670 Reference Thermal Speed Rating (Oil) N/A 740 R - Inner Ring "To Clear" Radius N/A
280RU51R3 d - Bore N/A 280.000 mm11.0236 in D - Outer Diameter N/A 460.000 mm18.1102 in C - Inner Ring Width N/A 63.000 mm2.4803 in B - Outer Ring Width N/A 63.000 mm2.4803 in C0 - Static Radial Rating N/A 1340000 N301000 lbf C - Dynamic Radial Rating N/A 954000 N214000 lbf Reference Thermal Speed Rating (Grease) N/A 690 Reference Thermal Speed Rating (Oil) N/A 810 R - Inner Ring "To Clear" Radius N/A 3.0 mm0.100 in
280RU91OD1268 d - Bore N/A 280.000 mm11.0236 in D - Outer Diameter N/A 460.000 mm18.1102 in C - Inner Ring Width N/A 123.825 mm4.8750 in B - Outer Ring Width N/A 123.825 mm4.8750 in C0 - Static Radial Rating N/A 3700000 N832000 lbf C - Dynamic Radial Rating N/A 2410000 N542000 lbf Reference Thermal Speed Rating (Grease) N/A 620 Reference Thermal Speed Rating (Oil) N/A 680 R - Inner Ring "To Clear" Radius N/A 4.000 mm0.200 in
280RU91OD1268R2 d - Bore N/A 280.000 mm11.0236 in D - Outer Diameter N/A 460.000 mm18.1102 in C - Inner Ring Width N/A 123.825 mm4.8750 in B - Outer Ring Width N/A 123.825 mm4.8750 in C0 - Static Radial Rating N/A 3700000 N832000 lbf C - Dynamic Radial Rating N/A 2110000 N474000 lbf Reference Thermal Speed Rating (Grease) N/A 620 Reference Thermal Speed Rating (Oil) N/A 680 R - Inner Ring "To Clear" Radius N/A 4.000 mm0.200 in
280RU91OD1268R3 d - Bore N/A 280.000 mm11.0236 in D - Outer Diameter N/A 460.000 mm18.1102 in C - Inner Ring Width N/A 123.825 mm4.8750 in B - Outer Ring Width N/A 123.825 mm4.8750 in C0 - Static Radial Rating N/A 3700000 N832000 lbf C - Dynamic Radial Rating N/A 2110000 N474000 lbf Reference Thermal Speed Rating (Grease) N/A 620 Reference Thermal Speed Rating (Oil) N/A 680 R - Inner Ring "To Clear" Radius N/A 4.000 mm0.200 in
280RU91OD1268R7 d - Bore N/A 280.000 mm11.0236 in D - Outer Diameter N/A 460.000 mm18.1102 in C - Inner Ring Width N/A 123.825 mm4.8750 in B - Outer Ring Width N/A 123.825 mm4.8750 in C0 - Static Radial Rating N/A 3700000 N832000 lbf C - Dynamic Radial Rating N/A 2110000 N474000 lbf Reference Thermal Speed Rating (Grease) N/A 620 Reference Thermal Speed Rating (Oil) N/A 680 R - Inner Ring "To Clear" Radius N/A 4.000 mm0.200 in
280RU91OE1792R3 d - Bore N/A 280.000 mm11.0236 in D - Outer Diameter N/A 460.000 mm18.1102 in C - Inner Ring Width N/A 123.825 mm4.8750 in B - Outer Ring Width N/A 123.825 mm4.8750 in C0 - Static Radial Rating N/A 3700000 N832000 lbf C - Dynamic Radial Rating N/A 2110000 N474000 lbf Reference Thermal Speed Rating (Grease) N/A 620 Reference Thermal Speed Rating (Oil) N/A 680 R - Inner Ring "To Clear" Radius N/A 4.000 mm0.200 in
280RU92AC1112 d - Bore N/A 280.000 mm11.0236 in D - Outer Diameter N/A 500.000 mm19.6850 in C - Inner Ring Width N/A 165.100 mm6.5000 in B - Outer Ring Width N/A 165.100 mm6.5000 in C0 - Static Radial Rating N/A 5180000 N1160000 lbf C - Dynamic Radial Rating N/A 3630000 N816000 lbf Reference Thermal Speed Rating (Grease) N/A 570 Reference Thermal Speed Rating (Oil) N/A 610 R - Inner Ring "To Clear" Radius N/A 4.000 mm0.200 in
280RU92AC1112R3 d - Bore N/A 280.000 mm11.0236 in D - Outer Diameter N/A 500.000 mm19.6850 in C - Inner Ring Width N/A 165.100 mm6.5000 in B - Outer Ring Width N/A 165.100 mm6.5000 in C0 - Static Radial Rating N/A 5220000 N1170000 lbf C - Dynamic Radial Rating N/A 3150000 N708000 lbf Reference Thermal Speed Rating (Grease) N/A 570 Reference Thermal Speed Rating (Oil) N/A 610 R - Inner Ring "To Clear" Radius N/A 5.200 mm0.200 in
300RU30OA107R3 d - Bore N/A 300.000 mm11.8110 in D - Outer Diameter N/A 460.000 mm18.1102 in C - Inner Ring Width N/A 118.000 mm4.6457 in B - Outer Ring Width N/A 118.000 mm4.6457 in C0 - Static Radial Rating N/A 3640000 N818000 lbf C - Dynamic Radial Rating N/A 1990000 N447000 lbf Reference Thermal Speed Rating (Grease) N/A 600 Reference Thermal Speed Rating (Oil) N/A 660 R - Inner Ring "To Clear" Radius N/A 4.000 mm0.200 in
300RU30R4 d - Bore N/A 300.000 mm11.8110 in D - Outer Diameter N/A 460.000 mm18.1102 in C - Inner Ring Width N/A 118.000 mm4.6457 in B - Outer Ring Width N/A 118.000 mm4.6457 in C0 - Static Radial Rating N/A 3640000 N818000 lbf C - Dynamic Radial Rating N/A 1990000 N447000 lbf Reference Thermal Speed Rating (Grease) N/A 600 Reference Thermal Speed Rating (Oil) N/A 660 R - Inner Ring "To Clear" Radius N/A
300RU92AD1112R3 d - Bore N/A 300.000 mm11.8110 in D - Outer Diameter N/A 540.000 mm21.2598 in C - Inner Ring Width N/A 177.800 mm7.0000 in B - Outer Ring Width N/A 177.800 mm7.0000 in C0 - Static Radial Rating N/A 6150000 N1380000 lbf C - Dynamic Radial Rating N/A 3700000 N832000 lbf Reference Thermal Speed Rating (Grease) N/A 500 Reference Thermal Speed Rating (Oil) N/A 540 R - Inner Ring "To Clear" Radius N/A 5.200 mm0.200 in
300RU92R3 d - Bore N/A 300.000 mm11.8110 in D - Outer Diameter N/A 540.000 mm21.2598 in C - Inner Ring Width N/A 177.800 mm7.0000 in B - Outer Ring Width N/A 177.800 mm7.0000 in C0 - Static Radial Rating N/A 6150000 N1380000 lbf C - Dynamic Radial Rating N/A 3700000 N832000 lbf Reference Thermal Speed Rating (Grease) N/A 500 Reference Thermal Speed Rating (Oil) N/A 540 R - Inner Ring "To Clear" Radius N/A 4.100 mm0.200 in
320RU30OA107R3 d - Bore N/A 320.000 mm12.5984 in D - Outer Diameter N/A 480.000 mm18.8976 in C - Inner Ring Width N/A 121.000 mm4.7638 in B - Outer Ring Width N/A 121.000 mm4.7638 in C0 - Static Radial Rating N/A 3990000 N897000 lbf C - Dynamic Radial Rating N/A 2110000 N474000 lbf Reference Thermal Speed Rating (Grease) N/A 550 Reference Thermal Speed Rating (Oil) N/A 610 R - Inner Ring "To Clear" Radius N/A 4.000 mm0.200 in
320RU30OC1175R4 d - Bore N/A 320.000 mm12.5984 in D - Outer Diameter N/A 480.000 mm18.8976 in C - Inner Ring Width N/A 121.000 mm4.7638 in B - Outer Ring Width N/A 121.000 mm4.7638 in C0 - Static Radial Rating N/A 3990000 N897000 lbf C - Dynamic Radial Rating N/A 2110000 N474000 lbf Reference Thermal Speed Rating (Grease) N/A 550 Reference Thermal Speed Rating (Oil) N/A 610 R - Inner Ring "To Clear" Radius N/A 4.000 mm0.200 in
320RU91R3 d - Bore N/A 320.000 mm12.5984 in D - Outer Diameter N/A 500.000 mm19.6850 in C - Inner Ring Width N/A 130.175 mm5.1250 in B - Outer Ring Width N/A 130.175 mm5.1250 in C0 - Static Radial Rating N/A 4210000 N946000 lbf C - Dynamic Radial Rating N/A 2390000 N537000 lbf Reference Thermal Speed Rating (Grease) N/A 550 Reference Thermal Speed Rating (Oil) N/A 600 R - Inner Ring "To Clear" Radius N/A 3.0 mm0.100 in
320RU31OB1268R2 d - Bore N/A 320.000 mm12.5984 in D - Outer Diameter N/A 540.000 mm21.2598 in C - Inner Ring Width N/A 176.000 mm6.9291 in B - Outer Ring Width N/A 176.000 mm6.9291 in C0 - Static Radial Rating N/A 5860000 N1320000 lbf C - Dynamic Radial Rating N/A 3380000 N760000 lbf Reference Thermal Speed Rating (Grease) N/A 510 Reference Thermal Speed Rating (Oil) N/A 550 R - Inner Ring "To Clear" Radius N/A 4.100 mm0.200 in
320RU92AC1112R3 d - Bore N/A 320.000 mm12.5984 in D - Outer Diameter N/A 580.000 mm22.8346 in C - Inner Ring Width N/A 190.500 mm7.5000 in B - Outer Ring Width N/A 190.500 mm7.5000 in C0 - Static Radial Rating N/A 6790000 N1530000 lbf C - Dynamic Radial Rating N/A 4020000 N904000 lbf Reference Thermal Speed Rating (Grease) N/A 470 Reference Thermal Speed Rating (Oil) N/A 500 R - Inner Ring "To Clear" Radius N/A 4.100 mm0.200 in
340RU30R3 d - Bore N/A 340.000 mm13.3858 in D - Outer Diameter N/A 520.000 mm20.4724 in C - Inner Ring Width N/A 133.000 mm5.2362 in B - Outer Ring Width N/A 133.000 mm5.2362 in C0 - Static Radial Rating N/A 4580000 N1030000 lbf C - Dynamic Radial Rating N/A 2520000 N567000 lbf Reference Thermal Speed Rating (Grease) N/A 510 Reference Thermal Speed Rating (Oil) N/A 550 R - Inner Ring "To Clear" Radius N/A 4.100 mm0.200 in
400RU30R3 d - Bore N/A 400.000 mm15.7480 in D - Outer Diameter N/A 600.000 mm23.6220 in C - Inner Ring Width N/A 148.000 mm5.8268 in B - Outer Ring Width N/A 148.000 mm5.8268 in C0 - Static Radial Rating N/A 5890000 N1320000 lbf C - Dynamic Radial Rating N/A 3070000 N690000 lbf Reference Thermal Speed Rating (Grease) N/A 410 Reference Thermal Speed Rating (Oil) N/A 450 R - Inner Ring "To Clear" Radius N/A 5.200 mm0.200 in
440RU30OA107R3 d - Bore N/A 440.000 mm17.3228 in D - Outer Diameter N/A 650.000 mm25.5906 in C - Inner Ring Width N/A 157.000 mm6.1811 in B - Outer Ring Width N/A 157.000 mm6.1811 in C0 - Static Radial Rating N/A 7270000 N1630000 lbf C - Dynamic Radial Rating N/A 3660000 N823000 lbf Reference Thermal Speed Rating (Grease) N/A 350 Reference Thermal Speed Rating (Oil) N/A 380 R - Inner Ring "To Clear" Radius N/A 6.400 mm0.300 in
530RU30AF1874R3 d - Bore N/A 530.000 mm20.8661 in D - Outer Diameter N/A 780.000 mm30.7087 in C - Inner Ring Width N/A 185.000 mm7.2835 in B - Outer Ring Width N/A 185.000 mm7.2835 in C0 - Static Radial Rating N/A 10600000 N2380000 lbf C - Dynamic Radial Rating N/A 5060000 N1140000 lbf Reference Thermal Speed Rating (Grease) N/A 260 Reference Thermal Speed Rating (Oil) N/A 280 R - Inner Ring "To Clear" Radius N/A
530RU30OB630R3 d - Bore N/A 530.000 mm20.8661 in D - Outer Diameter N/A 780.000 mm30.7087 in C - Inner Ring Width N/A 185.000 mm7.2835 in B - Outer Ring Width N/A 185.000 mm7.2835 in C0 - Static Radial Rating N/A 10600000 N2380000 lbf C - Dynamic Radial Rating N/A 5060000 N1140000 lbf Reference Thermal Speed Rating (Grease) N/A 260 Reference Thermal Speed Rating (Oil) N/A 280 R - Inner Ring "To Clear" Radius N/A 5.100 mm0.200 in
530RU30OB630R4 d - Bore N/A 530.000 mm20.8661 in D - Outer Diameter N/A 780.000 mm30.7087 in C - Inner Ring Width N/A 185.000 mm7.2835 in B - Outer Ring Width N/A 185.000 mm7.2835 in C0 - Static Radial Rating N/A 10600000 N2380000 lbf C - Dynamic Radial Rating N/A 5060000 N1140000 lbf Reference Thermal Speed Rating (Grease) N/A 260 Reference Thermal Speed Rating (Oil) N/A 280 R - Inner Ring "To Clear" Radius N/A 5.100 mm0.200 in
560RJ18R3 d - Bore N/A 560.000 mm22.0472 in D - Outer Diameter N/A 680.000 mm26.7717 in C - Inner Ring Width N/A 56.000 mm2.2047 in B - Outer Ring Width N/A 56.000 mm2.2047 in C0 - Static Radial Rating N/A 2310000 N519000 lbf C - Dynamic Radial Rating N/A 877000 N197000 lbf Reference Thermal Speed Rating (Grease) N/A 320 Reference Thermal Speed Rating (Oil) N/A 370 R - Inner Ring "To Clear" Radius N/A 4.100 mm0.200 in
