Băng tải - Gàu tải > Deep Groove Ball Bearings (6000, 6200, 6300, 6400)

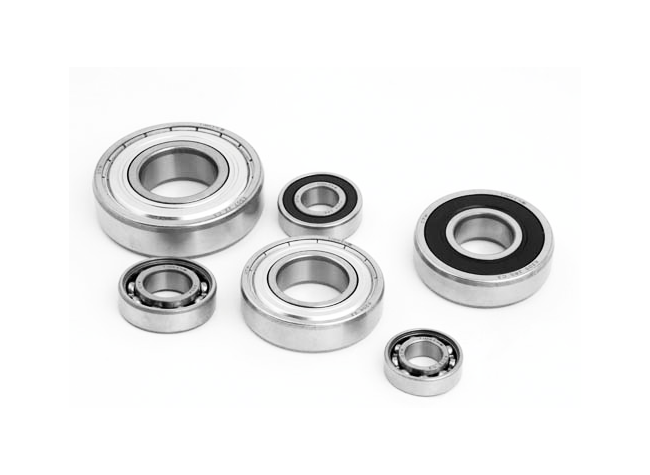

Deep Groove Ball Bearings (6000, 6200, 6300, 6400)



Deep groove ball bearings are available in a variety of sizes and are the most popular of the rolling bearings. This type of bearing supports radial load and a small degree of axial load in both directions simultaneously. Deep groove ball bearings are popular due to their versatility, affordability, and capability to run at high speeds. Most bearings in the 6000 series up to 60mm bore can be made available in stainless steel (AISI 440C material) upon request. Contact a Timken sales engineer for details.





Timken Part Number

  Bore Size d  Features  Outside Diameter D  Outside Ring Width B  Cr - Dynamic Load Rating  C0r - Static Load Rating  Grease Reference Speed

Oil Reference Speed
6000 Bore Size d N/A 10 mm Features N/A Open Outside Diameter D N/A 26.000 mm Outside Ring Width B N/A 8.000 mm Cr - Dynamic Load Rating N/A 4.6 kN C0r - Static Load Rating N/A 2 kN Grease Reference Speed N/A 26000 rpm Oil Reference Speed N/A 38000 rpm
6000-ZZ Bore Size d N/A 10 mm Features N/A Shields Outside Diameter D N/A 26.000 mm Outside Ring Width B N/A 8.000 mm Cr - Dynamic Load Rating N/A 4.6 kN C0r - Static Load Rating N/A 2 kN Grease Reference Speed N/A 26000 rpm Oil Reference Speed N/A 38000 rpm
6000-2RS Bore Size d N/A 10 mm Features N/A Contact Seals Outside Diameter D N/A 26.000 mm Outside Ring Width B N/A 8.000 mm Cr - Dynamic Load Rating N/A 4.6 kN C0r - Static Load Rating N/A 2 kN Grease Reference Speed N/A 26000 rpm Oil Reference Speed N/A 38000 rpm
6000-2RZ Bore Size d N/A 10 mm Features N/A Non-Contact Seals Outside Diameter D N/A 26.000 mm Outside Ring Width B N/A 8.000 mm Cr - Dynamic Load Rating N/A 4.6 kN C0r - Static Load Rating N/A 2 kN Grease Reference Speed N/A 26000 rpm Oil Reference Speed N/A 38000 rpm
6000-N Bore Size d N/A 10 mm Features N/A O.D. Groove Outside Diameter D N/A 26.000 mm Outside Ring Width B N/A 8.000 mm Cr - Dynamic Load Rating N/A 4.6 kN C0r - Static Load Rating N/A 2 kN Grease Reference Speed N/A 26000 rpm Oil Reference Speed N/A 38000 rpm
6000-NR Bore Size d N/A 10 mm Features N/A Snap Ring Outside Diameter D N/A 26.000 mm Outside Ring Width B N/A 8.000 mm Cr - Dynamic Load Rating N/A 4.6 kN C0r - Static Load Rating N/A 2 kN Grease Reference Speed N/A 26000 rpm Oil Reference Speed N/A 38000 rpm
6200 Bore Size d N/A 10 mm Features N/A Open Outside Diameter D N/A 30.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 5.1 kN C0r - Static Load Rating N/A 2.4 kN Grease Reference Speed N/A 22000 rpm Oil Reference Speed N/A 32000 rpm
6200-ZZ Bore Size d N/A 10 mm Features N/A Shields Outside Diameter D N/A 30.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 5.1 kN C0r - Static Load Rating N/A 2.4 kN Grease Reference Speed N/A 22000 rpm Oil Reference Speed N/A 32000 rpm
6200-2RS Bore Size d N/A 10 mm Features N/A Contact Seals Outside Diameter D N/A 30.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 5.1 kN C0r - Static Load Rating N/A 2.4 kN Grease Reference Speed N/A 22000 rpm Oil Reference Speed N/A 32000 rpm
6200-2RZ Bore Size d N/A 10 mm Features N/A Non-Contact Seals Outside Diameter D N/A 30.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 5.1 kN C0r - Static Load Rating N/A 2.4 kN Grease Reference Speed N/A 22000 rpm Oil Reference Speed N/A 32000 rpm
6200-N Bore Size d N/A 10 mm Features N/A O.D. Groove Outside Diameter D N/A 30.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 5.1 kN C0r - Static Load Rating N/A 2.4 kN Grease Reference Speed N/A 22000 rpm Oil Reference Speed N/A 32000 rpm
6200-NR Bore Size d N/A 10 mm Features N/A Snap Ring Outside Diameter D N/A 30.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 5.1 kN C0r - Static Load Rating N/A 2.4 kN Grease Reference Speed N/A 22000 rpm Oil Reference Speed N/A 32000 rpm
6300 Bore Size d N/A 10 mm Features N/A Open Outside Diameter D N/A 35.000 mm Outside Ring Width B N/A 11.000 mm Cr - Dynamic Load Rating N/A 8.1 kN C0r - Static Load Rating N/A 3.5 kN Grease Reference Speed N/A 20000 rpm Oil Reference Speed N/A 29000 rpm
6300-ZZ Bore Size d N/A 10 mm Features N/A Shields Outside Diameter D N/A 35.000 mm Outside Ring Width B N/A 11.000 mm Cr - Dynamic Load Rating N/A 8.1 kN C0r - Static Load Rating N/A 3.5 kN Grease Reference Speed N/A 20000 rpm Oil Reference Speed N/A 29000 rpm
6300-2RS Bore Size d N/A 10 mm Features N/A Contact Seals Outside Diameter D N/A 35.000 mm Outside Ring Width B N/A 11.000 mm Cr - Dynamic Load Rating N/A 8.1 kN C0r - Static Load Rating N/A 3.5 kN Grease Reference Speed N/A 20000 rpm Oil Reference Speed N/A 29000 rpm
6300-2RZ Bore Size d N/A 10 mm Features N/A Non-Contact Seals Outside Diameter D N/A 35.000 mm Outside Ring Width B N/A 11.000 mm Cr - Dynamic Load Rating N/A 8.1 kN C0r - Static Load Rating N/A 3.5 kN Grease Reference Speed N/A 20000 rpm Oil Reference Speed N/A 29000 rpm
6300-N Bore Size d N/A 10 mm Features N/A O.D. Groove Outside Diameter D N/A 35.000 mm Outside Ring Width B N/A 11.000 mm Cr - Dynamic Load Rating N/A 8.1 kN C0r - Static Load Rating N/A 3.5 kN Grease Reference Speed N/A 20000 rpm Oil Reference Speed N/A 29000 rpm
6300-NR Bore Size d N/A 10 mm Features N/A Snap Ring Outside Diameter D N/A 35.000 mm Outside Ring Width B N/A 11.000 mm Cr - Dynamic Load Rating N/A 8.1 kN C0r - Static Load Rating N/A 3.5 kN Grease Reference Speed N/A 20000 rpm Oil Reference Speed N/A 29000 rpm
6001 Bore Size d N/A 12 mm Features N/A Open Outside Diameter D N/A 28.0000 mm Outside Ring Width B N/A 8.000 mm Cr - Dynamic Load Rating N/A 5.1 kN C0r - Static Load Rating N/A 2.4 kN Grease Reference Speed N/A 23000 rpm Oil Reference Speed N/A 33000 rpm
6001-ZZ Bore Size d N/A 12 mm Features N/A Shields Outside Diameter D N/A 28.0000 mm Outside Ring Width B N/A 8.000 mm Cr - Dynamic Load Rating N/A 5.1 kN C0r - Static Load Rating N/A 2.4 kN Grease Reference Speed N/A 23000 rpm Oil Reference Speed N/A 33000 rpm
6001-2RS Bore Size d N/A 12 mm Features N/A Contact Seals Outside Diameter D N/A 28.0000 mm Outside Ring Width B N/A 8.000 mm Cr - Dynamic Load Rating N/A 5.1 kN C0r - Static Load Rating N/A 2.4 kN Grease Reference Speed N/A 23000 rpm Oil Reference Speed N/A 33000 rpm
6001-2RZ Bore Size d N/A 12 mm Features N/A Non-Contact Seals Outside Diameter D N/A 28.0000 mm Outside Ring Width B N/A 8.000 mm Cr - Dynamic Load Rating N/A 5.1 kN C0r - Static Load Rating N/A 2.4 kN Grease Reference Speed N/A 23000 rpm Oil Reference Speed N/A 33000 rpm
6001-N Bore Size d N/A 12 mm Features N/A O.D. Groove Outside Diameter D N/A 28.0000 mm Outside Ring Width B N/A 8.000 mm Cr - Dynamic Load Rating N/A 5.1 kN C0r - Static Load Rating N/A 2.4 kN Grease Reference Speed N/A 23000 rpm Oil Reference Speed N/A 33000 rpm
6001-NR Bore Size d N/A 12 mm Features N/A Snap Ring Outside Diameter D N/A 28.0000 mm Outside Ring Width B N/A 8.000 mm Cr - Dynamic Load Rating N/A 5.1 kN C0r - Static Load Rating N/A 2.4 kN Grease Reference Speed N/A 23000 rpm Oil Reference Speed N/A 33000 rpm
6201 Bore Size d N/A 12 mm Features N/A Open Outside Diameter D N/A 32.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 6.8 kN C0r - Static Load Rating N/A 3 kN Grease Reference Speed N/A 21000 rpm Oil Reference Speed N/A 30000 rpm
6201-ZZ Bore Size d N/A 12 mm Features N/A Shields Outside Diameter D N/A 32.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 6.8 kN C0r - Static Load Rating N/A 3 kN Grease Reference Speed N/A 21000 rpm Oil Reference Speed N/A 30000 rpm
6201-2RS Bore Size d N/A 12 mm Features N/A Contact Seals Outside Diameter D N/A 32.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 6.8 kN C0r - Static Load Rating N/A 3 kN Grease Reference Speed N/A 21000 rpm Oil Reference Speed N/A 30000 rpm
6201-2RZ Bore Size d N/A 12 mm Features N/A Non-Contact Seals Outside Diameter D N/A 32.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 6.8 kN C0r - Static Load Rating N/A 3 kN Grease Reference Speed N/A 21000 rpm Oil Reference Speed N/A 30000 rpm
6201-N Bore Size d N/A 12 mm Features N/A O.D. Groove Outside Diameter D N/A 32.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 6.8 kN C0r - Static Load Rating N/A 3 kN Grease Reference Speed N/A 21000 rpm Oil Reference Speed N/A 30000 rpm
6201-NR Bore Size d N/A 12 mm Features N/A Snap Ring Outside Diameter D N/A 32.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 6.8 kN C0r - Static Load Rating N/A 3 kN Grease Reference Speed N/A 21000 rpm Oil Reference Speed N/A 30000 rpm
6301 Bore Size d N/A 12 mm Features N/A Open Outside Diameter D N/A 37.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 9.7 kN C0r - Static Load Rating N/A 4.2 kN Grease Reference Speed N/A 19000 rpm Oil Reference Speed N/A 27000 rpm
6301-ZZ Bore Size d N/A 12 mm Features N/A Shields Outside Diameter D N/A 37.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 9.7 kN C0r - Static Load Rating N/A 4.2 kN Grease Reference Speed N/A 19000 rpm Oil Reference Speed N/A 27000 rpm
6301-2RS Bore Size d N/A 12 mm Features N/A Contact Seals Outside Diameter D N/A 37.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 9.7 kN C0r - Static Load Rating N/A 4.2 kN Grease Reference Speed N/A 19000 rpm Oil Reference Speed N/A 27000 rpm
6301-2RZ Bore Size d N/A 12 mm Features N/A Non-Contact Seals Outside Diameter D N/A 37.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 9.7 kN C0r - Static Load Rating N/A 4.2 kN Grease Reference Speed N/A 19000 rpm Oil Reference Speed N/A 27000 rpm
6301-N Bore Size d N/A 12 mm Features N/A O.D. Groove Outside Diameter D N/A 37.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 9.7 kN C0r - Static Load Rating N/A 4.2 kN Grease Reference Speed N/A 19000 rpm Oil Reference Speed N/A 27000 rpm
6301-NR Bore Size d N/A 12 mm Features N/A Snap Ring Outside Diameter D N/A 37.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 9.7 kN C0r - Static Load Rating N/A 4.2 kN Grease Reference Speed N/A 19000 rpm Oil Reference Speed N/A 27000 rpm
6002 Bore Size d N/A 15 mm Features N/A Open Outside Diameter D N/A 32.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 5.6 kN C0r - Static Load Rating N/A 2.8 kN Grease Reference Speed N/A 20000 rpm Oil Reference Speed N/A 30000 rpm
6002-ZZ Bore Size d N/A 15 mm Features N/A Shields Outside Diameter D N/A 32.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 5.6 kN C0r - Static Load Rating N/A 2.8 kN Grease Reference Speed N/A 20000 rpm Oil Reference Speed N/A 30000 rpm
6002-2RS Bore Size d N/A 15 mm Features N/A Contact Seals Outside Diameter D N/A 32.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 5.6 kN C0r - Static Load Rating N/A 2.8 kN Grease Reference Speed N/A 20000 rpm Oil Reference Speed N/A 30000 rpm
6002-2RZ Bore Size d N/A 15 mm Features N/A Non-Contact Seals Outside Diameter D N/A 32.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 5.6 kN C0r - Static Load Rating N/A 2.8 kN Grease Reference Speed N/A 20000 rpm Oil Reference Speed N/A 30000 rpm
6002-N Bore Size d N/A 15 mm Features N/A O.D. Groove Outside Diameter D N/A 32.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 5.6 kN C0r - Static Load Rating N/A 2.8 kN Grease Reference Speed N/A 20000 rpm Oil Reference Speed N/A 30000 rpm
6002-NR Bore Size d N/A 15 mm Features N/A Snap Ring Outside Diameter D N/A 32.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 5.6 kN C0r - Static Load Rating N/A 2.8 kN Grease Reference Speed N/A 20000 rpm Oil Reference Speed N/A 30000 rpm
6202 Bore Size d N/A 15 mm Features N/A Open Outside Diameter D N/A 35.000 mm Outside Ring Width B N/A 11.000 mm Cr - Dynamic Load Rating N/A 7.6 kN C0r - Static Load Rating N/A 3.7 kN Grease Reference Speed N/A 19000 rpm Oil Reference Speed N/A 28000 rpm
6202-ZZ Bore Size d N/A 15 mm Features N/A Shields Outside Diameter D N/A 35.000 mm Outside Ring Width B N/A 11.000 mm Cr - Dynamic Load Rating N/A 7.6 kN C0r - Static Load Rating N/A 3.7 kN Grease Reference Speed N/A 19000 rpm Oil Reference Speed N/A 28000 rpm
6202-2RZ Bore Size d N/A 15 mm Features N/A Non-Contact Seals Outside Diameter D N/A 35.000 mm Outside Ring Width B N/A 11.000 mm Cr - Dynamic Load Rating N/A 7.6 kN C0r - Static Load Rating N/A 3.7 kN Grease Reference Speed N/A 19000 rpm Oil Reference Speed N/A 28000 rpm
6202-2RS Bore Size d N/A 15 mm Features N/A Contact Seals Outside Diameter D N/A 35.000 mm Outside Ring Width B N/A 11.000 mm Cr - Dynamic Load Rating N/A 7.6 kN C0r - Static Load Rating N/A 3.7 kN Grease Reference Speed N/A 19000 rpm Oil Reference Speed N/A 28000 rpm
6202-N Bore Size d N/A 15 mm Features N/A O.D. Groove Outside Diameter D N/A 35.000 mm Outside Ring Width B N/A 11.000 mm Cr - Dynamic Load Rating N/A 7.6 kN C0r - Static Load Rating N/A 3.7 kN Grease Reference Speed N/A 19000 rpm Oil Reference Speed N/A 28000 rpm
6202-NR Bore Size d N/A 15 mm Features N/A Snap Ring Outside Diameter D N/A 35.000 mm Outside Ring Width B N/A 11.000 mm Cr - Dynamic Load Rating N/A 7.6 kN C0r - Static Load Rating N/A 3.7 kN Grease Reference Speed N/A 19000 rpm Oil Reference Speed N/A 28000 rpm
6302 Bore Size d N/A 15 mm Features N/A Open Outside Diameter D N/A 42.000 mm Outside Ring Width B N/A 13.000 mm Cr - Dynamic Load Rating N/A 11.4 kN C0r - Static Load Rating N/A 5.40 kN Grease Reference Speed N/A 16000 rpm Oil Reference Speed N/A 24000 rpm
6302-ZZ Bore Size d N/A 15 mm Features N/A Shields Outside Diameter D N/A 42.000 mm Outside Ring Width B N/A 13.000 mm Cr - Dynamic Load Rating N/A 11.4 kN C0r - Static Load Rating N/A 5.40 kN Grease Reference Speed N/A 16000 rpm Oil Reference Speed N/A 24000 rpm
6302-2RS Bore Size d N/A 15 mm Features N/A Contact Seals Outside Diameter D N/A 42.000 mm Outside Ring Width B N/A 13.000 mm Cr - Dynamic Load Rating N/A 11.4 kN C0r - Static Load Rating N/A 5.40 kN Grease Reference Speed N/A 16000 rpm Oil Reference Speed N/A 24000 rpm
6302-2RZ Bore Size d N/A 15 mm Features N/A Non-Contact Seals Outside Diameter D N/A 42.000 mm Outside Ring Width B N/A 13.000 mm Cr - Dynamic Load Rating N/A 11.4 kN C0r - Static Load Rating N/A 5.40 kN Grease Reference Speed N/A 16000 rpm Oil Reference Speed N/A 24000 rpm
6302-N Bore Size d N/A 15 mm Features N/A O.D. Groove Outside Diameter D N/A 42.000 mm Outside Ring Width B N/A 13.000 mm Cr - Dynamic Load Rating N/A 11.4 kN C0r - Static Load Rating N/A 5.40 kN Grease Reference Speed N/A 16000 rpm Oil Reference Speed N/A 24000 rpm
6302-NR Bore Size d N/A 15 mm Features N/A Snap Ring Outside Diameter D N/A 42.000 mm Outside Ring Width B N/A 13.000 mm Cr - Dynamic Load Rating N/A 11.4 kN C0r - Static Load Rating N/A 5.40 kN Grease Reference Speed N/A 16000 rpm Oil Reference Speed N/A 24000 rpm
6003 Bore Size d N/A 17 mm Features N/A Open Outside Diameter D N/A 35.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 6 kN C0r - Static Load Rating N/A 3.3 kN Grease Reference Speed N/A 19000 rpm Oil Reference Speed N/A 28000 rpm
6003-ZZ Bore Size d N/A 17 mm Features N/A Shields Outside Diameter D N/A 35.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 6 kN C0r - Static Load Rating N/A 3.3 kN Grease Reference Speed N/A 19000 rpm Oil Reference Speed N/A 28000 rpm
6003-2RS Bore Size d N/A 17 mm Features N/A Contact Seals Outside Diameter D N/A 35.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 6 kN C0r - Static Load Rating N/A 3.3 kN Grease Reference Speed N/A 19000 rpm Oil Reference Speed N/A 28000 rpm
6003-2RZ Bore Size d N/A 17 mm Features N/A Non-Contact Seals Outside Diameter D N/A 35.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 6 kN C0r - Static Load Rating N/A 3.3 kN Grease Reference Speed N/A 19000 rpm Oil Reference Speed N/A 28000 rpm
6003-N Bore Size d N/A 17 mm Features N/A O.D. Groove Outside Diameter D N/A 35.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 6 kN C0r - Static Load Rating N/A 3.3 kN Grease Reference Speed N/A 19000 rpm Oil Reference Speed N/A 28000 rpm
6003-NR Bore Size d N/A 17 mm Features N/A Snap Ring Outside Diameter D N/A 35.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 6 kN C0r - Static Load Rating N/A 3.3 kN Grease Reference Speed N/A 19000 rpm Oil Reference Speed N/A 28000 rpm
6203 Bore Size d N/A 17 mm Features N/A Open Outside Diameter D N/A 40.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 9.6 kN C0r - Static Load Rating N/A 4.8 kN Grease Reference Speed N/A 17000 rpm Oil Reference Speed N/A 25000 rpm
6203-ZZ Bore Size d N/A 17 mm Features N/A Shields Outside Diameter D N/A 40.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 9.6 kN C0r - Static Load Rating N/A 4.8 kN Grease Reference Speed N/A 17000 rpm Oil Reference Speed N/A 25000 rpm
6203-2RS Bore Size d N/A 17 mm Features N/A Contact Seals Outside Diameter D N/A 40.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 9.6 kN C0r - Static Load Rating N/A 4.8 kN Grease Reference Speed N/A 17000 rpm Oil Reference Speed N/A 25000 rpm
6203-2RZ Bore Size d N/A 17 mm Features N/A Non-Contact Seals Outside Diameter D N/A 40.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 9.6 kN C0r - Static Load Rating N/A 4.8 kN Grease Reference Speed N/A 17000 rpm Oil Reference Speed N/A 25000 rpm
6203-N Bore Size d N/A 17 mm Features N/A O.D. Groove Outside Diameter D N/A 40.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 9.6 kN C0r - Static Load Rating N/A 4.8 kN Grease Reference Speed N/A 17000 rpm Oil Reference Speed N/A 25000 rpm
6203-NR Bore Size d N/A 17 mm Features N/A Snap Ring Outside Diameter D N/A 40.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 9.6 kN C0r - Static Load Rating N/A 4.8 kN Grease Reference Speed N/A 17000 rpm Oil Reference Speed N/A 25000 rpm
6303 Bore Size d N/A 17 mm Features N/A Open Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 14.000 mm Cr - Dynamic Load Rating N/A 13.6 kN C0r - Static Load Rating N/A 6.6 kN Grease Reference Speed N/A 15000 rpm Oil Reference Speed N/A 22000 rpm
6303-ZZ Bore Size d N/A 17 mm Features N/A Shields Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 14.000 mm Cr - Dynamic Load Rating N/A 13.6 kN C0r - Static Load Rating N/A 6.6 kN Grease Reference Speed N/A 15000 rpm Oil Reference Speed N/A 22000 rpm
6303-2RS Bore Size d N/A 17 mm Features N/A Contact Seals Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 14.000 mm Cr - Dynamic Load Rating N/A 13.6 kN C0r - Static Load Rating N/A 6.6 kN Grease Reference Speed N/A 15000 rpm Oil Reference Speed N/A 22000 rpm
6303-2RZ Bore Size d N/A 17 mm Features N/A Non-Contact Seals Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 14.000 mm Cr - Dynamic Load Rating N/A 13.6 kN C0r - Static Load Rating N/A 6.6 kN Grease Reference Speed N/A 15000 rpm Oil Reference Speed N/A 22000 rpm
6303-N Bore Size d N/A 17 mm Features N/A O.D. Groove Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 14.000 mm Cr - Dynamic Load Rating N/A 13.6 kN C0r - Static Load Rating N/A 6.6 kN Grease Reference Speed N/A 15000 rpm Oil Reference Speed N/A 22000 rpm
6303-NR Bore Size d N/A 17 mm Features N/A Snap Ring Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 14.000 mm Cr - Dynamic Load Rating N/A 13.6 kN C0r - Static Load Rating N/A 6.6 kN Grease Reference Speed N/A 15000 rpm Oil Reference Speed N/A 22000 rpm
6004 Bore Size d N/A 20 mm Features N/A Open Outside Diameter D N/A 42.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 9.4 kN C0r - Static Load Rating N/A 5 kN Grease Reference Speed N/A 17000 rpm Oil Reference Speed N/A 25000 rpm
6004-ZZ Bore Size d N/A 20 mm Features N/A Shields Outside Diameter D N/A 42.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 9.4 kN C0r - Static Load Rating N/A 5 kN Grease Reference Speed N/A 17000 rpm Oil Reference Speed N/A 25000 rpm
6004-2RS Bore Size d N/A 20 mm Features N/A Contact Seals Outside Diameter D N/A 42.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 9.4 kN C0r - Static Load Rating N/A 5 kN Grease Reference Speed N/A 17000 rpm Oil Reference Speed N/A 25000 rpm
6004-2RZ Bore Size d N/A 20 mm Features N/A Non-Contact Seals Outside Diameter D N/A 42.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 9.4 kN C0r - Static Load Rating N/A 5 kN Grease Reference Speed N/A 17000 rpm Oil Reference Speed N/A 25000 rpm
6004-N Bore Size d N/A 20 mm Features N/A O.D. Groove Outside Diameter D N/A 42.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 9.4 kN C0r - Static Load Rating N/A 5 kN Grease Reference Speed N/A 17000 rpm Oil Reference Speed N/A 25000 rpm
6004-NR Bore Size d N/A 20 mm Features N/A Snap Ring Outside Diameter D N/A 42.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 9.4 kN C0r - Static Load Rating N/A 5 kN Grease Reference Speed N/A 17000 rpm Oil Reference Speed N/A 25000 rpm
6204 Bore Size d N/A 20 mm Features N/A Open Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 14.000 mm Cr - Dynamic Load Rating N/A 12.8 kN C0r - Static Load Rating N/A 6.6 kN Grease Reference Speed N/A 15000 rpm Oil Reference Speed N/A 22000 rpm
6204-ZZ Bore Size d N/A 20 mm Features N/A Shields Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 14.000 mm Cr - Dynamic Load Rating N/A 12.8 kN C0r - Static Load Rating N/A 6.6 kN Grease Reference Speed N/A 15000 rpm Oil Reference Speed N/A 22000 rpm
6204-2RS Bore Size d N/A 20 mm Features N/A Contact Seals Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 14.000 mm Cr - Dynamic Load Rating N/A 12.8 kN C0r - Static Load Rating N/A 6.6 kN Grease Reference Speed N/A 15000 rpm Oil Reference Speed N/A 22000 rpm
6204-2RZ Bore Size d N/A 20 mm Features N/A Non-Contact Seals Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 14.000 mm Cr - Dynamic Load Rating N/A 12.8 kN C0r - Static Load Rating N/A 6.6 kN Grease Reference Speed N/A 15000 rpm Oil Reference Speed N/A 22000 rpm
6204-N Bore Size d N/A 20 mm Features N/A O.D. Groove Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 14.000 mm Cr - Dynamic Load Rating N/A 12.8 kN C0r - Static Load Rating N/A 6.6 kN Grease Reference Speed N/A 15000 rpm Oil Reference Speed N/A 22000 rpm
6204-NR Bore Size d N/A 20 mm Features N/A Snap Ring Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 14.000 mm Cr - Dynamic Load Rating N/A 12.8 kN C0r - Static Load Rating N/A 6.6 kN Grease Reference Speed N/A 15000 rpm Oil Reference Speed N/A 22000 rpm
6304 Bore Size d N/A 20 mm Features N/A Open Outside Diameter D N/A 52.000 mm Outside Ring Width B N/A 15.000 mm Cr - Dynamic Load Rating N/A 15.9 kN C0r - Static Load Rating N/A 7.8 kN Grease Reference Speed N/A 13000 rpm Oil Reference Speed N/A 20000 rpm
6304-ZZ Bore Size d N/A 20 mm Features N/A Shields Outside Diameter D N/A 52.000 mm Outside Ring Width B N/A 15.000 mm Cr - Dynamic Load Rating N/A 15.9 kN C0r - Static Load Rating N/A 7.8 kN Grease Reference Speed N/A 13000 rpm Oil Reference Speed N/A 20000 rpm
6304-2RZ Bore Size d N/A 20 mm Features N/A Non-Contact Seals Outside Diameter D N/A 52.000 mm Outside Ring Width B N/A 15.000 mm Cr - Dynamic Load Rating N/A 15.9 kN C0r - Static Load Rating N/A 7.8 kN Grease Reference Speed N/A 13000 rpm Oil Reference Speed N/A 20000 rpm
6304-2RS Bore Size d N/A 20 mm Features N/A Contact Seals Outside Diameter D N/A 52.000 mm Outside Ring Width B N/A 15.000 mm Cr - Dynamic Load Rating N/A 15.9 kN C0r - Static Load Rating N/A 7.8 kN Grease Reference Speed N/A 13000 rpm Oil Reference Speed N/A 20000 rpm
6304-N Bore Size d N/A 20 mm Features N/A O.D. Groove Outside Diameter D N/A 52.000 mm Outside Ring Width B N/A 15.000 mm Cr - Dynamic Load Rating N/A 15.9 kN C0r - Static Load Rating N/A 7.8 kN Grease Reference Speed N/A 13000 rpm Oil Reference Speed N/A 20000 rpm
6304-NR Bore Size d N/A 20 mm Features N/A Snap Ring Outside Diameter D N/A 52.000 mm Outside Ring Width B N/A 15.000 mm Cr - Dynamic Load Rating N/A 15.9 kN C0r - Static Load Rating N/A 7.8 kN Grease Reference Speed N/A 13000 rpm Oil Reference Speed N/A 20000 rpm
6005 Bore Size d N/A 25 mm Features N/A Open Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 10.1 kN C0r - Static Load Rating N/A 5.8 kN Grease Reference Speed N/A 14000 rpm Oil Reference Speed N/A 21000 rpm
6005-ZZ Bore Size d N/A 25 mm Features N/A Shields Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 10.1 kN C0r - Static Load Rating N/A 5.8 kN Grease Reference Speed N/A 14000 rpm Oil Reference Speed N/A 21000 rpm
6005-2RS Bore Size d N/A 25 mm Features N/A Contact Seals Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 10.1 kN C0r - Static Load Rating N/A 5.8 kN Grease Reference Speed N/A 14000 rpm Oil Reference Speed N/A 21000 rpm
6005-2RZ Bore Size d N/A 25 mm Features N/A Non-Contact Seals Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 10.1 kN C0r - Static Load Rating N/A 5.8 kN Grease Reference Speed N/A 14000 rpm Oil Reference Speed N/A 21000 rpm
6005-N Bore Size d N/A 25 mm Features N/A O.D. Groove Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 10.1 kN C0r - Static Load Rating N/A 5.8 kN Grease Reference Speed N/A 14000 rpm Oil Reference Speed N/A 21000 rpm
6005-NR Bore Size d N/A 25 mm Features N/A Snap Ring Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 10.1 kN C0r - Static Load Rating N/A 5.8 kN Grease Reference Speed N/A 14000 rpm Oil Reference Speed N/A 21000 rpm
6205 Bore Size d N/A 25 mm Features N/A Open Outside Diameter D N/A 52.000 mm Outside Ring Width B N/A 15.000 mm Cr - Dynamic Load Rating N/A 14 kN C0r - Static Load Rating N/A 7.9 kN Grease Reference Speed N/A 14000 rpm Oil Reference Speed N/A 20000 rpm
6205-ZZ Bore Size d N/A 25 mm Features N/A Shields Outside Diameter D N/A 52.000 mm Outside Ring Width B N/A 15.000 mm Cr - Dynamic Load Rating N/A 14 kN C0r - Static Load Rating N/A 7.9 kN Grease Reference Speed N/A 14000 rpm Oil Reference Speed N/A 20000 rpm
6205-2RS Bore Size d N/A 25 mm Features N/A Contact Seals Outside Diameter D N/A 52.000 mm Outside Ring Width B N/A 15.000 mm Cr - Dynamic Load Rating N/A 14 kN C0r - Static Load Rating N/A 7.9 kN Grease Reference Speed N/A 14000 rpm Oil Reference Speed N/A 20000 rpm
6205-2RZ Bore Size d N/A 25 mm Features N/A Non-Contact Seals Outside Diameter D N/A 52.000 mm Outside Ring Width B N/A 15.000 mm Cr - Dynamic Load Rating N/A 14 kN C0r - Static Load Rating N/A 7.9 kN Grease Reference Speed N/A 14000 rpm Oil Reference Speed N/A 20000 rpm
6205-N Bore Size d N/A 25 mm Features N/A O.D. Groove Outside Diameter D N/A 52.000 mm Outside Ring Width B N/A 15.000 mm Cr - Dynamic Load Rating N/A 14 kN C0r - Static Load Rating N/A 7.9 kN Grease Reference Speed N/A 14000 rpm Oil Reference Speed N/A 20000 rpm
6205-NR Bore Size d N/A 25 mm Features N/A Snap Ring Outside Diameter D N/A 52.000 mm Outside Ring Width B N/A 15.000 mm Cr - Dynamic Load Rating N/A 14 kN C0r - Static Load Rating N/A 7.9 kN Grease Reference Speed N/A 14000 rpm Oil Reference Speed N/A 20000 rpm
6305 Bore Size d N/A 25 mm Features N/A Open Outside Diameter D N/A 62.000 mm Outside Ring Width B N/A 17.000 mm Cr - Dynamic Load Rating N/A 20.6 kN C0r - Static Load Rating N/A 11.2 kN Grease Reference Speed N/A 12000 rpm Oil Reference Speed N/A 17000 rpm
6305-ZZ Bore Size d N/A 25 mm Features N/A Shields Outside Diameter D N/A 62.000 mm Outside Ring Width B N/A 17.000 mm Cr - Dynamic Load Rating N/A 20.6 kN C0r - Static Load Rating N/A 11.2 kN Grease Reference Speed N/A 12000 rpm Oil Reference Speed N/A 17000 rpm
6305-2RS Bore Size d N/A 25 mm Features N/A Contact Seals Outside Diameter D N/A 62.000 mm Outside Ring Width B N/A 17.000 mm Cr - Dynamic Load Rating N/A 20.6 kN C0r - Static Load Rating N/A 11.2 kN Grease Reference Speed N/A 12000 rpm Oil Reference Speed N/A 17000 rpm
6305-2RZ Bore Size d N/A 25 mm Features N/A Non-Contact Seals Outside Diameter D N/A 62.000 mm Outside Ring Width B N/A 17.000 mm Cr - Dynamic Load Rating N/A 20.6 kN C0r - Static Load Rating N/A 11.2 kN Grease Reference Speed N/A 12000 rpm Oil Reference Speed N/A 17000 rpm
6305-N Bore Size d N/A 25 mm Features N/A O.D. Groove Outside Diameter D N/A 62.000 mm Outside Ring Width B N/A 17.000 mm Cr - Dynamic Load Rating N/A 20.6 kN C0r - Static Load Rating N/A 11.2 kN Grease Reference Speed N/A 12000 rpm Oil Reference Speed N/A 17000 rpm
6305-NR Bore Size d N/A 25 mm Features N/A Snap Ring Outside Diameter D N/A 62.000 mm Outside Ring Width B N/A 17.000 mm Cr - Dynamic Load Rating N/A 20.6 kN C0r - Static Load Rating N/A 11.2 kN Grease Reference Speed N/A 12000 rpm Oil Reference Speed N/A 17000 rpm
6405 Bore Size d N/A 25 mm Features N/A Open Outside Diameter D N/A 80.000 mm Outside Ring Width B N/A 21.000 mm Cr - Dynamic Load Rating N/A 36.1 kN C0r - Static Load Rating N/A 18.8 kN Grease Reference Speed N/A 10000 rpm Oil Reference Speed N/A 15000 rpm
6405-N Bore Size d N/A 25 mm Features N/A O.D. Groove Outside Diameter D N/A 80.000 mm Outside Ring Width B N/A 21.000 mm Cr - Dynamic Load Rating N/A 36.1 kN C0r - Static Load Rating N/A 18.8 kN Grease Reference Speed N/A 10000 rpm Oil Reference Speed N/A 15000 rpm
6405-NR Bore Size d N/A 25 mm Features N/A Snap Ring Outside Diameter D N/A 80.000 mm Outside Ring Width B N/A 21.000 mm Cr - Dynamic Load Rating N/A 36.1 kN C0r - Static Load Rating N/A 18.8 kN Grease Reference Speed N/A 10000 rpm Oil Reference Speed N/A 15000 rpm
6006 Bore Size d N/A 30 mm Features N/A Open Outside Diameter D N/A 55.000 mm Outside Ring Width B N/A 13.000 mm Cr - Dynamic Load Rating N/A 13.2 kN C0r - Static Load Rating N/A 8.3 kN Grease Reference Speed N/A 12000 rpm Oil Reference Speed N/A 18000 rpm
6006-ZZ Bore Size d N/A 30 mm Features N/A Shields Outside Diameter D N/A 55.000 mm Outside Ring Width B N/A 13.000 mm Cr - Dynamic Load Rating N/A 13.2 kN C0r - Static Load Rating N/A 8.3 kN Grease Reference Speed N/A 12000 rpm Oil Reference Speed N/A 18000 rpm
6006-2RS Bore Size d N/A 30 mm Features N/A Contact Seals Outside Diameter D N/A 55.000 mm Outside Ring Width B N/A 13.000 mm Cr - Dynamic Load Rating N/A 13.2 kN C0r - Static Load Rating N/A 8.3 kN Grease Reference Speed N/A 12000 rpm Oil Reference Speed N/A 18000 rpm
6006-2RZ Bore Size d N/A 30 mm Features N/A Non-Contact Seals Outside Diameter D N/A 55.000 mm Outside Ring Width B N/A 13.000 mm Cr - Dynamic Load Rating N/A 13.2 kN C0r - Static Load Rating N/A 8.3 kN Grease Reference Speed N/A 12000 rpm Oil Reference Speed N/A 18000 rpm
6006-N Bore Size d N/A 30 mm Features N/A O.D. Groove Outside Diameter D N/A 55.000 mm Outside Ring Width B N/A 13.000 mm Cr - Dynamic Load Rating N/A 13.2 kN C0r - Static Load Rating N/A 8.3 kN Grease Reference Speed N/A 12000 rpm Oil Reference Speed N/A 18000 rpm
6006-NR Bore Size d N/A 30 mm Features N/A Snap Ring Outside Diameter D N/A 55.000 mm Outside Ring Width B N/A 13.000 mm Cr - Dynamic Load Rating N/A 13.2 kN C0r - Static Load Rating N/A 8.3 kN Grease Reference Speed N/A 12000 rpm Oil Reference Speed N/A 18000 rpm
6206 Bore Size d N/A 30 mm Features N/A Open Outside Diameter D N/A 62.000 mm Outside Ring Width B N/A 16.000 mm Cr - Dynamic Load Rating N/A 19.5 kN C0r - Static Load Rating N/A 11.3 kN Grease Reference Speed N/A 11000 rpm Oil Reference Speed N/A 16000 rpm
6206-ZZ Bore Size d N/A 30 mm Features N/A Shields Outside Diameter D N/A 62.000 mm Outside Ring Width B N/A 16.000 mm Cr - Dynamic Load Rating N/A 19.5 kN C0r - Static Load Rating N/A 11.3 kN Grease Reference Speed N/A 11000 rpm Oil Reference Speed N/A 16000 rpm
6206-2RS Bore Size d N/A 30 mm Features N/A Contact Seals Outside Diameter D N/A 62.000 mm Outside Ring Width B N/A 16.000 mm Cr - Dynamic Load Rating N/A 19.5 kN C0r - Static Load Rating N/A 11.3 kN Grease Reference Speed N/A 11000 rpm Oil Reference Speed N/A 16000 rpm
6206-2RZ Bore Size d N/A 30 mm Features N/A Non-Contact Seals Outside Diameter D N/A 62.000 mm Outside Ring Width B N/A 16.000 mm Cr - Dynamic Load Rating N/A 19.5 kN C0r - Static Load Rating N/A 11.3 kN Grease Reference Speed N/A 11000 rpm Oil Reference Speed N/A 16000 rpm
6206-N Bore Size d N/A 30 mm Features N/A O.D. Groove Outside Diameter D N/A 62.000 mm Outside Ring Width B N/A 16.000 mm Cr - Dynamic Load Rating N/A 19.5 kN C0r - Static Load Rating N/A 11.3 kN Grease Reference Speed N/A 11000 rpm Oil Reference Speed N/A 16000 rpm
6206-NR Bore Size d N/A 30 mm Features N/A Snap Ring Outside Diameter D N/A 62.000 mm Outside Ring Width B N/A 16.000 mm Cr - Dynamic Load Rating N/A 19.5 kN C0r - Static Load Rating N/A 11.3 kN Grease Reference Speed N/A 11000 rpm Oil Reference Speed N/A 16000 rpm
6306 Bore Size d N/A 30 mm Features N/A Open Outside Diameter D N/A 72.000 mm Outside Ring Width B N/A 19.000 mm Cr - Dynamic Load Rating N/A 26.6 kN C0r - Static Load Rating N/A 14.9 kN Grease Reference Speed N/A 10000 rpm Oil Reference Speed N/A 15000 rpm
6306-ZZ Bore Size d N/A 30 mm Features N/A Shields Outside Diameter D N/A 72.000 mm Outside Ring Width B N/A 19.000 mm Cr - Dynamic Load Rating N/A 26.6 kN C0r - Static Load Rating N/A 14.9 kN Grease Reference Speed N/A 10000 rpm Oil Reference Speed N/A 15000 rpm
6306-2RS Bore Size d N/A 30 mm Features N/A Contact Seals Outside Diameter D N/A 72.000 mm Outside Ring Width B N/A 19.000 mm Cr - Dynamic Load Rating N/A 26.6 kN C0r - Static Load Rating N/A 14.9 kN Grease Reference Speed N/A 10000 rpm Oil Reference Speed N/A 15000 rpm
6306-2RZ Bore Size d N/A 30 mm Features N/A Non-Contact Seals Outside Diameter D N/A 72.000 mm Outside Ring Width B N/A 19.000 mm Cr - Dynamic Load Rating N/A 26.6 kN C0r - Static Load Rating N/A 14.9 kN Grease Reference Speed N/A 10000 rpm Oil Reference Speed N/A 15000 rpm
6306-N Bore Size d N/A 30 mm Features N/A O.D. Groove Outside Diameter D N/A 72.000 mm Outside Ring Width B N/A 19.000 mm Cr - Dynamic Load Rating N/A 26.6 kN C0r - Static Load Rating N/A 14.9 kN Grease Reference Speed N/A 10000 rpm Oil Reference Speed N/A 15000 rpm
6306-NR Bore Size d N/A 30 mm Features N/A Snap Ring Outside Diameter D N/A 72.000 mm Outside Ring Width B N/A 19.000 mm Cr - Dynamic Load Rating N/A 26.6 kN C0r - Static Load Rating N/A 14.9 kN Grease Reference Speed N/A 10000 rpm Oil Reference Speed N/A 15000 rpm
6406 Bore Size d N/A 30 mm Features N/A Open Outside Diameter D N/A 90.000 mm Outside Ring Width B N/A 23.000 mm Cr - Dynamic Load Rating N/A 47.3 kN C0r - Static Load Rating N/A 24.5 kN Grease Reference Speed N/A 9300 rpm Oil Reference Speed N/A 13000 rpm
6406-N Bore Size d N/A 30 mm Features N/A O.D. Groove Outside Diameter D N/A 90.000 mm Outside Ring Width B N/A 23.000 mm Cr - Dynamic Load Rating N/A 47.3 kN C0r - Static Load Rating N/A 24.5 kN Grease Reference Speed N/A 9300 rpm Oil Reference Speed N/A 13000 rpm
6406-NR Bore Size d N/A 30 mm Features N/A Snap Ring Outside Diameter D N/A 90.000 mm Outside Ring Width B N/A 23.000 mm Cr - Dynamic Load Rating N/A 47.3 kN C0r - Static Load Rating N/A 24.5 kN Grease Reference Speed N/A 9300 rpm Oil Reference Speed N/A 13000 rpm
6007 Bore Size d N/A 35 mm Features N/A Open Outside Diameter D N/A 62.000 mm Outside Ring Width B N/A 14.000 mm Cr - Dynamic Load Rating N/A 15.9 kN C0r - Static Load Rating N/A 10.3 kN Grease Reference Speed N/A 11000 rpm Oil Reference Speed N/A 16000 rpm
6007-ZZ Bore Size d N/A 35 mm Features N/A Shields Outside Diameter D N/A 62.000 mm Outside Ring Width B N/A 14.000 mm Cr - Dynamic Load Rating N/A 15.9 kN C0r - Static Load Rating N/A 10.3 kN Grease Reference Speed N/A 11000 rpm Oil Reference Speed N/A 16000 rpm
6007-2RS Bore Size d N/A 35 mm Features N/A Contact Seals Outside Diameter D N/A 62.000 mm Outside Ring Width B N/A 14.000 mm Cr - Dynamic Load Rating N/A 15.9 kN C0r - Static Load Rating N/A 10.3 kN Grease Reference Speed N/A 11000 rpm Oil Reference Speed N/A 16000 rpm
6007-2RZ Bore Size d N/A 35 mm Features N/A Non-Contact Seals Outside Diameter D N/A 62.000 mm Outside Ring Width B N/A 14.000 mm Cr - Dynamic Load Rating N/A 15.9 kN C0r - Static Load Rating N/A 10.3 kN Grease Reference Speed N/A 11000 rpm Oil Reference Speed N/A 16000 rpm
6007-N Bore Size d N/A 35 mm Features N/A O.D. Groove Outside Diameter D N/A 62.000 mm Outside Ring Width B N/A 14.000 mm Cr - Dynamic Load Rating N/A 15.9 kN C0r - Static Load Rating N/A 10.3 kN Grease Reference Speed N/A 11000 rpm Oil Reference Speed N/A 16000 rpm
6007-NR Bore Size d N/A 35 mm Features N/A Snap Ring Outside Diameter D N/A 62.000 mm Outside Ring Width B N/A 14.000 mm Cr - Dynamic Load Rating N/A 15.9 kN C0r - Static Load Rating N/A 10.3 kN Grease Reference Speed N/A 11000 rpm Oil Reference Speed N/A 16000 rpm
6207 Bore Size d N/A 35 mm Features N/A Open Outside Diameter D N/A 72.000 mm Outside Ring Width B N/A 17.000 mm Cr - Dynamic Load Rating N/A 25.7 kN C0r - Static Load Rating N/A 15.3 kN Grease Reference Speed N/A 10000 rpm Oil Reference Speed N/A 14000 rpm
6207-ZZ Bore Size d N/A 35 mm Features N/A Shields Outside Diameter D N/A 72.000 mm Outside Ring Width B N/A 17.000 mm Cr - Dynamic Load Rating N/A 25.7 kN C0r - Static Load Rating N/A 15.3 kN Grease Reference Speed N/A 10000 rpm Oil Reference Speed N/A 14000 rpm
6207-2RS Bore Size d N/A 35 mm Features N/A Contact Seals Outside Diameter D N/A 72.000 mm Outside Ring Width B N/A 17.000 mm Cr - Dynamic Load Rating N/A 25.7 kN C0r - Static Load Rating N/A 15.3 kN Grease Reference Speed N/A 10000 rpm Oil Reference Speed N/A 14000 rpm
6207-2RZ Bore Size d N/A 35 mm Features N/A Non-Contact Seals Outside Diameter D N/A 72.000 mm Outside Ring Width B N/A 17.000 mm Cr - Dynamic Load Rating N/A 25.7 kN C0r - Static Load Rating N/A 15.3 kN Grease Reference Speed N/A 10000 rpm Oil Reference Speed N/A 14000 rpm
6207-N Bore Size d N/A 35 mm Features N/A O.D. Groove Outside Diameter D N/A 72.000 mm Outside Ring Width B N/A 17.000 mm Cr - Dynamic Load Rating N/A 25.7 kN C0r - Static Load Rating N/A 15.3 kN Grease Reference Speed N/A 10000 rpm Oil Reference Speed N/A 14000 rpm
6207-NR Bore Size d N/A 35 mm Features N/A Snap Ring Outside Diameter D N/A 72.000 mm Outside Ring Width B N/A 17.000 mm Cr - Dynamic Load Rating N/A 25.7 kN C0r - Static Load Rating N/A 15.3 kN Grease Reference Speed N/A 10000 rpm Oil Reference Speed N/A 14000 rpm
6307 Bore Size d N/A 35 mm Features N/A Open Outside Diameter D N/A 80.000 mm Outside Ring Width B N/A 21.000 mm Cr - Dynamic Load Rating N/A 33.4 kN C0r - Static Load Rating N/A 19.2 kN Grease Reference Speed N/A 9300 rpm Oil Reference Speed N/A 13000 rpm
6307-ZZ Bore Size d N/A 35 mm Features N/A Shields Outside Diameter D N/A 80.000 mm Outside Ring Width B N/A 21.000 mm Cr - Dynamic Load Rating N/A 33.4 kN C0r - Static Load Rating N/A 19.2 kN Grease Reference Speed N/A 9300 rpm Oil Reference Speed N/A 13000 rpm
6307-2RS Bore Size d N/A 35 mm Features N/A Contact Seals Outside Diameter D N/A 80.000 mm Outside Ring Width B N/A 21.000 mm Cr - Dynamic Load Rating N/A 33.4 kN C0r - Static Load Rating N/A 19.2 kN Grease Reference Speed N/A 9300 rpm Oil Reference Speed N/A 13000 rpm
6307-2RZ Bore Size d N/A 35 mm Features N/A Non-Contact Seals Outside Diameter D N/A 80.000 mm Outside Ring Width B N/A 21.000 mm Cr - Dynamic Load Rating N/A 33.4 kN C0r - Static Load Rating N/A 19.2 kN Grease Reference Speed N/A 9300 rpm Oil Reference Speed N/A 13000 rpm
6307-N Bore Size d N/A 35 mm Features N/A O.D. Groove Outside Diameter D N/A 80.000 mm Outside Ring Width B N/A 21.000 mm Cr - Dynamic Load Rating N/A 33.4 kN C0r - Static Load Rating N/A 19.2 kN Grease Reference Speed N/A 9300 rpm Oil Reference Speed N/A 13000 rpm
6307-NR Bore Size d N/A 35 mm Features N/A Snap Ring Outside Diameter D N/A 80.000 mm Outside Ring Width B N/A 21.000 mm Cr - Dynamic Load Rating N/A 33.4 kN C0r - Static Load Rating N/A 19.2 kN Grease Reference Speed N/A 9300 rpm Oil Reference Speed N/A 13000 rpm
6407 Bore Size d N/A 35 mm Features N/A Open Outside Diameter D N/A 100.000 mm Outside Ring Width B N/A 25.000 mm Cr - Dynamic Load Rating N/A 55.5 kN C0r - Static Load Rating N/A 29.40 kN Grease Reference Speed N/A 8500 rpm Oil Reference Speed N/A 12000 rpm
6407-N Bore Size d N/A 35 mm Features N/A O.D. Groove Outside Diameter D N/A 100.000 mm Outside Ring Width B N/A 25.000 mm Cr - Dynamic Load Rating N/A 55.5 kN C0r - Static Load Rating N/A 29.40 kN Grease Reference Speed N/A 8500 rpm Oil Reference Speed N/A 12000 rpm
6407-NR Bore Size d N/A 35 mm Features N/A Snap Ring Outside Diameter D N/A 100.000 mm Outside Ring Width B N/A 25.000 mm Cr - Dynamic Load Rating N/A 55.5 kN C0r - Static Load Rating N/A 29.40 kN Grease Reference Speed N/A 8500 rpm Oil Reference Speed N/A 12000 rpm
6008 Bore Size d N/A 40 mm Features N/A Open Outside Diameter D N/A 68.000 mm Outside Ring Width B N/A 15.000 mm Cr - Dynamic Load Rating N/A 16.8 kN C0r - Static Load Rating N/A 11.5 kN Grease Reference Speed N/A 10000 rpm Oil Reference Speed N/A 15000 rpm
6008-ZZ Bore Size d N/A 40 mm Features N/A Shields Outside Diameter D N/A 68.000 mm Outside Ring Width B N/A 15.000 mm Cr - Dynamic Load Rating N/A 16.8 kN C0r - Static Load Rating N/A 11.5 kN Grease Reference Speed N/A 10000 rpm Oil Reference Speed N/A 15000 rpm
6008-2RS Bore Size d N/A 40 mm Features N/A Contact Seals Outside Diameter D N/A 68.000 mm Outside Ring Width B N/A 15.000 mm Cr - Dynamic Load Rating N/A 16.8 kN C0r - Static Load Rating N/A 11.5 kN Grease Reference Speed N/A 10000 rpm Oil Reference Speed N/A 15000 rpm
6008-2RZ Bore Size d N/A 40 mm Features N/A Non-Contact Seals Outside Diameter D N/A 68.000 mm Outside Ring Width B N/A 15.000 mm Cr - Dynamic Load Rating N/A 16.8 kN C0r - Static Load Rating N/A 11.5 kN Grease Reference Speed N/A 10000 rpm Oil Reference Speed N/A 15000 rpm
6008-N Bore Size d N/A 40 mm Features N/A O.D. Groove Outside Diameter D N/A 68.000 mm Outside Ring Width B N/A 15.000 mm Cr - Dynamic Load Rating N/A 16.8 kN C0r - Static Load Rating N/A 11.5 kN Grease Reference Speed N/A 10000 rpm Oil Reference Speed N/A 15000 rpm
6008-NR Bore Size d N/A 40 mm Features N/A Snap Ring Outside Diameter D N/A 68.000 mm Outside Ring Width B N/A 15.000 mm Cr - Dynamic Load Rating N/A 16.8 kN C0r - Static Load Rating N/A 11.5 kN Grease Reference Speed N/A 10000 rpm Oil Reference Speed N/A 15000 rpm
6208 Bore Size d N/A 40 mm Features N/A Open Outside Diameter D N/A 80.000 mm Outside Ring Width B N/A 18.000 mm Cr - Dynamic Load Rating N/A 29.5 kN C0r - Static Load Rating N/A 18.1 kN Grease Reference Speed N/A 8800 rpm Oil Reference Speed N/A 13000 rpm
6208-ZZ Bore Size d N/A 40 mm Features N/A Shields Outside Diameter D N/A 80.000 mm Outside Ring Width B N/A 18.000 mm Cr - Dynamic Load Rating N/A 29.5 kN C0r - Static Load Rating N/A 18.1 kN Grease Reference Speed N/A 8800 rpm Oil Reference Speed N/A 13000 rpm
6208-2RS Bore Size d N/A 40 mm Features N/A Contact Seals Outside Diameter D N/A 80.000 mm Outside Ring Width B N/A 18.000 mm Cr - Dynamic Load Rating N/A 29.5 kN C0r - Static Load Rating N/A 18.1 kN Grease Reference Speed N/A 8800 rpm Oil Reference Speed N/A 13000 rpm
6208-2RZ Bore Size d N/A 40 mm Features N/A Non-Contact Seals Outside Diameter D N/A 80.000 mm Outside Ring Width B N/A 18.000 mm Cr - Dynamic Load Rating N/A 29.5 kN C0r - Static Load Rating N/A 18.1 kN Grease Reference Speed N/A 8800 rpm Oil Reference Speed N/A 13000 rpm
6208-N Bore Size d N/A 40 mm Features N/A O.D. Groove Outside Diameter D N/A 80.000 mm Outside Ring Width B N/A 18.000 mm Cr - Dynamic Load Rating N/A 29.5 kN C0r - Static Load Rating N/A 18.1 kN Grease Reference Speed N/A 8800 rpm Oil Reference Speed N/A 13000 rpm
6208-NR Bore Size d N/A 40 mm Features N/A Snap Ring Outside Diameter D N/A 80.000 mm Outside Ring Width B N/A 18.000 mm Cr - Dynamic Load Rating N/A 29.5 kN C0r - Static Load Rating N/A 18.1 kN Grease Reference Speed N/A 8800 rpm Oil Reference Speed N/A 13000 rpm
6308 Bore Size d N/A 40 mm Features N/A Open Outside Diameter D N/A 90.000 mm Outside Ring Width B N/A 23.000 mm Cr - Dynamic Load Rating N/A 40.7 kN C0r - Static Load Rating N/A 24 kN Grease Reference Speed N/A 8500 rpm Oil Reference Speed N/A 12000 rpm
6308-ZZ Bore Size d N/A 40 mm Features N/A Shields Outside Diameter D N/A 90.000 mm Outside Ring Width B N/A 23.000 mm Cr - Dynamic Load Rating N/A 40.7 kN C0r - Static Load Rating N/A 24 kN Grease Reference Speed N/A 8500 rpm Oil Reference Speed N/A 12000 rpm
6308-2RS Bore Size d N/A 40 mm Features N/A Contact Seals Outside Diameter D N/A 90.000 mm Outside Ring Width B N/A 23.000 mm Cr - Dynamic Load Rating N/A 40.7 kN C0r - Static Load Rating N/A 24 kN Grease Reference Speed N/A 8500 rpm Oil Reference Speed N/A 12000 rpm
6308-2RZ Bore Size d N/A 40 mm Features N/A Non-Contact Seals Outside Diameter D N/A 90.000 mm Outside Ring Width B N/A 23.000 mm Cr - Dynamic Load Rating N/A 40.7 kN C0r - Static Load Rating N/A 24 kN Grease Reference Speed N/A 8500 rpm Oil Reference Speed N/A 12000 rpm
6308-N Bore Size d N/A 40 mm Features N/A O.D. Groove Outside Diameter D N/A 90.000 mm Outside Ring Width B N/A 23.000 mm Cr - Dynamic Load Rating N/A 40.7 kN C0r - Static Load Rating N/A 24 kN Grease Reference Speed N/A 8500 rpm Oil Reference Speed N/A 12000 rpm
6308-NR Bore Size d N/A 40 mm Features N/A Snap Ring Outside Diameter D N/A 90.000 mm Outside Ring Width B N/A 23.000 mm Cr - Dynamic Load Rating N/A 40.7 kN C0r - Static Load Rating N/A 24 kN Grease Reference Speed N/A 8500 rpm Oil Reference Speed N/A 12000 rpm
6408 Bore Size d N/A 40 mm Features N/A Open Outside Diameter D N/A 110.000 mm Outside Ring Width B N/A 27.000 mm Cr - Dynamic Load Rating N/A 63.7 kN C0r - Static Load Rating N/A 34.6 kN Grease Reference Speed N/A 7800 rpm Oil Reference Speed N/A 11000 rpm
6408-N Bore Size d N/A 40 mm Features N/A O.D. Groove Outside Diameter D N/A 110.000 mm Outside Ring Width B N/A 27.000 mm Cr - Dynamic Load Rating N/A 63.7 kN C0r - Static Load Rating N/A 34.6 kN Grease Reference Speed N/A 7800 rpm Oil Reference Speed N/A 11000 rpm
6408-NR Bore Size d N/A 40 mm Features N/A Snap Ring Outside Diameter D N/A 110.000 mm Outside Ring Width B N/A 27.000 mm Cr - Dynamic Load Rating N/A 63.7 kN C0r - Static Load Rating N/A 34.6 kN Grease Reference Speed N/A 7800 rpm Oil Reference Speed N/A 11000 rpm
6009 Bore Size d N/A 45 mm Features N/A Open Outside Diameter D N/A 75.000 mm Outside Ring Width B N/A 16.000 mm Cr - Dynamic Load Rating N/A 19.9 kN C0r - Static Load Rating N/A 14 kN Grease Reference Speed N/A 9200 rpm Oil Reference Speed N/A 13000 rpm
6009-ZZ Bore Size d N/A 45 mm Features N/A Shields Outside Diameter D N/A 75.000 mm Outside Ring Width B N/A 16.000 mm Cr - Dynamic Load Rating N/A 19.9 kN C0r - Static Load Rating N/A 14 kN Grease Reference Speed N/A 9200 rpm Oil Reference Speed N/A 13000 rpm
6009-2RS Bore Size d N/A 45 mm Features N/A Contact Seals Outside Diameter D N/A 75.000 mm Outside Ring Width B N/A 16.000 mm Cr - Dynamic Load Rating N/A 19.9 kN C0r - Static Load Rating N/A 14 kN Grease Reference Speed N/A 9200 rpm Oil Reference Speed N/A 13000 rpm
6009-2RZ Bore Size d N/A 45 mm Features N/A Non-Contact Seals Outside Diameter D N/A 75.000 mm Outside Ring Width B N/A 16.000 mm Cr - Dynamic Load Rating N/A 19.9 kN C0r - Static Load Rating N/A 14 kN Grease Reference Speed N/A 9200 rpm Oil Reference Speed N/A 13000 rpm
6009-N Bore Size d N/A 45 mm Features N/A O.D. Groove Outside Diameter D N/A 75.000 mm Outside Ring Width B N/A 16.000 mm Cr - Dynamic Load Rating N/A 19.9 kN C0r - Static Load Rating N/A 14 kN Grease Reference Speed N/A 9200 rpm Oil Reference Speed N/A 13000 rpm
6009-NR Bore Size d N/A 45 mm Features N/A Snap Ring Outside Diameter D N/A 75.000 mm Outside Ring Width B N/A 16.000 mm Cr - Dynamic Load Rating N/A 19.9 kN C0r - Static Load Rating N/A 14 kN Grease Reference Speed N/A 9200 rpm Oil Reference Speed N/A 13000 rpm
6209 Bore Size d N/A 45 mm Features N/A Open Outside Diameter D N/A 85.000 mm Outside Ring Width B N/A 19.000 mm Cr - Dynamic Load Rating N/A 31.2 kN C0r - Static Load Rating N/A 20.3 kN Grease Reference Speed N/A 8200 rpm Oil Reference Speed N/A 12000 rpm
6209-ZZ Bore Size d N/A 45 mm Features N/A Shields Outside Diameter D N/A 85.000 mm Outside Ring Width B N/A 19.000 mm Cr - Dynamic Load Rating N/A 31.2 kN C0r - Static Load Rating N/A 20.3 kN Grease Reference Speed N/A 8200 rpm Oil Reference Speed N/A 12000 rpm
6209-2RS Bore Size d N/A 45 mm Features N/A Contact Seals Outside Diameter D N/A 85.000 mm Outside Ring Width B N/A 19.000 mm Cr - Dynamic Load Rating N/A 31.2 kN C0r - Static Load Rating N/A 20.3 kN Grease Reference Speed N/A 8200 rpm Oil Reference Speed N/A 12000 rpm
6209-2RZ Bore Size d N/A 45 mm Features N/A Non-Contact Seals Outside Diameter D N/A 85.000 mm Outside Ring Width B N/A 19.000 mm Cr - Dynamic Load Rating N/A 31.2 kN C0r - Static Load Rating N/A 20.3 kN Grease Reference Speed N/A 8200 rpm Oil Reference Speed N/A 12000 rpm
6209-N Bore Size d N/A 45 mm Features N/A O.D. Groove Outside Diameter D N/A 85.000 mm Outside Ring Width B N/A 19.000 mm Cr - Dynamic Load Rating N/A 31.2 kN C0r - Static Load Rating N/A 20.3 kN Grease Reference Speed N/A 8200 rpm Oil Reference Speed N/A 12000 rpm
6209-NR Bore Size d N/A 45 mm Features N/A Snap Ring Outside Diameter D N/A 85.000 mm Outside Ring Width B N/A 19.000 mm Cr - Dynamic Load Rating N/A 31.2 kN C0r - Static Load Rating N/A 20.3 kN Grease Reference Speed N/A 8200 rpm Oil Reference Speed N/A 12000 rpm
6309 Bore Size d N/A 45 mm Features N/A Open Outside Diameter D N/A 100.000 mm Outside Ring Width B N/A 25.000 mm Cr - Dynamic Load Rating N/A 48.8 kN C0r - Static Load Rating N/A 29.3 kN Grease Reference Speed N/A 7800 rpm Oil Reference Speed N/A 11000 rpm
6309-ZZ Bore Size d N/A 45 mm Features N/A Shields Outside Diameter D N/A 100.000 mm Outside Ring Width B N/A 25.000 mm Cr - Dynamic Load Rating N/A 48.8 kN C0r - Static Load Rating N/A 29.3 kN Grease Reference Speed N/A 7800 rpm Oil Reference Speed N/A 11000 rpm
6309-2RS Bore Size d N/A 45 mm Features N/A Contact Seals Outside Diameter D N/A 100.000 mm Outside Ring Width B N/A 25.000 mm Cr - Dynamic Load Rating N/A 48.8 kN C0r - Static Load Rating N/A 29.3 kN Grease Reference Speed N/A 7800 rpm Oil Reference Speed N/A 11000 rpm
6309-2RZ Bore Size d N/A 45 mm Features N/A Non-Contact Seals Outside Diameter D N/A 100.000 mm Outside Ring Width B N/A 25.000 mm Cr - Dynamic Load Rating N/A 48.8 kN C0r - Static Load Rating N/A 29.3 kN Grease Reference Speed N/A 7800 rpm Oil Reference Speed N/A 11000 rpm
6309-N Bore Size d N/A 45 mm Features N/A O.D. Groove Outside Diameter D N/A 100.000 mm Outside Ring Width B N/A 25.000 mm Cr - Dynamic Load Rating N/A 48.8 kN C0r - Static Load Rating N/A 29.3 kN Grease Reference Speed N/A 7800 rpm Oil Reference Speed N/A 11000 rpm
6309-NR Bore Size d N/A 45 mm Features N/A Snap Ring Outside Diameter D N/A 100.000 mm Outside Ring Width B N/A 25.000 mm Cr - Dynamic Load Rating N/A 48.8 kN C0r - Static Load Rating N/A 29.3 kN Grease Reference Speed N/A 7800 rpm Oil Reference Speed N/A 11000 rpm
6409 Bore Size d N/A 45 mm Features N/A Open Outside Diameter D N/A 120.000 mm Outside Ring Width B N/A 29.000 mm Cr - Dynamic Load Rating N/A 77.2 kN C0r - Static Load Rating N/A 45.2 kN Grease Reference Speed N/A 7200 rpm Oil Reference Speed N/A 10000 rpm
6409-N Bore Size d N/A 45 mm Features N/A O.D. Groove Outside Diameter D N/A 120.000 mm Outside Ring Width B N/A 29.000 mm Cr - Dynamic Load Rating N/A 77.2 kN C0r - Static Load Rating N/A 45.2 kN Grease Reference Speed N/A 7200 rpm Oil Reference Speed N/A 10000 rpm
6409-NR Bore Size d N/A 45 mm Features N/A Snap Ring Outside Diameter D N/A 120.000 mm Outside Ring Width B N/A 29.000 mm Cr - Dynamic Load Rating N/A 77.2 kN C0r - Static Load Rating N/A 45.2 kN Grease Reference Speed N/A 7200 rpm Oil Reference Speed N/A 10000 rpm
6010 Bore Size d N/A 50 mm Features N/A Open Outside Diameter D N/A 80.000 mm Outside Ring Width B N/A 16.000 mm Cr - Dynamic Load Rating N/A 21.8 kN C0r - Static Load Rating N/A 16.5 kN Grease Reference Speed N/A 8300 rpm Oil Reference Speed N/A 12000 rpm
6010-ZZ Bore Size d N/A 50 mm Features N/A Shields Outside Diameter D N/A 80.000 mm Outside Ring Width B N/A 16.000 mm Cr - Dynamic Load Rating N/A 21.8 kN C0r - Static Load Rating N/A 16.5 kN Grease Reference Speed N/A 8300 rpm Oil Reference Speed N/A 12000 rpm
6010-2RS Bore Size d N/A 50 mm Features N/A Contact Seals Outside Diameter D N/A 80.000 mm Outside Ring Width B N/A 16.000 mm Cr - Dynamic Load Rating N/A 21.8 kN C0r - Static Load Rating N/A 16.5 kN Grease Reference Speed N/A 8300 rpm Oil Reference Speed N/A 12000 rpm
6010-2RZ Bore Size d N/A 50 mm Features N/A Non-Contact Seals Outside Diameter D N/A 80.000 mm Outside Ring Width B N/A 16.000 mm Cr - Dynamic Load Rating N/A 21.8 kN C0r - Static Load Rating N/A 16.5 kN Grease Reference Speed N/A 8300 rpm Oil Reference Speed N/A 12000 rpm
6010-N Bore Size d N/A 50 mm Features N/A O.D. Groove Outside Diameter D N/A 80.000 mm Outside Ring Width B N/A 16.000 mm Cr - Dynamic Load Rating N/A 21.8 kN C0r - Static Load Rating N/A 16.5 kN Grease Reference Speed N/A 8300 rpm Oil Reference Speed N/A 12000 rpm
6010-NR Bore Size d N/A 50 mm Features N/A Snap Ring Outside Diameter D N/A 80.000 mm Outside Ring Width B N/A 16.000 mm Cr - Dynamic Load Rating N/A 21.8 kN C0r - Static Load Rating N/A 16.5 kN Grease Reference Speed N/A 8300 rpm Oil Reference Speed N/A 12000 rpm
6210 Bore Size d N/A 50 mm Features N/A Open Outside Diameter D N/A 90.000 mm Outside Ring Width B N/A 20.000 mm Cr - Dynamic Load Rating N/A 35 kN C0r - Static Load Rating N/A 23.2 kN Grease Reference Speed N/A 7700 rpm Oil Reference Speed N/A 11000 rpm
6210-ZZ Bore Size d N/A 50 mm Features N/A Shields Outside Diameter D N/A 90.000 mm Outside Ring Width B N/A 20.000 mm Cr - Dynamic Load Rating N/A 35 kN C0r - Static Load Rating N/A 23.2 kN Grease Reference Speed N/A 7700 rpm Oil Reference Speed N/A 11000 rpm
6210-2RS Bore Size d N/A 50 mm Features N/A Contact Seals Outside Diameter D N/A 90.000 mm Outside Ring Width B N/A 20.000 mm Cr - Dynamic Load Rating N/A 35 kN C0r - Static Load Rating N/A 23.2 kN Grease Reference Speed N/A 7700 rpm Oil Reference Speed N/A 11000 rpm
6210-2RZ Bore Size d N/A 50 mm Features N/A Non-Contact Seals Outside Diameter D N/A 90.000 mm Outside Ring Width B N/A 20.000 mm Cr - Dynamic Load Rating N/A 35 kN C0r - Static Load Rating N/A 23.2 kN Grease Reference Speed N/A 7700 rpm Oil Reference Speed N/A 11000 rpm
6210-N Bore Size d N/A 50 mm Features N/A O.D. Groove Outside Diameter D N/A 90.000 mm Outside Ring Width B N/A 20.000 mm Cr - Dynamic Load Rating N/A 35 kN C0r - Static Load Rating N/A 23.2 kN Grease Reference Speed N/A 7700 rpm Oil Reference Speed N/A 11000 rpm
6210-NR Bore Size d N/A 50 mm Features N/A Snap Ring Outside Diameter D N/A 90.000 mm Outside Ring Width B N/A 20.000 mm Cr - Dynamic Load Rating N/A 35 kN C0r - Static Load Rating N/A 23.2 kN Grease Reference Speed N/A 7700 rpm Oil Reference Speed N/A 11000 rpm
6310 Bore Size d N/A 50 mm Features N/A Open Outside Diameter D N/A 110.000 mm Outside Ring Width B N/A 27.000 mm Cr - Dynamic Load Rating N/A 57.5 kN C0r - Static Load Rating N/A 35.3 kN Grease Reference Speed N/A 7200 rpm Oil Reference Speed N/A 10000 rpm
6310-ZZ Bore Size d N/A 50 mm Features N/A Shields Outside Diameter D N/A 110.000 mm Outside Ring Width B N/A 27.000 mm Cr - Dynamic Load Rating N/A 57.5 kN C0r - Static Load Rating N/A 35.3 kN Grease Reference Speed N/A 7200 rpm Oil Reference Speed N/A 10000 rpm
6310-2RS Bore Size d N/A 50 mm Features N/A Contact Seals Outside Diameter D N/A 110.000 mm Outside Ring Width B N/A 27.000 mm Cr - Dynamic Load Rating N/A 57.5 kN C0r - Static Load Rating N/A 35.3 kN Grease Reference Speed N/A 7200 rpm Oil Reference Speed N/A 10000 rpm
6310-2RZ Bore Size d N/A 50 mm Features N/A Non-Contact Seals Outside Diameter D N/A 110.000 mm Outside Ring Width B N/A 27.000 mm Cr - Dynamic Load Rating N/A 57.5 kN C0r - Static Load Rating N/A 35.3 kN Grease Reference Speed N/A 7200 rpm Oil Reference Speed N/A 10000 rpm
6310-N Bore Size d N/A 50 mm Features N/A O.D. Groove Outside Diameter D N/A 110.000 mm Outside Ring Width B N/A 27.000 mm Cr - Dynamic Load Rating N/A 57.5 kN C0r - Static Load Rating N/A 35.3 kN Grease Reference Speed N/A 7200 rpm Oil Reference Speed N/A 10000 rpm
6310-NR Bore Size d N/A 50 mm Features N/A Snap Ring Outside Diameter D N/A 110.000 mm Outside Ring Width B N/A 27.000 mm Cr - Dynamic Load Rating N/A 57.5 kN C0r - Static Load Rating N/A 35.3 kN Grease Reference Speed N/A 7200 rpm Oil Reference Speed N/A 10000 rpm
6410 Bore Size d N/A 50 mm Features N/A Open Outside Diameter D N/A 130.000 mm Outside Ring Width B N/A 31.000 mm Cr - Dynamic Load Rating N/A 83.1 kN C0r - Static Load Rating N/A 49.4 kN Grease Reference Speed N/A 6800 rpm Oil Reference Speed N/A 9700 rpm
6410-N Bore Size d N/A 50 mm Features N/A O.D. Groove Outside Diameter D N/A 130.000 mm Outside Ring Width B N/A 31.000 mm Cr - Dynamic Load Rating N/A 83.1 kN C0r - Static Load Rating N/A 49.4 kN Grease Reference Speed N/A 6800 rpm Oil Reference Speed N/A 9700 rpm
6410-NR Bore Size d N/A 50 mm Features N/A Snap Ring Outside Diameter D N/A 130.000 mm Outside Ring Width B N/A 31.000 mm Cr - Dynamic Load Rating N/A 83.1 kN C0r - Static Load Rating N/A 49.4 kN Grease Reference Speed N/A 6800 rpm Oil Reference Speed N/A 9700 rpm
6011 Bore Size d N/A 55 mm Features N/A Open Outside Diameter D N/A 90.000 mm Outside Ring Width B N/A 18.000 mm Cr - Dynamic Load Rating N/A 28.3 kN C0r - Static Load Rating N/A 22.4 kN Grease Reference Speed N/A 7800 rpm Oil Reference Speed N/A 11000 rpm
6011-ZZ Bore Size d N/A 55 mm Features N/A Shields Outside Diameter D N/A 90.000 mm Outside Ring Width B N/A 18.000 mm Cr - Dynamic Load Rating N/A 28.3 kN C0r - Static Load Rating N/A 22.4 kN Grease Reference Speed N/A 7800 rpm Oil Reference Speed N/A 11000 rpm
6011-2RS Bore Size d N/A 55 mm Features N/A Contact Seals Outside Diameter D N/A 90.000 mm Outside Ring Width B N/A 18.000 mm Cr - Dynamic Load Rating N/A 28.3 kN C0r - Static Load Rating N/A 22.4 kN Grease Reference Speed N/A 7800 rpm Oil Reference Speed N/A 11000 rpm
6011-2RZ Bore Size d N/A 55 mm Features N/A Non-Contact Seals Outside Diameter D N/A 90.000 mm Outside Ring Width B N/A 18.000 mm Cr - Dynamic Load Rating N/A 28.3 kN C0r - Static Load Rating N/A 22.4 kN Grease Reference Speed N/A 7800 rpm Oil Reference Speed N/A 11000 rpm
6011-N Bore Size d N/A 55 mm Features N/A O.D. Groove Outside Diameter D N/A 90.000 mm Outside Ring Width B N/A 18.000 mm Cr - Dynamic Load Rating N/A 28.3 kN C0r - Static Load Rating N/A 22.4 kN Grease Reference Speed N/A 7800 rpm Oil Reference Speed N/A 11000 rpm
6011-NR Bore Size d N/A 55 mm Features N/A Snap Ring Outside Diameter D N/A 90.000 mm Outside Ring Width B N/A 18.000 mm Cr - Dynamic Load Rating N/A 28.3 kN C0r - Static Load Rating N/A 22.4 kN Grease Reference Speed N/A 7800 rpm Oil Reference Speed N/A 11000 rpm
6211 Bore Size d N/A 55 mm Features N/A Open Outside Diameter D N/A 100.000 mm Outside Ring Width B N/A 21.000 mm Cr - Dynamic Load Rating N/A 43.4 kN C0r - Static Load Rating N/A 29.2 kN Grease Reference Speed N/A 7000 rpm Oil Reference Speed N/A 10000 rpm
6211-ZZ Bore Size d N/A 55 mm Features N/A Shields Outside Diameter D N/A 100.000 mm Outside Ring Width B N/A 21.000 mm Cr - Dynamic Load Rating N/A 43.4 kN C0r - Static Load Rating N/A 29.2 kN Grease Reference Speed N/A 7000 rpm Oil Reference Speed N/A 10000 rpm
6211-2RS Bore Size d N/A 55 mm Features N/A Contact Seals Outside Diameter D N/A 100.000 mm Outside Ring Width B N/A 21.000 mm Cr - Dynamic Load Rating N/A 43.4 kN C0r - Static Load Rating N/A 29.2 kN Grease Reference Speed N/A 7000 rpm Oil Reference Speed N/A 10000 rpm
6211-2RZ Bore Size d N/A 55 mm Features N/A Non-Contact Seals Outside Diameter D N/A 100.000 mm Outside Ring Width B N/A 21.000 mm Cr - Dynamic Load Rating N/A 43.4 kN C0r - Static Load Rating N/A 29.2 kN Grease Reference Speed N/A 7000 rpm Oil Reference Speed N/A 10000 rpm
6211-N Bore Size d N/A 55 mm Features N/A O.D. Groove Outside Diameter D N/A 100.000 mm Outside Ring Width B N/A 21.000 mm Cr - Dynamic Load Rating N/A 43.4 kN C0r - Static Load Rating N/A 29.2 kN Grease Reference Speed N/A 7000 rpm Oil Reference Speed N/A 10000 rpm
6211-NR Bore Size d N/A 55 mm Features N/A Snap Ring Outside Diameter D N/A 100.000 mm Outside Ring Width B N/A 21.000 mm Cr - Dynamic Load Rating N/A 43.4 kN C0r - Static Load Rating N/A 29.2 kN Grease Reference Speed N/A 7000 rpm Oil Reference Speed N/A 10000 rpm
6311 Bore Size d N/A 55 mm Features N/A Open Outside Diameter D N/A 120.000 mm Outside Ring Width B N/A 29.000 mm Cr - Dynamic Load Rating N/A 71.5 kN C0r - Static Load Rating N/A 44.6 kN Grease Reference Speed N/A 6700 rpm Oil Reference Speed N/A 10000 rpm
6311-ZZ Bore Size d N/A 55 mm Features N/A Shields Outside Diameter D N/A 120.000 mm Outside Ring Width B N/A 29.000 mm Cr - Dynamic Load Rating N/A 71.5 kN C0r - Static Load Rating N/A 44.6 kN Grease Reference Speed N/A 6700 rpm Oil Reference Speed N/A 10000 rpm
6311-2RS Bore Size d N/A 55 mm Features N/A Contact Seals Outside Diameter D N/A 120.000 mm Outside Ring Width B N/A 29.000 mm Cr - Dynamic Load Rating N/A 71.5 kN C0r - Static Load Rating N/A 44.6 kN Grease Reference Speed N/A 6700 rpm Oil Reference Speed N/A 10000 rpm
6311-2RZ Bore Size d N/A 55 mm Features N/A Non-Contact Seals Outside Diameter D N/A 120.000 mm Outside Ring Width B N/A 29.000 mm Cr - Dynamic Load Rating N/A 71.5 kN C0r - Static Load Rating N/A 44.6 kN Grease Reference Speed N/A 6700 rpm Oil Reference Speed N/A 10000 rpm
6311-N Bore Size d N/A 55 mm Features N/A O.D. Groove Outside Diameter D N/A 120.000 mm Outside Ring Width B N/A 29.000 mm Cr - Dynamic Load Rating N/A 71.5 kN C0r - Static Load Rating N/A 44.6 kN Grease Reference Speed N/A 6700 rpm Oil Reference Speed N/A 10000 rpm
6311-NR Bore Size d N/A 55 mm Features N/A Snap Ring Outside Diameter D N/A 120.000 mm Outside Ring Width B N/A 29.000 mm Cr - Dynamic Load Rating N/A 71.5 kN C0r - Static Load Rating N/A 44.6 kN Grease Reference Speed N/A 6700 rpm Oil Reference Speed N/A 10000 rpm
6411 Bore Size d N/A 55 mm Features N/A Open Outside Diameter D N/A 140.000 mm Outside Ring Width B N/A 33.000 mm Cr - Dynamic Load Rating N/A 100.7 kN C0r - Static Load Rating N/A 62.4 kN Grease Reference Speed N/A 6300 rpm Oil Reference Speed N/A 9100 rpm
6411-N Bore Size d N/A 55 mm Features N/A O.D. Groove Outside Diameter D N/A 140.000 mm Outside Ring Width B N/A 33.000 mm Cr - Dynamic Load Rating N/A 100.7 kN C0r - Static Load Rating N/A 62.4 kN Grease Reference Speed N/A 6300 rpm Oil Reference Speed N/A 9100 rpm
6411-NR Bore Size d N/A 55 mm Features N/A Snap Ring Outside Diameter D N/A 140.000 mm Outside Ring Width B N/A 33.000 mm Cr - Dynamic Load Rating N/A 100.7 kN C0r - Static Load Rating N/A 62.4 kN Grease Reference Speed N/A 6300 rpm Oil Reference Speed N/A 9100 rpm
6012 Bore Size d N/A 60 mm Features N/A Open Outside Diameter D N/A 95.000 mm Outside Ring Width B N/A 18.000 mm Cr - Dynamic Load Rating N/A 29.5 kN C0r - Static Load Rating N/A 22.7 kN Grease Reference Speed N/A 7200 rpm Oil Reference Speed N/A 10000 rpm
6012-ZZ Bore Size d N/A 60 mm Features N/A Shields Outside Diameter D N/A 95.000 mm Outside Ring Width B N/A 18.000 mm Cr - Dynamic Load Rating N/A 29.5 kN C0r - Static Load Rating N/A 22.7 kN Grease Reference Speed N/A 7200 rpm Oil Reference Speed N/A 10000 rpm
6012-2RS Bore Size d N/A 60 mm Features N/A Contact Seals Outside Diameter D N/A 95.000 mm Outside Ring Width B N/A 18.000 mm Cr - Dynamic Load Rating N/A 29.5 kN C0r - Static Load Rating N/A 22.7 kN Grease Reference Speed N/A 7200 rpm Oil Reference Speed N/A 10000 rpm
6012-2RZ Bore Size d N/A 60 mm Features N/A Non-Contact Seals Outside Diameter D N/A 95.000 mm Outside Ring Width B N/A 18.000 mm Cr - Dynamic Load Rating N/A 29.5 kN C0r - Static Load Rating N/A 22.7 kN Grease Reference Speed N/A 7200 rpm Oil Reference Speed N/A 10000 rpm
6012-N Bore Size d N/A 60 mm Features N/A O.D. Groove Outside Diameter D N/A 95.000 mm Outside Ring Width B N/A 18.000 mm Cr - Dynamic Load Rating N/A 29.5 kN C0r - Static Load Rating N/A 22.7 kN Grease Reference Speed N/A 7200 rpm Oil Reference Speed N/A 10000 rpm
6012-NR Bore Size d N/A 60 mm Features N/A Snap Ring Outside Diameter D N/A 95.000 mm Outside Ring Width B N/A 18.000 mm Cr - Dynamic Load Rating N/A 29.5 kN C0r - Static Load Rating N/A 22.7 kN Grease Reference Speed N/A 7200 rpm Oil Reference Speed N/A 10000 rpm
6212 Bore Size d N/A 60 mm Features N/A Open Outside Diameter D N/A 110.000 mm Outside Ring Width B N/A 22.000 mm Cr - Dynamic Load Rating N/A 47.8 kN C0r - Static Load Rating N/A 32.9 kN Grease Reference Speed N/A 6500 rpm Oil Reference Speed N/A 9300 rpm
6212-ZZ Bore Size d N/A 60 mm Features N/A Shields Outside Diameter D N/A 110.000 mm Outside Ring Width B N/A 22.000 mm Cr - Dynamic Load Rating N/A 47.8 kN C0r - Static Load Rating N/A 32.9 kN Grease Reference Speed N/A 6500 rpm Oil Reference Speed N/A 9300 rpm
6212-2RS Bore Size d N/A 60 mm Features N/A Contact Seals Outside Diameter D N/A 110.000 mm Outside Ring Width B N/A 22.000 mm Cr - Dynamic Load Rating N/A 47.8 kN C0r - Static Load Rating N/A 32.9 kN Grease Reference Speed N/A 6500 rpm Oil Reference Speed N/A 9300 rpm
6212-2RZ Bore Size d N/A 60 mm Features N/A Non-Contact Seals Outside Diameter D N/A 110.000 mm Outside Ring Width B N/A 22.000 mm Cr - Dynamic Load Rating N/A 47.8 kN C0r - Static Load Rating N/A 32.9 kN Grease Reference Speed N/A 6500 rpm Oil Reference Speed N/A 9300 rpm
6212-N Bore Size d N/A 60 mm Features N/A O.D. Groove Outside Diameter D N/A 110.000 mm Outside Ring Width B N/A 22.000 mm Cr - Dynamic Load Rating N/A 47.8 kN C0r - Static Load Rating N/A 32.9 kN Grease Reference Speed N/A 6500 rpm Oil Reference Speed N/A 9300 rpm
6212-NR Bore Size d N/A 60 mm Features N/A Snap Ring Outside Diameter D N/A 110.000 mm Outside Ring Width B N/A 22.000 mm Cr - Dynamic Load Rating N/A 47.8 kN C0r - Static Load Rating N/A 32.9 kN Grease Reference Speed N/A 6500 rpm Oil Reference Speed N/A 9300 rpm
6312 Bore Size d N/A 60 mm Features N/A Open Outside Diameter D N/A 130.000 mm Outside Ring Width B N/A 31.000 mm Cr - Dynamic Load Rating N/A 81.8 kN C0r - Static Load Rating N/A 51.8 kN Grease Reference Speed N/A 6400 rpm Oil Reference Speed N/A 9100 rpm
6312-ZZ Bore Size d N/A 60 mm Features N/A Shields Outside Diameter D N/A 130.000 mm Outside Ring Width B N/A 31.000 mm Cr - Dynamic Load Rating N/A 81.8 kN C0r - Static Load Rating N/A 51.8 kN Grease Reference Speed N/A 6400 rpm Oil Reference Speed N/A 9100 rpm
6312-2RS Bore Size d N/A 60 mm Features N/A Contact Seals Outside Diameter D N/A 130.000 mm Outside Ring Width B N/A 31.000 mm Cr - Dynamic Load Rating N/A 81.8 kN C0r - Static Load Rating N/A 51.8 kN Grease Reference Speed N/A 6400 rpm Oil Reference Speed N/A 9100 rpm
6312-2RZ Bore Size d N/A 60 mm Features N/A Non-Contact Seals Outside Diameter D N/A 130.000 mm Outside Ring Width B N/A 31.000 mm Cr - Dynamic Load Rating N/A 81.8 kN C0r - Static Load Rating N/A 51.8 kN Grease Reference Speed N/A 6400 rpm Oil Reference Speed N/A 9100 rpm
6312-N Bore Size d N/A 60 mm Features N/A O.D. Groove Outside Diameter D N/A 130.000 mm Outside Ring Width B N/A 31.000 mm Cr - Dynamic Load Rating N/A 81.8 kN C0r - Static Load Rating N/A 51.8 kN Grease Reference Speed N/A 6400 rpm Oil Reference Speed N/A 9100 rpm
6312-NR Bore Size d N/A 60 mm Features N/A Snap Ring Outside Diameter D N/A 130.000 mm Outside Ring Width B N/A 31.000 mm Cr - Dynamic Load Rating N/A 81.8 kN C0r - Static Load Rating N/A 51.8 kN Grease Reference Speed N/A 6400 rpm Oil Reference Speed N/A 9100 rpm
6412 Bore Size d N/A 60 mm Features N/A Open Outside Diameter D N/A 150.000 mm Outside Ring Width B N/A 35.000 mm Cr - Dynamic Load Rating N/A 109 kN C0r - Static Load Rating N/A 70.1 kN Grease Reference Speed N/A 6000 rpm Oil Reference Speed N/A 8600 rpm
6412-N Bore Size d N/A 60 mm Features N/A O.D. Groove Outside Diameter D N/A 150.000 mm Outside Ring Width B N/A 35.000 mm Cr - Dynamic Load Rating N/A 109 kN C0r - Static Load Rating N/A 70.1 kN Grease Reference Speed N/A 6000 rpm Oil Reference Speed N/A 8600 rpm
6412-NR Bore Size d N/A 60 mm Features N/A Snap Ring Outside Diameter D N/A 150.000 mm Outside Ring Width B N/A 35.000 mm Cr - Dynamic Load Rating N/A 109 kN C0r - Static Load Rating N/A 70.1 kN Grease Reference Speed N/A 6000 rpm Oil Reference Speed N/A 8600 rpm
6013 Bore Size d N/A 65 mm Features N/A Open Outside Diameter D N/A 100.000 mm Outside Ring Width B N/A 18.000 mm Cr - Dynamic Load Rating N/A 30.5 kN C0r - Static Load Rating N/A 23.5 kN Grease Reference Speed N/A 6700 rpm Oil Reference Speed N/A 9700 rpm
6013-ZZ Bore Size d N/A 65 mm Features N/A Shields Outside Diameter D N/A 100.000 mm Outside Ring Width B N/A 18.000 mm Cr - Dynamic Load Rating N/A 30.5 kN C0r - Static Load Rating N/A 23.5 kN Grease Reference Speed N/A 6700 rpm Oil Reference Speed N/A 9700 rpm
6013-2RS Bore Size d N/A 65 mm Features N/A Contact Seals Outside Diameter D N/A 100.000 mm Outside Ring Width B N/A 18.000 mm Cr - Dynamic Load Rating N/A 30.5 kN C0r - Static Load Rating N/A 23.5 kN Grease Reference Speed N/A 6700 rpm Oil Reference Speed N/A 9700 rpm
6013-2RZ Bore Size d N/A 65 mm Features N/A Non-Contact Seals Outside Diameter D N/A 100.000 mm Outside Ring Width B N/A 18.000 mm Cr - Dynamic Load Rating N/A 30.5 kN C0r - Static Load Rating N/A 23.5 kN Grease Reference Speed N/A 6700 rpm Oil Reference Speed N/A 9700 rpm
6013-N Bore Size d N/A 65 mm Features N/A O.D. Groove Outside Diameter D N/A 100.000 mm Outside Ring Width B N/A 18.000 mm Cr - Dynamic Load Rating N/A 30.5 kN C0r - Static Load Rating N/A 23.5 kN Grease Reference Speed N/A 6700 rpm Oil Reference Speed N/A 9700 rpm
6013-NR Bore Size d N/A 65 mm Features N/A Snap Ring Outside Diameter D N/A 100.000 mm Outside Ring Width B N/A 18.000 mm Cr - Dynamic Load Rating N/A 30.5 kN C0r - Static Load Rating N/A 23.5 kN Grease Reference Speed N/A 6700 rpm Oil Reference Speed N/A 9700 rpm
6213 Bore Size d N/A 65 mm Features N/A Open Outside Diameter D N/A 120.000 mm Outside Ring Width B N/A 23.000 mm Cr - Dynamic Load Rating N/A 57.2 kN C0r - Static Load Rating N/A 40 kN Grease Reference Speed N/A 6000 rpm Oil Reference Speed N/A 8600 rpm
6213-ZZ Bore Size d N/A 65 mm Features N/A Shields Outside Diameter D N/A 120.000 mm Outside Ring Width B N/A 23.000 mm Cr - Dynamic Load Rating N/A 57.2 kN C0r - Static Load Rating N/A 40 kN Grease Reference Speed N/A 6000 rpm Oil Reference Speed N/A 8600 rpm
6213-2RS Bore Size d N/A 65 mm Features N/A Contact Seals Outside Diameter D N/A 120.000 mm Outside Ring Width B N/A 23.000 mm Cr - Dynamic Load Rating N/A 57.2 kN C0r - Static Load Rating N/A 40 kN Grease Reference Speed N/A 6000 rpm Oil Reference Speed N/A 8600 rpm
6213-2RZ Bore Size d N/A 65 mm Features N/A Non-Contact Seals Outside Diameter D N/A 120.000 mm Outside Ring Width B N/A 23.000 mm Cr - Dynamic Load Rating N/A 57.2 kN C0r - Static Load Rating N/A 40 kN Grease Reference Speed N/A 6000 rpm Oil Reference Speed N/A 8600 rpm
6213-N Bore Size d N/A 65 mm Features N/A O.D. Groove Outside Diameter D N/A 120.000 mm Outside Ring Width B N/A 23.000 mm Cr - Dynamic Load Rating N/A 57.2 kN C0r - Static Load Rating N/A 40 kN Grease Reference Speed N/A 6000 rpm Oil Reference Speed N/A 8600 rpm
6213-NR Bore Size d N/A 65 mm Features N/A Snap Ring Outside Diameter D N/A 120.000 mm Outside Ring Width B N/A 23.000 mm Cr - Dynamic Load Rating N/A 57.2 kN C0r - Static Load Rating N/A 40 kN Grease Reference Speed N/A 6000 rpm Oil Reference Speed N/A 8600 rpm
6313 Bore Size d N/A 65 mm Features N/A Open Outside Diameter D N/A 140.000 mm Outside Ring Width B N/A 33.000 mm Cr - Dynamic Load Rating N/A 92.6 kN C0r - Static Load Rating N/A 59.7 kN Grease Reference Speed N/A 6000 rpm Oil Reference Speed N/A 8600 rpm
6313-ZZ Bore Size d N/A 65 mm Features N/A Shields Outside Diameter D N/A 140.000 mm Outside Ring Width B N/A 33.000 mm Cr - Dynamic Load Rating N/A 92.6 kN C0r - Static Load Rating N/A 59.7 kN Grease Reference Speed N/A 6000 rpm Oil Reference Speed N/A 8600 rpm
6313-2RS Bore Size d N/A 65 mm Features N/A Contact Seals Outside Diameter D N/A 140.000 mm Outside Ring Width B N/A 33.000 mm Cr - Dynamic Load Rating N/A 92.6 kN C0r - Static Load Rating N/A 59.7 kN Grease Reference Speed N/A 6000 rpm Oil Reference Speed N/A 8600 rpm
6313-2RZ Bore Size d N/A 65 mm Features N/A Non-Contact Seals Outside Diameter D N/A 140.000 mm Outside Ring Width B N/A 33.000 mm Cr - Dynamic Load Rating N/A 92.6 kN C0r - Static Load Rating N/A 59.7 kN Grease Reference Speed N/A 6000 rpm Oil Reference Speed N/A 8600 rpm
6313-N Bore Size d N/A 65 mm Features N/A O.D. Groove Outside Diameter D N/A 140.000 mm Outside Ring Width B N/A 33.000 mm Cr - Dynamic Load Rating N/A 92.6 kN C0r - Static Load Rating N/A 59.7 kN Grease Reference Speed N/A 6000 rpm Oil Reference Speed N/A 8600 rpm
6313-NR Bore Size d N/A 65 mm Features N/A Snap Ring Outside Diameter D N/A 140.000 mm Outside Ring Width B N/A 33.000 mm Cr - Dynamic Load Rating N/A 92.6 kN C0r - Static Load Rating N/A 59.7 kN Grease Reference Speed N/A 6000 rpm Oil Reference Speed N/A 8600 rpm
6413 Bore Size d N/A 65 mm Features N/A Open Outside Diameter D N/A 160.000 mm Outside Ring Width B N/A 37.000 mm Cr - Dynamic Load Rating N/A 118 kN C0r - Static Load Rating N/A 78.6 kN Grease Reference Speed N/A 5700 rpm Oil Reference Speed N/A 8200 rpm
6413-N Bore Size d N/A 65 mm Features N/A O.D. Groove Outside Diameter D N/A 160.000 mm Outside Ring Width B N/A 37.000 mm Cr - Dynamic Load Rating N/A 118 kN C0r - Static Load Rating N/A 78.6 kN Grease Reference Speed N/A 5700 rpm Oil Reference Speed N/A 8200 rpm
6413-NR Bore Size d N/A 65 mm Features N/A Snap Ring Outside Diameter D N/A 160.000 mm Outside Ring Width B N/A 37.000 mm Cr - Dynamic Load Rating N/A 118 kN C0r - Static Load Rating N/A 78.6 kN Grease Reference Speed N/A 5700 rpm Oil Reference Speed N/A 8200 rpm
6014 Bore Size d N/A 70 mm Features N/A Open Outside Diameter D N/A 110.000 mm Outside Ring Width B N/A 20.000 mm Cr - Dynamic Load Rating N/A 38.6 kN C0r - Static Load Rating N/A 30.4 kN Grease Reference Speed N/A 6400 rpm Oil Reference Speed N/A 9300 rpm
6014-ZZ Bore Size d N/A 70 mm Features N/A Shields Outside Diameter D N/A 110.000 mm Outside Ring Width B N/A 20.000 mm Cr - Dynamic Load Rating N/A 38.6 kN C0r - Static Load Rating N/A 30.4 kN Grease Reference Speed N/A 6400 rpm Oil Reference Speed N/A 9300 rpm
6014-2RS Bore Size d N/A 70 mm Features N/A Contact Seals Outside Diameter D N/A 110.000 mm Outside Ring Width B N/A 20.000 mm Cr - Dynamic Load Rating N/A 38.6 kN C0r - Static Load Rating N/A 30.4 kN Grease Reference Speed N/A 6400 rpm Oil Reference Speed N/A 9300 rpm
6014-2RZ Bore Size d N/A 70 mm Features N/A Non-Contact Seals Outside Diameter D N/A 110.000 mm Outside Ring Width B N/A 20.000 mm Cr - Dynamic Load Rating N/A 38.6 kN C0r - Static Load Rating N/A 30.4 kN Grease Reference Speed N/A 6400 rpm Oil Reference Speed N/A 9300 rpm
6014-N Bore Size d N/A 70 mm Features N/A O.D. Groove Outside Diameter D N/A 110.000 mm Outside Ring Width B N/A 20.000 mm Cr - Dynamic Load Rating N/A 38.6 kN C0r - Static Load Rating N/A 30.4 kN Grease Reference Speed N/A 6400 rpm Oil Reference Speed N/A 9300 rpm
6014-NR Bore Size d N/A 70 mm Features N/A Snap Ring Outside Diameter D N/A 110.000 mm Outside Ring Width B N/A 20.000 mm Cr - Dynamic Load Rating N/A 38.6 kN C0r - Static Load Rating N/A 30.4 kN Grease Reference Speed N/A 6400 rpm Oil Reference Speed N/A 9300 rpm
6214 Bore Size d N/A 70 mm Features N/A Open Outside Diameter D N/A 125.000 mm Outside Ring Width B N/A 24.000 mm Cr - Dynamic Load Rating N/A 60.8 kN C0r - Static Load Rating N/A 44 kN Grease Reference Speed N/A 5700 rpm Oil Reference Speed N/A 8300 rpm
6214-ZZ Bore Size d N/A 70 mm Features N/A Shields Outside Diameter D N/A 125.000 mm Outside Ring Width B N/A 24.000 mm Cr - Dynamic Load Rating N/A 60.8 kN C0r - Static Load Rating N/A 44 kN Grease Reference Speed N/A 5700 rpm Oil Reference Speed N/A 8300 rpm
6214-2RS Bore Size d N/A 70 mm Features N/A Contact Seals Outside Diameter D N/A 125.000 mm Outside Ring Width B N/A 24.000 mm Cr - Dynamic Load Rating N/A 60.8 kN C0r - Static Load Rating N/A 44 kN Grease Reference Speed N/A 5700 rpm Oil Reference Speed N/A 8300 rpm
6214-2RZ Bore Size d N/A 70 mm Features N/A Non-Contact Seals Outside Diameter D N/A 125.000 mm Outside Ring Width B N/A 24.000 mm Cr - Dynamic Load Rating N/A 60.8 kN C0r - Static Load Rating N/A 44 kN Grease Reference Speed N/A 5700 rpm Oil Reference Speed N/A 8300 rpm
6214-N Bore Size d N/A 70 mm Features N/A O.D. Groove Outside Diameter D N/A 125.000 mm Outside Ring Width B N/A 24.000 mm Cr - Dynamic Load Rating N/A 60.8 kN C0r - Static Load Rating N/A 44 kN Grease Reference Speed N/A 5700 rpm Oil Reference Speed N/A 8300 rpm
6214-NR Bore Size d N/A 70 mm Features N/A Snap Ring Outside Diameter D N/A 125.000 mm Outside Ring Width B N/A 24.000 mm Cr - Dynamic Load Rating N/A 60.8 kN C0r - Static Load Rating N/A 44 kN Grease Reference Speed N/A 5700 rpm Oil Reference Speed N/A 8300 rpm
6314 Bore Size d N/A 70 mm Features N/A Open Outside Diameter D N/A 150.000 mm Outside Ring Width B N/A 35.000 mm Cr - Dynamic Load Rating N/A 104.1 kN C0r - Static Load Rating N/A 68 kN Grease Reference Speed N/A 5700 rpm Oil Reference Speed N/A 8200 rpm
6314-ZZ Bore Size d N/A 70 mm Features N/A Shields Outside Diameter D N/A 150.000 mm Outside Ring Width B N/A 35.000 mm Cr - Dynamic Load Rating N/A 104.1 kN C0r - Static Load Rating N/A 68 kN Grease Reference Speed N/A 5700 rpm Oil Reference Speed N/A 8200 rpm
6314-2RS Bore Size d N/A 70 mm Features N/A Contact Seals Outside Diameter D N/A 150.000 mm Outside Ring Width B N/A 35.000 mm Cr - Dynamic Load Rating N/A 104.1 kN C0r - Static Load Rating N/A 68 kN Grease Reference Speed N/A 5700 rpm Oil Reference Speed N/A 8200 rpm
6314-2RZ Bore Size d N/A 70 mm Features N/A Non-Contact Seals Outside Diameter D N/A 150.000 mm Outside Ring Width B N/A 35.000 mm Cr - Dynamic Load Rating N/A 104.1 kN C0r - Static Load Rating N/A 68 kN Grease Reference Speed N/A 5700 rpm Oil Reference Speed N/A 8200 rpm
6314-N Bore Size d N/A 70 mm Features N/A O.D. Groove Outside Diameter D N/A 150.000 mm Outside Ring Width B N/A 35.000 mm Cr - Dynamic Load Rating N/A 104.1 kN C0r - Static Load Rating N/A 68 kN Grease Reference Speed N/A 5700 rpm Oil Reference Speed N/A 8200 rpm
6314-NR Bore Size d N/A 70 mm Features N/A Snap Ring Outside Diameter D N/A 150.000 mm Outside Ring Width B N/A 35.000 mm Cr - Dynamic Load Rating N/A 104.1 kN C0r - Static Load Rating N/A 68 kN Grease Reference Speed N/A 5700 rpm Oil Reference Speed N/A 8200 rpm
6015 Bore Size d N/A 75 mm Features N/A Open Outside Diameter D N/A 115.000 mm Outside Ring Width B N/A 20.000 mm Cr - Dynamic Load Rating N/A 40.1 kN C0r - Static Load Rating N/A 33.1 kN Grease Reference Speed N/A 6000 rpm Oil Reference Speed N/A 8700 rpm
6015-ZZ Bore Size d N/A 75 mm Features N/A Shields Outside Diameter D N/A 115.000 mm Outside Ring Width B N/A 20.000 mm Cr - Dynamic Load Rating N/A 40.1 kN C0r - Static Load Rating N/A 33.1 kN Grease Reference Speed N/A 6000 rpm Oil Reference Speed N/A 8700 rpm
6015-2RS Bore Size d N/A 75 mm Features N/A Contact Seals Outside Diameter D N/A 115.000 mm Outside Ring Width B N/A 20.000 mm Cr - Dynamic Load Rating N/A 40.1 kN C0r - Static Load Rating N/A 33.1 kN Grease Reference Speed N/A 6000 rpm Oil Reference Speed N/A 8700 rpm
6015-2RZ Bore Size d N/A 75 mm Features N/A Non-Contact Seals Outside Diameter D N/A 115.000 mm Outside Ring Width B N/A 20.000 mm Cr - Dynamic Load Rating N/A 40.1 kN C0r - Static Load Rating N/A 33.1 kN Grease Reference Speed N/A 6000 rpm Oil Reference Speed N/A 8700 rpm
6015-N Bore Size d N/A 75 mm Features N/A O.D. Groove Outside Diameter D N/A 115.000 mm Outside Ring Width B N/A 20.000 mm Cr - Dynamic Load Rating N/A 40.1 kN C0r - Static Load Rating N/A 33.1 kN Grease Reference Speed N/A 6000 rpm Oil Reference Speed N/A 8700 rpm
6015-NR Bore Size d N/A 75 mm Features N/A Snap Ring Outside Diameter D N/A 115.000 mm Outside Ring Width B N/A 20.000 mm Cr - Dynamic Load Rating N/A 40.1 kN C0r - Static Load Rating N/A 33.1 kN Grease Reference Speed N/A 6000 rpm Oil Reference Speed N/A 8700 rpm
6215 Bore Size d N/A 75 mm Features N/A Open Outside Diameter D N/A 130.000 mm Outside Ring Width B N/A 25.000 mm Cr - Dynamic Load Rating N/A 66.1 kN C0r - Static Load Rating N/A 49.3 kN Grease Reference Speed N/A 5500 rpm Oil Reference Speed N/A 7900 rpm
6215-ZZ Bore Size d N/A 75 mm Features N/A Shields Outside Diameter D N/A 130.000 mm Outside Ring Width B N/A 25.000 mm Cr - Dynamic Load Rating N/A 66.1 kN C0r - Static Load Rating N/A 49.3 kN Grease Reference Speed N/A 5500 rpm Oil Reference Speed N/A 7900 rpm
6215-2RS Bore Size d N/A 75 mm Features N/A Contact Seals Outside Diameter D N/A 130.000 mm Outside Ring Width B N/A 25.000 mm Cr - Dynamic Load Rating N/A 66.1 kN C0r - Static Load Rating N/A 49.3 kN Grease Reference Speed N/A 5500 rpm Oil Reference Speed N/A 7900 rpm
6215-2RZ Bore Size d N/A 75 mm Features N/A Non-Contact Seals Outside Diameter D N/A 130.000 mm Outside Ring Width B N/A 25.000 mm Cr - Dynamic Load Rating N/A 66.1 kN C0r - Static Load Rating N/A 49.3 kN Grease Reference Speed N/A 5500 rpm Oil Reference Speed N/A 7900 rpm
6215-N Bore Size d N/A 75 mm Features N/A O.D. Groove Outside Diameter D N/A 130.000 mm Outside Ring Width B N/A 25.000 mm Cr - Dynamic Load Rating N/A 66.1 kN C0r - Static Load Rating N/A 49.3 kN Grease Reference Speed N/A 5500 rpm Oil Reference Speed N/A 7900 rpm
6215-NR Bore Size d N/A 75 mm Features N/A Snap Ring Outside Diameter D N/A 130.000 mm Outside Ring Width B N/A 25.000 mm Cr - Dynamic Load Rating N/A 66.1 kN C0r - Static Load Rating N/A 49.3 kN Grease Reference Speed N/A 5500 rpm Oil Reference Speed N/A 7900 rpm
6315 Bore Size d N/A 75 mm Features N/A Open Outside Diameter D N/A 160.000 mm Outside Ring Width B N/A 37.000 mm Cr - Dynamic Load Rating N/A 113 kN C0r - Static Load Rating N/A 76.5 kN Grease Reference Speed N/A 5400 rpm Oil Reference Speed N/A 7800 rpm
6315-ZZ Bore Size d N/A 75 mm Features N/A Shields Outside Diameter D N/A 160.000 mm Outside Ring Width B N/A 37.000 mm Cr - Dynamic Load Rating N/A 113 kN C0r - Static Load Rating N/A 76.5 kN Grease Reference Speed N/A 5400 rpm Oil Reference Speed N/A 7800 rpm
6315-2RS Bore Size d N/A 75 mm Features N/A Contact Seals Outside Diameter D N/A 160.000 mm Outside Ring Width B N/A 37.000 mm Cr - Dynamic Load Rating N/A 113 kN C0r - Static Load Rating N/A 76.5 kN Grease Reference Speed N/A 5400 rpm Oil Reference Speed N/A 7800 rpm
6315-2RZ Bore Size d N/A 75 mm Features N/A Non-Contact Seals Outside Diameter D N/A 160.000 mm Outside Ring Width B N/A 37.000 mm Cr - Dynamic Load Rating N/A 113 kN C0r - Static Load Rating N/A 76.5 kN Grease Reference Speed N/A 5400 rpm Oil Reference Speed N/A 7800 rpm
6315-N Bore Size d N/A 75 mm Features N/A O.D. Groove Outside Diameter D N/A 160.000 mm Outside Ring Width B N/A 37.000 mm Cr - Dynamic Load Rating N/A 113 kN C0r - Static Load Rating N/A 76.5 kN Grease Reference Speed N/A 5400 rpm Oil Reference Speed N/A 7800 rpm
6315-NR Bore Size d N/A 75 mm Features N/A Snap Ring Outside Diameter D N/A 160.000 mm Outside Ring Width B N/A 37.000 mm Cr - Dynamic Load Rating N/A 113 kN C0r - Static Load Rating N/A 76.5 kN Grease Reference Speed N/A 5400 rpm Oil Reference Speed N/A 7800 rpm
6016 Bore Size d N/A 80 mm Features N/A Open Outside Diameter D N/A 125.000 mm Outside Ring Width B N/A 22.000 mm Cr - Dynamic Load Rating N/A 47.5 kN C0r - Static Load Rating N/A 39.8 kN Grease Reference Speed N/A 5800 rpm Oil Reference Speed N/A 8400 rpm
6016-ZZ Bore Size d N/A 80 mm Features N/A Shields Outside Diameter D N/A 125.000 mm Outside Ring Width B N/A 22.000 mm Cr - Dynamic Load Rating N/A 47.5 kN C0r - Static Load Rating N/A 39.8 kN Grease Reference Speed N/A 5800 rpm Oil Reference Speed N/A 8400 rpm
6016-2RS Bore Size d N/A 80 mm Features N/A Contact Seals Outside Diameter D N/A 125.000 mm Outside Ring Width B N/A 22.000 mm Cr - Dynamic Load Rating N/A 47.5 kN C0r - Static Load Rating N/A 39.8 kN Grease Reference Speed N/A 5800 rpm Oil Reference Speed N/A 8400 rpm
6016-2RZ Bore Size d N/A 80 mm Features N/A Non-Contact Seals Outside Diameter D N/A 125.000 mm Outside Ring Width B N/A 22.000 mm Cr - Dynamic Load Rating N/A 47.5 kN C0r - Static Load Rating N/A 39.8 kN Grease Reference Speed N/A 5800 rpm Oil Reference Speed N/A 8400 rpm
6016-N Bore Size d N/A 80 mm Features N/A O.D. Groove Outside Diameter D N/A 125.000 mm Outside Ring Width B N/A 22.000 mm Cr - Dynamic Load Rating N/A 47.5 kN C0r - Static Load Rating N/A 39.8 kN Grease Reference Speed N/A 5800 rpm Oil Reference Speed N/A 8400 rpm
6016-NR Bore Size d N/A 80 mm Features N/A Snap Ring Outside Diameter D N/A 125.000 mm Outside Ring Width B N/A 22.000 mm Cr - Dynamic Load Rating N/A 47.5 kN C0r - Static Load Rating N/A 39.8 kN Grease Reference Speed N/A 5800 rpm Oil Reference Speed N/A 8400 rpm
6216 Bore Size d N/A 80 mm Features N/A Open Outside Diameter D N/A 140.000 mm Outside Ring Width B N/A 26.000 mm Cr - Dynamic Load Rating N/A 72.7 kN C0r - Static Load Rating N/A 53 kN Grease Reference Speed N/A 5200 rpm Oil Reference Speed N/A 7500 rpm
6216-ZZ Bore Size d N/A 80 mm Features N/A Shields Outside Diameter D N/A 140.000 mm Outside Ring Width B N/A 26.000 mm Cr - Dynamic Load Rating N/A 72.7 kN C0r - Static Load Rating N/A 53 kN Grease Reference Speed N/A 5200 rpm Oil Reference Speed N/A 7500 rpm
6216-2RS Bore Size d N/A 80 mm Features N/A Contact Seals Outside Diameter D N/A 140.000 mm Outside Ring Width B N/A 26.000 mm Cr - Dynamic Load Rating N/A 72.7 kN C0r - Static Load Rating N/A 53 kN Grease Reference Speed N/A 5200 rpm Oil Reference Speed N/A 7500 rpm
6216-2RZ Bore Size d N/A 80 mm Features N/A Non-Contact Seals Outside Diameter D N/A 140.000 mm Outside Ring Width B N/A 26.000 mm Cr - Dynamic Load Rating N/A 72.7 kN C0r - Static Load Rating N/A 53 kN Grease Reference Speed N/A 5200 rpm Oil Reference Speed N/A 7500 rpm
6216-N Bore Size d N/A 80 mm Features N/A O.D. Groove Outside Diameter D N/A 140.000 mm Outside Ring Width B N/A 26.000 mm Cr - Dynamic Load Rating N/A 72.7 kN C0r - Static Load Rating N/A 53 kN Grease Reference Speed N/A 5200 rpm Oil Reference Speed N/A 7500 rpm
6216-NR Bore Size d N/A 80 mm Features N/A Snap Ring Outside Diameter D N/A 140.000 mm Outside Ring Width B N/A 26.000 mm Cr - Dynamic Load Rating N/A 72.7 kN C0r - Static Load Rating N/A 53 kN Grease Reference Speed N/A 5200 rpm Oil Reference Speed N/A 7500 rpm
6316 Bore Size d N/A 80 mm Features N/A Open Outside Diameter D N/A 170.000 mm Outside Ring Width B N/A 39.000 mm Cr - Dynamic Load Rating N/A 123 kN C0r - Static Load Rating N/A 86.5 kN Grease Reference Speed N/A 5200 rpm Oil Reference Speed N/A 7500 rpm
6316-ZZ Bore Size d N/A 80 mm Features N/A Shields Outside Diameter D N/A 170.000 mm Outside Ring Width B N/A 39.000 mm Cr - Dynamic Load Rating N/A 123 kN C0r - Static Load Rating N/A 86.5 kN Grease Reference Speed N/A 5200 rpm Oil Reference Speed N/A 7500 rpm
6316-2RS Bore Size d N/A 80 mm Features N/A Contact Seals Outside Diameter D N/A 170.000 mm Outside Ring Width B N/A 39.000 mm Cr - Dynamic Load Rating N/A 123 kN C0r - Static Load Rating N/A 86.5 kN Grease Reference Speed N/A 5200 rpm Oil Reference Speed N/A 7500 rpm
6316-2RZ Bore Size d N/A 80 mm Features N/A Non-Contact Seals Outside Diameter D N/A 170.000 mm Outside Ring Width B N/A 39.000 mm Cr - Dynamic Load Rating N/A 123 kN C0r - Static Load Rating N/A 86.5 kN Grease Reference Speed N/A 5200 rpm Oil Reference Speed N/A 7500 rpm
6316-N Bore Size d N/A 80 mm Features N/A O.D. Groove Outside Diameter D N/A 170.000 mm Outside Ring Width B N/A 39.000 mm Cr - Dynamic Load Rating N/A 123 kN C0r - Static Load Rating N/A 86.5 kN Grease Reference Speed N/A 5200 rpm Oil Reference Speed N/A 7500 rpm
6316-NR Bore Size d N/A 80 mm Features N/A Snap Ring Outside Diameter D N/A 170.000 mm Outside Ring Width B N/A 39.000 mm Cr - Dynamic Load Rating N/A 123 kN C0r - Static Load Rating N/A 86.5 kN Grease Reference Speed N/A 5200 rpm Oil Reference Speed N/A 7500 rpm
6017 Bore Size d N/A 85 mm Features N/A Open Outside Diameter D N/A 130.000 mm Outside Ring Width B N/A 22.000 mm Cr - Dynamic Load Rating N/A 52.8 kN C0r - Static Load Rating N/A 44.5 kN Grease Reference Speed N/A 5400 rpm Oil Reference Speed N/A 7900 rpm
6017-ZZ Bore Size d N/A 85 mm Features N/A Shields Outside Diameter D N/A 130.000 mm Outside Ring Width B N/A 22.000 mm Cr - Dynamic Load Rating N/A 52.8 kN C0r - Static Load Rating N/A 44.5 kN Grease Reference Speed N/A 5400 rpm Oil Reference Speed N/A 7900 rpm
6017-2RS Bore Size d N/A 85 mm Features N/A Contact Seals Outside Diameter D N/A 130.000 mm Outside Ring Width B N/A 22.000 mm Cr - Dynamic Load Rating N/A 52.8 kN C0r - Static Load Rating N/A 44.5 kN Grease Reference Speed N/A 5400 rpm Oil Reference Speed N/A 7900 rpm
6017-2RZ Bore Size d N/A 85 mm Features N/A Non-Contact Seals Outside Diameter D N/A 130.000 mm Outside Ring Width B N/A 22.000 mm Cr - Dynamic Load Rating N/A 52.8 kN C0r - Static Load Rating N/A 44.5 kN Grease Reference Speed N/A 5400 rpm Oil Reference Speed N/A 7900 rpm
6017-N Bore Size d N/A 85 mm Features N/A O.D. Groove Outside Diameter D N/A 130.000 mm Outside Ring Width B N/A 22.000 mm Cr - Dynamic Load Rating N/A 52.8 kN C0r - Static Load Rating N/A 44.5 kN Grease Reference Speed N/A 5400 rpm Oil Reference Speed N/A 7900 rpm
6017-NR Bore Size d N/A 85 mm Features N/A Snap Ring Outside Diameter D N/A 130.000 mm Outside Ring Width B N/A 22.000 mm Cr - Dynamic Load Rating N/A 52.8 kN C0r - Static Load Rating N/A 44.5 kN Grease Reference Speed N/A 5400 rpm Oil Reference Speed N/A 7900 rpm
6217 Bore Size d N/A 85 mm Features N/A Open Outside Diameter D N/A 150.000 mm Outside Ring Width B N/A 28.000 mm Cr - Dynamic Load Rating N/A 83.2 kN C0r - Static Load Rating N/A 63.8 kN Grease Reference Speed N/A 5000 rpm Oil Reference Speed N/A 7200 rpm
6217-ZZ Bore Size d N/A 85 mm Features N/A Shields Outside Diameter D N/A 150.000 mm Outside Ring Width B N/A 28.000 mm Cr - Dynamic Load Rating N/A 83.2 kN C0r - Static Load Rating N/A 63.8 kN Grease Reference Speed N/A 5000 rpm Oil Reference Speed N/A 7200 rpm
6217-2RS Bore Size d N/A 85 mm Features N/A Contact Seals Outside Diameter D N/A 150.000 mm Outside Ring Width B N/A 28.000 mm Cr - Dynamic Load Rating N/A 83.2 kN C0r - Static Load Rating N/A 63.8 kN Grease Reference Speed N/A 7200 rpm Oil Reference Speed N/A 10000 rpm
6217-2RZ Bore Size d N/A 85 mm Features N/A Non-Contact Seals Outside Diameter D N/A 150.000 mm Outside Ring Width B N/A 28.000 mm Cr - Dynamic Load Rating N/A 83.2 kN C0r - Static Load Rating N/A 63.8 kN Grease Reference Speed N/A 5000 rpm Oil Reference Speed N/A 7200 rpm
6217-N Bore Size d N/A 85 mm Features N/A O.D. Groove Outside Diameter D N/A 150.000 mm Outside Ring Width B N/A 28.000 mm Cr - Dynamic Load Rating N/A 83.2 kN C0r - Static Load Rating N/A 63.8 kN Grease Reference Speed N/A 5000 rpm Oil Reference Speed N/A 7200 rpm
6217-NR Bore Size d N/A 85 mm Features N/A Snap Ring Outside Diameter D N/A 150.000 mm Outside Ring Width B N/A 28.000 mm Cr - Dynamic Load Rating N/A 83.2 kN C0r - Static Load Rating N/A 63.8 kN Grease Reference Speed N/A 5000 rpm Oil Reference Speed N/A 7200 rpm
6317 Bore Size d N/A 85 mm Features N/A Open Outside Diameter D N/A 180.000 mm Outside Ring Width B N/A 41.000 mm Cr - Dynamic Load Rating N/A 132.7 kN C0r - Static Load Rating N/A 96.5 kN Grease Reference Speed N/A 5000 rpm Oil Reference Speed N/A 7200 rpm
6317-ZZ Bore Size d N/A 85 mm Features N/A Shields Outside Diameter D N/A 180.000 mm Outside Ring Width B N/A 41.000 mm Cr - Dynamic Load Rating N/A 132.7 kN C0r - Static Load Rating N/A 96.5 kN Grease Reference Speed N/A 5000 rpm Oil Reference Speed N/A 7200 rpm
6317-2RS Bore Size d N/A 85 mm Features N/A Contact Seals Outside Diameter D N/A 180.000 mm Outside Ring Width B N/A 41.000 mm Cr - Dynamic Load Rating N/A 132.7 kN C0r - Static Load Rating N/A 96.6 kN Grease Reference Speed N/A 5000 rpm Oil Reference Speed N/A 7200 rpm
6317-2RZ Bore Size d N/A 85 mm Features N/A Non-Contact Seals Outside Diameter D N/A 180.000 mm Outside Ring Width B N/A 41.000 mm Cr - Dynamic Load Rating N/A 132.7 kN C0r - Static Load Rating N/A 96.5 kN Grease Reference Speed N/A 5000 rpm Oil Reference Speed N/A 7200 rpm
6317-N Bore Size d N/A 85 mm Features N/A O.D. Groove Outside Diameter D N/A 180.000 mm Outside Ring Width B N/A 41.000 mm Cr - Dynamic Load Rating N/A 132.7 kN C0r - Static Load Rating N/A 96.5 kN Grease Reference Speed N/A 5000 rpm Oil Reference Speed N/A 7200 rpm
6317-NR Bore Size d N/A 85 mm Features N/A Snap Ring Outside Diameter D N/A 180.000 mm Outside Ring Width B N/A 41.000 mm Cr - Dynamic Load Rating N/A 132.7 kN C0r - Static Load Rating N/A 96.5 kN Grease Reference Speed N/A 5000 rpm Oil Reference Speed N/A 7200 rpm
6018 Bore Size d N/A 90 mm Features N/A Open Outside Diameter D N/A 140.000 mm Outside Ring Width B N/A 24.000 mm Cr - Dynamic Load Rating N/A 58 kN C0r - Static Load Rating N/A 50.6 kN Grease Reference Speed N/A 5300 rpm Oil Reference Speed N/A 7600 rpm
6018-ZZ Bore Size d N/A 90 mm Features N/A Shields Outside Diameter D N/A 140.000 mm Outside Ring Width B N/A 24.000 mm Cr - Dynamic Load Rating N/A 58 kN C0r - Static Load Rating N/A 50.6 kN Grease Reference Speed N/A 5300 rpm Oil Reference Speed N/A 7600 rpm
6018-2RS Bore Size d N/A 90 mm Features N/A Contact Seals Outside Diameter D N/A 140.000 mm Outside Ring Width B N/A 24.000 mm Cr - Dynamic Load Rating N/A 58 kN C0r - Static Load Rating N/A 50.6 kN Grease Reference Speed N/A 5300 rpm Oil Reference Speed N/A 7600 rpm
6018-2RZ Bore Size d N/A 90 mm Features N/A Non-Contact Seals Outside Diameter D N/A 140.000 mm Outside Ring Width B N/A 24.000 mm Cr - Dynamic Load Rating N/A 58 kN C0r - Static Load Rating N/A 50.6 kN Grease Reference Speed N/A 5300 rpm Oil Reference Speed N/A 7600 rpm
6018-N Bore Size d N/A 90 mm Features N/A O.D. Groove Outside Diameter D N/A 140.000 mm Outside Ring Width B N/A 24.000 mm Cr - Dynamic Load Rating N/A 58 kN C0r - Static Load Rating N/A 50.6 kN Grease Reference Speed N/A 5300 rpm Oil Reference Speed N/A 7600 rpm
6018-NR Bore Size d N/A 90 mm Features N/A Snap Ring Outside Diameter D N/A 140.000 mm Outside Ring Width B N/A 24.000 mm Cr - Dynamic Load Rating N/A 58 kN C0r - Static Load Rating N/A 50.6 kN Grease Reference Speed N/A 5300 rpm Oil Reference Speed N/A 7600 rpm
6218 Bore Size d N/A 90 mm Features N/A Open Outside Diameter D N/A 160.000 mm Outside Ring Width B N/A 30.000 mm Cr - Dynamic Load Rating N/A 96 kN C0r - Static Load Rating N/A 71.5 kN Grease Reference Speed N/A 4800 rpm Oil Reference Speed N/A 6900 rpm
6218-ZZ Bore Size d N/A 90 mm Features N/A Shields Outside Diameter D N/A 160.000 mm Outside Ring Width B N/A 30.000 mm Cr - Dynamic Load Rating N/A 96 kN C0r - Static Load Rating N/A 71.5 kN Grease Reference Speed N/A 4800 rpm Oil Reference Speed N/A 6900 rpm
6218-2RS Bore Size d N/A 90 mm Features N/A Contact Seals Outside Diameter D N/A 160.000 mm Outside Ring Width B N/A 30.000 mm Cr - Dynamic Load Rating N/A 96 kN C0r - Static Load Rating N/A 71.5 kN Grease Reference Speed N/A 4800 rpm Oil Reference Speed N/A 6900 rpm
6218-2RZ Bore Size d N/A 90 mm Features N/A Non-Contact Seals Outside Diameter D N/A 160.000 mm Outside Ring Width B N/A 30.000 mm Cr - Dynamic Load Rating N/A 96 kN C0r - Static Load Rating N/A 71.5 kN Grease Reference Speed N/A 4800 rpm Oil Reference Speed N/A 6900 rpm
6218-N Bore Size d N/A 90 mm Features N/A O.D. Groove Outside Diameter D N/A 160.000 mm Outside Ring Width B N/A 30.000 mm Cr - Dynamic Load Rating N/A 96 kN C0r - Static Load Rating N/A 71.5 kN Grease Reference Speed N/A 4800 rpm Oil Reference Speed N/A 6900 rpm
6218-NR Bore Size d N/A 90 mm Features N/A Snap Ring Outside Diameter D N/A 160.000 mm Outside Ring Width B N/A 30.000 mm Cr - Dynamic Load Rating N/A 96 kN C0r - Static Load Rating N/A 71.5 kN Grease Reference Speed N/A 4800 rpm Oil Reference Speed N/A 6900 rpm
6318 Bore Size d N/A 90 mm Features N/A Open Outside Diameter D N/A 190.000 mm Outside Ring Width B N/A 43.000 mm Cr - Dynamic Load Rating N/A 142.6 kN C0r - Static Load Rating N/A 107.2 kN Grease Reference Speed N/A 4800 rpm Oil Reference Speed N/A 6900 rpm
6318-ZZ Bore Size d N/A 90 mm Features N/A Shields Outside Diameter D N/A 190.000 mm Outside Ring Width B N/A 43.000 mm Cr - Dynamic Load Rating N/A 142.6 kN C0r - Static Load Rating N/A 107.2 kN Grease Reference Speed N/A 4800 rpm Oil Reference Speed N/A 6900 rpm
6318-2RS Bore Size d N/A 90 mm Features N/A Contact Seals Outside Diameter D N/A 190.000 mm Outside Ring Width B N/A 43.000 mm Cr - Dynamic Load Rating N/A 142.6 kN C0r - Static Load Rating N/A 107.2 kN Grease Reference Speed N/A 4800 rpm Oil Reference Speed N/A 6900 rpm
6318-2RZ Bore Size d N/A 90 mm Features N/A Non-Contact Seals Outside Diameter D N/A 190.000 mm Outside Ring Width B N/A 43.000 mm Cr - Dynamic Load Rating N/A 142.6 kN C0r - Static Load Rating N/A 107.2 kN Grease Reference Speed N/A 4800 rpm Oil Reference Speed N/A 6900 rpm
6318-N Bore Size d N/A 90 mm Features N/A O.D. Groove Outside Diameter D N/A 190.000 mm Outside Ring Width B N/A 43.000 mm Cr - Dynamic Load Rating N/A 142.6 kN C0r - Static Load Rating N/A 107.2 kN Grease Reference Speed N/A 4800 rpm Oil Reference Speed N/A 6900 rpm
6318-NR Bore Size d N/A 90 mm Features N/A Snap Ring Outside Diameter D N/A 190.000 mm Outside Ring Width B N/A 43.000 mm Cr - Dynamic Load Rating N/A 142.6 kN C0r - Static Load Rating N/A 107.2 kN Grease Reference Speed N/A 4800 rpm Oil Reference Speed N/A 6900 rpm
6019 Bore Size d N/A 95 mm Features N/A Open Outside Diameter D N/A 145.000 mm Outside Ring Width B N/A 24.000 mm Cr - Dynamic Load Rating N/A 60.5 kN C0r - Static Load Rating N/A 51 kN Grease Reference Speed N/A 5000 rpm Oil Reference Speed N/A 7300 rpm
6019-ZZ Bore Size d N/A 95 mm Features N/A Shields Outside Diameter D N/A 145.000 mm Outside Ring Width B N/A 24.000 mm Cr - Dynamic Load Rating N/A 60.5 kN C0r - Static Load Rating N/A 51 kN Grease Reference Speed N/A 5000 rpm Oil Reference Speed N/A 7300 rpm
6019-2RS Bore Size d N/A 95 mm Features N/A Contact Seals Outside Diameter D N/A 145.000 mm Outside Ring Width B N/A 24.000 mm Cr - Dynamic Load Rating N/A 60.5 kN C0r - Static Load Rating N/A 51 kN Grease Reference Speed N/A 5000 rpm Oil Reference Speed N/A 7300 rpm
6019-2RZ Bore Size d N/A 95 mm Features N/A Non-Contact Seals Outside Diameter D N/A 145.000 mm Outside Ring Width B N/A 24.000 mm Cr - Dynamic Load Rating N/A 60.5 kN C0r - Static Load Rating N/A 51 kN Grease Reference Speed N/A 5000 rpm Oil Reference Speed N/A 7300 rpm
6019-N Bore Size d N/A 95 mm Features N/A O.D. Groove Outside Diameter D N/A 145.000 mm Outside Ring Width B N/A 24.000 mm Cr - Dynamic Load Rating N/A 60.5 kN C0r - Static Load Rating N/A 51 kN Grease Reference Speed N/A 5000 rpm Oil Reference Speed N/A 7300 rpm
6019-NR Bore Size d N/A 95 mm Features N/A Snap Ring Outside Diameter D N/A 145.000 mm Outside Ring Width B N/A 24.000 mm Cr - Dynamic Load Rating N/A 60.5 kN C0r - Static Load Rating N/A 51 kN Grease Reference Speed N/A 5000 rpm Oil Reference Speed N/A 7300 rpm
6219 Bore Size d N/A 95 mm Features N/A Open Outside Diameter D N/A 170.000 mm Outside Ring Width B N/A 32.000 mm Cr - Dynamic Load Rating N/A 109 kN C0r - Static Load Rating N/A 82 kN Grease Reference Speed N/A 4700 rpm Oil Reference Speed N/A 6700 rpm
6219-ZZ Bore Size d N/A 95 mm Features N/A Shields Outside Diameter D N/A 170.000 mm Outside Ring Width B N/A 32.000 mm Cr - Dynamic Load Rating N/A 109 kN C0r - Static Load Rating N/A 82 kN Grease Reference Speed N/A 4700 rpm Oil Reference Speed N/A 6700 rpm
6219-2RS Bore Size d N/A 95 mm Features N/A Contact Seals Outside Diameter D N/A 170.000 mm Outside Ring Width B N/A 32.000 mm Cr - Dynamic Load Rating N/A 109 kN C0r - Static Load Rating N/A 82 kN Grease Reference Speed N/A 4700 rpm Oil Reference Speed N/A 6700 rpm
6219-2RZ Bore Size d N/A 95 mm Features N/A Non-Contact Seals Outside Diameter D N/A 170.000 mm Outside Ring Width B N/A 32.000 mm Cr - Dynamic Load Rating N/A 109 kN C0r - Static Load Rating N/A 82 kN Grease Reference Speed N/A 4700 rpm Oil Reference Speed N/A 6700 rpm
6219-N Bore Size d N/A 95 mm Features N/A O.D. Groove Outside Diameter D N/A 170.000 mm Outside Ring Width B N/A 32.000 mm Cr - Dynamic Load Rating N/A 109 kN C0r - Static Load Rating N/A 82 kN Grease Reference Speed N/A 4700 rpm Oil Reference Speed N/A 6700 rpm
6219-NR Bore Size d N/A 95 mm Features N/A Snap Ring Outside Diameter D N/A 170.000 mm Outside Ring Width B N/A 32.000 mm Cr - Dynamic Load Rating N/A 109 kN C0r - Static Load Rating N/A 82 kN Grease Reference Speed N/A 4700 rpm Oil Reference Speed N/A 6700 rpm
6319 Bore Size d N/A 95 mm Features N/A Open Outside Diameter D N/A 200.000 mm Outside Ring Width B N/A 45.000 mm Cr - Dynamic Load Rating N/A 153 kN C0r - Static Load Rating N/A 118 kN Grease Reference Speed N/A 4600 rpm Oil Reference Speed N/A 6600 rpm
6319-ZZ Bore Size d N/A 95 mm Features N/A Shields Outside Diameter D N/A 200.000 mm Outside Ring Width B N/A 45.000 mm Cr - Dynamic Load Rating N/A 153 kN C0r - Static Load Rating N/A 118 kN Grease Reference Speed N/A 4600 rpm Oil Reference Speed N/A 6600 rpm
6319-2RS Bore Size d N/A 95 mm Features N/A Contact Seals Outside Diameter D N/A 200.000 mm Outside Ring Width B N/A 45.000 mm Cr - Dynamic Load Rating N/A 153 kN C0r - Static Load Rating N/A 118 kN Grease Reference Speed N/A 4600 rpm Oil Reference Speed N/A 6600 rpm
6319-2RZ Bore Size d N/A 95 mm Features N/A Non-Contact Seals Outside Diameter D N/A 200.000 mm Outside Ring Width B N/A 45.000 mm Cr - Dynamic Load Rating N/A 153 kN C0r - Static Load Rating N/A 118 kN Grease Reference Speed N/A 4600 rpm Oil Reference Speed N/A 6600 rpm
6319-N Bore Size d N/A 95 mm Features N/A O.D. Groove Outside Diameter D N/A 200.000 mm Outside Ring Width B N/A 45.000 mm Cr - Dynamic Load Rating N/A 153 kN C0r - Static Load Rating N/A 118 kN Grease Reference Speed N/A 4600 rpm Oil Reference Speed N/A 6600 rpm
6319-NR Bore Size d N/A 95 mm Features N/A Snap Ring Outside Diameter D N/A 200.000 mm Outside Ring Width B N/A 45.000 mm Cr - Dynamic Load Rating N/A 153 kN C0r - Static Load Rating N/A 118 kN Grease Reference Speed N/A 4600 rpm Oil Reference Speed N/A 6600 rpm
6020 Bore Size d N/A 100 mm Features N/A Open Outside Diameter D N/A 150.000 mm Outside Ring Width B N/A 24.000 mm Cr - Dynamic Load Rating N/A 60.2 kN C0r - Static Load Rating N/A 54.2 kN Grease Reference Speed N/A 4800 rpm Oil Reference Speed N/A 6900 rpm
6020-ZZ Bore Size d N/A 100 mm Features N/A Shields Outside Diameter D N/A 150.000 mm Outside Ring Width B N/A 24.000 mm Cr - Dynamic Load Rating N/A 60.2 kN C0r - Static Load Rating N/A 54.2 kN Grease Reference Speed N/A 4800 rpm Oil Reference Speed N/A 6900 rpm
6020-2RS Bore Size d N/A 100 mm Features N/A Contact Seals Outside Diameter D N/A 150.000 mm Outside Ring Width B N/A 24.000 mm Cr - Dynamic Load Rating N/A 60.2 kN C0r - Static Load Rating N/A 54.2 kN Grease Reference Speed N/A 4800 rpm Oil Reference Speed N/A 6900 rpm
6020-2RZ Bore Size d N/A 100 mm Features N/A Non-Contact Seals Outside Diameter D N/A 150.000 mm Outside Ring Width B N/A 24.000 mm Cr - Dynamic Load Rating N/A 60.2 kN C0r - Static Load Rating N/A 54.2 kN Grease Reference Speed N/A 4800 rpm Oil Reference Speed N/A 6900 rpm
6020-N Bore Size d N/A 100 mm Features N/A O.D. Groove Outside Diameter D N/A 150.000 mm Outside Ring Width B N/A 24.000 mm Cr - Dynamic Load Rating N/A 60.2 kN C0r - Static Load Rating N/A 54.2 kN Grease Reference Speed N/A 4800 rpm Oil Reference Speed N/A 6900 rpm
6020-NR Bore Size d N/A 100 mm Features N/A Snap Ring Outside Diameter D N/A 150.000 mm Outside Ring Width B N/A 24.000 mm Cr - Dynamic Load Rating N/A 60.2 kN C0r - Static Load Rating N/A 54.2 kN Grease Reference Speed N/A 4800 rpm Oil Reference Speed N/A 6900 rpm
6220 Bore Size d N/A 100 mm Features N/A Open Outside Diameter D N/A 180.000 mm Outside Ring Width B N/A 34.000 mm Cr - Dynamic Load Rating N/A 122 kN C0r - Static Load Rating N/A 92.7 kN Grease Reference Speed N/A 4500 rpm Oil Reference Speed N/A 6500 rpm
6220-ZZ Bore Size d N/A 100 mm Features N/A Shields Outside Diameter D N/A 180.000 mm Outside Ring Width B N/A 34.000 mm Cr - Dynamic Load Rating N/A 122 kN C0r - Static Load Rating N/A 92.7 kN Grease Reference Speed N/A 4500 rpm Oil Reference Speed N/A 6500 rpm
6220-2RS Bore Size d N/A 100 mm Features N/A Contact Seals Outside Diameter D N/A 180.000 mm Outside Ring Width B N/A 34.000 mm Cr - Dynamic Load Rating N/A 122 kN C0r - Static Load Rating N/A 92.7 kN Grease Reference Speed N/A 4500 rpm Oil Reference Speed N/A 6500 rpm
6220-2RZ Bore Size d N/A 100 mm Features N/A Non-Contact Seals Outside Diameter D N/A 180.000 mm Outside Ring Width B N/A 34.000 mm Cr - Dynamic Load Rating N/A 122 kN C0r - Static Load Rating N/A 92.7 kN Grease Reference Speed N/A 4500 rpm Oil Reference Speed N/A 6500 rpm
6220-N Bore Size d N/A 100 mm Features N/A O.D. Groove Outside Diameter D N/A 180.000 mm Outside Ring Width B N/A 34.000 mm Cr - Dynamic Load Rating N/A 122 kN C0r - Static Load Rating N/A 92.7 kN Grease Reference Speed N/A 4500 rpm Oil Reference Speed N/A 6500 rpm
6220-NR Bore Size d N/A 100 mm Features N/A Snap Ring Outside Diameter D N/A 180.000 mm Outside Ring Width B N/A 34.000 mm Cr - Dynamic Load Rating N/A 122 kN C0r - Static Load Rating N/A 92.7 kN Grease Reference Speed N/A 4500 rpm Oil Reference Speed N/A 6500 rpm
6320 Bore Size d N/A 100 mm Features N/A Open Outside Diameter D N/A 215.000 mm Outside Ring Width B N/A 47.000 mm Cr - Dynamic Load Rating N/A 173 kN C0r - Static Load Rating N/A 140.2 kN Grease Reference Speed N/A 4400 rpm Oil Reference Speed N/A 6200 rpm
6320-ZZ Bore Size d N/A 100 mm Features N/A Shields Outside Diameter D N/A 215.000 mm Outside Ring Width B N/A 47.000 mm Cr - Dynamic Load Rating N/A 173 kN C0r - Static Load Rating N/A 140.2 kN Grease Reference Speed N/A 4400 rpm Oil Reference Speed N/A 6200 rpm
6320-2RS Bore Size d N/A 100 mm Features N/A Contact Seals Outside Diameter D N/A 215.000 mm Outside Ring Width B N/A 47.000 mm Cr - Dynamic Load Rating N/A 173 kN C0r - Static Load Rating N/A 140.2 kN Grease Reference Speed N/A 4400 rpm Oil Reference Speed N/A 6200 rpm
6320-2RZ Bore Size d N/A 100 mm Features N/A Non-Contact Seals Outside Diameter D N/A 215.000 mm Outside Ring Width B N/A 47.000 mm Cr - Dynamic Load Rating N/A 173 kN C0r - Static Load Rating N/A 140.2 kN Grease Reference Speed N/A 4400 rpm Oil Reference Speed N/A 6200 rpm
6320-N Bore Size d N/A 100 mm Features N/A O.D. Groove Outside Diameter D N/A 215.000 mm Outside Ring Width B N/A 47.000 mm Cr - Dynamic Load Rating N/A 173 kN C0r - Static Load Rating N/A 140.2 kN Grease Reference Speed N/A 4400 rpm Oil Reference Speed N/A 6200 rpm
6320-NR Bore Size d N/A 100 mm Features N/A Snap Ring Outside Diameter D N/A 215.000 mm Outside Ring Width B N/A 47.000 mm Cr - Dynamic Load Rating N/A 173 kN C0r - Static Load Rating N/A 140.2 kN Grease Reference Speed N/A 4400 rpm Oil Reference Speed N/A 6200 rpm
6021 Bore Size d N/A 105 mm Features N/A Open Outside Diameter D N/A 160.000 mm Outside Ring Width B N/A 26.000 mm Cr - Dynamic Load Rating N/A 69.2 kN C0r - Static Load Rating N/A 61.2 kN Grease Reference Speed N/A 4700 rpm Oil Reference Speed N/A 6700 rpm
6021-ZZ Bore Size d N/A 105 mm Features N/A Shields Outside Diameter D N/A 160.000 mm Outside Ring Width B N/A 26.000 mm Cr - Dynamic Load Rating N/A 69.2 kN C0r - Static Load Rating N/A 61.2 kN Grease Reference Speed N/A 4700 rpm Oil Reference Speed N/A 6700 rpm
6021-2RS Bore Size d N/A 105 mm Features N/A Contact Seals Outside Diameter D N/A 160.000 mm Outside Ring Width B N/A 26.000 mm Cr - Dynamic Load Rating N/A 69.2 kN C0r - Static Load Rating N/A 61.2 kN Grease Reference Speed N/A 4700 rpm Oil Reference Speed N/A 6700 rpm
6021-2RZ Bore Size d N/A 105 mm Features N/A Non-Contact Seals Outside Diameter D N/A 160.000 mm Outside Ring Width B N/A 26.000 mm Cr - Dynamic Load Rating N/A 69.2 kN C0r - Static Load Rating N/A 61.2 kN Grease Reference Speed N/A 4700 rpm Oil Reference Speed N/A 6700 rpm
6021-N Bore Size d N/A 105 mm Features N/A O.D. Groove Outside Diameter D N/A 160.000 mm Outside Ring Width B N/A 26.000 mm Cr - Dynamic Load Rating N/A 69.2 kN C0r - Static Load Rating N/A 61.2 kN Grease Reference Speed N/A 4700 rpm Oil Reference Speed N/A 6700 rpm
6021-NR Bore Size d N/A 105 mm Features N/A Snap Ring Outside Diameter D N/A 160.000 mm Outside Ring Width B N/A 26.000 mm Cr - Dynamic Load Rating N/A 69.2 kN C0r - Static Load Rating N/A 61.2 kN Grease Reference Speed N/A 4700 rpm Oil Reference Speed N/A 6700 rpm
6221 Bore Size d N/A 105 mm Features N/A Open Outside Diameter D N/A 190.000 mm Outside Ring Width B N/A 36.000 mm Cr - Dynamic Load Rating N/A 133 kN C0r - Static Load Rating N/A 105 kN Grease Reference Speed N/A 4400 rpm Oil Reference Speed N/A 6300 rpm
6221-ZZ Bore Size d N/A 105 mm Features N/A Shields Outside Diameter D N/A 190.000 mm Outside Ring Width B N/A 36.000 mm Cr - Dynamic Load Rating N/A 133 kN C0r - Static Load Rating N/A 105 kN Grease Reference Speed N/A 4400 rpm Oil Reference Speed N/A 6300 rpm
6221-2RS Bore Size d N/A 105 mm Features N/A Contact Seals Outside Diameter D N/A 190.000 mm Outside Ring Width B N/A 36.000 mm Cr - Dynamic Load Rating N/A 133 kN C0r - Static Load Rating N/A 105 kN Grease Reference Speed N/A 4400 rpm Oil Reference Speed N/A 6300 rpm
6221-2RZ Bore Size d N/A 105 mm Features N/A Non-Contact Seals Outside Diameter D N/A 190.000 mm Outside Ring Width B N/A 36.000 mm Cr - Dynamic Load Rating N/A 133 kN C0r - Static Load Rating N/A 105 kN Grease Reference Speed N/A 4400 rpm Oil Reference Speed N/A 6300 rpm
6221-N Bore Size d N/A 105 mm Features N/A O.D. Groove Outside Diameter D N/A 190.000 mm Outside Ring Width B N/A 36.000 mm Cr - Dynamic Load Rating N/A 133 kN C0r - Static Load Rating N/A 105 kN Grease Reference Speed N/A 4400 rpm Oil Reference Speed N/A 6300 rpm
6221-NR Bore Size d N/A 105 mm Features N/A Snap Ring Outside Diameter D N/A 190.000 mm Outside Ring Width B N/A 36.000 mm Cr - Dynamic Load Rating N/A 133 kN C0r - Static Load Rating N/A 105 kN Grease Reference Speed N/A 4400 rpm Oil Reference Speed N/A 6300 rpm
6321 Bore Size d N/A 105 mm Features N/A Open Outside Diameter D N/A 225.000 mm Outside Ring Width B N/A 49.000 mm Cr - Dynamic Load Rating N/A 183.7 kN C0r - Static Load Rating N/A 153.1 kN Grease Reference Speed N/A 4200 rpm Oil Reference Speed N/A 6000 rpm
6321-ZZ Bore Size d N/A 105 mm Features N/A Shields Outside Diameter D N/A 225.000 mm Outside Ring Width B N/A 49.000 mm Cr - Dynamic Load Rating N/A 183.7 kN C0r - Static Load Rating N/A 153.1 kN Grease Reference Speed N/A 4200 rpm Oil Reference Speed N/A 6000 rpm
6321-2RS Bore Size d N/A 105 mm Features N/A Contact Seals Outside Diameter D N/A 225.000 mm Outside Ring Width B N/A 49.000 mm Cr - Dynamic Load Rating N/A 183.7 kN C0r - Static Load Rating N/A 153.1 kN Grease Reference Speed N/A 4200 rpm Oil Reference Speed N/A 6000 rpm
6321-2RZ Bore Size d N/A 105 mm Features N/A Non-Contact Seals Outside Diameter D N/A 225.000 mm Outside Ring Width B N/A 49.000 mm Cr - Dynamic Load Rating N/A 183.7 kN C0r - Static Load Rating N/A 153.1 kN Grease Reference Speed N/A 4200 rpm Oil Reference Speed N/A 6000 rpm
6321-N Bore Size d N/A 105 mm Features N/A O.D. Groove Outside Diameter D N/A 225.000 mm Outside Ring Width B N/A 49.000 mm Cr - Dynamic Load Rating N/A 183.7 kN C0r - Static Load Rating N/A 153.1 kN Grease Reference Speed N/A 4200 rpm Oil Reference Speed N/A 6000 rpm
6321-NR Bore Size d N/A 105 mm Features N/A Snap Ring Outside Diameter D N/A 225.000 mm Outside Ring Width B N/A 49.000 mm Cr - Dynamic Load Rating N/A 183.7 kN C0r - Static Load Rating N/A 153.1 kN Grease Reference Speed N/A 4200 rpm Oil Reference Speed N/A 6000 rpm
6022 Bore Size d N/A 110 mm Features N/A Open Outside Diameter D N/A 170.000 mm Outside Ring Width B N/A 28.000 mm Cr - Dynamic Load Rating N/A 82 kN C0r - Static Load Rating N/A 73 kN Grease Reference Speed N/A 4600 rpm Oil Reference Speed N/A 6600 rpm
6022-ZZ Bore Size d N/A 110 mm Features N/A Shields Outside Diameter D N/A 170.000 mm Outside Ring Width B N/A 28.000 mm Cr - Dynamic Load Rating N/A 82 kN C0r - Static Load Rating N/A 73 kN Grease Reference Speed N/A 4600 rpm Oil Reference Speed N/A 6600 rpm
6022-2RS Bore Size d N/A 110 mm Features N/A Contact Seals Outside Diameter D N/A 170.000 mm Outside Ring Width B N/A 28.000 mm Cr - Dynamic Load Rating N/A 82 kN C0r - Static Load Rating N/A 73 kN Grease Reference Speed N/A 7200 rpm Oil Reference Speed N/A 10000 rpm
6022-2RZ Bore Size d N/A 110 mm Features N/A Non-Contact Seals Outside Diameter D N/A 170.000 mm Outside Ring Width B N/A 28.000 mm Cr - Dynamic Load Rating N/A 82 kN C0r - Static Load Rating N/A 73 kN Grease Reference Speed N/A 4600 rpm Oil Reference Speed N/A 6600 rpm
6022-N Bore Size d N/A 110 mm Features N/A O.D. Groove Outside Diameter D N/A 170.000 mm Outside Ring Width B N/A 28.000 mm Cr - Dynamic Load Rating N/A 82 kN C0r - Static Load Rating N/A 73 kN Grease Reference Speed N/A 4600 rpm Oil Reference Speed N/A 6600 rpm
6022-NR Bore Size d N/A 110 mm Features N/A Snap Ring Outside Diameter D N/A 170.000 mm Outside Ring Width B N/A 28.000 mm Cr - Dynamic Load Rating N/A 82 kN C0r - Static Load Rating N/A 73 kN Grease Reference Speed N/A 4600 rpm Oil Reference Speed N/A 6600 rpm
6222 Bore Size d N/A 110 mm Features N/A Open Outside Diameter D N/A 200.000 mm Outside Ring Width B N/A 38.000 mm Cr - Dynamic Load Rating N/A 144 kN C0r - Static Load Rating N/A 117 kN Grease Reference Speed N/A 4300 rpm Oil Reference Speed N/A 6100 rpm
6222-ZZ Bore Size d N/A 110 mm Features N/A Shields Outside Diameter D N/A 200.000 mm Outside Ring Width B N/A 38.000 mm Cr - Dynamic Load Rating N/A 144 kN C0r - Static Load Rating N/A 117 kN Grease Reference Speed N/A 4300 rpm Oil Reference Speed N/A 6100 rpm
6222-2RS Bore Size d N/A 110 mm Features N/A Contact Seals Outside Diameter D N/A 200.000 mm Outside Ring Width B N/A 38.000 mm Cr - Dynamic Load Rating N/A 144 kN C0r - Static Load Rating N/A 117 kN Grease Reference Speed N/A 4300 rpm Oil Reference Speed N/A 6100 rpm
6222-2RZ Bore Size d N/A 110 mm Features N/A Non-Contact Seals Outside Diameter D N/A 200.000 mm Outside Ring Width B N/A 38.000 mm Cr - Dynamic Load Rating N/A 144 kN C0r - Static Load Rating N/A 117 kN Grease Reference Speed N/A 4300 rpm Oil Reference Speed N/A 6100 rpm
6222-N Bore Size d N/A 110 mm Features N/A O.D. Groove Outside Diameter D N/A 200.000 mm Outside Ring Width B N/A 38.000 mm Cr - Dynamic Load Rating N/A 144 kN C0r - Static Load Rating N/A 117 kN Grease Reference Speed N/A 4300 rpm Oil Reference Speed N/A 6100 rpm
6222-NR Bore Size d N/A 110 mm Features N/A Snap Ring Outside Diameter D N/A 200.000 mm Outside Ring Width B N/A 38.000 mm Cr - Dynamic Load Rating N/A 144 kN C0r - Static Load Rating N/A 117 kN Grease Reference Speed N/A 4300 rpm Oil Reference Speed N/A 6100 rpm
6322 Bore Size d N/A 110 mm Features N/A Open Outside Diameter D N/A 240.000 mm Outside Ring Width B N/A 50.000 mm Cr - Dynamic Load Rating N/A 205 kN C0r - Static Load Rating N/A 178.3 kN Grease Reference Speed N/A 3900 rpm Oil Reference Speed N/A 5500 rpm
6322-ZZ Bore Size d N/A 110 mm Features N/A Shields Outside Diameter D N/A 240.000 mm Outside Ring Width B N/A 50.000 mm Cr - Dynamic Load Rating N/A 205 kN C0r - Static Load Rating N/A 178.3 kN Grease Reference Speed N/A 3900 rpm Oil Reference Speed N/A 5500 rpm
6322-2RS Bore Size d N/A 110 mm Features N/A Contact Seals Outside Diameter D N/A 240.000 mm Outside Ring Width B N/A 50.000 mm Cr - Dynamic Load Rating N/A 205 kN C0r - Static Load Rating N/A 178.3 kN Grease Reference Speed N/A 3900 rpm Oil Reference Speed N/A 5500 rpm
6322-2RZ Bore Size d N/A 110 mm Features N/A Non-Contact Seals Outside Diameter D N/A 240.000 mm Outside Ring Width B N/A 50.000 mm Cr - Dynamic Load Rating N/A 205 kN C0r - Static Load Rating N/A 178.3 kN Grease Reference Speed N/A 3900 rpm Oil Reference Speed N/A 5500 rpm
6322-N Bore Size d N/A 110 mm Features N/A O.D. Groove Outside Diameter D N/A 240.000 mm Outside Ring Width B N/A 50.000 mm Cr - Dynamic Load Rating N/A 205 kN C0r - Static Load Rating N/A 178.3 kN Grease Reference Speed N/A 3900 rpm Oil Reference Speed N/A 5500 rpm
6322-NR Bore Size d N/A 110 mm Features N/A Snap Ring Outside Diameter D N/A 240.000 mm Outside Ring Width B N/A 50.000 mm Cr - Dynamic Load Rating N/A 205 kN C0r - Static Load Rating N/A 178.3 kN Grease Reference Speed N/A 3900 rpm Oil Reference Speed N/A 5500 rpm
6024 Bore Size d N/A 120 mm Features N/A Open Outside Diameter D N/A 180.000 mm Outside Ring Width B N/A 28.000 mm Cr - Dynamic Load Rating N/A 88.1 kN C0r - Static Load Rating N/A 79.3 kN Grease Reference Speed N/A 4200 rpm Oil Reference Speed N/A 6100 rpm
6024-ZZ Bore Size d N/A 120 mm Features N/A Shields Outside Diameter D N/A 180.000 mm Outside Ring Width B N/A 28.000 mm Cr - Dynamic Load Rating N/A 88.1 kN C0r - Static Load Rating N/A 79.3 kN Grease Reference Speed N/A 4200 rpm Oil Reference Speed N/A 6100 rpm
6024-2RS Bore Size d N/A 120 mm Features N/A Contact Seals Outside Diameter D N/A 180.000 mm Outside Ring Width B N/A 28.000 mm Cr - Dynamic Load Rating N/A 88.1 kN C0r - Static Load Rating N/A 79.3 kN Grease Reference Speed N/A 4200 rpm Oil Reference Speed N/A 6100 rpm
6024-2RZ Bore Size d N/A 120 mm Features N/A Non-Contact Seals Outside Diameter D N/A 180.000 mm Outside Ring Width B N/A 28.000 mm Cr - Dynamic Load Rating N/A 88.1 kN C0r - Static Load Rating N/A 79.3 kN Grease Reference Speed N/A 4200 rpm Oil Reference Speed N/A 6100 rpm
6024-N Bore Size d N/A 120 mm Features N/A O.D. Groove Outside Diameter D N/A 180.000 mm Outside Ring Width B N/A 28.000 mm Cr - Dynamic Load Rating N/A 88.1 kN C0r - Static Load Rating N/A 79.3 kN Grease Reference Speed N/A 4200 rpm Oil Reference Speed N/A 6100 rpm
6024-NR Bore Size d N/A 120 mm Features N/A Snap Ring Outside Diameter D N/A 180.000 mm Outside Ring Width B N/A 28.000 mm Cr - Dynamic Load Rating N/A 88.1 kN C0r - Static Load Rating N/A 79.3 kN Grease Reference Speed N/A 4200 rpm Oil Reference Speed N/A 6100 rpm
6224 Bore Size d N/A 120 mm Features N/A Open Outside Diameter D N/A 215.000 mm Outside Ring Width B N/A 40.000 mm Cr - Dynamic Load Rating N/A 155.3 kN C0r - Static Load Rating N/A 131.1 kN Grease Reference Speed N/A 4000 rpm Oil Reference Speed N/A 5700 rpm
6224-ZZ Bore Size d N/A 120 mm Features N/A Shields Outside Diameter D N/A 215.000 mm Outside Ring Width B N/A 40.000 mm Cr - Dynamic Load Rating N/A 155.3 kN C0r - Static Load Rating N/A 131.1 kN Grease Reference Speed N/A 4000 rpm Oil Reference Speed N/A 5700 rpm
6224-2RS Bore Size d N/A 120 mm Features N/A Contact Seals Outside Diameter D N/A 215.000 mm Outside Ring Width B N/A 40.000 mm Cr - Dynamic Load Rating N/A 155.3 kN C0r - Static Load Rating N/A 131.1 kN Grease Reference Speed N/A 4000 rpm Oil Reference Speed N/A 5700 rpm
6224-2RZ Bore Size d N/A 120 mm Features N/A Non-Contact Seals Outside Diameter D N/A 215.000 mm Outside Ring Width B N/A 40.000 mm Cr - Dynamic Load Rating N/A 155.3 kN C0r - Static Load Rating N/A 131.1 kN Grease Reference Speed N/A 4000 rpm Oil Reference Speed N/A 5700 rpm
6224-N Bore Size d N/A 120 mm Features N/A O.D. Groove Outside Diameter D N/A 215.000 mm Outside Ring Width B N/A 40.000 mm Cr - Dynamic Load Rating N/A 155.3 kN C0r - Static Load Rating N/A 131.1 kN Grease Reference Speed N/A 4000 rpm Oil Reference Speed N/A 5700 rpm
6224-NR Bore Size d N/A 120 mm Features N/A Snap Ring Outside Diameter D N/A 215.000 mm Outside Ring Width B N/A 40.000 mm Cr - Dynamic Load Rating N/A 155.3 kN C0r - Static Load Rating N/A 131.1 kN Grease Reference Speed N/A 4000 rpm Oil Reference Speed N/A 5700 rpm
6026 Bore Size d N/A 130 mm Features N/A Open Outside Diameter D N/A 200.000 mm Outside Ring Width B N/A 33.000 mm Cr - Dynamic Load Rating N/A 105 kN C0r - Static Load Rating N/A 96.8 kN Grease Reference Speed N/A 4100 rpm Oil Reference Speed N/A 5900 rpm
6026-ZZ Bore Size d N/A 130 mm Features N/A Shields Outside Diameter D N/A 200.000 mm Outside Ring Width B N/A 33.000 mm Cr - Dynamic Load Rating N/A 105 kN C0r - Static Load Rating N/A 96.8 kN Grease Reference Speed N/A 4100 rpm Oil Reference Speed N/A 5900 rpm
6026-2RS Bore Size d N/A 130 mm Features N/A Contact Seals Outside Diameter D N/A 200.000 mm Outside Ring Width B N/A 33.000 mm Cr - Dynamic Load Rating N/A 105 kN C0r - Static Load Rating N/A 96.8 kN Grease Reference Speed N/A 4100 rpm Oil Reference Speed N/A 5900 rpm
6026-2RZ Bore Size d N/A 130 mm Features N/A Non-Contact Seals Outside Diameter D N/A 200.000 mm Outside Ring Width B N/A 33.000 mm Cr - Dynamic Load Rating N/A 105 kN C0r - Static Load Rating N/A 96.8 kN Grease Reference Speed N/A 4100 rpm Oil Reference Speed N/A 5900 rpm
6026-N Bore Size d N/A 130 mm Features N/A O.D. Groove Outside Diameter D N/A 200.000 mm Outside Ring Width B N/A 33.000 mm Cr - Dynamic Load Rating N/A 105 kN C0r - Static Load Rating N/A 96.8 kN Grease Reference Speed N/A 4100 rpm Oil Reference Speed N/A 5900 rpm
6026-NR Bore Size d N/A 130 mm Features N/A Snap Ring Outside Diameter D N/A 200.000 mm Outside Ring Width B N/A 33.000 mm Cr - Dynamic Load Rating N/A 105 kN C0r - Static Load Rating N/A 96.8 kN Grease Reference Speed N/A 4100 rpm Oil Reference Speed N/A 5900 rpm
6226 Bore Size d N/A 130 mm Features N/A Open Outside Diameter D N/A 230.000 mm Outside Ring Width B N/A 40.000 mm Cr - Dynamic Load Rating N/A 165 kN C0r - Static Load Rating N/A 148 kN Grease Reference Speed N/A 3700 rpm Oil Reference Speed N/A 5200 rpm
6226-ZZ Bore Size d N/A 130 mm Features N/A Shields Outside Diameter D N/A 230.000 mm Outside Ring Width B N/A 40.000 mm Cr - Dynamic Load Rating N/A 165 kN C0r - Static Load Rating N/A 148 kN Grease Reference Speed N/A 3700 rpm Oil Reference Speed N/A 5200 rpm
6226-2RS Bore Size d N/A 130 mm Features N/A Contact Seals Outside Diameter D N/A 230.000 mm Outside Ring Width B N/A 40.000 mm Cr - Dynamic Load Rating N/A 165 kN C0r - Static Load Rating N/A 148 kN Grease Reference Speed N/A 3700 rpm Oil Reference Speed N/A 5200 rpm
6226-2RZ Bore Size d N/A 130 mm Features N/A Non-Contact Seals Outside Diameter D N/A 230.000 mm Outside Ring Width B N/A 40.000 mm Cr - Dynamic Load Rating N/A 165 kN C0r - Static Load Rating N/A 148 kN Grease Reference Speed N/A 3700 rpm Oil Reference Speed N/A 5200 rpm
6226-N Bore Size d N/A 130 mm Features N/A O.D. Groove Outside Diameter D N/A 230.000 mm Outside Ring Width B N/A 40.000 mm Cr - Dynamic Load Rating N/A 165 kN C0r - Static Load Rating N/A 148 kN Grease Reference Speed N/A 3700 rpm Oil Reference Speed N/A 5200 rpm
6226-NR Bore Size d N/A 130 mm Features N/A Snap Ring Outside Diameter D N/A 230.000 mm Outside Ring Width B N/A 40.000 mm Cr - Dynamic Load Rating N/A 165 kN C0r - Static Load Rating N/A 148 kN Grease Reference Speed N/A 3700 rpm Oil Reference Speed N/A 5200 rpm
6028 Bore Size d N/A 140 mm Features N/A Open Outside Diameter D N/A 210.000 mm Outside Ring Width B N/A 33.000 mm Cr - Dynamic Load Rating N/A 110 kN C0r - Static Load Rating N/A 101.8 kN Grease Reference Speed N/A 3800 rpm Oil Reference Speed N/A 5600 rpm
6028-ZZ Bore Size d N/A 140 mm Features N/A Shields Outside Diameter D N/A 210.000 mm Outside Ring Width B N/A 33.000 mm Cr - Dynamic Load Rating N/A 110 kN C0r - Static Load Rating N/A 101.8 kN Grease Reference Speed N/A 3800 rpm Oil Reference Speed N/A 5600 rpm
6028-2RS Bore Size d N/A 140 mm Features N/A Contact Seals Outside Diameter D N/A 210.000 mm Outside Ring Width B N/A 33.000 mm Cr - Dynamic Load Rating N/A 110 kN C0r - Static Load Rating N/A 101.8 kN Grease Reference Speed N/A 3800 rpm Oil Reference Speed N/A 5600 rpm
6028-2RZ Bore Size d N/A 140 mm Features N/A Non-Contact Seals Outside Diameter D N/A 210.000 mm Outside Ring Width B N/A 33.000 mm Cr - Dynamic Load Rating N/A 110 kN C0r - Static Load Rating N/A 101.8 kN Grease Reference Speed N/A 3800 rpm Oil Reference Speed N/A 5600 rpm
6028-N Bore Size d N/A 140 mm Features N/A O.D. Groove Outside Diameter D N/A 210.000 mm Outside Ring Width B N/A 33.000 mm Cr - Dynamic Load Rating N/A 110 kN C0r - Static Load Rating N/A 101.8 kN Grease Reference Speed N/A 3800 rpm Oil Reference Speed N/A 5600 rpm
6028-NR Bore Size d N/A 140 mm Features N/A Snap Ring Outside Diameter D N/A 210.000 mm Outside Ring Width B N/A 33.000 mm Cr - Dynamic Load Rating N/A 110 kN C0r - Static Load Rating N/A 101.8 kN Grease Reference Speed N/A 3800 rpm Oil Reference Speed N/A 5600 rpm
6228 Bore Size d N/A 140 mm Features N/A Open Outside Diameter D N/A 250.000 mm Outside Ring Width B N/A 42.000 mm Cr - Dynamic Load Rating N/A 166 kN C0r - Static Load Rating N/A 150 kN Grease Reference Speed N/A 3400 rpm Oil Reference Speed N/A 4900 rpm
6228-ZZ Bore Size d N/A 140 mm Features N/A Shields Outside Diameter D N/A 250.000 mm Outside Ring Width B N/A 42.000 mm Cr - Dynamic Load Rating N/A 166 kN C0r - Static Load Rating N/A 150 kN Grease Reference Speed N/A 3400 rpm Oil Reference Speed N/A 4900 rpm
6228-2RS Bore Size d N/A 140 mm Features N/A Contact Seals Outside Diameter D N/A 250.000 mm Outside Ring Width B N/A 42.000 mm Cr - Dynamic Load Rating N/A 166 kN C0r - Static Load Rating N/A 150 kN Grease Reference Speed N/A 3400 rpm Oil Reference Speed N/A 4900 rpm
6228-2RZ Bore Size d N/A 140 mm Features N/A Non-Contact Seals Outside Diameter D N/A 250.000 mm Outside Ring Width B N/A 42.000 mm Cr - Dynamic Load Rating N/A 166 kN C0r - Static Load Rating N/A 150 kN Grease Reference Speed N/A 3400 rpm Oil Reference Speed N/A 4900 rpm
6228-N Bore Size d N/A 140 mm Features N/A O.D. Groove Outside Diameter D N/A 250.000 mm Outside Ring Width B N/A 42.000 mm Cr - Dynamic Load Rating N/A 166 kN C0r - Static Load Rating N/A 150 kN Grease Reference Speed N/A 3400 rpm Oil Reference Speed N/A 4900 rpm
6228-NR Bore Size d N/A 140 mm Features N/A Snap Ring Outside Diameter D N/A 250.000 mm Outside Ring Width B N/A 42.000 mm Cr - Dynamic Load Rating N/A 166 kN C0r - Static Load Rating N/A 150 kN Grease Reference Speed N/A 3400 rpm Oil Reference Speed N/A 4900 rpm
6030 Bore Size d N/A 150 mm Features N/A Open Outside Diameter D N/A 225.000 mm Outside Ring Width B N/A 35.000 mm Cr - Dynamic Load Rating N/A 131.7 kN C0r - Static Load Rating N/A 124.5 kN Grease Reference Speed N/A 3600 rpm Oil Reference Speed N/A 5200 rpm
6030-ZZ Bore Size d N/A 150 mm Features N/A Shields Outside Diameter D N/A 225.000 mm Outside Ring Width B N/A 35.000 mm Cr - Dynamic Load Rating N/A 131.7 kN C0r - Static Load Rating N/A 124.5 kN Grease Reference Speed N/A 3600 rpm Oil Reference Speed N/A 5200 rpm
6030-2RS Bore Size d N/A 150 mm Features N/A Contact Seals Outside Diameter D N/A 225.000 mm Outside Ring Width B N/A 35.000 mm Cr - Dynamic Load Rating N/A 131.7 kN C0r - Static Load Rating N/A 124.5 kN Grease Reference Speed N/A 3600 rpm Oil Reference Speed N/A 5200 rpm
6030-2RZ Bore Size d N/A 150 mm Features N/A Non-Contact Seals Outside Diameter D N/A 225.000 mm Outside Ring Width B N/A 35.000 mm Cr - Dynamic Load Rating N/A 131.7 kN C0r - Static Load Rating N/A 124.5 kN Grease Reference Speed N/A 3600 rpm Oil Reference Speed N/A 5200 rpm
6030-N Bore Size d N/A 150 mm Features N/A O.D. Groove Outside Diameter D N/A 225.000 mm Outside Ring Width B N/A 35.000 mm Cr - Dynamic Load Rating N/A 131.7 kN C0r - Static Load Rating N/A 124.5 kN Grease Reference Speed N/A 3600 rpm Oil Reference Speed N/A 5200 rpm
6030-NR Bore Size d N/A 150 mm Features N/A Snap Ring Outside Diameter D N/A 225.000 mm Outside Ring Width B N/A 35.000 mm Cr - Dynamic Load Rating N/A 131.7 kN C0r - Static Load Rating N/A 124.5 kN Grease Reference Speed N/A 3600 rpm Oil Reference Speed N/A 5200 rpm
6032 Bore Size d N/A 160 mm Features N/A Open Outside Diameter D N/A 240.000 mm Outside Ring Width B N/A 38.000 mm Cr - Dynamic Load Rating N/A 136.6 kN C0r - Static Load Rating N/A 135.4 kN Grease Reference Speed N/A 3500 rpm Oil Reference Speed N/A 5100 rpm
6032-ZZ Bore Size d N/A 160 mm Features N/A Shields Outside Diameter D N/A 240.000 mm Outside Ring Width B N/A 38.000 mm Cr - Dynamic Load Rating N/A 136.6 kN C0r - Static Load Rating N/A 135.4 kN Grease Reference Speed N/A 3500 rpm Oil Reference Speed N/A 5100 rpm
6032-2RS Bore Size d N/A 160 mm Features N/A Contact Seals Outside Diameter D N/A 240.000 mm Outside Ring Width B N/A 38.000 mm Cr - Dynamic Load Rating N/A 136.6 kN C0r - Static Load Rating N/A 135.4 kN Grease Reference Speed N/A 3500 rpm Oil Reference Speed N/A 5100 rpm
6032-2RZ Bore Size d N/A 160 mm Features N/A Non-Contact Seals Outside Diameter D N/A 240.000 mm Outside Ring Width B N/A 38.000 mm Cr - Dynamic Load Rating N/A 136.6 kN C0r - Static Load Rating N/A 135.4 kN Grease Reference Speed N/A 3500 rpm Oil Reference Speed N/A 5100 rpm
6000-C3 Bore Size d N/A 10 mm Features N/A Open Outside Diameter D N/A 26.000 mm Outside Ring Width B N/A 8.000 mm Cr - Dynamic Load Rating N/A 4.6 kN C0r - Static Load Rating N/A 2 kN Grease Reference Speed N/A 26000 rpm Oil Reference Speed N/A 38000 rpm
6000-ZZ-C3 Bore Size d N/A 10 mm Features N/A Shields Outside Diameter D N/A 26.000 mm Outside Ring Width B N/A 8.000 mm Cr - Dynamic Load Rating N/A 4.6 kN C0r - Static Load Rating N/A 2 kN Grease Reference Speed N/A 26000 rpm Oil Reference Speed N/A 38000 rpm
6000-2RS-C3 Bore Size d N/A 10 mm Features N/A Contact Seals Outside Diameter D N/A 26.000 mm Outside Ring Width B N/A 8.000 mm Cr - Dynamic Load Rating N/A 4.6 kN C0r - Static Load Rating N/A 2 kN Grease Reference Speed N/A 26000 rpm Oil Reference Speed N/A 38000 rpm
6000-2RZ-C3 Bore Size d N/A 10 mm Features N/A Non-Contact Seals Outside Diameter D N/A 26.000 mm Outside Ring Width B N/A 8.000 mm Cr - Dynamic Load Rating N/A 4.6 kN C0r - Static Load Rating N/A 2 kN Grease Reference Speed N/A 26000 rpm Oil Reference Speed N/A 38000 rpm
6000-N-C3 Bore Size d N/A 10 mm Features N/A O.D. Groove Outside Diameter D N/A 26.000 mm Outside Ring Width B N/A 8.000 mm Cr - Dynamic Load Rating N/A 4.6 kN C0r - Static Load Rating N/A 2 kN Grease Reference Speed N/A 26000 rpm Oil Reference Speed N/A 38000 rpm
6000-NR-C3 Bore Size d N/A 10 mm Features N/A Snap Ring Outside Diameter D N/A 26.000 mm Outside Ring Width B N/A 8.000 mm Cr - Dynamic Load Rating N/A 4.6 kN C0r - Static Load Rating N/A 2 kN Grease Reference Speed N/A 26000 rpm Oil Reference Speed N/A 38000 rpm
6200-C3 Bore Size d N/A 10 mm Features N/A Open Outside Diameter D N/A 30.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 5.1 kN C0r - Static Load Rating N/A 2.4 kN Grease Reference Speed N/A 22000 rpm Oil Reference Speed N/A 32000 rpm
6200-ZZ-C3 Bore Size d N/A 10 mm Features N/A Shields Outside Diameter D N/A 30.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 5.1 kN C0r - Static Load Rating N/A 2.4 kN Grease Reference Speed N/A 22000 rpm Oil Reference Speed N/A 32000 rpm
6200-2RS-C3 Bore Size d N/A 10 mm Features N/A Contact Seals Outside Diameter D N/A 30.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 5.1 kN C0r - Static Load Rating N/A 2.4 kN Grease Reference Speed N/A 22000 rpm Oil Reference Speed N/A 32000 rpm
6200-2RZ-C3 Bore Size d N/A 10 mm Features N/A Non-Contact Seals Outside Diameter D N/A 30.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 5.1 kN C0r - Static Load Rating N/A 2.4 kN Grease Reference Speed N/A 22000 rpm Oil Reference Speed N/A 32000 rpm
6200-N-C3 Bore Size d N/A 10 mm Features N/A O.D. Groove Outside Diameter D N/A 30.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 5.1 kN C0r - Static Load Rating N/A 2.4 kN Grease Reference Speed N/A 22000 rpm Oil Reference Speed N/A 32000 rpm
6200-NR-C3 Bore Size d N/A 10 mm Features N/A Snap Ring Outside Diameter D N/A 30.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 5.1 kN C0r - Static Load Rating N/A 2.4 kN Grease Reference Speed N/A 22000 rpm Oil Reference Speed N/A 32000 rpm
6300-C3 Bore Size d N/A 10 mm Features N/A Open Outside Diameter D N/A 35.000 mm Outside Ring Width B N/A 11.000 mm Cr - Dynamic Load Rating N/A 8.1 kN C0r - Static Load Rating N/A 3.5 kN Grease Reference Speed N/A 20000 rpm Oil Reference Speed N/A 29000 rpm
6300-ZZ-C3 Bore Size d N/A 10 mm Features N/A Shields Outside Diameter D N/A 35.000 mm Outside Ring Width B N/A 11.000 mm Cr - Dynamic Load Rating N/A 8.1 kN C0r - Static Load Rating N/A 3.5 kN Grease Reference Speed N/A 20000 rpm Oil Reference Speed N/A 29000 rpm
6300-2RS-C3 Bore Size d N/A 10 mm Features N/A Contact Seals Outside Diameter D N/A 35.000 mm Outside Ring Width B N/A 11.000 mm Cr - Dynamic Load Rating N/A 8.1 kN C0r - Static Load Rating N/A 3.5 kN Grease Reference Speed N/A 20000 rpm Oil Reference Speed N/A 29000 rpm
6300-2RZ-C3 Bore Size d N/A 10 mm Features N/A Non-Contact Seals Outside Diameter D N/A 35.000 mm Outside Ring Width B N/A 11.000 mm Cr - Dynamic Load Rating N/A 8.1 kN C0r - Static Load Rating N/A 3.5 kN Grease Reference Speed N/A 20000 rpm Oil Reference Speed N/A 29000 rpm
6300-N-C3 Bore Size d N/A 10 mm Features N/A O.D. Groove Outside Diameter D N/A 35.000 mm Outside Ring Width B N/A 11.000 mm Cr - Dynamic Load Rating N/A 8.1 kN C0r - Static Load Rating N/A 3.5 kN Grease Reference Speed N/A 20000 rpm Oil Reference Speed N/A 29000 rpm
6300-NR-C3 Bore Size d N/A 10 mm Features N/A Snap Ring Outside Diameter D N/A 35.000 mm Outside Ring Width B N/A 11.000 mm Cr - Dynamic Load Rating N/A 8.1 kN C0r - Static Load Rating N/A 3.5 kN Grease Reference Speed N/A 20000 rpm Oil Reference Speed N/A 29000 rpm
6001-C3 Bore Size d N/A 12 mm Features N/A Open Outside Diameter D N/A 28.0000 mm Outside Ring Width B N/A 8.000 mm Cr - Dynamic Load Rating N/A 5.1 kN C0r - Static Load Rating N/A 2.4 kN Grease Reference Speed N/A 23000 rpm Oil Reference Speed N/A 33000 rpm
6001-ZZ-C3 Bore Size d N/A 12 mm Features N/A Shields Outside Diameter D N/A 28.0000 mm Outside Ring Width B N/A 8.000 mm Cr - Dynamic Load Rating N/A 5.1 kN C0r - Static Load Rating N/A 2.4 kN Grease Reference Speed N/A 23000 rpm Oil Reference Speed N/A 33000 rpm
6001-2RS-C3 Bore Size d N/A 12 mm Features N/A Contact Seals Outside Diameter D N/A 28.0000 mm Outside Ring Width B N/A 8.000 mm Cr - Dynamic Load Rating N/A 5.1 kN C0r - Static Load Rating N/A 2.4 kN Grease Reference Speed N/A 23000 rpm Oil Reference Speed N/A 33000 rpm
6001-2RZ-C3 Bore Size d N/A 12 mm Features N/A Non-Contact Seals Outside Diameter D N/A 28.0000 mm Outside Ring Width B N/A 8.000 mm Cr - Dynamic Load Rating N/A 5.1 kN C0r - Static Load Rating N/A 2.4 kN Grease Reference Speed N/A 23000 rpm Oil Reference Speed N/A 33000 rpm
6001-N-C3 Bore Size d N/A 12 mm Features N/A O.D. Groove Outside Diameter D N/A 28.0000 mm Outside Ring Width B N/A 8.000 mm Cr - Dynamic Load Rating N/A 5.1 kN C0r - Static Load Rating N/A 2.4 kN Grease Reference Speed N/A 23000 rpm Oil Reference Speed N/A 33000 rpm
6001-NR-C3 Bore Size d N/A 12 mm Features N/A Snap Ring Outside Diameter D N/A 28.0000 mm Outside Ring Width B N/A 8.000 mm Cr - Dynamic Load Rating N/A 5.1 kN C0r - Static Load Rating N/A 2.4 kN Grease Reference Speed N/A 23000 rpm Oil Reference Speed N/A 33000 rpm
6201-C3 Bore Size d N/A 12 mm Features N/A Open Outside Diameter D N/A 32.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 6.8 kN C0r - Static Load Rating N/A 3 kN Grease Reference Speed N/A 21000 rpm Oil Reference Speed N/A 30000 rpm
6201-ZZ-C3 Bore Size d N/A 12 mm Features N/A Shields Outside Diameter D N/A 32.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 6.8 kN C0r - Static Load Rating N/A 3 kN Grease Reference Speed N/A 21000 rpm Oil Reference Speed N/A 30000 rpm
6201-2RS-C3 Bore Size d N/A 12 mm Features N/A Contact Seals Outside Diameter D N/A 32.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 6.8 kN C0r - Static Load Rating N/A 3 kN Grease Reference Speed N/A 21000 rpm Oil Reference Speed N/A 30000 rpm
6201-2RZ-C3 Bore Size d N/A 12 mm Features N/A Non-Contact Seals Outside Diameter D N/A 32.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 6.8 kN C0r - Static Load Rating N/A 3 kN Grease Reference Speed N/A 21000 rpm Oil Reference Speed N/A 30000 rpm
6201-N-C3 Bore Size d N/A 12 mm Features N/A O.D. Groove Outside Diameter D N/A 32.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 6.8 kN C0r - Static Load Rating N/A 3 kN Grease Reference Speed N/A 21000 rpm Oil Reference Speed N/A 30000 rpm
6201-NR-C3 Bore Size d N/A 12 mm Features N/A Snap Ring Outside Diameter D N/A 32.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 6.8 kN C0r - Static Load Rating N/A 3 kN Grease Reference Speed N/A 21000 rpm Oil Reference Speed N/A 30000 rpm
6301-C3 Bore Size d N/A 12 mm Features N/A Open Outside Diameter D N/A 37.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 9.7 kN C0r - Static Load Rating N/A 4.2 kN Grease Reference Speed N/A 19000 rpm Oil Reference Speed N/A 27000 rpm
6301-ZZ-C3 Bore Size d N/A 12 mm Features N/A Shields Outside Diameter D N/A 37.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 9.7 kN C0r - Static Load Rating N/A 4.2 kN Grease Reference Speed N/A 19000 rpm Oil Reference Speed N/A 27000 rpm
6301-2RS-C3 Bore Size d N/A 12 mm Features N/A Contact Seals Outside Diameter D N/A 37.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 9.7 kN C0r - Static Load Rating N/A 4.2 kN Grease Reference Speed N/A 19000 rpm Oil Reference Speed N/A 27000 rpm
6301-2RZ-C3 Bore Size d N/A 12 mm Features N/A Non-Contact Seals Outside Diameter D N/A 37.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 9.7 kN C0r - Static Load Rating N/A 4.2 kN Grease Reference Speed N/A 19000 rpm Oil Reference Speed N/A 27000 rpm
6301-N-C3 Bore Size d N/A 12 mm Features N/A O.D. Groove Outside Diameter D N/A 37.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 9.7 kN C0r - Static Load Rating N/A 4.2 kN Grease Reference Speed N/A 19000 rpm Oil Reference Speed N/A 27000 rpm
6301-NR-C3 Bore Size d N/A 12 mm Features N/A Snap Ring Outside Diameter D N/A 37.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 9.7 kN C0r - Static Load Rating N/A 4.2 kN Grease Reference Speed N/A 19000 rpm Oil Reference Speed N/A 27000 rpm
6002-C3 Bore Size d N/A 15 mm Features N/A Open Outside Diameter D N/A 32.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 5.6 kN C0r - Static Load Rating N/A 2.8 kN Grease Reference Speed N/A 20000 rpm Oil Reference Speed N/A 30000 rpm
6002-ZZ-C3 Bore Size d N/A 15 mm Features N/A Shields Outside Diameter D N/A 32.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 5.6 kN C0r - Static Load Rating N/A 2.8 kN Grease Reference Speed N/A 20000 rpm Oil Reference Speed N/A 30000 rpm
6002-2RS-C3 Bore Size d N/A 15 mm Features N/A Contact Seals Outside Diameter D N/A 32.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 5.6 kN C0r - Static Load Rating N/A 2.8 kN Grease Reference Speed N/A 20000 rpm Oil Reference Speed N/A 30000 rpm
6002-2RZ-C3 Bore Size d N/A 15 mm Features N/A Non-Contact Seals Outside Diameter D N/A 32.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 5.6 kN C0r - Static Load Rating N/A 2.8 kN Grease Reference Speed N/A 20000 rpm Oil Reference Speed N/A 30000 rpm
6002-N-C3 Bore Size d N/A 15 mm Features N/A O.D. Groove Outside Diameter D N/A 32.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 5.6 kN C0r - Static Load Rating N/A 2.8 kN Grease Reference Speed N/A 20000 rpm Oil Reference Speed N/A 30000 rpm
6002-NR-C3 Bore Size d N/A 15 mm Features N/A Snap Ring Outside Diameter D N/A 32.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 5.6 kN C0r - Static Load Rating N/A 2.8 kN Grease Reference Speed N/A 20000 rpm Oil Reference Speed N/A 30000 rpm
6202-C3 Bore Size d N/A 15 mm Features N/A Open Outside Diameter D N/A 35.000 mm Outside Ring Width B N/A 11.000 mm Cr - Dynamic Load Rating N/A 7.6 kN C0r - Static Load Rating N/A 3.7 kN Grease Reference Speed N/A 19000 rpm Oil Reference Speed N/A 28000 rpm
6202-ZZ-C3 Bore Size d N/A 15 mm Features N/A Shields Outside Diameter D N/A 35.000 mm Outside Ring Width B N/A 11.000 mm Cr - Dynamic Load Rating N/A 7.6 kN C0r - Static Load Rating N/A 3.7 kN Grease Reference Speed N/A 19000 rpm Oil Reference Speed N/A 28000 rpm
6202-2RZ-C3 Bore Size d N/A 15 mm Features N/A Non-Contact Seals Outside Diameter D N/A 35.000 mm Outside Ring Width B N/A 11.000 mm Cr - Dynamic Load Rating N/A 7.6 kN C0r - Static Load Rating N/A 3.7 kN Grease Reference Speed N/A 19000 rpm Oil Reference Speed N/A 28000 rpm
6202-2RS-C3 Bore Size d N/A 15 mm Features N/A Contact Seals Outside Diameter D N/A 35.000 mm Outside Ring Width B N/A 11.000 mm Cr - Dynamic Load Rating N/A 7.6 kN C0r - Static Load Rating N/A 3.7 kN Grease Reference Speed N/A 19000 rpm Oil Reference Speed N/A 28000 rpm
6202-N-C3 Bore Size d N/A 15 mm Features N/A O.D. Groove Outside Diameter D N/A 35.000 mm Outside Ring Width B N/A 11.000 mm Cr - Dynamic Load Rating N/A 7.6 kN C0r - Static Load Rating N/A 3.7 kN Grease Reference Speed N/A 19000 rpm Oil Reference Speed N/A 28000 rpm
6202-NR-C3 Bore Size d N/A 15 mm Features N/A Snap Ring Outside Diameter D N/A 35.000 mm Outside Ring Width B N/A 11.000 mm Cr - Dynamic Load Rating N/A 7.6 kN C0r - Static Load Rating N/A 3.7 kN Grease Reference Speed N/A 19000 rpm Oil Reference Speed N/A 28000 rpm
6302-C3 Bore Size d N/A 15 mm Features N/A Open Outside Diameter D N/A 42.000 mm Outside Ring Width B N/A 13.000 mm Cr - Dynamic Load Rating N/A 11.4 kN C0r - Static Load Rating N/A 5.40 kN Grease Reference Speed N/A 16000 rpm Oil Reference Speed N/A 24000 rpm
6302-ZZ-C3 Bore Size d N/A 15 mm Features N/A Shields Outside Diameter D N/A 42.000 mm Outside Ring Width B N/A 13.000 mm Cr - Dynamic Load Rating N/A 11.4 kN C0r - Static Load Rating N/A 5.40 kN Grease Reference Speed N/A 16000 rpm Oil Reference Speed N/A 24000 rpm
6302-2RS-C3 Bore Size d N/A 15 mm Features N/A Contact Seals Outside Diameter D N/A 42.000 mm Outside Ring Width B N/A 13.000 mm Cr - Dynamic Load Rating N/A 11.4 kN C0r - Static Load Rating N/A 5.40 kN Grease Reference Speed N/A 16000 rpm Oil Reference Speed N/A 24000 rpm
6302-2RZ-C3 Bore Size d N/A 15 mm Features N/A Non-Contact Seals Outside Diameter D N/A 42.000 mm Outside Ring Width B N/A 13.000 mm Cr - Dynamic Load Rating N/A 11.4 kN C0r - Static Load Rating N/A 5.40 kN Grease Reference Speed N/A 16000 rpm Oil Reference Speed N/A 24000 rpm
6302-N-C3 Bore Size d N/A 15 mm Features N/A O.D. Groove Outside Diameter D N/A 42.000 mm Outside Ring Width B N/A 13.000 mm Cr - Dynamic Load Rating N/A 11.4 kN C0r - Static Load Rating N/A 5.40 kN Grease Reference Speed N/A 16000 rpm Oil Reference Speed N/A 24000 rpm
6302-NR-C3 Bore Size d N/A 15 mm Features N/A Snap Ring Outside Diameter D N/A 42.000 mm Outside Ring Width B N/A 13.000 mm Cr - Dynamic Load Rating N/A 11.4 kN C0r - Static Load Rating N/A 5.40 kN Grease Reference Speed N/A 16000 rpm Oil Reference Speed N/A 24000 rpm
6003-C3 Bore Size d N/A 17 mm Features N/A Open Outside Diameter D N/A 35.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 6 kN C0r - Static Load Rating N/A 3.3 kN Grease Reference Speed N/A 19000 rpm Oil Reference Speed N/A 28000 rpm
6003-ZZ-C3 Bore Size d N/A 17 mm Features N/A Shields Outside Diameter D N/A 35.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 6 kN C0r - Static Load Rating N/A 3.3 kN Grease Reference Speed N/A 19000 rpm Oil Reference Speed N/A 28000 rpm
6003-2RS-C3 Bore Size d N/A 17 mm Features N/A Contact Seals Outside Diameter D N/A 35.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 6 kN C0r - Static Load Rating N/A 3.3 kN Grease Reference Speed N/A 19000 rpm Oil Reference Speed N/A 28000 rpm
6003-2RZ-C3 Bore Size d N/A 17 mm Features N/A Non-Contact Seals Outside Diameter D N/A 35.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 6 kN C0r - Static Load Rating N/A 3.3 kN Grease Reference Speed N/A 19000 rpm Oil Reference Speed N/A 28000 rpm
6003-N-C3 Bore Size d N/A 17 mm Features N/A O.D. Groove Outside Diameter D N/A 35.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 6 kN C0r - Static Load Rating N/A 3.3 kN Grease Reference Speed N/A 19000 rpm Oil Reference Speed N/A 28000 rpm
6003-NR-C3 Bore Size d N/A 17 mm Features N/A Snap Ring Outside Diameter D N/A 35.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 6 kN C0r - Static Load Rating N/A 3.3 kN Grease Reference Speed N/A 19000 rpm Oil Reference Speed N/A 28000 rpm
6203-C3 Bore Size d N/A 17 mm Features N/A Open Outside Diameter D N/A 40.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 9.6 kN C0r - Static Load Rating N/A 4.8 kN Grease Reference Speed N/A 17000 rpm Oil Reference Speed N/A 25000 rpm
6203-ZZ-C3 Bore Size d N/A 17 mm Features N/A Shields Outside Diameter D N/A 40.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 9.6 kN C0r - Static Load Rating N/A 4.8 kN Grease Reference Speed N/A 17000 rpm Oil Reference Speed N/A 25000 rpm
6203-2RS-C3 Bore Size d N/A 17 mm Features N/A Contact Seals Outside Diameter D N/A 40.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 9.6 kN C0r - Static Load Rating N/A 4.8 kN Grease Reference Speed N/A 17000 rpm Oil Reference Speed N/A 25000 rpm
6203-2RZ-C3 Bore Size d N/A 17 mm Features N/A Non-Contact Seals Outside Diameter D N/A 40.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 9.6 kN C0r - Static Load Rating N/A 4.8 kN Grease Reference Speed N/A 17000 rpm Oil Reference Speed N/A 25000 rpm
6203-N-C3 Bore Size d N/A 17 mm Features N/A O.D. Groove Outside Diameter D N/A 40.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 9.6 kN C0r - Static Load Rating N/A 4.8 kN Grease Reference Speed N/A 17000 rpm Oil Reference Speed N/A 25000 rpm
6203-NR-C3 Bore Size d N/A 17 mm Features N/A Snap Ring Outside Diameter D N/A 40.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 9.6 kN C0r - Static Load Rating N/A 4.8 kN Grease Reference Speed N/A 17000 rpm Oil Reference Speed N/A 25000 rpm
6303-C3 Bore Size d N/A 17 mm Features N/A Open Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 14.000 mm Cr - Dynamic Load Rating N/A 13.6 kN C0r - Static Load Rating N/A 6.6 kN Grease Reference Speed N/A 15000 rpm Oil Reference Speed N/A 22000 rpm
6303-ZZ-C3 Bore Size d N/A 17 mm Features N/A Shields Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 14.000 mm Cr - Dynamic Load Rating N/A 13.6 kN C0r - Static Load Rating N/A 6.6 kN Grease Reference Speed N/A 15000 rpm Oil Reference Speed N/A 22000 rpm
6303-2RS-C3 Bore Size d N/A 17 mm Features N/A Contact Seals Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 14.000 mm Cr - Dynamic Load Rating N/A 13.6 kN C0r - Static Load Rating N/A 6.6 kN Grease Reference Speed N/A 15000 rpm Oil Reference Speed N/A 22000 rpm
6303-2RZ-C3 Bore Size d N/A 17 mm Features N/A Non-Contact Seals Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 14.000 mm Cr - Dynamic Load Rating N/A 13.6 kN C0r - Static Load Rating N/A 6.6 kN Grease Reference Speed N/A 15000 rpm Oil Reference Speed N/A 22000 rpm
6303-N-C3 Bore Size d N/A 17 mm Features N/A O.D. Groove Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 14.000 mm Cr - Dynamic Load Rating N/A 13.6 kN C0r - Static Load Rating N/A 6.6 kN Grease Reference Speed N/A 15000 rpm Oil Reference Speed N/A 22000 rpm
6303-NR-C3 Bore Size d N/A 17 mm Features N/A Snap Ring Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 14.000 mm Cr - Dynamic Load Rating N/A 13.6 kN C0r - Static Load Rating N/A 6.6 kN Grease Reference Speed N/A 15000 rpm Oil Reference Speed N/A 22000 rpm
6004-C3 Bore Size d N/A 20 mm Features N/A Open Outside Diameter D N/A 42.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 9.4 kN C0r - Static Load Rating N/A 5 kN Grease Reference Speed N/A 17000 rpm Oil Reference Speed N/A 25000 rpm
6004-ZZ-C3 Bore Size d N/A 20 mm Features N/A Shields Outside Diameter D N/A 42.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 9.4 kN C0r - Static Load Rating N/A 5 kN Grease Reference Speed N/A 17000 rpm Oil Reference Speed N/A 25000 rpm
6004-2RS-C3 Bore Size d N/A 20 mm Features N/A Contact Seals Outside Diameter D N/A 42.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 9.4 kN C0r - Static Load Rating N/A 5 kN Grease Reference Speed N/A 17000 rpm Oil Reference Speed N/A 25000 rpm
6004-2RZ-C3 Bore Size d N/A 20 mm Features N/A Non-Contact Seals Outside Diameter D N/A 42.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 9.4 kN C0r - Static Load Rating N/A 5 kN Grease Reference Speed N/A 17000 rpm Oil Reference Speed N/A 25000 rpm
6004-N-C3 Bore Size d N/A 20 mm Features N/A O.D. Groove Outside Diameter D N/A 42.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 9.4 kN C0r - Static Load Rating N/A 5 kN Grease Reference Speed N/A 17000 rpm Oil Reference Speed N/A 25000 rpm
6004-NR-C3 Bore Size d N/A 20 mm Features N/A Snap Ring Outside Diameter D N/A 42.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 9.4 kN C0r - Static Load Rating N/A 5 kN Grease Reference Speed N/A 17000 rpm Oil Reference Speed N/A 25000 rpm
6204-C3 Bore Size d N/A 20 mm Features N/A Open Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 14.000 mm Cr - Dynamic Load Rating N/A 12.8 kN C0r - Static Load Rating N/A 6.6 kN Grease Reference Speed N/A 15000 rpm Oil Reference Speed N/A 22000 rpm
6204-ZZ-C3 Bore Size d N/A 20 mm Features N/A Shields Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 14.000 mm Cr - Dynamic Load Rating N/A 12.8 kN C0r - Static Load Rating N/A 6.6 kN Grease Reference Speed N/A 15000 rpm Oil Reference Speed N/A 22000 rpm
6204-2RS-C3 Bore Size d N/A 20 mm Features N/A Contact Seals Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 14.000 mm Cr - Dynamic Load Rating N/A 12.8 kN C0r - Static Load Rating N/A 6.6 kN Grease Reference Speed N/A 15000 rpm Oil Reference Speed N/A 22000 rpm
6204-2RZ-C3 Bore Size d N/A 20 mm Features N/A Non-Contact Seals Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 14.000 mm Cr - Dynamic Load Rating N/A 12.8 kN C0r - Static Load Rating N/A 6.6 kN Grease Reference Speed N/A 15000 rpm Oil Reference Speed N/A 22000 rpm
6204-N-C3 Bore Size d N/A 20 mm Features N/A O.D. Groove Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 14.000 mm Cr - Dynamic Load Rating N/A 12.8 kN C0r - Static Load Rating N/A 6.6 kN Grease Reference Speed N/A 15000 rpm Oil Reference Speed N/A 22000 rpm
6204-NR-C3 Bore Size d N/A 20 mm Features N/A Snap Ring Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 14.000 mm Cr - Dynamic Load Rating N/A 12.8 kN C0r - Static Load Rating N/A 6.6 kN Grease Reference Speed N/A 15000 rpm Oil Reference Speed N/A 22000 rpm
6304-C3 Bore Size d N/A 20 mm Features N/A Open Outside Diameter D N/A 52.000 mm Outside Ring Width B N/A 15.000 mm Cr - Dynamic Load Rating N/A 15.9 kN C0r - Static Load Rating N/A 7.8 kN Grease Reference Speed N/A 13000 rpm Oil Reference Speed N/A 20000 rpm
6304-ZZ-C3 Bore Size d N/A 20 mm Features N/A Shields Outside Diameter D N/A 52.000 mm Outside Ring Width B N/A 15.000 mm Cr - Dynamic Load Rating N/A 15.9 kN C0r - Static Load Rating N/A 7.8 kN Grease Reference Speed N/A 13000 rpm Oil Reference Speed N/A 20000 rpm
6304-2RZ-C3 Bore Size d N/A 20 mm Features N/A Non-Contact Seals Outside Diameter D N/A 52.000 mm Outside Ring Width B N/A 15.000 mm Cr - Dynamic Load Rating N/A 15.9 kN C0r - Static Load Rating N/A 7.8 kN Grease Reference Speed N/A 13000 rpm Oil Reference Speed N/A 20000 rpm
6304-2RS-C3 Bore Size d N/A 20 mm Features N/A Contact Seals Outside Diameter D N/A 52.000 mm Outside Ring Width B N/A 15.000 mm Cr - Dynamic Load Rating N/A 15.9 kN C0r - Static Load Rating N/A 7.8 kN Grease Reference Speed N/A 13000 rpm Oil Reference Speed N/A 20000 rpm
6304-N-C3 Bore Size d N/A 20 mm Features N/A O.D. Groove Outside Diameter D N/A 52.000 mm Outside Ring Width B N/A 15.000 mm Cr - Dynamic Load Rating N/A 15.9 kN C0r - Static Load Rating N/A 7.8 kN Grease Reference Speed N/A 13000 rpm Oil Reference Speed N/A 20000 rpm
6304-NR-C3 Bore Size d N/A 20 mm Features N/A Snap Ring Outside Diameter D N/A 52.000 mm Outside Ring Width B N/A 15.000 mm Cr - Dynamic Load Rating N/A 15.9 kN C0r - Static Load Rating N/A 7.8 kN Grease Reference Speed N/A 13000 rpm Oil Reference Speed N/A 20000 rpm
6005-C3 Bore Size d N/A 25 mm Features N/A Open Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 10.1 kN C0r - Static Load Rating N/A 5.8 kN Grease Reference Speed N/A 14000 rpm Oil Reference Speed N/A 21000 rpm
6005-ZZ-C3 Bore Size d N/A 25 mm Features N/A Shields Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 10.1 kN C0r - Static Load Rating N/A 5.8 kN Grease Reference Speed N/A 14000 rpm Oil Reference Speed N/A 21000 rpm
6005-2RS-C3 Bore Size d N/A 25 mm Features N/A Contact Seals Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 10.1 kN C0r - Static Load Rating N/A 5.8 kN Grease Reference Speed N/A 14000 rpm Oil Reference Speed N/A 21000 rpm
6005-2RZ-C3 Bore Size d N/A 25 mm Features N/A Non-Contact Seals Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 10.1 kN C0r - Static Load Rating N/A 5.8 kN Grease Reference Speed N/A 14000 rpm Oil Reference Speed N/A 21000 rpm
6005-N-C3 Bore Size d N/A 25 mm Features N/A O.D. Groove Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 10.1 kN C0r - Static Load Rating N/A 5.8 kN Grease Reference Speed N/A 14000 rpm Oil Reference Speed N/A 21000 rpm
6005-NR-C3 Bore Size d N/A 25 mm Features N/A Snap Ring Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 10.1 kN C0r - Static Load Rating N/A 5.8 kN Grease Reference Speed N/A 14000 rpm Oil Reference Speed N/A 21000 rpm
6205-C3 Bore Size d N/A 25 mm Features N/A Open Outside Diameter D N/A 52.000 mm Outside Ring Width B N/A 15.000 mm Cr - Dynamic Load Rating N/A 14 kN C0r - Static Load Rating N/A 7.9 kN Grease Reference Speed N/A 14000 rpm Oil Reference Speed N/A 20000 rpm
6205-ZZ-C3 Bore Size d N/A 25 mm Features N/A Shields Outside Diameter D N/A 52.000 mm Outside Ring Width B N/A 15.000 mm Cr - Dynamic Load Rating N/A 14 kN C0r - Static Load Rating N/A 7.9 kN Grease Reference Speed N/A 14000 rpm Oil Reference Speed N/A 20000 rpm
6205-2RS-C3 Bore Size d N/A 25 mm Features N/A Contact Seals Outside Diameter D N/A 52.000 mm Outside Ring Width B N/A 15.000 mm Cr - Dynamic Load Rating N/A 14 kN C0r - Static Load Rating N/A 7.9 kN Grease Reference Speed N/A 14000 rpm Oil Reference Speed N/A 20000 rpm
6205-2RZ-C3 Bore Size d N/A 25 mm Features N/A Non-Contact Seals Outside Diameter D N/A 52.000 mm Outside Ring Width B N/A 15.000 mm Cr - Dynamic Load Rating N/A 14 kN C0r - Static Load Rating N/A 7.9 kN Grease Reference Speed N/A 14000 rpm Oil Reference Speed N/A 20000 rpm
6205-N-C3 Bore Size d N/A 25 mm Features N/A O.D. Groove Outside Diameter D N/A 52.000 mm Outside Ring Width B N/A 15.000 mm Cr - Dynamic Load Rating N/A 14 kN C0r - Static Load Rating N/A 7.9 kN Grease Reference Speed N/A 14000 rpm Oil Reference Speed N/A 20000 rpm
6205-NR-C3 Bore Size d N/A 25 mm Features N/A Snap Ring Outside Diameter D N/A 52.000 mm Outside Ring Width B N/A 15.000 mm Cr - Dynamic Load Rating N/A 14 kN C0r - Static Load Rating N/A 7.9 kN Grease Reference Speed N/A 14000 rpm Oil Reference Speed N/A 20000 rpm
6305-C3 Bore Size d N/A 25 mm Features N/A Open Outside Diameter D N/A 62.000 mm Outside Ring Width B N/A 17.000 mm Cr - Dynamic Load Rating N/A 20.6 kN C0r - Static Load Rating N/A 11.2 kN Grease Reference Speed N/A 12000 rpm Oil Reference Speed N/A 17000 rpm
6305-ZZ-C3 Bore Size d N/A 25 mm Features N/A Shields Outside Diameter D N/A 62.000 mm Outside Ring Width B N/A 17.000 mm Cr - Dynamic Load Rating N/A 20.6 kN C0r - Static Load Rating N/A 11.2 kN Grease Reference Speed N/A 12000 rpm Oil Reference Speed N/A 17000 rpm
6305-2RS-C3 Bore Size d N/A 25 mm Features N/A Contact Seals Outside Diameter D N/A 62.000 mm Outside Ring Width B N/A 17.000 mm Cr - Dynamic Load Rating N/A 20.6 kN C0r - Static Load Rating N/A 11.2 kN Grease Reference Speed N/A 12000 rpm Oil Reference Speed N/A 17000 rpm
6305-2RZ-C3 Bore Size d N/A 25 mm Features N/A Non-Contact Seals Outside Diameter D N/A 62.000 mm Outside Ring Width B N/A 17.000 mm Cr - Dynamic Load Rating N/A 20.6 kN C0r - Static Load Rating N/A 11.2 kN Grease Reference Speed N/A 12000 rpm Oil Reference Speed N/A 17000 rpm
6305-N-C3 Bore Size d N/A 25 mm Features N/A O.D. Groove Outside Diameter D N/A 62.000 mm Outside Ring Width B N/A 17.000 mm Cr - Dynamic Load Rating N/A 20.6 kN C0r - Static Load Rating N/A 11.2 kN Grease Reference Speed N/A 12000 rpm Oil Reference Speed N/A 17000 rpm
6305-NR-C3 Bore Size d N/A 25 mm Features N/A Snap Ring Outside Diameter D N/A 62.000 mm Outside Ring Width B N/A 17.000 mm Cr - Dynamic Load Rating N/A 20.6 kN C0r - Static Load Rating N/A 11.2 kN Grease Reference Speed N/A 12000 rpm Oil Reference Speed N/A 17000 rpm
6405-C3 Bore Size d N/A 25 mm Features N/A Open Outside Diameter D N/A 80.000 mm Outside Ring Width B N/A 21.000 mm Cr - Dynamic Load Rating N/A 36.1 kN C0r - Static Load Rating N/A 18.8 kN Grease Reference Speed N/A 10000 rpm Oil Reference Speed N/A 15000 rpm
6405-N-C3 Bore Size d N/A 25 mm Features N/A O.D. Groove Outside Diameter D N/A 80.000 mm Outside Ring Width B N/A 21.000 mm Cr - Dynamic Load Rating N/A 36.1 kN C0r - Static Load Rating N/A 18.8 kN Grease Reference Speed N/A 10000 rpm Oil Reference Speed N/A 15000 rpm
6405-NR-C3 Bore Size d N/A 25 mm Features N/A Snap Ring Outside Diameter D N/A 80.000 mm Outside Ring Width B N/A 21.000 mm Cr - Dynamic Load Rating N/A 36.1 kN C0r - Static Load Rating N/A 18.8 kN Grease Reference Speed N/A 10000 rpm Oil Reference Speed N/A 15000 rpm
6006-C3 Bore Size d N/A 30 mm Features N/A Open Outside Diameter D N/A 55.000 mm Outside Ring Width B N/A 13.000 mm Cr - Dynamic Load Rating N/A 13.2 kN C0r - Static Load Rating N/A 8.3 kN Grease Reference Speed N/A 12000 rpm Oil Reference Speed N/A 18000 rpm
6006-ZZ-C3 Bore Size d N/A 30 mm Features N/A Shields Outside Diameter D N/A 55.000 mm Outside Ring Width B N/A 13.000 mm Cr - Dynamic Load Rating N/A 13.2 kN C0r - Static Load Rating N/A 8.3 kN Grease Reference Speed N/A 12000 rpm Oil Reference Speed N/A 18000 rpm
6006-2RS-C3 Bore Size d N/A 30 mm Features N/A Contact Seals Outside Diameter D N/A 55.000 mm Outside Ring Width B N/A 13.000 mm Cr - Dynamic Load Rating N/A 13.2 kN C0r - Static Load Rating N/A 8.3 kN Grease Reference Speed N/A 12000 rpm Oil Reference Speed N/A 18000 rpm
6006-2RZ-C3 Bore Size d N/A 30 mm Features N/A Non-Contact Seals Outside Diameter D N/A 55.000 mm Outside Ring Width B N/A 13.000 mm Cr - Dynamic Load Rating N/A 13.2 kN C0r - Static Load Rating N/A 8.3 kN Grease Reference Speed N/A 12000 rpm Oil Reference Speed N/A 18000 rpm
6006-N-C3 Bore Size d N/A 30 mm Features N/A O.D. Groove Outside Diameter D N/A 55.000 mm Outside Ring Width B N/A 13.000 mm Cr - Dynamic Load Rating N/A 13.2 kN C0r - Static Load Rating N/A 8.3 kN Grease Reference Speed N/A 12000 rpm Oil Reference Speed N/A 18000 rpm
6006-NR-C3 Bore Size d N/A 30 mm Features N/A Snap Ring Outside Diameter D N/A 55.000 mm Outside Ring Width B N/A 13.000 mm Cr - Dynamic Load Rating N/A 13.2 kN C0r - Static Load Rating N/A 8.3 kN Grease Reference Speed N/A 12000 rpm Oil Reference Speed N/A 18000 rpm
6206-C3 Bore Size d N/A 30 mm Features N/A Open Outside Diameter D N/A 62.000 mm Outside Ring Width B N/A 16.000 mm Cr - Dynamic Load Rating N/A 19.5 kN C0r - Static Load Rating N/A 11.3 kN Grease Reference Speed N/A 11000 rpm Oil Reference Speed N/A 16000 rpm
6206-ZZ-C3 Bore Size d N/A 30 mm Features N/A Shields Outside Diameter D N/A 62.000 mm Outside Ring Width B N/A 16.000 mm Cr - Dynamic Load Rating N/A 19.5 kN C0r - Static Load Rating N/A 11.3 kN Grease Reference Speed N/A 11000 rpm Oil Reference Speed N/A 16000 rpm
6206-2RS-C3 Bore Size d N/A 30 mm Features N/A Contact Seals Outside Diameter D N/A 62.000 mm Outside Ring Width B N/A 16.000 mm Cr - Dynamic Load Rating N/A 19.5 kN C0r - Static Load Rating N/A 11.3 kN Grease Reference Speed N/A 11000 rpm Oil Reference Speed N/A 16000 rpm
6206-2RZ-C3 Bore Size d N/A 30 mm Features N/A Non-Contact Seals Outside Diameter D N/A 62.000 mm Outside Ring Width B N/A 16.000 mm Cr - Dynamic Load Rating N/A 19.5 kN C0r - Static Load Rating N/A 11.3 kN Grease Reference Speed N/A 11000 rpm Oil Reference Speed N/A 16000 rpm
6206-N-C3 Bore Size d N/A 30 mm Features N/A O.D. Groove Outside Diameter D N/A 62.000 mm Outside Ring Width B N/A 16.000 mm Cr - Dynamic Load Rating N/A 19.5 kN C0r - Static Load Rating N/A 11.3 kN Grease Reference Speed N/A 11000 rpm Oil Reference Speed N/A 16000 rpm
6206-NR-C3 Bore Size d N/A 30 mm Features N/A Snap Ring Outside Diameter D N/A 62.000 mm Outside Ring Width B N/A 16.000 mm Cr - Dynamic Load Rating N/A 19.5 kN C0r - Static Load Rating N/A 11.3 kN Grease Reference Speed N/A 11000 rpm Oil Reference Speed N/A 16000 rpm
6306-C3 Bore Size d N/A 30 mm Features N/A Open Outside Diameter D N/A 72.000 mm Outside Ring Width B N/A 19.000 mm Cr - Dynamic Load Rating N/A 26.6 kN C0r - Static Load Rating N/A 14.9 kN Grease Reference Speed N/A 10000 rpm Oil Reference Speed N/A 15000 rpm
6306-ZZ-C3 Bore Size d N/A 30 mm Features N/A Shields Outside Diameter D N/A 72.000 mm Outside Ring Width B N/A 19.000 mm Cr - Dynamic Load Rating N/A 26.6 kN C0r - Static Load Rating N/A 14.9 kN Grease Reference Speed N/A 10000 rpm Oil Reference Speed N/A 15000 rpm
6306-2RS-C3 Bore Size d N/A 30 mm Features N/A Contact Seals Outside Diameter D N/A 72.000 mm Outside Ring Width B N/A 19.000 mm Cr - Dynamic Load Rating N/A 26.6 kN C0r - Static Load Rating N/A 14.9 kN Grease Reference Speed N/A 10000 rpm Oil Reference Speed N/A 15000 rpm
6306-2RZ-C3 Bore Size d N/A 30 mm Features N/A Non-Contact Seals Outside Diameter D N/A 72.000 mm Outside Ring Width B N/A 19.000 mm Cr - Dynamic Load Rating N/A 26.6 kN C0r - Static Load Rating N/A 14.9 kN Grease Reference Speed N/A 10000 rpm Oil Reference Speed N/A 15000 rpm
6306-N-C3 Bore Size d N/A 30 mm Features N/A O.D. Groove Outside Diameter D N/A 72.000 mm Outside Ring Width B N/A 19.000 mm Cr - Dynamic Load Rating N/A 26.6 kN C0r - Static Load Rating N/A 14.9 kN Grease Reference Speed N/A 10000 rpm Oil Reference Speed N/A 15000 rpm
6306-NR-C3 Bore Size d N/A 30 mm Features N/A Snap Ring Outside Diameter D N/A 72.000 mm Outside Ring Width B N/A 19.000 mm Cr - Dynamic Load Rating N/A 26.6 kN C0r - Static Load Rating N/A 14.9 kN Grease Reference Speed N/A 10000 rpm Oil Reference Speed N/A 15000 rpm
6406-C3 Bore Size d N/A 30 mm Features N/A Open Outside Diameter D N/A 90.000 mm Outside Ring Width B N/A 23.000 mm Cr - Dynamic Load Rating N/A 47.3 kN C0r - Static Load Rating N/A 24.5 kN Grease Reference Speed N/A 9300 rpm Oil Reference Speed N/A 13000 rpm
6406-N-C3 Bore Size d N/A 30 mm Features N/A O.D. Groove Outside Diameter D N/A 90.000 mm Outside Ring Width B N/A 23.000 mm Cr - Dynamic Load Rating N/A 47.3 kN C0r - Static Load Rating N/A 24.5 kN Grease Reference Speed N/A 9300 rpm Oil Reference Speed N/A 13000 rpm
6406-NR-C3 Bore Size d N/A 30 mm Features N/A Snap Ring Outside Diameter D N/A 90.000 mm Outside Ring Width B N/A 23.000 mm Cr - Dynamic Load Rating N/A 47.3 kN C0r - Static Load Rating N/A 24.5 kN Grease Reference Speed N/A 9300 rpm Oil Reference Speed N/A 13000 rpm
6007-C3 Bore Size d N/A 35 mm Features N/A Open Outside Diameter D N/A 62.000 mm Outside Ring Width B N/A 14.000 mm Cr - Dynamic Load Rating N/A 15.9 kN C0r - Static Load Rating N/A 10.3 kN Grease Reference Speed N/A 11000 rpm Oil Reference Speed N/A 16000 rpm
6007-ZZ-C3 Bore Size d N/A 35 mm Features N/A Shields Outside Diameter D N/A 62.000 mm Outside Ring Width B N/A 14.000 mm Cr - Dynamic Load Rating N/A 15.9 kN C0r - Static Load Rating N/A 10.3 kN Grease Reference Speed N/A 11000 rpm Oil Reference Speed N/A 16000 rpm
6007-2RS-C3 Bore Size d N/A 35 mm Features N/A Contact Seals Outside Diameter D N/A 62.000 mm Outside Ring Width B N/A 14.000 mm Cr - Dynamic Load Rating N/A 15.9 kN C0r - Static Load Rating N/A 10.3 kN Grease Reference Speed N/A 11000 rpm Oil Reference Speed N/A 16000 rpm
6007-2RZ-C3 Bore Size d N/A 35 mm Features N/A Non-Contact Seals Outside Diameter D N/A 62.000 mm Outside Ring Width B N/A 14.000 mm Cr - Dynamic Load Rating N/A 15.9 kN C0r - Static Load Rating N/A 10.3 kN Grease Reference Speed N/A 11000 rpm Oil Reference Speed N/A 16000 rpm
6007-N-C3 Bore Size d N/A 35 mm Features N/A O.D. Groove Outside Diameter D N/A 62.000 mm Outside Ring Width B N/A 14.000 mm Cr - Dynamic Load Rating N/A 15.9 kN C0r - Static Load Rating N/A 10.3 kN Grease Reference Speed N/A 11000 rpm Oil Reference Speed N/A 16000 rpm
6007-NR-C3 Bore Size d N/A 35 mm Features N/A Snap Ring Outside Diameter D N/A 62.000 mm Outside Ring Width B N/A 14.000 mm Cr - Dynamic Load Rating N/A 15.9 kN C0r - Static Load Rating N/A 10.3 kN Grease Reference Speed N/A 11000 rpm Oil Reference Speed N/A 16000 rpm
6207-C3 Bore Size d N/A 35 mm Features N/A Open Outside Diameter D N/A 72.000 mm Outside Ring Width B N/A 17.000 mm Cr - Dynamic Load Rating N/A 25.7 kN C0r - Static Load Rating N/A 15.3 kN Grease Reference Speed N/A 10000 rpm Oil Reference Speed N/A 14000 rpm
6207-ZZ-C3 Bore Size d N/A 35 mm Features N/A Shields Outside Diameter D N/A 72.000 mm Outside Ring Width B N/A 17.000 mm Cr - Dynamic Load Rating N/A 25.7 kN C0r - Static Load Rating N/A 15.3 kN Grease Reference Speed N/A 10000 rpm Oil Reference Speed N/A 14000 rpm
6207-2RS-C3 Bore Size d N/A 35 mm Features N/A Contact Seals Outside Diameter D N/A 72.000 mm Outside Ring Width B N/A 17.000 mm Cr - Dynamic Load Rating N/A 25.7 kN C0r - Static Load Rating N/A 15.3 kN Grease Reference Speed N/A 10000 rpm Oil Reference Speed N/A 14000 rpm
6207-2RZ-C3 Bore Size d N/A 35 mm Features N/A Non-Contact Seals Outside Diameter D N/A 72.000 mm Outside Ring Width B N/A 17.000 mm Cr - Dynamic Load Rating N/A 25.7 kN C0r - Static Load Rating N/A 15.3 kN Grease Reference Speed N/A 10000 rpm Oil Reference Speed N/A 14000 rpm
6207-N-C3 Bore Size d N/A 35 mm Features N/A O.D. Groove Outside Diameter D N/A 72.000 mm Outside Ring Width B N/A 17.000 mm Cr - Dynamic Load Rating N/A 25.7 kN C0r - Static Load Rating N/A 15.3 kN Grease Reference Speed N/A 10000 rpm Oil Reference Speed N/A 14000 rpm
6207-NR-C3 Bore Size d N/A 35 mm Features N/A Snap Ring Outside Diameter D N/A 72.000 mm Outside Ring Width B N/A 17.000 mm Cr - Dynamic Load Rating N/A 25.7 kN C0r - Static Load Rating N/A 15.3 kN Grease Reference Speed N/A 10000 rpm Oil Reference Speed N/A 14000 rpm
6307-C3 Bore Size d N/A 35 mm Features N/A Open Outside Diameter D N/A 80.000 mm Outside Ring Width B N/A 21.000 mm Cr - Dynamic Load Rating N/A 33.4 kN C0r - Static Load Rating N/A 19.2 kN Grease Reference Speed N/A 9300 rpm Oil Reference Speed N/A 13000 rpm
6307-ZZ-C3 Bore Size d N/A 35 mm Features N/A Shields Outside Diameter D N/A 80.000 mm Outside Ring Width B N/A 21.000 mm Cr - Dynamic Load Rating N/A 33.4 kN C0r - Static Load Rating N/A 19.2 kN Grease Reference Speed N/A 9300 rpm Oil Reference Speed N/A 13000 rpm
6307-2RS-C3 Bore Size d N/A 35 mm Features N/A Contact Seals Outside Diameter D N/A 80.000 mm Outside Ring Width B N/A 21.000 mm Cr - Dynamic Load Rating N/A 33.4 kN C0r - Static Load Rating N/A 19.2 kN Grease Reference Speed N/A 9300 rpm Oil Reference Speed N/A 13000 rpm
6307-2RZ-C3 Bore Size d N/A 35 mm Features N/A Non-Contact Seals Outside Diameter D N/A 80.000 mm Outside Ring Width B N/A 21.000 mm Cr - Dynamic Load Rating N/A 33.4 kN C0r - Static Load Rating N/A 19.2 kN Grease Reference Speed N/A 9300 rpm Oil Reference Speed N/A 13000 rpm
6307-N-C3 Bore Size d N/A 35 mm Features N/A O.D. Groove Outside Diameter D N/A 80.000 mm Outside Ring Width B N/A 21.000 mm Cr - Dynamic Load Rating N/A 33.4 kN C0r - Static Load Rating N/A 19.2 kN Grease Reference Speed N/A 9300 rpm Oil Reference Speed N/A 13000 rpm
6307-NR-C3 Bore Size d N/A 35 mm Features N/A Snap Ring Outside Diameter D N/A 80.000 mm Outside Ring Width B N/A 21.000 mm Cr - Dynamic Load Rating N/A 33.4 kN C0r - Static Load Rating N/A 19.2 kN Grease Reference Speed N/A 9300 rpm Oil Reference Speed N/A 13000 rpm
6407-C3 Bore Size d N/A 35 mm Features N/A Open Outside Diameter D N/A 100.000 mm Outside Ring Width B N/A 25.000 mm Cr - Dynamic Load Rating N/A 55.5 kN C0r - Static Load Rating N/A 29.40 kN Grease Reference Speed N/A 8500 rpm Oil Reference Speed N/A 12000 rpm
6407-N-C3 Bore Size d N/A 35 mm Features N/A O.D. Groove Outside Diameter D N/A 100.000 mm Outside Ring Width B N/A 25.000 mm Cr - Dynamic Load Rating N/A 55.5 kN C0r - Static Load Rating N/A 29.40 kN Grease Reference Speed N/A 8500 rpm Oil Reference Speed N/A 12000 rpm
6407-NR-C3 Bore Size d N/A 35 mm Features N/A Snap Ring Outside Diameter D N/A 100.000 mm Outside Ring Width B N/A 25.000 mm Cr - Dynamic Load Rating N/A 55.5 kN C0r - Static Load Rating N/A 29.40 kN Grease Reference Speed N/A 8500 rpm Oil Reference Speed N/A 12000 rpm
6008-C3 Bore Size d N/A 40 mm Features N/A Open Outside Diameter D N/A 68.000 mm Outside Ring Width B N/A 15.000 mm Cr - Dynamic Load Rating N/A 16.8 kN C0r - Static Load Rating N/A 11.5 kN Grease Reference Speed N/A 10000 rpm Oil Reference Speed N/A 15000 rpm
6008-ZZ-C3 Bore Size d N/A 40 mm Features N/A Shields Outside Diameter D N/A 68.000 mm Outside Ring Width B N/A 15.000 mm Cr - Dynamic Load Rating N/A 16.8 kN C0r - Static Load Rating N/A 11.5 kN Grease Reference Speed N/A 10000 rpm Oil Reference Speed N/A 15000 rpm
6008-2RS-C3 Bore Size d N/A 40 mm Features N/A Contact Seals Outside Diameter D N/A 68.000 mm Outside Ring Width B N/A 15.000 mm Cr - Dynamic Load Rating N/A 16.8 kN C0r - Static Load Rating N/A 11.5 kN Grease Reference Speed N/A 10000 rpm Oil Reference Speed N/A 15000 rpm
6008-2RZ-C3 Bore Size d N/A 40 mm Features N/A Non-Contact Seals Outside Diameter D N/A 68.000 mm Outside Ring Width B N/A 15.000 mm Cr - Dynamic Load Rating N/A 16.8 kN C0r - Static Load Rating N/A 11.5 kN Grease Reference Speed N/A 10000 rpm Oil Reference Speed N/A 15000 rpm
6008-N-C3 Bore Size d N/A 40 mm Features N/A O.D. Groove Outside Diameter D N/A 68.000 mm Outside Ring Width B N/A 15.000 mm Cr - Dynamic Load Rating N/A 16.8 kN C0r - Static Load Rating N/A 11.5 kN Grease Reference Speed N/A 10000 rpm Oil Reference Speed N/A 15000 rpm
6008-NR-C3 Bore Size d N/A 40 mm Features N/A Snap Ring Outside Diameter D N/A 68.000 mm Outside Ring Width B N/A 15.000 mm Cr - Dynamic Load Rating N/A 16.8 kN C0r - Static Load Rating N/A 11.5 kN Grease Reference Speed N/A 10000 rpm Oil Reference Speed N/A 15000 rpm
6208-C3 Bore Size d N/A 40 mm Features N/A Open Outside Diameter D N/A 80.000 mm Outside Ring Width B N/A 18.000 mm Cr - Dynamic Load Rating N/A 29.5 kN C0r - Static Load Rating N/A 18.1 kN Grease Reference Speed N/A 8800 rpm Oil Reference Speed N/A 13000 rpm
6208-ZZ-C3 Bore Size d N/A 40 mm Features N/A Shields Outside Diameter D N/A 80.000 mm Outside Ring Width B N/A 18.000 mm Cr - Dynamic Load Rating N/A 29.5 kN C0r - Static Load Rating N/A 18.1 kN Grease Reference Speed N/A 8800 rpm Oil Reference Speed N/A 13000 rpm
6208-2RS-C3 Bore Size d N/A 40 mm Features N/A Contact Seals Outside Diameter D N/A 80.000 mm Outside Ring Width B N/A 18.000 mm Cr - Dynamic Load Rating N/A 29.5 kN C0r - Static Load Rating N/A 18.1 kN Grease Reference Speed N/A 8800 rpm Oil Reference Speed N/A 13000 rpm
6208-2RZ-C3 Bore Size d N/A 40 mm Features N/A Non-Contact Seals Outside Diameter D N/A 80.000 mm Outside Ring Width B N/A 18.000 mm Cr - Dynamic Load Rating N/A 29.5 kN C0r - Static Load Rating N/A 18.1 kN Grease Reference Speed N/A 8800 rpm Oil Reference Speed N/A 13000 rpm
6208-N-C3 Bore Size d N/A 40 mm Features N/A O.D. Groove Outside Diameter D N/A 80.000 mm Outside Ring Width B N/A 18.000 mm Cr - Dynamic Load Rating N/A 29.5 kN C0r - Static Load Rating N/A 18.1 kN Grease Reference Speed N/A 8800 rpm Oil Reference Speed N/A 13000 rpm
6208-NR-C3 Bore Size d N/A 40 mm Features N/A Snap Ring Outside Diameter D N/A 80.000 mm Outside Ring Width B N/A 18.000 mm Cr - Dynamic Load Rating N/A 29.5 kN C0r - Static Load Rating N/A 18.1 kN Grease Reference Speed N/A 8800 rpm Oil Reference Speed N/A 13000 rpm
6308-C3 Bore Size d N/A 40 mm Features N/A Open Outside Diameter D N/A 90.000 mm Outside Ring Width B N/A 23.000 mm Cr - Dynamic Load Rating N/A 40.7 kN C0r - Static Load Rating N/A 24 kN Grease Reference Speed N/A 8500 rpm Oil Reference Speed N/A 12000 rpm
6308-ZZ-C3 Bore Size d N/A 40 mm Features N/A Shields Outside Diameter D N/A 90.000 mm Outside Ring Width B N/A 23.000 mm Cr - Dynamic Load Rating N/A 40.7 kN C0r - Static Load Rating N/A 24 kN Grease Reference Speed N/A 8500 rpm Oil Reference Speed N/A 12000 rpm
6308-2RS-C3 Bore Size d N/A 40 mm Features N/A Contact Seals Outside Diameter D N/A 90.000 mm Outside Ring Width B N/A 23.000 mm Cr - Dynamic Load Rating N/A 40.7 kN C0r - Static Load Rating N/A 24 kN Grease Reference Speed N/A 8500 rpm Oil Reference Speed N/A 12000 rpm
6308-2RZ-C3 Bore Size d N/A 40 mm Features N/A Non-Contact Seals Outside Diameter D N/A 90.000 mm Outside Ring Width B N/A 23.000 mm Cr - Dynamic Load Rating N/A 40.7 kN C0r - Static Load Rating N/A 24 kN Grease Reference Speed N/A 8500 rpm Oil Reference Speed N/A 12000 rpm
6308-N-C3 Bore Size d N/A 40 mm Features N/A O.D. Groove Outside Diameter D N/A 90.000 mm Outside Ring Width B N/A 23.000 mm Cr - Dynamic Load Rating N/A 40.7 kN C0r - Static Load Rating N/A 24 kN Grease Reference Speed N/A 8500 rpm Oil Reference Speed N/A 12000 rpm
6308-NR-C3 Bore Size d N/A 40 mm Features N/A Snap Ring Outside Diameter D N/A 90.000 mm Outside Ring Width B N/A 23.000 mm Cr - Dynamic Load Rating N/A 40.7 kN C0r - Static Load Rating N/A 24 kN Grease Reference Speed N/A 8500 rpm Oil Reference Speed N/A 12000 rpm
6408-C3 Bore Size d N/A 40 mm Features N/A Open Outside Diameter D N/A 110.000 mm Outside Ring Width B N/A 27.000 mm Cr - Dynamic Load Rating N/A 63.7 kN C0r - Static Load Rating N/A 34.6 kN Grease Reference Speed N/A 7800 rpm Oil Reference Speed N/A 11000 rpm
6408-N-C3 Bore Size d N/A 40 mm Features N/A O.D. Groove Outside Diameter D N/A 110.000 mm Outside Ring Width B N/A 27.000 mm Cr - Dynamic Load Rating N/A 63.7 kN C0r - Static Load Rating N/A 34.6 kN Grease Reference Speed N/A 7800 rpm Oil Reference Speed N/A 11000 rpm
6408-NR-C3 Bore Size d N/A 40 mm Features N/A Snap Ring Outside Diameter D N/A 110.000 mm Outside Ring Width B N/A 27.000 mm Cr - Dynamic Load Rating N/A 63.7 kN C0r - Static Load Rating N/A 34.6 kN Grease Reference Speed N/A 7800 rpm Oil Reference Speed N/A 11000 rpm
6009-C3 Bore Size d N/A 45 mm Features N/A Open Outside Diameter D N/A 75.000 mm Outside Ring Width B N/A 16.000 mm Cr - Dynamic Load Rating N/A 19.9 kN C0r - Static Load Rating N/A 14 kN Grease Reference Speed N/A 9200 rpm Oil Reference Speed N/A 13000 rpm
6009-ZZ-C3 Bore Size d N/A 45 mm Features N/A Shields Outside Diameter D N/A 75.000 mm Outside Ring Width B N/A 16.000 mm Cr - Dynamic Load Rating N/A 19.9 kN C0r - Static Load Rating N/A 14 kN Grease Reference Speed N/A 9200 rpm Oil Reference Speed N/A 13000 rpm
6009-2RS-C3 Bore Size d N/A 45 mm Features N/A Contact Seals Outside Diameter D N/A 75.000 mm Outside Ring Width B N/A 16.000 mm Cr - Dynamic Load Rating N/A 19.9 kN C0r - Static Load Rating N/A 14 kN Grease Reference Speed N/A 9200 rpm Oil Reference Speed N/A 13000 rpm
6009-2RZ-C3 Bore Size d N/A 45 mm Features N/A Non-Contact Seals Outside Diameter D N/A 75.000 mm Outside Ring Width B N/A 16.000 mm Cr - Dynamic Load Rating N/A 19.9 kN C0r - Static Load Rating N/A 14 kN Grease Reference Speed N/A 9200 rpm Oil Reference Speed N/A 13000 rpm
6009-N-C3 Bore Size d N/A 45 mm Features N/A O.D. Groove Outside Diameter D N/A 75.000 mm Outside Ring Width B N/A 16.000 mm Cr - Dynamic Load Rating N/A 19.9 kN C0r - Static Load Rating N/A 14 kN Grease Reference Speed N/A 9200 rpm Oil Reference Speed N/A 13000 rpm
6009-NR-C3 Bore Size d N/A 45 mm Features N/A Snap Ring Outside Diameter D N/A 75.000 mm Outside Ring Width B N/A 16.000 mm Cr - Dynamic Load Rating N/A 19.9 kN C0r - Static Load Rating N/A 14 kN Grease Reference Speed N/A 9200 rpm Oil Reference Speed N/A 13000 rpm
6209-C3 Bore Size d N/A 45 mm Features N/A Open Outside Diameter D N/A 85.000 mm Outside Ring Width B N/A 19.000 mm Cr - Dynamic Load Rating N/A 31.2 kN C0r - Static Load Rating N/A 20.3 kN Grease Reference Speed N/A 8200 rpm Oil Reference Speed N/A 12000 rpm
6209-ZZ-C3 Bore Size d N/A 45 mm Features N/A Shields Outside Diameter D N/A 85.000 mm Outside Ring Width B N/A 19.000 mm Cr - Dynamic Load Rating N/A 31.2 kN C0r - Static Load Rating N/A 20.3 kN Grease Reference Speed N/A 8200 rpm Oil Reference Speed N/A 12000 rpm
6209-2RS-C3 Bore Size d N/A 45 mm Features N/A Contact Seals Outside Diameter D N/A 85.000 mm Outside Ring Width B N/A 19.000 mm Cr - Dynamic Load Rating N/A 31.2 kN C0r - Static Load Rating N/A 20.3 kN Grease Reference Speed N/A 8200 rpm Oil Reference Speed N/A 12000 rpm
6209-2RZ-C3 Bore Size d N/A 45 mm Features N/A Non-Contact Seals Outside Diameter D N/A 85.000 mm Outside Ring Width B N/A 19.000 mm Cr - Dynamic Load Rating N/A 31.2 kN C0r - Static Load Rating N/A 20.3 kN Grease Reference Speed N/A 8200 rpm Oil Reference Speed N/A 12000 rpm
6209-N-C3 Bore Size d N/A 45 mm Features N/A O.D. Groove Outside Diameter D N/A 85.000 mm Outside Ring Width B N/A 19.000 mm Cr - Dynamic Load Rating N/A 31.2 kN C0r - Static Load Rating N/A 20.3 kN Grease Reference Speed N/A 8200 rpm Oil Reference Speed N/A 12000 rpm
6209-NR-C3 Bore Size d N/A 45 mm Features N/A Snap Ring Outside Diameter D N/A 85.000 mm Outside Ring Width B N/A 19.000 mm Cr - Dynamic Load Rating N/A 31.2 kN C0r - Static Load Rating N/A 20.3 kN Grease Reference Speed N/A 8200 rpm Oil Reference Speed N/A 12000 rpm
6309-C3 Bore Size d N/A 45 mm Features N/A Open Outside Diameter D N/A 100.000 mm Outside Ring Width B N/A 25.000 mm Cr - Dynamic Load Rating N/A 48.8 kN C0r - Static Load Rating N/A 29.3 kN Grease Reference Speed N/A 7800 rpm Oil Reference Speed N/A 11000 rpm
6309-ZZ-C3 Bore Size d N/A 45 mm Features N/A Shields Outside Diameter D N/A 100.000 mm Outside Ring Width B N/A 25.000 mm Cr - Dynamic Load Rating N/A 48.8 kN C0r - Static Load Rating N/A 29.3 kN Grease Reference Speed N/A 7800 rpm Oil Reference Speed N/A 11000 rpm
6309-2RS-C3 Bore Size d N/A 45 mm Features N/A Contact Seals Outside Diameter D N/A 100.000 mm Outside Ring Width B N/A 25.000 mm Cr - Dynamic Load Rating N/A 48.8 kN C0r - Static Load Rating N/A 29.3 kN Grease Reference Speed N/A 7800 rpm Oil Reference Speed N/A 11000 rpm
6309-2RZ-C3 Bore Size d N/A 45 mm Features N/A Non-Contact Seals Outside Diameter D N/A 100.000 mm Outside Ring Width B N/A 25.000 mm Cr - Dynamic Load Rating N/A 48.8 kN C0r - Static Load Rating N/A 29.3 kN Grease Reference Speed N/A 7800 rpm Oil Reference Speed N/A 11000 rpm
6309-N-C3 Bore Size d N/A 45 mm Features N/A O.D. Groove Outside Diameter D N/A 100.000 mm Outside Ring Width B N/A 25.000 mm Cr - Dynamic Load Rating N/A 48.8 kN C0r - Static Load Rating N/A 29.3 kN Grease Reference Speed N/A 7800 rpm Oil Reference Speed N/A 11000 rpm
6309-NR-C3 Bore Size d N/A 45 mm Features N/A Snap Ring Outside Diameter D N/A 100.000 mm Outside Ring Width B N/A 25.000 mm Cr - Dynamic Load Rating N/A 48.8 kN C0r - Static Load Rating N/A 29.3 kN Grease Reference Speed N/A 7800 rpm Oil Reference Speed N/A 11000 rpm
6409-C3 Bore Size d N/A 45 mm Features N/A Open Outside Diameter D N/A 120.000 mm Outside Ring Width B N/A 29.000 mm Cr - Dynamic Load Rating N/A 77.2 kN C0r - Static Load Rating N/A 45.2 kN Grease Reference Speed N/A 7200 rpm Oil Reference Speed N/A 10000 rpm
6409-N-C3 Bore Size d N/A 45 mm Features N/A O.D. Groove Outside Diameter D N/A 120.000 mm Outside Ring Width B N/A 29.000 mm Cr - Dynamic Load Rating N/A 77.2 kN C0r - Static Load Rating N/A 45.2 kN Grease Reference Speed N/A 7200 rpm Oil Reference Speed N/A 10000 rpm
6409-NR-C3 Bore Size d N/A 45 mm Features N/A Snap Ring Outside Diameter D N/A 120.000 mm Outside Ring Width B N/A 29.000 mm Cr - Dynamic Load Rating N/A 77.2 kN C0r - Static Load Rating N/A 45.2 kN Grease Reference Speed N/A 7200 rpm Oil Reference Speed N/A 10000 rpm
6010-C3 Bore Size d N/A 50 mm Features N/A Open Outside Diameter D N/A 80.000 mm Outside Ring Width B N/A 16.000 mm Cr - Dynamic Load Rating N/A 21.8 kN C0r - Static Load Rating N/A 16.5 kN Grease Reference Speed N/A 8300 rpm Oil Reference Speed N/A 12000 rpm
6010-ZZ-C3 Bore Size d N/A 50 mm Features N/A Shields Outside Diameter D N/A 80.000 mm Outside Ring Width B N/A 16.000 mm Cr - Dynamic Load Rating N/A 21.8 kN C0r - Static Load Rating N/A 16.5 kN Grease Reference Speed N/A 8300 rpm Oil Reference Speed N/A 12000 rpm
6010-2RS-C3 Bore Size d N/A 50 mm Features N/A Contact Seals Outside Diameter D N/A 80.000 mm Outside Ring Width B N/A 16.000 mm Cr - Dynamic Load Rating N/A 21.8 kN C0r - Static Load Rating N/A 16.5 kN Grease Reference Speed N/A 8300 rpm Oil Reference Speed N/A 12000 rpm
6010-2RZ-C3 Bore Size d N/A 50 mm Features N/A Non-Contact Seals Outside Diameter D N/A 80.000 mm Outside Ring Width B N/A 16.000 mm Cr - Dynamic Load Rating N/A 21.8 kN C0r - Static Load Rating N/A 16.5 kN Grease Reference Speed N/A 8300 rpm Oil Reference Speed N/A 12000 rpm
6010-N-C3 Bore Size d N/A 50 mm Features N/A O.D. Groove Outside Diameter D N/A 80.000 mm Outside Ring Width B N/A 16.000 mm Cr - Dynamic Load Rating N/A 21.8 kN C0r - Static Load Rating N/A 16.5 kN Grease Reference Speed N/A 8300 rpm Oil Reference Speed N/A 12000 rpm
6010-NR-C3 Bore Size d N/A 50 mm Features N/A Snap Ring Outside Diameter D N/A 80.000 mm Outside Ring Width B N/A 16.000 mm Cr - Dynamic Load Rating N/A 21.8 kN C0r - Static Load Rating N/A 16.5 kN Grease Reference Speed N/A 8300 rpm Oil Reference Speed N/A 12000 rpm
6210-C3 Bore Size d N/A 50 mm Features N/A Open Outside Diameter D N/A 90.000 mm Outside Ring Width B N/A 20.000 mm Cr - Dynamic Load Rating N/A 35 kN C0r - Static Load Rating N/A 23.2 kN Grease Reference Speed N/A 7700 rpm Oil Reference Speed N/A 11000 rpm
6210-ZZ-C3 Bore Size d N/A 50 mm Features N/A Shields Outside Diameter D N/A 90.000 mm Outside Ring Width B N/A 20.000 mm Cr - Dynamic Load Rating N/A 35 kN C0r - Static Load Rating N/A 23.2 kN Grease Reference Speed N/A 7700 rpm Oil Reference Speed N/A 11000 rpm
6210-2RS-C3 Bore Size d N/A 50 mm Features N/A Contact Seals Outside Diameter D N/A 90.000 mm Outside Ring Width B N/A 20.000 mm Cr - Dynamic Load Rating N/A 35 kN C0r - Static Load Rating N/A 23.2 kN Grease Reference Speed N/A 7700 rpm Oil Reference Speed N/A 11000 rpm
6210-2RZ-C3 Bore Size d N/A 50 mm Features N/A Non-Contact Seals Outside Diameter D N/A 90.000 mm Outside Ring Width B N/A 20.000 mm Cr - Dynamic Load Rating N/A 35 kN C0r - Static Load Rating N/A 23.2 kN Grease Reference Speed N/A 7700 rpm Oil Reference Speed N/A 11000 rpm
6210-N-C3 Bore Size d N/A 50 mm Features N/A O.D. Groove Outside Diameter D N/A 90.000 mm Outside Ring Width B N/A 20.000 mm Cr - Dynamic Load Rating N/A 35 kN C0r - Static Load Rating N/A 23.2 kN Grease Reference Speed N/A 7700 rpm Oil Reference Speed N/A 11000 rpm
6210-NR-C3 Bore Size d N/A 50 mm Features N/A Snap Ring Outside Diameter D N/A 90.000 mm Outside Ring Width B N/A 20.000 mm Cr - Dynamic Load Rating N/A 35 kN C0r - Static Load Rating N/A 23.2 kN Grease Reference Speed N/A 7700 rpm Oil Reference Speed N/A 11000 rpm
6310-C3 Bore Size d N/A 50 mm Features N/A Open Outside Diameter D N/A 110.000 mm Outside Ring Width B N/A 27.000 mm Cr - Dynamic Load Rating N/A 57.5 kN C0r - Static Load Rating N/A 35.3 kN Grease Reference Speed N/A 7200 rpm Oil Reference Speed N/A 10000 rpm
6310-ZZ-C3 Bore Size d N/A 50 mm Features N/A Shields Outside Diameter D N/A 110.000 mm Outside Ring Width B N/A 27.000 mm Cr - Dynamic Load Rating N/A 57.5 kN C0r - Static Load Rating N/A 35.3 kN Grease Reference Speed N/A 7200 rpm Oil Reference Speed N/A 10000 rpm
6310-2RS-C3 Bore Size d N/A 50 mm Features N/A Contact Seals Outside Diameter D N/A 110.000 mm Outside Ring Width B N/A 27.000 mm Cr - Dynamic Load Rating N/A 57.5 kN C0r - Static Load Rating N/A 35.3 kN Grease Reference Speed N/A 7200 rpm Oil Reference Speed N/A 10000 rpm
6310-2RZ-C3 Bore Size d N/A 50 mm Features N/A Non-Contact Seals Outside Diameter D N/A 110.000 mm Outside Ring Width B N/A 27.000 mm Cr - Dynamic Load Rating N/A 57.5 kN C0r - Static Load Rating N/A 35.3 kN Grease Reference Speed N/A 7200 rpm Oil Reference Speed N/A 10000 rpm
6310-N-C3 Bore Size d N/A 50 mm Features N/A O.D. Groove Outside Diameter D N/A 110.000 mm Outside Ring Width B N/A 27.000 mm Cr - Dynamic Load Rating N/A 57.5 kN C0r - Static Load Rating N/A 35.3 kN Grease Reference Speed N/A 7200 rpm Oil Reference Speed N/A 10000 rpm
6310-NR-C3 Bore Size d N/A 50 mm Features N/A Snap Ring Outside Diameter D N/A 110.000 mm Outside Ring Width B N/A 27.000 mm Cr - Dynamic Load Rating N/A 57.5 kN C0r - Static Load Rating N/A 35.3 kN Grease Reference Speed N/A 7200 rpm Oil Reference Speed N/A 10000 rpm
6410-C3 Bore Size d N/A 50 mm Features N/A Open Outside Diameter D N/A 130.000 mm Outside Ring Width B N/A 31.000 mm Cr - Dynamic Load Rating N/A 83.1 kN C0r - Static Load Rating N/A 49.4 kN Grease Reference Speed N/A 6800 rpm Oil Reference Speed N/A 9700 rpm
6410-N-C3 Bore Size d N/A 50 mm Features N/A O.D. Groove Outside Diameter D N/A 130.000 mm Outside Ring Width B N/A 31.000 mm Cr - Dynamic Load Rating N/A 83.1 kN C0r - Static Load Rating N/A 49.4 kN Grease Reference Speed N/A 6800 rpm Oil Reference Speed N/A 9700 rpm
6410-NR-C3 Bore Size d N/A 50 mm Features N/A Snap Ring Outside Diameter D N/A 130.000 mm Outside Ring Width B N/A 31.000 mm Cr - Dynamic Load Rating N/A 83.1 kN C0r - Static Load Rating N/A 49.4 kN Grease Reference Speed N/A 6800 rpm Oil Reference Speed N/A 9700 rpm
6011-C3 Bore Size d N/A 55 mm Features N/A Open Outside Diameter D N/A 90.000 mm Outside Ring Width B N/A 18.000 mm Cr - Dynamic Load Rating N/A 28.3 kN C0r - Static Load Rating N/A 22.4 kN Grease Reference Speed N/A 7800 rpm Oil Reference Speed N/A 11000 rpm
6011-ZZ-C3 Bore Size d N/A 55 mm Features N/A Shields Outside Diameter D N/A 90.000 mm Outside Ring Width B N/A 18.000 mm Cr - Dynamic Load Rating N/A 28.3 kN C0r - Static Load Rating N/A 22.4 kN Grease Reference Speed N/A 7800 rpm Oil Reference Speed N/A 11000 rpm
6011-2RS-C3 Bore Size d N/A 55 mm Features N/A Contact Seals Outside Diameter D N/A 90.000 mm Outside Ring Width B N/A 18.000 mm Cr - Dynamic Load Rating N/A 28.3 kN C0r - Static Load Rating N/A 22.4 kN Grease Reference Speed N/A 7800 rpm Oil Reference Speed N/A 11000 rpm
6011-2RZ-C3 Bore Size d N/A 55 mm Features N/A Non-Contact Seals Outside Diameter D N/A 90.000 mm Outside Ring Width B N/A 18.000 mm Cr - Dynamic Load Rating N/A 28.3 kN C0r - Static Load Rating N/A 22.4 kN Grease Reference Speed N/A 7800 rpm Oil Reference Speed N/A 11000 rpm
6011-N-C3 Bore Size d N/A 55 mm Features N/A O.D. Groove Outside Diameter D N/A 90.000 mm Outside Ring Width B N/A 18.000 mm Cr - Dynamic Load Rating N/A 28.3 kN C0r - Static Load Rating N/A 22.4 kN Grease Reference Speed N/A 7800 rpm Oil Reference Speed N/A 11000 rpm
6011-NR-C3 Bore Size d N/A 55 mm Features N/A Snap Ring Outside Diameter D N/A 90.000 mm Outside Ring Width B N/A 18.000 mm Cr - Dynamic Load Rating N/A 28.3 kN C0r - Static Load Rating N/A 22.4 kN Grease Reference Speed N/A 7800 rpm Oil Reference Speed N/A 11000 rpm
6211-C3 Bore Size d N/A 55 mm Features N/A Open Outside Diameter D N/A 100.000 mm Outside Ring Width B N/A 21.000 mm Cr - Dynamic Load Rating N/A 43.4 kN C0r - Static Load Rating N/A 29.2 kN Grease Reference Speed N/A 7000 rpm Oil Reference Speed N/A 10000 rpm
6211-ZZ-C3 Bore Size d N/A 55 mm Features N/A Shields Outside Diameter D N/A 100.000 mm Outside Ring Width B N/A 21.000 mm Cr - Dynamic Load Rating N/A 43.4 kN C0r - Static Load Rating N/A 29.2 kN Grease Reference Speed N/A 7000 rpm Oil Reference Speed N/A 10000 rpm
6211-2RS-C3 Bore Size d N/A 55 mm Features N/A Contact Seals Outside Diameter D N/A 100.000 mm Outside Ring Width B N/A 21.000 mm Cr - Dynamic Load Rating N/A 43.4 kN C0r - Static Load Rating N/A 29.2 kN Grease Reference Speed N/A 7000 rpm Oil Reference Speed N/A 10000 rpm
6211-2RZ-C3 Bore Size d N/A 55 mm Features N/A Non-Contact Seals Outside Diameter D N/A 100.000 mm Outside Ring Width B N/A 21.000 mm Cr - Dynamic Load Rating N/A 43.4 kN C0r - Static Load Rating N/A 29.2 kN Grease Reference Speed N/A 7000 rpm Oil Reference Speed N/A 10000 rpm
6211-N-C3 Bore Size d N/A 55 mm Features N/A O.D. Groove Outside Diameter D N/A 100.000 mm Outside Ring Width B N/A 21.000 mm Cr - Dynamic Load Rating N/A 43.4 kN C0r - Static Load Rating N/A 29.2 kN Grease Reference Speed N/A 7000 rpm Oil Reference Speed N/A 10000 rpm
6211-NR-C3 Bore Size d N/A 55 mm Features N/A Snap Ring Outside Diameter D N/A 100.000 mm Outside Ring Width B N/A 21.000 mm Cr - Dynamic Load Rating N/A 43.4 kN C0r - Static Load Rating N/A 29.2 kN Grease Reference Speed N/A 7000 rpm Oil Reference Speed N/A 10000 rpm
6311-C3 Bore Size d N/A 55 mm Features N/A Open Outside Diameter D N/A 120.000 mm Outside Ring Width B N/A 29.000 mm Cr - Dynamic Load Rating N/A 71.5 kN C0r - Static Load Rating N/A 44.6 kN Grease Reference Speed N/A 6700 rpm Oil Reference Speed N/A 10000 rpm
6311-ZZ-C3 Bore Size d N/A 55 mm Features N/A Shields Outside Diameter D N/A 120.000 mm Outside Ring Width B N/A 29.000 mm Cr - Dynamic Load Rating N/A 71.5 kN C0r - Static Load Rating N/A 44.6 kN Grease Reference Speed N/A 6700 rpm Oil Reference Speed N/A 10000 rpm
6311-2RS-C3 Bore Size d N/A 55 mm Features N/A Contact Seals Outside Diameter D N/A 120.000 mm Outside Ring Width B N/A 29.000 mm Cr - Dynamic Load Rating N/A 71.5 kN C0r - Static Load Rating N/A 44.6 kN Grease Reference Speed N/A 6700 rpm Oil Reference Speed N/A 10000 rpm
6311-2RZ-C3 Bore Size d N/A 55 mm Features N/A Non-Contact Seals Outside Diameter D N/A 120.000 mm Outside Ring Width B N/A 29.000 mm Cr - Dynamic Load Rating N/A 71.5 kN C0r - Static Load Rating N/A 44.6 kN Grease Reference Speed N/A 6700 rpm Oil Reference Speed N/A 10000 rpm
6311-N-C3 Bore Size d N/A 55 mm Features N/A O.D. Groove Outside Diameter D N/A 120.000 mm Outside Ring Width B N/A 29.000 mm Cr - Dynamic Load Rating N/A 71.5 kN C0r - Static Load Rating N/A 44.6 kN Grease Reference Speed N/A 6700 rpm Oil Reference Speed N/A 10000 rpm
6311-NR-C3 Bore Size d N/A 55 mm Features N/A Snap Ring Outside Diameter D N/A 120.000 mm Outside Ring Width B N/A 29.000 mm Cr - Dynamic Load Rating N/A 71.5 kN C0r - Static Load Rating N/A 44.6 kN Grease Reference Speed N/A 6700 rpm Oil Reference Speed N/A 10000 rpm
6411-C3 Bore Size d N/A 55 mm Features N/A Open Outside Diameter D N/A 140.000 mm Outside Ring Width B N/A 33.000 mm Cr - Dynamic Load Rating N/A 100.7 kN C0r - Static Load Rating N/A 62.4 kN Grease Reference Speed N/A 6300 rpm Oil Reference Speed N/A 9100 rpm
6411-N-C3 Bore Size d N/A 55 mm Features N/A O.D. Groove Outside Diameter D N/A 140.000 mm Outside Ring Width B N/A 33.000 mm Cr - Dynamic Load Rating N/A 100.7 kN C0r - Static Load Rating N/A 62.4 kN Grease Reference Speed N/A 6300 rpm Oil Reference Speed N/A 9100 rpm
6411-NR-C3 Bore Size d N/A 55 mm Features N/A Snap Ring Outside Diameter D N/A 140.000 mm Outside Ring Width B N/A 33.000 mm Cr - Dynamic Load Rating N/A 100.7 kN C0r - Static Load Rating N/A 62.4 kN Grease Reference Speed N/A 6300 rpm Oil Reference Speed N/A 9100 rpm
6012-C3 Bore Size d N/A 60 mm Features N/A Open Outside Diameter D N/A 95.000 mm Outside Ring Width B N/A 18.000 mm Cr - Dynamic Load Rating N/A 29.5 kN C0r - Static Load Rating N/A 22.7 kN Grease Reference Speed N/A 6300 rpm Oil Reference Speed N/A 10000 rpm
6012-ZZ-C3 Bore Size d N/A 60 mm Features N/A Shields Outside Diameter D N/A 95.000 mm Outside Ring Width B N/A 18.000 mm Cr - Dynamic Load Rating N/A 29.5 kN C0r - Static Load Rating N/A 22.7 kN Grease Reference Speed N/A 7200 rpm Oil Reference Speed N/A 10000 rpm
6012-2RS-C3 Bore Size d N/A 60 mm Features N/A Contact Seals Outside Diameter D N/A 95.000 mm Outside Ring Width B N/A 18.000 mm Cr - Dynamic Load Rating N/A 29.5 kN C0r - Static Load Rating N/A 22.7 kN Grease Reference Speed N/A 7200 rpm Oil Reference Speed N/A 10000 rpm
6012-2RZ-C3 Bore Size d N/A 60 mm Features N/A Non-Contact Seals Outside Diameter D N/A 95.000 mm Outside Ring Width B N/A 18.000 mm Cr - Dynamic Load Rating N/A 29.5 kN C0r - Static Load Rating N/A 22.7 kN Grease Reference Speed N/A 7200 rpm Oil Reference Speed N/A 10000 rpm
6012-N-C3 Bore Size d N/A 60 mm Features N/A O.D. Groove Outside Diameter D N/A 95.000 mm Outside Ring Width B N/A 18.000 mm Cr - Dynamic Load Rating N/A 29.5 kN C0r - Static Load Rating N/A 22.7 kN Grease Reference Speed N/A 7200 rpm Oil Reference Speed N/A 10000 rpm
6012-NR-C3 Bore Size d N/A 60 mm Features N/A Snap Ring Outside Diameter D N/A 95.000 mm Outside Ring Width B N/A 18.000 mm Cr - Dynamic Load Rating N/A 29.5 kN C0r - Static Load Rating N/A 22.7 kN Grease Reference Speed N/A 7200 rpm Oil Reference Speed N/A 10000 rpm
6212-C3 Bore Size d N/A 60 mm Features N/A Open Outside Diameter D N/A 110.000 mm Outside Ring Width B N/A 22.000 mm Cr - Dynamic Load Rating N/A 47.8 kN C0r - Static Load Rating N/A 32.9 kN Grease Reference Speed N/A 6500 rpm Oil Reference Speed N/A 9300 rpm
6212-ZZ-C3 Bore Size d N/A 60 mm Features N/A Shields Outside Diameter D N/A 110.000 mm Outside Ring Width B N/A 22.000 mm Cr - Dynamic Load Rating N/A 47.8 kN C0r - Static Load Rating N/A 32.9 kN Grease Reference Speed N/A 6500 rpm Oil Reference Speed N/A 9300 rpm
6212-2RS-C3 Bore Size d N/A 60 mm Features N/A Contact Seals Outside Diameter D N/A 110.000 mm Outside Ring Width B N/A 22.000 mm Cr - Dynamic Load Rating N/A 47.8 kN C0r - Static Load Rating N/A 32.9 kN Grease Reference Speed N/A 6500 rpm Oil Reference Speed N/A 9300 rpm
6212-2RZ-C3 Bore Size d N/A 60 mm Features N/A Non-Contact Seals Outside Diameter D N/A 110.000 mm Outside Ring Width B N/A 22.000 mm Cr - Dynamic Load Rating N/A 47.8 kN C0r - Static Load Rating N/A 32.9 kN Grease Reference Speed N/A 6500 rpm Oil Reference Speed N/A 9300 rpm
6212-N-C3 Bore Size d N/A 60 mm Features N/A O.D. Groove Outside Diameter D N/A 110.000 mm Outside Ring Width B N/A 22.000 mm Cr - Dynamic Load Rating N/A 47.8 kN C0r - Static Load Rating N/A 32.9 kN Grease Reference Speed N/A 6500 rpm Oil Reference Speed N/A 9300 rpm
6212-NR-C3 Bore Size d N/A 60 mm Features N/A Snap Ring Outside Diameter D N/A 110.000 mm Outside Ring Width B N/A 22.000 mm Cr - Dynamic Load Rating N/A 47.8 kN C0r - Static Load Rating N/A 32.9 kN Grease Reference Speed N/A 6500 rpm Oil Reference Speed N/A 9300 rpm
6312-C3 Bore Size d N/A 60 mm Features N/A Open Outside Diameter D N/A 130.000 mm Outside Ring Width B N/A 31.000 mm Cr - Dynamic Load Rating N/A 81.8 kN C0r - Static Load Rating N/A 51.8 kN Grease Reference Speed N/A 6400 rpm Oil Reference Speed N/A 9100 rpm
6312-ZZ-C3 Bore Size d N/A 60 mm Features N/A Shields Outside Diameter D N/A 130.000 mm Outside Ring Width B N/A 31.000 mm Cr - Dynamic Load Rating N/A 81.8 kN C0r - Static Load Rating N/A 51.8 kN Grease Reference Speed N/A 6400 rpm Oil Reference Speed N/A 9100 rpm
6312-2RS-C3 Bore Size d N/A 60 mm Features N/A Contact Seals Outside Diameter D N/A 130.000 mm Outside Ring Width B N/A 31.000 mm Cr - Dynamic Load Rating N/A 81.8 kN C0r - Static Load Rating N/A 51.8 kN Grease Reference Speed N/A 6400 rpm Oil Reference Speed N/A 9100 rpm
6312-2RZ-C3 Bore Size d N/A 60 mm Features N/A Non-Contact Seals Outside Diameter D N/A 130.000 mm Outside Ring Width B N/A 31.000 mm Cr - Dynamic Load Rating N/A 81.8 kN C0r - Static Load Rating N/A 51.8 kN Grease Reference Speed N/A 6400 rpm Oil Reference Speed N/A 9100 rpm
6312-N-C3 Bore Size d N/A 60 mm Features N/A O.D. Groove Outside Diameter D N/A 130.000 mm Outside Ring Width B N/A 31.000 mm Cr - Dynamic Load Rating N/A 81.8 kN C0r - Static Load Rating N/A 51.8 kN Grease Reference Speed N/A 6400 rpm Oil Reference Speed N/A 9100 rpm
6312-NR-C3 Bore Size d N/A 60 mm Features N/A Snap Ring Outside Diameter D N/A 130.000 mm Outside Ring Width B N/A 31.000 mm Cr - Dynamic Load Rating N/A 81.8 kN C0r - Static Load Rating N/A 51.8 kN Grease Reference Speed N/A 6400 rpm Oil Reference Speed N/A 9100 rpm
6412-C3 Bore Size d N/A 60 mm Features N/A Open Outside Diameter D N/A 150.000 mm Outside Ring Width B N/A 35.000 mm Cr - Dynamic Load Rating N/A 109 kN C0r - Static Load Rating N/A 70.1 kN Grease Reference Speed N/A 6000 rpm Oil Reference Speed N/A 8600 rpm
6412-N-C3 Bore Size d N/A 60 mm Features N/A O.D. Groove Outside Diameter D N/A 150.000 mm Outside Ring Width B N/A 35.000 mm Cr - Dynamic Load Rating N/A 109 kN C0r - Static Load Rating N/A 70.1 kN Grease Reference Speed N/A 6000 rpm Oil Reference Speed N/A 8600 rpm
6412-NR-C3 Bore Size d N/A 60 mm Features N/A Snap Ring Outside Diameter D N/A 150.000 mm Outside Ring Width B N/A 35.000 mm Cr - Dynamic Load Rating N/A 109 kN C0r - Static Load Rating N/A 70.1 kN Grease Reference Speed N/A 6000 rpm Oil Reference Speed N/A 8600 rpm
6013-C3 Bore Size d N/A 65 mm Features N/A Open Outside Diameter D N/A 100.000 mm Outside Ring Width B N/A 18.000 mm Cr - Dynamic Load Rating N/A 30.5 kN C0r - Static Load Rating N/A 23.5 kN Grease Reference Speed N/A 6700 rpm Oil Reference Speed N/A 9700 rpm
6013-ZZ-C3 Bore Size d N/A 65 mm Features N/A Shields Outside Diameter D N/A 100.000 mm Outside Ring Width B N/A 18.000 mm Cr - Dynamic Load Rating N/A 30.5 kN C0r - Static Load Rating N/A 23.5 kN Grease Reference Speed N/A 6700 rpm Oil Reference Speed N/A 9700 rpm
6013-2RS-C3 Bore Size d N/A 65 mm Features N/A Contact Seals Outside Diameter D N/A 100.000 mm Outside Ring Width B N/A 18.000 mm Cr - Dynamic Load Rating N/A 30.5 kN C0r - Static Load Rating N/A 23.5 kN Grease Reference Speed N/A 6700 rpm Oil Reference Speed N/A 9700 rpm
6013-2RZ-C3 Bore Size d N/A 65 mm Features N/A Non-Contact Seals Outside Diameter D N/A 100.000 mm Outside Ring Width B N/A 18.000 mm Cr - Dynamic Load Rating N/A 30.5 kN C0r - Static Load Rating N/A 23.5 kN Grease Reference Speed N/A 6700 rpm Oil Reference Speed N/A 9700 rpm
6013-N-C3 Bore Size d N/A 65 mm Features N/A O.D. Groove Outside Diameter D N/A 100.000 mm Outside Ring Width B N/A 18.000 mm Cr - Dynamic Load Rating N/A 30.5 kN C0r - Static Load Rating N/A 23.5 kN Grease Reference Speed N/A 6700 rpm Oil Reference Speed N/A 9700 rpm
6013-NR-C3 Bore Size d N/A 65 mm Features N/A Snap Ring Outside Diameter D N/A 100.000 mm Outside Ring Width B N/A 18.000 mm Cr - Dynamic Load Rating N/A 30.5 kN C0r - Static Load Rating N/A 23.5 kN Grease Reference Speed N/A 6700 rpm Oil Reference Speed N/A 9700 rpm
6213-C3 Bore Size d N/A 65 mm Features N/A Open Outside Diameter D N/A 120.000 mm Outside Ring Width B N/A 23.000 mm Cr - Dynamic Load Rating N/A 57.2 kN C0r - Static Load Rating N/A 40 kN Grease Reference Speed N/A 6000 rpm Oil Reference Speed N/A 8600 rpm
6213-ZZ-C3 Bore Size d N/A 65 mm Features N/A Shields Outside Diameter D N/A 120.000 mm Outside Ring Width B N/A 23.000 mm Cr - Dynamic Load Rating N/A 57.2 kN C0r - Static Load Rating N/A 40 kN Grease Reference Speed N/A 6000 rpm Oil Reference Speed N/A 8600 rpm
6213-2RS-C3 Bore Size d N/A 65 mm Features N/A Contact Seals Outside Diameter D N/A 120.000 mm Outside Ring Width B N/A 23.000 mm Cr - Dynamic Load Rating N/A 57.2 kN C0r - Static Load Rating N/A 40 kN Grease Reference Speed N/A 6000 rpm Oil Reference Speed N/A 8600 rpm
6213-2RZ-C3 Bore Size d N/A 65 mm Features N/A Non-Contact Seals Outside Diameter D N/A 120.000 mm Outside Ring Width B N/A 23.000 mm Cr - Dynamic Load Rating N/A 57.2 kN C0r - Static Load Rating N/A 40 kN Grease Reference Speed N/A 6000 rpm Oil Reference Speed N/A 8600 rpm
6213-N-C3 Bore Size d N/A 65 mm Features N/A O.D. Groove Outside Diameter D N/A 120.000 mm Outside Ring Width B N/A 23.000 mm Cr - Dynamic Load Rating N/A 57.2 kN C0r - Static Load Rating N/A 40 kN Grease Reference Speed N/A 6000 rpm Oil Reference Speed N/A 8600 rpm
6213-NR-C3 Bore Size d N/A 65 mm Features N/A Snap Ring Outside Diameter D N/A 120.000 mm Outside Ring Width B N/A 23.000 mm Cr - Dynamic Load Rating N/A 57.2 kN C0r - Static Load Rating N/A 40 kN Grease Reference Speed N/A 6000 rpm Oil Reference Speed N/A 8600 rpm
6313-C3 Bore Size d N/A 65 mm Features N/A Open Outside Diameter D N/A 140.000 mm Outside Ring Width B N/A 33.000 mm Cr - Dynamic Load Rating N/A 92.6 kN C0r - Static Load Rating N/A 59.7 kN Grease Reference Speed N/A 6000 rpm Oil Reference Speed N/A 8600 rpm
6313-ZZ-C3 Bore Size d N/A 65 mm Features N/A Shields Outside Diameter D N/A 140.000 mm Outside Ring Width B N/A 33.000 mm Cr - Dynamic Load Rating N/A 92.6 kN C0r - Static Load Rating N/A 59.7 kN Grease Reference Speed N/A 6000 rpm Oil Reference Speed N/A 8600 rpm
6313-2RS-C3 Bore Size d N/A 65 mm Features N/A Contact Seals Outside Diameter D N/A 140.000 mm Outside Ring Width B N/A 33.000 mm Cr - Dynamic Load Rating N/A 92.6 kN C0r - Static Load Rating N/A 59.7 kN Grease Reference Speed N/A 6000 rpm Oil Reference Speed N/A 8600 rpm
6313-2RZ-C3 Bore Size d N/A 65 mm Features N/A Non-Contact Seals Outside Diameter D N/A 140.000 mm Outside Ring Width B N/A 33.000 mm Cr - Dynamic Load Rating N/A 92.6 kN C0r - Static Load Rating N/A 59.7 kN Grease Reference Speed N/A 6000 rpm Oil Reference Speed N/A 8600 rpm
6313-N-C3 Bore Size d N/A 65 mm Features N/A O.D. Groove Outside Diameter D N/A 140.000 mm Outside Ring Width B N/A 33.000 mm Cr - Dynamic Load Rating N/A 92.6 kN C0r - Static Load Rating N/A 59.7 kN Grease Reference Speed N/A 6000 rpm Oil Reference Speed N/A 8600 rpm
6313-NR-C3 Bore Size d N/A 65 mm Features N/A Snap Ring Outside Diameter D N/A 140.000 mm Outside Ring Width B N/A 33.000 mm Cr - Dynamic Load Rating N/A 92.6 kN C0r - Static Load Rating N/A 59.7 kN Grease Reference Speed N/A 6000 rpm Oil Reference Speed N/A 8600 rpm
6413-C3 Bore Size d N/A 65 mm Features N/A Open Outside Diameter D N/A 160.000 mm Outside Ring Width B N/A 37.000 mm Cr - Dynamic Load Rating N/A 118 kN C0r - Static Load Rating N/A 78.6 kN Grease Reference Speed N/A 5700 rpm Oil Reference Speed N/A 8200 rpm
6413-N-C3 Bore Size d N/A 65 mm Features N/A O.D. Groove Outside Diameter D N/A 160.000 mm Outside Ring Width B N/A 37.000 mm Cr - Dynamic Load Rating N/A 118 kN C0r - Static Load Rating N/A 78.6 kN Grease Reference Speed N/A 5700 rpm Oil Reference Speed N/A 8200 rpm
6413-NR-C3 Bore Size d N/A 65 mm Features N/A Snap Ring Outside Diameter D N/A 160.000 mm Outside Ring Width B N/A 37.000 mm Cr - Dynamic Load Rating N/A 118 kN C0r - Static Load Rating N/A 78.6 kN Grease Reference Speed N/A 5700 rpm Oil Reference Speed N/A 8200 rpm
6014-C3 Bore Size d N/A 70 mm Features N/A Open Outside Diameter D N/A 110.000 mm Outside Ring Width B N/A 20.000 mm Cr - Dynamic Load Rating N/A 38.6 kN C0r - Static Load Rating N/A 30.4 kN Grease Reference Speed N/A 6400 rpm Oil Reference Speed N/A 9300 rpm
6014-ZZ-C3 Bore Size d N/A 70 mm Features N/A Shields Outside Diameter D N/A 110.000 mm Outside Ring Width B N/A 20.000 mm Cr - Dynamic Load Rating N/A 38.6 kN C0r - Static Load Rating N/A 30.4 kN Grease Reference Speed N/A 6400 rpm Oil Reference Speed N/A 9300 rpm
6014-2RS-C3 Bore Size d N/A 70 mm Features N/A Contact Seals Outside Diameter D N/A 110.000 mm Outside Ring Width B N/A 20.000 mm Cr - Dynamic Load Rating N/A 38.6 kN C0r - Static Load Rating N/A 30.4 kN Grease Reference Speed N/A 6400 rpm Oil Reference Speed N/A 9300 rpm
6014-2RZ-C3 Bore Size d N/A 70 mm Features N/A Non-Contact Seals Outside Diameter D N/A 110.000 mm Outside Ring Width B N/A 20.000 mm Cr - Dynamic Load Rating N/A 38.6 kN C0r - Static Load Rating N/A 30.4 kN Grease Reference Speed N/A 6400 rpm Oil Reference Speed N/A 9300 rpm
6014-N-C3 Bore Size d N/A 70 mm Features N/A O.D. Groove Outside Diameter D N/A 110.000 mm Outside Ring Width B N/A 20.000 mm Cr - Dynamic Load Rating N/A 38.6 kN C0r - Static Load Rating N/A 30.4 kN Grease Reference Speed N/A 6400 rpm Oil Reference Speed N/A 9300 rpm
6014-NR-C3 Bore Size d N/A 70 mm Features N/A Snap Ring Outside Diameter D N/A 110.000 mm Outside Ring Width B N/A 20.000 mm Cr - Dynamic Load Rating N/A 38.6 kN C0r - Static Load Rating N/A 30.4 kN Grease Reference Speed N/A 6400 rpm Oil Reference Speed N/A 9300 rpm
6214-C3 Bore Size d N/A 70 mm Features N/A Open Outside Diameter D N/A 125.000 mm Outside Ring Width B N/A 24.000 mm Cr - Dynamic Load Rating N/A 60.8 kN C0r - Static Load Rating N/A 44 kN Grease Reference Speed N/A 5700 rpm Oil Reference Speed N/A 8300 rpm
6214-ZZ-C3 Bore Size d N/A 70 mm Features N/A Shields Outside Diameter D N/A 125.000 mm Outside Ring Width B N/A 24.000 mm Cr - Dynamic Load Rating N/A 60.8 kN C0r - Static Load Rating N/A 44 kN Grease Reference Speed N/A 5700 rpm Oil Reference Speed N/A 8300 rpm
6214-2RS-C3 Bore Size d N/A 70 mm Features N/A Contact Seals Outside Diameter D N/A 125.000 mm Outside Ring Width B N/A 24.000 mm Cr - Dynamic Load Rating N/A 60.8 kN C0r - Static Load Rating N/A 44 kN Grease Reference Speed N/A 5700 rpm Oil Reference Speed N/A 8300 rpm
6214-2RZ-C3 Bore Size d N/A 70 mm Features N/A Non-Contact Seals Outside Diameter D N/A 125.000 mm Outside Ring Width B N/A 24.000 mm Cr - Dynamic Load Rating N/A 60.8 kN C0r - Static Load Rating N/A 44 kN Grease Reference Speed N/A 5700 rpm Oil Reference Speed N/A 8300 rpm
6214-N-C3 Bore Size d N/A 70 mm Features N/A O.D. Groove Outside Diameter D N/A 125.000 mm Outside Ring Width B N/A 24.000 mm Cr - Dynamic Load Rating N/A 60.8 kN C0r - Static Load Rating N/A 44 kN Grease Reference Speed N/A 5700 rpm Oil Reference Speed N/A 8300 rpm
6214-NR-C3 Bore Size d N/A 70 mm Features N/A Snap Ring Outside Diameter D N/A 125.000 mm Outside Ring Width B N/A 24.000 mm Cr - Dynamic Load Rating N/A 60.8 kN C0r - Static Load Rating N/A 44 kN Grease Reference Speed N/A 5700 rpm Oil Reference Speed N/A 8300 rpm
6314-C3 Bore Size d N/A 70 mm Features N/A Open Outside Diameter D N/A 150.000 mm Outside Ring Width B N/A 35.000 mm Cr - Dynamic Load Rating N/A 104.1 kN C0r - Static Load Rating N/A 68 kN Grease Reference Speed N/A 5700 rpm Oil Reference Speed N/A 8200 rpm
6314-ZZ-C3 Bore Size d N/A 70 mm Features N/A Shields Outside Diameter D N/A 150.000 mm Outside Ring Width B N/A 35.000 mm Cr - Dynamic Load Rating N/A 104.1 kN C0r - Static Load Rating N/A 68 kN Grease Reference Speed N/A 5700 rpm Oil Reference Speed N/A 8200 rpm
6314-2RS-C3 Bore Size d N/A 70 mm Features N/A Contact Seals Outside Diameter D N/A 150.000 mm Outside Ring Width B N/A 35.000 mm Cr - Dynamic Load Rating N/A 104.1 kN C0r - Static Load Rating N/A 68 kN Grease Reference Speed N/A 5700 rpm Oil Reference Speed N/A 8200 rpm
6314-2RZ-C3 Bore Size d N/A 70 mm Features N/A Non-Contact Seals Outside Diameter D N/A 150.000 mm Outside Ring Width B N/A 35.000 mm Cr - Dynamic Load Rating N/A 104.1 kN C0r - Static Load Rating N/A 68 kN Grease Reference Speed N/A 5700 rpm Oil Reference Speed N/A 8200 rpm
6314-N-C3 Bore Size d N/A 70 mm Features N/A O.D. Groove Outside Diameter D N/A 150.000 mm Outside Ring Width B N/A 35.000 mm Cr - Dynamic Load Rating N/A 104.1 kN C0r - Static Load Rating N/A 68 kN Grease Reference Speed N/A 5700 rpm Oil Reference Speed N/A 8200 rpm
6314-NR-C3 Bore Size d N/A 70 mm Features N/A Snap Ring Outside Diameter D N/A 150.000 mm Outside Ring Width B N/A 35.000 mm Cr - Dynamic Load Rating N/A 104.1 kN C0r - Static Load Rating N/A 68 kN Grease Reference Speed N/A 5700 rpm Oil Reference Speed N/A 8200 rpm
6015-C3 Bore Size d N/A 75 mm Features N/A Open Outside Diameter D N/A 115.000 mm Outside Ring Width B N/A 20.000 mm Cr - Dynamic Load Rating N/A 40.1 kN C0r - Static Load Rating N/A 33.1 kN Grease Reference Speed N/A 6000 rpm Oil Reference Speed N/A 8700 rpm
6015-ZZ-C3 Bore Size d N/A 75 mm Features N/A Shields Outside Diameter D N/A 115.000 mm Outside Ring Width B N/A 20.000 mm Cr - Dynamic Load Rating N/A 40.1 kN C0r - Static Load Rating N/A 33.1 kN Grease Reference Speed N/A 6000 rpm Oil Reference Speed N/A 8700 rpm
6015-2RS-C3 Bore Size d N/A 75 mm Features N/A Contact Seals Outside Diameter D N/A 115.000 mm Outside Ring Width B N/A 20.000 mm Cr - Dynamic Load Rating N/A 40.1 kN C0r - Static Load Rating N/A 33.1 kN Grease Reference Speed N/A 6000 rpm Oil Reference Speed N/A 8700 rpm
6015-2RZ-C3 Bore Size d N/A 75 mm Features N/A Non-Contact Seals Outside Diameter D N/A 115.000 mm Outside Ring Width B N/A 20.000 mm Cr - Dynamic Load Rating N/A 40.1 kN C0r - Static Load Rating N/A 33.1 kN Grease Reference Speed N/A 6000 rpm Oil Reference Speed N/A 8700 rpm
6015-N-C3 Bore Size d N/A 75 mm Features N/A O.D. Groove Outside Diameter D N/A 115.000 mm Outside Ring Width B N/A 20.000 mm Cr - Dynamic Load Rating N/A 40.1 kN C0r - Static Load Rating N/A 33.1 kN Grease Reference Speed N/A 6000 rpm Oil Reference Speed N/A 8700 rpm
6015-NR-C3 Bore Size d N/A 75 mm Features N/A Snap Ring Outside Diameter D N/A 115.000 mm Outside Ring Width B N/A 20.000 mm Cr - Dynamic Load Rating N/A 40.1 kN C0r - Static Load Rating N/A 33.1 kN Grease Reference Speed N/A 6000 rpm Oil Reference Speed N/A 8700 rpm
6215-C3 Bore Size d N/A 75 mm Features N/A Open Outside Diameter D N/A 130.000 mm Outside Ring Width B N/A 25.000 mm Cr - Dynamic Load Rating N/A 66.1 kN C0r - Static Load Rating N/A 49.3 kN Grease Reference Speed N/A 5500 rpm Oil Reference Speed N/A 7900 rpm
6215-ZZ-C3 Bore Size d N/A 75 mm Features N/A Shields Outside Diameter D N/A 130.000 mm Outside Ring Width B N/A 25.000 mm Cr - Dynamic Load Rating N/A 66.1 kN C0r - Static Load Rating N/A 49.3 kN Grease Reference Speed N/A 5500 rpm Oil Reference Speed N/A 7900 rpm
6215-2RS-C3 Bore Size d N/A 75 mm Features N/A Contact Seals Outside Diameter D N/A 130.000 mm Outside Ring Width B N/A 25.000 mm Cr - Dynamic Load Rating N/A 66.1 kN C0r - Static Load Rating N/A 49.3 kN Grease Reference Speed N/A 5500 rpm Oil Reference Speed N/A 7900 rpm
6215-2RZ-C3 Bore Size d N/A 75 mm Features N/A Non-Contact Seals Outside Diameter D N/A 130.000 mm Outside Ring Width B N/A 25.000 mm Cr - Dynamic Load Rating N/A 66.1 kN C0r - Static Load Rating N/A 49.3 kN Grease Reference Speed N/A 5500 rpm Oil Reference Speed N/A 7900 rpm
6215-N-C3 Bore Size d N/A 75 mm Features N/A O.D. Groove Outside Diameter D N/A 130.000 mm Outside Ring Width B N/A 25.000 mm Cr - Dynamic Load Rating N/A 66.1 kN C0r - Static Load Rating N/A 49.3 kN Grease Reference Speed N/A 5500 rpm Oil Reference Speed N/A 7900 rpm
6215-NR-C3 Bore Size d N/A 75 mm Features N/A Snap Ring Outside Diameter D N/A 130.000 mm Outside Ring Width B N/A 25.000 mm Cr - Dynamic Load Rating N/A 66.1 kN C0r - Static Load Rating N/A 49.3 kN Grease Reference Speed N/A 5500 rpm Oil Reference Speed N/A 7900 rpm
6315-C3 Bore Size d N/A 75 mm Features N/A Open Outside Diameter D N/A 160.000 mm Outside Ring Width B N/A 37.000 mm Cr - Dynamic Load Rating N/A 113 kN C0r - Static Load Rating N/A 76.5 kN Grease Reference Speed N/A 5400 rpm Oil Reference Speed N/A 7800 rpm
6315-ZZ-C3 Bore Size d N/A 75 mm Features N/A Shields Outside Diameter D N/A 160.000 mm Outside Ring Width B N/A 37.000 mm Cr - Dynamic Load Rating N/A 113 kN C0r - Static Load Rating N/A 76.5 kN Grease Reference Speed N/A 5400 rpm Oil Reference Speed N/A 7800 rpm
6315-2RS-C3 Bore Size d N/A 75 mm Features N/A Contact Seals Outside Diameter D N/A 160.000 mm Outside Ring Width B N/A 37.000 mm Cr - Dynamic Load Rating N/A 113 kN C0r - Static Load Rating N/A 76.5 kN Grease Reference Speed N/A 5400 rpm Oil Reference Speed N/A 7800 rpm
6315-2RZ-C3 Bore Size d N/A 75 mm Features N/A Non-Contact Seals Outside Diameter D N/A 160.000 mm Outside Ring Width B N/A 37.000 mm Cr - Dynamic Load Rating N/A 113 kN C0r - Static Load Rating N/A 76.5 kN Grease Reference Speed N/A 5400 rpm Oil Reference Speed N/A 7800 rpm
6315-N-C3 Bore Size d N/A 75 mm Features N/A O.D. Groove Outside Diameter D N/A 160.000 mm Outside Ring Width B N/A 37.000 mm Cr - Dynamic Load Rating N/A 113 kN C0r - Static Load Rating N/A 76.5 kN Grease Reference Speed N/A 5400 rpm Oil Reference Speed N/A 7800 rpm
6315-NR-C3 Bore Size d N/A 75 mm Features N/A Snap Ring Outside Diameter D N/A 160.000 mm Outside Ring Width B N/A 37.000 mm Cr - Dynamic Load Rating N/A 113 kN C0r - Static Load Rating N/A 76.5 kN Grease Reference Speed N/A 5400 rpm Oil Reference Speed N/A 7800 rpm
6016-C3 Bore Size d N/A 80 mm Features N/A Open Outside Diameter D N/A 125.000 mm Outside Ring Width B N/A 22.000 mm Cr - Dynamic Load Rating N/A 47.5 kN C0r - Static Load Rating N/A 39.8 kN Grease Reference Speed N/A 5800 rpm Oil Reference Speed N/A 8400 rpm
6016-ZZ-C3 Bore Size d N/A 80 mm Features N/A Shields Outside Diameter D N/A 125.000 mm Outside Ring Width B N/A 22.000 mm Cr - Dynamic Load Rating N/A 47.5 kN C0r - Static Load Rating N/A 39.8 kN Grease Reference Speed N/A 5800 rpm Oil Reference Speed N/A 8400 rpm
6016-2RS-C3 Bore Size d N/A 80 mm Features N/A Contact Seals Outside Diameter D N/A 125.000 mm Outside Ring Width B N/A 22.000 mm Cr - Dynamic Load Rating N/A 47.5 kN C0r - Static Load Rating N/A 39.8 kN Grease Reference Speed N/A 5800 rpm Oil Reference Speed N/A 8400 rpm
6016-2RZ-C3 Bore Size d N/A 80 mm Features N/A Non-Contact Seals Outside Diameter D N/A 125.000 mm Outside Ring Width B N/A 22.000 mm Cr - Dynamic Load Rating N/A 47.5 kN C0r - Static Load Rating N/A 39.8 kN Grease Reference Speed N/A 5800 rpm Oil Reference Speed N/A 8400 rpm
6016-N-C3 Bore Size d N/A 80 mm Features N/A O.D. Groove Outside Diameter D N/A 125.000 mm Outside Ring Width B N/A 22.000 mm Cr - Dynamic Load Rating N/A 47.5 kN C0r - Static Load Rating N/A 39.8 kN Grease Reference Speed N/A 5800 rpm Oil Reference Speed N/A 8400 rpm
6016-NR-C3 Bore Size d N/A 80 mm Features N/A Snap Ring Outside Diameter D N/A 125.000 mm Outside Ring Width B N/A 22.000 mm Cr - Dynamic Load Rating N/A 47.5 kN C0r - Static Load Rating N/A 39.8 kN Grease Reference Speed N/A 5800 rpm Oil Reference Speed N/A 8400 rpm
6216-C3 Bore Size d N/A 80 mm Features N/A Open Outside Diameter D N/A 140.000 mm Outside Ring Width B N/A 26.000 mm Cr - Dynamic Load Rating N/A 72.7 kN C0r - Static Load Rating N/A 53 kN Grease Reference Speed N/A 5200 rpm Oil Reference Speed N/A 7500 rpm
6216-ZZ-C3 Bore Size d N/A 80 mm Features N/A Shields Outside Diameter D N/A 140.000 mm Outside Ring Width B N/A 26.000 mm Cr - Dynamic Load Rating N/A 72.7 kN C0r - Static Load Rating N/A 53 kN Grease Reference Speed N/A 5200 rpm Oil Reference Speed N/A 7500 rpm
6216-2RS-C3 Bore Size d N/A 80 mm Features N/A Contact Seals Outside Diameter D N/A 140.000 mm Outside Ring Width B N/A 26.000 mm Cr - Dynamic Load Rating N/A 72.7 kN C0r - Static Load Rating N/A 53 kN Grease Reference Speed N/A 5200 rpm Oil Reference Speed N/A 7500 rpm
6216-2RZ-C3 Bore Size d N/A 80 mm Features N/A Non-Contact Seals Outside Diameter D N/A 140.000 mm Outside Ring Width B N/A 26.000 mm Cr - Dynamic Load Rating N/A 72.7 kN C0r - Static Load Rating N/A 53 kN Grease Reference Speed N/A 5200 rpm Oil Reference Speed N/A 7500 rpm
6216-N-C3 Bore Size d N/A 80 mm Features N/A O.D. Groove Outside Diameter D N/A 140.000 mm Outside Ring Width B N/A 26.000 mm Cr - Dynamic Load Rating N/A 72.7 kN C0r - Static Load Rating N/A 53 kN Grease Reference Speed N/A 5200 rpm Oil Reference Speed N/A 7500 rpm
6216-NR-C3 Bore Size d N/A 80 mm Features N/A Snap Ring Outside Diameter D N/A 140.000 mm Outside Ring Width B N/A 26.000 mm Cr - Dynamic Load Rating N/A 72.7 kN C0r - Static Load Rating N/A 53 kN Grease Reference Speed N/A 5200 rpm Oil Reference Speed N/A 7500 rpm
6316-C3 Bore Size d N/A 80 mm Features N/A Open Outside Diameter D N/A 170.000 mm Outside Ring Width B N/A 39.000 mm Cr - Dynamic Load Rating N/A 123 kN C0r - Static Load Rating N/A 86.5 kN Grease Reference Speed N/A 5200 rpm Oil Reference Speed N/A 7500 rpm
6316-ZZ-C3 Bore Size d N/A 80 mm Features N/A Shields Outside Diameter D N/A 170.000 mm Outside Ring Width B N/A 39.000 mm Cr - Dynamic Load Rating N/A 123 kN C0r - Static Load Rating N/A 86.5 kN Grease Reference Speed N/A 5200 rpm Oil Reference Speed N/A 7500 rpm
6316-2RS-C3 Bore Size d N/A 80 mm Features N/A Contact Seals Outside Diameter D N/A 170.000 mm Outside Ring Width B N/A 39.000 mm Cr - Dynamic Load Rating N/A 123 kN C0r - Static Load Rating N/A 86.5 kN Grease Reference Speed N/A 5200 rpm Oil Reference Speed N/A 7500 rpm
6316-2RZ-C3 Bore Size d N/A 80 mm Features N/A Non-Contact Seals Outside Diameter D N/A 170.000 mm Outside Ring Width B N/A 39.000 mm Cr - Dynamic Load Rating N/A 123 kN C0r - Static Load Rating N/A 86.5 kN Grease Reference Speed N/A 5200 rpm Oil Reference Speed N/A 7500 rpm
6316-N-C3 Bore Size d N/A 80 mm Features N/A O.D. Groove Outside Diameter D N/A 170.000 mm Outside Ring Width B N/A 39.000 mm Cr - Dynamic Load Rating N/A 123 kN C0r - Static Load Rating N/A 86.5 kN Grease Reference Speed N/A 5200 rpm Oil Reference Speed N/A 7500 rpm
6316-NR-C3 Bore Size d N/A 80 mm Features N/A Snap Ring Outside Diameter D N/A 170.000 mm Outside Ring Width B N/A 39.000 mm Cr - Dynamic Load Rating N/A 123 kN C0r - Static Load Rating N/A 86.5 kN Grease Reference Speed N/A 5200 rpm Oil Reference Speed N/A 7500 rpm
6017-C3 Bore Size d N/A 85 mm Features N/A Open Outside Diameter D N/A 130.000 mm Outside Ring Width B N/A 22.000 mm Cr - Dynamic Load Rating N/A 52.8 kN C0r - Static Load Rating N/A 44.5 kN Grease Reference Speed N/A 5400 rpm Oil Reference Speed N/A 7900 rpm
6017-ZZ-C3 Bore Size d N/A 85 mm Features N/A Shields Outside Diameter D N/A 130.000 mm Outside Ring Width B N/A 22.000 mm Cr - Dynamic Load Rating N/A 52.8 kN C0r - Static Load Rating N/A 44.5 kN Grease Reference Speed N/A 5400 rpm Oil Reference Speed N/A 7900 rpm
6017-2RS-C3 Bore Size d N/A 85 mm Features N/A Contact Seals Outside Diameter D N/A 130.000 mm Outside Ring Width B N/A 22.000 mm Cr - Dynamic Load Rating N/A 52.8 kN C0r - Static Load Rating N/A 44.5 kN Grease Reference Speed N/A 5400 rpm Oil Reference Speed N/A 7900 rpm
6017-2RZ-C3 Bore Size d N/A 85 mm Features N/A Non-Contact Seals Outside Diameter D N/A 130.000 mm Outside Ring Width B N/A 22.000 mm Cr - Dynamic Load Rating N/A 52.8 kN C0r - Static Load Rating N/A 44.5 kN Grease Reference Speed N/A 5400 rpm Oil Reference Speed N/A 7900 rpm
6017-N-C3 Bore Size d N/A 85 mm Features N/A O.D. Groove Outside Diameter D N/A 130.000 mm Outside Ring Width B N/A 22.000 mm Cr - Dynamic Load Rating N/A 52.8 kN C0r - Static Load Rating N/A 44.5 kN Grease Reference Speed N/A 5400 rpm Oil Reference Speed N/A 7900 rpm
6017-NR-C3 Bore Size d N/A 85 mm Features N/A Snap Ring Outside Diameter D N/A 130.000 mm Outside Ring Width B N/A 22.000 mm Cr - Dynamic Load Rating N/A 52.8 kN C0r - Static Load Rating N/A 44.5 kN Grease Reference Speed N/A 5400 rpm Oil Reference Speed N/A 7900 rpm
6217-C3 Bore Size d N/A 85 mm Features N/A Open Outside Diameter D N/A 150.000 mm Outside Ring Width B N/A 28.000 mm Cr - Dynamic Load Rating N/A 83.2 kN C0r - Static Load Rating N/A 63.8 kN Grease Reference Speed N/A 5000 rpm Oil Reference Speed N/A 7200 rpm
6217-ZZ-C3 Bore Size d N/A 85 mm Features N/A Shields Outside Diameter D N/A 150.000 mm Outside Ring Width B N/A 28.000 mm Cr - Dynamic Load Rating N/A 83.2 kN C0r - Static Load Rating N/A 63.8 kN Grease Reference Speed N/A 5000 rpm Oil Reference Speed N/A 7200 rpm
6217-2RS-C3 Bore Size d N/A 85 mm Features N/A Contact Seals Outside Diameter D N/A 150.000 mm Outside Ring Width B N/A 28.000 mm Cr - Dynamic Load Rating N/A 83.2 kN C0r - Static Load Rating N/A 63.8 kN Grease Reference Speed N/A 5000 rpm Oil Reference Speed N/A 7200 rpm
6217-2RZ-C3 Bore Size d N/A 85 mm Features N/A Non-Contact Seals Outside Diameter D N/A 150.000 mm Outside Ring Width B N/A 28.000 mm Cr - Dynamic Load Rating N/A 83.2 kN C0r - Static Load Rating N/A 63.8 kN Grease Reference Speed N/A 5000 rpm Oil Reference Speed N/A 7200 rpm
6217-N-C3 Bore Size d N/A 85 mm Features N/A O.D. Groove Outside Diameter D N/A 150.000 mm Outside Ring Width B N/A 28.000 mm Cr - Dynamic Load Rating N/A 83.2 kN C0r - Static Load Rating N/A 63.8 kN Grease Reference Speed N/A 5000 rpm Oil Reference Speed N/A 7200 rpm
6217-NR-C3 Bore Size d N/A 85 mm Features N/A Snap Ring Outside Diameter D N/A 150.000 mm Outside Ring Width B N/A 28.000 mm Cr - Dynamic Load Rating N/A 83.2 kN C0r - Static Load Rating N/A 63.8 kN Grease Reference Speed N/A 5000 rpm Oil Reference Speed N/A 7200 rpm
6317-C3 Bore Size d N/A 85 mm Features N/A Open Outside Diameter D N/A 180.000 mm Outside Ring Width B N/A 41.000 mm Cr - Dynamic Load Rating N/A 132.7 kN C0r - Static Load Rating N/A 96.5 kN Grease Reference Speed N/A 5000 rpm Oil Reference Speed N/A 7200 rpm
6317-ZZ-C3 Bore Size d N/A 85 mm Features N/A Shields Outside Diameter D N/A 180.000 mm Outside Ring Width B N/A 41.000 mm Cr - Dynamic Load Rating N/A 132.7 kN C0r - Static Load Rating N/A 96.5 kN Grease Reference Speed N/A 5000 rpm Oil Reference Speed N/A 7200 rpm
6317-2RS-C3 Bore Size d N/A 85 mm Features N/A Contact Seals Outside Diameter D N/A 180.000 mm Outside Ring Width B N/A 41.000 mm Cr - Dynamic Load Rating N/A 132.7 kN C0r - Static Load Rating N/A 96.6 kN Grease Reference Speed N/A 5000 rpm Oil Reference Speed N/A 7200 rpm
6317-2RZ-C3 Bore Size d N/A 85 mm Features N/A Non-Contact Seals Outside Diameter D N/A 180.000 mm Outside Ring Width B N/A 41.000 mm Cr - Dynamic Load Rating N/A 132.7 kN C0r - Static Load Rating N/A 96.5 kN Grease Reference Speed N/A 5000 rpm Oil Reference Speed N/A 7200 rpm
6317-N-C3 Bore Size d N/A 85 mm Features N/A O.D. Groove Outside Diameter D N/A 180.000 mm Outside Ring Width B N/A 41.000 mm Cr - Dynamic Load Rating N/A 132.7 kN C0r - Static Load Rating N/A 96.5 kN Grease Reference Speed N/A 5000 rpm Oil Reference Speed N/A 7200 rpm
6317-NR-C3 Bore Size d N/A 85 mm Features N/A Snap Ring Outside Diameter D N/A 180.000 mm Outside Ring Width B N/A 41.000 mm Cr - Dynamic Load Rating N/A 132.7 kN C0r - Static Load Rating N/A 96.5 kN Grease Reference Speed N/A 5000 rpm Oil Reference Speed N/A 7200 rpm
6018-C3 Bore Size d N/A 90 mm Features N/A Open Outside Diameter D N/A 140.000 mm Outside Ring Width B N/A 24.000 mm Cr - Dynamic Load Rating N/A 58 kN C0r - Static Load Rating N/A 50.6 kN Grease Reference Speed N/A 5300 rpm Oil Reference Speed N/A 7600 rpm
6018-ZZ-C3 Bore Size d N/A 90 mm Features N/A Shields Outside Diameter D N/A 140.000 mm Outside Ring Width B N/A 24.000 mm Cr - Dynamic Load Rating N/A 58 kN C0r - Static Load Rating N/A 50.6 kN Grease Reference Speed N/A 5300 rpm Oil Reference Speed N/A 7600 rpm
6018-2RS-C3 Bore Size d N/A 90 mm Features N/A Contact Seals Outside Diameter D N/A 140.000 mm Outside Ring Width B N/A 24.000 mm Cr - Dynamic Load Rating N/A 58 kN C0r - Static Load Rating N/A 50.6 kN Grease Reference Speed N/A 5300 rpm Oil Reference Speed N/A 7600 rpm
6018-2RZ-C3 Bore Size d N/A 90 mm Features N/A Non-Contact Seals Outside Diameter D N/A 140.000 mm Outside Ring Width B N/A 24.000 mm Cr - Dynamic Load Rating N/A 58 kN C0r - Static Load Rating N/A 50.6 kN Grease Reference Speed N/A 5300 rpm Oil Reference Speed N/A 7600 rpm
6018-N-C3 Bore Size d N/A 90 mm Features N/A O.D. Groove Outside Diameter D N/A 140.000 mm Outside Ring Width B N/A 24.000 mm Cr - Dynamic Load Rating N/A 58 kN C0r - Static Load Rating N/A 50.6 kN Grease Reference Speed N/A 5300 rpm Oil Reference Speed N/A 7600 rpm
6018-NR-C3 Bore Size d N/A 90 mm Features N/A Snap Ring Outside Diameter D N/A 140.000 mm Outside Ring Width B N/A 24.000 mm Cr - Dynamic Load Rating N/A 58 kN C0r - Static Load Rating N/A 50.6 kN Grease Reference Speed N/A 5300 rpm Oil Reference Speed N/A 7600 rpm
6218-C3 Bore Size d N/A 90 mm Features N/A Open Outside Diameter D N/A 160.000 mm Outside Ring Width B N/A 30.000 mm Cr - Dynamic Load Rating N/A 96 kN C0r - Static Load Rating N/A 71.5 kN Grease Reference Speed N/A 4800 rpm Oil Reference Speed N/A 6900 rpm
6218-ZZ-C3 Bore Size d N/A 90 mm Features N/A Shields Outside Diameter D N/A 160.000 mm Outside Ring Width B N/A 30.000 mm Cr - Dynamic Load Rating N/A 96 kN C0r - Static Load Rating N/A 71.5 kN Grease Reference Speed N/A 4800 rpm Oil Reference Speed N/A 6900 rpm
6218-2RS-C3 Bore Size d N/A 90 mm Features N/A Contact Seals Outside Diameter D N/A 160.000 mm Outside Ring Width B N/A 30.000 mm Cr - Dynamic Load Rating N/A 96 kN C0r - Static Load Rating N/A 71.5 kN Grease Reference Speed N/A 4800 rpm Oil Reference Speed N/A 6900 rpm
6218-2RZ-C3 Bore Size d N/A 90 mm Features N/A Non-Contact Seals Outside Diameter D N/A 160.000 mm Outside Ring Width B N/A 30.000 mm Cr - Dynamic Load Rating N/A 96 kN C0r - Static Load Rating N/A 71.5 kN Grease Reference Speed N/A 4800 rpm Oil Reference Speed N/A 6900 rpm
6218-N-C3 Bore Size d N/A 90 mm Features N/A O.D. Groove Outside Diameter D N/A 160.000 mm Outside Ring Width B N/A 30.000 mm Cr - Dynamic Load Rating N/A 96 kN C0r - Static Load Rating N/A 71.5 kN Grease Reference Speed N/A 4800 rpm Oil Reference Speed N/A 6900 rpm
6218-NR-C3 Bore Size d N/A 90 mm Features N/A Snap Ring Outside Diameter D N/A 160.000 mm Outside Ring Width B N/A 30.000 mm Cr - Dynamic Load Rating N/A 96 kN C0r - Static Load Rating N/A 71.5 kN Grease Reference Speed N/A 4800 rpm Oil Reference Speed N/A 6900 rpm
6318-C3 Bore Size d N/A 90 mm Features N/A Open Outside Diameter D N/A 190.000 mm Outside Ring Width B N/A 43.000 mm Cr - Dynamic Load Rating N/A 142.6 kN C0r - Static Load Rating N/A 107.2 kN Grease Reference Speed N/A 4800 rpm Oil Reference Speed N/A 6900 rpm
6318-ZZ-C3 Bore Size d N/A 90 mm Features N/A Shields Outside Diameter D N/A 190.000 mm Outside Ring Width B N/A 43.000 mm Cr - Dynamic Load Rating N/A 142.6 kN C0r - Static Load Rating N/A 107.2 kN Grease Reference Speed N/A 4800 rpm Oil Reference Speed N/A 6900 rpm
6318-2RS-C3 Bore Size d N/A 90 mm Features N/A Contact Seals Outside Diameter D N/A 190.000 mm Outside Ring Width B N/A 43.000 mm Cr - Dynamic Load Rating N/A 142.6 kN C0r - Static Load Rating N/A 107.2 kN Grease Reference Speed N/A 4800 rpm Oil Reference Speed N/A 6900 rpm
6318-2RZ-C3 Bore Size d N/A 90 mm Features N/A Non-Contact Seals Outside Diameter D N/A 190.000 mm Outside Ring Width B N/A 43.000 mm Cr - Dynamic Load Rating N/A 142.6 kN C0r - Static Load Rating N/A 107.2 kN Grease Reference Speed N/A 4800 rpm Oil Reference Speed N/A 6900 rpm
6318-N-C3 Bore Size d N/A 90 mm Features N/A O.D. Groove Outside Diameter D N/A 190.000 mm Outside Ring Width B N/A 43.000 mm Cr - Dynamic Load Rating N/A 142.6 kN C0r - Static Load Rating N/A 107.2 kN Grease Reference Speed N/A 4800 rpm Oil Reference Speed N/A 6900 rpm
6318-NR-C3 Bore Size d N/A 90 mm Features N/A Snap Ring Outside Diameter D N/A 190.000 mm Outside Ring Width B N/A 43.000 mm Cr - Dynamic Load Rating N/A 142.6 kN C0r - Static Load Rating N/A 107.2 kN Grease Reference Speed N/A 4800 rpm Oil Reference Speed N/A 6900 rpm
6019-C3 Bore Size d N/A 95 mm Features N/A Open Outside Diameter D N/A 145.000 mm Outside Ring Width B N/A 24.000 mm Cr - Dynamic Load Rating N/A 60.5 kN C0r - Static Load Rating N/A 51 kN Grease Reference Speed N/A 5000 rpm Oil Reference Speed N/A 7300 rpm
6019-ZZ-C3 Bore Size d N/A 95 mm Features N/A Shields Outside Diameter D N/A 145.000 mm Outside Ring Width B N/A 24.000 mm Cr - Dynamic Load Rating N/A 60.5 kN C0r - Static Load Rating N/A 51 kN Grease Reference Speed N/A 5000 rpm Oil Reference Speed N/A 7300 rpm
6019-2RS-C3 Bore Size d N/A 95 mm Features N/A Contact Seals Outside Diameter D N/A 145.000 mm Outside Ring Width B N/A 24.000 mm Cr - Dynamic Load Rating N/A 60.5 kN C0r - Static Load Rating N/A 51 kN Grease Reference Speed N/A 5000 rpm Oil Reference Speed N/A 7300 rpm
6019-2RZ-C3 Bore Size d N/A 95 mm Features N/A Non-Contact Seals Outside Diameter D N/A 145.000 mm Outside Ring Width B N/A 24.000 mm Cr - Dynamic Load Rating N/A 60.5 kN C0r - Static Load Rating N/A 51 kN Grease Reference Speed N/A 5000 rpm Oil Reference Speed N/A 7300 rpm
6019-N-C3 Bore Size d N/A 95 mm Features N/A O.D. Groove Outside Diameter D N/A 145.000 mm Outside Ring Width B N/A 24.000 mm Cr - Dynamic Load Rating N/A 60.5 kN C0r - Static Load Rating N/A 51 kN Grease Reference Speed N/A 5000 rpm Oil Reference Speed N/A 7300 rpm
6019-NR-C3 Bore Size d N/A 95 mm Features N/A Snap Ring Outside Diameter D N/A 145.000 mm Outside Ring Width B N/A 24.000 mm Cr - Dynamic Load Rating N/A 60.5 kN C0r - Static Load Rating N/A 51 kN Grease Reference Speed N/A 5000 rpm Oil Reference Speed N/A 7300 rpm
6219-C3 Bore Size d N/A 95 mm Features N/A Open Outside Diameter D N/A 170.000 mm Outside Ring Width B N/A 32.000 mm Cr - Dynamic Load Rating N/A 109 kN C0r - Static Load Rating N/A 82 kN Grease Reference Speed N/A 4700 rpm Oil Reference Speed N/A 6700 rpm
6219-ZZ-C3 Bore Size d N/A 95 mm Features N/A Shields Outside Diameter D N/A 170.000 mm Outside Ring Width B N/A 32.000 mm Cr - Dynamic Load Rating N/A 109 kN C0r - Static Load Rating N/A 82 kN Grease Reference Speed N/A 4700 rpm Oil Reference Speed N/A 6700 rpm
6219-2RS-C3 Bore Size d N/A 95 mm Features N/A Contact Seals Outside Diameter D N/A 170.000 mm Outside Ring Width B N/A 32.000 mm Cr - Dynamic Load Rating N/A 109 kN C0r - Static Load Rating N/A 82 kN Grease Reference Speed N/A 4700 rpm Oil Reference Speed N/A 6700 rpm
6219-2RZ-C3 Bore Size d N/A 95 mm Features N/A Non-Contact Seals Outside Diameter D N/A 170.000 mm Outside Ring Width B N/A 32.000 mm Cr - Dynamic Load Rating N/A 109 kN C0r - Static Load Rating N/A 82 kN Grease Reference Speed N/A 4700 rpm Oil Reference Speed N/A 6700 rpm
6219-N-C3 Bore Size d N/A 95 mm Features N/A O.D. Groove Outside Diameter D N/A 170.000 mm Outside Ring Width B N/A 32.000 mm Cr - Dynamic Load Rating N/A 109 kN C0r - Static Load Rating N/A 82 kN Grease Reference Speed N/A 4700 rpm Oil Reference Speed N/A 6700 rpm
6219-NR-C3 Bore Size d N/A 95 mm Features N/A Snap Ring Outside Diameter D N/A 170.000 mm Outside Ring Width B N/A 32.000 mm Cr - Dynamic Load Rating N/A 109 kN C0r - Static Load Rating N/A 82 kN Grease Reference Speed N/A 4700 rpm Oil Reference Speed N/A 6700 rpm
6319-C3 Bore Size d N/A 95 mm Features N/A Open Outside Diameter D N/A 200.000 mm Outside Ring Width B N/A 45.000 mm Cr - Dynamic Load Rating N/A 153 kN C0r - Static Load Rating N/A 118 kN Grease Reference Speed N/A 4600 rpm Oil Reference Speed N/A 6600 rpm
6319-ZZ-C3 Bore Size d N/A 95 mm Features N/A Shields Outside Diameter D N/A 200.000 mm Outside Ring Width B N/A 45.000 mm Cr - Dynamic Load Rating N/A 153 kN C0r - Static Load Rating N/A 118 kN Grease Reference Speed N/A 4600 rpm Oil Reference Speed N/A 6600 rpm
6319-2RS-C3 Bore Size d N/A 95 mm Features N/A Contact Seals Outside Diameter D N/A 200.000 mm Outside Ring Width B N/A 45.000 mm Cr - Dynamic Load Rating N/A 153 kN C0r - Static Load Rating N/A 118 kN Grease Reference Speed N/A 4600 rpm Oil Reference Speed N/A 6600 rpm
6319-2RZ-C3 Bore Size d N/A 95 mm Features N/A Non-Contact Seals Outside Diameter D N/A 200.000 mm Outside Ring Width B N/A 45.000 mm Cr - Dynamic Load Rating N/A 153 kN C0r - Static Load Rating N/A 118 kN Grease Reference Speed N/A 4600 rpm Oil Reference Speed N/A 6600 rpm
6319-N-C3 Bore Size d N/A 95 mm Features N/A O.D. Groove Outside Diameter D N/A 200.000 mm Outside Ring Width B N/A 45.000 mm Cr - Dynamic Load Rating N/A 153 kN C0r - Static Load Rating N/A 118 kN Grease Reference Speed N/A 4600 rpm Oil Reference Speed N/A 6600 rpm
6319-NR-C3 Bore Size d N/A 95 mm Features N/A Snap Ring Outside Diameter D N/A 200.000 mm Outside Ring Width B N/A 45.000 mm Cr - Dynamic Load Rating N/A 153 kN C0r - Static Load Rating N/A 118 kN Grease Reference Speed N/A 4600 rpm Oil Reference Speed N/A 6600 rpm
6020-C3 Bore Size d N/A 100 mm Features N/A Open Outside Diameter D N/A 150.000 mm Outside Ring Width B N/A 24.000 mm Cr - Dynamic Load Rating N/A 60.2 kN C0r - Static Load Rating N/A 54.2 kN Grease Reference Speed N/A 4800 rpm Oil Reference Speed N/A 6900 rpm
6020-ZZ-C3 Bore Size d N/A 100 mm Features N/A Shields Outside Diameter D N/A 150.000 mm Outside Ring Width B N/A 24.000 mm Cr - Dynamic Load Rating N/A 60.2 kN C0r - Static Load Rating N/A 54.2 kN Grease Reference Speed N/A 4800 rpm Oil Reference Speed N/A 6900 rpm
6020-2RS-C3 Bore Size d N/A 100 mm Features N/A Contact Seals Outside Diameter D N/A 150.000 mm Outside Ring Width B N/A 24.000 mm Cr - Dynamic Load Rating N/A 60.2 kN C0r - Static Load Rating N/A 54.2 kN Grease Reference Speed N/A 4800 rpm Oil Reference Speed N/A 6900 rpm
6020-2RZ-C3 Bore Size d N/A 100 mm Features N/A Non-Contact Seals Outside Diameter D N/A 150.000 mm Outside Ring Width B N/A 24.000 mm Cr - Dynamic Load Rating N/A 60.2 kN C0r - Static Load Rating N/A 54.2 kN Grease Reference Speed N/A 4800 rpm Oil Reference Speed N/A 6900 rpm
6020-N-C3 Bore Size d N/A 100 mm Features N/A O.D. Groove Outside Diameter D N/A 150.000 mm Outside Ring Width B N/A 24.000 mm Cr - Dynamic Load Rating N/A 60.2 kN C0r - Static Load Rating N/A 54.2 kN Grease Reference Speed N/A 4800 rpm Oil Reference Speed N/A 6900 rpm
6020-NR-C3 Bore Size d N/A 100 mm Features N/A Snap Ring Outside Diameter D N/A 150.000 mm Outside Ring Width B N/A 24.000 mm Cr - Dynamic Load Rating N/A 60.2 kN C0r - Static Load Rating N/A 54.2 kN Grease Reference Speed N/A 4800 rpm Oil Reference Speed N/A 6900 rpm
6220-C3 Bore Size d N/A 100 mm Features N/A Open Outside Diameter D N/A 180.000 mm Outside Ring Width B N/A 34.000 mm Cr - Dynamic Load Rating N/A 122 kN C0r - Static Load Rating N/A 92.7 kN Grease Reference Speed N/A 4500 rpm Oil Reference Speed N/A 6500 rpm
6220-ZZ-C3 Bore Size d N/A 100 mm Features N/A Shields Outside Diameter D N/A 180.000 mm Outside Ring Width B N/A 34.000 mm Cr - Dynamic Load Rating N/A 122 kN C0r - Static Load Rating N/A 92.7 kN Grease Reference Speed N/A 4500 rpm Oil Reference Speed N/A 6500 rpm
6220-2RS-C3 Bore Size d N/A 100 mm Features N/A Contact Seals Outside Diameter D N/A 180.000 mm Outside Ring Width B N/A 34.000 mm Cr - Dynamic Load Rating N/A 122 kN C0r - Static Load Rating N/A 92.7 kN Grease Reference Speed N/A 4500 rpm Oil Reference Speed N/A 6500 rpm
6220-2RZ-C3 Bore Size d N/A 100 mm Features N/A Non-Contact Seals Outside Diameter D N/A 180.000 mm Outside Ring Width B N/A 34.000 mm Cr - Dynamic Load Rating N/A 122 kN C0r - Static Load Rating N/A 92.7 kN Grease Reference Speed N/A 4500 rpm Oil Reference Speed N/A 6500 rpm
6220-N-C3 Bore Size d N/A 100 mm Features N/A O.D. Groove Outside Diameter D N/A 180.000 mm Outside Ring Width B N/A 34.000 mm Cr - Dynamic Load Rating N/A 122 kN C0r - Static Load Rating N/A 92.7 kN Grease Reference Speed N/A 4500 rpm Oil Reference Speed N/A 6500 rpm
6220-NR-C3 Bore Size d N/A 100 mm Features N/A Snap Ring Outside Diameter D N/A 180.000 mm Outside Ring Width B N/A 34.000 mm Cr - Dynamic Load Rating N/A 122 kN C0r - Static Load Rating N/A 92.7 kN Grease Reference Speed N/A 4500 rpm Oil Reference Speed N/A 6500 rpm
6320-C3 Bore Size d N/A 100 mm Features N/A Open Outside Diameter D N/A 215.000 mm Outside Ring Width B N/A 47.000 mm Cr - Dynamic Load Rating N/A 173 kN C0r - Static Load Rating N/A 140.2 kN Grease Reference Speed N/A 4400 rpm Oil Reference Speed N/A 6200 rpm
6320-ZZ-C3 Bore Size d N/A 100 mm Features N/A Shields Outside Diameter D N/A 215.000 mm Outside Ring Width B N/A 47.000 mm Cr - Dynamic Load Rating N/A 173 kN C0r - Static Load Rating N/A 140.2 kN Grease Reference Speed N/A 4400 rpm Oil Reference Speed N/A 6200 rpm
6320-2RS-C3 Bore Size d N/A 100 mm Features N/A Contact Seals Outside Diameter D N/A 215.000 mm Outside Ring Width B N/A 47.000 mm Cr - Dynamic Load Rating N/A 173 kN C0r - Static Load Rating N/A 140.2 kN Grease Reference Speed N/A 4400 rpm Oil Reference Speed N/A 6200 rpm
6320-2RZ-C3 Bore Size d N/A 100 mm Features N/A Non-Contact Seals Outside Diameter D N/A 215.000 mm Outside Ring Width B N/A 47.000 mm Cr - Dynamic Load Rating N/A 173 kN C0r - Static Load Rating N/A 140.2 kN Grease Reference Speed N/A 4400 rpm Oil Reference Speed N/A 6200 rpm
6320-N-C3 Bore Size d N/A 100 mm Features N/A O.D. Groove Outside Diameter D N/A 215.000 mm Outside Ring Width B N/A 47.000 mm Cr - Dynamic Load Rating N/A 173 kN C0r - Static Load Rating N/A 140.2 kN Grease Reference Speed N/A 4400 rpm Oil Reference Speed N/A 6200 rpm
6320-NR-C3 Bore Size d N/A 100 mm Features N/A Snap Ring Outside Diameter D N/A 215.000 mm Outside Ring Width B N/A 47.000 mm Cr - Dynamic Load Rating N/A 173 kN C0r - Static Load Rating N/A 140.2 kN Grease Reference Speed N/A 4400 rpm Oil Reference Speed N/A 6200 rpm
6021-C3 Bore Size d N/A 105 mm Features N/A Open Outside Diameter D N/A 160.000 mm Outside Ring Width B N/A 26.000 mm Cr - Dynamic Load Rating N/A 69.2 kN C0r - Static Load Rating N/A 61.2 kN Grease Reference Speed N/A 4700 rpm Oil Reference Speed N/A 6700 rpm
6021-ZZ-C3 Bore Size d N/A 105 mm Features N/A Shields Outside Diameter D N/A 160.000 mm Outside Ring Width B N/A 26.000 mm Cr - Dynamic Load Rating N/A 69.2 kN C0r - Static Load Rating N/A 61.2 kN Grease Reference Speed N/A 4700 rpm Oil Reference Speed N/A 6700 rpm
6021-2RS-C3 Bore Size d N/A 105 mm Features N/A Contact Seals Outside Diameter D N/A 160.000 mm Outside Ring Width B N/A 26.000 mm Cr - Dynamic Load Rating N/A 69.2 kN C0r - Static Load Rating N/A 61.2 kN Grease Reference Speed N/A 4700 rpm Oil Reference Speed N/A 6700 rpm
6021-2RZ-C3 Bore Size d N/A 105 mm Features N/A Non-Contact Seals Outside Diameter D N/A 160.000 mm Outside Ring Width B N/A 26.000 mm Cr - Dynamic Load Rating N/A 69.2 kN C0r - Static Load Rating N/A 61.2 kN Grease Reference Speed N/A 4700 rpm Oil Reference Speed N/A 6700 rpm
6021-N-C3 Bore Size d N/A 105 mm Features N/A O.D. Groove Outside Diameter D N/A 160.000 mm Outside Ring Width B N/A 26.000 mm Cr - Dynamic Load Rating N/A 69.2 kN C0r - Static Load Rating N/A 61.2 kN Grease Reference Speed N/A 4700 rpm Oil Reference Speed N/A 6700 rpm
6021-NR-C3 Bore Size d N/A 105 mm Features N/A Snap Ring Outside Diameter D N/A 160.000 mm Outside Ring Width B N/A 26.000 mm Cr - Dynamic Load Rating N/A 69.2 kN C0r - Static Load Rating N/A 61.2 kN Grease Reference Speed N/A 4700 rpm Oil Reference Speed N/A 6700 rpm
6221-C3 Bore Size d N/A 105 mm Features N/A Open Outside Diameter D N/A 190.000 mm Outside Ring Width B N/A 36.000 mm Cr - Dynamic Load Rating N/A 133 kN C0r - Static Load Rating N/A 105 kN Grease Reference Speed N/A 4400 rpm Oil Reference Speed N/A 6300 rpm
6221-ZZ-C3 Bore Size d N/A 105 mm Features N/A Shields Outside Diameter D N/A 190.000 mm Outside Ring Width B N/A 36.000 mm Cr - Dynamic Load Rating N/A 133 kN C0r - Static Load Rating N/A 105 kN Grease Reference Speed N/A 4400 rpm Oil Reference Speed N/A 6300 rpm
6221-2RS-C3 Bore Size d N/A 105 mm Features N/A Contact Seals Outside Diameter D N/A 190.000 mm Outside Ring Width B N/A 36.000 mm Cr - Dynamic Load Rating N/A 133 kN C0r - Static Load Rating N/A 105 kN Grease Reference Speed N/A 4400 rpm Oil Reference Speed N/A 6300 rpm
6221-2RZ-C3 Bore Size d N/A 105 mm Features N/A Non-Contact Seals Outside Diameter D N/A 190.000 mm Outside Ring Width B N/A 36.000 mm Cr - Dynamic Load Rating N/A 133 kN C0r - Static Load Rating N/A 105 kN Grease Reference Speed N/A 4400 rpm Oil Reference Speed N/A 6300 rpm
6221-N-C3 Bore Size d N/A 105 mm Features N/A O.D. Groove Outside Diameter D N/A 190.000 mm Outside Ring Width B N/A 36.000 mm Cr - Dynamic Load Rating N/A 133 kN C0r - Static Load Rating N/A 105 kN Grease Reference Speed N/A 4400 rpm Oil Reference Speed N/A 6300 rpm
6221-NR-C3 Bore Size d N/A 105 mm Features N/A Snap Ring Outside Diameter D N/A 190.000 mm Outside Ring Width B N/A 36.000 mm Cr - Dynamic Load Rating N/A 133 kN C0r - Static Load Rating N/A 105 kN Grease Reference Speed N/A 4400 rpm Oil Reference Speed N/A 6300 rpm
6321-C3 Bore Size d N/A 105 mm Features N/A Open Outside Diameter D N/A 225.000 mm Outside Ring Width B N/A 49.000 mm Cr - Dynamic Load Rating N/A 183.7 kN C0r - Static Load Rating N/A 153.1 kN Grease Reference Speed N/A 4200 rpm Oil Reference Speed N/A 6000 rpm
6321-ZZ-C3 Bore Size d N/A 105 mm Features N/A Shields Outside Diameter D N/A 225.000 mm Outside Ring Width B N/A 49.000 mm Cr - Dynamic Load Rating N/A 183.7 kN C0r - Static Load Rating N/A 153.1 kN Grease Reference Speed N/A 4200 rpm Oil Reference Speed N/A 6000 rpm
6321-2RS-C3 Bore Size d N/A 105 mm Features N/A Contact Seals Outside Diameter D N/A 225.000 mm Outside Ring Width B N/A 49.000 mm Cr - Dynamic Load Rating N/A 183.7 kN C0r - Static Load Rating N/A 153.1 kN Grease Reference Speed N/A 4200 rpm Oil Reference Speed N/A 6000 rpm
6321-2RZ-C3 Bore Size d N/A 105 mm Features N/A Non-Contact Seals Outside Diameter D N/A 225.000 mm Outside Ring Width B N/A 49.000 mm Cr - Dynamic Load Rating N/A 183.7 kN C0r - Static Load Rating N/A 153.1 kN Grease Reference Speed N/A 4200 rpm Oil Reference Speed N/A 6000 rpm
6321-N-C3 Bore Size d N/A 105 mm Features N/A O.D. Groove Outside Diameter D N/A 225.000 mm Outside Ring Width B N/A 49.000 mm Cr - Dynamic Load Rating N/A 183.7 kN C0r - Static Load Rating N/A 153.1 kN Grease Reference Speed N/A 4200 rpm Oil Reference Speed N/A 6000 rpm
6321-NR-C3 Bore Size d N/A 105 mm Features N/A Snap Ring Outside Diameter D N/A 225.000 mm Outside Ring Width B N/A 49.000 mm Cr - Dynamic Load Rating N/A 183.7 kN C0r - Static Load Rating N/A 153.1 kN Grease Reference Speed N/A 4200 rpm Oil Reference Speed N/A 6000 rpm
6022-C3 Bore Size d N/A 110 mm Features N/A Open Outside Diameter D N/A 170.000 mm Outside Ring Width B N/A 28.000 mm Cr - Dynamic Load Rating N/A 82 kN C0r - Static Load Rating N/A 73 kN Grease Reference Speed N/A 4600 rpm Oil Reference Speed N/A 6600 rpm
6022-ZZ-C3 Bore Size d N/A 110 mm Features N/A Shields Outside Diameter D N/A 170.000 mm Outside Ring Width B N/A 28.000 mm Cr - Dynamic Load Rating N/A 82 kN C0r - Static Load Rating N/A 73 kN Grease Reference Speed N/A 4600 rpm Oil Reference Speed N/A 6600 rpm
6022-2RS-C3 Bore Size d N/A 110 mm Features N/A Contact Seals Outside Diameter D N/A 170.000 mm Outside Ring Width B N/A 28.000 mm Cr - Dynamic Load Rating N/A 82 kN C0r - Static Load Rating N/A 73 kN Grease Reference Speed N/A 7200 rpm Oil Reference Speed N/A 10000 rpm
6022-2RZ-C3 Bore Size d N/A 110 mm Features N/A Non-Contact Seals Outside Diameter D N/A 170.000 mm Outside Ring Width B N/A 28.000 mm Cr - Dynamic Load Rating N/A 82 kN C0r - Static Load Rating N/A 73 kN Grease Reference Speed N/A 4600 rpm Oil Reference Speed N/A 6600 rpm
6022-N-C3 Bore Size d N/A 110 mm Features N/A O.D. Groove Outside Diameter D N/A 170.000 mm Outside Ring Width B N/A 28.000 mm Cr - Dynamic Load Rating N/A 82 kN C0r - Static Load Rating N/A 73 kN Grease Reference Speed N/A 4600 rpm Oil Reference Speed N/A 6600 rpm
6022-NR-C3 Bore Size d N/A 110 mm Features N/A Snap Ring Outside Diameter D N/A 170.000 mm Outside Ring Width B N/A 28.000 mm Cr - Dynamic Load Rating N/A 82 kN C0r - Static Load Rating N/A 73 kN Grease Reference Speed N/A 4600 rpm Oil Reference Speed N/A 6600 rpm
6222-C3 Bore Size d N/A 110 mm Features N/A Open Outside Diameter D N/A 200.000 mm Outside Ring Width B N/A 38.000 mm Cr - Dynamic Load Rating N/A 144 kN C0r - Static Load Rating N/A 117 kN Grease Reference Speed N/A 4300 rpm Oil Reference Speed N/A 6100 rpm
6222-ZZ-C3 Bore Size d N/A 110 mm Features N/A Shields Outside Diameter D N/A 200.000 mm Outside Ring Width B N/A 38.000 mm Cr - Dynamic Load Rating N/A 144 kN C0r - Static Load Rating N/A 117 kN Grease Reference Speed N/A 4300 rpm Oil Reference Speed N/A 6100 rpm
6222-2RS-C3 Bore Size d N/A 110 mm Features N/A Contact Seals Outside Diameter D N/A 200.000 mm Outside Ring Width B N/A 38.000 mm Cr - Dynamic Load Rating N/A 144 kN C0r - Static Load Rating N/A 117 kN Grease Reference Speed N/A 4300 rpm Oil Reference Speed N/A 6100 rpm
6222-2RZ-C3 Bore Size d N/A 110 mm Features N/A Non-Contact Seals Outside Diameter D N/A 200.000 mm Outside Ring Width B N/A 38.000 mm Cr - Dynamic Load Rating N/A 144 kN C0r - Static Load Rating N/A 117 kN Grease Reference Speed N/A 4300 rpm Oil Reference Speed N/A 6100 rpm
6222-N-C3 Bore Size d N/A 110 mm Features N/A O.D. Groove Outside Diameter D N/A 200.000 mm Outside Ring Width B N/A 38.000 mm Cr - Dynamic Load Rating N/A 144 kN C0r - Static Load Rating N/A 117 kN Grease Reference Speed N/A 4300 rpm Oil Reference Speed N/A 6100 rpm
6222-NR-C3 Bore Size d N/A 110 mm Features N/A Snap Ring Outside Diameter D N/A 200.000 mm Outside Ring Width B N/A 38.000 mm Cr - Dynamic Load Rating N/A 144 kN C0r - Static Load Rating N/A 117 kN Grease Reference Speed N/A 4300 rpm Oil Reference Speed N/A 6100 rpm
6322-C3 Bore Size d N/A 110 mm Features N/A Open Outside Diameter D N/A 240.000 mm Outside Ring Width B N/A 50.000 mm Cr - Dynamic Load Rating N/A 205 kN C0r - Static Load Rating N/A 178.3 kN Grease Reference Speed N/A 3900 rpm Oil Reference Speed N/A 5500 rpm
6322-ZZ-C3 Bore Size d N/A 110 mm Features N/A Shields Outside Diameter D N/A 240.000 mm Outside Ring Width B N/A 50.000 mm Cr - Dynamic Load Rating N/A 205 kN C0r - Static Load Rating N/A 178.3 kN Grease Reference Speed N/A 3900 rpm Oil Reference Speed N/A 5500 rpm
6322-2RS-C3 Bore Size d N/A 110 mm Features N/A Contact Seals Outside Diameter D N/A 240.000 mm Outside Ring Width B N/A 50.000 mm Cr - Dynamic Load Rating N/A 205 kN C0r - Static Load Rating N/A 178.3 kN Grease Reference Speed N/A 3900 rpm Oil Reference Speed N/A 5500 rpm
6322-2RZ-C3 Bore Size d N/A 110 mm Features N/A Non-Contact Seals Outside Diameter D N/A 240.000 mm Outside Ring Width B N/A 50.000 mm Cr - Dynamic Load Rating N/A 205 kN C0r - Static Load Rating N/A 178.3 kN Grease Reference Speed N/A 3900 rpm Oil Reference Speed N/A 5500 rpm
6322-N-C3 Bore Size d N/A 110 mm Features N/A O.D. Groove Outside Diameter D N/A 240.000 mm Outside Ring Width B N/A 50.000 mm Cr - Dynamic Load Rating N/A 205 kN C0r - Static Load Rating N/A 178.3 kN Grease Reference Speed N/A 3900 rpm Oil Reference Speed N/A 5500 rpm
6322-NR-C3 Bore Size d N/A 110 mm Features N/A Snap Ring Outside Diameter D N/A 240.000 mm Outside Ring Width B N/A 50.000 mm Cr - Dynamic Load Rating N/A 205 kN C0r - Static Load Rating N/A 178.3 kN Grease Reference Speed N/A 3900 rpm Oil Reference Speed N/A 5500 rpm
6024-C3 Bore Size d N/A 120 mm Features N/A Open Outside Diameter D N/A 180.000 mm Outside Ring Width B N/A 28.000 mm Cr - Dynamic Load Rating N/A 88.1 kN C0r - Static Load Rating N/A 79.3 kN Grease Reference Speed N/A 4200 rpm Oil Reference Speed N/A 6100 rpm
6024-ZZ-C3 Bore Size d N/A 120 mm Features N/A Shields Outside Diameter D N/A 180.000 mm Outside Ring Width B N/A 28.000 mm Cr - Dynamic Load Rating N/A 88.1 kN C0r - Static Load Rating N/A 79.3 kN Grease Reference Speed N/A 4200 rpm Oil Reference Speed N/A 6100 rpm
6024-2RS-C3 Bore Size d N/A 120 mm Features N/A Contact Seals Outside Diameter D N/A 180.000 mm Outside Ring Width B N/A 28.000 mm Cr - Dynamic Load Rating N/A 88.1 kN C0r - Static Load Rating N/A 79.3 kN Grease Reference Speed N/A 4200 rpm Oil Reference Speed N/A 6100 rpm
6024-2RZ-C3 Bore Size d N/A 120 mm Features N/A Non-Contact Seals Outside Diameter D N/A 180.000 mm Outside Ring Width B N/A 28.000 mm Cr - Dynamic Load Rating N/A 88.1 kN C0r - Static Load Rating N/A 79.3 kN Grease Reference Speed N/A 4200 rpm Oil Reference Speed N/A 6100 rpm
6024-N-C3 Bore Size d N/A 120 mm Features N/A O.D. Groove Outside Diameter D N/A 180.000 mm Outside Ring Width B N/A 28.000 mm Cr - Dynamic Load Rating N/A 88.1 kN C0r - Static Load Rating N/A 79.3 kN Grease Reference Speed N/A 4200 rpm Oil Reference Speed N/A 6100 rpm
6024-NR-C3 Bore Size d N/A 120 mm Features N/A Snap Ring Outside Diameter D N/A 180.000 mm Outside Ring Width B N/A 28.000 mm Cr - Dynamic Load Rating N/A 88.1 kN C0r - Static Load Rating N/A 79.3 kN Grease Reference Speed N/A 4200 rpm Oil Reference Speed N/A 6100 rpm
6224-C3 Bore Size d N/A 120 mm Features N/A Open Outside Diameter D N/A 215.000 mm Outside Ring Width B N/A 40.000 mm Cr - Dynamic Load Rating N/A 155.3 kN C0r - Static Load Rating N/A 131.1 kN Grease Reference Speed N/A 4000 rpm Oil Reference Speed N/A 5700 rpm
6224-ZZ-C3 Bore Size d N/A 120 mm Features N/A Shields Outside Diameter D N/A 215.000 mm Outside Ring Width B N/A 40.000 mm Cr - Dynamic Load Rating N/A 155.3 kN C0r - Static Load Rating N/A 131.1 kN Grease Reference Speed N/A 4000 rpm Oil Reference Speed N/A 5700 rpm
6224-2RS-C3 Bore Size d N/A 120 mm Features N/A Contact Seals Outside Diameter D N/A 215.000 mm Outside Ring Width B N/A 40.000 mm Cr - Dynamic Load Rating N/A 155.3 kN C0r - Static Load Rating N/A 131.1 kN Grease Reference Speed N/A 4000 rpm Oil Reference Speed N/A 5700 rpm
6224-2RZ-C3 Bore Size d N/A 120 mm Features N/A Non-Contact Seals Outside Diameter D N/A 215.000 mm Outside Ring Width B N/A 40.000 mm Cr - Dynamic Load Rating N/A 155.3 kN C0r - Static Load Rating N/A 131.1 kN Grease Reference Speed N/A 4000 rpm Oil Reference Speed N/A 5700 rpm
6224-N-C3 Bore Size d N/A 120 mm Features N/A O.D. Groove Outside Diameter D N/A 215.000 mm Outside Ring Width B N/A 40.000 mm Cr - Dynamic Load Rating N/A 155.3 kN C0r - Static Load Rating N/A 131.1 kN Grease Reference Speed N/A 4000 rpm Oil Reference Speed N/A 5700 rpm
6224-NR-C3 Bore Size d N/A 120 mm Features N/A Snap Ring Outside Diameter D N/A 215.000 mm Outside Ring Width B N/A 40.000 mm Cr - Dynamic Load Rating N/A 155.3 kN C0r - Static Load Rating N/A 131.1 kN Grease Reference Speed N/A 4000 rpm Oil Reference Speed N/A 5700 rpm
6026-C3 Bore Size d N/A 130 mm Features N/A Open Outside Diameter D N/A 200.000 mm Outside Ring Width B N/A 33.000 mm Cr - Dynamic Load Rating N/A 105 kN C0r - Static Load Rating N/A 96.8 kN Grease Reference Speed N/A 4100 rpm Oil Reference Speed N/A 5900 rpm
6026-ZZ-C3 Bore Size d N/A 130 mm Features N/A Shields Outside Diameter D N/A 200.000 mm Outside Ring Width B N/A 33.000 mm Cr - Dynamic Load Rating N/A 105 kN C0r - Static Load Rating N/A 96.8 kN Grease Reference Speed N/A 4100 rpm Oil Reference Speed N/A 5900 rpm
6026-2RS-C3 Bore Size d N/A 130 mm Features N/A Contact Seals Outside Diameter D N/A 200.000 mm Outside Ring Width B N/A 33.000 mm Cr - Dynamic Load Rating N/A 105 kN C0r - Static Load Rating N/A 96.8 kN Grease Reference Speed N/A 4100 rpm Oil Reference Speed N/A 5900 rpm
6026-2RZ-C3 Bore Size d N/A 130 mm Features N/A Non-Contact Seals Outside Diameter D N/A 200.000 mm Outside Ring Width B N/A 33.000 mm Cr - Dynamic Load Rating N/A 105 kN C0r - Static Load Rating N/A 96.8 kN Grease Reference Speed N/A 4100 rpm Oil Reference Speed N/A 5900 rpm
6026-N-C3 Bore Size d N/A 130 mm Features N/A O.D. Groove Outside Diameter D N/A 200.000 mm Outside Ring Width B N/A 33.000 mm Cr - Dynamic Load Rating N/A 105 kN C0r - Static Load Rating N/A 96.8 kN Grease Reference Speed N/A 4100 rpm Oil Reference Speed N/A 5900 rpm
6026-NR-C3 Bore Size d N/A 130 mm Features N/A Snap Ring Outside Diameter D N/A 200.000 mm Outside Ring Width B N/A 33.000 mm Cr - Dynamic Load Rating N/A 105 kN C0r - Static Load Rating N/A 96.8 kN Grease Reference Speed N/A 4100 rpm Oil Reference Speed N/A 5900 rpm
6226-C3 Bore Size d N/A 130 mm Features N/A Open Outside Diameter D N/A 230.000 mm Outside Ring Width B N/A 40.000 mm Cr - Dynamic Load Rating N/A 165 kN C0r - Static Load Rating N/A 148 kN Grease Reference Speed N/A 3700 rpm Oil Reference Speed N/A 5200 rpm
6226-ZZ-C3 Bore Size d N/A 130 mm Features N/A Shields Outside Diameter D N/A 230.000 mm Outside Ring Width B N/A 40.000 mm Cr - Dynamic Load Rating N/A 165 kN C0r - Static Load Rating N/A 148 kN Grease Reference Speed N/A 3700 rpm Oil Reference Speed N/A 5200 rpm
6226-2RS-C3 Bore Size d N/A 130 mm Features N/A Contact Seals Outside Diameter D N/A 230.000 mm Outside Ring Width B N/A 40.000 mm Cr - Dynamic Load Rating N/A 165 kN C0r - Static Load Rating N/A 148 kN Grease Reference Speed N/A 3700 rpm Oil Reference Speed N/A 5200 rpm
6226-2RZ-C3 Bore Size d N/A 130 mm Features N/A Non-Contact Seals Outside Diameter D N/A 230.000 mm Outside Ring Width B N/A 40.000 mm Cr - Dynamic Load Rating N/A 165 kN C0r - Static Load Rating N/A 148 kN Grease Reference Speed N/A 3700 rpm Oil Reference Speed N/A 5200 rpm
6226-N-C3 Bore Size d N/A 130 mm Features N/A O.D. Groove Outside Diameter D N/A 230.000 mm Outside Ring Width B N/A 40.000 mm Cr - Dynamic Load Rating N/A 165 kN C0r - Static Load Rating N/A 148 kN Grease Reference Speed N/A 3700 rpm Oil Reference Speed N/A 5200 rpm
6226-NR-C3 Bore Size d N/A 130 mm Features N/A Snap Ring Outside Diameter D N/A 230.000 mm Outside Ring Width B N/A 40.000 mm Cr - Dynamic Load Rating N/A 165 kN C0r - Static Load Rating N/A 148 kN Grease Reference Speed N/A 3700 rpm Oil Reference Speed N/A 5200 rpm
6028-C3 Bore Size d N/A 140 mm Features N/A Open Outside Diameter D N/A 210.000 mm Outside Ring Width B N/A 33.000 mm Cr - Dynamic Load Rating N/A 110 kN C0r - Static Load Rating N/A 101.8 kN Grease Reference Speed N/A 3800 rpm Oil Reference Speed N/A 5600 rpm
6028-ZZ-C3 Bore Size d N/A 140 mm Features N/A Shields Outside Diameter D N/A 210.000 mm Outside Ring Width B N/A 33.000 mm Cr - Dynamic Load Rating N/A 110 kN C0r - Static Load Rating N/A 101.8 kN Grease Reference Speed N/A 3800 rpm Oil Reference Speed N/A 5600 rpm
6028-2RS-C3 Bore Size d N/A 140 mm Features N/A Contact Seals Outside Diameter D N/A 210.000 mm Outside Ring Width B N/A 33.000 mm Cr - Dynamic Load Rating N/A 110 kN C0r - Static Load Rating N/A 101.8 kN Grease Reference Speed N/A 3800 rpm Oil Reference Speed N/A 5600 rpm
6028-2RZ-C3 Bore Size d N/A 140 mm Features N/A Non-Contact Seals Outside Diameter D N/A 210.000 mm Outside Ring Width B N/A 33.000 mm Cr - Dynamic Load Rating N/A 110 kN C0r - Static Load Rating N/A 101.8 kN Grease Reference Speed N/A 3800 rpm Oil Reference Speed N/A 5600 rpm
6028-N-C3 Bore Size d N/A 140 mm Features N/A O.D. Groove Outside Diameter D N/A 210.000 mm Outside Ring Width B N/A 33.000 mm Cr - Dynamic Load Rating N/A 110 kN C0r - Static Load Rating N/A 101.8 kN Grease Reference Speed N/A 3800 rpm Oil Reference Speed N/A 5600 rpm
6028-NR-C3 Bore Size d N/A 140 mm Features N/A Snap Ring Outside Diameter D N/A 210.000 mm Outside Ring Width B N/A 33.000 mm Cr - Dynamic Load Rating N/A 110 kN C0r - Static Load Rating N/A 101.8 kN Grease Reference Speed N/A 3800 rpm Oil Reference Speed N/A 5600 rpm
6228-C3 Bore Size d N/A 140 mm Features N/A Open Outside Diameter D N/A 250.000 mm Outside Ring Width B N/A 42.000 mm Cr - Dynamic Load Rating N/A 166 kN C0r - Static Load Rating N/A 150 kN Grease Reference Speed N/A 3400 rpm Oil Reference Speed N/A 4900 rpm
6228-ZZ-C3 Bore Size d N/A 140 mm Features N/A Shields Outside Diameter D N/A 250.000 mm Outside Ring Width B N/A 42.000 mm Cr - Dynamic Load Rating N/A 166 kN C0r - Static Load Rating N/A 150 kN Grease Reference Speed N/A 3400 rpm Oil Reference Speed N/A 4900 rpm
6228-2RS-C3 Bore Size d N/A 140 mm Features N/A Contact Seals Outside Diameter D N/A 250.000 mm Outside Ring Width B N/A 42.000 mm Cr - Dynamic Load Rating N/A 166 kN C0r - Static Load Rating N/A 150 kN Grease Reference Speed N/A 3400 rpm Oil Reference Speed N/A 4900 rpm
6228-2RZ-C3 Bore Size d N/A 140 mm Features N/A Non-Contact Seals Outside Diameter D N/A 250.000 mm Outside Ring Width B N/A 42.000 mm Cr - Dynamic Load Rating N/A 166 kN C0r - Static Load Rating N/A 150 kN Grease Reference Speed N/A 3400 rpm Oil Reference Speed N/A 4900 rpm
6228-N-C3 Bore Size d N/A 140 mm Features N/A O.D. Groove Outside Diameter D N/A 250.000 mm Outside Ring Width B N/A 42.000 mm Cr - Dynamic Load Rating N/A 166 kN C0r - Static Load Rating N/A 150 kN Grease Reference Speed N/A 3400 rpm Oil Reference Speed N/A 4900 rpm
6228-NR-C3 Bore Size d N/A 140 mm Features N/A Snap Ring Outside Diameter D N/A 250.000 mm Outside Ring Width B N/A 42.000 mm Cr - Dynamic Load Rating N/A 166 kN C0r - Static Load Rating N/A 150 kN Grease Reference Speed N/A 3400 rpm Oil Reference Speed N/A 4900 rpm
6030-C3 Bore Size d N/A 150 mm Features N/A Open Outside Diameter D N/A 225.000 mm Outside Ring Width B N/A 35.000 mm Cr - Dynamic Load Rating N/A 131.7 kN C0r - Static Load Rating N/A 124.5 kN Grease Reference Speed N/A 3600 rpm Oil Reference Speed N/A 5200 rpm
6030-ZZ-C3 Bore Size d N/A 150 mm Features N/A Shields Outside Diameter D N/A 225.000 mm Outside Ring Width B N/A 35.000 mm Cr - Dynamic Load Rating N/A 131.7 kN C0r - Static Load Rating N/A 124.5 kN Grease Reference Speed N/A 3600 rpm Oil Reference Speed N/A 5200 rpm
6030-2RS-C3 Bore Size d N/A 150 mm Features N/A Contact Seals Outside Diameter D N/A 225.000 mm Outside Ring Width B N/A 35.000 mm Cr - Dynamic Load Rating N/A 131.7 kN C0r - Static Load Rating N/A 124.5 kN Grease Reference Speed N/A 3600 rpm Oil Reference Speed N/A 5200 rpm
6030-2RZ-C3 Bore Size d N/A 150 mm Features N/A Non-Contact Seals Outside Diameter D N/A 225.000 mm Outside Ring Width B N/A 35.000 mm Cr - Dynamic Load Rating N/A 131.7 kN C0r - Static Load Rating N/A 124.5 kN Grease Reference Speed N/A 3600 rpm Oil Reference Speed N/A 5200 rpm
6030-N-C3 Bore Size d N/A 150 mm Features N/A O.D. Groove Outside Diameter D N/A 225.000 mm Outside Ring Width B N/A 35.000 mm Cr - Dynamic Load Rating N/A 131.7 kN C0r - Static Load Rating N/A 124.5 kN Grease Reference Speed N/A 3600 rpm Oil Reference Speed N/A 5200 rpm
6030-NR-C3 Bore Size d N/A 150 mm Features N/A Snap Ring Outside Diameter D N/A 225.000 mm Outside Ring Width B N/A 35.000 mm Cr - Dynamic Load Rating N/A 131.7 kN C0r - Static Load Rating N/A 124.5 kN Grease Reference Speed N/A 3600 rpm Oil Reference Speed N/A 5200 rpm
6032-C3 Bore Size d N/A 160 mm Features N/A Open Outside Diameter D N/A 240.000 mm Outside Ring Width B N/A 38.000 mm Cr - Dynamic Load Rating N/A 136.6 kN C0r - Static Load Rating N/A 135.4 kN Grease Reference Speed N/A 3500 rpm Oil Reference Speed N/A 5100 rpm
6032-ZZ-C3 Bore Size d N/A 160 mm Features N/A Shields Outside Diameter D N/A 240.000 mm Outside Ring Width B N/A 38.000 mm Cr - Dynamic Load Rating N/A 136.6 kN C0r - Static Load Rating N/A 135.4 kN Grease Reference Speed N/A 3500 rpm Oil Reference Speed N/A 5100 rpm
6032-2RS-C3 Bore Size d N/A 160 mm Features N/A Contact Seals Outside Diameter D N/A 240.000 mm Outside Ring Width B N/A 38.000 mm Cr - Dynamic Load Rating N/A 136.6 kN C0r - Static Load Rating N/A 135.4 kN Grease Reference Speed N/A 3500 rpm Oil Reference Speed N/A 5100 rpm
6032-2RZ-C3 Bore Size d N/A 160 mm Features N/A Non-Contact Seals Outside Diameter D N/A 240.000 mm Outside Ring Width B N/A 38.000 mm Cr - Dynamic Load Rating N/A 136.6 kN C0r - Static Load Rating N/A 135.4 kN Grease Reference Speed N/A 3500 rpm Oil Reference Speed N/A 5100 rpm
6000-2RS-NR Bore Size d N/A 10 mm Features N/A Contact Seals With Snap Ring Outside Diameter D N/A 26.000 mm Outside Ring Width B N/A 8.000 mm Cr - Dynamic Load Rating N/A 4.6 kN C0r - Static Load Rating N/A 2 kN Grease Reference Speed N/A 26000 rpm Oil Reference Speed N/A 38000 rpm
6000-2RZ-NR-C3 Bore Size d N/A 10 mm Features N/A Non-Contact Seals With Snap Ring Outside Diameter D N/A 26.000 mm Outside Ring Width B N/A 8.000 mm Cr - Dynamic Load Rating N/A 4.6 kN C0r - Static Load Rating N/A 2 kN Grease Reference Speed N/A 26000 rpm Oil Reference Speed N/A 38000 rpm
6000-RS Bore Size d N/A 10 mm Features N/A One Contact Seal Outside Diameter D N/A 26.000 mm Outside Ring Width B N/A 8.000 mm Cr - Dynamic Load Rating N/A 4.6 kN C0r - Static Load Rating N/A 2 kN Grease Reference Speed N/A 26000 rpm Oil Reference Speed N/A 38000 rpm
6000-RS-C3 Bore Size d N/A 10 mm Features N/A One Contact Seal Outside Diameter D N/A 26.000 mm Outside Ring Width B N/A 8.000 mm Cr - Dynamic Load Rating N/A 4.6 kN C0r - Static Load Rating N/A 2 kN Grease Reference Speed N/A 26000 rpm Oil Reference Speed N/A 38000 rpm
6000-Z Bore Size d N/A 10 mm Features N/A One Shield Outside Diameter D N/A 26.000 mm Outside Ring Width B N/A 8.000 mm Cr - Dynamic Load Rating N/A 4.6 kN C0r - Static Load Rating N/A 2 kN Grease Reference Speed N/A 26000 rpm Oil Reference Speed N/A 38000 rpm
6000-Z-C3 Bore Size d N/A 10 mm Features N/A One Shield Outside Diameter D N/A 26.000 mm Outside Ring Width B N/A 8.000 mm Cr - Dynamic Load Rating N/A 4.6 kN C0r - Static Load Rating N/A 2 kN Grease Reference Speed N/A 26000 rpm Oil Reference Speed N/A 38000 rpm
6000-ZZ-NR Bore Size d N/A 10 mm Features N/A Shields With Snap Ring Outside Diameter D N/A 26.000 mm Outside Ring Width B N/A 8.000 mm Cr - Dynamic Load Rating N/A 4.6 kN C0r - Static Load Rating N/A 2 kN Grease Reference Speed N/A 26000 rpm Oil Reference Speed N/A 38000 rpm
6000-ZZ-NR-C3 Bore Size d N/A 10 mm Features N/A Shields With Snap Ring Outside Diameter D N/A 26.000 mm Outside Ring Width B N/A 8.000 mm Cr - Dynamic Load Rating N/A 4.6 kN C0r - Static Load Rating N/A 2 kN Grease Reference Speed N/A 26000 rpm Oil Reference Speed N/A 38000 rpm
6001-2RS-NR Bore Size d N/A 12 mm Features N/A Contact Seals With Snap Ring Outside Diameter D N/A 28.0000 mm Outside Ring Width B N/A 8.000 mm Cr - Dynamic Load Rating N/A 5.1 kN C0r - Static Load Rating N/A 2.4 kN Grease Reference Speed N/A 23000 rpm Oil Reference Speed N/A 33000 rpm
6001-RS Bore Size d N/A 12 mm Features N/A One Contact Seal Outside Diameter D N/A 28.0000 mm Outside Ring Width B N/A 8.000 mm Cr - Dynamic Load Rating N/A 5.1 kN C0r - Static Load Rating N/A 2.4 kN Grease Reference Speed N/A 23000 rpm Oil Reference Speed N/A 33000 rpm
6001-RS-C3 Bore Size d N/A 12 mm Features N/A One Contact Seal Outside Diameter D N/A 28.0000 mm Outside Ring Width B N/A 8.000 mm Cr - Dynamic Load Rating N/A 5.1 kN C0r - Static Load Rating N/A 2.4 kN Grease Reference Speed N/A 23000 rpm Oil Reference Speed N/A 33000 rpm
6001-Z Bore Size d N/A 12 mm Features N/A One Shield Outside Diameter D N/A 28.0000 mm Outside Ring Width B N/A 8.000 mm Cr - Dynamic Load Rating N/A 5.1 kN C0r - Static Load Rating N/A 2.4 kN Grease Reference Speed N/A 23000 rpm Oil Reference Speed N/A 33000 rpm
6001-Z-C3 Bore Size d N/A 12 mm Features N/A One Shield Outside Diameter D N/A 28.0000 mm Outside Ring Width B N/A 8.000 mm Cr - Dynamic Load Rating N/A 5.1 kN C0r - Static Load Rating N/A 2.4 kN Grease Reference Speed N/A 23000 rpm Oil Reference Speed N/A 33000 rpm
6001-ZZ-NR Bore Size d N/A 12 mm Features N/A Shields With Snap Ring Outside Diameter D N/A 28.0000 mm Outside Ring Width B N/A 8.000 mm Cr - Dynamic Load Rating N/A 5.1 kN C0r - Static Load Rating N/A 2.4 kN Grease Reference Speed N/A 23000 rpm Oil Reference Speed N/A 33000 rpm
6002-2RS-NR Bore Size d N/A 15 mm Features N/A Contact Seals With Snap Ring Outside Diameter D N/A 32.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 5.6 kN C0r - Static Load Rating N/A 2.8 kN Grease Reference Speed N/A 20000 rpm Oil Reference Speed N/A 30000 rpm
6002-RS Bore Size d N/A 15 mm Features N/A One Contact Seal Outside Diameter D N/A 32.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 5.6 kN C0r - Static Load Rating N/A 2.8 kN Grease Reference Speed N/A 20000 rpm Oil Reference Speed N/A 30000 rpm
6002-RS-C3 Bore Size d N/A 15 mm Features N/A One Contact Seal Outside Diameter D N/A 32.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 5.6 kN C0r - Static Load Rating N/A 2.8 kN Grease Reference Speed N/A 20000 rpm Oil Reference Speed N/A 30000 rpm
6002-Z Bore Size d N/A 15 mm Features N/A One Shield Outside Diameter D N/A 32.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 5.6 kN C0r - Static Load Rating N/A 2.8 kN Grease Reference Speed N/A 20000 rpm Oil Reference Speed N/A 30000 rpm
6002-Z-C3 Bore Size d N/A 15 mm Features N/A One Shield Outside Diameter D N/A 32.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 5.6 kN C0r - Static Load Rating N/A 2.8 kN Grease Reference Speed N/A 20000 rpm Oil Reference Speed N/A 30000 rpm
6002-ZZ-NR Bore Size d N/A 15 mm Features N/A Shields With Snap Ring Outside Diameter D N/A 32.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 5.6 kN C0r - Static Load Rating N/A 2.8 kN Grease Reference Speed N/A 20000 rpm Oil Reference Speed N/A 30000 rpm
6003-2RS-NR Bore Size d N/A 17 mm Features N/A Contact Seals With Snap Ring Outside Diameter D N/A 35.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 6 kN C0r - Static Load Rating N/A 3.3 kN Grease Reference Speed N/A 19000 rpm Oil Reference Speed N/A 28000 rpm
6003-RS Bore Size d N/A 17 mm Features N/A One Contact Seal Outside Diameter D N/A 35.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 6 kN C0r - Static Load Rating N/A 3.3 kN Grease Reference Speed N/A 19000 rpm Oil Reference Speed N/A 28000 rpm
6003-RS-C3 Bore Size d N/A 17 mm Features N/A One Contact Seal Outside Diameter D N/A 35.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 6 kN C0r - Static Load Rating N/A 3.3 kN Grease Reference Speed N/A 19000 rpm Oil Reference Speed N/A 28000 rpm
6003-Z Bore Size d N/A 17 mm Features N/A One Shield Outside Diameter D N/A 35.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 6 kN C0r - Static Load Rating N/A 3.3 kN Grease Reference Speed N/A 19000 rpm Oil Reference Speed N/A 28000 rpm
6003-Z-C3 Bore Size d N/A 17 mm Features N/A One Shield Outside Diameter D N/A 35.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 6 kN C0r - Static Load Rating N/A 3.3 kN Grease Reference Speed N/A 19000 rpm Oil Reference Speed N/A 28000 rpm
6003-ZZ-NR Bore Size d N/A 17 mm Features N/A Shields With Snap Ring Outside Diameter D N/A 35.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 6 kN C0r - Static Load Rating N/A 3.3 kN Grease Reference Speed N/A 19000 rpm Oil Reference Speed N/A 28000 rpm
Sản phẩm liên quan
Thin Section Ball Bearings (61700, 61800, 61900)
Thin Section Ball Bearings (61700, 61800, 61900)
Narrow Section Ball Bearings (16000, 16100)
Narrow Section Ball Bearings (16000, 16100)
Wide Section Ball Bearings (62000, 63000)
Wide Section Ball Bearings (62000, 63000)
Miniature Ball Bearings (600, 610, 620, 630)
Miniature Ball Bearings (600, 610, 620, 630)
Fafnir® Deep Groove Ball Bearings (9100K, 200K, 300K)
Fafnir® Deep Groove Ball Bearings (9100K, 200K, 300K)
Fafnir® Maximum Capacity Ball Bearings (200W, 300W)
Fafnir® Maximum Capacity Ball Bearings (200W, 300W)
x
Liên hệ
Kinh doanh 1: 0909 566 551
Kinh doanh 1: 0933 155 707
Kỹ thuật: 0911 991 666
Tel Zalo Messenger
