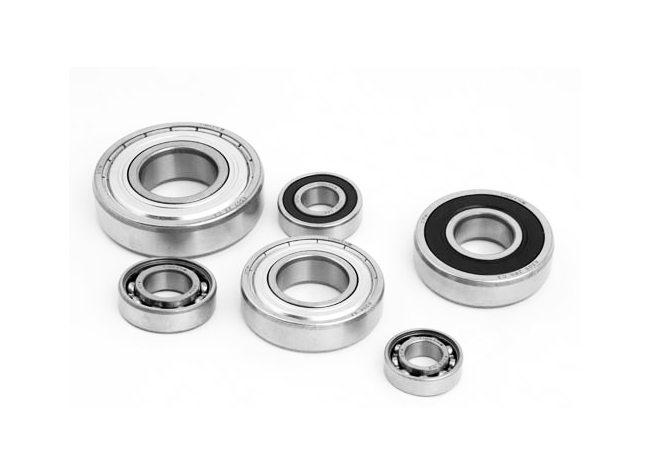

Deep groove ball bearings are available in a variety of sizes and are the most popular of the rolling bearings. This type of bearing supports radial load and a small degree of axial load in both directions simultaneously. Deep groove ball bearings are popular due to their versatility, affordability, and capability to run at high speeds.
Timken 16000 narrow series have bore sizes that range from 10 to 160 mm and outside diameter sizes that range from 28 to 240mm.
| Timken Part Number | Clearance | Bore Size d | Features | Outside Diameter D | Outside Ring Width B | Cr - Dynamic Load Rating | C0r - Static Load Rating | Grease Limiting Speed |
Oil Limiting Speed |
| 16100 | Clearance C0 (Normal) | Bore Size d 10 mm | Features Open | Outside Diameter D 28.0000 mm | Outside Ring Width B 8.000 mm | Cr - Dynamic Load Rating 4.6 kN | C0r - Static Load Rating 2 kN | Grease Limiting Speed 25000 rpm | Oil Limiting Speed 37000 rpm |
| 16100-ZZ | Clearance C0 (Normal) | Bore Size d 10 mm | Features Shields | Outside Diameter D 28.0000 mm | Outside Ring Width B 8.000 mm | Cr - Dynamic Load Rating 4.6 kN | C0r - Static Load Rating 2 kN | Grease Limiting Speed 25000 rpm | Oil Limiting Speed 37000 rpm |
| 16101 | Clearance C0 (Normal) | Bore Size d 12 mm | Features Open | Outside Diameter D 30.000 mm | Outside Ring Width B 8.000 mm | Cr - Dynamic Load Rating 5.1 kN | C0r - Static Load Rating 2.4 kN | Grease Limiting Speed 22000 rpm | Oil Limiting Speed 33000 rpm |
| 16101-ZZ | Clearance C0 (Normal) | Bore Size d 12 mm | Features Shields | Outside Diameter D 30.000 mm | Outside Ring Width B 8.000 mm | Cr - Dynamic Load Rating 5.1 kN | C0r - Static Load Rating 2.4 kN | Grease Limiting Speed 22000 rpm | Oil Limiting Speed 33000 rpm |
| 16101-2RS | Clearance C0 (Normal) | Bore Size d 12 mm | Features Contact Seals | Outside Diameter D 30.000 mm | Outside Ring Width B 8.000 mm | Cr - Dynamic Load Rating 5.1 kN | C0r - Static Load Rating 2.4 kN | Grease Limiting Speed 22000 rpm | Oil Limiting Speed 33000 rpm |
| 16002 | Clearance C0 (Normal) | Bore Size d 15 mm | Features Open | Outside Diameter D 32.000 mm | Outside Ring Width B 8.000 mm | Cr - Dynamic Load Rating 5.6 kN | C0r - Static Load Rating 2.8 kN | Grease Limiting Speed 19000 rpm | Oil Limiting Speed 27000 rpm |
| 16002-ZZ | Clearance C0 (Normal) | Bore Size d 15 mm | Features Shields | Outside Diameter D 32.000 mm | Outside Ring Width B 8.000 mm | Cr - Dynamic Load Rating 5.6 kN | C0r - Static Load Rating 2.8 kN | Grease Limiting Speed 19000 rpm | Oil Limiting Speed 27000 rpm |
| 16003 | Clearance C0 (Normal) | Bore Size d 17 mm | Features Open | Outside Diameter D 35.000 mm | Outside Ring Width B 8.000 mm | Cr - Dynamic Load Rating 6 kN | C0r - Static Load Rating 3.3 kN | Grease Limiting Speed 17000 rpm | Oil Limiting Speed 24000 rpm |
| 16003-ZZ | Clearance C0 (Normal) | Bore Size d 17 mm | Features Shields | Outside Diameter D 35.000 mm | Outside Ring Width B 8.000 mm | Cr - Dynamic Load Rating 6 kN | C0r - Static Load Rating 3.3 kN | Grease Limiting Speed 17000 rpm | Oil Limiting Speed 24000 rpm |
| 16004 | Clearance C0 (Normal) | Bore Size d 20 mm | Features Open | Outside Diameter D 42.000 mm | Outside Ring Width B 8.000 mm | Cr - Dynamic Load Rating 6.3 kN | C0r - Static Load Rating 3.8 kN | Grease Limiting Speed 13000 rpm | Oil Limiting Speed 20000 rpm |
| 16005 | Clearance C0 (Normal) | Bore Size d 25 mm | Features Open | Outside Diameter D 47.000 mm | Outside Ring Width B 8.000 mm | Cr - Dynamic Load Rating 7 kN | C0r - Static Load Rating 4.6 kN | Grease Limiting Speed 11000 rpm | Oil Limiting Speed 16000 rpm |
| 16005-ZZ | Clearance C0 (Normal) | Bore Size d 25 mm | Features Shields | Outside Diameter D 47.000 mm | Outside Ring Width B 8.000 mm | Cr - Dynamic Load Rating 7 kN | C0r - Static Load Rating 4.6 kN | Grease Limiting Speed 11000 rpm | Oil Limiting Speed 16000 rpm |
| 16006 | Clearance C0 (Normal) | Bore Size d 30 mm | Features Open | Outside Diameter D 55.000 mm | Outside Ring Width B 9.000 mm | Cr - Dynamic Load Rating 9.2 kN | C0r - Static Load Rating 6.3 kN | Grease Limiting Speed 10000 rpm | Oil Limiting Speed 14000 rpm |
| 16007 | Clearance C0 (Normal) | Bore Size d 35 mm | Features Open | Outside Diameter D 62.000 mm | Outside Ring Width B 9.000 mm | Cr - Dynamic Load Rating 12.2 kN | C0r - Static Load Rating 8.8 kN | Grease Limiting Speed 8400 rpm | Oil Limiting Speed 12000 rpm |
| 16008 | Clearance C0 (Normal) | Bore Size d 40 mm | Features Open | Outside Diameter D 68.000 mm | Outside Ring Width B 9.000 mm | Cr - Dynamic Load Rating 12.6 kN | C0r - Static Load Rating 9.7 kN | Grease Limiting Speed 7400 rpm | Oil Limiting Speed 11000 rpm |
| 16009 | Clearance C0 (Normal) | Bore Size d 45 mm | Features Open | Outside Diameter D 75.000 mm | Outside Ring Width B 10.000 mm | Cr - Dynamic Load Rating 15.6 kN | C0r - Static Load Rating 12.2 kN | Grease Limiting Speed 6900 rpm | Oil Limiting Speed 10000 rpm |
| 16010 | Clearance C0 (Normal) | Bore Size d 50 mm | Features Open | Outside Diameter D 80.000 mm | Outside Ring Width B 10.000 mm | Cr - Dynamic Load Rating 16.1 kN | C0r - Static Load Rating 13.1 kN | Grease Limiting Speed 6300 rpm | Oil Limiting Speed 9100 rpm |
| 16011 | Clearance C0 (Normal) | Bore Size d 55 mm | Features Open | Outside Diameter D 90.000 mm | Outside Ring Width B 11.000 mm | Cr - Dynamic Load Rating 19.4 kN | C0r - Static Load Rating 16.3 kN | Grease Limiting Speed 5800 rpm | Oil Limiting Speed 8500 rpm |
| 16012 | Clearance C0 (Normal) | Bore Size d 60 mm | Features Open | Outside Diameter D 95.000 mm | Outside Ring Width B 11.000 mm | Cr - Dynamic Load Rating 19.9 kN | C0r - Static Load Rating 17.5 kN | Grease Limiting Speed 5400 rpm | Oil Limiting Speed 7800 rpm |
| 16013 | Clearance C0 (Normal) | Bore Size d 65 mm | Features Open | Outside Diameter D 100.000 mm | Outside Ring Width B 11.000 mm | Cr - Dynamic Load Rating 20.5 kN | C0r - Static Load Rating 18.7 kN | Grease Limiting Speed 5000 rpm | Oil Limiting Speed 7300 rpm |
| 16014 | Clearance C0 (Normal) | Bore Size d 70 mm | Features Open | Outside Diameter D 110.000 mm | Outside Ring Width B 13.000 mm | Cr - Dynamic Load Rating 26.8 kN | C0r - Static Load Rating 23.6 kN | Grease Limiting Speed 5000 rpm | Oil Limiting Speed 7200 rpm |
| 16015 | Clearance C0 (Normal) | Bore Size d 75 mm | Features Open | Outside Diameter D 115.000 mm | Outside Ring Width B 13.000 mm | Cr - Dynamic Load Rating 27.6 kN | C0r - Static Load Rating 25.3 kN | Grease Limiting Speed 4600 rpm | Oil Limiting Speed 6700 rpm |
| 16016 | Clearance C0 (Normal) | Bore Size d 80 mm | Features Open | Outside Diameter D 125.000 mm | Outside Ring Width B 14.000 mm | Cr - Dynamic Load Rating 31.9 kN | C0r - Static Load Rating 29.6 kN | Grease Limiting Speed 4400 rpm | Oil Limiting Speed 6400 rpm |
| 16017 | Clearance C0 (Normal) | Bore Size d 85 mm | Features Open | Outside Diameter D 130.000 mm | Outside Ring Width B 14.000 mm | Cr - Dynamic Load Rating 32.6 kN | C0r - Static Load Rating 31.6 kN | Grease Limiting Speed 4200 rpm | Oil Limiting Speed 6100 rpm |
| 16018 | Clearance C0 (Normal) | Bore Size d 90 mm | Features Open | Outside Diameter D 140.000 mm | Outside Ring Width B 16.000 mm | Cr - Dynamic Load Rating 39.9 kN | C0r - Static Load Rating 37 kN | Grease Limiting Speed 4200 rpm | Oil Limiting Speed 6100 rpm |
| 16019 | Clearance C0 (Normal) | Bore Size d 95 mm | Features Open | Outside Diameter D 145.000 mm | Outside Ring Width B 16.000 mm | Cr - Dynamic Load Rating 42.7 kN | C0r - Static Load Rating 41.9 kN | Grease Limiting Speed 3900 rpm | Oil Limiting Speed 5700 rpm |
| 16020 | Clearance C0 (Normal) | Bore Size d 100 mm | Features Open | Outside Diameter D 150.000 mm | Outside Ring Width B 16.000 mm | Cr - Dynamic Load Rating 43.8 kN | C0r - Static Load Rating 44.3 kN | Grease Limiting Speed 3800 rpm | Oil Limiting Speed 5400 rpm |
| 16021 | Clearance C0 (Normal) | Bore Size d 105 mm | Features Open | Outside Diameter D 160.000 mm | Outside Ring Width B 18.000 mm | Cr - Dynamic Load Rating 51.8 kN | C0r - Static Load Rating 50.6 kN | Grease Limiting Speed 3800 rpm | Oil Limiting Speed 5400 rpm |
| 16022 | Clearance C0 (Normal) | Bore Size d 110 mm | Features Open | Outside Diameter D 170.000 mm | Outside Ring Width B 19.000 mm | Cr - Dynamic Load Rating 57.4 kN | C0r - Static Load Rating 56.7 kN | Grease Limiting Speed 3600 rpm | Oil Limiting Speed 5300 rpm |
| 16024 | Clearance C0 (Normal) | Bore Size d 120 mm | Features Open | Outside Diameter D 180.000 mm | Outside Ring Width B 19.000 mm | Cr - Dynamic Load Rating 58.8 kN | C0r - Static Load Rating 60.4 kN | Grease Limiting Speed 3300 rpm | Oil Limiting Speed 4800 rpm |
| 16026 | Clearance C0 (Normal) | Bore Size d 130 mm | Features Open | Outside Diameter D 200.000 mm | Outside Ring Width B 22.000 mm | Cr - Dynamic Load Rating 79.7 kN | C0r - Static Load Rating 79.2 kN | Grease Limiting Speed 3200 rpm | Oil Limiting Speed 4700 rpm |
| 16028 | Clearance C0 (Normal) | Bore Size d 140 mm | Features Open | Outside Diameter D 210.000 mm | Outside Ring Width B 22.000 mm | Cr - Dynamic Load Rating 82.1 kN | C0r - Static Load Rating 85 kN | Grease Limiting Speed 3000 rpm | Oil Limiting Speed 4400 rpm |
| 16030 | Clearance C0 (Normal) | Bore Size d 150 mm | Features Open | Outside Diameter D 225.000 mm | Outside Ring Width B 24.000 mm | Cr - Dynamic Load Rating 91.9 kN | C0r - Static Load Rating 98.5 kN | Grease Limiting Speed 2900 rpm | Oil Limiting Speed 4200 rpm |
| 16032 | Clearance C0 (Normal) | Bore Size d 160 mm | Features Open | Outside Diameter D 240.000 mm | Outside Ring Width B 25.000 mm | Cr - Dynamic Load Rating 99 kN | C0r - Static Load Rating 108 kN | Grease Limiting Speed 2800 rpm | Oil Limiting Speed 4000 rpm |
| 16100-C3 | Clearance C3 | Bore Size d 10 mm | Features Open | Outside Diameter D 28.0000 mm | Outside Ring Width B 8.000 mm | Cr - Dynamic Load Rating 4.6 kN | C0r - Static Load Rating 2 kN | Grease Limiting Speed 25000 rpm | Oil Limiting Speed 37000 rpm |
| 16100-ZZ-C3 | Clearance C3 | Bore Size d 10 mm | Features Shields | Outside Diameter D 28.0000 mm | Outside Ring Width B 8.000 mm | Cr - Dynamic Load Rating 4.6 kN | C0r - Static Load Rating 2 kN | Grease Limiting Speed 25000 rpm | Oil Limiting Speed 37000 rpm |
| 16101-C3 | Clearance C3 | Bore Size d 12 mm | Features Open | Outside Diameter D 30.000 mm | Outside Ring Width B 8.000 mm | Cr - Dynamic Load Rating 5.1 kN | C0r - Static Load Rating 2.4 kN | Grease Limiting Speed 22000 rpm | Oil Limiting Speed 33000 rpm |
| 16101-ZZ-C3 | Clearance C3 | Bore Size d 12 mm | Features Shields | Outside Diameter D 30.000 mm | Outside Ring Width B 8.000 mm | Cr - Dynamic Load Rating 5.1 kN | C0r - Static Load Rating 2.4 kN | Grease Limiting Speed 22000 rpm | Oil Limiting Speed 33000 rpm |
| 16101-2RS-C3 | Clearance C3 | Bore Size d 12 mm | Features Contact Seals | Outside Diameter D 30.000 mm | Outside Ring Width B 8.000 mm | Cr - Dynamic Load Rating 5.1 kN | C0r - Static Load Rating 2.4 kN | Grease Limiting Speed 22000 rpm | Oil Limiting Speed 33000 rpm |
| 16002-C3 | Clearance C3 | Bore Size d 15 mm | Features Open | Outside Diameter D 32.000 mm | Outside Ring Width B 8.000 mm | Cr - Dynamic Load Rating 5.6 kN | C0r - Static Load Rating 2.8 kN | Grease Limiting Speed 19000 rpm | Oil Limiting Speed 27000 rpm |
| 16002-ZZ-C3 | Clearance C3 | Bore Size d 15 mm | Features Shields | Outside Diameter D 32.000 mm | Outside Ring Width B 8.000 mm | Cr - Dynamic Load Rating 5.6 kN | C0r - Static Load Rating 2.8 kN | Grease Limiting Speed 19000 rpm | Oil Limiting Speed 27000 rpm |
| 16003-C3 | Clearance C3 | Bore Size d 17 mm | Features Open | Outside Diameter D 35.000 mm | Outside Ring Width B 8.000 mm | Cr - Dynamic Load Rating 6 kN | C0r - Static Load Rating 3.3 kN | Grease Limiting Speed 17000 rpm | Oil Limiting Speed 24000 rpm |
| 16003-ZZ-C3 | Clearance C3 | Bore Size d 17 mm | Features Shields | Outside Diameter D 35.000 mm | Outside Ring Width B 8.000 mm | Cr - Dynamic Load Rating 6 kN | C0r - Static Load Rating 3.3 kN | Grease Limiting Speed 17000 rpm | Oil Limiting Speed 24000 rpm |
| 16004-C3 | Clearance C3 | Bore Size d 20 mm | Features Open | Outside Diameter D 42.000 mm | Outside Ring Width B 8.000 mm | Cr - Dynamic Load Rating 6.3 kN | C0r - Static Load Rating 3.8 kN | Grease Limiting Speed 13000 rpm | Oil Limiting Speed 20000 rpm |
| 16005-C3 | Clearance C3 | Bore Size d 25 mm | Features Open | Outside Diameter D 47.000 mm | Outside Ring Width B 8.000 mm | Cr - Dynamic Load Rating 7 kN | C0r - Static Load Rating 4.6 kN | Grease Limiting Speed 11000 rpm | Oil Limiting Speed 16000 rpm |
| 16005-ZZ-C3 | Clearance C3 | Bore Size d 25 mm | Features Shields | Outside Diameter D 47.000 mm | Outside Ring Width B 8.000 mm | Cr - Dynamic Load Rating 7 kN | C0r - Static Load Rating 4.6 kN | Grease Limiting Speed 11000 rpm | Oil Limiting Speed 16000 rpm |
| 16006-C3 | Clearance C3 | Bore Size d 30 mm | Features Open | Outside Diameter D 55.000 mm | Outside Ring Width B 9.000 mm | Cr - Dynamic Load Rating 9.2 kN | C0r - Static Load Rating 6.3 kN | Grease Limiting Speed 10000 rpm | Oil Limiting Speed 14000 rpm |
| 16007-C3 | Clearance C3 | Bore Size d 35 mm | Features Open | Outside Diameter D 62.000 mm | Outside Ring Width B 9.000 mm | Cr - Dynamic Load Rating 12.2 kN | C0r - Static Load Rating 8.8 kN | Grease Limiting Speed 8400 rpm | Oil Limiting Speed 12000 rpm |
| 16008-C3 | Clearance C3 | Bore Size d 40 mm | Features Open | Outside Diameter D 68.000 mm | Outside Ring Width B 9.000 mm | Cr - Dynamic Load Rating 12.6 kN | C0r - Static Load Rating 9.7 kN | Grease Limiting Speed 7400 rpm | Oil Limiting Speed 11000 rpm |
| 16009-C3 | Clearance C3 | Bore Size d 45 mm | Features Open | Outside Diameter D 75.000 mm | Outside Ring Width B 10.000 mm | Cr - Dynamic Load Rating 15.6 kN | C0r - Static Load Rating 12.2 kN | Grease Limiting Speed 6900 rpm | Oil Limiting Speed 10000 rpm |
| 16010-C3 | Clearance C3 | Bore Size d 50 mm | Features Open | Outside Diameter D 80.000 mm | Outside Ring Width B 10.000 mm | Cr - Dynamic Load Rating 16.1 kN | C0r - Static Load Rating 13.1 kN | Grease Limiting Speed 6300 rpm | Oil Limiting Speed 9100 rpm |
| 16011-C3 | Clearance C3 | Bore Size d 55 mm | Features Open | Outside Diameter D 90.000 mm | Outside Ring Width B 11.000 mm | Cr - Dynamic Load Rating 19.4 kN | C0r - Static Load Rating 16.3 kN | Grease Limiting Speed 5800 rpm | Oil Limiting Speed 8500 rpm |
| 16012-C3 | Clearance C3 | Bore Size d 60 mm | Features Open | Outside Diameter D 95.000 mm | Outside Ring Width B 11.000 mm | Cr - Dynamic Load Rating 19.9 kN | C0r - Static Load Rating 17.5 kN | Grease Limiting Speed 5400 rpm | Oil Limiting Speed 7800 rpm |
| 16013-C3 | Clearance C3 | Bore Size d 65 mm | Features Open | Outside Diameter D 100.000 mm | Outside Ring Width B 11.000 mm | Cr - Dynamic Load Rating 20.5 kN | C0r - Static Load Rating 18.7 kN | Grease Limiting Speed 5000 rpm | Oil Limiting Speed 7300 rpm |
| 16014-C3 | Clearance C3 | Bore Size d 70 mm | Features Open | Outside Diameter D 110.000 mm | Outside Ring Width B 13.000 mm | Cr - Dynamic Load Rating 26.8 kN | C0r - Static Load Rating 23.6 kN | Grease Limiting Speed 5000 rpm | Oil Limiting Speed 7200 rpm |
| 16015-C3 | Clearance C3 | Bore Size d 75 mm | Features Open | Outside Diameter D 115.000 mm | Outside Ring Width B 13.000 mm | Cr - Dynamic Load Rating 27.6 kN | C0r - Static Load Rating 25.3 kN | Grease Limiting Speed 4600 rpm | Oil Limiting Speed 6700 rpm |
| 16016-C3 | Clearance C3 | Bore Size d 80 mm | Features Open | Outside Diameter D 125.000 mm | Outside Ring Width B 14.000 mm | Cr - Dynamic Load Rating 31.9 kN | C0r - Static Load Rating 29.6 kN | Grease Limiting Speed 4400 rpm | Oil Limiting Speed 6400 rpm |
| 16017-C3 | Clearance C3 | Bore Size d 85 mm | Features Open | Outside Diameter D 130.000 mm | Outside Ring Width B 14.000 mm | Cr - Dynamic Load Rating 32.6 kN | C0r - Static Load Rating 31.6 kN | Grease Limiting Speed 4200 rpm | Oil Limiting Speed 6100 rpm |
| 16018-C3 | Clearance C3 | Bore Size d 90 mm | Features Open | Outside Diameter D 140.000 mm | Outside Ring Width B 16.000 mm | Cr - Dynamic Load Rating 39.9 kN | C0r - Static Load Rating 37 kN | Grease Limiting Speed 4200 rpm | Oil Limiting Speed 6100 rpm |
| 16019-C3 | Clearance C3 | Bore Size d 95 mm | Features Open | Outside Diameter D 145.000 mm | Outside Ring Width B 16.000 mm | Cr - Dynamic Load Rating 42.7 kN | C0r - Static Load Rating 41.9 kN | Grease Limiting Speed 3900 rpm | Oil Limiting Speed 5700 rpm |
| 16020-C3 | Clearance C3 | Bore Size d 100 mm | Features Open | Outside Diameter D 150.000 mm | Outside Ring Width B 16.000 mm | Cr - Dynamic Load Rating 43.8 kN | C0r - Static Load Rating 44.3 kN | Grease Limiting Speed 3800 rpm | Oil Limiting Speed 5400 rpm |
| 16021-C3 | Clearance C3 | Bore Size d 105 mm | Features Open | Outside Diameter D 160.000 mm | Outside Ring Width B 18.000 mm | Cr - Dynamic Load Rating 51.8 kN | C0r - Static Load Rating 50.6 kN | Grease Limiting Speed 3800 rpm | Oil Limiting Speed 5400 rpm |
| 16022-C3 | Clearance C3 | Bore Size d 110 mm | Features Open | Outside Diameter D 170.000 mm | Outside Ring Width B 19.000 mm | Cr - Dynamic Load Rating 57.4 kN | C0r - Static Load Rating 56.7 kN | Grease Limiting Speed 3600 rpm | Oil Limiting Speed 5300 rpm |
| 16024-C3 | Clearance C3 | Bore Size d 120 mm | Features Open | Outside Diameter D 180.000 mm | Outside Ring Width B 19.000 mm | Cr - Dynamic Load Rating 58.8 kN | C0r - Static Load Rating 60.4 kN | Grease Limiting Speed 3300 rpm | Oil Limiting Speed 4800 rpm |
| 16026-C3 | Clearance C3 | Bore Size d 130 mm | Features Open | Outside Diameter D 200.000 mm | Outside Ring Width B 22.000 mm | Cr - Dynamic Load Rating 79.7 kN | C0r - Static Load Rating 79.2 kN | Grease Limiting Speed 3200 rpm | Oil Limiting Speed 4700 rpm |
| 16028-C3 | Clearance C3 | Bore Size d 140 mm | Features Open | Outside Diameter D 210.000 mm | Outside Ring Width B 22.000 mm | Cr - Dynamic Load Rating 82.1 kN | C0r - Static Load Rating 85 kN | Grease Limiting Speed 3000 rpm | Oil Limiting Speed 4400 rpm |
| 16030-C3 | Clearance C3 | Bore Size d 150 mm | Features Open | Outside Diameter D 225.000 mm | Outside Ring Width B 24.000 mm | Cr - Dynamic Load Rating 91.9 kN | C0r - Static Load Rating 98.5 kN | Grease Limiting Speed 2900 rpm | Oil Limiting Speed 4200 rpm |
| 16032-C3 | Clearance C3 | Bore Size d 160 mm | Features Open | Outside Diameter D 240.000 mm | Outside Ring Width B 25.000 mm | Cr - Dynamic Load Rating 99 kN | C0r - Static Load Rating 108 kN | Grease Limiting Speed 2800 rpm | Oil Limiting Speed 4000 rpm |
