Băng tải - Gàu tải > Fafnir® Deep Groove Ball Bearings (9100K, 200K, 300K)

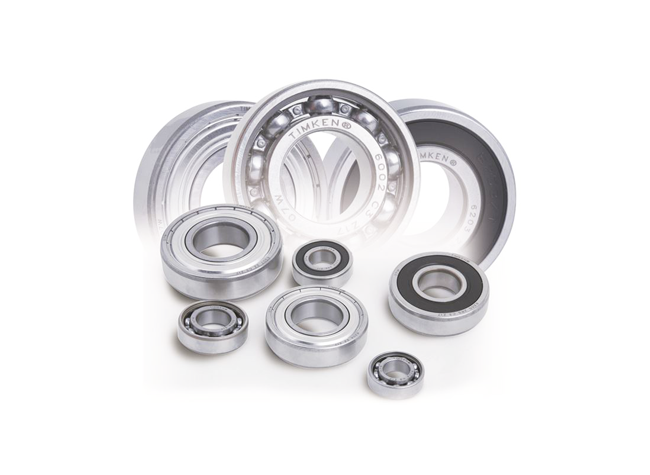

Fafnir® Deep Groove Ball Bearings (9100K, 200K, 300K)



Radial ball bearings consist of an inner and outer ring with a cage containing a complement of precision balls. The standard Conrad-type bearing has a deep-groove construction capable of handling radial and axial loads from either direction in versatile designs that permit relatively high-speed operation.

In addition to standard single-row deep groove bearings, Timken offers special designs, including a maximum capacity series and an extra large (XLS) radial series bearing.

Size range: 3 mm - 600 mm (0.12 in. - 23.62 in.) bore





Timken Part Number

  d - Bore  D - Outer Diameter  Bearing Width  Ce - Dynamic Radial Rating  C0 - Static Radial Rating  Limiting Speed (Grease)  Limiting Speed (Oil)

Ball Type
300K d - Bore N/A 10 mm0.3937 in D - Outer Diameter N/A 35 mm1.3780 in Bearing Width N/A 11 mm0.4331 in Ce - Dynamic Radial Rating N/A 9200 N2080 lbf C0 - Static Radial Rating N/A 3460 N780 lbf Limiting Speed (Grease) N/A 13330 rpm Limiting Speed (Oil) N/A 15560 rpm Ball Type N/A STEEL
301K d - Bore N/A 12 mm0.4724 in D - Outer Diameter N/A 37 mm1.4567 in Bearing Width N/A 12 mm0.4724 in Ce - Dynamic Radial Rating N/A 9400 N2120 lbf C0 - Static Radial Rating N/A 3620 N815 lbf Limiting Speed (Grease) N/A 12250 rpm Limiting Speed (Oil) N/A 14290 rpm Ball Type N/A STEEL
302K d - Bore N/A 15 mm0.5906 in D - Outer Diameter N/A 42 mm1.6535 in Bearing Width N/A 13 mm0.5118 in Ce - Dynamic Radial Rating N/A 13300 N3000 lbf C0 - Static Radial Rating N/A 5240 N1180 lbf Limiting Speed (Grease) N/A 10530 rpm Limiting Speed (Oil) N/A 12280 rpm Ball Type N/A STEEL
203K d - Bore N/A 17 mm0.6693 in D - Outer Diameter N/A 40 mm1.5748 in Bearing Width N/A 12 mm0.4724 in Ce - Dynamic Radial Rating N/A 10900 N2450 lbf C0 - Static Radial Rating N/A 4700 N1060 lbf Limiting Speed (Grease) N/A 10530 rpm Limiting Speed (Oil) N/A 12280 rpm Ball Type N/A STEEL
303K d - Bore N/A 17 mm0.6693 in D - Outer Diameter N/A 47 mm1.8504 in Bearing Width N/A 14 mm0.5512 in Ce - Dynamic Radial Rating N/A 15300 N3450 lbf C0 - Static Radial Rating N/A 6550 N1460 lbf Limiting Speed (Grease) N/A 9370 rpm Limiting Speed (Oil) N/A 10940 rpm Ball Type N/A STEEL
9104K d - Bore N/A 20 mm0.7874 in D - Outer Diameter N/A 42 mm1.6535 in Bearing Width N/A 12 mm0.4724 in Ce - Dynamic Radial Rating N/A 10700 N2400 lbf C0 - Static Radial Rating N/A 5000 N1120 lbf Limiting Speed (Grease) N/A 9680 rpm Limiting Speed (Oil) N/A 11290 rpm Ball Type N/A STEEL
204K d - Bore N/A 20 mm0.7874 in D - Outer Diameter N/A 47 mm1.8504 in Bearing Width N/A 14 mm0.5512 in Ce - Dynamic Radial Rating N/A 14400 N3250 lbf C0 - Static Radial Rating N/A 6500 N1460 lbf Limiting Speed (Grease) N/A 8960 rpm Limiting Speed (Oil) N/A 10450 rpm Ball Type N/A STEEL
304K d - Bore N/A 20 mm0.7874 in D - Outer Diameter N/A 52 mm2.0472 in Bearing Width N/A 15 mm0.5906 in Ce - Dynamic Radial Rating N/A 17900 N4050 lbf C0 - Static Radial Rating N/A 7800 N1760 lbf Limiting Speed (Grease) N/A 8330 rpm Limiting Speed (Oil) N/A 9720 rpm Ball Type N/A STEEL
9105K d - Bore N/A 25 mm0.9843 in D - Outer Diameter N/A 47 mm1.8504 in Bearing Width N/A 12 mm0.4724 in Ce - Dynamic Radial Rating N/A 11300 N2550 lbf C0 - Static Radial Rating N/A 5740 N1290 lbf Limiting Speed (Grease) N/A 8330 rpm Limiting Speed (Oil) N/A 9720 rpm Ball Type N/A STEEL
205K d - Bore N/A 25 mm0.9843 in D - Outer Diameter N/A 52 mm2.0472 in Bearing Width N/A 15 mm0.5906 in Ce - Dynamic Radial Rating N/A 16000 N3600 lbf C0 - Static Radial Rating N/A 7800 N1760 lbf Limiting Speed (Grease) N/A 7780 rpm Limiting Speed (Oil) N/A 9070 rpm Ball Type N/A STEEL
305K d - Bore N/A 25 mm0.9843 in D - Outer Diameter N/A 62 mm2.4409 in Bearing Width N/A 17 mm0.6693 in Ce - Dynamic Radial Rating N/A 26600 N6000 lbf C0 - Static Radial Rating N/A 12200 N2750 lbf Limiting Speed (Grease) N/A 6900 rpm Limiting Speed (Oil) N/A 8050 rpm Ball Type N/A STEEL
9106K d - Bore N/A 30 mm1.1811 in D - Outer Diameter N/A 55.000 mm2.1654 in Bearing Width N/A 13 mm0.5118 in Ce - Dynamic Radial Rating N/A 14600 N3350 lbf C0 - Static Radial Rating N/A 8010 N1800 lbf Limiting Speed (Grease) N/A 6960 rpm Limiting Speed (Oil) N/A 8120 rpm Ball Type N/A STEEL
9107K d - Bore N/A 35 mm1.3780 in D - Outer Diameter N/A 62 mm2.4409 in Bearing Width N/A 14 mm0.5512 in Ce - Dynamic Radial Rating N/A 18000 N4050 lbf C0 - Static Radial Rating N/A 9960 N2240 lbf Limiting Speed (Grease) N/A 6190 rpm Limiting Speed (Oil) N/A 7220 rpm Ball Type N/A STEEL
9108K d - Bore N/A 40 mm1.5748 in D - Outer Diameter N/A 68.000 mm2.6772 in Bearing Width N/A 15 mm0.5906 in Ce - Dynamic Radial Rating N/A 20000 N4500 lbf C0 - Static Radial Rating N/A 12200 N2750 lbf Limiting Speed (Grease) N/A 5560 rpm Limiting Speed (Oil) N/A 6480 rpm Ball Type N/A STEEL
208K d - Bore N/A 40 mm1.5748 in D - Outer Diameter N/A 80 mm3.1496 in Bearing Width N/A 18 mm0.7087 in Ce - Dynamic Radial Rating N/A 36200 N8130 lbf C0 - Static Radial Rating N/A 19800 N4460 lbf Limiting Speed (Grease) N/A 5000 rpm Limiting Speed (Oil) N/A 5830 rpm Ball Type N/A STEEL
308K d - Bore N/A 40 mm1.5748 in D - Outer Diameter N/A 90 mm3.5433 in Bearing Width N/A 23 mm0.9055 in Ce - Dynamic Radial Rating N/A 50600 N11400 lbf C0 - Static Radial Rating N/A 25900 N5850 lbf Limiting Speed (Grease) N/A 4620 rpm Limiting Speed (Oil) N/A 5380 rpm Ball Type N/A STEEL
209K d - Bore N/A 45 mm1.7717 in D - Outer Diameter N/A 85 mm3.3465 in Bearing Width N/A 19.0 mm0.7480 in Ce - Dynamic Radial Rating N/A 36300 N8160 lbf C0 - Static Radial Rating N/A 20500 N4600 lbf Limiting Speed (Grease) N/A 4620 rpm Limiting Speed (Oil) N/A 5380 rpm Ball Type N/A STEEL
309K d - Bore N/A 45 mm1.7717 in D - Outer Diameter N/A 100 mm3.9370 in Bearing Width N/A 25 mm0.9843 in Ce - Dynamic Radial Rating N/A 59500 N13400 lbf C0 - Static Radial Rating N/A 31500 N7100 lbf Limiting Speed (Grease) N/A 4140 rpm Limiting Speed (Oil) N/A 4830 rpm Ball Type N/A STEEL
210K d - Bore N/A 50 mm1.9685 in D - Outer Diameter N/A 90 mm3.5433 in Bearing Width N/A 20 mm0.7874 in Ce - Dynamic Radial Rating N/A 40000 N9000 lbf C0 - Static Radial Rating N/A 23100 N5200 lbf Limiting Speed (Grease) N/A 4290 rpm Limiting Speed (Oil) N/A 5000 rpm Ball Type N/A STEEL
310K d - Bore N/A 50 mm1.9685 in D - Outer Diameter N/A 110 mm4.3307 in Bearing Width N/A 27 mm1.0630 in Ce - Dynamic Radial Rating N/A 69300 N15600 lbf C0 - Static Radial Rating N/A 37700 N8500 lbf Limiting Speed (Grease) N/A 3750 rpm Limiting Speed (Oil) N/A 4380 rpm Ball Type N/A STEEL
211K d - Bore N/A 55 mm2.1654 in D - Outer Diameter N/A 100 mm3.9370 in Bearing Width N/A 21 mm0.8268 in Ce - Dynamic Radial Rating N/A 49000 N11000 lbf C0 - Static Radial Rating N/A 29100 N6550 lbf Limiting Speed (Grease) N/A 3870 rpm Limiting Speed (Oil) N/A 4520 rpm Ball Type N/A STEEL
311K d - Bore N/A 55 mm2.1654 in D - Outer Diameter N/A 120 mm4.7244 in Bearing Width N/A 29 mm1.1417 in Ce - Dynamic Radial Rating N/A 81200 N18300 lbf C0 - Static Radial Rating N/A 44400 N10000 lbf Limiting Speed (Grease) N/A 3430 rpm Limiting Speed (Oil) N/A 4000 rpm Ball Type N/A STEEL
212K d - Bore N/A 60 mm2.3622 in D - Outer Diameter N/A 110 mm4.3307 in Bearing Width N/A 22 mm0.8661 in Ce - Dynamic Radial Rating N/A 62100 N13400 lbf C0 - Static Radial Rating N/A 35500 N8000 lbf Limiting Speed (Grease) N/A 3530 rpm Limiting Speed (Oil) N/A 4120 rpm Ball Type N/A STEEL
312K d - Bore N/A 60 mm2.3622 in D - Outer Diameter N/A 130 mm5.1181 in Bearing Width N/A 31 mm1.2205 in Ce - Dynamic Radial Rating N/A 92300 N20800 lbf C0 - Static Radial Rating N/A 51500 N11600 lbf Limiting Speed (Grease) N/A 3160 rpm Limiting Speed (Oil) N/A 3680 rpm Ball Type N/A STEEL
313K d - Bore N/A 65 mm2.5591 in D - Outer Diameter N/A 140 mm5.5118 in Bearing Width N/A 33 mm1.2992 in Ce - Dynamic Radial Rating N/A 104000 N23600 lbf C0 - Static Radial Rating N/A 59500 N13400 lbf Limiting Speed (Grease) N/A 2930 rpm Limiting Speed (Oil) N/A 3410 rpm Ball Type N/A STEEL
314K d - Bore N/A 70 mm2.7559 in D - Outer Diameter N/A 150 mm5.9055 in Bearing Width N/A 35 mm1.3780 in Ce - Dynamic Radial Rating N/A 116000 N26000 lbf C0 - Static Radial Rating N/A 67900 N15300 lbf Limiting Speed (Grease) N/A 2730 rpm Limiting Speed (Oil) N/A 3180 rpm Ball Type N/A STEEL
9115K d - Bore N/A 75 mm2.9528 in D - Outer Diameter N/A 115.000 mm4.5276 in Bearing Width N/A 20 mm0.7874 in Ce - Dynamic Radial Rating N/A 44500 N10000 lbf C0 - Static Radial Rating N/A 32700 N7350 lbf Limiting Speed (Grease) N/A 3160 rpm Limiting Speed (Oil) N/A 3680 rpm Ball Type N/A STEEL
315K d - Bore N/A 75 mm2.9528 in D - Outer Diameter N/A 160 mm6.2992 in Bearing Width N/A 37 mm1.4567 in Ce - Dynamic Radial Rating N/A 128000 N29000 lbf C0 - Static Radial Rating N/A 76800 N17300 lbf Limiting Speed (Grease) N/A 2550 rpm Limiting Speed (Oil) N/A 2980 rpm Ball Type N/A STEEL
9117K d - Bore N/A 85 mm3.3465 in D - Outer Diameter N/A 130 mm5.1181 in Bearing Width N/A 22 mm0.8661 in Ce - Dynamic Radial Rating N/A 56500 N12700 lbf C0 - Static Radial Rating N/A 35600 N8000 lbf Limiting Speed (Grease) N/A 2790 rpm Limiting Speed (Oil) N/A 3250 rpm Ball Type N/A STEEL
217K d - Bore N/A 85 mm3.3465 in D - Outer Diameter N/A 150 mm5.9055 in Bearing Width N/A 28 mm1.1024 in Ce - Dynamic Radial Rating N/A 95900 N21600 lbf C0 - Static Radial Rating N/A 62200 N14000 lbf Limiting Speed (Grease) N/A 2550 rpm Limiting Speed (Oil) N/A 2980 rpm Ball Type N/A STEEL
317K d - Bore N/A 85 mm3.3465 in D - Outer Diameter N/A 180 mm7.0866 in Bearing Width N/A 41 mm1.6142 in Ce - Dynamic Radial Rating N/A 151000 N34000 lbf C0 - Static Radial Rating N/A 95900 N21600 lbf Limiting Speed (Grease) N/A 2260 rpm Limiting Speed (Oil) N/A 2640 rpm Ball Type N/A STEEL
218K d - Bore N/A 90 mm3.5433 in D - Outer Diameter N/A 160 mm6.2992 in Bearing Width N/A 30 mm1.1811 in Ce - Dynamic Radial Rating N/A 109000 N24500 lbf C0 - Static Radial Rating N/A 71100 N16000 lbf Limiting Speed (Grease) N/A 2400 rpm Limiting Speed (Oil) N/A 2800 rpm Ball Type N/A STEEL
318K d - Bore N/A 90 mm3.5433 in D - Outer Diameter N/A 190 mm7.4803 in Bearing Width N/A 43 mm1.6929 in Ce - Dynamic Radial Rating N/A 162000 N36500 lbf C0 - Static Radial Rating N/A 106000 N24000 lbf Limiting Speed (Grease) N/A 2140 rpm Limiting Speed (Oil) N/A 2500 rpm Ball Type N/A STEEL
320K d - Bore N/A 100 mm3.9370 in D - Outer Diameter N/A 215 mm8.4646 in Bearing Width N/A 47 mm1.8504 in Ce - Dynamic Radial Rating N/A 195000 N41500 lbf C0 - Static Radial Rating N/A 139000 N31500 lbf Limiting Speed (Grease) N/A 1900 rpm Limiting Speed (Oil) N/A 2220 rpm Ball Type N/A STEEL
9121K d - Bore N/A 105 mm4.1339 in D - Outer Diameter N/A 160 mm6.2992 in Bearing Width N/A 26 mm1.0236 in Ce - Dynamic Radial Rating N/A 76900 N17600 lbf C0 - Static Radial Rating N/A 59600 N13400 lbf Limiting Speed (Grease) N/A 2260 rpm Limiting Speed (Oil) N/A 2640 rpm Ball Type N/A STEEL
9124K d - Bore N/A 120 mm4.7244 in D - Outer Diameter N/A 180 mm7.0866 in Bearing Width N/A 28 mm1.1024 in Ce - Dynamic Radial Rating N/A 88900 N20000 lbf C0 - Static Radial Rating N/A 71100 N16000 lbf Limiting Speed (Grease) N/A 2000 rpm Limiting Speed (Oil) N/A 2330 rpm Ball Type N/A STEEL
9126K d - Bore N/A 130 mm5.1181 in D - Outer Diameter N/A 200 mm7.8740 in Bearing Width N/A 33 mm1.2992 in Ce - Dynamic Radial Rating N/A 115600 N26000 lbf C0 - Static Radial Rating N/A 90700 N20400 lbf Limiting Speed (Grease) N/A 1820 rpm Limiting Speed (Oil) N/A 2120 rpm Ball Type N/A STEEL
9128K d - Bore N/A 140 mm5.5118 in D - Outer Diameter N/A 210 mm8.2677 in Bearing Width N/A 33 mm1.2992 in Ce - Dynamic Radial Rating N/A 124500 N28000 lbf C0 - Static Radial Rating N/A 105000 N23600 lbf Limiting Speed (Grease) N/A 1710 rpm Limiting Speed (Oil) N/A 2000 rpm Ball Type N/A STEEL
