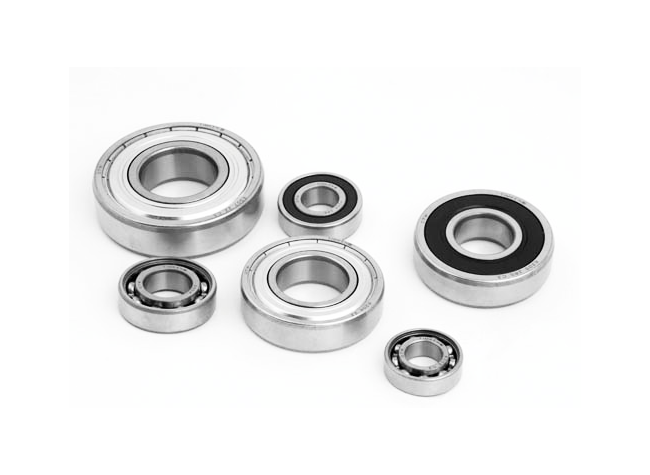

Miniature Ball Bearings (600, 610, 620, 630)



Deep groove ball bearings are available in a variety of sizes and are the most popular of the rolling bearings. This type of bearing supports radial load and a small degree of axial load in both directions simultaneously. Deep groove ball bearings are popular due to their versatility, affordability, and capability to run at high speeds.

Timken extra small 600 series have bore sizes that range from 3 to 9mm and outside diameter sizes that range from 7 to 30mm.





 Timken Part Number  Bore Size d  Features  Outside Diameter D  Outside Ring Width B  Cr - Dynamic Load Rating  C0r - Static Load Rating  Grease Limiting Speed

Oil Limiting Speed
618/3 Bore Size d N/A 3.000 mm Features N/A Open Outside Diameter D N/A 7.000 mm Outside Ring Width B N/A 2.000 mm Cr - Dynamic Load Rating N/A 0.31 kN C0r - Static Load Rating N/A 0.11 kN Grease Limiting Speed N/A 74000 rpm Oil Limiting Speed N/A 88000 rpm
618/3-ZZ Bore Size d N/A 3.000 mm Features N/A Shields Outside Diameter D N/A 7.000 mm Outside Ring Width B N/A 2.000 mm Cr - Dynamic Load Rating N/A 0.31 kN C0r - Static Load Rating N/A 0.11 kN Grease Limiting Speed N/A 74000 rpm Oil Limiting Speed N/A 88000 rpm
618/3-2RS Bore Size d N/A 3.000 mm Features N/A Contact Seals Outside Diameter D N/A 7.000 mm Outside Ring Width B N/A 2.000 mm Cr - Dynamic Load Rating N/A 0.31 kN C0r - Static Load Rating N/A 0.11 kN Grease Limiting Speed N/A 74000 rpm Oil Limiting Speed N/A 88000 rpm
618/3-2RZ Bore Size d N/A 3.000 mm Features N/A Non-Contact Seals Outside Diameter D N/A 7.000 mm Outside Ring Width B N/A 2.000 mm Cr - Dynamic Load Rating N/A 0.31 kN C0r - Static Load Rating N/A 0.11 kN Grease Limiting Speed N/A 74000 rpm Oil Limiting Speed N/A 88000 rpm
619/3 Bore Size d N/A 3.000 mm Features N/A Open Outside Diameter D N/A 8.000 mm Outside Ring Width B N/A 3.000 mm Cr - Dynamic Load Rating N/A 0.56 kN C0r - Static Load Rating N/A 0.18 kN Grease Limiting Speed N/A 70000 rpm Oil Limiting Speed N/A 82000 rpm
619/3-ZZ Bore Size d N/A 3.000 mm Features N/A Shields Outside Diameter D N/A 8.000 mm Outside Ring Width B N/A 3.000 mm Cr - Dynamic Load Rating N/A 0.56 kN C0r - Static Load Rating N/A 0.18 kN Grease Limiting Speed N/A 70000 rpm Oil Limiting Speed N/A 82000 rpm
619/3-2RS Bore Size d N/A 3.000 mm Features N/A Contact Seals Outside Diameter D N/A 8.000 mm Outside Ring Width B N/A 3.000 mm Cr - Dynamic Load Rating N/A 0.56 kN C0r - Static Load Rating N/A 0.18 kN Grease Limiting Speed N/A 70000 rpm Oil Limiting Speed N/A 82000 rpm
603 Bore Size d N/A 3.000 mm Features N/A Open Outside Diameter D N/A 9.000 mm Outside Ring Width B N/A 3.000 mm Cr - Dynamic Load Rating N/A 0.57 kN C0r - Static Load Rating N/A 0.19 kN Grease Limiting Speed N/A 66000 rpm Oil Limiting Speed N/A 78000 rpm
603-ZZ Bore Size d N/A 3.000 mm Features N/A Shields Outside Diameter D N/A 9.000 mm Outside Ring Width B N/A 3.000 mm Cr - Dynamic Load Rating N/A 0.57 kN C0r - Static Load Rating N/A 0.19 kN Grease Limiting Speed N/A 66000 rpm Oil Limiting Speed N/A 78000 rpm
623 Bore Size d N/A 3.000 mm Features N/A Open Outside Diameter D N/A 10.000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 0.63 kN C0r - Static Load Rating N/A 0.22 kN Grease Limiting Speed N/A 66000 rpm Oil Limiting Speed N/A 78000 rpm
623-ZZ Bore Size d N/A 3.000 mm Features N/A Shields Outside Diameter D N/A 10.000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 0.63 kN C0r - Static Load Rating N/A 0.22 kN Grease Limiting Speed N/A 66000 rpm Oil Limiting Speed N/A 78000 rpm
623-2RS Bore Size d N/A 3.000 mm Features N/A Contact Seals Outside Diameter D N/A 10.000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 0.63 kN C0r - Static Load Rating N/A 0.22 kN Grease Limiting Speed N/A 66000 rpm Oil Limiting Speed N/A 78000 rpm
623-2RZ Bore Size d N/A 3.000 mm Features N/A Non-Contact Seals Outside Diameter D N/A 10.000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 0.63 kN C0r - Static Load Rating N/A 0.22 kN Grease Limiting Speed N/A 66000 rpm Oil Limiting Speed N/A 78000 rpm
633 Bore Size d N/A 3.000 mm Features N/A Open Outside Diameter D N/A 13.000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 1.3 kN C0r - Static Load Rating N/A 0.49 kN Grease Limiting Speed N/A 51000 rpm Oil Limiting Speed N/A 60000 rpm
633-ZZ Bore Size d N/A 3.000 mm Features N/A Shields Outside Diameter D N/A 13.000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 1.3 kN C0r - Static Load Rating N/A 0.49 kN Grease Limiting Speed N/A 51000 rpm Oil Limiting Speed N/A 60000 rpm
633-2RS Bore Size d N/A 3.000 mm Features N/A Contact Seals Outside Diameter D N/A 13.000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 1.3 kN C0r - Static Load Rating N/A 0.49 kN Grease Limiting Speed N/A 51000 rpm Oil Limiting Speed N/A 60000 rpm
633-2RZ Bore Size d N/A 3.000 mm Features N/A Non-Contact Seals Outside Diameter D N/A 13.000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 1.3 kN C0r - Static Load Rating N/A 0.49 kN Grease Limiting Speed N/A 51000 rpm Oil Limiting Speed N/A 60000 rpm
618/4 Bore Size d N/A 4.000 mm Features N/A Open Outside Diameter D N/A 9.000 mm Outside Ring Width B N/A 2.500 mm Cr - Dynamic Load Rating N/A 0.64 kN C0r - Static Load Rating N/A 0.23 kN Grease Limiting Speed N/A 63000 rpm Oil Limiting Speed N/A 75000 rpm
618/4-ZZ Bore Size d N/A 4.000 mm Features N/A Shields Outside Diameter D N/A 9.000 mm Outside Ring Width B N/A 2.500 mm Cr - Dynamic Load Rating N/A 0.64 kN C0r - Static Load Rating N/A 0.23 kN Grease Limiting Speed N/A 63000 rpm Oil Limiting Speed N/A 75000 rpm
618/4-2RS Bore Size d N/A 4.000 mm Features N/A Contact Seals Outside Diameter D N/A 9.000 mm Outside Ring Width B N/A 2.500 mm Cr - Dynamic Load Rating N/A 0.64 kN C0r - Static Load Rating N/A 0.23 kN Grease Limiting Speed N/A 63000 rpm Oil Limiting Speed N/A 75000 rpm
618/4-2RZ Bore Size d N/A 4.000 mm Features N/A Non-Contact Seals Outside Diameter D N/A 9.000 mm Outside Ring Width B N/A 2.500 mm Cr - Dynamic Load Rating N/A 0.64 kN C0r - Static Load Rating N/A 0.23 kN Grease Limiting Speed N/A 63000 rpm Oil Limiting Speed N/A 75000 rpm
619/4 Bore Size d N/A 4.000 mm Features N/A Open Outside Diameter D N/A 11.000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 1 kN C0r - Static Load Rating N/A 0.35 kN Grease Limiting Speed N/A 57000 rpm Oil Limiting Speed N/A 67000 rpm
619/4-ZZ Bore Size d N/A 4.000 mm Features N/A Shields Outside Diameter D N/A 11.000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 1 kN C0r - Static Load Rating N/A 0.35 kN Grease Limiting Speed N/A 57000 rpm Oil Limiting Speed N/A 67000 rpm
619/4-2RS Bore Size d N/A 4.000 mm Features N/A Contact Seals Outside Diameter D N/A 11.000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 1 kN C0r - Static Load Rating N/A 0.35 kN Grease Limiting Speed N/A 57000 rpm Oil Limiting Speed N/A 67000 rpm
619/4-2RZ Bore Size d N/A 4.000 mm Features N/A Non-Contact Seals Outside Diameter D N/A 11.000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 1 kN C0r - Static Load Rating N/A 0.35 kN Grease Limiting Speed N/A 57000 rpm Oil Limiting Speed N/A 67000 rpm
604 Bore Size d N/A 4.000 mm Features N/A Open Outside Diameter D N/A 12.0000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 1 kN C0r - Static Load Rating N/A 0.35 kN Grease Limiting Speed N/A 57000 rpm Oil Limiting Speed N/A 67000 rpm
604-ZZ Bore Size d N/A 4.000 mm Features N/A Shields Outside Diameter D N/A 12.0000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 1 kN C0r - Static Load Rating N/A 0.35 kN Grease Limiting Speed N/A 57000 rpm Oil Limiting Speed N/A 67000 rpm
604-2RS Bore Size d N/A 4.000 mm Features N/A Contact Seals Outside Diameter D N/A 12.0000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 1 kN C0r - Static Load Rating N/A 0.35 kN Grease Limiting Speed N/A 57000 rpm Oil Limiting Speed N/A 67000 rpm
604-2RZ Bore Size d N/A 4.000 mm Features N/A Non-Contact Seals Outside Diameter D N/A 12.0000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 1 kN C0r - Static Load Rating N/A 0.35 kN Grease Limiting Speed N/A 57000 rpm Oil Limiting Speed N/A 67000 rpm
624 Bore Size d N/A 4.000 mm Features N/A Open Outside Diameter D N/A 13.000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 1.3 kN C0r - Static Load Rating N/A 0.49 kN Grease Limiting Speed N/A 51000 rpm Oil Limiting Speed N/A 60000 rpm
624-ZZ Bore Size d N/A 4.000 mm Features N/A Shields Outside Diameter D N/A 13.000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 1.3 kN C0r - Static Load Rating N/A 0.49 kN Grease Limiting Speed N/A 51000 rpm Oil Limiting Speed N/A 60000 rpm
624-2RS Bore Size d N/A 4.000 mm Features N/A Contact Seals Outside Diameter D N/A 13.000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 1.3 kN C0r - Static Load Rating N/A 0.49 kN Grease Limiting Speed N/A 51000 rpm Oil Limiting Speed N/A 60000 rpm
624-2RZ Bore Size d N/A 4.000 mm Features N/A Non-Contact Seals Outside Diameter D N/A 13.000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 1.3 kN C0r - Static Load Rating N/A 0.49 kN Grease Limiting Speed N/A 51000 rpm Oil Limiting Speed N/A 60000 rpm
634 Bore Size d N/A 4.000 mm Features N/A Open Outside Diameter D N/A 16.000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 1.3 kN C0r - Static Load Rating N/A 0.52 kN Grease Limiting Speed N/A 46000 rpm Oil Limiting Speed N/A 54000 rpm
634-ZZ Bore Size d N/A 4.000 mm Features N/A Shields Outside Diameter D N/A 16.000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 1.3 kN C0r - Static Load Rating N/A 0.52 kN Grease Limiting Speed N/A 46000 rpm Oil Limiting Speed N/A 54000 rpm
634-2RS Bore Size d N/A 4.000 mm Features N/A Contact Seals Outside Diameter D N/A 16.000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 1.3 kN C0r - Static Load Rating N/A 0.52 kN Grease Limiting Speed N/A 46000 rpm Oil Limiting Speed N/A 54000 rpm
634-2RZ Bore Size d N/A 4.000 mm Features N/A Non-Contact Seals Outside Diameter D N/A 16.000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 1.3 kN C0r - Static Load Rating N/A 0.52 kN Grease Limiting Speed N/A 46000 rpm Oil Limiting Speed N/A 54000 rpm
618/5 Bore Size d N/A 5 mm Features N/A Open Outside Diameter D N/A 11.000 mm Outside Ring Width B N/A 3.000 mm Cr - Dynamic Load Rating N/A 0.72 kN C0r - Static Load Rating N/A 0.28 kN Grease Limiting Speed N/A 54000 rpm Oil Limiting Speed N/A 64000 rpm
618/5-ZZ Bore Size d N/A 5 mm Features N/A Shields Outside Diameter D N/A 11.000 mm Outside Ring Width B N/A 3.000 mm Cr - Dynamic Load Rating N/A 0.72 kN C0r - Static Load Rating N/A 0.28 kN Grease Limiting Speed N/A 54000 rpm Oil Limiting Speed N/A 64000 rpm
618/5-2RS Bore Size d N/A 5 mm Features N/A Contact Seals Outside Diameter D N/A 11.000 mm Outside Ring Width B N/A 3.000 mm Cr - Dynamic Load Rating N/A 0.72 kN C0r - Static Load Rating N/A 0.28 kN Grease Limiting Speed N/A 54000 rpm Oil Limiting Speed N/A 64000 rpm
618/5-2RZ Bore Size d N/A 5 mm Features N/A Non-Contact Seals Outside Diameter D N/A 11.000 mm Outside Ring Width B N/A 3.000 mm Cr - Dynamic Load Rating N/A 0.72 kN C0r - Static Load Rating N/A 0.28 kN Grease Limiting Speed N/A 54000 rpm Oil Limiting Speed N/A 64000 rpm
619/5 Bore Size d N/A 5 mm Features N/A Open Outside Diameter D N/A 13.000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 1.1 kN C0r - Static Load Rating N/A 0.43 kN Grease Limiting Speed N/A 50000 rpm Oil Limiting Speed N/A 59000 rpm
619/5-ZZ Bore Size d N/A 5 mm Features N/A Shields Outside Diameter D N/A 13.000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 1.1 kN C0r - Static Load Rating N/A 0.43 kN Grease Limiting Speed N/A 50000 rpm Oil Limiting Speed N/A 59000 rpm
619/5-2RS Bore Size d N/A 5 mm Features N/A Contact Seals Outside Diameter D N/A 13.000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 1.1 kN C0r - Static Load Rating N/A 0.43 kN Grease Limiting Speed N/A 50000 rpm Oil Limiting Speed N/A 59000 rpm
619/5-2RZ Bore Size d N/A 5 mm Features N/A Non-Contact Seals Outside Diameter D N/A 13.000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 1.1 kN C0r - Static Load Rating N/A 0.43 kN Grease Limiting Speed N/A 50000 rpm Oil Limiting Speed N/A 59000 rpm
605 Bore Size d N/A 5 mm Features N/A Open Outside Diameter D N/A 14.0000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 1.3 kN C0r - Static Load Rating N/A 0.51 kN Grease Limiting Speed N/A 48000 rpm Oil Limiting Speed N/A 56000 rpm
605-ZZ Bore Size d N/A 5 mm Features N/A Shields Outside Diameter D N/A 14.0000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 1.3 kN C0r - Static Load Rating N/A 0.51 kN Grease Limiting Speed N/A 48000 rpm Oil Limiting Speed N/A 56000 rpm
605-2RS Bore Size d N/A 5 mm Features N/A Contact Seals Outside Diameter D N/A 14.0000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 1.3 kN C0r - Static Load Rating N/A 0.51 kN Grease Limiting Speed N/A 48000 rpm Oil Limiting Speed N/A 56000 rpm
605-2RZ Bore Size d N/A 5 mm Features N/A Non-Contact Seals Outside Diameter D N/A 14.0000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 1.3 kN C0r - Static Load Rating N/A 0.51 kN Grease Limiting Speed N/A 48000 rpm Oil Limiting Speed N/A 56000 rpm
625 Bore Size d N/A 5 mm Features N/A Open Outside Diameter D N/A 16.000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 1.7 kN C0r - Static Load Rating N/A 0.67 kN Grease Limiting Speed N/A 44000 rpm Oil Limiting Speed N/A 52000 rpm
625-ZZ Bore Size d N/A 5 mm Features N/A Shields Outside Diameter D N/A 16.000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 1.7 kN C0r - Static Load Rating N/A 0.67 kN Grease Limiting Speed N/A 44000 rpm Oil Limiting Speed N/A 52000 rpm
625-2RS Bore Size d N/A 5 mm Features N/A Contact Seals Outside Diameter D N/A 16.000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 1.7 kN C0r - Static Load Rating N/A 0.67 kN Grease Limiting Speed N/A 44000 rpm Oil Limiting Speed N/A 52000 rpm
625-2RZ Bore Size d N/A 5 mm Features N/A Non-Contact Seals Outside Diameter D N/A 16.000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 1.7 kN C0r - Static Load Rating N/A 0.67 kN Grease Limiting Speed N/A 44000 rpm Oil Limiting Speed N/A 52000 rpm
635 Bore Size d N/A 5 mm Features N/A Open Outside Diameter D N/A 19.0000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.3 kN C0r - Static Load Rating N/A 0.89 kN Grease Limiting Speed N/A 38000 rpm Oil Limiting Speed N/A 45000 rpm
635-ZZ Bore Size d N/A 5 mm Features N/A Shields Outside Diameter D N/A 19.0000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.3 kN C0r - Static Load Rating N/A 0.89 kN Grease Limiting Speed N/A 38000 rpm Oil Limiting Speed N/A 45000 rpm
635-2RS Bore Size d N/A 5 mm Features N/A Contact Seals Outside Diameter D N/A 19.0000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.3 kN C0r - Static Load Rating N/A 0.89 kN Grease Limiting Speed N/A 38000 rpm Oil Limiting Speed N/A 45000 rpm
635-2RZ Bore Size d N/A 5 mm Features N/A Non-Contact Seals Outside Diameter D N/A 19.0000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.3 kN C0r - Static Load Rating N/A 0.89 kN Grease Limiting Speed N/A 38000 rpm Oil Limiting Speed N/A 45000 rpm
618/6 Bore Size d N/A 6 mm Features N/A Open Outside Diameter D N/A 13.000 mm Outside Ring Width B N/A 3.500 mm Cr - Dynamic Load Rating N/A 1.1 kN C0r - Static Load Rating N/A 0.44 kN Grease Limiting Speed N/A 48000 rpm Oil Limiting Speed N/A 56000 rpm
618/6-ZZ Bore Size d N/A 6 mm Features N/A Shields Outside Diameter D N/A 13.000 mm Outside Ring Width B N/A 3.500 mm Cr - Dynamic Load Rating N/A 1.1 kN C0r - Static Load Rating N/A 0.44 kN Grease Limiting Speed N/A 48000 rpm Oil Limiting Speed N/A 56000 rpm
618/6-2RS Bore Size d N/A 6 mm Features N/A Contact Seals Outside Diameter D N/A 13.000 mm Outside Ring Width B N/A 3.500 mm Cr - Dynamic Load Rating N/A 1.1 kN C0r - Static Load Rating N/A 0.44 kN Grease Limiting Speed N/A 48000 rpm Oil Limiting Speed N/A 56000 rpm
618/6-2RZ Bore Size d N/A 6 mm Features N/A Non-Contact Seals Outside Diameter D N/A 13.000 mm Outside Ring Width B N/A 3.500 mm Cr - Dynamic Load Rating N/A 1.1 kN C0r - Static Load Rating N/A 0.44 kN Grease Limiting Speed N/A 48000 rpm Oil Limiting Speed N/A 56000 rpm
619/6 Bore Size d N/A 6 mm Features N/A Open Outside Diameter D N/A 15.000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 1.3 kN C0r - Static Load Rating N/A 0.52 kN Grease Limiting Speed N/A 46000 rpm Oil Limiting Speed N/A 54000 rpm
619/6-ZZ Bore Size d N/A 6 mm Features N/A Shields Outside Diameter D N/A 15.000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 1.3 kN C0r - Static Load Rating N/A 0.52 kN Grease Limiting Speed N/A 46000 rpm Oil Limiting Speed N/A 54000 rpm
619/6-2RS Bore Size d N/A 6 mm Features N/A Contact Seals Outside Diameter D N/A 15.000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 1.3 kN C0r - Static Load Rating N/A 0.52 kN Grease Limiting Speed N/A 46000 rpm Oil Limiting Speed N/A 54000 rpm
619/6-2RZ Bore Size d N/A 6 mm Features N/A Non-Contact Seals Outside Diameter D N/A 15.000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 1.3 kN C0r - Static Load Rating N/A 0.52 kN Grease Limiting Speed N/A 46000 rpm Oil Limiting Speed N/A 54000 rpm
606 Bore Size d N/A 6 mm Features N/A Open Outside Diameter D N/A 17.0000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.3 kN C0r - Static Load Rating N/A 0.84 kN Grease Limiting Speed N/A 42000 rpm Oil Limiting Speed N/A 49000 rpm
606-ZZ Bore Size d N/A 6 mm Features N/A Shields Outside Diameter D N/A 17.0000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.3 kN C0r - Static Load Rating N/A 0.84 kN Grease Limiting Speed N/A 42000 rpm Oil Limiting Speed N/A 49000 rpm
606-2RS Bore Size d N/A 6 mm Features N/A Contact Seals Outside Diameter D N/A 17.0000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.3 kN C0r - Static Load Rating N/A 0.84 kN Grease Limiting Speed N/A 42000 rpm Oil Limiting Speed N/A 49000 rpm
606-2RZ Bore Size d N/A 6 mm Features N/A Non-Contact Seals Outside Diameter D N/A 17.0000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.3 kN C0r - Static Load Rating N/A 0.84 kN Grease Limiting Speed N/A 42000 rpm Oil Limiting Speed N/A 49000 rpm
626 Bore Size d N/A 6 mm Features N/A Open Outside Diameter D N/A 19.0000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.3 kN C0r - Static Load Rating N/A 0.89 kN Grease Limiting Speed N/A 38000 rpm Oil Limiting Speed N/A 45000 rpm
626-ZZ Bore Size d N/A 6 mm Features N/A Shields Outside Diameter D N/A 19.0000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.3 kN C0r - Static Load Rating N/A 0.89 kN Grease Limiting Speed N/A 38000 rpm Oil Limiting Speed N/A 45000 rpm
626-2RS Bore Size d N/A 6 mm Features N/A Contact Seals Outside Diameter D N/A 19.0000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.3 kN C0r - Static Load Rating N/A 0.89 kN Grease Limiting Speed N/A 38000 rpm Oil Limiting Speed N/A 45000 rpm
626-2RZ Bore Size d N/A 6 mm Features N/A Non-Contact Seals Outside Diameter D N/A 19.0000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.3 kN C0r - Static Load Rating N/A 0.89 kN Grease Limiting Speed N/A 38000 rpm Oil Limiting Speed N/A 45000 rpm
636 Bore Size d N/A 6 mm Features N/A Open Outside Diameter D N/A 22.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 3.3 kN C0r - Static Load Rating N/A 1.4 kN Grease Limiting Speed N/A 33000 rpm Oil Limiting Speed N/A 39000 rpm
636-ZZ Bore Size d N/A 6 mm Features N/A Shields Outside Diameter D N/A 22.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 3.3 kN C0r - Static Load Rating N/A 1.4 kN Grease Limiting Speed N/A 33000 rpm Oil Limiting Speed N/A 39000 rpm
636-2RS Bore Size d N/A 6 mm Features N/A Contact Seals Outside Diameter D N/A 22.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 3.3 kN C0r - Static Load Rating N/A 1.4 kN Grease Limiting Speed N/A 33000 rpm Oil Limiting Speed N/A 39000 rpm
636-2RZ Bore Size d N/A 6 mm Features N/A Non-Contact Seals Outside Diameter D N/A 22.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 3.3 kN C0r - Static Load Rating N/A 1.4 kN Grease Limiting Speed N/A 33000 rpm Oil Limiting Speed N/A 39000 rpm
618/7 Bore Size d N/A 7 mm Features N/A Open Outside Diameter D N/A 14.0000 mm Outside Ring Width B N/A 3.500 mm Cr - Dynamic Load Rating N/A 1.2 kN C0r - Static Load Rating N/A 0.51 kN Grease Limiting Speed N/A 44000 rpm Oil Limiting Speed N/A 52000 rpm
618/7-ZZ Bore Size d N/A 7 mm Features N/A Shields Outside Diameter D N/A 14.0000 mm Outside Ring Width B N/A 3.500 mm Cr - Dynamic Load Rating N/A 1.2 kN C0r - Static Load Rating N/A 0.51 kN Grease Limiting Speed N/A 44000 rpm Oil Limiting Speed N/A 52000 rpm
618/7-2RS Bore Size d N/A 7 mm Features N/A Contact Seals Outside Diameter D N/A 14.0000 mm Outside Ring Width B N/A 3.500 mm Cr - Dynamic Load Rating N/A 1.2 kN C0r - Static Load Rating N/A 0.51 kN Grease Limiting Speed N/A 44000 rpm Oil Limiting Speed N/A 52000 rpm
618/7-2RZ Bore Size d N/A 7 mm Features N/A Non-Contact Seals Outside Diameter D N/A 14.0000 mm Outside Ring Width B N/A 3.500 mm Cr - Dynamic Load Rating N/A 1.2 kN C0r - Static Load Rating N/A 0.51 kN Grease Limiting Speed N/A 44000 rpm Oil Limiting Speed N/A 52000 rpm
619/7 Bore Size d N/A 7 mm Features N/A Open Outside Diameter D N/A 17.0000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 1.6 kN C0r - Static Load Rating N/A 0.72 kN Grease Limiting Speed N/A 40000 rpm Oil Limiting Speed N/A 47000 rpm
619/7-ZZ Bore Size d N/A 7 mm Features N/A Shields Outside Diameter D N/A 17.0000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 1.6 kN C0r - Static Load Rating N/A 0.72 kN Grease Limiting Speed N/A 40000 rpm Oil Limiting Speed N/A 47000 rpm
619/7-2RS Bore Size d N/A 7 mm Features N/A Contact Seals Outside Diameter D N/A 17.0000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 1.6 kN C0r - Static Load Rating N/A 0.72 kN Grease Limiting Speed N/A 40000 rpm Oil Limiting Speed N/A 47000 rpm
619/7-2RZ Bore Size d N/A 7 mm Features N/A Non-Contact Seals Outside Diameter D N/A 17.0000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 1.6 kN C0r - Static Load Rating N/A 0.72 kN Grease Limiting Speed N/A 40000 rpm Oil Limiting Speed N/A 47000 rpm
607 Bore Size d N/A 7 mm Features N/A Open Outside Diameter D N/A 19.0000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.3 kN C0r - Static Load Rating N/A 0.89 kN Grease Limiting Speed N/A 38000 rpm Oil Limiting Speed N/A 45000 rpm
607-ZZ Bore Size d N/A 7 mm Features N/A Shields Outside Diameter D N/A 19.0000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.3 kN C0r - Static Load Rating N/A 0.89 kN Grease Limiting Speed N/A 38000 rpm Oil Limiting Speed N/A 45000 rpm
607-2RS Bore Size d N/A 7 mm Features N/A Contact Seals Outside Diameter D N/A 19.0000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.3 kN C0r - Static Load Rating N/A 0.89 kN Grease Limiting Speed N/A 38000 rpm Oil Limiting Speed N/A 45000 rpm
607-2RZ Bore Size d N/A 7 mm Features N/A Non-Contact Seals Outside Diameter D N/A 19.0000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.3 kN C0r - Static Load Rating N/A 0.89 kN Grease Limiting Speed N/A 38000 rpm Oil Limiting Speed N/A 45000 rpm
627 Bore Size d N/A 7 mm Features N/A Open Outside Diameter D N/A 22.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 3.3 kN C0r - Static Load Rating N/A 1.4 kN Grease Limiting Speed N/A 33000 rpm Oil Limiting Speed N/A 39000 rpm
627-ZZ Bore Size d N/A 7 mm Features N/A Shields Outside Diameter D N/A 22.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 3.3 kN C0r - Static Load Rating N/A 1.4 kN Grease Limiting Speed N/A 33000 rpm Oil Limiting Speed N/A 39000 rpm
627-2RS Bore Size d N/A 7 mm Features N/A Contact Seals Outside Diameter D N/A 22.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 3.3 kN C0r - Static Load Rating N/A 1.4 kN Grease Limiting Speed N/A 33000 rpm Oil Limiting Speed N/A 39000 rpm
627-2RZ Bore Size d N/A 7 mm Features N/A Non-Contact Seals Outside Diameter D N/A 22.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 3.3 kN C0r - Static Load Rating N/A 1.4 kN Grease Limiting Speed N/A 33000 rpm Oil Limiting Speed N/A 39000 rpm
637 Bore Size d N/A 7 mm Features N/A Open Outside Diameter D N/A 26.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 4.6 kN C0r - Static Load Rating N/A 2 kN Grease Limiting Speed N/A 28000 rpm Oil Limiting Speed N/A 33000 rpm
637-ZZ Bore Size d N/A 7 mm Features N/A Shields Outside Diameter D N/A 26.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 4.6 kN C0r - Static Load Rating N/A 2 kN Grease Limiting Speed N/A 28000 rpm Oil Limiting Speed N/A 33000 rpm
637-2RS Bore Size d N/A 7 mm Features N/A Contact Seals Outside Diameter D N/A 26.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 4.6 kN C0r - Static Load Rating N/A 2 kN Grease Limiting Speed N/A 28000 rpm Oil Limiting Speed N/A 33000 rpm
637-2RZ Bore Size d N/A 7 mm Features N/A Non-Contact Seals Outside Diameter D N/A 26.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 4.6 kN C0r - Static Load Rating N/A 2 kN Grease Limiting Speed N/A 28000 rpm Oil Limiting Speed N/A 33000 rpm
618/8 Bore Size d N/A 8 mm Features N/A Open Outside Diameter D N/A 16.000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 1.3 kN C0r - Static Load Rating N/A 0.59 kN Grease Limiting Speed N/A 40000 rpm Oil Limiting Speed N/A 47000 rpm
618/8-ZZ Bore Size d N/A 8 mm Features N/A Shields Outside Diameter D N/A 16.000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 1.3 kN C0r - Static Load Rating N/A 0.59 kN Grease Limiting Speed N/A 40000 rpm Oil Limiting Speed N/A 47000 rpm
618/8-2RS Bore Size d N/A 8 mm Features N/A Contact Seals Outside Diameter D N/A 16.000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 1.3 kN C0r - Static Load Rating N/A 0.59 kN Grease Limiting Speed N/A 40000 rpm Oil Limiting Speed N/A 47000 rpm
618/8-2RZ Bore Size d N/A 8 mm Features N/A Non-Contact Seals Outside Diameter D N/A 16.000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 1.3 kN C0r - Static Load Rating N/A 0.59 kN Grease Limiting Speed N/A 40000 rpm Oil Limiting Speed N/A 47000 rpm
619/8 Bore Size d N/A 8 mm Features N/A Open Outside Diameter D N/A 19.0000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.2 kN C0r - Static Load Rating N/A 0.91 kN Grease Limiting Speed N/A 37000 rpm Oil Limiting Speed N/A 44000 rpm
619/8-ZZ Bore Size d N/A 8 mm Features N/A Shields Outside Diameter D N/A 19.0000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.2 kN C0r - Static Load Rating N/A 0.91 kN Grease Limiting Speed N/A 37000 rpm Oil Limiting Speed N/A 44000 rpm
619/8-2RS Bore Size d N/A 8 mm Features N/A Contact Seals Outside Diameter D N/A 19.0000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.2 kN C0r - Static Load Rating N/A 0.91 kN Grease Limiting Speed N/A 37000 rpm Oil Limiting Speed N/A 44000 rpm
619/8-2RZ Bore Size d N/A 8 mm Features N/A Non-Contact Seals Outside Diameter D N/A 19.0000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.2 kN C0r - Static Load Rating N/A 0.91 kN Grease Limiting Speed N/A 37000 rpm Oil Limiting Speed N/A 44000 rpm
608 Bore Size d N/A 8 mm Features N/A Open Outside Diameter D N/A 22.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 3.3 kN C0r - Static Load Rating N/A 1.4 kN Grease Limiting Speed N/A 33000 rpm Oil Limiting Speed N/A 39000 rpm
608-ZZ Bore Size d N/A 8 mm Features N/A Shields Outside Diameter D N/A 22.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 3.3 kN C0r - Static Load Rating N/A 1.4 kN Grease Limiting Speed N/A 33000 rpm Oil Limiting Speed N/A 39000 rpm
608-2RS Bore Size d N/A 8 mm Features N/A Contact Seals Outside Diameter D N/A 22.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 3.3 kN C0r - Static Load Rating N/A 1.4 kN Grease Limiting Speed N/A 33000 rpm Oil Limiting Speed N/A 39000 rpm
608-2RZ Bore Size d N/A 8 mm Features N/A Non-Contact Seals Outside Diameter D N/A 22.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 3.3 kN C0r - Static Load Rating N/A 1.4 kN Grease Limiting Speed N/A 33000 rpm Oil Limiting Speed N/A 39000 rpm
628 Bore Size d N/A 8 mm Features N/A Open Outside Diameter D N/A 24.000 mm Outside Ring Width B N/A 8.000 mm Cr - Dynamic Load Rating N/A 3.3 kN C0r - Static Load Rating N/A 1.4 kN Grease Limiting Speed N/A 31000 rpm Oil Limiting Speed N/A 37000 rpm
628-ZZ Bore Size d N/A 8 mm Features N/A Shields Outside Diameter D N/A 24.000 mm Outside Ring Width B N/A 8.000 mm Cr - Dynamic Load Rating N/A 3.3 kN C0r - Static Load Rating N/A 1.4 kN Grease Limiting Speed N/A 31000 rpm Oil Limiting Speed N/A 37000 rpm
628-2RS Bore Size d N/A 8 mm Features N/A Contact Seals Outside Diameter D N/A 24.000 mm Outside Ring Width B N/A 8.000 mm Cr - Dynamic Load Rating N/A 3.3 kN C0r - Static Load Rating N/A 1.4 kN Grease Limiting Speed N/A 31000 rpm Oil Limiting Speed N/A 37000 rpm
628-2RZ Bore Size d N/A 8 mm Features N/A Non-Contact Seals Outside Diameter D N/A 24.000 mm Outside Ring Width B N/A 8.000 mm Cr - Dynamic Load Rating N/A 3.3 kN C0r - Static Load Rating N/A 1.4 kN Grease Limiting Speed N/A 31000 rpm Oil Limiting Speed N/A 37000 rpm
638 Bore Size d N/A 8 mm Features N/A Open Outside Diameter D N/A 28.0000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 4.6 kN C0r - Static Load Rating N/A 2 kN Grease Limiting Speed N/A 28000 rpm Oil Limiting Speed N/A 33000 rpm
638-ZZ Bore Size d N/A 8 mm Features N/A Shields Outside Diameter D N/A 28.0000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 4.6 kN C0r - Static Load Rating N/A 2 kN Grease Limiting Speed N/A 28000 rpm Oil Limiting Speed N/A 33000 rpm
638-2RS Bore Size d N/A 8 mm Features N/A Contact Seals Outside Diameter D N/A 28.0000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 4.6 kN C0r - Static Load Rating N/A 2 kN Grease Limiting Speed N/A 28000 rpm Oil Limiting Speed N/A 33000 rpm
638-2RZ Bore Size d N/A 8 mm Features N/A Non-Contact Seals Outside Diameter D N/A 28.0000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 4.6 kN C0r - Static Load Rating N/A 2 kN Grease Limiting Speed N/A 28000 rpm Oil Limiting Speed N/A 33000 rpm
618/9 Bore Size d N/A 9 mm Features N/A Open Outside Diameter D N/A 17.0000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 1.3 kN C0r - Static Load Rating N/A 0.66 kN Grease Limiting Speed N/A 37000 rpm Oil Limiting Speed N/A 44000 rpm
618/9-ZZ Bore Size d N/A 9 mm Features N/A Shields Outside Diameter D N/A 17.0000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 1.3 kN C0r - Static Load Rating N/A 0.66 kN Grease Limiting Speed N/A 37000 rpm Oil Limiting Speed N/A 44000 rpm
618/9-2RS Bore Size d N/A 9 mm Features N/A Contact Seals Outside Diameter D N/A 17.0000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 1.3 kN C0r - Static Load Rating N/A 0.66 kN Grease Limiting Speed N/A 37000 rpm Oil Limiting Speed N/A 44000 rpm
618/9-2RZ Bore Size d N/A 9 mm Features N/A Non-Contact Seals Outside Diameter D N/A 17.0000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 1.3 kN C0r - Static Load Rating N/A 0.66 kN Grease Limiting Speed N/A 37000 rpm Oil Limiting Speed N/A 44000 rpm
619/9 Bore Size d N/A 9 mm Features N/A Open Outside Diameter D N/A 20.000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.5 kN C0r - Static Load Rating N/A 1.1 kN Grease Limiting Speed N/A 35000 rpm Oil Limiting Speed N/A 42000 rpm
619/9-ZZ Bore Size d N/A 9 mm Features N/A Shields Outside Diameter D N/A 20.000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.5 kN C0r - Static Load Rating N/A 1.1 kN Grease Limiting Speed N/A 35000 rpm Oil Limiting Speed N/A 42000 rpm
619/9-2RS Bore Size d N/A 9 mm Features N/A Contact Seals Outside Diameter D N/A 20.000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.5 kN C0r - Static Load Rating N/A 1.1 kN Grease Limiting Speed N/A 35000 rpm Oil Limiting Speed N/A 42000 rpm
619/9-2RZ Bore Size d N/A 9 mm Features N/A Non-Contact Seals Outside Diameter D N/A 20.000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.5 kN C0r - Static Load Rating N/A 1.1 kN Grease Limiting Speed N/A 35000 rpm Oil Limiting Speed N/A 42000 rpm
609 Bore Size d N/A 9 mm Features N/A Open Outside Diameter D N/A 24.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 3.4 kN C0r - Static Load Rating N/A 1.4 kN Grease Limiting Speed N/A 30000 rpm Oil Limiting Speed N/A 36000 rpm CAD N/A CAD
609-ZZ Bore Size d N/A 9 mm Features N/A Shields Outside Diameter D N/A 24.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 3.4 kN C0r - Static Load Rating N/A 1.4 kN Grease Limiting Speed N/A 30000 rpm Oil Limiting Speed N/A 36000 rpm CAD N/A CAD
609-2RS Bore Size d N/A 9 mm Features N/A Contact Seals Outside Diameter D N/A 24.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 3.4 kN C0r - Static Load Rating N/A 1.4 kN Grease Limiting Speed N/A 30000 rpm Oil Limiting Speed N/A 36000 rpm CAD N/A CAD
609-2RZ Bore Size d N/A 9 mm Features N/A Non-Contact Seals Outside Diameter D N/A 24.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 3.4 kN C0r - Static Load Rating N/A 1.4 kN Grease Limiting Speed N/A 30000 rpm Oil Limiting Speed N/A 36000 rpm CAD N/A CAD
629 Bore Size d N/A 9 mm Features N/A Open Outside Diameter D N/A 26.000 mm Outside Ring Width B N/A 8.000 mm Cr - Dynamic Load Rating N/A 4.6 kN C0r - Static Load Rating N/A 2 kN Grease Limiting Speed N/A 28000 rpm Oil Limiting Speed N/A 33000 rpm CAD N/A CAD
629-ZZ Bore Size d N/A 9 mm Features N/A Shields Outside Diameter D N/A 26.000 mm Outside Ring Width B N/A 8.000 mm Cr - Dynamic Load Rating N/A 4.6 kN C0r - Static Load Rating N/A 2 kN Grease Limiting Speed N/A 28000 rpm Oil Limiting Speed N/A 33000 rpm CAD N/A CAD
629-2RS Bore Size d N/A 9 mm Features N/A Contact Seals Outside Diameter D N/A 26.000 mm Outside Ring Width B N/A 8.000 mm Cr - Dynamic Load Rating N/A 4.6 kN C0r - Static Load Rating N/A 2 kN Grease Limiting Speed N/A 28000 rpm Oil Limiting Speed N/A 33000 rpm CAD N/A CAD
629-2RZ Bore Size d N/A 9 mm Features N/A Non-Contact Seals Outside Diameter D N/A 26.000 mm Outside Ring Width B N/A 8.000 mm Cr - Dynamic Load Rating N/A 4.6 kN C0r - Static Load Rating N/A 2 kN Grease Limiting Speed N/A 28000 rpm Oil Limiting Speed N/A 33000 rpm CAD N/A CAD
639 Bore Size d N/A 9 mm Features N/A Open Outside Diameter D N/A 30.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 5.1 kN C0r - Static Load Rating N/A 2.4 kN Grease Limiting Speed N/A 25000 rpm Oil Limiting Speed N/A 30000 rpm CAD N/A CAD
639-ZZ Bore Size d N/A 9 mm Features N/A Shields Outside Diameter D N/A 30.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 5.1 kN C0r - Static Load Rating N/A 2.4 kN Grease Limiting Speed N/A 25000 rpm Oil Limiting Speed N/A 30000 rpm CAD N/A CAD
639-2RS Bore Size d N/A 9 mm Features N/A Contact Seals Outside Diameter D N/A 30.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 5.1 kN C0r - Static Load Rating N/A 2.4 kN Grease Limiting Speed N/A 25000 rpm Oil Limiting Speed N/A 30000 rpm CAD N/A CAD
639-2RZ Bore Size d N/A 9 mm Features N/A Non-Contact Seals Outside Diameter D N/A 30.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 5.1 kN C0r - Static Load Rating N/A 2.4 kN Grease Limiting Speed N/A 25000 rpm Oil Limiting Speed N/A 30000 rpm CAD N/A CAD
625-ZZ-C3 Bore Size d N/A 5 mm Features N/A Shields Outside Diameter D N/A 16.000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 1.7 kN C0r - Static Load Rating N/A 0.67 kN Grease Limiting Speed N/A 44000 rpm Oil Limiting Speed N/A 52000 rpm CAD N/A CAD
626-C3 Bore Size d N/A 6 mm Features N/A Open Outside Diameter D N/A 19.0000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.3 kN C0r - Static Load Rating N/A 0.89 kN Grease Limiting Speed N/A 38000 rpm Oil Limiting Speed N/A 45000 rpm CAD N/A CAD
626-ZZ-C3 Bore Size d N/A 6 mm Features N/A Shields Outside Diameter D N/A 19.0000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.3 kN C0r - Static Load Rating N/A 0.89 kN Grease Limiting Speed N/A 38000 rpm Oil Limiting Speed N/A 45000 rpm CAD N/A CAD
626-2RS-C3 Bore Size d N/A 6 mm Features N/A Contact Seals Outside Diameter D N/A 19.0000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.3 kN C0r - Static Load Rating N/A 0.89 kN Grease Limiting Speed N/A 38000 rpm Oil Limiting Speed N/A 45000 rpm CAD N/A CAD
607-ZZ-C3 Bore Size d N/A 7 mm Features N/A Shields Outside Diameter D N/A 19.0000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.3 kN C0r - Static Load Rating N/A 0.89 kN Grease Limiting Speed N/A 38000 rpm Oil Limiting Speed N/A 45000 rpm CAD N/A CAD
607-2RS-C3 Bore Size d N/A 7 mm Features N/A Contact Seals Outside Diameter D N/A 19.0000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.3 kN C0r - Static Load Rating N/A 0.89 kN Grease Limiting Speed N/A 38000 rpm Oil Limiting Speed N/A 45000 rpm CAD N/A CAD
627-2RS-C3 Bore Size d N/A 7 mm Features N/A Contact Seals Outside Diameter D N/A 22.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 3.3 kN C0r - Static Load Rating N/A 1.4 kN Grease Limiting Speed N/A 33000 rpm Oil Limiting Speed N/A 39000 rpm CAD N/A CAD
608-C3 Bore Size d N/A 8 mm Features N/A Open Outside Diameter D N/A 22.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 3.3 kN C0r - Static Load Rating N/A 1.4 kN Grease Limiting Speed N/A 33000 rpm Oil Limiting Speed N/A 39000 rpm CAD N/A CAD
608-ZZ-C3 Bore Size d N/A 8 mm Features N/A Shields Outside Diameter D N/A 22.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 3.3 kN C0r - Static Load Rating N/A 1.4 kN Grease Limiting Speed N/A 33000 rpm Oil Limiting Speed N/A 39000 rpm CAD N/A CAD
608-2RS-C3 Bore Size d N/A 8 mm Features N/A Contact Seals Outside Diameter D N/A 22.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 3.3 kN C0r - Static Load Rating N/A 1.4 kN Grease Limiting Speed N/A 33000 rpm Oil Limiting Speed N/A 39000 rpm CAD N/A CAD
608-2RZ-C3 Bore Size d N/A 8 mm Features N/A Non-Contact Seals Outside Diameter D N/A 22.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 3.3 kN C0r - Static Load Rating N/A 1.4 kN Grease Limiting Speed N/A 33000 rpm Oil Limiting Speed N/A 39000 rpm CAD N/A CAD
609-ZZ-C3 Bore Size d N/A 9 mm Features N/A Shields Outside Diameter D N/A 24.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 3.4 kN C0r - Static Load Rating N/A 1.4 kN Grease Limiting Speed N/A 30000 rpm Oil Limiting Speed N/A 36000 rpm CAD N/A CAD
609-2RS-C3 Bore Size d N/A 9 mm Features N/A Contact Seals Outside Diameter D N/A 24.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 3.4 kN C0r - Static Load Rating N/A 1.4 kN Grease Limiting Speed N/A 30000 rpm Oil Limiting Speed N/A 36000 rpm CAD N/A CAD
609-2RZ-C3 Bore Size d N/A 9 mm Features N/A Non-Contact Seals Outside Diameter D N/A 24.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 3.4 kN C0r - Static Load Rating N/A 1.4 kN Grease Limiting Speed N/A 30000 rpm Oil Limiting Speed N/A 36000 rpm
629-2RS-C3 Bore Size d N/A 9 mm Features N/A Contact Seals Outside Diameter D N/A 26.000 mm Outside Ring Width B N/A 8.000 mm Cr - Dynamic Load Rating N/A 4.6 kN C0r - Static Load Rating N/A 2 kN Grease Limiting Speed N/A 28000 rpm Oil Limiting Speed N/A 33000 rpm





Sản phẩm liên quan
Deep Groove Ball Bearings (6000, 6200, 6300, 6400)
Deep Groove Ball Bearings (6000, 6200, 6300, 6400)
Thin Section Ball Bearings (61700, 61800, 61900)
Thin Section Ball Bearings (61700, 61800, 61900)
Narrow Section Ball Bearings (16000, 16100)
Narrow Section Ball Bearings (16000, 16100)
Wide Section Ball Bearings (62000, 63000)
Wide Section Ball Bearings (62000, 63000)
Fafnir® Deep Groove Ball Bearings (9100K, 200K, 300K)
Fafnir® Deep Groove Ball Bearings (9100K, 200K, 300K)
Fafnir® Maximum Capacity Ball Bearings (200W, 300W)
Fafnir® Maximum Capacity Ball Bearings (200W, 300W)
x
Liên hệ
Kinh doanh 1: 0909 566 551
Kinh doanh 1: 0933 155 707
Kỹ thuật: 0911 991 666
Tel Zalo Messenger
