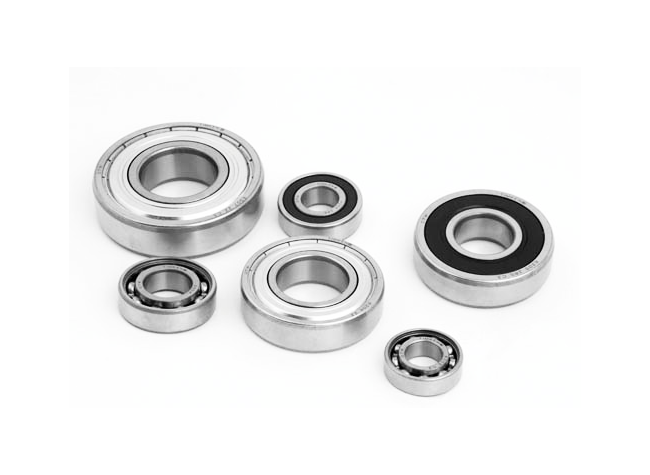

Thin Section Ball Bearings (61700, 61800, 61900)



Deep groove ball bearings are available in a variety of sizes and are the most popular of the rolling bearings. This type of bearing supports radial load and a small degree of axial load in both directions simultaneously. Deep groove ball bearings are popular due to their versatility, affordability, and capability to run at high speeds.

Timken 61000 thin section series have bore sizes that range from 10 to 65 mm and outside diameter sizes that range from 18 to 90mm.





Timken Part Number

  Clearance  Bore Size d  Features  Outside Diameter D  Outside Ring Width B  Cr - Dynamic Load Rating  C0r - Static Load Rating  Grease Limiting Speed

Oil Limiting Speed
61800 Clearance N/A C0 (Normal) Bore Size d N/A 10 mm Features N/A Open Outside Diameter D N/A 19.0000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 1.7 kN C0r - Static Load Rating N/A 0.84 kN Grease Limiting Speed N/A 34000 rpm Oil Limiting Speed N/A 40000 rpm
61800-ZZ Clearance N/A C0 (Normal) Bore Size d N/A 10 mm Features N/A Shields Outside Diameter D N/A 19.0000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 1.7 kN C0r - Static Load Rating N/A 0.84 kN Grease Limiting Speed N/A 34000 rpm Oil Limiting Speed N/A 40000 rpm
61800-2RS Clearance N/A C0 (Normal) Bore Size d N/A 10 mm Features N/A Contact Seals Outside Diameter D N/A 19.0000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 1.7 kN C0r - Static Load Rating N/A 0.84 kN Grease Limiting Speed N/A 34000 rpm Oil Limiting Speed N/A 40000 rpm
61800-2RZ Clearance N/A C0 (Normal) Bore Size d N/A 10 mm Features N/A Non-Contact Seals Outside Diameter D N/A 19.0000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 1.7 kN C0r - Static Load Rating N/A 0.84 kN Grease Limiting Speed N/A 34000 rpm Oil Limiting Speed N/A 40000 rpm
61900 Clearance N/A C0 (Normal) Bore Size d N/A 10 mm Features N/A Open Outside Diameter D N/A 22.000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.7 kN C0r - Static Load Rating N/A 1.3 kN Grease Limiting Speed N/A 31000 rpm Oil Limiting Speed N/A 37000 rpm
61900-ZZ Clearance N/A C0 (Normal) Bore Size d N/A 10 mm Features N/A Shields Outside Diameter D N/A 22.000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.7 kN C0r - Static Load Rating N/A 1.3 kN Grease Limiting Speed N/A 31000 rpm Oil Limiting Speed N/A 37000 rpm
61900-2RS Clearance N/A C0 (Normal) Bore Size d N/A 10 mm Features N/A Contact Seals Outside Diameter D N/A 22.000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.7 kN C0r - Static Load Rating N/A 1.3 kN Grease Limiting Speed N/A 31000 rpm Oil Limiting Speed N/A 37000 rpm
61900-2RZ Clearance N/A C0 (Normal) Bore Size d N/A 10 mm Features N/A Non-Contact Seals Outside Diameter D N/A 22.000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.7 kN C0r - Static Load Rating N/A 1.3 kN Grease Limiting Speed N/A 31000 rpm Oil Limiting Speed N/A 37000 rpm
61701 Clearance N/A C0 (Normal) Bore Size d N/A 12 mm Features N/A Open Outside Diameter D N/A 18.000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 0.93 kN C0r - Static Load Rating N/A 0.53 kN Grease Limiting Speed N/A 13000 rpm Oil Limiting Speed N/A 15000 rpm
61701-ZZ Clearance N/A C0 (Normal) Bore Size d N/A 12 mm Features N/A Shields Outside Diameter D N/A 18.000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 0.93 kN C0r - Static Load Rating N/A 0.53 kN Grease Limiting Speed N/A 13000 rpm Oil Limiting Speed N/A 15000 rpm
61701-2RS Clearance N/A C0 (Normal) Bore Size d N/A 12 mm Features N/A Contact Seals Outside Diameter D N/A 18.000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 0.93 kN C0r - Static Load Rating N/A 0.53 kN Grease Limiting Speed N/A 13000 rpm Oil Limiting Speed N/A 15000 rpm
61801 Clearance N/A C0 (Normal) Bore Size d N/A 12 mm Features N/A Open Outside Diameter D N/A 21.0000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 1.9 kN C0r - Static Load Rating N/A 1 kN Grease Limiting Speed N/A 30000 rpm Oil Limiting Speed N/A 36000 rpm
61801-ZZ Clearance N/A C0 (Normal) Bore Size d N/A 12 mm Features N/A Shields Outside Diameter D N/A 21.0000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 1.9 kN C0r - Static Load Rating N/A 1 kN Grease Limiting Speed N/A 30000 rpm Oil Limiting Speed N/A 36000 rpm
61801-2RS Clearance N/A C0 (Normal) Bore Size d N/A 12 mm Features N/A Contact Seals Outside Diameter D N/A 21.0000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 1.9 kN C0r - Static Load Rating N/A 1 kN Grease Limiting Speed N/A 30000 rpm Oil Limiting Speed N/A 36000 rpm
61801-2RZ Clearance N/A C0 (Normal) Bore Size d N/A 12 mm Features N/A Non-Contact Seals Outside Diameter D N/A 21.0000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 1.9 kN C0r - Static Load Rating N/A 1 kN Grease Limiting Speed N/A 30000 rpm Oil Limiting Speed N/A 36000 rpm
61901 Clearance N/A C0 (Normal) Bore Size d N/A 12 mm Features N/A Open Outside Diameter D N/A 24.000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.9 kN C0r - Static Load Rating N/A 1.5 kN Grease Limiting Speed N/A 28000 rpm Oil Limiting Speed N/A 33000 rpm
61901-ZZ Clearance N/A C0 (Normal) Bore Size d N/A 12 mm Features N/A Shields Outside Diameter D N/A 24.000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.9 kN C0r - Static Load Rating N/A 1.5 kN Grease Limiting Speed N/A 28000 rpm Oil Limiting Speed N/A 33000 rpm
61901-2RS Clearance N/A C0 (Normal) Bore Size d N/A 12 mm Features N/A Contact Seals Outside Diameter D N/A 24.000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.9 kN C0r - Static Load Rating N/A 1.5 kN Grease Limiting Speed N/A 28000 rpm Oil Limiting Speed N/A 33000 rpm
61901-2RZ Clearance N/A C0 (Normal) Bore Size d N/A 12 mm Features N/A Non-Contact Seals Outside Diameter D N/A 24.000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.9 kN C0r - Static Load Rating N/A 1.5 kN Grease Limiting Speed N/A 28000 rpm Oil Limiting Speed N/A 33000 rpm
61702 Clearance N/A C0 (Normal) Bore Size d N/A 15 mm Features N/A Open Outside Diameter D N/A 21.0000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 0.94 kN C0r - Static Load Rating N/A 0.58 kN Grease Limiting Speed N/A 11000 rpm Oil Limiting Speed N/A 13000 rpm
61702-ZZ Clearance N/A C0 (Normal) Bore Size d N/A 15 mm Features N/A Shields Outside Diameter D N/A 21.0000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 0.94 kN C0r - Static Load Rating N/A 0.58 kN Grease Limiting Speed N/A 11000 rpm Oil Limiting Speed N/A 13000 rpm
61702-2RS Clearance N/A C0 (Normal) Bore Size d N/A 15 mm Features N/A Contact Seals Outside Diameter D N/A 21.0000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 0.94 kN C0r - Static Load Rating N/A 0.58 kN Grease Limiting Speed N/A 11000 rpm Oil Limiting Speed N/A 13000 rpm
61802 Clearance N/A C0 (Normal) Bore Size d N/A 15 mm Features N/A Open Outside Diameter D N/A 24.000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 2.1 kN C0r - Static Load Rating N/A 1.3 kN Grease Limiting Speed N/A 26000 rpm Oil Limiting Speed N/A 31000 rpm
61802-ZZ Clearance N/A C0 (Normal) Bore Size d N/A 15 mm Features N/A Shields Outside Diameter D N/A 24.000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 2.1 kN C0r - Static Load Rating N/A 1.3 kN Grease Limiting Speed N/A 26000 rpm Oil Limiting Speed N/A 31000 rpm
61802-2RS Clearance N/A C0 (Normal) Bore Size d N/A 15 mm Features N/A Contact Seals Outside Diameter D N/A 24.000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 2.1 kN C0r - Static Load Rating N/A 1.3 kN Grease Limiting Speed N/A 26000 rpm Oil Limiting Speed N/A 31000 rpm
61802-2RZ Clearance N/A C0 (Normal) Bore Size d N/A 15 mm Features N/A Non-Contact Seals Outside Diameter D N/A 24.000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 2.1 kN C0r - Static Load Rating N/A 1.3 kN Grease Limiting Speed N/A 26000 rpm Oil Limiting Speed N/A 31000 rpm
61902 Clearance N/A C0 (Normal) Bore Size d N/A 15 mm Features N/A Open Outside Diameter D N/A 28.0000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4.3 kN C0r - Static Load Rating N/A 2.3 kN Grease Limiting Speed N/A 24000 rpm Oil Limiting Speed N/A 29000 rpm
61902-ZZ Clearance N/A C0 (Normal) Bore Size d N/A 15 mm Features N/A Shields Outside Diameter D N/A 28.0000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4.3 kN C0r - Static Load Rating N/A 2.3 kN Grease Limiting Speed N/A 24000 rpm Oil Limiting Speed N/A 29000 rpm
61902-2RS Clearance N/A C0 (Normal) Bore Size d N/A 15 mm Features N/A Contact Seals Outside Diameter D N/A 28.0000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4.3 kN C0r - Static Load Rating N/A 2.3 kN Grease Limiting Speed N/A 24000 rpm Oil Limiting Speed N/A 29000 rpm
61902-2RZ Clearance N/A C0 (Normal) Bore Size d N/A 15 mm Features N/A Non-Contact Seals Outside Diameter D N/A 28.0000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4.3 kN C0r - Static Load Rating N/A 2.3 kN Grease Limiting Speed N/A 24000 rpm Oil Limiting Speed N/A 29000 rpm
61703 Clearance N/A C0 (Normal) Bore Size d N/A 17 mm Features N/A Open Outside Diameter D N/A 23.000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 1 kN C0r - Static Load Rating N/A 0.66 kN Grease Limiting Speed N/A 9500 rpm Oil Limiting Speed N/A 11000 rpm
61703-ZZ Clearance N/A C0 (Normal) Bore Size d N/A 17 mm Features N/A Shields Outside Diameter D N/A 23.000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 1 kN C0r - Static Load Rating N/A 0.66 kN Grease Limiting Speed N/A 9500 rpm Oil Limiting Speed N/A 11000 rpm
61703-2RS Clearance N/A C0 (Normal) Bore Size d N/A 17 mm Features N/A Contact Seals Outside Diameter D N/A 23.000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 1 kN C0r - Static Load Rating N/A 0.66 kN Grease Limiting Speed N/A 9500 rpm Oil Limiting Speed N/A 11000 rpm
61803 Clearance N/A C0 (Normal) Bore Size d N/A 17 mm Features N/A Open Outside Diameter D N/A 26.000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 2.2 kN C0r - Static Load Rating N/A 1.5 kN Grease Limiting Speed N/A 24000 rpm Oil Limiting Speed N/A 29000 rpm
61803-ZZ Clearance N/A C0 (Normal) Bore Size d N/A 17 mm Features N/A Shields Outside Diameter D N/A 26.000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 2.2 kN C0r - Static Load Rating N/A 1.5 kN Grease Limiting Speed N/A 24000 rpm Oil Limiting Speed N/A 29000 rpm
61803-2RS Clearance N/A C0 (Normal) Bore Size d N/A 17 mm Features N/A Contact Seals Outside Diameter D N/A 26.000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 2.2 kN C0r - Static Load Rating N/A 1.5 kN Grease Limiting Speed N/A 24000 rpm Oil Limiting Speed N/A 29000 rpm
61803-2RZ Clearance N/A C0 (Normal) Bore Size d N/A 17 mm Features N/A Non-Contact Seals Outside Diameter D N/A 26.000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 2.2 kN C0r - Static Load Rating N/A 1.5 kN Grease Limiting Speed N/A 24000 rpm Oil Limiting Speed N/A 29000 rpm
61903 Clearance N/A C0 (Normal) Bore Size d N/A 17 mm Features N/A Open Outside Diameter D N/A 30.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4.6 kN C0r - Static Load Rating N/A 2.6 kN Grease Limiting Speed N/A 22000 rpm Oil Limiting Speed N/A 26000 rpm
61903-ZZ Clearance N/A C0 (Normal) Bore Size d N/A 17 mm Features N/A Shields Outside Diameter D N/A 30.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4.6 kN C0r - Static Load Rating N/A 2.6 kN Grease Limiting Speed N/A 22000 rpm Oil Limiting Speed N/A 26000 rpm
61903-2RS Clearance N/A C0 (Normal) Bore Size d N/A 17 mm Features N/A Contact Seals Outside Diameter D N/A 30.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4.6 kN C0r - Static Load Rating N/A 2.6 kN Grease Limiting Speed N/A 22000 rpm Oil Limiting Speed N/A 26000 rpm
61903-2RZ Clearance N/A C0 (Normal) Bore Size d N/A 17 mm Features N/A Non-Contact Seals Outside Diameter D N/A 30.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4.6 kN C0r - Static Load Rating N/A 2.6 kN Grease Limiting Speed N/A 22000 rpm Oil Limiting Speed N/A 26000 rpm
61704 Clearance N/A C0 (Normal) Bore Size d N/A 20 mm Features N/A Open Outside Diameter D N/A 27.000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 1 kN C0r - Static Load Rating N/A 0.72 kN Grease Limiting Speed N/A 8500 rpm Oil Limiting Speed N/A 10000 rpm
61704-2RS Clearance N/A C0 (Normal) Bore Size d N/A 20 mm Features N/A Contact Seals Outside Diameter D N/A 27.000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 1 kN C0r - Static Load Rating N/A 0.72 kN Grease Limiting Speed N/A 8500 rpm Oil Limiting Speed N/A 10000 rpm
61804 Clearance N/A C0 (Normal) Bore Size d N/A 20 mm Features N/A Open Outside Diameter D N/A 32.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4 kN C0r - Static Load Rating N/A 2.5 kN Grease Limiting Speed N/A 21000 rpm Oil Limiting Speed N/A 25000 rpm
61804-ZZ Clearance N/A C0 (Normal) Bore Size d N/A 20 mm Features N/A Shields Outside Diameter D N/A 32.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4 kN C0r - Static Load Rating N/A 2.5 kN Grease Limiting Speed N/A 21000 rpm Oil Limiting Speed N/A 25000 rpm
61804-2RS Clearance N/A C0 (Normal) Bore Size d N/A 20 mm Features N/A Contact Seals Outside Diameter D N/A 32.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4 kN C0r - Static Load Rating N/A 2.5 kN Grease Limiting Speed N/A 21000 rpm Oil Limiting Speed N/A 25000 rpm
61804-2RZ Clearance N/A C0 (Normal) Bore Size d N/A 20 mm Features N/A Non-Contact Seals Outside Diameter D N/A 32.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4 kN C0r - Static Load Rating N/A 2.5 kN Grease Limiting Speed N/A 21000 rpm Oil Limiting Speed N/A 25000 rpm
61904 Clearance N/A C0 (Normal) Bore Size d N/A 20 mm Features N/A Open Outside Diameter D N/A 37.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 6.4 kN C0r - Static Load Rating N/A 3.7 kN Grease Limiting Speed N/A 19000 rpm Oil Limiting Speed N/A 22000 rpm
61904-ZZ Clearance N/A C0 (Normal) Bore Size d N/A 20 mm Features N/A Shields Outside Diameter D N/A 37.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 6.4 kN C0r - Static Load Rating N/A 3.7 kN Grease Limiting Speed N/A 19000 rpm Oil Limiting Speed N/A 22000 rpm
61904-2RS Clearance N/A C0 (Normal) Bore Size d N/A 20 mm Features N/A Contact Seals Outside Diameter D N/A 37.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 6.4 kN C0r - Static Load Rating N/A 3.7 kN Grease Limiting Speed N/A 19000 rpm Oil Limiting Speed N/A 22000 rpm
61904-2RZ Clearance N/A C0 (Normal) Bore Size d N/A 20 mm Features N/A Non-Contact Seals Outside Diameter D N/A 37.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 6.4 kN C0r - Static Load Rating N/A 3.7 kN Grease Limiting Speed N/A 19000 rpm Oil Limiting Speed N/A 22000 rpm
61705 Clearance N/A C0 (Normal) Bore Size d N/A 25 mm Features N/A Open Outside Diameter D N/A 32.000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 1.1 kN C0r - Static Load Rating N/A 0.84 kN Grease Limiting Speed N/A 7000 rpm Oil Limiting Speed N/A 8000 rpm
61705-2RS Clearance N/A C0 (Normal) Bore Size d N/A 25 mm Features N/A Contact Seals Outside Diameter D N/A 32.000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 1.1 kN C0r - Static Load Rating N/A 0.84 kN Grease Limiting Speed N/A 7000 rpm Oil Limiting Speed N/A 8000 rpm
61805 Clearance N/A C0 (Normal) Bore Size d N/A 25 mm Features N/A Open Outside Diameter D N/A 37.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4.3 kN C0r - Static Load Rating N/A 2.9 kN Grease Limiting Speed N/A 18000 rpm Oil Limiting Speed N/A 21000 rpm
61805-ZZ Clearance N/A C0 (Normal) Bore Size d N/A 25 mm Features N/A Shields Outside Diameter D N/A 37.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4.3 kN C0r - Static Load Rating N/A 2.9 kN Grease Limiting Speed N/A 18000 rpm Oil Limiting Speed N/A 21000 rpm
61805-2RS Clearance N/A C0 (Normal) Bore Size d N/A 25 mm Features N/A Contact Seals Outside Diameter D N/A 37.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4.3 kN C0r - Static Load Rating N/A 2.9 kN Grease Limiting Speed N/A 18000 rpm Oil Limiting Speed N/A 21000 rpm
61805-2RZ Clearance N/A C0 (Normal) Bore Size d N/A 25 mm Features N/A Non-Contact Seals Outside Diameter D N/A 37.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4.3 kN C0r - Static Load Rating N/A 2.9 kN Grease Limiting Speed N/A 18000 rpm Oil Limiting Speed N/A 21000 rpm
61905 Clearance N/A C0 (Normal) Bore Size d N/A 25 mm Features N/A Open Outside Diameter D N/A 42.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 7 kN C0r - Static Load Rating N/A 4.6 kN Grease Limiting Speed N/A 16000 rpm Oil Limiting Speed N/A 19000 rpm
61905-ZZ Clearance N/A C0 (Normal) Bore Size d N/A 25 mm Features N/A Shields Outside Diameter D N/A 42.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 7 kN C0r - Static Load Rating N/A 4.6 kN Grease Limiting Speed N/A 16000 rpm Oil Limiting Speed N/A 19000 rpm
61905-2RS Clearance N/A C0 (Normal) Bore Size d N/A 25 mm Features N/A Contact Seals Outside Diameter D N/A 42.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 7 kN C0r - Static Load Rating N/A 4.6 kN Grease Limiting Speed N/A 16000 rpm Oil Limiting Speed N/A 19000 rpm
61905-2RZ Clearance N/A C0 (Normal) Bore Size d N/A 25 mm Features N/A Non-Contact Seals Outside Diameter D N/A 42.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 7 kN C0r - Static Load Rating N/A 4.6 kN Grease Limiting Speed N/A 16000 rpm Oil Limiting Speed N/A 19000 rpm
61706 Clearance N/A C0 (Normal) Bore Size d N/A 30 mm Features N/A Open Outside Diameter D N/A 37.000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 1.1 kN C0r - Static Load Rating N/A 0.95 kN Grease Limiting Speed N/A 5500 rpm Oil Limiting Speed N/A 7000 rpm
61706-2RZ Clearance N/A C0 (Normal) Bore Size d N/A 30 mm Features N/A Non-Contact Seals Outside Diameter D N/A 37.000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 1.1 kN C0r - Static Load Rating N/A 0.95 kN Grease Limiting Speed N/A 5500 rpm Oil Limiting Speed N/A 7000 rpm
61806 Clearance N/A C0 (Normal) Bore Size d N/A 30 mm Features N/A Open Outside Diameter D N/A 42.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4.5 kN C0r - Static Load Rating N/A 3.4 kN Grease Limiting Speed N/A 15000 rpm Oil Limiting Speed N/A 18000 rpm
61806-ZZ Clearance N/A C0 (Normal) Bore Size d N/A 30 mm Features N/A Shields Outside Diameter D N/A 42.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4.5 kN C0r - Static Load Rating N/A 3.4 kN Grease Limiting Speed N/A 15000 rpm Oil Limiting Speed N/A 18000 rpm
61806-2RS Clearance N/A C0 (Normal) Bore Size d N/A 30 mm Features N/A Contact Seals Outside Diameter D N/A 42.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4.5 kN C0r - Static Load Rating N/A 3.4 kN Grease Limiting Speed N/A 15000 rpm Oil Limiting Speed N/A 18000 rpm
61806-2RZ Clearance N/A C0 (Normal) Bore Size d N/A 30 mm Features N/A Non-Contact Seals Outside Diameter D N/A 42.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4.5 kN C0r - Static Load Rating N/A 3.4 kN Grease Limiting Speed N/A 15000 rpm Oil Limiting Speed N/A 18000 rpm
61906 Clearance N/A C0 (Normal) Bore Size d N/A 30 mm Features N/A Open Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 7.2 kN C0r - Static Load Rating N/A 5 kN Grease Limiting Speed N/A 14000 rpm Oil Limiting Speed N/A 17000 rpm
61906-ZZ Clearance N/A C0 (Normal) Bore Size d N/A 30 mm Features N/A Shields Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 7.2 kN C0r - Static Load Rating N/A 5 kN Grease Limiting Speed N/A 14000 rpm Oil Limiting Speed N/A 17000 rpm
61906-2RS Clearance N/A C0 (Normal) Bore Size d N/A 30 mm Features N/A Contact Seals Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 7.2 kN C0r - Static Load Rating N/A 5 kN Grease Limiting Speed N/A 14000 rpm Oil Limiting Speed N/A 17000 rpm
61906-2RZ Clearance N/A C0 (Normal) Bore Size d N/A 30 mm Features N/A Non-Contact Seals Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 7.2 kN C0r - Static Load Rating N/A 5 kN Grease Limiting Speed N/A 14000 rpm Oil Limiting Speed N/A 17000 rpm
61707 Clearance N/A C0 (Normal) Bore Size d N/A 35 mm Features N/A Open Outside Diameter D N/A 44.0000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 1.9 kN C0r - Static Load Rating N/A 1.6 kN Grease Limiting Speed N/A 4900 rpm Oil Limiting Speed N/A 6000 rpm
61707-2RS Clearance N/A C0 (Normal) Bore Size d N/A 35 mm Features N/A Contact Seals Outside Diameter D N/A 44.0000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 1.9 kN C0r - Static Load Rating N/A 1.6 kN Grease Limiting Speed N/A 4900 rpm Oil Limiting Speed N/A 6000 rpm
61807 Clearance N/A C0 (Normal) Bore Size d N/A 35 mm Features N/A Open Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4.7 kN C0r - Static Load Rating N/A 3.8 kN Grease Limiting Speed N/A 13000 rpm Oil Limiting Speed N/A 16000 rpm
61807-ZZ Clearance N/A C0 (Normal) Bore Size d N/A 35 mm Features N/A Shields Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4.7 kN C0r - Static Load Rating N/A 3.8 kN Grease Limiting Speed N/A 13000 rpm Oil Limiting Speed N/A 16000 rpm
61807-2RS Clearance N/A C0 (Normal) Bore Size d N/A 35 mm Features N/A Contact Seals Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4.7 kN C0r - Static Load Rating N/A 3.8 kN Grease Limiting Speed N/A 13000 rpm Oil Limiting Speed N/A 16000 rpm
61807-2RZ Clearance N/A C0 (Normal) Bore Size d N/A 35 mm Features N/A Non-Contact Seals Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4.7 kN C0r - Static Load Rating N/A 3.8 kN Grease Limiting Speed N/A 13000 rpm Oil Limiting Speed N/A 16000 rpm
61907 Clearance N/A C0 (Normal) Bore Size d N/A 35 mm Features N/A Open Outside Diameter D N/A 55.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 10.9 kN C0r - Static Load Rating N/A 7.8 kN Grease Limiting Speed N/A 12000 rpm Oil Limiting Speed N/A 14000 rpm
61907-ZZ Clearance N/A C0 (Normal) Bore Size d N/A 35 mm Features N/A Shields Outside Diameter D N/A 55.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 10.9 kN C0r - Static Load Rating N/A 7.8 kN Grease Limiting Speed N/A 12000 rpm Oil Limiting Speed N/A 14000 rpm
61907-2RS Clearance N/A C0 (Normal) Bore Size d N/A 35 mm Features N/A Contact Seals Outside Diameter D N/A 55.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 10.9 kN C0r - Static Load Rating N/A 7.8 kN Grease Limiting Speed N/A 12000 rpm Oil Limiting Speed N/A 14000 rpm
61907-2RZ Clearance N/A C0 (Normal) Bore Size d N/A 35 mm Features N/A Non-Contact Seals Outside Diameter D N/A 55.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 10.9 kN C0r - Static Load Rating N/A 7.8 kN Grease Limiting Speed N/A 12000 rpm Oil Limiting Speed N/A 14000 rpm
61708 Clearance N/A C0 (Normal) Bore Size d N/A 40 mm Features N/A Open Outside Diameter D N/A 50.000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.5 kN C0r - Static Load Rating N/A 2.2 kN Grease Limiting Speed N/A 4300 rpm Oil Limiting Speed N/A 5000 rpm
61708-2RS Clearance N/A C0 (Normal) Bore Size d N/A 40 mm Features N/A Contact Seals Outside Diameter D N/A 50.000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.5 kN C0r - Static Load Rating N/A 2.2 kN Grease Limiting Speed N/A 4300 rpm Oil Limiting Speed N/A 5000 rpm
61808 Clearance N/A C0 (Normal) Bore Size d N/A 40 mm Features N/A Open Outside Diameter D N/A 52.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4.9 kN C0r - Static Load Rating N/A 4.2 kN Grease Limiting Speed N/A 12000 rpm Oil Limiting Speed N/A 14000 rpm
61808-ZZ Clearance N/A C0 (Normal) Bore Size d N/A 40 mm Features N/A Shields Outside Diameter D N/A 52.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4.9 kN C0r - Static Load Rating N/A 4.2 kN Grease Limiting Speed N/A 12000 rpm Oil Limiting Speed N/A 14000 rpm
61808-2RS Clearance N/A C0 (Normal) Bore Size d N/A 40 mm Features N/A Contact Seals Outside Diameter D N/A 52.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4.9 kN C0r - Static Load Rating N/A 4.2 kN Grease Limiting Speed N/A 12000 rpm Oil Limiting Speed N/A 14000 rpm
61808-2RZ Clearance N/A C0 (Normal) Bore Size d N/A 40 mm Features N/A Non-Contact Seals Outside Diameter D N/A 52.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4.9 kN C0r - Static Load Rating N/A 4.2 kN Grease Limiting Speed N/A 12000 rpm Oil Limiting Speed N/A 14000 rpm
61908 Clearance N/A C0 (Normal) Bore Size d N/A 40 mm Features N/A Open Outside Diameter D N/A 62.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 13.7 kN C0r - Static Load Rating N/A 9.9 kN Grease Limiting Speed N/A 11000 rpm Oil Limiting Speed N/A 13000 rpm
61908-ZZ Clearance N/A C0 (Normal) Bore Size d N/A 40 mm Features N/A Shields Outside Diameter D N/A 62.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 13.7 kN C0r - Static Load Rating N/A 9.9 kN Grease Limiting Speed N/A 11000 rpm Oil Limiting Speed N/A 13000 rpm
61908-2RS Clearance N/A C0 (Normal) Bore Size d N/A 40 mm Features N/A Contact Seals Outside Diameter D N/A 62.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 13.7 kN C0r - Static Load Rating N/A 9.9 kN Grease Limiting Speed N/A 11000 rpm Oil Limiting Speed N/A 13000 rpm
61908-2RZ Clearance N/A C0 (Normal) Bore Size d N/A 40 mm Features N/A Non-Contact Seals Outside Diameter D N/A 62.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 13.7 kN C0r - Static Load Rating N/A 9.9 kN Grease Limiting Speed N/A 11000 rpm Oil Limiting Speed N/A 13000 rpm
61709 Clearance N/A C0 (Normal) Bore Size d N/A 45 mm Features N/A Open Outside Diameter D N/A 55.000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.6 kN C0r - Static Load Rating N/A 2.4 kN Grease Limiting Speed N/A 3900 rpm Oil Limiting Speed N/A 4600 rpm
61709-2RS Clearance N/A C0 (Normal) Bore Size d N/A 45 mm Features N/A Contact Seals Outside Diameter D N/A 55.000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.6 kN C0r - Static Load Rating N/A 2.4 kN Grease Limiting Speed N/A 3900 rpm Oil Limiting Speed N/A 4600 rpm
61809 Clearance N/A C0 (Normal) Bore Size d N/A 45 mm Features N/A Open Outside Diameter D N/A 58.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 6.2 kN C0r - Static Load Rating N/A 5.40 kN Grease Limiting Speed N/A 11000 rpm Oil Limiting Speed N/A 13000 rpm
61809-ZZ Clearance N/A C0 (Normal) Bore Size d N/A 45 mm Features N/A Shields Outside Diameter D N/A 58.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 6.2 kN C0r - Static Load Rating N/A 5.40 kN Grease Limiting Speed N/A 11000 rpm Oil Limiting Speed N/A 13000 rpm
61809-2RS Clearance N/A C0 (Normal) Bore Size d N/A 45 mm Features N/A Contact Seals Outside Diameter D N/A 58.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 6.2 kN C0r - Static Load Rating N/A 5.40 kN Grease Limiting Speed N/A 11000 rpm Oil Limiting Speed N/A 13000 rpm
61809-2RZ Clearance N/A C0 (Normal) Bore Size d N/A 45 mm Features N/A Non-Contact Seals Outside Diameter D N/A 58.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 6.2 kN C0r - Static Load Rating N/A 5.40 kN Grease Limiting Speed N/A 11000 rpm Oil Limiting Speed N/A 13000 rpm
61909 Clearance N/A C0 (Normal) Bore Size d N/A 45 mm Features N/A Open Outside Diameter D N/A 68.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 14.1 kN C0r - Static Load Rating N/A 10.9 kN Grease Limiting Speed N/A 10000 rpm Oil Limiting Speed N/A 11000 rpm
61909-ZZ Clearance N/A C0 (Normal) Bore Size d N/A 45 mm Features N/A Shields Outside Diameter D N/A 68.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 14.1 kN C0r - Static Load Rating N/A 10.9 kN Grease Limiting Speed N/A 10000 rpm Oil Limiting Speed N/A 11000 rpm
61909-2RS Clearance N/A C0 (Normal) Bore Size d N/A 45 mm Features N/A Contact Seals Outside Diameter D N/A 68.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 14.1 kN C0r - Static Load Rating N/A 10.9 kN Grease Limiting Speed N/A 10000 rpm Oil Limiting Speed N/A 11000 rpm
61909-2RZ Clearance N/A C0 (Normal) Bore Size d N/A 45 mm Features N/A Non-Contact Seals Outside Diameter D N/A 68.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 14.1 kN C0r - Static Load Rating N/A 10.9 kN Grease Limiting Speed N/A 10000 rpm Oil Limiting Speed N/A 11000 rpm
61710 Clearance N/A C0 (Normal) Bore Size d N/A 50 mm Features N/A Open Outside Diameter D N/A 62.000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.7 kN C0r - Static Load Rating N/A 2.7 kN Grease Limiting Speed N/A 3500 rpm Oil Limiting Speed N/A 4100 rpm
61710-2RS Clearance N/A C0 (Normal) Bore Size d N/A 50 mm Features N/A Contact Seals Outside Diameter D N/A 62.000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.7 kN C0r - Static Load Rating N/A 2.7 kN Grease Limiting Speed N/A 3500 rpm Oil Limiting Speed N/A 4100 rpm
61810 Clearance N/A C0 (Normal) Bore Size d N/A 50 mm Features N/A Open Outside Diameter D N/A 65.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 6.2 kN C0r - Static Load Rating N/A 5.8 kN Grease Limiting Speed N/A 9500 rpm Oil Limiting Speed N/A 11000 rpm
61810-ZZ Clearance N/A C0 (Normal) Bore Size d N/A 50 mm Features N/A Shields Outside Diameter D N/A 65.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 6.2 kN C0r - Static Load Rating N/A 5.8 kN Grease Limiting Speed N/A 9500 rpm Oil Limiting Speed N/A 11000 rpm
61810-2RS Clearance N/A C0 (Normal) Bore Size d N/A 50 mm Features N/A Contact Seals Outside Diameter D N/A 65.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 6.2 kN C0r - Static Load Rating N/A 5.8 kN Grease Limiting Speed N/A 9500 rpm Oil Limiting Speed N/A 11000 rpm
61810-2RZ Clearance N/A C0 (Normal) Bore Size d N/A 50 mm Features N/A Non-Contact Seals Outside Diameter D N/A 65.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 6.2 kN C0r - Static Load Rating N/A 5.8 kN Grease Limiting Speed N/A 9500 rpm Oil Limiting Speed N/A 11000 rpm
61910 Clearance N/A C0 (Normal) Bore Size d N/A 50 mm Features N/A Open Outside Diameter D N/A 72.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 14.5 kN C0r - Static Load Rating N/A 11.7 kN Grease Limiting Speed N/A 9000 rpm Oil Limiting Speed N/A 11000 rpm
61910-ZZ Clearance N/A C0 (Normal) Bore Size d N/A 50 mm Features N/A Shields Outside Diameter D N/A 72.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 14.5 kN C0r - Static Load Rating N/A 11.7 kN Grease Limiting Speed N/A 9000 rpm Oil Limiting Speed N/A 11000 rpm
61910-2RS Clearance N/A C0 (Normal) Bore Size d N/A 50 mm Features N/A Contact Seals Outside Diameter D N/A 72.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 14.5 kN C0r - Static Load Rating N/A 11.7 kN Grease Limiting Speed N/A 9000 rpm Oil Limiting Speed N/A 11000 rpm
61910-2RZ Clearance N/A C0 (Normal) Bore Size d N/A 50 mm Features N/A Non-Contact Seals Outside Diameter D N/A 72.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 14.5 kN C0r - Static Load Rating N/A 11.7 kN Grease Limiting Speed N/A 9000 rpm Oil Limiting Speed N/A 11000 rpm
61811 Clearance N/A C0 (Normal) Bore Size d N/A 55 mm Features N/A Open Outside Diameter D N/A 72.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 8.8 kN C0r - Static Load Rating N/A 8.1 kN Grease Limiting Speed N/A 8600 rpm Oil Limiting Speed N/A 10000 rpm
61811-ZZ Clearance N/A C0 (Normal) Bore Size d N/A 55 mm Features N/A Shields Outside Diameter D N/A 72.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 8.8 kN C0r - Static Load Rating N/A 8.1 kN Grease Limiting Speed N/A 8600 rpm Oil Limiting Speed N/A 10000 rpm
61811-2RS Clearance N/A C0 (Normal) Bore Size d N/A 55 mm Features N/A Contact Seals Outside Diameter D N/A 72.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 8.8 kN C0r - Static Load Rating N/A 8.1 kN Grease Limiting Speed N/A 8600 rpm Oil Limiting Speed N/A 10000 rpm
61811-2RZ Clearance N/A C0 (Normal) Bore Size d N/A 55 mm Features N/A Non-Contact Seals Outside Diameter D N/A 72.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 8.8 kN C0r - Static Load Rating N/A 8.1 kN Grease Limiting Speed N/A 8600 rpm Oil Limiting Speed N/A 10000 rpm
61911 Clearance N/A C0 (Normal) Bore Size d N/A 55 mm Features N/A Open Outside Diameter D N/A 80.000 mm Outside Ring Width B N/A 13.000 mm Cr - Dynamic Load Rating N/A 16.6 kN C0r - Static Load Rating N/A 14.1 kN Grease Limiting Speed N/A 8100 rpm Oil Limiting Speed N/A 9600 rpm
61911-ZZ Clearance N/A C0 (Normal) Bore Size d N/A 55 mm Features N/A Shields Outside Diameter D N/A 80.000 mm Outside Ring Width B N/A 13.000 mm Cr - Dynamic Load Rating N/A 16.6 kN C0r - Static Load Rating N/A 14.1 kN Grease Limiting Speed N/A 8100 rpm Oil Limiting Speed N/A 9600 rpm
61911-2RS Clearance N/A C0 (Normal) Bore Size d N/A 55 mm Features N/A Contact Seals Outside Diameter D N/A 80.000 mm Outside Ring Width B N/A 13.000 mm Cr - Dynamic Load Rating N/A 16.6 kN C0r - Static Load Rating N/A 14.1 kN Grease Limiting Speed N/A 8100 rpm Oil Limiting Speed N/A 9600 rpm
61911-2RZ Clearance N/A C0 (Normal) Bore Size d N/A 55 mm Features N/A Non-Contact Seals Outside Diameter D N/A 80.000 mm Outside Ring Width B N/A 13.000 mm Cr - Dynamic Load Rating N/A 16.6 kN C0r - Static Load Rating N/A 14.1 kN Grease Limiting Speed N/A 8100 rpm Oil Limiting Speed N/A 9600 rpm
61812 Clearance N/A C0 (Normal) Bore Size d N/A 60 mm Features N/A Open Outside Diameter D N/A 78.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 11.5 kN C0r - Static Load Rating N/A 10.6 kN Grease Limiting Speed N/A 7900 rpm Oil Limiting Speed N/A 9400 rpm
61812-ZZ Clearance N/A C0 (Normal) Bore Size d N/A 60 mm Features N/A Shields Outside Diameter D N/A 78.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 11.5 kN C0r - Static Load Rating N/A 10.6 kN Grease Limiting Speed N/A 7900 rpm Oil Limiting Speed N/A 9400 rpm
61812-2RS Clearance N/A C0 (Normal) Bore Size d N/A 60 mm Features N/A Contact Seals Outside Diameter D N/A 78.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 11.5 kN C0r - Static Load Rating N/A 10.6 kN Grease Limiting Speed N/A 7900 rpm Oil Limiting Speed N/A 9400 rpm
61812-2RZ Clearance N/A C0 (Normal) Bore Size d N/A 60 mm Features N/A Non-Contact Seals Outside Diameter D N/A 78.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 11.5 kN C0r - Static Load Rating N/A 10.6 kN Grease Limiting Speed N/A 7900 rpm Oil Limiting Speed N/A 9400 rpm
61912 Clearance N/A C0 (Normal) Bore Size d N/A 60 mm Features N/A Open Outside Diameter D N/A 85.000 mm Outside Ring Width B N/A 13.000 mm Cr - Dynamic Load Rating N/A 20.2 kN C0r - Static Load Rating N/A 17.3 kN Grease Limiting Speed N/A 7500 rpm Oil Limiting Speed N/A 8900 rpm
61912-ZZ Clearance N/A C0 (Normal) Bore Size d N/A 60 mm Features N/A Shields Outside Diameter D N/A 85.000 mm Outside Ring Width B N/A 13.000 mm Cr - Dynamic Load Rating N/A 20.2 kN C0r - Static Load Rating N/A 17.3 kN Grease Limiting Speed N/A 7500 rpm Oil Limiting Speed N/A 8900 rpm
61912-2RS Clearance N/A C0 (Normal) Bore Size d N/A 60 mm Features N/A Contact Seals Outside Diameter D N/A 85.000 mm Outside Ring Width B N/A 13.000 mm Cr - Dynamic Load Rating N/A 20.2 kN C0r - Static Load Rating N/A 17.3 kN Grease Limiting Speed N/A 7500 rpm Oil Limiting Speed N/A 8900 rpm
61912-2RZ Clearance N/A C0 (Normal) Bore Size d N/A 60 mm Features N/A Non-Contact Seals Outside Diameter D N/A 85.000 mm Outside Ring Width B N/A 13.000 mm Cr - Dynamic Load Rating N/A 20.2 kN C0r - Static Load Rating N/A 17.3 kN Grease Limiting Speed N/A 7500 rpm Oil Limiting Speed N/A 8900 rpm
61813 Clearance N/A C0 (Normal) Bore Size d N/A 65 mm Features N/A Open Outside Diameter D N/A 85.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 11.9 kN C0r - Static Load Rating N/A 11.5 kN Grease Limiting Speed N/A 7300 rpm Oil Limiting Speed N/A 8600 rpm
61813-ZZ Clearance N/A C0 (Normal) Bore Size d N/A 65 mm Features N/A Shields Outside Diameter D N/A 85.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 11.9 kN C0r - Static Load Rating N/A 11.5 kN Grease Limiting Speed N/A 7300 rpm Oil Limiting Speed N/A 8600 rpm
61813-2RS Clearance N/A C0 (Normal) Bore Size d N/A 65 mm Features N/A Contact Seals Outside Diameter D N/A 85.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 11.9 kN C0r - Static Load Rating N/A 11.5 kN Grease Limiting Speed N/A 7300 rpm Oil Limiting Speed N/A 8600 rpm
61913 Clearance N/A C0 (Normal) Bore Size d N/A 65 mm Features N/A Open Outside Diameter D N/A 90.000 mm Outside Ring Width B N/A 13.000 mm Cr - Dynamic Load Rating N/A 17.3 kN C0r - Static Load Rating N/A 16.00 kN Grease Limiting Speed N/A 7000 rpm Oil Limiting Speed N/A 8300 rpm
61913-ZZ Clearance N/A C0 (Normal) Bore Size d N/A 65 mm Features N/A Shields Outside Diameter D N/A 90.000 mm Outside Ring Width B N/A 13.000 mm Cr - Dynamic Load Rating N/A 17.3 kN C0r - Static Load Rating N/A 16.00 kN Grease Limiting Speed N/A 7000 rpm Oil Limiting Speed N/A 8300 rpm
61913-2RS Clearance N/A C0 (Normal) Bore Size d N/A 65 mm Features N/A Contact Seals Outside Diameter D N/A 90.000 mm Outside Ring Width B N/A 13.000 mm Cr - Dynamic Load Rating N/A 17.3 kN C0r - Static Load Rating N/A 16.00 kN Grease Limiting Speed N/A 7000 rpm Oil Limiting Speed N/A 8300 rpm
61800-C3 Clearance N/A C3 Bore Size d N/A 10 mm Features N/A Open Outside Diameter D N/A 19.0000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 1.7 kN C0r - Static Load Rating N/A 0.84 kN Grease Limiting Speed N/A 34000 rpm Oil Limiting Speed N/A 40000 rpm
61800-ZZ-C3 Clearance N/A C3 Bore Size d N/A 10 mm Features N/A Shields Outside Diameter D N/A 19.0000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 1.7 kN C0r - Static Load Rating N/A 0.84 kN Grease Limiting Speed N/A 34000 rpm Oil Limiting Speed N/A 40000 rpm
61800-2RS-C3 Clearance N/A C3 Bore Size d N/A 10 mm Features N/A Contact Seals Outside Diameter D N/A 19.0000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 1.7 kN C0r - Static Load Rating N/A 0.84 kN Grease Limiting Speed N/A 34000 rpm Oil Limiting Speed N/A 40000 rpm
61800-2RZ-C3 Clearance N/A C3 Bore Size d N/A 10 mm Features N/A Non-Contact Seals Outside Diameter D N/A 19.0000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 1.7 kN C0r - Static Load Rating N/A 0.84 kN Grease Limiting Speed N/A 34000 rpm Oil Limiting Speed N/A 40000 rpm
61900-C3 Clearance N/A C3 Bore Size d N/A 10 mm Features N/A Open Outside Diameter D N/A 22.000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.7 kN C0r - Static Load Rating N/A 1.3 kN Grease Limiting Speed N/A 31000 rpm Oil Limiting Speed N/A 37000 rpm
61900-ZZ-C3 Clearance N/A C3 Bore Size d N/A 10 mm Features N/A Shields Outside Diameter D N/A 22.000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.7 kN C0r - Static Load Rating N/A 1.3 kN Grease Limiting Speed N/A 31000 rpm Oil Limiting Speed N/A 37000 rpm
61900-2RS-C3 Clearance N/A C3 Bore Size d N/A 10 mm Features N/A Contact Seals Outside Diameter D N/A 22.000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.7 kN C0r - Static Load Rating N/A 1.3 kN Grease Limiting Speed N/A 31000 rpm Oil Limiting Speed N/A 37000 rpm
61900-2RZ-C3 Clearance N/A C3 Bore Size d N/A 10 mm Features N/A Non-Contact Seals Outside Diameter D N/A 22.000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.7 kN C0r - Static Load Rating N/A 1.3 kN Grease Limiting Speed N/A 31000 rpm Oil Limiting Speed N/A 37000 rpm
61701-C3 Clearance N/A C3 Bore Size d N/A 12 mm Features N/A Open Outside Diameter D N/A 18.000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 0.93 kN C0r - Static Load Rating N/A 0.53 kN Grease Limiting Speed N/A 13000 rpm Oil Limiting Speed N/A 15000 rpm
61701-ZZ-C3 Clearance N/A C3 Bore Size d N/A 12 mm Features N/A Shields Outside Diameter D N/A 18.000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 0.93 kN C0r - Static Load Rating N/A 0.53 kN Grease Limiting Speed N/A 13000 rpm Oil Limiting Speed N/A 15000 rpm
61701-2RS-C3 Clearance N/A C3 Bore Size d N/A 12 mm Features N/A Contact Seals Outside Diameter D N/A 18.000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 0.93 kN C0r - Static Load Rating N/A 0.53 kN Grease Limiting Speed N/A 13000 rpm Oil Limiting Speed N/A 15000 rpm
61801-C3 Clearance N/A C3 Bore Size d N/A 12 mm Features N/A Open Outside Diameter D N/A 21.0000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 1.9 kN C0r - Static Load Rating N/A 1 kN Grease Limiting Speed N/A 30000 rpm Oil Limiting Speed N/A 36000 rpm
61801-ZZ-C3 Clearance N/A C3 Bore Size d N/A 12 mm Features N/A Shields Outside Diameter D N/A 21.0000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 1.9 kN C0r - Static Load Rating N/A 1 kN Grease Limiting Speed N/A 30000 rpm Oil Limiting Speed N/A 36000 rpm
61801-2RS-C3 Clearance N/A C3 Bore Size d N/A 12 mm Features N/A Contact Seals Outside Diameter D N/A 21.0000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 1.9 kN C0r - Static Load Rating N/A 1 kN Grease Limiting Speed N/A 30000 rpm Oil Limiting Speed N/A 36000 rpm
61801-2RZ-C3 Clearance N/A C3 Bore Size d N/A 12 mm Features N/A Non-Contact Seals Outside Diameter D N/A 21.0000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 1.9 kN C0r - Static Load Rating N/A 1 kN Grease Limiting Speed N/A 30000 rpm Oil Limiting Speed N/A 36000 rpm
61901-C3 Clearance N/A C3 Bore Size d N/A 12 mm Features N/A Open Outside Diameter D N/A 24.000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.9 kN C0r - Static Load Rating N/A 1.5 kN Grease Limiting Speed N/A 28000 rpm Oil Limiting Speed N/A 33000 rpm
61901-ZZ-C3 Clearance N/A C3 Bore Size d N/A 12 mm Features N/A Shields Outside Diameter D N/A 24.000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.9 kN C0r - Static Load Rating N/A 1.5 kN Grease Limiting Speed N/A 28000 rpm Oil Limiting Speed N/A 33000 rpm
61901-2RS-C3 Clearance N/A C3 Bore Size d N/A 12 mm Features N/A Contact Seals Outside Diameter D N/A 24.000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.9 kN C0r - Static Load Rating N/A 1.5 kN Grease Limiting Speed N/A 28000 rpm Oil Limiting Speed N/A 33000 rpm
61901-2RZ-C3 Clearance N/A C3 Bore Size d N/A 12 mm Features N/A Non-Contact Seals Outside Diameter D N/A 24.000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.9 kN C0r - Static Load Rating N/A 1.5 kN Grease Limiting Speed N/A 28000 rpm Oil Limiting Speed N/A 33000 rpm
61702-C3 Clearance N/A C3 Bore Size d N/A 15 mm Features N/A Open Outside Diameter D N/A 21.0000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 0.94 kN C0r - Static Load Rating N/A 0.58 kN Grease Limiting Speed N/A 11000 rpm Oil Limiting Speed N/A 13000 rpm
61702-ZZ-C3 Clearance N/A C3 Bore Size d N/A 15 mm Features N/A Shields Outside Diameter D N/A 21.0000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 0.94 kN C0r - Static Load Rating N/A 0.58 kN Grease Limiting Speed N/A 11000 rpm Oil Limiting Speed N/A 13000 rpm
61702-2RS-C3 Clearance N/A C3 Bore Size d N/A 15 mm Features N/A Contact Seals Outside Diameter D N/A 21.0000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 0.94 kN C0r - Static Load Rating N/A 0.58 kN Grease Limiting Speed N/A 11000 rpm Oil Limiting Speed N/A 13000 rpm
61802-C3 Clearance N/A C3 Bore Size d N/A 15 mm Features N/A Open Outside Diameter D N/A 24.000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 2.1 kN C0r - Static Load Rating N/A 1.3 kN Grease Limiting Speed N/A 26000 rpm Oil Limiting Speed N/A 31000 rpm
61802-ZZ-C3 Clearance N/A C3 Bore Size d N/A 15 mm Features N/A Shields Outside Diameter D N/A 24.000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 2.1 kN C0r - Static Load Rating N/A 1.3 kN Grease Limiting Speed N/A 26000 rpm Oil Limiting Speed N/A 31000 rpm
61802-2RS-C3 Clearance N/A C3 Bore Size d N/A 15 mm Features N/A Contact Seals Outside Diameter D N/A 24.000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 2.1 kN C0r - Static Load Rating N/A 1.3 kN Grease Limiting Speed N/A 26000 rpm Oil Limiting Speed N/A 31000 rpm
61802-2RZ-C3 Clearance N/A C3 Bore Size d N/A 15 mm Features N/A Non-Contact Seals Outside Diameter D N/A 24.000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 2.1 kN C0r - Static Load Rating N/A 1.3 kN Grease Limiting Speed N/A 26000 rpm Oil Limiting Speed N/A 31000 rpm
61902-C3 Clearance N/A C3 Bore Size d N/A 15 mm Features N/A Open Outside Diameter D N/A 28.0000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4.3 kN C0r - Static Load Rating N/A 2.3 kN Grease Limiting Speed N/A 24000 rpm Oil Limiting Speed N/A 29000 rpm
61902-ZZ-C3 Clearance N/A C3 Bore Size d N/A 15 mm Features N/A Shields Outside Diameter D N/A 28.0000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4.3 kN C0r - Static Load Rating N/A 2.3 kN Grease Limiting Speed N/A 24000 rpm Oil Limiting Speed N/A 29000 rpm
61902-2RS-C3 Clearance N/A C3 Bore Size d N/A 15 mm Features N/A Contact Seals Outside Diameter D N/A 28.0000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4.3 kN C0r - Static Load Rating N/A 2.3 kN Grease Limiting Speed N/A 24000 rpm Oil Limiting Speed N/A 29000 rpm
61902-2RZ-C3 Clearance N/A C3 Bore Size d N/A 15 mm Features N/A Non-Contact Seals Outside Diameter D N/A 28.0000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4.3 kN C0r - Static Load Rating N/A 2.3 kN Grease Limiting Speed N/A 24000 rpm Oil Limiting Speed N/A 29000 rpm
61703-C3 Clearance N/A C3 Bore Size d N/A 17 mm Features N/A Open Outside Diameter D N/A 23.000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 1 kN C0r - Static Load Rating N/A 0.66 kN Grease Limiting Speed N/A 9500 rpm Oil Limiting Speed N/A 11000 rpm
61703-ZZ-C3 Clearance N/A C3 Bore Size d N/A 17 mm Features N/A Shields Outside Diameter D N/A 23.000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 1 kN C0r - Static Load Rating N/A 0.66 kN Grease Limiting Speed N/A 9500 rpm Oil Limiting Speed N/A 11000 rpm
61703-2RS-C3 Clearance N/A C3 Bore Size d N/A 17 mm Features N/A Contact Seals Outside Diameter D N/A 23.000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 1 kN C0r - Static Load Rating N/A 0.66 kN Grease Limiting Speed N/A 9500 rpm Oil Limiting Speed N/A 11000 rpm
61803-C3 Clearance N/A C3 Bore Size d N/A 17 mm Features N/A Open Outside Diameter D N/A 26.000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 2.2 kN C0r - Static Load Rating N/A 1.5 kN Grease Limiting Speed N/A 24000 rpm Oil Limiting Speed N/A 29000 rpm
61803-ZZ-C3 Clearance N/A C3 Bore Size d N/A 17 mm Features N/A Shields Outside Diameter D N/A 26.000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 2.2 kN C0r - Static Load Rating N/A 1.5 kN Grease Limiting Speed N/A 24000 rpm Oil Limiting Speed N/A 29000 rpm
61803-2RS-C3 Clearance N/A C3 Bore Size d N/A 17 mm Features N/A Contact Seals Outside Diameter D N/A 26.000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 2.2 kN C0r - Static Load Rating N/A 1.5 kN Grease Limiting Speed N/A 24000 rpm Oil Limiting Speed N/A 29000 rpm
61803-2RZ-C3 Clearance N/A C3 Bore Size d N/A 17 mm Features N/A Non-Contact Seals Outside Diameter D N/A 26.000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 2.2 kN C0r - Static Load Rating N/A 1.5 kN Grease Limiting Speed N/A 24000 rpm Oil Limiting Speed N/A 29000 rpm
61903-C3 Clearance N/A C3 Bore Size d N/A 17 mm Features N/A Open Outside Diameter D N/A 30.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4.6 kN C0r - Static Load Rating N/A 2.6 kN Grease Limiting Speed N/A 22000 rpm Oil Limiting Speed N/A 26000 rpm
61903-ZZ-C3 Clearance N/A C3 Bore Size d N/A 17 mm Features N/A Shields Outside Diameter D N/A 30.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4.6 kN C0r - Static Load Rating N/A 2.6 kN Grease Limiting Speed N/A 22000 rpm Oil Limiting Speed N/A 26000 rpm
61903-2RS-C3 Clearance N/A C3 Bore Size d N/A 17 mm Features N/A Contact Seals Outside Diameter D N/A 30.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4.6 kN C0r - Static Load Rating N/A 2.6 kN Grease Limiting Speed N/A 22000 rpm Oil Limiting Speed N/A 26000 rpm
61903-2RZ-C3 Clearance N/A C3 Bore Size d N/A 17 mm Features N/A Non-Contact Seals Outside Diameter D N/A 30.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4.6 kN C0r - Static Load Rating N/A 2.6 kN Grease Limiting Speed N/A 22000 rpm Oil Limiting Speed N/A 26000 rpm
61704-C3 Clearance N/A C3 Bore Size d N/A 20 mm Features N/A Open Outside Diameter D N/A 27.000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 1 kN C0r - Static Load Rating N/A 0.72 kN Grease Limiting Speed N/A 8500 rpm Oil Limiting Speed N/A 10000 rpm
61704-2RS-C3 Clearance N/A C3 Bore Size d N/A 20 mm Features N/A Contact Seals Outside Diameter D N/A 27.000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 1 kN C0r - Static Load Rating N/A 0.72 kN Grease Limiting Speed N/A 8500 rpm Oil Limiting Speed N/A 10000 rpm
61804-C3 Clearance N/A C3 Bore Size d N/A 20 mm Features N/A Open Outside Diameter D N/A 32.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4 kN C0r - Static Load Rating N/A 2.5 kN Grease Limiting Speed N/A 21000 rpm Oil Limiting Speed N/A 25000 rpm
61804-ZZ-C3 Clearance N/A C3 Bore Size d N/A 20 mm Features N/A Shields Outside Diameter D N/A 32.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4 kN C0r - Static Load Rating N/A 2.5 kN Grease Limiting Speed N/A 21000 rpm Oil Limiting Speed N/A 25000 rpm
61804-2RS-C3 Clearance N/A C3 Bore Size d N/A 20 mm Features N/A Contact Seals Outside Diameter D N/A 32.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4 kN C0r - Static Load Rating N/A 2.5 kN Grease Limiting Speed N/A 21000 rpm Oil Limiting Speed N/A 25000 rpm
61804-2RZ-C3 Clearance N/A C3 Bore Size d N/A 20 mm Features N/A Non-Contact Seals Outside Diameter D N/A 32.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4 kN C0r - Static Load Rating N/A 2.5 kN Grease Limiting Speed N/A 21000 rpm Oil Limiting Speed N/A 25000 rpm
61904-C3 Clearance N/A C3 Bore Size d N/A 20 mm Features N/A Open Outside Diameter D N/A 37.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 6.4 kN C0r - Static Load Rating N/A 3.7 kN Grease Limiting Speed N/A 19000 rpm Oil Limiting Speed N/A 22000 rpm
61904-ZZ-C3 Clearance N/A C3 Bore Size d N/A 20 mm Features N/A Shields Outside Diameter D N/A 37.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 6.4 kN C0r - Static Load Rating N/A 3.7 kN Grease Limiting Speed N/A 19000 rpm Oil Limiting Speed N/A 22000 rpm
61904-2RS-C3 Clearance N/A C3 Bore Size d N/A 20 mm Features N/A Contact Seals Outside Diameter D N/A 37.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 6.4 kN C0r - Static Load Rating N/A 3.7 kN Grease Limiting Speed N/A 19000 rpm Oil Limiting Speed N/A 22000 rpm
61904-2RZ-C3 Clearance N/A C3 Bore Size d N/A 20 mm Features N/A Non-Contact Seals Outside Diameter D N/A 37.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 6.4 kN C0r - Static Load Rating N/A 3.7 kN Grease Limiting Speed N/A 19000 rpm Oil Limiting Speed N/A 22000 rpm
61705-C3 Clearance N/A C3 Bore Size d N/A 25 mm Features N/A Open Outside Diameter D N/A 32.000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 1.1 kN C0r - Static Load Rating N/A 0.84 kN Grease Limiting Speed N/A 7000 rpm Oil Limiting Speed N/A 8000 rpm
61705-2RS-C3 Clearance N/A C3 Bore Size d N/A 25 mm Features N/A Contact Seals Outside Diameter D N/A 32.000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 1.1 kN C0r - Static Load Rating N/A 0.84 kN Grease Limiting Speed N/A 7000 rpm Oil Limiting Speed N/A 8000 rpm
61805-C3 Clearance N/A C3 Bore Size d N/A 25 mm Features N/A Open Outside Diameter D N/A 37.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4.3 kN C0r - Static Load Rating N/A 2.9 kN Grease Limiting Speed N/A 18000 rpm Oil Limiting Speed N/A 21000 rpm
61805-ZZ-C3 Clearance N/A C3 Bore Size d N/A 25 mm Features N/A Shields Outside Diameter D N/A 37.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4.3 kN C0r - Static Load Rating N/A 2.9 kN Grease Limiting Speed N/A 18000 rpm Oil Limiting Speed N/A 21000 rpm
61805-2RS-C3 Clearance N/A C3 Bore Size d N/A 25 mm Features N/A Contact Seals Outside Diameter D N/A 37.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4.3 kN C0r - Static Load Rating N/A 2.9 kN Grease Limiting Speed N/A 18000 rpm Oil Limiting Speed N/A 21000 rpm
61805-2RZ-C3 Clearance N/A C3 Bore Size d N/A 25 mm Features N/A Non-Contact Seals Outside Diameter D N/A 37.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4.3 kN C0r - Static Load Rating N/A 2.9 kN Grease Limiting Speed N/A 18000 rpm Oil Limiting Speed N/A 21000 rpm
61905-C3 Clearance N/A C3 Bore Size d N/A 25 mm Features N/A Open Outside Diameter D N/A 42.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 7 kN C0r - Static Load Rating N/A 4.6 kN Grease Limiting Speed N/A 16000 rpm Oil Limiting Speed N/A 19000 rpm
61905-ZZ-C3 Clearance N/A C3 Bore Size d N/A 25 mm Features N/A Shields Outside Diameter D N/A 42.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 7 kN C0r - Static Load Rating N/A 4.6 kN Grease Limiting Speed N/A 16000 rpm Oil Limiting Speed N/A 19000 rpm
61905-2RS-C3 Clearance N/A C3 Bore Size d N/A 25 mm Features N/A Contact Seals Outside Diameter D N/A 42.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 7 kN C0r - Static Load Rating N/A 4.6 kN Grease Limiting Speed N/A 16000 rpm Oil Limiting Speed N/A 19000 rpm
61905-2RZ-C3 Clearance N/A C3 Bore Size d N/A 25 mm Features N/A Non-Contact Seals Outside Diameter D N/A 42.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 7 kN C0r - Static Load Rating N/A 4.6 kN Grease Limiting Speed N/A 16000 rpm Oil Limiting Speed N/A 19000 rpm
61706-C3 Clearance N/A C3 Bore Size d N/A 30 mm Features N/A Open Outside Diameter D N/A 37.000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 1.1 kN C0r - Static Load Rating N/A 0.95 kN Grease Limiting Speed N/A 5500 rpm Oil Limiting Speed N/A 7000 rpm
61706-2RZ-C3 Clearance N/A C3 Bore Size d N/A 30 mm Features N/A Non-Contact Seals Outside Diameter D N/A 37.000 mm Outside Ring Width B N/A 4.000 mm Cr - Dynamic Load Rating N/A 1.1 kN C0r - Static Load Rating N/A 0.95 kN Grease Limiting Speed N/A 5500 rpm Oil Limiting Speed N/A 7000 rpm
61806-C3 Clearance N/A C3 Bore Size d N/A 30 mm Features N/A Open Outside Diameter D N/A 42.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4.5 kN C0r - Static Load Rating N/A 3.4 kN Grease Limiting Speed N/A 15000 rpm Oil Limiting Speed N/A 18000 rpm
61806-ZZ-C3 Clearance N/A C3 Bore Size d N/A 30 mm Features N/A Shields Outside Diameter D N/A 42.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4.5 kN C0r - Static Load Rating N/A 3.4 kN Grease Limiting Speed N/A 15000 rpm Oil Limiting Speed N/A 18000 rpm
61806-2RS-C3 Clearance N/A C3 Bore Size d N/A 30 mm Features N/A Contact Seals Outside Diameter D N/A 42.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4.5 kN C0r - Static Load Rating N/A 3.4 kN Grease Limiting Speed N/A 15000 rpm Oil Limiting Speed N/A 18000 rpm
61806-2RZ-C3 Clearance N/A C3 Bore Size d N/A 30 mm Features N/A Non-Contact Seals Outside Diameter D N/A 42.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4.5 kN C0r - Static Load Rating N/A 3.4 kN Grease Limiting Speed N/A 15000 rpm Oil Limiting Speed N/A 18000 rpm
61906-C3 Clearance N/A C3 Bore Size d N/A 30 mm Features N/A Open Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 7.2 kN C0r - Static Load Rating N/A 5 kN Grease Limiting Speed N/A 14000 rpm Oil Limiting Speed N/A 17000 rpm
61906-ZZ-C3 Clearance N/A C3 Bore Size d N/A 30 mm Features N/A Shields Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 7.2 kN C0r - Static Load Rating N/A 5 kN Grease Limiting Speed N/A 14000 rpm Oil Limiting Speed N/A 17000 rpm
61906-2RS-C3 Clearance N/A C3 Bore Size d N/A 30 mm Features N/A Contact Seals Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 7.2 kN C0r - Static Load Rating N/A 5 kN Grease Limiting Speed N/A 14000 rpm Oil Limiting Speed N/A 17000 rpm
61906-2RZ-C3 Clearance N/A C3 Bore Size d N/A 30 mm Features N/A Non-Contact Seals Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 7.2 kN C0r - Static Load Rating N/A 5 kN Grease Limiting Speed N/A 14000 rpm Oil Limiting Speed N/A 17000 rpm
61707-C3 Clearance N/A C3 Bore Size d N/A 35 mm Features N/A Open Outside Diameter D N/A 44.0000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 1.9 kN C0r - Static Load Rating N/A 1.6 kN Grease Limiting Speed N/A 4900 rpm Oil Limiting Speed N/A 6000 rpm
61707-2RS-C3 Clearance N/A C3 Bore Size d N/A 35 mm Features N/A Contact Seals Outside Diameter D N/A 44.0000 mm Outside Ring Width B N/A 5.000 mm Cr - Dynamic Load Rating N/A 1.9 kN C0r - Static Load Rating N/A 1.6 kN Grease Limiting Speed N/A 4900 rpm Oil Limiting Speed N/A 6000 rpm
61807-C3 Clearance N/A C3 Bore Size d N/A 35 mm Features N/A Open Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4.7 kN C0r - Static Load Rating N/A 3.8 kN Grease Limiting Speed N/A 13000 rpm Oil Limiting Speed N/A 16000 rpm
61807-ZZ-C3 Clearance N/A C3 Bore Size d N/A 35 mm Features N/A Shields Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4.7 kN C0r - Static Load Rating N/A 3.8 kN Grease Limiting Speed N/A 13000 rpm Oil Limiting Speed N/A 16000 rpm
61807-2RS-C3 Clearance N/A C3 Bore Size d N/A 35 mm Features N/A Contact Seals Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4.7 kN C0r - Static Load Rating N/A 3.8 kN Grease Limiting Speed N/A 13000 rpm Oil Limiting Speed N/A 16000 rpm
61807-2RZ-C3 Clearance N/A C3 Bore Size d N/A 35 mm Features N/A Non-Contact Seals Outside Diameter D N/A 47.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4.7 kN C0r - Static Load Rating N/A 3.8 kN Grease Limiting Speed N/A 13000 rpm Oil Limiting Speed N/A 16000 rpm
61907-C3 Clearance N/A C3 Bore Size d N/A 35 mm Features N/A Open Outside Diameter D N/A 55.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 10.9 kN C0r - Static Load Rating N/A 7.8 kN Grease Limiting Speed N/A 12000 rpm Oil Limiting Speed N/A 14000 rpm
61907-ZZ-C3 Clearance N/A C3 Bore Size d N/A 35 mm Features N/A Shields Outside Diameter D N/A 55.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 10.9 kN C0r - Static Load Rating N/A 7.8 kN Grease Limiting Speed N/A 12000 rpm Oil Limiting Speed N/A 14000 rpm
61907-2RS-C3 Clearance N/A C3 Bore Size d N/A 35 mm Features N/A Contact Seals Outside Diameter D N/A 55.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 10.9 kN C0r - Static Load Rating N/A 7.8 kN Grease Limiting Speed N/A 12000 rpm Oil Limiting Speed N/A 14000 rpm
61907-2RZ-C3 Clearance N/A C3 Bore Size d N/A 35 mm Features N/A Non-Contact Seals Outside Diameter D N/A 55.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 10.9 kN C0r - Static Load Rating N/A 7.8 kN Grease Limiting Speed N/A 12000 rpm Oil Limiting Speed N/A 14000 rpm
61708-C3 Clearance N/A C3 Bore Size d N/A 40 mm Features N/A Open Outside Diameter D N/A 50.000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.5 kN C0r - Static Load Rating N/A 2.2 kN Grease Limiting Speed N/A 4300 rpm Oil Limiting Speed N/A 5000 rpm
61708-2RS-C3 Clearance N/A C3 Bore Size d N/A 40 mm Features N/A Contact Seals Outside Diameter D N/A 50.000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.5 kN C0r - Static Load Rating N/A 2.2 kN Grease Limiting Speed N/A 4300 rpm Oil Limiting Speed N/A 5000 rpm
61808-C3 Clearance N/A C3 Bore Size d N/A 40 mm Features N/A Open Outside Diameter D N/A 52.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4.9 kN C0r - Static Load Rating N/A 4.2 kN Grease Limiting Speed N/A 12000 rpm Oil Limiting Speed N/A 14000 rpm
61808-ZZ-C3 Clearance N/A C3 Bore Size d N/A 40 mm Features N/A Shields Outside Diameter D N/A 52.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4.9 kN C0r - Static Load Rating N/A 4.2 kN Grease Limiting Speed N/A 12000 rpm Oil Limiting Speed N/A 14000 rpm
61808-2RS-C3 Clearance N/A C3 Bore Size d N/A 40 mm Features N/A Contact Seals Outside Diameter D N/A 52.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4.9 kN C0r - Static Load Rating N/A 4.2 kN Grease Limiting Speed N/A 12000 rpm Oil Limiting Speed N/A 14000 rpm
61808-2RZ-C3 Clearance N/A C3 Bore Size d N/A 40 mm Features N/A Non-Contact Seals Outside Diameter D N/A 52.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 4.9 kN C0r - Static Load Rating N/A 4.2 kN Grease Limiting Speed N/A 12000 rpm Oil Limiting Speed N/A 14000 rpm
61908-C3 Clearance N/A C3 Bore Size d N/A 40 mm Features N/A Open Outside Diameter D N/A 62.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 13.7 kN C0r - Static Load Rating N/A 9.9 kN Grease Limiting Speed N/A 11000 rpm Oil Limiting Speed N/A 13000 rpm
61908-ZZ-C3 Clearance N/A C3 Bore Size d N/A 40 mm Features N/A Shields Outside Diameter D N/A 62.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 13.7 kN C0r - Static Load Rating N/A 9.9 kN Grease Limiting Speed N/A 11000 rpm Oil Limiting Speed N/A 13000 rpm
61908-2RS-C3 Clearance N/A C3 Bore Size d N/A 40 mm Features N/A Contact Seals Outside Diameter D N/A 62.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 13.7 kN C0r - Static Load Rating N/A 9.9 kN Grease Limiting Speed N/A 11000 rpm Oil Limiting Speed N/A 13000 rpm
61908-2RZ-C3 Clearance N/A C3 Bore Size d N/A 40 mm Features N/A Non-Contact Seals Outside Diameter D N/A 62.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 13.7 kN C0r - Static Load Rating N/A 9.9 kN Grease Limiting Speed N/A 11000 rpm Oil Limiting Speed N/A 13000 rpm
61709-C3 Clearance N/A C3 Bore Size d N/A 45 mm Features N/A Open Outside Diameter D N/A 55.000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.6 kN C0r - Static Load Rating N/A 2.4 kN Grease Limiting Speed N/A 3900 rpm Oil Limiting Speed N/A 4600 rpm
61709-2RS-C3 Clearance N/A C3 Bore Size d N/A 45 mm Features N/A Contact Seals Outside Diameter D N/A 55.000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.6 kN C0r - Static Load Rating N/A 2.4 kN Grease Limiting Speed N/A 3900 rpm Oil Limiting Speed N/A 4600 rpm
61809-C3 Clearance N/A C3 Bore Size d N/A 45 mm Features N/A Open Outside Diameter D N/A 58.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 6.2 kN C0r - Static Load Rating N/A 5.40 kN Grease Limiting Speed N/A 11000 rpm Oil Limiting Speed N/A 13000 rpm
61809-ZZ-C3 Clearance N/A C3 Bore Size d N/A 45 mm Features N/A Shields Outside Diameter D N/A 58.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 6.2 kN C0r - Static Load Rating N/A 5.40 kN Grease Limiting Speed N/A 11000 rpm Oil Limiting Speed N/A 13000 rpm
61809-2RS-C3 Clearance N/A C3 Bore Size d N/A 45 mm Features N/A Contact Seals Outside Diameter D N/A 58.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 6.2 kN C0r - Static Load Rating N/A 5.40 kN Grease Limiting Speed N/A 11000 rpm Oil Limiting Speed N/A 13000 rpm
61809-2RZ-C3 Clearance N/A C3 Bore Size d N/A 45 mm Features N/A Non-Contact Seals Outside Diameter D N/A 58.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 6.2 kN C0r - Static Load Rating N/A 5.40 kN Grease Limiting Speed N/A 11000 rpm Oil Limiting Speed N/A 13000 rpm
61909-C3 Clearance N/A C3 Bore Size d N/A 45 mm Features N/A Open Outside Diameter D N/A 68.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 14.1 kN C0r - Static Load Rating N/A 10.9 kN Grease Limiting Speed N/A 10000 rpm Oil Limiting Speed N/A 11000 rpm
61909-ZZ-C3 Clearance N/A C3 Bore Size d N/A 45 mm Features N/A Shields Outside Diameter D N/A 68.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 14.1 kN C0r - Static Load Rating N/A 10.9 kN Grease Limiting Speed N/A 10000 rpm Oil Limiting Speed N/A 11000 rpm
61909-2RS-C3 Clearance N/A C3 Bore Size d N/A 45 mm Features N/A Contact Seals Outside Diameter D N/A 68.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 14.1 kN C0r - Static Load Rating N/A 10.9 kN Grease Limiting Speed N/A 10000 rpm Oil Limiting Speed N/A 11000 rpm
61909-2RZ-C3 Clearance N/A C3 Bore Size d N/A 45 mm Features N/A Non-Contact Seals Outside Diameter D N/A 68.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 14.1 kN C0r - Static Load Rating N/A 10.9 kN Grease Limiting Speed N/A 10000 rpm Oil Limiting Speed N/A 11000 rpm
61710-C3 Clearance N/A C3 Bore Size d N/A 50 mm Features N/A Open Outside Diameter D N/A 62.000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.7 kN C0r - Static Load Rating N/A 2.7 kN Grease Limiting Speed N/A 3500 rpm Oil Limiting Speed N/A 4100 rpm
61710-2RS-C3 Clearance N/A C3 Bore Size d N/A 50 mm Features N/A Contact Seals Outside Diameter D N/A 62.000 mm Outside Ring Width B N/A 6.000 mm Cr - Dynamic Load Rating N/A 2.7 kN C0r - Static Load Rating N/A 2.7 kN Grease Limiting Speed N/A 3500 rpm Oil Limiting Speed N/A 4100 rpm
61810-C3 Clearance N/A C3 Bore Size d N/A 50 mm Features N/A Open Outside Diameter D N/A 65.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 6.2 kN C0r - Static Load Rating N/A 5.8 kN Grease Limiting Speed N/A 9500 rpm Oil Limiting Speed N/A 11000 rpm
61810-ZZ-C3 Clearance N/A C3 Bore Size d N/A 50 mm Features N/A Shields Outside Diameter D N/A 65.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 6.2 kN C0r - Static Load Rating N/A 5.8 kN Grease Limiting Speed N/A 9500 rpm Oil Limiting Speed N/A 11000 rpm
61810-2RS-C3 Clearance N/A C3 Bore Size d N/A 50 mm Features N/A Contact Seals Outside Diameter D N/A 65.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 6.2 kN C0r - Static Load Rating N/A 5.8 kN Grease Limiting Speed N/A 9500 rpm Oil Limiting Speed N/A 11000 rpm
61810-2RZ-C3 Clearance N/A C3 Bore Size d N/A 50 mm Features N/A Non-Contact Seals Outside Diameter D N/A 65.000 mm Outside Ring Width B N/A 7.000 mm Cr - Dynamic Load Rating N/A 6.2 kN C0r - Static Load Rating N/A 5.8 kN Grease Limiting Speed N/A 9500 rpm Oil Limiting Speed N/A 11000 rpm
61910-C3 Clearance N/A C3 Bore Size d N/A 50 mm Features N/A Open Outside Diameter D N/A 72.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 14.5 kN C0r - Static Load Rating N/A 11.7 kN Grease Limiting Speed N/A 9000 rpm Oil Limiting Speed N/A 11000 rpm
61910-ZZ-C3 Clearance N/A C3 Bore Size d N/A 50 mm Features N/A Shields Outside Diameter D N/A 72.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 14.5 kN C0r - Static Load Rating N/A 11.7 kN Grease Limiting Speed N/A 9000 rpm Oil Limiting Speed N/A 11000 rpm
61910-2RS-C3 Clearance N/A C3 Bore Size d N/A 50 mm Features N/A Contact Seals Outside Diameter D N/A 72.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 14.5 kN C0r - Static Load Rating N/A 11.7 kN Grease Limiting Speed N/A 9000 rpm Oil Limiting Speed N/A 11000 rpm
61910-2RZ-C3 Clearance N/A C3 Bore Size d N/A 50 mm Features N/A Non-Contact Seals Outside Diameter D N/A 72.000 mm Outside Ring Width B N/A 12.000 mm Cr - Dynamic Load Rating N/A 14.5 kN C0r - Static Load Rating N/A 11.7 kN Grease Limiting Speed N/A 9000 rpm Oil Limiting Speed N/A 11000 rpm
61811-C3 Clearance N/A C3 Bore Size d N/A 55 mm Features N/A Open Outside Diameter D N/A 72.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 8.8 kN C0r - Static Load Rating N/A 8.1 kN Grease Limiting Speed N/A 8600 rpm Oil Limiting Speed N/A 10000 rpm
61811-ZZ-C3 Clearance N/A C3 Bore Size d N/A 55 mm Features N/A Shields Outside Diameter D N/A 72.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 8.8 kN C0r - Static Load Rating N/A 8.1 kN Grease Limiting Speed N/A 8600 rpm Oil Limiting Speed N/A 10000 rpm
61811-2RS-C3 Clearance N/A C3 Bore Size d N/A 55 mm Features N/A Contact Seals Outside Diameter D N/A 72.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 8.8 kN C0r - Static Load Rating N/A 8.1 kN Grease Limiting Speed N/A 8600 rpm Oil Limiting Speed N/A 10000 rpm
61811-2RZ-C3 Clearance N/A C3 Bore Size d N/A 55 mm Features N/A Non-Contact Seals Outside Diameter D N/A 72.000 mm Outside Ring Width B N/A 9.000 mm Cr - Dynamic Load Rating N/A 8.8 kN C0r - Static Load Rating N/A 8.1 kN Grease Limiting Speed N/A 8600 rpm Oil Limiting Speed N/A 10000 rpm
61911-C3 Clearance N/A C3 Bore Size d N/A 55 mm Features N/A Open Outside Diameter D N/A 80.000 mm Outside Ring Width B N/A 13.000 mm Cr - Dynamic Load Rating N/A 16.6 kN C0r - Static Load Rating N/A 14.1 kN Grease Limiting Speed N/A 8100 rpm Oil Limiting Speed N/A 9600 rpm
61911-ZZ-C3 Clearance N/A C3 Bore Size d N/A 55 mm Features N/A Shields Outside Diameter D N/A 80.000 mm Outside Ring Width B N/A 13.000 mm Cr - Dynamic Load Rating N/A 16.6 kN C0r - Static Load Rating N/A 14.1 kN Grease Limiting Speed N/A 8100 rpm Oil Limiting Speed N/A 9600 rpm
61911-2RS-C3 Clearance N/A C3 Bore Size d N/A 55 mm Features N/A Contact Seals Outside Diameter D N/A 80.000 mm Outside Ring Width B N/A 13.000 mm Cr - Dynamic Load Rating N/A 16.6 kN C0r - Static Load Rating N/A 14.1 kN Grease Limiting Speed N/A 8100 rpm Oil Limiting Speed N/A 9600 rpm
61911-2RZ-C3 Clearance N/A C3 Bore Size d N/A 55 mm Features N/A Non-Contact Seals Outside Diameter D N/A 80.000 mm Outside Ring Width B N/A 13.000 mm Cr - Dynamic Load Rating N/A 16.6 kN C0r - Static Load Rating N/A 14.1 kN Grease Limiting Speed N/A 8100 rpm Oil Limiting Speed N/A 9600 rpm
61812-C3 Clearance N/A C3 Bore Size d N/A 60 mm Features N/A Open Outside Diameter D N/A 78.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 11.5 kN C0r - Static Load Rating N/A 10.6 kN Grease Limiting Speed N/A 7900 rpm Oil Limiting Speed N/A 9400 rpm
61812-ZZ-C3 Clearance N/A C3 Bore Size d N/A 60 mm Features N/A Shields Outside Diameter D N/A 78.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 11.5 kN C0r - Static Load Rating N/A 10.6 kN Grease Limiting Speed N/A 7900 rpm Oil Limiting Speed N/A 9400 rpm
61812-2RS-C3 Clearance N/A C3 Bore Size d N/A 60 mm Features N/A Contact Seals Outside Diameter D N/A 78.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 11.5 kN C0r - Static Load Rating N/A 10.6 kN Grease Limiting Speed N/A 7900 rpm Oil Limiting Speed N/A 9400 rpm
61812-2RZ-C3 Clearance N/A C3 Bore Size d N/A 60 mm Features N/A Non-Contact Seals Outside Diameter D N/A 78.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 11.5 kN C0r - Static Load Rating N/A 10.6 kN Grease Limiting Speed N/A 7900 rpm Oil Limiting Speed N/A 9400 rpm
61912-C3 Clearance N/A C3 Bore Size d N/A 60 mm Features N/A Open Outside Diameter D N/A 85.000 mm Outside Ring Width B N/A 13.000 mm Cr - Dynamic Load Rating N/A 20.2 kN C0r - Static Load Rating N/A 17.3 kN Grease Limiting Speed N/A 7500 rpm Oil Limiting Speed N/A 8900 rpm
61912-ZZ-C3 Clearance N/A C3 Bore Size d N/A 60 mm Features N/A Shields Outside Diameter D N/A 85.000 mm Outside Ring Width B N/A 13.000 mm Cr - Dynamic Load Rating N/A 20.2 kN C0r - Static Load Rating N/A 17.3 kN Grease Limiting Speed N/A 7500 rpm Oil Limiting Speed N/A 8900 rpm
61912-2RS-C3 Clearance N/A C3 Bore Size d N/A 60 mm Features N/A Contact Seals Outside Diameter D N/A 85.000 mm Outside Ring Width B N/A 13.000 mm Cr - Dynamic Load Rating N/A 20.2 kN C0r - Static Load Rating N/A 17.3 kN Grease Limiting Speed N/A 7500 rpm Oil Limiting Speed N/A 8900 rpm
61912-2RZ-C3 Clearance N/A C3 Bore Size d N/A 60 mm Features N/A Non-Contact Seals Outside Diameter D N/A 85.000 mm Outside Ring Width B N/A 13.000 mm Cr - Dynamic Load Rating N/A 20.2 kN C0r - Static Load Rating N/A 17.3 kN Grease Limiting Speed N/A 7500 rpm Oil Limiting Speed N/A 8900 rpm
61813-C3 Clearance N/A C3 Bore Size d N/A 65 mm Features N/A Open Outside Diameter D N/A 85.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 11.9 kN C0r - Static Load Rating N/A 11.5 kN Grease Limiting Speed N/A 7300 rpm Oil Limiting Speed N/A 8600 rpm
61813-ZZ-C3 Clearance N/A C3 Bore Size d N/A 65 mm Features N/A Shields Outside Diameter D N/A 85.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 11.9 kN C0r - Static Load Rating N/A 11.5 kN Grease Limiting Speed N/A 7300 rpm Oil Limiting Speed N/A 8600 rpm
61813-2RS-C3 Clearance N/A C3 Bore Size d N/A 65 mm Features N/A Contact Seals Outside Diameter D N/A 85.000 mm Outside Ring Width B N/A 10.000 mm Cr - Dynamic Load Rating N/A 11.9 kN C0r - Static Load Rating N/A 11.5 kN Grease Limiting Speed N/A 7300 rpm Oil Limiting Speed N/A 8600 rpm
61913-C3 Clearance N/A C3 Bore Size d N/A 65 mm Features N/A Open Outside Diameter D N/A 90.000 mm Outside Ring Width B N/A 13.000 mm Cr - Dynamic Load Rating N/A 17.3 kN C0r - Static Load Rating N/A 16.00 kN Grease Limiting Speed N/A 7000 rpm Oil Limiting Speed N/A 8300 rpm
61913-ZZ-C3 Clearance N/A C3 Bore Size d N/A 65 mm Features N/A Shields Outside Diameter D N/A 90.000 mm Outside Ring Width B N/A 13.000 mm Cr - Dynamic Load Rating N/A 17.3 kN C0r - Static Load Rating N/A 16.00 kN Grease Limiting Speed N/A 7000 rpm Oil Limiting Speed N/A 8300 rpm
61913-2RS-C3 Clearance N/A C3 Bore Size d N/A 65 mm Features N/A Contact Seals Outside Diameter D N/A 90.000 mm Outside Ring Width B N/A 13.000 mm Cr - Dynamic Load Rating N/A 17.3 kN C0r - Static Load Rating N/A 16.00 kN Grease Limiting Speed N/A 7000 rpm Oil Limiting Speed N/A 8300 rpm
61826 Clearance N/A C0 (Normal) Bore Size d N/A 130 mm Features N/A Open Outside Diameter D N/A 165.000 mm Outside Ring Width B N/A 18.000 mm Cr - Dynamic Load Rating N/A 37.9 kN C0r - Static Load Rating N/A 42.9 kN Grease Limiting Speed N/A 3400 rpm Oil Limiting Speed N/A 5000 rpm
61830 Clearance N/A C0 (Normal) Bore Size d N/A 150 mm Features N/A Open Outside Diameter D N/A 190.000 mm Outside Ring Width B N/A 20.000 mm Cr - Dynamic Load Rating N/A 49.1 kN C0r - Static Load Rating N/A 57.1 kN Grease Limiting Speed N/A 3000 rpm Oil Limiting Speed N/A 4500 rpm
61826-C3 Clearance N/A C3 Bore Size d N/A 130 mm Features N/A Open Outside Diameter D N/A 165.000 mm Outside Ring Width B N/A 18.000 mm Cr - Dynamic Load Rating N/A 37.9 kN C0r - Static Load Rating N/A 42.9 kN Grease Limiting Speed N/A 3400 rpm Oil Limiting Speed N/A 5000 rpm
61826-2RS-C3 Clearance N/A C3 Bore Size d N/A 130 mm Features N/A Contact Seals Outside Diameter D N/A 165.000 mm Outside Ring Width B N/A 18.000 mm Cr - Dynamic Load Rating N/A 37.9 kN C0r - Static Load Rating N/A 42.9 kN Grease Limiting Speed N/A 3400 rpm Oil Limiting Speed N/A 5000 rpm
61830-C3 Clearance N/A C3 Bore Size d N/A 150 mm Features N/A Open Outside Diameter D N/A 190.000 mm Outside Ring Width B N/A 20.000 mm Cr - Dynamic Load Rating N/A 49.1 kN C0r - Static Load Rating N/A 57.1 kN Grease Limiting Speed N/A 3000 rpm Oil Limiting Speed N/A 4500 rpm
Sản phẩm liên quan
Deep Groove Ball Bearings (6000, 6200, 6300, 6400)
Deep Groove Ball Bearings (6000, 6200, 6300, 6400)
Narrow Section Ball Bearings (16000, 16100)
Narrow Section Ball Bearings (16000, 16100)
Wide Section Ball Bearings (62000, 63000)
Wide Section Ball Bearings (62000, 63000)
Miniature Ball Bearings (600, 610, 620, 630)
Miniature Ball Bearings (600, 610, 620, 630)
Fafnir® Deep Groove Ball Bearings (9100K, 200K, 300K)
Fafnir® Deep Groove Ball Bearings (9100K, 200K, 300K)
Fafnir® Maximum Capacity Ball Bearings (200W, 300W)
Fafnir® Maximum Capacity Ball Bearings (200W, 300W)
x
Liên hệ
Kinh doanh 1: 0909 566 551
Kinh doanh 1: 0933 155 707
Kỹ thuật: 0911 991 666
Tel Zalo Messenger
