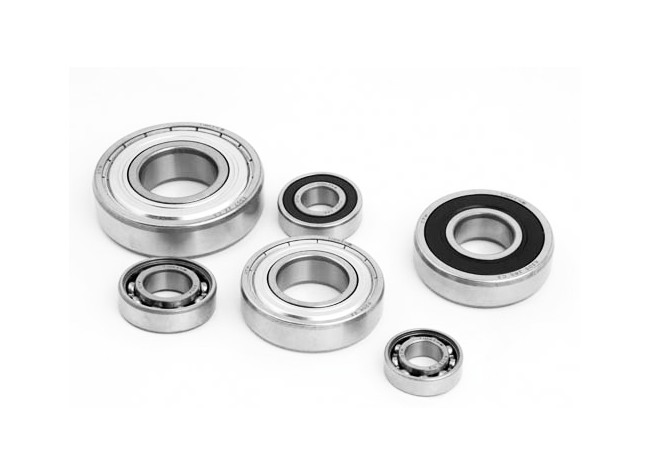

Deep groove ball bearings are available in a variety of sizes and are the most popular of the rolling bearings. This type of bearing supports radial load and a small degree of axial load in both directions simultaneously. Deep groove ball bearings are popular due to their versatility, affordability, and capability to run at high speeds. Most bearings in the 6200 and 6300 series up to 60mm bore can be made available in stainless steel (AISI 440C material). Contact a Timken sales engineer for details.
| Timken Part Number | Clearance | Bore Size d | Features | Outside Diameter D | Outside Ring Width B | Cr - Dynamic Load Rating | C0r - Static Load Rating | Grease Reference Speed |
Grease Limiting Speed |
| 62200-2RS | Clearance C0 (Normal) | Bore Size d 10 mm | Features Contact Seals | Outside Diameter D 30.000 mm | Outside Ring Width B 14.000 mm | Cr - Dynamic Load Rating 6 kN | C0r - Static Load Rating 2.4 kN | Grease Reference Speed 29000 rpm | Grease Limiting Speed 29000 rpm |
| 62300-2RS | Clearance C0 (Normal) | Bore Size d 10 mm | Features Contact Seals | Outside Diameter D 35.000 mm | Outside Ring Width B 17.000 mm | Cr - Dynamic Load Rating 8.1 kN | C0r - Static Load Rating 3.4 kN | Grease Reference Speed 26000 rpm | Grease Limiting Speed 26000 rpm |
| 63000-2RS | Clearance C0 (Normal) | Bore Size d 10 mm | Features Contact Seals | Outside Diameter D 26.000 mm | Outside Ring Width B 12.000 mm | Cr - Dynamic Load Rating 4.6 kN | C0r - Static Load Rating 2 kN | Grease Reference Speed 33000 rpm | Grease Limiting Speed 33000 rpm |
| 62201-2RS | Clearance C0 (Normal) | Bore Size d 12 mm | Features Contact Seals | Outside Diameter D 32.000 mm | Outside Ring Width B 14.000 mm | Cr - Dynamic Load Rating 6.9 kN | C0r - Static Load Rating 3.1 kN | Grease Reference Speed 26000 rpm | Grease Limiting Speed 26000 rpm |
| 62301-2RS | Clearance C0 (Normal) | Bore Size d 12 mm | Features Contact Seals | Outside Diameter D 37.000 mm | Outside Ring Width B 17.000 mm | Cr - Dynamic Load Rating 9.8 kN | C0r - Static Load Rating 4.2 kN | Grease Reference Speed 23000 rpm | Grease Limiting Speed 23000 rpm |
| 63001-2RS | Clearance C0 (Normal) | Bore Size d 12 mm | Features Contact Seals | Outside Diameter D 28.0000 mm | Outside Ring Width B 12.000 mm | Cr - Dynamic Load Rating 5.1 kN | C0r - Static Load Rating 2.4 kN | Grease Reference Speed 29000 rpm | Grease Limiting Speed 29000 rpm |
| 62202-2RS | Clearance C0 (Normal) | Bore Size d 15 mm | Features Contact Seals | Outside Diameter D 35.000 mm | Outside Ring Width B 14.000 mm | Cr - Dynamic Load Rating 7.8 kN | C0r - Static Load Rating 3.8 kN | Grease Reference Speed 22000 rpm | Grease Limiting Speed 22000 rpm |
| 62302-2RS | Clearance C0 (Normal) | Bore Size d 15 mm | Features Contact Seals | Outside Diameter D 42.000 mm | Outside Ring Width B 17.000 mm | Cr - Dynamic Load Rating 11.4 kN | C0r - Static Load Rating 5.40 kN | Grease Reference Speed 19000 rpm | Grease Limiting Speed 19000 rpm |
| 63002-2RS | Clearance C0 (Normal) | Bore Size d 15 mm | Features Contact Seals | Outside Diameter D 32.000 mm | Outside Ring Width B 13.000 mm | Cr - Dynamic Load Rating 5.6 kN | C0r - Static Load Rating 2.8 kN | Grease Reference Speed 25000 rpm | Grease Limiting Speed 25000 rpm |
| 62203-2RS | Clearance C0 (Normal) | Bore Size d 17 mm | Features Contact Seals | Outside Diameter D 40.000 mm | Outside Ring Width B 16.000 mm | Cr - Dynamic Load Rating 9.6 kN | C0r - Static Load Rating 4.8 kN | Grease Reference Speed 20000 rpm | Grease Limiting Speed 20000 rpm |
| 62303-2RS | Clearance C0 (Normal) | Bore Size d 17 mm | Features Contact Seals | Outside Diameter D 47.000 mm | Outside Ring Width B 19.000 mm | Cr - Dynamic Load Rating 13.5 kN | C0r - Static Load Rating 6.6 kN | Grease Reference Speed 18000 rpm | Grease Limiting Speed 18000 rpm |
| 63003-2RS | Clearance C0 (Normal) | Bore Size d 17 mm | Features Contact Seals | Outside Diameter D 35.000 mm | Outside Ring Width B 14.000 mm | Cr - Dynamic Load Rating 6 kN | C0r - Static Load Rating 3.3 kN | Grease Reference Speed 23000 rpm | Grease Limiting Speed 23000 rpm |
| 62204-2RS | Clearance C0 (Normal) | Bore Size d 20 mm | Features Contact Seals | Outside Diameter D 47.000 mm | Outside Ring Width B 18.000 mm | Cr - Dynamic Load Rating 12.7 kN | C0r - Static Load Rating 6.6 kN | Grease Reference Speed 18000 rpm | Grease Limiting Speed 18000 rpm |
| 62304-2RS | Clearance C0 (Normal) | Bore Size d 20 mm | Features Contact Seals | Outside Diameter D 52.000 mm | Outside Ring Width B 21.000 mm | Cr - Dynamic Load Rating 15.9 kN | C0r - Static Load Rating 7.8 kN | Grease Reference Speed 17000 rpm | Grease Limiting Speed 17000 rpm |
| 63004-2RS | Clearance C0 (Normal) | Bore Size d 20 mm | Features Contact Seals | Outside Diameter D 42.000 mm | Outside Ring Width B 16.000 mm | Cr - Dynamic Load Rating 9.4 kN | C0r - Static Load Rating 5 kN | Grease Reference Speed 20000 rpm | Grease Limiting Speed 20000 rpm |
| 62205-2RS | Clearance C0 (Normal) | Bore Size d 25 mm | Features Contact Seals | Outside Diameter D 52.000 mm | Outside Ring Width B 18.000 mm | Cr - Dynamic Load Rating 14 kN | C0r - Static Load Rating 7.8 kN | Grease Reference Speed 15000 rpm | Grease Limiting Speed 15000 rpm |
| 62305-2RS | Clearance C0 (Normal) | Bore Size d 25 mm | Features Contact Seals | Outside Diameter D 62.000 mm | Outside Ring Width B 24.000 mm | Cr - Dynamic Load Rating 22.5 kN | C0r - Static Load Rating 11.6 kN | Grease Reference Speed 14000 rpm | Grease Limiting Speed 14000 rpm |
| 63005-2RS | Clearance C0 (Normal) | Bore Size d 25 mm | Features Contact Seals | Outside Diameter D 47.000 mm | Outside Ring Width B 16.000 mm | Cr - Dynamic Load Rating 10.1 kN | C0r - Static Load Rating 5.8 kN | Grease Reference Speed 17000 rpm | Grease Limiting Speed 17000 rpm |
| 62206-2RS | Clearance C0 (Normal) | Bore Size d 30 mm | Features Contact Seals | Outside Diameter D 62.000 mm | Outside Ring Width B 20.000 mm | Cr - Dynamic Load Rating 19.5 kN | C0r - Static Load Rating 11.2 kN | Grease Reference Speed 13000 rpm | Grease Limiting Speed 13000 rpm |
| 62306-2RS | Clearance C0 (Normal) | Bore Size d 30 mm | Features Contact Seals | Outside Diameter D 72.000 mm | Outside Ring Width B 27.000 mm | Cr - Dynamic Load Rating 28.1 kN | C0r - Static Load Rating 16.00 kN | Grease Reference Speed 13000 rpm | Grease Limiting Speed 13000 rpm |
| 63006-2RS | Clearance C0 (Normal) | Bore Size d 30 mm | Features Contact Seals | Outside Diameter D 55.000 mm | Outside Ring Width B 19.000 mm | Cr - Dynamic Load Rating 13.2 kN | C0r - Static Load Rating 8.3 kN | Grease Reference Speed 15000 rpm | Grease Limiting Speed 15000 rpm |
| 62207-2RS | Clearance C0 (Normal) | Bore Size d 35 mm | Features Contact Seals | Outside Diameter D 72.000 mm | Outside Ring Width B 23.000 mm | Cr - Dynamic Load Rating 25.5 kN | C0r - Static Load Rating 15.3 kN | Grease Reference Speed 12000 rpm | Grease Limiting Speed 12000 rpm |
| 62307-2RS | Clearance C0 (Normal) | Bore Size d 35 mm | Features Contact Seals | Outside Diameter D 80.000 mm | Outside Ring Width B 31.000 mm | Cr - Dynamic Load Rating 33.2 kN | C0r - Static Load Rating 19 kN | Grease Reference Speed 12000 rpm | Grease Limiting Speed 12000 rpm |
| 63007-2RS | Clearance C0 (Normal) | Bore Size d 35 mm | Features Contact Seals | Outside Diameter D 62.000 mm | Outside Ring Width B 20.000 mm | Cr - Dynamic Load Rating 16 kN | C0r - Static Load Rating 10.3 kN | Grease Reference Speed 14000 rpm | Grease Limiting Speed 14000 rpm |
| 62208-2RS | Clearance C0 (Normal) | Bore Size d 40 mm | Features Contact Seals | Outside Diameter D 80.000 mm | Outside Ring Width B 23.000 mm | Cr - Dynamic Load Rating 30.7 kN | C0r - Static Load Rating 19 kN | Grease Reference Speed 10000 rpm | Grease Limiting Speed 10000 rpm |
| 62308-2RS | Clearance C0 (Normal) | Bore Size d 40 mm | Features Contact Seals | Outside Diameter D 90.000 mm | Outside Ring Width B 33.000 mm | Cr - Dynamic Load Rating 41 kN | C0r - Static Load Rating 24 kN | Grease Reference Speed 11000 rpm | Grease Limiting Speed 11000 rpm |
| 63008-2RS | Clearance C0 (Normal) | Bore Size d 40 mm | Features Contact Seals | Outside Diameter D 68.000 mm | Outside Ring Width B 21.000 mm | Cr - Dynamic Load Rating 16.8 kN | C0r - Static Load Rating 11.6 kN | Grease Reference Speed 12000 rpm | Grease Limiting Speed 12000 rpm |
| 62209-2RS | Clearance C0 (Normal) | Bore Size d 45 mm | Features Contact Seals | Outside Diameter D 85.000 mm | Outside Ring Width B 23.000 mm | Cr - Dynamic Load Rating 33.2 kN | C0r - Static Load Rating 21.6 kN | Grease Reference Speed 9200 rpm | Grease Limiting Speed 9200 rpm |
| 62309-2RS | Clearance C0 (Normal) | Bore Size d 45 mm | Features Contact Seals | Outside Diameter D 100.000 mm | Outside Ring Width B 36.000 mm | Cr - Dynamic Load Rating 52.7 kN | C0r - Static Load Rating 31.5 kN | Grease Reference Speed 9700 rpm | Grease Limiting Speed 9700 rpm |
| 62210-2RS | Clearance C0 (Normal) | Bore Size d 50 mm | Features Contact Seals | Outside Diameter D 90.000 mm | Outside Ring Width B 23.000 mm | Cr - Dynamic Load Rating 35.1 kN | C0r - Static Load Rating 23.2 kN | Grease Reference Speed 8500 rpm | Grease Limiting Speed 8500 rpm |
| 62310-2RS | Clearance C0 (Normal) | Bore Size d 50 mm | Features Contact Seals | Outside Diameter D 110.000 mm | Outside Ring Width B 40.000 mm | Cr - Dynamic Load Rating 61.8 kN | C0r - Static Load Rating 38 kN | Grease Reference Speed 9200 rpm | Grease Limiting Speed 9200 rpm |
| 62211-2RS | Clearance C0 (Normal) | Bore Size d 55 mm | Features Contact Seals | Outside Diameter D 100.000 mm | Outside Ring Width B 25.000 mm | Cr - Dynamic Load Rating 43.6 kN | C0r - Static Load Rating 29 kN | Grease Reference Speed 7800 rpm | Grease Limiting Speed 7800 rpm |
| 62311-2RS | Clearance C0 (Normal) | Bore Size d 55 mm | Features Contact Seals | Outside Diameter D 120.000 mm | Outside Ring Width B 43.000 mm | Cr - Dynamic Load Rating 71.5 kN | C0r - Static Load Rating 45 kN | Grease Reference Speed 8600 rpm | Grease Limiting Speed 8600 rpm |
| 62212-2RS | Clearance C0 (Normal) | Bore Size d 60 mm | Features Contact Seals | Outside Diameter D 110.000 mm | Outside Ring Width B 28.000 mm | Cr - Dynamic Load Rating 52.7 kN | C0r - Static Load Rating 36 kN | Grease Reference Speed 7500 rpm | Grease Limiting Speed 7500 rpm |
| 62312-2RS | Clearance C0 (Normal) | Bore Size d 60 mm | Features Contact Seals | Outside Diameter D 130.000 mm | Outside Ring Width B 46.000 mm | Cr - Dynamic Load Rating 81.8 kN | C0r - Static Load Rating 51.9 kN | Grease Reference Speed 8100 rpm | Grease Limiting Speed 8100 rpm |
| 62213-2RS | Clearance C0 (Normal) | Bore Size d 65 mm | Features Contact Seals | Outside Diameter D 120.000 mm | Outside Ring Width B 31.000 mm | Cr - Dynamic Load Rating 55.9 kN | C0r - Static Load Rating 40.5 kN | Grease Reference Speed 7200 rpm | Grease Limiting Speed 7200 rpm |
| 62214-2RS | Clearance C0 (Normal) | Bore Size d 70 mm | Features Contact Seals | Outside Diameter D 125.000 mm | Outside Ring Width B 31.000 mm | Cr - Dynamic Load Rating 60.5 kN | C0r - Static Load Rating 45.5 kN | Grease Reference Speed 6700 rpm | Grease Limiting Speed 6700 rpm |
| 62200-2RS-C3 | Clearance C3 | Bore Size d 10 mm | Features Contact Seals | Outside Diameter D 30.000 mm | Outside Ring Width B 14.000 mm | Cr - Dynamic Load Rating 6 kN | C0r - Static Load Rating 2.4 kN | Grease Reference Speed 29000 rpm | Grease Limiting Speed 29000 rpm |
| 62300-2RS-C3 | Clearance C3 | Bore Size d 10 mm | Features Contact Seals | Outside Diameter D 35.000 mm | Outside Ring Width B 17.000 mm | Cr - Dynamic Load Rating 8.1 kN | C0r - Static Load Rating 3.4 kN | Grease Reference Speed 26000 rpm | Grease Limiting Speed 26000 rpm |
| 63000-2RS-C3 | Clearance C3 | Bore Size d 10 mm | Features Contact Seals | Outside Diameter D 26.000 mm | Outside Ring Width B 12.000 mm | Cr - Dynamic Load Rating 4.6 kN | C0r - Static Load Rating 2 kN | Grease Reference Speed 33000 rpm | Grease Limiting Speed 33000 rpm |
| 62201-2RS-C3 | Clearance C3 | Bore Size d 12 mm | Features Contact Seals | Outside Diameter D 32.000 mm | Outside Ring Width B 14.000 mm | Cr - Dynamic Load Rating 6.9 kN | C0r - Static Load Rating 3.1 kN | Grease Reference Speed 26000 rpm | Grease Limiting Speed 26000 rpm |
| 62301-2RS-C3 | Clearance C3 | Bore Size d 12 mm | Features Contact Seals | Outside Diameter D 37.000 mm | Outside Ring Width B 17.000 mm | Cr - Dynamic Load Rating 9.8 kN | C0r - Static Load Rating 4.2 kN | Grease Reference Speed 23000 rpm | Grease Limiting Speed 23000 rpm |
| 63001-2RS-C3 | Clearance C3 | Bore Size d 12 mm | Features Contact Seals | Outside Diameter D 28.0000 mm | Outside Ring Width B 12.000 mm | Cr - Dynamic Load Rating 5.1 kN | C0r - Static Load Rating 2.4 kN | Grease Reference Speed 29000 rpm | Grease Limiting Speed 29000 rpm |
| 62202-2RS-C3 | Clearance C3 | Bore Size d 15 mm | Features Contact Seals | Outside Diameter D 35.000 mm | Outside Ring Width B 14.000 mm | Cr - Dynamic Load Rating 7.8 kN | C0r - Static Load Rating 3.8 kN | Grease Reference Speed 22000 rpm | Grease Limiting Speed 22000 rpm |
| 62302-2RS-C3 | Clearance C3 | Bore Size d 15 mm | Features Contact Seals | Outside Diameter D 42.000 mm | Outside Ring Width B 17.000 mm | Cr - Dynamic Load Rating 11.4 kN | C0r - Static Load Rating 5.40 kN | Grease Reference Speed 19000 rpm | Grease Limiting Speed 19000 rpm |
| 63002-2RS-C3 | Clearance C3 | Bore Size d 15 mm | Features Contact Seals | Outside Diameter D 32.000 mm | Outside Ring Width B 13.000 mm | Cr - Dynamic Load Rating 5.6 kN | C0r - Static Load Rating 2.8 kN | Grease Reference Speed 25000 rpm | Grease Limiting Speed 25000 rpm |
| 62203-2RS-C3 | Clearance C3 | Bore Size d 17 mm | Features Contact Seals | Outside Diameter D 40.000 mm | Outside Ring Width B 16.000 mm | Cr - Dynamic Load Rating 9.6 kN | C0r - Static Load Rating 4.8 kN | Grease Reference Speed 20000 rpm | Grease Limiting Speed 20000 rpm |
| 62303-2RS-C3 | Clearance C3 | Bore Size d 17 mm | Features Contact Seals | Outside Diameter D 47.000 mm | Outside Ring Width B 19.000 mm | Cr - Dynamic Load Rating 13.5 kN | C0r - Static Load Rating 6.6 kN | Grease Reference Speed 18000 rpm | Grease Limiting Speed 18000 rpm |
| 63003-2RS-C3 | Clearance C3 | Bore Size d 17 mm | Features Contact Seals | Outside Diameter D 35.000 mm | Outside Ring Width B 14.000 mm | Cr - Dynamic Load Rating 6 kN | C0r - Static Load Rating 3.3 kN | Grease Reference Speed 23000 rpm | Grease Limiting Speed 23000 rpm |
| 62204-2RS-C3 | Clearance C3 | Bore Size d 20 mm | Features Contact Seals | Outside Diameter D 47.000 mm | Outside Ring Width B 18.000 mm | Cr - Dynamic Load Rating 12.7 kN | C0r - Static Load Rating 6.6 kN | Grease Reference Speed 18000 rpm | Grease Limiting Speed 18000 rpm |
| 62304-2RS-C3 | Clearance C3 | Bore Size d 20 mm | Features Contact Seals | Outside Diameter D 52.000 mm | Outside Ring Width B 21.000 mm | Cr - Dynamic Load Rating 15.9 kN | C0r - Static Load Rating 7.8 kN | Grease Reference Speed 17000 rpm | Grease Limiting Speed 17000 rpm |
| 63004-2RS-C3 | Clearance C3 | Bore Size d 20 mm | Features Contact Seals | Outside Diameter D 42.000 mm | Outside Ring Width B 16.000 mm | Cr - Dynamic Load Rating 9.4 kN | C0r - Static Load Rating 5 kN | Grease Reference Speed 20000 rpm | Grease Limiting Speed 20000 rpm |
| 62205-2RS-C3 | Clearance C3 | Bore Size d 25 mm | Features Contact Seals | Outside Diameter D 52.000 mm | Outside Ring Width B 18.000 mm | Cr - Dynamic Load Rating 14 kN | C0r - Static Load Rating 7.8 kN | Grease Reference Speed 15000 rpm | Grease Limiting Speed 15000 rpm |
| 62305-2RS-C3 | Clearance C3 | Bore Size d 25 mm | Features Contact Seals | Outside Diameter D 62.000 mm | Outside Ring Width B 24.000 mm | Cr - Dynamic Load Rating 22.5 kN | C0r - Static Load Rating 11.6 kN | Grease Reference Speed 14000 rpm | Grease Limiting Speed 14000 rpm |
| 63005-2RS-C3 | Clearance C3 | Bore Size d 25 mm | Features Contact Seals | Outside Diameter D 47.000 mm | Outside Ring Width B 16.000 mm | Cr - Dynamic Load Rating 10.1 kN | C0r - Static Load Rating 5.8 kN | Grease Reference Speed 17000 rpm | Grease Limiting Speed 17000 rpm |
| 62206-2RS-C3 | Clearance C3 | Bore Size d 30 mm | Features Contact Seals | Outside Diameter D 62.000 mm | Outside Ring Width B 20.000 mm | Cr - Dynamic Load Rating 19.5 kN | C0r - Static Load Rating 11.2 kN | Grease Reference Speed 13000 rpm | Grease Limiting Speed 13000 rpm |
| 62306-2RS-C3 | Clearance C3 | Bore Size d 30 mm | Features Contact Seals | Outside Diameter D 72.000 mm | Outside Ring Width B 27.000 mm | Cr - Dynamic Load Rating 28.1 kN | C0r - Static Load Rating 16.00 kN | Grease Reference Speed 13000 rpm | Grease Limiting Speed 13000 rpm |
| 63006-2RS-C3 | Clearance C3 | Bore Size d 30 mm | Features Contact Seals | Outside Diameter D 55.000 mm | Outside Ring Width B 19.000 mm | Cr - Dynamic Load Rating 13.2 kN | C0r - Static Load Rating 8.3 kN | Grease Reference Speed 15000 rpm | Grease Limiting Speed 15000 rpm |
| 62207-2RS-C3 | Clearance C3 | Bore Size d 35 mm | Features Contact Seals | Outside Diameter D 72.000 mm | Outside Ring Width B 23.000 mm | Cr - Dynamic Load Rating 25.5 kN | C0r - Static Load Rating 15.3 kN | Grease Reference Speed 12000 rpm | Grease Limiting Speed 12000 rpm |
| 62307-2RS-C3 | Clearance C3 | Bore Size d 35 mm | Features Contact Seals | Outside Diameter D 80.000 mm | Outside Ring Width B 31.000 mm | Cr - Dynamic Load Rating 33.2 kN | C0r - Static Load Rating 19 kN | Grease Reference Speed 12000 rpm | Grease Limiting Speed 12000 rpm |
| 63007-2RS-C3 | Clearance C3 | Bore Size d 35 mm | Features Contact Seals | Outside Diameter D 62.000 mm | Outside Ring Width B 20.000 mm | Cr - Dynamic Load Rating 16 kN | C0r - Static Load Rating 10.3 kN | Grease Reference Speed 14000 rpm | Grease Limiting Speed 14000 rpm |
| 62208-2RS-C3 | Clearance C3 | Bore Size d 40 mm | Features Contact Seals | Outside Diameter D 80.000 mm | Outside Ring Width B 23.000 mm | Cr - Dynamic Load Rating 30.7 kN | C0r - Static Load Rating 19 kN | Grease Reference Speed 10000 rpm | Grease Limiting Speed 10000 rpm |
| 62308-2RS-C3 | Clearance C3 | Bore Size d 40 mm | Features Contact Seals | Outside Diameter D 90.000 mm | Outside Ring Width B 33.000 mm | Cr - Dynamic Load Rating 41 kN | C0r - Static Load Rating 24 kN | Grease Reference Speed 11000 rpm | Grease Limiting Speed 11000 rpm |
| 63008-2RS-C3 | Clearance C3 | Bore Size d 40 mm | Features Contact Seals | Outside Diameter D 68.000 mm | Outside Ring Width B 21.000 mm | Cr - Dynamic Load Rating 16.8 kN | C0r - Static Load Rating 11.6 kN | Grease Reference Speed 12000 rpm | Grease Limiting Speed 12000 rpm |
| 62209-2RS-C3 | Clearance C3 | Bore Size d 45 mm | Features Contact Seals | Outside Diameter D 85.000 mm | Outside Ring Width B 23.000 mm | Cr - Dynamic Load Rating 33.2 kN | C0r - Static Load Rating 21.6 kN | Grease Reference Speed 9200 rpm | Grease Limiting Speed 9200 rpm |
| 62309-2RS-C3 | Clearance C3 | Bore Size d 45 mm | Features Contact Seals | Outside Diameter D 100.000 mm | Outside Ring Width B 36.000 mm | Cr - Dynamic Load Rating 52.7 kN | C0r - Static Load Rating 31.5 kN | Grease Reference Speed 9700 rpm | Grease Limiting Speed 9700 rpm |
| 62210-2RS-C3 | Clearance C3 | Bore Size d 50 mm | Features Contact Seals | Outside Diameter D 90.000 mm | Outside Ring Width B 23.000 mm | Cr - Dynamic Load Rating 35.1 kN | C0r - Static Load Rating 23.2 kN | Grease Reference Speed 8500 rpm | Grease Limiting Speed 8500 rpm |
| 62310-2RS-C3 | Clearance C3 | Bore Size d 50 mm | Features Contact Seals | Outside Diameter D 110.000 mm | Outside Ring Width B 40.000 mm | Cr - Dynamic Load Rating 61.8 kN | C0r - Static Load Rating 38 kN | Grease Reference Speed 9200 rpm | Grease Limiting Speed 9200 rpm |
| 62211-2RS-C3 | Clearance C3 | Bore Size d 55 mm | Features Contact Seals | Outside Diameter D 100.000 mm | Outside Ring Width B 25.000 mm | Cr - Dynamic Load Rating 43.6 kN | C0r - Static Load Rating 29 kN | Grease Reference Speed 7800 rpm | Grease Limiting Speed 7800 rpm |
| 62311-2RS-C3 | Clearance C3 | Bore Size d 55 mm | Features Contact Seals | Outside Diameter D 120.000 mm | Outside Ring Width B 43.000 mm | Cr - Dynamic Load Rating 71.5 kN | C0r - Static Load Rating 45 kN | Grease Reference Speed 8600 rpm | Grease Limiting Speed 8600 rpm |
| 62212-2RS-C3 | Clearance C3 | Bore Size d 60 mm | Features Contact Seals | Outside Diameter D 110.000 mm | Outside Ring Width B 28.000 mm | Cr - Dynamic Load Rating 52.7 kN | C0r - Static Load Rating 36 kN | Grease Reference Speed 7500 rpm | Grease Limiting Speed 7500 rpm |
| 62312-2RS-C3 | Clearance C3 | Bore Size d 60 mm | Features Contact Seals | Outside Diameter D 130.000 mm | Outside Ring Width B 46.000 mm | Cr - Dynamic Load Rating 81.8 kN | C0r - Static Load Rating 51.9 kN | Grease Reference Speed 8100 rpm | Grease Limiting Speed 8100 rpm |
| 62213-2RS-C3 | Clearance C3 | Bore Size d 65 mm | Features Contact Seals | Outside Diameter D 120.000 mm | Outside Ring Width B 31.000 mm | Cr - Dynamic Load Rating 55.9 kN | C0r - Static Load Rating 40.5 kN | Grease Reference Speed 7200 rpm | Grease Limiting Speed 7200 rpm |
| 62214-2RS-C3 | Clearance C3 | Bore Size d 70 mm | Features Contact Seals | Outside Diameter D 125.000 mm | Outside Ring Width B 31.000 mm | Cr - Dynamic Load Rating 60.5 kN | C0r - Static Load Rating 45.5 kN | Grease Reference Speed 6700 rpm | Grease Limiting Speed 6700 rpm |
| 63007-RS | Clearance C0 (Normal) | Bore Size d 35 mm | Features One Contact Seal | Outside Diameter D 62.000 mm | Outside Ring Width B 20.000 mm | Cr - Dynamic Load Rating 16 kN | C0r - Static Load Rating 10.3 kN | Grease Reference Speed 14000 rpm | Grease Limiting Speed 14000 rpm |
