Vòng bi > TIMKEN > Tapered Roller Bearings - Double Tapered Cones - Imperial

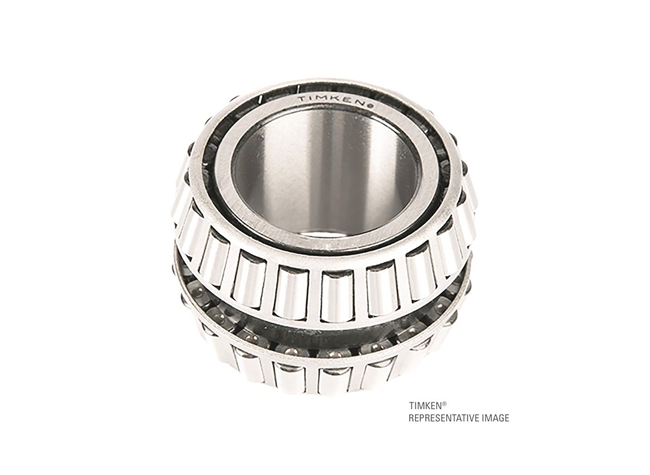

Tapered Roller Bearings - Double Tapered Cones - Imperial





 Timken Part Number  Series  d - Bore B - Double Cone Width  C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)  C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)  Bore Taper  db - Cone Backface Backing Diameter  C1 - Dynamic Radial Rating (1 million revolutions)  C0 - Static Radial Rating
07100D Series N/A 07000 d - Bore N/A 1.0000 in25.400 mm B - Double Cone Width N/A 1.4375 in36.513 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 1700 lbf7550 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 11400 lbf50700 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 1.18 in30 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 6540 lbf29100 N C0 - Static Radial Rating N/A 6650 lbf29600 N
07101DW Series N/A 07000 d - Bore N/A 1.0000 in25.400 mm B - Double Cone Width N/A 1.4375 in36.513 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 1600 lbf7130 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 10800 lbf47900 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 1.18 in30 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 6180 lbf27500 N C0 - Static Radial Rating N/A 6650 lbf29600 N
17116D Series N/A 17000 d - Bore N/A 1.1875 in30.163 mm B - Double Cone Width N/A 1.3750 in34.925 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 2520 lbf11200 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 16900 lbf75300 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 1.4 in35.5 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 9720 lbf43200 N C0 - Static Radial Rating N/A 9910 lbf44100 N
14126D Series N/A 14000 d - Bore N/A 1.2500 in31.750 mm B - Double Cone Width N/A 1.5426 in39.182 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 3180 lbf14200 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 21400 lbf95100 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 1.57 in40 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 12300 lbf54600 N C0 - Static Radial Rating N/A 13900 lbf61700 N
19145D Series N/A 19000 d - Bore N/A 1.4375 in36.513 mm B - Double Cone Width N/A 1.5000 in38.100 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 2960 lbf13100 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 19800 lbf88300 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 1.67 in42.5 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 11400 lbf50700 N C0 - Static Radial Rating N/A 13000 lbf57800 N
19152D Series N/A 19000 d - Bore N/A 1.5 in38.1 mm B - Double Cone Width N/A 1.9370 in49.200 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 2960 lbf13100 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 19800 lbf88300 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 1.71 in43.5 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 11400 lbf50700 N C0 - Static Radial Rating N/A 13000 lbf57800 N
357DW Series N/A 355 d - Bore N/A 1.6875 in42.863 mm B - Double Cone Width N/A 2.5620 in65.075 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 4770 lbf21200 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 32000 lbf142000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 1.95 in49.5 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 18400 lbf81800 N C0 - Static Radial Rating N/A 20000 lbf88800 N
358D Series N/A 355 d - Bore N/A 1.6875 in42.863 mm B - Double Cone Width N/A 2.0620 in52.375 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 4770 lbf21200 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 32000 lbf142000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 2.01 in51 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 18400 lbf81800 N C0 - Static Radial Rating N/A 20000 lbf88800 N
13176D Series N/A 13000 d - Bore N/A 1.7500 in44.450 mm B - Double Cone Width N/A 1.2500 in31.750 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 2960 lbf13200 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 19900 lbf88500 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 1.97 in50 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 11400 lbf50800 N C0 - Static Radial Rating N/A 13700 lbf61100 N
13182D Series N/A 13000 d - Bore N/A 1.8125 in46.038 mm B - Double Cone Width N/A 1.2500 in31.750 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 2960 lbf13200 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 19900 lbf88500 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 2.05 in52 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 11400 lbf50800 N C0 - Static Radial Rating N/A 13700 lbf61100 N
376DE Series N/A 375 d - Bore N/A 1.8750 in47.625 mm B - Double Cone Width N/A 2.0940 in53.188 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5120 lbf22800 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 34400 lbf153000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 2.17 in55 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 19800 lbf87900 N C0 - Static Radial Rating N/A 22700 lbf101000 N
378DE Series N/A 375 d - Bore N/A 1.9375 in49.213 mm B - Double Cone Width N/A 2.0940 in53.188 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5120 lbf22800 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 34400 lbf153000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 2.2 in56 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 19800 lbf87900 N C0 - Static Radial Rating N/A 22700 lbf101000 N
378DW Series N/A 375 d - Bore N/A 1.9375 in49.213 mm B - Double Cone Width N/A 2.6570 in67.488 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5120 lbf22800 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 34400 lbf153000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 2.2 in56 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 19800 lbf87900 N C0 - Static Radial Rating N/A 22700 lbf101000 N
375D Series N/A 375 d - Bore N/A 2 in50.8 mm B - Double Cone Width N/A 2.0940 in53.188 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5120 lbf22800 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 34400 lbf153000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 2.24 in57 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 19800 lbf87900 N C0 - Static Radial Rating N/A 22700 lbf101000 N
389DE Series N/A 385 d - Bore N/A 2.1875 in55.563 mm B - Double Cone Width N/A 2.0940 in53.188 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5300 lbf23600 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 35600 lbf158000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 2.48 in63 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 20500 lbf91000 N C0 - Static Radial Rating N/A 24100 lbf107000 N
388TD Series N/A 385 d - Bore N/A 2.2651 in57.534 mm B - Double Cone Width N/A 2.0940 in53.188 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5010 lbf22300 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 33600 lbf150000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 2.45 in62.2 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 19300 lbf85900 N C0 - Static Radial Rating N/A 24100 lbf107000 N
392DW Series N/A 395 d - Bore N/A 2.4375 in61.913 mm B - Double Cone Width N/A 2.8750 in73.025 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5440 lbf24200 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 36600 lbf163000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 2.76 in70 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 21000 lbf93400 N C0 - Static Radial Rating N/A 28100 lbf125000 N
399D Series N/A 395 d - Bore N/A 2.4375 in61.913 mm B - Double Cone Width N/A 2.1870 in55.550 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5760 lbf25600 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 38700 lbf172000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 2.76 in70 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 22200 lbf98900 N C0 - Static Radial Rating N/A 28100 lbf125000 N
39585D Series N/A 39500 d - Bore N/A 2.5000 in63.500 mm B - Double Cone Width N/A 2.3750 in60.325 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 9730 lbf43300 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 65300 lbf291000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 2.83 in72 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 37500 lbf167000 N C0 - Static Radial Rating N/A 50300 lbf224000 N
78251D Series N/A 78000 d - Bore N/A 2.5000 in63.500 mm B - Double Cone Width N/A 2.5980 in65.989 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 9970 lbf44300 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 66900 lbf298000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 3.11 in79 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 38400 lbf171000 N C0 - Static Radial Rating N/A 43400 lbf193000 N
78255D Series N/A 78000 d - Bore N/A 2.5586 in64.988 mm B - Double Cone Width N/A 2.5980 in65.989 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 9970 lbf44300 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 66900 lbf298000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 3.11 in78.95 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 38400 lbf171000 N C0 - Static Radial Rating N/A 43400 lbf193000 N
487TD Series N/A 475 d - Bore N/A 2.8375 in72.073 mm B - Double Cone Width N/A 2.6590 in67.539 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 7890 lbf35100 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 53000 lbf236000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 3.15 in80 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 30500 lbf135000 N C0 - Static Radial Rating N/A 41900 lbf186000 N
496D Series N/A 495 d - Bore N/A 3.1875 in80.963 mm B - Double Cone Width N/A 2.3440 in59.538 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 9000 lbf40000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 60500 lbf269000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 3.58 in91 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 34700 lbf154000 N C0 - Static Radial Rating N/A 48600 lbf216000 N
581D Series N/A 575 d - Bore N/A 3.1875 in80.963 mm B - Double Cone Width N/A 3.1549 in80.134 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 12100 lbf53600 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 80900 lbf360000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 3.62 in92 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 46500 lbf207000 N C0 - Static Radial Rating N/A 65400 lbf291000 N
L217845D Series N/A L217800 d - Bore N/A 3.3750 in85.725 mm B - Double Cone Width N/A 1.7500 in44.450 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5400 lbf24000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 36300 lbf161000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 3.66 in93 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 20800 lbf92600 N C0 - Static Radial Rating N/A 35200 lbf156000 N
767D Series N/A 755 d - Bore N/A 3.5000 in88.900 mm B - Double Cone Width N/A 4.2500 in107.950 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 19100 lbf84800 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 128000 lbf570000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 3.988 in101.3 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 73600 lbf327000 N C0 - Static Radial Rating N/A 99200 lbf441000 N
42362D Series N/A 42000 d - Bore N/A 3.6250 in92.075 mm B - Double Cone Width N/A 2.2812 in57.942 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 9490 lbf42200 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 63800 lbf284000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 4.09 in104 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 36600 lbf163000 N C0 - Static Radial Rating N/A 54300 lbf241000 N
LM119348D Series N/A LM119300 d - Bore N/A 3.7500 in95.250 mm B - Double Cone Width N/A 2.2500 in57.150 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 8140 lbf36200 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 54600 lbf243000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 4.02 in102 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 31400 lbf140000 N C0 - Static Radial Rating N/A 51100 lbf227000 N
52387D Series N/A 52000 d - Bore N/A 3.8750 in98.425 mm B - Double Cone Width N/A 3.1250 in79.375 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 13000 lbf57900 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 87500 lbf389000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 4.29 in109 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 50200 lbf223000 N C0 - Static Radial Rating N/A 77000 lbf343000 N
779D Series N/A 775 d - Bore N/A 3.8750 in98.425 mm B - Double Cone Width N/A 4.0300 in102.362 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 20200 lbf89700 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 135000 lbf603000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 4.41 in112 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 77800 lbf346000 N C0 - Static Radial Rating N/A 111000 lbf495000 N
688TD Series N/A 675 d - Bore N/A 3.9453 in100.211 mm B - Double Cone Width N/A 3.7500 in95.250 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 14600 lbf64800 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 97800 lbf435000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 4.45 in113 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 56200 lbf250000 N C0 - Static Radial Rating N/A 86700 lbf386000 N
52400D Series N/A 52000 d - Bore N/A 4.0000 in101.600 mm B - Double Cone Width N/A 3.1250 in79.375 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 13000 lbf57900 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 87500 lbf389000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 4.426 in112.42 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 50200 lbf223000 N C0 - Static Radial Rating N/A 77000 lbf343000 N
868D Series N/A 855 d - Bore N/A 4.0000 in101.600 mm B - Double Cone Width N/A 5.0000 in127.000 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 26700 lbf119000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 179000 lbf797000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 4.57 in116 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 103000 lbf458000 N C0 - Static Radial Rating N/A 142000 lbf630000 N
782D Series N/A 775 d - Bore N/A 4.1250 in104.775 mm B - Double Cone Width N/A 4.0300 in102.362 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 20200 lbf89700 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 135000 lbf603000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 4.643 in117.93 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 77800 lbf346000 N C0 - Static Radial Rating N/A 111000 lbf495000 N
71426D Series N/A 71000 d - Bore N/A 4.25 in107.95 mm B - Double Cone Width N/A 4.0000 in101.600 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 21200 lbf94300 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 142000 lbf633000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 4.8 in122 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 81700 lbf364000 N C0 - Static Radial Rating N/A 122000 lbf543000 N
946D Series N/A 935 d - Bore N/A 4.25 in107.95 mm B - Double Cone Width N/A 6.0000 in152.400 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 33300 lbf148000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 224000 lbf996000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 5.04 in128 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 129000 lbf572000 N C0 - Static Radial Rating N/A 177000 lbf786000 N
LM121948D Series N/A LM121900 d - Bore N/A 4.25 in107.95 mm B - Double Cone Width N/A 2.5625 in65.088 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 9810 lbf43600 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 65900 lbf293000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 4.53 in115 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 37800 lbf168000 N C0 - Static Radial Rating N/A 70200 lbf312000 N
71450D Series N/A 71000 d - Bore N/A 4.5000 in114.300 mm B - Double Cone Width N/A 4.0000 in101.600 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 21200 lbf94300 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 142000 lbf633000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 5.04 in128 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 81700 lbf364000 N C0 - Static Radial Rating N/A 122000 lbf543000 N
HH224346DD Series N/A HH224300 d - Bore N/A 4.5000 in114.300 mm B - Double Cone Width N/A 6.0000 in152.400 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 39600 lbf176000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 266000 lbf1180000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 5.24 in133.16 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 153000 lbf680000 N C0 - Static Radial Rating N/A 204000 lbf906000 N
95474D Series N/A 95000 d - Bore N/A 4.7500 in120.650 mm B - Double Cone Width N/A 6.0000 in152.400 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 36700 lbf163000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 246000 lbf1090000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 5.87 in149 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 141000 lbf629000 N C0 - Static Radial Rating N/A 209000 lbf931000 N
LM124449DW Series N/A LM124400 d - Bore N/A 4.7500 in120.650 mm B - Double Cone Width N/A 2.8440 in72.238 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 12200 lbf54200 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 81800 lbf364000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 5.04 in128 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 47000 lbf209000 N C0 - Static Radial Rating N/A 85300 lbf379000 N
M224749D Series N/A M224700 d - Bore N/A 4.7500 in120.650 mm B - Double Cone Width N/A 2.6875 in68.263 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 14200 lbf63400 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 95700 lbf426000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 5.08 in129 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 54900 lbf244000 N C0 - Static Radial Rating N/A 94900 lbf422000 N
48290DW Series N/A 48200 d - Bore N/A 5 in127 mm B - Double Cone Width N/A 3.0000 in76.200 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 15600 lbf69400 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 105000 lbf466000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 5.39 in137 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 60200 lbf268000 N C0 - Static Radial Rating N/A 111000 lbf493000 N
67388D Series N/A 67300 d - Bore N/A 5 in127 mm B - Double Cone Width N/A 3.6250 in92.075 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 21400 lbf95300 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 144000 lbf640000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 5.51 in140 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 82600 lbf368000 N C0 - Static Radial Rating N/A 141000 lbf625000 N
95499D Series N/A 95000 d - Bore N/A 5 in127 mm B - Double Cone Width N/A 6.0000 in152.400 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 36700 lbf163000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 246000 lbf1090000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 5.98 in152 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 141000 lbf629000 N C0 - Static Radial Rating N/A 209000 lbf931000 N
97500D Series N/A 97000 d - Bore N/A 5 in127 mm B - Double Cone Width N/A 5.9545 in151.244 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 21900 lbf97500 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 147000 lbf655000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 5.67 in144 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 84500 lbf376000 N C0 - Static Radial Rating N/A 109000 lbf486000 N
HH231637D Series N/A HH231600 d - Bore N/A 5 in127 mm B - Double Cone Width N/A 6.2500 in158.750 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 66600 lbf296000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 447000 lbf1990000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 6.75 in171.46 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 257000 lbf1140000 N C0 - Static Radial Rating N/A 302000 lbf1340000 N
74510D Series N/A 74000 d - Bore N/A 5.1183 in130.005 mm B - Double Cone Width N/A 4.8750 in123.825 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 22300 lbf99000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 150000 lbf665000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 5.75 in146 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 85900 lbf382000 N C0 - Static Radial Rating N/A 138000 lbf614000 N
74512D Series N/A 74000 d - Bore N/A 5.1250 in130.175 mm B - Double Cone Width N/A 4.0000 in101.600 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 22300 lbf99000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 150000 lbf665000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 5.75 in146 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 85900 lbf382000 N C0 - Static Radial Rating N/A 138000 lbf614000 N
67390D Series N/A 67300 d - Bore N/A 5.2500 in133.350 mm B - Double Cone Width N/A 3.6250 in92.075 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 21400 lbf95300 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 144000 lbf640000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 5.75 in145 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 82600 lbf368000 N C0 - Static Radial Rating N/A 141000 lbf625000 N
48393D Series N/A 48300 d - Bore N/A 5.3750 in136.525 mm B - Double Cone Width N/A 3.0625 in77.788 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 16500 lbf73300 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 111000 lbf492000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 5.67 in144 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 63600 lbf283000 N C0 - Static Radial Rating N/A 122000 lbf542000 N
H228649D Series N/A H228600 d - Bore N/A 5.3750 in136.525 mm B - Double Cone Width N/A 4.7500 in120.650 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 37700 lbf168000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 253000 lbf1130000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 5.98 in152 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 145000 lbf647000 N C0 - Static Radial Rating N/A 237000 lbf1050000 N
74555D Series N/A 74000 d - Bore N/A 5.5000 in139.700 mm B - Double Cone Width N/A 4.1875 in106.363 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 19900 lbf88400 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 134000 lbf594000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 6.06 in154 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 76700 lbf341000 N C0 - Static Radial Rating N/A 127000 lbf567000 N
99587D Series N/A 99000 d - Bore N/A 5.8750 in149.225 mm B - Double Cone Width N/A 4.7500 in120.650 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 38500 lbf171000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 258000 lbf1150000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 6.57 in167 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 148000 lbf660000 N C0 - Static Radial Rating N/A 231000 lbf1030000 N
81601D Series N/A 81000 d - Bore N/A 6.0000 in152.400 mm B - Double Cone Width N/A 3.6250 in92.075 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 23400 lbf104000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 157000 lbf699000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 6.54 in166.1 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 90300 lbf402000 N C0 - Static Radial Rating N/A 134000 lbf595000 N
EE450600D Series N/A 450000 d - Bore N/A 6.0000 in152.400 mm B - Double Cone Width N/A 6.7500 in171.450 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 57900 lbf258000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 389000 lbf1730000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 7.44 in189 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 224000 lbf994000 N C0 - Static Radial Rating N/A 333000 lbf1480000 N
HH234049D Series N/A HH234000 d - Bore N/A 6.0000 in152.400 mm B - Double Cone Width N/A 6.7500 in171.450 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 67200 lbf299000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 451000 lbf2010000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 7.153 in181.7 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 259000 lbf1150000 N C0 - Static Radial Rating N/A 354000 lbf1580000 N
M231649D Series N/A M231600 d - Bore N/A 6.0000 in152.400 mm B - Double Cone Width N/A 3.3125 in84.138 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 21900 lbf97600 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 147000 lbf656000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 6.5 in165 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 84600 lbf377000 N C0 - Static Radial Rating N/A 150000 lbf668000 N
H432549D Series N/A H432500 d - Bore N/A 6.1250 in155.575 mm B - Double Cone Width N/A 4.8125 in122.238 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 36900 lbf164000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 248000 lbf1100000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 6.77 in172 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 142000 lbf632000 N C0 - Static Radial Rating N/A 257000 lbf1140000 N
EE217063D Series N/A 217000 d - Bore N/A 6.2500 in158.750 mm B - Double Cone Width N/A 4.9375 in125.413 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 41700 lbf185000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 280000 lbf1240000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 7.09 in180.1 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 161000 lbf715000 N C0 - Static Radial Rating N/A 237000 lbf1060000 N
EE280625D Series N/A 280000 d - Bore N/A 6.2500 in158.750 mm B - Double Cone Width N/A 4.5000 in114.300 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 35100 lbf156000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 236000 lbf1050000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 7.32 in186 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 136000 lbf603000 N C0 - Static Radial Rating N/A 195000 lbf867000 N
46790D Series N/A 46700 d - Bore N/A 6.5 in165.1 mm B - Double Cone Width N/A 3.0000 in76.200 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 17700 lbf78600 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 119000 lbf528000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 6.89 in175 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 68200 lbf303000 N C0 - Static Radial Rating N/A 143000 lbf635000 N
HM237542D Series N/A HM237500 d - Bore N/A 6.8750 in174.625 mm B - Double Cone Width N/A 4.8750 in123.825 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 48000 lbf214000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 322000 lbf1430000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 7.52 in191 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 185000 lbf824000 N C0 - Static Radial Rating N/A 278000 lbf1240000 N
67790D Series N/A 67700 d - Bore N/A 7.0000 in177.800 mm B - Double Cone Width N/A 3.5625 in90.488 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 23600 lbf105000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 159000 lbf705000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 7.52 in191 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 91100 lbf405000 N C0 - Static Radial Rating N/A 175000 lbf779000 N
780702D Series N/A 780000 d - Bore N/A 7.0000 in177.800 mm B - Double Cone Width N/A 4.1875 in106.363 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 48200 lbf215000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 324000 lbf1440000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 8.03 in204 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 186000 lbf828000 N C0 - Static Radial Rating N/A 243000 lbf1080000 N
82680D Series N/A 82600 d - Bore N/A 7.0000 in177.800 mm B - Double Cone Width N/A 4.4375 in112.713 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 31100 lbf138000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 209000 lbf930000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 7.76 in197 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 120000 lbf534000 N C0 - Static Radial Rating N/A 220000 lbf979000 N
82680DG Series N/A 82600 d - Bore N/A 7.0000 in177.800 mm B - Double Cone Width N/A 4.4375 in112.713 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 31100 lbf138000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 209000 lbf930000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 7.68 in195 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 120000 lbf534000 N C0 - Static Radial Rating N/A 220000 lbf979000 N
82681D Series N/A 82600 d - Bore N/A 7.0000 in177.800 mm B - Double Cone Width N/A 4.4375 in112.713 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 31100 lbf138000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 209000 lbf930000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 7.68 in195 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 120000 lbf534000 N C0 - Static Radial Rating N/A 220000 lbf979000 N
82681DGW Series N/A 82600 d - Bore N/A 7.0000 in177.800 mm B - Double Cone Width N/A 4.4375 in112.713 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 33000 lbf147000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 221000 lbf984000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 7.68 in195 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 127000 lbf565000 N C0 - Static Radial Rating N/A 220000 lbf979000 N
94704D Series N/A 94000 d - Bore N/A 7.0000 in177.800 mm B - Double Cone Width N/A 6.2500 in158.750 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 38500 lbf171000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 258000 lbf1150000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 7.68 in195 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 148000 lbf660000 N C0 - Static Radial Rating N/A 242000 lbf1070000 N
94706D Series N/A 94000 d - Bore N/A 7.0000 in177.800 mm B - Double Cone Width N/A 4.8750 in123.825 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 38500 lbf171000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 258000 lbf1150000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 7.68 in195 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 148000 lbf660000 N C0 - Static Radial Rating N/A 242000 lbf1070000 N
EE280700D Series N/A 280000 d - Bore N/A 7.0000 in177.800 mm B - Double Cone Width N/A 4.5000 in114.300 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 35100 lbf156000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 236000 lbf1050000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 7.87 in199.9 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 136000 lbf603000 N C0 - Static Radial Rating N/A 195000 lbf867000 N
EE280700DG Series N/A 280000 d - Bore N/A 7.0000 in177.800 mm B - Double Cone Width N/A 4.5000 in114.300 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 35100 lbf156000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 236000 lbf1050000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 7.83 in199 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 136000 lbf603000 N C0 - Static Radial Rating N/A 195000 lbf867000 N
EE280703DW Series N/A 280000 d - Bore N/A 7.0000 in177.800 mm B - Double Cone Width N/A 4.5000 in114.300 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 35100 lbf156000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 236000 lbf1050000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 7.87 in200 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 136000 lbf603000 N C0 - Static Radial Rating N/A 195000 lbf867000 N
EE91700D Series N/A 91000 d - Bore N/A 7.0000 in177.800 mm B - Double Cone Width N/A 4.1875 in106.363 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 28600 lbf127000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 192000 lbf853000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 7.48 in190 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 110000 lbf490000 N C0 - Static Radial Rating N/A 163000 lbf723000 N
HM237546D Series N/A HM237500 d - Bore N/A 7.0000 in177.800 mm B - Double Cone Width N/A 4.8750 in123.825 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 48000 lbf214000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 322000 lbf1430000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 7.64 in194 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 185000 lbf824000 N C0 - Static Radial Rating N/A 278000 lbf1240000 N
HM237546DD Series N/A HM237500 d - Bore N/A 7.0000 in177.800 mm B - Double Cone Width N/A 6.2500 in158.750 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 48000 lbf214000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 322000 lbf1430000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 7.64 in194 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 185000 lbf824000 N C0 - Static Radial Rating N/A 278000 lbf1240000 N
H239649D Series N/A H239600 d - Bore N/A 7.3750 in187.325 mm B - Double Cone Width N/A 6.3750 in161.925 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 61100 lbf272000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 410000 lbf1830000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 8.23 in209 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 236000 lbf1050000 N C0 - Static Radial Rating N/A 356000 lbf1580000 N
M238849DW Series N/A M238800 d - Bore N/A 7.3750 in187.325 mm B - Double Cone Width N/A 4.0000 in101.600 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 32000 lbf142000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 215000 lbf955000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 7.87 in200 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 123000 lbf548000 N C0 - Static Radial Rating N/A 225000 lbf999000 N
93751D Series N/A 93000 d - Bore N/A 7.5 in190.5 mm B - Double Cone Width N/A 5.2500 in133.350 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 42600 lbf190000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 286000 lbf1270000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 8.74 in222 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 164000 lbf731000 N C0 - Static Radial Rating N/A 290000 lbf1290000 N
93751DW Series N/A 93000 d - Bore N/A 7.5 in190.5 mm B - Double Cone Width N/A 5.2500 in133.350 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 42600 lbf190000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 286000 lbf1270000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 8.74 in222 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 164000 lbf731000 N C0 - Static Radial Rating N/A 290000 lbf1290000 N
EE420750D Series N/A 420000 d - Bore N/A 7.5 in190.5 mm B - Double Cone Width N/A 6.0000 in152.400 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 64300 lbf286000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 432000 lbf1920000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 8.7 in221 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 248000 lbf1100000 N C0 - Static Radial Rating N/A 409000 lbf1820000 N
L540049D Series N/A L540000 d - Bore N/A 7.7500 in196.850 mm B - Double Cone Width N/A 2.0626 in52.390 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 12300 lbf54700 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 82500 lbf367000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 8.15 in207 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 47400 lbf211000 N C0 - Static Radial Rating N/A 91800 lbf408000 N
93788D Series N/A 93000 d - Bore N/A 7.8730 in199.974 mm B - Double Cone Width N/A 5.2500 in133.350 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 42600 lbf190000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 286000 lbf1270000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 8.93 in226.94 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 164000 lbf731000 N C0 - Static Radial Rating N/A 290000 lbf1290000 N
93800D Series N/A 93000 d - Bore N/A 8 in203.2 mm B - Double Cone Width N/A 4.8750 in123.825 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 42600 lbf190000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 286000 lbf1270000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 8.74 in222 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 164000 lbf731000 N C0 - Static Radial Rating N/A 290000 lbf1290000 N
93800DGW Series N/A 93000 d - Bore N/A 8 in203.2 mm B - Double Cone Width N/A 4.8750 in123.825 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 42600 lbf190000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 286000 lbf1270000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 8.74 in222 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 164000 lbf731000 N C0 - Static Radial Rating N/A 290000 lbf1290000 N
93801D Series N/A 93000 d - Bore N/A 8 in203.2 mm B - Double Cone Width N/A 5.2500 in133.350 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 42600 lbf190000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 286000 lbf1270000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 8.93 in226.94 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 164000 lbf731000 N C0 - Static Radial Rating N/A 290000 lbf1290000 N
EE132081D Series N/A 132000 d - Bore N/A 8 in203.2 mm B - Double Cone Width N/A 3.7500 in95.250 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 30800 lbf137000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 207000 lbf919000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 8.82 in224 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 119000 lbf528000 N C0 - Static Radial Rating N/A 202000 lbf900000 N
EE420800D Series N/A 420000 d - Bore N/A 8 in203.2 mm B - Double Cone Width N/A 6.0000 in152.400 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 64300 lbf286000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 432000 lbf1920000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 9.06 in230 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 248000 lbf1100000 N C0 - Static Radial Rating N/A 409000 lbf1820000 N
8976D Series N/A 8900 d - Bore N/A 8.0060 in203.352 mm B - Double Cone Width N/A 3.2188 in81.758 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 25000 lbf111000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 168000 lbf746000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 8.58 in218 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 96300 lbf428000 N C0 - Static Radial Rating N/A 172000 lbf764000 N
67985D Series N/A 67900 d - Bore N/A 8.1250 in206.375 mm B - Double Cone Width N/A 3.4375 in87.313 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 24700 lbf110000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 166000 lbf738000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 8.62 in219 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 95300 lbf424000 N C0 - Static Radial Rating N/A 197000 lbf876000 N
H242649D Series N/A H242600 d - Bore N/A 8.1250 in206.375 mm B - Double Cone Width N/A 7.2500 in184.150 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 79000 lbf351000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 530000 lbf2360000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 9.09 in231 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 305000 lbf1350000 N C0 - Static Radial Rating N/A 522000 lbf2320000 N
96851D Series N/A 96000 d - Bore N/A 8.5000 in215.900 mm B - Double Cone Width N/A 5.1250 in130.175 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 44200 lbf197000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 297000 lbf1320000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 9.8 in249 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 171000 lbf759000 N C0 - Static Radial Rating N/A 319000 lbf1420000 N
96851DW Series N/A 96000 d - Bore N/A 8.5000 in215.900 mm B - Double Cone Width N/A 5.1250 in130.175 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 44200 lbf197000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 297000 lbf1320000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 9.8 in249 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 171000 lbf759000 N C0 - Static Radial Rating N/A 319000 lbf1420000 N
EE130850D Series N/A 130000 d - Bore N/A 8.5000 in215.900 mm B - Double Cone Width N/A 4.7500 in120.650 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 46400 lbf206000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 312000 lbf1390000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 9.33 in237 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 179000 lbf796000 N C0 - Static Radial Rating N/A 314000 lbf1400000 N
LM742749DW Series N/A LM742700 d - Bore N/A 8.5000 in215.900 mm B - Double Cone Width N/A 3.3750 in85.725 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 25000 lbf111000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 168000 lbf748000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 9.03 in229.36 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 96600 lbf430000 N C0 - Static Radial Rating N/A 200000 lbf892000 N
H244849D Series N/A H244800 d - Bore N/A 8.6250 in219.075 mm B - Double Cone Width N/A 7.8750 in200.025 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 84200 lbf375000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 566000 lbf2520000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 9.53 in242 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 325000 lbf1450000 N C0 - Static Radial Rating N/A 592000 lbf2630000 N
M244249DGW Series N/A M244200 d - Bore N/A 8.6875 in220.663 mm B - Double Cone Width N/A 4.5625 in115.888 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 40500 lbf180000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 272000 lbf1210000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 9.25 in235 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 156000 lbf695000 N C0 - Static Radial Rating N/A 308000 lbf1370000 N
M244249DW Series N/A M244200 d - Bore N/A 8.6875 in220.663 mm B - Double Cone Width N/A 4.5625 in115.888 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 40500 lbf180000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 272000 lbf1210000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 9.25 in235 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 156000 lbf695000 N C0 - Static Radial Rating N/A 308000 lbf1370000 N
M244249DXX Series N/A M244200 d - Bore N/A 8.6875 in220.663 mm B - Double Cone Width N/A 4.5625 in115.888 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 46500 lbf207000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 312000 lbf1390000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 9.25 in235 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 179000 lbf797000 N C0 - Static Radial Rating N/A 308000 lbf1370000 N
EE130887D Series N/A 130000 d - Bore N/A 8.875 in225.425 mm B - Double Cone Width N/A 4.7500 in120.650 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 46400 lbf206000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 312000 lbf1390000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 9.92 in252 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 179000 lbf796000 N C0 - Static Radial Rating N/A 314000 lbf1400000 N
EE130888D Series N/A 130000 d - Bore N/A 8.875 in225.425 mm B - Double Cone Width N/A 6.5000 in165.100 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 46400 lbf206000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 312000 lbf1390000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 10.12 in257 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 179000 lbf796000 N C0 - Static Radial Rating N/A 314000 lbf1400000 N
EE113090D Series N/A 113000 d - Bore N/A 9.0000 in228.600 mm B - Double Cone Width N/A 6.2500 in158.750 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 74300 lbf330000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 499000 lbf2220000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 10.691 in271.54 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 287000 lbf1270000 N C0 - Static Radial Rating N/A 361000 lbf1600000 N
EE130900D Series N/A 130000 d - Bore N/A 9.0000 in228.600 mm B - Double Cone Width N/A 4.7500 in120.650 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 46400 lbf206000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 312000 lbf1390000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 9.72 in247 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 179000 lbf796000 N C0 - Static Radial Rating N/A 314000 lbf1400000 N
EE130901D Series N/A 130000 d - Bore N/A 9.0000 in228.600 mm B - Double Cone Width N/A 4.7500 in120.650 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 46400 lbf206000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 312000 lbf1390000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 10.04 in255 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 179000 lbf796000 N C0 - Static Radial Rating N/A 314000 lbf1400000 N
EE130903D Series N/A 130000 d - Bore N/A 9.0000 in228.600 mm B - Double Cone Width N/A 6.5000 in165.100 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 46400 lbf206000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 312000 lbf1390000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 10.2 in259 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 179000 lbf796000 N C0 - Static Radial Rating N/A 314000 lbf1400000 N
EE130904D Series N/A 130000 d - Bore N/A 9.0000 in228.600 mm B - Double Cone Width N/A 5.0000 in127.000 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 46400 lbf206000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 312000 lbf1390000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 9.72 in247 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 179000 lbf796000 N C0 - Static Radial Rating N/A 314000 lbf1400000 N
EE430901D Series N/A 430000 d - Bore N/A 9.0000 in228.600 mm B - Double Cone Width N/A 6.3750 in161.925 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 65500 lbf291000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 440000 lbf1960000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 9.87 in250.7 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 253000 lbf1120000 N C0 - Static Radial Rating N/A 432000 lbf1920000 N
EE529090DW Series N/A 529000 d - Bore N/A 9.0000 in228.600 mm B - Double Cone Width N/A 5.5000 in139.700 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 64900 lbf289000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 436000 lbf1940000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 10.08 in256 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 250000 lbf1110000 N C0 - Static Radial Rating N/A 412000 lbf1830000 N
EE700090D Series N/A 700000 d - Bore N/A 9.0000 in228.600 mm B - Double Cone Width N/A 6.5000 in165.100 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 90500 lbf402000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 608000 lbf2700000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 10.2 in259 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 349000 lbf1550000 N C0 - Static Radial Rating N/A 481000 lbf2140000 N
LM245149DGW Series N/A LM245100 d - Bore N/A 9.0000 in228.600 mm B - Double Cone Width N/A 3.7500 in95.250 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 31400 lbf140000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 211000 lbf938000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 9.53 in242 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 121000 lbf539000 N C0 - Static Radial Rating N/A 233000 lbf1040000 N
LM245149DW Series N/A LM245100 d - Bore N/A 9.0000 in228.600 mm B - Double Cone Width N/A 3.7500 in95.250 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 31400 lbf140000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 211000 lbf938000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 9.53 in242 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 121000 lbf539000 N C0 - Static Radial Rating N/A 233000 lbf1040000 N
8576D Series N/A 8500 d - Bore N/A 9.25 in234.95 mm B - Double Cone Width N/A 3.6875 in93.663 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 30700 lbf137000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 206000 lbf918000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 9.84 in250 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 119000 lbf527000 N C0 - Static Radial Rating N/A 240000 lbf1070000 N
8576DW Series N/A 8500 d - Bore N/A 9.25 in234.95 mm B - Double Cone Width N/A 3.6875 in93.663 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 30700 lbf137000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 206000 lbf918000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 9.84 in250 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 119000 lbf527000 N C0 - Static Radial Rating N/A 240000 lbf1070000 N
H247549D Series N/A H247500 d - Bore N/A 9.25 in234.95 mm B - Double Cone Width N/A 8.2500 in209.550 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 103000 lbf460000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 694000 lbf3090000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 10.2 in259 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 399000 lbf1770000 N C0 - Static Radial Rating N/A 699000 lbf3110000 N
EE127094D Series N/A 127000 d - Bore N/A 9.4970 in241.224 mm B - Double Cone Width N/A 4.2500 in107.950 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 38500 lbf171000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 258000 lbf1150000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 10.12 in257 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 148000 lbf660000 N C0 - Static Radial Rating N/A 282000 lbf1250000 N
EE821096D Series N/A 821000 d - Bore N/A 9.5000 in241.300 mm B - Double Cone Width N/A 6.8750 in174.625 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 88600 lbf394000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 595000 lbf2650000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 10.55 in268 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 342000 lbf1520000 N C0 - Static Radial Rating N/A 537000 lbf2390000 N
EE127097DW Series N/A 127000 d - Bore N/A 9.5070 in241.478 mm B - Double Cone Width N/A 4.2500 in107.950 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 38500 lbf171000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 258000 lbf1150000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 10.16 in258 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 148000 lbf660000 N C0 - Static Radial Rating N/A 282000 lbf1250000 N
LM247748D Series N/A LM247700 d - Bore N/A 9.6250 in244.475 mm B - Double Cone Width N/A 3.6250 in92.075 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 33000 lbf147000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 222000 lbf987000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 10.12 in257 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 127000 lbf567000 N C0 - Static Radial Rating N/A 257000 lbf1140000 N
LM247748DGW Series N/A LM247700 d - Bore N/A 9.6250 in244.475 mm B - Double Cone Width N/A 3.6250 in92.075 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 33000 lbf147000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 222000 lbf987000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 10.12 in257 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 127000 lbf567000 N C0 - Static Radial Rating N/A 257000 lbf1140000 N
LM247748DW Series N/A LM247700 d - Bore N/A 9.6250 in244.475 mm B - Double Cone Width N/A 3.6250 in92.075 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 33000 lbf147000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 222000 lbf987000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 10.12 in257 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 127000 lbf567000 N C0 - Static Radial Rating N/A 257000 lbf1140000 N
EE220975DW Series N/A 220000 d - Bore N/A 9.7500 in247.650 mm B - Double Cone Width N/A 4.5000 in114.300 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 51100 lbf227000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 343000 lbf1530000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 10.67 in271 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 197000 lbf876000 N C0 - Static Radial Rating N/A 326000 lbf1450000 N
HH249949D Series N/A HH249900 d - Bore N/A 9.7500 in247.650 mm B - Double Cone Width N/A 8.6250 in219.075 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 115000 lbf509000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 769000 lbf3420000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 10.94 in278 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 442000 lbf1960000 N C0 - Static Radial Rating N/A 846000 lbf3770000 N
HM252340D Series N/A HM252300 d - Bore N/A 9.8750 in250.825 mm B - Double Cone Width N/A 5.5000 in139.700 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 87400 lbf389000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 587000 lbf2610000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 10.94 in278 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 337000 lbf1500000 N C0 - Static Radial Rating N/A 455000 lbf2020000 N
HM252340DW Series N/A HM252300 d - Bore N/A 9.8750 in250.825 mm B - Double Cone Width N/A 5.5000 in139.700 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 87400 lbf389000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 587000 lbf2610000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 10.94 in278 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 337000 lbf1500000 N C0 - Static Radial Rating N/A 455000 lbf2020000 N
M252338DW Series N/A M252300 d - Bore N/A 9.8750 in250.825 mm B - Double Cone Width N/A 5.3750 in136.525 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 67000 lbf298000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 450000 lbf2000000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 10.87 in276.1 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 258000 lbf1150000 N C0 - Static Radial Rating N/A 455000 lbf2030000 N
EE171000D Series N/A 170000 d - Bore N/A 10.0000 in254.000 mm B - Double Cone Width N/A 3.6560 in92.862 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 32700 lbf145000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 219000 lbf976000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 10.59 in269 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 126000 lbf560000 N C0 - Static Radial Rating N/A 231000 lbf1030000 N
EE738101D Series N/A 738000 d - Bore N/A 10.0000 in254.000 mm B - Double Cone Width N/A 6.5000 in165.100 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 82700 lbf368000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 555000 lbf2470000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 11.18 in284 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 319000 lbf1420000 N C0 - Static Radial Rating N/A 525000 lbf2340000 N
EE738101DH Series N/A 738000 d - Bore N/A 10.0000 in254.000 mm B - Double Cone Width N/A 6.5000 in165.100 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 94800 lbf422000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 637000 lbf2830000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 11.181 in284 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 366000 lbf1630000 N C0 - Static Radial Rating N/A 525000 lbf2340000 N
EE822101D Series N/A 822000 d - Bore N/A 10.0000 in254.000 mm B - Double Cone Width N/A 5.2500 in133.350 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 68500 lbf305000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 460000 lbf2050000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 11.1 in281.9 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 264000 lbf1180000 N C0 - Static Radial Rating N/A 392000 lbf1740000 N
HM252343D Series N/A HM252300 d - Bore N/A 10.0000 in254.000 mm B - Double Cone Width N/A 5.5000 in139.700 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 87400 lbf389000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 587000 lbf2610000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 11.06 in281 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 337000 lbf1500000 N C0 - Static Radial Rating N/A 455000 lbf2020000 N
M249748D Series N/A M249700 d - Bore N/A 10.0000 in254.000 mm B - Double Cone Width N/A 5.1250 in130.175 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 53300 lbf237000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 358000 lbf1590000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 10.73 in272.46 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 206000 lbf914000 N C0 - Static Radial Rating N/A 416000 lbf1850000 N
M249748DGW Series N/A M249700 d - Bore N/A 10.0000 in254.000 mm B - Double Cone Width N/A 5.1250 in130.175 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 53300 lbf237000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 358000 lbf1590000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 10.71 in272 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 206000 lbf914000 N C0 - Static Radial Rating N/A 416000 lbf1850000 N
M249748DW Series N/A M249700 d - Bore N/A 10.0000 in254.000 mm B - Double Cone Width N/A 5.1250 in130.175 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 53300 lbf237000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 358000 lbf1590000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 10.73 in272.46 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 206000 lbf914000 N C0 - Static Radial Rating N/A 416000 lbf1850000 N
M249749D Series N/A M249700 d - Bore N/A 10.0000 in254.000 mm B - Double Cone Width N/A 5.1250 in130.175 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 53300 lbf237000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 358000 lbf1590000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 10.63 in270 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 206000 lbf914000 N C0 - Static Radial Rating N/A 416000 lbf1850000 N
EE134102D Series N/A 134000 d - Bore N/A 10.2500 in260.350 mm B - Double Cone Width N/A 4.2500 in107.950 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 39600 lbf176000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 266000 lbf1180000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 11.02 in280 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 153000 lbf679000 N C0 - Static Radial Rating N/A 299000 lbf1330000 N
EE221025D Series N/A 220000 d - Bore N/A 10.2500 in260.350 mm B - Double Cone Width N/A 4.5000 in114.300 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 48200 lbf215000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 324000 lbf1440000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 11.42 in290 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 186000 lbf828000 N C0 - Static Radial Rating N/A 326000 lbf1450000 N
EE221027D Series N/A 220000 d - Bore N/A 10.2500 in260.350 mm B - Double Cone Width N/A 4.7500 in120.650 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 48200 lbf215000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 324000 lbf1440000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 11.02 in280 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 186000 lbf828000 N C0 - Static Radial Rating N/A 326000 lbf1450000 N
EE435103D Series N/A 435000 d - Bore N/A 10.2500 in260.350 mm B - Double Cone Width N/A 6.1250 in155.575 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 65500 lbf291000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 440000 lbf1960000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 11.38 in289 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 253000 lbf1120000 N C0 - Static Radial Rating N/A 451000 lbf2010000 N
EE823103D Series N/A 823000 d - Bore N/A 10.2500 in260.350 mm B - Double Cone Width N/A 7.7500 in196.850 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 94000 lbf418000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 631000 lbf2810000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 11.633 in295.48 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 362000 lbf1610000 N C0 - Static Radial Rating N/A 601000 lbf2670000 N
HM252347D Series N/A HM252300 d - Bore N/A 10.2500 in260.350 mm B - Double Cone Width N/A 5.5000 in139.700 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 87400 lbf389000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 587000 lbf2610000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 11.22 in285 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 337000 lbf1500000 N C0 - Static Radial Rating N/A 455000 lbf2020000 N
HM252348D Series N/A HM252300 d - Bore N/A 10.2500 in260.350 mm B - Double Cone Width N/A 6.0000 in152.400 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 87400 lbf389000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 587000 lbf2610000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 11.46 in291 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 337000 lbf1500000 N C0 - Static Radial Rating N/A 455000 lbf2020000 N
HM252348DW Series N/A HM252300 d - Bore N/A 10.2500 in260.350 mm B - Double Cone Width N/A 6.0000 in152.400 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 87400 lbf389000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 587000 lbf2610000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 11.46 in291 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 337000 lbf1500000 N C0 - Static Radial Rating N/A 455000 lbf2020000 N
HM252349D Series N/A HM252300 d - Bore N/A 10.2500 in260.350 mm B - Double Cone Width N/A 6.0000 in152.400 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 90100 lbf401000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 605000 lbf2690000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 11.46 in291 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 348000 lbf1550000 N C0 - Static Radial Rating N/A 475000 lbf2110000 N
EE275106D Series N/A 275000 d - Bore N/A 10.5 in266.7 mm B - Double Cone Width N/A 5.1250 in130.175 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 51400 lbf229000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 345000 lbf1540000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 11.42 in290 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 198000 lbf883000 N C0 - Static Radial Rating N/A 359000 lbf1600000 N
LM451349D Series N/A LM451300 d - Bore N/A 10.5 in266.7 mm B - Double Cone Width N/A 4.3125 in109.538 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 40900 lbf182000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 275000 lbf1220000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 11.06 in281 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 158000 lbf701000 N C0 - Static Radial Rating N/A 339000 lbf1510000 N
LM451349DGW Series N/A LM451300 d - Bore N/A 10.5 in266.7 mm B - Double Cone Width N/A 4.3125 in109.538 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 40900 lbf182000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 275000 lbf1220000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 11.06 in280.92 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 158000 lbf701000 N C0 - Static Radial Rating N/A 339000 lbf1510000 N
LM451349DW Series N/A LM451300 d - Bore N/A 10.5 in266.7 mm B - Double Cone Width N/A 4.3125 in109.538 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 40900 lbf182000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 275000 lbf1220000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 11.06 in281 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 158000 lbf701000 N C0 - Static Radial Rating N/A 339000 lbf1510000 N
LM451349DWX Series N/A LM451300 d - Bore N/A 10.5 in266.7 mm B - Double Cone Width N/A 4.3125 in109.538 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 50300 lbf224000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 338000 lbf1500000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 11.06 in281 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 194000 lbf864000 N C0 - Static Radial Rating N/A 339000 lbf1510000 N
M252349D Series N/A M252300 d - Bore N/A 10.6250 in269.875 mm B - Double Cone Width N/A 5.3750 in136.525 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 67000 lbf298000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 450000 lbf2000000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 11.42 in290 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 258000 lbf1150000 N C0 - Static Radial Rating N/A 455000 lbf2030000 N
M252349DW Series N/A M252300 d - Bore N/A 10.6250 in269.875 mm B - Double Cone Width N/A 5.3750 in136.525 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 67000 lbf298000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 450000 lbf2000000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 11.42 in290 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 258000 lbf1150000 N C0 - Static Radial Rating N/A 455000 lbf2030000 N
LM654640D Series N/A LM654600 d - Bore N/A 10.7500 in273.050 mm B - Double Cone Width N/A 4.6250 in117.475 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 42100 lbf187000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 283000 lbf1260000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 11.54 in293 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 162000 lbf722000 N C0 - Static Radial Rating N/A 387000 lbf1720000 N
89108D Series N/A 89000 d - Bore N/A 10.875 in276.225 mm B - Double Cone Width N/A 3.5000 in88.900 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 27000 lbf120000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 181000 lbf806000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 11.693 in297 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 104000 lbf463000 N C0 - Static Radial Rating N/A 212000 lbf941000 N
EE275109D Series N/A 275000 d - Bore N/A 10.875 in276.225 mm B - Double Cone Width N/A 5.1250 in130.175 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 51400 lbf229000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 345000 lbf1540000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 11.56 in293.62 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 198000 lbf883000 N C0 - Static Radial Rating N/A 359000 lbf1600000 N
EE275109DGW Series N/A 275000 d - Bore N/A 10.875 in276.225 mm B - Double Cone Width N/A 5.1250 in130.175 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 51400 lbf229000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 345000 lbf1540000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 11.56 in293.62 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 198000 lbf883000 N C0 - Static Radial Rating N/A 359000 lbf1600000 N
EE275109DW Series N/A 275000 d - Bore N/A 10.875 in276.225 mm B - Double Cone Width N/A 5.1250 in130.175 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 51400 lbf229000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 345000 lbf1540000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 11.56 in293.62 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 198000 lbf883000 N C0 - Static Radial Rating N/A 359000 lbf1600000 N
EE135111DGW Series N/A 135000 d - Bore N/A 11.0000 in279.400 mm B - Double Cone Width N/A 5.0000 in127.000 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 50900 lbf226000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 342000 lbf1520000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 11.69 in297 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 196000 lbf873000 N C0 - Static Radial Rating N/A 375000 lbf1670000 N
EE135111DW Series N/A 135000 d - Bore N/A 11.0000 in279.400 mm B - Double Cone Width N/A 5.0000 in127.000 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 50900 lbf226000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 342000 lbf1520000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 11.69 in297 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 196000 lbf873000 N C0 - Static Radial Rating N/A 375000 lbf1670000 N
EE722111D Series N/A 722000 d - Bore N/A 11.0000 in279.400 mm B - Double Cone Width N/A 6.5625 in166.688 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 94000 lbf418000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 631000 lbf2810000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 12.36 in314 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 363000 lbf1610000 N C0 - Static Radial Rating N/A 527000 lbf2350000 N
EE722112D Series N/A 722000 d - Bore N/A 11.0000 in279.400 mm B - Double Cone Width N/A 7.2500 in184.150 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 94000 lbf418000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 631000 lbf2810000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 12.64 in321 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 363000 lbf1610000 N C0 - Static Radial Rating N/A 527000 lbf2350000 N
HH255149D Series N/A HH255100 d - Bore N/A 11.0000 in279.400 mm B - Double Cone Width N/A 9.6250 in244.475 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 153000 lbf679000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 1020000 lbf4560000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 12.17 in309 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 588000 lbf2620000 N C0 - Static Radial Rating N/A 1080000 lbf4820000 N
M652949DW Series N/A M652900 d - Bore N/A 11.0000 in279.400 mm B - Double Cone Width N/A 5.0000 in127.000 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 69200 lbf308000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 465000 lbf2070000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 11.57 in294 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 267000 lbf1190000 N C0 - Static Radial Rating N/A 411000 lbf1830000 N
89111D Series N/A 89000 d - Bore N/A 11.0070 in279.578 mm B - Double Cone Width N/A 3.5000 in88.900 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 27000 lbf120000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 181000 lbf806000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 11.772 in299 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 104000 lbf463000 N C0 - Static Radial Rating N/A 212000 lbf941000 N
LM654644D Series N/A LM654600 d - Bore N/A 11.0070 in279.578 mm B - Double Cone Width N/A 4.6250 in117.475 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 42100 lbf187000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 283000 lbf1260000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 11.69 in297 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 162000 lbf722000 N C0 - Static Radial Rating N/A 387000 lbf1720000 N
EE128114D Series N/A 128000 d - Bore N/A 11.0236 in279.999 mm B - Double Cone Width N/A 8.1250 in206.375 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 53900 lbf240000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 362000 lbf1610000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 11.89 in302 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 208000 lbf924000 N C0 - Static Radial Rating N/A 409000 lbf1820000 N
LM654648DW Series N/A LM654600 d - Bore N/A 11.2500 in285.750 mm B - Double Cone Width N/A 4.6250 in117.475 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 42100 lbf187000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 283000 lbf1260000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 11.89 in302 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 162000 lbf722000 N C0 - Static Radial Rating N/A 387000 lbf1720000 N
HM256847DWH Series N/A HM256800 d - Bore N/A 11.3750 in288.925 mm B - Double Cone Width N/A 5.9375 in150.813 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 83300 lbf371000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 560000 lbf2490000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 12.36 in314 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 321000 lbf1430000 N C0 - Static Radial Rating N/A 587000 lbf2610000 N
M255449D Series N/A M255400 d - Bore N/A 11.3750 in288.925 mm B - Double Cone Width N/A 5.6875 in144.463 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 69300 lbf308000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 466000 lbf2070000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 12.2 in310 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 267000 lbf1190000 N C0 - Static Radial Rating N/A 567000 lbf2520000 N
M255449DW Series N/A M255400 d - Bore N/A 11.3750 in288.925 mm B - Double Cone Width N/A 5.6875 in144.463 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 69300 lbf308000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 466000 lbf2070000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 12.2 in310 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 267000 lbf1190000 N C0 - Static Radial Rating N/A 567000 lbf2520000 N
EE921150D Series N/A 920000 d - Bore N/A 11.5000 in292.100 mm B - Double Cone Width N/A 5.6250 in142.875 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 88000 lbf391000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 591000 lbf2630000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 12.36 in314 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 339000 lbf1510000 N C0 - Static Radial Rating N/A 447000 lbf1990000 N
EE291176D Series N/A 290000 d - Bore N/A 11.7500 in298.450 mm B - Double Cone Width N/A 4.2500 in107.950 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 51700 lbf230000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 347000 lbf1540000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 13.07 in332 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 199000 lbf887000 N C0 - Static Radial Rating N/A 312000 lbf1390000 N
EE329118D Series N/A 329000 d - Bore N/A 11.7500 in298.450 mm B - Double Cone Width N/A 5.1875 in131.763 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 62900 lbf280000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 422000 lbf1880000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 12.72 in323 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 243000 lbf1080000 N C0 - Static Radial Rating N/A 462000 lbf2060000 N
HM256848DWH Series N/A HM256800 d - Bore N/A 11.7500 in298.450 mm B - Double Cone Width N/A 5.9375 in150.813 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 83300 lbf371000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 560000 lbf2490000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 12.48 in317 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 321000 lbf1430000 N C0 - Static Radial Rating N/A 587000 lbf2610000 N
EE129119D Series N/A 129000 d - Bore N/A 11.8100 in299.974 mm B - Double Cone Width N/A 5.3125 in134.938 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 52200 lbf232000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 351000 lbf1560000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 12.76 in324 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 201000 lbf896000 N C0 - Static Radial Rating N/A 401000 lbf1780000 N
EE129119DG Series N/A 129000 d - Bore N/A 11.8100 in299.974 mm B - Double Cone Width N/A 5.3125 in134.938 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 52200 lbf232000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 351000 lbf1560000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 12.64 in321 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 201000 lbf896000 N C0 - Static Radial Rating N/A 401000 lbf1780000 N
HM256849D Series N/A HM256800 d - Bore N/A 11.8125 in300.038 mm B - Double Cone Width N/A 5.9375 in150.813 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 75600 lbf336000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 508000 lbf2260000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 12.68 in322 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 292000 lbf1300000 N C0 - Static Radial Rating N/A 622000 lbf2770000 N
HM256849DA Series N/A HM256800 d - Bore N/A 11.8125 in300.038 mm B - Double Cone Width N/A 5.9375 in150.813 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 75600 lbf336000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 508000 lbf2260000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 12.785 in324.74 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 292000 lbf1300000 N C0 - Static Radial Rating N/A 622000 lbf2770000 N
HM256849DW Series N/A HM256800 d - Bore N/A 11.8125 in300.038 mm B - Double Cone Width N/A 5.9375 in150.813 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 75600 lbf336000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 508000 lbf2260000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 12.68 in322 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 292000 lbf1300000 N C0 - Static Radial Rating N/A 622000 lbf2770000 N
HH258249D Series N/A HH258200 d - Bore N/A 11.9375 in303.213 mm B - Double Cone Width N/A 10.3750 in263.525 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 167000 lbf744000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 1120000 lbf5000000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 13.35 in339 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 645000 lbf2870000 N C0 - Static Radial Rating N/A 1270000 lbf5650000 N
EE129121D Series N/A 129000 d - Bore N/A 11.9940 in304.648 mm B - Double Cone Width N/A 5.3125 in134.938 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 52200 lbf232000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 351000 lbf1560000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 12.87 in327 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 201000 lbf896000 N C0 - Static Radial Rating N/A 401000 lbf1780000 N
EE329117D Series N/A 329000 d - Bore N/A 11.9940 in304.648 mm B - Double Cone Width N/A 5.1875 in131.763 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 64300 lbf286000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 432000 lbf1920000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 12.87 in327 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 248000 lbf1100000 N C0 - Static Radial Rating N/A 477000 lbf2120000 N
EE329119D Series N/A 329000 d - Bore N/A 11.9940 in304.648 mm B - Double Cone Width N/A 5.1875 in131.763 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 62900 lbf280000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 422000 lbf1880000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 12.87 in327 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 243000 lbf1080000 N C0 - Static Radial Rating N/A 462000 lbf2060000 N
M757447D Series N/A M757400 d - Bore N/A 11.9940 in304.648 mm B - Double Cone Width N/A 5.0625 in128.588 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 64000 lbf285000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 430000 lbf1910000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 12.91 in328 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 247000 lbf1100000 N C0 - Static Radial Rating N/A 462000 lbf2050000 N
EE291200D Series N/A 290000 d - Bore N/A 12 in304.8 mm B - Double Cone Width N/A 4.2500 in107.950 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 51700 lbf230000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 347000 lbf1540000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 13.27 in337 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 199000 lbf887000 N C0 - Static Radial Rating N/A 312000 lbf1390000 N
EE291202D Series N/A 290000 d - Bore N/A 12 in304.8 mm B - Double Cone Width N/A 4.6250 in117.475 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 51700 lbf230000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 347000 lbf1540000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 13 in330.2 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 199000 lbf887000 N C0 - Static Radial Rating N/A 312000 lbf1390000 N
EE724121D Series N/A 724000 d - Bore N/A 12 in304.8 mm B - Double Cone Width N/A 6.5000 in165.100 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 98300 lbf437000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 660000 lbf2940000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 13.15 in334 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 379000 lbf1690000 N C0 - Static Radial Rating N/A 573000 lbf2550000 N
EE790119D Series N/A 790000 d - Bore N/A 12 in304.8 mm B - Double Cone Width N/A 11.2500 in285.750 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 180000 lbf802000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 1210000 lbf5390000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 13.35 in339 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 695000 lbf3090000 N C0 - Static Radial Rating N/A 923000 lbf4100000 N
EE941206D Series N/A 940000 d - Bore N/A 12 in304.8 mm B - Double Cone Width N/A 5.3125 in134.938 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 90300 lbf402000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 607000 lbf2700000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 12.95 in329 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 348000 lbf1550000 N C0 - Static Radial Rating N/A 471000 lbf2090000 N
EE941207D Series N/A 940000 d - Bore N/A 12 in304.8 mm B - Double Cone Width N/A 5.5625 in141.288 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 90300 lbf402000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 607000 lbf2700000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 12.95 in329 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 348000 lbf1550000 N C0 - Static Radial Rating N/A 471000 lbf2090000 N
M257148DW Series N/A M257100 d - Bore N/A 12 in304.8 mm B - Double Cone Width N/A 5.1250 in130.175 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 69700 lbf310000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 468000 lbf2080000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 12.8 in325 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 269000 lbf1200000 N C0 - Static Radial Rating N/A 477000 lbf2120000 N
M257149DW Series N/A M257100 d - Bore N/A 12 in304.8 mm B - Double Cone Width N/A 5.1250 in130.175 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 69700 lbf310000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 468000 lbf2080000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 12.68 in322 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 269000 lbf1200000 N C0 - Static Radial Rating N/A 477000 lbf2120000 N
M257248DGW Series N/A M257200 d - Bore N/A 12.0040 in304.902 mm B - Double Cone Width N/A 5.0625 in128.588 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 65000 lbf289000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 437000 lbf1940000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 12.8 in325 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 251000 lbf1120000 N C0 - Static Radial Rating N/A 481000 lbf2140000 N
M257248DW Series N/A M257200 d - Bore N/A 12.0040 in304.902 mm B - Double Cone Width N/A 5.0625 in128.588 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 65000 lbf289000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 437000 lbf1940000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 12.8 in325 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 251000 lbf1120000 N C0 - Static Radial Rating N/A 481000 lbf2140000 N
EE129123D Series N/A 129000 d - Bore N/A 12.0079 in305.001 mm B - Double Cone Width N/A 5.3125 in134.938 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 52200 lbf232000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 351000 lbf1560000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 12.91 in328 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 201000 lbf896000 N C0 - Static Radial Rating N/A 401000 lbf1780000 N
HM959738DW Series N/A HM959700 d - Bore N/A 12.0092 in305.034 mm B - Double Cone Width N/A 7.8750 in200.025 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 79200 lbf352000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 532000 lbf2370000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 13.78 in350 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 305000 lbf1360000 N C0 - Static Radial Rating N/A 571000 lbf2540000 N
HM959739DW Series N/A HM959700 d - Bore N/A 12.0092 in305.034 mm B - Double Cone Width N/A 7.8750 in200.025 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 79200 lbf352000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 532000 lbf2370000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 13.62 in346 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 305000 lbf1360000 N C0 - Static Radial Rating N/A 571000 lbf2540000 N
HM959740DW Series N/A HM959700 d - Bore N/A 12.0092 in305.034 mm B - Double Cone Width N/A 7.8750 in200.025 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 79200 lbf352000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 532000 lbf2370000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 13.62 in345.9 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 305000 lbf1360000 N C0 - Static Radial Rating N/A 571000 lbf2540000 N
HM959741DW Series N/A HM959700 d - Bore N/A 12.0092 in305.034 mm B - Double Cone Width N/A 7.8750 in200.025 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 79200 lbf352000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 532000 lbf2370000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 13.62 in345.9 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 305000 lbf1360000 N C0 - Static Radial Rating N/A 571000 lbf2540000 N
HM959737DW Series N/A HM959700 d - Bore N/A 12.0093 in305.036 mm B - Double Cone Width N/A 7.8740 in200.000 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 79200 lbf352000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 532000 lbf2370000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 13.78 in350 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 305000 lbf1360000 N C0 - Static Radial Rating N/A 571000 lbf2540000 N
HM259047DW Series N/A HM259000 d - Bore N/A 12.5000 in317.500 mm B - Double Cone Width N/A 6.2500 in158.750 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 90000 lbf400000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 605000 lbf2690000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 13.39 in340 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 347000 lbf1540000 N C0 - Static Radial Rating N/A 628000 lbf2790000 N
HM259049D Series N/A HM259000 d - Bore N/A 12.5000 in317.500 mm B - Double Cone Width N/A 6.2500 in158.750 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 97800 lbf435000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 656000 lbf2920000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 13.39 in340 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 377000 lbf1680000 N C0 - Static Radial Rating N/A 706000 lbf3140000 N
HM259049DH Series N/A HM259000 d - Bore N/A 12.5000 in317.500 mm B - Double Cone Width N/A 6.2500 in158.750 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 97800 lbf435000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 656000 lbf2920000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 13.39 in340 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 377000 lbf1680000 N C0 - Static Radial Rating N/A 706000 lbf3140000 N
HM259049DV Series N/A HM259000 d - Bore N/A 12.5000 in317.500 mm B - Double Cone Width N/A 6.2500 in158.750 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 97800 lbf435000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 656000 lbf2920000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 13.39 in340 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 377000 lbf1680000 N C0 - Static Radial Rating N/A 706000 lbf3140000 N
HM259049DW Series N/A HM259000 d - Bore N/A 12.5000 in317.500 mm B - Double Cone Width N/A 6.2500 in158.750 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 97800 lbf435000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 656000 lbf2920000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 13.39 in340 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 377000 lbf1680000 N C0 - Static Radial Rating N/A 706000 lbf3140000 N
LM258648DGW Series N/A LM258600 d - Bore N/A 12.5000 in317.500 mm B - Double Cone Width N/A 5.0625 in128.588 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 57500 lbf256000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 386000 lbf1720000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 13.15 in334 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 222000 lbf986000 N C0 - Static Radial Rating N/A 502000 lbf2230000 N
LM258648DW Series N/A LM258600 d - Bore N/A 12.5000 in317.500 mm B - Double Cone Width N/A 5.0625 in128.588 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 57500 lbf256000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 386000 lbf1720000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 13.15 in334 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 222000 lbf986000 N C0 - Static Radial Rating N/A 502000 lbf2230000 N
LM258649D Series N/A LM258600 d - Bore N/A 12.5000 in317.500 mm B - Double Cone Width N/A 5.0625 in128.588 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 57500 lbf256000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 386000 lbf1720000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 13.12 in333.25 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 222000 lbf986000 N C0 - Static Radial Rating N/A 502000 lbf2230000 N
EE526131D Series N/A 526000 d - Bore N/A 13.0000 in330.200 mm B - Double Cone Width N/A 5.8125 in147.638 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 72900 lbf324000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 489000 lbf2180000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 13.82 in351 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 281000 lbf1250000 N C0 - Static Radial Rating N/A 523000 lbf2320000 N
M260149DW Series N/A M260100 d - Bore N/A 13.0000 in330.200 mm B - Double Cone Width N/A 5.6875 in144.463 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 71400 lbf317000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 479000 lbf2130000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 13.82 in351 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 275000 lbf1220000 N C0 - Static Radial Rating N/A 619000 lbf2750000 N
EE138131D Series N/A 138000 d - Bore N/A 13.0040 in330.302 mm B - Double Cone Width N/A 4.5000 in114.300 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 42800 lbf190000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 287000 lbf1280000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 13.66 in347 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 165000 lbf734000 N C0 - Static Radial Rating N/A 358000 lbf1590000 N
HM261049DW Series N/A HM261000 d - Bore N/A 13.1250 in333.375 mm B - Double Cone Width N/A 6.5625 in166.688 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 93200 lbf415000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 626000 lbf2780000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 14.06 in357 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 360000 lbf1600000 N C0 - Static Radial Rating N/A 777000 lbf3460000 N
HM261049DWH Series N/A HM261000 d - Bore N/A 13.1250 in333.375 mm B - Double Cone Width N/A 6.5625 in166.688 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 98500 lbf438000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 661000 lbf2940000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 14.06 in357 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 380000 lbf1690000 N C0 - Static Radial Rating N/A 691000 lbf3070000 N
LM761648DW Series N/A LM761600 d - Bore N/A 13.4375 in341.313 mm B - Double Cone Width N/A 4.8125 in122.238 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 53400 lbf237000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 358000 lbf1590000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 14.13 in359 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 206000 lbf915000 N C0 - Static Radial Rating N/A 432000 lbf1920000 N
LM761649DGW Series N/A LM761600 d - Bore N/A 13.5060 in343.052 mm B - Double Cone Width N/A 4.8125 in122.238 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 61200 lbf272000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 411000 lbf1830000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 14.21 in361 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 236000 lbf1050000 N C0 - Static Radial Rating N/A 432000 lbf1920000 N
LM761649DW Series N/A LM761600 d - Bore N/A 13.5060 in343.052 mm B - Double Cone Width N/A 4.8125 in122.238 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 53400 lbf237000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 358000 lbf1590000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 14.21 in361 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 206000 lbf915000 N C0 - Static Radial Rating N/A 432000 lbf1920000 N
LM761649DWH Series N/A LM761600 d - Bore N/A 13.5060 in343.052 mm B - Double Cone Width N/A 4.8125 in122.238 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 61200 lbf272000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 411000 lbf1830000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 14.21 in361 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 236000 lbf1050000 N C0 - Static Radial Rating N/A 432000 lbf1920000 N
EE161362D Series N/A 160000 d - Bore N/A 13.6250 in346.075 mm B - Double Cone Width N/A 3.7500 in95.250 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 31900 lbf142000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 214000 lbf954000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 14.49 in368 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 123000 lbf548000 N C0 - Static Radial Rating N/A 250000 lbf1110000 N
HM262749D Series N/A HM262700 d - Bore N/A 13.6250 in346.075 mm B - Double Cone Width N/A 6.8750 in174.625 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 101000 lbf448000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 676000 lbf3010000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 14.61 in371 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 388000 lbf1730000 N C0 - Static Radial Rating N/A 845000 lbf3760000 N
HM262749DG Series N/A HM262700 d - Bore N/A 13.6250 in346.075 mm B - Double Cone Width N/A 6.8750 in174.625 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 101000 lbf448000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 676000 lbf3010000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 14.49 in368 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 388000 lbf1730000 N C0 - Static Radial Rating N/A 845000 lbf3760000 N
M262449D Series N/A M262400 d - Bore N/A 13.6875 in347.663 mm B - Double Cone Width N/A 5.4375 in138.113 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 91400 lbf406000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 614000 lbf2730000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 14.53 in369 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 352000 lbf1570000 N C0 - Static Radial Rating N/A 602000 lbf2680000 N
M262449DW Series N/A M262400 d - Bore N/A 13.6875 in347.663 mm B - Double Cone Width N/A 5.4375 in138.113 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 83500 lbf372000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 561000 lbf2490000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 14.53 in369 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 322000 lbf1430000 N C0 - Static Radial Rating N/A 602000 lbf2680000 N
EE231401D Series N/A 230000 d - Bore N/A 14 in355.6 mm B - Double Cone Width N/A 4.3750 in111.125 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 61300 lbf273000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 412000 lbf1830000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 15.04 in382 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 236000 lbf1050000 N C0 - Static Radial Rating N/A 420000 lbf1870000 N
EE231401DG Series N/A 230000 d - Bore N/A 14 in355.6 mm B - Double Cone Width N/A 4.3750 in111.125 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 61300 lbf273000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 412000 lbf1830000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 15.04 in382 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 236000 lbf1050000 N C0 - Static Radial Rating N/A 420000 lbf1870000 N
LM263149D Series N/A LM263100 d - Bore N/A 14 in355.6 mm B - Double Cone Width N/A 4.7500 in120.650 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 54900 lbf244000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 368000 lbf1640000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 14.65 in372 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 212000 lbf941000 N C0 - Static Radial Rating N/A 510000 lbf2270000 N
LM263149DW Series N/A LM263100 d - Bore N/A 14 in355.6 mm B - Double Cone Width N/A 4.7500 in120.650 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 54900 lbf244000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 368000 lbf1640000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 14.65 in372 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 212000 lbf941000 N C0 - Static Radial Rating N/A 510000 lbf2270000 N
EE161403D Series N/A 160000 d - Bore N/A 14.0310 in356.387 mm B - Double Cone Width N/A 4.0000 in101.600 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 31900 lbf142000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 214000 lbf954000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 14.76 in375 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 123000 lbf548000 N C0 - Static Radial Rating N/A 250000 lbf1110000 N
HM265049DGW Series N/A HM265000 d - Bore N/A 14.5000 in368.300 mm B - Double Cone Width N/A 7.3125 in185.738 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 132000 lbf589000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 890000 lbf3960000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 15.5 in394 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 511000 lbf2270000 N C0 - Static Radial Rating N/A 977000 lbf4340000 N
HM265049DW Series N/A HM265000 d - Bore N/A 14.5000 in368.300 mm B - Double Cone Width N/A 7.3125 in185.738 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 132000 lbf589000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 890000 lbf3960000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 15.5 in394 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 511000 lbf2270000 N C0 - Static Radial Rating N/A 977000 lbf4340000 N
EE231475D Series N/A 230000 d - Bore N/A 14.7500 in374.650 mm B - Double Cone Width N/A 4.6250 in117.475 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 61300 lbf273000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 412000 lbf1830000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 15.47 in393 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 236000 lbf1050000 N C0 - Static Radial Rating N/A 420000 lbf1870000 N
HM266449DGW Series N/A HM266400 d - Bore N/A 15.1250 in384.175 mm B - Double Cone Width N/A 7.6250 in193.675 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 143000 lbf638000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 963000 lbf4290000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 16.18 in411 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 553000 lbf2460000 N C0 - Static Radial Rating N/A 1060000 lbf4730000 N
HM266449DW Series N/A HM266400 d - Bore N/A 15.1250 in384.175 mm B - Double Cone Width N/A 7.6250 in193.675 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 143000 lbf638000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 963000 lbf4290000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 16.18 in411 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 553000 lbf2460000 N C0 - Static Radial Rating N/A 1060000 lbf4730000 N
LM665949DGW Series N/A LM665900 d - Bore N/A 15.1875 in385.763 mm B - Double Cone Width N/A 6.0000 in152.400 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 78900 lbf351000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 530000 lbf2360000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 16.1 in409 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 304000 lbf1350000 N C0 - Static Radial Rating N/A 710000 lbf3160000 N
LM665949DW Series N/A LM665900 d - Bore N/A 15.1875 in385.763 mm B - Double Cone Width N/A 6.0000 in152.400 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 78900 lbf351000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 530000 lbf2360000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 16.1 in409 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 304000 lbf1350000 N C0 - Static Radial Rating N/A 710000 lbf3160000 N
EE234157D Series N/A 234000 d - Bore N/A 15.5 in393.7 mm B - Double Cone Width N/A 4.7500 in120.650 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 63300 lbf282000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 425000 lbf1890000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 16.54 in420 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 244000 lbf1090000 N C0 - Static Radial Rating N/A 451000 lbf2010000 N
LM767745D Series N/A LM767700 d - Bore N/A 15.5 in393.7 mm B - Double Cone Width N/A 5.4375 in138.113 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 76400 lbf340000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 513000 lbf2280000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 16.46 in418 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 295000 lbf1310000 N C0 - Static Radial Rating N/A 631000 lbf2810000 N
EE234161D Series N/A 234000 d - Bore N/A 16.0000 in406.400 mm B - Double Cone Width N/A 4.7500 in120.650 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 63300 lbf282000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 425000 lbf1890000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 16.73 in425 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 244000 lbf1090000 N C0 - Static Radial Rating N/A 451000 lbf2010000 N
EE833161XD Series N/A 833000 d - Bore N/A 16.0000 in406.400 mm B - Double Cone Width N/A 7.6250 in193.675 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 135000 lbf598000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 903000 lbf4020000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 17.13 in435 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 519000 lbf2310000 N C0 - Static Radial Rating N/A 1070000 lbf4770000 N
LM767748DA Series N/A LM767700 d - Bore N/A 16.0000 in406.400 mm B - Double Cone Width N/A 5.4375 in138.113 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 82100 lbf365000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 551000 lbf2450000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 16.81 in427 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 317000 lbf1410000 N C0 - Static Radial Rating N/A 699000 lbf3110000 N
LM767748DW Series N/A LM767700 d - Bore N/A 16.0000 in406.400 mm B - Double Cone Width N/A 5.4375 in138.113 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 76400 lbf340000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 513000 lbf2280000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 16.81 in427 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 295000 lbf1310000 N C0 - Static Radial Rating N/A 631000 lbf2810000 N
LM767749DGW Series N/A LM767700 d - Bore N/A 16.0000 in406.400 mm B - Double Cone Width N/A 5.4375 in138.113 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 76400 lbf340000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 513000 lbf2280000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 16.81 in427 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 295000 lbf1310000 N C0 - Static Radial Rating N/A 631000 lbf2810000 N
LM767749DW Series N/A LM767700 d - Bore N/A 16.0000 in406.400 mm B - Double Cone Width N/A 5.4375 in138.113 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 87600 lbf390000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 589000 lbf2620000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 16.81 in427 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 338000 lbf1500000 N C0 - Static Radial Rating N/A 631000 lbf2810000 N
M667944DW Series N/A M667900 d - Bore N/A 16.0000 in406.400 mm B - Double Cone Width N/A 6.3750 in161.925 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 109000 lbf484000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 731000 lbf3250000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 16.73 in425 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 420000 lbf1870000 N C0 - Static Radial Rating N/A 886000 lbf3940000 N
M667946DW Series N/A M667900 d - Bore N/A 16.1250 in409.575 mm B - Double Cone Width N/A 6.3750 in161.925 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 109000 lbf484000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 731000 lbf3250000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 17.17 in436 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 420000 lbf1870000 N C0 - Static Radial Rating N/A 886000 lbf3940000 N
M667947ADW Series N/A M667900 d - Bore N/A 16.1250 in409.575 mm B - Double Cone Width N/A 6.3750 in161.925 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 98500 lbf438000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 661000 lbf2940000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 16.97 in431 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 380000 lbf1690000 N C0 - Static Radial Rating N/A 768000 lbf3420000 N
M667947DGW Series N/A M667900 d - Bore N/A 16.1250 in409.575 mm B - Double Cone Width N/A 6.3750 in161.925 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 98500 lbf438000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 661000 lbf2940000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 17.01 in432 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 380000 lbf1690000 N C0 - Static Radial Rating N/A 768000 lbf3420000 N
M667947DW Series N/A M667900 d - Bore N/A 16.1250 in409.575 mm B - Double Cone Width N/A 6.3750 in161.925 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 98500 lbf438000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 661000 lbf2940000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 16.97 in431 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 380000 lbf1690000 N C0 - Static Radial Rating N/A 768000 lbf3420000 N
M667949D Series N/A M667900 d - Bore N/A 16.1250 in409.575 mm B - Double Cone Width N/A 6.3750 in161.925 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 109000 lbf484000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 731000 lbf3250000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 16.87 in428.5 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 420000 lbf1870000 N C0 - Static Radial Rating N/A 886000 lbf3940000 N
M667949DXX Series N/A M667900 d - Bore N/A 16.1250 in409.575 mm B - Double Cone Width N/A 6.3750 in161.925 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 109000 lbf484000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 731000 lbf3250000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 16.97 in431 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 420000 lbf1870000 N C0 - Static Radial Rating N/A 886000 lbf3940000 N
M268748D Series N/A M268700 d - Bore N/A 16.3750 in415.925 mm B - Double Cone Width N/A 8.2500 in209.550 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 166000 lbf740000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 1120000 lbf4970000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 17.79 in451.87 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 642000 lbf2860000 N C0 - Static Radial Rating N/A 1250000 lbf5550000 N
M268749DGW Series N/A M268700 d - Bore N/A 16.3750 in415.925 mm B - Double Cone Width N/A 8.2500 in209.550 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 166000 lbf740000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 1120000 lbf4970000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 17.48 in444 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 642000 lbf2860000 N C0 - Static Radial Rating N/A 1250000 lbf5550000 N
M268749DW Series N/A M268700 d - Bore N/A 16.3750 in415.925 mm B - Double Cone Width N/A 8.2500 in209.550 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 166000 lbf740000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 1120000 lbf4970000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 17.48 in444 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 642000 lbf2860000 N C0 - Static Radial Rating N/A 1250000 lbf5550000 N
M270749ADW Series N/A M270700 d - Bore N/A 17.6250 in447.675 mm B - Double Cone Width N/A 8.8125 in223.838 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 191000 lbf849000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 1280000 lbf5700000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 18.82 in478 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 736000 lbf3280000 N C0 - Static Radial Rating N/A 1450000 lbf6430000 N
M270749D Series N/A M270700 d - Bore N/A 17.6250 in447.675 mm B - Double Cone Width N/A 8.8125 in223.838 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 191000 lbf849000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 1280000 lbf5700000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 18.82 in478 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 736000 lbf3280000 N C0 - Static Radial Rating N/A 1450000 lbf6430000 N
M270749DGW Series N/A M270700 d - Bore N/A 17.6250 in447.675 mm B - Double Cone Width N/A 8.8125 in223.838 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 191000 lbf849000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 1280000 lbf5700000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 18.82 in478 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 736000 lbf3280000 N C0 - Static Radial Rating N/A 1450000 lbf6430000 N
M270749DW Series N/A M270700 d - Bore N/A 17.6250 in447.675 mm B - Double Cone Width N/A 8.8125 in223.838 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 191000 lbf849000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 1280000 lbf5700000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 18.82 in478 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 736000 lbf3280000 N C0 - Static Radial Rating N/A 1450000 lbf6430000 N
M270749XDGW Series N/A M270700 d - Bore N/A 17.6250 in447.675 mm B - Double Cone Width N/A 8.8125 in223.838 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 180000 lbf799000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 1210000 lbf5370000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 18.82 in478 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 693000 lbf3080000 N C0 - Static Radial Rating N/A 1330000 lbf5900000 N
EE480181D Series N/A 480000 d - Bore N/A 18.0000 in457.200 mm B - Double Cone Width N/A 14.5000 in368.300 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 361000 lbf1600000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 2420000 lbf10800000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 20.31 in516 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 1390000 lbf6190000 N C0 - Static Radial Rating N/A 1980000 lbf8790000 N
M272749DGW Series N/A M272700 d - Bore N/A 18.8750 in479.425 mm B - Double Cone Width N/A 9.3750 in238.125 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 218000 lbf968000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 1460000 lbf6500000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 20.08 in510 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 839000 lbf3730000 N C0 - Static Radial Rating N/A 1660000 lbf7400000 N
M272749DW Series N/A M272700 d - Bore N/A 18.8750 in479.425 mm B - Double Cone Width N/A 9.3750 in238.125 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 218000 lbf968000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 1460000 lbf6500000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 20.08 in510 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 839000 lbf3730000 N C0 - Static Radial Rating N/A 1660000 lbf7400000 N
LM272249DW Series N/A LM272200 d - Bore N/A 19.0000 in482.600 mm B - Double Cone Width N/A 6.2500 in158.750 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 98600 lbf439000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 662000 lbf2950000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 19.84 in504 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 380000 lbf1690000 N C0 - Static Radial Rating N/A 921000 lbf4100000 N
EE243193D Series N/A 243000 d - Bore N/A 19.2530 in489.026 mm B - Double Cone Width N/A 6.0000 in152.400 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 85500 lbf380000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 574000 lbf2560000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 20.31 in516 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 330000 lbf1470000 N C0 - Static Radial Rating N/A 822000 lbf3660000 N
LM772749DW Series N/A LM772700 d - Bore N/A 19.2530 in489.026 mm B - Double Cone Width N/A 6.0625 in153.988 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 108000 lbf482000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 728000 lbf3240000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 20.31 in516 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 418000 lbf1860000 N C0 - Static Radial Rating N/A 871000 lbf3870000 N
M278749DW Series N/A M278700 d - Bore N/A 22.5000 in571.500 mm B - Double Cone Width N/A 11.2500 in285.750 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 264000 lbf1180000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 1770000 lbf7890000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 23.98 in609 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 1020000 lbf4530000 N C0 - Static Radial Rating N/A 2370000 lbf10600000 N
LM278848D Series N/A LM278800 d - Bore N/A 23.0625 in585.788 mm B - Double Cone Width N/A 9.0625 in230.188 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 192000 lbf853000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 1290000 lbf5730000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 24.25 in616 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 740000 lbf3290000 N C0 - Static Radial Rating N/A 1860000 lbf8280000 N
L281149D Series N/A L281100 d - Bore N/A 26.0000 in660.400 mm B - Double Cone Width N/A 6.9375 in176.213 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 159000 lbf709000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 1070000 lbf4760000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 26.88 in682.75 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 615000 lbf2730000 N C0 - Static Radial Rating N/A 1490000 lbf6620000 N
M282249D Series N/A M282200 d - Bore N/A 26.8750 in682.625 mm B - Double Cone Width N/A 13.3125 in338.138 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 364000 lbf1620000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 2440000 lbf10900000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 28.46 in723 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 1400000 lbf6240000 N C0 - Static Radial Rating N/A 3340000 lbf14900000 N
LM282549D Series N/A LM282500 d - Bore N/A 27.8750 in708.025 mm B - Double Cone Width N/A 10.7500 in273.050 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 270000 lbf1200000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 1810000 lbf8060000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 29.17 in741 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 1040000 lbf4630000 N C0 - Static Radial Rating N/A 2710000 lbf12000000 N
EE325296D Series N/A 325000 d - Bore N/A 29.5000 in749.300 mm B - Double Cone Width N/A 13.7500 in349.250 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 415000 lbf1850000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 2790000 lbf12400000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 31.75 in806.45 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 1600000 lbf7120000 N C0 - Static Radial Rating N/A 3640000 lbf16200000 N
EE433301D Series N/A 433000 d - Bore N/A 30.0000 in762.000 mm B - Double Cone Width N/A 12.2500 in311.150 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 434000 lbf1930000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 2910000 lbf13000000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 33.54 in852 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 1670000 lbf7440000 N C0 - Static Radial Rating N/A 3410000 lbf15200000 N
LM287649D Series N/A LM287600 d - Bore N/A 36.9375 in938.213 mm B - Double Cone Width N/A 15.7500 in400.050 mm C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 532000 lbf2360000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 3570000 lbf15900000 N Bore Taper N/A db - Cone Backface Backing Diameter N/A 38.98 in990 mm C1 - Dynamic Radial Rating (1 million revolutions) N/A 2050000 lbf9120000 N C0 - Static Radial Rating N/A 5300000 lbf23600000 N
Sản phẩm liên quan
Tapered Roller Bearings - Single Cones - Metric
Tapered Roller Bearings - Single Cones - Metric
Tapered Roller Bearings - TDO (Tapered Double Outer) Imperial
Tapered Roller Bearings - TDO (Tapered Double Outer) Imperial
Tapered Roller Bearings - TDI (Tapered Double Inner) Imperial
Tapered Roller Bearings - TDI (Tapered Double Inner) Imperial
Tapered Roller Bearings - TSF (Tapered Single with Flange) Metric
Tapered Roller Bearings - TSF (Tapered Single with Flange) Metric
Tapered Roller Bearings - Double Tapered Cup - Imperial
Tapered Roller Bearings - Double Tapered Cup - Imperial
Tapered Roller Bearings - Single Cups - Metric
Tapered Roller Bearings - Single Cups - Metric
x
Liên hệ
Kinh doanh 1: 0909 566 551
Kinh doanh 1: 0933 155 707
Kỹ thuật: 0911 991 666
Tel Zalo Messenger
