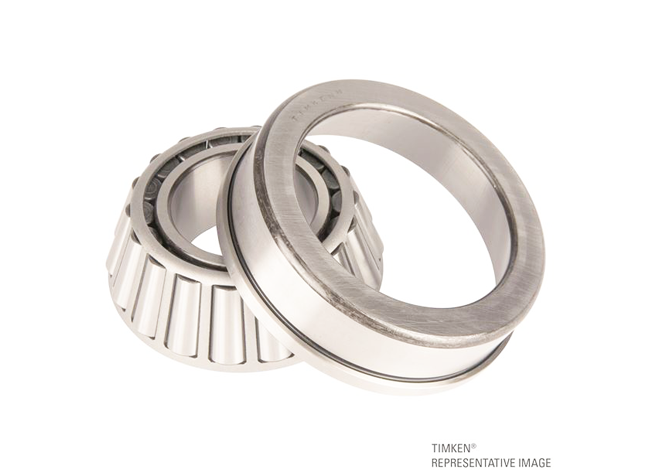

Like the TS bearing design, the TSF design consists of two main separable parts: the cone (inner ring) assembly and the cup (outer ring). It is typically mounted in opposing pairs on a shaft. TSF bearings have flanged cups to facilitate axial location and accurately align seals in through-bored housings.
|
Timken Part Number |
Series |
d - Bore |
D - Cup Outer Diameter |
B - Cone Width |
C - Cup Width |
T1 - Bearing Width |
C1 - Dynamic Radial Rating (1 million revolutions) |
C0 - Static Radial Rating |
Bearing Weight |
|---|---|---|---|---|---|---|---|---|---|
| XGA33210 - YSA33210R | Series 33210 | d - Bore 40 mm1.5748 in | D - Cup Outer Diameter 95.000 mm3.7402 in | B - Cone Width 32.000 mm1.2598 in | C - Cup Width 27 mm1.063 in | T1 - Bearing Width 32.000 mm1.2598 in | C1 - Dynamic Radial Rating (1 million revolutions) 154000 N34600 lbf | C0 - Static Radial Rating 166000 N37300 lbf | Bearing Weight 1.2 Kg2.7 lb |
| X32009X - Y32009XR | Series 32009X | d - Bore 45.000 mm1.7717 in | D - Cup Outer Diameter 75.000 mm2.9528 in | B - Cone Width 20.000 mm0.7874 in | C - Cup Width 15.500 mm0.6102 in | T1 - Bearing Width 20.000 mm0.7874 in | C1 - Dynamic Radial Rating (1 million revolutions) 78700 N17700 lbf | C0 - Static Radial Rating 84300 N19000 lbf | Bearing Weight 0.4 Kg0.8 lb |
| XAA32009X - Y32009XR | Series 32009X | d - Bore 45.000 mm1.7717 in | D - Cup Outer Diameter 75.000 mm2.9528 in | B - Cone Width 20.000 mm0.7874 in | C - Cup Width 15.500 mm0.6102 in | T1 - Bearing Width 20.000 mm0.7874 in | C1 - Dynamic Radial Rating (1 million revolutions) 78700 N17700 lbf | C0 - Static Radial Rating 84300 N19000 lbf | Bearing Weight 0.4 Kg0.8 lb |
| X33109 - Y33109R | Series 33109 | d - Bore 45.000 mm1.7717 in | D - Cup Outer Diameter 80 mm3.1496 in | B - Cone Width 26.000 mm1.0236 in | C - Cup Width 20.500 mm0.8071 in | T1 - Bearing Width 26.000 mm1.0236 in | C1 - Dynamic Radial Rating (1 million revolutions) 113000 N25300 lbf | C0 - Static Radial Rating 119000 N26800 lbf | Bearing Weight 0.6 Kg1.2 lb |
| XGB-33212 - Y33212R | Series 33212 | d - Bore 55.000 mm2.1654 in | D - Cup Outer Diameter 110.000 mm4.3307 in | B - Cone Width 38.000 mm1.4961 in | C - Cup Width 29.000 mm1.1417 in | T1 - Bearing Width 38.000 mm1.4961 in | C1 - Dynamic Radial Rating (1 million revolutions) 234000 N52700 lbf | C0 - Static Radial Rating 253000 N56800 lbf | Bearing Weight 1.7 Kg3.8 lb |
| JP6049 - JP6010-B | Series JP6000 | d - Bore 60.000 mm2.3622 in | D - Cup Outer Diameter 100.000 mm3.9370 in | B - Cone Width 20.000 mm0.7874 in | C - Cup Width 15.500 mm0.6102 in | T1 - Bearing Width 21.000 mm0.8268 in | C1 - Dynamic Radial Rating (1 million revolutions) 82500 N18500 lbf | C0 - Static Radial Rating 101000 N22800 lbf | Bearing Weight 0.6 Kg1.4 lb |
| JP7049 - JP7010-B | Series JP7000 | d - Bore 70 mm2.7559 in | D - Cup Outer Diameter 110.000 mm4.3307 in | B - Cone Width 20.000 mm0.7874 in | C - Cup Width 15.500 mm0.6102 in | T1 - Bearing Width 21.000 mm0.8268 in | C1 - Dynamic Radial Rating (1 million revolutions) 91600 N20600 lbf | C0 - Static Radial Rating 112000 N25200 lbf | Bearing Weight 0.70 Kg1.6 lb |
| JP8049 - JP8010-B | Series JP8000 | d - Bore 80 mm3.1496 in | D - Cup Outer Diameter 125 mm4.9213 in | B - Cone Width 22.500 mm0.8858 in | C - Cup Width 17.500 mm0.6890 in | T1 - Bearing Width 24.000 mm0.9449 in | C1 - Dynamic Radial Rating (1 million revolutions) 107000 N24000 lbf | C0 - Static Radial Rating 141000 N31800 lbf | Bearing Weight 1.00 Kg2.2 lb |
| JM716649 - JM716610-B | Series M716600 | d - Bore 85 mm3.3465 in | D - Cup Outer Diameter 130.000 mm5.1181 in | B - Cone Width 29.000 mm1.1417 in | C - Cup Width 24.000 mm0.9449 in | T1 - Bearing Width 30.000 mm1.1811 in | C1 - Dynamic Radial Rating (1 million revolutions) 161000 N36300 lbf | C0 - Static Radial Rating 245000 N55100 lbf | Bearing Weight 1.4 Kg3.1 lb |
| JP9049 - JP9010-B | Series JP9000 | d - Bore 90 mm3.5433 in | D - Cup Outer Diameter 135.000 mm5.3150 in | B - Cone Width 22.500 mm0.8858 in | C - Cup Width 17.500 mm0.6890 in | T1 - Bearing Width 24.000 mm0.9449 in | C1 - Dynamic Radial Rating (1 million revolutions) 128000 N28800 lbf | C0 - Static Radial Rating 155000 N34900 lbf | Bearing Weight 1.1 Kg2.5 lb |
| JP10044 - JP10010-B | Series JP10000 | d - Bore 95 mm3.7402 in | D - Cup Outer Diameter 145.000 mm5.7087 in | B - Cone Width 22.500 mm0.8858 in | C - Cup Width 17.500 mm0.6890 in | T1 - Bearing Width 24.000 mm0.9449 in | C1 - Dynamic Radial Rating (1 million revolutions) 125000 N28200 lbf | C0 - Static Radial Rating 172000 N38700 lbf | Bearing Weight 1.3 Kg2.9 lb |
| JP10049 - JP10010-B | Series JP10000 | d - Bore 100 mm3.937 in | D - Cup Outer Diameter 145.000 mm5.7087 in | B - Cone Width 22.500 mm0.8858 in | C - Cup Width 17.500 mm0.6890 in | T1 - Bearing Width 24.000 mm0.9449 in | C1 - Dynamic Radial Rating (1 million revolutions) 125000 N28200 lbf | C0 - Static Radial Rating 172000 N38700 lbf | Bearing Weight 1.2 Kg2.6 lb |
| JLM722948 - JLM722912-B | Series LM722900 | d - Bore 115.000 mm4.5276 in | D - Cup Outer Diameter 165.000 mm6.4961 in | B - Cone Width 27.000 mm1.0630 in | C - Cup Width 21.000 mm0.8268 in | T1 - Bearing Width 28.000 mm1.1024 in | C1 - Dynamic Radial Rating (1 million revolutions) 160000 N35900 lbf | C0 - Static Radial Rating 245000 N55100 lbf | Bearing Weight 1.8 Kg4 lb |
| JL724348 - JL724314-B | Series L724300 | d - Bore 120 mm4.7244 in | D - Cup Outer Diameter 170 mm6.6929 in | B - Cone Width 25.400 mm1.0000 in | C - Cup Width 19.050 mm0.7500 in | T1 - Bearing Width 25.40 mm1.000 in | C1 - Dynamic Radial Rating (1 million revolutions) 145000 N32600 lbf | C0 - Static Radial Rating 231000 N52000 lbf | Bearing Weight 1.7 Kg3.7 lb |
| JM624649 - JM624610-B | Series M624600 | d - Bore 120 mm4.7244 in | D - Cup Outer Diameter 180 mm7.0866 in | B - Cone Width 36 mm1.4173 in | C - Cup Width 26.000 mm1.0236 in | T1 - Bearing Width 36.000 mm1.4173 in | C1 - Dynamic Radial Rating (1 million revolutions) 247000 N55500 lbf | C0 - Static Radial Rating 377000 N84700 lbf | Bearing Weight 3.0 Kg6.7 lb |
| JP13049 - JP13010-B | Series JP13000 | d - Bore 130 mm5.1181 in | D - Cup Outer Diameter 185.000 mm7.2835 in | B - Cone Width 27.000 mm1.0630 in | C - Cup Width 21.000 mm0.8268 in | T1 - Bearing Width 29.000 mm1.1417 in | C1 - Dynamic Radial Rating (1 million revolutions) 196000 N44000 lbf | C0 - Static Radial Rating 283000 N63600 lbf | Bearing Weight 2.2 Kg4.9 lb |
| JP14049 - JP14010-B | Series JP14000 | d - Bore 140 mm5.5118 in | D - Cup Outer Diameter 195.000 mm7.6772 in | B - Cone Width 27.000 mm1.0630 in | C - Cup Width 21.000 mm0.8268 in | T1 - Bearing Width 29.000 mm1.1417 in | C1 - Dynamic Radial Rating (1 million revolutions) 203000 N45700 lbf | C0 - Static Radial Rating 304000 N68400 lbf | Bearing Weight 2.4 Kg5.3 lb |
| JL730646 - JL730612-B | Series L730600 | d - Bore 150 mm5.9055 in | D - Cup Outer Diameter 205.000 mm8.0709 in | B - Cone Width 28.575 mm1.1250 in | C - Cup Width 21.438 mm0.8440 in | T1 - Bearing Width 28.575 mm1.125 in | C1 - Dynamic Radial Rating (1 million revolutions) 194000 N43500 lbf | C0 - Static Radial Rating 339000 N76100 lbf | Bearing Weight 2.7 Kg5.9 lb |
