Tapered Roller Bearings - TDI (Tapered Double Inner) Imperial

Chi tiết sản phẩm

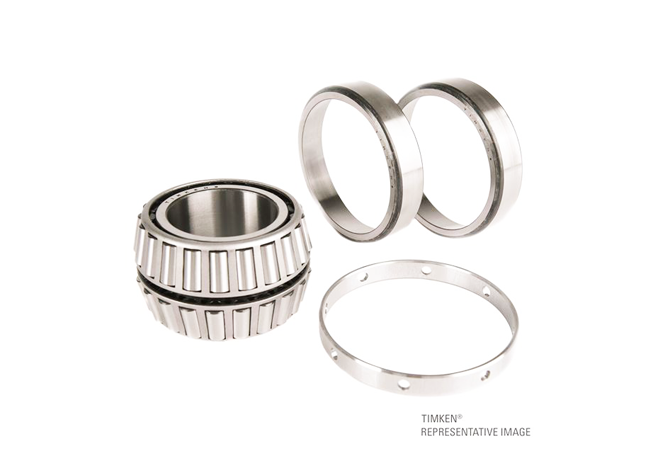

TDI bearings have a one-piece double inner race and two single outer races and are typically supplied complete with an outer race spacer as a pre-set assembly. The bearing can be used at fixed positions on rotation shaft applications. For rotating housing application it can be used to float on the stationary shaft.

Timken Part Number	Series	d - Bore	D - Cup Outer Diameter	B - Double Cone Width	C - Cup Width	T - Bearing Width across Cups	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)	Bore Taper
07100D - 07196	Series N/A 07000	d - Bore N/A 1.0000 in25.400 mm	D - Cup Outer Diameter N/A 1.9687 in50.005 mm	B - Double Cone Width N/A 1.4375 in36.513 mm	C - Cup Width N/A 0.3750 in9.525 mm	T - Bearing Width across Cups N/A 1.0648 in27.046 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 1700 lbf7550 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 11400 lbf50700 N	Bore Taper N/A
07101DW - 07196	Series N/A 07000	d - Bore N/A 1.0000 in25.400 mm	D - Cup Outer Diameter N/A 1.9687 in50.005 mm	B - Double Cone Width N/A 1.4375 in36.513 mm	C - Cup Width N/A 0.3750 in9.525 mm	T - Bearing Width across Cups N/A 1.0648 in27.046 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 1600 lbf7130 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 10800 lbf47900 N	Bore Taper N/A
07100D - 07210X	Series N/A 07000	d - Bore N/A 1.0000 in25.400 mm	D - Cup Outer Diameter N/A 2 in50.8 mm	B - Double Cone Width N/A 1.4375 in36.513 mm	C - Cup Width N/A 0.5000 in12.700 mm	T - Bearing Width across Cups N/A 1.1841 in30.076 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 1700 lbf7550 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 11400 lbf50700 N	Bore Taper N/A
07101DW - 07210X	Series N/A 07000	d - Bore N/A 1.0000 in25.400 mm	D - Cup Outer Diameter N/A 2 in50.8 mm	B - Double Cone Width N/A 1.4375 in36.513 mm	C - Cup Width N/A 0.5000 in12.700 mm	T - Bearing Width across Cups N/A 1.1841 in30.076 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 1600 lbf7130 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 10800 lbf47900 N	Bore Taper N/A
07100D - 07205X	Series N/A 07000	d - Bore N/A 1.0000 in25.400 mm	D - Cup Outer Diameter N/A 2.0467 in51.986 mm	B - Double Cone Width N/A 1.4375 in36.513 mm	C - Cup Width N/A 0.5118 in13.000 mm	T - Bearing Width across Cups N/A 1.2816 in32.553 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 1700 lbf7550 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 11400 lbf50700 N	Bore Taper N/A
07101DW - 07205X	Series N/A 07000	d - Bore N/A 1.0000 in25.400 mm	D - Cup Outer Diameter N/A 2.0467 in51.986 mm	B - Double Cone Width N/A 1.4375 in36.513 mm	C - Cup Width N/A 0.5118 in13.000 mm	T - Bearing Width across Cups N/A 1.2816 in32.553 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 1600 lbf7130 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 10800 lbf47900 N	Bore Taper N/A
07100D - 07204	Series N/A 07000	d - Bore N/A 1.0000 in25.400 mm	D - Cup Outer Diameter N/A 2.0470 in51.994 mm	B - Double Cone Width N/A 1.4375 in36.513 mm	C - Cup Width N/A 0.5000 in12.700 mm	T - Bearing Width across Cups N/A 1.1841 in30.076 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 1700 lbf7550 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 11400 lbf50700 N	Bore Taper N/A
07101DW - 07204	Series N/A 07000	d - Bore N/A 1.0000 in25.400 mm	D - Cup Outer Diameter N/A 2.0470 in51.994 mm	B - Double Cone Width N/A 1.4375 in36.513 mm	C - Cup Width N/A 0.5000 in12.700 mm	T - Bearing Width across Cups N/A 1.1841 in30.076 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 1600 lbf7130 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 10800 lbf47900 N	Bore Taper N/A
07100D - 07205	Series N/A 07000	d - Bore N/A 1.0000 in25.400 mm	D - Cup Outer Diameter N/A 2.0472 in51.999 mm	B - Double Cone Width N/A 1.4375 in36.513 mm	C - Cup Width N/A 0.5000 in12.700 mm	T - Bearing Width across Cups N/A 1.1841 in30.076 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 1700 lbf7550 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 11400 lbf50700 N	Bore Taper N/A
07101DW - 07205	Series N/A 07000	d - Bore N/A 1.0000 in25.400 mm	D - Cup Outer Diameter N/A 2.0472 in51.999 mm	B - Double Cone Width N/A 1.4375 in36.513 mm	C - Cup Width N/A 0.5000 in12.700 mm	T - Bearing Width across Cups N/A 1.1841 in30.076 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 1600 lbf7130 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 10800 lbf47900 N	Bore Taper N/A
17116D - 17244A	Series N/A 17000	d - Bore N/A 1.1875 in30.163 mm	D - Cup Outer Diameter N/A 2.4402 in61.981 mm	B - Double Cone Width N/A 1.3750 in34.925 mm	C - Cup Width N/A 0.5625 in14.288 mm	T - Bearing Width across Cups N/A 1.3305 in33.795 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 2520 lbf11200 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 16900 lbf75300 N	Bore Taper N/A
17116D - 17244	Series N/A 17000	d - Bore N/A 1.1875 in30.163 mm	D - Cup Outer Diameter N/A 2.4409 in61.999 mm	B - Double Cone Width N/A 1.3750 in34.925 mm	C - Cup Width N/A 0.5625 in14.288 mm	T - Bearing Width across Cups N/A 1.3305 in33.795 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 2520 lbf11200 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 16900 lbf75300 N	Bore Taper N/A
14126D - 14274A	Series N/A 14000	d - Bore N/A 1.2500 in31.750 mm	D - Cup Outer Diameter N/A 2.7148 in68.956 mm	B - Double Cone Width N/A 1.5426 in39.182 mm	C - Cup Width N/A 0.6250 in15.875 mm	T - Bearing Width across Cups N/A 1.5632 in39.705 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 3180 lbf14200 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 21400 lbf95100 N	Bore Taper N/A
14126D - 14277	Series N/A 14000	d - Bore N/A 1.2500 in31.750 mm	D - Cup Outer Diameter N/A 2.7170 in69.012 mm	B - Double Cone Width N/A 1.5426 in39.182 mm	C - Cup Width N/A 0.7250 in18.415 mm	T - Bearing Width across Cups N/A 1.7632 in44.785 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 3180 lbf14200 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 21400 lbf95100 N	Bore Taper N/A
14126D - 14276	Series N/A 14000	d - Bore N/A 1.2500 in31.750 mm	D - Cup Outer Diameter N/A 2.7170 in69.012 mm	B - Double Cone Width N/A 1.5426 in39.182 mm	C - Cup Width N/A 0.6250 in15.875 mm	T - Bearing Width across Cups N/A 1.5632 in39.705 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 3180 lbf14200 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 21400 lbf95100 N	Bore Taper N/A
14126D - 14274	Series N/A 14000	d - Bore N/A 1.2500 in31.750 mm	D - Cup Outer Diameter N/A 2.7170 in69.012 mm	B - Double Cone Width N/A 1.5426 in39.182 mm	C - Cup Width N/A 0.6250 in15.875 mm	T - Bearing Width across Cups N/A 1.5632 in39.705 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 3180 lbf14200 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 21400 lbf95100 N	Bore Taper N/A
14126D - 14273	Series N/A 14000	d - Bore N/A 1.2500 in31.750 mm	D - Cup Outer Diameter N/A 2.7170 in69.012 mm	B - Double Cone Width N/A 1.5426 in39.182 mm	C - Cup Width N/A 0.6675 in16.955 mm	T - Bearing Width across Cups N/A 1.5231 in38.687 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 3180 lbf14200 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 21400 lbf95100 N	Bore Taper N/A
14126D - 14272	Series N/A 14000	d - Bore N/A 1.2500 in31.750 mm	D - Cup Outer Diameter N/A 2.7170 in69.012 mm	B - Double Cone Width N/A 1.5426 in39.182 mm	C - Cup Width N/A 0.5625 in14.288 mm	T - Bearing Width across Cups N/A 1.5005 in38.113 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 3180 lbf14200 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 21400 lbf95100 N	Bore Taper N/A
14126D - 14284	Series N/A 14000	d - Bore N/A 1.2500 in31.750 mm	D - Cup Outer Diameter N/A 2.8345 in71.996 mm	B - Double Cone Width N/A 1.5426 in39.182 mm	C - Cup Width N/A 0.7250 in18.415 mm	T - Bearing Width across Cups N/A 1.7632 in44.785 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 3180 lbf14200 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 21400 lbf95100 N	Bore Taper N/A
14126D - 14282	Series N/A 14000	d - Bore N/A 1.2500 in31.750 mm	D - Cup Outer Diameter N/A 2.8345 in71.996 mm	B - Double Cone Width N/A 1.5426 in39.182 mm	C - Cup Width N/A 0.5918 in15.032 mm	T - Bearing Width across Cups N/A 1.4968 in38.019 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 3180 lbf14200 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 21400 lbf95100 N	Bore Taper N/A
14126D - 14283	Series N/A 14000	d - Bore N/A 1.2500 in31.750 mm	D - Cup Outer Diameter N/A 2.8380 in72.085 mm	B - Double Cone Width N/A 1.5426 in39.182 mm	C - Cup Width N/A 0.7250 in18.415 mm	T - Bearing Width across Cups N/A 1.7632 in44.785 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 3180 lbf14200 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 21400 lbf95100 N	Bore Taper N/A
14126D - 14299	Series N/A 14000	d - Bore N/A 1.2500 in31.750 mm	D - Cup Outer Diameter N/A 3.0625 in77.788 mm	B - Double Cone Width N/A 1.5426 in39.182 mm	C - Cup Width N/A 0.6250 in15.875 mm	T - Bearing Width across Cups N/A 1.5632 in39.705 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 3180 lbf14200 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 21400 lbf95100 N	Bore Taper N/A
19145D - 19262	Series N/A 19000	d - Bore N/A 1.4375 in36.513 mm	D - Cup Outer Diameter N/A 2.6250 in66.675 mm	B - Double Cone Width N/A 1.5000 in38.100 mm	C - Cup Width N/A 0.4688 in11.908 mm	T - Bearing Width across Cups N/A 1.4491 in36.807 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 2960 lbf13100 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 19800 lbf88300 N	Bore Taper N/A
19145D - 19269	Series N/A 19000	d - Bore N/A 1.4375 in36.513 mm	D - Cup Outer Diameter N/A 2.6875 in68.263 mm	B - Double Cone Width N/A 1.5000 in38.100 mm	C - Cup Width N/A 0.6311 in16.030 mm	T - Bearing Width across Cups N/A 1.7737 in45.052 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 2960 lbf13100 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 19800 lbf88300 N	Bore Taper N/A
19145D - 19268	Series N/A 19000	d - Bore N/A 1.4375 in36.513 mm	D - Cup Outer Diameter N/A 2.6875 in68.263 mm	B - Double Cone Width N/A 1.5000 in38.100 mm	C - Cup Width N/A 0.4688 in11.908 mm	T - Bearing Width across Cups N/A 1.4491 in36.807 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 2960 lbf13100 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 19800 lbf88300 N	Bore Taper N/A

Timken Part Number	Series	d - Bore	D - Cup Outer Diameter	B - Double Cone Width	C - Cup Width	T - Bearing Width across Cups	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)	Bore Taper	CAD

M667949D - M667911	Series N/A M667900	d - Bore N/A 16.1250 in409.575 mm	D - Cup Outer Diameter N/A 21.5000 in546.100 mm	B - Double Cone Width N/A 6.3750 in161.925 mm	C - Cup Width N/A 2.6875 in68.263 mm	T - Bearing Width across Cups N/A 6.3749 in161.922 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 109000 lbf484000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 731000 lbf3250000 N	Bore Taper N/A	CAD N/A
M667949D - M667910	Series N/A M667900	d - Bore N/A 16.1250 in409.575 mm	D - Cup Outer Diameter N/A 21.5000 in546.100 mm	B - Double Cone Width N/A 6.3750 in161.925 mm	C - Cup Width N/A 2.6250 in66.675 mm	T - Bearing Width across Cups N/A 6.3749 in161.922 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 109000 lbf484000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 731000 lbf3250000 N	Bore Taper N/A	CAD N/A
M667949DXX - M667910	Series N/A M667900	d - Bore N/A 16.1250 in409.575 mm	D - Cup Outer Diameter N/A 21.5000 in546.100 mm	B - Double Cone Width N/A 6.3750 in161.925 mm	C - Cup Width N/A 2.6250 in66.675 mm	T - Bearing Width across Cups N/A 6.3749 in161.922 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 109000 lbf484000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 731000 lbf3250000 N	Bore Taper N/A	CAD N/A
M667949DXX - M667911	Series N/A M667900	d - Bore N/A 16.1250 in409.575 mm	D - Cup Outer Diameter N/A 21.5000 in546.100 mm	B - Double Cone Width N/A 6.3750 in161.925 mm	C - Cup Width N/A 2.6875 in68.263 mm	T - Bearing Width across Cups N/A 6.3749 in161.922 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 109000 lbf484000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 731000 lbf3250000 N	Bore Taper N/A	CAD N/A
M268748D - M268710	Series N/A M268700	d - Bore N/A 16.3750 in415.925 mm	D - Cup Outer Diameter N/A 23.2500 in590.550 mm	B - Double Cone Width N/A 8.2500 in209.550 mm	C - Cup Width N/A 3.5000 in88.900 mm	T - Bearing Width across Cups N/A 8.2499 in209.547 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 166000 lbf740000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 1120000 lbf4970000 N	Bore Taper N/A	CAD N/A
M268749DGW - M268710	Series N/A M268700	d - Bore N/A 16.3750 in415.925 mm	D - Cup Outer Diameter N/A 23.2500 in590.550 mm	B - Double Cone Width N/A 8.2500 in209.550 mm	C - Cup Width N/A 3.5000 in88.900 mm	T - Bearing Width across Cups N/A 8.2499 in209.547 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 166000 lbf740000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 1120000 lbf4970000 N	Bore Taper N/A	CAD N/A
M268749DW - M268710	Series N/A M268700	d - Bore N/A 16.3750 in415.925 mm	D - Cup Outer Diameter N/A 23.2500 in590.550 mm	B - Double Cone Width N/A 8.2500 in209.550 mm	C - Cup Width N/A 3.5000 in88.900 mm	T - Bearing Width across Cups N/A 8.2499 in209.547 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 166000 lbf740000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 1120000 lbf4970000 N	Bore Taper N/A	CAD N/A
M270749ADW - M270710	Series N/A M270700	d - Bore N/A 17.6250 in447.675 mm	D - Cup Outer Diameter N/A 25.0000 in635.000 mm	B - Double Cone Width N/A 8.8125 in223.838 mm	C - Cup Width N/A 3.7500 in95.250 mm	T - Bearing Width across Cups N/A 8.8125 in223.838 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 191000 lbf849000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 1280000 lbf5700000 N	Bore Taper N/A	CAD N/A
M270749D - M270710	Series N/A M270700	d - Bore N/A 17.6250 in447.675 mm	D - Cup Outer Diameter N/A 25.0000 in635.000 mm	B - Double Cone Width N/A 8.8125 in223.838 mm	C - Cup Width N/A 3.7500 in95.250 mm	T - Bearing Width across Cups N/A 8.8125 in223.838 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 191000 lbf849000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 1280000 lbf5700000 N	Bore Taper N/A	CAD N/A
M270749DGW - M270710	Series N/A M270700	d - Bore N/A 17.6250 in447.675 mm	D - Cup Outer Diameter N/A 25.0000 in635.000 mm	B - Double Cone Width N/A 8.8125 in223.838 mm	C - Cup Width N/A 3.7500 in95.250 mm	T - Bearing Width across Cups N/A 8.8125 in223.838 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 191000 lbf849000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 1280000 lbf5700000 N	Bore Taper N/A	CAD N/A
M270749DW - M270710	Series N/A M270700	d - Bore N/A 17.6250 in447.675 mm	D - Cup Outer Diameter N/A 25.0000 in635.000 mm	B - Double Cone Width N/A 8.8125 in223.838 mm	C - Cup Width N/A 3.7500 in95.250 mm	T - Bearing Width across Cups N/A 8.8125 in223.838 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 191000 lbf849000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 1280000 lbf5700000 N	Bore Taper N/A	CAD N/A
M270749XDGW - M270710	Series N/A M270700	d - Bore N/A 17.6250 in447.675 mm	D - Cup Outer Diameter N/A 25.0000 in635.000 mm	B - Double Cone Width N/A 8.8125 in223.838 mm	C - Cup Width N/A 3.7500 in95.250 mm	T - Bearing Width across Cups N/A 8.8125 in223.838 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 180000 lbf799000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 1210000 lbf5370000 N	Bore Taper N/A	CAD N/A
EE480181D - 480340	Series N/A 480000	d - Bore N/A 18.0000 in457.200 mm	D - Cup Outer Diameter N/A 33.9960 in863.498 mm	B - Double Cone Width N/A 14.5000 in368.300 mm	C - Cup Width N/A 5.7500 in146.050 mm	T - Bearing Width across Cups N/A 14.4999 in368.297 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 361000 lbf1600000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 2420000 lbf10800000 N	Bore Taper N/A	CAD N/A
M272749DGW - M272710	Series N/A M272700	d - Bore N/A 18.8750 in479.425 mm	D - Cup Outer Diameter N/A 26.7500 in679.450 mm	B - Double Cone Width N/A 9.3750 in238.125 mm	C - Cup Width N/A 4.0000 in101.600 mm	T - Bearing Width across Cups N/A 9.3749 in238.122 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 218000 lbf968000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 1460000 lbf6500000 N	Bore Taper N/A	CAD N/A
M272749DW - M272710	Series N/A M272700	d - Bore N/A 18.8750 in479.425 mm	D - Cup Outer Diameter N/A 26.7500 in679.450 mm	B - Double Cone Width N/A 9.3750 in238.125 mm	C - Cup Width N/A 4.0000 in101.600 mm	T - Bearing Width across Cups N/A 9.3749 in238.122 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 218000 lbf968000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 1460000 lbf6500000 N	Bore Taper N/A	CAD N/A
LM272249DW - LM272210	Series N/A LM272200	d - Bore N/A 19.0000 in482.600 mm	D - Cup Outer Diameter N/A 24.2500 in615.950 mm	B - Double Cone Width N/A 6.2500 in158.750 mm	C - Cup Width N/A 2.6250 in66.675 mm	T - Bearing Width across Cups N/A 6.2499 in158.747 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 98600 lbf439000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 662000 lbf2950000 N	Bore Taper N/A	CAD N/A
EE243193D - 243250	Series N/A 243000	d - Bore N/A 19.2530 in489.026 mm	D - Cup Outer Diameter N/A 24.9950 in634.873 mm	B - Double Cone Width N/A 6.0000 in152.400 mm	C - Cup Width N/A 2.5000 in63.500 mm	T - Bearing Width across Cups N/A 6.0000 in152.400 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 85500 lbf380000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 574000 lbf2560000 N	Bore Taper N/A	CAD N/A
LM772749DW - LM772710	Series N/A LM772700	d - Bore N/A 19.2530 in489.026 mm	D - Cup Outer Diameter N/A 24.9950 in634.873 mm	B - Double Cone Width N/A 6.0625 in153.988 mm	C - Cup Width N/A 2.4375 in61.913 mm	T - Bearing Width across Cups N/A 6.0625 in153.988 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 108000 lbf482000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 728000 lbf3240000 N	Bore Taper N/A	CAD N/A
M278749DW - M278710	Series N/A M278700	d - Bore N/A 22.5000 in571.500 mm	D - Cup Outer Diameter N/A 32.0000 in812.800 mm	B - Double Cone Width N/A 11.2500 in285.750 mm	C - Cup Width N/A 4.7500 in120.650 mm	T - Bearing Width across Cups N/A 11.2499 in285.747 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 264000 lbf1180000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 1770000 lbf7890000 N	Bore Taper N/A	CAD N/A
LM278848D - LM278810	Series N/A LM278800	d - Bore N/A 23.0625 in585.788 mm	D - Cup Outer Diameter N/A 30.3750 in771.525 mm	B - Double Cone Width N/A 9.0625 in230.188 mm	C - Cup Width N/A 3.8125 in96.838 mm	T - Bearing Width across Cups N/A 9.0624 in230.185 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 192000 lbf853000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 1290000 lbf5730000 N	Bore Taper N/A	CAD N/A
L281149D - L281110	Series N/A L281100	d - Bore N/A 26.0000 in660.400 mm	D - Cup Outer Diameter N/A 32.0000 in812.800 mm	B - Double Cone Width N/A 6.9375 in176.213 mm	C - Cup Width N/A 2.8750 in73.025 mm	T - Bearing Width across Cups N/A 6.9375 in176.213 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 159000 lbf709000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 1070000 lbf4760000 N	Bore Taper N/A	CAD N/A
M282249D - M282210	Series N/A M282200	d - Bore N/A 26.8750 in682.625 mm	D - Cup Outer Diameter N/A 38.0000 in965.200 mm	B - Double Cone Width N/A 13.3125 in338.138 mm	C - Cup Width N/A 5.6250 in142.875 mm	T - Bearing Width across Cups N/A 13.3124 in338.135 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 364000 lbf1620000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 2440000 lbf10900000 N	Bore Taper N/A	CAD N/A
LM282549D - LM282510	Series N/A LM282500	d - Bore N/A 27.8750 in708.025 mm	D - Cup Outer Diameter N/A 36.6250 in930.275 mm	B - Double Cone Width N/A 10.7500 in273.050 mm	C - Cup Width N/A 4.5625 in115.888 mm	T - Bearing Width across Cups N/A 10.7500 in273.050 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 270000 lbf1200000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 1810000 lbf8060000 N	Bore Taper N/A	CAD N/A
EE325296D - 325420	Series N/A 325000	d - Bore N/A 29.5000 in749.300 mm	D - Cup Outer Diameter N/A 42.0000 in1066.800 mm	B - Double Cone Width N/A 13.7500 in349.250 mm	C - Cup Width N/A 6.0000 in152.400 mm	T - Bearing Width across Cups N/A 14.2500 in361.950 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 415000 lbf1850000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 2790000 lbf12400000 N	Bore Taper N/A	CAD N/A
EE433301D - 433512	Series N/A 433000	d - Bore N/A 30.0000 in762.000 mm	D - Cup Outer Diameter N/A 51.0000 in1295.400 mm	B - Double Cone Width N/A 12.2500 in311.150 mm	C - Cup Width N/A 5.1250 in130.175 mm	T - Bearing Width across Cups N/A 12.2500 in311.150 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 434000 lbf1930000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 2910000 lbf13000000 N	Bore Taper N/A	CAD N/A

Timken Part Number	Series	d - Bore	D - Cup Outer Diameter	B - Double Cone Width	C - Cup Width	T - Bearing Width across Cups	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)	Bore Taper	CAD

LM287649D - LM287610	Series N/A LM287600	d - Bore N/A 36.9375 in938.213 mm	D - Cup Outer Diameter N/A 50.0000 in1270.000 mm	B - Double Cone Width N/A 15.7500 in400.050 mm	C - Cup Width N/A 6.6875 in169.863 mm	T - Bearing Width across Cups N/A 15.7499 in400.047 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 532000 lbf2360000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 3570000 lbf15900000 N	Bore Taper N/A	CAD N/A

19145D - 19282	Series N/A 19000	d - Bore N/A 1.4375 in36.513 mm	D - Cup Outer Diameter N/A 2.8125 in71.438 mm	B - Double Cone Width N/A 1.5000 in38.100 mm	C - Cup Width N/A 0.6250 in15.875 mm	T - Bearing Width across Cups N/A 1.5741 in39.982 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 2960 lbf13100 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 19800 lbf88300 N	Bore Taper N/A
19145D - 19281	Series N/A 19000	d - Bore N/A 1.4375 in36.513 mm	D - Cup Outer Diameter N/A 2.8125 in71.438 mm	B - Double Cone Width N/A 1.5000 in38.100 mm	C - Cup Width N/A 0.4688 in11.908 mm	T - Bearing Width across Cups N/A 1.4491 in36.807 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 2960 lbf13100 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 19800 lbf88300 N	Bore Taper N/A
19145D - 19283X	Series N/A 19000	d - Bore N/A 1.4375 in36.513 mm	D - Cup Outer Diameter N/A 2.8346 in71.999 mm	B - Double Cone Width N/A 1.5000 in38.100 mm	C - Cup Width N/A 0.5625 in14.288 mm	T - Bearing Width across Cups N/A 1.5391 in39.093 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 2960 lbf13100 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 19800 lbf88300 N	Bore Taper N/A
19145D - 19283	Series N/A 19000	d - Bore N/A 1.4375 in36.513 mm	D - Cup Outer Diameter N/A 2.8346 in71.999 mm	B - Double Cone Width N/A 1.5000 in38.100 mm	C - Cup Width N/A 0.5625 in14.288 mm	T - Bearing Width across Cups N/A 1.5391 in39.093 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 2960 lbf13100 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 19800 lbf88300 N	Bore Taper N/A
19152D - 19262	Series N/A 19000	d - Bore N/A 1.5 in38.1 mm	D - Cup Outer Diameter N/A 2.6250 in66.675 mm	B - Double Cone Width N/A 1.9370 in49.200 mm	C - Cup Width N/A 0.4688 in11.908 mm	T - Bearing Width across Cups N/A 1.4491 in36.807 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 2960 lbf13100 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 19800 lbf88300 N	Bore Taper N/A
19152D - 19268	Series N/A 19000	d - Bore N/A 1.5 in38.1 mm	D - Cup Outer Diameter N/A 2.6875 in68.263 mm	B - Double Cone Width N/A 1.9370 in49.200 mm	C - Cup Width N/A 0.4688 in11.908 mm	T - Bearing Width across Cups N/A 1.4491 in36.807 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 2960 lbf13100 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 19800 lbf88300 N	Bore Taper N/A
19152D - 19269	Series N/A 19000	d - Bore N/A 1.5 in38.1 mm	D - Cup Outer Diameter N/A 2.6875 in68.263 mm	B - Double Cone Width N/A 1.9370 in49.200 mm	C - Cup Width N/A 0.6311 in16.030 mm	T - Bearing Width across Cups N/A 1.7737 in45.052 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 2960 lbf13100 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 19800 lbf88300 N	Bore Taper N/A
19152D - 19282	Series N/A 19000	d - Bore N/A 1.5 in38.1 mm	D - Cup Outer Diameter N/A 2.8125 in71.438 mm	B - Double Cone Width N/A 1.9370 in49.200 mm	C - Cup Width N/A 0.6250 in15.875 mm	T - Bearing Width across Cups N/A 1.5741 in39.982 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 2960 lbf13100 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 19800 lbf88300 N	Bore Taper N/A
19152D - 19281	Series N/A 19000	d - Bore N/A 1.5 in38.1 mm	D - Cup Outer Diameter N/A 2.8125 in71.438 mm	B - Double Cone Width N/A 1.9370 in49.200 mm	C - Cup Width N/A 0.4688 in11.908 mm	T - Bearing Width across Cups N/A 1.4491 in36.807 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 2960 lbf13100 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 19800 lbf88300 N	Bore Taper N/A
19152D - 19283	Series N/A 19000	d - Bore N/A 1.5 in38.1 mm	D - Cup Outer Diameter N/A 2.8346 in71.999 mm	B - Double Cone Width N/A 1.9370 in49.200 mm	C - Cup Width N/A 0.5625 in14.288 mm	T - Bearing Width across Cups N/A 1.5391 in39.093 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 2960 lbf13100 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 19800 lbf88300 N	Bore Taper N/A
19152D - 19283X	Series N/A 19000	d - Bore N/A 1.5 in38.1 mm	D - Cup Outer Diameter N/A 2.8346 in71.999 mm	B - Double Cone Width N/A 1.9370 in49.200 mm	C - Cup Width N/A 0.5625 in14.288 mm	T - Bearing Width across Cups N/A 1.5391 in39.093 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 2960 lbf13100 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 19800 lbf88300 N	Bore Taper N/A
357DW - 354X	Series N/A 355	d - Bore N/A 1.6875 in42.863 mm	D - Cup Outer Diameter N/A 3.3465 in85.001 mm	B - Double Cone Width N/A 2.5620 in65.075 mm	C - Cup Width N/A 0.6875 in17.463 mm	T - Bearing Width across Cups N/A 1.9788 in50.262 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 4770 lbf21200 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 32000 lbf142000 N	Bore Taper N/A
357DW - 354	Series N/A 355	d - Bore N/A 1.6875 in42.863 mm	D - Cup Outer Diameter N/A 3.3465 in85.001 mm	B - Double Cone Width N/A 2.5620 in65.075 mm	C - Cup Width N/A 0.7480 in18.999 mm	T - Bearing Width across Cups N/A 1.8500 in46.990 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 4770 lbf21200 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 32000 lbf142000 N	Bore Taper N/A
357DW - 354A	Series N/A 355	d - Bore N/A 1.6875 in42.863 mm	D - Cup Outer Diameter N/A 3.3465 in85.001 mm	B - Double Cone Width N/A 2.5620 in65.075 mm	C - Cup Width N/A 0.6875 in17.463 mm	T - Bearing Width across Cups N/A 1.9788 in50.262 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 4770 lbf21200 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 32000 lbf142000 N	Bore Taper N/A
358D - 354A	Series N/A 355	d - Bore N/A 1.6875 in42.863 mm	D - Cup Outer Diameter N/A 3.3465 in85.001 mm	B - Double Cone Width N/A 2.0620 in52.375 mm	C - Cup Width N/A 0.6875 in17.463 mm	T - Bearing Width across Cups N/A 1.9788 in50.262 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 4770 lbf21200 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 32000 lbf142000 N	Bore Taper N/A
358D - 354X	Series N/A 355	d - Bore N/A 1.6875 in42.863 mm	D - Cup Outer Diameter N/A 3.3465 in85.001 mm	B - Double Cone Width N/A 2.0620 in52.375 mm	C - Cup Width N/A 0.6875 in17.463 mm	T - Bearing Width across Cups N/A 1.9788 in50.262 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 4770 lbf21200 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 32000 lbf142000 N	Bore Taper N/A
358D - 354	Series N/A 355	d - Bore N/A 1.6875 in42.863 mm	D - Cup Outer Diameter N/A 3.3465 in85.001 mm	B - Double Cone Width N/A 2.0620 in52.375 mm	C - Cup Width N/A 0.7480 in18.999 mm	T - Bearing Width across Cups N/A 1.8500 in46.990 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 4770 lbf21200 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 32000 lbf142000 N	Bore Taper N/A
357DW - 352A	Series N/A 355	d - Bore N/A 1.6875 in42.863 mm	D - Cup Outer Diameter N/A 3.4990 in88.875 mm	B - Double Cone Width N/A 2.5620 in65.075 mm	C - Cup Width N/A 0.8586 in21.808 mm	T - Bearing Width across Cups N/A 2.1649 in54.988 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 4770 lbf21200 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 32000 lbf142000 N	Bore Taper N/A
358D - 352A	Series N/A 355	d - Bore N/A 1.6875 in42.863 mm	D - Cup Outer Diameter N/A 3.4990 in88.875 mm	B - Double Cone Width N/A 2.0620 in52.375 mm	C - Cup Width N/A 0.8586 in21.808 mm	T - Bearing Width across Cups N/A 2.1649 in54.988 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 4770 lbf21200 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 32000 lbf142000 N	Bore Taper N/A
357DW - 353	Series N/A 355	d - Bore N/A 1.6875 in42.863 mm	D - Cup Outer Diameter N/A 3.5433 in90.000 mm	B - Double Cone Width N/A 2.5620 in65.075 mm	C - Cup Width N/A 0.9055 in23.000 mm	T - Bearing Width across Cups N/A 2.1650 in54.991 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 4770 lbf21200 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 32000 lbf142000 N	Bore Taper N/A
357DW - 352X	Series N/A 355	d - Bore N/A 1.6875 in42.863 mm	D - Cup Outer Diameter N/A 3.5433 in90.000 mm	B - Double Cone Width N/A 2.5620 in65.075 mm	C - Cup Width N/A 0.8586 in21.808 mm	T - Bearing Width across Cups N/A 2.1649 in54.988 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 4770 lbf21200 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 32000 lbf142000 N	Bore Taper N/A
358D - 352X	Series N/A 355	d - Bore N/A 1.6875 in42.863 mm	D - Cup Outer Diameter N/A 3.5433 in90.000 mm	B - Double Cone Width N/A 2.0620 in52.375 mm	C - Cup Width N/A 0.8586 in21.808 mm	T - Bearing Width across Cups N/A 2.1649 in54.988 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 4770 lbf21200 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 32000 lbf142000 N	Bore Taper N/A
358D - 353	Series N/A 355	d - Bore N/A 1.6875 in42.863 mm	D - Cup Outer Diameter N/A 3.5433 in90.000 mm	B - Double Cone Width N/A 2.0620 in52.375 mm	C - Cup Width N/A 0.9055 in23.000 mm	T - Bearing Width across Cups N/A 2.1650 in54.991 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 4770 lbf21200 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 32000 lbf142000 N	Bore Taper N/A
357DW - 352	Series N/A 355	d - Bore N/A 1.6875 in42.863 mm	D - Cup Outer Diameter N/A 3.5480 in90.119 mm	B - Double Cone Width N/A 2.5620 in65.075 mm	C - Cup Width N/A 0.8586 in21.808 mm	T - Bearing Width across Cups N/A 2.1649 in54.988 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 4770 lbf21200 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 32000 lbf142000 N	Bore Taper N/A
358D - 352	Series N/A 355	d - Bore N/A 1.6875 in42.863 mm	D - Cup Outer Diameter N/A 3.5480 in90.119 mm	B - Double Cone Width N/A 2.0620 in52.375 mm	C - Cup Width N/A 0.8586 in21.808 mm	T - Bearing Width across Cups N/A 2.1649 in54.988 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 4770 lbf21200 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 32000 lbf142000 N	Bore Taper N/A

13176D - 13318	Series N/A 13000	d - Bore N/A 1.7500 in44.450 mm	D - Cup Outer Diameter N/A 3.1875 in80.963 mm	B - Double Cone Width N/A 1.2500 in31.750 mm	C - Cup Width N/A 0.5625 in14.288 mm	T - Bearing Width across Cups N/A 1.3749 in34.922 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 2960 lbf13200 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 19900 lbf88500 N	Bore Taper N/A
13182D - 13318	Series N/A 13000	d - Bore N/A 1.8125 in46.038 mm	D - Cup Outer Diameter N/A 3.1875 in80.963 mm	B - Double Cone Width N/A 1.2500 in31.750 mm	C - Cup Width N/A 0.5625 in14.288 mm	T - Bearing Width across Cups N/A 1.3749 in34.922 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 2960 lbf13200 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 19900 lbf88500 N	Bore Taper N/A
376DE - 374	Series N/A 375	d - Bore N/A 1.8750 in47.625 mm	D - Cup Outer Diameter N/A 3.6718 in93.264 mm	B - Double Cone Width N/A 2.0940 in53.188 mm	C - Cup Width N/A 0.5938 in15.083 mm	T - Bearing Width across Cups N/A 1.9689 in50.010 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5120 lbf22800 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 34400 lbf153000 N	Bore Taper N/A
376DE - 372A	Series N/A 375	d - Bore N/A 1.8750 in47.625 mm	D - Cup Outer Diameter N/A 3.8125 in96.838 mm	B - Double Cone Width N/A 2.0940 in53.188 mm	C - Cup Width N/A 0.7500 in19.050 mm	T - Bearing Width across Cups N/A 2.0939 in53.185 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5120 lbf22800 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 34400 lbf153000 N	Bore Taper N/A
376DE - 372	Series N/A 375	d - Bore N/A 1.8750 in47.625 mm	D - Cup Outer Diameter N/A 3.9370 in100.000 mm	B - Double Cone Width N/A 2.0940 in53.188 mm	C - Cup Width N/A 0.8592 in21.824 mm	T - Bearing Width across Cups N/A 2.3123 in58.732 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5120 lbf22800 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 34400 lbf153000 N	Bore Taper N/A
378DE - 374	Series N/A 375	d - Bore N/A 1.9375 in49.213 mm	D - Cup Outer Diameter N/A 3.6718 in93.264 mm	B - Double Cone Width N/A 2.0940 in53.188 mm	C - Cup Width N/A 0.5938 in15.083 mm	T - Bearing Width across Cups N/A 1.9689 in50.010 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5120 lbf22800 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 34400 lbf153000 N	Bore Taper N/A
378DW - 374	Series N/A 375	d - Bore N/A 1.9375 in49.213 mm	D - Cup Outer Diameter N/A 3.6718 in93.264 mm	B - Double Cone Width N/A 2.6570 in67.488 mm	C - Cup Width N/A 0.5938 in15.083 mm	T - Bearing Width across Cups N/A 1.9689 in50.010 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5120 lbf22800 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 34400 lbf153000 N	Bore Taper N/A
378DE - 372A	Series N/A 375	d - Bore N/A 1.9375 in49.213 mm	D - Cup Outer Diameter N/A 3.8125 in96.838 mm	B - Double Cone Width N/A 2.0940 in53.188 mm	C - Cup Width N/A 0.7500 in19.050 mm	T - Bearing Width across Cups N/A 2.0939 in53.185 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5120 lbf22800 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 34400 lbf153000 N	Bore Taper N/A
378DW - 372A	Series N/A 375	d - Bore N/A 1.9375 in49.213 mm	D - Cup Outer Diameter N/A 3.8125 in96.838 mm	B - Double Cone Width N/A 2.6570 in67.488 mm	C - Cup Width N/A 0.7500 in19.050 mm	T - Bearing Width across Cups N/A 2.0939 in53.185 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5120 lbf22800 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 34400 lbf153000 N	Bore Taper N/A
378DE - 372	Series N/A 375	d - Bore N/A 1.9375 in49.213 mm	D - Cup Outer Diameter N/A 3.9370 in100.000 mm	B - Double Cone Width N/A 2.0940 in53.188 mm	C - Cup Width N/A 0.8592 in21.824 mm	T - Bearing Width across Cups N/A 2.3123 in58.732 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5120 lbf22800 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 34400 lbf153000 N	Bore Taper N/A
378DW - 372	Series N/A 375	d - Bore N/A 1.9375 in49.213 mm	D - Cup Outer Diameter N/A 3.9370 in100.000 mm	B - Double Cone Width N/A 2.6570 in67.488 mm	C - Cup Width N/A 0.8592 in21.824 mm	T - Bearing Width across Cups N/A 2.3123 in58.732 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5120 lbf22800 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 34400 lbf153000 N	Bore Taper N/A
375D - 374	Series N/A 375	d - Bore N/A 2 in50.8 mm	D - Cup Outer Diameter N/A 3.6718 in93.264 mm	B - Double Cone Width N/A 2.0940 in53.188 mm	C - Cup Width N/A 0.5938 in15.083 mm	T - Bearing Width across Cups N/A 1.9689 in50.010 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5120 lbf22800 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 34400 lbf153000 N	Bore Taper N/A
375D - 372A	Series N/A 375	d - Bore N/A 2 in50.8 mm	D - Cup Outer Diameter N/A 3.8125 in96.838 mm	B - Double Cone Width N/A 2.0940 in53.188 mm	C - Cup Width N/A 0.7500 in19.050 mm	T - Bearing Width across Cups N/A 2.0939 in53.185 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5120 lbf22800 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 34400 lbf153000 N	Bore Taper N/A
375D - 372	Series N/A 375	d - Bore N/A 2 in50.8 mm	D - Cup Outer Diameter N/A 3.9370 in100.000 mm	B - Double Cone Width N/A 2.0940 in53.188 mm	C - Cup Width N/A 0.8592 in21.824 mm	T - Bearing Width across Cups N/A 2.3123 in58.732 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5120 lbf22800 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 34400 lbf153000 N	Bore Taper N/A
389DE - 382A	Series N/A 385	d - Bore N/A 2.1875 in55.563 mm	D - Cup Outer Diameter N/A 3.8125 in96.838 mm	B - Double Cone Width N/A 2.0940 in53.188 mm	C - Cup Width N/A 0.6250 in15.875 mm	T - Bearing Width across Cups N/A 2.0195 in51.295 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5300 lbf23600 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 35600 lbf158000 N	Bore Taper N/A
389DE - 382	Series N/A 385	d - Bore N/A 2.1875 in55.563 mm	D - Cup Outer Diameter N/A 3.8750 in98.425 mm	B - Double Cone Width N/A 2.0940 in53.188 mm	C - Cup Width N/A 0.7018 in17.826 mm	T - Bearing Width across Cups N/A 2.0195 in51.295 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5300 lbf23600 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 35600 lbf158000 N	Bore Taper N/A
389DE - 383	Series N/A 385	d - Bore N/A 2.1875 in55.563 mm	D - Cup Outer Diameter N/A 3.9370 in100.000 mm	B - Double Cone Width N/A 2.0940 in53.188 mm	C - Cup Width N/A 0.8268 in21.001 mm	T - Bearing Width across Cups N/A 2.0195 in51.295 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5300 lbf23600 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 35600 lbf158000 N	Bore Taper N/A
389DE - 383A	Series N/A 385	d - Bore N/A 2.1875 in55.563 mm	D - Cup Outer Diameter N/A 3.9370 in100.000 mm	B - Double Cone Width N/A 2.0940 in53.188 mm	C - Cup Width N/A 0.7018 in17.826 mm	T - Bearing Width across Cups N/A 2.0195 in51.295 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5300 lbf23600 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 35600 lbf158000 N	Bore Taper N/A
389DE - 383X	Series N/A 385	d - Bore N/A 2.1875 in55.563 mm	D - Cup Outer Diameter N/A 3.9370 in100.000 mm	B - Double Cone Width N/A 2.0940 in53.188 mm	C - Cup Width N/A 0.8750 in22.225 mm	T - Bearing Width across Cups N/A 2.3659 in60.094 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5300 lbf23600 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 35600 lbf158000 N	Bore Taper N/A
388TD - 382A	Series N/A 385	d - Bore N/A 2.2651 in57.534 mm	D - Cup Outer Diameter N/A 3.8125 in96.838 mm	B - Double Cone Width N/A 2.0940 in53.188 mm	C - Cup Width N/A 0.6250 in15.875 mm	T - Bearing Width across Cups N/A 2.0195 in51.295 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5010 lbf22300 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 33600 lbf150000 N	Bore Taper N/A
388TD - 382	Series N/A 385	d - Bore N/A 2.2651 in57.534 mm	D - Cup Outer Diameter N/A 3.8750 in98.425 mm	B - Double Cone Width N/A 2.0940 in53.188 mm	C - Cup Width N/A 0.7018 in17.826 mm	T - Bearing Width across Cups N/A 2.0195 in51.295 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5010 lbf22300 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 33600 lbf150000 N	Bore Taper N/A
388TD - 383	Series N/A 385	d - Bore N/A 2.2651 in57.534 mm	D - Cup Outer Diameter N/A 3.9370 in100.000 mm	B - Double Cone Width N/A 2.0940 in53.188 mm	C - Cup Width N/A 0.8268 in21.001 mm	T - Bearing Width across Cups N/A 2.0195 in51.295 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5010 lbf22300 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 33600 lbf150000 N	Bore Taper N/A
388TD - 383X	Series N/A 385	d - Bore N/A 2.2651 in57.534 mm	D - Cup Outer Diameter N/A 3.9370 in100.000 mm	B - Double Cone Width N/A 2.0940 in53.188 mm	C - Cup Width N/A 0.8750 in22.225 mm	T - Bearing Width across Cups N/A 2.3659 in60.094 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5010 lbf22300 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 33600 lbf150000 N	Bore Taper N/A
388TD - 383A	Series N/A 385	d - Bore N/A 2.2651 in57.534 mm	D - Cup Outer Diameter N/A 3.9370 in100.000 mm	B - Double Cone Width N/A 2.0940 in53.188 mm	C - Cup Width N/A 0.7018 in17.826 mm	T - Bearing Width across Cups N/A 2.0195 in51.295 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5010 lbf22300 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 33600 lbf150000 N	Bore Taper N/A
392DW - 394XS	Series N/A 395	d - Bore N/A 2.4375 in61.913 mm	D - Cup Outer Diameter N/A 4.3301 in109.985 mm	B - Double Cone Width N/A 2.8750 in73.025 mm	C - Cup Width N/A 0.7480 in18.999 mm	T - Bearing Width across Cups N/A 2.3247 in59.047 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5440 lbf24200 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 36600 lbf163000 N	Bore Taper N/A

399D - 394XS	Series N/A 395	d - Bore N/A 2.4375 in61.913 mm	D - Cup Outer Diameter N/A 4.3301 in109.985 mm	B - Double Cone Width N/A 2.1870 in55.550 mm	C - Cup Width N/A 0.7480 in18.999 mm	T - Bearing Width across Cups N/A 2.3247 in59.047 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5760 lbf25600 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 38700 lbf172000 N	Bore Taper N/A
392DW - 394ARB	Series N/A 395	d - Bore N/A 2.4375 in61.913 mm	D - Cup Outer Diameter N/A 4.3307 in110.000 mm	B - Double Cone Width N/A 2.8750 in73.025 mm	C - Cup Width N/A 0.7411 in18.824 mm	T - Bearing Width across Cups N/A 2.1869 in55.547 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5440 lbf24200 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 36600 lbf163000 N	Bore Taper N/A
392DW - 394AS	Series N/A 395	d - Bore N/A 2.4375 in61.913 mm	D - Cup Outer Diameter N/A 4.3307 in110.000 mm	B - Double Cone Width N/A 2.8750 in73.025 mm	C - Cup Width N/A 0.7411 in18.824 mm	T - Bearing Width across Cups N/A 2.1869 in55.547 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5440 lbf24200 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 36600 lbf163000 N	Bore Taper N/A
392DW - 394A	Series N/A 395	d - Bore N/A 2.4375 in61.913 mm	D - Cup Outer Diameter N/A 4.3307 in110.000 mm	B - Double Cone Width N/A 2.8750 in73.025 mm	C - Cup Width N/A 0.7411 in18.824 mm	T - Bearing Width across Cups N/A 2.1869 in55.547 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5440 lbf24200 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 36600 lbf163000 N	Bore Taper N/A
392DW - 394	Series N/A 395	d - Bore N/A 2.4375 in61.913 mm	D - Cup Outer Diameter N/A 4.3307 in110.000 mm	B - Double Cone Width N/A 2.8750 in73.025 mm	C - Cup Width N/A 0.8661 in21.999 mm	T - Bearing Width across Cups N/A 2.1869 in55.547 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5440 lbf24200 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 36600 lbf163000 N	Bore Taper N/A
399D - 394AS	Series N/A 395	d - Bore N/A 2.4375 in61.913 mm	D - Cup Outer Diameter N/A 4.3307 in110.000 mm	B - Double Cone Width N/A 2.1870 in55.550 mm	C - Cup Width N/A 0.7411 in18.824 mm	T - Bearing Width across Cups N/A 2.1869 in55.547 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5760 lbf25600 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 38700 lbf172000 N	Bore Taper N/A
399D - 394ARB	Series N/A 395	d - Bore N/A 2.4375 in61.913 mm	D - Cup Outer Diameter N/A 4.3307 in110.000 mm	B - Double Cone Width N/A 2.1870 in55.550 mm	C - Cup Width N/A 0.7411 in18.824 mm	T - Bearing Width across Cups N/A 2.1869 in55.547 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5760 lbf25600 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 38700 lbf172000 N	Bore Taper N/A
399D - 394A	Series N/A 395	d - Bore N/A 2.4375 in61.913 mm	D - Cup Outer Diameter N/A 4.3307 in110.000 mm	B - Double Cone Width N/A 2.1870 in55.550 mm	C - Cup Width N/A 0.7411 in18.824 mm	T - Bearing Width across Cups N/A 2.1869 in55.547 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5760 lbf25600 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 38700 lbf172000 N	Bore Taper N/A
399D - 394	Series N/A 395	d - Bore N/A 2.4375 in61.913 mm	D - Cup Outer Diameter N/A 4.3307 in110.000 mm	B - Double Cone Width N/A 2.1870 in55.550 mm	C - Cup Width N/A 0.8661 in21.999 mm	T - Bearing Width across Cups N/A 2.1869 in55.547 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5760 lbf25600 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 38700 lbf172000 N	Bore Taper N/A
399D - 393	Series N/A 395	d - Bore N/A 2.4375 in61.913 mm	D - Cup Outer Diameter N/A 4.3307 in110.000 mm	B - Double Cone Width N/A 2.1870 in55.550 mm	C - Cup Width N/A 1.063 in27 mm	T - Bearing Width across Cups N/A 2.5807 in65.550 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5760 lbf25600 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 38700 lbf172000 N	Bore Taper N/A
392DW - 393AS	Series N/A 395	d - Bore N/A 2.4375 in61.913 mm	D - Cup Outer Diameter N/A 4.3750 in111.125 mm	B - Double Cone Width N/A 2.8750 in73.025 mm	C - Cup Width N/A 0.7411 in18.824 mm	T - Bearing Width across Cups N/A 2.1869 in55.547 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5440 lbf24200 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 36600 lbf163000 N	Bore Taper N/A
399D - 393AS	Series N/A 395	d - Bore N/A 2.4375 in61.913 mm	D - Cup Outer Diameter N/A 4.3750 in111.125 mm	B - Double Cone Width N/A 2.1870 in55.550 mm	C - Cup Width N/A 0.7411 in18.824 mm	T - Bearing Width across Cups N/A 2.1869 in55.547 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5760 lbf25600 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 38700 lbf172000 N	Bore Taper N/A
392DW - 393A	Series N/A 395	d - Bore N/A 2.4375 in61.913 mm	D - Cup Outer Diameter N/A 4.4375 in112.713 mm	B - Double Cone Width N/A 2.8750 in73.025 mm	C - Cup Width N/A 0.6250 in15.875 mm	T - Bearing Width across Cups N/A 2.2047 in55.999 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5440 lbf24200 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 36600 lbf163000 N	Bore Taper N/A
399D - 393A	Series N/A 395	d - Bore N/A 2.4375 in61.913 mm	D - Cup Outer Diameter N/A 4.4375 in112.713 mm	B - Double Cone Width N/A 2.1870 in55.550 mm	C - Cup Width N/A 0.6250 in15.875 mm	T - Bearing Width across Cups N/A 2.2047 in55.999 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5760 lbf25600 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 38700 lbf172000 N	Bore Taper N/A
392DW - 394CS	Series N/A 395	d - Bore N/A 2.4375 in61.913 mm	D - Cup Outer Diameter N/A 4.4680 in113.487 mm	B - Double Cone Width N/A 2.8750 in73.025 mm	C - Cup Width N/A 0.7411 in18.824 mm	T - Bearing Width across Cups N/A 2.1869 in55.547 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5440 lbf24200 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 36600 lbf163000 N	Bore Taper N/A
392DW - 393C	Series N/A 395	d - Bore N/A 2.4375 in61.913 mm	D - Cup Outer Diameter N/A 4.4680 in113.487 mm	B - Double Cone Width N/A 2.8750 in73.025 mm	C - Cup Width N/A 0.8060 in20.472 mm	T - Bearing Width across Cups N/A 2.3167 in58.844 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5440 lbf24200 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 36600 lbf163000 N	Bore Taper N/A
399D - 394CS	Series N/A 395	d - Bore N/A 2.4375 in61.913 mm	D - Cup Outer Diameter N/A 4.4680 in113.487 mm	B - Double Cone Width N/A 2.1870 in55.550 mm	C - Cup Width N/A 0.7411 in18.824 mm	T - Bearing Width across Cups N/A 2.1869 in55.547 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5760 lbf25600 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 38700 lbf172000 N	Bore Taper N/A
399D - 393C	Series N/A 395	d - Bore N/A 2.4375 in61.913 mm	D - Cup Outer Diameter N/A 4.4680 in113.487 mm	B - Double Cone Width N/A 2.1870 in55.550 mm	C - Cup Width N/A 0.8060 in20.472 mm	T - Bearing Width across Cups N/A 2.3167 in58.844 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5760 lbf25600 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 38700 lbf172000 N	Bore Taper N/A
399D - 393WE	Series N/A 395	d - Bore N/A 2.4375 in61.913 mm	D - Cup Outer Diameter N/A 4.5900 in116.586 mm	B - Double Cone Width N/A 2.1870 in55.550 mm	C - Cup Width N/A 1.1859 in30.122 mm	T - Bearing Width across Cups N/A 3.0765 in78.143 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5760 lbf25600 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 38700 lbf172000 N	Bore Taper N/A
39585D - 39520XX	Series N/A 39500	d - Bore N/A 2.5000 in63.500 mm	D - Cup Outer Diameter N/A 4.4375 in112.713 mm	B - Double Cone Width N/A 2.3750 in60.325 mm	C - Cup Width N/A 0.9375 in23.813 mm	T - Bearing Width across Cups N/A 2.3750 in60.325 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 9730 lbf43300 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 65300 lbf291000 N	Bore Taper N/A
39585D - 39521	Series N/A 39500	d - Bore N/A 2.5000 in63.500 mm	D - Cup Outer Diameter N/A 4.4375 in112.713 mm	B - Double Cone Width N/A 2.3750 in60.325 mm	C - Cup Width N/A 0.9375 in23.813 mm	T - Bearing Width across Cups N/A 2.3750 in60.325 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 9730 lbf43300 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 65300 lbf291000 N	Bore Taper N/A
39585D - 39522	Series N/A 39500	d - Bore N/A 2.5000 in63.500 mm	D - Cup Outer Diameter N/A 4.4375 in112.713 mm	B - Double Cone Width N/A 2.3750 in60.325 mm	C - Cup Width N/A 1.1875 in30.163 mm	T - Bearing Width across Cups N/A 2.8750 in73.025 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 9730 lbf43300 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 65300 lbf291000 N	Bore Taper N/A
39585D - 39520P	Series N/A 39500	d - Bore N/A 2.5000 in63.500 mm	D - Cup Outer Diameter N/A 4.4375 in112.713 mm	B - Double Cone Width N/A 2.3750 in60.325 mm	C - Cup Width N/A 0.9375 in23.813 mm	T - Bearing Width across Cups N/A 2.3750 in60.325 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 9730 lbf43300 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 65300 lbf291000 N	Bore Taper N/A
39585D - 39520	Series N/A 39500	d - Bore N/A 2.5000 in63.500 mm	D - Cup Outer Diameter N/A 4.4375 in112.713 mm	B - Double Cone Width N/A 2.3750 in60.325 mm	C - Cup Width N/A 0.9375 in23.813 mm	T - Bearing Width across Cups N/A 2.3750 in60.325 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 9730 lbf43300 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 65300 lbf291000 N	Bore Taper N/A
39585D - 39528	Series N/A 39500	d - Bore N/A 2.5000 in63.500 mm	D - Cup Outer Diameter N/A 4.7238 in119.985 mm	B - Double Cone Width N/A 2.3750 in60.325 mm	C - Cup Width N/A 1.0610 in26.949 mm	T - Bearing Width across Cups N/A 2.5787 in65.499 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 9730 lbf43300 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 65300 lbf291000 N	Bore Taper N/A

78251D - 78537	Series N/A 78000	d - Bore N/A 2.5000 in63.500 mm	D - Cup Outer Diameter N/A 5.3750 in136.525 mm	B - Double Cone Width N/A 2.5980 in65.989 mm	C - Cup Width N/A 0.9260 in23.520 mm	T - Bearing Width across Cups N/A 2.6020 in66.091 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 9970 lbf44300 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 66900 lbf298000 N	Bore Taper N/A
78251D - 78551	Series N/A 78000	d - Bore N/A 2.5000 in63.500 mm	D - Cup Outer Diameter N/A 5.5130 in140.030 mm	B - Double Cone Width N/A 2.5980 in65.989 mm	C - Cup Width N/A 0.9260 in23.520 mm	T - Bearing Width across Cups N/A 2.6020 in66.091 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 9970 lbf44300 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 66900 lbf298000 N	Bore Taper N/A
78251D - 78571	Series N/A 78000	d - Bore N/A 2.5000 in63.500 mm	D - Cup Outer Diameter N/A 5.7080 in144.983 mm	B - Double Cone Width N/A 2.5980 in65.989 mm	C - Cup Width N/A 0.9058 in23.007 mm	T - Bearing Width across Cups N/A 2.5616 in65.065 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 9970 lbf44300 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 66900 lbf298000 N	Bore Taper N/A
78255D - 78537	Series N/A 78000	d - Bore N/A 2.5586 in64.988 mm	D - Cup Outer Diameter N/A 5.3750 in136.525 mm	B - Double Cone Width N/A 2.5980 in65.989 mm	C - Cup Width N/A 0.9260 in23.520 mm	T - Bearing Width across Cups N/A 2.6020 in66.091 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 9970 lbf44300 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 66900 lbf298000 N	Bore Taper N/A
78255D - 78551	Series N/A 78000	d - Bore N/A 2.5586 in64.988 mm	D - Cup Outer Diameter N/A 5.5130 in140.030 mm	B - Double Cone Width N/A 2.5980 in65.989 mm	C - Cup Width N/A 0.9260 in23.520 mm	T - Bearing Width across Cups N/A 2.6020 in66.091 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 9970 lbf44300 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 66900 lbf298000 N	Bore Taper N/A
78255D - 78571	Series N/A 78000	d - Bore N/A 2.5586 in64.988 mm	D - Cup Outer Diameter N/A 5.7080 in144.983 mm	B - Double Cone Width N/A 2.5980 in65.989 mm	C - Cup Width N/A 0.9058 in23.007 mm	T - Bearing Width across Cups N/A 2.5616 in65.065 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 9970 lbf44300 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 66900 lbf298000 N	Bore Taper N/A
487TD - 473	Series N/A 475	d - Bore N/A 2.8375 in72.073 mm	D - Cup Outer Diameter N/A 4.7244 in120.000 mm	B - Double Cone Width N/A 2.6590 in67.539 mm	C - Cup Width N/A 1.1417 in28.999 mm	T - Bearing Width across Cups N/A 2.7180 in69.037 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 7890 lbf35100 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 53000 lbf236000 N	Bore Taper N/A
487TD - 472	Series N/A 475	d - Bore N/A 2.8375 in72.073 mm	D - Cup Outer Diameter N/A 4.7244 in120.000 mm	B - Double Cone Width N/A 2.6590 in67.539 mm	C - Cup Width N/A 0.9542 in24.237 mm	T - Bearing Width across Cups N/A 2.7180 in69.037 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 7890 lbf35100 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 53000 lbf236000 N	Bore Taper N/A
487TD - 472A	Series N/A 475	d - Bore N/A 2.8375 in72.073 mm	D - Cup Outer Diameter N/A 4.7244 in120.000 mm	B - Double Cone Width N/A 2.6590 in67.539 mm	C - Cup Width N/A 0.9230 in23.444 mm	T - Bearing Width across Cups N/A 2.6556 in67.452 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 7890 lbf35100 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 53000 lbf236000 N	Bore Taper N/A
487TD - 472X	Series N/A 475	d - Bore N/A 2.8375 in72.073 mm	D - Cup Outer Diameter N/A 4.8750 in123.825 mm	B - Double Cone Width N/A 2.6590 in67.539 mm	C - Cup Width N/A 0.9687 in24.605 mm	T - Bearing Width across Cups N/A 2.7470 in69.774 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 7890 lbf35100 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 53000 lbf236000 N	Bore Taper N/A
487TD - 474	Series N/A 475	d - Bore N/A 2.8375 in72.073 mm	D - Cup Outer Diameter N/A 5.1181 in130.000 mm	B - Double Cone Width N/A 2.6590 in67.539 mm	C - Cup Width N/A 1.2205 in31.001 mm	T - Bearing Width across Cups N/A 2.8756 in73.040 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 7890 lbf35100 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 53000 lbf236000 N	Bore Taper N/A
496D - 492A	Series N/A 495	d - Bore N/A 3.1875 in80.963 mm	D - Cup Outer Diameter N/A 5.2500 in133.350 mm	B - Double Cone Width N/A 2.3440 in59.538 mm	C - Cup Width N/A 0.8750 in22.225 mm	T - Bearing Width across Cups N/A 2.3750 in60.325 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 9000 lbf40000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 60500 lbf269000 N	Bore Taper N/A
496D - 493A	Series N/A 495	d - Bore N/A 3.1875 in80.963 mm	D - Cup Outer Diameter N/A 5.3140 in134.976 mm	B - Double Cone Width N/A 2.3440 in59.538 mm	C - Cup Width N/A 0.8750 in22.225 mm	T - Bearing Width across Cups N/A 2.3750 in60.325 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 9000 lbf40000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 60500 lbf269000 N	Bore Taper N/A
496D - 493P	Series N/A 495	d - Bore N/A 3.1875 in80.963 mm	D - Cup Outer Diameter N/A 5.3750 in136.525 mm	B - Double Cone Width N/A 2.3440 in59.538 mm	C - Cup Width N/A 0.8750 in22.225 mm	T - Bearing Width across Cups N/A 2.3750 in60.325 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 9000 lbf40000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 60500 lbf269000 N	Bore Taper N/A
496D - 493	Series N/A 495	d - Bore N/A 3.1875 in80.963 mm	D - Cup Outer Diameter N/A 5.3750 in136.525 mm	B - Double Cone Width N/A 2.3440 in59.538 mm	C - Cup Width N/A 0.8750 in22.225 mm	T - Bearing Width across Cups N/A 2.3750 in60.325 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 9000 lbf40000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 60500 lbf269000 N	Bore Taper N/A
581D - 572X	Series N/A 575	d - Bore N/A 3.1875 in80.963 mm	D - Cup Outer Diameter N/A 5.5000 in139.700 mm	B - Double Cone Width N/A 3.1549 in80.134 mm	C - Cup Width N/A 1.1250 in28.575 mm	T - Bearing Width across Cups N/A 3.1875 in80.963 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 12100 lbf53600 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 80900 lbf360000 N	Bore Taper N/A
581D - 572A	Series N/A 575	d - Bore N/A 3.1875 in80.963 mm	D - Cup Outer Diameter N/A 5.5111 in139.982 mm	B - Double Cone Width N/A 3.1549 in80.134 mm	C - Cup Width N/A 1.1250 in28.575 mm	T - Bearing Width across Cups N/A 3.0881 in78.438 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 12100 lbf53600 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 80900 lbf360000 N	Bore Taper N/A
581D - 572	Series N/A 575	d - Bore N/A 3.1875 in80.963 mm	D - Cup Outer Diameter N/A 5.5115 in139.992 mm	B - Double Cone Width N/A 3.1549 in80.134 mm	C - Cup Width N/A 1.1250 in28.575 mm	T - Bearing Width across Cups N/A 3.1875 in80.963 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 12100 lbf53600 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 80900 lbf360000 N	Bore Taper N/A
581D - 574	Series N/A 575	d - Bore N/A 3.1875 in80.963 mm	D - Cup Outer Diameter N/A 5.5115 in139.992 mm	B - Double Cone Width N/A 3.1549 in80.134 mm	C - Cup Width N/A 1.1250 in28.575 mm	T - Bearing Width across Cups N/A 3.1875 in80.963 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 12100 lbf53600 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 80900 lbf360000 N	Bore Taper N/A
496D - 493X	Series N/A 495	d - Bore N/A 3.1875 in80.963 mm	D - Cup Outer Diameter N/A 5.5118 in140.000 mm	B - Double Cone Width N/A 2.3440 in59.538 mm	C - Cup Width N/A 0.8750 in22.225 mm	T - Bearing Width across Cups N/A 2.3750 in60.325 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 9000 lbf40000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 60500 lbf269000 N	Bore Taper N/A
496D - 494A	Series N/A 495	d - Bore N/A 3.1875 in80.963 mm	D - Cup Outer Diameter N/A 5.6875 in144.463 mm	B - Double Cone Width N/A 2.3440 in59.538 mm	C - Cup Width N/A 0.8750 in22.225 mm	T - Bearing Width across Cups N/A 2.3750 in60.325 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 9000 lbf40000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 60500 lbf269000 N	Bore Taper N/A
L217845D - L217810	Series N/A L217800	d - Bore N/A 3.3750 in85.725 mm	D - Cup Outer Diameter N/A 4.8750 in123.825 mm	B - Double Cone Width N/A 1.7500 in44.450 mm	C - Cup Width N/A 0.6563 in16.670 mm	T - Bearing Width across Cups N/A 1.6250 in41.275 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5400 lbf24000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 36300 lbf161000 N	Bore Taper N/A
L217845D - L217813	Series N/A L217800	d - Bore N/A 3.3750 in85.725 mm	D - Cup Outer Diameter N/A 5 in127 mm	B - Double Cone Width N/A 1.7500 in44.450 mm	C - Cup Width N/A 0.7500 in19.050 mm	T - Bearing Width across Cups N/A 1.6250 in41.275 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 5400 lbf24000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 36300 lbf161000 N	Bore Taper N/A
767D - 752A	Series N/A 755	d - Bore N/A 3.5000 in88.900 mm	D - Cup Outer Diameter N/A 6.2990 in159.995 mm	B - Double Cone Width N/A 4.2500 in107.950 mm	C - Cup Width N/A 1.5000 in38.100 mm	T - Bearing Width across Cups N/A 3.9979 in101.547 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 19100 lbf84800 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 128000 lbf570000 N	Bore Taper N/A
767D - 752	Series N/A 755	d - Bore N/A 3.5000 in88.900 mm	D - Cup Outer Diameter N/A 6.3750 in161.925 mm	B - Double Cone Width N/A 4.2500 in107.950 mm	C - Cup Width N/A 1.5000 in38.100 mm	T - Bearing Width across Cups N/A 3.9979 in101.547 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 19100 lbf84800 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 128000 lbf570000 N	Bore Taper N/A

767D - 752AA	Series N/A 755	d - Bore N/A 3.5000 in88.900 mm	D - Cup Outer Diameter N/A 6.3750 in161.925 mm	B - Double Cone Width N/A 4.2500 in107.950 mm	C - Cup Width N/A 1.5000 in38.100 mm	T - Bearing Width across Cups N/A 3.9979 in101.547 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 19100 lbf84800 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 128000 lbf570000 N	Bore Taper N/A
767D - 753	Series N/A 755	d - Bore N/A 3.5000 in88.900 mm	D - Cup Outer Diameter N/A 6.6250 in168.275 mm	B - Double Cone Width N/A 4.2500 in107.950 mm	C - Cup Width N/A 1.5000 in38.100 mm	T - Bearing Width across Cups N/A 3.9979 in101.547 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 19100 lbf84800 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 128000 lbf570000 N	Bore Taper N/A
767D - 753A	Series N/A 755	d - Bore N/A 3.5000 in88.900 mm	D - Cup Outer Diameter N/A 6.6250 in168.275 mm	B - Double Cone Width N/A 4.2500 in107.950 mm	C - Cup Width N/A 1.9375 in49.213 mm	T - Bearing Width across Cups N/A 4.1229 in104.722 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 19100 lbf84800 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 128000 lbf570000 N	Bore Taper N/A
42362D - 42585	Series N/A 42000	d - Bore N/A 3.6250 in92.075 mm	D - Cup Outer Diameter N/A 5.8437 in148.430 mm	B - Double Cone Width N/A 2.2812 in57.942 mm	C - Cup Width N/A 1.0000 in25.400 mm	T - Bearing Width across Cups N/A 2.2499 in57.147 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 9490 lbf42200 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 63800 lbf284000 N	Bore Taper N/A
42362D - 42584	Series N/A 42000	d - Bore N/A 3.6250 in92.075 mm	D - Cup Outer Diameter N/A 5.8437 in148.430 mm	B - Double Cone Width N/A 2.2812 in57.942 mm	C - Cup Width N/A 0.8438 in21.433 mm	T - Bearing Width across Cups N/A 2.2499 in57.147 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 9490 lbf42200 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 63800 lbf284000 N	Bore Taper N/A
42362D - 42586	Series N/A 42000	d - Bore N/A 3.6250 in92.075 mm	D - Cup Outer Diameter N/A 5.8437 in148.430 mm	B - Double Cone Width N/A 2.2812 in57.942 mm	C - Cup Width N/A 1.2500 in31.750 mm	T - Bearing Width across Cups N/A 2.7499 in69.847 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 9490 lbf42200 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 63800 lbf284000 N	Bore Taper N/A
42362D - 42587	Series N/A 42000	d - Bore N/A 3.6250 in92.075 mm	D - Cup Outer Diameter N/A 5.8750 in149.225 mm	B - Double Cone Width N/A 2.2812 in57.942 mm	C - Cup Width N/A 0.9688 in24.608 mm	T - Bearing Width across Cups N/A 2.4999 in63.497 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 9490 lbf42200 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 63800 lbf284000 N	Bore Taper N/A
42362D - 42590	Series N/A 42000	d - Bore N/A 3.6250 in92.075 mm	D - Cup Outer Diameter N/A 5.9045 in149.974 mm	B - Double Cone Width N/A 2.2812 in57.942 mm	C - Cup Width N/A 0.9688 in24.608 mm	T - Bearing Width across Cups N/A 2.4999 in63.497 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 9490 lbf42200 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 63800 lbf284000 N	Bore Taper N/A
LM119348D - LM119311	Series N/A LM119300	d - Bore N/A 3.7500 in95.250 mm	D - Cup Outer Diameter N/A 5.3750 in136.525 mm	B - Double Cone Width N/A 2.2500 in57.150 mm	C - Cup Width N/A 0.9688 in24.608 mm	T - Bearing Width across Cups N/A 2.2499 in57.147 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 8140 lbf36200 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 54600 lbf243000 N	Bore Taper N/A
52387D - 52618P	Series N/A 52000	d - Bore N/A 3.8750 in98.425 mm	D - Cup Outer Diameter N/A 6.1875 in157.163 mm	B - Double Cone Width N/A 3.1250 in79.375 mm	C - Cup Width N/A 1.0313 in26.195 mm	T - Bearing Width across Cups N/A 3.1561 in80.165 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 13000 lbf57900 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 87500 lbf389000 N	Bore Taper N/A
52387D - 52618	Series N/A 52000	d - Bore N/A 3.8750 in98.425 mm	D - Cup Outer Diameter N/A 6.1875 in157.163 mm	B - Double Cone Width N/A 3.1250 in79.375 mm	C - Cup Width N/A 1.0313 in26.195 mm	T - Bearing Width across Cups N/A 3.1561 in80.165 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 13000 lbf57900 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 87500 lbf389000 N	Bore Taper N/A
52387D - 52630X	Series N/A 52000	d - Bore N/A 3.8750 in98.425 mm	D - Cup Outer Diameter N/A 6.2992 in160.000 mm	B - Double Cone Width N/A 3.1250 in79.375 mm	C - Cup Width N/A 1.0313 in26.195 mm	T - Bearing Width across Cups N/A 3.1561 in80.165 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 13000 lbf57900 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 87500 lbf389000 N	Bore Taper N/A
52387D - 52638	Series N/A 52000	d - Bore N/A 3.8750 in98.425 mm	D - Cup Outer Diameter N/A 6.3750 in161.925 mm	B - Double Cone Width N/A 3.1250 in79.375 mm	C - Cup Width N/A 1.1563 in29.370 mm	T - Bearing Width across Cups N/A 3.4061 in86.515 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 13000 lbf57900 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 87500 lbf389000 N	Bore Taper N/A
52387D - 52639	Series N/A 52000	d - Bore N/A 3.8750 in98.425 mm	D - Cup Outer Diameter N/A 6.3750 in161.925 mm	B - Double Cone Width N/A 3.1250 in79.375 mm	C - Cup Width N/A 1.5625 in39.688 mm	T - Bearing Width across Cups N/A 3.5311 in89.690 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 13000 lbf57900 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 87500 lbf389000 N	Bore Taper N/A
52387D - 52637	Series N/A 52000	d - Bore N/A 3.8750 in98.425 mm	D - Cup Outer Diameter N/A 6.3750 in161.925 mm	B - Double Cone Width N/A 3.1250 in79.375 mm	C - Cup Width N/A 1.0313 in26.195 mm	T - Bearing Width across Cups N/A 3.1561 in80.165 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 13000 lbf57900 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 87500 lbf389000 N	Bore Taper N/A
779D - 772A	Series N/A 775	d - Bore N/A 3.8750 in98.425 mm	D - Cup Outer Diameter N/A 6.8750 in174.625 mm	B - Double Cone Width N/A 4.0300 in102.362 mm	C - Cup Width N/A 1.5000 in38.100 mm	T - Bearing Width across Cups N/A 4.0000 in101.600 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 20200 lbf89700 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 135000 lbf603000 N	Bore Taper N/A
779D - 773	Series N/A 775	d - Bore N/A 3.8750 in98.425 mm	D - Cup Outer Diameter N/A 7.0866 in180 mm	B - Double Cone Width N/A 4.0300 in102.362 mm	C - Cup Width N/A 1.5748 in40 mm	T - Bearing Width across Cups N/A 4.0295 in102.349 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 20200 lbf89700 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 135000 lbf603000 N	Bore Taper N/A
779D - 772	Series N/A 775	d - Bore N/A 3.8750 in98.425 mm	D - Cup Outer Diameter N/A 7.1250 in180.975 mm	B - Double Cone Width N/A 4.0300 in102.362 mm	C - Cup Width N/A 1.5000 in38.100 mm	T - Bearing Width across Cups N/A 4.0000 in101.600 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 20200 lbf89700 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 135000 lbf603000 N	Bore Taper N/A
688TD - 672	Series N/A 675	d - Bore N/A 3.9453 in100.211 mm	D - Cup Outer Diameter N/A 6.6250 in168.275 mm	B - Double Cone Width N/A 3.7500 in95.250 mm	C - Cup Width N/A 1.1875 in30.163 mm	T - Bearing Width across Cups N/A 3.7500 in95.250 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 14600 lbf64800 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 97800 lbf435000 N	Bore Taper N/A
688TD - 672A	Series N/A 675	d - Bore N/A 3.9453 in100.211 mm	D - Cup Outer Diameter N/A 6.6250 in168.275 mm	B - Double Cone Width N/A 3.7500 in95.250 mm	C - Cup Width N/A 1.3750 in34.925 mm	T - Bearing Width across Cups N/A 3.7499 in95.247 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 14600 lbf64800 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 97800 lbf435000 N	Bore Taper N/A
688TD - 672P	Series N/A 675	d - Bore N/A 3.9453 in100.211 mm	D - Cup Outer Diameter N/A 6.6250 in168.275 mm	B - Double Cone Width N/A 3.7500 in95.250 mm	C - Cup Width N/A 1.1875 in30.163 mm	T - Bearing Width across Cups N/A 3.7500 in95.250 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 14600 lbf64800 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 97800 lbf435000 N	Bore Taper N/A
688TD - 673	Series N/A 675	d - Bore N/A 3.9453 in100.211 mm	D - Cup Outer Diameter N/A 6.6919 in169.974 mm	B - Double Cone Width N/A 3.7500 in95.250 mm	C - Cup Width N/A 1.1875 in30.163 mm	T - Bearing Width across Cups N/A 3.7500 in95.250 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 14600 lbf64800 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 97800 lbf435000 N	Bore Taper N/A
688TD - 674	Series N/A 675	d - Bore N/A 3.9453 in100.211 mm	D - Cup Outer Diameter N/A 6.7500 in171.450 mm	B - Double Cone Width N/A 3.7500 in95.250 mm	C - Cup Width N/A 1.1875 in30.163 mm	T - Bearing Width across Cups N/A 3.7500 in95.250 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 14600 lbf64800 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 97800 lbf435000 N	Bore Taper N/A
52400D - 52618	Series N/A 52000	d - Bore N/A 4.0000 in101.600 mm	D - Cup Outer Diameter N/A 6.1875 in157.163 mm	B - Double Cone Width N/A 3.1250 in79.375 mm	C - Cup Width N/A 1.0313 in26.195 mm	T - Bearing Width across Cups N/A 3.1561 in80.165 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 13000 lbf57900 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 87500 lbf389000 N	Bore Taper N/A
52400D - 52618P	Series N/A 52000	d - Bore N/A 4.0000 in101.600 mm	D - Cup Outer Diameter N/A 6.1875 in157.163 mm	B - Double Cone Width N/A 3.1250 in79.375 mm	C - Cup Width N/A 1.0313 in26.195 mm	T - Bearing Width across Cups N/A 3.1561 in80.165 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 13000 lbf57900 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 87500 lbf389000 N	Bore Taper N/A

Danh mục sản phẩm

Chi tiết sản phẩm

Tapered Roller Bearings - TDI (Tapered Double Inner) Imperial

Timken Part Number

Series

d - Bore

D - Cup Outer Diameter

B - Double Cone Width

C - Cup Width

T - Bearing Width across Cups

C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)

C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)

Bore Taper

CAD

Timken Part Number

Series

d - Bore

D - Cup Outer Diameter

B - Double Cone Width

C - Cup Width

T - Bearing Width across Cups

C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)

C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)

Bore Taper

CAD

THỐNG KÊ TRUY CẬP

52400D - 52630X	Series N/A 52000	d - Bore N/A 4.0000 in101.600 mm	D - Cup Outer Diameter N/A 6.2992 in160.000 mm	B - Double Cone Width N/A 3.1250 in79.375 mm	C - Cup Width N/A 1.0313 in26.195 mm	T - Bearing Width across Cups N/A 3.1561 in80.165 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 13000 lbf57900 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 87500 lbf389000 N	Bore Taper N/A
52400D - 52637	Series N/A 52000	d - Bore N/A 4.0000 in101.600 mm	D - Cup Outer Diameter N/A 6.3750 in161.925 mm	B - Double Cone Width N/A 3.1250 in79.375 mm	C - Cup Width N/A 1.0313 in26.195 mm	T - Bearing Width across Cups N/A 3.1561 in80.165 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 13000 lbf57900 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 87500 lbf389000 N	Bore Taper N/A
52400D - 52638	Series N/A 52000	d - Bore N/A 4.0000 in101.600 mm	D - Cup Outer Diameter N/A 6.3750 in161.925 mm	B - Double Cone Width N/A 3.1250 in79.375 mm	C - Cup Width N/A 1.1563 in29.370 mm	T - Bearing Width across Cups N/A 3.4061 in86.515 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 13000 lbf57900 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 87500 lbf389000 N	Bore Taper N/A
52400D - 52639	Series N/A 52000	d - Bore N/A 4.0000 in101.600 mm	D - Cup Outer Diameter N/A 6.3750 in161.925 mm	B - Double Cone Width N/A 3.1250 in79.375 mm	C - Cup Width N/A 1.5625 in39.688 mm	T - Bearing Width across Cups N/A 3.5311 in89.690 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 13000 lbf57900 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 87500 lbf389000 N	Bore Taper N/A
868D - 852	Series N/A 855	d - Bore N/A 4.0000 in101.600 mm	D - Cup Outer Diameter N/A 7.5 in190.5 mm	B - Double Cone Width N/A 5.0000 in127.000 mm	C - Cup Width N/A 1.8750 in47.625 mm	T - Bearing Width across Cups N/A 4.6250 in117.475 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 26700 lbf119000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 179000 lbf797000 N	Bore Taper N/A
868D - 854	Series N/A 855	d - Bore N/A 4.0000 in101.600 mm	D - Cup Outer Diameter N/A 7.5 in190.5 mm	B - Double Cone Width N/A 5.0000 in127.000 mm	C - Cup Width N/A 1.7500 in44.450 mm	T - Bearing Width across Cups N/A 4.6249 in117.472 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 26700 lbf119000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 179000 lbf797000 N	Bore Taper N/A
868D - 854V	Series N/A 855	d - Bore N/A 4.0000 in101.600 mm	D - Cup Outer Diameter N/A 7.5 in190.5 mm	B - Double Cone Width N/A 5.0000 in127.000 mm	C - Cup Width N/A 1.7500 in44.450 mm	T - Bearing Width across Cups N/A 4.6249 in117.472 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 26700 lbf119000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 179000 lbf797000 N	Bore Taper N/A
868D - 854X	Series N/A 855	d - Bore N/A 4.0000 in101.600 mm	D - Cup Outer Diameter N/A 7.875 in200.025 mm	B - Double Cone Width N/A 5.0000 in127.000 mm	C - Cup Width N/A 1.9375 in49.213 mm	T - Bearing Width across Cups N/A 4.9999 in126.997 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 26700 lbf119000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 179000 lbf797000 N	Bore Taper N/A
782D - 772A	Series N/A 775	d - Bore N/A 4.1250 in104.775 mm	D - Cup Outer Diameter N/A 6.8750 in174.625 mm	B - Double Cone Width N/A 4.0300 in102.362 mm	C - Cup Width N/A 1.5000 in38.100 mm	T - Bearing Width across Cups N/A 4.0000 in101.600 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 20200 lbf89700 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 135000 lbf603000 N	Bore Taper N/A
782D - 773	Series N/A 775	d - Bore N/A 4.1250 in104.775 mm	D - Cup Outer Diameter N/A 7.0866 in180 mm	B - Double Cone Width N/A 4.0300 in102.362 mm	C - Cup Width N/A 1.5748 in40 mm	T - Bearing Width across Cups N/A 4.0295 in102.349 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 20200 lbf89700 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 135000 lbf603000 N	Bore Taper N/A
782D - 772	Series N/A 775	d - Bore N/A 4.1250 in104.775 mm	D - Cup Outer Diameter N/A 7.1250 in180.975 mm	B - Double Cone Width N/A 4.0300 in102.362 mm	C - Cup Width N/A 1.5000 in38.100 mm	T - Bearing Width across Cups N/A 4.0000 in101.600 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 20200 lbf89700 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 135000 lbf603000 N	Bore Taper N/A
LM121948D - LM121911	Series N/A LM121900	d - Bore N/A 4.25 in107.95 mm	D - Cup Outer Diameter N/A 6.0000 in152.400 mm	B - Double Cone Width N/A 2.5625 in65.088 mm	C - Cup Width N/A 1.1250 in28.575 mm	T - Bearing Width across Cups N/A 2.5624 in65.085 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 9810 lbf43600 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 65900 lbf293000 N	Bore Taper N/A
71426D - 71750	Series N/A 71000	d - Bore N/A 4.25 in107.95 mm	D - Cup Outer Diameter N/A 7.5 in190.5 mm	B - Double Cone Width N/A 4.0000 in101.600 mm	C - Cup Width N/A 1.3750 in34.925 mm	T - Bearing Width across Cups N/A 3.8749 in98.422 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 21200 lbf94300 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 142000 lbf633000 N	Bore Taper N/A
946D - 930	Series N/A 935	d - Bore N/A 4.25 in107.95 mm	D - Cup Outer Diameter N/A 8.1250 in206.375 mm	B - Double Cone Width N/A 6.0000 in152.400 mm	C - Cup Width N/A 2.1250 in53.975 mm	T - Bearing Width across Cups N/A 5.6249 in142.872 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 33300 lbf148000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 224000 lbf996000 N	Bore Taper N/A
946D - 932	Series N/A 935	d - Bore N/A 4.25 in107.95 mm	D - Cup Outer Diameter N/A 8.3750 in212.725 mm	B - Double Cone Width N/A 6.0000 in152.400 mm	C - Cup Width N/A 2.1250 in53.975 mm	T - Bearing Width across Cups N/A 5.6249 in142.872 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 33300 lbf148000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 224000 lbf996000 N	Bore Taper N/A
71450D - 71750	Series N/A 71000	d - Bore N/A 4.5000 in114.300 mm	D - Cup Outer Diameter N/A 7.5 in190.5 mm	B - Double Cone Width N/A 4.0000 in101.600 mm	C - Cup Width N/A 1.3750 in34.925 mm	T - Bearing Width across Cups N/A 3.8749 in98.422 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 21200 lbf94300 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 142000 lbf633000 N	Bore Taper N/A
HH224346DD - HH224310	Series N/A HH224300	d - Bore N/A 4.5000 in114.300 mm	D - Cup Outer Diameter N/A 8.3750 in212.725 mm	B - Double Cone Width N/A 6.0000 in152.400 mm	C - Cup Width N/A 2.1250 in53.975 mm	T - Bearing Width across Cups N/A 5.6249 in142.872 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 39600 lbf176000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 266000 lbf1180000 N	Bore Taper N/A
LM124449DW - LM124410	Series N/A LM124400	d - Bore N/A 4.7500 in120.650 mm	D - Cup Outer Diameter N/A 6.5625 in166.688 mm	B - Double Cone Width N/A 2.8440 in72.238 mm	C - Cup Width N/A 1.2500 in31.750 mm	T - Bearing Width across Cups N/A 2.8439 in72.235 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 12200 lbf54200 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 81800 lbf364000 N	Bore Taper N/A
LM124449DW - LM124411V	Series N/A LM124400	d - Bore N/A 4.7500 in120.650 mm	D - Cup Outer Diameter N/A 6.5875 in167.323 mm	B - Double Cone Width N/A 2.8440 in72.238 mm	C - Cup Width N/A 1.6250 in41.275 mm	T - Bearing Width across Cups N/A 3.5939 in91.285 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 12200 lbf54200 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 81800 lbf364000 N	Bore Taper N/A
M224749D - M224713A	Series N/A M224700	d - Bore N/A 4.7500 in120.650 mm	D - Cup Outer Diameter N/A 6.7812 in172.242 mm	B - Double Cone Width N/A 2.6875 in68.263 mm	C - Cup Width N/A 1.0938 in27.783 mm	T - Bearing Width across Cups N/A 2.6250 in66.675 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 14200 lbf63400 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 95700 lbf426000 N	Bore Taper N/A
M224749D - M224711	Series N/A M224700	d - Bore N/A 4.7500 in120.650 mm	D - Cup Outer Diameter N/A 6.7812 in172.242 mm	B - Double Cone Width N/A 2.6875 in68.263 mm	C - Cup Width N/A 1.0938 in27.783 mm	T - Bearing Width across Cups N/A 2.6250 in66.675 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 14200 lbf63400 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 95700 lbf426000 N	Bore Taper N/A
M224749D - M224712	Series N/A M224700	d - Bore N/A 4.7500 in120.650 mm	D - Cup Outer Diameter N/A 6.8750 in174.625 mm	B - Double Cone Width N/A 2.6875 in68.263 mm	C - Cup Width N/A 1.0938 in27.783 mm	T - Bearing Width across Cups N/A 2.6250 in66.675 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 14200 lbf63400 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 95700 lbf426000 N	Bore Taper N/A
M224749D - M224710	Series N/A M224700	d - Bore N/A 4.7500 in120.650 mm	D - Cup Outer Diameter N/A 6.8750 in174.625 mm	B - Double Cone Width N/A 2.6875 in68.263 mm	C - Cup Width N/A 1.0938 in27.783 mm	T - Bearing Width across Cups N/A 2.6250 in66.675 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 14200 lbf63400 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 95700 lbf426000 N	Bore Taper N/A
95474D - 95905	Series N/A 95000	d - Bore N/A 4.7500 in120.650 mm	D - Cup Outer Diameter N/A 9.0551 in230.000 mm	B - Double Cone Width N/A 6.0000 in152.400 mm	C - Cup Width N/A 1.9375 in49.213 mm	T - Bearing Width across Cups N/A 5.4999 in139.697 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 36700 lbf163000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 246000 lbf1090000 N	Bore Taper N/A
95474D - 95912	Series N/A 95000	d - Bore N/A 4.7500 in120.650 mm	D - Cup Outer Diameter N/A 9.1250 in231.775 mm	B - Double Cone Width N/A 6.0000 in152.400 mm	C - Cup Width N/A 1.9375 in49.213 mm	T - Bearing Width across Cups N/A 5.4999 in139.697 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 36700 lbf163000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 246000 lbf1090000 N	Bore Taper N/A

95474D - 95926	Series N/A 95000	d - Bore N/A 4.7500 in120.650 mm	D - Cup Outer Diameter N/A 9.25 in234.95 mm	B - Double Cone Width N/A 6.0000 in152.400 mm	C - Cup Width N/A 1.9375 in49.213 mm	T - Bearing Width across Cups N/A 5.4999 in139.697 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 36700 lbf163000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 246000 lbf1090000 N	Bore Taper N/A
95474D - 95925	Series N/A 95000	d - Bore N/A 4.7500 in120.650 mm	D - Cup Outer Diameter N/A 9.25 in234.95 mm	B - Double Cone Width N/A 6.0000 in152.400 mm	C - Cup Width N/A 1.9375 in49.213 mm	T - Bearing Width across Cups N/A 5.4999 in139.697 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 36700 lbf163000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 246000 lbf1090000 N	Bore Taper N/A
95474D - 95923V	Series N/A 95000	d - Bore N/A 4.7500 in120.650 mm	D - Cup Outer Diameter N/A 9.25 in234.95 mm	B - Double Cone Width N/A 6.0000 in152.400 mm	C - Cup Width N/A 1.9375 in49.213 mm	T - Bearing Width across Cups N/A 5.4999 in139.697 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 36700 lbf163000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 246000 lbf1090000 N	Bore Taper N/A
95474D - 95929	Series N/A 95000	d - Bore N/A 4.7500 in120.650 mm	D - Cup Outer Diameter N/A 9.2510 in234.975 mm	B - Double Cone Width N/A 6.0000 in152.400 mm	C - Cup Width N/A 1.9665 in49.949 mm	T - Bearing Width across Cups N/A 5.6022 in142.296 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 36700 lbf163000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 246000 lbf1090000 N	Bore Taper N/A
95474D - 95928	Series N/A 95000	d - Bore N/A 4.7500 in120.650 mm	D - Cup Outer Diameter N/A 9.2510 in234.975 mm	B - Double Cone Width N/A 6.0000 in152.400 mm	C - Cup Width N/A 1.9375 in49.213 mm	T - Bearing Width across Cups N/A 5.4999 in139.697 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 36700 lbf163000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 246000 lbf1090000 N	Bore Taper N/A
95474D - 95962	Series N/A 95000	d - Bore N/A 4.7500 in120.650 mm	D - Cup Outer Diameter N/A 9.6250 in244.475 mm	B - Double Cone Width N/A 6.0000 in152.400 mm	C - Cup Width N/A 1.9375 in49.213 mm	T - Bearing Width across Cups N/A 5.4999 in139.697 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 36700 lbf163000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 246000 lbf1090000 N	Bore Taper N/A
95474D - 95975	Series N/A 95000	d - Bore N/A 4.7500 in120.650 mm	D - Cup Outer Diameter N/A 9.7500 in247.650 mm	B - Double Cone Width N/A 6.0000 in152.400 mm	C - Cup Width N/A 1.9375 in49.213 mm	T - Bearing Width across Cups N/A 5.4999 in139.697 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 36700 lbf163000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 246000 lbf1090000 N	Bore Taper N/A
48290DW - 48220	Series N/A 48200	d - Bore N/A 5 in127 mm	D - Cup Outer Diameter N/A 7.1875 in182.563 mm	B - Double Cone Width N/A 3.0000 in76.200 mm	C - Cup Width N/A 1.3125 in33.338 mm	T - Bearing Width across Cups N/A 3.0001 in76.203 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 15600 lbf69400 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 105000 lbf466000 N	Bore Taper N/A
67388D - 67322	Series N/A 67300	d - Bore N/A 5 in127 mm	D - Cup Outer Diameter N/A 7.7500 in196.850 mm	B - Double Cone Width N/A 3.6250 in92.075 mm	C - Cup Width N/A 1.5000 in38.100 mm	T - Bearing Width across Cups N/A 3.6250 in92.075 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 21400 lbf95300 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 144000 lbf640000 N	Bore Taper N/A
67388D - 67320	Series N/A 67300	d - Bore N/A 5 in127 mm	D - Cup Outer Diameter N/A 8 in203.2 mm	B - Double Cone Width N/A 3.6250 in92.075 mm	C - Cup Width N/A 1.5000 in38.100 mm	T - Bearing Width across Cups N/A 3.6250 in92.075 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 21400 lbf95300 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 144000 lbf640000 N	Bore Taper N/A
97500D - 97900	Series N/A 97000	d - Bore N/A 5 in127 mm	D - Cup Outer Diameter N/A 9.0000 in228.600 mm	B - Double Cone Width N/A 5.9545 in151.244 mm	C - Cup Width N/A 1.5000 in38.100 mm	T - Bearing Width across Cups N/A 6.3125 in160.338 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 21900 lbf97500 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 147000 lbf655000 N	Bore Taper N/A
95499D - 95905	Series N/A 95000	d - Bore N/A 5 in127 mm	D - Cup Outer Diameter N/A 9.0551 in230.000 mm	B - Double Cone Width N/A 6.0000 in152.400 mm	C - Cup Width N/A 1.9375 in49.213 mm	T - Bearing Width across Cups N/A 5.4999 in139.697 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 36700 lbf163000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 246000 lbf1090000 N	Bore Taper N/A
95499D - 95912	Series N/A 95000	d - Bore N/A 5 in127 mm	D - Cup Outer Diameter N/A 9.1250 in231.775 mm	B - Double Cone Width N/A 6.0000 in152.400 mm	C - Cup Width N/A 1.9375 in49.213 mm	T - Bearing Width across Cups N/A 5.4999 in139.697 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 36700 lbf163000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 246000 lbf1090000 N	Bore Taper N/A
95499D - 95925	Series N/A 95000	d - Bore N/A 5 in127 mm	D - Cup Outer Diameter N/A 9.25 in234.95 mm	B - Double Cone Width N/A 6.0000 in152.400 mm	C - Cup Width N/A 1.9375 in49.213 mm	T - Bearing Width across Cups N/A 5.4999 in139.697 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 36700 lbf163000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 246000 lbf1090000 N	Bore Taper N/A
95499D - 95926	Series N/A 95000	d - Bore N/A 5 in127 mm	D - Cup Outer Diameter N/A 9.25 in234.95 mm	B - Double Cone Width N/A 6.0000 in152.400 mm	C - Cup Width N/A 1.9375 in49.213 mm	T - Bearing Width across Cups N/A 5.4999 in139.697 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 36700 lbf163000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 246000 lbf1090000 N	Bore Taper N/A
95499D - 95923V	Series N/A 95000	d - Bore N/A 5 in127 mm	D - Cup Outer Diameter N/A 9.25 in234.95 mm	B - Double Cone Width N/A 6.0000 in152.400 mm	C - Cup Width N/A 1.9375 in49.213 mm	T - Bearing Width across Cups N/A 5.4999 in139.697 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 36700 lbf163000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 246000 lbf1090000 N	Bore Taper N/A
95499D - 95928	Series N/A 95000	d - Bore N/A 5 in127 mm	D - Cup Outer Diameter N/A 9.2510 in234.975 mm	B - Double Cone Width N/A 6.0000 in152.400 mm	C - Cup Width N/A 1.9375 in49.213 mm	T - Bearing Width across Cups N/A 5.4999 in139.697 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 36700 lbf163000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 246000 lbf1090000 N	Bore Taper N/A
95499D - 95929	Series N/A 95000	d - Bore N/A 5 in127 mm	D - Cup Outer Diameter N/A 9.2510 in234.975 mm	B - Double Cone Width N/A 6.0000 in152.400 mm	C - Cup Width N/A 1.9665 in49.949 mm	T - Bearing Width across Cups N/A 5.6022 in142.296 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 36700 lbf163000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 246000 lbf1090000 N	Bore Taper N/A
95499D - 95962	Series N/A 95000	d - Bore N/A 5 in127 mm	D - Cup Outer Diameter N/A 9.6250 in244.475 mm	B - Double Cone Width N/A 6.0000 in152.400 mm	C - Cup Width N/A 1.9375 in49.213 mm	T - Bearing Width across Cups N/A 5.4999 in139.697 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 36700 lbf163000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 246000 lbf1090000 N	Bore Taper N/A
95499D - 95975	Series N/A 95000	d - Bore N/A 5 in127 mm	D - Cup Outer Diameter N/A 9.7500 in247.650 mm	B - Double Cone Width N/A 6.0000 in152.400 mm	C - Cup Width N/A 1.9375 in49.213 mm	T - Bearing Width across Cups N/A 5.4999 in139.697 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 36700 lbf163000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 246000 lbf1090000 N	Bore Taper N/A
HH231637D - HH231610	Series N/A HH231600	d - Bore N/A 5 in127 mm	D - Cup Outer Diameter N/A 11.3750 in288.925 mm	B - Double Cone Width N/A 6.2500 in158.750 mm	C - Cup Width N/A 2.2500 in57.150 mm	T - Bearing Width across Cups N/A 5.8750 in149.225 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 66600 lbf296000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 447000 lbf1990000 N	Bore Taper N/A
HH231637D - HH231615	Series N/A HH231600	d - Bore N/A 5 in127 mm	D - Cup Outer Diameter N/A 11.6250 in295.275 mm	B - Double Cone Width N/A 6.2500 in158.750 mm	C - Cup Width N/A 2.2500 in57.150 mm	T - Bearing Width across Cups N/A 5.8750 in149.225 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 66600 lbf296000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 447000 lbf1990000 N	Bore Taper N/A
74510D - 74845	Series N/A 74000	d - Bore N/A 5.1183 in130.005 mm	D - Cup Outer Diameter N/A 8.4636 in214.975 mm	B - Double Cone Width N/A 4.8750 in123.825 mm	C - Cup Width N/A 1.3750 in34.925 mm	T - Bearing Width across Cups N/A 4.8750 in123.825 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 22300 lbf99000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 150000 lbf665000 N	Bore Taper N/A
74510D - 74853	Series N/A 74000	d - Bore N/A 5.1183 in130.005 mm	D - Cup Outer Diameter N/A 8.5000 in215.900 mm	B - Double Cone Width N/A 4.8750 in123.825 mm	C - Cup Width N/A 1.8750 in47.625 mm	T - Bearing Width across Cups N/A 5.3750 in136.525 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 22300 lbf99000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 150000 lbf665000 N	Bore Taper N/A
74510D - 74850W	Series N/A 74000	d - Bore N/A 5.1183 in130.005 mm	D - Cup Outer Diameter N/A 8.5000 in215.900 mm	B - Double Cone Width N/A 4.8750 in123.825 mm	C - Cup Width N/A 1.3750 in34.925 mm	T - Bearing Width across Cups N/A 4.8750 in123.825 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 22300 lbf99000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 150000 lbf665000 N	Bore Taper N/A

74510D - 74850	Series N/A 74000	d - Bore N/A 5.1183 in130.005 mm	D - Cup Outer Diameter N/A 8.5000 in215.900 mm	B - Double Cone Width N/A 4.8750 in123.825 mm	C - Cup Width N/A 1.3750 in34.925 mm	T - Bearing Width across Cups N/A 4.8750 in123.825 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 22300 lbf99000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 150000 lbf665000 N	Bore Taper N/A
74510D - 74850P	Series N/A 74000	d - Bore N/A 5.1183 in130.005 mm	D - Cup Outer Diameter N/A 8.5000 in215.900 mm	B - Double Cone Width N/A 4.8750 in123.825 mm	C - Cup Width N/A 1.3750 in34.925 mm	T - Bearing Width across Cups N/A 4.8750 in123.825 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 22300 lbf99000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 150000 lbf665000 N	Bore Taper N/A
74510D - 74856	Series N/A 74000	d - Bore N/A 5.1183 in130.005 mm	D - Cup Outer Diameter N/A 8.5625 in217.488 mm	B - Double Cone Width N/A 4.8750 in123.825 mm	C - Cup Width N/A 1.3750 in34.925 mm	T - Bearing Width across Cups N/A 4.8750 in123.825 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 22300 lbf99000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 150000 lbf665000 N	Bore Taper N/A
74512D - 74845	Series N/A 74000	d - Bore N/A 5.1250 in130.175 mm	D - Cup Outer Diameter N/A 8.4636 in214.975 mm	B - Double Cone Width N/A 4.0000 in101.600 mm	C - Cup Width N/A 1.3750 in34.925 mm	T - Bearing Width across Cups N/A 4.0000 in101.600 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 22300 lbf99000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 150000 lbf665000 N	Bore Taper N/A
74512D - 74853	Series N/A 74000	d - Bore N/A 5.1250 in130.175 mm	D - Cup Outer Diameter N/A 8.5000 in215.900 mm	B - Double Cone Width N/A 4.0000 in101.600 mm	C - Cup Width N/A 1.8750 in47.625 mm	T - Bearing Width across Cups N/A 4.5000 in114.300 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 22300 lbf99000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 150000 lbf665000 N	Bore Taper N/A
74512D - 74850P	Series N/A 74000	d - Bore N/A 5.1250 in130.175 mm	D - Cup Outer Diameter N/A 8.5000 in215.900 mm	B - Double Cone Width N/A 4.0000 in101.600 mm	C - Cup Width N/A 1.3750 in34.925 mm	T - Bearing Width across Cups N/A 4.0000 in101.600 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 22300 lbf99000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 150000 lbf665000 N	Bore Taper N/A
74512D - 74850	Series N/A 74000	d - Bore N/A 5.1250 in130.175 mm	D - Cup Outer Diameter N/A 8.5000 in215.900 mm	B - Double Cone Width N/A 4.0000 in101.600 mm	C - Cup Width N/A 1.3750 in34.925 mm	T - Bearing Width across Cups N/A 4.0000 in101.600 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 22300 lbf99000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 150000 lbf665000 N	Bore Taper N/A
74512D - 74850W	Series N/A 74000	d - Bore N/A 5.1250 in130.175 mm	D - Cup Outer Diameter N/A 8.5000 in215.900 mm	B - Double Cone Width N/A 4.0000 in101.600 mm	C - Cup Width N/A 1.3750 in34.925 mm	T - Bearing Width across Cups N/A 4.0000 in101.600 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 22300 lbf99000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 150000 lbf665000 N	Bore Taper N/A
74512D - 74856	Series N/A 74000	d - Bore N/A 5.1250 in130.175 mm	D - Cup Outer Diameter N/A 8.5625 in217.488 mm	B - Double Cone Width N/A 4.0000 in101.600 mm	C - Cup Width N/A 1.3750 in34.925 mm	T - Bearing Width across Cups N/A 4.0000 in101.600 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 22300 lbf99000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 150000 lbf665000 N	Bore Taper N/A
67390D - 67322	Series N/A 67300	d - Bore N/A 5.2500 in133.350 mm	D - Cup Outer Diameter N/A 7.7500 in196.850 mm	B - Double Cone Width N/A 3.6250 in92.075 mm	C - Cup Width N/A 1.5000 in38.100 mm	T - Bearing Width across Cups N/A 3.6250 in92.075 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 21400 lbf95300 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 144000 lbf640000 N	Bore Taper N/A
67390D - 67320	Series N/A 67300	d - Bore N/A 5.2500 in133.350 mm	D - Cup Outer Diameter N/A 8 in203.2 mm	B - Double Cone Width N/A 3.6250 in92.075 mm	C - Cup Width N/A 1.5000 in38.100 mm	T - Bearing Width across Cups N/A 3.6250 in92.075 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 21400 lbf95300 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 144000 lbf640000 N	Bore Taper N/A
48393D - 48320	Series N/A 48300	d - Bore N/A 5.3750 in136.525 mm	D - Cup Outer Diameter N/A 7.5 in190.5 mm	B - Double Cone Width N/A 3.0625 in77.788 mm	C - Cup Width N/A 1.3125 in33.338 mm	T - Bearing Width across Cups N/A 3.0624 in77.785 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 16500 lbf73300 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 111000 lbf492000 N	Bore Taper N/A
48393D - 48328	Series N/A 48300	d - Bore N/A 5.3750 in136.525 mm	D - Cup Outer Diameter N/A 8 in203.2 mm	B - Double Cone Width N/A 3.0625 in77.788 mm	C - Cup Width N/A 1.3125 in33.338 mm	T - Bearing Width across Cups N/A 3.0624 in77.785 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 16500 lbf73300 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 111000 lbf492000 N	Bore Taper N/A
H228649D - H228610	Series N/A H228600	d - Bore N/A 5.3750 in136.525 mm	D - Cup Outer Diameter N/A 8.875 in225.425 mm	B - Double Cone Width N/A 4.7500 in120.650 mm	C - Cup Width N/A 2.0625 in52.388 mm	T - Bearing Width across Cups N/A 4.7500 in120.650 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 37700 lbf168000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 253000 lbf1130000 N	Bore Taper N/A
74555D - 74845	Series N/A 74000	d - Bore N/A 5.5000 in139.700 mm	D - Cup Outer Diameter N/A 8.4636 in214.975 mm	B - Double Cone Width N/A 4.1875 in106.363 mm	C - Cup Width N/A 1.3750 in34.925 mm	T - Bearing Width across Cups N/A 3.7260 in94.640 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 19900 lbf88400 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 134000 lbf594000 N	Bore Taper N/A
74555D - 74850	Series N/A 74000	d - Bore N/A 5.5000 in139.700 mm	D - Cup Outer Diameter N/A 8.5000 in215.900 mm	B - Double Cone Width N/A 4.1875 in106.363 mm	C - Cup Width N/A 1.3750 in34.925 mm	T - Bearing Width across Cups N/A 3.7260 in94.640 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 19900 lbf88400 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 134000 lbf594000 N	Bore Taper N/A
74555D - 74850P	Series N/A 74000	d - Bore N/A 5.5000 in139.700 mm	D - Cup Outer Diameter N/A 8.5000 in215.900 mm	B - Double Cone Width N/A 4.1875 in106.363 mm	C - Cup Width N/A 1.3750 in34.925 mm	T - Bearing Width across Cups N/A 3.7260 in94.640 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 19900 lbf88400 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 134000 lbf594000 N	Bore Taper N/A
74555D - 74850W	Series N/A 74000	d - Bore N/A 5.5000 in139.700 mm	D - Cup Outer Diameter N/A 8.5000 in215.900 mm	B - Double Cone Width N/A 4.1875 in106.363 mm	C - Cup Width N/A 1.3750 in34.925 mm	T - Bearing Width across Cups N/A 3.7260 in94.640 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 19900 lbf88400 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 134000 lbf594000 N	Bore Taper N/A
74555D - 74856	Series N/A 74000	d - Bore N/A 5.5000 in139.700 mm	D - Cup Outer Diameter N/A 8.5625 in217.488 mm	B - Double Cone Width N/A 4.1875 in106.363 mm	C - Cup Width N/A 1.3750 in34.925 mm	T - Bearing Width across Cups N/A 3.7260 in94.640 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 19900 lbf88400 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 134000 lbf594000 N	Bore Taper N/A
99587D - 99098X	Series N/A 99000	d - Bore N/A 5.8750 in149.225 mm	D - Cup Outer Diameter N/A 9.8425 in250 mm	B - Double Cone Width N/A 4.7500 in120.650 mm	C - Cup Width N/A 1.8750 in47.625 mm	T - Bearing Width across Cups N/A 4.7500 in120.650 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 38500 lbf171000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 258000 lbf1150000 N	Bore Taper N/A
99587D - 99100	Series N/A 99000	d - Bore N/A 5.8750 in149.225 mm	D - Cup Outer Diameter N/A 10.0000 in254.000 mm	B - Double Cone Width N/A 4.7500 in120.650 mm	C - Cup Width N/A 1.8750 in47.625 mm	T - Bearing Width across Cups N/A 4.7500 in120.650 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 38500 lbf171000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 258000 lbf1150000 N	Bore Taper N/A
99587D - 99100P	Series N/A 99000	d - Bore N/A 5.8750 in149.225 mm	D - Cup Outer Diameter N/A 10.0000 in254.000 mm	B - Double Cone Width N/A 4.7500 in120.650 mm	C - Cup Width N/A 1.8750 in47.625 mm	T - Bearing Width across Cups N/A 4.7500 in120.650 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 38500 lbf171000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 258000 lbf1150000 N	Bore Taper N/A
99587D - 99100W	Series N/A 99000	d - Bore N/A 5.8750 in149.225 mm	D - Cup Outer Diameter N/A 10.0000 in254.000 mm	B - Double Cone Width N/A 4.7500 in120.650 mm	C - Cup Width N/A 1.8750 in47.625 mm	T - Bearing Width across Cups N/A 4.7500 in120.650 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 38500 lbf171000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 258000 lbf1150000 N	Bore Taper N/A
M231649D - M231610V	Series N/A M231600	d - Bore N/A 6.0000 in152.400 mm	D - Cup Outer Diameter N/A 8.7500 in222.250 mm	B - Double Cone Width N/A 3.3125 in84.138 mm	C - Cup Width N/A 1.3750 in34.925 mm	T - Bearing Width across Cups N/A 3.3124 in84.135 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 21900 lbf97600 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 147000 lbf656000 N	Bore Taper N/A
M231649D - M231610	Series N/A M231600	d - Bore N/A 6.0000 in152.400 mm	D - Cup Outer Diameter N/A 8.7500 in222.250 mm	B - Double Cone Width N/A 3.3125 in84.138 mm	C - Cup Width N/A 1.3750 in34.925 mm	T - Bearing Width across Cups N/A 3.3124 in84.135 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 21900 lbf97600 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 147000 lbf656000 N	Bore Taper N/A

81601D - 81962X	Series N/A 81000	d - Bore N/A 6.0000 in152.400 mm	D - Cup Outer Diameter N/A 9.6250 in244.475 mm	B - Double Cone Width N/A 3.6250 in92.075 mm	C - Cup Width N/A 1.6250 in41.275 mm	T - Bearing Width across Cups N/A 3.4274 in87.056 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 23400 lbf104000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 157000 lbf699000 N	Bore Taper N/A
81601D - 81962	Series N/A 81000	d - Bore N/A 6.0000 in152.400 mm	D - Cup Outer Diameter N/A 9.6250 in244.475 mm	B - Double Cone Width N/A 3.6250 in92.075 mm	C - Cup Width N/A 1.3125 in33.338 mm	T - Bearing Width across Cups N/A 3.4375 in87.313 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 23400 lbf104000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 157000 lbf699000 N	Bore Taper N/A
81601D - 81964	Series N/A 81000	d - Bore N/A 6.0000 in152.400 mm	D - Cup Outer Diameter N/A 9.6457 in245.001 mm	B - Double Cone Width N/A 3.6250 in92.075 mm	C - Cup Width N/A 1.3125 in33.338 mm	T - Bearing Width across Cups N/A 3.4375 in87.313 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 23400 lbf104000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 157000 lbf699000 N	Bore Taper N/A
EE450600D - 451212	Series N/A 450000	d - Bore N/A 6.0000 in152.400 mm	D - Cup Outer Diameter N/A 12.1250 in307.975 mm	B - Double Cone Width N/A 6.7500 in171.450 mm	C - Cup Width N/A 2.4375 in61.913 mm	T - Bearing Width across Cups N/A 6.3749 in161.922 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 57900 lbf258000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 389000 lbf1730000 N	Bore Taper N/A
HH234049D - HH234010	Series N/A HH234000	d - Bore N/A 6.0000 in152.400 mm	D - Cup Outer Diameter N/A 12.1250 in307.975 mm	B - Double Cone Width N/A 6.7500 in171.450 mm	C - Cup Width N/A 2.6250 in66.675 mm	T - Bearing Width across Cups N/A 6.3749 in161.922 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 67200 lbf299000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 451000 lbf2010000 N	Bore Taper N/A
HH234049D - HH234010V	Series N/A HH234000	d - Bore N/A 6.0000 in152.400 mm	D - Cup Outer Diameter N/A 12.1250 in307.975 mm	B - Double Cone Width N/A 6.7500 in171.450 mm	C - Cup Width N/A 2.6250 in66.675 mm	T - Bearing Width across Cups N/A 6.3749 in161.922 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 67200 lbf299000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 451000 lbf2010000 N	Bore Taper N/A
EE450600D - 451250	Series N/A 450000	d - Bore N/A 6.0000 in152.400 mm	D - Cup Outer Diameter N/A 12.5000 in317.500 mm	B - Double Cone Width N/A 6.7500 in171.450 mm	C - Cup Width N/A 2.4375 in61.913 mm	T - Bearing Width across Cups N/A 6.3749 in161.922 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 57900 lbf258000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 389000 lbf1730000 N	Bore Taper N/A
HH234049D - HH234018	Series N/A HH234000	d - Bore N/A 6.0000 in152.400 mm	D - Cup Outer Diameter N/A 12.5000 in317.500 mm	B - Double Cone Width N/A 6.7500 in171.450 mm	C - Cup Width N/A 2.6250 in66.675 mm	T - Bearing Width across Cups N/A 6.3749 in161.922 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 67200 lbf299000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 451000 lbf2010000 N	Bore Taper N/A
H432549D - H432510	Series N/A H432500	d - Bore N/A 6.1250 in155.575 mm	D - Cup Outer Diameter N/A 9.7500 in247.650 mm	B - Double Cone Width N/A 4.8125 in122.238 mm	C - Cup Width N/A 2.0625 in52.388 mm	T - Bearing Width across Cups N/A 4.8124 in122.235 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 36900 lbf164000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 248000 lbf1100000 N	Bore Taper N/A
EE217063D - 217112	Series N/A 217000	d - Bore N/A 6.2500 in158.750 mm	D - Cup Outer Diameter N/A 11.2500 in285.750 mm	B - Double Cone Width N/A 4.9375 in125.413 mm	C - Cup Width N/A 2.1875 in55.563 mm	T - Bearing Width across Cups N/A 5.0625 in128.588 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 41700 lbf185000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 280000 lbf1240000 N	Bore Taper N/A
EE217063D - 217112W	Series N/A 217000	d - Bore N/A 6.2500 in158.750 mm	D - Cup Outer Diameter N/A 11.2500 in285.750 mm	B - Double Cone Width N/A 4.9375 in125.413 mm	C - Cup Width N/A 2.1875 in55.563 mm	T - Bearing Width across Cups N/A 5.0625 in128.588 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 41700 lbf185000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 280000 lbf1240000 N	Bore Taper N/A
EE280625D - 281200	Series N/A 280000	d - Bore N/A 6.2500 in158.750 mm	D - Cup Outer Diameter N/A 12 in304.8 mm	B - Double Cone Width N/A 4.5000 in114.300 mm	C - Cup Width N/A 1.6875 in42.863 mm	T - Bearing Width across Cups N/A 4.3085 in109.436 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 35100 lbf156000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 236000 lbf1050000 N	Bore Taper N/A
EE280625D - 281202	Series N/A 280000	d - Bore N/A 6.2500 in158.750 mm	D - Cup Outer Diameter N/A 12 in304.8 mm	B - Double Cone Width N/A 4.5000 in114.300 mm	C - Cup Width N/A 1.6875 in42.863 mm	T - Bearing Width across Cups N/A 4.3085 in109.436 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 35100 lbf156000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 236000 lbf1050000 N	Bore Taper N/A
46790D - 46720	Series N/A 46700	d - Bore N/A 6.5 in165.1 mm	D - Cup Outer Diameter N/A 8.875 in225.425 mm	B - Double Cone Width N/A 3.0000 in76.200 mm	C - Cup Width N/A 1.3125 in33.338 mm	T - Bearing Width across Cups N/A 3.1250 in79.375 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 17700 lbf78600 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 119000 lbf528000 N	Bore Taper N/A
HM237542D - HM237511	Series N/A HM237500	d - Bore N/A 6.8750 in174.625 mm	D - Cup Outer Diameter N/A 11.3750 in288.925 mm	B - Double Cone Width N/A 4.8750 in123.825 mm	C - Cup Width N/A 1.8750 in47.625 mm	T - Bearing Width across Cups N/A 4.8750 in123.825 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 48000 lbf214000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 322000 lbf1430000 N	Bore Taper N/A
HM237542D - HM237510	Series N/A HM237500	d - Bore N/A 6.8750 in174.625 mm	D - Cup Outer Diameter N/A 11.3750 in288.925 mm	B - Double Cone Width N/A 4.8750 in123.825 mm	C - Cup Width N/A 1.8750 in47.625 mm	T - Bearing Width across Cups N/A 4.8750 in123.825 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 48000 lbf214000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 322000 lbf1430000 N	Bore Taper N/A
HM237542D - HM237513	Series N/A HM237500	d - Bore N/A 6.8750 in174.625 mm	D - Cup Outer Diameter N/A 11.4163 in289.974 mm	B - Double Cone Width N/A 4.8750 in123.825 mm	C - Cup Width N/A 1.8898 in48.001 mm	T - Bearing Width across Cups N/A 4.8750 in123.825 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 48000 lbf214000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 322000 lbf1430000 N	Bore Taper N/A
67790D - 67720	Series N/A 67700	d - Bore N/A 7.0000 in177.800 mm	D - Cup Outer Diameter N/A 9.7500 in247.650 mm	B - Double Cone Width N/A 3.5625 in90.488 mm	C - Cup Width N/A 1.5000 in38.100 mm	T - Bearing Width across Cups N/A 3.5624 in90.485 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 23600 lbf105000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 159000 lbf705000 N	Bore Taper N/A
67790D - 67720V	Series N/A 67700	d - Bore N/A 7.0000 in177.800 mm	D - Cup Outer Diameter N/A 9.7500 in247.650 mm	B - Double Cone Width N/A 3.5625 in90.488 mm	C - Cup Width N/A 1.5000 in38.100 mm	T - Bearing Width across Cups N/A 3.5624 in90.485 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 23600 lbf105000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 159000 lbf705000 N	Bore Taper N/A
82680D - 82622	Series N/A 82600	d - Bore N/A 7.0000 in177.800 mm	D - Cup Outer Diameter N/A 10.7500 in273.050 mm	B - Double Cone Width N/A 4.4375 in112.713 mm	C - Cup Width N/A 1.7187 in43.655 mm	T - Bearing Width across Cups N/A 4.4373 in112.707 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 31100 lbf138000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 209000 lbf930000 N	Bore Taper N/A
82680DG - 82622	Series N/A 82600	d - Bore N/A 7.0000 in177.800 mm	D - Cup Outer Diameter N/A 10.7500 in273.050 mm	B - Double Cone Width N/A 4.4375 in112.713 mm	C - Cup Width N/A 1.7187 in43.655 mm	T - Bearing Width across Cups N/A 4.4373 in112.707 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 31100 lbf138000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 209000 lbf930000 N	Bore Taper N/A
82681D - 82622	Series N/A 82600	d - Bore N/A 7.0000 in177.800 mm	D - Cup Outer Diameter N/A 10.7500 in273.050 mm	B - Double Cone Width N/A 4.4375 in112.713 mm	C - Cup Width N/A 1.7187 in43.655 mm	T - Bearing Width across Cups N/A 4.4373 in112.707 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 31100 lbf138000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 209000 lbf930000 N	Bore Taper N/A
82681DGW - 82622	Series N/A 82600	d - Bore N/A 7.0000 in177.800 mm	D - Cup Outer Diameter N/A 10.7500 in273.050 mm	B - Double Cone Width N/A 4.4375 in112.713 mm	C - Cup Width N/A 1.7187 in43.655 mm	T - Bearing Width across Cups N/A 4.4373 in112.707 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 33000 lbf147000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 221000 lbf984000 N	Bore Taper N/A
82680D - 82620	Series N/A 82600	d - Bore N/A 7.0000 in177.800 mm	D - Cup Outer Diameter N/A 11.0000 in279.400 mm	B - Double Cone Width N/A 4.4375 in112.713 mm	C - Cup Width N/A 1.7187 in43.655 mm	T - Bearing Width across Cups N/A 4.4373 in112.707 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 31100 lbf138000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 209000 lbf930000 N	Bore Taper N/A
82680DG - 82620	Series N/A 82600	d - Bore N/A 7.0000 in177.800 mm	D - Cup Outer Diameter N/A 11.0000 in279.400 mm	B - Double Cone Width N/A 4.4375 in112.713 mm	C - Cup Width N/A 1.7187 in43.655 mm	T - Bearing Width across Cups N/A 4.4373 in112.707 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 31100 lbf138000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 209000 lbf930000 N	Bore Taper N/A

82681D - 82620	Series N/A 82600	d - Bore N/A 7.0000 in177.800 mm	D - Cup Outer Diameter N/A 11.0000 in279.400 mm	B - Double Cone Width N/A 4.4375 in112.713 mm	C - Cup Width N/A 1.7187 in43.655 mm	T - Bearing Width across Cups N/A 4.4373 in112.707 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 31100 lbf138000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 209000 lbf930000 N	Bore Taper N/A
82681DGW - 82620	Series N/A 82600	d - Bore N/A 7.0000 in177.800 mm	D - Cup Outer Diameter N/A 11.0000 in279.400 mm	B - Double Cone Width N/A 4.4375 in112.713 mm	C - Cup Width N/A 1.7187 in43.655 mm	T - Bearing Width across Cups N/A 4.4373 in112.707 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 33000 lbf147000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 221000 lbf984000 N	Bore Taper N/A
EE91700D - 91112	Series N/A 91000	d - Bore N/A 7.0000 in177.800 mm	D - Cup Outer Diameter N/A 11.2500 in285.750 mm	B - Double Cone Width N/A 4.1875 in106.363 mm	C - Cup Width N/A 1.6250 in41.275 mm	T - Bearing Width across Cups N/A 4.1873 in106.357 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 28600 lbf127000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 192000 lbf853000 N	Bore Taper N/A
94704D - 94113A	Series N/A 94000	d - Bore N/A 7.0000 in177.800 mm	D - Cup Outer Diameter N/A 11.3750 in288.925 mm	B - Double Cone Width N/A 6.2500 in158.750 mm	C - Cup Width N/A 1.8750 in47.625 mm	T - Bearing Width across Cups N/A 6.2500 in158.750 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 38500 lbf171000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 258000 lbf1150000 N	Bore Taper N/A
94704D - 94113	Series N/A 94000	d - Bore N/A 7.0000 in177.800 mm	D - Cup Outer Diameter N/A 11.3750 in288.925 mm	B - Double Cone Width N/A 6.2500 in158.750 mm	C - Cup Width N/A 1.8750 in47.625 mm	T - Bearing Width across Cups N/A 6.2500 in158.750 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 38500 lbf171000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 258000 lbf1150000 N	Bore Taper N/A
94706D - 94113A	Series N/A 94000	d - Bore N/A 7.0000 in177.800 mm	D - Cup Outer Diameter N/A 11.3750 in288.925 mm	B - Double Cone Width N/A 4.8750 in123.825 mm	C - Cup Width N/A 1.8750 in47.625 mm	T - Bearing Width across Cups N/A 4.8750 in123.825 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 38500 lbf171000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 258000 lbf1150000 N	Bore Taper N/A
94706D - 94113	Series N/A 94000	d - Bore N/A 7.0000 in177.800 mm	D - Cup Outer Diameter N/A 11.3750 in288.925 mm	B - Double Cone Width N/A 4.8750 in123.825 mm	C - Cup Width N/A 1.8750 in47.625 mm	T - Bearing Width across Cups N/A 4.8750 in123.825 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 38500 lbf171000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 258000 lbf1150000 N	Bore Taper N/A
HM237546D - HM237511	Series N/A HM237500	d - Bore N/A 7.0000 in177.800 mm	D - Cup Outer Diameter N/A 11.3750 in288.925 mm	B - Double Cone Width N/A 4.8750 in123.825 mm	C - Cup Width N/A 1.8750 in47.625 mm	T - Bearing Width across Cups N/A 4.8750 in123.825 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 48000 lbf214000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 322000 lbf1430000 N	Bore Taper N/A
HM237546D - HM237510	Series N/A HM237500	d - Bore N/A 7.0000 in177.800 mm	D - Cup Outer Diameter N/A 11.3750 in288.925 mm	B - Double Cone Width N/A 4.8750 in123.825 mm	C - Cup Width N/A 1.8750 in47.625 mm	T - Bearing Width across Cups N/A 4.8750 in123.825 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 48000 lbf214000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 322000 lbf1430000 N	Bore Taper N/A
HM237546DD - HM237511	Series N/A HM237500	d - Bore N/A 7.0000 in177.800 mm	D - Cup Outer Diameter N/A 11.3750 in288.925 mm	B - Double Cone Width N/A 6.2500 in158.750 mm	C - Cup Width N/A 1.8750 in47.625 mm	T - Bearing Width across Cups N/A 6.2500 in158.750 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 48000 lbf214000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 322000 lbf1430000 N	Bore Taper N/A
HM237546DD - HM237510	Series N/A HM237500	d - Bore N/A 7.0000 in177.800 mm	D - Cup Outer Diameter N/A 11.3750 in288.925 mm	B - Double Cone Width N/A 6.2500 in158.750 mm	C - Cup Width N/A 1.8750 in47.625 mm	T - Bearing Width across Cups N/A 6.2500 in158.750 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 48000 lbf214000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 322000 lbf1430000 N	Bore Taper N/A
HM237546D - HM237513	Series N/A HM237500	d - Bore N/A 7.0000 in177.800 mm	D - Cup Outer Diameter N/A 11.4163 in289.974 mm	B - Double Cone Width N/A 4.8750 in123.825 mm	C - Cup Width N/A 1.8898 in48.001 mm	T - Bearing Width across Cups N/A 4.8750 in123.825 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 48000 lbf214000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 322000 lbf1430000 N	Bore Taper N/A
HM237546DD - HM237513	Series N/A HM237500	d - Bore N/A 7.0000 in177.800 mm	D - Cup Outer Diameter N/A 11.4163 in289.974 mm	B - Double Cone Width N/A 6.2500 in158.750 mm	C - Cup Width N/A 1.8898 in48.001 mm	T - Bearing Width across Cups N/A 6.2500 in158.750 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 48000 lbf214000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 322000 lbf1430000 N	Bore Taper N/A
94704D - 94118	Series N/A 94000	d - Bore N/A 7.0000 in177.800 mm	D - Cup Outer Diameter N/A 11.7500 in298.450 mm	B - Double Cone Width N/A 6.2500 in158.750 mm	C - Cup Width N/A 1.8750 in47.625 mm	T - Bearing Width across Cups N/A 6.2500 in158.750 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 38500 lbf171000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 258000 lbf1150000 N	Bore Taper N/A
94706D - 94118	Series N/A 94000	d - Bore N/A 7.0000 in177.800 mm	D - Cup Outer Diameter N/A 11.7500 in298.450 mm	B - Double Cone Width N/A 4.8750 in123.825 mm	C - Cup Width N/A 1.8750 in47.625 mm	T - Bearing Width across Cups N/A 4.8750 in123.825 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 38500 lbf171000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 258000 lbf1150000 N	Bore Taper N/A
EE280700D - 281200	Series N/A 280000	d - Bore N/A 7.0000 in177.800 mm	D - Cup Outer Diameter N/A 12 in304.8 mm	B - Double Cone Width N/A 4.5000 in114.300 mm	C - Cup Width N/A 1.6875 in42.863 mm	T - Bearing Width across Cups N/A 4.3085 in109.436 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 35100 lbf156000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 236000 lbf1050000 N	Bore Taper N/A
EE280700D - 281202	Series N/A 280000	d - Bore N/A 7.0000 in177.800 mm	D - Cup Outer Diameter N/A 12 in304.8 mm	B - Double Cone Width N/A 4.5000 in114.300 mm	C - Cup Width N/A 1.6875 in42.863 mm	T - Bearing Width across Cups N/A 4.3085 in109.436 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 35100 lbf156000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 236000 lbf1050000 N	Bore Taper N/A
EE280700DG - 281200	Series N/A 280000	d - Bore N/A 7.0000 in177.800 mm	D - Cup Outer Diameter N/A 12 in304.8 mm	B - Double Cone Width N/A 4.5000 in114.300 mm	C - Cup Width N/A 1.6875 in42.863 mm	T - Bearing Width across Cups N/A 4.3085 in109.436 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 35100 lbf156000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 236000 lbf1050000 N	Bore Taper N/A
EE280700DG - 281202	Series N/A 280000	d - Bore N/A 7.0000 in177.800 mm	D - Cup Outer Diameter N/A 12 in304.8 mm	B - Double Cone Width N/A 4.5000 in114.300 mm	C - Cup Width N/A 1.6875 in42.863 mm	T - Bearing Width across Cups N/A 4.3085 in109.436 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 35100 lbf156000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 236000 lbf1050000 N	Bore Taper N/A
EE280703DW - 281202	Series N/A 280000	d - Bore N/A 7.0000 in177.800 mm	D - Cup Outer Diameter N/A 12 in304.8 mm	B - Double Cone Width N/A 4.5000 in114.300 mm	C - Cup Width N/A 1.6875 in42.863 mm	T - Bearing Width across Cups N/A 4.3085 in109.436 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 35100 lbf156000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 236000 lbf1050000 N	Bore Taper N/A
EE280703DW - 281200	Series N/A 280000	d - Bore N/A 7.0000 in177.800 mm	D - Cup Outer Diameter N/A 12 in304.8 mm	B - Double Cone Width N/A 4.5000 in114.300 mm	C - Cup Width N/A 1.6875 in42.863 mm	T - Bearing Width across Cups N/A 4.3085 in109.436 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 35100 lbf156000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 236000 lbf1050000 N	Bore Taper N/A
780702D - 781400	Series N/A 780000	d - Bore N/A 7.0000 in177.800 mm	D - Cup Outer Diameter N/A 14 in355.6 mm	B - Double Cone Width N/A 4.1875 in106.363 mm	C - Cup Width N/A 1.6250 in41.275 mm	T - Bearing Width across Cups N/A 4.8747 in123.817 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 48200 lbf215000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 324000 lbf1440000 N	Bore Taper N/A
M238849DW - M238810	Series N/A M238800	d - Bore N/A 7.3750 in187.325 mm	D - Cup Outer Diameter N/A 10.6250 in269.875 mm	B - Double Cone Width N/A 4.0000 in101.600 mm	C - Cup Width N/A 1.6875 in42.863 mm	T - Bearing Width across Cups N/A 4.0000 in101.600 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 32000 lbf142000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 215000 lbf955000 N	Bore Taper N/A
H239649D - H239610	Series N/A H239600	d - Bore N/A 7.3750 in187.325 mm	D - Cup Outer Diameter N/A 12.5970 in319.964 mm	B - Double Cone Width N/A 6.3750 in161.925 mm	C - Cup Width N/A 2.5625 in65.088 mm	T - Bearing Width across Cups N/A 6.6250 in168.275 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 61100 lbf272000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 410000 lbf1830000 N	Bore Taper N/A
H239649D - H239612	Series N/A H239600	d - Bore N/A 7.3750 in187.325 mm	D - Cup Outer Diameter N/A 12.6250 in320.675 mm	B - Double Cone Width N/A 6.3750 in161.925 mm	C - Cup Width N/A 2.5625 in65.088 mm	T - Bearing Width across Cups N/A 6.6250 in168.275 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 61100 lbf272000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 410000 lbf1830000 N	Bore Taper N/A

93751D - 93126	Series N/A 93000	d - Bore N/A 7.5 in190.5 mm	D - Cup Outer Diameter N/A 12.5000 in317.500 mm	B - Double Cone Width N/A 5.2500 in133.350 mm	C - Cup Width N/A 2.0000 in50.800 mm	T - Bearing Width across Cups N/A 5.6249 in142.872 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 42600 lbf190000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 286000 lbf1270000 N	Bore Taper N/A
93751D - 93125	Series N/A 93000	d - Bore N/A 7.5 in190.5 mm	D - Cup Outer Diameter N/A 12.5000 in317.500 mm	B - Double Cone Width N/A 5.2500 in133.350 mm	C - Cup Width N/A 1.8125 in46.038 mm	T - Bearing Width across Cups N/A 5.2499 in133.347 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 42600 lbf190000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 286000 lbf1270000 N	Bore Taper N/A
93751D - 93125V	Series N/A 93000	d - Bore N/A 7.5 in190.5 mm	D - Cup Outer Diameter N/A 12.5000 in317.500 mm	B - Double Cone Width N/A 5.2500 in133.350 mm	C - Cup Width N/A 1.8125 in46.038 mm	T - Bearing Width across Cups N/A 5.2499 in133.347 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 42600 lbf190000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 286000 lbf1270000 N	Bore Taper N/A
93751DW - 93125V	Series N/A 93000	d - Bore N/A 7.5 in190.5 mm	D - Cup Outer Diameter N/A 12.5000 in317.500 mm	B - Double Cone Width N/A 5.2500 in133.350 mm	C - Cup Width N/A 1.8125 in46.038 mm	T - Bearing Width across Cups N/A 5.2499 in133.347 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 42600 lbf190000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 286000 lbf1270000 N	Bore Taper N/A
93751DW - 93125	Series N/A 93000	d - Bore N/A 7.5 in190.5 mm	D - Cup Outer Diameter N/A 12.5000 in317.500 mm	B - Double Cone Width N/A 5.2500 in133.350 mm	C - Cup Width N/A 1.8125 in46.038 mm	T - Bearing Width across Cups N/A 5.2499 in133.347 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 42600 lbf190000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 286000 lbf1270000 N	Bore Taper N/A
93751DW - 93126	Series N/A 93000	d - Bore N/A 7.5 in190.5 mm	D - Cup Outer Diameter N/A 12.5000 in317.500 mm	B - Double Cone Width N/A 5.2500 in133.350 mm	C - Cup Width N/A 2.0000 in50.800 mm	T - Bearing Width across Cups N/A 5.6249 in142.872 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 42600 lbf190000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 286000 lbf1270000 N	Bore Taper N/A
93751D - J93129A	Series N/A 93000	d - Bore N/A 7.5 in190.5 mm	D - Cup Outer Diameter N/A 12.5984 in319.999 mm	B - Double Cone Width N/A 5.2500 in133.350 mm	C - Cup Width N/A 1.8125 in46.038 mm	T - Bearing Width across Cups N/A 5.2499 in133.347 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 42600 lbf190000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 286000 lbf1270000 N	Bore Taper N/A
93751DW - J93129A	Series N/A 93000	d - Bore N/A 7.5 in190.5 mm	D - Cup Outer Diameter N/A 12.5984 in319.999 mm	B - Double Cone Width N/A 5.2500 in133.350 mm	C - Cup Width N/A 1.8125 in46.038 mm	T - Bearing Width across Cups N/A 5.2499 in133.347 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 42600 lbf190000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 286000 lbf1270000 N	Bore Taper N/A
93751D - 93134	Series N/A 93000	d - Bore N/A 7.5 in190.5 mm	D - Cup Outer Diameter N/A 13.4132 in340.695 mm	B - Double Cone Width N/A 5.2500 in133.350 mm	C - Cup Width N/A 2.1125 in53.658 mm	T - Bearing Width across Cups N/A 5.8499 in148.587 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 42600 lbf190000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 286000 lbf1270000 N	Bore Taper N/A
93751DW - 93134	Series N/A 93000	d - Bore N/A 7.5 in190.5 mm	D - Cup Outer Diameter N/A 13.4132 in340.695 mm	B - Double Cone Width N/A 5.2500 in133.350 mm	C - Cup Width N/A 2.1125 in53.658 mm	T - Bearing Width across Cups N/A 5.8499 in148.587 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 42600 lbf190000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 286000 lbf1270000 N	Bore Taper N/A
EE420750D - 421417	Series N/A 420000	d - Bore N/A 7.5 in190.5 mm	D - Cup Outer Diameter N/A 14.1732 in359.999 mm	B - Double Cone Width N/A 6.0000 in152.400 mm	C - Cup Width N/A 2.5000 in63.500 mm	T - Bearing Width across Cups N/A 6.2499 in158.747 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 64300 lbf286000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 432000 lbf1920000 N	Bore Taper N/A
EE420750D - 421437	Series N/A 420000	d - Bore N/A 7.5 in190.5 mm	D - Cup Outer Diameter N/A 14.3720 in365.049 mm	B - Double Cone Width N/A 6.0000 in152.400 mm	C - Cup Width N/A 2.5000 in63.500 mm	T - Bearing Width across Cups N/A 6.2499 in158.747 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 64300 lbf286000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 432000 lbf1920000 N	Bore Taper N/A
EE420750D - 421450	Series N/A 420000	d - Bore N/A 7.5 in190.5 mm	D - Cup Outer Diameter N/A 14.5000 in368.300 mm	B - Double Cone Width N/A 6.0000 in152.400 mm	C - Cup Width N/A 2.5000 in63.500 mm	T - Bearing Width across Cups N/A 6.2499 in158.747 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 64300 lbf286000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 432000 lbf1920000 N	Bore Taper N/A
L540049D - L540010	Series N/A L540000	d - Bore N/A 7.7500 in196.850 mm	D - Cup Outer Diameter N/A 10.0000 in254.000 mm	B - Double Cone Width N/A 2.0626 in52.390 mm	C - Cup Width N/A 0.8438 in21.433 mm	T - Bearing Width across Cups N/A 2.1249 in53.972 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 12300 lbf54700 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 82500 lbf367000 N	Bore Taper N/A
93788D - 93125	Series N/A 93000	d - Bore N/A 7.8730 in199.974 mm	D - Cup Outer Diameter N/A 12.5000 in317.500 mm	B - Double Cone Width N/A 5.2500 in133.350 mm	C - Cup Width N/A 1.8125 in46.038 mm	T - Bearing Width across Cups N/A 5.2499 in133.347 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 42600 lbf190000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 286000 lbf1270000 N	Bore Taper N/A
93788D - 93126	Series N/A 93000	d - Bore N/A 7.8730 in199.974 mm	D - Cup Outer Diameter N/A 12.5000 in317.500 mm	B - Double Cone Width N/A 5.2500 in133.350 mm	C - Cup Width N/A 2.0000 in50.800 mm	T - Bearing Width across Cups N/A 5.6249 in142.872 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 42600 lbf190000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 286000 lbf1270000 N	Bore Taper N/A
93788D - 93125V	Series N/A 93000	d - Bore N/A 7.8730 in199.974 mm	D - Cup Outer Diameter N/A 12.5000 in317.500 mm	B - Double Cone Width N/A 5.2500 in133.350 mm	C - Cup Width N/A 1.8125 in46.038 mm	T - Bearing Width across Cups N/A 5.2499 in133.347 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 42600 lbf190000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 286000 lbf1270000 N	Bore Taper N/A
93788D - J93129A	Series N/A 93000	d - Bore N/A 7.8730 in199.974 mm	D - Cup Outer Diameter N/A 12.5984 in319.999 mm	B - Double Cone Width N/A 5.2500 in133.350 mm	C - Cup Width N/A 1.8125 in46.038 mm	T - Bearing Width across Cups N/A 5.2499 in133.347 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 42600 lbf190000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 286000 lbf1270000 N	Bore Taper N/A
93788D - 93134	Series N/A 93000	d - Bore N/A 7.8730 in199.974 mm	D - Cup Outer Diameter N/A 13.4132 in340.695 mm	B - Double Cone Width N/A 5.2500 in133.350 mm	C - Cup Width N/A 2.1125 in53.658 mm	T - Bearing Width across Cups N/A 5.8499 in148.587 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 42600 lbf190000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 286000 lbf1270000 N	Bore Taper N/A
93800D - 93126	Series N/A 93000	d - Bore N/A 8 in203.2 mm	D - Cup Outer Diameter N/A 12.5000 in317.500 mm	B - Double Cone Width N/A 4.8750 in123.825 mm	C - Cup Width N/A 2.0000 in50.800 mm	T - Bearing Width across Cups N/A 5.2499 in133.347 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 42600 lbf190000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 286000 lbf1270000 N	Bore Taper N/A
93800D - 93125	Series N/A 93000	d - Bore N/A 8 in203.2 mm	D - Cup Outer Diameter N/A 12.5000 in317.500 mm	B - Double Cone Width N/A 4.8750 in123.825 mm	C - Cup Width N/A 1.8125 in46.038 mm	T - Bearing Width across Cups N/A 4.8749 in123.822 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 42600 lbf190000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 286000 lbf1270000 N	Bore Taper N/A
93800D - 93125V	Series N/A 93000	d - Bore N/A 8 in203.2 mm	D - Cup Outer Diameter N/A 12.5000 in317.500 mm	B - Double Cone Width N/A 4.8750 in123.825 mm	C - Cup Width N/A 1.8125 in46.038 mm	T - Bearing Width across Cups N/A 4.8749 in123.822 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 42600 lbf190000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 286000 lbf1270000 N	Bore Taper N/A
93800DGW - 93126	Series N/A 93000	d - Bore N/A 8 in203.2 mm	D - Cup Outer Diameter N/A 12.5000 in317.500 mm	B - Double Cone Width N/A 4.8750 in123.825 mm	C - Cup Width N/A 2.0000 in50.800 mm	T - Bearing Width across Cups N/A 5.2499 in133.347 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 42600 lbf190000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 286000 lbf1270000 N	Bore Taper N/A
93800DGW - 93125V	Series N/A 93000	d - Bore N/A 8 in203.2 mm	D - Cup Outer Diameter N/A 12.5000 in317.500 mm	B - Double Cone Width N/A 4.8750 in123.825 mm	C - Cup Width N/A 1.8125 in46.038 mm	T - Bearing Width across Cups N/A 4.8749 in123.822 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 42600 lbf190000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 286000 lbf1270000 N	Bore Taper N/A
93800DGW - 93125	Series N/A 93000	d - Bore N/A 8 in203.2 mm	D - Cup Outer Diameter N/A 12.5000 in317.500 mm	B - Double Cone Width N/A 4.8750 in123.825 mm	C - Cup Width N/A 1.8125 in46.038 mm	T - Bearing Width across Cups N/A 4.8749 in123.822 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 42600 lbf190000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 286000 lbf1270000 N	Bore Taper N/A

93801D - 93126	Series N/A 93000	d - Bore N/A 8 in203.2 mm	D - Cup Outer Diameter N/A 12.5000 in317.500 mm	B - Double Cone Width N/A 5.2500 in133.350 mm	C - Cup Width N/A 2.0000 in50.800 mm	T - Bearing Width across Cups N/A 5.6249 in142.872 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 42600 lbf190000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 286000 lbf1270000 N	Bore Taper N/A
93801D - 93125	Series N/A 93000	d - Bore N/A 8 in203.2 mm	D - Cup Outer Diameter N/A 12.5000 in317.500 mm	B - Double Cone Width N/A 5.2500 in133.350 mm	C - Cup Width N/A 1.8125 in46.038 mm	T - Bearing Width across Cups N/A 5.2499 in133.347 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 42600 lbf190000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 286000 lbf1270000 N	Bore Taper N/A
93801D - 93125V	Series N/A 93000	d - Bore N/A 8 in203.2 mm	D - Cup Outer Diameter N/A 12.5000 in317.500 mm	B - Double Cone Width N/A 5.2500 in133.350 mm	C - Cup Width N/A 1.8125 in46.038 mm	T - Bearing Width across Cups N/A 5.2499 in133.347 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 42600 lbf190000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 286000 lbf1270000 N	Bore Taper N/A
EE132081D - 132125	Series N/A 132000	d - Bore N/A 8 in203.2 mm	D - Cup Outer Diameter N/A 12.5000 in317.500 mm	B - Double Cone Width N/A 3.7500 in95.250 mm	C - Cup Width N/A 1.3750 in34.925 mm	T - Bearing Width across Cups N/A 3.7500 in95.250 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 30800 lbf137000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 207000 lbf919000 N	Bore Taper N/A
EE132081D - 132127	Series N/A 132000	d - Bore N/A 8 in203.2 mm	D - Cup Outer Diameter N/A 12.5625 in319.088 mm	B - Double Cone Width N/A 3.7500 in95.250 mm	C - Cup Width N/A 1.3750 in34.925 mm	T - Bearing Width across Cups N/A 3.7500 in95.250 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 30800 lbf137000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 207000 lbf919000 N	Bore Taper N/A
93800D - J93129A	Series N/A 93000	d - Bore N/A 8 in203.2 mm	D - Cup Outer Diameter N/A 12.5984 in319.999 mm	B - Double Cone Width N/A 4.8750 in123.825 mm	C - Cup Width N/A 1.8125 in46.038 mm	T - Bearing Width across Cups N/A 4.8749 in123.822 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 42600 lbf190000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 286000 lbf1270000 N	Bore Taper N/A
93800DGW - J93129A	Series N/A 93000	d - Bore N/A 8 in203.2 mm	D - Cup Outer Diameter N/A 12.5984 in319.999 mm	B - Double Cone Width N/A 4.8750 in123.825 mm	C - Cup Width N/A 1.8125 in46.038 mm	T - Bearing Width across Cups N/A 4.8749 in123.822 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 42600 lbf190000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 286000 lbf1270000 N	Bore Taper N/A
93801D - J93129A	Series N/A 93000	d - Bore N/A 8 in203.2 mm	D - Cup Outer Diameter N/A 12.5984 in319.999 mm	B - Double Cone Width N/A 5.2500 in133.350 mm	C - Cup Width N/A 1.8125 in46.038 mm	T - Bearing Width across Cups N/A 5.2499 in133.347 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 42600 lbf190000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 286000 lbf1270000 N	Bore Taper N/A
93800D - 93134	Series N/A 93000	d - Bore N/A 8 in203.2 mm	D - Cup Outer Diameter N/A 13.4132 in340.695 mm	B - Double Cone Width N/A 4.8750 in123.825 mm	C - Cup Width N/A 2.1125 in53.658 mm	T - Bearing Width across Cups N/A 5.4749 in139.062 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 42600 lbf190000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 286000 lbf1270000 N	Bore Taper N/A
93800DGW - 93134	Series N/A 93000	d - Bore N/A 8 in203.2 mm	D - Cup Outer Diameter N/A 13.4132 in340.695 mm	B - Double Cone Width N/A 4.8750 in123.825 mm	C - Cup Width N/A 2.1125 in53.658 mm	T - Bearing Width across Cups N/A 5.4749 in139.062 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 42600 lbf190000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 286000 lbf1270000 N	Bore Taper N/A
93801D - 93134	Series N/A 93000	d - Bore N/A 8 in203.2 mm	D - Cup Outer Diameter N/A 13.4132 in340.695 mm	B - Double Cone Width N/A 5.2500 in133.350 mm	C - Cup Width N/A 2.1125 in53.658 mm	T - Bearing Width across Cups N/A 5.8499 in148.587 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 42600 lbf190000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 286000 lbf1270000 N	Bore Taper N/A
EE420800D - 421417	Series N/A 420000	d - Bore N/A 8 in203.2 mm	D - Cup Outer Diameter N/A 14.1732 in359.999 mm	B - Double Cone Width N/A 6.0000 in152.400 mm	C - Cup Width N/A 2.5000 in63.500 mm	T - Bearing Width across Cups N/A 6.2499 in158.747 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 64300 lbf286000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 432000 lbf1920000 N	Bore Taper N/A
EE420800D - 421437	Series N/A 420000	d - Bore N/A 8 in203.2 mm	D - Cup Outer Diameter N/A 14.3720 in365.049 mm	B - Double Cone Width N/A 6.0000 in152.400 mm	C - Cup Width N/A 2.5000 in63.500 mm	T - Bearing Width across Cups N/A 6.2499 in158.747 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 64300 lbf286000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 432000 lbf1920000 N	Bore Taper N/A
EE420800D - 421450	Series N/A 420000	d - Bore N/A 8 in203.2 mm	D - Cup Outer Diameter N/A 14.5000 in368.300 mm	B - Double Cone Width N/A 6.0000 in152.400 mm	C - Cup Width N/A 2.5000 in63.500 mm	T - Bearing Width across Cups N/A 6.2499 in158.747 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 64300 lbf286000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 432000 lbf1920000 N	Bore Taper N/A
8976D - 8920	Series N/A 8900	d - Bore N/A 8.0060 in203.352 mm	D - Cup Outer Diameter N/A 11.7500 in298.450 mm	B - Double Cone Width N/A 3.2188 in81.758 mm	C - Cup Width N/A 1.2500 in31.750 mm	T - Bearing Width across Cups N/A 3.2187 in81.755 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 25000 lbf111000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 168000 lbf746000 N	Bore Taper N/A
67985D - 67919	Series N/A 67900	d - Bore N/A 8.1250 in206.375 mm	D - Cup Outer Diameter N/A 11.0000 in279.400 mm	B - Double Cone Width N/A 3.4375 in87.313 mm	C - Cup Width N/A 1.4375 in36.513 mm	T - Bearing Width across Cups N/A 3.4375 in87.313 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 24700 lbf110000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 166000 lbf738000 N	Bore Taper N/A
67985D - 67920	Series N/A 67900	d - Bore N/A 8.1250 in206.375 mm	D - Cup Outer Diameter N/A 11.1250 in282.575 mm	B - Double Cone Width N/A 3.4375 in87.313 mm	C - Cup Width N/A 1.4375 in36.513 mm	T - Bearing Width across Cups N/A 3.4375 in87.313 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 24700 lbf110000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 166000 lbf738000 N	Bore Taper N/A
H242649D - H242610	Series N/A H242600	d - Bore N/A 8.1250 in206.375 mm	D - Cup Outer Diameter N/A 13.2500 in336.550 mm	B - Double Cone Width N/A 7.2500 in184.150 mm	C - Cup Width N/A 3.0625 in77.788 mm	T - Bearing Width across Cups N/A 7.1250 in180.975 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 79000 lbf351000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 530000 lbf2360000 N	Bore Taper N/A
LM742749DW - LM742710	Series N/A LM742700	d - Bore N/A 8.5000 in215.900 mm	D - Cup Outer Diameter N/A 11.2500 in285.750 mm	B - Double Cone Width N/A 3.3750 in85.725 mm	C - Cup Width N/A 1.3750 in34.925 mm	T - Bearing Width across Cups N/A 3.3749 in85.722 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 25000 lbf111000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 168000 lbf748000 N	Bore Taper N/A
LM742749DW - LM742714	Series N/A LM742700	d - Bore N/A 8.5000 in215.900 mm	D - Cup Outer Diameter N/A 11.3750 in288.925 mm	B - Double Cone Width N/A 3.3750 in85.725 mm	C - Cup Width N/A 1.3750 in34.925 mm	T - Bearing Width across Cups N/A 3.3749 in85.722 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 25000 lbf111000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 168000 lbf748000 N	Bore Taper N/A
96851D - 96140	Series N/A 96000	d - Bore N/A 8.5000 in215.900 mm	D - Cup Outer Diameter N/A 14 in355.6 mm	B - Double Cone Width N/A 5.1250 in130.175 mm	C - Cup Width N/A 1.8750 in47.625 mm	T - Bearing Width across Cups N/A 4.9999 in126.997 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 44200 lbf197000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 297000 lbf1320000 N	Bore Taper N/A
96851DW - 96140	Series N/A 96000	d - Bore N/A 8.5000 in215.900 mm	D - Cup Outer Diameter N/A 14 in355.6 mm	B - Double Cone Width N/A 5.1250 in130.175 mm	C - Cup Width N/A 1.8750 in47.625 mm	T - Bearing Width across Cups N/A 4.9999 in126.997 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 44200 lbf197000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 297000 lbf1320000 N	Bore Taper N/A
EE130850D - 131400	Series N/A 130000	d - Bore N/A 8.5000 in215.900 mm	D - Cup Outer Diameter N/A 14 in355.6 mm	B - Double Cone Width N/A 4.7500 in120.650 mm	C - Cup Width N/A 1.9375 in49.213 mm	T - Bearing Width across Cups N/A 4.7500 in120.650 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 46400 lbf206000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 312000 lbf1390000 N	Bore Taper N/A
H244849D - H244810	Series N/A H244800	d - Bore N/A 8.6250 in219.075 mm	D - Cup Outer Diameter N/A 14.1250 in358.775 mm	B - Double Cone Width N/A 7.8750 in200.025 mm	C - Cup Width N/A 3.3750 in85.725 mm	T - Bearing Width across Cups N/A 7.7499 in196.847 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 84200 lbf375000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 566000 lbf2520000 N	Bore Taper N/A
H244849D - H244810XX	Series N/A H244800	d - Bore N/A 8.6250 in219.075 mm	D - Cup Outer Diameter N/A 14.1250 in358.775 mm	B - Double Cone Width N/A 7.8750 in200.025 mm	C - Cup Width N/A 3.3750 in85.725 mm	T - Bearing Width across Cups N/A 7.7499 in196.847 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 84200 lbf375000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 566000 lbf2520000 N	Bore Taper N/A

M244249DGW - M244210XX	Series N/A M244200	d - Bore N/A 8.6875 in220.663 mm	D - Cup Outer Diameter N/A 12.3750 in314.325 mm	B - Double Cone Width N/A 4.5625 in115.888 mm	C - Cup Width N/A 1.9375 in49.213 mm	T - Bearing Width across Cups N/A 4.5624 in115.885 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 40500 lbf180000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 272000 lbf1210000 N	Bore Taper N/A
M244249DGW - M244210	Series N/A M244200	d - Bore N/A 8.6875 in220.663 mm	D - Cup Outer Diameter N/A 12.3750 in314.325 mm	B - Double Cone Width N/A 4.5625 in115.888 mm	C - Cup Width N/A 1.9375 in49.213 mm	T - Bearing Width across Cups N/A 4.5624 in115.885 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 40500 lbf180000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 272000 lbf1210000 N	Bore Taper N/A
M244249DW - M244210	Series N/A M244200	d - Bore N/A 8.6875 in220.663 mm	D - Cup Outer Diameter N/A 12.3750 in314.325 mm	B - Double Cone Width N/A 4.5625 in115.888 mm	C - Cup Width N/A 1.9375 in49.213 mm	T - Bearing Width across Cups N/A 4.5624 in115.885 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 40500 lbf180000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 272000 lbf1210000 N	Bore Taper N/A
M244249DW - M244210XX	Series N/A M244200	d - Bore N/A 8.6875 in220.663 mm	D - Cup Outer Diameter N/A 12.3750 in314.325 mm	B - Double Cone Width N/A 4.5625 in115.888 mm	C - Cup Width N/A 1.9375 in49.213 mm	T - Bearing Width across Cups N/A 4.5624 in115.885 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 40500 lbf180000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 272000 lbf1210000 N	Bore Taper N/A
M244249DXX - M244210	Series N/A M244200	d - Bore N/A 8.6875 in220.663 mm	D - Cup Outer Diameter N/A 12.3750 in314.325 mm	B - Double Cone Width N/A 4.5625 in115.888 mm	C - Cup Width N/A 1.9375 in49.213 mm	T - Bearing Width across Cups N/A 4.5624 in115.885 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 46500 lbf207000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 312000 lbf1390000 N	Bore Taper N/A
M244249DXX - M244210XX	Series N/A M244200	d - Bore N/A 8.6875 in220.663 mm	D - Cup Outer Diameter N/A 12.3750 in314.325 mm	B - Double Cone Width N/A 4.5625 in115.888 mm	C - Cup Width N/A 1.9375 in49.213 mm	T - Bearing Width across Cups N/A 4.5624 in115.885 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 46500 lbf207000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 312000 lbf1390000 N	Bore Taper N/A
EE130887D - 131400	Series N/A 130000	d - Bore N/A 8.875 in225.425 mm	D - Cup Outer Diameter N/A 14 in355.6 mm	B - Double Cone Width N/A 4.7500 in120.650 mm	C - Cup Width N/A 1.9375 in49.213 mm	T - Bearing Width across Cups N/A 4.7500 in120.650 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 46400 lbf206000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 312000 lbf1390000 N	Bore Taper N/A
EE130888D - 131400	Series N/A 130000	d - Bore N/A 8.875 in225.425 mm	D - Cup Outer Diameter N/A 14 in355.6 mm	B - Double Cone Width N/A 6.5000 in165.100 mm	C - Cup Width N/A 1.9375 in49.213 mm	T - Bearing Width across Cups N/A 6.5000 in165.100 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 46400 lbf206000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 312000 lbf1390000 N	Bore Taper N/A
LM245149DGW - LM245110	Series N/A LM245100	d - Bore N/A 9.0000 in228.600 mm	D - Cup Outer Diameter N/A 12.25 in311.15 mm	B - Double Cone Width N/A 3.7500 in95.250 mm	C - Cup Width N/A 1.5000 in38.100 mm	T - Bearing Width across Cups N/A 3.7500 in95.250 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 31400 lbf140000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 211000 lbf938000 N	Bore Taper N/A
LM245149DW - LM245110	Series N/A LM245100	d - Bore N/A 9.0000 in228.600 mm	D - Cup Outer Diameter N/A 12.25 in311.15 mm	B - Double Cone Width N/A 3.7500 in95.250 mm	C - Cup Width N/A 1.5000 in38.100 mm	T - Bearing Width across Cups N/A 3.7500 in95.250 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 31400 lbf140000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 211000 lbf938000 N	Bore Taper N/A
EE130900D - 131400	Series N/A 130000	d - Bore N/A 9.0000 in228.600 mm	D - Cup Outer Diameter N/A 14 in355.6 mm	B - Double Cone Width N/A 4.7500 in120.650 mm	C - Cup Width N/A 1.9375 in49.213 mm	T - Bearing Width across Cups N/A 4.7500 in120.650 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 46400 lbf206000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 312000 lbf1390000 N	Bore Taper N/A
EE130901D - 131400	Series N/A 130000	d - Bore N/A 9.0000 in228.600 mm	D - Cup Outer Diameter N/A 14 in355.6 mm	B - Double Cone Width N/A 4.7500 in120.650 mm	C - Cup Width N/A 1.9375 in49.213 mm	T - Bearing Width across Cups N/A 4.7500 in120.650 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 46400 lbf206000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 312000 lbf1390000 N	Bore Taper N/A
EE130903D - 131400	Series N/A 130000	d - Bore N/A 9.0000 in228.600 mm	D - Cup Outer Diameter N/A 14 in355.6 mm	B - Double Cone Width N/A 6.5000 in165.100 mm	C - Cup Width N/A 1.9375 in49.213 mm	T - Bearing Width across Cups N/A 6.5000 in165.100 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 46400 lbf206000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 312000 lbf1390000 N	Bore Taper N/A
EE130904D - 131400	Series N/A 130000	d - Bore N/A 9.0000 in228.600 mm	D - Cup Outer Diameter N/A 14 in355.6 mm	B - Double Cone Width N/A 5.0000 in127.000 mm	C - Cup Width N/A 1.9375 in49.213 mm	T - Bearing Width across Cups N/A 4.7500 in120.650 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 46400 lbf206000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 312000 lbf1390000 N	Bore Taper N/A
EE430901D - 431575	Series N/A 430000	d - Bore N/A 9.0000 in228.600 mm	D - Cup Outer Diameter N/A 15.7500 in400.050 mm	B - Double Cone Width N/A 6.3750 in161.925 mm	C - Cup Width N/A 2.5000 in63.500 mm	T - Bearing Width across Cups N/A 6.2499 in158.747 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 65500 lbf291000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 440000 lbf1960000 N	Bore Taper N/A
EE529090DW - 529157	Series N/A 529000	d - Bore N/A 9.0000 in228.600 mm	D - Cup Outer Diameter N/A 15.7500 in400.050 mm	B - Double Cone Width N/A 5.5000 in139.700 mm	C - Cup Width N/A 2.2500 in57.150 mm	T - Bearing Width across Cups N/A 5.5000 in139.700 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 64900 lbf289000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 436000 lbf1940000 N	Bore Taper N/A
EE700090D - 700167	Series N/A 700000	d - Bore N/A 9.0000 in228.600 mm	D - Cup Outer Diameter N/A 16.7500 in425.450 mm	B - Double Cone Width N/A 6.5000 in165.100 mm	C - Cup Width N/A 3.0000 in76.200 mm	T - Bearing Width across Cups N/A 7.0000 in177.800 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 90500 lbf402000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 608000 lbf2700000 N	Bore Taper N/A
EE113090D - 113170	Series N/A 113000	d - Bore N/A 9.0000 in228.600 mm	D - Cup Outer Diameter N/A 17.0000 in431.800 mm	B - Double Cone Width N/A 6.2500 in158.750 mm	C - Cup Width N/A 1.9375 in49.213 mm	T - Bearing Width across Cups N/A 6.2499 in158.747 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 74300 lbf330000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 499000 lbf2220000 N	Bore Taper N/A
8576D - 8520	Series N/A 8500	d - Bore N/A 9.25 in234.95 mm	D - Cup Outer Diameter N/A 12.875 in327.025 mm	B - Double Cone Width N/A 3.6875 in93.663 mm	C - Cup Width N/A 1.4375 in36.513 mm	T - Bearing Width across Cups N/A 3.6875 in93.663 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 30700 lbf137000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 206000 lbf918000 N	Bore Taper N/A
8576DW - 8520	Series N/A 8500	d - Bore N/A 9.25 in234.95 mm	D - Cup Outer Diameter N/A 12.875 in327.025 mm	B - Double Cone Width N/A 3.6875 in93.663 mm	C - Cup Width N/A 1.4375 in36.513 mm	T - Bearing Width across Cups N/A 3.6875 in93.663 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 30700 lbf137000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 206000 lbf918000 N	Bore Taper N/A
8576D - 8522	Series N/A 8500	d - Bore N/A 9.25 in234.95 mm	D - Cup Outer Diameter N/A 12.9380 in328.625 mm	B - Double Cone Width N/A 3.6875 in93.663 mm	C - Cup Width N/A 1.4375 in36.513 mm	T - Bearing Width across Cups N/A 3.6875 in93.663 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 30700 lbf137000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 206000 lbf918000 N	Bore Taper N/A
8576DW - 8522	Series N/A 8500	d - Bore N/A 9.25 in234.95 mm	D - Cup Outer Diameter N/A 12.9380 in328.625 mm	B - Double Cone Width N/A 3.6875 in93.663 mm	C - Cup Width N/A 1.4375 in36.513 mm	T - Bearing Width across Cups N/A 3.6875 in93.663 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 30700 lbf137000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 206000 lbf918000 N	Bore Taper N/A
H247549D - H247510	Series N/A H247500	d - Bore N/A 9.25 in234.95 mm	D - Cup Outer Diameter N/A 15.1250 in384.175 mm	B - Double Cone Width N/A 8.2500 in209.550 mm	C - Cup Width N/A 3.5625 in90.488 mm	T - Bearing Width across Cups N/A 8.2499 in209.547 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 103000 lbf460000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 694000 lbf3090000 N	Bore Taper N/A
EE127094D - 127135	Series N/A 127000	d - Bore N/A 9.4970 in241.224 mm	D - Cup Outer Diameter N/A 13.7460 in349.148 mm	B - Double Cone Width N/A 4.2500 in107.950 mm	C - Cup Width N/A 1.7500 in44.450 mm	T - Bearing Width across Cups N/A 4.2500 in107.950 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 38500 lbf171000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 258000 lbf1150000 N	Bore Taper N/A
EE127094D - 127137	Series N/A 127000	d - Bore N/A 9.4970 in241.224 mm	D - Cup Outer Diameter N/A 13.8125 in350.838 mm	B - Double Cone Width N/A 4.2500 in107.950 mm	C - Cup Width N/A 1.7500 in44.450 mm	T - Bearing Width across Cups N/A 4.2500 in107.950 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 38500 lbf171000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 258000 lbf1150000 N	Bore Taper N/A

EE127094D - 127138	Series N/A 127000	d - Bore N/A 9.4970 in241.224 mm	D - Cup Outer Diameter N/A 13.9960 in355.498 mm	B - Double Cone Width N/A 4.2500 in107.950 mm	C - Cup Width N/A 1.7500 in44.450 mm	T - Bearing Width across Cups N/A 4.2500 in107.950 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 38500 lbf171000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 258000 lbf1150000 N	Bore Taper N/A
EE127094D - 127140	Series N/A 127000	d - Bore N/A 9.4970 in241.224 mm	D - Cup Outer Diameter N/A 14 in355.6 mm	B - Double Cone Width N/A 4.2500 in107.950 mm	C - Cup Width N/A 1.7500 in44.450 mm	T - Bearing Width across Cups N/A 4.2500 in107.950 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 38500 lbf171000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 258000 lbf1150000 N	Bore Taper N/A
EE821096D - 821165	Series N/A 821000	d - Bore N/A 9.5000 in241.300 mm	D - Cup Outer Diameter N/A 16.5000 in419.100 mm	B - Double Cone Width N/A 6.8750 in174.625 mm	C - Cup Width N/A 2.8125 in71.438 mm	T - Bearing Width across Cups N/A 6.9999 in177.797 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 88600 lbf394000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 595000 lbf2650000 N	Bore Taper N/A
EE127097DW - 127135	Series N/A 127000	d - Bore N/A 9.5070 in241.478 mm	D - Cup Outer Diameter N/A 13.7460 in349.148 mm	B - Double Cone Width N/A 4.2500 in107.950 mm	C - Cup Width N/A 1.7500 in44.450 mm	T - Bearing Width across Cups N/A 4.2500 in107.950 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 38500 lbf171000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 258000 lbf1150000 N	Bore Taper N/A
EE127097DW - 127137	Series N/A 127000	d - Bore N/A 9.5070 in241.478 mm	D - Cup Outer Diameter N/A 13.8125 in350.838 mm	B - Double Cone Width N/A 4.2500 in107.950 mm	C - Cup Width N/A 1.7500 in44.450 mm	T - Bearing Width across Cups N/A 4.2500 in107.950 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 38500 lbf171000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 258000 lbf1150000 N	Bore Taper N/A
EE127097DW - 127138	Series N/A 127000	d - Bore N/A 9.5070 in241.478 mm	D - Cup Outer Diameter N/A 13.9960 in355.498 mm	B - Double Cone Width N/A 4.2500 in107.950 mm	C - Cup Width N/A 1.7500 in44.450 mm	T - Bearing Width across Cups N/A 4.2500 in107.950 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 38500 lbf171000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 258000 lbf1150000 N	Bore Taper N/A
EE127097DW - 127140	Series N/A 127000	d - Bore N/A 9.5070 in241.478 mm	D - Cup Outer Diameter N/A 14 in355.6 mm	B - Double Cone Width N/A 4.2500 in107.950 mm	C - Cup Width N/A 1.7500 in44.450 mm	T - Bearing Width across Cups N/A 4.2500 in107.950 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 38500 lbf171000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 258000 lbf1150000 N	Bore Taper N/A
LM247748D - LM247710	Series N/A LM247700	d - Bore N/A 9.6250 in244.475 mm	D - Cup Outer Diameter N/A 12.875 in327.025 mm	B - Double Cone Width N/A 3.6250 in92.075 mm	C - Cup Width N/A 1.5000 in38.100 mm	T - Bearing Width across Cups N/A 3.6250 in92.075 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 33000 lbf147000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 222000 lbf987000 N	Bore Taper N/A
LM247748DGW - LM247710	Series N/A LM247700	d - Bore N/A 9.6250 in244.475 mm	D - Cup Outer Diameter N/A 12.875 in327.025 mm	B - Double Cone Width N/A 3.6250 in92.075 mm	C - Cup Width N/A 1.5000 in38.100 mm	T - Bearing Width across Cups N/A 3.6250 in92.075 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 33000 lbf147000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 222000 lbf987000 N	Bore Taper N/A
LM247748DW - LM247710	Series N/A LM247700	d - Bore N/A 9.6250 in244.475 mm	D - Cup Outer Diameter N/A 12.875 in327.025 mm	B - Double Cone Width N/A 3.6250 in92.075 mm	C - Cup Width N/A 1.5000 in38.100 mm	T - Bearing Width across Cups N/A 3.6250 in92.075 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 33000 lbf147000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 222000 lbf987000 N	Bore Taper N/A
EE126096D - 126150	Series N/A 126000	d - Bore N/A 9.6250 in244.475 mm	D - Cup Outer Diameter N/A 15.0000 in381.000 mm	B - Double Cone Width N/A 5.7500 in146.050 mm	C - Cup Width N/A 2.2500 in57.150 mm	T - Bearing Width across Cups N/A 5.7500 in146.050 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 52900 lbf235000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 355000 lbf1580000 N	Bore Taper N/A
EE126096DGW - 126150	Series N/A 126000	d - Bore N/A 9.6250 in244.475 mm	D - Cup Outer Diameter N/A 15.0000 in381.000 mm	B - Double Cone Width N/A 5.7500 in146.050 mm	C - Cup Width N/A 2.2500 in57.150 mm	T - Bearing Width across Cups N/A 5.7500 in146.050 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 52900 lbf235000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 355000 lbf1580000 N	Bore Taper N/A
EE220975DW - 221575	Series N/A 220000	d - Bore N/A 9.7500 in247.650 mm	D - Cup Outer Diameter N/A 15.7500 in400.050 mm	B - Double Cone Width N/A 4.5000 in114.300 mm	C - Cup Width N/A 1.8125 in46.038 mm	T - Bearing Width across Cups N/A 4.6873 in119.057 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 51100 lbf227000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 343000 lbf1530000 N	Bore Taper N/A
HH249949D - HH249910	Series N/A HH249900	d - Bore N/A 9.7500 in247.650 mm	D - Cup Outer Diameter N/A 16.0000 in406.400 mm	B - Double Cone Width N/A 8.6250 in219.075 mm	C - Cup Width N/A 3.6875 in93.663 mm	T - Bearing Width across Cups N/A 8.5000 in215.900 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 115000 lbf509000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 769000 lbf3420000 N	Bore Taper N/A
M252338DW - M252310	Series N/A M252300	d - Bore N/A 9.8750 in250.825 mm	D - Cup Outer Diameter N/A 15.0000 in381.000 mm	B - Double Cone Width N/A 5.3750 in136.525 mm	C - Cup Width N/A 2.2500 in57.150 mm	T - Bearing Width across Cups N/A 5.3749 in136.522 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 67000 lbf298000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 450000 lbf2000000 N	Bore Taper N/A
M252338DW - M252310X	Series N/A M252300	d - Bore N/A 9.8750 in250.825 mm	D - Cup Outer Diameter N/A 15.0000 in381.000 mm	B - Double Cone Width N/A 5.3750 in136.525 mm	C - Cup Width N/A 2.2500 in57.150 mm	T - Bearing Width across Cups N/A 5.3749 in136.522 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 67000 lbf298000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 450000 lbf2000000 N	Bore Taper N/A
HM252340D - HM252310	Series N/A HM252300	d - Bore N/A 9.8750 in250.825 mm	D - Cup Outer Diameter N/A 16.6250 in422.275 mm	B - Double Cone Width N/A 5.5000 in139.700 mm	C - Cup Width N/A 2.6250 in66.675 mm	T - Bearing Width across Cups N/A 5.9999 in152.397 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 87400 lbf389000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 587000 lbf2610000 N	Bore Taper N/A
HM252340DW - HM252310	Series N/A HM252300	d - Bore N/A 9.8750 in250.825 mm	D - Cup Outer Diameter N/A 16.6250 in422.275 mm	B - Double Cone Width N/A 5.5000 in139.700 mm	C - Cup Width N/A 2.6250 in66.675 mm	T - Bearing Width across Cups N/A 5.9999 in152.397 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 87400 lbf389000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 587000 lbf2610000 N	Bore Taper N/A
HM252340D - HM252315	Series N/A HM252300	d - Bore N/A 9.8750 in250.825 mm	D - Cup Outer Diameter N/A 16.9970 in431.724 mm	B - Double Cone Width N/A 5.5000 in139.700 mm	C - Cup Width N/A 2.3750 in60.325 mm	T - Bearing Width across Cups N/A 5.7188 in145.258 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 87400 lbf389000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 587000 lbf2610000 N	Bore Taper N/A
HM252340DW - HM252315	Series N/A HM252300	d - Bore N/A 9.8750 in250.825 mm	D - Cup Outer Diameter N/A 16.9970 in431.724 mm	B - Double Cone Width N/A 5.5000 in139.700 mm	C - Cup Width N/A 2.3750 in60.325 mm	T - Bearing Width across Cups N/A 5.7188 in145.258 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 87400 lbf389000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 587000 lbf2610000 N	Bore Taper N/A
EE171000D - 171400	Series N/A 170000	d - Bore N/A 10.0000 in254.000 mm	D - Cup Outer Diameter N/A 14 in355.6 mm	B - Double Cone Width N/A 3.6560 in92.862 mm	C - Cup Width N/A 1.3125 in33.338 mm	T - Bearing Width across Cups N/A 3.6500 in92.710 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 32700 lbf145000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 219000 lbf976000 N	Bore Taper N/A
M249748D - M249710X	Series N/A M249700	d - Bore N/A 10.0000 in254.000 mm	D - Cup Outer Diameter N/A 14.1250 in358.775 mm	B - Double Cone Width N/A 5.1250 in130.175 mm	C - Cup Width N/A 2.1250 in53.975 mm	T - Bearing Width across Cups N/A 5.1249 in130.172 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 53300 lbf237000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 358000 lbf1590000 N	Bore Taper N/A
M249748D - M249710	Series N/A M249700	d - Bore N/A 10.0000 in254.000 mm	D - Cup Outer Diameter N/A 14.1250 in358.775 mm	B - Double Cone Width N/A 5.1250 in130.175 mm	C - Cup Width N/A 2.1250 in53.975 mm	T - Bearing Width across Cups N/A 5.1249 in130.172 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 53300 lbf237000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 358000 lbf1590000 N	Bore Taper N/A
M249748DGW - M249710X	Series N/A M249700	d - Bore N/A 10.0000 in254.000 mm	D - Cup Outer Diameter N/A 14.1250 in358.775 mm	B - Double Cone Width N/A 5.1250 in130.175 mm	C - Cup Width N/A 2.1250 in53.975 mm	T - Bearing Width across Cups N/A 5.1249 in130.172 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 53300 lbf237000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 358000 lbf1590000 N	Bore Taper N/A
M249748DGW - M249710	Series N/A M249700	d - Bore N/A 10.0000 in254.000 mm	D - Cup Outer Diameter N/A 14.1250 in358.775 mm	B - Double Cone Width N/A 5.1250 in130.175 mm	C - Cup Width N/A 2.1250 in53.975 mm	T - Bearing Width across Cups N/A 5.1249 in130.172 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 53300 lbf237000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 358000 lbf1590000 N	Bore Taper N/A

M249748DW - M249710X	Series N/A M249700	d - Bore N/A 10.0000 in254.000 mm	D - Cup Outer Diameter N/A 14.1250 in358.775 mm	B - Double Cone Width N/A 5.1250 in130.175 mm	C - Cup Width N/A 2.1250 in53.975 mm	T - Bearing Width across Cups N/A 5.1249 in130.172 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 53300 lbf237000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 358000 lbf1590000 N	Bore Taper N/A
M249748DW - M249710	Series N/A M249700	d - Bore N/A 10.0000 in254.000 mm	D - Cup Outer Diameter N/A 14.1250 in358.775 mm	B - Double Cone Width N/A 5.1250 in130.175 mm	C - Cup Width N/A 2.1250 in53.975 mm	T - Bearing Width across Cups N/A 5.1249 in130.172 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 53300 lbf237000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 358000 lbf1590000 N	Bore Taper N/A
M249749D - M249710	Series N/A M249700	d - Bore N/A 10.0000 in254.000 mm	D - Cup Outer Diameter N/A 14.1250 in358.775 mm	B - Double Cone Width N/A 5.1250 in130.175 mm	C - Cup Width N/A 2.1250 in53.975 mm	T - Bearing Width across Cups N/A 5.1249 in130.172 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 53300 lbf237000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 358000 lbf1590000 N	Bore Taper N/A
M249749D - M249710X	Series N/A M249700	d - Bore N/A 10.0000 in254.000 mm	D - Cup Outer Diameter N/A 14.1250 in358.775 mm	B - Double Cone Width N/A 5.1250 in130.175 mm	C - Cup Width N/A 2.1250 in53.975 mm	T - Bearing Width across Cups N/A 5.1249 in130.172 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 53300 lbf237000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 358000 lbf1590000 N	Bore Taper N/A
EE171000D - 171436	Series N/A 170000	d - Bore N/A 10.0000 in254.000 mm	D - Cup Outer Diameter N/A 14.3720 in365.049 mm	B - Double Cone Width N/A 3.6560 in92.862 mm	C - Cup Width N/A 1.3125 in33.338 mm	T - Bearing Width across Cups N/A 3.6500 in92.710 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 32700 lbf145000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 219000 lbf976000 N	Bore Taper N/A
EE171000D - 171450	Series N/A 170000	d - Bore N/A 10.0000 in254.000 mm	D - Cup Outer Diameter N/A 14.5000 in368.300 mm	B - Double Cone Width N/A 3.6560 in92.862 mm	C - Cup Width N/A 1.3125 in33.338 mm	T - Bearing Width across Cups N/A 3.6500 in92.710 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 32700 lbf145000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 219000 lbf976000 N	Bore Taper N/A
HM252343D - HM252310	Series N/A HM252300	d - Bore N/A 10.0000 in254.000 mm	D - Cup Outer Diameter N/A 16.6250 in422.275 mm	B - Double Cone Width N/A 5.5000 in139.700 mm	C - Cup Width N/A 2.6250 in66.675 mm	T - Bearing Width across Cups N/A 5.9999 in152.397 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 87400 lbf389000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 587000 lbf2610000 N	Bore Taper N/A
HM252343D - HM252315	Series N/A HM252300	d - Bore N/A 10.0000 in254.000 mm	D - Cup Outer Diameter N/A 16.9970 in431.724 mm	B - Double Cone Width N/A 5.5000 in139.700 mm	C - Cup Width N/A 2.3750 in60.325 mm	T - Bearing Width across Cups N/A 5.7188 in145.258 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 87400 lbf389000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 587000 lbf2610000 N	Bore Taper N/A
EE738101D - 738172	Series N/A 738000	d - Bore N/A 10.0000 in254.000 mm	D - Cup Outer Diameter N/A 17.2500 in438.150 mm	B - Double Cone Width N/A 6.5000 in165.100 mm	C - Cup Width N/A 2.5000 in63.500 mm	T - Bearing Width across Cups N/A 6.5000 in165.100 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 82700 lbf368000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 555000 lbf2470000 N	Bore Taper N/A
EE738101DH - 738172	Series N/A 738000	d - Bore N/A 10.0000 in254.000 mm	D - Cup Outer Diameter N/A 17.2500 in438.150 mm	B - Double Cone Width N/A 6.5000 in165.100 mm	C - Cup Width N/A 2.5000 in63.500 mm	T - Bearing Width across Cups N/A 6.5000 in165.100 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 94800 lbf422000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 637000 lbf2830000 N	Bore Taper N/A
EE822101D - 822175	Series N/A 822000	d - Bore N/A 10.0000 in254.000 mm	D - Cup Outer Diameter N/A 17.5 in444.5 mm	B - Double Cone Width N/A 5.2500 in133.350 mm	C - Cup Width N/A 2.0000 in50.800 mm	T - Bearing Width across Cups N/A 5.2500 in133.350 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 68500 lbf305000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 460000 lbf2050000 N	Bore Taper N/A
EE134102D - 134143	Series N/A 134000	d - Bore N/A 10.2500 in260.350 mm	D - Cup Outer Diameter N/A 14.3750 in365.125 mm	B - Double Cone Width N/A 4.2500 in107.950 mm	C - Cup Width N/A 1.6875 in42.863 mm	T - Bearing Width across Cups N/A 4.2500 in107.950 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 39600 lbf176000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 266000 lbf1180000 N	Bore Taper N/A
EE134102D - 134145	Series N/A 134000	d - Bore N/A 10.2500 in260.350 mm	D - Cup Outer Diameter N/A 14.5000 in368.300 mm	B - Double Cone Width N/A 4.2500 in107.950 mm	C - Cup Width N/A 1.6875 in42.863 mm	T - Bearing Width across Cups N/A 4.2500 in107.950 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 39600 lbf176000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 266000 lbf1180000 N	Bore Taper N/A
EE221025D - 221575	Series N/A 220000	d - Bore N/A 10.2500 in260.350 mm	D - Cup Outer Diameter N/A 15.7500 in400.050 mm	B - Double Cone Width N/A 4.5000 in114.300 mm	C - Cup Width N/A 1.8125 in46.038 mm	T - Bearing Width across Cups N/A 4.6873 in119.057 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 48200 lbf215000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 324000 lbf1440000 N	Bore Taper N/A
EE221027D - 221575	Series N/A 220000	d - Bore N/A 10.2500 in260.350 mm	D - Cup Outer Diameter N/A 15.7500 in400.050 mm	B - Double Cone Width N/A 4.7500 in120.650 mm	C - Cup Width N/A 1.8125 in46.038 mm	T - Bearing Width across Cups N/A 4.6873 in119.057 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 48200 lbf215000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 324000 lbf1440000 N	Bore Taper N/A
EE435103D - 435165	Series N/A 435000	d - Bore N/A 10.2500 in260.350 mm	D - Cup Outer Diameter N/A 16.5000 in419.100 mm	B - Double Cone Width N/A 6.1250 in155.575 mm	C - Cup Width N/A 2.4375 in61.913 mm	T - Bearing Width across Cups N/A 6.2499 in158.747 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 65500 lbf291000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 440000 lbf1960000 N	Bore Taper N/A
HM252347D - HM252310	Series N/A HM252300	d - Bore N/A 10.2500 in260.350 mm	D - Cup Outer Diameter N/A 16.6250 in422.275 mm	B - Double Cone Width N/A 5.5000 in139.700 mm	C - Cup Width N/A 2.6250 in66.675 mm	T - Bearing Width across Cups N/A 5.9999 in152.397 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 87400 lbf389000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 587000 lbf2610000 N	Bore Taper N/A
HM252348D - HM252310	Series N/A HM252300	d - Bore N/A 10.2500 in260.350 mm	D - Cup Outer Diameter N/A 16.6250 in422.275 mm	B - Double Cone Width N/A 6.0000 in152.400 mm	C - Cup Width N/A 2.6250 in66.675 mm	T - Bearing Width across Cups N/A 6.1249 in155.572 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 87400 lbf389000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 587000 lbf2610000 N	Bore Taper N/A
HM252348DW - HM252310	Series N/A HM252300	d - Bore N/A 10.2500 in260.350 mm	D - Cup Outer Diameter N/A 16.6250 in422.275 mm	B - Double Cone Width N/A 6.0000 in152.400 mm	C - Cup Width N/A 2.6250 in66.675 mm	T - Bearing Width across Cups N/A 6.1249 in155.572 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 87400 lbf389000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 587000 lbf2610000 N	Bore Taper N/A
HM252349D - HM252310	Series N/A HM252300	d - Bore N/A 10.2500 in260.350 mm	D - Cup Outer Diameter N/A 16.6250 in422.275 mm	B - Double Cone Width N/A 6.0000 in152.400 mm	C - Cup Width N/A 2.6250 in66.675 mm	T - Bearing Width across Cups N/A 6.1249 in155.572 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 90100 lbf401000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 605000 lbf2690000 N	Bore Taper N/A
HM252347D - HM252315	Series N/A HM252300	d - Bore N/A 10.2500 in260.350 mm	D - Cup Outer Diameter N/A 16.9970 in431.724 mm	B - Double Cone Width N/A 5.5000 in139.700 mm	C - Cup Width N/A 2.3750 in60.325 mm	T - Bearing Width across Cups N/A 5.7188 in145.258 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 87400 lbf389000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 587000 lbf2610000 N	Bore Taper N/A
HM252348D - HM252315	Series N/A HM252300	d - Bore N/A 10.2500 in260.350 mm	D - Cup Outer Diameter N/A 16.9970 in431.724 mm	B - Double Cone Width N/A 6.0000 in152.400 mm	C - Cup Width N/A 2.3750 in60.325 mm	T - Bearing Width across Cups N/A 5.8438 in148.433 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 87400 lbf389000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 587000 lbf2610000 N	Bore Taper N/A
HM252348DW - HM252315	Series N/A HM252300	d - Bore N/A 10.2500 in260.350 mm	D - Cup Outer Diameter N/A 16.9970 in431.724 mm	B - Double Cone Width N/A 6.0000 in152.400 mm	C - Cup Width N/A 2.3750 in60.325 mm	T - Bearing Width across Cups N/A 5.8438 in148.433 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 87400 lbf389000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 587000 lbf2610000 N	Bore Taper N/A
HM252349D - HM252315	Series N/A HM252300	d - Bore N/A 10.2500 in260.350 mm	D - Cup Outer Diameter N/A 16.9970 in431.724 mm	B - Double Cone Width N/A 6.0000 in152.400 mm	C - Cup Width N/A 2.3750 in60.325 mm	T - Bearing Width across Cups N/A 5.8438 in148.433 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 90100 lbf401000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 605000 lbf2690000 N	Bore Taper N/A
EE823103D - 823175	Series N/A 823000	d - Bore N/A 10.2500 in260.350 mm	D - Cup Outer Diameter N/A 17.5 in444.5 mm	B - Double Cone Width N/A 7.7500 in196.850 mm	C - Cup Width N/A 2.8750 in73.025 mm	T - Bearing Width across Cups N/A 7.7500 in196.850 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 94000 lbf418000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 631000 lbf2810000 N	Bore Taper N/A

Kinh doanh 1:	0909 566 551
Kinh doanh 1:	0933 155 707
Kỹ thuật:	0911 991 666

LM451349D - LM451310	Series N/A LM451300	d - Bore N/A 10.5 in266.7 mm	D - Cup Outer Diameter N/A 14 in355.6 mm	B - Double Cone Width N/A 4.3125 in109.538 mm	C - Cup Width N/A 1.7500 in44.450 mm	T - Bearing Width across Cups N/A 4.2499 in107.947 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 40900 lbf182000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 275000 lbf1220000 N	Bore Taper N/A
LM451349D - LM451310V	Series N/A LM451300	d - Bore N/A 10.5 in266.7 mm	D - Cup Outer Diameter N/A 14 in355.6 mm	B - Double Cone Width N/A 4.3125 in109.538 mm	C - Cup Width N/A 1.7500 in44.450 mm	T - Bearing Width across Cups N/A 4.2499 in107.947 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 40900 lbf182000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 275000 lbf1220000 N	Bore Taper N/A
LM451349DGW - LM451310V	Series N/A LM451300	d - Bore N/A 10.5 in266.7 mm	D - Cup Outer Diameter N/A 14 in355.6 mm	B - Double Cone Width N/A 4.3125 in109.538 mm	C - Cup Width N/A 1.7500 in44.450 mm	T - Bearing Width across Cups N/A 4.2499 in107.947 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 40900 lbf182000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 275000 lbf1220000 N	Bore Taper N/A
LM451349DGW - LM451310	Series N/A LM451300	d - Bore N/A 10.5 in266.7 mm	D - Cup Outer Diameter N/A 14 in355.6 mm	B - Double Cone Width N/A 4.3125 in109.538 mm	C - Cup Width N/A 1.7500 in44.450 mm	T - Bearing Width across Cups N/A 4.2499 in107.947 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 40900 lbf182000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 275000 lbf1220000 N	Bore Taper N/A
LM451349DW - LM451310V	Series N/A LM451300	d - Bore N/A 10.5 in266.7 mm	D - Cup Outer Diameter N/A 14 in355.6 mm	B - Double Cone Width N/A 4.3125 in109.538 mm	C - Cup Width N/A 1.7500 in44.450 mm	T - Bearing Width across Cups N/A 4.2499 in107.947 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 40900 lbf182000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 275000 lbf1220000 N	Bore Taper N/A
LM451349DW - LM451310	Series N/A LM451300	d - Bore N/A 10.5 in266.7 mm	D - Cup Outer Diameter N/A 14 in355.6 mm	B - Double Cone Width N/A 4.3125 in109.538 mm	C - Cup Width N/A 1.7500 in44.450 mm	T - Bearing Width across Cups N/A 4.2499 in107.947 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 40900 lbf182000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 275000 lbf1220000 N	Bore Taper N/A
LM451349DWX - LM451310V	Series N/A LM451300	d - Bore N/A 10.5 in266.7 mm	D - Cup Outer Diameter N/A 14 in355.6 mm	B - Double Cone Width N/A 4.3125 in109.538 mm	C - Cup Width N/A 1.7500 in44.450 mm	T - Bearing Width across Cups N/A 4.2499 in107.947 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 50300 lbf224000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 338000 lbf1500000 N	Bore Taper N/A
LM451349DWX - LM451310	Series N/A LM451300	d - Bore N/A 10.5 in266.7 mm	D - Cup Outer Diameter N/A 14 in355.6 mm	B - Double Cone Width N/A 4.3125 in109.538 mm	C - Cup Width N/A 1.7500 in44.450 mm	T - Bearing Width across Cups N/A 4.2499 in107.947 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 50300 lbf224000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 338000 lbf1500000 N	Bore Taper N/A
EE275106D - 275155	Series N/A 275000	d - Bore N/A 10.5 in266.7 mm	D - Cup Outer Diameter N/A 15.5 in393.7 mm	B - Double Cone Width N/A 5.1250 in130.175 mm	C - Cup Width N/A 1.9687 in50.005 mm	T - Bearing Width across Cups N/A 5.1249 in130.172 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 51400 lbf229000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 345000 lbf1540000 N	Bore Taper N/A
EE275106D - 275158	Series N/A 275000	d - Bore N/A 10.5 in266.7 mm	D - Cup Outer Diameter N/A 15.8750 in403.225 mm	B - Double Cone Width N/A 5.1250 in130.175 mm	C - Cup Width N/A 1.8125 in46.038 mm	T - Bearing Width across Cups N/A 4.8125 in122.238 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 51400 lbf229000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 345000 lbf1540000 N	Bore Taper N/A
EE275106D - 275160	Series N/A 275000	d - Bore N/A 10.5 in266.7 mm	D - Cup Outer Diameter N/A 16.0000 in406.400 mm	B - Double Cone Width N/A 5.1250 in130.175 mm	C - Cup Width N/A 1.8125 in46.038 mm	T - Bearing Width across Cups N/A 4.8125 in122.238 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 51400 lbf229000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 345000 lbf1540000 N	Bore Taper N/A
M252349D - M252310X	Series N/A M252300	d - Bore N/A 10.6250 in269.875 mm	D - Cup Outer Diameter N/A 15.0000 in381.000 mm	B - Double Cone Width N/A 5.3750 in136.525 mm	C - Cup Width N/A 2.2500 in57.150 mm	T - Bearing Width across Cups N/A 5.3749 in136.522 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 67000 lbf298000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 450000 lbf2000000 N	Bore Taper N/A
M252349D - M252310	Series N/A M252300	d - Bore N/A 10.6250 in269.875 mm	D - Cup Outer Diameter N/A 15.0000 in381.000 mm	B - Double Cone Width N/A 5.3750 in136.525 mm	C - Cup Width N/A 2.2500 in57.150 mm	T - Bearing Width across Cups N/A 5.3749 in136.522 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 67000 lbf298000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 450000 lbf2000000 N	Bore Taper N/A
M252349DW - M252310	Series N/A M252300	d - Bore N/A 10.6250 in269.875 mm	D - Cup Outer Diameter N/A 15.0000 in381.000 mm	B - Double Cone Width N/A 5.3750 in136.525 mm	C - Cup Width N/A 2.2500 in57.150 mm	T - Bearing Width across Cups N/A 5.3749 in136.522 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 67000 lbf298000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 450000 lbf2000000 N	Bore Taper N/A
M252349DW - M252310X	Series N/A M252300	d - Bore N/A 10.6250 in269.875 mm	D - Cup Outer Diameter N/A 15.0000 in381.000 mm	B - Double Cone Width N/A 5.3750 in136.525 mm	C - Cup Width N/A 2.2500 in57.150 mm	T - Bearing Width across Cups N/A 5.3749 in136.522 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 67000 lbf298000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 450000 lbf2000000 N	Bore Taper N/A
LM654640D - LM654611	Series N/A LM654600	d - Bore N/A 10.7500 in273.050 mm	D - Cup Outer Diameter N/A 14.9610 in380.009 mm	B - Double Cone Width N/A 4.6250 in117.475 mm	C - Cup Width N/A 1.9375 in49.213 mm	T - Bearing Width across Cups N/A 4.6250 in117.475 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 42100 lbf187000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 283000 lbf1260000 N	Bore Taper N/A
LM654640D - LM654610	Series N/A LM654600	d - Bore N/A 10.7500 in273.050 mm	D - Cup Outer Diameter N/A 14.9960 in380.898 mm	B - Double Cone Width N/A 4.6250 in117.475 mm	C - Cup Width N/A 1.9375 in49.213 mm	T - Bearing Width across Cups N/A 4.6250 in117.475 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 42100 lbf187000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 283000 lbf1260000 N	Bore Taper N/A
89108D - 89150	Series N/A 89000	d - Bore N/A 10.875 in276.225 mm	D - Cup Outer Diameter N/A 15.0000 in381.000 mm	B - Double Cone Width N/A 3.5000 in88.900 mm	C - Cup Width N/A 1.7500 in44.450 mm	T - Bearing Width across Cups N/A 4.3750 in111.125 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 27000 lbf120000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 181000 lbf806000 N	Bore Taper N/A
89108D - 89148	Series N/A 89000	d - Bore N/A 10.875 in276.225 mm	D - Cup Outer Diameter N/A 15.0000 in381.000 mm	B - Double Cone Width N/A 3.5000 in88.900 mm	C - Cup Width N/A 1.4375 in36.513 mm	T - Bearing Width across Cups N/A 3.7500 in95.250 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 27000 lbf120000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 181000 lbf806000 N	Bore Taper N/A
EE275109D - 275155	Series N/A 275000	d - Bore N/A 10.875 in276.225 mm	D - Cup Outer Diameter N/A 15.5 in393.7 mm	B - Double Cone Width N/A 5.1250 in130.175 mm	C - Cup Width N/A 1.9687 in50.005 mm	T - Bearing Width across Cups N/A 5.1249 in130.172 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 51400 lbf229000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 345000 lbf1540000 N	Bore Taper N/A
EE275109DGW - 275155	Series N/A 275000	d - Bore N/A 10.875 in276.225 mm	D - Cup Outer Diameter N/A 15.5 in393.7 mm	B - Double Cone Width N/A 5.1250 in130.175 mm	C - Cup Width N/A 1.9687 in50.005 mm	T - Bearing Width across Cups N/A 5.1249 in130.172 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 51400 lbf229000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 345000 lbf1540000 N	Bore Taper N/A
EE275109DW - 275155	Series N/A 275000	d - Bore N/A 10.875 in276.225 mm	D - Cup Outer Diameter N/A 15.5 in393.7 mm	B - Double Cone Width N/A 5.1250 in130.175 mm	C - Cup Width N/A 1.9687 in50.005 mm	T - Bearing Width across Cups N/A 5.1249 in130.172 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 51400 lbf229000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 345000 lbf1540000 N	Bore Taper N/A
EE275109D - 275158	Series N/A 275000	d - Bore N/A 10.875 in276.225 mm	D - Cup Outer Diameter N/A 15.8750 in403.225 mm	B - Double Cone Width N/A 5.1250 in130.175 mm	C - Cup Width N/A 1.8125 in46.038 mm	T - Bearing Width across Cups N/A 4.8125 in122.238 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 51400 lbf229000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 345000 lbf1540000 N	Bore Taper N/A
EE275109DGW - 275158	Series N/A 275000	d - Bore N/A 10.875 in276.225 mm	D - Cup Outer Diameter N/A 15.8750 in403.225 mm	B - Double Cone Width N/A 5.1250 in130.175 mm	C - Cup Width N/A 1.8125 in46.038 mm	T - Bearing Width across Cups N/A 4.8125 in122.238 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 51400 lbf229000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 345000 lbf1540000 N	Bore Taper N/A
EE275109DW - 275158	Series N/A 275000	d - Bore N/A 10.875 in276.225 mm	D - Cup Outer Diameter N/A 15.8750 in403.225 mm	B - Double Cone Width N/A 5.1250 in130.175 mm	C - Cup Width N/A 1.8125 in46.038 mm	T - Bearing Width across Cups N/A 4.8125 in122.238 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 51400 lbf229000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 345000 lbf1540000 N	Bore Taper N/A

EE275109D - 275160	Series N/A 275000	d - Bore N/A 10.875 in276.225 mm	D - Cup Outer Diameter N/A 16.0000 in406.400 mm	B - Double Cone Width N/A 5.1250 in130.175 mm	C - Cup Width N/A 1.8125 in46.038 mm	T - Bearing Width across Cups N/A 4.8125 in122.238 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 51400 lbf229000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 345000 lbf1540000 N	Bore Taper N/A
EE275109DGW - 275160	Series N/A 275000	d - Bore N/A 10.875 in276.225 mm	D - Cup Outer Diameter N/A 16.0000 in406.400 mm	B - Double Cone Width N/A 5.1250 in130.175 mm	C - Cup Width N/A 1.8125 in46.038 mm	T - Bearing Width across Cups N/A 4.8125 in122.238 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 51400 lbf229000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 345000 lbf1540000 N	Bore Taper N/A
EE275109DW - 275160	Series N/A 275000	d - Bore N/A 10.875 in276.225 mm	D - Cup Outer Diameter N/A 16.0000 in406.400 mm	B - Double Cone Width N/A 5.1250 in130.175 mm	C - Cup Width N/A 1.8125 in46.038 mm	T - Bearing Width across Cups N/A 4.8125 in122.238 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 51400 lbf229000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 345000 lbf1540000 N	Bore Taper N/A
EE135111DGW - 135155	Series N/A 135000	d - Bore N/A 11.0000 in279.400 mm	D - Cup Outer Diameter N/A 15.5 in393.7 mm	B - Double Cone Width N/A 5.0000 in127.000 mm	C - Cup Width N/A 2.0000 in50.800 mm	T - Bearing Width across Cups N/A 4.9999 in126.997 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 50900 lbf226000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 342000 lbf1520000 N	Bore Taper N/A
EE135111DW - 135155	Series N/A 135000	d - Bore N/A 11.0000 in279.400 mm	D - Cup Outer Diameter N/A 15.5 in393.7 mm	B - Double Cone Width N/A 5.0000 in127.000 mm	C - Cup Width N/A 2.0000 in50.800 mm	T - Bearing Width across Cups N/A 4.9999 in126.997 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 50900 lbf226000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 342000 lbf1520000 N	Bore Taper N/A
M652949DW - M652911	Series N/A M652900	d - Bore N/A 11.0000 in279.400 mm	D - Cup Outer Diameter N/A 15.5 in393.7 mm	B - Double Cone Width N/A 5.0000 in127.000 mm	C - Cup Width N/A 2.0000 in50.800 mm	T - Bearing Width across Cups N/A 5.0000 in127.000 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 69200 lbf308000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 465000 lbf2070000 N	Bore Taper N/A
HH255149D - HH255110	Series N/A HH255100	d - Bore N/A 11.0000 in279.400 mm	D - Cup Outer Diameter N/A 18.0000 in457.200 mm	B - Double Cone Width N/A 9.6250 in244.475 mm	C - Cup Width N/A 4.1875 in106.363 mm	T - Bearing Width across Cups N/A 9.6250 in244.475 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 153000 lbf679000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 1020000 lbf4560000 N	Bore Taper N/A
EE722111D - 722185	Series N/A 722000	d - Bore N/A 11.0000 in279.400 mm	D - Cup Outer Diameter N/A 18.5000 in469.900 mm	B - Double Cone Width N/A 6.5625 in166.688 mm	C - Cup Width N/A 2.7500 in69.850 mm	T - Bearing Width across Cups N/A 6.6874 in169.860 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 94000 lbf418000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 631000 lbf2810000 N	Bore Taper N/A
EE722112D - 722185	Series N/A 722000	d - Bore N/A 11.0000 in279.400 mm	D - Cup Outer Diameter N/A 18.5000 in469.900 mm	B - Double Cone Width N/A 7.2500 in184.150 mm	C - Cup Width N/A 2.7500 in69.850 mm	T - Bearing Width across Cups N/A 7.4999 in190.497 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 94000 lbf418000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 631000 lbf2810000 N	Bore Taper N/A
LM654644D - LM654611	Series N/A LM654600	d - Bore N/A 11.0070 in279.578 mm	D - Cup Outer Diameter N/A 14.9610 in380.009 mm	B - Double Cone Width N/A 4.6250 in117.475 mm	C - Cup Width N/A 1.9375 in49.213 mm	T - Bearing Width across Cups N/A 4.6250 in117.475 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 42100 lbf187000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 283000 lbf1260000 N	Bore Taper N/A
LM654644D - LM654610	Series N/A LM654600	d - Bore N/A 11.0070 in279.578 mm	D - Cup Outer Diameter N/A 14.9960 in380.898 mm	B - Double Cone Width N/A 4.6250 in117.475 mm	C - Cup Width N/A 1.9375 in49.213 mm	T - Bearing Width across Cups N/A 4.6250 in117.475 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 42100 lbf187000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 283000 lbf1260000 N	Bore Taper N/A
89111D - 89150	Series N/A 89000	d - Bore N/A 11.0070 in279.578 mm	D - Cup Outer Diameter N/A 15.0000 in381.000 mm	B - Double Cone Width N/A 3.5000 in88.900 mm	C - Cup Width N/A 1.7500 in44.450 mm	T - Bearing Width across Cups N/A 4.3750 in111.125 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 27000 lbf120000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 181000 lbf806000 N	Bore Taper N/A
89111D - 89148	Series N/A 89000	d - Bore N/A 11.0070 in279.578 mm	D - Cup Outer Diameter N/A 15.0000 in381.000 mm	B - Double Cone Width N/A 3.5000 in88.900 mm	C - Cup Width N/A 1.4375 in36.513 mm	T - Bearing Width across Cups N/A 3.7500 in95.250 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 27000 lbf120000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 181000 lbf806000 N	Bore Taper N/A
EE128114D - 128160	Series N/A 128000	d - Bore N/A 11.0236 in279.999 mm	D - Cup Outer Diameter N/A 16.0000 in406.400 mm	B - Double Cone Width N/A 8.1250 in206.375 mm	C - Cup Width N/A 2.1250 in53.975 mm	T - Bearing Width across Cups N/A 8.1250 in206.375 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 53900 lbf240000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 362000 lbf1610000 N	Bore Taper N/A
EE128114D - 128161	Series N/A 128000	d - Bore N/A 11.0236 in279.999 mm	D - Cup Outer Diameter N/A 16.1410 in409.981 mm	B - Double Cone Width N/A 8.1250 in206.375 mm	C - Cup Width N/A 2.1250 in53.975 mm	T - Bearing Width across Cups N/A 8.1250 in206.375 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 53900 lbf240000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 362000 lbf1610000 N	Bore Taper N/A
LM654648DW - LM654611	Series N/A LM654600	d - Bore N/A 11.2500 in285.750 mm	D - Cup Outer Diameter N/A 14.9610 in380.009 mm	B - Double Cone Width N/A 4.6250 in117.475 mm	C - Cup Width N/A 1.9375 in49.213 mm	T - Bearing Width across Cups N/A 4.6250 in117.475 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 42100 lbf187000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 283000 lbf1260000 N	Bore Taper N/A
LM654648DW - LM654610	Series N/A LM654600	d - Bore N/A 11.2500 in285.750 mm	D - Cup Outer Diameter N/A 14.9960 in380.898 mm	B - Double Cone Width N/A 4.6250 in117.475 mm	C - Cup Width N/A 1.9375 in49.213 mm	T - Bearing Width across Cups N/A 4.6250 in117.475 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 42100 lbf187000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 283000 lbf1260000 N	Bore Taper N/A
M255449D - M255410	Series N/A M255400	d - Bore N/A 11.3750 in288.925 mm	D - Cup Outer Diameter N/A 16.0000 in406.400 mm	B - Double Cone Width N/A 5.6875 in144.463 mm	C - Cup Width N/A 2.3750 in60.325 mm	T - Bearing Width across Cups N/A 5.6874 in144.460 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 69300 lbf308000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 466000 lbf2070000 N	Bore Taper N/A
M255449DW - M255410	Series N/A M255400	d - Bore N/A 11.3750 in288.925 mm	D - Cup Outer Diameter N/A 16.0000 in406.400 mm	B - Double Cone Width N/A 5.6875 in144.463 mm	C - Cup Width N/A 2.3750 in60.325 mm	T - Bearing Width across Cups N/A 5.6874 in144.460 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 69300 lbf308000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 466000 lbf2070000 N	Bore Taper N/A
M255449DW - M255411	Series N/A M255400	d - Bore N/A 11.3750 in288.925 mm	D - Cup Outer Diameter N/A 16.0216 in406.949 mm	B - Double Cone Width N/A 5.6875 in144.463 mm	C - Cup Width N/A 2.4016 in61.001 mm	T - Bearing Width across Cups N/A 5.6968 in144.699 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 69300 lbf308000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 466000 lbf2070000 N	Bore Taper N/A
HM256847DWH - HM256810	Series N/A HM256800	d - Bore N/A 11.3750 in288.925 mm	D - Cup Outer Diameter N/A 16.6250 in422.275 mm	B - Double Cone Width N/A 5.9375 in150.813 mm	C - Cup Width N/A 2.5000 in63.500 mm	T - Bearing Width across Cups N/A 5.9375 in150.813 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 83300 lbf371000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 560000 lbf2490000 N	Bore Taper N/A
EE921150D - 921850	Series N/A 920000	d - Bore N/A 11.5000 in292.100 mm	D - Cup Outer Diameter N/A 18.5000 in469.900 mm	B - Double Cone Width N/A 5.6250 in142.875 mm	C - Cup Width N/A 2.2500 in57.150 mm	T - Bearing Width across Cups N/A 5.4695 in138.925 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 88000 lbf391000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 591000 lbf2630000 N	Bore Taper N/A
EE921150D - 921875	Series N/A 920000	d - Bore N/A 11.5000 in292.100 mm	D - Cup Outer Diameter N/A 18.7500 in476.250 mm	B - Double Cone Width N/A 5.6250 in142.875 mm	C - Cup Width N/A 2.2500 in57.150 mm	T - Bearing Width across Cups N/A 5.4695 in138.925 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 88000 lbf391000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 591000 lbf2630000 N	Bore Taper N/A
HM256848DWH - HM256810	Series N/A HM256800	d - Bore N/A 11.7500 in298.450 mm	D - Cup Outer Diameter N/A 16.6250 in422.275 mm	B - Double Cone Width N/A 5.9375 in150.813 mm	C - Cup Width N/A 2.5000 in63.500 mm	T - Bearing Width across Cups N/A 5.9375 in150.813 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 83300 lbf371000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 560000 lbf2490000 N	Bore Taper N/A
EE329118D - 329172	Series N/A 329000	d - Bore N/A 11.7500 in298.450 mm	D - Cup Outer Diameter N/A 17.2460 in438.048 mm	B - Double Cone Width N/A 5.1875 in131.763 mm	C - Cup Width N/A 2.1250 in53.975 mm	T - Bearing Width across Cups N/A 5.1875 in131.763 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 62900 lbf280000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 422000 lbf1880000 N	Bore Taper N/A

EE291176D - 291750	Series N/A 290000	d - Bore N/A 11.7500 in298.450 mm	D - Cup Outer Diameter N/A 17.5 in444.5 mm	B - Double Cone Width N/A 4.2500 in107.950 mm	C - Cup Width N/A 1.5625 in39.688 mm	T - Bearing Width across Cups N/A 4.3749 in111.122 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 51700 lbf230000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 347000 lbf1540000 N	Bore Taper N/A
EE291176D - 291749	Series N/A 290000	d - Bore N/A 11.7500 in298.450 mm	D - Cup Outer Diameter N/A 17.5 in444.5 mm	B - Double Cone Width N/A 4.2500 in107.950 mm	C - Cup Width N/A 1.5625 in39.688 mm	T - Bearing Width across Cups N/A 4.3749 in111.122 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 51700 lbf230000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 347000 lbf1540000 N	Bore Taper N/A
EE129119D - 129172	Series N/A 129000	d - Bore N/A 11.8100 in299.974 mm	D - Cup Outer Diameter N/A 17.2460 in438.048 mm	B - Double Cone Width N/A 5.3125 in134.938 mm	C - Cup Width N/A 2.1250 in53.975 mm	T - Bearing Width across Cups N/A 5.2499 in133.347 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 52200 lbf232000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 351000 lbf1560000 N	Bore Taper N/A
EE129119DG - 129172	Series N/A 129000	d - Bore N/A 11.8100 in299.974 mm	D - Cup Outer Diameter N/A 17.2460 in438.048 mm	B - Double Cone Width N/A 5.3125 in134.938 mm	C - Cup Width N/A 2.1250 in53.975 mm	T - Bearing Width across Cups N/A 5.2499 in133.347 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 52200 lbf232000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 351000 lbf1560000 N	Bore Taper N/A
EE129119D - 129174	Series N/A 129000	d - Bore N/A 11.8100 in299.974 mm	D - Cup Outer Diameter N/A 17.3208 in439.948 mm	B - Double Cone Width N/A 5.3125 in134.938 mm	C - Cup Width N/A 2.1250 in53.975 mm	T - Bearing Width across Cups N/A 5.2499 in133.347 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 52200 lbf232000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 351000 lbf1560000 N	Bore Taper N/A
EE129119DG - 129174	Series N/A 129000	d - Bore N/A 11.8100 in299.974 mm	D - Cup Outer Diameter N/A 17.3208 in439.948 mm	B - Double Cone Width N/A 5.3125 in134.938 mm	C - Cup Width N/A 2.1250 in53.975 mm	T - Bearing Width across Cups N/A 5.2499 in133.347 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 52200 lbf232000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 351000 lbf1560000 N	Bore Taper N/A
HM256849D - HM256810	Series N/A HM256800	d - Bore N/A 11.8125 in300.038 mm	D - Cup Outer Diameter N/A 16.6250 in422.275 mm	B - Double Cone Width N/A 5.9375 in150.813 mm	C - Cup Width N/A 2.5000 in63.500 mm	T - Bearing Width across Cups N/A 5.9375 in150.813 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 75600 lbf336000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 508000 lbf2260000 N	Bore Taper N/A
HM256849DA - HM256810	Series N/A HM256800	d - Bore N/A 11.8125 in300.038 mm	D - Cup Outer Diameter N/A 16.6250 in422.275 mm	B - Double Cone Width N/A 5.9375 in150.813 mm	C - Cup Width N/A 2.5000 in63.500 mm	T - Bearing Width across Cups N/A 5.9375 in150.813 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 75600 lbf336000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 508000 lbf2260000 N	Bore Taper N/A
HM256849DW - HM256810	Series N/A HM256800	d - Bore N/A 11.8125 in300.038 mm	D - Cup Outer Diameter N/A 16.6250 in422.275 mm	B - Double Cone Width N/A 5.9375 in150.813 mm	C - Cup Width N/A 2.5000 in63.500 mm	T - Bearing Width across Cups N/A 5.9375 in150.813 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 75600 lbf336000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 508000 lbf2260000 N	Bore Taper N/A
HH258249D - HH258210	Series N/A HH258200	d - Bore N/A 11.9375 in303.213 mm	D - Cup Outer Diameter N/A 19.5000 in495.300 mm	B - Double Cone Width N/A 10.3750 in263.525 mm	C - Cup Width N/A 4.5000 in114.300 mm	T - Bearing Width across Cups N/A 10.3749 in263.522 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 167000 lbf744000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 1120000 lbf5000000 N	Bore Taper N/A
EE129121D - 129172	Series N/A 129000	d - Bore N/A 11.9940 in304.648 mm	D - Cup Outer Diameter N/A 17.2460 in438.048 mm	B - Double Cone Width N/A 5.3125 in134.938 mm	C - Cup Width N/A 2.1250 in53.975 mm	T - Bearing Width across Cups N/A 5.2499 in133.347 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 52200 lbf232000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 351000 lbf1560000 N	Bore Taper N/A
EE329117D - 329172	Series N/A 329000	d - Bore N/A 11.9940 in304.648 mm	D - Cup Outer Diameter N/A 17.2460 in438.048 mm	B - Double Cone Width N/A 5.1875 in131.763 mm	C - Cup Width N/A 2.1250 in53.975 mm	T - Bearing Width across Cups N/A 5.1875 in131.763 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 64300 lbf286000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 432000 lbf1920000 N	Bore Taper N/A
EE329119D - 329172	Series N/A 329000	d - Bore N/A 11.9940 in304.648 mm	D - Cup Outer Diameter N/A 17.2460 in438.048 mm	B - Double Cone Width N/A 5.1875 in131.763 mm	C - Cup Width N/A 2.1250 in53.975 mm	T - Bearing Width across Cups N/A 5.1875 in131.763 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 62900 lbf280000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 422000 lbf1880000 N	Bore Taper N/A
M757447D - M757410	Series N/A M757400	d - Bore N/A 11.9940 in304.648 mm	D - Cup Outer Diameter N/A 17.2460 in438.048 mm	B - Double Cone Width N/A 5.0625 in128.588 mm	C - Cup Width N/A 2.1250 in53.975 mm	T - Bearing Width across Cups N/A 5.4375 in138.113 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 64000 lbf285000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 430000 lbf1910000 N	Bore Taper N/A
EE129121D - 129174	Series N/A 129000	d - Bore N/A 11.9940 in304.648 mm	D - Cup Outer Diameter N/A 17.3208 in439.948 mm	B - Double Cone Width N/A 5.3125 in134.938 mm	C - Cup Width N/A 2.1250 in53.975 mm	T - Bearing Width across Cups N/A 5.2499 in133.347 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 52200 lbf232000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 351000 lbf1560000 N	Bore Taper N/A
M257148DW - M257110	Series N/A M257100	d - Bore N/A 12 in304.8 mm	D - Cup Outer Diameter N/A 16.5000 in419.100 mm	B - Double Cone Width N/A 5.1250 in130.175 mm	C - Cup Width N/A 2.1250 in53.975 mm	T - Bearing Width across Cups N/A 5.1250 in130.175 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 69700 lbf310000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 468000 lbf2080000 N	Bore Taper N/A
M257149DW - M257110	Series N/A M257100	d - Bore N/A 12 in304.8 mm	D - Cup Outer Diameter N/A 16.5000 in419.100 mm	B - Double Cone Width N/A 5.1250 in130.175 mm	C - Cup Width N/A 2.1250 in53.975 mm	T - Bearing Width across Cups N/A 5.1250 in130.175 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 69700 lbf310000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 468000 lbf2080000 N	Bore Taper N/A
EE291200D - 291750	Series N/A 290000	d - Bore N/A 12 in304.8 mm	D - Cup Outer Diameter N/A 17.5 in444.5 mm	B - Double Cone Width N/A 4.2500 in107.950 mm	C - Cup Width N/A 1.5625 in39.688 mm	T - Bearing Width across Cups N/A 4.3749 in111.122 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 51700 lbf230000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 347000 lbf1540000 N	Bore Taper N/A
EE291200D - 291749	Series N/A 290000	d - Bore N/A 12 in304.8 mm	D - Cup Outer Diameter N/A 17.5 in444.5 mm	B - Double Cone Width N/A 4.2500 in107.950 mm	C - Cup Width N/A 1.5625 in39.688 mm	T - Bearing Width across Cups N/A 4.3749 in111.122 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 51700 lbf230000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 347000 lbf1540000 N	Bore Taper N/A
EE291202D - 291749	Series N/A 290000	d - Bore N/A 12 in304.8 mm	D - Cup Outer Diameter N/A 17.5 in444.5 mm	B - Double Cone Width N/A 4.6250 in117.475 mm	C - Cup Width N/A 1.5625 in39.688 mm	T - Bearing Width across Cups N/A 4.3749 in111.122 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 51700 lbf230000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 347000 lbf1540000 N	Bore Taper N/A
EE291202D - 291750	Series N/A 290000	d - Bore N/A 12 in304.8 mm	D - Cup Outer Diameter N/A 17.5 in444.5 mm	B - Double Cone Width N/A 4.6250 in117.475 mm	C - Cup Width N/A 1.5625 in39.688 mm	T - Bearing Width across Cups N/A 4.3749 in111.122 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 51700 lbf230000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 347000 lbf1540000 N	Bore Taper N/A
EE724121D - 724195	Series N/A 724000	d - Bore N/A 12 in304.8 mm	D - Cup Outer Diameter N/A 19.5000 in495.300 mm	B - Double Cone Width N/A 6.5000 in165.100 mm	C - Cup Width N/A 2.7500 in69.850 mm	T - Bearing Width across Cups N/A 6.7499 in171.447 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 98300 lbf437000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 660000 lbf2940000 N	Bore Taper N/A
EE941206D - 941950	Series N/A 940000	d - Bore N/A 12 in304.8 mm	D - Cup Outer Diameter N/A 19.5000 in495.300 mm	B - Double Cone Width N/A 5.3125 in134.938 mm	C - Cup Width N/A 2.1250 in53.975 mm	T - Bearing Width across Cups N/A 5.4312 in137.952 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 90300 lbf402000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 607000 lbf2700000 N	Bore Taper N/A
EE941207D - 941950	Series N/A 940000	d - Bore N/A 12 in304.8 mm	D - Cup Outer Diameter N/A 19.5000 in495.300 mm	B - Double Cone Width N/A 5.5625 in141.288 mm	C - Cup Width N/A 2.1250 in53.975 mm	T - Bearing Width across Cups N/A 5.4312 in137.952 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 90300 lbf402000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 607000 lbf2700000 N	Bore Taper N/A
EE790119D - 790221	Series N/A 790000	d - Bore N/A 12 in304.8 mm	D - Cup Outer Diameter N/A 22.0000 in558.800 mm	B - Double Cone Width N/A 11.2500 in285.750 mm	C - Cup Width N/A 3.8750 in98.425 mm	T - Bearing Width across Cups N/A 11.2500 in285.750 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 180000 lbf802000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 1210000 lbf5390000 N	Bore Taper N/A

M257248DGW - M257210	Series N/A M257200	d - Bore N/A 12.0040 in304.902 mm	D - Cup Outer Diameter N/A 16.2460 in412.648 mm	B - Double Cone Width N/A 5.0625 in128.588 mm	C - Cup Width N/A 2.1250 in53.975 mm	T - Bearing Width across Cups N/A 5.0624 in128.585 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 65000 lbf289000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 437000 lbf1940000 N	Bore Taper N/A
M257248DW - M257210	Series N/A M257200	d - Bore N/A 12.0040 in304.902 mm	D - Cup Outer Diameter N/A 16.2460 in412.648 mm	B - Double Cone Width N/A 5.0625 in128.588 mm	C - Cup Width N/A 2.1250 in53.975 mm	T - Bearing Width across Cups N/A 5.0624 in128.585 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 65000 lbf289000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 437000 lbf1940000 N	Bore Taper N/A
EE129123D - 129172	Series N/A 129000	d - Bore N/A 12.0079 in305.001 mm	D - Cup Outer Diameter N/A 17.2460 in438.048 mm	B - Double Cone Width N/A 5.3125 in134.938 mm	C - Cup Width N/A 2.1250 in53.975 mm	T - Bearing Width across Cups N/A 5.2499 in133.347 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 52200 lbf232000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 351000 lbf1560000 N	Bore Taper N/A
EE129123D - 129174	Series N/A 129000	d - Bore N/A 12.0079 in305.001 mm	D - Cup Outer Diameter N/A 17.3208 in439.948 mm	B - Double Cone Width N/A 5.3125 in134.938 mm	C - Cup Width N/A 2.1250 in53.975 mm	T - Bearing Width across Cups N/A 5.2499 in133.347 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 52200 lbf232000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 351000 lbf1560000 N	Bore Taper N/A
HM959738DW - HM959710	Series N/A HM959700	d - Bore N/A 12.0092 in305.034 mm	D - Cup Outer Diameter N/A 19.6830 in499.948 mm	B - Double Cone Width N/A 7.8750 in200.025 mm	C - Cup Width N/A 2.5000 in63.500 mm	T - Bearing Width across Cups N/A 7.8749 in200.022 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 79200 lbf352000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 532000 lbf2370000 N	Bore Taper N/A
HM959739DW - HM959710	Series N/A HM959700	d - Bore N/A 12.0092 in305.034 mm	D - Cup Outer Diameter N/A 19.6830 in499.948 mm	B - Double Cone Width N/A 7.8750 in200.025 mm	C - Cup Width N/A 2.5000 in63.500 mm	T - Bearing Width across Cups N/A 7.1249 in180.972 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 79200 lbf352000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 532000 lbf2370000 N	Bore Taper N/A
HM959740DW - HM959710	Series N/A HM959700	d - Bore N/A 12.0092 in305.034 mm	D - Cup Outer Diameter N/A 19.6830 in499.948 mm	B - Double Cone Width N/A 7.8750 in200.025 mm	C - Cup Width N/A 2.5000 in63.500 mm	T - Bearing Width across Cups N/A 7.8749 in200.022 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 79200 lbf352000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 532000 lbf2370000 N	Bore Taper N/A
HM959741DW - HM959710	Series N/A HM959700	d - Bore N/A 12.0092 in305.034 mm	D - Cup Outer Diameter N/A 19.6830 in499.948 mm	B - Double Cone Width N/A 7.8750 in200.025 mm	C - Cup Width N/A 2.5000 in63.500 mm	T - Bearing Width across Cups N/A 7.8749 in200.022 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 79200 lbf352000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 532000 lbf2370000 N	Bore Taper N/A
HM959737DW - HM959710	Series N/A HM959700	d - Bore N/A 12.0093 in305.036 mm	D - Cup Outer Diameter N/A 19.6830 in499.948 mm	B - Double Cone Width N/A 7.8740 in200.000 mm	C - Cup Width N/A 2.5000 in63.500 mm	T - Bearing Width across Cups N/A 7.8739 in199.997 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 79200 lbf352000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 532000 lbf2370000 N	Bore Taper N/A
HM959744DW - HM959710	Series N/A HM959700	d - Bore N/A 12.0140 in305.156 mm	D - Cup Outer Diameter N/A 19.6830 in499.948 mm	B - Double Cone Width N/A 7.8750 in200.025 mm	C - Cup Width N/A 2.5000 in63.500 mm	T - Bearing Width across Cups N/A 7.8749 in200.022 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 83100 lbf370000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 558000 lbf2480000 N	Bore Taper N/A
LM258648DGW - LM258610	Series N/A LM258600	d - Bore N/A 12.5000 in317.500 mm	D - Cup Outer Diameter N/A 16.6250 in422.275 mm	B - Double Cone Width N/A 5.0625 in128.588 mm	C - Cup Width N/A 2.1250 in53.975 mm	T - Bearing Width across Cups N/A 5.0625 in128.588 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 57500 lbf256000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 386000 lbf1720000 N	Bore Taper N/A
LM258648DW - LM258610	Series N/A LM258600	d - Bore N/A 12.5000 in317.500 mm	D - Cup Outer Diameter N/A 16.6250 in422.275 mm	B - Double Cone Width N/A 5.0625 in128.588 mm	C - Cup Width N/A 2.1250 in53.975 mm	T - Bearing Width across Cups N/A 5.0625 in128.588 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 57500 lbf256000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 386000 lbf1720000 N	Bore Taper N/A
LM258649D - LM258610	Series N/A LM258600	d - Bore N/A 12.5000 in317.500 mm	D - Cup Outer Diameter N/A 16.6250 in422.275 mm	B - Double Cone Width N/A 5.0625 in128.588 mm	C - Cup Width N/A 2.1250 in53.975 mm	T - Bearing Width across Cups N/A 5.0625 in128.588 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 57500 lbf256000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 386000 lbf1720000 N	Bore Taper N/A
HM259047DW - HM259010	Series N/A HM259000	d - Bore N/A 12.5000 in317.500 mm	D - Cup Outer Diameter N/A 17.6250 in447.675 mm	B - Double Cone Width N/A 6.2500 in158.750 mm	C - Cup Width N/A 2.6875 in68.263 mm	T - Bearing Width across Cups N/A 6.2499 in158.747 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 90000 lbf400000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 605000 lbf2690000 N	Bore Taper N/A
HM259049D - HM259010	Series N/A HM259000	d - Bore N/A 12.5000 in317.500 mm	D - Cup Outer Diameter N/A 17.6250 in447.675 mm	B - Double Cone Width N/A 6.2500 in158.750 mm	C - Cup Width N/A 2.6875 in68.263 mm	T - Bearing Width across Cups N/A 6.2499 in158.747 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 97800 lbf435000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 656000 lbf2920000 N	Bore Taper N/A
HM259049DH - HM259010	Series N/A HM259000	d - Bore N/A 12.5000 in317.500 mm	D - Cup Outer Diameter N/A 17.6250 in447.675 mm	B - Double Cone Width N/A 6.2500 in158.750 mm	C - Cup Width N/A 2.6875 in68.263 mm	T - Bearing Width across Cups N/A 6.2499 in158.747 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 97800 lbf435000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 656000 lbf2920000 N	Bore Taper N/A
HM259049DV - HM259010	Series N/A HM259000	d - Bore N/A 12.5000 in317.500 mm	D - Cup Outer Diameter N/A 17.6250 in447.675 mm	B - Double Cone Width N/A 6.2500 in158.750 mm	C - Cup Width N/A 2.6875 in68.263 mm	T - Bearing Width across Cups N/A 6.2499 in158.747 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 97800 lbf435000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 656000 lbf2920000 N	Bore Taper N/A
HM259049DW - HM259010	Series N/A HM259000	d - Bore N/A 12.5000 in317.500 mm	D - Cup Outer Diameter N/A 17.6250 in447.675 mm	B - Double Cone Width N/A 6.2500 in158.750 mm	C - Cup Width N/A 2.6875 in68.263 mm	T - Bearing Width across Cups N/A 6.2499 in158.747 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 97800 lbf435000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 656000 lbf2920000 N	Bore Taper N/A
M260149DW - M260110	Series N/A M260100	d - Bore N/A 13.0000 in330.200 mm	D - Cup Outer Diameter N/A 17.5 in444.5 mm	B - Double Cone Width N/A 5.6875 in144.463 mm	C - Cup Width N/A 2.3750 in60.325 mm	T - Bearing Width across Cups N/A 5.6874 in144.460 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 71400 lbf317000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 479000 lbf2130000 N	Bore Taper N/A
EE526131D - 526190	Series N/A 526000	d - Bore N/A 13.0000 in330.200 mm	D - Cup Outer Diameter N/A 19.0000 in482.600 mm	B - Double Cone Width N/A 5.8125 in147.638 mm	C - Cup Width N/A 2.3750 in60.325 mm	T - Bearing Width across Cups N/A 6.0000 in152.400 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 72900 lbf324000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 489000 lbf2180000 N	Bore Taper N/A
EE138131D - 138172	Series N/A 138000	d - Bore N/A 13.0040 in330.302 mm	D - Cup Outer Diameter N/A 17.2450 in438.023 mm	B - Double Cone Width N/A 4.5000 in114.300 mm	C - Cup Width N/A 1.8750 in47.625 mm	T - Bearing Width across Cups N/A 4.7500 in120.650 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 42800 lbf190000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 287000 lbf1280000 N	Bore Taper N/A
HM261049DW - HM261010	Series N/A HM261000	d - Bore N/A 13.1250 in333.375 mm	D - Cup Outer Diameter N/A 18.5000 in469.900 mm	B - Double Cone Width N/A 6.5625 in166.688 mm	C - Cup Width N/A 2.8125 in71.438 mm	T - Bearing Width across Cups N/A 6.5625 in166.688 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 93200 lbf415000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 626000 lbf2780000 N	Bore Taper N/A
HM261049DWH - HM261010	Series N/A HM261000	d - Bore N/A 13.1250 in333.375 mm	D - Cup Outer Diameter N/A 18.5000 in469.900 mm	B - Double Cone Width N/A 6.5625 in166.688 mm	C - Cup Width N/A 2.8125 in71.438 mm	T - Bearing Width across Cups N/A 6.5625 in166.688 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 98500 lbf438000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 661000 lbf2940000 N	Bore Taper N/A
LM761648DW - LM761610	Series N/A LM761600	d - Bore N/A 13.4375 in341.313 mm	D - Cup Outer Diameter N/A 17.9960 in457.098 mm	B - Double Cone Width N/A 4.8125 in122.238 mm	C - Cup Width N/A 1.9375 in49.213 mm	T - Bearing Width across Cups N/A 4.8124 in122.235 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 53400 lbf237000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 358000 lbf1590000 N	Bore Taper N/A
LM761649DGW - LM761610	Series N/A LM761600	d - Bore N/A 13.5060 in343.052 mm	D - Cup Outer Diameter N/A 17.9960 in457.098 mm	B - Double Cone Width N/A 4.8125 in122.238 mm	C - Cup Width N/A 1.9375 in49.213 mm	T - Bearing Width across Cups N/A 4.8124 in122.235 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 61200 lbf272000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 411000 lbf1830000 N	Bore Taper N/A

LM761649DW - LM761610	Series N/A LM761600	d - Bore N/A 13.5060 in343.052 mm	D - Cup Outer Diameter N/A 17.9960 in457.098 mm	B - Double Cone Width N/A 4.8125 in122.238 mm	C - Cup Width N/A 1.9375 in49.213 mm	T - Bearing Width across Cups N/A 4.8124 in122.235 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 53400 lbf237000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 358000 lbf1590000 N	Bore Taper N/A
LM761649DWH - LM761610	Series N/A LM761600	d - Bore N/A 13.5060 in343.052 mm	D - Cup Outer Diameter N/A 17.9960 in457.098 mm	B - Double Cone Width N/A 4.8125 in122.238 mm	C - Cup Width N/A 1.9375 in49.213 mm	T - Bearing Width across Cups N/A 4.8124 in122.235 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 61200 lbf272000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 411000 lbf1830000 N	Bore Taper N/A
EE161362D - 161850	Series N/A 160000	d - Bore N/A 13.6250 in346.075 mm	D - Cup Outer Diameter N/A 18.5000 in469.900 mm	B - Double Cone Width N/A 3.7500 in95.250 mm	C - Cup Width N/A 1.5000 in38.100 mm	T - Bearing Width across Cups N/A 4.1249 in104.772 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 31900 lbf142000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 214000 lbf954000 N	Bore Taper N/A
EE161362D - 161900	Series N/A 160000	d - Bore N/A 13.6250 in346.075 mm	D - Cup Outer Diameter N/A 19.0000 in482.600 mm	B - Double Cone Width N/A 3.7500 in95.250 mm	C - Cup Width N/A 1.5000 in38.100 mm	T - Bearing Width across Cups N/A 4.1249 in104.772 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 31900 lbf142000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 214000 lbf954000 N	Bore Taper N/A
EE161362D - 161925	Series N/A 160000	d - Bore N/A 13.6250 in346.075 mm	D - Cup Outer Diameter N/A 19.2500 in488.950 mm	B - Double Cone Width N/A 3.7500 in95.250 mm	C - Cup Width N/A 1.5000 in38.100 mm	T - Bearing Width across Cups N/A 4.1249 in104.772 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 31900 lbf142000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 214000 lbf954000 N	Bore Taper N/A
HM262749D - HM262710	Series N/A HM262700	d - Bore N/A 13.6250 in346.075 mm	D - Cup Outer Diameter N/A 19.2500 in488.950 mm	B - Double Cone Width N/A 6.8750 in174.625 mm	C - Cup Width N/A 2.9375 in74.613 mm	T - Bearing Width across Cups N/A 6.8750 in174.625 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 101000 lbf448000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 676000 lbf3010000 N	Bore Taper N/A
HM262749DG - HM262710	Series N/A HM262700	d - Bore N/A 13.6250 in346.075 mm	D - Cup Outer Diameter N/A 19.2500 in488.950 mm	B - Double Cone Width N/A 6.8750 in174.625 mm	C - Cup Width N/A 2.9375 in74.613 mm	T - Bearing Width across Cups N/A 6.8750 in174.625 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 101000 lbf448000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 676000 lbf3010000 N	Bore Taper N/A
M262449D - M262410	Series N/A M262400	d - Bore N/A 13.6875 in347.663 mm	D - Cup Outer Diameter N/A 18.5000 in469.900 mm	B - Double Cone Width N/A 5.4375 in138.113 mm	C - Cup Width N/A 2.2500 in57.150 mm	T - Bearing Width across Cups N/A 5.4374 in138.110 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 91400 lbf406000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 614000 lbf2730000 N	Bore Taper N/A
M262449DW - M262410	Series N/A M262400	d - Bore N/A 13.6875 in347.663 mm	D - Cup Outer Diameter N/A 18.5000 in469.900 mm	B - Double Cone Width N/A 5.4375 in138.113 mm	C - Cup Width N/A 2.2500 in57.150 mm	T - Bearing Width across Cups N/A 5.4374 in138.110 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 83500 lbf372000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 561000 lbf2490000 N	Bore Taper N/A
LM263149D - LM263110	Series N/A LM263100	d - Bore N/A 14 in355.6 mm	D - Cup Outer Diameter N/A 18.0000 in457.200 mm	B - Double Cone Width N/A 4.7500 in120.650 mm	C - Cup Width N/A 2.0000 in50.800 mm	T - Bearing Width across Cups N/A 4.7499 in120.647 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 54900 lbf244000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 368000 lbf1640000 N	Bore Taper N/A
LM263149DW - LM263110	Series N/A LM263100	d - Bore N/A 14 in355.6 mm	D - Cup Outer Diameter N/A 18.0000 in457.200 mm	B - Double Cone Width N/A 4.7500 in120.650 mm	C - Cup Width N/A 2.0000 in50.800 mm	T - Bearing Width across Cups N/A 4.7499 in120.647 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 54900 lbf244000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 368000 lbf1640000 N	Bore Taper N/A
EE231401D - 231975	Series N/A 230000	d - Bore N/A 14 in355.6 mm	D - Cup Outer Diameter N/A 19.7500 in501.650 mm	B - Double Cone Width N/A 4.3750 in111.125 mm	C - Cup Width N/A 2.0000 in50.800 mm	T - Bearing Width across Cups N/A 4.9999 in126.997 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 61300 lbf273000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 412000 lbf1830000 N	Bore Taper N/A
EE231401DG - 231975	Series N/A 230000	d - Bore N/A 14 in355.6 mm	D - Cup Outer Diameter N/A 19.7500 in501.650 mm	B - Double Cone Width N/A 4.3750 in111.125 mm	C - Cup Width N/A 2.0000 in50.800 mm	T - Bearing Width across Cups N/A 4.9999 in126.997 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 61300 lbf273000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 412000 lbf1830000 N	Bore Taper N/A
EE231401D - 232025	Series N/A 230000	d - Bore N/A 14 in355.6 mm	D - Cup Outer Diameter N/A 20.2500 in514.350 mm	B - Double Cone Width N/A 4.3750 in111.125 mm	C - Cup Width N/A 2.0000 in50.800 mm	T - Bearing Width across Cups N/A 4.9999 in126.997 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 61300 lbf273000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 412000 lbf1830000 N	Bore Taper N/A
EE231401DG - 232025	Series N/A 230000	d - Bore N/A 14 in355.6 mm	D - Cup Outer Diameter N/A 20.2500 in514.350 mm	B - Double Cone Width N/A 4.3750 in111.125 mm	C - Cup Width N/A 2.0000 in50.800 mm	T - Bearing Width across Cups N/A 4.9999 in126.997 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 61300 lbf273000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 412000 lbf1830000 N	Bore Taper N/A
EE161403D - 161850	Series N/A 160000	d - Bore N/A 14.0310 in356.387 mm	D - Cup Outer Diameter N/A 18.5000 in469.900 mm	B - Double Cone Width N/A 4.0000 in101.600 mm	C - Cup Width N/A 1.5000 in38.100 mm	T - Bearing Width across Cups N/A 4.1249 in104.772 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 31900 lbf142000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 214000 lbf954000 N	Bore Taper N/A
EE161403D - 161900	Series N/A 160000	d - Bore N/A 14.0310 in356.387 mm	D - Cup Outer Diameter N/A 19.0000 in482.600 mm	B - Double Cone Width N/A 4.0000 in101.600 mm	C - Cup Width N/A 1.5000 in38.100 mm	T - Bearing Width across Cups N/A 4.1249 in104.772 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 31900 lbf142000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 214000 lbf954000 N	Bore Taper N/A
EE161403D - 161925	Series N/A 160000	d - Bore N/A 14.0310 in356.387 mm	D - Cup Outer Diameter N/A 19.2500 in488.950 mm	B - Double Cone Width N/A 4.0000 in101.600 mm	C - Cup Width N/A 1.5000 in38.100 mm	T - Bearing Width across Cups N/A 4.1249 in104.772 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 31900 lbf142000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 214000 lbf954000 N	Bore Taper N/A
HM265049DGW - HM265010	Series N/A HM265000	d - Bore N/A 14.5000 in368.300 mm	D - Cup Outer Diameter N/A 20.6250 in523.875 mm	B - Double Cone Width N/A 7.3125 in185.738 mm	C - Cup Width N/A 3.1250 in79.375 mm	T - Bearing Width across Cups N/A 7.3124 in185.735 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 132000 lbf589000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 890000 lbf3960000 N	Bore Taper N/A
HM265049DW - HM265010	Series N/A HM265000	d - Bore N/A 14.5000 in368.300 mm	D - Cup Outer Diameter N/A 20.6250 in523.875 mm	B - Double Cone Width N/A 7.3125 in185.738 mm	C - Cup Width N/A 3.1250 in79.375 mm	T - Bearing Width across Cups N/A 7.3124 in185.735 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 132000 lbf589000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 890000 lbf3960000 N	Bore Taper N/A
EE231475D - 231975	Series N/A 230000	d - Bore N/A 14.7500 in374.650 mm	D - Cup Outer Diameter N/A 19.7500 in501.650 mm	B - Double Cone Width N/A 4.6250 in117.475 mm	C - Cup Width N/A 2.0000 in50.800 mm	T - Bearing Width across Cups N/A 4.9999 in126.997 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 61300 lbf273000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 412000 lbf1830000 N	Bore Taper N/A
EE231475D - 232025	Series N/A 230000	d - Bore N/A 14.7500 in374.650 mm	D - Cup Outer Diameter N/A 20.2500 in514.350 mm	B - Double Cone Width N/A 4.6250 in117.475 mm	C - Cup Width N/A 2.0000 in50.800 mm	T - Bearing Width across Cups N/A 4.9999 in126.997 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 61300 lbf273000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 412000 lbf1830000 N	Bore Taper N/A
HM266449DGW - HM266410	Series N/A HM266400	d - Bore N/A 15.1250 in384.175 mm	D - Cup Outer Diameter N/A 21.5000 in546.100 mm	B - Double Cone Width N/A 7.6250 in193.675 mm	C - Cup Width N/A 3.2500 in82.550 mm	T - Bearing Width across Cups N/A 7.6249 in193.672 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 143000 lbf638000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 963000 lbf4290000 N	Bore Taper N/A
HM266449DW - HM266410	Series N/A HM266400	d - Bore N/A 15.1250 in384.175 mm	D - Cup Outer Diameter N/A 21.5000 in546.100 mm	B - Double Cone Width N/A 7.6250 in193.675 mm	C - Cup Width N/A 3.2500 in82.550 mm	T - Bearing Width across Cups N/A 7.6249 in193.672 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 143000 lbf638000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 963000 lbf4290000 N	Bore Taper N/A
LM665949DGW - LM665911	Series N/A LM665900	d - Bore N/A 15.1875 in385.763 mm	D - Cup Outer Diameter N/A 20.2500 in514.350 mm	B - Double Cone Width N/A 6.0000 in152.400 mm	C - Cup Width N/A 2.5000 in63.500 mm	T - Bearing Width across Cups N/A 5.9999 in152.397 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 78900 lbf351000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 530000 lbf2360000 N	Bore Taper N/A

LM665949DGW - LM665910	Series N/A LM665900	d - Bore N/A 15.1875 in385.763 mm	D - Cup Outer Diameter N/A 20.2500 in514.350 mm	B - Double Cone Width N/A 6.0000 in152.400 mm	C - Cup Width N/A 2.5000 in63.500 mm	T - Bearing Width across Cups N/A 5.9999 in152.397 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 78900 lbf351000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 530000 lbf2360000 N	Bore Taper N/A
LM665949DW - LM665910	Series N/A LM665900	d - Bore N/A 15.1875 in385.763 mm	D - Cup Outer Diameter N/A 20.2500 in514.350 mm	B - Double Cone Width N/A 6.0000 in152.400 mm	C - Cup Width N/A 2.5000 in63.500 mm	T - Bearing Width across Cups N/A 5.9999 in152.397 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 78900 lbf351000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 530000 lbf2360000 N	Bore Taper N/A
LM665949DW - LM665911	Series N/A LM665900	d - Bore N/A 15.1875 in385.763 mm	D - Cup Outer Diameter N/A 20.2500 in514.350 mm	B - Double Cone Width N/A 6.0000 in152.400 mm	C - Cup Width N/A 2.5000 in63.500 mm	T - Bearing Width across Cups N/A 5.9999 in152.397 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 78900 lbf351000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 530000 lbf2360000 N	Bore Taper N/A
EE234157D - 234215	Series N/A 234000	d - Bore N/A 15.5 in393.7 mm	D - Cup Outer Diameter N/A 21.5000 in546.100 mm	B - Double Cone Width N/A 4.7500 in120.650 mm	C - Cup Width N/A 2.1875 in55.563 mm	T - Bearing Width across Cups N/A 5.5624 in141.285 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 63300 lbf282000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 425000 lbf1890000 N	Bore Taper N/A
EE234157D - 234215W	Series N/A 234000	d - Bore N/A 15.5 in393.7 mm	D - Cup Outer Diameter N/A 21.5000 in546.100 mm	B - Double Cone Width N/A 4.7500 in120.650 mm	C - Cup Width N/A 2.1875 in55.563 mm	T - Bearing Width across Cups N/A 5.5624 in141.285 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 63300 lbf282000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 425000 lbf1890000 N	Bore Taper N/A
LM767745D - LM767710	Series N/A LM767700	d - Bore N/A 15.5 in393.7 mm	D - Cup Outer Diameter N/A 21.5000 in546.100 mm	B - Double Cone Width N/A 5.4375 in138.113 mm	C - Cup Width N/A 2.1250 in53.975 mm	T - Bearing Width across Cups N/A 5.4374 in138.110 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 76400 lbf340000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 513000 lbf2280000 N	Bore Taper N/A
EE234157D - 234220	Series N/A 234000	d - Bore N/A 15.5 in393.7 mm	D - Cup Outer Diameter N/A 22.0000 in558.800 mm	B - Double Cone Width N/A 4.7500 in120.650 mm	C - Cup Width N/A 1.7500 in44.450 mm	T - Bearing Width across Cups N/A 4.6874 in119.060 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 63300 lbf282000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 425000 lbf1890000 N	Bore Taper N/A
EE234161D - 234215	Series N/A 234000	d - Bore N/A 16.0000 in406.400 mm	D - Cup Outer Diameter N/A 21.5000 in546.100 mm	B - Double Cone Width N/A 4.7500 in120.650 mm	C - Cup Width N/A 2.1875 in55.563 mm	T - Bearing Width across Cups N/A 5.5624 in141.285 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 63300 lbf282000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 425000 lbf1890000 N	Bore Taper N/A
EE234161D - 234215W	Series N/A 234000	d - Bore N/A 16.0000 in406.400 mm	D - Cup Outer Diameter N/A 21.5000 in546.100 mm	B - Double Cone Width N/A 4.7500 in120.650 mm	C - Cup Width N/A 2.1875 in55.563 mm	T - Bearing Width across Cups N/A 5.5624 in141.285 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 63300 lbf282000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 425000 lbf1890000 N	Bore Taper N/A
LM767748DA - LM767710	Series N/A LM767700	d - Bore N/A 16.0000 in406.400 mm	D - Cup Outer Diameter N/A 21.5000 in546.100 mm	B - Double Cone Width N/A 5.4375 in138.113 mm	C - Cup Width N/A 2.1250 in53.975 mm	T - Bearing Width across Cups N/A 5.4374 in138.110 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 82100 lbf365000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 551000 lbf2450000 N	Bore Taper N/A
LM767748DW - LM767710	Series N/A LM767700	d - Bore N/A 16.0000 in406.400 mm	D - Cup Outer Diameter N/A 21.5000 in546.100 mm	B - Double Cone Width N/A 5.4375 in138.113 mm	C - Cup Width N/A 2.1250 in53.975 mm	T - Bearing Width across Cups N/A 5.4374 in138.110 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 76400 lbf340000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 513000 lbf2280000 N	Bore Taper N/A
LM767749DGW - LM767710	Series N/A LM767700	d - Bore N/A 16.0000 in406.400 mm	D - Cup Outer Diameter N/A 21.5000 in546.100 mm	B - Double Cone Width N/A 5.4375 in138.113 mm	C - Cup Width N/A 2.1250 in53.975 mm	T - Bearing Width across Cups N/A 5.4374 in138.110 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 76400 lbf340000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 513000 lbf2280000 N	Bore Taper N/A
LM767749DW - LM767710	Series N/A LM767700	d - Bore N/A 16.0000 in406.400 mm	D - Cup Outer Diameter N/A 21.5000 in546.100 mm	B - Double Cone Width N/A 5.4375 in138.113 mm	C - Cup Width N/A 2.1250 in53.975 mm	T - Bearing Width across Cups N/A 5.4374 in138.110 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 87600 lbf390000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 589000 lbf2620000 N	Bore Taper N/A
M667944DW - M667911	Series N/A M667900	d - Bore N/A 16.0000 in406.400 mm	D - Cup Outer Diameter N/A 21.5000 in546.100 mm	B - Double Cone Width N/A 6.3750 in161.925 mm	C - Cup Width N/A 2.6875 in68.263 mm	T - Bearing Width across Cups N/A 6.3749 in161.922 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 109000 lbf484000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 731000 lbf3250000 N	Bore Taper N/A
M667944DW - M667910	Series N/A M667900	d - Bore N/A 16.0000 in406.400 mm	D - Cup Outer Diameter N/A 21.5000 in546.100 mm	B - Double Cone Width N/A 6.3750 in161.925 mm	C - Cup Width N/A 2.6250 in66.675 mm	T - Bearing Width across Cups N/A 6.3749 in161.922 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 109000 lbf484000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 731000 lbf3250000 N	Bore Taper N/A
EE234161D - 234220	Series N/A 234000	d - Bore N/A 16.0000 in406.400 mm	D - Cup Outer Diameter N/A 22.0000 in558.800 mm	B - Double Cone Width N/A 4.7500 in120.650 mm	C - Cup Width N/A 1.7500 in44.450 mm	T - Bearing Width across Cups N/A 4.6874 in119.060 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 63300 lbf282000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 425000 lbf1890000 N	Bore Taper N/A
EE833161XD - 833232	Series N/A 833000	d - Bore N/A 16.0000 in406.400 mm	D - Cup Outer Diameter N/A 23.2500 in590.550 mm	B - Double Cone Width N/A 7.6250 in193.675 mm	C - Cup Width N/A 3.1875 in80.963 mm	T - Bearing Width across Cups N/A 7.6249 in193.672 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 135000 lbf598000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 903000 lbf4020000 N	Bore Taper N/A
M667946DW - M667910	Series N/A M667900	d - Bore N/A 16.1250 in409.575 mm	D - Cup Outer Diameter N/A 21.5000 in546.100 mm	B - Double Cone Width N/A 6.3750 in161.925 mm	C - Cup Width N/A 2.6250 in66.675 mm	T - Bearing Width across Cups N/A 6.3749 in161.922 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 109000 lbf484000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 731000 lbf3250000 N	Bore Taper N/A
M667946DW - M667911	Series N/A M667900	d - Bore N/A 16.1250 in409.575 mm	D - Cup Outer Diameter N/A 21.5000 in546.100 mm	B - Double Cone Width N/A 6.3750 in161.925 mm	C - Cup Width N/A 2.6875 in68.263 mm	T - Bearing Width across Cups N/A 6.3749 in161.922 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 109000 lbf484000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 731000 lbf3250000 N	Bore Taper N/A
M667947ADW - M667910	Series N/A M667900	d - Bore N/A 16.1250 in409.575 mm	D - Cup Outer Diameter N/A 21.5000 in546.100 mm	B - Double Cone Width N/A 6.3750 in161.925 mm	C - Cup Width N/A 2.6250 in66.675 mm	T - Bearing Width across Cups N/A 6.3749 in161.922 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 98500 lbf438000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 661000 lbf2940000 N	Bore Taper N/A
M667947ADW - M667911	Series N/A M667900	d - Bore N/A 16.1250 in409.575 mm	D - Cup Outer Diameter N/A 21.5000 in546.100 mm	B - Double Cone Width N/A 6.3750 in161.925 mm	C - Cup Width N/A 2.6875 in68.263 mm	T - Bearing Width across Cups N/A 6.3749 in161.922 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 98500 lbf438000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 661000 lbf2940000 N	Bore Taper N/A
M667947DGW - M667910	Series N/A M667900	d - Bore N/A 16.1250 in409.575 mm	D - Cup Outer Diameter N/A 21.5000 in546.100 mm	B - Double Cone Width N/A 6.3750 in161.925 mm	C - Cup Width N/A 2.6250 in66.675 mm	T - Bearing Width across Cups N/A 6.3749 in161.922 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 98500 lbf438000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 661000 lbf2940000 N	Bore Taper N/A
M667947DGW - M667911	Series N/A M667900	d - Bore N/A 16.1250 in409.575 mm	D - Cup Outer Diameter N/A 21.5000 in546.100 mm	B - Double Cone Width N/A 6.3750 in161.925 mm	C - Cup Width N/A 2.6875 in68.263 mm	T - Bearing Width across Cups N/A 6.3749 in161.922 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 98500 lbf438000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 661000 lbf2940000 N	Bore Taper N/A
M667947DW - M667910	Series N/A M667900	d - Bore N/A 16.1250 in409.575 mm	D - Cup Outer Diameter N/A 21.5000 in546.100 mm	B - Double Cone Width N/A 6.3750 in161.925 mm	C - Cup Width N/A 2.6250 in66.675 mm	T - Bearing Width across Cups N/A 6.3749 in161.922 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 98500 lbf438000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 661000 lbf2940000 N	Bore Taper N/A
M667947DW - M667911	Series N/A M667900	d - Bore N/A 16.1250 in409.575 mm	D - Cup Outer Diameter N/A 21.5000 in546.100 mm	B - Double Cone Width N/A 6.3750 in161.925 mm	C - Cup Width N/A 2.6875 in68.263 mm	T - Bearing Width across Cups N/A 6.3749 in161.922 mm	C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A 98500 lbf438000 N	C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 661000 lbf2940000 N	Bore Taper N/A

Danh mục sản phẩm

Chi tiết sản phẩm

Tapered Roller Bearings - TDI (Tapered Double Inner) Imperial

Timken Part Number

Series

d - Bore

D - Cup Outer Diameter

B - Double Cone Width

C - Cup Width

T - Bearing Width across Cups

C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)

C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)

Bore Taper

CAD

Timken Part Number

Series

d - Bore

D - Cup Outer Diameter

B - Double Cone Width

C - Cup Width

T - Bearing Width across Cups

C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)

C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)

Bore Taper

CAD

Sản phẩm liên quan

Tapered Roller Bearings - Single Cones - Metric

Tapered Roller Bearings - TDO (Tapered Double Outer) Imperial

Tapered Roller Bearings - TSF (Tapered Single with Flange) Metric

Tapered Roller Bearings - Double Tapered Cup - Imperial

Tapered Roller Bearings - Double Tapered Cones - Imperial

Tapered Roller Bearings - Single Cups - Metric
