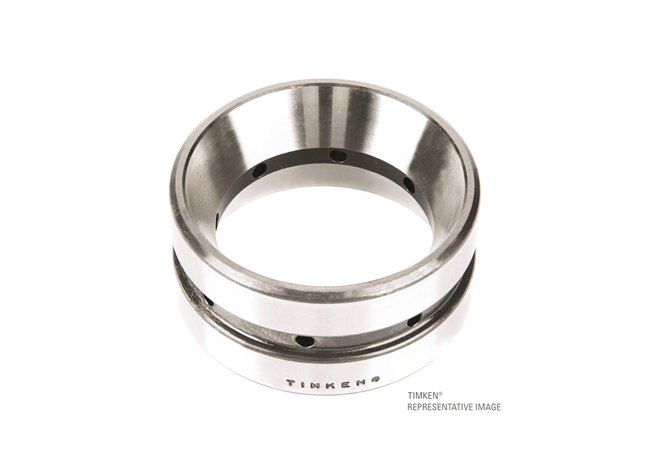

Timken Part Number | Series | D - Cup Outer Diameter | C - Double Cup Width | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) | Y - ISO Factor |
A2120D | Series A2000 | D - Cup Outer Diameter 1.2000 in30.480 mm | C - Double Cup Width 0.8370 in21.260 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.48 |
A4138D | Series A4000 | D - Cup Outer Diameter 1.3775 in34.989 mm | C - Double Cup Width 0.8125 in20.638 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.32 |
05180D | Series 05000 | D - Cup Outer Diameter 1.8104 in45.984 mm | C - Double Cup Width 0.9926 in25.212 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.68 |
05185D | Series 05000 | D - Cup Outer Diameter 1.8504 in47.000 mm | C - Double Cup Width 0.9926 in25.212 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.68 |
07196D | Series 07000 | D - Cup Outer Diameter 1.9687 in50.005 mm | C - Double Cup Width 1.0000 in25.400 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.49 |
07196DC | Series 07000 | D - Cup Outer Diameter 1.9687 in50.005 mm | C - Double Cup Width 1.0000 in25.400 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.49 |
21226D | Series 21000 | D - Cup Outer Diameter 2.2500 in57.150 mm | C - Double Cup Width 1.4375 in36.513 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.02 |
08231D | Series 08000 | D - Cup Outer Diameter 2.3125 in58.738 mm | C - Double Cup Width 0.9688 in24.608 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.27 |
17245D | Series 17000 | D - Cup Outer Diameter 2.4409 in61.999 mm | C - Double Cup Width 1.4275 in36.259 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.57 |
13835D | Series 13800 | D - Cup Outer Diameter 2.5000 in63.500 mm | C - Double Cup Width 1.2500 in31.750 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.73 |
15251D | Series 15000 | D - Cup Outer Diameter 2.5000 in63.500 mm | C - Double Cup Width 1.4375 in36.513 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.71 |
24262D | Series 24000 | D - Cup Outer Diameter 2.6150 in66.421 mm | C - Double Cup Width 1.5000 in38.100 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.77 |
13621D | Series 13600 | D - Cup Outer Diameter 2.7170 in69.012 mm | C - Double Cup Width 1.5000 in38.100 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.49 |
13621DC | Series 13600 | D - Cup Outer Diameter 2.7170 in69.012 mm | C - Double Cup Width 1.5000 in38.100 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.49 |
14276D | Series 14000 | D - Cup Outer Diameter 2.7170 in69.012 mm | C - Double Cup Width 1.5000 in38.100 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.57 |
2523D | Series 2500 | D - Cup Outer Diameter 2.7500 in69.850 mm | C - Double Cup Width 2.2500 in57.150 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 2.19 |
2524YD | Series 2500 | D - Cup Outer Diameter 2.7500 in69.850 mm | C - Double Cup Width 2.2500 in57.150 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 2.19 |
26282D | Series 26000 | D - Cup Outer Diameter 2.8125 in71.438 mm | C - Double Cup Width 1.4375 in36.513 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.67 |
26284D | Series 26000 | D - Cup Outer Diameter 2.8336 in71.973 mm | C - Double Cup Width 1.4375 in36.513 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.67 |
25289D | Series 25000 | D - Cup Outer Diameter 2.8750 in73.025 mm | C - Double Cup Width 1.3985 in35.522 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.18 |
41294D | Series 41000 | D - Cup Outer Diameter 2.9375 in74.613 mm | C - Double Cup Width 1.6250 in41.275 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1 |
02823D | Series 02800 | D - Cup Outer Diameter 3 in76.2 mm | C - Double Cup Width 1.5000 in38.100 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.32 |
24720D | Series 24700 | D - Cup Outer Diameter 3 in76.2 mm | C - Double Cup Width 1.5625 in39.688 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.53 |
24720XD | Series 24700 | D - Cup Outer Diameter 3 in76.2 mm | C - Double Cup Width 1.5625 in39.688 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.53 |
18620D | Series 18600 | D - Cup Outer Diameter 3.1250 in79.375 mm | C - Double Cup Width 1.3125 in33.338 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.6 |
18620DC | Series 18600 | D - Cup Outer Diameter 3.1250 in79.375 mm | C - Double Cup Width 1.3125 in33.338 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.6 |
27820D | Series 27800 | D - Cup Outer Diameter 3.1510 in80.035 mm | C - Double Cup Width 1.7700 in44.958 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.07 |
28314XD | Series 28000 | D - Cup Outer Diameter 3.1510 in80.035 mm | C - Double Cup Width 1.3750 in34.925 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.49 |
28318D | Series 28000 | D - Cup Outer Diameter 3.1510 in80.035 mm | C - Double Cup Width 1.3750 in34.925 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.49 |
43319D | Series 43000 | D - Cup Outer Diameter 3.1875 in80.963 mm | C - Double Cup Width 1.5625 in39.688 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 0.9 |
L305610D | Series L305600 | D - Cup Outer Diameter 3.1875 in80.963 mm | C - Double Cup Width 1.3750 in34.925 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.69 |
22325D | Series 22000 | D - Cup Outer Diameter 3.2500 in82.550 mm | C - Double Cup Width 1.3750 in34.925 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.39 |
3423D | Series 3400 | D - Cup Outer Diameter 3.2500 in82.550 mm | C - Double Cup Width 2.1875 in55.563 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.64 |
3424YD | Series 3400 | D - Cup Outer Diameter 3.2500 in82.550 mm | C - Double Cup Width 2.1875 in55.563 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.64 |
25520D | Series 25500 | D - Cup Outer Diameter 3.2650 in82.931 mm | C - Double Cup Width 1.8750 in47.625 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.79 |
25520DC | Series 25500 | D - Cup Outer Diameter 3.2650 in82.931 mm | C - Double Cup Width 1.8750 in47.625 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.79 |
L305613DE | Series L305600 | D - Cup Outer Diameter 3.2810 in83.337 mm | C - Double Cup Width 1.8750 in47.625 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.69 |
362XD | Series 365 | D - Cup Outer Diameter 3.5427 in89.985 mm | C - Double Cup Width 1.9665 in49.949 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.88 |
363D | Series 365 | D - Cup Outer Diameter 3.5433 in90.000 mm | C - Double Cup Width 1.6563 in42.070 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.88 |
363DC | Series 365 | D - Cup Outer Diameter 3.5433 in90.000 mm | C - Double Cup Width 1.6563 in42.070 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.88 |
353D | Series 355 | D - Cup Outer Diameter 3.5480 in90.119 mm | C - Double Cup Width 1.7500 in44.450 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.96 |
353DC | Series 355 | D - Cup Outer Diameter 3.5480 in90.119 mm | C - Double Cup Width 1.7500 in44.450 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.96 |
44363D | Series 44000 | D - Cup Outer Diameter 3.6250 in92.075 mm | C - Double Cup Width 1.5625 in39.688 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 0.77 |
L507914D | Series L507900 | D - Cup Outer Diameter 3.6250 in92.075 mm | C - Double Cup Width 1.3437 in34.13 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.54 |
L507914DC | Series L507900 | D - Cup Outer Diameter 3.6250 in92.075 mm | C - Double Cup Width 1.3437 in34.13 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.54 |
3729D | Series 3700 | D - Cup Outer Diameter 3.6718 in93.264 mm | C - Double Cup Width 2.0625 in52.388 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.77 |
3729DC | Series 3700 | D - Cup Outer Diameter 3.6718 in93.264 mm | C - Double Cup Width 2.0625 in52.388 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.77 |
L610510D | Series L610500 | D - Cup Outer Diameter 3.7188 in94.458 mm | C - Double Cup Width 1.3750 in34.925 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.41 |
33821D | Series 33800 | D - Cup Outer Diameter 3.7500 in95.250 mm | C - Double Cup Width 2.0624 in52.385 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.82 |
33821DC | Series 33800 | D - Cup Outer Diameter 3.7500 in95.250 mm | C - Double Cup Width 2.0624 in52.385 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.82 |
432D | Series 435 | D - Cup Outer Diameter 3.7500 in95.250 mm | C - Double Cup Width 2.0000 in50.800 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 2.11 |
432DC | Series 435 | D - Cup Outer Diameter 3.7500 in95.250 mm | C - Double Cup Width 2.0000 in50.800 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 2.11 |
53376D | Series 53000 | D - Cup Outer Diameter 3.7500 in95.250 mm | C - Double Cup Width 1.7500 in44.450 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 0.81 |
53390D | Series 53000 | D - Cup Outer Diameter 3.8750 in98.425 mm | C - Double Cup Width 1.7500 in44.450 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 0.81 |
28921D | Series 28900 | D - Cup Outer Diameter 3.9370 in100.000 mm | C - Double Cup Width 1.7500 in44.450 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.41 |
28921DC | Series 28900 | D - Cup Outer Diameter 3.9370 in100.000 mm | C - Double Cup Width 1.7500 in44.450 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.41 |
384D | Series 385 | D - Cup Outer Diameter 3.9370 in100.000 mm | C - Double Cup Width 1.6875 in42.863 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.69 |
384DC | Series 385 | D - Cup Outer Diameter 3.9370 in100.000 mm | C - Double Cup Width 1.6875 in42.863 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.69 |
384ED | Series 385 | D - Cup Outer Diameter 3.9370 in100.000 mm | C - Double Cup Width 1.5620 in39.675 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.69 |
384EDC | Series 385 | D - Cup Outer Diameter 3.9370 in100.000 mm | C - Double Cup Width 1.5620 in39.675 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.69 |
384XD | Series 385 | D - Cup Outer Diameter 3.9370 in100.000 mm | C - Double Cup Width 3.7640 in95.606 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.69 |
384DRB | Series 385 | D - Cup Outer Diameter 4.1250 in104.775 mm | C - Double Cup Width 1.5620 in39.675 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.69 |
452D | Series 455 | D - Cup Outer Diameter 4.25 in107.95 mm | C - Double Cup Width 2.125 in53.975 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.79 |
452DC | Series 455 | D - Cup Outer Diameter 4.25 in107.95 mm | C - Double Cup Width 2.125 in53.975 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.79 |
L814710D | Series L814700 | D - Cup Outer Diameter 4.3125 in109.538 mm | C - Double Cup Width 1.3750 in34.925 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.2 |
L814710DC | Series L814700 | D - Cup Outer Diameter 4.3125 in109.538 mm | C - Double Cup Width 1.3750 in34.925 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.2 |
55433D | Series 55000C | D - Cup Outer Diameter 4.3300 in109.982 mm | C - Double Cup Width 1.6876 in42.865 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 0.68 |
394D | Series 395 | D - Cup Outer Diameter 4.3307 in110.000 mm | C - Double Cup Width 1.8125 in46.038 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.49 |
394DC | Series 395 | D - Cup Outer Diameter 4.3307 in110.000 mm | C - Double Cup Width 1.8125 in46.038 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.49 |
394YD | Series 395 | D - Cup Outer Diameter 4.3307 in110.000 mm | C - Double Cup Width 1.8125 in46.038 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.49 |
533D | Series 535 | D - Cup Outer Diameter 4.3750 in111.125 mm | C - Double Cup Width 2.5 in63.5 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 2.02 |
533DC | Series 535 | D - Cup Outer Diameter 4.3750 in111.125 mm | C - Double Cup Width 2.5 in63.5 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 2.02 |
29526D | Series 29500 | D - Cup Outer Diameter 4.4375 in112.713 mm | C - Double Cup Width 1.6875 in42.863 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.31 |
29526DRB | Series 29500 | D - Cup Outer Diameter 4.4375 in112.713 mm | C - Double Cup Width 1.6875 in42.863 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.31 |
39520DC | Series 39500 | D - Cup Outer Diameter 4.4375 in112.713 mm | C - Double Cup Width 2.1875 in55.563 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.77 |
55444D | Series 55000 | D - Cup Outer Diameter 4.4375 in112.713 mm | C - Double Cup Width 1.8125 in46.038 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 0.68 |
29622D | Series 29600 | D - Cup Outer Diameter 4.4995 in114.287 mm | C - Double Cup Width 1.8125 in46.038 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.23 |
29622DC | Series 29600 | D - Cup Outer Diameter 4.4995 in114.287 mm | C - Double Cup Width 1.8125 in46.038 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.23 |
55452D | Series 55000 | D - Cup Outer Diameter 4.5268 in114.981 mm | C - Double Cup Width 1.7500 in44.450 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 0.68 |
L116110D | Series L116100 | D - Cup Outer Diameter 4.5625 in115.888 mm | C - Double Cup Width 1.5626 in39.690 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.95 |
L116110DC | Series L116100 | D - Cup Outer Diameter 4.5625 in115.888 mm | C - Double Cup Width 1.5626 in39.690 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.95 |
33462D | Series 33000 | D - Cup Outer Diameter 4.6250 in117.475 mm | C - Double Cup Width 2.125 in53.975 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.38 |
33462DC | Series 33000 | D - Cup Outer Diameter 4.6250 in117.475 mm | C - Double Cup Width 2.125 in53.975 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.38 |
66462D | Series 66000 | D - Cup Outer Diameter 4.6250 in117.475 mm | C - Double Cup Width 2.125 in53.975 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 0.96 |
L116112DE | Series L116100 | D - Cup Outer Diameter 4.6250 in117.475 mm | C - Double Cup Width 2.125 in53.975 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.95 |
33472DC | Series 33000 | D - Cup Outer Diameter 4.7244 in120.000 mm | C - Double Cup Width 2.6490 in67.285 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.38 |
472DC | Series 475 | D - Cup Outer Diameter 4.7244 in120.000 mm | C - Double Cup Width 2.125 in53.975 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.56 |
47420D | Series 47400 | D - Cup Outer Diameter 4.7244 in120.000 mm | C - Double Cup Width 2.3125 in58.738 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.67 |
47420DC | Series 47400 | D - Cup Outer Diameter 4.7244 in120.000 mm | C - Double Cup Width 2.3125 in58.738 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.67 |
472D | Series 475 | D - Cup Outer Diameter 4.7244 in120.000 mm | C - Double Cup Width 2.125 in53.975 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.56 |
34478D | Series 34000 | D - Cup Outer Diameter 4.7812 in121.442 mm | C - Double Cup Width 1.5000 in38.100 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.33 |
552D | Series 555 | D - Cup Outer Diameter 4.8750 in123.825 mm | C - Double Cup Width 2.5 in63.5 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.73 |
552DC | Series 555 | D - Cup Outer Diameter 4.8750 in123.825 mm | C - Double Cup Width 2.5 in63.5 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.73 |
72488D | Series 72000 | D - Cup Outer Diameter 4.8750 in123.825 mm | C - Double Cup Width 2.1875 in55.563 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 0.81 |
L217810D | Series L217800 | D - Cup Outer Diameter 4.8750 in123.825 mm | C - Double Cup Width 1.6875 in42.863 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.82 |
L217810DC | Series L217800 | D - Cup Outer Diameter 4.8750 in123.825 mm | C - Double Cup Width 1.6875 in42.863 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.82 |
L217810DE | Series L217800 | D - Cup Outer Diameter 4.8750 in123.825 mm | C - Double Cup Width 2.125 in53.975 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.82 |
27620DA | Series 27600 | D - Cup Outer Diameter 4.9375 in125.413 mm | C - Double Cup Width 1.7500 in44.450 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.44 |
472DS | Series 475 | D - Cup Outer Diameter 5 in127 mm | C - Double Cup Width 2.125 in53.975 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.56 |
563D | Series 565 | D - Cup Outer Diameter 5 in127 mm | C - Double Cup Width 2.5625 in65.088 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.65 |
563DC | Series 565 | D - Cup Outer Diameter 5 in127 mm | C - Double Cup Width 2.5625 in65.088 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.65 |
66522D | Series 66500 | D - Cup Outer Diameter 5.1174 in129.982 mm | C - Double Cup Width 1.8750 in47.625 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 0.9 |
L319210D | Series L319200 | D - Cup Outer Diameter 5.1250 in130.175 mm | C - Double Cup Width 1.5625 in39.688 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.72 |
27626DA | Series 27600 | D - Cup Outer Diameter 5.3750 in136.525 mm | C - Double Cup Width 1.7500 in44.450 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.44 |
493D | Series 495 | D - Cup Outer Diameter 5.3750 in136.525 mm | C - Double Cup Width 2.125 in53.975 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.35 |
493DC | Series 495 | D - Cup Outer Diameter 5.3750 in136.525 mm | C - Double Cup Width 2.125 in53.975 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.35 |
632D | Series 635 | D - Cup Outer Diameter 5.3750 in136.525 mm | C - Double Cup Width 3.0000 in76.200 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.66 |
632DC | Series 635 | D - Cup Outer Diameter 5.3750 in136.525 mm | C - Double Cup Width 3.0000 in76.200 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.66 |
LM119311D | Series LM119300 | D - Cup Outer Diameter 5.3750 in136.525 mm | C - Double Cup Width 2.2500 in57.150 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 2.11 |
562DS | Series 565 | D - Cup Outer Diameter 5.4375 in138.113 mm | C - Double Cup Width 2.5625 in65.088 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.65 |
78549D | Series 78000C | D - Cup Outer Diameter 5.5000 in139.700 mm | C - Double Cup Width 2.0395 in51.803 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 0.69 |
78551DF | Series 78000 | D - Cup Outer Diameter 5.5100 in139.954 mm | C - Double Cup Width 2.0395 in51.803 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 0.69 |
572D | Series 575 | D - Cup Outer Diameter 5.5115 in139.992 mm | C - Double Cup Width 2.6250 in66.675 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.49 |
572DC | Series 575 | D - Cup Outer Diameter 5.5115 in139.992 mm | C - Double Cup Width 2.6250 in66.675 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.49 |
HM617011DC | Series HM617000 | D - Cup Outer Diameter 5.625 in142.875 mm | C - Double Cup Width 3.0000 in76.200 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.39 |
L521910D | Series L521900 | D - Cup Outer Diameter 5.7500 in146.050 mm | C - Double Cup Width 1.5625 in39.688 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.53 |
L521910DC | Series L521900 | D - Cup Outer Diameter 5.7500 in146.050 mm | C - Double Cup Width 1.5625 in39.688 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.53 |
L521910DE | Series L521900 | D - Cup Outer Diameter 5.7500 in146.050 mm | C - Double Cup Width 2.125 in53.975 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.53 |
LM520310D | Series LM520300 | D - Cup Outer Diameter 5.7500 in146.050 mm | C - Double Cup Width 1.5313 in38.895 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.55 |
42587D | Series 42000 | D - Cup Outer Diameter 5.8750 in149.225 mm | C - Double Cup Width 2.0625 in52.388 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.22 |
42587DC | Series 42000 | D - Cup Outer Diameter 5.8750 in149.225 mm | C - Double Cup Width 2.0625 in52.388 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.22 |
592D | Series 595 | D - Cup Outer Diameter 6.0000 in152.400 mm | C - Double Cup Width 2.5 in63.5 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.36 |
592DC | Series 595 | D - Cup Outer Diameter 6.0000 in152.400 mm | C - Double Cup Width 2.5 in63.5 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.36 |
654D | Series 655 | D - Cup Outer Diameter 6.0000 in152.400 mm | C - Double Cup Width 3.0000 in76.200 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.47 |
654DC | Series 655 | D - Cup Outer Diameter 6.0000 in152.400 mm | C - Double Cup Width 3.0000 in76.200 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.47 |
L623110D | Series L623100 | D - Cup Outer Diameter 6.0000 in152.400 mm | C - Double Cup Width 1.5000 in38.100 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.45 |
742D | Series 745 | D - Cup Outer Diameter 6.1250 in155.575 mm | C - Double Cup Width 3.3750 in85.725 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.84 |
742DC | Series 745 | D - Cup Outer Diameter 6.1250 in155.575 mm | C - Double Cup Width 3.3750 in85.725 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.84 |
37626D | Series 37000 | D - Cup Outer Diameter 6.2500 in158.750 mm | C - Double Cup Width 1.5625 in39.688 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 0.99 |
37626DC | Series 37000 | D - Cup Outer Diameter 6.2500 in158.750 mm | C - Double Cup Width 1.5625 in39.688 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 0.99 |
LM522510D | Series LM522500 | D - Cup Outer Diameter 6.2987 in159.987 mm | C - Double Cup Width 2.3125 in58.738 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.49 |
LM522510DC | Series LM522500 | D - Cup Outer Diameter 6.2987 in159.987 mm | C - Double Cup Width 2.3125 in58.738 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.49 |
M919010D | Series M919000 | D - Cup Outer Diameter 6.3740 in161.900 mm | C - Double Cup Width 1.7500 in44.450 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 0.82 |
52637D | Series 52000 | D - Cup Outer Diameter 6.3750 in161.925 mm | C - Double Cup Width 2.4375 in61.913 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.26 |
52637DC | Series 52000 | D - Cup Outer Diameter 6.3750 in161.925 mm | C - Double Cup Width 2.4375 in61.913 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.26 |
752D | Series 755 | D - Cup Outer Diameter 6.3750 in161.925 mm | C - Double Cup Width 3.3750 in85.725 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.76 |
752DC | Series 755 | D - Cup Outer Diameter 6.3750 in161.925 mm | C - Double Cup Width 3.3750 in85.725 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.76 |
9220D | Series 9200 | D - Cup Outer Diameter 6.3750 in161.925 mm | C - Double Cup Width 2.7810 in70.637 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 0.85 |
L624514D | Series L624500 | D - Cup Outer Diameter 6.3750 in161.925 mm | C - Double Cup Width 2.125 in53.975 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.38 |
56649D | Series 56000 | D - Cup Outer Diameter 6.4951 in164.976 mm | C - Double Cup Width 2.5 in63.5 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.21 |
56650CD | Series 56000 | D - Cup Outer Diameter 6.5 in165.1 mm | C - Double Cup Width 2.5 in63.5 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.21 |
56650D | Series 56000 | D - Cup Outer Diameter 6.5 in165.1 mm | C - Double Cup Width 2.5 in63.5 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.21 |
HM120817D | Series HM120800 | D - Cup Outer Diameter 6.5 in165.1 mm | C - Double Cup Width 4.5000 in114.300 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 2.27 |
HM120817XD | Series HM120800 | D - Cup Outer Diameter 6.5 in165.1 mm | C - Double Cup Width 4.5000 in114.300 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 2.27 |
672D | Series 675 | D - Cup Outer Diameter 6.6250 in168.275 mm | C - Double Cup Width 2.75 in69.85 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.28 |
672DC | Series 675 | D - Cup Outer Diameter 6.6250 in168.275 mm | C - Double Cup Width 2.75 in69.85 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.28 |
743DS | Series 745 | D - Cup Outer Diameter 6.6250 in168.275 mm | C - Double Cup Width 3.3750 in85.725 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.84 |
L225812D | Series L225800 | D - Cup Outer Diameter 6.6919 in169.974 mm | C - Double Cup Width 1.9375 in49.213 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.8 |
834D | Series 835 | D - Cup Outer Diameter 6.7500 in171.450 mm | C - Double Cup Width 3.9375 in100.013 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 2 |
M224710D | Series M224700 | D - Cup Outer Diameter 6.8750 in174.625 mm | C - Double Cup Width 2.4375 in61.913 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.8 |
M224710DC | Series M224700 | D - Cup Outer Diameter 6.8750 in174.625 mm | C - Double Cup Width 2.4375 in61.913 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.8 |
L327210D | Series L327200 | D - Cup Outer Diameter 6.9688 in177.008 mm | C - Double Cup Width 1.8750 in47.625 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.72 |
L327210DC | Series L327200 | D - Cup Outer Diameter 6.9688 in177.008 mm | C - Double Cup Width 1.8750 in47.625 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.72 |
64700D | Series 64000 | D - Cup Outer Diameter 7.0000 in177.800 mm | C - Double Cup Width 2.75 in69.85 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.16 |
64700DC | Series 64000 | D - Cup Outer Diameter 7.0000 in177.800 mm | C - Double Cup Width 2.75 in69.85 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.16 |
9320D | Series 9300 | D - Cup Outer Diameter 7.0000 in177.800 mm | C - Double Cup Width 2.9375 in74.613 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 0.79 |
773D | Series 775 | D - Cup Outer Diameter 7.0866 in180 mm | C - Double Cup Width 3.3750 in85.725 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.56 |
773DC | Series 775 | D - Cup Outer Diameter 7.0866 in180 mm | C - Double Cup Width 3.3750 in85.725 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.56 |
774CD | Series 775 | D - Cup Outer Diameter 7.1250 in180.975 mm | C - Double Cup Width 3.3750 in85.725 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.56 |
774D | Series 775 | D - Cup Outer Diameter 7.1250 in180.975 mm | C - Double Cup Width 3.3750 in85.725 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.56 |
774DC | Series 775 | D - Cup Outer Diameter 7.1250 in180.975 mm | C - Double Cup Width 3.3750 in85.725 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.56 |
48220D | Series 48200 | D - Cup Outer Diameter 7.1875 in182.563 mm | C - Double Cup Width 2.875 in73.025 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.97 |
48220DC | Series 48200 | D - Cup Outer Diameter 7.1875 in182.563 mm | C - Double Cup Width 2.875 in73.025 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.97 |
HM921310D | Series HM921300 | D - Cup Outer Diameter 7.4790 in189.967 mm | C - Double Cup Width 2.1300 in54.102 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 0.69 |
HM921310DV | Series HM921300 | D - Cup Outer Diameter 7.4790 in189.967 mm | C - Double Cup Width 2.1300 in54.102 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 0.69 |
48320D | Series 48300 | D - Cup Outer Diameter 7.5 in190.5 mm | C - Double Cup Width 2.875 in73.025 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.87 |
48320DC | Series 48300 | D - Cup Outer Diameter 7.5 in190.5 mm | C - Double Cup Width 2.875 in73.025 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.87 |
71751D | Series 71000 | D - Cup Outer Diameter 7.5 in190.5 mm | C - Double Cup Width 3.1875 in80.963 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.44 |
71751DC | Series 71000 | D - Cup Outer Diameter 7.5 in190.5 mm | C - Double Cup Width 3.1875 in80.963 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.44 |
854D | Series 855 | D - Cup Outer Diameter 7.5 in190.5 mm | C - Double Cup Width 4.0000 in101.600 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.79 |
854DC | Series 855 | D - Cup Outer Diameter 7.5 in190.5 mm | C - Double Cup Width 4.0000 in101.600 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.79 |
HH221410D | Series HH221400 | D - Cup Outer Diameter 7.5 in190.5 mm | C - Double Cup Width 4.1250 in104.775 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.79 |
HH221410DC | Series HH221400 | D - Cup Outer Diameter 7.5 in190.5 mm | C - Double Cup Width 4.1250 in104.775 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.79 |
36620D | Series 36600 | D - Cup Outer Diameter 7.6250 in193.675 mm | C - Double Cup Width 2.125 in53.975 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.63 |
36620DC | Series 36600 | D - Cup Outer Diameter 7.6250 in193.675 mm | C - Double Cup Width 2.125 in53.975 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.63 |
HM124616XD | Series HM124600 | D - Cup Outer Diameter 7.6722 in194.874 mm | C - Double Cup Width 5.1713 in131.351 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 2.27 |
HM124618XD | Series HM124600 | D - Cup Outer Diameter 7.6875 in195.263 mm | C - Double Cup Width 5.6250 in142.875 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 2.27 |
67322D | Series 67300 | D - Cup Outer Diameter 7.7500 in196.850 mm | C - Double Cup Width 3.3750 in85.725 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.74 |
67322DC | Series 67300 | D - Cup Outer Diameter 7.7500 in196.850 mm | C - Double Cup Width 3.3750 in85.725 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.74 |
67323D | Series 67300 | D - Cup Outer Diameter 7.7500 in196.850 mm | C - Double Cup Width 3.6250 in92.075 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.74 |
HM821511D | Series HM821500 | D - Cup Outer Diameter 7.7500 in196.850 mm | C - Double Cup Width 2.9300 in74.422 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 0.99 |
48620D | Series 48600 | D - Cup Outer Diameter 7.875 in200.025 mm | C - Double Cup Width 2.875 in73.025 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.78 |
48620DC | Series 48600 | D - Cup Outer Diameter 7.875 in200.025 mm | C - Double Cup Width 2.875 in73.025 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.78 |
67325D | Series 67300 | D - Cup Outer Diameter 7.875 in200.025 mm | C - Double Cup Width 3.3750 in85.725 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.74 |
98789D | Series 98000 | D - Cup Outer Diameter 7.875 in200.025 mm | C - Double Cup Width 3.1581 in80.216 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 0.95 |
98789DC | Series 98000 | D - Cup Outer Diameter 7.875 in200.025 mm | C - Double Cup Width 3.1581 in80.216 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 0.95 |
48620 | Series 48600 | D - Cup Outer Diameter 7.875 in200.025 mm | C - Double Cup Width 1.3437 in34.13 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.78 |
LM330410D | Series LM330400 | D - Cup Outer Diameter 8 in203.2 mm | C - Double Cup Width 3.1250 in79.375 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.73 |
792CD | Series 795 | D - Cup Outer Diameter 8.1250 in206.375 mm | C - Double Cup Width 3.25 in82.55 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.31 |
HM127415YD | Series HM127400 | D - Cup Outer Diameter 8.1870 in207.950 mm | C - Double Cup Width 5.0000 in127.000 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 2.27 |
HM127415XD | Series HM127400 | D - Cup Outer Diameter 8.1875 in207.963 mm | C - Double Cup Width 6.0000 in152.400 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 2.27 |
HM127417XD | Series HM127400 | D - Cup Outer Diameter 8.2627 in209.873 mm | C - Double Cup Width 5.1969 in132.001 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 2.27 |
932CD | Series 935 | D - Cup Outer Diameter 8.3750 in212.725 mm | C - Double Cup Width 4.6250 in117.475 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.84 |
HH224310CD | Series HH224300 | D - Cup Outer Diameter 8.3750 in212.725 mm | C - Double Cup Width 4.6250 in117.475 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.84 |
H924010D | Series H924000 | D - Cup Outer Diameter 8.4375 in214.313 mm | C - Double Cup Width 3.3125 in84.138 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 0.89 |
74849XD | Series 74000 | D - Cup Outer Diameter 8.5000 in215.900 mm | C - Double Cup Width 3.1875 in80.963 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.23 |
74851CD | Series 74000 | D - Cup Outer Diameter 8.5000 in215.900 mm | C - Double Cup Width 3.1875 in80.963 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.23 |
L433710D | Series L433700 | D - Cup Outer Diameter 8.5000 in215.900 mm | C - Double Cup Width 1.8750 in47.625 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.65 |
HM129813XD | Series HM129800 | D - Cup Outer Diameter 8.6564 in219.873 mm | C - Double Cup Width 5.5118 in140.000 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 2.27 |
HM129814YD | Series HM129800 | D - Cup Outer Diameter 8.6870 in220.650 mm | C - Double Cup Width 5.3750 in136.525 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 2.27 |
HM129814D | Series HM129800 | D - Cup Outer Diameter 8.6875 in220.663 mm | C - Double Cup Width 6.4374 in163.510 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 2.27 |
HM129814XD | Series HM129800 | D - Cup Outer Diameter 8.6875 in220.663 mm | C - Double Cup Width 6.4374 in163.510 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 2.27 |
67329DA | Series 67300 | D - Cup Outer Diameter 8.7500 in222.250 mm | C - Double Cup Width 3.3750 in85.725 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.74 |
73876CD | Series 73000 | D - Cup Outer Diameter 8.7500 in222.250 mm | C - Double Cup Width 2.125 in53.975 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.37 |
M231610CD | Series M231600 | D - Cup Outer Diameter 8.7500 in222.250 mm | C - Double Cup Width 3.0000 in76.200 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.8 |
M231610DA | Series M231600 | D - Cup Outer Diameter 8.7500 in222.250 mm | C - Double Cup Width 3.0000 in76.200 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.8 |
M231611D | Series M231600 | D - Cup Outer Diameter 8.7500 in222.250 mm | C - Double Cup Width 3.25 in82.55 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.8 |
46720CD | Series 46700 | D - Cup Outer Diameter 8.875 in225.425 mm | C - Double Cup Width 2.75 in69.85 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.57 |
46721D | Series 46700 | D - Cup Outer Diameter 8.875 in225.425 mm | C - Double Cup Width 3.0000 in76.200 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.57 |
46720 | Series 46700 | D - Cup Outer Diameter 8.875 in225.425 mm | C - Double Cup Width 1.3125 in33.338 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.57 |
36920CD | Series 36900 | D - Cup Outer Diameter 8.9375 in227.013 mm | C - Double Cup Width 2.0625 in52.388 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.36 |
892CD | Series 895 | D - Cup Outer Diameter 9.0000 in228.600 mm | C - Double Cup Width 3.8750 in98.425 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.43 |
97901D | Series 97000 | D - Cup Outer Diameter 9.0000 in228.600 mm | C - Double Cup Width 3.3125 in84.138 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 0.81 |
HM926710CD | Series HM926700 | D - Cup Outer Diameter 9.0000 in228.600 mm | C - Double Cup Width 3.3125 in84.138 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 0.81 |
HM926710D | Series HM926700 | D - Cup Outer Diameter 9.0000 in228.600 mm | C - Double Cup Width 3.3125 in84.138 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 0.81 |
HM926710DC | Series HM926700 | D - Cup Outer Diameter 9.0000 in228.600 mm | C - Double Cup Width 3.3125 in84.138 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 0.81 |
H127714XD | Series H127700 | D - Cup Outer Diameter 9.0487 in229.837 mm | C - Double Cup Width 5.9055 in150.000 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 2.27 |
95927CD | Series 95000 | D - Cup Outer Diameter 9.25 in234.95 mm | C - Double Cup Width 4.5000 in114.300 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.62 |
82932D | Series 82000 | D - Cup Outer Diameter 9.3125 in236.538 mm | C - Double Cup Width 4.1875 in106.363 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.36 |
82932DC | Series 82000 | D - Cup Outer Diameter 9.3125 in236.538 mm | C - Double Cup Width 4.1875 in106.363 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.36 |
HM231111CD | Series HM231100 | D - Cup Outer Diameter 9.3125 in236.538 mm | C - Double Cup Width 4.1875 in106.363 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.88 |
LL537610D | Series LL537600 | D - Cup Outer Diameter 9.3125 in236.538 mm | C - Double Cup Width 1.6250 in41.275 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.49 |
82951CD | Series 82000 | D - Cup Outer Diameter 9.5000 in241.300 mm | C - Double Cup Width 4.1875 in106.363 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.36 |
HH924310D | Series HH924300 | D - Cup Outer Diameter 9.5000 in241.300 mm | C - Double Cup Width 4.2500 in107.950 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 0.82 |
HH924310DC | Series HH924300 | D - Cup Outer Diameter 9.5000 in241.300 mm | C - Double Cup Width 4.2500 in107.950 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 0.82 |
HM231116D | Series HM231100 | D - Cup Outer Diameter 9.5000 in241.300 mm | C - Double Cup Width 4.1875 in106.363 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.88 |
HM231116DC | Series HM231100 | D - Cup Outer Diameter 9.5000 in241.300 mm | C - Double Cup Width 4.1875 in106.363 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.88 |
M231615DA | Series M231600 | D - Cup Outer Diameter 9.5625 in242.888 mm | C - Double Cup Width 3.0000 in76.200 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.8 |
81963CD | Series 81000 | D - Cup Outer Diameter 9.6250 in244.475 mm | C - Double Cup Width 3.1250 in79.375 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.71 |
67720CD | Series 67700 | D - Cup Outer Diameter 9.7500 in247.650 mm | C - Double Cup Width 3.3125 in84.138 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.36 |
67720DW | Series 67700 | D - Cup Outer Diameter 9.7500 in247.650 mm | C - Double Cup Width 3.6875 in93.663 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.36 |
67721D | Series 67700 | D - Cup Outer Diameter 9.7500 in247.650 mm | C - Double Cup Width 3.4375 in87.313 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.36 |
HM133413XD | Series HM133400 | D - Cup Outer Diameter 9.8375 in249.873 mm | C - Double Cup Width 6.2992 in160.000 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 2.27 |
HM133416XD | Series HM133400 | D - Cup Outer Diameter 9.9375 in252.413 mm | C - Double Cup Width 7.2500 in184.150 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 2.27 |
99100YD | Series 99000 | D - Cup Outer Diameter 10.0000 in254.000 mm | C - Double Cup Width 5.2500 in133.350 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.47 |
99101D | Series 99000 | D - Cup Outer Diameter 10.0000 in254.000 mm | C - Double Cup Width 4.5000 in114.300 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.47 |
99101DC | Series 99000 | D - Cup Outer Diameter 10.0000 in254.000 mm | C - Double Cup Width 4.5000 in114.300 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.47 |
99102CD | Series 99000 | D - Cup Outer Diameter 10.0000 in254.000 mm | C - Double Cup Width 4.375 in111.125 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.47 |
L540010D | Series L540000 | D - Cup Outer Diameter 10.0000 in254.000 mm | C - Double Cup Width 1.8750 in47.625 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.51 |
L540010DC | Series L540000 | D - Cup Outer Diameter 10.0000 in254.000 mm | C - Double Cup Width 1.8750 in47.625 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.51 |
M235113CD | Series M235100 | D - Cup Outer Diameter 10.0000 in254.000 mm | C - Double Cup Width 3.0000 in76.200 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.88 |
99103D | Series 99000 | D - Cup Outer Diameter 10.0384 in254.975 mm | C - Double Cup Width 4.375 in111.125 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.47 |
LM739710CD | Series LM739700 | D - Cup Outer Diameter 10.1250 in257.175 mm | C - Double Cup Width 2.6250 in66.675 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.34 |
153103D | Series 153000 | D - Cup Outer Diameter 10.1875 in258.763 mm | C - Double Cup Width 5.3750 in136.525 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.87 |
HM133420XD | Series HM133400 | D - Cup Outer Diameter 10.2500 in260.350 mm | C - Double Cup Width 7.0000 in177.800 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 2.27 |
K326068 | Series HH221400 | D - Cup Outer Diameter 10.2500 in260.350 mm | C - Double Cup Width 5.2500 in133.350 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.79 |
67820CD | Series 67800 | D - Cup Outer Diameter 10.5 in266.7 mm | C - Double Cup Width 3.3125 in84.138 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.26 |
107105CD | Series 107000 | D - Cup Outer Diameter 10.5625 in268.288 mm | C - Double Cup Width 4.9375 in125.413 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.55 |
DX985046 | Series N/A | D - Cup Outer Diameter 10.5625 in268.288 mm | C - Double Cup Width 4.9375 in125.413 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.55 |
M238810CD | Series M238800 | D - Cup Outer Diameter 10.6250 in269.875 mm | C - Double Cup Width 3.6875 in93.663 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.8 |
82622D | Series 82600 | D - Cup Outer Diameter 10.7500 in273.050 mm | C - Double Cup Width 3.8125 in96.838 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.14 |
HM136916XD | Series HM136900 | D - Cup Outer Diameter 10.875 in276.225 mm | C - Double Cup Width 7.3120 in185.725 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 2.27 |
LM241110D | Series LM241100 | D - Cup Outer Diameter 10.875 in276.225 mm | C - Double Cup Width 2.875 in73.025 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.88 |
LM241110DC | Series LM241100 | D - Cup Outer Diameter 10.875 in276.225 mm | C - Double Cup Width 2.875 in73.025 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.88 |
H432614XD | Series H432600 | D - Cup Outer Diameter 10.8780 in276.301 mm | C - Double Cup Width 7.0000 in177.800 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.6 |
82620D | Series 82600 | D - Cup Outer Diameter 11.0000 in279.400 mm | C - Double Cup Width 3.8125 in96.838 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.14 |
67920CD | Series 67900 | D - Cup Outer Diameter 11.1250 in282.575 mm | C - Double Cup Width 3.25 in82.55 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.18 |
67921D | Series 67900 | D - Cup Outer Diameter 11.1250 in282.575 mm | C - Double Cup Width 3.5000 in88.900 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.18 |
87112D | Series 87000 | D - Cup Outer Diameter 11.1250 in282.575 mm | C - Double Cup Width 3.1250 in79.375 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.44 |
87112DC | Series 87000 | D - Cup Outer Diameter 11.1250 in282.575 mm | C - Double Cup Width 3.1250 in79.375 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.44 |
LM742710CD | Series LM742700 | D - Cup Outer Diameter 11.2500 in285.750 mm | C - Double Cup Width 3.0000 in76.200 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.25 |
543115D | Series 543000 | D - Cup Outer Diameter 11.3125 in287.338 mm | C - Double Cup Width 2.0000 in50.800 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.56 |
543115DC | Series 543000 | D - Cup Outer Diameter 11.3125 in287.338 mm | C - Double Cup Width 2.0000 in50.800 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.56 |
94112XD | Series 94000 | D - Cup Outer Diameter 11.3750 in288.925 mm | C - Double Cup Width 4.5000 in114.300 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.28 |
94114CD | Series 94000 | D - Cup Outer Diameter 11.3750 in288.925 mm | C - Double Cup Width 4.375 in111.125 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.28 |
HM237510CD | Series HM237500 | D - Cup Outer Diameter 11.3750 in288.925 mm | C - Double Cup Width 4.375 in111.125 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.88 |
HM237511XD | Series HM237500 | D - Cup Outer Diameter 11.3750 in288.925 mm | C - Double Cup Width 4.5000 in114.300 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.88 |
LM742714D | Series LM742700 | D - Cup Outer Diameter 11.3750 in288.925 mm | C - Double Cup Width 3.0000 in76.200 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.25 |
M241510CD | Series M241500 | D - Cup Outer Diameter 11.5000 in292.100 mm | C - Double Cup Width 4.0000 in101.600 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.8 |
M241510DA | Series M241500 | D - Cup Outer Diameter 11.5000 in292.100 mm | C - Double Cup Width 4.0000 in101.600 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.8 |
M541310CD | Series M541300 | D - Cup Outer Diameter 11.5000 in292.100 mm | C - Double Cup Width 3.3125 in84.138 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.5 |
LM844010DC | Series LM844000 | D - Cup Outer Diameter 11.6250 in295.275 mm | C - Double Cup Width 3.0625 in77.788 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.2 |
94117D | Series 94000 | D - Cup Outer Diameter 11.7500 in298.450 mm | C - Double Cup Width 5.5000 in139.700 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.28 |
94118D | Series 94000 | D - Cup Outer Diameter 11.7500 in298.450 mm | C - Double Cup Width 4.375 in111.125 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.28 |
M241513D | Series M241500 | D - Cup Outer Diameter 11.8750 in301.625 mm | C - Double Cup Width 5.5120 in140.005 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.8 |
M241513XD | Series M241500 | D - Cup Outer Diameter 11.8750 in301.625 mm | C - Double Cup Width 5.5120 in140.005 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.8 |
H337816XD | Series H337800 | D - Cup Outer Diameter 11.8780 in301.701 mm | C - Double Cup Width 7.7500 in196.850 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.73 |
281201D | Series 280000 | D - Cup Outer Diameter 12 in304.8 mm | C - Double Cup Width 3.8750 in98.425 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.67 |
751204D | Series 750000 | D - Cup Outer Diameter 12 in304.8 mm | C - Double Cup Width 3.8438 in97.633 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.8 |
451215CD | Series 450000 | D - Cup Outer Diameter 12.1250 in307.975 mm | C - Double Cup Width 5.7500 in146.050 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.84 |
HH234011CD | Series HH234000 | D - Cup Outer Diameter 12.1250 in307.975 mm | C - Double Cup Width 6.1250 in155.575 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.84 |
94122DS | Series 94000 | D - Cup Outer Diameter 12.1875 in309.563 mm | C - Double Cup Width 4.375 in111.125 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.28 |
K110108 | Series HH224300 | D - Cup Outer Diameter 12.25 in311.15 mm | C - Double Cup Width 6.2500 in158.750 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.84 |
LM446310D | Series LM446300 | D - Cup Outer Diameter 12.25 in311.15 mm | C - Double Cup Width 2.875 in73.025 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.66 |
M244210CD | Series M244200 | D - Cup Outer Diameter 12.3750 in314.325 mm | C - Double Cup Width 4.1875 in106.363 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.8 |
132126D | Series 132000 | D - Cup Outer Diameter 12.5000 in317.500 mm | C - Double Cup Width 3.5000 in88.900 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.91 |
132126DC | Series 132000 | D - Cup Outer Diameter 12.5000 in317.500 mm | C - Double Cup Width 3.5000 in88.900 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.91 |
93127CD | Series 93000 | D - Cup Outer Diameter 12.5000 in317.500 mm | C - Double Cup Width 4.375 in111.125 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.15 |
93127DW | Series 93000 | D - Cup Outer Diameter 12.5000 in317.500 mm | C - Double Cup Width 5.1250 in130.175 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.15 |
H238116YD | Series H238100 | D - Cup Outer Diameter 12.5620 in319.075 mm | C - Double Cup Width 7.3750 in187.325 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.81 |
M241515DA | Series M241500 | D - Cup Outer Diameter 12.5620 in319.075 mm | C - Double Cup Width 4.0000 in101.600 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.8 |
93128XD | Series 93000 | D - Cup Outer Diameter 12.5975 in319.977 mm | C - Double Cup Width 4.375 in111.125 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.15 |
222127CD | Series 222000 | D - Cup Outer Diameter 12.6250 in320.675 mm | C - Double Cup Width 5.4375 in138.113 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.5 |
H239612CD | Series H239600 | D - Cup Outer Diameter 12.6250 in320.675 mm | C - Double Cup Width 5.4375 in138.113 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.88 |
29820D | Series 29800 | D - Cup Outer Diameter 12.7500 in323.850 mm | C - Double Cup Width 2.0000 in50.800 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.73 |
29820DC | Series 29800 | D - Cup Outer Diameter 12.7500 in323.850 mm | C - Double Cup Width 2.0000 in50.800 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.73 |
8520CD | Series 8500 | D - Cup Outer Diameter 12.875 in327.025 mm | C - Double Cup Width 3.25 in82.55 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.48 |
8522D | Series 8500 | D - Cup Outer Diameter 12.9380 in328.625 mm | C - Double Cup Width 3.25 in82.55 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.48 |
HM743310CD | Series HM743300 | D - Cup Outer Diameter 13.1250 in333.375 mm | C - Double Cup Width 4.5000 in114.300 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.37 |
DX226463 | Series N/A | D - Cup Outer Diameter 13.2500 in336.550 mm | C - Double Cup Width 6.6875 in169.863 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.8 |
H242610CD | Series H242600 | D - Cup Outer Diameter 13.2500 in336.550 mm | C - Double Cup Width 6.6875 in169.863 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.8 |
LM249710CD | Series LM249700 | D - Cup Outer Diameter 13.6875 in347.663 mm | C - Double Cup Width 2.75 in69.85 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.8 |
127136CD | Series 127000 | D - Cup Outer Diameter 13.7460 in349.148 mm | C - Double Cup Width 4.0000 in101.600 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.7 |
781376D | Series 780000 | D - Cup Outer Diameter 13.7500 in349.250 mm | C - Double Cup Width 3.8750 in98.425 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.5 |
127137D | Series 127000 | D - Cup Outer Diameter 13.8125 in350.838 mm | C - Double Cup Width 4.0000 in101.600 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.7 |
LM251610D | Series LM251600 | D - Cup Outer Diameter 13.875 in352.425 mm | C - Double Cup Width 3.25 in82.55 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.88 |
131398D | Series 130000 | D - Cup Outer Diameter 13.9744 in354.950 mm | C - Double Cup Width 4.3288 in109.952 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.82 |
127139D | Series 127000 | D - Cup Outer Diameter 13.9960 in355.498 mm | C - Double Cup Width 4.0000 in101.600 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.7 |
131401CD | Series 130000 | D - Cup Outer Diameter 14 in355.6 mm | C - Double Cup Width 4.375 in111.125 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.82 |
131402D | Series 130000 | D - Cup Outer Diameter 14 in355.6 mm | C - Double Cup Width 4.6250 in117.475 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.82 |
96140CD | Series 96000 | D - Cup Outer Diameter 14 in355.6 mm | C - Double Cup Width 4.375 in111.125 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.02 |
HM746610CD | Series HM746600 | D - Cup Outer Diameter 14 in355.6 mm | C - Double Cup Width 4.5000 in114.300 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.27 |
LM451310CD | Series LM451300 | D - Cup Outer Diameter 14 in355.6 mm | C - Double Cup Width 4.0000 in101.600 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.67 |
LM451312D | Series LM451300 | D - Cup Outer Diameter 14.0630 in357.200 mm | C - Double Cup Width 4.0000 in101.600 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.67 |
545142CD | Series 545000 | D - Cup Outer Diameter 14.1250 in358.775 mm | C - Double Cup Width 2.125 in53.975 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.22 |
M249710CD | Series M249700 | D - Cup Outer Diameter 14.1250 in358.775 mm | C - Double Cup Width 4.6250 in117.475 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.8 |
134144CD | Series 134000 | D - Cup Outer Diameter 14.3750 in365.125 mm | C - Double Cup Width 3.8750 in98.425 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.6 |
171451CD | Series 170000 | D - Cup Outer Diameter 14.5000 in368.300 mm | C - Double Cup Width 3.3750 in85.725 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.65 |
421451CD | Series 420000 | D - Cup Outer Diameter 14.5000 in368.300 mm | C - Double Cup Width 5.3750 in136.525 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.49 |
421455D | Series 420000 | D - Cup Outer Diameter 14.5000 in368.300 mm | C - Double Cup Width 5.2500 in133.350 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.49 |
L555210D | Series L555200 | D - Cup Outer Diameter 14.7500 in374.650 mm | C - Double Cup Width 3.1250 in79.375 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.49 |
L555210DC | Series L555200 | D - Cup Outer Diameter 14.7500 in374.650 mm | C - Double Cup Width 3.1250 in79.375 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.49 |
126149D | Series 126000 | D - Cup Outer Diameter 14.9960 in380.898 mm | C - Double Cup Width 5.0000 in127.000 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.16 |
126149DC | Series 126000 | D - Cup Outer Diameter 14.9960 in380.898 mm | C - Double Cup Width 5.0000 in127.000 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.16 |
LM654610CD | Series LM654600 | D - Cup Outer Diameter 14.9960 in380.898 mm | C - Double Cup Width 4.2500 in107.950 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.39 |
126151CD | Series 126000 | D - Cup Outer Diameter 15.0000 in381.000 mm | C - Double Cup Width 5.0000 in127.000 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.16 |
DX894223 | Series N/A | D - Cup Outer Diameter 15.0000 in381.000 mm | C - Double Cup Width 4.8750 in123.825 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.8 |
M252310CD | Series M252300 | D - Cup Outer Diameter 15.0000 in381.000 mm | C - Double Cup Width 4.8750 in123.825 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.8 |
DX844549 | Series N/A | D - Cup Outer Diameter 15.1250 in384.175 mm | C - Double Cup Width 7.6250 in193.675 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.8 |
H247510CD | Series H247500 | D - Cup Outer Diameter 15.1250 in384.175 mm | C - Double Cup Width 7.6250 in193.675 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.8 |
275156CD | Series 275000 | D - Cup Outer Diameter 15.5 in393.7 mm | C - Double Cup Width 4.3125 in109.538 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.49 |
DX351408 | Series N/A | D - Cup Outer Diameter 15.5 in393.7 mm | C - Double Cup Width 3.25 in82.55 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.67 |
L357010CD | Series L357000 | D - Cup Outer Diameter 15.5 in393.7 mm | C - Double Cup Width 3.25 in82.55 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.67 |
221576CD | Series 220000 | D - Cup Outer Diameter 15.7500 in400.050 mm | C - Double Cup Width 4.2500 in107.950 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.52 |
431576CD | Series 430000 | D - Cup Outer Diameter 15.7500 in400.050 mm | C - Double Cup Width 5.3750 in136.525 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.36 |
101601CD | Series 100000 | D - Cup Outer Diameter 16.0000 in406.400 mm | C - Double Cup Width 3.3750 in85.725 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.47 |
114161D | Series 114000 | D - Cup Outer Diameter 16.0000 in406.400 mm | C - Double Cup Width 5.0000 in127.000 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 0.75 |
114161DC | Series 114000 | D - Cup Outer Diameter 16.0000 in406.400 mm | C - Double Cup Width 5.0000 in127.000 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 0.75 |
128160CD | Series 128000 | D - Cup Outer Diameter 16.0000 in406.400 mm | C - Double Cup Width 4.6250 in117.475 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.55 |
275161D | Series 275000 | D - Cup Outer Diameter 16.0000 in406.400 mm | C - Double Cup Width 4.2500 in107.950 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.49 |
275161DC | Series 275000 | D - Cup Outer Diameter 16.0000 in406.400 mm | C - Double Cup Width 4.2500 in107.950 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.49 |
820161CD | Series 820000 | D - Cup Outer Diameter 16.0000 in406.400 mm | C - Double Cup Width 5.8125 in147.638 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.52 |
H249111CD | Series H249100 | D - Cup Outer Diameter 16.0000 in406.400 mm | C - Double Cup Width 7.2500 in184.150 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.8 |
HH249910CD | Series HH249900 | D - Cup Outer Diameter 16.0000 in406.400 mm | C - Double Cup Width 8.0000 in203.200 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.8 |
M255410CD | Series M255400 | D - Cup Outer Diameter 16.0000 in406.400 mm | C - Double Cup Width 5.1250 in130.175 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.77 |
109163D | Series 109000 | D - Cup Outer Diameter 16.2500 in412.750 mm | C - Double Cup Width 3.6250 in92.075 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.41 |
L860010CD | Series L860000 | D - Cup Outer Diameter 16.3750 in415.925 mm | C - Double Cup Width 2.9375 in74.613 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.2 |
435165CD | Series 435000 | D - Cup Outer Diameter 16.5000 in419.100 mm | C - Double Cup Width 5.3750 in136.525 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 0.99 |
435165D | Series 435000 | D - Cup Outer Diameter 16.5000 in419.100 mm | C - Double Cup Width 5.3750 in136.525 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 0.99 |
435165DC | Series 435000 | D - Cup Outer Diameter 16.5000 in419.100 mm | C - Double Cup Width 5.3750 in136.525 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 0.99 |
HM252310CD | Series HM252300 | D - Cup Outer Diameter 16.6250 in422.275 mm | C - Double Cup Width 5.5000 in139.700 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.8 |
HM252310DW | Series HM252300 | D - Cup Outer Diameter 16.6250 in422.275 mm | C - Double Cup Width 6.5000 in165.100 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.8 |
HM252311D | Series HM252300 | D - Cup Outer Diameter 16.6250 in422.275 mm | C - Double Cup Width 5.0625 in128.588 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.8 |
HM256810CD | Series HM256800 | D - Cup Outer Diameter 16.6250 in422.275 mm | C - Double Cup Width 5.3750 in136.525 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.78 |
700168D | Series 700000 | D - Cup Outer Diameter 16.7500 in425.450 mm | C - Double Cup Width 6.2500 in158.750 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.8 |
700168DC | Series 700000 | D - Cup Outer Diameter 16.7500 in425.450 mm | C - Double Cup Width 6.2500 in158.750 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.8 |
HM252315D | Series HM252300 | D - Cup Outer Diameter 16.9970 in431.724 mm | C - Double Cup Width 5.0625 in128.588 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.8 |
HM252315DC | Series HM252300 | D - Cup Outer Diameter 16.9970 in431.724 mm | C - Double Cup Width 5.0625 in128.588 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.8 |
113171D | Series 113000 | D - Cup Outer Diameter 17.0000 in431.800 mm | C - Double Cup Width 4.375 in111.125 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 0.68 |
129173CD | Series 129000 | D - Cup Outer Diameter 17.2460 in438.048 mm | C - Double Cup Width 4.7500 in120.650 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.44 |
129173D | Series 129000 | D - Cup Outer Diameter 17.2460 in438.048 mm | C - Double Cup Width 4.7500 in120.650 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.44 |
129175XD | Series 129000 | D - Cup Outer Diameter 17.3208 in439.948 mm | C - Double Cup Width 4.7500 in120.650 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.44 |
LL365310XD | Series LL365300 | D - Cup Outer Diameter 17.3750 in441.325 mm | C - Double Cup Width 2.0625 in52.388 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.76 |
291751CD | Series 290000 | D - Cup Outer Diameter 17.5 in444.5 mm | C - Double Cup Width 3.8750 in98.425 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.59 |
923176D | Series 923000 | D - Cup Outer Diameter 17.5 in444.5 mm | C - Double Cup Width 6.2500 in158.750 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.78 |
L163110CD | Series L163100 | D - Cup Outer Diameter 17.5 in444.5 mm | C - Double Cup Width 4.375 in111.125 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.95 |
HM259010CD | Series HM259000 | D - Cup Outer Diameter 17.6250 in447.675 mm | C - Double Cup Width 5.7500 in146.050 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.79 |
HM259010D | Series HM259000 | D - Cup Outer Diameter 17.6250 in447.675 mm | C - Double Cup Width 5.7500 in146.050 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.79 |
LM961511D | Series LM961500 | D - Cup Outer Diameter 17.9960 in457.098 mm | C - Double Cup Width 4.0000 in101.600 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 0.84 |
722186CD | Series 722000 | D - Cup Outer Diameter 18.5000 in469.900 mm | C - Double Cup Width 5.8750 in149.225 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.59 |
921851D | Series 920000 | D - Cup Outer Diameter 18.5000 in469.900 mm | C - Double Cup Width 5.0000 in127.000 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 2.05 |
HM261010CD | Series HM261000 | D - Cup Outer Diameter 18.5000 in469.900 mm | C - Double Cup Width 6.0000 in152.400 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.79 |
HM456910CD | Series HM456900 | D - Cup Outer Diameter 18.5000 in469.900 mm | C - Double Cup Width 5.8750 in149.225 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.59 |
921876D | Series 920000 | D - Cup Outer Diameter 18.7500 in476.250 mm | C - Double Cup Width 5.0000 in127.000 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 2.05 |
LM763811DC | Series LM763800 | D - Cup Outer Diameter 18.8125 in477.838 mm | C - Double Cup Width 4.0625 in103.188 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.27 |
161901CD | Series 160000 | D - Cup Outer Diameter 19.0000 in482.600 mm | C - Double Cup Width 3.5000 in88.900 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.2 |
526191CD | Series 526000 | D - Cup Outer Diameter 19.0000 in482.600 mm | C - Double Cup Width 5.0000 in127.000 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.54 |
295192D | Series 295000 | D - Cup Outer Diameter 19.2500 in488.950 mm | C - Double Cup Width 7.7500 in196.850 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.92 |
295192DC | Series 295000 | D - Cup Outer Diameter 19.2500 in488.950 mm | C - Double Cup Width 7.7500 in196.850 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.92 |
HH949510D | Series HH949500 | D - Cup Outer Diameter 19.2500 in488.950 mm | C - Double Cup Width 6.0000 in152.400 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 0.64 |
HH949510DC | Series HH949500 | D - Cup Outer Diameter 19.2500 in488.950 mm | C - Double Cup Width 6.0000 in152.400 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 0.64 |
HM262710CD | Series HM262700 | D - Cup Outer Diameter 19.2500 in488.950 mm | C - Double Cup Width 6.2500 in158.750 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.79 |
724196CD | Series 724000 | D - Cup Outer Diameter 19.5000 in495.300 mm | C - Double Cup Width 5.7500 in146.050 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.49 |
941953D | Series 940000 | D - Cup Outer Diameter 19.5000 in495.300 mm | C - Double Cup Width 5.0000 in127.000 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.49 |
HH258210CD | Series HH258200 | D - Cup Outer Diameter 19.5000 in495.300 mm | C - Double Cup Width 9.7500 in247.650 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.8 |
147198D | Series 147000 | D - Cup Outer Diameter 19.7500 in501.650 mm | C - Double Cup Width 4.7500 in120.650 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 0.72 |
147198DC | Series 147000 | D - Cup Outer Diameter 19.7500 in501.650 mm | C - Double Cup Width 4.7500 in120.650 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 0.72 |
231976CD | Series 230000 | D - Cup Outer Diameter 19.7500 in501.650 mm | C - Double Cup Width 4.2500 in107.950 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.36 |
192201CD | Series 192000 | D - Cup Outer Diameter 20.0000 in508.000 mm | C - Double Cup Width 3.5000 in88.900 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.13 |
232026D | Series 230000 | D - Cup Outer Diameter 20.2500 in514.350 mm | C - Double Cup Width 4.2500 in107.950 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.36 |
333203CD | Series 333000 | D - Cup Outer Diameter 20.2500 in514.350 mm | C - Double Cup Width 6.0000 in152.400 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.63 |
LM665910CD | Series LM665900 | D - Cup Outer Diameter 20.2500 in514.350 mm | C - Double Cup Width 5.5000 in139.700 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.43 |
HM265010CD | Series HM265000 | D - Cup Outer Diameter 20.6250 in523.875 mm | C - Double Cup Width 6.6875 in169.863 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.8 |
972102CD | Series 970000 | D - Cup Outer Diameter 21.0000 in533.400 mm | C - Double Cup Width 4.5000 in114.300 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.8 |
HH953710D | Series HH953700 | D - Cup Outer Diameter 21.0000 in533.400 mm | C - Double Cup Width 6.5000 in165.100 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 0.64 |
HH953710DC | Series HH953700 | D - Cup Outer Diameter 21.0000 in533.400 mm | C - Double Cup Width 6.5000 in165.100 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 0.64 |
234213CD | Series 234000 | D - Cup Outer Diameter 21.2500 in539.750 mm | C - Double Cup Width 4.0000 in101.600 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.26 |
234216D | Series 234000 | D - Cup Outer Diameter 21.5000 in546.100 mm | C - Double Cup Width 4.6250 in117.475 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.26 |
234216DC | Series 234000 | D - Cup Outer Diameter 21.5000 in546.100 mm | C - Double Cup Width 4.6250 in117.475 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.26 |
972151D | Series 970000 | D - Cup Outer Diameter 21.5000 in546.100 mm | C - Double Cup Width 6.0000 in152.400 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.8 |
HM266410CD | Series HM266400 | D - Cup Outer Diameter 21.5000 in546.100 mm | C - Double Cup Width 7.0000 in177.800 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.8 |
M667910D | Series M667900 | D - Cup Outer Diameter 21.5000 in546.100 mm | C - Double Cup Width 5.6875 in144.463 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.44 |
M667911D | Series M667900 | D - Cup Outer Diameter 21.5000 in546.100 mm | C - Double Cup Width 5.8125 in147.638 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.44 |
M667911DC | Series M667900 | D - Cup Outer Diameter 21.5000 in546.100 mm | C - Double Cup Width 5.8125 in147.638 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.44 |
234221D | Series 234000 | D - Cup Outer Diameter 22.0000 in558.800 mm | C - Double Cup Width 4.1250 in104.775 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.26 |
234221DC | Series 234000 | D - Cup Outer Diameter 22.0000 in558.800 mm | C - Double Cup Width 4.1250 in104.775 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.26 |
790223D | Series 790000 | D - Cup Outer Diameter 22.0000 in558.800 mm | C - Double Cup Width 8.7500 in222.250 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.52 |
LL771911CD | Series LL771900 | D - Cup Outer Diameter 22.2500 in565.150 mm | C - Double Cup Width 3.0000 in76.200 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.28 |
LM769310D | Series LM769300 | D - Cup Outer Diameter 22.5000 in571.500 mm | C - Double Cup Width 5.7500 in146.050 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.37 |
LM869410CD | Series LM869400 | D - Cup Outer Diameter 22.5000 in571.500 mm | C - Double Cup Width 4.375 in111.125 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.1 |
285228D | Series 285000 | D - Cup Outer Diameter 22.6250 in574.675 mm | C - Double Cup Width 4.1875 in106.363 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.21 |
285228DC | Series 285000 | D - Cup Outer Diameter 22.6250 in574.675 mm | C - Double Cup Width 4.1875 in106.363 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.21 |
M268710CD | Series M268700 | D - Cup Outer Diameter 23.2500 in590.550 mm | C - Double Cup Width 7.6250 in193.675 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.8 |
182351D | Series 180000 | D - Cup Outer Diameter 23.5000 in596.900 mm | C - Double Cup Width 5.2500 in133.350 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.45 |
244236CD | Series 244000 | D - Cup Outer Diameter 23.5000 in596.900 mm | C - Double Cup Width 4.7500 in120.650 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.48 |
242377CD | Series 240000 | D - Cup Outer Diameter 23.7500 in603.250 mm | C - Double Cup Width 4.1250 in104.775 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.14 |
736239D | Series 736000 | D - Cup Outer Diameter 23.9970 in609.524 mm | C - Double Cup Width 5.2500 in133.350 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.73 |
736239DC | Series 736000 | D - Cup Outer Diameter 23.9970 in609.524 mm | C - Double Cup Width 5.2500 in133.350 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.73 |
LM272210D | Series LM272200 | D - Cup Outer Diameter 24.2500 in615.950 mm | C - Double Cup Width 5.7500 in146.050 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.8 |
LM272210DC | Series LM272200 | D - Cup Outer Diameter 24.2500 in615.950 mm | C - Double Cup Width 5.7500 in146.050 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.8 |
H961610CD | Series H961600 | D - Cup Outer Diameter 24.5000 in622.300 mm | C - Double Cup Width 6.8750 in174.625 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 0.64 |
H961610D | Series H961600 | D - Cup Outer Diameter 24.5000 in622.300 mm | C - Double Cup Width 6.8750 in174.625 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 0.64 |
243251CD | Series 243000 | D - Cup Outer Diameter 24.9950 in634.873 mm | C - Double Cup Width 5.6250 in142.875 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.75 |
LM772710CD | Series LM772700 | D - Cup Outer Diameter 24.9950 in634.873 mm | C - Double Cup Width 5.3750 in136.525 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.27 |
M270710CD | Series M270700 | D - Cup Outer Diameter 25.0000 in635.000 mm | C - Double Cup Width 8.1250 in206.375 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.8 |
640261CD | Series 640000 | D - Cup Outer Diameter 26.0000 in660.400 mm | C - Double Cup Width 6.2500 in158.750 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.95 |
M272710D | Series M272700 | D - Cup Outer Diameter 26.7500 in679.450 mm | C - Double Cup Width 8.7500 in222.250 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.8 |
650270D | Series 650000 | D - Cup Outer Diameter 26.9960 in685.698 mm | C - Double Cup Width 11.6250 in295.275 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.85 |
L476510CD | Series L476500 | D - Cup Outer Diameter 27.2500 in692.150 mm | C - Double Cup Width 5.3750 in136.525 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.59 |
672875D | Series 670000 | D - Cup Outer Diameter 28.7460 in730.148 mm | C - Double Cup Width 7.0000 in177.800 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.53 |
542291CD | Series 542000 | D - Cup Outer Diameter 29.0000 in736.600 mm | C - Double Cup Width 4.5000 in114.300 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.18 |
LM377410CD | Series LM377400 | D - Cup Outer Diameter 29.0000 in736.600 mm | C - Double Cup Width 7.0000 in177.800 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.73 |
M276410D | Series M276400 | D - Cup Outer Diameter 29.9950 in761.873 mm | C - Double Cup Width 9.7500 in247.650 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.8 |
M276410DC | Series M276400 | D - Cup Outer Diameter 29.9950 in761.873 mm | C - Double Cup Width 9.7500 in247.650 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.8 |
H969210D | Series H969200 | D - Cup Outer Diameter 30.0000 in762.000 mm | C - Double Cup Width 8.7500 in222.250 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 0.64 |
649311CD | Series 649000 | D - Cup Outer Diameter 31.0000 in787.400 mm | C - Double Cup Width 6.2500 in158.750 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.62 |
L281110CD | Series L281100 | D - Cup Outer Diameter 32.0000 in812.800 mm | C - Double Cup Width 6.2500 in158.750 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.8 |
M278710D | Series M278700 | D - Cup Outer Diameter 32.0000 in812.800 mm | C - Double Cup Width 10.3750 in263.525 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.8 |
755361CD | Series 755000 | D - Cup Outer Diameter 36.0000 in914.400 mm | C - Double Cup Width 5.5000 in139.700 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.58 |
755365CD | Series 755000 | D - Cup Outer Diameter 38.5000 in977.900 mm | C - Double Cup Width 5.5000 in139.700 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.58 |
755367CD | Series 755000 | D - Cup Outer Diameter 39.5000 in1003.300 mm | C - Double Cup Width 5.5000 in139.700 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.58 |
LL789810D | Series LL789800 | D - Cup Outer Diameter 79.0000 in2006.600 mm | C - Double Cup Width 7.0000 in177.800 mm | C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) N/A | C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A | Y - ISO Factor 1.36 |
