Vòng bi > TIMKEN > Tapered Roller Bearings - Single Cups - Metric

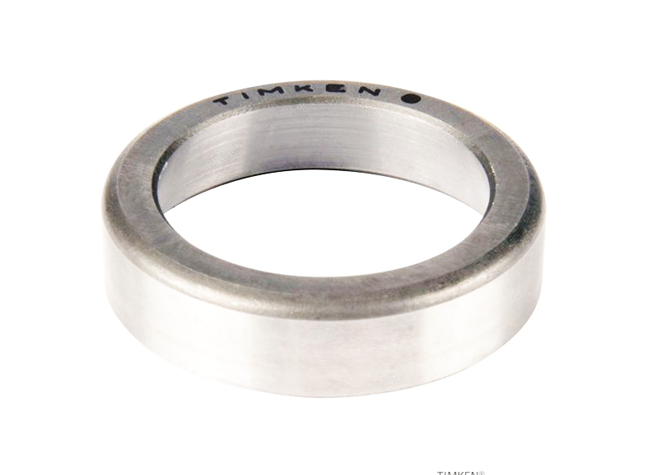

Tapered Roller Bearings - Single Cups - Metric





 Timken Part Number  Series  D - Cup Outer Diameter  C - Cup Width
Y30203 Series N/A 30203 D - Cup Outer Diameter N/A 40.000 mm1.5748 in C - Cup Width N/A 11.000 mm0.4331 in
Y30302 Series N/A 30302 D - Cup Outer Diameter N/A 42.000 mm1.6535 in C - Cup Width N/A 11.000 mm0.4331 in
Y32004X Series N/A 32004X D - Cup Outer Diameter N/A 42.000 mm1.6535 in C - Cup Width N/A 12.000 mm0.4724 in
YAA32004X Series N/A 32004X D - Cup Outer Diameter N/A 42.000 mm1.6535 in C - Cup Width N/A 12.000 mm0.4724 in
Y30303 Series N/A 30303 D - Cup Outer Diameter N/A 47.000 mm1.8504 in C - Cup Width N/A 12.000 mm0.4724 in
Y30204M Series N/A 30204M D - Cup Outer Diameter N/A 47.000 mm1.8504 in C - Cup Width N/A 12.000 mm0.4724 in
Y32204 Series N/A 32204 D - Cup Outer Diameter N/A 47.000 mm1.8504 in C - Cup Width N/A 15.000 mm0.5906 in
YAA32005X Series N/A 32005X D - Cup Outer Diameter N/A 47.000 mm1.8504 in C - Cup Width N/A 11.500 mm0.4528 in
Y30304 Series N/A 30304 D - Cup Outer Diameter N/A 52.000 mm2.0472 in C - Cup Width N/A 13.000 mm0.5118 in
Y32304M Series N/A 32304M D - Cup Outer Diameter N/A 52.000 mm2.0472 in C - Cup Width N/A 18.000 mm0.7087 in
JL44615 Series N/A L44600 D - Cup Outer Diameter N/A 52.000 mm2.0472 in C - Cup Width N/A 10.668 mm0.4200 in
Y30205M Series N/A 30205M D - Cup Outer Diameter N/A 52.000 mm2.0472 in C - Cup Width N/A 13.000 mm0.5118 in
Y32205 Series N/A 32205 D - Cup Outer Diameter N/A 52.000 mm2.0472 in C - Cup Width N/A 16 mm0.6299 in
Y33205 Series N/A 33205 D - Cup Outer Diameter N/A 52.000 mm2.0472 in C - Cup Width N/A 18.000 mm0.7087 in
JHM33410 Series N/A HM33400 D - Cup Outer Diameter N/A 55.000 mm2.1654 in C - Cup Width N/A 21.000 mm0.8268 in
Y32006X Series N/A 32006X D - Cup Outer Diameter N/A 55.000 mm2.1654 in C - Cup Width N/A 13.000 mm0.5118 in
JLM67020P Series N/A LM67000 D - Cup Outer Diameter N/A 58.513 mm2.3037 in C - Cup Width N/A 11.561 mm0.4552 in
JL68111-Z Series N/A L68100 D - Cup Outer Diameter N/A 60.000 mm2.3622 in C - Cup Width N/A 11.938 mm0.4700 in
Y30305M Series N/A 30305M D - Cup Outer Diameter N/A 62 mm2.4409 in C - Cup Width N/A 15.000 mm0.5906 in
Y32305 Series N/A 32305 D - Cup Outer Diameter N/A 62 mm2.4409 in C - Cup Width N/A 20.000 mm0.7874 in
Y30206CM Series N/A 30206C D - Cup Outer Diameter N/A 62 mm2.4409 in C - Cup Width N/A 14 mm0.5512 in
Y32206M Series N/A 32206M D - Cup Outer Diameter N/A 62 mm2.4409 in C - Cup Width N/A 17.000 mm0.6693 in
Y33206 Series N/A 33206 D - Cup Outer Diameter N/A 62 mm2.4409 in C - Cup Width N/A 19.500 mm0.7677 in
Y32007X Series N/A 32007X D - Cup Outer Diameter N/A 62 mm2.4409 in C - Cup Width N/A 14 mm0.5512 in
JL69310 Series N/A L69300 D - Cup Outer Diameter N/A 63.000 mm2.4803 in C - Cup Width N/A 13.500 mm0.5315 in
JL69310P Series N/A L69300 D - Cup Outer Diameter N/A 63.000 mm2.4803 in C - Cup Width N/A 13.500 mm0.5315 in
Y32008X Series N/A 32008X D - Cup Outer Diameter N/A 68.000 mm2.6772 in C - Cup Width N/A 14.500 mm0.5709 in
Y32008XM Series N/A 32008XM D - Cup Outer Diameter N/A 68.000 mm2.6772 in C - Cup Width N/A 14.500 mm0.5709 in
Y32008XMSA Series N/A 32008XM D - Cup Outer Diameter N/A 68.000 mm2.6772 in C - Cup Width N/A 14.500 mm0.5709 in
Y32008XZ Series N/A 32008X D - Cup Outer Diameter N/A 68.000 mm2.6772 in C - Cup Width N/A 14.500 mm0.5709 in
JHM88513 Series N/A HM88500 D - Cup Outer Diameter N/A 72.000 mm2.8346 in C - Cup Width N/A 23.020 mm0.9063 in
Y30306M Series N/A 30306M D - Cup Outer Diameter N/A 72.000 mm2.8346 in C - Cup Width N/A 16 mm0.6299 in
Y32306 Series N/A 32306 D - Cup Outer Diameter N/A 72.000 mm2.8346 in C - Cup Width N/A 23.000 mm0.9055 in
Y30207 Series N/A 30207 D - Cup Outer Diameter N/A 72.000 mm2.8346 in C - Cup Width N/A 15.000 mm0.5906 in
Y32207 Series N/A 32207 D - Cup Outer Diameter N/A 72.000 mm2.8346 in C - Cup Width N/A 19.000 mm0.7480 in
Y33207 Series N/A 33207 D - Cup Outer Diameter N/A 72.000 mm2.8346 in C - Cup Width N/A 22.000 mm0.8661 in
J16285 Series N/A 16000 D - Cup Outer Diameter N/A 72.014 mm2.8352 in C - Cup Width N/A 16.637 mm0.6550 in
Y33108 Series N/A 33108 D - Cup Outer Diameter N/A 75.000 mm2.9528 in C - Cup Width N/A 20.500 mm0.8071 in
KJLM102914A Series N/A LM102900 D - Cup Outer Diameter N/A 75.000 mm2.9528 in C - Cup Width N/A 15.800 mm0.6220 in
Y32009X Series N/A 32009X D - Cup Outer Diameter N/A 75.000 mm2.9528 in C - Cup Width N/A 15.500 mm0.6102 in
Y32009XM Series N/A 32009XM D - Cup Outer Diameter N/A 75.000 mm2.9528 in C - Cup Width N/A 15.500 mm0.6102 in
Y30307M Series N/A 30307M D - Cup Outer Diameter N/A 80 mm3.1496 in C - Cup Width N/A 18.000 mm0.7087 in
Y31307 Series N/A 31307 D - Cup Outer Diameter N/A 80 mm3.1496 in C - Cup Width N/A 15.000 mm0.5906 in
Y32307 Series N/A 32307 D - Cup Outer Diameter N/A 80 mm3.1496 in C - Cup Width N/A 25.000 mm0.9843 in
Y32208 Series N/A 32208 D - Cup Outer Diameter N/A 80 mm3.1496 in C - Cup Width N/A 19.000 mm0.7480 in
Y32208M Series N/A 32208M D - Cup Outer Diameter N/A 80 mm3.1496 in C - Cup Width N/A 19.000 mm0.7480 in
Y33208 Series N/A 33208 D - Cup Outer Diameter N/A 80 mm3.1496 in C - Cup Width N/A 25.000 mm0.9843 in
Y33109 Series N/A 33109 D - Cup Outer Diameter N/A 80 mm3.1496 in C - Cup Width N/A 20.500 mm0.8071 in
Y32010X Series N/A 32010X D - Cup Outer Diameter N/A 80 mm3.1496 in C - Cup Width N/A 15.500 mm0.6102 in
Y32010XM Series N/A 32010XM D - Cup Outer Diameter N/A 80 mm3.1496 in C - Cup Width N/A 15.500 mm0.6102 in
Y33010 Series N/A 33010 D - Cup Outer Diameter N/A 80 mm3.1496 in C - Cup Width N/A 19.000 mm0.7480 in
Y30208M Series N/A 30208 D - Cup Outer Diameter N/A 80 mm3.1496 in C - Cup Width N/A 16 mm0.6299 in
JLM104910 Series N/A LM104900 D - Cup Outer Diameter N/A 82.000 mm3.2283 in C - Cup Width N/A 17.000 mm0.6693 in
YKB-32010X Series N/A 32010X D - Cup Outer Diameter N/A 82.000 mm3.2283 in C - Cup Width N/A 17.000 mm0.6693 in
JLM704610 Series N/A LM704600 D - Cup Outer Diameter N/A 84.000 mm3.3071 in C - Cup Width N/A 17.500 mm0.6890 in
KJLM704610 Series N/A LM704600 D - Cup Outer Diameter N/A 84.000 mm3.3071 in C - Cup Width N/A 17.500 mm0.6890 in
JF4010 Series N/A JF4000 D - Cup Outer Diameter N/A 85.000 mm3.3465 in C - Cup Width N/A 28 mm1.1024 in
Y30209M Series N/A 30209M D - Cup Outer Diameter N/A 85.000 mm3.3465 in C - Cup Width N/A 16 mm0.6299 in
Y32209 Series N/A 32209 D - Cup Outer Diameter N/A 85.000 mm3.3465 in C - Cup Width N/A 19.000 mm0.7480 in
Y32209M Series N/A 32209M D - Cup Outer Diameter N/A 85.000 mm3.3465 in C - Cup Width N/A 19.000 mm0.7480 in
Y33209 Series N/A 33209 D - Cup Outer Diameter N/A 85.000 mm3.3465 in C - Cup Width N/A 25.000 mm0.9843 in
Y33110 Series N/A 33110 D - Cup Outer Diameter N/A 85.000 mm3.3465 in C - Cup Width N/A 20.000 mm0.7874 in
JLM104914 Series N/A LM104900 D - Cup Outer Diameter N/A 88.000 mm3.4646 in C - Cup Width N/A 17.000 mm0.6693 in
Y30308 Series N/A 30308 D - Cup Outer Diameter N/A 90.000 mm3.5433 in C - Cup Width N/A 20.000 mm0.7874 in
Y31308 Series N/A 31308 D - Cup Outer Diameter N/A 90.000 mm3.5433 in C - Cup Width N/A 17.000 mm0.6693 in
Y32308 Series N/A 32308 D - Cup Outer Diameter N/A 90.000 mm3.5433 in C - Cup Width N/A 27 mm1.063 in
Y32308-B Series N/A 32308-B D - Cup Outer Diameter N/A 90.000 mm3.5433 in C - Cup Width N/A 27 mm1.063 in
Y33210 Series N/A 33210 D - Cup Outer Diameter N/A 90.000 mm3.5433 in C - Cup Width N/A 24.500 mm0.9646 in
JM205110 Series N/A M205100 D - Cup Outer Diameter N/A 90.000 mm3.5433 in C - Cup Width N/A 23.000 mm0.9055 in
JM205110A Series N/A M205100 D - Cup Outer Diameter N/A 90.000 mm3.5433 in C - Cup Width N/A 23.000 mm0.9055 in
Y30210 Series N/A 30210 D - Cup Outer Diameter N/A 90.000 mm3.5433 in C - Cup Width N/A 17.000 mm0.6693 in
Y32210M Series N/A 32210M D - Cup Outer Diameter N/A 90.000 mm3.5433 in C - Cup Width N/A 19.000 mm0.7480 in
JLM506810 Series N/A LM506800 D - Cup Outer Diameter N/A 90.000 mm3.5433 in C - Cup Width N/A 18.500 mm0.7283 in
JLM506811 Series N/A LM506800 D - Cup Outer Diameter N/A 90.000 mm3.5433 in C - Cup Width N/A 20.500 mm0.8071 in
Y32011X Series N/A 32011X D - Cup Outer Diameter N/A 90.000 mm3.5433 in C - Cup Width N/A 17.500 mm0.6890 in
Y33011 Series N/A 33011 D - Cup Outer Diameter N/A 90.000 mm3.5433 in CAD N/A CAD
JW4510 Series N/A JW4500 D - Cup Outer Diameter N/A 95.000 mm3.7402 in CAD N/A CAD
JM207010 Series N/A M207000 D - Cup Outer Diameter N/A 95.000 mm3.7402 in CAD N/A CAD
JM207010A Series N/A M207000 D - Cup Outer Diameter N/A 95.000 mm3.7402 in CAD N/A CAD
Y33111 Series N/A 33111 D - Cup Outer Diameter N/A 95.000 mm3.7402 in CAD N/A CAD
JLM508710 Series N/A LM508700 D - Cup Outer Diameter N/A 95.000 mm3.7402 in CAD N/A CAD
Y32012X Series N/A 32012X D - Cup Outer Diameter N/A 95.000 mm3.7402 in CAD N/A CAD
Y32012XM Series N/A 32012XM D - Cup Outer Diameter N/A 95.000 mm3.7402 in CAD N/A CAD
Y33012 Series N/A 33012 D - Cup Outer Diameter N/A 95.000 mm3.7402 in CAD N/A CAD
Y33012M Series N/A 33012M D - Cup Outer Diameter N/A 95.000 mm3.7402 in CAD N/A CAD
Y32309M Series N/A 32309M D - Cup Outer Diameter N/A 100.000 mm3.9370 in CAD N/A CAD
Y30309M Series N/A 30309M D - Cup Outer Diameter N/A 100.000 mm3.9370 in CAD N/A CAD
Y31309M Series N/A 31309M D - Cup Outer Diameter N/A 100.000 mm3.9370 in CAD N/A CAD
Y33211 Series N/A 33211 D - Cup Outer Diameter N/A 100.000 mm3.9370 in CAD N/A CAD
Y30211M Series N/A 30211M D - Cup Outer Diameter N/A 100.000 mm3.9370 in CAD N/A CAD
Y32211 Series N/A 32211 D - Cup Outer Diameter N/A 100.000 mm3.9370 in CAD N/A CAD
Y32211M Series N/A 32211M D - Cup Outer Diameter N/A 100.000 mm3.9370 in CAD N/A CAD
JP6010 Series N/A JP6000 D - Cup Outer Diameter N/A 100.000 mm3.9370 in CAD N/A CAD
Y33112 Series N/A 33112 D - Cup Outer Diameter N/A 100.000 mm3.9370 in CAD N/A CAD
Y32013X Series N/A 32013X D - Cup Outer Diameter N/A 100.000 mm3.9370 in CAD N/A CAD
Y32013XM Series N/A 32013XM D - Cup Outer Diameter N/A 100.000 mm3.9370 in CAD N/A CAD
Y33013 Series N/A 33013 D - Cup Outer Diameter N/A 100.000 mm3.9370 in CAD N/A CAD
Y33013M Series N/A 33013M D - Cup Outer Diameter N/A 100.000 mm3.9370 in CAD N/A CAD
JHM807012 Series N/A HM807000 D - Cup Outer Diameter N/A 105.000 mm4.1339 in CAD N/A CAD
JW5010 Series N/A JW5000 D - Cup Outer Diameter N/A 105.000 mm4.1339 in CAD N/A CAD
JLM710910 Series N/A LM710900 D - Cup Outer Diameter N/A 105.000 mm4.1339 in C - Cup Width N/A 18.500 mm0.7283 in
Y33212 Series N/A 33212 D - Cup Outer Diameter N/A 110.000 mm4.3307 in C - Cup Width N/A 29.000 mm1.1417 in
Y30310 Series N/A 30310 D - Cup Outer Diameter N/A 110.000 mm4.3307 in C - Cup Width N/A 23.000 mm0.9055 in
Y30310M Series N/A 30310M D - Cup Outer Diameter N/A 110.000 mm4.3307 in C - Cup Width N/A 23.000 mm0.9055 in
Y31310M Series N/A 31310M D - Cup Outer Diameter N/A 110.000 mm4.3307 in C - Cup Width N/A 19.000 mm0.7480 in
Y32310 Series N/A 32310 D - Cup Outer Diameter N/A 110.000 mm4.3307 in C - Cup Width N/A 33.000 mm1.2992 in
JH307710 Series N/A H307700 D - Cup Outer Diameter N/A 110.000 mm4.3307 in C - Cup Width N/A 32.000 mm1.2598 in
Y30212 Series N/A 30212 D - Cup Outer Diameter N/A 110.000 mm4.3307 in C - Cup Width N/A 19.000 mm0.7480 in
Y32212M Series N/A 32212M D - Cup Outer Diameter N/A 110.000 mm4.3307 in C - Cup Width N/A 24.000 mm0.9449 in
JD6510 Series N/A JD6500 D - Cup Outer Diameter N/A 110.000 mm4.3307 in C - Cup Width N/A 25.000 mm0.9843 in
JM511910 Series N/A M511900 D - Cup Outer Diameter N/A 110.000 mm4.3307 in C - Cup Width N/A 22.500 mm0.8858 in
Y33113 Series N/A 33113 D - Cup Outer Diameter N/A 110.000 mm4.3307 in C - Cup Width N/A 26.500 mm1.0433 in
JLM813010 Series N/A LM813000 D - Cup Outer Diameter N/A 110.000 mm4.3307 in C - Cup Width N/A 20.500 mm0.8071 in
JP7010 Series N/A JP7000 D - Cup Outer Diameter N/A 110.000 mm4.3307 in C - Cup Width N/A 15.500 mm0.6102 in
Y32014X Series N/A 32014X D - Cup Outer Diameter N/A 110.000 mm4.3307 in C - Cup Width N/A 19.000 mm0.7480 in
Y33014M Series N/A 33014M D - Cup Outer Diameter N/A 110.000 mm4.3307 in C - Cup Width N/A 25.500 mm1.0039 in
JW5510 Series N/A JW5500 D - Cup Outer Diameter N/A 115.000 mm4.5276 in C - Cup Width N/A 23.500 mm0.9252 in
JF6010 Series N/A JF6000 D - Cup Outer Diameter N/A 115.000 mm4.5276 in C - Cup Width N/A 33.000 mm1.2992 in
JM612910 Series N/A M612900 D - Cup Outer Diameter N/A 115.000 mm4.5276 in C - Cup Width N/A 23.000 mm0.9055 in
JM612910V Series N/A M612900 D - Cup Outer Diameter N/A 115.000 mm4.5276 in C - Cup Width N/A 23.000 mm0.9055 in
JLM714110 Series N/A LM714100 D - Cup Outer Diameter N/A 115.000 mm4.5276 in C - Cup Width N/A 19.000 mm0.7480 in
Y32015X Series N/A 32015X D - Cup Outer Diameter N/A 115.000 mm4.5276 in C - Cup Width N/A 19.000 mm0.7480 in
Y32015XM Series N/A 32015XM D - Cup Outer Diameter N/A 115.000 mm4.5276 in C - Cup Width N/A 19.000 mm0.7480 in
Y33015 Series N/A 33015 D - Cup Outer Diameter N/A 115.000 mm4.5276 in C - Cup Width N/A 25.500 mm1.0039 in
Y30311M Series N/A 30311M D - Cup Outer Diameter N/A 120.000 mm4.7244 in C - Cup Width N/A 25.000 mm0.9843 in
Y31311M Series N/A 31311M D - Cup Outer Diameter N/A 120.000 mm4.7244 in C - Cup Width N/A 21.000 mm0.8268 in
Y32311 Series N/A 32311 D - Cup Outer Diameter N/A 120.000 mm4.7244 in C - Cup Width N/A 35 mm1.378 in
JH211710 Series N/A H211700 D - Cup Outer Diameter N/A 120.000 mm4.7244 in C - Cup Width N/A 32.000 mm1.2598 in
Y30213M Series N/A 30213M D - Cup Outer Diameter N/A 120.000 mm4.7244 in C - Cup Width N/A 20.000 mm0.7874 in
Y32213 Series N/A 32213 D - Cup Outer Diameter N/A 120.000 mm4.7244 in C - Cup Width N/A 27 mm1.063 in
Y33213 Series N/A 33213 D - Cup Outer Diameter N/A 120.000 mm4.7244 in C - Cup Width N/A 32.000 mm1.2598 in
YAA32213 Series N/A 32213 D - Cup Outer Diameter N/A 120.000 mm4.7244 in C - Cup Width N/A 27 mm1.063 in
Y33114 Series N/A 33114 D - Cup Outer Diameter N/A 120.000 mm4.7244 in C - Cup Width N/A 29.000 mm1.1417 in
Y33114M Series N/A 33114M D - Cup Outer Diameter N/A 120.000 mm4.7244 in C - Cup Width N/A 29.000 mm1.1417 in
JM714210 Series N/A M714200 D - Cup Outer Diameter N/A 120.000 mm4.7244 in C - Cup Width N/A 25.000 mm0.9843 in
JM714210A Series N/A M714200 D - Cup Outer Diameter N/A 120.000 mm4.7244 in C - Cup Width N/A 25.000 mm0.9843 in
JW6010 Series N/A JW6000 D - Cup Outer Diameter N/A 125 mm4.9213 in C - Cup Width N/A 26.000 mm1.0236 in
Y30214 Series N/A 30214 D - Cup Outer Diameter N/A 125 mm4.9213 in C - Cup Width N/A 21.000 mm0.8268 in
Y32214 Series N/A 32214 D - Cup Outer Diameter N/A 125 mm4.9213 in C - Cup Width N/A 27 mm1.063 in
Y32214M Series N/A 32214M D - Cup Outer Diameter N/A 125 mm4.9213 in C - Cup Width N/A 27 mm1.063 in
Y33214 Series N/A 33214 D - Cup Outer Diameter N/A 125 mm4.9213 in C - Cup Width N/A 32.000 mm1.2598 in
Y33115 Series N/A 33115 D - Cup Outer Diameter N/A 125 mm4.9213 in C - Cup Width N/A 29.000 mm1.1417 in
Y33115M Series N/A 33115M D - Cup Outer Diameter N/A 125 mm4.9213 in C - Cup Width N/A 29.000 mm1.1417 in
JP8010 Series N/A JP8000 D - Cup Outer Diameter N/A 125 mm4.9213 in C - Cup Width N/A 17.500 mm0.6890 in
Y32016X Series N/A 32016X D - Cup Outer Diameter N/A 125 mm4.9213 in C - Cup Width N/A 22.000 mm0.8661 in
Y32016XM Series N/A 32016XM D - Cup Outer Diameter N/A 125 mm4.9213 in C - Cup Width N/A 22.000 mm0.8661 in
Y32016XSA Series N/A 32016X D - Cup Outer Diameter N/A 125 mm4.9213 in C - Cup Width N/A 22.000 mm0.8661 in
Y33016M Series N/A 33016 D - Cup Outer Diameter N/A 125 mm4.9213 in C - Cup Width N/A 29.5 mm1.1614 in
Y30312 Series N/A 30312 D - Cup Outer Diameter N/A 130.000 mm5.1181 in C - Cup Width N/A 26.000 mm1.0236 in
Y30312M Series N/A 30312M D - Cup Outer Diameter N/A 130.000 mm5.1181 in C - Cup Width N/A 26.000 mm1.0236 in
Y31312M Series N/A 31312M D - Cup Outer Diameter N/A 130.000 mm5.1181 in C - Cup Width N/A 22.000 mm0.8661 in
Y32215 Series N/A 32215 D - Cup Outer Diameter N/A 130.000 mm5.1181 in C - Cup Width N/A 27 mm1.063 in
Y32312 Series N/A 32312 D - Cup Outer Diameter N/A 130.000 mm5.1181 in C - Cup Width N/A 37.000 mm1.4567 in
JW6510 Series N/A JW6500 D - Cup Outer Diameter N/A 130.000 mm5.1181 in C - Cup Width N/A 26.000 mm1.0236 in
JF7010 Series N/A JF7000 D - Cup Outer Diameter N/A 130.000 mm5.1181 in C - Cup Width N/A 35 mm1.378 in
Y30215 Series N/A 30215 D - Cup Outer Diameter N/A 130.000 mm5.1181 in C - Cup Width N/A 22.000 mm0.8661 in
Y30215M Series N/A 30215M D - Cup Outer Diameter N/A 130.000 mm5.1181 in C - Cup Width N/A 22.000 mm0.8661 in
Y32215M Series N/A 32215M D - Cup Outer Diameter N/A 130.000 mm5.1181 in C - Cup Width N/A 27 mm1.063 in
Y33215 Series N/A 33215 D - Cup Outer Diameter N/A 130.000 mm5.1181 in C - Cup Width N/A 31.000 mm1.2205 in
JM515610 Series N/A M515600 D - Cup Outer Diameter N/A 130.000 mm5.1181 in C - Cup Width N/A 28.500 mm1.1220 in
Y33116 Series N/A 33116 D - Cup Outer Diameter N/A 130.000 mm5.1181 in C - Cup Width N/A 29.000 mm1.1417 in
Y33116M Series N/A 33116M D - Cup Outer Diameter N/A 130.000 mm5.1181 in C - Cup Width N/A 29.000 mm1.1417 in
JM716610 Series N/A M716600 D - Cup Outer Diameter N/A 130.000 mm5.1181 in C - Cup Width N/A 24.000 mm0.9449 in
KJM716610 Series N/A M716600 D - Cup Outer Diameter N/A 130.000 mm5.1181 in C - Cup Width N/A 24.000 mm0.9449 in
Y32017X Series N/A 32017X D - Cup Outer Diameter N/A 130.000 mm5.1181 in C - Cup Width N/A 22.000 mm0.8661 in
Y33017 Series N/A 33017 D - Cup Outer Diameter N/A 130.000 mm5.1181 in C - Cup Width N/A 29.5 mm1.1614 in
JM716615 Series N/A M716600 D - Cup Outer Diameter N/A 135.000 mm5.3150 in C - Cup Width N/A 27 mm1.063 in
JP9010 Series N/A JP9000 D - Cup Outer Diameter N/A 135.000 mm5.3150 in C - Cup Width N/A 17.500 mm0.6890 in
JL819310 Series N/A L819300 D - Cup Outer Diameter N/A 135.000 mm5.3150 in C - Cup Width N/A 14 mm0.5512 in
J6327 Series N/A 6300 D - Cup Outer Diameter N/A 140.000 mm5.5118 in C - Cup Width N/A 44.450 mm1.7500 in
Y30313 Series N/A 30313 D - Cup Outer Diameter N/A 140.000 mm5.5118 in C - Cup Width N/A 28 mm1.1024 in
Y31313M Series N/A 31313M D - Cup Outer Diameter N/A 140.000 mm5.5118 in C - Cup Width N/A 23.000 mm0.9055 in
Y32313M Series N/A 32313M D - Cup Outer Diameter N/A 140.000 mm5.5118 in C - Cup Width N/A 39 mm1.5354 in
JW7010 Series N/A JW7000 D - Cup Outer Diameter N/A 140.000 mm5.5118 in C - Cup Width N/A 27 mm1.063 in
JW7010A Series N/A JW7000 D - Cup Outer Diameter N/A 140.000 mm5.5118 in C - Cup Width N/A 27 mm1.063 in
JW7010AX Series N/A JW7000 D - Cup Outer Diameter N/A 140.000 mm5.5118 in C - Cup Width N/A 27 mm1.063 in
Y30216 Series N/A 30216 D - Cup Outer Diameter N/A 140.000 mm5.5118 in C - Cup Width N/A 22.000 mm0.8661 in
Y30216M Series N/A 30216M D - Cup Outer Diameter N/A 140.000 mm5.5118 in C - Cup Width N/A 22.000 mm0.8661 in
Y32216 Series N/A 32216 D - Cup Outer Diameter N/A 140.000 mm5.5118 in C - Cup Width N/A 28 mm1.1024 in
Y33216 Series N/A 33216 D - Cup Outer Diameter N/A 140.000 mm5.5118 in C - Cup Width N/A 35 mm1.378 in
Y33216M Series N/A 33216M D - Cup Outer Diameter N/A 140.000 mm5.5118 in C - Cup Width N/A 35 mm1.378 in
Y32018X Series N/A 32018X D - Cup Outer Diameter N/A 140.000 mm5.5118 in C - Cup Width N/A 24.000 mm0.9449 in
Y32018XSA Series N/A 32018X D - Cup Outer Diameter N/A 140.000 mm5.5118 in C - Cup Width N/A 24.000 mm0.9449 in
JHM516810 Series N/A HM516800 D - Cup Outer Diameter N/A 140.000 mm5.5118 in C - Cup Width N/A 31.500 mm1.2402 in
Y33117 Series N/A 33117 D - Cup Outer Diameter N/A 140.000 mm5.5118 in C - Cup Width N/A 32.000 mm1.2598 in
Y33018 Series N/A 33018 D - Cup Outer Diameter N/A 140.000 mm5.5118 in C - Cup Width N/A 32.500 mm1.2795 in
YFA30216 Series N/A 30216 D - Cup Outer Diameter N/A 141.000 mm5.5512 in C - Cup Width N/A 22.000 mm0.8661 in
JH415610 Series N/A H415600 D - Cup Outer Diameter N/A 145.000 mm5.7087 in C - Cup Width N/A 42 mm1.6535 in
JM718110 Series N/A M718100 D - Cup Outer Diameter N/A 145.000 mm5.7087 in C - Cup Width N/A 27 mm1.063 in
JP10010 Series N/A JP10000 D - Cup Outer Diameter N/A 145.000 mm5.7087 in C - Cup Width N/A 17.500 mm0.6890 in
JP10010A Series N/A JP10000 D - Cup Outer Diameter N/A 145.000 mm5.7087 in C - Cup Width N/A 17.500 mm0.6890 in
Y32019X Series N/A 32019X D - Cup Outer Diameter N/A 145.000 mm5.7087 in C - Cup Width N/A 24.000 mm0.9449 in
Y32019XM Series N/A 32019XM D - Cup Outer Diameter N/A 145.000 mm5.7087 in C - Cup Width N/A 24.000 mm0.9449 in
Y33019 Series N/A 33019 D - Cup Outer Diameter N/A 145.000 mm5.7087 in C - Cup Width N/A 32.500 mm1.2795 in
JH913811 Series N/A H913800 D - Cup Outer Diameter N/A 150 mm5.9055 in C - Cup Width N/A 25.400 mm1.0000 in
Y30314 Series N/A 30314 D - Cup Outer Diameter N/A 150 mm5.9055 in C - Cup Width N/A 30.000 mm1.1811 in
Y30314M Series N/A 30314M D - Cup Outer Diameter N/A 150 mm5.9055 in C - Cup Width N/A 30.000 mm1.1811 in
Y31314M Series N/A 31314M D - Cup Outer Diameter N/A 150 mm5.9055 in C - Cup Width N/A 25.000 mm0.9843 in
JW7510 Series N/A JW7500 D - Cup Outer Diameter N/A 150 mm5.9055 in C - Cup Width N/A 29.000 mm1.1417 in
JH217210 Series N/A H217200 D - Cup Outer Diameter N/A 150 mm5.9055 in C - Cup Width N/A 38 mm1.4961 in
Y30217 Series N/A 30217 D - Cup Outer Diameter N/A 150 mm5.9055 in C - Cup Width N/A 24.000 mm0.9449 in
Y32217 Series N/A 32217 D - Cup Outer Diameter N/A 150 mm5.9055 in C - Cup Width N/A 30.000 mm1.1811 in
Y32217M Series N/A 32217M D - Cup Outer Diameter N/A 150 mm5.9055 in C - Cup Width N/A 30.000 mm1.1811 in
Y33217 Series N/A 33217 D - Cup Outer Diameter N/A 150 mm5.9055 in C - Cup Width N/A 37.000 mm1.4567 in
JT9010 Series N/A JT9000 D - Cup Outer Diameter N/A 150 mm5.9055 in C - Cup Width N/A 34 mm1.3386 in
KJT9010 Series N/A JT9000 D - Cup Outer Diameter N/A 150 mm5.9055 in C - Cup Width N/A 34 mm1.3386 in
Y33118 Series N/A 33118 D - Cup Outer Diameter N/A 150 mm5.9055 in C - Cup Width N/A 35 mm1.378 in
Y33118M Series N/A 33118M D - Cup Outer Diameter N/A 150 mm5.9055 in C - Cup Width N/A 35 mm1.378 in
JM719113 Series N/A M719100 D - Cup Outer Diameter N/A 150 mm5.9055 in C - Cup Width N/A 27 mm1.063 in
JLM820012 Series N/A LM820000 D - Cup Outer Diameter N/A 150 mm5.9055 in C - Cup Width N/A 26.000 mm1.0236 in
Y32020X Series N/A 32020X D - Cup Outer Diameter N/A 150 mm5.9055 in C - Cup Width N/A 24.000 mm0.9449 in
Y32020XM Series N/A 32020XM D - Cup Outer Diameter N/A 150 mm5.9055 in C - Cup Width N/A 24.000 mm0.9449 in
Y33020 Series N/A 33020 D - Cup Outer Diameter N/A 150 mm5.9055 in C - Cup Width N/A 32.500 mm1.2795 in
Y32314M Series N/A 32314 D - Cup Outer Diameter N/A 150 mm5.9055 in C - Cup Width N/A 42 mm1.6535 in
JHM318410 Series N/A HM318400 D - Cup Outer Diameter N/A 155.000 mm6.1024 in C - Cup Width N/A 35.500 mm1.3976 in
JM720210 Series N/A M720200 D - Cup Outer Diameter N/A 155.000 mm6.1024 in C - Cup Width N/A 28 mm1.1024 in
Y30315 Series N/A 30315 D - Cup Outer Diameter N/A 160.000 mm6.2992 in C - Cup Width N/A 31.000 mm1.2205 in
Y30315M Series N/A 30315M D - Cup Outer Diameter N/A 160.000 mm6.2992 in C - Cup Width N/A 31.000 mm1.2205 in
Y31315M Series N/A 31315M D - Cup Outer Diameter N/A 160.000 mm6.2992 in C - Cup Width N/A 26.000 mm1.0236 in
Y32315M Series N/A 32315M D - Cup Outer Diameter N/A 160.000 mm6.2992 in C - Cup Width N/A 45.000 mm1.7717 in
JW8010 Series N/A JW8000 D - Cup Outer Diameter N/A 160.000 mm6.2992 in C - Cup Width N/A 31.000 mm1.2205 in
Y30218M Series N/A 30218M D - Cup Outer Diameter N/A 160.000 mm6.2992 in C - Cup Width N/A 26.000 mm1.0236 in
Y32218M Series N/A 32218M D - Cup Outer Diameter N/A 160.000 mm6.2992 in C - Cup Width N/A 34 mm1.3386 in
JF9510 Series N/A JF9500 D - Cup Outer Diameter N/A 160.000 mm6.2992 in C - Cup Width N/A 38 mm1.4961 in
KJF9510 Series N/A JF9500 D - Cup Outer Diameter N/A 160.000 mm6.2992 in C - Cup Width N/A 38 mm1.4961 in
JHM720210 Series N/A HM720200 D - Cup Outer Diameter N/A 160.000 mm6.2992 in C - Cup Width N/A 32.000 mm1.2598 in
JHM720210P Series N/A HM720200 D - Cup Outer Diameter N/A 160.000 mm6.2992 in C - Cup Width N/A 32.000 mm1.2598 in
KJHM720210 Series N/A HM720200 D - Cup Outer Diameter N/A 160.000 mm6.2992 in C - Cup Width N/A 32.000 mm1.2598 in
Y32021X Series N/A 32021X D - Cup Outer Diameter N/A 160.000 mm6.2992 in C - Cup Width N/A 26.000 mm1.0236 in
Y32021XM Series N/A 32021XM D - Cup Outer Diameter N/A 160.000 mm6.2992 in C - Cup Width N/A 26.000 mm1.0236 in
Y32021XSA Series N/A 32021X D - Cup Outer Diameter N/A 160.000 mm6.2992 in C - Cup Width N/A 26.000 mm1.0236 in
Y33021 Series N/A 33021 D - Cup Outer Diameter N/A 160.000 mm6.2992 in C - Cup Width N/A 34 mm1.3386 in
JM822010 Series N/A M822000 D - Cup Outer Diameter N/A 165.000 mm6.4961 in C - Cup Width N/A 26.500 mm1.0433 in
JLM722912 Series N/A LM722900 D - Cup Outer Diameter N/A 165.000 mm6.4961 in C - Cup Width N/A 21.000 mm0.8268 in
Y32924M Series N/A 32924M D - Cup Outer Diameter N/A 165.000 mm6.4961 in C - Cup Width N/A 23.000 mm0.9055 in
Y30316M Series N/A 30316M D - Cup Outer Diameter N/A 170 mm6.6929 in C - Cup Width N/A 33.000 mm1.2992 in
Y32316M Series N/A 32316M D - Cup Outer Diameter N/A 170 mm6.6929 in C - Cup Width N/A 48 mm1.8898 in
Y30219 Series N/A 30219 D - Cup Outer Diameter N/A 170 mm6.6929 in C - Cup Width N/A 27 mm1.063 in
Y32219 Series N/A 32219 D - Cup Outer Diameter N/A 170 mm6.6929 in C - Cup Width N/A 37.000 mm1.4567 in
Y32219M Series N/A 32219M D - Cup Outer Diameter N/A 170 mm6.6929 in C - Cup Width N/A 37.000 mm1.4567 in
Y32022X Series N/A 32022X D - Cup Outer Diameter N/A 170 mm6.6929 in C - Cup Width N/A 29.000 mm1.1417 in
Y33022 Series N/A 33022 D - Cup Outer Diameter N/A 170 mm6.6929 in C - Cup Width N/A 37.000 mm1.4567 in
JL724314 Series N/A L724300 D - Cup Outer Diameter N/A 170 mm6.6929 in C - Cup Width N/A 19.050 mm0.7500 in
JP12010 Series N/A JP12000 D - Cup Outer Diameter N/A 170 mm6.6929 in C - Cup Width N/A 19.500 mm0.7677 in
Y31316M Series N/A 31316 D - Cup Outer Diameter N/A 170 mm6.6929 in C - Cup Width N/A 27 mm1.063 in
JL725316 Series N/A L725300 D - Cup Outer Diameter N/A 175.000 mm6.8898 in C - Cup Width N/A 18.288 mm0.7200 in
Y30317M Series N/A 30317M D - Cup Outer Diameter N/A 180 mm7.0866 in C - Cup Width N/A 34 mm1.3386 in
Y32317 Series N/A 32317 D - Cup Outer Diameter N/A 180 mm7.0866 in C - Cup Width N/A 49.000 mm1.9291 in
Y30220M Series N/A 30220M D - Cup Outer Diameter N/A 180 mm7.0866 in C - Cup Width N/A 29.000 mm1.1417 in
Y32220 Series N/A 32220 D - Cup Outer Diameter N/A 180 mm7.0866 in C - Cup Width N/A 39 mm1.5354 in
JHM522610 Series N/A HM522600 D - Cup Outer Diameter N/A 180 mm7.0866 in C - Cup Width N/A 38 mm1.4961 in
KJHM522610 Series N/A HM522600 D - Cup Outer Diameter N/A 180 mm7.0866 in C - Cup Width N/A 38 mm1.4961 in
JM624610 Series N/A M624600 D - Cup Outer Diameter N/A 180 mm7.0866 in C - Cup Width N/A 26.000 mm1.0236 in
Y32024X Series N/A 32024X D - Cup Outer Diameter N/A 180 mm7.0866 in C - Cup Width N/A 29.000 mm1.1417 in
Y32024XM Series N/A 32024XM D - Cup Outer Diameter N/A 180 mm7.0866 in C - Cup Width N/A 29.000 mm1.1417 in
Y33024M Series N/A 33024M D - Cup Outer Diameter N/A 180 mm7.0866 in C - Cup Width N/A 38 mm1.4961 in
Y33024P Series N/A 33024 D - Cup Outer Diameter N/A 180 mm7.0866 in C - Cup Width N/A 38 mm1.4961 in
Y32926M Series N/A 32926M D - Cup Outer Diameter N/A 180 mm7.0866 in C - Cup Width N/A 25.000 mm0.9843 in
Y31317M Series N/A 31317 D - Cup Outer Diameter N/A 180 mm7.0866 in C - Cup Width N/A 28 mm1.1024 in
Y33122M Series N/A 33122 D - Cup Outer Diameter N/A 180 mm7.0866 in C - Cup Width N/A 43 mm1.6929 in
Y33220M Series N/A 33220 D - Cup Outer Diameter N/A 180 mm7.0866 in C - Cup Width N/A 48 mm1.8898 in
JP13010 Series N/A JP13000 D - Cup Outer Diameter N/A 185.000 mm7.2835 in C - Cup Width N/A 21.000 mm0.8268 in
KJP13010 Series N/A JP13000 D - Cup Outer Diameter N/A 185.000 mm7.2835 in C - Cup Width N/A 21.000 mm0.8268 in
J90748 Series N/A 90000 D - Cup Outer Diameter N/A 190 mm7.4803 in C - Cup Width N/A 31.750 mm1.2500 in
JHH221413 Series N/A HH221400 D - Cup Outer Diameter N/A 190 mm7.4803 in C - Cup Width N/A 46.038 mm1.8125 in
JHH221414P Series N/A HH221400 D - Cup Outer Diameter N/A 190 mm7.4803 in C - Cup Width N/A 48.500 mm1.9094 in
Y31318M Series N/A 31318M D - Cup Outer Diameter N/A 190 mm7.4803 in C - Cup Width N/A 30.000 mm1.1811 in
Y32318M Series N/A 32318M D - Cup Outer Diameter N/A 190 mm7.4803 in C - Cup Width N/A 53.000 mm2.0866 in
Y30221M Series N/A 30221M D - Cup Outer Diameter N/A 190 mm7.4803 in C - Cup Width N/A 30.000 mm1.1811 in
Y32221 Series N/A 32221 D - Cup Outer Diameter N/A 190 mm7.4803 in C - Cup Width N/A 43 mm1.6929 in
Y32221M Series N/A 32221M D - Cup Outer Diameter N/A 190 mm7.4803 in C - Cup Width N/A 43 mm1.6929 in
Y32928M Series N/A 32928M D - Cup Outer Diameter N/A 190 mm7.4803 in C - Cup Width N/A 25.000 mm0.9843 in
Y30318M Series N/A 30318 D - Cup Outer Diameter N/A 190 mm7.4803 in C - Cup Width N/A 36 mm1.4173 in
JP14010 Series N/A JP14000 D - Cup Outer Diameter N/A 195.000 mm7.6772 in C - Cup Width N/A 21.000 mm0.8268 in
Y30222M Series N/A 30222M D - Cup Outer Diameter N/A 200 mm7.874 in C - Cup Width N/A 32.000 mm1.2598 in
Y32222M Series N/A 32222M D - Cup Outer Diameter N/A 200 mm7.874 in C - Cup Width N/A 46 mm1.811 in
Y32026XM Series N/A 32026XM D - Cup Outer Diameter N/A 200 mm7.874 in C - Cup Width N/A 34 mm1.3386 in
Y30319M Series N/A 30319 D - Cup Outer Diameter N/A 200 mm7.874 in C - Cup Width N/A 38 mm1.4961 in
Y32319M Series N/A 32319 D - Cup Outer Diameter N/A 200 mm7.874 in C - Cup Width N/A 55 mm2.1654 in
JL730612 Series N/A L730600 D - Cup Outer Diameter N/A 205.000 mm8.0709 in C - Cup Width N/A 21.438 mm0.8440 in
Y32028XM Series N/A 32028XM D - Cup Outer Diameter N/A 210.000 mm8.2677 in C - Cup Width N/A 34 mm1.3386 in
Y32930M Series N/A 32930M D - Cup Outer Diameter N/A 210.000 mm8.2677 in C - Cup Width N/A 30.000 mm1.1811 in
JHH224315 Series N/A HH224300 D - Cup Outer Diameter N/A 215 mm8.4646 in C - Cup Width N/A 53.975 mm2.1250 in
Y32320M Series N/A 32320M D - Cup Outer Diameter N/A 215 mm8.4646 in C - Cup Width N/A 60.000 mm2.3622 in
Y30224M Series N/A 30224M D - Cup Outer Diameter N/A 215 mm8.4646 in C - Cup Width N/A 34 mm1.3386 in
Y32224M Series N/A 32224M D - Cup Outer Diameter N/A 215 mm8.4646 in C - Cup Width N/A 50.000 mm1.9685 in
Y30320M Series N/A 30320 D - Cup Outer Diameter N/A 215 mm8.4646 in C - Cup Width N/A 39 mm1.5354 in
Y31320XM Series N/A 31320X D - Cup Outer Diameter N/A 215 mm8.4646 in C - Cup Width N/A 35 mm1.378 in
JP16010 Series N/A JP16000 D - Cup Outer Diameter N/A 220.000 mm8.6614 in C - Cup Width N/A 23.000 mm0.9055 in
Y32321M Series N/A 32321M D - Cup Outer Diameter N/A 225 mm8.8582 in C - Cup Width N/A 63.000 mm2.4803 in
Y32030XM Series N/A 32030XM D - Cup Outer Diameter N/A 225 mm8.8583 in C - Cup Width N/A 36 mm1.4173 in
Y33030M Series N/A 33030 D - Cup Outer Diameter N/A 225 mm8.8583 in C - Cup Width N/A 46 mm1.811 in
Y32226M Series N/A 32226M D - Cup Outer Diameter N/A 230.000 mm9.0551 in C - Cup Width N/A 54 mm2.126 in
JHM534110 Series N/A HM534100 D - Cup Outer Diameter N/A 230.000 mm9.0551 in C - Cup Width N/A 31.000 mm1.2205 in
JP17010 Series N/A JP17000 D - Cup Outer Diameter N/A 230.000 mm9.0551 in C - Cup Width N/A 23.000 mm0.9055 in
KJP17010 Series N/A JP17000 D - Cup Outer Diameter N/A 230.000 mm9.0551 in C - Cup Width N/A 23.000 mm0.9055 in
Y32934M Series N/A 32934M D - Cup Outer Diameter N/A 230.000 mm9.0551 in C - Cup Width N/A 30.000 mm1.1811 in
KJH429111 Series N/A H429100 D - Cup Outer Diameter N/A 240 mm9.4488 in C - Cup Width N/A 60.000 mm2.3622 in
JM734410 Series N/A M734400 D - Cup Outer Diameter N/A 240 mm9.4488 in C - Cup Width N/A 37.000 mm1.4567 in
JM734410V Series N/A M734400 D - Cup Outer Diameter N/A 240 mm9.4488 in C - Cup Width N/A 37.000 mm1.4567 in
Y32032 Series N/A 32032 D - Cup Outer Diameter N/A 240 mm9.4488 in C - Cup Width N/A 38 mm1.4961 in
Y32032XM Series N/A 32032XM D - Cup Outer Diameter N/A 240 mm9.4488 in C - Cup Width N/A 38 mm1.4961 in
JP18010 Series N/A JP18000 D - Cup Outer Diameter N/A 240 mm9.4488 in C - Cup Width N/A 23.000 mm0.9055 in
Y30322M Series N/A 30322 D - Cup Outer Diameter N/A 240 mm9.4488 in C - Cup Width N/A 42 mm1.6535 in
Y32322M Series N/A 32322 D - Cup Outer Diameter N/A 240 mm9.4488 in C - Cup Width N/A 65 mm2.5591 in
JM734411 Series N/A M734400 D - Cup Outer Diameter N/A 241.000 mm9.4882 in C - Cup Width N/A 42 mm1.6535 in
Y30228M Series N/A 30228M D - Cup Outer Diameter N/A 250 mm9.8425 in C - Cup Width N/A 36 mm1.4173 in
JM736110 Series N/A M736100 D - Cup Outer Diameter N/A 250 mm9.8425 in C - Cup Width N/A 37.000 mm1.4567 in
Y32936M Series N/A 32936M D - Cup Outer Diameter N/A 250 mm9.8425 in C - Cup Width N/A 34 mm1.3386 in
Y32228M Series N/A 32228 D - Cup Outer Diameter N/A 250 mm9.8425 in C - Cup Width N/A 58 mm2.2835 in
JHM133417 Series N/A HM133400 D - Cup Outer Diameter N/A 255.000 mm10.0394 in C - Cup Width N/A 52.388 mm2.0625 in
Y32034XM Series N/A 32034XM D - Cup Outer Diameter N/A 260 mm10.2362 in C - Cup Width N/A 43 mm1.6929 in
JM738210 Series N/A M738200 D - Cup Outer Diameter N/A 260 mm10.2362 in C - Cup Width N/A 36.500 mm1.4370 in
Y31324XM Series N/A 31324X D - Cup Outer Diameter N/A 260 mm10.2362 in C - Cup Width N/A 42 mm1.6535 in
Y32938M Series N/A 32938 D - Cup Outer Diameter N/A 260 mm10.2362 in C - Cup Width N/A 34 mm1.3386 in
Y30230M Series N/A 30230M D - Cup Outer Diameter N/A 270.000 mm10.6299 in C - Cup Width N/A 38 mm1.4961 in
Y32230M Series N/A 32230M D - Cup Outer Diameter N/A 270.000 mm10.6299 in C - Cup Width N/A 60.000 mm2.3622 in
Y31326M Series N/A 31326M D - Cup Outer Diameter N/A 280 mm11.0236 in C - Cup Width N/A 44.000 mm1.7323 in
Y32036XM Series N/A 32036XM D - Cup Outer Diameter N/A 280 mm11.0236 in C - Cup Width N/A 48 mm1.8898 in
Y32940M Series N/A 32940M D - Cup Outer Diameter N/A 280 mm11.0236 in C - Cup Width N/A 39 mm1.5354 in
Y32326M Series N/A 32326 D - Cup Outer Diameter N/A 280 mm11.0236 in C - Cup Width N/A 78 mm3.0709 in
Y32232 Series N/A 32232 D - Cup Outer Diameter N/A 290 mm11.4173 in C - Cup Width N/A 67.000 mm2.6378 in
Y32038XM Series N/A 32038XM D - Cup Outer Diameter N/A 290 mm11.4173 in C - Cup Width N/A 48 mm1.8898 in
Y30232M Series N/A 30232 D - Cup Outer Diameter N/A 290 mm11.4173 in C - Cup Width N/A 40 mm1.5748 in
J451161 Series N/A 450000 D - Cup Outer Diameter N/A 295.000 mm11.6142 in C - Cup Width N/A 61.912 mm2.4375 in
JHM840410 Series N/A HM840400 D - Cup Outer Diameter N/A 300 mm11.811 in C - Cup Width N/A 51.000 mm2.0079 in
Y32944M Series N/A 32944M D - Cup Outer Diameter N/A 300 mm11.811 in C - Cup Width N/A 39 mm1.5354 in
Y31328X Series N/A 31328X D - Cup Outer Diameter N/A 300 mm11.811 in C - Cup Width N/A 47 mm1.8504 in
Y32040XM Series N/A 32040XM D - Cup Outer Diameter N/A 310 mm12.2047 in C - Cup Width N/A 53.000 mm2.0866 in
Y30234 Series N/A 30234 D - Cup Outer Diameter N/A 310 mm12.2047 in C - Cup Width N/A 43 mm1.6929 in
Y32234M Series N/A 32234 D - Cup Outer Diameter N/A 310 mm12.2047 in C - Cup Width N/A 71 mm2.7953 in
Y31330M Series N/A 31330M D - Cup Outer Diameter N/A 320 mm12.5984 in C - Cup Width N/A 50.000 mm1.9685 in
JP24010 Series N/A JP24000 D - Cup Outer Diameter N/A 320 mm12.5984 in C - Cup Width N/A 30.000 mm1.1811 in
Y30236M Series N/A 30236 D - Cup Outer Diameter N/A 320 mm12.5984 in C - Cup Width N/A 43 mm1.6929 in
Y32236 Series N/A 32236 D - Cup Outer Diameter N/A 320 mm12.5984 in C - Cup Width N/A 71 mm2.7953 in
Y32948M Series N/A 32948 D - Cup Outer Diameter N/A 320 mm12.5984 in C - Cup Width N/A 39 mm1.5354 in
Y32044XM Series N/A 32044XM D - Cup Outer Diameter N/A 340 mm13.3858 in C - Cup Width N/A 57 mm2.2441 in
Y30238 Series N/A 30238 D - Cup Outer Diameter N/A 340 mm13.3858 in C - Cup Width N/A 46 mm1.811 in
Y32238 Series N/A 32238 D - Cup Outer Diameter N/A 340 mm13.3858 in C - Cup Width N/A 75 mm2.9528 in
Y30240 Series N/A 30240 D - Cup Outer Diameter N/A 360 mm14.1732 in C - Cup Width N/A 48 mm1.8898 in
Y32048X Series N/A 32048X D - Cup Outer Diameter N/A 360 mm14.1732 in C - Cup Width N/A 57 mm2.2441 in
Y32048XR Series N/A M249700 D - Cup Outer Diameter N/A 360 mm14.1732 in C - Cup Width N/A 57 mm2.2441 in
Y32048XRSA Series N/A M249700 D - Cup Outer Diameter N/A 360 mm14.1732 in C - Cup Width N/A 57 mm2.2441 in
Y32240 Series N/A 32240 D - Cup Outer Diameter N/A 360 mm14.1732 in C - Cup Width N/A 82 mm3.2283 in
Y32952M Series N/A 32952 D - Cup Outer Diameter N/A 360 mm14.1732 in C - Cup Width N/A 48 mm1.8898 in
Y32956M Series N/A 32956M D - Cup Outer Diameter N/A 380.000 mm14.9606 in C - Cup Width N/A 48 mm1.8898 in
Y30244M Series N/A 30244 D - Cup Outer Diameter N/A 400 mm15.748 in C - Cup Width N/A 54 mm2.126 in
Y32052X Series N/A 32052X D - Cup Outer Diameter N/A 400 mm15.748 in C - Cup Width N/A 65 mm2.5591 in
Y32244M Series N/A 32244 D - Cup Outer Diameter N/A 400 mm15.748 in C - Cup Width N/A 90 mm3.5433 in
Y32056XM Series N/A 32056X D - Cup Outer Diameter N/A 420 mm16.5354 in C - Cup Width N/A 65 mm2.5591 in
Y32960M Series N/A 32960 D - Cup Outer Diameter N/A 420 mm16.5354 in C - Cup Width N/A 57 mm2.2441 in
Y32248 Series N/A 32248 D - Cup Outer Diameter N/A 440 mm17.3228 in C - Cup Width N/A 100 mm3.937 in
Y32968M Series N/A 32968M D - Cup Outer Diameter N/A 460 mm18.1102 in C - Cup Width N/A 57 mm2.2441 in
Y32060X Series N/A 32060X D - Cup Outer Diameter N/A 460 mm18.1102 in C - Cup Width N/A 74 mm2.9134 in
Y32064XM Series N/A 32064XM D - Cup Outer Diameter N/A 480 mm18.8976 in C - Cup Width N/A 74 mm2.9134 in
Y32972M Series N/A 32972M D - Cup Outer Diameter N/A 480 mm18.8976 in C - Cup Width N/A 57 mm2.2441 in
Y32252 Series N/A 32252 D - Cup Outer Diameter N/A 480 mm18.8976 in C - Cup Width N/A 106 mm4.1732 in
Y32260M Series N/A 32260 D - Cup Outer Diameter N/A 540 mm21.2598 in C - Cup Width N/A 115 mm4.5276 in
JL580914 Series N/A L580900 D - Cup Outer Diameter N/A 850.000 mm33.4646 in C - Cup Width N/A 78 mm3.0709 in
JL286910 Series N/A L286900 D - Cup Outer Diameter N/A 1060.000 mm41.7323 in C - Cup Width N/A 76.000 mm2.9921 in
Sản phẩm liên quan
Tapered Roller Bearings - Single Cones - Metric
Tapered Roller Bearings - Single Cones - Metric
Tapered Roller Bearings - TDO (Tapered Double Outer) Imperial
Tapered Roller Bearings - TDO (Tapered Double Outer) Imperial
Tapered Roller Bearings - TDI (Tapered Double Inner) Imperial
Tapered Roller Bearings - TDI (Tapered Double Inner) Imperial
Tapered Roller Bearings - TSF (Tapered Single with Flange) Metric
Tapered Roller Bearings - TSF (Tapered Single with Flange) Metric
Tapered Roller Bearings - Double Tapered Cup - Imperial
Tapered Roller Bearings - Double Tapered Cup - Imperial
Tapered Roller Bearings - Double Tapered Cones - Imperial
Tapered Roller Bearings - Double Tapered Cones - Imperial
x
Liên hệ
Kinh doanh 1: 0909 566 551
Kinh doanh 1: 0933 155 707
Kỹ thuật: 0911 991 666
Tel Zalo Messenger
