Vòng bi > TIMKEN > Tapered Roller Bearings - Single Cones - Metric

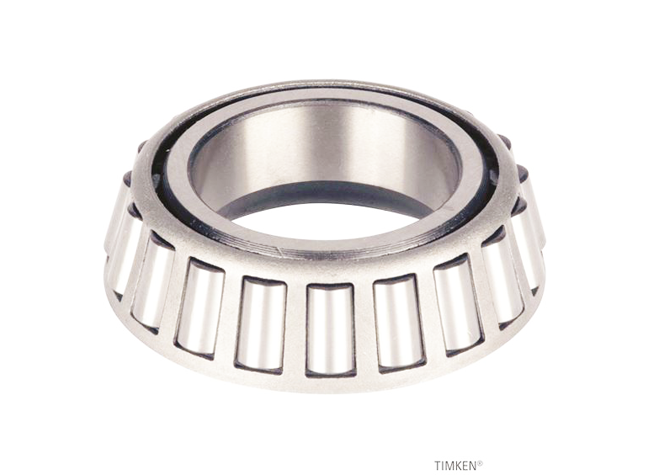

Tapered Roller Bearings - Single Cones - Metric

mô tả mô tả mô tả mô tả mô tả mô tả mô tả mô tả mô tả mô tả mô tả mô tả mô tả mô tả mô tả mô tả mô tả

Nội dung Nội dung Nội dung Nội dung Nội dung Nội dung Nội dung



 Timken Part Number  Series  d - Bore  B - Cone Width  C1 - Dynamic Radial Rating (1 million revolutions)  C0 - Static Radial Rating  C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)  C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)
X30302 30302 15.000 mm0.5906 in 13.000 mm0.5118 in 26000 N5850 lbf 22200 N4980 lbf 10200 lbf45300 N 2640 lbf11700 N
X30203
N/A 30203 		17.000 mm0.6693 in 12.000 mm0.4724 in 21300 N4800 lbf 19900 N4460 lbf 8350 lbf37200 N 2170 lbf9630 N
X30303
N/A 30303 		17.000 mm0.6693 in 14.000 mm0.5512 in 32700 N7360 lbf 28400 N6390 lbf 12800 lbf57000 N 3320 lbf14800 N
X30204M
N/A 30204M 		20.000 mm0.7874 in 14.000 mm0.5512 in 33200 N7470 lbf 33000 N7420 lbf 13000 lbf57900 N 3370 lbf15000 N
X30304
N/A 30304 		20.000 mm0.7874 in 15.000 mm0.5906 in 38500 N8660 lbf 34500 N7760 lbf 15100 lbf67000 N 3910 lbf17400 N
X32004X
N/A 32004X 		20.000 mm0.7874 in 15.000 mm0.5906 in 32900 N7390 lbf 29400 N6600 lbf 12900 lbf57200 N 3340 lbf14800 N
X32204 32204 20.000 mm0.7874 in 18 mm0.7087 in 49500 N11100 lbf 43000 N9660 lbf 19400 lbf86200 N 5020 lbf22300 N
X32304M
N/A 32304M 		20.000 mm0.7874 in 21.000 mm0.8268 in 55200 N12400 lbf 55000 N12400 lbf 21600 lbf96100 N 5600 lbf24900 N
XAA32004X
N/A 32004X 		  N/A 20.000 mm0.7874 in 15.000 mm0.5906 in 32900 N7390 lbf 29400 N6600 lbf 12900 lbf57200 N 3340 lbf14800 N
JHM33449 Series N/A HM33400 d - Bore N/A 24.000 mm0.9449 in B - Cone Width N/A 25.000 mm0.9843 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 79500 N17900 lbf C0 - Static Radial Rating N/A 71000 N16000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 31100 lbf138000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 8070 lbf35900 N
JL44642A Series N/A L44600 d - Bore N/A 25.000 mm0.9843 in B - Cone Width N/A 14.732 mm0.5800 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 35600 N8010 lbf C0 - Static Radial Rating N/A 32900 N7400 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 13900 lbf62000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 3610 lbf16100 N
X30205M Series N/A 30205M d - Bore N/A 25.000 mm0.9843 in B - Cone Width N/A 15.000 mm0.5906 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 36900 N8300 lbf C0 - Static Radial Rating N/A 38300 N8620 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 14500 lbf64300 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 3750 lbf16700 N
X30305M Series N/A 30305M d - Bore N/A 25.000 mm0.9843 in B - Cone Width N/A 17.000 mm0.6693 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 53800 N12100 lbf C0 - Static Radial Rating N/A 49600 N11200 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 21000 lbf93600 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 5460 lbf24300 N
X32205 Series N/A 32205 d - Bore N/A 25.000 mm0.9843 in B - Cone Width N/A 18 mm0.7087 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 49800 N11200 lbf C0 - Static Radial Rating N/A 42100 N9470 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 19500 lbf86600 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 5050 lbf22500 N
X32305 Series N/A 32305 d - Bore N/A 25.000 mm0.9843 in B - Cone Width N/A 24.000 mm0.9449 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 72400 N16300 lbf C0 - Static Radial Rating N/A 72400 N16300 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 28300 lbf126000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 7350 lbf32700 N
X33205 Series N/A 33205 d - Bore N/A 25.000 mm0.9843 in B - Cone Width N/A 22.000 mm0.8661 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 65400 N14700 lbf C0 - Static Radial Rating N/A 63600 N14300 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 25600 lbf114000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 6630 lbf29500 N
XAA32005X Series N/A 32005X d - Bore N/A 25.000 mm0.9843 in B - Cone Width N/A 15.000 mm0.5906 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 36500 N8200 lbf C0 - Static Radial Rating N/A 35400 N7960 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 14300 lbf63500 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 3700 lbf16500 N
JLM67041P Series N/A LM67000 d - Bore N/A 25.413 mm1.0005 in B - Cone Width N/A 16.231 mm0.6390 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 46700 N10500 lbf C0 - Static Radial Rating N/A 44600 N10000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 18300 lbf81300 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 4740 lbf21100 N
JLM67042 Series N/A LM67000 d - Bore N/A 27.000 mm1.0630 in B - Cone Width N/A 16.764 mm0.6600 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 46700 N10500 lbf C0 - Static Radial Rating N/A 44600 N10000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 18300 lbf81300 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 4740 lbf21100 N
XFA30206CM Series N/A 30206C d - Bore N/A 27.000 mm1.0630 in B - Cone Width N/A 16 mm0.6299 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 49300 N11100 lbf C0 - Static Radial Rating N/A 51800 N11600 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 19300 lbf85900 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 5010 lbf22300 N
JHM88540 Series N/A HM88500 d - Bore N/A 30 mm1.1811 in B - Cone Width N/A 27.783 mm1.0938 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 103000 N23200 lbf C0 - Static Radial Rating N/A 111000 N24900 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 40400 lbf180000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 10500 lbf46600 N
X30206CM Series N/A 30206C d - Bore N/A 30 mm1.1811 in B - Cone Width N/A 16 mm0.6299 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 49300 N11100 lbf C0 - Static Radial Rating N/A 51800 N11600 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 19300 lbf85900 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 5010 lbf22300 N
X30306M Series N/A 30306M d - Bore N/A 30 mm1.1811 in B - Cone Width N/A 19.000 mm0.7480 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 67700 N15200 lbf C0 - Static Radial Rating N/A 65300 N14700 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 26500 lbf118000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 6870 lbf30500 N
X32006X Series N/A 32006X d - Bore N/A 30 mm1.1811 in B - Cone Width N/A 17.000 mm0.6693 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 46500 N10400 lbf C0 - Static Radial Rating N/A 45300 N10200 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 18200 lbf80900 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 4710 lbf21000 N
X32206M Series N/A 32206M d - Bore N/A 30 mm1.1811 in B - Cone Width N/A 20.000 mm0.7874 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 64100 N14400 lbf C0 - Static Radial Rating N/A 71900 N16200 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 25100 lbf112000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 6510 lbf28900 N
X32306 Series N/A 32306 d - Bore N/A 30 mm1.1811 in B - Cone Width N/A 27.000 mm1.0630 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 104000 N23300 lbf C0 - Static Radial Rating N/A 89800 N20200 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 40700 lbf181000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 10500 lbf46900 N
X33206 Series N/A 33206 d - Bore N/A 30 mm1.1811 in B - Cone Width N/A 25.000 mm0.9843 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 87600 N19700 lbf C0 - Static Radial Rating N/A 82200 N18500 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 34300 lbf152000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 8890 lbf39500 N
X30207 Series N/A 30207 d - Bore N/A 35.000 mm1.3780 in B - Cone Width N/A 17.000 mm0.6693 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 60600 N13600 lbf C0 - Static Radial Rating N/A 63600 N14300 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 23700 lbf105000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 6150 lbf27300 N
X30307M Series N/A 30307M d - Bore N/A 35.000 mm1.3780 in B - Cone Width N/A 21.000 mm0.8268 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 87200 N19600 lbf C0 - Static Radial Rating N/A 86100 N19300 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 34100 lbf152000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 8840 lbf39300 N
X31307 Series N/A 31307 d - Bore N/A 35.000 mm1.3780 in B - Cone Width N/A 21.000 mm0.8268 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 86300 N19400 lbf C0 - Static Radial Rating N/A 74800 N16800 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 33800 lbf150000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 8760 lbf39000 N
X32007X Series N/A 32007X d - Bore N/A 35.000 mm1.3780 in B - Cone Width N/A 18 mm0.7087 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 56500 N12700 lbf C0 - Static Radial Rating N/A 57600 N12900 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 22100 lbf98400 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 5730 lbf25500 N
X32207 Series N/A 32207 d - Bore N/A 35.000 mm1.3780 in B - Cone Width N/A 23.000 mm0.9055 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 74900 N16800 lbf C0 - Static Radial Rating N/A 82300 N18500 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 29300 lbf130000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 7600 lbf33800 N
X32307 Series N/A 32307 d - Bore N/A 35.000 mm1.3780 in B - Cone Width N/A 31.000 mm1.2205 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 116000 N26000 lbf C0 - Static Radial Rating N/A 123000 N27700 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 45300 lbf201000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 11700 lbf52200 N
X33207 Series N/A 33207 d - Bore N/A 35.000 mm1.3780 in B - Cone Width N/A 28.000 mm1.1024 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 118000 N26600 lbf C0 - Static Radial Rating N/A 116000 N26200 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 46400 lbf206000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 12000 lbf53500 N
JL69348 Series N/A L69300 d - Bore N/A 38.000 mm1.4961 in B - Cone Width N/A 17.000 mm0.6693 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 51000 N11500 lbf C0 - Static Radial Rating N/A 55000 N12400 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 20000 lbf88800 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 5170 lbf23000 N
JL69349 Series N/A L69300 d - Bore N/A 38.000 mm1.4961 in B - Cone Width N/A 17.000 mm0.6693 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 51000 N11500 lbf C0 - Static Radial Rating N/A 55000 N12400 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 20000 lbf88800 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 5170 lbf23000 N
JL69349A Series N/A L69300 d - Bore N/A 38.000 mm1.4961 in B - Cone Width N/A 17.000 mm0.6693 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 51000 N11500 lbf C0 - Static Radial Rating N/A 55000 N12400 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 20000 lbf88800 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 5170 lbf23000 N
JL69349AX Series N/A L69300 d - Bore N/A 38.000 mm1.4961 in B - Cone Width N/A 17.000 mm0.6693 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 51000 N11500 lbf C0 - Static Radial Rating N/A 55000 N12400 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 20000 lbf88800 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 5170 lbf23000 N
JL69349H Series N/A L69300 d - Bore N/A 38.000 mm1.4961 in B - Cone Width N/A 17.000 mm0.6693 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 51000 N11500 lbf C0 - Static Radial Rating N/A 55000 N12400 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 20000 lbf88800 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 5170 lbf23000 N
JL69349P Series N/A L69300 d - Bore N/A 38.000 mm1.4961 in B - Cone Width N/A 17.000 mm0.6693 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 51000 N11500 lbf C0 - Static Radial Rating N/A 55000 N12400 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 20000 lbf88800 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 5170 lbf23000 N
J16154 Series N/A 16000 d - Bore N/A 39.000 mm1.5354 in B - Cone Width N/A 20.638 mm0.8125 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 56600 N12700 lbf C0 - Static Radial Rating N/A 65800 N14800 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 22200 lbf98600 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 5750 lbf25600 N
JF4049 Series N/A JF4000 d - Bore N/A 40 mm1.5748 in B - Cone Width N/A 32.500 mm1.2795 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 162000 N36500 lbf C0 - Static Radial Rating N/A 160000 N35900 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 63600 lbf283000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 16500 lbf73300 N
X30208M Series N/A 30208 d - Bore N/A 40 mm1.5748 in B - Cone Width N/A 18 mm0.7087 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 70900 N15900 lbf C0 - Static Radial Rating N/A 74700 N16800 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 27800 lbf123000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 7190 lbf32000 N
X30308 Series N/A 30308 d - Bore N/A 40 mm1.5748 in B - Cone Width N/A 23.000 mm0.9055 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 117000 N26300 lbf C0 - Static Radial Rating N/A 102000 N23000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 45800 lbf204000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 11900 lbf52800 N
X31308 Series N/A 31308 d - Bore N/A 40 mm1.5748 in B - Cone Width N/A 23.000 mm0.9055 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 101000 N22700 lbf C0 - Static Radial Rating N/A 88100 N19800 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 39600 lbf176000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 10300 lbf45600 N
X32008X Series N/A 32008X d - Bore N/A 40 mm1.5748 in B - Cone Width N/A 19.000 mm0.7480 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 65800 N14800 lbf C0 - Static Radial Rating N/A 71600 N16100 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 25800 lbf115000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 6680 lbf29700 N
X32008XM Series N/A 32008XM d - Bore N/A 40 mm1.5748 in B - Cone Width N/A 19.000 mm0.7480 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 55500 N12500 lbf C0 - Static Radial Rating N/A 71600 N16100 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 21700 lbf96700 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 5640 lbf25100 N
X32008XMSA Series N/A 32008XM d - Bore N/A 40 mm1.5748 in B - Cone Width N/A 19.000 mm0.7480 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 55500 N12500 lbf C0 - Static Radial Rating N/A 71600 N16100 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 21700 lbf96700 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 5640 lbf25100 N
X32208 Series N/A 32208 d - Bore N/A 40 mm1.5748 in B - Cone Width N/A 23.000 mm0.9055 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 95900 N21600 lbf C0 - Static Radial Rating N/A 86500 N19400 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 37500 lbf167000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 9730 lbf43300 N
X32208M Series N/A 32208M d - Bore N/A 40 mm1.5748 in B - Cone Width N/A 23.000 mm0.9055 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 105000 N23500 lbf C0 - Static Radial Rating N/A 98000 N22000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 41000 lbf182000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 10600 lbf47300 N
X32308 Series N/A 32308 d - Bore N/A 40 mm1.5748 in B - Cone Width N/A 33.000 mm1.2992 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 133000 N30000 lbf C0 - Static Radial Rating N/A 150000 N33700 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 52200 lbf232000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 13500 lbf60200 N
X33108 Series N/A 33108 d - Bore N/A 40 mm1.5748 in B - Cone Width N/A 26.000 mm1.0236 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 104000 N23400 lbf C0 - Static Radial Rating N/A 105000 N23600 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 40800 lbf182000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 10600 lbf47100 N
X33208 Series N/A 33208 d - Bore N/A 40 mm1.5748 in B - Cone Width N/A 32.000 mm1.2598 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 143000 N32200 lbf C0 - Static Radial Rating N/A 144000 N32400 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 56100 lbf249000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 14500 lbf64700 N
XAA32008X Series N/A 32008X d - Bore N/A 40 mm1.5748 in B - Cone Width N/A 19.000 mm0.7480 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 65800 N14800 lbf C0 - Static Radial Rating N/A 71600 N16100 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 25800 lbf115000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 6680 lbf29700 N
XAA33108 Series N/A 33108 d - Bore N/A 40 mm1.5748 in B - Cone Width N/A 26.000 mm1.0236 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 104000 N23400 lbf C0 - Static Radial Rating N/A 105000 N23600 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 40800 lbf182000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 10600 lbf47100 N
XBA32308-B Series N/A 32308-B d - Bore N/A 40 mm1.5748 in B - Cone Width N/A 33.500 mm1.3189 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 157000 N35300 lbf C0 - Static Radial Rating N/A 160000 N36100 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 61400 lbf273000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 15900 lbf70800 N
XGA33210 Series N/A 33210 d - Bore N/A 40 mm1.5748 in B - Cone Width N/A 32.000 mm1.2598 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 154000 N34600 lbf C0 - Static Radial Rating N/A 166000 N37300 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 60200 lbf268000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 15600 lbf69400 N
JW4549 Series N/A JW4500 d - Bore N/A 45.000 mm1.7717 in B - Cone Width N/A 26.500 mm1.0433 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 118000 N26600 lbf C0 - Static Radial Rating N/A 114000 N25600 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 46300 lbf206000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 12000 lbf53400 N
KJLM102948 Series N/A LM102900 d - Bore N/A 45.000 mm1.7717 in B - Cone Width N/A 19.800 mm0.7795 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 61500 N13800 lbf C0 - Static Radial Rating N/A 81800 N18400 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 24100 lbf107000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 6240 lbf27800 N
X30209M Series N/A 30209M d - Bore N/A 45.000 mm1.7717 in B - Cone Width N/A 19.000 mm0.7480 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 94800 N21300 lbf C0 - Static Radial Rating N/A 89000 N20000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 37100 lbf165000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 9620 lbf42800 N
X30309M Series N/A 30309M d - Bore N/A 45.000 mm1.7717 in B - Cone Width N/A 25.000 mm0.9843 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 129000 N29000 lbf C0 - Static Radial Rating N/A 139000 N31300 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 50500 lbf225000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 13100 lbf58300 N
X31309M Series N/A 31309M d - Bore N/A 45.000 mm1.7717 in B - Cone Width N/A 25.000 mm0.9843 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 125000 N28200 lbf C0 - Static Radial Rating N/A 113000 N25400 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 49000 lbf218000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 12700 lbf56500 N
X32009X Series N/A 32009X d - Bore N/A 45.000 mm1.7717 in B - Cone Width N/A 20.000 mm0.7874 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 78700 N17700 lbf C0 - Static Radial Rating N/A 84300 N19000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 30800 lbf137000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 7990 lbf35500 N
X32009XM Series N/A 32009XM d - Bore N/A 45.000 mm1.7717 in B - Cone Width N/A 20.000 mm0.7874 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 66400 N14900 lbf C0 - Static Radial Rating N/A 84300 N19000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 26000 lbf116000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 6740 lbf30000 N
X32209 Series N/A 32209 d - Bore N/A 45.000 mm1.7717 in B - Cone Width N/A 23.000 mm0.9055 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 104000 N23300 lbf C0 - Static Radial Rating N/A 98700 N22200 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 40600 lbf181000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 10500 lbf46800 N
X32209M Series N/A 32209M d - Bore N/A 45.000 mm1.7717 in B - Cone Width N/A 23.000 mm0.9055 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 104000 N23300 lbf C0 - Static Radial Rating N/A 98700 N22200 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 40600 lbf181000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 10500 lbf46800 N
X32209N Series N/A 32209 d - Bore N/A 45.000 mm1.7717 in B - Cone Width N/A 23.000 mm0.9055 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 104000 N23300 lbf C0 - Static Radial Rating N/A 98700 N22200 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 40600 lbf181000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 10500 lbf46800 N
X32309M Series N/A 32309M d - Bore N/A 45.000 mm1.7717 in B - Cone Width N/A 36 mm1.4173 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 183000 N41000 lbf C0 - Static Radial Rating N/A 171000 N38600 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 71500 lbf318000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 18500 lbf82400 N
X33109 Series N/A 33109 d - Bore N/A 45.000 mm1.7717 in B - Cone Width N/A 26.000 mm1.0236 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 113000 N25300 lbf C0 - Static Radial Rating N/A 119000 N26800 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 44100 lbf196000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 11400 lbf50900 N
X33209 Series N/A 33209 d - Bore N/A 45.000 mm1.7717 in B - Cone Width N/A 32.000 mm1.2598 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 149000 N33400 lbf C0 - Static Radial Rating N/A 155000 N34800 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 58200 lbf259000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 15100 lbf67100 N
XAA32009X Series N/A 32009X d - Bore N/A 45.000 mm1.7717 in B - Cone Width N/A 20.000 mm0.7874 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 78700 N17700 lbf C0 - Static Radial Rating N/A 84300 N19000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 30800 lbf137000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 7990 lbf35500 N
XAB-32009X Series N/A 32009X d - Bore N/A 45.000 mm1.7717 in B - Cone Width N/A 20.000 mm0.7874 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 78700 N17700 lbf C0 - Static Radial Rating N/A 84300 N19000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 30800 lbf137000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 7990 lbf35500 N
XFA30309M Series N/A 30309M d - Bore N/A 47.500 mm1.8701 in B - Cone Width N/A 25.000 mm0.9843 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 129000 N29000 lbf C0 - Static Radial Rating N/A 139000 N31300 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 50500 lbf225000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 13100 lbf58300 N
JLM104942A Series N/A LM104900 d - Bore N/A 48.600 mm1.9134 in B - Cone Width N/A 21.500 mm0.8465 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 96300 N21700 lbf C0 - Static Radial Rating N/A 104000 N23400 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 37700 lbf168000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 9770 lbf43500 N
JHM807045 Series N/A HM807000 d - Bore N/A 50.000 mm1.9685 in B - Cone Width N/A 36 mm1.4173 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 203000 N45700 lbf C0 - Static Radial Rating N/A 223000 N50200 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 79600 lbf354000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 20600 lbf91800 N
JLM104945 Series N/A LM104900 d - Bore N/A 50.000 mm1.9685 in B - Cone Width N/A 27.700 mm1.0906 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 96300 N21700 lbf C0 - Static Radial Rating N/A 104000 N23400 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 37700 lbf168000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 9770 lbf43500 N
JLM104946 Series N/A LM104900 d - Bore N/A 50.000 mm1.9685 in B - Cone Width N/A 23.993 mm0.9446 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 96300 N21700 lbf C0 - Static Radial Rating N/A 104000 N23400 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 37700 lbf168000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 9770 lbf43500 N
JLM104948 Series N/A LM104900 d - Bore N/A 50.000 mm1.9685 in B - Cone Width N/A 21.500 mm0.8465 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 96300 N21700 lbf C0 - Static Radial Rating N/A 104000 N23400 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 37700 lbf168000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 9770 lbf43500 N
JLM704649 Series N/A LM704600 d - Bore N/A 50.000 mm1.9685 in B - Cone Width N/A 22.000 mm0.8661 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 96500 N21700 lbf C0 - Static Radial Rating N/A 104000 N23500 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 37800 lbf168000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 9790 lbf43500 N
JM205149 Series N/A M205100 d - Bore N/A 50.000 mm1.9685 in B - Cone Width N/A 28.000 mm1.1024 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 147000 N33000 lbf C0 - Static Radial Rating N/A 154000 N34600 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 57400 lbf255000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 14900 lbf66200 N
JM205149A Series N/A M205100 d - Bore N/A 50.000 mm1.9685 in B - Cone Width N/A 28.000 mm1.1024 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 147000 N33000 lbf C0 - Static Radial Rating N/A 154000 N34600 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 57400 lbf255000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 14900 lbf66200 N
JM205149AS Series N/A M205100 d - Bore N/A 50.000 mm1.9685 in B - Cone Width N/A 28.000 mm1.1024 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 147000 N33000 lbf C0 - Static Radial Rating N/A 154000 N34600 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 57400 lbf255000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 14900 lbf66200 N
JW5049 Series N/A JW5000 d - Bore N/A 50.000 mm1.9685 in B - Cone Width N/A 29.000 mm1.1417 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 142000 N31800 lbf C0 - Static Radial Rating N/A 138000 N31000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 55400 lbf246000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 14400 lbf63900 N
KJLM704649H Series N/A LM704600 d - Bore N/A 50.000 mm1.9685 in B - Cone Width N/A 22.000 mm0.8661 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 96500 N21700 lbf C0 - Static Radial Rating N/A 104000 N23500 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 37800 lbf168000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 9790 lbf43500 N
X30210 Series N/A 30210 d - Bore N/A 50.000 mm1.9685 in B - Cone Width N/A 20.000 mm0.7874 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 79500 N17900 lbf C0 - Static Radial Rating N/A 87400 N19700 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 31100 lbf138000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 8060 lbf35900 N
X30310 Series N/A 30310 d - Bore N/A 50.000 mm1.9685 in B - Cone Width N/A 27.000 mm1.0630 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 142000 N31900 lbf C0 - Static Radial Rating N/A 150000 N33800 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 55600 lbf247000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 14400 lbf64100 N
X30310M Series N/A 30310M d - Bore N/A 50.000 mm1.9685 in B - Cone Width N/A 27.000 mm1.0630 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 168000 N37800 lbf C0 - Static Radial Rating N/A 150000 N33800 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 65900 lbf293000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 17100 lbf75900 N
X31310M Series N/A 31310M d - Bore N/A 50.000 mm1.9685 in B - Cone Width N/A 27.000 mm1.0630 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 147000 N33100 lbf C0 - Static Radial Rating N/A 132000 N29700 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 57700 lbf257000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 15000 lbf66600 N
X32010X Series N/A 32010X d - Bore N/A 50.000 mm1.9685 in B - Cone Width N/A 20.000 mm0.7874 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 82700 N18600 lbf C0 - Static Radial Rating N/A 92700 N20800 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 32400 lbf144000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 8400 lbf37300 N
X32010XM Series N/A 32010XM d - Bore N/A 50.000 mm1.9685 in B - Cone Width N/A 20.000 mm0.7874 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 69800 N15700 lbf C0 - Static Radial Rating N/A 92700 N20800 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 27300 lbf122000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 7080 lbf31500 N
X32210M Series N/A 32210M d - Bore N/A 50.000 mm1.9685 in B - Cone Width N/A 23.000 mm0.9055 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 99800 N22400 lbf C0 - Static Radial Rating N/A 118000 N26500 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 39100 lbf174000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 10100 lbf45000 N
X32310 Series N/A 32310 d - Bore N/A 50.000 mm1.9685 in B - Cone Width N/A 40.000 mm1.5748 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 187000 N42000 lbf C0 - Static Radial Rating N/A 211000 N47500 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 73100 lbf325000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 19000 lbf84300 N
X33010 Series N/A 33010 d - Bore N/A 50.000 mm1.9685 in B - Cone Width N/A 24.000 mm0.9449 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 95500 N21500 lbf C0 - Static Radial Rating N/A 112000 N25300 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 37400 lbf166000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 9690 lbf43100 N
X33110 Series N/A 33110 d - Bore N/A 50.000 mm1.9685 in B - Cone Width N/A 26.000 mm1.0236 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 115000 N25800 lbf C0 - Static Radial Rating N/A 125000 N28100 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 44800 lbf199000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 11600 lbf51700 N
X33210 Series N/A 33210 d - Bore N/A 50.000 mm1.9685 in B - Cone Width N/A 32.000 mm1.2598 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 154000 N34600 lbf C0 - Static Radial Rating N/A 166000 N37300 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 60200 lbf268000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 15600 lbf69400 N
XA32210M Series N/A 32210M d - Bore N/A 50.000 mm1.9685 in B - Cone Width N/A 23.000 mm0.9055 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 118000 N26600 lbf C0 - Static Radial Rating N/A 118000 N26500 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 46300 lbf206000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 12000 lbf53400 N
XAA32010X Series N/A 32010X d - Bore N/A 50.000 mm1.9685 in B - Cone Width N/A 20.000 mm0.7874 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 82700 N18600 lbf C0 - Static Radial Rating N/A 92700 N20800 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 32400 lbf144000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 8400 lbf37300 N
XAB-32010X Series N/A 32010X d - Bore N/A 50.000 mm1.9685 in B - Cone Width N/A 20.000 mm0.7874 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 82700 N18600 lbf C0 - Static Radial Rating N/A 92700 N20800 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 32400 lbf144000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 8400 lbf37300 N
XAD32010X Series N/A 32010X d - Bore N/A 50.000 mm1.9685 in B - Cone Width N/A 20.000 mm0.7874 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 82700 N18600 lbf C0 - Static Radial Rating N/A 92700 N20800 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 32400 lbf144000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 8400 lbf37300 N
XAE32010X Series N/A 32010X d - Bore N/A 50.000 mm1.9685 in B - Cone Width N/A 20.000 mm0.7874 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 82700 N18600 lbf C0 - Static Radial Rating N/A 92700 N20800 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 32400 lbf144000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 8400 lbf37300 N
XLA33211 Series N/A 33211 d - Bore N/A 50.000 mm1.9685 in B - Cone Width N/A 33.500 mm1.3189 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 192000 N43200 lbf C0 - Static Radial Rating N/A 202000 N45300 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 75200 lbf334000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 19500 lbf86700 N
XGA33211 Series N/A 33211 d - Bore N/A 50.815 mm2.0006 in B - Cone Width N/A 35.000 mm1.3780 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 192000 N43200 lbf C0 - Static Radial Rating N/A 202000 N45300 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 75200 lbf334000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 19500 lbf86700 N
XGA30210 Series N/A 30210 d - Bore N/A 52.000 mm2.0472 in B - Cone Width N/A 20.000 mm0.7874 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 79500 N17900 lbf C0 - Static Radial Rating N/A 87400 N19700 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 31100 lbf138000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 8060 lbf35900 N
JH307749 Series N/A H307700 d - Bore N/A 55.000 mm2.1654 in B - Cone Width N/A 39 mm1.5354 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 249000 N56000 lbf C0 - Static Radial Rating N/A 251000 N56500 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 97400 lbf433000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 25300 lbf112000 N
JH307749H Series N/A H307700 d - Bore N/A 55.000 mm2.1654 in B - Cone Width N/A 39 mm1.5354 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 249000 N56000 lbf C0 - Static Radial Rating N/A 251000 N56500 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 97400 lbf433000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 25300 lbf112000 N
JLM506849 Series N/A LM506800 d - Bore N/A 55.000 mm2.1654 in B - Cone Width N/A 23.000 mm0.9055 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 109000 N24500 lbf C0 - Static Radial Rating N/A 123000 N27600 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 42600 lbf190000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 11000 lbf49100 N
JLM506849A Series N/A LM506800 d - Bore N/A 55.000 mm2.1654 in B - Cone Width N/A 23.000 mm0.9055 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 109000 N24500 lbf C0 - Static Radial Rating N/A 123000 N27600 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 42600 lbf190000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 11000 lbf49100 N
JM207049 Series N/A M207000 d - Bore N/A 55.000 mm2.1654 in B - Cone Width N/A 29.000 mm1.1417 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 131000 N29300 lbf C0 - Static Radial Rating N/A 168000 N37700 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 51100 lbf227000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 13200 lbf58900 N
JM207049A Series N/A M207000 d - Bore N/A 55.000 mm2.1654 in B - Cone Width N/A 29.000 mm1.1417 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 131000 N29300 lbf C0 - Static Radial Rating N/A 168000 N37700 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 51100 lbf227000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 13200 lbf58900 N
JW5549 Series N/A JW5500 d - Bore N/A 55.000 mm2.1654 in B - Cone Width N/A 31.000 mm1.2205 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 172000 N38700 lbf C0 - Static Radial Rating N/A 175000 N39200 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 67400 lbf300000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 17500 lbf77700 N
X30211M Series N/A 30211M d - Bore N/A 55.000 mm2.1654 in B - Cone Width N/A 21.000 mm0.8268 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 107000 N24000 lbf C0 - Static Radial Rating N/A 122000 N27400 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 41900 lbf186000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 10900 lbf48300 N
X30311M Series N/A 30311M d - Bore N/A 55.000 mm2.1654 in B - Cone Width N/A 29.000 mm1.1417 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 174000 N39100 lbf C0 - Static Radial Rating N/A 190000 N42700 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 68100 lbf303000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 17600 lbf78500 N
X31311M Series N/A 31311M d - Bore N/A 55.000 mm2.1654 in B - Cone Width N/A 29.000 mm1.1417 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 172000 N38700 lbf C0 - Static Radial Rating N/A 157000 N35300 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 67300 lbf299000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 17500 lbf77600 N
X32011X Series N/A 32011X d - Bore N/A 55.000 mm2.1654 in B - Cone Width N/A 23.000 mm0.9055 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 112000 N25300 lbf C0 - Static Radial Rating N/A 126000 N28300 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 44000 lbf196000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 11400 lbf50800 N
X32211 Series N/A 32211 d - Bore N/A 55.000 mm2.1654 in B - Cone Width N/A 25.000 mm0.9843 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 121000 N27200 lbf C0 - Static Radial Rating N/A 141000 N31600 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 47300 lbf210000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 12300 lbf54500 N
X32211M Series N/A 32211M d - Bore N/A 55.000 mm2.1654 in B - Cone Width N/A 25.000 mm0.9843 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 143000 N32200 lbf C0 - Static Radial Rating N/A 141000 N31600 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 56000 lbf249000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 14500 lbf64600 N
X32311 Series N/A 32311 d - Bore N/A 55.000 mm2.1654 in B - Cone Width N/A 43 mm1.6929 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 228000 N51200 lbf C0 - Static Radial Rating N/A 265000 N59700 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 89200 lbf397000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 23100 lbf103000 N
X33011 Series N/A 33011 d - Bore N/A 55.000 mm2.1654 in B - Cone Width N/A 27.000 mm1.0630 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 118000 N26500 lbf C0 - Static Radial Rating N/A 141000 N31700 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 46200 lbf205000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 12000 lbf53200 N
X33111 Series N/A 33111 d - Bore N/A 55.000 mm2.1654 in B - Cone Width N/A 30.000 mm1.1811 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 158000 N35500 lbf C0 - Static Radial Rating N/A 166000 N37200 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 61700 lbf275000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 16000 lbf71200 N
X33211 Series N/A 33211 d - Bore N/A 55.000 mm2.1654 in B - Cone Width N/A 35.000 mm1.3780 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 192000 N43200 lbf C0 - Static Radial Rating N/A 202000 N45300 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 75200 lbf334000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 19500 lbf86700 N
XAA32011X Series N/A 32011X d - Bore N/A 55.000 mm2.1654 in B - Cone Width N/A 23.000 mm0.9055 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 112000 N25300 lbf C0 - Static Radial Rating N/A 126000 N28300 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 44000 lbf196000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 11400 lbf50800 N
XGB-33212 Series N/A 33212 d - Bore N/A 55.000 mm2.1654 in B - Cone Width N/A 38.000 mm1.4961 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 234000 N52700 lbf C0 - Static Radial Rating N/A 253000 N56800 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 91700 lbf408000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 23800 lbf106000 N
JF6049 Series N/A JF6000 d - Bore N/A 60.000 mm2.3622 in B - Cone Width N/A 39 mm1.5354 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 274000 N61500 lbf C0 - Static Radial Rating N/A 279000 N62800 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 107000 lbf477000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 27800 lbf124000 N
JLM508748 Series N/A LM508700 d - Bore N/A 60.000 mm2.3622 in B - Cone Width N/A 24.000 mm0.9449 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 97600 N21900 lbf C0 - Static Radial Rating N/A 135000 N30400 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 38200 lbf170000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 9900 lbf44000 N
JP6049 Series N/A JP6000 d - Bore N/A 60.000 mm2.3622 in B - Cone Width N/A 20.000 mm0.7874 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 82500 N18500 lbf C0 - Static Radial Rating N/A 101000 N22800 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 32300 lbf144000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 8370 lbf37200 N
JW6049 Series N/A JW6000 d - Bore N/A 60.000 mm2.3622 in B - Cone Width N/A 33.500 mm1.3189 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 204000 N45800 lbf C0 - Static Radial Rating N/A 210000 N47100 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 79700 lbf354000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 20700 lbf91900 N
X30212 Series N/A 30212 d - Bore N/A 60.000 mm2.3622 in B - Cone Width N/A 22.000 mm0.8661 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 107000 N24100 lbf C0 - Static Radial Rating N/A 117000 N26200 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 41900 lbf186000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 10900 lbf48300 N
X30312 Series N/A 30312 d - Bore N/A 60.000 mm2.3622 in B - Cone Width N/A 31.000 mm1.2205 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 201000 N45300 lbf C0 - Static Radial Rating N/A 221000 N49800 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 78800 lbf350000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 20400 lbf90900 N
X30312M Series N/A 30312M d - Bore N/A 60.000 mm2.3622 in B - Cone Width N/A 31.000 mm1.2205 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 218000 N49000 lbf C0 - Static Radial Rating N/A 221000 N49800 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 85400 lbf380000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 22100 lbf98400 N
X31312M Series N/A 31312M d - Bore N/A 60.000 mm2.3622 in B - Cone Width N/A 31.000 mm1.2205 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 186000 N41700 lbf C0 - Static Radial Rating N/A 188000 N42200 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 72700 lbf323000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 18800 lbf83800 N
X32012X Series N/A 32012X d - Bore N/A 60.000 mm2.3622 in B - Cone Width N/A 23.000 mm0.9055 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 115000 N25800 lbf C0 - Static Radial Rating N/A 132000 N29600 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 44900 lbf200000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 11600 lbf51700 N
X32012XM Series N/A 32012XM d - Bore N/A 60.000 mm2.3622 in B - Cone Width N/A 23.000 mm0.9055 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 115000 N25800 lbf C0 - Static Radial Rating N/A 132000 N29600 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 44900 lbf200000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 11600 lbf51700 N
X32212M Series N/A 32212M d - Bore N/A 60.000 mm2.3622 in B - Cone Width N/A 28.000 mm1.1024 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 149000 N33400 lbf C0 - Static Radial Rating N/A 178000 N40100 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 58200 lbf259000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 15100 lbf67100 N
X32312 Series N/A 32312 d - Bore N/A 60.000 mm2.3622 in B - Cone Width N/A 46.000 mm1.8110 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 264000 N59400 lbf C0 - Static Radial Rating N/A 310000 N69800 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 103000 lbf460000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 26800 lbf119000 N
X33012 Series N/A 33012 d - Bore N/A 60.000 mm2.3622 in B - Cone Width N/A 27.000 mm1.0630 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 103000 N23100 lbf C0 - Static Radial Rating N/A 150000 N33600 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 40200 lbf179000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 10400 lbf46300 N
X33012M Series N/A 33012M d - Bore N/A 60.000 mm2.3622 in B - Cone Width N/A 27.000 mm1.0630 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 122000 N27400 lbf C0 - Static Radial Rating N/A 150000 N33600 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 47600 lbf212000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 12300 lbf54900 N
X33112 Series N/A 33112 d - Bore N/A 60.000 mm2.3622 in B - Cone Width N/A 30.000 mm1.1811 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 162000 N36400 lbf C0 - Static Radial Rating N/A 180000 N40500 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 63400 lbf282000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 16400 lbf73100 N
X33212 Series N/A 33212 d - Bore N/A 60.000 mm2.3622 in B - Cone Width N/A 38.000 mm1.4961 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 234000 N52700 lbf C0 - Static Radial Rating N/A 253000 N56800 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 91700 lbf408000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 23800 lbf106000 N
XA32212M Series N/A 32212M d - Bore N/A 60.000 mm2.3622 in B - Cone Width N/A 28.000 mm1.1024 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 163000 N36600 lbf C0 - Static Radial Rating N/A 160000 N35900 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 63800 lbf284000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 16500 lbf73500 N
XAA33212 Series N/A 33212 d - Bore N/A 60.000 mm2.3622 in B - Cone Width N/A 38.000 mm1.4961 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 234000 N52700 lbf C0 - Static Radial Rating N/A 253000 N56800 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 91700 lbf408000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 23800 lbf106000 N
XAB-33212 Series N/A 33212 d - Bore N/A 60.000 mm2.3622 in B - Cone Width N/A 38.000 mm1.4961 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 234000 N52700 lbf C0 - Static Radial Rating N/A 253000 N56800 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 91700 lbf408000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 23800 lbf106000 N
J6392 Series N/A 6300 d - Bore N/A 65.000 mm2.5591 in B - Cone Width N/A 56 mm2.2050 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 321000 N72300 lbf C0 - Static Radial Rating N/A 404000 N90900 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 126000 lbf560000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 32600 lbf145000 N
JD6549 Series N/A JD6500 d - Bore N/A 65.000 mm2.5591 in B - Cone Width N/A 31.000 mm1.2205 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 193000 N43400 lbf C0 - Static Radial Rating N/A 212000 N47700 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 75500 lbf336000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 19600 lbf87100 N
JH211749 Series N/A H211700 d - Bore N/A 65.000 mm2.5591 in B - Cone Width N/A 38.500 mm1.5157 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 223000 N50100 lbf C0 - Static Radial Rating N/A 283000 N63600 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 87300 lbf388000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 22600 lbf101000 N
JH211749A Series N/A H211700 d - Bore N/A 65.000 mm2.5591 in B - Cone Width N/A 38.500 mm1.5157 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 223000 N50100 lbf C0 - Static Radial Rating N/A 283000 N63600 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 87300 lbf388000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 22600 lbf101000 N
JLM710949C Series N/A LM710900 d - Bore N/A 65.000 mm2.5591 in B - Cone Width N/A 23.000 mm0.9055 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 128000 N28800 lbf C0 - Static Radial Rating N/A 139000 N31300 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 50200 lbf223000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 13000 lbf57900 N
JM511945 Series N/A M511900 d - Bore N/A 65.000 mm2.5591 in B - Cone Width N/A 30.000 mm1.1811 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 167000 N37600 lbf C0 - Static Radial Rating N/A 195000 N43900 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 65400 lbf291000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 17000 lbf75400 N
JM511946 Series N/A M511900 d - Bore N/A 65.000 mm2.5591 in B - Cone Width N/A 28.000 mm1.1024 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 167000 N37600 lbf C0 - Static Radial Rating N/A 195000 N43900 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 65400 lbf291000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 17000 lbf75400 N
JM511946N Series N/A M511900 d - Bore N/A 65.000 mm2.5591 in B - Cone Width N/A 28.000 mm1.1024 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 167000 N37600 lbf C0 - Static Radial Rating N/A 195000 N43900 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 65400 lbf291000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 17000 lbf75400 N
JW6549 Series N/A JW6500 d - Bore N/A 65.000 mm2.5591 in B - Cone Width N/A 33.500 mm1.3189 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 208000 N46700 lbf C0 - Static Radial Rating N/A 220000 N49400 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 81400 lbf362000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 21100 lbf93800 N
X30213M Series N/A 30213M d - Bore N/A 65.000 mm2.5591 in B - Cone Width N/A 23.000 mm0.9055 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 164000 N36900 lbf C0 - Static Radial Rating N/A 158000 N35500 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 64200 lbf286000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 16700 lbf74100 N
X30313 Series N/A 30313 d - Bore N/A 65.000 mm2.5591 in B - Cone Width N/A 33.000 mm1.2992 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 222000 N50000 lbf C0 - Static Radial Rating N/A 242000 N54400 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 87000 lbf387000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 22600 lbf100000 N
X31313M Series N/A 31313M d - Bore N/A 65.000 mm2.5591 in B - Cone Width N/A 33.000 mm1.2992 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 212000 N47800 lbf C0 - Static Radial Rating N/A 217000 N48700 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 83200 lbf370000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 21600 lbf95900 N
X32013X Series N/A 32013X d - Bore N/A 65.000 mm2.5591 in B - Cone Width N/A 23.000 mm0.9055 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 116000 N26100 lbf C0 - Static Radial Rating N/A 137000 N30900 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 45500 lbf202000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 11800 lbf52500 N
X32213 Series N/A 32213 d - Bore N/A 65.000 mm2.5591 in B - Cone Width N/A 31.000 mm1.2205 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 174000 N39100 lbf C0 - Static Radial Rating N/A 209000 N46900 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 68000 lbf303000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 17600 lbf78500 N
X32313M Series N/A 32313M d - Bore N/A 65.000 mm2.5591 in B - Cone Width N/A 48 mm1.8898 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 320000 N72000 lbf C0 - Static Radial Rating N/A 388000 N87200 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 125000 lbf557000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 32500 lbf145000 N
X33013 Series N/A 33013 d - Bore N/A 65.000 mm2.5591 in B - Cone Width N/A 27.000 mm1.0630 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 127000 N28500 lbf C0 - Static Radial Rating N/A 162000 N36400 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 49700 lbf221000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 12900 lbf57300 N
X33013M Series N/A 33013M d - Bore N/A 65.000 mm2.5591 in B - Cone Width N/A 27.000 mm1.0630 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 127000 N28500 lbf C0 - Static Radial Rating N/A 162000 N36400 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 49700 lbf221000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 12900 lbf57300 N
X33113 Series N/A 33113 d - Bore N/A 65.000 mm2.5591 in B - Cone Width N/A 34.000 mm1.3386 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 167000 N37500 lbf C0 - Static Radial Rating N/A 225000 N50600 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 65300 lbf291000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 16900 lbf75300 N
X33213 Series N/A 33213 d - Bore N/A 65.000 mm2.5591 in B - Cone Width N/A 41 mm1.6142 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 262000 N58900 lbf C0 - Static Radial Rating N/A 280000 N62900 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 102000 lbf456000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 26600 lbf118000 N
XAA32013X Series N/A 32013X d - Bore N/A 65.000 mm2.5591 in B - Cone Width N/A 23.000 mm0.9055 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 116000 N26100 lbf C0 - Static Radial Rating N/A 137000 N30900 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 45500 lbf202000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 11800 lbf52500 N
XAA32013XM Series N/A 32013XM d - Bore N/A 65.000 mm2.5591 in B - Cone Width N/A 23.000 mm0.9055 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 116000 N26100 lbf C0 - Static Radial Rating N/A 137000 N30900 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 45500 lbf202000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 11800 lbf52500 N
JF7049 Series N/A JF7000 d - Bore N/A 70 mm2.7559 in B - Cone Width N/A 42.000 mm1.6535 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 325000 N73200 lbf C0 - Static Radial Rating N/A 360000 N80800 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 127000 lbf567000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 33000 lbf147000 N
JF7049A Series N/A JF7000 d - Bore N/A 70 mm2.7559 in B - Cone Width N/A 42.000 mm1.6535 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 325000 N73200 lbf C0 - Static Radial Rating N/A 360000 N80800 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 127000 lbf567000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 33000 lbf147000 N
JH913848 Series N/A H913800 d - Bore N/A 70 mm2.7559 in B - Cone Width N/A 39.688 mm1.5625 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 273000 N61300 lbf C0 - Static Radial Rating N/A 256000 N57500 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 107000 lbf474000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 27700 lbf123000 N
JLM813049 Series N/A LM813000 d - Bore N/A 70 mm2.7559 in B - Cone Width N/A 25.000 mm0.9843 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 115000 N25700 lbf C0 - Static Radial Rating N/A 168000 N37800 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 44800 lbf199000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 11600 lbf51700 N
JM612949 Series N/A M612900 d - Bore N/A 70 mm2.7559 in B - Cone Width N/A 29.000 mm1.1417 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 178000 N40000 lbf C0 - Static Radial Rating N/A 198000 N44500 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 69600 lbf310000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 18000 lbf80300 N
JP7049 Series N/A JP7000 d - Bore N/A 70 mm2.7559 in B - Cone Width N/A 20.000 mm0.7874 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 91600 N20600 lbf C0 - Static Radial Rating N/A 112000 N25200 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 35900 lbf159000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 9300 lbf41300 N
JW7049 Series N/A JW7000 d - Bore N/A 70 mm2.7559 in B - Cone Width N/A 35.500 mm1.3976 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 241000 N54200 lbf C0 - Static Radial Rating N/A 257000 N57800 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 94500 lbf420000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 24500 lbf109000 N
X30214 Series N/A 30214 d - Bore N/A 70 mm2.7559 in B - Cone Width N/A 24.000 mm0.9449 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 138000 N31000 lbf C0 - Static Radial Rating N/A 157000 N35300 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 54100 lbf240000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 14000 lbf62300 N
X30314 Series N/A 30314 d - Bore N/A 70 mm2.7559 in B - Cone Width N/A 35.000 mm1.3780 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 233000 N52300 lbf C0 - Static Radial Rating N/A 276000 N62000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 91100 lbf405000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 23600 lbf105000 N
X30314M Series N/A 30314M d - Bore N/A 70 mm2.7559 in B - Cone Width N/A 35.000 mm1.3780 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 251000 N56500 lbf C0 - Static Radial Rating N/A 276000 N62000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 98300 lbf437000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 25500 lbf113000 N
X31314M Series N/A 31314M d - Bore N/A 70 mm2.7559 in B - Cone Width N/A 35.000 mm1.3780 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 252000 N56800 lbf C0 - Static Radial Rating N/A 235000 N52900 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 98800 lbf440000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 25600 lbf114000 N
X32014X Series N/A 32014X d - Bore N/A 70 mm2.7559 in B - Cone Width N/A 25.000 mm0.9843 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 133000 N29900 lbf C0 - Static Radial Rating N/A 163000 N36700 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 52100 lbf232000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 13500 lbf60100 N
X32214 Series N/A 32214 d - Bore N/A 70 mm2.7559 in B - Cone Width N/A 31.000 mm1.2205 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 216000 N48600 lbf C0 - Static Radial Rating N/A 224000 N50400 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 84600 lbf376000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 21900 lbf97600 N
X32214M Series N/A 32214M d - Bore N/A 70 mm2.7559 in B - Cone Width N/A 31.000 mm1.2205 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 216000 N48600 lbf C0 - Static Radial Rating N/A 224000 N50400 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 84600 lbf376000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 21900 lbf97600 N
X32314M Series N/A 32314 d - Bore N/A 70 mm2.7559 in B - Cone Width N/A 51 mm2.0079 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 434000 N97500 lbf C0 - Static Radial Rating N/A 448000 N101000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 170000 lbf755000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 44000 lbf196000 N
X33014M Series N/A 33014M d - Bore N/A 70 mm2.7559 in B - Cone Width N/A 31.000 mm1.2205 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 153000 N34500 lbf C0 - Static Radial Rating N/A 236000 N53000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 60000 lbf267000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 15600 lbf69200 N
X33114 Series N/A 33114 d - Bore N/A 70 mm2.7559 in B - Cone Width N/A 37.000 mm1.4567 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 235000 N52800 lbf C0 - Static Radial Rating N/A 270000 N60800 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 91900 lbf409000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 23800 lbf106000 N
X33114M Series N/A 33114M d - Bore N/A 70 mm2.7559 in B - Cone Width N/A 37.000 mm1.4567 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 215000 N48200 lbf C0 - Static Radial Rating N/A 270000 N60800 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 84000 lbf374000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 21800 lbf96800 N
X33214 Series N/A 33214 d - Bore N/A 70 mm2.7559 in B - Cone Width N/A 41 mm1.6142 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 282000 N63300 lbf C0 - Static Radial Rating N/A 314000 N70700 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 110000 lbf490000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 28600 lbf127000 N
XA30214 Series N/A 30214 d - Bore N/A 70 mm2.7559 in B - Cone Width N/A 24.000 mm0.9449 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 138000 N31000 lbf C0 - Static Radial Rating N/A 157000 N35300 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 54100 lbf240000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 14000 lbf62300 N
JH415647 Series N/A H415600 d - Bore N/A 75.000 mm2.9528 in B - Cone Width N/A 51 mm2.0079 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 347000 N78000 lbf C0 - Static Radial Rating N/A 463000 N104000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 136000 lbf604000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 35200 lbf157000 N
JH415647A Series N/A H415600 d - Bore N/A 75.000 mm2.9528 in B - Cone Width N/A 51 mm2.0079 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 347000 N78000 lbf C0 - Static Radial Rating N/A 463000 N104000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 136000 lbf604000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 35200 lbf157000 N
JLM714149 Series N/A LM714100 d - Bore N/A 75.000 mm2.9528 in B - Cone Width N/A 25.000 mm0.9843 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 140000 N31600 lbf C0 - Static Radial Rating N/A 167000 N37500 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 54900 lbf244000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 14200 lbf63400 N
JLM714149A Series N/A LM714100 d - Bore N/A 75.000 mm2.9528 in B - Cone Width N/A 25.000 mm0.9843 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 140000 N31600 lbf C0 - Static Radial Rating N/A 167000 N37500 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 54900 lbf244000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 14200 lbf63400 N
JM714249 Series N/A M714200 d - Bore N/A 75.000 mm2.9528 in B - Cone Width N/A 29.500 mm1.1614 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 159000 N35800 lbf C0 - Static Radial Rating N/A 229000 N51500 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 62400 lbf277000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 16200 lbf71900 N
JM714249A Series N/A M714200 d - Bore N/A 75.000 mm2.9528 in B - Cone Width N/A 29.500 mm1.1614 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 159000 N35800 lbf C0 - Static Radial Rating N/A 229000 N51500 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 62400 lbf277000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 16200 lbf71900 N
JW7549 Series N/A JW7500 d - Bore N/A 75.000 mm2.9528 in B - Cone Width N/A 38.000 mm1.4961 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 274000 N61600 lbf C0 - Static Radial Rating N/A 294000 N66200 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 107000 lbf477000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 27800 lbf124000 N
X30215 Series N/A 30215 d - Bore N/A 75.000 mm2.9528 in B - Cone Width N/A 25.000 mm0.9843 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 181000 N40600 lbf C0 - Static Radial Rating N/A 180000 N40400 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 70700 lbf314000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 18300 lbf81500 N
X30215M Series N/A 30215M d - Bore N/A 75.000 mm2.9528 in B - Cone Width N/A 25.000 mm0.9843 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 152000 N34200 lbf C0 - Static Radial Rating N/A 180000 N40400 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 59600 lbf265000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 15500 lbf68800 N
X30315 Series N/A 30315 d - Bore N/A 75.000 mm2.9528 in B - Cone Width N/A 37.000 mm1.4567 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 354000 N79600 lbf C0 - Static Radial Rating N/A 338000 N76000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 139000 lbf617000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 35900 lbf160000 N
X30315M Series N/A 30315M d - Bore N/A 75.000 mm2.9528 in B - Cone Width N/A 37.000 mm1.4567 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 354000 N79600 lbf C0 - Static Radial Rating N/A 338000 N76000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 139000 lbf617000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 35900 lbf160000 N
X31315M Series N/A 31315M d - Bore N/A 75.000 mm2.9528 in B - Cone Width N/A 37.000 mm1.4567 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 248000 N55800 lbf C0 - Static Radial Rating N/A 278000 N62500 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 97200 lbf432000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 25200 lbf112000 N
X32015X Series N/A 32015X d - Bore N/A 75.000 mm2.9528 in B - Cone Width N/A 25.000 mm0.9843 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 135000 N30400 lbf C0 - Static Radial Rating N/A 170000 N38200 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 52800 lbf235000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 13700 lbf60900 N
X32015XM Series N/A 32015XM d - Bore N/A 75.000 mm2.9528 in B - Cone Width N/A 25.000 mm0.9843 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 135000 N30400 lbf C0 - Static Radial Rating N/A 170000 N38200 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 52800 lbf235000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 13700 lbf60900 N
X32215 Series N/A 32215 d - Bore N/A 75.000 mm2.9528 in B - Cone Width N/A 31.000 mm1.2205 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 218000 N49000 lbf C0 - Static Radial Rating N/A 227000 N51100 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 85300 lbf379000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 22100 lbf98400 N
X32215M Series N/A 32215M d - Bore N/A 75.000 mm2.9528 in B - Cone Width N/A 31.000 mm1.2205 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 199000 N44800 lbf C0 - Static Radial Rating N/A 227000 N51100 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 78000 lbf347000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 20200 lbf89900 N
X32315M Series N/A 32315M d - Bore N/A 75.000 mm2.9528 in B - Cone Width N/A 55 mm2.1654 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 357000 N80300 lbf C0 - Static Radial Rating N/A 421000 N94600 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A
X33015 Series N/A 33015 d - Bore N/A 75.000 mm2.9528 in B - Cone Width N/A 31.000 mm1.2205 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 187000 N42000 lbf C0 - Static Radial Rating N/A 239000 N53700 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 73100 lbf325000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 19000 lbf84300 N
X33115 Series N/A 33115 d - Bore N/A 75.000 mm2.9528 in B - Cone Width N/A 37.000 mm1.4567 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 205000 N46000 lbf C0 - Static Radial Rating N/A 287000 N64500 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 80000 lbf356000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 20800 lbf92300 N
X33215 Series N/A 33215 d - Bore N/A 75.000 mm2.9528 in B - Cone Width N/A 41 mm1.6142 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 236000 N53100 lbf C0 - Static Radial Rating N/A 316000 N71000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 92500 lbf411000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 24000 lbf107000 N
XA30215M Series N/A 30215M d - Bore N/A 75.000 mm2.9528 in B - Cone Width N/A 25.000 mm0.9843 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 181000 N40600 lbf C0 - Static Radial Rating N/A 180000 N40400 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 70700 lbf314000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 18300 lbf81500 N
XAA33115 Series N/A 33115 d - Bore N/A 75.000 mm2.9528 in B - Cone Width N/A 37.000 mm1.4567 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 205000 N46000 lbf C0 - Static Radial Rating N/A 287000 N64500 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 80000 lbf356000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 20800 lbf92300 N
XAA33115M Series N/A 33115M d - Bore N/A 75.000 mm2.9528 in B - Cone Width N/A 37.000 mm1.4567 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 222000 N49800 lbf C0 - Static Radial Rating N/A 287000 N64500 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 86700 lbf386000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 22500 lbf100000 N
JM515649 Series N/A M515600 d - Bore N/A 80 mm3.1496 in B - Cone Width N/A 34.000 mm1.3386 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 235000 N52900 lbf C0 - Static Radial Rating N/A 283000 N63500 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 92100 lbf410000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 23900 lbf106000 N
JP8049 Series N/A JP8000 d - Bore N/A 80 mm3.1496 in B - Cone Width N/A 22.500 mm0.8858 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 107000 N24000 lbf C0 - Static Radial Rating N/A 141000 N31800 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 41800 lbf186000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 10800 lbf48300 N
JP8049H Series N/A JP8000 d - Bore N/A 80 mm3.1496 in B - Cone Width N/A 22.500 mm0.8858 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 107000 N24000 lbf C0 - Static Radial Rating N/A 141000 N31800 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 41800 lbf186000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 10800 lbf48300 N
JW8049 Series N/A JW8000 d - Bore N/A 80 mm3.1496 in B - Cone Width N/A 41 mm1.6142 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 313000 N70300 lbf C0 - Static Radial Rating N/A 339000 N76100 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 122000 lbf544000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 31700 lbf141000 N
X30216 Series N/A 30216 d - Bore N/A 80 mm3.1496 in B - Cone Width N/A 26.000 mm1.0236 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 164000 N36800 lbf C0 - Static Radial Rating N/A 187000 N42000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 64000 lbf285000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 16600 lbf73800 N
X30216M Series N/A 30216M d - Bore N/A 80 mm3.1496 in B - Cone Width N/A 26.000 mm1.0236 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 164000 N36800 lbf C0 - Static Radial Rating N/A 187000 N42000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 64000 lbf285000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 16600 lbf73800 N
X30316M Series N/A 30316M d - Bore N/A 80 mm3.1496 in B - Cone Width N/A 39 mm1.5354 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 334000 N75200 lbf C0 - Static Radial Rating N/A 381000 N85600 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 131000 lbf582000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 33900 lbf151000 N
X31316M Series N/A 31316 d - Bore N/A 80 mm3.1496 in B - Cone Width N/A 39 mm1.5354 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 321000 N72100 lbf C0 - Static Radial Rating N/A 312000 N70100 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 126000 lbf559000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 32600 lbf145000 N
X32016X Series N/A 32016X d - Bore N/A 80 mm3.1496 in B - Cone Width N/A 29.000 mm1.1417 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 197000 N44200 lbf C0 - Static Radial Rating N/A 238000 N53600 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 77000 lbf342000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 20000 lbf88800 N
X32016XM Series N/A 32016XM d - Bore N/A 80 mm3.1496 in B - Cone Width N/A 29.000 mm1.1417 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 197000 N44200 lbf C0 - Static Radial Rating N/A 238000 N53600 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 77000 lbf342000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 20000 lbf88800 N
X32016XSA Series N/A 32016X d - Bore N/A 80 mm3.1496 in B - Cone Width N/A 29.000 mm1.1417 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 197000 N44200 lbf C0 - Static Radial Rating N/A 238000 N53600 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 77000 lbf342000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 20000 lbf88800 N
X32216 Series N/A 32216 d - Bore N/A 80 mm3.1496 in B - Cone Width N/A 33.000 mm1.2992 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 206000 N46200 lbf C0 - Static Radial Rating N/A 249000 N56000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 80500 lbf358000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 20900 lbf92800 N
X32316M Series N/A 32316M d - Bore N/A 80 mm3.1496 in B - Cone Width N/A 58.000 mm2.2835 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 448000 N101000 lbf C0 - Static Radial Rating N/A 566000 N127000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 176000 lbf781000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 45500 lbf202000 N
X33016M Series N/A 33016 d - Bore N/A 80 mm3.1496 in B - Cone Width N/A 36 mm1.4173 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 210000 N47100 lbf C0 - Static Radial Rating N/A 315000 N70900 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 82100 lbf365000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 21300 lbf94600 N
X33116 Series N/A 33116 d - Bore N/A 80 mm3.1496 in B - Cone Width N/A 37.000 mm1.4567 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 193000 N43400 lbf C0 - Static Radial Rating N/A 300000 N67300 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 75600 lbf336000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 19600 lbf87200 N
X33116M Series N/A 33116M d - Bore N/A 80 mm3.1496 in B - Cone Width N/A 37.000 mm1.4567 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 209000 N46900 lbf C0 - Static Radial Rating N/A 300000 N67300 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 81700 lbf363000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 21200 lbf94200 N
X33216 Series N/A 33216 d - Bore N/A 80 mm3.1496 in B - Cone Width N/A 46.000 mm1.8110 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 297000 N66700 lbf C0 - Static Radial Rating N/A 409000 N91900 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 116000 lbf517000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 30100 lbf134000 N
X33216M Series N/A 33216M d - Bore N/A 80 mm3.1496 in B - Cone Width N/A 46.000 mm1.8110 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 352000 N79100 lbf C0 - Static Radial Rating N/A 409000 N91900 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 138000 lbf612000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 35700 lbf159000 N
XA33116M Series N/A 33116M d - Bore N/A 80 mm3.1496 in B - Cone Width N/A 37.000 mm1.4567 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 247000 N55600 lbf C0 - Static Radial Rating N/A 300000 N67300 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 96800 lbf431000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 25100 lbf112000 N
XUB-30216 Series N/A 30216 d - Bore N/A 80 mm3.1496 in B - Cone Width N/A 28.000 mm1.1024 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 164000 N36800 lbf C0 - Static Radial Rating N/A 187000 N42000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 64000 lbf285000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 16600 lbf73800 N
XUA32018X Series N/A 32018X d - Bore N/A 84.000 mm3.3071 in B - Cone Width N/A 32.000 mm1.2598 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 217000 N48800 lbf C0 - Static Radial Rating N/A 264000 N59400 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 85000 lbf378000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 22000 lbf98000 N
JH217249 Series N/A H217200 d - Bore N/A 85 mm3.3465 in B - Cone Width N/A 46.000 mm1.8110 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 393000 N88400 lbf C0 - Static Radial Rating N/A 446000 N100000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 154000 lbf685000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 39900 lbf178000 N
JHM516849 Series N/A HM516800 d - Bore N/A 85 mm3.3465 in B - Cone Width N/A 38.000 mm1.4961 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 282000 N63300 lbf C0 - Static Radial Rating N/A 339000 N76300 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 110000 lbf490000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 28600 lbf127000 N
JM716648 Series N/A M716600 d - Bore N/A 85 mm3.3465 in B - Cone Width N/A 29.000 mm1.1417 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 161000 N36300 lbf C0 - Static Radial Rating N/A 245000 N55100 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 63100 lbf281000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 16400 lbf72800 N
JM716649 Series N/A M716600 d - Bore N/A 85 mm3.3465 in B - Cone Width N/A 29.000 mm1.1417 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 161000 N36300 lbf C0 - Static Radial Rating N/A 245000 N55100 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 63100 lbf281000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 16400 lbf72800 N
JM716649N Series N/A M716600 d - Bore N/A 85 mm3.3465 in B - Cone Width N/A 29.000 mm1.1417 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 161000 N36300 lbf C0 - Static Radial Rating N/A 245000 N55100 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 63100 lbf281000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 16400 lbf72800 N
KJM716649 Series N/A M716600 d - Bore N/A 85 mm3.3465 in B - Cone Width N/A 29.000 mm1.1417 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 191000 N43000 lbf C0 - Static Radial Rating N/A 245000 N55100 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 74800 lbf333000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 19400 lbf86300 N
X30217 Series N/A 30217 d - Bore N/A 85 mm3.3465 in B - Cone Width N/A 28.000 mm1.1024 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 236000 N53100 lbf C0 - Static Radial Rating N/A 236000 N53000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 92500 lbf411000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 24000 lbf107000 N
X30317M Series N/A 30317M d - Bore N/A 85 mm3.3465 in B - Cone Width N/A 41 mm1.6142 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 313000 N70500 lbf C0 - Static Radial Rating N/A 346000 N77700 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 123000 lbf546000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 31800 lbf141000 N
X31317M Series N/A 31317 d - Bore N/A 85 mm3.3465 in B - Cone Width N/A 41 mm1.6142 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 308000 N69300 lbf C0 - Static Radial Rating N/A 366000 N82300 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 121000 lbf537000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 31300 lbf139000 N
X32017X Series N/A 32017X d - Bore N/A 85 mm3.3465 in B - Cone Width N/A 29.000 mm1.1417 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 193000 N43300 lbf C0 - Static Radial Rating N/A 235000 N52900 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 75400 lbf335000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 19600 lbf87000 N
X32217 Series N/A 32217 d - Bore N/A 85 mm3.3465 in B - Cone Width N/A 36 mm1.4173 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 245000 N55100 lbf C0 - Static Radial Rating N/A 305000 N68700 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 96000 lbf427000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 24900 lbf111000 N
X32217M Series N/A 32217M d - Bore N/A 85 mm3.3465 in B - Cone Width N/A 36 mm1.4173 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 245000 N55100 lbf C0 - Static Radial Rating N/A 305000 N68700 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 96000 lbf427000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 24900 lbf111000 N
X32317 Series N/A 32317 d - Bore N/A 85 mm3.3465 in B - Cone Width N/A 60.000 mm2.3622 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 570000 N128000 lbf C0 - Static Radial Rating N/A 588000 N132000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 223000 lbf992000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 57800 lbf257000 N
X33017 Series N/A 33017 d - Bore N/A 85 mm3.3465 in B - Cone Width N/A 36 mm1.4173 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 220000 N49500 lbf C0 - Static Radial Rating N/A 343000 N77100 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 86200 lbf383000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 22300 lbf99400 N
X33117 Series N/A 33117 d - Bore N/A 85 mm3.3465 in B - Cone Width N/A 41 mm1.6142 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 254000 N57100 lbf C0 - Static Radial Rating N/A 386000 N86800 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 99400 lbf442000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 25800 lbf115000 N
X33217 Series N/A 33217 d - Bore N/A 85 mm3.3465 in B - Cone Width N/A 49.000 mm1.9291 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 416000 N93600 lbf C0 - Static Radial Rating N/A 483000 N109000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 163000 lbf725000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 42200 lbf188000 N
XA32217M Series N/A 32217M d - Bore N/A 85 mm3.3465 in B - Cone Width N/A 36 mm1.4173 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 291000 N65300 lbf C0 - Static Radial Rating N/A 305000 N68700 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 114000 lbf506000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 29500 lbf131000 N
XAA32017X Series N/A 32017X d - Bore N/A 85 mm3.3465 in B - Cone Width N/A 29.000 mm1.1417 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 193000 N43300 lbf C0 - Static Radial Rating N/A 235000 N52900 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 75400 lbf335000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 19600 lbf87000 N
J90354 Series N/A 90000 d - Bore N/A 90 mm3.5433 in B - Cone Width N/A 46.038 mm1.8125 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 383000 N86100 lbf C0 - Static Radial Rating N/A 392000 N88100 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 150000 lbf667000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 38900 lbf173000 N
JHH221436 Series N/A HH221400 d - Bore N/A 90 mm3.5433 in B - Cone Width N/A 57.531 mm2.2650 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 534000 N120000 lbf C0 - Static Radial Rating N/A 692000 N156000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 209000 lbf929000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 54200 lbf241000 N
JHH221437P Series N/A HH221400 d - Bore N/A 90 mm3.5433 in B - Cone Width N/A 65.500 mm2.5787 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 578000 N130000 lbf C0 - Static Radial Rating N/A 692000 N156000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 226000 lbf1010000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 58700 lbf261000 N
JHM318448 Series N/A HM318400 d - Bore N/A 90 mm3.5433 in B - Cone Width N/A 44.000 mm1.7323 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 392000 N88100 lbf C0 - Static Radial Rating N/A 447000 N101000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 153000 lbf683000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 39800 lbf177000 N
JHM318448A Series N/A HM318400 d - Bore N/A 90 mm3.5433 in B - Cone Width N/A 44.000 mm1.7323 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 392000 N88100 lbf C0 - Static Radial Rating N/A 447000 N101000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 153000 lbf683000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 39800 lbf177000 N
JM718149 Series N/A M718100 d - Bore N/A 90 mm3.5433 in B - Cone Width N/A 34.000 mm1.3386 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 222000 N50000 lbf C0 - Static Radial Rating N/A 313000 N70500 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 87000 lbf387000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 22600 lbf100000 N
JM718149A Series N/A M718100 d - Bore N/A 90 mm3.5433 in B - Cone Width N/A 34.000 mm1.3386 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 222000 N50000 lbf C0 - Static Radial Rating N/A 313000 N70500 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 87000 lbf387000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 22600 lbf100000 N
JP9049 Series N/A JP9000 d - Bore N/A 90 mm3.5433 in B - Cone Width N/A 22.500 mm0.8858 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 128000 N28800 lbf C0 - Static Radial Rating N/A 155000 N34900 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 50200 lbf223000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 13000 lbf57900 N
JT9049 Series N/A JT9000 d - Bore N/A 90 mm3.5433 in B - Cone Width N/A 40.000 mm1.5748 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 298000 N67100 lbf C0 - Static Radial Rating N/A 386000 N86800 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 117000 lbf520000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 30300 lbf135000 N
KJT9049 Series N/A JT9000 d - Bore N/A 90 mm3.5433 in B - Cone Width N/A 40.000 mm1.5748 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 298000 N67100 lbf C0 - Static Radial Rating N/A 386000 N86800 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 117000 lbf520000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 30300 lbf135000 N
X30218M Series N/A 30218M d - Bore N/A 90 mm3.5433 in B - Cone Width N/A 30.000 mm1.1811 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 240000 N54100 lbf C0 - Static Radial Rating N/A 295000 N66200 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 94100 lbf419000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 24400 lbf109000 N
X30318M Series N/A 30318 d - Bore N/A 90 mm3.5433 in B - Cone Width N/A 43 mm1.6929 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 406000 N91300 lbf C0 - Static Radial Rating N/A 429000 N96500 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 159000 lbf707000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 41200 lbf183000 N
X31318M Series N/A 31318M d - Bore N/A 90 mm3.5433 in B - Cone Width N/A 43 mm1.6929 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 324000 N72800 lbf C0 - Static Radial Rating N/A 421000 N94600 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 127000 lbf564000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 32900 lbf146000 N
X32018X Series N/A 32018X d - Bore N/A 90 mm3.5433 in B - Cone Width N/A 32.000 mm1.2598 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 217000 N48800 lbf C0 - Static Radial Rating N/A 264000 N59400 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 85000 lbf378000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 22000 lbf98000 N
X32018XSA Series N/A 32018X d - Bore N/A 90 mm3.5433 in B - Cone Width N/A 32.000 mm1.2598 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 217000 N48800 lbf C0 - Static Radial Rating N/A 264000 N59400 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 85000 lbf378000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 22000 lbf98000 N
X32218M Series N/A 32218M d - Bore N/A 90 mm3.5433 in B - Cone Width N/A 40.000 mm1.5748 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 370000 N83200 lbf C0 - Static Radial Rating N/A 406000 N91200 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 145000 lbf645000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 37600 lbf167000 N
X32318M Series N/A 32318M d - Bore N/A 90 mm3.5433 in B - Cone Width N/A 64.000 mm2.5197 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 622000 N140000 lbf C0 - Static Radial Rating N/A 683000 N153000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 244000 lbf1080000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 63200 lbf281000 N
X33018 Series N/A 33018 d - Bore N/A 90 mm3.5433 in B - Cone Width N/A 39 mm1.5354 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 293000 N65900 lbf C0 - Static Radial Rating N/A 377000 N84700 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 115000 lbf510000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 29700 lbf132000 N
X33118 Series N/A 33118 d - Bore N/A 90 mm3.5433 in B - Cone Width N/A 45 mm1.7717 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 363000 N81600 lbf C0 - Static Radial Rating N/A 447000 N100000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 142000 lbf632000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 36800 lbf164000 N
X33118M Series N/A 33118M d - Bore N/A 90 mm3.5433 in B - Cone Width N/A 45 mm1.7717 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 363000 N81600 lbf C0 - Static Radial Rating N/A 447000 N100000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 142000 lbf632000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 36800 lbf164000 N
XAA32018X Series N/A 32018X d - Bore N/A 90 mm3.5433 in B - Cone Width N/A 32.000 mm1.2598 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 217000 N48800 lbf C0 - Static Radial Rating N/A 264000 N59400 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 85000 lbf378000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 22000 lbf98000 N
JF9549 Series N/A JF9500 d - Bore N/A 95 mm3.7402 in B - Cone Width N/A 46.000 mm1.8110 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 354000 N79700 lbf C0 - Static Radial Rating N/A 506000 N114000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 139000 lbf617000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 36000 lbf160000 N
JL819349 Series N/A L819300 d - Bore N/A 95 mm3.7402 in B - Cone Width N/A 20.000 mm0.7874 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 98400 N22100 lbf C0 - Static Radial Rating N/A 133000 N29900 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 38500 lbf171000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 9990 lbf44400 N
JM719149 Series N/A M719100 d - Bore N/A 95 mm3.7402 in B - Cone Width N/A 34.000 mm1.3386 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 215000 N48300 lbf C0 - Static Radial Rating N/A 316000 N71100 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 84000 lbf374000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 21800 lbf96900 N
JP10044 Series N/A JP10000 d - Bore N/A 95 mm3.7402 in B - Cone Width N/A 22.500 mm0.8858 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 125000 N28200 lbf C0 - Static Radial Rating N/A 172000 N38700 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 49100 lbf218000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 12700 lbf56600 N
KJF9549 Series N/A JF9500 d - Bore N/A 95 mm3.7402 in B - Cone Width N/A 46.000 mm1.8110 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 420000 N94400 lbf C0 - Static Radial Rating N/A 506000 N114000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 164000 lbf731000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 42600 lbf190000 N
X30219 Series N/A 30219 d - Bore N/A 95 mm3.7402 in B - Cone Width N/A 32.000 mm1.2598 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 265000 N59700 lbf C0 - Static Radial Rating N/A 327000 N73400 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 104000 lbf462000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 26900 lbf120000 N
X30319M Series N/A 30319 d - Bore N/A 95 mm3.7402 in B - Cone Width N/A 45 mm1.7717 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 404000 N90800 lbf C0 - Static Radial Rating N/A 492000 N111000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 158000 lbf703000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 41000 lbf182000 N
X32019X Series N/A 32019X d - Bore N/A 95 mm3.7402 in B - Cone Width N/A 32.000 mm1.2598 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 220000 N49500 lbf C0 - Static Radial Rating N/A 274000 N61500 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 86200 lbf384000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 22400 lbf99500 N
X32019XM Series N/A 32019XM d - Bore N/A 95 mm3.7402 in B - Cone Width N/A 32.000 mm1.2598 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 201000 N45300 lbf C0 - Static Radial Rating N/A 274000 N61500 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 78800 lbf351000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 20400 lbf90900 N
X32219 Series N/A 32219 d - Bore N/A 95 mm3.7402 in B - Cone Width N/A 43 mm1.6929 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 316000 N71100 lbf C0 - Static Radial Rating N/A 401000 N90100 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 124000 lbf551000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 32100 lbf143000 N
X32219M Series N/A 32219M d - Bore N/A 95 mm3.7402 in B - Cone Width N/A 43 mm1.6929 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 375000 N84300 lbf C0 - Static Radial Rating N/A 401000 N90100 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 147000 lbf653000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 38000 lbf169000 N
X32319M Series N/A 32319 d - Bore N/A 95 mm3.7402 in B - Cone Width N/A 67 mm2.6378 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 626000 N141000 lbf C0 - Static Radial Rating N/A 714000 N161000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 245000 lbf1090000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 63600 lbf283000 N
X33019 Series N/A 33019 d - Bore N/A 95 mm3.7402 in B - Cone Width N/A 39 mm1.5354 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 246000 N55300 lbf C0 - Static Radial Rating N/A 378000 N85100 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 96400 lbf429000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 25000 lbf111000 N
XAA32019X Series N/A 32019X d - Bore N/A 95 mm3.7402 in B - Cone Width N/A 32.000 mm1.2598 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 220000 N49500 lbf C0 - Static Radial Rating N/A 274000 N61500 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 86200 lbf384000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 22400 lbf99500 N
XAA32019XM Series N/A 32019XM d - Bore N/A 95 mm3.7402 in B - Cone Width N/A 32.000 mm1.2598 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 201000 N45300 lbf C0 - Static Radial Rating N/A 274000 N61500 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 78800 lbf351000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 20400 lbf90900 N
XAA32219M Series N/A 32219M d - Bore N/A 95 mm3.7402 in B - Cone Width N/A 43 mm1.6929 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 375000 N84300 lbf C0 - Static Radial Rating N/A 401000 N90100 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 147000 lbf653000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 38000 lbf169000 N
XAA33019 Series N/A 33019 d - Bore N/A 95 mm3.7402 in B - Cone Width N/A 39 mm1.5354 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 246000 N55300 lbf C0 - Static Radial Rating N/A 378000 N85100 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 96400 lbf429000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 25000 lbf111000 N
JHH224333 Series N/A HH224300 d - Bore N/A 100 mm3.937 in B - Cone Width N/A 66.675 mm2.6250 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 680000 N153000 lbf C0 - Static Radial Rating N/A 906000 N204000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 266000 lbf1180000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 69000 lbf307000 N
JHM720249 Series N/A HM720200 d - Bore N/A 100 mm3.937 in B - Cone Width N/A 40.000 mm1.5748 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 331000 N74400 lbf C0 - Static Radial Rating N/A 416000 N93500 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 130000 lbf576000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 33600 lbf149000 N
JLM820048 Series N/A LM820000 d - Bore N/A 100 mm3.937 in B - Cone Width N/A 30.000 mm1.1811 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 162000 N36500 lbf C0 - Static Radial Rating N/A 242000 N54400 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 63600 lbf283000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 16500 lbf73300 N
JM720249 Series N/A M720200 d - Bore N/A 100 mm3.937 in B - Cone Width N/A 35.000 mm1.3780 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 231000 N52000 lbf C0 - Static Radial Rating N/A 355000 N79900 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 90600 lbf403000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 23500 lbf104000 N
JP10049 Series N/A JP10000 d - Bore N/A 100 mm3.937 in B - Cone Width N/A 22.500 mm0.8858 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 125000 N28200 lbf C0 - Static Radial Rating N/A 172000 N38700 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 49100 lbf218000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 12700 lbf56600 N
JP10049A Series N/A JP10000 d - Bore N/A 100 mm3.937 in B - Cone Width N/A 22.500 mm0.8858 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 149000 N33400 lbf C0 - Static Radial Rating N/A 172000 N38700 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 58200 lbf259000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 15100 lbf67100 N
KJHM720249 Series N/A HM720200 d - Bore N/A 100 mm3.937 in B - Cone Width N/A 40.000 mm1.5748 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 331000 N74400 lbf C0 - Static Radial Rating N/A 416000 N93500 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 130000 lbf576000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 33600 lbf149000 N
X30220M Series N/A 30220M d - Bore N/A 100 mm3.937 in B - Cone Width N/A 34.000 mm1.3386 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 301000 N67600 lbf C0 - Static Radial Rating N/A 375000 N84300 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 118000 lbf524000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 30500 lbf136000 N
X30320M Series N/A 30320 d - Bore N/A 100 mm3.937 in B - Cone Width N/A 47 mm1.8504 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 486000 N109000 lbf C0 - Static Radial Rating N/A 579000 N130000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 190000 lbf846000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 49300 lbf219000 N
X31320XM Series N/A 31320X d - Bore N/A 100 mm3.937 in B - Cone Width N/A 51 mm2.0079 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 441000 N99100 lbf C0 - Static Radial Rating N/A 526000 N118000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 173000 lbf768000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 44700 lbf199000 N
X32020X Series N/A 32020X d - Bore N/A 100 mm3.937 in B - Cone Width N/A 32.000 mm1.2598 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 231000 N51800 lbf C0 - Static Radial Rating N/A 295000 N66400 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 90300 lbf401000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 23400 lbf104000 N
X32020XM Series N/A 32020XM d - Bore N/A 100 mm3.937 in B - Cone Width N/A 32.000 mm1.2598 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 211000 N47400 lbf C0 - Static Radial Rating N/A 295000 N66400 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 82500 lbf367000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 21400 lbf95100 N
X32220 Series N/A 32220 d - Bore N/A 100 mm3.937 in B - Cone Width N/A 46.000 mm1.8110 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 368000 N82700 lbf C0 - Static Radial Rating N/A 478000 N107000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 144000 lbf640000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 37300 lbf166000 N
X32320M Series N/A 32320M d - Bore N/A 100 mm3.937 in B - Cone Width N/A 73.000 mm2.8740 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 621000 N140000 lbf C0 - Static Radial Rating N/A 883000 N198000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 243000 lbf1080000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 63000 lbf280000 N
X33020 Series N/A 33020 d - Bore N/A 100 mm3.937 in B - Cone Width N/A 39 mm1.5354 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 251000 N56300 lbf C0 - Static Radial Rating N/A 393000 N88300 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 98100 lbf436000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 25400 lbf113000 N
X33220M Series N/A 33220 d - Bore N/A 100 mm3.937 in B - Cone Width N/A 63 mm2.4803 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 488000 N110000 lbf C0 - Static Radial Rating N/A 679000 N153000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 191000 lbf850000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 49600 lbf220000 N
XA30220M Series N/A 30220M d - Bore N/A 100 mm3.937 in B - Cone Width N/A 34.000 mm1.3386 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 357000 N80200 lbf C0 - Static Radial Rating N/A 375000 N84300 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 140000 lbf621000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 36200 lbf161000 N
XAA32020X Series N/A 32020X d - Bore N/A 100 mm3.937 in B - Cone Width N/A 32.000 mm1.2598 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 231000 N51800 lbf C0 - Static Radial Rating N/A 295000 N66400 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 90300 lbf401000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 23400 lbf104000 N
X30221M Series N/A 30221M d - Bore N/A 105.000 mm4.1339 in B - Cone Width N/A 36 mm1.4173 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 325000 N73200 lbf C0 - Static Radial Rating N/A 407000 N91400 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 127000 lbf567000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 33000 lbf147000 N
X32021X Series N/A 32021X d - Bore N/A 105.000 mm4.1339 in B - Cone Width N/A 35.000 mm1.3780 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 269000 N60500 lbf C0 - Static Radial Rating N/A 339000 N76200 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 105000 lbf468000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 27300 lbf121000 N
X32021XM Series N/A 32021XM d - Bore N/A 105.000 mm4.1339 in B - Cone Width N/A 35.000 mm1.3780 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 269000 N60500 lbf C0 - Static Radial Rating N/A 339000 N76200 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 105000 lbf468000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 27300 lbf121000 N
X32021XSA Series N/A 32021X d - Bore N/A 105.000 mm4.1339 in B - Cone Width N/A 35.000 mm1.3780 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 269000 N60500 lbf C0 - Static Radial Rating N/A 339000 N76200 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 105000 lbf468000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 27300 lbf121000 N
X32221 Series N/A 32221 d - Bore N/A 105.000 mm4.1339 in B - Cone Width N/A 50 mm1.9685 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 398000 N89600 lbf C0 - Static Radial Rating N/A 516000 N116000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 156000 lbf694000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 40400 lbf180000 N
X32221M Series N/A 32221M d - Bore N/A 105.000 mm4.1339 in B - Cone Width N/A 50 mm1.9685 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 472000 N106000 lbf C0 - Static Radial Rating N/A 516000 N116000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 185000 lbf822000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 47900 lbf213000 N
X32321M Series N/A 32321M d - Bore N/A 105.000 mm4.1338 in B - Cone Width N/A 77.000 mm3.0315 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 769000 N173000 lbf C0 - Static Radial Rating N/A 989000 N222000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 301000 lbf1340000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 78000 lbf347000 N
X33021 Series N/A 33021 d - Bore N/A 105.000 mm4.1339 in B - Cone Width N/A 43 mm1.6929 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 291000 N65400 lbf C0 - Static Radial Rating N/A 449000 N101000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 114000 lbf506000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 29500 lbf131000 N
XAA32221 Series N/A 32221 d - Bore N/A 105.000 mm4.1339 in B - Cone Width N/A 50 mm1.9685 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 398000 N89600 lbf C0 - Static Radial Rating N/A 516000 N116000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 156000 lbf694000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 40400 lbf180000 N
XGA32021X Series N/A 32021X d - Bore N/A 106.000 mm4.1732 in B - Cone Width N/A 35.000 mm1.3780 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 269000 N60500 lbf C0 - Static Radial Rating N/A 339000 N76200 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 105000 lbf468000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 27300 lbf121000 N
JHM522649 Series N/A HM522600 d - Bore N/A 110 mm4.3307 in B - Cone Width N/A 46.000 mm1.8110 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 371000 N83500 lbf C0 - Static Radial Rating N/A 554000 N125000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 145000 lbf647000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 37700 lbf168000 N
JHM522649A Series N/A HM522600 d - Bore N/A 110 mm4.3307 in B - Cone Width N/A 46.000 mm1.8110 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 371000 N83500 lbf C0 - Static Radial Rating N/A 554000 N125000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 145000 lbf647000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 37700 lbf168000 N
JHM522649AC Series N/A HM522600 d - Bore N/A 110 mm4.3307 in B - Cone Width N/A 46.000 mm1.8110 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 440000 N98900 lbf C0 - Static Radial Rating N/A 554000 N125000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 172000 lbf766000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 44700 lbf199000 N
JHM522649C Series N/A HM522600 d - Bore N/A 110 mm4.3307 in B - Cone Width N/A 46.000 mm1.8110 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 440000 N98900 lbf C0 - Static Radial Rating N/A 554000 N125000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 172000 lbf766000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 44700 lbf199000 N
JM822049 Series N/A M822000 d - Bore N/A 110 mm4.3307 in B - Cone Width N/A 35.000 mm1.3780 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 227000 N51100 lbf C0 - Static Radial Rating N/A 356000 N80100 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 88900 lbf396000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 23100 lbf103000 N
JM822049H Series N/A M822000 d - Bore N/A 110 mm4.3307 in B - Cone Width N/A 35.000 mm1.3780 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 215000 N48400 lbf C0 - Static Radial Rating N/A 330000 N74100 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 84300 lbf375000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 21800 lbf97200 N
JM822049N Series N/A M822000 d - Bore N/A 110 mm4.3307 in B - Cone Width N/A 35.000 mm1.3780 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 227000 N51100 lbf C0 - Static Radial Rating N/A 356000 N80100 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 88900 lbf396000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 23100 lbf103000 N
KJHM522649 Series N/A HM522600 d - Bore N/A 110 mm4.3307 in B - Cone Width N/A 46.000 mm1.8110 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 440000 N98900 lbf C0 - Static Radial Rating N/A 554000 N125000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 172000 lbf766000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 44700 lbf199000 N
X30222M Series N/A 30222M d - Bore N/A 110 mm4.3307 in B - Cone Width N/A 38.000 mm1.4961 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 374000 N84000 lbf C0 - Static Radial Rating N/A 475000 N107000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 146000 lbf651000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 37900 lbf169000 N
X30322M Series N/A 30322 d - Bore N/A 110 mm4.3307 in B - Cone Width N/A 50 mm1.9685 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 576000 N130000 lbf C0 - Static Radial Rating N/A 732000 N165000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 226000 lbf1000000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 58500 lbf260000 N
X32022X Series N/A 32022X d - Bore N/A 110 mm4.3307 in B - Cone Width N/A 38.000 mm1.4961 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 334000 N75000 lbf C0 - Static Radial Rating N/A 433000 N97300 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 131000 lbf581000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 33900 lbf151000 N
X32222M Series N/A 32222M d - Bore N/A 110 mm4.3307 in B - Cone Width N/A 53.000 mm2.0866 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 493000 N111000 lbf C0 - Static Radial Rating N/A 668000 N150000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 193000 lbf858000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 50000 lbf222000 N
X32322M Series N/A 32322 d - Bore N/A 110 mm4.3307 in B - Cone Width N/A 80 mm3.1496 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 760000 N171000 lbf C0 - Static Radial Rating N/A 1020000 N229000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 298000 lbf1320000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 77200 lbf343000 N
X33022 Series N/A 33022 d - Bore N/A 110 mm4.3307 in B - Cone Width N/A 47 mm1.8504 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 404000 N90700 lbf C0 - Static Radial Rating N/A 563000 N126000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 158000 lbf703000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 41000 lbf182000 N
X33122M Series N/A 33122 d - Bore N/A 110 mm4.3307 in B - Cone Width N/A 56 mm2.2047 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 412000 N92700 lbf C0 - Static Radial Rating N/A 635000 N143000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 161000 lbf718000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 41900 lbf186000 N
JL724346 Series N/A L724300 d - Bore N/A 115.000 mm4.5276 in B - Cone Width N/A 25.400 mm1.0000 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 134000 N30200 lbf C0 - Static Radial Rating N/A 231000 N52000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 52600 lbf234000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 13600 lbf60600 N
JLM722948 Series N/A LM722900 d - Bore N/A 115.000 mm4.5276 in B - Cone Width N/A 27.000 mm1.0630 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 160000 N35900 lbf C0 - Static Radial Rating N/A 245000 N55100 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 62500 lbf278000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 16200 lbf72100 N
JL724348 Series N/A L724300 d - Bore N/A 120 mm4.7244 in B - Cone Width N/A 25.400 mm1.0000 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 145000 N32600 lbf C0 - Static Radial Rating N/A 231000 N52000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 56800 lbf252000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 14700 lbf65500 N
JM624649 Series N/A M624600 d - Bore N/A 120 mm4.7244 in B - Cone Width N/A 36 mm1.4173 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 247000 N55500 lbf C0 - Static Radial Rating N/A 377000 N84700 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 96700 lbf430000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 25100 lbf111000 N
JP12049 Series N/A JP12000 d - Bore N/A 120 mm4.7244 in B - Cone Width N/A 25.000 mm0.9843 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 196000 N44100 lbf C0 - Static Radial Rating N/A 238000 N53500 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 76700 lbf341000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 19900 lbf88500 N
JP12049A Series N/A JP12000 d - Bore N/A 120 mm4.7244 in B - Cone Width N/A 25.000 mm0.9843 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 196000 N44100 lbf C0 - Static Radial Rating N/A 238000 N53500 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 76700 lbf341000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 19900 lbf88500 N
X30224M Series N/A 30224M d - Bore N/A 120 mm4.7244 in B - Cone Width N/A 40.000 mm1.5748 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 396000 N89100 lbf C0 - Static Radial Rating N/A 508000 N114000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 155000 lbf690000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 40200 lbf179000 N
X31324XM Series N/A 31324X d - Bore N/A 120 mm4.7244 in B - Cone Width N/A 62 mm2.4409 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 642000 N144000 lbf C0 - Static Radial Rating N/A 777000 N175000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 251000 lbf1120000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 65200 lbf290000 N
X32024X Series N/A 32024X d - Bore N/A 120 mm4.7244 in B - Cone Width N/A 38.000 mm1.4961 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 292000 N65700 lbf C0 - Static Radial Rating N/A 466000 N105000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 114000 lbf509000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 29700 lbf132000 N
X32024XM Series N/A 32024XM d - Bore N/A 120 mm4.7244 in B - Cone Width N/A 38.000 mm1.4961 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 347000 N77900 lbf C0 - Static Radial Rating N/A 466000 N105000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 136000 lbf603000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 35200 lbf156000 N
X32224M Series N/A 32224M d - Bore N/A 120 mm4.7244 in B - Cone Width N/A 58.000 mm2.2835 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 586000 N132000 lbf C0 - Static Radial Rating N/A 831000 N187000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 229000 lbf1020000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 59400 lbf264000 N
X32924M Series N/A 32924M d - Bore N/A 120 mm4.7244 in B - Cone Width N/A 29.000 mm1.1417 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 179000 N40300 lbf C0 - Static Radial Rating N/A 308000 N69300 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 70200 lbf312000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 18200 lbf81000 N
X33024M Series N/A 33024M d - Bore N/A 120 mm4.7244 in B - Cone Width N/A 48 mm1.8898 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 418000 N93900 lbf C0 - Static Radial Rating N/A 603000 N135000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 163000 lbf727000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 42400 lbf188000 N
X33024P Series N/A 33024 d - Bore N/A 120 mm4.7244 in B - Cone Width N/A 48 mm1.8898 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 418000 N93900 lbf C0 - Static Radial Rating N/A 603000 N135000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 163000 lbf727000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 42400 lbf188000 N
XAA32024X Series N/A 32024X d - Bore N/A 120 mm4.7244 in B - Cone Width N/A 38.000 mm1.4961 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 347000 N77900 lbf C0 - Static Radial Rating N/A 466000 N105000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 136000 lbf603000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 35200 lbf156000 N
JL725346 Series N/A L725300 d - Bore N/A 125.000 mm4.9213 in B - Cone Width N/A 25.400 mm1.0000 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 150000 N33700 lbf C0 - Static Radial Rating N/A 246000 N55300 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 58800 lbf261000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 15200 lbf67800 N
JP13049 Series N/A JP13000 d - Bore N/A 130 mm5.1181 in B - Cone Width N/A 27.000 mm1.0630 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 196000 N44000 lbf C0 - Static Radial Rating N/A 283000 N63600 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 76700 lbf341000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 19900 lbf88400 N
JP13049A Series N/A JP13000 d - Bore N/A 130 mm5.1181 in B - Cone Width N/A 27.000 mm1.0630 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 196000 N44000 lbf C0 - Static Radial Rating N/A 283000 N63600 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 76700 lbf341000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 19900 lbf88400 N
KJH429148 Series N/A H429100 d - Bore N/A 130 mm5.1181 in B - Cone Width N/A 72.000 mm2.8346 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 654000 N147000 lbf C0 - Static Radial Rating N/A 955000 N215000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 256000 lbf1140000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 66400 lbf295000 N
KJP13049A Series N/A JP13000 d - Bore N/A 130 mm5.1181 in B - Cone Width N/A 27.000 mm1.0630 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 251000 N56300 lbf C0 - Static Radial Rating N/A 315000 N70900 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 98100 lbf436000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 25400 lbf113000 N
X31326M Series N/A 31326M d - Bore N/A 130 mm5.1181 in B - Cone Width N/A 66.000 mm2.5984 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 691000 N155000 lbf C0 - Static Radial Rating N/A 966000 N217000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 270000 lbf1200000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 70100 lbf312000 N
X32026XM Series N/A 32026XM d - Bore N/A 130 mm5.1181 in B - Cone Width N/A 45 mm1.7717 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 386000 N86900 lbf C0 - Static Radial Rating N/A 617000 N139000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 151000 lbf673000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 39200 lbf174000 N
X32226M Series N/A 32226M d - Bore N/A 130 mm5.1181 in B - Cone Width N/A 64.000 mm2.5197 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 809000 N182000 lbf C0 - Static Radial Rating N/A 982000 N221000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 317000 lbf1410000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 82100 lbf365000 N
X32326M Series N/A 32326 d - Bore N/A 130 mm5.1181 in B - Cone Width N/A 93 mm3.6614 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 1120000 N252000 lbf C0 - Static Radial Rating N/A 1460000 N329000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 439000 lbf1950000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 114000 lbf506000 N
X32926M Series N/A 32926M d - Bore N/A 130 mm5.1181 in B - Cone Width N/A 32.000 mm1.2598 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 210000 N47200 lbf C0 - Static Radial Rating N/A 356000 N80000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 82200 lbf366000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 21300 lbf94800 N
JP14049 Series N/A JP14000 d - Bore N/A 140 mm5.5118 in B - Cone Width N/A 27.000 mm1.0630 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 203000 N45700 lbf C0 - Static Radial Rating N/A 304000 N68400 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 79500 lbf354000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 20600 lbf91700 N
X30228M Series N/A 30228M d - Bore N/A 140 mm5.5118 in B - Cone Width N/A 42.000 mm1.6535 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 502000 N113000 lbf C0 - Static Radial Rating N/A 649000 N146000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 196000 lbf873000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 50900 lbf226000 N
X31328X Series N/A 31328X d - Bore N/A 140 mm5.5118 in B - Cone Width N/A 70 mm2.7559 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 900000 N202000 lbf C0 - Static Radial Rating N/A 1020000 N230000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 352000 lbf1570000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 91300 lbf406000 N
X32028XM Series N/A 32028XM d - Bore N/A 140 mm5.5118 in B - Cone Width N/A 45 mm1.7717 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 393000 N88400 lbf C0 - Static Radial Rating N/A 644000 N145000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 154000 lbf685000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 39900 lbf177000 N
X32228M Series N/A 32228 d - Bore N/A 140 mm5.5118 in B - Cone Width N/A 68 mm2.6772 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 748000 N168000 lbf C0 - Static Radial Rating N/A 1070000 N241000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 293000 lbf1300000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 75900 lbf338000 N
X32928M Series N/A 32928M d - Bore N/A 140 mm5.5118 in B - Cone Width N/A 32.000 mm1.2598 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 226000 N50900 lbf C0 - Static Radial Rating N/A 404000 N90700 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 88600 lbf394000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 23000 lbf102000 N
XAA32028XM Series N/A 32028XM d - Bore N/A 140 mm5.5118 in B - Cone Width N/A 45 mm1.7717 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 393000 N88400 lbf C0 - Static Radial Rating N/A 644000 N145000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 154000 lbf685000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 39900 lbf177000 N
J450590 Series N/A 450000 d - Bore N/A 150 mm5.9055 in B - Cone Width N/A 80 mm3.1496 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 994000 N224000 lbf C0 - Static Radial Rating N/A 1480000 N333000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 389000 lbf1730000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 101000 lbf449000 N
JL730646 Series N/A L730600 d - Bore N/A 150 mm5.9055 in B - Cone Width N/A 28.575 mm1.1250 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 194000 N43500 lbf C0 - Static Radial Rating N/A 339000 N76100 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 75800 lbf337000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 19700 lbf87400 N
X30230M Series N/A 30230M d - Bore N/A 150 mm5.9055 in B - Cone Width N/A 45 mm1.7717 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 565000 N127000 lbf C0 - Static Radial Rating N/A 735000 N165000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 221000 lbf983000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 57300 lbf255000 N
X31330M Series N/A 31330M d - Bore N/A 150 mm5.9055 in B - Cone Width N/A 75.000 mm2.9528 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 862000 N194000 lbf C0 - Static Radial Rating N/A 1200000 N270000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 338000 lbf1500000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 87500 lbf389000 N
X32030XM Series N/A 32030XM d - Bore N/A 150 mm5.9055 in B - Cone Width N/A 48 mm1.8898 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 443000 N99500 lbf C0 - Static Radial Rating N/A 730000 N164000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 173000 lbf771000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 44900 lbf200000 N
X32230M Series N/A 32230M d - Bore N/A 150 mm5.9055 in B - Cone Width N/A 73.000 mm2.8740 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 851000 N191000 lbf C0 - Static Radial Rating N/A 1230000 N276000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 333000 lbf1480000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 86300 lbf384000 N
X32930M Series N/A 32930M d - Bore N/A 150 mm5.9055 in B - Cone Width N/A 38.000 mm1.4961 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 324000 N72800 lbf C0 - Static Radial Rating N/A 573000 N129000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 127000 lbf564000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 32900 lbf146000 N
X33030M Series N/A 33030 d - Bore N/A 150 mm5.9055 in B - Cone Width N/A 59 mm2.3228 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 561000 N126000 lbf C0 - Static Radial Rating N/A 949000 N213000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 220000 lbf977000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 56900 lbf253000 N
JHM133449 Series N/A HM133400 d - Bore N/A 160 mm6.2992 in B - Cone Width N/A 69.850 mm2.7500 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 635000 N143000 lbf C0 - Static Radial Rating N/A 1040000 N233000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 249000 lbf1110000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 64500 lbf287000 N
JM734445 Series N/A M734400 d - Bore N/A 160 mm6.2992 in B - Cone Width N/A 44.500 mm1.7520 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 401000 N90200 lbf C0 - Static Radial Rating N/A 759000 N171000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 157000 lbf699000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 40700 lbf181000 N
JP16049 Series N/A JP16000 d - Bore N/A 160 mm6.2992 in B - Cone Width N/A 30.000 mm1.1811 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 242000 N54400 lbf C0 - Static Radial Rating N/A 372000 N83700 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 94700 lbf421000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 24600 lbf109000 N
X30232M Series N/A 30232 d - Bore N/A 160 mm6.2992 in B - Cone Width N/A 48 mm1.8898 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 657000 N148000 lbf C0 - Static Radial Rating N/A 868000 N195000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 257000 lbf1140000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 66700 lbf297000 N
X32032 Series N/A 32032 d - Bore N/A 160 mm6.2992 in B - Cone Width N/A 51 mm2.0079 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 516000 N116000 lbf C0 - Static Radial Rating N/A 801000 N180000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 202000 lbf899000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 52400 lbf233000 N
X32032XM Series N/A 32032XM d - Bore N/A 160 mm6.2992 in B - Cone Width N/A 51 mm2.0079 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 611000 N137000 lbf C0 - Static Radial Rating N/A 867000 N195000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 239000 lbf1060000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 62000 lbf276000 N
X32232 Series N/A 32232 d - Bore N/A 160 mm6.2992 in B - Cone Width N/A 80 mm3.1496 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 1020000 N229000 lbf C0 - Static Radial Rating N/A 1630000 N366000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 399000 lbf1770000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 103000 lbf460000 N
JHM534149 Series N/A HM534100 d - Bore N/A 170 mm6.6929 in B - Cone Width N/A 38.000 mm1.4961 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 335000 N75300 lbf C0 - Static Radial Rating N/A 590000 N133000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 131000 lbf583000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 34000 lbf151000 N
JM734449 Series N/A M734400 d - Bore N/A 170 mm6.6929 in B - Cone Width N/A 44.500 mm1.7520 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 401000 N90200 lbf C0 - Static Radial Rating N/A 759000 N171000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 157000 lbf699000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 40700 lbf181000 N
JM734449A Series N/A M734400 d - Bore N/A 170 mm6.6929 in B - Cone Width N/A 44.500 mm1.7520 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 383000 N86100 lbf C0 - Static Radial Rating N/A 710000 N160000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 150000 lbf667000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 38900 lbf173000 N
JM734449V Series N/A M734400 d - Bore N/A 170 mm6.6929 in B - Cone Width N/A 44.500 mm1.7520 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 460000 N103000 lbf C0 - Static Radial Rating N/A 759000 N171000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 180000 lbf801000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 46700 lbf208000 N
JP17049 Series N/A JP17000 d - Bore N/A 170 mm6.6929 in B - Cone Width N/A 30.000 mm1.1811 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 252000 N56700 lbf C0 - Static Radial Rating N/A 436000 N98100 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 98800 lbf439000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 25600 lbf114000 N
KJP17049 Series N/A JP17000C d - Bore N/A 170 mm6.6929 in B - Cone Width N/A 30.000 mm1.1811 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 252000 N56700 lbf C0 - Static Radial Rating N/A 436000 N98100 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 98800 lbf439000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 25600 lbf114000 N
X30234 Series N/A 30234 d - Bore N/A 170 mm6.6929 in B - Cone Width N/A 52 mm2.0472 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 780000 N175000 lbf C0 - Static Radial Rating N/A 1000000 N225000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 305000 lbf1360000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 79200 lbf352000 N
X32034XM Series N/A 32034XM d - Bore N/A 170 mm6.6929 in B - Cone Width N/A 57.000 mm2.2441 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 610000 N137000 lbf C0 - Static Radial Rating N/A 1020000 N229000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 239000 lbf1060000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 61900 lbf275000 N
X32234M Series N/A 32234 d - Bore N/A 170 mm6.6929 in B - Cone Width N/A 86 mm3.3858 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 1110000 N250000 lbf C0 - Static Radial Rating N/A 1750000 N394000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 435000 lbf1940000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 113000 lbf502000 N
X32934M Series N/A 32934M d - Bore N/A 170 mm6.6929 in B - Cone Width N/A 38.000 mm1.4961 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 348000 N78300 lbf C0 - Static Radial Rating N/A 637000 N143000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 136000 lbf607000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 35300 lbf157000 N
JM736149 Series N/A M736100 d - Bore N/A 180 mm7.0866 in B - Cone Width N/A 45 mm1.7717 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 409000 N92000 lbf C0 - Static Radial Rating N/A 786000 N177000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 160000 lbf712000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 41500 lbf185000 N
JM736149A Series N/A M736100 d - Bore N/A 180 mm7.0866 in B - Cone Width N/A 45 mm1.7717 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 409000 N92000 lbf C0 - Static Radial Rating N/A 786000 N177000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 160000 lbf712000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 41500 lbf185000 N
JM736149AA Series N/A M736100 d - Bore N/A 180 mm7.0866 in B - Cone Width N/A 45 mm1.7717 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 409000 N92000 lbf C0 - Static Radial Rating N/A 786000 N177000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 160000 lbf712000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 41500 lbf185000 N
JP18049 Series N/A JP18000 d - Bore N/A 180 mm7.0866 in B - Cone Width N/A 30.000 mm1.1811 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 239000 N53600 lbf C0 - Static Radial Rating N/A 409000 N92000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 93400 lbf415000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 24200 lbf108000 N
X30236M Series N/A 30236 d - Bore N/A 180 mm7.0866 in B - Cone Width N/A 52 mm2.0472 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 690000 N155000 lbf C0 - Static Radial Rating N/A 1050000 N235000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 270000 lbf1200000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 70100 lbf312000 N
X32036XM Series N/A 32036XM d - Bore N/A 180 mm7.0866 in B - Cone Width N/A 64.000 mm2.5197 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 707000 N159000 lbf C0 - Static Radial Rating N/A 1240000 N280000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 277000 lbf1230000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 71700 lbf319000 N
X32236 Series N/A 32236 d - Bore N/A 180 mm7.0866 in B - Cone Width N/A 86 mm3.3858 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 1140000 N255000 lbf C0 - Static Radial Rating N/A 1900000 N427000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 444000 lbf1980000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 115000 lbf512000 N
X32936M Series N/A 32936M d - Bore N/A 180 mm7.0866 in B - Cone Width N/A 45 mm1.7717 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 403000 N90600 lbf C0 - Static Radial Rating N/A 795000 N179000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 158000 lbf702000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 40900 lbf182000 N
JM738249 Series N/A M738200 d - Bore N/A 190 mm7.4803 in B - Cone Width N/A 44.000 mm1.7323 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 407000 N91500 lbf C0 - Static Radial Rating N/A 807000 N181000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 159000 lbf708000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 41300 lbf184000 N
JM738249A Series N/A M738200 d - Bore N/A 190 mm7.4803 in B - Cone Width N/A 44.000 mm1.7323 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 407000 N91500 lbf C0 - Static Radial Rating N/A 807000 N181000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 159000 lbf708000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 41300 lbf184000 N
X30238 Series N/A 30238 d - Bore N/A 190 mm7.4803 in B - Cone Width N/A 55 mm2.1654 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 1050000 N237000 lbf C0 - Static Radial Rating N/A 1390000 N312000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 412000 lbf1830000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 107000 lbf475000 N
X32038XM Series N/A 32038XM d - Bore N/A 190 mm7.4803 in B - Cone Width N/A 64.000 mm2.5197 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 719000 N162000 lbf C0 - Static Radial Rating N/A 1290000 N290000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 281000 lbf1250000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 73000 lbf325000 N
X32238 Series N/A 32238 d - Bore N/A 190 mm7.4803 in B - Cone Width N/A 92 mm3.622 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 1700000 N383000 lbf C0 - Static Radial Rating N/A 2210000 N496000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 667000 lbf2970000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 173000 lbf770000 N
X32938M Series N/A 32938 d - Bore N/A 190 mm7.4803 in B - Cone Width N/A 45 mm1.7717 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 398000 N89500 lbf C0 - Static Radial Rating N/A 833000 N187000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 156000 lbf693000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 40400 lbf180000 N
JHM840449 Series N/A HM840400 d - Bore N/A 200 mm7.874 in B - Cone Width N/A 62 mm2.4409 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 695000 N156000 lbf C0 - Static Radial Rating N/A 1280000 N287000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 272000 lbf1210000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 70500 lbf314000 N
JHM840449A Series N/A HM840400 d - Bore N/A 200 mm7.874 in B - Cone Width N/A 62 mm2.4409 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 695000 N156000 lbf C0 - Static Radial Rating N/A 1280000 N287000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 272000 lbf1210000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 70500 lbf314000 N
X30240 Series N/A 30240 d - Bore N/A 200 mm7.874 in B - Cone Width N/A 58.000 mm2.2835 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 891000 N200000 lbf C0 - Static Radial Rating N/A 1330000 N299000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 349000 lbf1550000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 90400 lbf402000 N
X32040XM Series N/A 32040XM d - Bore N/A 200 mm7.874 in B - Cone Width N/A 70 mm2.7559 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 847000 N191000 lbf C0 - Static Radial Rating N/A 1520000 N342000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 332000 lbf1480000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 86000 lbf383000 N
X32240 Series N/A 32240 d - Bore N/A 200 mm7.874 in B - Cone Width N/A 98 mm3.8583 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 1390000 N312000 lbf C0 - Static Radial Rating N/A 2250000 N506000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 543000 lbf2420000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 141000 lbf627000 N
X32940M Series N/A 32940M d - Bore N/A 200 mm7.874 in B - Cone Width N/A 51 mm2.0079 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 561000 N126000 lbf C0 - Static Radial Rating N/A 1050000 N235000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 219000 lbf976000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 56900 lbf253000 N
X30244M Series N/A 30244 d - Bore N/A 220 mm8.6614 in B - Cone Width N/A 65 mm2.5591 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 1260000 N283000 lbf C0 - Static Radial Rating N/A 1560000 N350000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 493000 lbf2190000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 128000 lbf569000 N
X32044XM Series N/A 32044XM d - Bore N/A 220 mm8.6614 in B - Cone Width N/A 76 mm2.9921 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 994000 N223000 lbf C0 - Static Radial Rating N/A 1800000 N405000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 389000 lbf1730000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 101000 lbf449000 N
X32244M Series N/A 32244 d - Bore N/A 220 mm8.6614 in B - Cone Width N/A 108 mm4.252 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 2120000 N476000 lbf C0 - Static Radial Rating N/A 3010000 N677000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 829000 lbf3690000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 215000 lbf956000 N
X32944M Series N/A 32944M d - Bore N/A 220 mm8.6614 in B - Cone Width N/A 51 mm2.0079 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 561000 N126000 lbf C0 - Static Radial Rating N/A 1090000 N245000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 220000 lbf977000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 56900 lbf253000 N
JP24049 Series N/A JP24000 d - Bore N/A 240 mm9.4488 in B - Cone Width N/A 39 mm1.5354 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 440000 N99000 lbf C0 - Static Radial Rating N/A 808000 N182000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 172000 lbf767000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 44700 lbf199000 N
X32048X Series N/A 32048X d - Bore N/A 240 mm9.4488 in B - Cone Width N/A 76 mm2.9921 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 1180000 N266000 lbf C0 - Static Radial Rating N/A 1940000 N435000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 463000 lbf2060000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 120000 lbf534000 N
X32048XR Series N/A M249700 d - Bore N/A 240 mm9.4488 in B - Cone Width N/A 76 mm2.9921 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 835000 N188000 lbf C0 - Static Radial Rating N/A 1630000 N366000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 327000 lbf1450000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 84800 lbf377000 N
X32048XRSA Series N/A M249700 d - Bore N/A 240 mm9.4488 in B - Cone Width N/A 76 mm2.9921 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 835000 N188000 lbf C0 - Static Radial Rating N/A 1630000 N366000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 327000 lbf1450000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 84800 lbf377000 N
X32248 Series N/A 32248 d - Bore N/A 240 mm9.4488 in B - Cone Width N/A 120 mm4.7244 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 2180000 N491000 lbf C0 - Static Radial Rating N/A 3680000 N828000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 855000 lbf3800000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 222000 lbf986000 N
X32948M Series N/A 32948 d - Bore N/A 240 mm9.4488 in B - Cone Width N/A 51 mm2.0079 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 571000 N128000 lbf C0 - Static Radial Rating N/A 1150000 N258000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 223000 lbf994000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 57900 lbf258000 N
X32048XRA Series N/A M249700 d - Bore N/A 241.000 mm9.4882 in B - Cone Width N/A 76 mm2.9921 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 835000 N188000 lbf C0 - Static Radial Rating N/A 1630000 N366000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 327000 lbf1450000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 84800 lbf377000 N
X32052X Series N/A 32052X d - Bore N/A 260 mm10.2362 in B - Cone Width N/A 87 mm3.4252 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 1520000 N341000 lbf C0 - Static Radial Rating N/A 2440000 N548000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 594000 lbf2640000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 154000 lbf685000 N
X32252 Series N/A 32252 d - Bore N/A 260 mm10.2362 in B - Cone Width N/A 130 mm5.1181 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 2860000 N642000 lbf C0 - Static Radial Rating N/A 4140000 N930000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 1120000 lbf4980000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 290000 lbf1290000 N
X32952M Series N/A 32952 d - Bore N/A 260 mm10.2362 in B - Cone Width N/A 63.5 mm2.5 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 829000 N186000 lbf C0 - Static Radial Rating N/A 1690000 N379000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 325000 lbf1440000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 84200 lbf374000 N
X32056XM Series N/A 32056X d - Bore N/A 280 mm11.0236 in B - Cone Width N/A 87 mm3.4252 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 1380000 N309000 lbf C0 - Static Radial Rating N/A 2620000 N590000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 539000 lbf2400000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 140000 lbf621000 N
X32956M Series N/A 32956M d - Bore N/A 280 mm11.0236 in B - Cone Width N/A 63.5 mm2.5 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 850000 N191000 lbf C0 - Static Radial Rating N/A 1780000 N401000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 333000 lbf1480000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 86200 lbf383000 N
X32060X Series N/A 32060X d - Bore N/A 300 mm11.811 in B - Cone Width N/A 100 mm3.937 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 1730000 N389000 lbf C0 - Static Radial Rating N/A 3170000 N712000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 677000 lbf3010000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 176000 lbf781000 N
X32260M Series N/A 32260 d - Bore N/A 300 mm11.811 in B - Cone Width N/A 140 mm5.5118 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 3090000 N695000 lbf C0 - Static Radial Rating N/A 5310000 N1190000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 1210000 lbf5390000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 314000 lbf1400000 N
X32960M Series N/A 32960 d - Bore N/A 300 mm11.811 in B - Cone Width N/A 76 mm2.9921 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 1180000 N265000 lbf C0 - Static Radial Rating N/A 2430000 N547000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 461000 lbf2050000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 120000 lbf532000 N
X32064XM Series N/A 32064XM d - Bore N/A 320.000 mm12.5984 in B - Cone Width N/A 100 mm3.937 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 1800000 N406000 lbf C0 - Static Radial Rating N/A 3420000 N768000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 706000 lbf3140000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 183000 lbf814000 N
X32968M Series N/A 32968M d - Bore N/A 340.000 mm13.3858 in B - Cone Width N/A 76 mm2.9921 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 1220000 N274000 lbf C0 - Static Radial Rating N/A 2640000 N594000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 477000 lbf2120000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 124000 lbf550000 N
X32972M Series N/A 32972M d - Bore N/A 360.000 mm14.1732 in B - Cone Width N/A 76 mm2.9921 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 1250000 N281000 lbf C0 - Static Radial Rating N/A 2780000 N624000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 489000 lbf2170000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 127000 lbf564000 N
JL580946 Series N/A L580900 d - Bore N/A 630.000 mm24.8031 in B - Cone Width N/A 100 mm3.937 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 2890000 N649000 lbf C0 - Static Radial Rating N/A 5910000 N1330000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 1130000 lbf5030000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 293000 lbf1300000 N
JL286948 Series N/A L286900 d - Bore N/A 928.000 mm36.5354 in B - Cone Width N/A 90.000 mm3.5433 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 2850000 N641000 lbf C0 - Static Radial Rating N/A 9330000 N2100000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 1120000 lbf4970000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 290000 lbf1290000 N
JL286948H Series N/A L286900 d - Bore N/A 928.000 mm36.5354 in B - Cone Width N/A 90.000 mm3.5433 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 2660000 N599000 lbf C0 - Static Radial Rating N/A 8460000 N1900000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 1040000 lbf4640000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 270000 lbf1200000 N
JL286949 Series N/A L286900 d - Bore N/A 930.000 mm36.6142 in B - Cone Width N/A 90.000 mm3.5433 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 2850000 N641000 lbf C0 - Static Radial Rating N/A 9330000 N2100000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 1120000 lbf4970000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 290000 lbf1290000 N
JL286949H Series N/A L286900 d - Bore N/A 930.000 mm36.6142 in B - Cone Width N/A 90.000 mm3.5433 in C1 - Dynamic Radial Rating (1 million revolutions) N/A 2660000 N599000 lbf C0 - Static Radial Rating N/A 8460000 N1900000 lbf C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) N/A 1040000 lbf4640000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) N/A 270000 lbf1200000 N
Sản phẩm liên quan
Tapered Roller Bearings - TDO (Tapered Double Outer) Imperial
Tapered Roller Bearings - TDO (Tapered Double Outer) Imperial

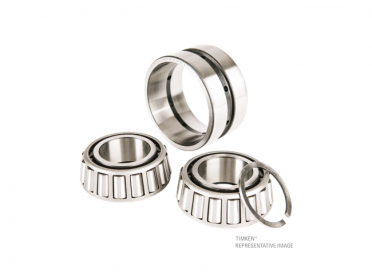

Tapered Roller Bearings - TDI (Tapered Double Inner) Imperial
Tapered Roller Bearings - TDI (Tapered Double Inner) Imperial

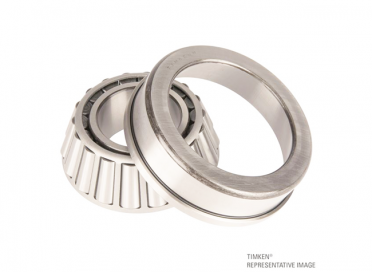

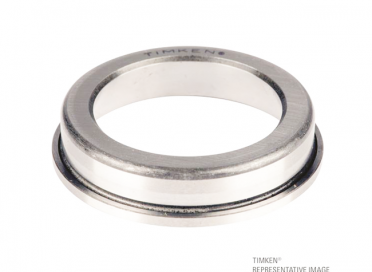

Tapered Roller Bearings - TSF (Tapered Single with Flange) Metric
Tapered Roller Bearings - TSF (Tapered Single with Flange) Metric
Tapered Roller Bearings - Double Tapered Cup - Imperial
Tapered Roller Bearings - Double Tapered Cup - Imperial

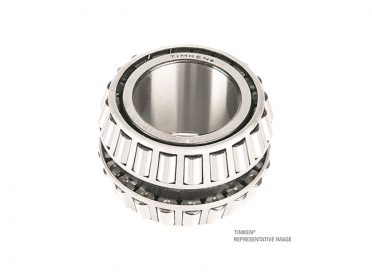

Tapered Roller Bearings - Double Tapered Cones - Imperial
Tapered Roller Bearings - Double Tapered Cones - Imperial
Tapered Roller Bearings - Single Cups - Metric
Tapered Roller Bearings - Single Cups - Metric
x
Liên hệ
Kinh doanh 1: 0909 566 551
Kinh doanh 1: 0933 155 707
Kỹ thuật: 0911 991 666
Tel Zalo Messenger
