Băng tải - Gàu tải > Thrust Cylindrical Roller Bearing-Type TP

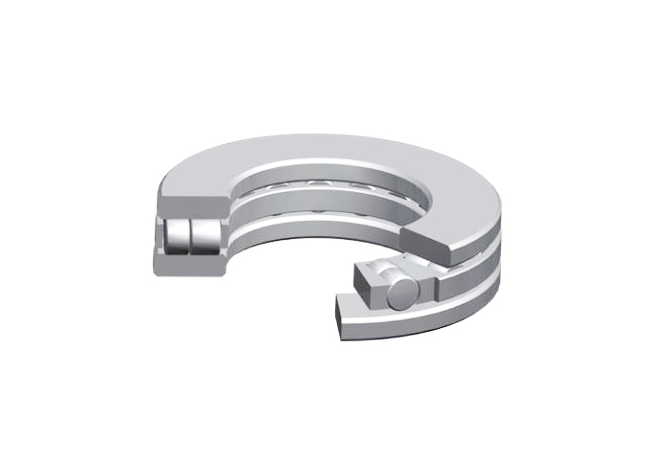

Thrust Cylindrical Roller Bearing-Type TP



  • Two or three cylindrical rollers per cage pocket to enhance true rolling motion and prevent roller skewing.
  • Simple and economical design with easy installation.
  • Minor radial displacement of the races does not affect operation, resulting in manufacturing economy and simplified installation.





Timken Part Number

  d - Bore Diameter  D - Bearing O.D.  T - Bearing Width  T1 - Ring Thickness  d1 - Large Bore I.D.  D1 - Small Diameter O.D.  Static Load Rating  Dynamic Load Rating

Limiting Speed
20TP103 d - Bore Diameter N/A 50.8 mm2.0000 in D - Bearing O.D. N/A 152.4 mm6.0000 in T - Bearing Width N/A 34.925 mm1.3750 in T1 - Ring Thickness N/A 9.52 mm0.375 in d1 - Large Bore I.D. N/A 52.39 mm2.062 in D1 - Small Diameter O.D. N/A 150.81 mm5.938 in Static Load Rating N/A 1400 kN315400 lbf Dynamic Load Rating N/A 400 kN84300 lbf Limiting Speed N/A 1900 rpm
20TP104 d - Bore Diameter N/A 50.8 mm2.0000 in D - Bearing O.D. N/A 177.8 mm7.0000 in T - Bearing Width N/A 34.925 mm1.3750 in T1 - Ring Thickness N/A 9.52 mm0.375 in d1 - Large Bore I.D. N/A 52.39 mm2.062 in D1 - Small Diameter O.D. N/A 176.21 mm6.938 in Static Load Rating N/A 1700 kN384200 lbf Dynamic Load Rating N/A 400 kN95700 lbf Limiting Speed N/A 1630 rpm
30TP106 d - Bore Diameter N/A 76.200 mm3.0000 in D - Bearing O.D. N/A 152.4 mm6.0000 in T - Bearing Width N/A 34.925 mm1.3750 in T1 - Ring Thickness N/A 9.52 mm0.375 in d1 - Large Bore I.D. N/A 77.79 mm3.062 in D1 - Small Diameter O.D. N/A 150.81 mm5.938 in Static Load Rating N/A 1200 kN279500 lbf Dynamic Load Rating N/A 300 kN74200 lbf Limiting Speed N/A 1900 rpm
30TP107 d - Bore Diameter N/A 76.200 mm3.0000 in D - Bearing O.D. N/A 177.8 mm7.0000 in T - Bearing Width N/A 34.925 mm1.3750 in T1 - Ring Thickness N/A 9.52 mm0.375 in d1 - Large Bore I.D. N/A 77.79 mm3.062 in D1 - Small Diameter O.D. N/A 176.21 mm6.938 in Static Load Rating N/A 1800 kN401500 lbf Dynamic Load Rating N/A 400 kN96100 lbf Limiting Speed N/A 1630 rpm
30TP108 d - Bore Diameter N/A 76.200 mm3.0000 in D - Bearing O.D. N/A 203.200 mm8.0000 in T - Bearing Width N/A 34.925 mm1.3750 in T1 - Ring Thickness N/A 9.52 mm0.375 in d1 - Large Bore I.D. N/A 77.79 mm3.062 in D1 - Small Diameter O.D. N/A 201.61 mm7.938 in Static Load Rating N/A 2300 kN523800 lbf Dynamic Load Rating N/A 500 kN115500 lbf Limiting Speed N/A 1420 rpm
30TP109 d - Bore Diameter N/A 76.200 mm3.0000 in D - Bearing O.D. N/A 228.600 mm9.0000 in T - Bearing Width N/A 34.925 mm1.3750 in T1 - Ring Thickness N/A 9.52 mm0.375 in d1 - Large Bore I.D. N/A 77.79 mm3.062 in D1 - Small Diameter O.D. N/A 227.01 mm8.938 in Static Load Rating N/A 3100 kN698300 lbf Dynamic Load Rating N/A 600 kN141400 lbf Limiting Speed N/A 1260 rpm
35TP113 d - Bore Diameter N/A 88.900 mm3.5000 in D - Bearing O.D. N/A 132.558 mm5.2188 in T - Bearing Width N/A 25.400 mm1.0000 in T1 - Ring Thickness N/A 7.14 mm0.281 in d1 - Large Bore I.D. N/A 90.49 mm3.562 in D1 - Small Diameter O.D. N/A 130.97 mm5.156 in Static Load Rating N/A 700 kN146200 lbf Dynamic Load Rating N/A 200 kN37000 lbf Limiting Speed N/A 2190 rpm
40TP114 d - Bore Diameter N/A 101.600 mm4.0000 in D - Bearing O.D. N/A 177.8 mm7.0000 in T - Bearing Width N/A 44.450 mm1.7500 in T1 - Ring Thickness N/A 12.70 mm0.500 in d1 - Large Bore I.D. N/A 103.19 mm4.062 in D1 - Small Diameter O.D. N/A 176.21 mm6.938 in Static Load Rating N/A 1700 kN372500 lbf Dynamic Load Rating N/A 400 kN97200 lbf Limiting Speed N/A 1630 rpm
40TP115 d - Bore Diameter N/A 101.600 mm4.0000 in D - Bearing O.D. N/A 203.200 mm8.0000 in T - Bearing Width N/A 44.450 mm1.7500 in T1 - Ring Thickness N/A 12.70 mm0.500 in d1 - Large Bore I.D. N/A 103.19 mm4.062 in D1 - Small Diameter O.D. N/A 201.61 mm7.938 in Static Load Rating N/A 2300 kN515700 lbf Dynamic Load Rating N/A 500 kN122800 lbf Limiting Speed N/A 1420 rpm
40TP116 d - Bore Diameter N/A 101.600 mm4.0000 in D - Bearing O.D. N/A 228.600 mm9.0000 in T - Bearing Width N/A 44.450 mm1.7500 in T1 - Ring Thickness N/A 12.70 mm0.500 in d1 - Large Bore I.D. N/A 103.19 mm4.062 in D1 - Small Diameter O.D. N/A 227.01 mm8.938 in Static Load Rating N/A 3000 kN683500 lbf Dynamic Load Rating N/A 700 kN150200 lbf Limiting Speed N/A 1260 rpm
40TP117 d - Bore Diameter N/A 101.600 mm4.0000 in D - Bearing O.D. N/A 254.000 mm10.0000 in T - Bearing Width N/A 44.450 mm1.7500 in T1 - Ring Thickness N/A 12.70 mm0.500 in d1 - Large Bore I.D. N/A 103.19 mm4.062 in D1 - Small Diameter O.D. N/A 252.41 mm9.938 in Static Load Rating N/A 3700 kN827600 lbf Dynamic Load Rating N/A 800 kN171400 lbf Limiting Speed N/A 1140 rpm
50TP119 d - Bore Diameter N/A 127.000 mm5.0000 in D - Bearing O.D. N/A 203.200 mm8.0000 in T - Bearing Width N/A 44.450 mm1.7500 in T1 - Ring Thickness N/A 12.70 mm0.500 in d1 - Large Bore I.D. N/A 128.59 mm5.062 in D1 - Small Diameter O.D. N/A 201.61 mm7.938 in Static Load Rating N/A 2100 kN465800 lbf Dynamic Load Rating N/A 500 kN110700 lbf Limiting Speed N/A 1420 rpm
50TP120 d - Bore Diameter N/A 127.000 mm5.0000 in D - Bearing O.D. N/A 228.600 mm9.0000 in T - Bearing Width N/A 44.450 mm1.7500 in T1 - Ring Thickness N/A 12.70 mm0.500 in d1 - Large Bore I.D. N/A 128.59 mm5.062 in D1 - Small Diameter O.D. N/A 227.01 mm8.938 in Static Load Rating N/A 2900 kN645200 lbf Dynamic Load Rating N/A 600 kN140400 lbf Limiting Speed N/A 1260 rpm
50TP121 d - Bore Diameter N/A 127.000 mm5.0000 in D - Bearing O.D. N/A 254.000 mm10.0000 in T - Bearing Width N/A 50.800 mm2.0000 in T1 - Ring Thickness N/A 14.29 mm0.562 in d1 - Large Bore I.D. N/A 128.59 mm5.062 in D1 - Small Diameter O.D. N/A 252.41 mm9.938 in Static Load Rating N/A 3700 kN835900 lbf Dynamic Load Rating N/A 800 kN184000 lbf Limiting Speed N/A 1140 rpm
50TP122 d - Bore Diameter N/A 127.000 mm5.0000 in D - Bearing O.D. N/A 279.400 mm11.0000 in T - Bearing Width N/A 50.800 mm2.0000 in T1 - Ring Thickness N/A 14.29 mm0.562 in d1 - Large Bore I.D. N/A 128.59 mm5.062 in D1 - Small Diameter O.D. N/A 277.81 mm10.938 in Static Load Rating N/A 4800 kN1073500 lbf Dynamic Load Rating N/A 1000 kN220000 lbf Limiting Speed N/A 1030 rpm
50TP123 d - Bore Diameter N/A 127.000 mm5.0000 in D - Bearing O.D. N/A 304.800 mm12.0000 in T - Bearing Width N/A 50.800 mm2.0000 in T1 - Ring Thickness N/A 14.29 mm0.562 in d1 - Large Bore I.D. N/A 128.59 mm5.062 in D1 - Small Diameter O.D. N/A 303.21 mm11.938 in Static Load Rating N/A 5600 kN1248900 lbf Dynamic Load Rating N/A 1100 kN244200 lbf Limiting Speed N/A 950 rpm
60TP124 d - Bore Diameter N/A 152.400 mm6.0000 in D - Bearing O.D. N/A 228.600 mm9.0000 in T - Bearing Width N/A 50.800 mm2.0000 in T1 - Ring Thickness N/A 14.29 mm0.562 in d1 - Large Bore I.D. N/A 153.99 mm6.062 in D1 - Small Diameter O.D. N/A 227.01 mm8.938 in Static Load Rating N/A 2400 kN543800 lbf Dynamic Load Rating N/A 600 kN131100 lbf Limiting Speed N/A 1260 rpm
60TP125 d - Bore Diameter N/A 152.400 mm6.0000 in D - Bearing O.D. N/A 254.000 mm10.0000 in T - Bearing Width N/A 50.800 mm2.0000 in T1 - Ring Thickness N/A 14.29 mm0.562 in d1 - Large Bore I.D. N/A 153.99 mm6.062 in D1 - Small Diameter O.D. N/A 252.41 mm9.938 in Static Load Rating N/A 3300 kN738800 lbf Dynamic Load Rating N/A 700 kN164000 lbf Limiting Speed N/A 1140 rpm
60TP126 d - Bore Diameter N/A 152.400 mm6.0000 in D - Bearing O.D. N/A 279.400 mm11.0000 in T - Bearing Width N/A 50.800 mm2.0000 in T1 - Ring Thickness N/A 14.29 mm0.562 in d1 - Large Bore I.D. N/A 153.99 mm6.062 in D1 - Small Diameter O.D. N/A 277.81 mm10.938 in Static Load Rating N/A 4600 kN1032600 lbf Dynamic Load Rating N/A 900 kN209600 lbf Limiting Speed N/A 1030 rpm
60TP127 d - Bore Diameter N/A 152.400 mm6.0000 in D - Bearing O.D. N/A 304.800 mm12.0000 in T - Bearing Width N/A 50.800 mm2.0000 in T1 - Ring Thickness N/A 14.29 mm0.562 in d1 - Large Bore I.D. N/A 153.99 mm6.062 in D1 - Small Diameter O.D. N/A 303.31 mm11.938 in Static Load Rating N/A 5600 kN1252500 lbf Dynamic Load Rating N/A 1100 kN240600 lbf Limiting Speed N/A 950 rpm
S-4789-A d - Bore Diameter N/A 174.625 mm6.8750 in D - Bearing O.D. N/A 279.400 mm11.0000 in T - Bearing Width N/A 69.850 mm2.7500 in T1 - Ring Thickness N/A 19.05 mm0.750 in d1 - Large Bore I.D. N/A 174.63 mm6.875 in D1 - Small Diameter O.D. N/A 279.40 mm11.000 in Static Load Rating N/A 1400 kN315400 lbf Dynamic Load Rating N/A 400 kN84300 lbf Limiting Speed N/A 1900 rpm
70TP129 d - Bore Diameter N/A 177.800 mm7.0000 in D - Bearing O.D. N/A 254.000 mm10.0000 in T - Bearing Width N/A 50.800 mm2.0000 in T1 - Ring Thickness N/A 14.29 mm0.562 in d1 - Large Bore I.D. N/A 180.18 mm7.094 in D1 - Small Diameter O.D. N/A 251.62 mm9.906 in Static Load Rating N/A 1700 kN384200 lbf Dynamic Load Rating N/A 400 kN95700 lbf Limiting Speed N/A 1630 rpm
70TP130 d - Bore Diameter N/A 177.800 mm7.0000 in D - Bearing O.D. N/A 279.400 mm11.0000 in T - Bearing Width N/A 50.800 mm2.0000 in T1 - Ring Thickness N/A 14.29 mm0.562 in d1 - Large Bore I.D. N/A 180.18 mm7.094 in D1 - Small Diameter O.D. N/A 277.02 mm10.906 in Static Load Rating N/A 1200 kN279500 lbf Dynamic Load Rating N/A 300 kN74200 lbf Limiting Speed N/A 1900 rpm
70TP131 d - Bore Diameter N/A 177.800 mm7.0000 in D - Bearing O.D. N/A 304.800 mm12.0000 in T - Bearing Width N/A 50.800 mm2.0000 in T1 - Ring Thickness N/A 14.29 mm0.562 in d1 - Large Bore I.D. N/A 180.18 mm7.094 in D1 - Small Diameter O.D. N/A 302.42 mm11.906 in Static Load Rating N/A 1800 kN401500 lbf Dynamic Load Rating N/A 400 kN96100 lbf Limiting Speed N/A 1630 rpm
70TP132 d - Bore Diameter N/A 177.800 mm7.0000 in D - Bearing O.D. N/A 355.600 mm14.0000 in T - Bearing Width N/A 76.200 mm3.0000 in T1 - Ring Thickness N/A 20.64 mm0.812 in d1 - Large Bore I.D. N/A 180.18 mm7.094 in D1 - Small Diameter O.D. N/A 353.22 mm13.906 in Static Load Rating N/A 2300 kN523800 lbf Dynamic Load Rating N/A 500 kN115500 lbf Limiting Speed N/A 1420 rpm
80TP134 d - Bore Diameter N/A 203.200 mm8.0000 in D - Bearing O.D. N/A 304.800 mm12.0000 in T - Bearing Width N/A 76.200 mm3.0000 in T1 - Ring Thickness N/A 20.64 mm0.812 in d1 - Large Bore I.D. N/A 205.58 mm8.094 in D1 - Small Diameter O.D. N/A 302.42 mm11.906 in Static Load Rating N/A 3100 kN698300 lbf Dynamic Load Rating N/A 600 kN141400 lbf Limiting Speed N/A 1260 rpm
80TP135 d - Bore Diameter N/A 203.200 mm8.0000 in D - Bearing O.D. N/A 355.600 mm14.0000 in T - Bearing Width N/A 76.200 mm3.0000 in T1 - Ring Thickness N/A 20.64 mm0.812 in d1 - Large Bore I.D. N/A 205.58 mm8.094 in D1 - Small Diameter O.D. N/A 353.22 mm13.906 in Static Load Rating N/A 700 kN146200 lbf Dynamic Load Rating N/A 200 kN37000 lbf Limiting Speed N/A 2190 rpm
80TP136 d - Bore Diameter N/A 203.200 mm8.0000 in D - Bearing O.D. N/A 406.400 mm16.0000 in T - Bearing Width N/A 76.200 mm3.0000 in T1 - Ring Thickness N/A 20.64 mm0.812 in d1 - Large Bore I.D. N/A 205.58 mm8.094 in D1 - Small Diameter O.D. N/A 404.02 mm15.906 in Static Load Rating N/A 1700 kN372500 lbf Dynamic Load Rating N/A 400 kN97200 lbf Limiting Speed N/A 1630 rpm
90TP139 d - Bore Diameter N/A 228.600 mm9.0000 in D - Bearing O.D. N/A 355.600 mm14.0000 in T - Bearing Width N/A 76.200 mm3.0000 in T1 - Ring Thickness N/A 20.64 mm0.812 in d1 - Large Bore I.D. N/A 230.98 mm9.094 in D1 - Small Diameter O.D. N/A 353.22 mm13.906 in Static Load Rating N/A 2300 kN515700 lbf Dynamic Load Rating N/A 500 kN122800 lbf Limiting Speed N/A 1420 rpm
90TP140 d - Bore Diameter N/A 228.600 mm9.0000 in D - Bearing O.D. N/A 406.400 mm16.0000 in T - Bearing Width N/A 76.200 mm3.0000 in T1 - Ring Thickness N/A 20.64 mm0.812 in d1 - Large Bore I.D. N/A 230.98 mm9.094 in D1 - Small Diameter O.D. N/A 404.02 mm15.906 in Static Load Rating N/A 3000 kN683500 lbf Dynamic Load Rating N/A 700 kN150200 lbf Limiting Speed N/A 1260 rpm
C-8360-A d - Bore Diameter N/A 238.125 mm9.3750 in D - Bearing O.D. N/A 307.975 mm12.1250 in T - Bearing Width N/A 38.10 mm1.500 in T1 - Ring Thickness N/A 11.11 mm0.438 in d1 - Large Bore I.D. N/A 238.51 mm9.390 in D1 - Small Diameter O.D. N/A 306.39 mm12.063 in Static Load Rating N/A 3700 kN827600 lbf Dynamic Load Rating N/A 800 kN171400 lbf Limiting Speed N/A 1140 rpm
100TP143 d - Bore Diameter N/A 254.000 mm10.0000 in D - Bearing O.D. N/A 406.400 mm16.0000 in T - Bearing Width N/A 76.200 mm3.0000 in T1 - Ring Thickness N/A 20.64 mm0.812 in d1 - Large Bore I.D. N/A 256.38 mm10.094 in D1 - Small Diameter O.D. N/A 404.02 mm15.906 in Static Load Rating N/A 2100 kN465800 lbf Dynamic Load Rating N/A 500 kN110700 lbf Limiting Speed N/A 1420 rpm
100TP144 d - Bore Diameter N/A 254.000 mm10.0000 in D - Bearing O.D. N/A 457.200 mm18.0000 in T - Bearing Width N/A 95.250 mm3.7000 in T1 - Ring Thickness N/A 26.19 mm1.031 in d1 - Large Bore I.D. N/A 256.38 mm10.094 in D1 - Small Diameter O.D. N/A 454.82 mm17.906 in Static Load Rating N/A 2900 kN645200 lbf Dynamic Load Rating N/A 600 kN140400 lbf Limiting Speed N/A 1260 rpm
100TP145 d - Bore Diameter N/A 254.000 mm10.0000 in D - Bearing O.D. N/A 508.000 mm20.0000 in T - Bearing Width N/A 95.250 mm3.7500 in T1 - Ring Thickness N/A 26.19 mm1.031 in d1 - Large Bore I.D. N/A 256.38 mm10.094 in D1 - Small Diameter O.D. N/A 505.62 mm19.906 in Static Load Rating N/A 3700 kN835900 lbf Dynamic Load Rating N/A 800 kN184000 lbf Limiting Speed N/A 1140 rpm
F-2658-B d - Bore Diameter N/A 280.000 mm11.0236 in D - Bearing O.D. N/A 375.400 mm14.7795 in T - Bearing Width N/A 53.010 mm2.0870 in T1 - Ring Thickness N/A 15.39 mm0.606 in d1 - Large Bore I.D. N/A 283.01 mm11.142 in D1 - Small Diameter O.D. N/A 374.60 mm14.748 in Static Load Rating N/A 4800 kN1073500 lbf Dynamic Load Rating N/A 1000 kN220000 lbf Limiting Speed N/A 1030 rpm
120TP151 d - Bore Diameter N/A 304.800 mm12.0000 in D - Bearing O.D. N/A 457.200 mm18.0000 in T - Bearing Width N/A 95.250 mm3.7500 in T1 - Ring Thickness N/A 26.19 mm1.031 in d1 - Large Bore I.D. N/A 307.18 mm12.094 in D1 - Small Diameter O.D. N/A 454.82 mm17.906 in Static Load Rating N/A 5600 kN1248900 lbf Dynamic Load Rating N/A 1100 kN244200 lbf Limiting Speed N/A 950 rpm
120TP152 d - Bore Diameter N/A 304.800 mm12.0000 in D - Bearing O.D. N/A 508.000 mm20.0000 in T - Bearing Width N/A 114.300 mm4.5000 in T1 - Ring Thickness N/A 31.75 mm1.250 in d1 - Large Bore I.D. N/A 307.18 mm12.094 in D1 - Small Diameter O.D. N/A 505.62 mm19.906 in Static Load Rating N/A 2400 kN543800 lbf Dynamic Load Rating N/A 600 kN131100 lbf Limiting Speed N/A 1260 rpm
120TP153 d - Bore Diameter N/A 304.800 mm12.0000 in D - Bearing O.D. N/A 609.600 mm24.0000 in T - Bearing Width N/A 114.300 mm4.5000 in T1 - Ring Thickness N/A 31.75 mm1.250 in d1 - Large Bore I.D. N/A 307.18 mm12.094 in D1 - Small Diameter O.D. N/A 607.22 mm23.906 in Static Load Rating N/A 3300 kN738800 lbf Dynamic Load Rating N/A 700 kN164000 lbf Limiting Speed N/A 1140 rpm
S-4790-A d - Bore Diameter N/A 330.200 mm13.0000 in D - Bearing O.D. N/A 495.300 mm19.5000 in T - Bearing Width N/A 88.900 mm3.5000 in T1 - Ring Thickness N/A 24.51 mm0.965 in d1 - Large Bore I.D. N/A 330.20 mm13.000 in D1 - Small Diameter O.D. N/A 495.30 mm19.500 in Static Load Rating N/A 4600 kN1032600 lbf Dynamic Load Rating N/A 900 kN209600 lbf Limiting Speed N/A 1030 rpm
140TP158 d - Bore Diameter N/A 355.600 mm14.0000 in D - Bearing O.D. N/A 508.000 mm20.0000 in T - Bearing Width N/A 95.250 mm3.7500 in T1 - Ring Thickness N/A 26.19 mm1.031 in d1 - Large Bore I.D. N/A 358.78 mm14.125 in D1 - Small Diameter O.D. N/A 504.82 mm19.875 in Static Load Rating N/A 5600 kN1252500 lbf Dynamic Load Rating N/A 1100 kN240600 lbf Limiting Speed N/A 950 rpm
140TP159 d - Bore Diameter N/A 355.600 mm14.0000 in D - Bearing O.D. N/A 558.800 mm22.0000 in T - Bearing Width N/A 95.250 mm3.7500 in T1 - Ring Thickness N/A 26.19 mm1.031 in d1 - Large Bore I.D. N/A 358.78 mm14.125 in D1 - Small Diameter O.D. N/A 555.62 mm21.875 in Static Load Rating N/A 3051 kN686000 lbf Dynamic Load Rating N/A 1156 kN260000 lbf Limiting Speed N/A 1030 rpm
140TP160 d - Bore Diameter N/A 355.600 mm14.0000 in D - Bearing O.D. N/A 609.600 mm24.0000 in T - Bearing Width N/A 95.250 mm3.7500 in T1 - Ring Thickness N/A 26.19 mm1.031 in d1 - Large Bore I.D. N/A 358.78 mm14.125 in D1 - Small Diameter O.D. N/A 606.40 mm23.875 in Static Load Rating N/A 2800 kN625400 lbf Dynamic Load Rating N/A 600 kN141600 lbf Limiting Speed N/A 1140 rpm
160TP164 d - Bore Diameter N/A 406.400 mm16.0000 in D - Bearing O.D. N/A 558.800 mm22.0000 in T - Bearing Width N/A 114.300 mm4.5000 in T1 - Ring Thickness N/A 31.75 mm1.250 in d1 - Large Bore I.D. N/A 409.60 mm16.125 in D1 - Small Diameter O.D. N/A 555.60 mm21.875 in Static Load Rating N/A 3900 kN886500 lbf Dynamic Load Rating N/A 800 kN183200 lbf Limiting Speed N/A 1030 rpm
160TP165 d - Bore Diameter N/A 406.400 mm16.0000 in D - Bearing O.D. N/A 609.600 mm24.0000 in T - Bearing Width N/A 114.300 mm4.5000 in T1 - Ring Thickness N/A 31.75 mm1.250 in d1 - Large Bore I.D. N/A 409.60 mm16.125 in D1 - Small Diameter O.D. N/A 606.40 mm23.875 in Static Load Rating N/A 5200 kN1180100 lbf Dynamic Load Rating N/A 1000 kN226200 lbf Limiting Speed N/A 950 rpm
160TP166 d - Bore Diameter N/A 406.400 mm16.0000 in D - Bearing O.D. N/A 660.400 mm26.0000 in T - Bearing Width N/A 114.300 mm4.5000 in T1 - Ring Thickness N/A 31.75 mm1.250 in d1 - Large Bore I.D. N/A 409.60 mm16.125 in D1 - Small Diameter O.D. N/A 657.20 mm25.875 in Static Load Rating N/A 7500 kN1692700 lbf Dynamic Load Rating N/A 1700 kN374300 lbf Limiting Speed N/A 810 rpm
S-4750-A d - Bore Diameter N/A 431.800 mm17.0000 in D - Bearing O.D. N/A 571.500 mm22.5000 in T - Bearing Width N/A 88.900 mm3.5000 in T1 - Ring Thickness N/A 24.51 mm0.965 in d1 - Large Bore I.D. N/A 431.80 mm17.000 in D1 - Small Diameter O.D. N/A 571.50 mm22.500 in Static Load Rating N/A 4500 kN1016000 lbf Dynamic Load Rating N/A 1100 kN254000 lbf Limiting Speed N/A 950 rpm
E-2192-A d - Bore Diameter N/A 431.800 mm17.0000 in D - Bearing O.D. N/A 609.600 mm24.0000 in T - Bearing Width N/A 101.600 mm4.0000 in T1 - Ring Thickness N/A 25.40 mm1.000 in d1 - Large Bore I.D. N/A 432.44 mm17.025 in D1 - Small Diameter O.D. N/A 609.47 mm23.995 in Static Load Rating N/A 6900 kN1558900 lbf Dynamic Load Rating N/A 1500 kN346200 lbf Limiting Speed N/A 810 rpm
E-2191-A d - Bore Diameter N/A 457.200 mm18.0000 in D - Bearing O.D. N/A 660.400 mm26.0000 in T - Bearing Width N/A 101.600 mm4.0000 in T1 - Ring Thickness N/A 25.40 mm1.000 in d1 - Large Bore I.D. N/A 457.33 mm18.005 in D1 - Small Diameter O.D. N/A 660.27 mm25.995 in Static Load Rating N/A 9300 kN2091300 lbf Dynamic Load Rating N/A 1900 kN426700 lbf Limiting Speed N/A 710 rpm
180TP168 d - Bore Diameter N/A 457.200 mm18.0000 in D - Bearing O.D. N/A 660.400 mm26.0000 in T - Bearing Width N/A 127.000 mm5.0000 in T1 - Ring Thickness N/A 34.92 mm1.375 in d1 - Large Bore I.D. N/A 460.40 mm18.125 in D1 - Small Diameter O.D. N/A 657.20 mm25.875 in Static Load Rating N/A 6800 kN1524300 lbf Dynamic Load Rating N/A 1500 kN335900 lbf Limiting Speed N/A 810 rpm
180TP169 d - Bore Diameter N/A 457.200 mm18.0000 in D - Bearing O.D. N/A 711.200 mm28.0000 in T - Bearing Width N/A 127.000 mm5.0000 in T1 - Ring Thickness N/A 34.92 mm1.375 in d1 - Large Bore I.D. N/A 460.40 mm18.125 in D1 - Small Diameter O.D. N/A 708.00 mm27.875 in Static Load Rating N/A 9400 kN2115800 lbf Dynamic Load Rating N/A 1900 kN425600 lbf Limiting Speed N/A 710 rpm
180TP170 d - Bore Diameter N/A 457.200 mm18.0000 in D - Bearing O.D. N/A 762.000 mm30.0000 in T - Bearing Width N/A 139.700 mm5.5000 in T1 - Ring Thickness N/A 38.10 mm1.500 in d1 - Large Bore I.D. N/A 460.40 mm18.125 in D1 - Small Diameter O.D. N/A 758.80 mm29.875 in Static Load Rating N/A 2380 kN535500 lbf Dynamic Load Rating N/A 440 kN99000 lbf Limiting Speed N/A 940 rpm
S-4791-A d - Bore Diameter N/A 482.600 mm19.0000 in D - Bearing O.D. N/A 673.100 mm26.5000 in T - Bearing Width N/A 114.300 mm4.5000 in T1 - Ring Thickness N/A 31.75 mm1.250 in d1 - Large Bore I.D. N/A 482.60 mm19.000 in D1 - Small Diameter O.D. N/A 673.10 mm19.000 in Static Load Rating N/A 8500 kN1905400 lbf Dynamic Load Rating N/A 1700 kN387800 lbf Limiting Speed N/A 710 rpm
200TP171 d - Bore Diameter N/A 508.000 mm20.0000 in D - Bearing O.D. N/A 711.200 mm28.0000 in T - Bearing Width N/A 139.700 mm5.5000 in T1 - Ring Thickness N/A 38.10 mm1.500 in d1 - Large Bore I.D. N/A 511.20 mm20.125 in D1 - Small Diameter O.D. N/A 708.00 mm27.875 in Static Load Rating N/A 12000 kN2702600 lbf Dynamic Load Rating N/A 2500 kN559800 lbf Limiting Speed N/A 630 rpm
200TP172 d - Bore Diameter N/A 508.000 mm20.0000 in D - Bearing O.D. N/A 762.000 mm30.0000 in T - Bearing Width N/A 139.700 mm5.5000 in T1 - Ring Thickness N/A 38.10 mm1.500 in d1 - Large Bore I.D. N/A 511.20 mm20.125 in D1 - Small Diameter O.D. N/A 758.80 mm29.875 in Static Load Rating N/A 15600 kN3512400 lbf Dynamic Load Rating N/A 3000 kN674900 lbf Limiting Speed N/A 570 rpm
200TP173 d - Bore Diameter N/A 508.000 mm20.0000 in D - Bearing O.D. N/A 812.800 mm32.0000 in T - Bearing Width N/A 152.400 mm6.0000 in T1 - Ring Thickness N/A 42.07 mm1.656 in d1 - Large Bore I.D. N/A 511.20 mm20.125 in D1 - Small Diameter O.D. N/A 809.60 mm31.875 in Static Load Rating N/A 5410 kN1217180 lbf Dynamic Load Rating N/A 953 kN214320 lbf Limiting Speed N/A 770 rpm
B-3653-B d - Bore Diameter N/A 527.101 mm20.7520 in D - Bearing O.D. N/A 635.127 mm25.0050 in T - Bearing Width N/A 44.450 mm1.7500 in T1 - Ring Thickness N/A 11.13 mm0.438 in d1 - Large Bore I.D. N/A 527.10 mm20.752 in D1 - Small Diameter O.D. N/A 635.13 mm25.005 in Static Load Rating N/A 10800 kN2423100 lbf Dynamic Load Rating N/A 2200 kN503600 lbf Limiting Speed N/A 630 rpm
220TP174 d - Bore Diameter N/A 558.800 mm22.0000 in D - Bearing O.D. N/A 762.000 mm30.0000 in T - Bearing Width N/A 139.700 mm5.5000 in T1 - Ring Thickness N/A 38.10 mm1.500 in d1 - Large Bore I.D. N/A 562.00 mm22.125 in D1 - Small Diameter O.D. N/A 758.80 mm29.875 in Static Load Rating N/A 21200 kN4772700 lbf Dynamic Load Rating N/A 4000 kN901500 lbf Limiting Speed N/A 470 rpm
220TP175 d - Bore Diameter N/A 558.800 mm22.0000 in D - Bearing O.D. N/A 812.800 mm32.0000 in T - Bearing Width N/A 139.700 mm5.5000 in T1 - Ring Thickness N/A 38.10 mm1.500 in d1 - Large Bore I.D. N/A 562.00 mm22.125 in D1 - Small Diameter O.D. N/A 809.60 mm31.875 in Static Load Rating N/A 9329 kN2098000 lbf Dynamic Load Rating N/A 2575 kN579000 lbf Limiting Speed N/A 580 rpm
220TP176 d - Bore Diameter N/A 558.800 mm22.0000 in D - Bearing O.D. N/A 863.600 mm34.0000 in T - Bearing Width N/A 152.400 mm6.0000 in T1 - Ring Thickness N/A 42.07 mm1.656 in d1 - Large Bore I.D. N/A 562.00 mm22.125 in D1 - Small Diameter O.D. N/A 860.40 mm33.875 in Static Load Rating N/A 12500 kN2801900 lbf Dynamic Load Rating N/A 2400 kN546300 lbf Limiting Speed N/A 570 rpm
B-9054-C d - Bore Diameter N/A 572.000 mm22.5197 in D - Bearing O.D. N/A 763.000 mm30.0394 in T - Bearing Width N/A 115.000 mm4.5276 in T1 - Ring Thickness N/A 31.50 mm1.240 in d1 - Large Bore I.D. N/A 572.00 mm22.520 in D1 - Small Diameter O.D. N/A 763.00 mm30.039 in Static Load Rating N/A 12800 kN2888000 lbf Dynamic Load Rating N/A 2800 kN626100 lbf Limiting Speed N/A 570 rpm
240TP177 d - Bore Diameter N/A 609.600 mm24.0000 in D - Bearing O.D. N/A 812.800 mm32.0000 in T - Bearing Width N/A 139.700 mm5.5000 in T1 - Ring Thickness N/A 38.10 mm1.500 in d1 - Large Bore I.D. N/A 612.80 mm24.125 in D1 - Small Diameter O.D. N/A 809.60 mm21.875 in Static Load Rating N/A 21600 kN4846200 lbf Dynamic Load Rating N/A 3600 kN816500 lbf Limiting Speed N/A 470 rpm
240TP178 d - Bore Diameter N/A 609.600 mm24.0000 in D - Bearing O.D. N/A 863.600 mm34.0000 in T - Bearing Width N/A 139.700 mm5.5000 in T1 - Ring Thickness N/A 38.10 mm1.500 in d1 - Large Bore I.D. N/A 612.80 mm24.125 in D1 - Small Diameter O.D. N/A 860.40 mm33.875 in Static Load Rating N/A 13400 kN3009000 lbf Dynamic Load Rating N/A 2700 kN616900 lbf Limiting Speed N/A 520 rpm
240TP179 d - Bore Diameter N/A 609.600 mm24.0000 in D - Bearing O.D. N/A 914.400 mm36.0000 in T - Bearing Width N/A 152.400 mm6.0000 in T1 - Ring Thickness N/A 42.07 mm1.656 in d1 - Large Bore I.D. N/A 612.80 mm24.125 in D1 - Small Diameter O.D. N/A 911.20 mm35.875 in Static Load Rating N/A 18100 kN4077300 lbf Dynamic Load Rating N/A 3400 kN771600 lbf Limiting Speed N/A 470 rpm
J-903-A d - Bore Diameter N/A 609.702 mm24.0040 in D - Bearing O.D. N/A 812.800 mm32.0000 in T - Bearing Width N/A 101.727 mm4.0050 in T1 - Ring Thickness N/A 27.79 mm1.094 in d1 - Large Bore I.D. N/A 609.60 mm24.000 in D1 - Small Diameter O.D. N/A 812.80 mm32.000 in Static Load Rating N/A 16700 kN3753400 lbf Dynamic Load Rating N/A 3000 kN677200 lbf Limiting Speed N/A 520 rpm
E-2306-A d - Bore Diameter N/A 610.019 mm24.0165 in D - Bearing O.D. N/A 812.546 mm31.9900 in T - Bearing Width N/A 101.727 mm4.0050 in T1 - Ring Thickness N/A 27.79 mm1.094 in d1 - Large Bore I.D. N/A 610.11 mm24.020 in D1 - Small Diameter O.D. N/A 812.80 mm32.000 in Static Load Rating N/A 23100 kN5191800 lbf Dynamic Load Rating N/A 4100 kN922000 lbf Limiting Speed N/A 440 rpm
S-4792-A d - Bore Diameter N/A 622.300 mm24.5000 in D - Bearing O.D. N/A 812.800 mm32.0000 in T - Bearing Width N/A 114.300 mm4.5000 in T1 - Ring Thickness N/A 28.58 mm1.125 in d1 - Large Bore I.D. N/A 622.30 mm24.500 in D1 - Small Diameter O.D. N/A 812.80 mm32.000 in Static Load Rating N/A 11861 kN2667000 lbf Dynamic Load Rating N/A 2509 kN564000 lbf Limiting Speed N/A 500 rpm
S-4745-A d - Bore Diameter N/A 695.579 mm27.3850 in D - Bearing O.D. N/A 964.514 mm37.9730 in T - Bearing Width N/A 127.127 mm5.0050 in T1 - Ring Thickness N/A 31.75 mm1.250 in d1 - Large Bore I.D. N/A 695.58 mm27.385 in D1 - Small Diameter O.D. N/A 964.51 mm37.973 in Static Load Rating N/A 14992 kN3371000 lbf Dynamic Load Rating N/A 3363 kN756000 lbf Limiting Speed N/A 470 rpm
E-2408-A d - Bore Diameter N/A 711.200 mm28.0000 in D - Bearing O.D. N/A 914.400 mm36.0000 in T - Bearing Width N/A 114.300 mm4.5000 in T1 - Ring Thickness N/A 29.36 mm1.156 in d1 - Large Bore I.D. N/A 711.84 mm28.025 in D1 - Small Diameter O.D. N/A 914.40 mm36.000 in Static Load Rating N/A 16241 kN3651000 lbf Dynamic Load Rating N/A 3580 kN805000 lbf Limiting Speed N/A 430 rpm
E-2359-A d - Bore Diameter N/A 812.800 mm32.0000 in D - Bearing O.D. N/A 1016.000 mm40.0000 in T - Bearing Width N/A 127.000 mm5.0000 in T1 - Ring Thickness N/A 31.75 mm1.250 in d1 - Large Bore I.D. N/A 813.44 mm32.025 in D1 - Small Diameter O.D. N/A 1015.75 mm39.990 in Static Load Rating N/A 20400 kN4580700 lbf Dynamic Load Rating N/A 3900 kN879900 lbf Limiting Speed N/A 440 rpm
E-2259-A d - Bore Diameter N/A 812.800 mm32.0000 in D - Bearing O.D. N/A 1016.000 mm40.0000 in T - Bearing Width N/A 127.000 mm5.0000 in T1 - Ring Thickness N/A 32.54 mm1.281 in d1 - Large Bore I.D. N/A 813.69 mm32.035 in D1 - Small Diameter O.D. N/A 1016.00 mm40.000 in Static Load Rating N/A 25600 kN5754900 lbf Dynamic Load Rating N/A 4600 kN1040500 lbf Limiting Speed N/A 410 rpm
E-2268-A d - Bore Diameter N/A 876.300 mm34.5000 in D - Bearing O.D. N/A 1117.600 mm44.0000 in T - Bearing Width N/A 139.700 mm5.5000 in T1 - Ring Thickness N/A 36.55 mm1.439 in d1 - Large Bore I.D. N/A 876.30 mm34.500 in D1 - Small Diameter O.D. N/A 1117.60 mm44.000 in Static Load Rating N/A 33100 kN7434800 lbf Dynamic Load Rating N/A 5900 kN1332100 lbf Limiting Speed N/A 380 rpm
E-2311-A d - Bore Diameter N/A 940.308 mm37.0200 in D - Bearing O.D. N/A 1219.708 mm48.0200 in T - Bearing Width N/A 124.587 mm4.9050 in T1 - Ring Thickness N/A 40.87 mm1.609 in d1 - Large Bore I.D. N/A 939.70 mm36.996 in D1 - Small Diameter O.D. N/A 1219.20 mm48.000 in Static Load Rating N/A 18567 kN4174000 lbf Dynamic Load Rating N/A 3741 kN841000 lbf Limiting Speed N/A 430 rpm
P-2109-A d - Bore Diameter N/A 978.540 mm38.5250 in D - Bearing O.D. N/A 1370.330 mm53.9500 in T - Bearing Width N/A 191.000 mm7.5200 in T1 - Ring Thickness N/A 57.40 mm2.260 in d1 - Large Bore I.D. N/A 978.54 mm38.525 in D1 - Small Diameter O.D. N/A 1370.33 mm53.950 in Static Load Rating N/A 22400 kN5045900 lbf Dynamic Load Rating N/A 4400 kN982700 lbf Limiting Speed N/A 410 rpm
E-2018-C d - Bore Diameter N/A 1016.076 mm40.0030 in D - Bearing O.D. N/A 1344.625 mm52.9380 in T - Bearing Width N/A 152.400 mm6.0000 in T1 - Ring Thickness N/A 41.28 mm1.625 in d1 - Large Bore I.D. N/A 1019.180 mm40.13 in D1 - Small Diameter O.D. N/A 1320.80 mm52.000 in Static Load Rating N/A 28600 kN6421800 lbf Dynamic Load Rating N/A 5200 kN1174900 lbf Limiting Speed N/A 380 rpm
