Băng tải - Gàu tải > Thrust Tapered Roller Bearings-Type TTC - TTCS - TTCL

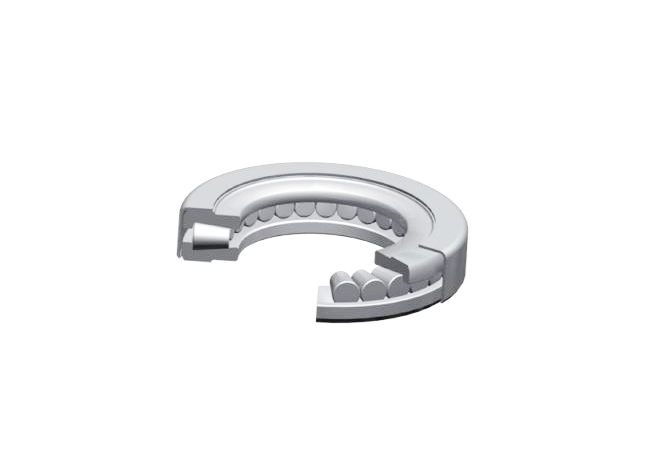

Thrust Tapered Roller Bearings-Type TTC - TTCS - TTCL



  • Comprised of two thrust tapered races, rollers and an outside retainer which holds the components together during shipping and installation.
  • Full complement design (cageless).
  • These thrust bearings are specifically designed for oscillating applications.
  • Types TTC, TTCS and TTCL are identical except for the outside retainer construction.



Timken Part Number

  Oil Holes in Retainer  d - Bore Diameter  D - Bearing O.D.  T - Bearing Width

Steering Pivot Rating
T130 Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.0670 in27.102 mm D - Bearing O.D. N/A 2.6250 in66.675 mm T - Bearing Width N/A 0.7656 in19.446 mm Steering Pivot Rating N/A 9450 lbf42200 N
T1260 Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.2600 in32.004 mm D - Bearing O.D. N/A 2.1875 in55.562 mm T - Bearing Width N/A 0.6250 in15.875 mm Steering Pivot Rating N/A 6200 lbf27600 N
T1260W Oil Holes in Retainer N/A Yes d - Bore Diameter N/A 1.2600 in32.004 mm D - Bearing O.D. N/A 2.1875 in55.562 mm T - Bearing Width N/A 0.6250 in15.875 mm Steering Pivot Rating N/A 6200 lbf27600 N
T128 Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.2600 in32.004 mm D - Bearing O.D. N/A 2.6250 in66.675 mm T - Bearing Width N/A 0.7344 in18.654 mm Steering Pivot Rating N/A 9450 lbf42200 N
T127 Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.2600 in32.004 mm D - Bearing O.D. N/A 2.6250 in66.675 mm T - Bearing Width N/A 0.7656 in19.446 mm Steering Pivot Rating N/A 9450 lbf42200 N
T127W Oil Holes in Retainer N/A Yes d - Bore Diameter N/A 1.2600 in32.004 mm D - Bearing O.D. N/A 2.6250 in66.675 mm T - Bearing Width N/A 0.7656 in19.446 mm Steering Pivot Rating N/A 9450 lbf42200 N
T1380 Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.3850 in35.179 mm D - Bearing O.D. N/A 2.3386 in59.400 mm T - Bearing Width N/A 0.6250 in15.875 mm Steering Pivot Rating N/A 7000 lbf31200 N
T1381 Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.3850 in35.179 mm D - Bearing O.D. N/A 2.3415 in59.475 mm T - Bearing Width N/A 0.6250 in15.875 mm Steering Pivot Rating N/A 7000 lbf31200 N
T136 Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.3850 in35.179 mm D - Bearing O.D. N/A 2.6250 in66.675 mm T - Bearing Width N/A 0.7344 in18.654 mm Steering Pivot Rating N/A 9450 lbf42200 N
T138 Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.3850 in35.179 mm D - Bearing O.D. N/A 2.6250 in66.675 mm T - Bearing Width N/A 0.7656 in19.446 mm Steering Pivot Rating N/A 9450 lbf42200 N
T138W Oil Holes in Retainer N/A Yes d - Bore Diameter N/A 1.3850 in35.179 mm D - Bearing O.D. N/A 2.6250 in66.675 mm T - Bearing Width N/A 0.7656 in19.446 mm Steering Pivot Rating N/A 9450 lbf42200 N
T138XS Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.3850 in35.179 mm D - Bearing O.D. N/A 2.6250 in66.675 mm T - Bearing Width N/A 0.7656 in19.446 mm Steering Pivot Rating N/A 9450 lbf42200 N
T144 Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.4470 in36.754 mm D - Bearing O.D. N/A 2.6250 in66.675 mm T - Bearing Width N/A 0.7656 in19.446 mm Steering Pivot Rating N/A 9450 lbf42200 N
T144W Oil Holes in Retainer N/A Yes d - Bore Diameter N/A 1.4470 in36.754 mm D - Bearing O.D. N/A 2.6250 in66.675 mm T - Bearing Width N/A 0.7656 in19.446 mm Steering Pivot Rating N/A 9450 lbf42200 N
T144XA Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.4470 in36.754 mm D - Bearing O.D. N/A 2.6250 in66.675 mm T - Bearing Width N/A 0.7656 in19.446 mm Steering Pivot Rating N/A 9450 lbf42200 N
T152 Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.5100 in38.354 mm D - Bearing O.D. N/A 2.8590 in72.619 mm T - Bearing Width N/A 0.8125 in20.638 mm Steering Pivot Rating N/A 10600 lbf47000 N
T151 Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.5100 in38.354 mm D - Bearing O.D. N/A 2.8590 in72.619 mm T - Bearing Width N/A 0.8438 in21.433 mm Steering Pivot Rating N/A 10600 lbf47000 N
T151W Oil Holes in Retainer N/A Yes d - Bore Diameter N/A 1.5100 in38.354 mm D - Bearing O.D. N/A 2.8590 in72.619 mm T - Bearing Width N/A 0.8438 in21.433 mm Steering Pivot Rating N/A 10600 lbf47000 N
T157 Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.5730 in39.954 mm D - Bearing O.D. N/A 2.8590 in72.619 mm T - Bearing Width N/A 0.8438 in21.433 mm Steering Pivot Rating N/A 10600 lbf47000 N
T157W Oil Holes in Retainer N/A Yes d - Bore Diameter N/A 1.5730 in39.954 mm D - Bearing O.D. N/A 2.8590 in72.619 mm T - Bearing Width N/A 0.8438 in21.433 mm Steering Pivot Rating N/A 10600 lbf47000 N
T178 Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.5906 in39.954 mm D - Bearing O.D. N/A 2.8740 in73.000 mm T - Bearing Width N/A 0.7480 in19.000 mm Steering Pivot Rating N/A 10700 lbf47500 N
T163 Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.6350 in41.529 mm D - Bearing O.D. N/A 2.8590 in72.619 mm T - Bearing Width N/A 0.8438 in21.433 mm Steering Pivot Rating N/A 10600 lbf47000 N
T163W Oil Holes in Retainer N/A Yes d - Bore Diameter N/A 1.6350 in41.529 mm D - Bearing O.D. N/A 2.8590 in72.619 mm T - Bearing Width N/A 0.8438 in21.433 mm Steering Pivot Rating N/A 10600 lbf47000 N
T163X Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.6350 in41.529 mm D - Bearing O.D. N/A 2.8590 in72.619 mm T - Bearing Width N/A 0.8438 in21.433 mm Steering Pivot Rating N/A 10600 lbf47000 N
T163XW Oil Holes in Retainer N/A Yes d - Bore Diameter N/A 1.6350 in41.529 mm D - Bearing O.D. N/A 2.8590 in72.619 mm T - Bearing Width N/A 0.8438 in21.433 mm Steering Pivot Rating N/A 10600 lbf47000 N
T169 Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.6970 in43.104 mm D - Bearing O.D. N/A 3.2660 in82.956 mm T - Bearing Width N/A 0.9375 in23.812 mm Steering Pivot Rating N/A 14300 lbf64000 N
T169W Oil Holes in Retainer N/A Yes d - Bore Diameter N/A 1.6970 in43.104 mm D - Bearing O.D. N/A 3.2660 in82.956 mm T - Bearing Width N/A 0.9375 in23.812 mm Steering Pivot Rating N/A 14300 lbf64000 N
T176 Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.7600 in44.704 mm D - Bearing O.D. N/A 3.2660 in82.956 mm T - Bearing Width N/A 0.9375 in23.812 mm Steering Pivot Rating N/A 14300 lbf64000 N
T176W Oil Holes in Retainer N/A Yes d - Bore Diameter N/A 1.7600 in44.704 mm D - Bearing O.D. N/A 3.2660 in82.956 mm T - Bearing Width N/A 0.9375 in23.812 mm Steering Pivot Rating N/A 14300 lbf64000 N
T177 Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.7717 in45.000 mm D - Bearing O.D. N/A 2.8740 in73.000 mm T - Bearing Width N/A 0.7874 in20.000 mm Steering Pivot Rating N/A 10700 lbf47500 N
T177XA Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.7717 in45.000 mm D - Bearing O.D. N/A 2.8790 in73.127 mm T - Bearing Width N/A 0.7874 in20.000 mm Steering Pivot Rating N/A 10700 lbf47500 N
T177S Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.7717 in45.000 mm D - Bearing O.D. N/A 2.9331 in74.500 mm T - Bearing Width N/A 0.7961 in20.221 mm Steering Pivot Rating N/A 10700 lbf47500 N
T177A Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.7907 in45.484 mm D - Bearing O.D. N/A 2.8740 in73.000 mm T - Bearing Width N/A 0.7874 in20.000 mm Steering Pivot Rating N/A 10700 lbf47500 N
T1921 Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.8220 in46.279 mm D - Bearing O.D. N/A 3.1500 in80.010 mm T - Bearing Width N/A 0.6290 in15.977 mm Steering Pivot Rating N/A 12700 lbf56500 N
T182 Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.8220 in46.279 mm D - Bearing O.D. N/A 3.2660 in82.956 mm T - Bearing Width N/A 0.9375 in23.812 mm Steering Pivot Rating N/A 14300 lbf64000 N
T182W Oil Holes in Retainer N/A Yes d - Bore Diameter N/A 1.8220 in46.279 mm D - Bearing O.D. N/A 3.2660 in82.956 mm T - Bearing Width N/A 0.9375 in23.812 mm Steering Pivot Rating N/A 14300 lbf64000 N
T189 Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.8850 in47.879 mm D - Bearing O.D. N/A 3.2660 in82.956 mm T - Bearing Width N/A 0.9063 in23.020 mm Steering Pivot Rating N/A 14300 lbf64000 N
T189W Oil Holes in Retainer N/A Yes d - Bore Diameter N/A 1.8850 in47.879 mm D - Bearing O.D. N/A 3.2660 in82.956 mm T - Bearing Width N/A 0.9063 in23.020 mm Steering Pivot Rating N/A 14300 lbf64000 N
T188 Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.8850 in47.879 mm D - Bearing O.D. N/A 3.2660 in82.956 mm T - Bearing Width N/A 0.9375 in23.812 mm Steering Pivot Rating N/A 14300 lbf64000 N
T188W Oil Holes in Retainer N/A Yes d - Bore Diameter N/A 1.8850 in47.879 mm D - Bearing O.D. N/A 3.2660 in82.956 mm T - Bearing Width N/A 0.9375 in23.812 mm Steering Pivot Rating N/A 14300 lbf64000 N
T190 Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.8850 in47.879 mm D - Bearing O.D. N/A 3.2710 in83.083 mm T - Bearing Width N/A 0.9063 in23.020 mm Steering Pivot Rating N/A 14300 lbf64000 N
T1910 Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.9290 in49.000 mm D - Bearing O.D. N/A 3.3650 in85.471 mm T - Bearing Width N/A 0.6450 in16.383 mm Steering Pivot Rating N/A 12700 lbf56500 N
T1920 Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.9290 in49.000 mm D - Bearing O.D. N/A 3.3650 in85.471 mm T - Bearing Width N/A 0.6450 in16.383 mm Steering Pivot Rating N/A 12700 lbf56500 N
T1930 Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.9290 in49.000 mm D - Bearing O.D. N/A 3.3650 in85.471 mm T - Bearing Width N/A 0.6450 in16.383 mm Steering Pivot Rating N/A 12700 lbf56500 N
T193 Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.9470 in49.454 mm D - Bearing O.D. N/A 3.6720 in93.269 mm T - Bearing Width N/A 1.0310 in26.187 mm Steering Pivot Rating N/A 19400 lbf86000 N
T193W Oil Holes in Retainer N/A Yes d - Bore Diameter N/A 1.9470 in49.454 mm D - Bearing O.D. N/A 3.6720 in93.269 mm T - Bearing Width N/A 1.0310 in26.187 mm Steering Pivot Rating N/A 19400 lbf86000 N
T194 Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.9470 in49.454 mm D - Bearing O.D. N/A 3.6720 in93.269 mm T - Bearing Width N/A 1.0620 in26.975 mm Steering Pivot Rating N/A 19400 lbf86000 N
T194W Oil Holes in Retainer N/A Yes d - Bore Diameter N/A 1.9470 in49.454 mm D - Bearing O.D. N/A 3.6720 in93.269 mm T - Bearing Width N/A 1.0620 in26.975 mm Steering Pivot Rating N/A 19400 lbf86000 N
T195 Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.9475 in49.467 mm D - Bearing O.D. N/A 3.6770 in93.269 mm T - Bearing Width N/A 1.0320 in26.213 mm Steering Pivot Rating N/A 19400 lbf86000 N
T201 Oil Holes in Retainer N/A No d - Bore Diameter N/A 2.0100 in51.054 mm D - Bearing O.D. N/A 3.6720 in93.269 mm T - Bearing Width N/A 1.0310 in26.187 mm Steering Pivot Rating N/A 19400 lbf86000 N
T201W Oil Holes in Retainer N/A Yes d - Bore Diameter N/A 2.0100 in51.054 mm D - Bearing O.D. N/A 3.6720 in93.269 mm T - Bearing Width N/A 1.0310 in26.187 mm Steering Pivot Rating N/A 19400 lbf86000 N
T202 Oil Holes in Retainer N/A No d - Bore Diameter N/A 2.0100 in51.054 mm D - Bearing O.D. N/A 3.6720 in93.269 mm T - Bearing Width N/A 1.0620 in26.975 mm Steering Pivot Rating N/A 19400 lbf86000 N
T202W Oil Holes in Retainer N/A Yes d - Bore Diameter N/A 2.0100 in51.054 mm D - Bearing O.D. N/A 3.6720 in93.269 mm T - Bearing Width N/A 1.0620 in26.975 mm Steering Pivot Rating N/A 19400 lbf86000 N
T209 Oil Holes in Retainer N/A No d - Bore Diameter N/A 2.0720 in52.629 mm D - Bearing O.D. N/A 3.6720 in93.269 mm T - Bearing Width N/A 1.0310 in26.187 mm Steering Pivot Rating N/A 19400 lbf86000 N
T209W Oil Holes in Retainer N/A Yes d - Bore Diameter N/A 2.0720 in52.629 mm D - Bearing O.D. N/A 3.6720 in93.269 mm T - Bearing Width N/A 1.0310 in26.187 mm Steering Pivot Rating N/A 19400 lbf86000 N
T208 Oil Holes in Retainer N/A No d - Bore Diameter N/A 2.0720 in52.629 mm D - Bearing O.D. N/A 3.6720 in93.269 mm T - Bearing Width N/A 1.0620 in26.975 mm Steering Pivot Rating N/A 19400 lbf86000 N
T208W Oil Holes in Retainer N/A Yes d - Bore Diameter N/A 2.0720 in52.629 mm D - Bearing O.D. N/A 3.6720 in93.269 mm T - Bearing Width N/A 1.0620 in26.975 mm Steering Pivot Rating N/A 19400 lbf86000 N
T252 Oil Holes in Retainer N/A No d - Bore Diameter N/A 2.5100 in63.754 mm D - Bearing O.D. N/A 4.3750 in111.125 mm T - Bearing Width N/A 1.0156 in25.796 mm Steering Pivot Rating N/A 27900 lbf124000 N
T252W Oil Holes in Retainer N/A Yes d - Bore Diameter N/A 2.5100 in63.754 mm D - Bearing O.D. N/A 4.3750 in111.125 mm T - Bearing Width N/A 1.0156 in25.796 mm Steering Pivot Rating N/A 27900 lbf124000 N
T251 Oil Holes in Retainer N/A No d - Bore Diameter N/A 2.5100 in63.754 mm D - Bearing O.D. N/A 4.3750 in111.125 mm T - Bearing Width N/A 1.0625 in26.988 mm Steering Pivot Rating N/A 27900 lbf124000 N
T251W Oil Holes in Retainer N/A Yes d - Bore Diameter N/A 2.5100 in63.754 mm D - Bearing O.D. N/A 4.3750 in111.125 mm T - Bearing Width N/A 1.0625 in26.988 mm Steering Pivot Rating N/A 27900 lbf124000 N
T301 Oil Holes in Retainer N/A No d - Bore Diameter N/A 3.0100 in76.454 mm D - Bearing O.D. N/A 5.2500 in133.350 mm T - Bearing Width N/A 1.3125 in33.338 mm Steering Pivot Rating N/A 40000 lbf178500 N
T301W Oil Holes in Retainer N/A Yes d - Bore Diameter N/A 3.0100 in76.454 mm D - Bearing O.D. N/A 5.2500 in133.350 mm T - Bearing Width N/A 1.3125 in33.338 mm Steering Pivot Rating N/A 40000 lbf178500 N
T302 Oil Holes in Retainer N/A No d - Bore Diameter N/A 3.0100 in76.454 mm D - Bearing O.D. N/A 5.2500 in133.350 mm T - Bearing Width N/A 1.3750 in34.925 mm Steering Pivot Rating N/A 40000 lbf178500 N
T302W Oil Holes in Retainer N/A Yes d - Bore Diameter N/A 3.0100 in76.454 mm D - Bearing O.D. N/A 5.2500 in133.350 mm T - Bearing Width N/A 1.3750 in34.925 mm Steering Pivot Rating N/A 40000 lbf178500 N
T350 Oil Holes in Retainer N/A No d - Bore Diameter N/A 3.5000 in88.900 mm D - Bearing O.D. N/A 5.2500 in133.350 mm T - Bearing Width N/A 1.3124 in33.335 mm Steering Pivot Rating N/A 26000 lbf115500 N
T4020 Oil Holes in Retainer N/A No d - Bore Diameter N/A 4.0200 in102.108 mm D - Bearing O.D. N/A 7.0716 in179.619 mm T - Bearing Width N/A 1.2500 in31.750 mm Steering Pivot Rating N/A 73000 lbf324000 N
T402 Oil Holes in Retainer N/A No d - Bore Diameter N/A 4.0200 in102.108 mm D - Bearing O.D. N/A 7.0716 in179.619 mm T - Bearing Width N/A 1.7500 in44.450 mm Steering Pivot Rating N/A 77500 lbf344000 N
T402W Oil Holes in Retainer N/A Yes d - Bore Diameter N/A 4.0200 in102.108 mm D - Bearing O.D. N/A 7.0716 in179.619 mm T - Bearing Width N/A 1.7500 in44.450 mm Steering Pivot Rating N/A 77500 lbf344000 N
T600 Oil Holes in Retainer N/A No d - Bore Diameter N/A 5.984 in152.400 mm D - Bearing O.D. N/A 9.5000 in241.300 mm T - Bearing Width N/A 3.0000 in76.200 mm Steering Pivot Rating N/A 129000 lbf575000 N
T600W Oil Holes in Retainer N/A Yes d - Bore Diameter N/A 5.984 in152.400 mm D - Bearing O.D. N/A 9.5000 in241.300 mm T - Bearing Width N/A 3.0000 in76.200 mm Steering Pivot Rating N/A 129000 lbf575000 N
