Băng tải - Gàu tải > Thrust Tapered Roller Bearings-Type TTHDFL-V-Flat

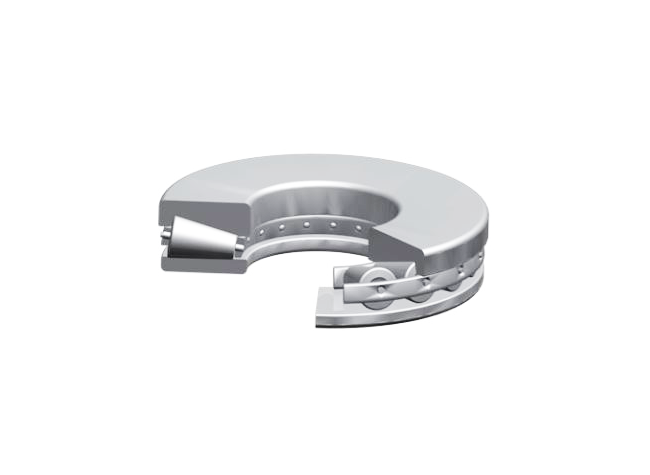

Thrust Tapered Roller Bearings-Type TTHDFL-V-Flat



  • Consists of one thrust tapered race, one flat race, rollers and cage.
  • Most sizes utilize pin-type cages with hardened pins through the center of the rollers, allowing closer roller spacing to maximize load capacity.
  • Smaller sizes have brass cages designed for unidirectional retention of rollers.
  • Combines the outstanding features of thrust tapered and cylindrical roller bearings to offer the highest possible load capacity of any thrust bearing of its size.
  • Originally developed for screwdown applications in metal rolling mills where high axial loads are common.





Timken Part Number

  d - Bore Diameter  D - Bearing O.D.  T - Bearing Width  Static Load Rating

Dynamic Load Rating
C-8515-A d - Bore Diameter N/A 3.0000 in76.200 mm D - Bearing O.D. N/A 6.3750 in161.925 mm T - Bearing Width N/A 1.312 in33.325 mm Static Load Rating N/A 584000 lbf2600 kN Dynamic Load Rating N/A 44300 lbf200 kN
W-3490-A d - Bore Diameter N/A 3.5000 in88.900 mm D - Bearing O.D. N/A 7.5000 in190.500 mm T - Bearing Width N/A 2.0000 in50.800 mm Static Load Rating N/A 551000 lbf2450 kN Dynamic Load Rating N/A 56500 lbf250 kN
N-3568-A d - Bore Diameter N/A 4.0000 in101.600 mm D - Bearing O.D. N/A 9.7500 in247.650 mm T - Bearing Width N/A 2.6250 in66.675 mm Static Load Rating N/A 1153000 lbf5130 kN Dynamic Load Rating N/A 87800 lbf390 kN
120TTVF85 OO487 d - Bore Diameter N/A 4.7244 in120.000 mm D - Bearing O.D. N/A 11.8110 in300.000 mm T - Bearing Width N/A 3.1103 in79.000 mm Static Load Rating N/A 1640000 lbf7310 kN Dynamic Load Rating N/A 140000 lbf620 kN
T4920 d - Bore Diameter N/A 4.9210 in124.993 mm D - Bearing O.D. N/A 7.3125 in185.738 mm T - Bearing Width N/A 1.0000 in25.400 mm Static Load Rating N/A 282000 lbf1250 kN Dynamic Load Rating N/A 21000 lbf90 kN
N-3586-A d - Bore Diameter N/A 4.9985 in126.962 mm D - Bearing O.D. N/A 11.0000 in279.400 mm T - Bearing Width N/A 2.3125 in58.738 mm Static Load Rating N/A 1580000 lbf7020 kN Dynamic Load Rating N/A 117000 lbf520 kN
W-3217-B d - Bore Diameter N/A 5.0000 in127.000 mm D - Bearing O.D. N/A 10.5000 in266.700 mm T - Bearing Width N/A 2.3125 in58.738 mm Static Load Rating N/A 1080000 lbf4780 kN Dynamic Load Rating N/A 89000 lbf400 kN
D-3461-C d - Bore Diameter N/A 5.0000 in127.000 mm D - Bearing O.D. N/A 10.5000 in266.700 mm T - Bearing Width N/A 2.3125 in58.738 mm Static Load Rating N/A 1080000 lbf4780 kN Dynamic Load Rating N/A 89000 lbf400 kN
T660V d - Bore Diameter N/A 6.6250 in168.275 mm D - Bearing O.D. N/A 12.0000 in304.800 mm T - Bearing Width N/A 2.7500 in69.850 mm Static Load Rating N/A 1460000 lbf6510 kN Dynamic Load Rating N/A 111000 lbf490 kN
G-3304-B d - Bore Diameter N/A 6.6250 in168.275 mm D - Bearing O.D. N/A 12.0000 in304.800 mm T - Bearing Width N/A 2.7500 in69.850 mm Static Load Rating N/A 1610000 lbf7170 kN Dynamic Load Rating N/A 130000 lbf580 kN
S-4059-B d - Bore Diameter N/A 6.8750 in174.625 mm D - Bearing O.D. N/A 14.1250 in358.775 mm T - Bearing Width N/A 3.2500 in82.550 mm Static Load Rating N/A 1252000 lbf5570 kN Dynamic Load Rating N/A 597000 lbf2660 kN
W-3218-B d - Bore Diameter N/A 7.0000 in177.800 mm D - Bearing O.D. N/A 14.5000 in368.300 mm T - Bearing Width N/A 3.2350 in82.169 mm Static Load Rating N/A 2670000 lbf11900 kN Dynamic Load Rating N/A 198000 lbf880 kN
C-8435-A d - Bore Diameter N/A 7.0000 in177.800 mm D - Bearing O.D. N/A 14.5000 in368.300 mm T - Bearing Width N/A 3.2500 in82.550 mm Static Load Rating N/A 2670000 lbf11900 kN Dynamic Load Rating N/A 198000 lbf880 kN
G-3353-B d - Bore Diameter N/A 7.0000 in177.800 mm D - Bearing O.D. N/A 14.5000 in368.300 mm T - Bearing Width N/A 3.2500 in82.550 mm Static Load Rating N/A 2530000 lbf11250 kN Dynamic Load Rating N/A 171000 lbf760 kN
N-3559-A d - Bore Diameter N/A 7.0000 in177.800 mm D - Bearing O.D. N/A 16.2500 in412.750 mm T - Bearing Width N/A 4.3750 in111.125 mm Static Load Rating N/A 2920000 lbf13000 kN Dynamic Load Rating N/A 237000 lbf1060 kN
B-8809-C d - Bore Diameter N/A 7.8745 in200.000 mm D - Bearing O.D. N/A 15.9700 in405.643 mm T - Bearing Width N/A 4.3750 in111.125 mm Static Load Rating N/A 2920000 lbf13000 kN Dynamic Load Rating N/A 237000 lbf1060 kN
N-3553-A d - Bore Diameter N/A 8.0000 in203.200 mm D - Bearing O.D. N/A 16.5000 in419.100 mm T - Bearing Width N/A 3.6250 in92.075 mm Static Load Rating N/A 3070000 lbf13700 kN Dynamic Load Rating N/A 241000 lbf1070 kN
T-6240-A d - Bore Diameter N/A 9.0000 in228.600 mm D - Bearing O.D. N/A 19.0000 in482.600 mm T - Bearing Width N/A 4.1250 in104.775 mm Static Load Rating N/A 4590000 lbf20400 kN Dynamic Load Rating N/A 320000 lbf1430 kN
V-463-A d - Bore Diameter N/A 9.2500 in234.950 mm D - Bearing O.D. N/A 21.5000 in546.100 mm T - Bearing Width N/A 6.0000 in152.400 mm Static Load Rating N/A 6950000 lbf30900 kN Dynamic Load Rating N/A 519000 lbf2310 kN
N-3506-A d - Bore Diameter N/A 9.5000 in241.300 mm D - Bearing O.D. N/A 21.7500 in552.450 mm T - Bearing Width N/A 5.5000 in139.700 mm Static Load Rating N/A 6990000 lbf31100 kN Dynamic Load Rating N/A 499000 lbf2220 kN
N-3560-A d - Bore Diameter N/A 9.5000 in241.300 mm D - Bearing O.D. N/A 23.0000 in584.200 mm T - Bearing Width N/A 6.0000 in152.400 mm Static Load Rating N/A 7580000 lbf33700 kN Dynamic Load Rating N/A 551000 lbf2450 kN
I-2077-C d - Bore Diameter N/A 9.9990 in253.975 mm D - Bearing O.D. N/A 20.0000 in508.000 mm T - Bearing Width N/A 3.7500 in95.250 mm Static Load Rating N/A 4400000 lbf19600 kN Dynamic Load Rating N/A 307000 lbf1370 kN
C-8326-A d - Bore Diameter N/A 10.0000 in254.000 mm D - Bearing O.D. N/A 20.0000 in508.000 mm T - Bearing Width N/A 4.2500 in107.950 mm Static Load Rating N/A 5050000 lbf22500 kN Dynamic Load Rating N/A 358000 lbf1590 kN
C-8184-A d - Bore Diameter N/A 10.0000 in254.000 mm D - Bearing O.D. N/A 21.5000 in546.100 mm T - Bearing Width N/A 5.0000 in127.000 mm Static Load Rating N/A 6370000 lbf28300 kN Dynamic Load Rating N/A 457000 lbf2030 kN
T10100V d - Bore Diameter N/A 10.1000 in256.540 mm D - Bearing O.D. N/A 21.5000 in546.100 mm T - Bearing Width N/A 6.4850 in164.719 mm Static Load Rating N/A 6370000 lbf28300 kN Dynamic Load Rating N/A 465000 lbf2070 kN
G-3224-C d - Bore Diameter N/A 10.1000 in256.540 mm D - Bearing O.D. N/A 21.5000 in546.100 mm T - Bearing Width N/A 6.5000 in165.100 mm Static Load Rating N/A 6390000 lbf28400 kN Dynamic Load Rating N/A 515000 lbf2290 kN
G-3291-C d - Bore Diameter N/A 10.1000 in256.540 mm D - Bearing O.D. N/A 21.5000 in546.100 mm T - Bearing Width N/A 6.5000 in165.100 mm Static Load Rating N/A 6390000 lbf28400 kN Dynamic Load Rating N/A 515000 lbf2290 kN
S-4077-C d - Bore Diameter N/A 10.2362 in259.999 mm D - Bearing O.D. N/A 18.8956 in479.948 mm T - Bearing Width N/A 5.2000 in132.080 mm Static Load Rating N/A 3710000 lbf16500 kN Dynamic Load Rating N/A 312000 lbf1390 kN
N-3580-A d - Bore Diameter N/A 10.7500 in273.050 mm D - Bearing O.D. N/A 24.0000 in609.600 mm T - Bearing Width N/A 6.3750 in161.925 mm Static Load Rating N/A 7880000 lbf35000 kN Dynamic Load Rating N/A 591000 lbf2630 kN
T11000 d - Bore Diameter N/A 11.0000 in279.400 mm D - Bearing O.D. N/A 23.7500 in603.250 mm T - Bearing Width N/A 5.3750 in136.525 mm Static Load Rating N/A 7240000 lbf32200 kN Dynamic Load Rating N/A 469000 lbf2090 kN
T11001V d - Bore Diameter N/A 11.0000 in279.400 mm D - Bearing O.D. N/A 23.7500 in603.250 mm T - Bearing Width N/A 5.3750 in136.525 mm Static Load Rating N/A 7240000 lbf32200 kN Dynamic Load Rating N/A 577000 lbf2570 kN
T11002V d - Bore Diameter N/A 11.0000 in279.400 mm D - Bearing O.D. N/A 23.7500 in603.250 mm T - Bearing Width N/A 5.3750 in136.525 mm Static Load Rating N/A 7240000 lbf32200 kN Dynamic Load Rating N/A 577000 lbf2570 kN
C-7964-C d - Bore Diameter N/A 11.0000 in279.400 mm D - Bearing O.D. N/A 23.7500 in603.250 mm T - Bearing Width N/A 5.3750 in136.525 mm Static Load Rating N/A 8700000 lbf38700 kN Dynamic Load Rating N/A 568000 lbf2530 kN
C-8091-C d - Bore Diameter N/A 11.0000 in279.400 mm D - Bearing O.D. N/A 23.7500 in603.250 mm T - Bearing Width N/A 5.3750 in136.525 mm Static Load Rating N/A 7500000 lbf33300 kN Dynamic Load Rating N/A 511000 lbf2270 kN
I-2290-C d - Bore Diameter N/A 11.0000 in279.400 mm D - Bearing O.D. N/A 23.7500 in603.250 mm T - Bearing Width N/A 5.3750 in136.525 mm Static Load Rating N/A 7940000 lbf35300 kN Dynamic Load Rating N/A 570000 lbf2530 kN
T11500 d - Bore Diameter N/A 11.5000 in292.100 mm D - Bearing O.D. N/A 26.0000 in660.400 mm T - Bearing Width N/A 5.0000 in127.000 mm Static Load Rating N/A 9880000 lbf44000 kN Dynamic Load Rating N/A 650000 lbf2890 kN
N-3311-A d - Bore Diameter N/A 11.5000 in292.100 mm D - Bearing O.D. N/A 26.0000 in660.400 mm T - Bearing Width N/A 5.0000 in127.000 mm Static Load Rating N/A 10300000 lbf45700 kN Dynamic Load Rating N/A 682000 lbf3030 kN
G-3272-C d - Bore Diameter N/A 11.9990 in304.775 mm D - Bearing O.D. N/A 24.0000 in609.600 mm T - Bearing Width N/A 4.4900 in114.046 mm Static Load Rating N/A 7430000 lbf33100 kN Dynamic Load Rating N/A 464000 lbf2060 kN
E-1994-C d - Bore Diameter N/A 12.0000 in304.800 mm D - Bearing O.D. N/A 26.5000 in673.100 mm T - Bearing Width N/A 6.7500 in171.450 mm Static Load Rating N/A 9370000 lbf41700 kN Dynamic Load Rating N/A 687000 lbf3060 kN
F-3090-A d - Bore Diameter N/A 12.0000 in304.800 mm D - Bearing O.D. N/A 29.0000 in736.600 mm T - Bearing Width N/A 11.0000 in279.400 mm Static Load Rating N/A 10400000 lbf46400 kN Dynamic Load Rating N/A 900000 lbf4000 kN
I-2060-C d - Bore Diameter N/A 14.5095 in368.541 mm D - Bearing O.D. N/A 23.9825 in609.156 mm T - Bearing Width N/A 4.7350 in120.269 mm Static Load Rating N/A 5040000 lbf22400 kN Dynamic Load Rating N/A 369000 lbf1640 kN
T15500 d - Bore Diameter N/A 15.5000 in393.700 mm D - Bearing O.D. N/A 19.5000 in495.300 mm T - Bearing Width N/A 1.7500 in44.450 mm Static Load Rating N/A 1550000 lbf6900 kN Dynamic Load Rating N/A 83700 lbf370 kN
T15501 d - Bore Diameter N/A 15.5000 in393.700 mm D - Bearing O.D. N/A 19.5000 in495.300 mm T - Bearing Width N/A 1.7500 in44.450 mm Static Load Rating N/A 1550000 lbf6900 kN Dynamic Load Rating N/A 83700 lbf370 kN
F-3131-G d - Bore Diameter N/A 17.0000 in431.800 mm D - Bearing O.D. N/A 34.0000 in863.600 mm T - Bearing Width N/A 9.0000 in228.600 mm Static Load Rating N/A 15000000 lbf66800 kN Dynamic Load Rating N/A 1080000 lbf4790 kN
E-2054-G d - Bore Diameter N/A 17.3219 in440.000 mm D - Bearing O.D. N/A 34.0000 in863.600 mm T - Bearing Width N/A 9.0000 in228.600 mm Static Load Rating N/A 15000000 lbf66800 kN Dynamic Load Rating N/A 1080000 lbf4790 kN
F-2342-A d - Bore Diameter N/A 18.0000 in457.200 mm D - Bearing O.D. N/A 30.0000 in762.000 mm T - Bearing Width N/A 5.5000 in139.700 mm Static Load Rating N/A 9740000 lbf43300 kN Dynamic Load Rating N/A 645000 lbf2870 kN
T18500 d - Bore Diameter N/A 18.5000 in469.900 mm D - Bearing O.D. N/A 36.1250 in917.575 mm T - Bearing Width N/A 8.7500 in222.250 mm Static Load Rating N/A 15300000 lbf68200 kN Dynamic Load Rating N/A 1090000 lbf4830 kN
A-6096-C d - Bore Diameter N/A 20.0000 in508.000 mm D - Bearing O.D. N/A 39.0000 in990.600 mm T - Bearing Width N/A 7.7500 in196.850 mm Static Load Rating N/A 17500000 lbf77800 kN Dynamic Load Rating N/A 994000 lbf4420 kN
G-3734-A d - Bore Diameter N/A 20.0000 in508.000 mm D - Bearing O.D. N/A 39.0000 in990.600 mm T - Bearing Width N/A 7.7500 in196.850 mm Static Load Rating N/A 17500000 lbf77800 kN Dynamic Load Rating N/A 994000 lbf4420 kN
T20750 d - Bore Diameter N/A 20.7500 in527.050 mm D - Bearing O.D. N/A 25.0000 in635.000 mm T - Bearing Width N/A 1.7500 in44.450 mm Static Load Rating N/A 1740000 lbf7750 kN Dynamic Load Rating N/A 80200 lbf360 kN
F-3093-A d - Bore Diameter N/A 22.0000 in558.800 mm D - Bearing O.D. N/A 42.0000 in1066.800 mm T - Bearing Width N/A 11.2350 in285.370 mm Static Load Rating N/A 20100000 lbf89200 kN Dynamic Load Rating N/A 1470000 lbf6550 kN
E-2394-A(2) d - Bore Diameter N/A 22.0050 in558.927 mm D - Bearing O.D. N/A 30.0000 in762.000 mm T - Bearing Width N/A 4.0000 in101.600 mm Static Load Rating N/A 5150000 lbf22900 kN Dynamic Load Rating N/A 293000 lbf1310 kN
J-940-A d - Bore Diameter N/A 24.0000 in609.600 mm D - Bearing O.D. N/A 32.0000 in812.800 mm T - Bearing Width N/A 4.0000 in101.600 mm Static Load Rating N/A 5890000 lbf26200 kN Dynamic Load Rating N/A 319000 lbf1420 kN
F-3172-C d - Bore Diameter N/A 28.0000 in711.200 mm D - Bearing O.D. N/A 38.0000 in965.200 mm T - Bearing Width N/A 5.0000 in127.000 mm Static Load Rating N/A 8390000 lbf37300 kN Dynamic Load Rating N/A 480000 lbf2140 kN
H-2054-G d - Bore Diameter N/A 28.0000 in711.200 mm D - Bearing O.D. N/A 39.0000 in990.600 mm T - Bearing Width N/A 7.5000 in190.500 mm Static Load Rating N/A 11400000 lbf50900 kN Dynamic Load Rating N/A 770000 lbf3420 kN
E-2172-A(2) d - Bore Diameter N/A 29.5000 in749.300 mm D - Bearing O.D. N/A 37.5000 in952.500 mm T - Bearing Width N/A 5.0000 in127.000 mm Static Load Rating N/A 5570000 lbf24800 kN Dynamic Load Rating N/A 328000 lbf1460 kN
T30620 d - Bore Diameter N/A 30.6180 in777.697 mm D - Bearing O.D. N/A 35.0000 in889.000 mm T - Bearing Width N/A 1.8750 in47.625 mm Static Load Rating N/A 2580000 lbf11500 kN Dynamic Load Rating N/A 99300 lbf440 kN
E-2267-A d - Bore Diameter N/A 31.5000 in800.100 mm D - Bearing O.D. N/A 41.0000 in1041.400 mm T - Bearing Width N/A 5.5000 in139.700 mm Static Load Rating N/A 9120000 lbf40600 kN Dynamic Load Rating N/A 548000 lbf2440 kN
E-2421-A d - Bore Diameter N/A 33.5000 in850.900 mm D - Bearing O.D. N/A 44.5000 in1130.300 mm T - Bearing Width N/A 5.9000 in149.860 mm Static Load Rating N/A 11000000 lbf48800 kN Dynamic Load Rating N/A 650000 lbf2890 kN
T34250 d - Bore Diameter N/A 34.2520 in870.001 mm D - Bearing O.D. N/A 38.5827 in980.001 mm T - Bearing Width N/A 1.9685 in50.000 mm Static Load Rating N/A 2820000 lbf12500 kN Dynamic Load Rating N/A 109000 lbf480 kN
E-1987-C d - Bore Diameter N/A 37.0000 in939.800 mm D - Bearing O.D. N/A 49.0000 in1244.600 mm T - Bearing Width N/A 6.0000 in152.400 mm Static Load Rating N/A 14600000 lbf65200 kN Dynamic Load Rating N/A 774000 lbf3440 kN
S-4228-C d - Bore Diameter N/A 38.2165 in970.700 mm D - Bearing O.D. N/A 49.2105 in1249.950 mm T - Bearing Width N/A 5.1881 in130.000 mm Static Load Rating N/A 13400000 lbf59400 kN Dynamic Load Rating N/A 651000 lbf2900 kN
T45750 d - Bore Diameter N/A 45.7500 in1162.050 mm D - Bearing O.D. N/A 50.5000 in1282.700 mm T - Bearing Width N/A 2.0625 in52.388 mm Static Load Rating N/A 4280000 lbf19000 kN Dynamic Load Rating N/A 139000 lbf620 kN
T45751 d - Bore Diameter N/A 45.7500 in1162.050 mm D - Bearing O.D. N/A 50.5000 in1282.700 mm T - Bearing Width N/A 2.2480 in57.099 mm Static Load Rating N/A 4280000 lbf19000 kN Dynamic Load Rating N/A 139000 lbf620 kN
T53250 d - Bore Diameter N/A 53.2500 in1352.550 mm D - Bearing O.D. N/A 58.0000 in1473.200 mm T - Bearing Width N/A 2.062 in52.375 mm Static Load Rating N/A 4750000 lbf21100 kN Dynamic Load Rating N/A 146000 lbf650 kN
