Thrust Tapered Roller Bearings-Type TTHDFLSA

Chi tiết sản phẩm

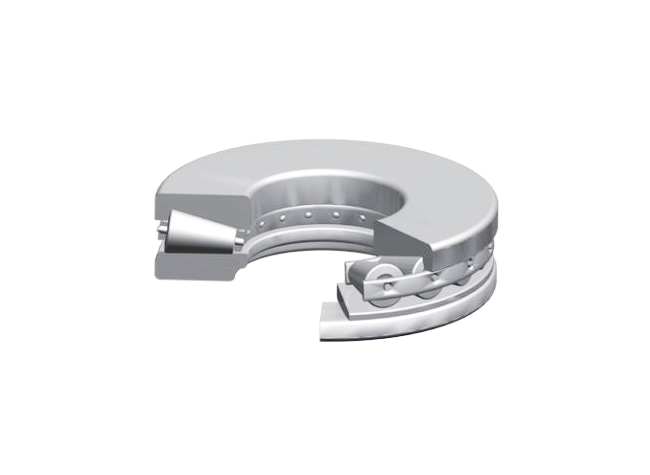

Same basic roller and raceway design as the TTHDFL, except that the lower race is composed of two pieces whose faces are spherically ground to permit self-alignment under conditions of initial misalignment.
TTHDFLSA bearings should not be used if dynamic misalignment (changing under load) is expected.

Timken Part Number	d - Bore Diameter	D - Bearing O.D.	T - Bearing Width	Static Load Rating	Dynamic Load Rating
A–5934–B	d - Bore Diameter N/A 4.0000 in101.600 mm	D - Bearing O.D. N/A 8.0000 in203.200 mm	T - Bearing Width N/A 1.8750 in47.625 mm	Static Load Rating N/A 517000 lbf2300 kN	Dynamic Load Rating N/A 44200 lbf200 kN
C–7862–C	d - Bore Diameter N/A 5.0000 in127.000 mm	D - Bearing O.D. N/A 10.5000 in266.700 mm	T - Bearing Width N/A 2.8120 in71.425 mm	Static Load Rating N/A 1110000 lbf4920 kN	Dynamic Load Rating N/A 91200 lbf400 kN
B–7976–C	d - Bore Diameter N/A 7.2500 in184.150 mm	D - Bearing O.D. N/A 16.0000 in406.400 mm	T - Bearing Width N/A 8.0000 in203.200 mm	Static Load Rating N/A 3380000 lbf15000 kN	Dynamic Load Rating N/A 308000 lbf1370 kN
B–8824–C	d - Bore Diameter N/A 7.8730 in199.374 mm	D - Bearing O.D. N/A 15.7460 in399.948 mm	T - Bearing Width N/A 4.7969 in121.841 mm	Static Load Rating N/A 2920000 lbf13000 kN	Dynamic Load Rating N/A 237000 lbf1060 kN
S–3806–B	d - Bore Diameter N/A 7.8730 in199.975 mm	D - Bearing O.D. N/A 15.7470 in399.975 mm	T - Bearing Width N/A 4.7985 in121.881 mm	Static Load Rating N/A 2920000 lbf13000 kN	Dynamic Load Rating N/A 237000 lbf1060 kN
E–2004–C	d - Bore Diameter N/A 9.0000 in228.600 mm	D - Bearing O.D. N/A 18.9980 in482.549 mm	T - Bearing Width N/A 6.2500 in158.750 mm	Static Load Rating N/A 4500000 lbf20000 kN	Dynamic Load Rating N/A 375000 lbf1670 kN
H–2212–A	d - Bore Diameter N/A 9.0000 in228.600 mm	D - Bearing O.D. N/A 19.0000 in482.600 mm	T - Bearing Width N/A 6.2500 in158.750 mm	Static Load Rating N/A 4500000 lbf20000 kN	Dynamic Load Rating N/A 375000 lbf1670 kN
H–1685–C	d - Bore Diameter N/A 9.5000 in241.300 mm	D - Bearing O.D. N/A 19.2480 in488.899 mm	T - Bearing Width N/A 6.0000 in152.400 mm	Static Load Rating N/A 4240000 lbf18900 kN	Dynamic Load Rating N/A 329000 lbf1460 kN
P–1739–C	d - Bore Diameter N/A 12.0000 in304.800 mm	D - Bearing O.D. N/A 24.0000 in609.600 mm	T - Bearing Width N/A 8.5000 in215.900 mm	Static Load Rating N/A 6990000 lbf31100 kN	Dynamic Load Rating N/A 586000 lbf2610 kN
B–8750–G	d - Bore Diameter N/A 14.0000 in355.600 mm	D - Bearing O.D. N/A 26.0000 in660.400 mm	T - Bearing Width N/A 10.0000 in254.000 mm	Static Load Rating N/A 7700000 lbf34200 kN	Dynamic Load Rating N/A 652000 lbf2900 kN
B–8424–C	d - Bore Diameter N/A 16.0000 in406.400 mm	D - Bearing O.D. N/A 34.2500 in869.950 mm	T - Bearing Width N/A 9.5000 in241.300 mm	Static Load Rating N/A 16500000 lbf73500 kN	Dynamic Load Rating N/A 1090000 lbf4840 kN
B–8073–C	d - Bore Diameter N/A 20.0000 in508.000 mm	D - Bearing O.D. N/A 39.0000 in990.600 mm	T - Bearing Width N/A 7.7500 in196.850 mm	Static Load Rating N/A 17500000 lbf77800 kN	Dynamic Load Rating N/A 994000 lbf4420 kN
