Băng tải - Gàu tải > Thrust Tapered Roller Bearings-Type TTSP - TTSPS - TTSPL

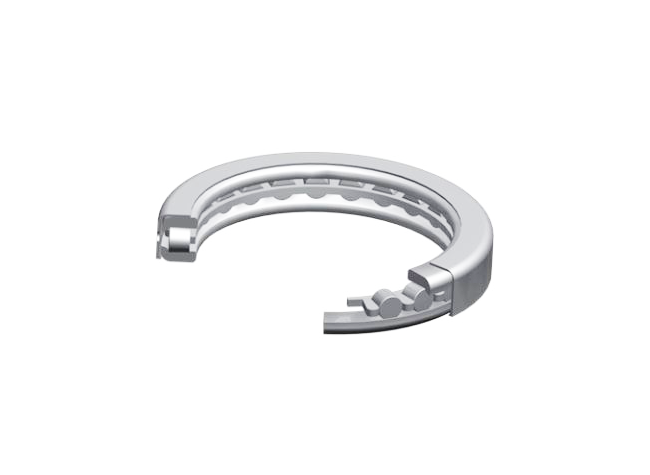

Thrust Tapered Roller Bearings-Type TTSP - TTSPS - TTSPL



  • Comprised of two thrust tapered races, rollers, cage and an outside retainer which holds the components together during shipping and installation.
  • Off-apex roller arrangement.
  • These are light-duty thrust bearings which are used extensively in the steering pivot positions of automotive and other industrial applications.
  • Types TTSP, TTSPS and TTSPL are identical except for the cage construction.



Timken Part Number

  Oil Holes in Retainer  d - Bore Diameter  D - Bearing O.D.  T - Bearing Width

Steering Pivot Rating
T63 Oil Holes in Retainer N/A No d - Bore Diameter N/A 0.6350 in16.129 mm D - Bearing O.D. N/A 1.6250 in41.275 mm T - Bearing Width N/A 0.5000 in12.7 mm Steering Pivot Rating N/A 2500 lbf11100 N
T63W Oil Holes in Retainer N/A Yes d - Bore Diameter N/A 0.6350 in16.129 mm D - Bearing O.D. N/A 1.6250 in41.275 mm T - Bearing Width N/A 0.5000 in12.7 mm Steering Pivot Rating N/A 2500 lbf11100 N
T77 Oil Holes in Retainer N/A No d - Bore Diameter N/A 0.7600 in19.304 mm D - Bearing O.D. N/A 1.6250 in41.275 mm T - Bearing Width N/A 0.5000 in12.7 mm Steering Pivot Rating N/A 2500 lbf11100 N
T77W Oil Holes in Retainer N/A Yes d - Bore Diameter N/A 0.7600 in19.304 mm D - Bearing O.D. N/A 1.6250 in41.275 mm T - Bearing Width N/A 0.5000 in12.7 mm Steering Pivot Rating N/A 2500 lbf11100 N
T76 Oil Holes in Retainer N/A No d - Bore Diameter N/A 0.7600 in19.304 mm D - Bearing O.D. N/A 1.6250 in41.275 mm T - Bearing Width N/A 0.5310 in13.487 mm Steering Pivot Rating N/A 2500 lbf11100 N
T76W Oil Holes in Retainer N/A Yes d - Bore Diameter N/A 0.7600 in19.304 mm D - Bearing O.D. N/A 1.6250 in41.275 mm T - Bearing Width N/A 0.5310 in13.487 mm Steering Pivot Rating N/A 2500 lbf11100 N
T86 Oil Holes in Retainer N/A No d - Bore Diameter N/A 0.7975 in20.257 mm D - Bearing O.D. N/A 1.5625 in39.688 mm T - Bearing Width N/A 0.5625 in14.288 mm Steering Pivot Rating N/A 2400 lbf10700 N
T82 Oil Holes in Retainer N/A No d - Bore Diameter N/A 0.8220 in20.879 mm D - Bearing O.D. N/A 1.6250 in41.275 mm T - Bearing Width N/A 0.5310 in13.487 mm Steering Pivot Rating N/A 2500 lbf11100 N
T82W Oil Holes in Retainer N/A Yes d - Bore Diameter N/A 0.8220 in20.879 mm D - Bearing O.D. N/A 1.6250 in41.275 mm T - Bearing Width N/A 0.5310 in13.487 mm Steering Pivot Rating N/A 2500 lbf11100 N
T88 Oil Holes in Retainer N/A No d - Bore Diameter N/A 0.8850 in22.479 mm D - Bearing O.D. N/A 1.8906 in48.021 mm T - Bearing Width N/A 0.5940 in15.088 mm Steering Pivot Rating N/A 3890 lbf17300 N
T88W Oil Holes in Retainer N/A Yes d - Bore Diameter N/A 0.8850 in22.479 mm D - Bearing O.D. N/A 1.8906 in48.021 mm T - Bearing Width N/A 0.5940 in15.088 mm Steering Pivot Rating N/A 3890 lbf17300 N
T89 Oil Holes in Retainer N/A No d - Bore Diameter N/A 0.8850 in22.479 mm D - Bearing O.D. N/A 1.8906 in48.021 mm T - Bearing Width N/A 0.6250 in15.875 mm Steering Pivot Rating N/A 3900 lbf17350 N
T92 Oil Holes in Retainer N/A No d - Bore Diameter N/A 0.9380 in23.825 mm D - Bearing O.D. N/A 1.7700 in44.958 mm T - Bearing Width N/A 0.5310 in13.487 mm Steering Pivot Rating N/A 2690 lbf11950 N
T93 Oil Holes in Retainer N/A No d - Bore Diameter N/A 0.9470 in24.054 mm D - Bearing O.D. N/A 1.7700 in44.958 mm T - Bearing Width N/A 0.5310 in13.487 mm Steering Pivot Rating N/A 2690 lbf11950 N
T94 Oil Holes in Retainer N/A No d - Bore Diameter N/A 0.9470 in24.054 mm D - Bearing O.D. N/A 1.8906 in48.021 mm T - Bearing Width N/A 0.5940 in15.088 mm Steering Pivot Rating N/A 3900 lbf17350 N
T94W Oil Holes in Retainer N/A Yes d - Bore Diameter N/A 0.9470 in24.054 mm D - Bearing O.D. N/A 1.8906 in48.021 mm T - Bearing Width N/A 0.5940 in15.088 mm Steering Pivot Rating N/A 3900 lbf17350 N
T95 Oil Holes in Retainer N/A No d - Bore Diameter N/A 0.9500 in24.13 mm D - Bearing O.D. N/A 2.0000 in50.8 mm T - Bearing Width N/A 0.6250 in15.875 mm Steering Pivot Rating N/A 4200 lbf18600 N
T95W Oil Holes in Retainer N/A Yes d - Bore Diameter N/A 0.9500 in24.13 mm D - Bearing O.D. N/A 2.0000 in50.8 mm T - Bearing Width N/A 0.6250 in15.875 mm Steering Pivot Rating N/A 4200 lbf18600 N
T101 Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.0100 in25.654 mm D - Bearing O.D. N/A 2.0000 in50.8 mm T - Bearing Width N/A 0.6250 in15.875 mm Steering Pivot Rating N/A 4200 lbf18600 N
T101W Oil Holes in Retainer N/A Yes d - Bore Diameter N/A 1.0100 in25.654 mm D - Bearing O.D. N/A 2.0000 in50.8 mm T - Bearing Width N/A 0.6250 in15.875 mm Steering Pivot Rating N/A 4200 lbf18600 N
T105 Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.0100 in25.654 mm D - Bearing O.D. N/A 2.0000 in50.8 mm T - Bearing Width N/A 0.6250 in15.875 mm Steering Pivot Rating N/A 4200 lbf18600 N
T102 Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.0100 in25.654 mm D - Bearing O.D. N/A 2.0000 in50.8 mm T - Bearing Width N/A 0.6660 in16.916 mm Steering Pivot Rating N/A 4200 lbf18600 N
T102R Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.0100 in25.654 mm D - Bearing O.D. N/A 2.0000 in50.8 mm T - Bearing Width N/A 0.6660 in16.916 mm Steering Pivot Rating N/A 4200 lbf18600 N
T114 Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.0100 in25.654 mm D - Bearing O.D. N/A 2.1875 in55.562 mm T - Bearing Width N/A 0.6250 in15.875 mm Steering Pivot Rating N/A 4500 lbf20000 N
T114W Oil Holes in Retainer N/A Yes d - Bore Diameter N/A 1.0100 in25.654 mm D - Bearing O.D. N/A 2.1875 in55.562 mm T - Bearing Width N/A 0.6250 in15.875 mm Steering Pivot Rating N/A 4500 lbf20000 N
T104 Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.0350 in26.289 mm D - Bearing O.D. N/A 2.0000 in50.8 mm T - Bearing Width N/A 0.6250 in15.875 mm Steering Pivot Rating N/A 4200 lbf18600 N
T104W Oil Holes in Retainer N/A Yes d - Bore Diameter N/A 1.0350 in26.289 mm D - Bearing O.D. N/A 2.0000 in50.8 mm T - Bearing Width N/A 0.6250 in15.875 mm Steering Pivot Rating N/A 4200 lbf18600 N
T107 Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.0720 in27.299 mm D - Bearing O.D. N/A 2.0000 in50.8 mm T - Bearing Width N/A 0.6250 in15.875 mm Steering Pivot Rating N/A 4200 lbf18600 N
T114X Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.1350 in28.829 mm D - Bearing O.D. N/A 2.0000 in50.8 mm T - Bearing Width N/A 0.6250 in15.875 mm Steering Pivot Rating N/A 4500 lbf20000 N
T110 Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.1350 in28.829 mm D - Bearing O.D. N/A 2.0940 in53.188 mm T - Bearing Width N/A 0.6250 in15.875 mm Steering Pivot Rating N/A 4500 lbf20000 N
T110W Oil Holes in Retainer N/A Yes d - Bore Diameter N/A 1.1350 in28.829 mm D - Bearing O.D. N/A 2.0940 in53.188 mm T - Bearing Width N/A 0.6250 in15.875 mm Steering Pivot Rating N/A 4500 lbf20000 N
T113 Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.1350 in28.829 mm D - Bearing O.D. N/A 2.1875 in55.562 mm T - Bearing Width N/A 0.6250 in15.875 mm Steering Pivot Rating N/A 4500 lbf20000 N
T113W Oil Holes in Retainer N/A Yes d - Bore Diameter N/A 1.1350 in28.829 mm D - Bearing O.D. N/A 2.1875 in55.562 mm T - Bearing Width N/A 0.6250 in15.875 mm Steering Pivot Rating N/A 4500 lbf20000 N
T113X Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.1350 in28.829 mm D - Bearing O.D. N/A 2.1875 in55.562 mm T - Bearing Width N/A 0.6250 in15.875 mm Steering Pivot Rating N/A 4500 lbf20000 N
T120 Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.1975 in30.416 mm D - Bearing O.D. N/A 2.1553 in54.745 mm T - Bearing Width N/A 0.4500 in11.43 mm Steering Pivot Rating N/A 3710 lbf16500 N
T119 Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.1975 in30.416 mm D - Bearing O.D. N/A 2.1875 in55.562 mm T - Bearing Width N/A 0.6250 in15.875 mm Steering Pivot Rating N/A 4500 lbf20000 N
T119W Oil Holes in Retainer N/A Yes d - Bore Diameter N/A 1.1975 in30.416 mm D - Bearing O.D. N/A 2.1875 in55.562 mm T - Bearing Width N/A 0.6250 in15.875 mm Steering Pivot Rating N/A 4500 lbf20000 N
T121 Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.2093 in30.716 mm D - Bearing O.D. N/A 2.1875 in55.562 mm T - Bearing Width N/A 0.6250 in15.875 mm Steering Pivot Rating N/A 4500 lbf20000 N
T126 Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.2600 in32.004 mm D - Bearing O.D. N/A 2.1875 in55.562 mm T - Bearing Width N/A 0.6250 in15.875 mm Steering Pivot Rating N/A 4500 lbf20000 N
T126W Oil Holes in Retainer N/A Yes d - Bore Diameter N/A 1.2600 in32.004 mm D - Bearing O.D. N/A 2.1875 in55.562 mm T - Bearing Width N/A 0.6250 in15.875 mm Steering Pivot Rating N/A 4500 lbf20000 N
T126A Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.2600 in32.004 mm D - Bearing O.D. N/A 2.1875 in55.562 mm T - Bearing Width N/A 0.6250 in15.875 mm Steering Pivot Rating N/A 4500 lbf20000 N
T126AW Oil Holes in Retainer N/A Yes d - Bore Diameter N/A 1.2600 in32.004 mm D - Bearing O.D. N/A 2.1875 in55.562 mm T - Bearing Width N/A 0.6250 in15.875 mm Steering Pivot Rating N/A 4500 lbf20000 N
T1370 Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.3787 in35.02 mm D - Bearing O.D. N/A 2.1875 in55.562 mm T - Bearing Width N/A 0.6250 in15.875 mm Steering Pivot Rating N/A 3600 lbf16000 N
T139 Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.3850 in35.179 mm D - Bearing O.D. N/A 2.3125 in58.738 mm T - Bearing Width N/A 0.6250 in15.875 mm Steering Pivot Rating N/A 4800 lbf21400 N
T139W Oil Holes in Retainer N/A Yes d - Bore Diameter N/A 1.3850 in35.179 mm D - Bearing O.D. N/A 2.3125 in58.738 mm T - Bearing Width N/A 0.6250 in15.875 mm Steering Pivot Rating N/A 4800 lbf21400 N
T142 Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.3850 in35.179 mm D - Bearing O.D. N/A 2.4688 in62.708 mm T - Bearing Width N/A 0.7650 in19.431 mm Steering Pivot Rating N/A 5050 lbf22400 N
T142W Oil Holes in Retainer N/A Yes d - Bore Diameter N/A 1.3850 in35.179 mm D - Bearing O.D. N/A 2.4688 in62.708 mm T - Bearing Width N/A 0.7650 in19.431 mm Steering Pivot Rating N/A 5050 lbf22400 N
T149 Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.5080 in38.303 mm D - Bearing O.D. N/A 2.5938 in65.883 mm T - Bearing Width N/A 0.7650 in19.431 mm Steering Pivot Rating N/A 5300 lbf23600 N
T149W Oil Holes in Retainer N/A Yes d - Bore Diameter N/A 1.5080 in38.303 mm D - Bearing O.D. N/A 2.5938 in65.883 mm T - Bearing Width N/A 0.7650 in19.431 mm Steering Pivot Rating N/A 5300 lbf23600 N
T158 Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.5840 in40.234 mm D - Bearing O.D. N/A 2.5938 in65.883 mm T - Bearing Width N/A 0.7650 in19.431 mm Steering Pivot Rating N/A 5300 lbf23600 N
T1760 Oil Holes in Retainer N/A No d - Bore Diameter N/A 1.7568 in44.623 mm D - Bearing O.D. N/A 3.0000 in76.200 mm T - Bearing Width N/A 0.4300 in10.922 mm Steering Pivot Rating N/A 7100 lbf31600 N
T199 Oil Holes in Retainer N/A No d - Bore Diameter N/A 2.0100 in51.054 mm D - Bearing O.D. N/A 2.9375 in74.612 mm T - Bearing Width N/A 0.6250 in15.875 mm Steering Pivot Rating N/A 5850 lbf26000 N
T199W Oil Holes in Retainer N/A Yes d - Bore Diameter N/A 2.0100 in51.054 mm D - Bearing O.D. N/A 2.9375 in74.612 mm T - Bearing Width N/A 0.6250 in15.875 mm Steering Pivot Rating N/A 5850 lbf26000 N
T309 Oil Holes in Retainer N/A No d - Bore Diameter N/A 3.0938 in78.583 mm D - Bearing O.D. N/A 4.0313 in102.395 mm T - Bearing Width N/A 0.6250 in15.875 mm Steering Pivot Rating N/A 8000 lbf35400 N
T387 Oil Holes in Retainer N/A No d - Bore Diameter N/A 3.8750 in96.425 mm D - Bearing O.D. N/A 5.0000 in127 mm T - Bearing Width N/A 0.7650 in17.463 mm Steering Pivot Rating N/A 9700 lbf43000 N
T387W Oil Holes in Retainer N/A Yes d - Bore Diameter N/A 3.8750 in96.425 mm D - Bearing O.D. N/A 5.0000 in127 mm T - Bearing Width N/A 0.7650 in17.463 mm Steering Pivot Rating N/A 9700 lbf43000 N
T484 Oil Holes in Retainer N/A No d - Bore Diameter N/A 4.8430 in123.012 mm D - Bearing O.D. N/A 6.0000 in152.4 mm T - Bearing Width N/A 0.6875 in17.463 mm Steering Pivot Rating N/A 10600 lbf47500 N
T581 Oil Holes in Retainer N/A No d - Bore Diameter N/A 5.8125 in147.638 mm D - Bearing O.D. N/A 7.0000 in177.8 mm T - Bearing Width N/A 0.6875 in17.463 mm Steering Pivot Rating N/A 11600 lbf51500 N
