Băng tải - Gàu tải > Thrust Tapered Roller Bearings-Type TTHD

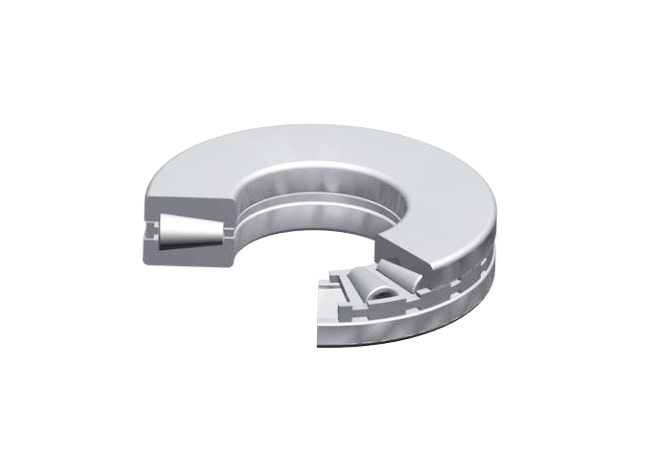

Thrust Tapered Roller Bearings-Type TTHD



  • Consists of two thrust tapered races, rollers and cage.
  • Generally a heavy-duty bearing that can operate at relatively high speeds.
  • Bearing of choice for axial positions in a wide variety of applications including oil well swivels, pulp refiners, extruders and piercing mill thrust blocks





Timken Part Number

  d - Bore Diameter  D - Bearing O.D.  T - Bearing Width  Static Load Rating

Dynamic Load Rating
T135 d - Bore Diameter N/A 1.3750 in34.925 mm D - Bearing O.D. N/A 3.0000 in76.200 mm T - Bearing Width N/A 0.6250 in15.875 mm Static Load Rating N/A 71200 lbf320 kN Dynamic Load Rating N/A 7130 lbf30 kN
T135F d - Bore Diameter N/A 1.3750 in34.925 mm D - Bearing O.D. N/A 3.0000 in76.200 mm T - Bearing Width N/A 0.6250 in15.875 mm Static Load Rating N/A 105000 lbf470 kN Dynamic Load Rating N/A 53500 lbf240 kN
T1750 d - Bore Diameter N/A 1.7500 in44.45 mm D - Bearing O.D. N/A 3.3360 in84.734 mm T - Bearing Width N/A 0.7188 in18.258 mm Static Load Rating N/A 97700 lbf430 kN Dynamic Load Rating N/A 9460 lbf40 kN
T200A d - Bore Diameter N/A 2.0000 in50.8 mm D - Bearing O.D. N/A 4.3125 in109.538 mm T - Bearing Width N/A 0.8750 in22.225 mm Static Load Rating N/A 181000 lbf800 kN Dynamic Load Rating N/A 16400 lbf70 kN
T2520 d - Bore Diameter N/A 2.5000 in63.5 mm D - Bearing O.D. N/A 4.6250 in117.475 mm T - Bearing Width N/A 1.0000 in25.400 mm Static Load Rating N/A 180000 lbf800 kN Dynamic Load Rating N/A 16900 lbf80 kN
30TTHD013 d - Bore Diameter N/A 3.0000 in76.200 mm D - Bearing O.D. N/A 6.3750 in161.925 mm T - Bearing Width N/A 1.312 in33.325 mm Static Load Rating N/A 405000 lbf1800 kN Dynamic Load Rating N/A 37900 lbf170 kN
T311 d - Bore Diameter N/A 3.0000 in76.200 mm D - Bearing O.D. N/A 6.3750 in161.925 mm T - Bearing Width N/A 1.3215 in33.338 mm Static Load Rating N/A 395000 lbf1760 kN Dynamic Load Rating N/A 34200 lbf150 kN
T311F d - Bore Diameter N/A 3.0000 in76.200 mm D - Bearing O.D. N/A 6.3750 in161.925 mm T - Bearing Width N/A 1.3215 in33.338 mm Static Load Rating N/A 545000 lbf2440 kN Dynamic Load Rating N/A 281000 lbf1250 kN
T411 d - Bore Diameter N/A 4.0000 in101.600 mm D - Bearing O.D. N/A 8.5000 in215.900 mm T - Bearing Width N/A 1.8125 in46.038 mm Static Load Rating N/A 682000 lbf3030 kN Dynamic Load Rating N/A 56800 lbf250 kN
T411F d - Bore Diameter N/A 4.0000 in101.600 mm D - Bearing O.D. N/A 8.5000 in215.900 mm T - Bearing Width N/A 1.8125 in46.038 mm Static Load Rating N/A 945000 lbf4200 kN Dynamic Load Rating N/A 485000 lbf2160 kN
T441 d - Bore Diameter N/A 4.4000 in111.760 mm D - Bearing O.D. N/A 8.8000 in223.520 mm T - Bearing Width N/A 2.2000 in55.880 mm Static Load Rating N/A 727000 lbf3230 kN Dynamic Load Rating N/A 60700 lbf270 kN
T441F d - Bore Diameter N/A 4.4000 in111.760 mm D - Bearing O.D. N/A 8.8000 in223.520 mm T - Bearing Width N/A 2.2000 in55.880 mm Static Load Rating N/A 1010000 lbf4480 kN Dynamic Load Rating N/A 515000 lbf2300 kN
T451 d - Bore Diameter N/A 4.5000 in114.300 mm D - Bearing O.D. N/A 9.8750 in250.825 mm T - Bearing Width N/A 2.1250 in53.975 mm Static Load Rating N/A 985000 lbf4380 kN Dynamic Load Rating N/A 79100 lbf350 kN
T520 d - Bore Diameter N/A 5.0000 in127.000 mm D - Bearing O.D. N/A 9.8750 in250.825 mm T - Bearing Width N/A 2.1875 in55.563 mm Static Load Rating N/A 831000 lbf3700 kN Dynamic Load Rating N/A 69500 lbf310 kN
F-530-A d - Bore Diameter N/A 5.0000 in127.000 mm D - Bearing O.D. N/A 10.5000 in266.700 mm T - Bearing Width N/A 2.3125 in58.738 mm Static Load Rating N/A 1060000 lbf4720 kN Dynamic Load Rating N/A 60100 lbf265 kN
T511 d - Bore Diameter N/A 5.0000 in127.000 mm D - Bearing O.D. N/A 10.5000 in266.700 mm T - Bearing Width N/A 2.3125 in58.738 mm Static Load Rating N/A 1030000 lbf4580 kN Dynamic Load Rating N/A 83600 lbf370 kN
T511F d - Bore Diameter N/A 5.0000 in127.000 mm D - Bearing O.D. N/A 10.5000 in266.700 mm T - Bearing Width N/A 2.3125 in58.738 mm Static Load Rating N/A 1430000 lbf6350 kN Dynamic Load Rating N/A 730000 lbf3260 kN
T511A d - Bore Diameter N/A 5.0625 in128.588 mm D - Bearing O.D. N/A 10.5000 in266.700 mm T - Bearing Width N/A 2.3125 in58.738 mm Static Load Rating N/A 1030000 lbf4580 kN Dynamic Load Rating N/A 83600 lbf370 kN
T9250FA d - Bore Diameter N/A 5.5000 in139.700 mm D - Bearing O.D. N/A 21.5000 in546.100 mm T - Bearing Width N/A 5.0000 in127.000 mm Static Load Rating N/A 7050000 lbf31200 kN Dynamic Load Rating N/A 3600000 lbf16050 kN
N-3247-A d - Bore Diameter N/A 6.0000 in152.400 mm D - Bearing O.D. N/A 11.5000 in292.100 mm T - Bearing Width N/A 3.0000 in76.200 mm Static Load Rating N/A 1150000 lbf5120 kN Dynamic Load Rating N/A 83680 lbf370 kN
T611 d - Bore Diameter N/A 6.0000 in152.400 mm D - Bearing O.D. N/A 12.5000 in317.500 mm T - Bearing Width N/A 2.7500 in69.850 mm Static Load Rating N/A 1500000 lbf6660 kN Dynamic Load Rating N/A 118000 lbf530 kN
T611F d - Bore Diameter N/A 6.0000 in152.400 mm D - Bearing O.D. N/A 12.5000 in317.500 mm T - Bearing Width N/A 2.7500 in69.850 mm Static Load Rating N/A 2070000 lbf9200 kN Dynamic Load Rating N/A 1060000 lbf4750 kN
N-3255-A d - Bore Diameter N/A 6.0000 in152.400 mm D - Bearing O.D. N/A 12.5000 in317.500 mm T - Bearing Width N/A 3.5000 in88.900 mm Static Load Rating N/A 1530000 lbf6810 kN Dynamic Load Rating N/A 106200 lbf470 kN
XC2107 d - Bore Diameter N/A 6.4990 in165.075 mm D - Bearing O.D. N/A 12.0000 in304.800 mm T - Bearing Width N/A 3.0000 in76.200 mm Static Load Rating N/A 1200000 lbf5340 kN Dynamic Load Rating N/A 99300 lbf440 kN
T651 d - Bore Diameter N/A 6.5000 in165.100 mm D - Bearing O.D. N/A 12.2500 in311.150 mm T - Bearing Width N/A 3.5000 in88.900 mm Static Load Rating N/A 1290000 lbf5730 kN Dynamic Load Rating N/A 105000 lbf470 kN
T661 d - Bore Diameter N/A 6.6250 in168.275 mm D - Bearing O.D. N/A 12.0000 in304.800 mm T - Bearing Width N/A 2.7500 in69.850 mm Static Load Rating N/A 1200000 lbf5340 kN Dynamic Load Rating N/A 99300 lbf440 kN
T691 d - Bore Diameter N/A 6.8750 in174.625 mm D - Bearing O.D. N/A 14.1250 in358.775 mm T - Bearing Width N/A 3.2500 in82.550 mm Static Load Rating N/A 1770000 lbf7870 kN Dynamic Load Rating N/A 139000 lbf620 kN
T711 d - Bore Diameter N/A 7.0000 in177.800 mm D - Bearing O.D. N/A 14.5000 in368.300 mm T - Bearing Width N/A 3.2500 in82.550 mm Static Load Rating N/A 2010000 lbf8950 kN Dynamic Load Rating N/A 156000 lbf690 kN
T711F d - Bore Diameter N/A 7.0000 in177.800 mm D - Bearing O.D. N/A 14.5000 in368.300 mm T - Bearing Width N/A 3.2500 in82.550 mm Static Load Rating N/A 2790000 lbf12400 kN Dynamic Load Rating N/A 1430000 lbf6350 kN
T709 d - Bore Diameter N/A 7.0000 in177.800 mm D - Bearing O.D. N/A 17.0000 in431.800 mm T - Bearing Width N/A 4.0000 in101.600 mm Static Load Rating N/A 3060000 lbf13600 kN Dynamic Load Rating N/A 231000 lbf1030 kN
T7519 d - Bore Diameter N/A 7.4803 in190.000 mm D - Bearing O.D. N/A 14.0000 in355.600 mm T - Bearing Width N/A 2.9220 in74.219 mm Static Load Rating N/A 1560000 lbf6950 kN Dynamic Load Rating N/A 127000 lbf560 kN
A-3783-B d - Bore Diameter N/A 7.4803 in190.000 mm D - Bearing O.D. N/A 14.0000 in355.600 mm T - Bearing Width N/A 3.6150 in91.821 mm Static Load Rating N/A 1960000 lbf8710 kN Dynamic Load Rating N/A 139000 lbf620 kN
N-3239-A d - Bore Diameter N/A 7.5000 in190.500 mm D - Bearing O.D. N/A 14.5000 in368.300 mm T - Bearing Width N/A 3.7500 in95.250 mm Static Load Rating N/A 2080000 lbf9250 kN Dynamic Load Rating N/A 169000 lbf750 kN
XC2108 d - Bore Diameter N/A 7.9980 in203.150 mm D - Bearing O.D. N/A 15.6250 in396.875 mm T - Bearing Width N/A 5.1250 in130.175 mm Static Load Rating N/A 2180000 lbf9700 kN Dynamic Load Rating N/A 154000 lbf690 kN
T811 d - Bore Diameter N/A 8.0000 in203.200 mm D - Bearing O.D. N/A 16.5000 in419.100 mm T - Bearing Width N/A 3.6250 in92.075 mm Static Load Rating N/A 2560000 lbf11400 kN Dynamic Load Rating N/A 195000 lbf870 kN
T811F d - Bore Diameter N/A 8.0000 in203.200 mm D - Bearing O.D. N/A 16.5000 in419.100 mm T - Bearing Width N/A 3.6250 in92.075 mm Static Load Rating N/A 3540000 lbf15750 kN Dynamic Load Rating N/A 1820000 lbf8100 kN
T811V d - Bore Diameter N/A 8.0000 in203.200 mm D - Bearing O.D. N/A 16.5000 in419.100 mm T - Bearing Width N/A 3.6250 in92.075 mm Static Load Rating N/A 2560000 lbf11400 kN Dynamic Load Rating N/A 195000 lbf870 kN
N-3263-A d - Bore Diameter N/A 8.1250 in206.375 mm D - Bearing O.D. N/A 16.5000 in419.100 mm T - Bearing Width N/A 4.7500 in120.650 mm Static Load Rating N/A 2920000 lbf13000 kN Dynamic Load Rating N/A 219000 lbf970 kN
XC760 d - Bore Diameter N/A 8.1250 in206.375 mm D - Bearing O.D. N/A 16.5000 in419.100 mm T - Bearing Width N/A 4.7500 in120.650 mm Static Load Rating N/A 2560000 lbf11400 kN Dynamic Load Rating N/A 195000 lbf870 kN
T9020 d - Bore Diameter N/A 9.0000 in228.600 mm D - Bearing O.D. N/A 17.0000 in431.800 mm T - Bearing Width N/A 3.4950 in88.773 mm Static Load Rating N/A 2450000 lbf10900 kN Dynamic Load Rating N/A 192000 lbf850 kN
T911 d - Bore Diameter N/A 9.0000 in228.600 mm D - Bearing O.D. N/A 19.0000 in482.600 mm T - Bearing Width N/A 4.1250 in104.775 mm Static Load Rating N/A 3420000 lbf15200 kN Dynamic Load Rating N/A 256000 lbf1140 kN
T911A d - Bore Diameter N/A 9.2500 in234.950 mm D - Bearing O.D. N/A 19.0000 in482.600 mm T - Bearing Width N/A 4.1250 in104.775 mm Static Load Rating N/A 3420000 lbf15200 kN Dynamic Load Rating N/A 256000 lbf1140 kN
T921 d - Bore Diameter N/A 9.2500 in234.950 mm D - Bearing O.D. N/A 21.5000 in546.100 mm T - Bearing Width N/A 5.0000 in127.000 mm Static Load Rating N/A 4780000 lbf21300 kN Dynamic Load Rating N/A 353000 lbf1570 kN
T921F d - Bore Diameter N/A 9.2500 in234.950 mm D - Bearing O.D. N/A 21.5000 in546.100 mm T - Bearing Width N/A 5.0000 in127.000 mm Static Load Rating N/A 6750000 lbf30000 kN Dynamic Load Rating N/A 3500000 lbf15550 kN
T9250F d - Bore Diameter N/A 9.2500 in234.950 mm D - Bearing O.D. N/A 21.5000 in546.100 mm T - Bearing Width N/A 5.0000 in127.000 mm Static Load Rating N/A 7050000 lbf31200 kN Dynamic Load Rating N/A 3600000 lbf16050 kN
N-3235-A d - Bore Diameter N/A 9.5000 in241.300 mm D - Bearing O.D. N/A 19.5000 in495.300 mm T - Bearing Width N/A 5.0000 in127.000 mm Static Load Rating N/A 4180000 lbf18600 kN Dynamic Load Rating N/A 298000 lbf1320 kN
N-3517-A d - Bore Diameter N/A 9.5000 in241.300 mm D - Bearing O.D. N/A 19.5000 in495.300 mm T - Bearing Width N/A 5.0000 in127.000 mm Static Load Rating N/A 4280000 lbf19000 kN Dynamic Load Rating N/A 357000 lbf1590 kN
T1011 d - Bore Diameter N/A 10.0000 in254.000 mm D - Bearing O.D. N/A 21.2500 in539.750 mm T - Bearing Width N/A 4.6250 in117.475 mm Static Load Rating N/A 4350000 lbf19400 kN Dynamic Load Rating N/A 319000 lbf1420 kN
N-3243-A d - Bore Diameter N/A 10.7500 in273.050 mm D - Bearing O.D. N/A 21.7500 in552.450 mm T - Bearing Width N/A 5.2500 in133.350 mm Static Load Rating N/A 5030000 lbf22400 kN Dynamic Load Rating N/A 371000 lbf1650 kN
N-3259-A d - Bore Diameter N/A 10.7500 in273.050 mm D - Bearing O.D. N/A 22.3100 in566.674 mm T - Bearing Width N/A 7.0000 in177.800 mm Static Load Rating N/A 5590000 lbf24900 kN Dynamic Load Rating N/A 393000 lbf1750 kN
N-3251-A d - Bore Diameter N/A 10.7500 in273.050 mm D - Bearing O.D. N/A 23.7500 in603.250 mm T - Bearing Width N/A 5.7500 in146.050 mm Static Load Rating N/A 6230000 lbf27700 kN Dynamic Load Rating N/A 449000 lbf2000 kN
N-3513-A d - Bore Diameter N/A 10.7500 in273.050 mm D - Bearing O.D. N/A 23.7500 in603.250 mm T - Bearing Width N/A 5.7500 in146.050 mm Static Load Rating N/A 6260000 lbf27900 kN Dynamic Load Rating N/A 498000 lbf2220 kN
T1115 d - Bore Diameter N/A 11.0000 in279.400 mm D - Bearing O.D. N/A 19.5000 in495.300 mm T - Bearing Width N/A 5.2500 in133.350 mm Static Load Rating N/A 3150000 lbf14000 kN Dynamic Load Rating N/A 245000 lbf1090 kN
T1120 d - Bore Diameter N/A 11.0000 in279.400 mm D - Bearing O.D. N/A 23.7500 in603.250 mm T - Bearing Width N/A 5.3750 in136.525 mm Static Load Rating N/A 5690000 lbf25300 kN Dynamic Load Rating N/A 408000 lbf1810 kN
T1120F d - Bore Diameter N/A 11.0000 in279.400 mm D - Bearing O.D. N/A 23.7500 in603.250 mm T - Bearing Width N/A 5.3750 in136.525 mm Static Load Rating N/A 7870000 lbf35000 kN Dynamic Load Rating N/A 4040000 lbf18000 kN
T1421 d - Bore Diameter N/A 14.0000 in355.600 mm D - Bearing O.D. N/A 21.0000 in533.400 mm T - Bearing Width N/A 4.0000 in101.600 mm Static Load Rating N/A 2710000 lbf12100 kN Dynamic Load Rating N/A 189000 lbf840 kN
T1421F d - Bore Diameter N/A 14.0000 in355.600 mm D - Bearing O.D. N/A 21.0000 in533.400 mm T - Bearing Width N/A 4.0000 in101.600 mm Static Load Rating N/A 3870000 lbf17200 kN Dynamic Load Rating N/A 1790000 lbf8000 kN
G-2308-B d - Bore Diameter N/A 14.0000 in355.600 mm D - Bearing O.D. N/A 24.5000 in622.300 mm T - Bearing Width N/A 4.5625 in115.888 mm Static Load Rating N/A 5950000 lbf26500 kN Dynamic Load Rating N/A 419000 lbf1860 kN
T14520 d - Bore Diameter N/A 14.5000 in368.300 mm D - Bearing O.D. N/A 23.7500 in603.300 mm T - Bearing Width N/A 4.7500 in120.650 mm Static Load Rating N/A 4060000 lbf18100 kN Dynamic Load Rating N/A 319000 lbf1420 kN
T16021 d - Bore Diameter N/A 16.0000 in406.400 mm D - Bearing O.D. N/A 28.0000 in711.200 mm T - Bearing Width N/A 5.7500 in146.050 mm Static Load Rating N/A 6530000 lbf29000 kN Dynamic Load Rating N/A 480000 lbf2130 kN
T16021F d - Bore Diameter N/A 16.0000 in406.400 mm D - Bearing O.D. N/A 28.0000 in711.200 mm T - Bearing Width N/A 5.7500 in146.050 mm Static Load Rating N/A 8600000 lbf38200 kN Dynamic Load Rating N/A 4400000 lbf19600 kN
T16050 d - Bore Diameter N/A 16.0000 in406.400 mm D - Bearing O.D. N/A 33.0000 in838.200 mm T - Bearing Width N/A 7.0000 in177.800 mm Static Load Rating N/A 10800000 lbf48000 kN Dynamic Load Rating N/A 747000 lbf3320 kN
T16050F d - Bore Diameter N/A 16.0000 in406.400 mm D - Bearing O.D. N/A 33.0000 in838.200 mm T - Bearing Width N/A 7.0000 in177.800 mm Static Load Rating N/A 15000000 lbf66500 kN Dynamic Load Rating N/A 7650000 lbf34200 kN
B-8948-G d - Bore Diameter N/A 16.0000 in406.400 mm D - Bearing O.D. N/A 36.0000 in914.400 mm T - Bearing Width N/A 7.5000 in190.500 mm Static Load Rating N/A 18200000 lbf81000 kN Dynamic Load Rating N/A 1220000 lbf5430 kN
T20020 d - Bore Diameter N/A 20.0000 in508.000 mm D - Bearing O.D. N/A 39.0000 in990.600 mm T - Bearing Width N/A 7.7500 in196.850 mm Static Load Rating N/A 15000000 lbf66700 kN Dynamic Load Rating N/A 1020000 lbf4530 kN
XC2102 d - Bore Diameter N/A 39.4910 in1003.070 mm D - Bearing O.D. N/A 44.0000 in1117.600 mm T - Bearing Width N/A 2.0000 in50.800 mm Static Load Rating N/A 3350000 lbf14900 kN Dynamic Load Rating N/A 119000 lbf530 kN
XC2101 d - Bore Diameter N/A 45.7500 in1162.050 mm D - Bearing O.D. N/A 50.5000 in1282.700 mm T - Bearing Width N/A 2.0625 in52.388 mm Static Load Rating N/A 4280000 lbf19000 kN Dynamic Load Rating N/A 139000 lbf620 kN
T48000 d - Bore Diameter N/A 48.0000 in1219.200 mm D - Bearing O.D. N/A 60.0000 in1524.000 mm T - Bearing Width N/A 5.3750 in136.525 mm Static Load Rating N/A 16800000 lbf74800 kN Dynamic Load Rating N/A 775000 lbf3450 kN
