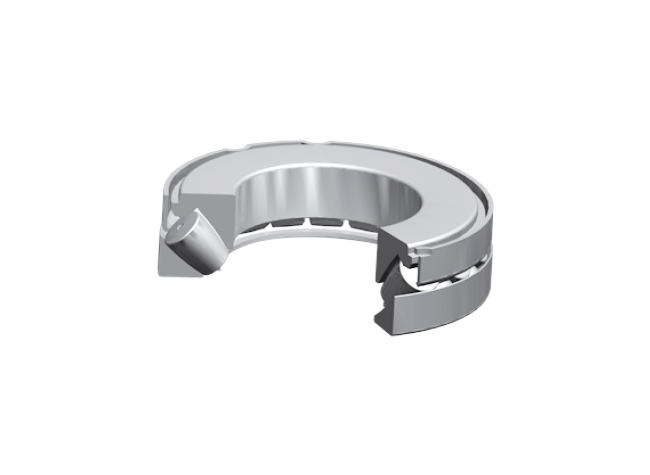

Thrust spherical roller bearings (type TSR) are ideal for applications where conditions include heavy loads, difficulties in establishing or maintaining housing alignment and problems with shaft deflection.
|
Timken Part Number |
Bore Size | Outside Diameter | Total Width | Static Load Rating | Dynamic Load Rating |
Thermal Speed Rating |
| 29418EJ | Bore Size 90 mm3.543 in | Outside Diameter 190.000 mm7.480 in | Total Width 60.00 mm2.362 in | Static Load Rating 1890 kN426000 lbf | Dynamic Load Rating 820 kN184000 lbf | Thermal Speed Rating 2000 rpm |
| 29320EJ | Bore Size 100 mm3.937 in | Outside Diameter 170.000 mm6.693 in | Total Width 42 mm1.654 in | Static Load Rating 1240 kN278000 lbf | Dynamic Load Rating 462 kN104000 lbf | Thermal Speed Rating 2000 rpm |
| 29420EJ | Bore Size 100 mm3.937 in | Outside Diameter 210.000 mm8.268 in | Total Width 67.00 mm2.638 in | Static Load Rating 2390 kN536000 lbf | Dynamic Load Rating 1020 kN230000 lbf | Thermal Speed Rating 1800 rpm |
| 29322EJ | Bore Size 110 mm4.331 in | Outside Diameter 190.000 mm7.480 in | Total Width 48.03 mm1.891 in | Static Load Rating 1660 kN372000 lbf | Dynamic Load Rating 604 kN136000 lbf | Thermal Speed Rating 1800 rpm |
| 29422EJ | Bore Size 110 mm4.331 in | Outside Diameter 230.000 mm9.055 in | Total Width 73 mm2.874 in | Static Load Rating 2840 kN638000 lbf | Dynamic Load Rating 1200 kN269000 lbf | Thermal Speed Rating 1700 rpm |
| 29324EJ | Bore Size 120.000 mm4.724 in | Outside Diameter 210.000 mm8.268 in | Total Width 54.00 mm2.126 in | Static Load Rating 2070 kN466000 lbf | Dynamic Load Rating 768 kN173000 lbf | Thermal Speed Rating 1700 rpm |
| 29424EJ | Bore Size 120.000 mm4.724 in | Outside Diameter 250.000 mm9.843 in | Total Width 78.00 mm3.071 in | Static Load Rating 3320 kN746000 lbf | Dynamic Load Rating 1390 kN312000 lbf | Thermal Speed Rating 1500 rpm |
| 29326EJ | Bore Size 130 mm5.118 in | Outside Diameter 225.000 mm8.858 in | Total Width 58.00 mm2.284 in | Static Load Rating 2410 kN543000 lbf | Dynamic Load Rating 852 kN192000 lbf | Thermal Speed Rating 1600 rpm |
| 29426EJ | Bore Size 130 mm5.118 in | Outside Diameter 270.000 mm10.630 in | Total Width 85.00 mm3.346 in | Static Load Rating 3870 kN871000 lbf | Dynamic Load Rating 1600 kN359000 lbf | Thermal Speed Rating 1400 rpm |
| 29328EJ | Bore Size 140 mm5.512 in | Outside Diameter 240.000 mm9.449 in | Total Width 60.00 mm2.362 in | Static Load Rating 2710 kN609000 lbf | Dynamic Load Rating 970 kN218000 lbf | Thermal Speed Rating 1500 rpm |
| 29428EJ | Bore Size 140 mm5.512 in | Outside Diameter 280.000 mm11.024 in | Total Width 85.00 mm3.346 in | Static Load Rating 4110 kN924000 lbf | Dynamic Load Rating 1640 kN369000 lbf | Thermal Speed Rating 1300 rpm |
| 29330EJ | Bore Size 150.00 mm5.906 in | Outside Diameter 250.000 mm9.843 in | Total Width 60.00 mm2.362 in | Static Load Rating 2760 kN620000 lbf | Dynamic Load Rating 993 kN223000 lbf | Thermal Speed Rating 1400 rpm |
| 29430EJ | Bore Size 150.00 mm5.906 in | Outside Diameter 300.000 mm11.8110 in | Total Width 90.00 mm3.543 in | Static Load Rating 4730 kN1060000 lbf | Dynamic Load Rating 1860 kN418000 lbf | Thermal Speed Rating 1200 rpm |
| 29332EJ | Bore Size 160.00 mm6.299 in | Outside Diameter 270.000 mm10.630 in | Total Width 67.00 mm2.638 in | Static Load Rating 3370 kN758000 lbf | Dynamic Load Rating 1190 kN267000 lbf | Thermal Speed Rating 1300 rpm |
| 29432EJ | Bore Size 160.00 mm6.299 in | Outside Diameter 320.000 mm12.598 in | Total Width 95.00 mm3.740 in | Static Load Rating 5340 kN1200000 lbf | Dynamic Load Rating 2100 kN472000 lbf | Thermal Speed Rating 1200 rpm |
| 29334EJ | Bore Size 170.00 mm6.693 in | Outside Diameter 280.000 mm11.024 in | Total Width 67.00 mm2.638 in | Static Load Rating 3430 kN770000 lbf | Dynamic Load Rating 1230 kN277000 lbf | Thermal Speed Rating 1200 rpm |
| 29434EJ | Bore Size 170.00 mm6.693 in | Outside Diameter 340.000 mm13.386 in | Total Width 103.00 mm4.055 in | Static Load Rating 6140 kN1380000 lbf | Dynamic Load Rating 2380 kN536000 lbf | Thermal Speed Rating 1100 rpm |
| 29336EJ | Bore Size 180.00 mm7.087 in | Outside Diameter 300.000 mm11.8110 in | Total Width 73.03 mm2.875 in | Static Load Rating 4130 kN927000 lbf | Dynamic Load Rating 1430 kN322000 lbf | Thermal Speed Rating 1200 rpm |
| 29436EJ | Bore Size 180.00 mm7.087 in | Outside Diameter 360.000 mm14.173 in | Total Width 109.03 mm4.291 in | Static Load Rating 7090 kN1590000 lbf | Dynamic Load Rating 2660 kN598000 lbf | Thermal Speed Rating 990 rpm |
| 29338EJ | Bore Size 190.000 mm7.480 in | Outside Diameter 320.000 mm12.598 in | Total Width 78.13 mm3.076 in | Static Load Rating 4550 kN1020000 lbf | Dynamic Load Rating 1620 kN364000 lbf | Thermal Speed Rating 1100 rpm |
| 29438EJ | Bore Size 190.000 mm7.480 in | Outside Diameter 380.000 mm14.961 in | Total Width 115.000 mm4.528 in | Static Load Rating 7910 kN1780000 lbf | Dynamic Load Rating 3040 kN683000 lbf | Thermal Speed Rating 930 rpm |
| 29340EJ | Bore Size 200.000 mm7.874 in | Outside Diameter 340.000 mm13.386 in | Total Width 85.04 mm3.348 in | Static Load Rating 5370 kN1210000 lbf | Dynamic Load Rating 1880 kN423000 lbf | Thermal Speed Rating 1000 rpm |
| 29440EJ | Bore Size 200.000 mm7.874 in | Outside Diameter 400.000 mm15.748 in | Total Width 122.00 mm4.803 in | Static Load Rating 8470 kN1900000 lbf | Dynamic Load Rating 3210 kN723000 lbf | Thermal Speed Rating 900 rpm |
| 29344EJ | Bore Size 220.00 mm8.661 in | Outside Diameter 360.000 mm14.172 in | Total Width 85.03 mm3.348 in | Static Load Rating 5840 kN1310000 lbf | Dynamic Load Rating 1950 kN437000 lbf | Thermal Speed Rating 960 rpm |
| 29444EJ | Bore Size 220.00 mm8.661 in | Outside Diameter 420.000 mm16.535 in | Total Width 122.00 mm4.803 in | Static Load Rating 9090 kN2040000 lbf | Dynamic Load Rating 3350 kN754000 lbf | Thermal Speed Rating 830 rpm |
| 29348EJ | Bore Size 240.00 mm9.449 in | Outside Diameter 380.000 mm14.961 in | Total Width 85.03 mm3.348 in | Static Load Rating 6280 kN1410000 lbf | Dynamic Load Rating 2040 kN458000 lbf | Thermal Speed Rating 870 rpm |
| 29448EJ | Bore Size 240.00 mm9.449 in | Outside Diameter 440.00 mm17.323 in | Total Width 122.00 mm4.803 in | Static Load Rating 9520 kN2140000 lbf | Dynamic Load Rating 3410 kN767000 lbf | Thermal Speed Rating 770 rpm |
| 29352EJ | Bore Size 260.00 mm10.236 in | Outside Diameter 420.000 mm16.535 in | Total Width 95.00 mm3.740 in | Static Load Rating 8100 kN1820000 lbf | Dynamic Load Rating 2580 kN579000 lbf | Thermal Speed Rating 790 rpm |
| 29452EJ | Bore Size 260.00 mm10.236 in | Outside Diameter 480.000 mm18.898 in | Total Width 132.04 mm5.197 in | Static Load Rating 11900 kN2680000 lbf | Dynamic Load Rating 4160 kN935000 lbf | Thermal Speed Rating 690 rpm |
| 29356EJ | Bore Size 280.000 mm11.024 in | Outside Diameter 440.00 mm17.323 in | Total Width 95.04 mm3.742 in | Static Load Rating 8500 kN1910000 lbf | Dynamic Load Rating 2580 kN580000 lbf | Thermal Speed Rating 740 rpm |
| 29456EJ | Bore Size 280.000 mm11.024 in | Outside Diameter 520.00 mm20.472 in | Total Width 145.16 mm5.715 in | Static Load Rating 1430 kN3220000 lbf | Dynamic Load Rating 4920 kN1110000 lbf | Thermal Speed Rating 1300 rpm |
| 29360EJ | Bore Size 300.00 mm11.811 in | Outside Diameter 480.000 mm18.898 in | Total Width 109.04 mm4.293 in | Static Load Rating 9900 kN2230000 lbf | Dynamic Load Rating 3150 kN709000 lbf | Thermal Speed Rating 690 rpm |
| 29460EJ | Bore Size 300.00 mm11.811 in | Outside Diameter 540.000 mm21.260 in | Total Width 145.00 mm5.709 in | Static Load Rating 15000 kN3370000 lbf | Dynamic Load Rating 4990 kN1120000 lbf | Thermal Speed Rating 600 rpm |
| 29364EJ | Bore Size 320.00 mm12.598 in | Outside Diameter 500.00 mm19.685 in | Total Width 109.00 mm4.291 in | Static Load Rating 10700 kN2400000 lbf | Dynamic Load Rating 2830 kN636000 lbf | Thermal Speed Rating 650 rpm |
| 29464EM | Bore Size 320.00 mm12.598 in | Outside Diameter 580.00 mm22.835 in | Total Width 155.00 mm6.102 in | Static Load Rating 18909 kN4251000 lbf | Dynamic Load Rating 5155 kN1159000 lbf | Thermal Speed Rating 530 rpm |
| 29368EJ | Bore Size 340.00 mm13.386 in | Outside Diameter 540.000 mm21.260 in | Total Width 122.00 mm4.803 in | Static Load Rating 12000 kN2690000 lbf | Dynamic Load Rating 3120 kN702000 lbf | Thermal Speed Rating 620 rpm |
| 29468EM | Bore Size 340.00 mm13.386 in | Outside Diameter 620.00 mm24.409 in | Total Width 170.00 mm6.693 in | Static Load Rating 22030 kN4953000 lbf | Dynamic Load Rating 5920 kN1331000 lbf | Thermal Speed Rating 490 rpm |
| 29372EM | Bore Size 360.00 mm14.173 in | Outside Diameter 560.00 mm22.047 in | Total Width 122.00 mm4.803 in | Static Load Rating 15130 kN3402000 lbf | Dynamic Load Rating 3630 kN816400 lbf | Thermal Speed Rating 540 rpm |
| 29472EM | Bore Size 360.00 mm14.173 in | Outside Diameter 640.00 mm25.197 in | Total Width 170.00 mm6.693 in | Static Load Rating 19500 kN4380000 lbf | Dynamic Load Rating 5440 kN1220000 lbf | Thermal Speed Rating 510 rpm |
| 29376EM | Bore Size 380.00 mm14.961 in | Outside Diameter 600.000 mm23.622 in | Total Width 132.00 mm5.197 in | Static Load Rating 17780 kN3996000 lbf | Dynamic Load Rating 4300 kN965500 lbf | Thermal Speed Rating 500 rpm |
| 29476EM | Bore Size 380.00 mm14.961 in | Outside Diameter 670.00 mm26.378 in | Total Width 175.00 mm6.890 in | Static Load Rating 24870 kN5592000 lbf | Dynamic Load Rating 6490 kN1460000 lbf | Thermal Speed Rating 440 rpm |
| 29380EM | Bore Size 400.00 mm15.748 in | Outside Diameter 620.00 mm24.409 in | Total Width 132.00 mm5.197 in | Static Load Rating 15100 kN3390000 lbf | Dynamic Load Rating 3850 kN864000 lbf | Thermal Speed Rating 530 rpm |
| 29480EM | Bore Size 400.00 mm15.748 in | Outside Diameter 710.00 mm27.953 in | Total Width 185.00 mm7.284 in | Static Load Rating 28470 kN6400000 lbf | Dynamic Load Rating 7330 kN1649000 lbf | Thermal Speed Rating 410 rpm |
| 29284EM | Bore Size 420.00 mm16.535 in | Outside Diameter 580.00 mm22.835 in | Total Width 95.00 mm3.740 in | Static Load Rating 12460 kN2802000 lbf | Dynamic Load Rating 2680 kN602900 lbf | Thermal Speed Rating 580 rpm |
| 29384EM | Bore Size 420.00 mm16.535 in | Outside Diameter 650.00 mm25.591 in | Total Width 140.00 mm5.512 in | Static Load Rating 16000 kN3610000 lbf | Dynamic Load Rating 4040 kN909000 lbf | Thermal Speed Rating 510 rpm |
| 29484EM | Bore Size 420.00 mm16.535 in | Outside Diameter 730.00 mm28.740 in | Total Width 185.00 mm7.284 in | Static Load Rating 26000 kN5860000 lbf | Dynamic Load Rating 6780 kN1530000 lbf | Thermal Speed Rating 430 rpm |
| 29388EM | Bore Size 440.000 mm17.323 in | Outside Diameter 680.00 mm26.772 in | Total Width 145.00 mm5.709 in | Static Load Rating 18500 kN4160000 lbf | Dynamic Load Rating 4530 kN1020000 lbf | Thermal Speed Rating 480 rpm |
| 29488EM | Bore Size 440.000 mm17.323 in | Outside Diameter 780.00 mm30.709 in | Total Width 206.03 mm8.110 in | Static Load Rating 33710 kN7579000 lbf | Dynamic Load Rating 8610 kN1935000 lbf | Thermal Speed Rating 370 rpm |
| 29392EM | Bore Size 460.00 mm18.110 in | Outside Diameter 710.00 mm27.953 in | Total Width 150.00 mm5.906 in | Static Load Rating 20200 kN4540000 lbf | Dynamic Load Rating 4820 kN1080000 lbf | Thermal Speed Rating 450 rpm |
| 29492EM | Bore Size 460.00 mm18.110 in | Outside Diameter 800.00 mm31.496 in | Total Width 206.00 mm8.110 in | Static Load Rating 31700 kN7120000 lbf | Dynamic Load Rating 8120 kN1830000 lbf | Thermal Speed Rating 380 rpm |
| 29396EM | Bore Size 480.00 mm18.898 in | Outside Diameter 730.00 mm28.740 in | Total Width 150.00 mm5.906 in | Static Load Rating 20000 kN4500000 lbf | Dynamic Load Rating 4820 kN1080000 lbf | Thermal Speed Rating 440 rpm |
| 29496EM | Bore Size 480.00 mm18.898 in | Outside Diameter 850.00 mm33.465 in | Total Width 224.00 mm8.819 in | Static Load Rating 35800 kN8040000 lbf | Dynamic Load Rating 9320 kN2090000 lbf | Thermal Speed Rating 360 rpm |
| 293/500EM | Bore Size 500.00 mm19.685 in | Outside Diameter 750.00 mm29.528 in | Total Width 150.00 mm5.906 in | Static Load Rating 20500 kN4620000 lbf | Dynamic Load Rating 4840 kN1090000 lbf | Thermal Speed Rating 430 rpm |
| 294/500EM | Bore Size 500.00 mm19.685 in | Outside Diameter 870.00 mm34.252 in | Total Width 224.00 mm8.819 in | Static Load Rating 42370 kN9525000 lbf | Dynamic Load Rating 10360 kN2328000 lbf | Thermal Speed Rating 320 rpm |
| 293/530EM | Bore Size 530.00 mm20.866 in | Outside Diameter 800.00 mm31.496 in | Total Width 160.00 mm6.299 in | Static Load Rating 24100 kN5410000 lbf | Dynamic Load Rating 5600 kN1260000 lbf | Thermal Speed Rating 390 rpm |
| 294/530EM | Bore Size 530.00 mm20.866 in | Outside Diameter 920.00 mm36.221 in | Total Width 236.00 mm9.291 in | Static Load Rating 47120 kN10593000 lbf | Dynamic Load Rating 11440 kN2572000 lbf | Thermal Speed Rating 300 rpm |
| 293/560EM | Bore Size 560.00 mm22.047 in | Outside Diameter 850.00 mm33.465 in | Total Width 175.00 mm6.890 in | Static Load Rating 26600 kN5990000 lbf | Dynamic Load Rating 6180 kN1390000 lbf | Thermal Speed Rating 370 rpm |
| 294/560EM | Bore Size 560.00 mm22.047 in | Outside Diameter 980.00 mm38.583 in | Total Width 250.00 mm9.843 in | Static Load Rating 54370 kN12222000 lbf | Dynamic Load Rating 13010 kN2926000 lbf | Thermal Speed Rating 280 rpm |
| 292/600EM | Bore Size 600.00 mm23.622 in | Outside Diameter 800.00 mm31.496 in | Total Width 122.00 mm4.803 in | Static Load Rating 21920 kN4927000 lbf | Dynamic Load Rating 4370 kN981600 lbf | Thermal Speed Rating 400 rpm |
| 293/600EM | Bore Size 600.00 mm23.622 in | Outside Diameter 900.00 mm35.433 in | Total Width 180.20 mm7.095 in | Static Load Rating 32700 kN7360000 lbf | Dynamic Load Rating 7380 kN1660000 lbf | Thermal Speed Rating 330 rpm |
| 294/600EM | Bore Size 600.00 mm23.622 in | Outside Diameter 1030.00 mm40.551 in | Total Width 258.00 mm10.158 in | Static Load Rating 57530 kN12933000 lbf | Dynamic Load Rating 13840 kN3112000 lbf | Thermal Speed Rating 260 rpm |
| 292/630EM | Bore Size 630.00 mm24.803 in | Outside Diameter 850.00 mm33.465 in | Total Width 132.00 mm5.197 in | Static Load Rating 25800 kN5800000 lbf | Dynamic Load Rating 5040 kN1133000 lbf | Thermal Speed Rating 380 rpm |
| 294/630EM | Bore Size 630.00 mm24.803 in | Outside Diameter 1090.00 mm42.913 in | Total Width 280.00 mm11.024 in | Static Load Rating 65910 kN14816000 lbf | Dynamic Load Rating 15640 kN3515000 lbf | Thermal Speed Rating 240 rpm |
| 292/670EJ | Bore Size 670.00 mm26.378 in | Outside Diameter 900.00 mm35.433 in | Total Width 140.00 mm5.512 in | Static Load Rating 23100 kN5190000 lbf | Dynamic Load Rating 4450 kN1000000 lbf | Thermal Speed Rating 370 rpm |
| 292/670EM | Bore Size 670.00 mm26.378 in | Outside Diameter 900.00 mm35.433 in | Total Width 140.00 mm5.512 in | Static Load Rating 22000 kN4940000 lbf | Dynamic Load Rating 4290 kN965000 lbf | Thermal Speed Rating 410 rpm |
| 294/670EM | Bore Size 670.00 mm26.378 in | Outside Diameter 1150.00 mm45.276 in | Total Width 290.00 mm11.417 in | Static Load Rating 71970 kN16179000 lbf | Dynamic Load Rating 17030 kN3829000 lbf | Thermal Speed Rating 230 rpm |
| 294/710EM | Bore Size 710.00 mm27.953 in | Outside Diameter 1220.00 mm48.032 in | Total Width 308.00 mm12.126 in | Static Load Rating 81300 kN18276000 lbf | Dynamic Load Rating 19060 kN4284000 lbf | Thermal Speed Rating 210 rpm |
| 293/750EM | Bore Size 750.00 mm29.528 in | Outside Diameter 1120.00 mm44.095 in | Total Width 224.00 mm8.819 in | Static Load Rating 55860 kN12557000 lbf | Dynamic Load Rating 11770 kN2647000 lbf | Thermal Speed Rating 240 rpm |
| 294/750EM | Bore Size 750.00 mm29.528 in | Outside Diameter 1280.00 mm50.394 in | Total Width 315.00 mm12.402 in | Static Load Rating 87900 kN19761000 lbf | Dynamic Load Rating 20560 kN4621000 lbf | Thermal Speed Rating 200 rpm |
| 294/800EM | Bore Size 800.00 mm31.496 in | Outside Diameter 1360.00 mm53.543 in | Total Width 335.00 mm13.189 in | Static Load Rating 98280 kN22094000 lbf | Dynamic Load Rating 22700 kN5104000 lbf | Thermal Speed Rating 190 rpm |
| 294/850EJ | Bore Size 850.00 mm33.465 in | Outside Diameter 1440.00 mm56.693 in | Total Width 354.09 mm13.940 in | Static Load Rating 112880 kN25377000 lbf | Dynamic Load Rating 24650 kN5542000 lbf | Thermal Speed Rating 170 rpm |
| 294/850EM | Bore Size 850.00 mm33.465 in | Outside Diameter 1440.00 mm56.693 in | Total Width 354.09 mm13.940 in | Static Load Rating 109310 kN24574000 lbf | Dynamic Load Rating 25250 kN5677000 lbf | Thermal Speed Rating 170 rpm |
| 294/900EM | Bore Size 900.00 mm35.433 in | Outside Diameter 1520.00 mm59.843 in | Total Width 372.00 mm14.646 in | Static Load Rating 126950 kN28540000 lbf | Dynamic Load Rating 27440 kN6168000 lbf | Thermal Speed Rating 160 rpm |
| 294/950EM | Bore Size 950.00 mm37.402 in | Outside Diameter 1600.00 mm62.992 in | Total Width 390.00 mm15.354 in | Static Load Rating 139020 kN31253000 lbf | Dynamic Load Rating 30600 kN6880000 lbf | Thermal Speed Rating 150 rpm |
| 292/1000EM | Bore Size 1000.00 mm39.370 in | Outside Diameter 1320.00 mm51.969 in | Total Width 190.00 mm7.480 in | Static Load Rating 59110 kN13288000 lbf | Dynamic Load Rating 10580 kN2379000 lbf | Thermal Speed Rating 230 rpm |
| 293/1000EM | Bore Size 1000.00 mm39.370 in | Outside Diameter 1460.00 mm57.480 in | Total Width 276.00 mm10.866 in | Static Load Rating 94280 kN21194000 lbf | Dynamic Load Rating 18520 kN4163000 lbf | Thermal Speed Rating 140 rpm |
| 294/1000EM | Bore Size 1000.00 mm39.370 in | Outside Diameter 1670.00 mm65.748 in | Total Width 402.00 mm15.827 in | Static Load Rating 148040 kN33280000 lbf | Dynamic Load Rating 32590 kN7326000 lbf | Thermal Speed Rating 140 rpm |
